Baicells is a private, high-tech company providing innovative LTE wireless broadband
access solutions. The Baicells solutions support fixed wireless access and mobile scenarios.
With the vision to connect the unconnected, Baicells has introduced breakthrough
technologies to LTE, like moving a complete LTE system to unlicensed spectrum and
building it with an IT based architecture.
With the Baicells turnkey end-to-end solutions, it becomes much easier to provide wireless
internet within everyone's reach at a very low cost. These innovative solutions can be used
by mobile operators, broadband access operators, Internet Service Providers (ISP), Mobile
Virtual Network Operators (MVNO), governments, and enterprise private networks.
The Baicells u4G-UE1000 is a type of LTE-Unlicensed Outdoor Customer Premise
Equipment (CPE) working on unlicensed frequency, which provides superior wireless
access performance and comprehensive routing capabilities to bring wireless broadband
data and voice services to end-users. It converts high-speed LTE FDD signals to WiFi
signals on the local area network (LAN).

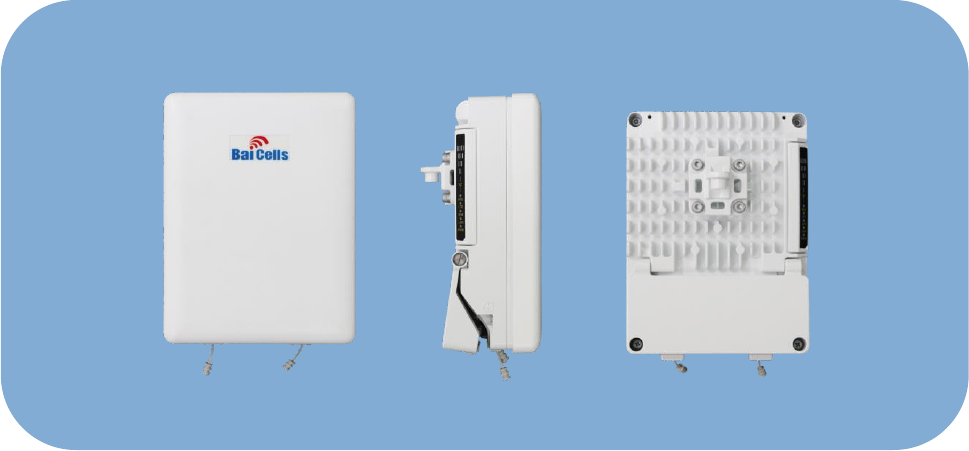

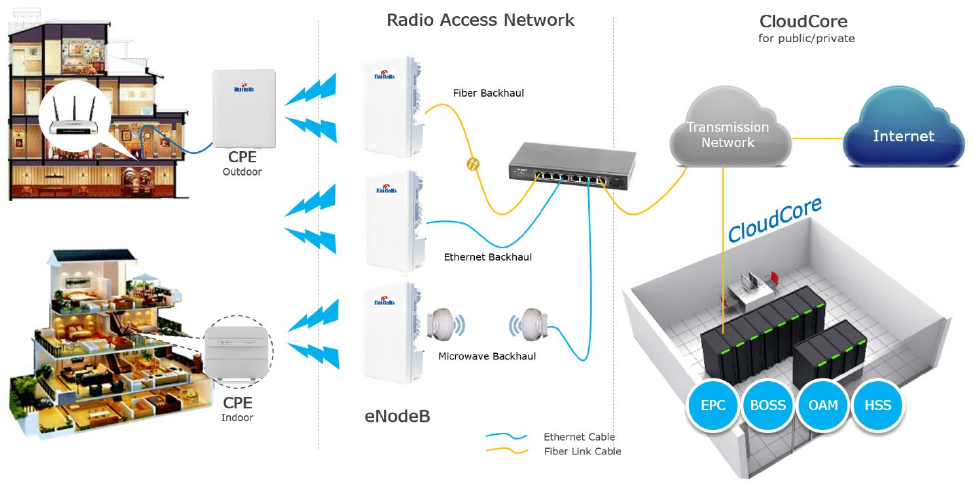

The typical topology of u4G-UE1000 deployment is as follows, which solution provides
wireless broadband and wired Ethernet data services for customers.
2
Highlights
Supports LTE-FDD frequency bands 46 and self-define frequency.
Complies with 3GPP Release 9 CAT4 standards.
1000 Mbps Ethernet interface.
Convenient, simple, GUI-based local and remote Web management.
Built-in bipolar directional high-gain LTE antenna.
TR069 network management protocol.
Cell lock, SIM lock, and Pin lock.
User-friendly LED indicators.
Power supply with standard PoE at/af.
Pole mounted or wall mounted.
3
Basic Specifications
Item
UE-Category
USIM Slot
Ethernet Port
Power Supply
Reset Button
LED Indicators
Dimensions
Weight
LTE Specifications
Item
LTE Mode
LTE Bands
TXRX
Peak Rate
Channel Bandwidth
Modulation
Receive Sensitivity
4
MAX Output Power
Antenna Type
Antenna Gain
Polarization
Antenna Efficiency
Isolation
VSWR
Horizontal Beam Width (3dB)
Vertical Beam Width (3dB)
SW Specifications
Item
Description
Language Support
English/Chinese
Network Mode
NAT/Router/Bridge
IP Protocol
IPv4/IPv6
SIM Management
PIN Management, SIM Lock
Network Connection Management
Auto/Manual
LTE Scan Mode
Full band scan, Frequency Lock, PCI Lock
WLAN
WiFi for CPE Alignment
VPN
L2TP L2/L3
GRE L2/L3
NAT
Port forwarding
DMZ
ALG
Port Trigger
5
Firewall
IP/MAC/URL Filter
Access Control
Block Port Scanner / SYN Flood
SPI Filter
Network Management
TR069
Diagnostics
TCPDump
Ping
Trace route
Statistics
LTE Status/Connection Time/System Up Time
Device Status
DHCP Client List
WiFi Station List
LTE Status
Firewall Status
Maintenance
Date & Time setting
Reboot
Restore factory settings
Restore / Back up configuration file
Firmware upgrade locally/OTA (over the air)
System Log
Operating Log
Run-time Log
Filter/Select/Display/Export Log
Antenna Select
N/A
Environmental Specifications
Item
Description
Operating Temperature
-40°C to 55°C
Storage Temperature
-40°C to 70°C
Operating Humidity
5% to 95%
IP Level
IP65
6
Model List
Models
Description
u4G-UE1000
u4G-UE1000( LTE CPE ODU, Self-defined FDD, CAT4,
1T2R, 1GE, PoE at/af, IP65)
Regulatory Compliance
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 40 cm between the radiator
& your body.
