Bak USA Technologies S8A002 MID User Manual Seal 8 pro
Bak USA Technologies Corp. MID Seal 8 pro
Seal 8 pro-User Manual
Seal 8 pro
简化版说明书
Seal 8 pro simplified version of the manual
感谢您购买
MID
产品。本使用说明书简扼介绍了此机之各项功能，让您操纵自如，充分
体会本产品给您带来的超值享受。请您在使用前仔细阅读本使用说明书。本说明书版本号为
Ver1.0
Thank you for purchasing MID
products. This user manual introduces
every function of the
MID briefly, which let you
have an easy control in it and
enjoy its value fully. Please
read
this manual
carefully
before use. The
version number
of
this manual
is
Ver1.0.
注意事项
Announcements
1. 注意新电池只有在两、三次完全充电和放电的周期后才能够达到最佳性能。
1．Please noted that the new battery is only able to achieve the best performance after two
or three charge and discharge cycles completely.
2． 新电池在使用的头三次充电应达到 8-10 小时，第四次开始只需充电约 4小时即可充满
这样可使锂电池达到最佳性能。
2. For the first three times charge battery, please make sure the charging time should be
8-10 hours at least. After it, the battery can be full charged about 4 hours. These make
lithium battery achieved its best performance in the future.
3. 为防止资料遗失，建议用户将重要资料备份，尤其每次固件升级前特别注意资料备份。
因资料遗失所造成的损失，本公司概不负责。
3. To prevent data loss, it is recommended that users should be back up important data,
especially before the firmware upgrade. We are not be responsible for any losses
caused by data loss.
4. 本机是高精密电子产品,请勿自行拆卸。
4. This machine is a high-precision electronic product, please do not disassemble by
yourself.
5. 避免强烈摔打、碰撞本播放机。
5. Please avoid any strong beat or collide the player.
6. 避免在下列环境中使用本播放机：高温、低温、潮湿、多尘、磁场强大及长期暴露于
阳光之下。
6. Avoid using the player in the following environments: high temperature, low temperature,
humid, dusty, powerful magnetic field and long-term exposure under sunlight.
7．可用拧干的湿棉布轻轻擦拭本机的外壳，严禁用其他化学溶液清洗。
7. It’s allow to wipe the device's casing gently by wet cloth drying, and any other chemical
solution cleaning is strictly prohibited.
8. 本机不应遭受水滴和水溅,而且机器附近不应放置诸如水杯一类的装满液体的物品。
8. The device can not be suffered any drip and splash, and it should not be placed near
something like cups filled liquid.
9. 收听时请选用适当的音量，以避免损伤听力。
9. To avoid hearing damage, please choose the appropriate volume while listening.
10. 请不要改动本机的任何部分。
10. Do not alter any part of the device.
11. 请仅使用制造商允许的电池、充电器和附件。使用任何其它类型的产品都将违反保修
FCC ID: 2AEY7-S8A002
条例，并有可能发生危险。
11. Please only use the batteries, chargers and accessories manufacturers allowed. It will
be violate the warranty regulations or may be dangerous if you use any other ones
12. 请按照当地相关的环保条例来处置废弃机器和附件。
12. Please follow the relevant local environmental regulations to dispose the discarded
device and accessories.
13. 本机在使用过程中如有任何问题，请联系当地经销商或直接与本公司客户服务中心联
系。
13. If there is any questions during using, please contact the local dealer or our company's
customer service center directly.
14. 产品如有任何变动，恕不另行通知，不便之处，敬请原谅
14. All specifications or others are subject to change without notice.
说明书目录：
Manual Catalogue:
一、产品规格 Product specifications
二、外型及按键说明 Appearance and Key Description
三、使用入门 Getting Started
（一）打开播放机 Open the player
（二）功能使用 The use of functions
1. WIFI WIFI
2．蓝牙 Bluetooth
3. Groove 音乐 Groove Music
4. 电影和电视 Films and TV
5. 照片 Photos
6. 相机 Camera
7. 语音录音机 Voice Recording
8. HDMI HDMI
9 .应用程序下载及使用 Download and Use Application
10．指纹识别 Fingerprint recognition
11.NFC NFC
12.指南针 compass
13.扫描仪 Bar code scanning
14.电磁笔. Electromagnetic pen
（三）充电步骤 Charging Step
1. 使用 TYPE-C 充电器进行充电 Charge the unit via TYPE-C adapter.
（四）异常重启 Abnormal restart
四、常见问题 Frequently Asked Questions
一、产品规格：Product specifications
● 型 号：T01M
● Model: T01M
● 主芯片：Intel T4(x7-Z8700) 1.84GHz
● CPU：Intel T4(x5-Z8700) 1.84GHz
● DDR 容量：4GB or 8GB
● DDR Capacity: 4GB or 8GB
● USB 接口：standard USB 3.0 HOST
● USB port: standard USB 3.0 HOST
● 显 示 屏：8寸（类型）1280*800
● Display: 8 inch (type) 1280*800
● 电 源：可充电聚合物锂离子电池 5700mA/h
● Battery: Rechargeable polymer lithium ion battery 5700mA/h
● 规格尺寸：230.9*155.6*21mm
● Size: 230.9*155.6*21mm

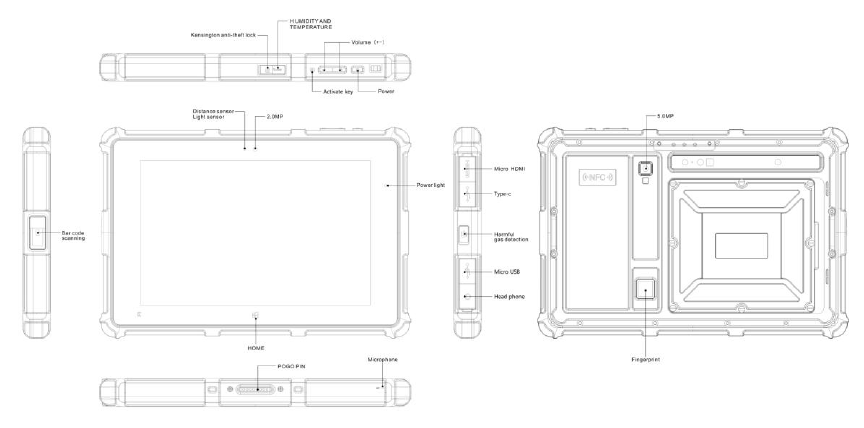

二、外型及按键说明：Appearance and Key Description:
三、操作按键介绍：Operation keys introduction:
1. 开关机键：长按开启设备，待机后短按可以唤醒设备，长按关闭设备。
1. Power: Long press to open the device, short press to wake up the device while standby,
long press to off the device.
2. 音量+/-键：短按调节音量大小。
2.Volume + / - : Short press to adjust the volume.
3. 防盗锁：设置后可防止机器丢失
3.Kensington anti - theft lock：After you Set the machine to prevent loss
4.温湿度：短按可以出卡安空气温湿度。
4.Temperature and humidity：Short press can card the air temperature and humidity.
5.光感距感：可以根据亮度和距离自动调节屏幕亮度。
5.Light distance：The screen brightness can be adjusted automatically according to brightness and
distance.
四、使用入门 Getting Started
（一）启动设备 Boot device
根据外型及按键说明图中所指示“电源启动”键，长按开启设备。
According to "Power" button in the Appearance and Keys description, long press it to
turn on the device.
（二）功能使用：The use of functions:

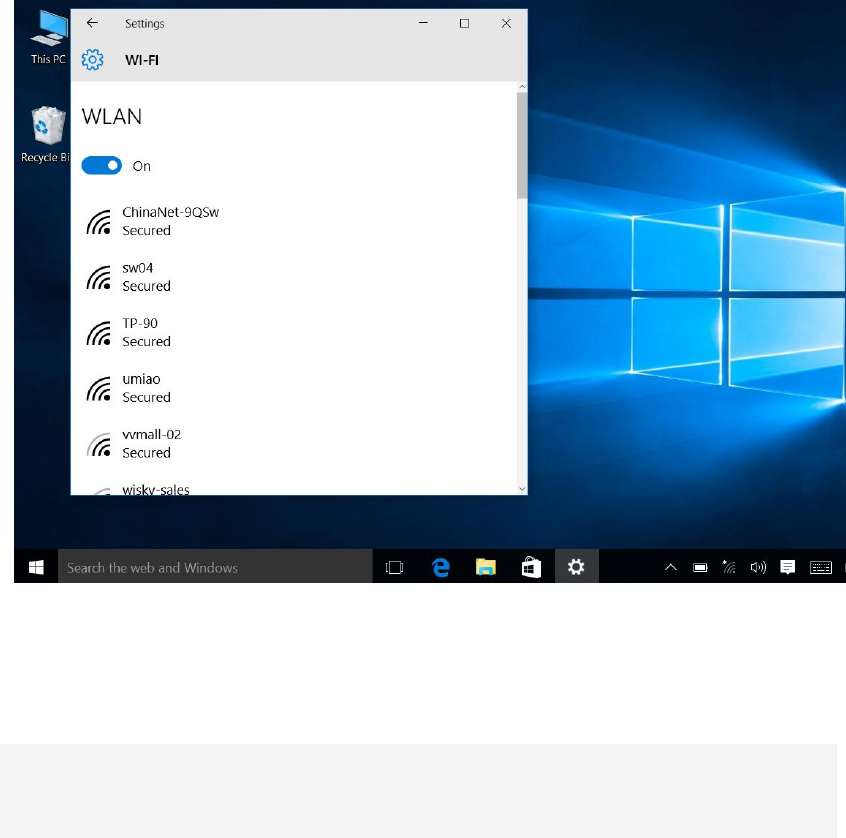

1. WIFI WIFI
在“设置”菜单中，开启 WIFI，点击扫描，选中可用网络，输入正确密码即可连接
网络。
Turn on the WIFI in "Settings" menu, click search, select the available network and
connect it via enter the correct password.

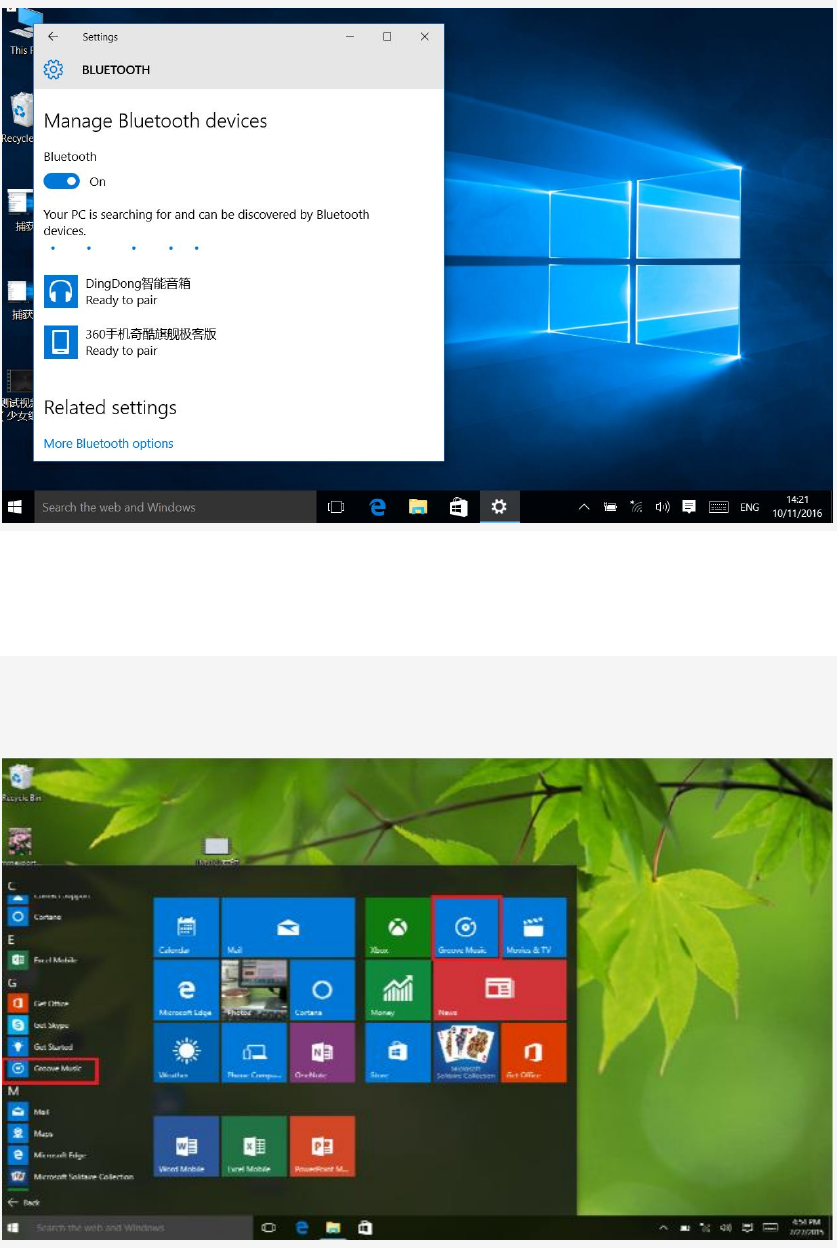

2．蓝牙 Bluetooth
在“设置”菜单中， 开启蓝牙。自动搜索蓝牙装置，选中一个装置配对，配对成功
后，就可以传输/接受文件了
Turn on Bluetooth in “Settings”. The unit will search for Bluetooth devices automatically,
then you can select a device pairing. Once the pairing is succeed finished, you can
transmit / receive files
3. Groove 音乐 Groove Music
直接点击“音乐”进入音乐播放界面，可以根据喜好在网上下载不同风格
的音乐播放器，本产品能支持音乐的格式有：MP3、wav、aac、ogg
Simply click the "Groove Music" into the Groove Musicr interface, you can download
different styles of Music players according to your preference. The unit can support music
format of MP3, wav, aac or ogg.

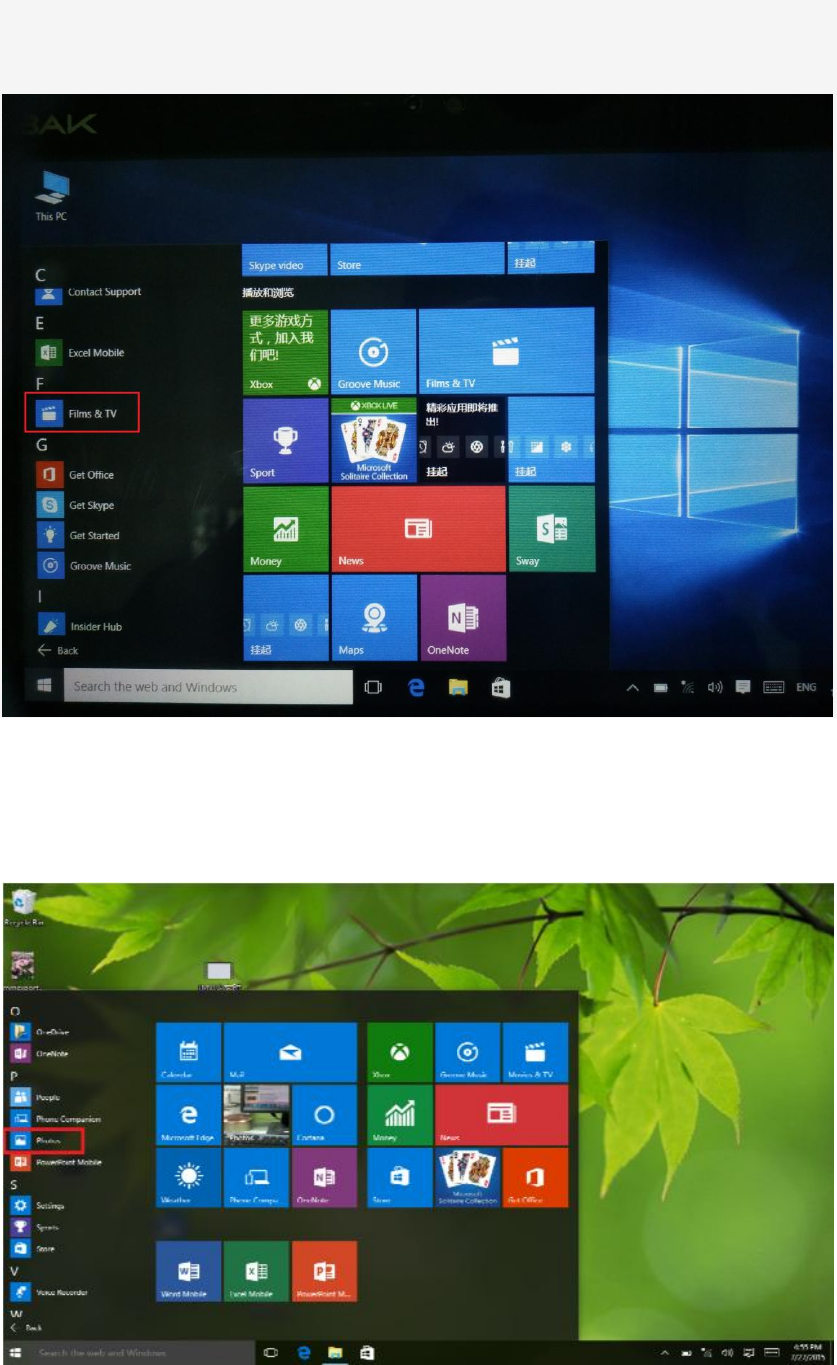

4. 电影和电视 Films and TV
直接点击“视频播放器”进行视频播放，可以根据喜好在网上下载不同风格
的视频播放器，本产品能支持视频的格式有：3gp、webm、mov、MP4
Simply click the Films and TV for playing, you can download different styles of Video
players according to your preference. The unit can support video format of 3gp, webm,
mov or MP4.
5. 照片 Photos
直接点击照片，进行照片浏览，可以将图片设置为桌面背景。
You can browsing the Photos by click into the “Gallery”, and also can set the picture as the
desktop background.

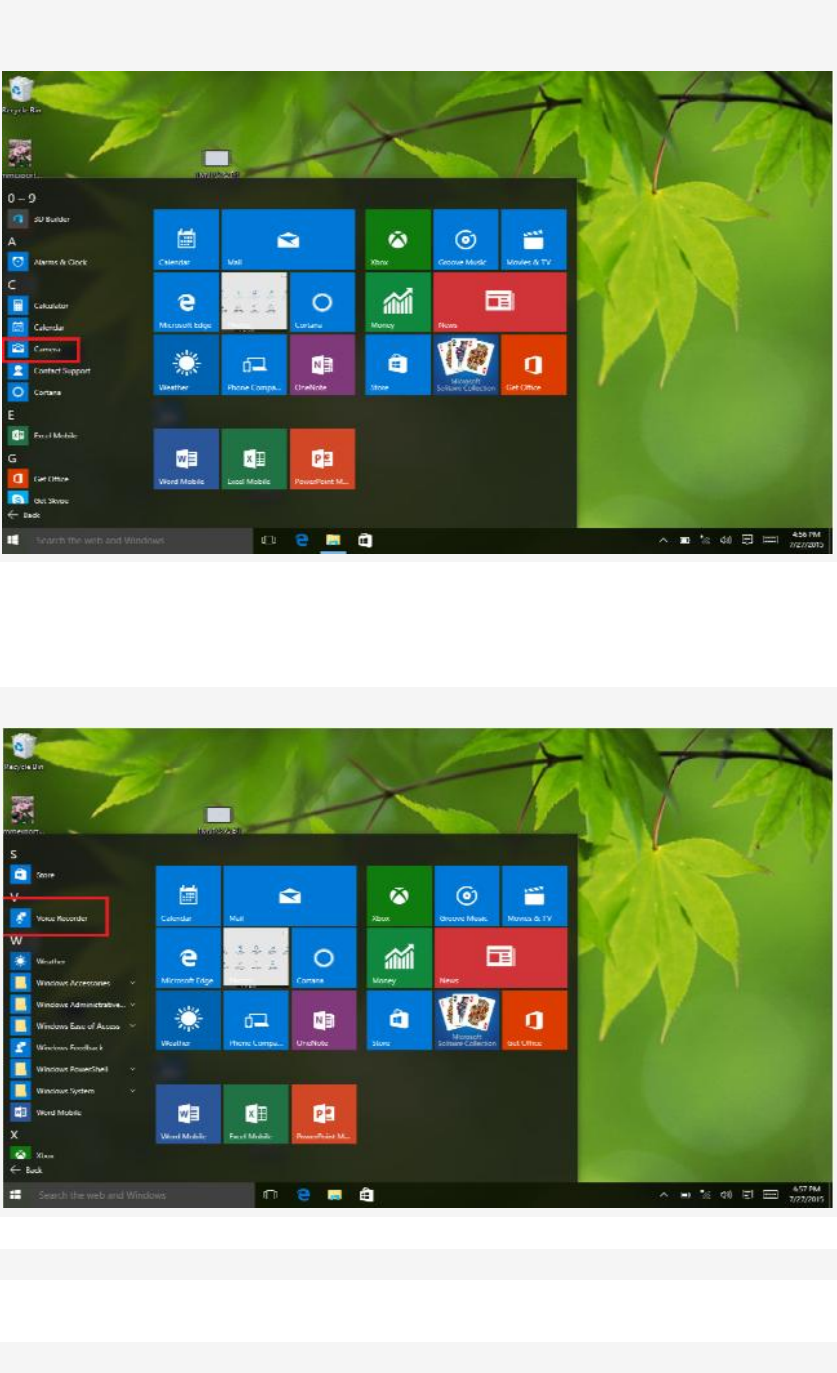

6.相机 Camera
在菜单中选择相机选项，即可操作拍照和摄像功能，插入 TF 卡，也可保存在 TF 卡里
Click the “Camera” in menu, you can select photos or use the camera function. Insert the
TF card into unit, the photos can be saved in it.
7 .语音录音机 Voice Recording
直接点击“语音录音机”菜单进入录音界面。
Click the Voice Recording menu directly for enter the recording interface.
8.HDMI
连接外接显示器,显示器和机器能正常显示
To connect an external display, display and the machine can normally display
9.应用程序下载及使用 Download and Use Application
方法一：从电脑上拷贝 exe 到机器进行安装
1.点击须安装的程序，出现“安装”“取消”，点击“安装”，之后显示“应用程序已安装”，
点击“完成”继续安装其它的程序，或点击“打开”直接打开当前安装的程序
1. Click the exe will need to install, then there is one prompt dialog box shows “Install”
“Cancel”. Click" Install " and waiting for installing exe. After finish, it will shows “Application
is already installed”. Click “Finish” to continue to install other or click “Open” to open the
current installed application directly.
方法二：网络下载的应用程序安装方法
Method 2: The application installation method downloaded from Network
1.通过“exe 安装器”，安装下载"exe "的市场应用程序,例:store 等
1. Install and download ". exe" market applications through “exe installer”. For example,
store, etc.
2.打开网页之后有大量分好类的应用程序,点击任意程序,会出现"安装"选项,点击"安装",
提示"正在下载---->下载完成---->下载完成,正在安装---->安装成功;此时可以打开此应用程
序,也可点击"卸载",卸载此程序
2. Open the page, you can find a large number of sorted applications. Click on any
application, there will be shows the option of "Install", then click "Install", it will prompt
"Downloading ----> Finished download ----> Download is finished and is being installed
----> Install succeed”. At this time, you can open this application or click" Uninstall " to
uninstall it.
3．直接打开任意网页也可下载应用程序
3. You can also download the application by any web page directly.
注:在网站上下载的应用程序,只能导出至 TF 卡进行保存
Note: The applications which downloaded from Website just can be saved in TF card.
下载 exe 应用程序的网站有很多，直接在网站里搜就可以，以下有几个网站供参考：
There is many Website for Download apk application, you can search them in the Website
directly. Below is several websites for your reference:
http://www.eoemarket.com
http://www.apkok.com
http://www.ggdown.com/
http://www.mtxt800.com/
10.指纹识别 Fingerprint recognition
在应用界面打开 Finger 应用，可以添加和测试指纹
open the Finger application of application interface，you can add and test
fingerprint
11.NFC NFC
将NFC 卡，如交通卡，银行卡等靠近机器后面的 NFC 刷卡处，机器会有声音提示，表示已
经读取到 NFC 卡。
The NFC card, such as traffic cards, bank cards and other NFC near the back of
the machine credit card, the machine will sound, that has been read to the NFC
card.
12.指南针 compass
在应用程序中打开指南针应用，就可以指示你当前的方向了。
Open the compass application in the application, you can prompt the current
direction of the.
13.扫描仪 Bar code scanning
在应用界面打开扫码仪应用，将平板的扫码仪<外形图中的 Bar code scanning>对准条码框，
机器可以读出条形码的信息，并在扫描仪应用中显示。
In the application interface to open the scanner application, the bar code scanner
<bar code scanning bar code scanning> alignment bar code box, the machine can read
the bar code information and display in the scanner application.
14．电磁笔 Electromagnetic pen
平板电脑配备了电磁笔，可以用电磁笔来代替手进行操作。
Tablet PC is equipped with an electromagnetic pen, you can use the electromagnetic
pen to replace the hand to operate.
（四）充电步骤 Charging Step
1. 使用充电器进行充电
1. Using adapter for charging
特别注意：所选充电器规格必须符合以下要求，不符合以下要求的充电器出现任何意外
或故障本公司则视为人为性损坏：
Special note: The adapter’s specification must be accord with the following requirement.
Any accident or failure based on not accord with the adapter requirement, we regard it as
man-made damage.
名称：充电器
Name: Adapter
输入：AC100-240V,50Hz/60Hz
Input: AC100V~240Hz ,50Hz/60Hz
输出：5V 3A
Output: DC5.0~2000MA
接口标准：TYPE-C
Interface Standard: TYPE-C
（五）异常重启：Abnormal restart:
遇到非法操作所出现的异常现象，如定屏、无法操作等，可通过机身侧面的电源键，
进行机器重启，随后重新开机，即可恢复正常。
If there is anomalies caused by illegal operation, such as fixed screen, can not operate
etc., all can be got right after reset it through the "Power button" which in the side of the
device and then turn on device again.
五、常见问题 Frequently Asked Questions
①播放器不能开机
·检查电池是否无电
·连接电源适配器后再次检查
·如果充电后仍然无法开机，请与我们的客服联系。
① The players can not boot
• Check battery with power or not
• Connect the adapter and check again
• If it still can not boot after charging, please contact our customer service.
②耳机内听不到声音
·请检查音量是否设置为 0 。
·请检查耳机的连接没有问题
② The earphone can not hear sound
• Check the volume is set to 0 or not.
• Check the earphone connection is OK or not
③按键不工作
·请确认电子锁是否被锁定，如是请向上拔动解锁／开机键将电子锁打开再做尝试。
③ Button does not work
• Please confirm whether the electronic lock is locked or not. If locked, try again after
slipping upward lock or power button to unlock.
④严重的噪音
·请检查耳机的插头是否干净，污物可导致噪声
·检查音乐文件是否损坏。试播放其他音乐来确定。如果文件已被损坏，可能导致产生很严
重的噪音或跳音。
④ Serious noise
• Check the earphone plug is clean or not, dirt can cause noise.
• Check the music file is damaged or not. Try to confirm it by playing other music. If the file
has been damaged, it may cause very serious noise or skips.
⑤屏幕显示乱码
·请检查是否已设置正确的语言选项，语言选择在<设置>--<系统设置>--<语言选择>中进行
设置。
⑤ The screen garbled
• Check that you have set the correct language or not. You can find and set it in <
Settings> -- <System settings> -- <Language selection>.
⑥不能下载文件
·确认计算机与播放器间是否正确连接
·确认存储器的存储空间是否已满
·确认 USB 连接线是否有损坏
⑥Can not download files
• Make sure the computer and player is properly connected
• Check the storage space of memory is full or not
• Check the USB cable is damaged or not
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generate, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
The SAR limit adopted by USA is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue.
The highest SAR value reported to the Federal Communications
Commission (FCC) for this device type when it is properly worn on the body is 1.083 W/kg.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
