Operation Manual
2
Operation Manual
ACCESS100
Covered Models:
10023-155-51
10023-001
10023
The “ACCESS100” is a multifunctional contactless smart card RFID Read-/Write-Device (short:
reader).
The reader supports Mifare, ISO14443A/B, ISO15693 and all cards compliant to these standards. It
provides serial interface RS485/ RS232 or a Wiegand Interface to exchange data with a host
computer and a 13.56MHz inductive interface to supply power to and exchange data with the
Mifare/ISO compliant card (or other available form-factors such as tags, key-fobs).
Mounting and Connection
The reader generates a magnetic field with the frequency of 13.56MHz which is influenced by any
electrically conductive material in close proximity to the device. When mounting the unit, a
distance to any such material of minimum 20 mm is required to ensure that there will be no
significant degradation of the performance in terms of read range and reliability. Mounting the unit
directly to metal would result in a severe reduction of read range down to zero functionality. Care
should be taken when testing the device after mounting at a problematic environment: Read ranges
and performance vary from card to card and very much from card to tag or key-fob.
When mounting multiple readers, the distance between readers should be minimum 0.5 meters in
order to avoid degradation of performance due to interference.
The reader provides an attached cable to connect the device to the host computer. The cable is
colour coded as follows:

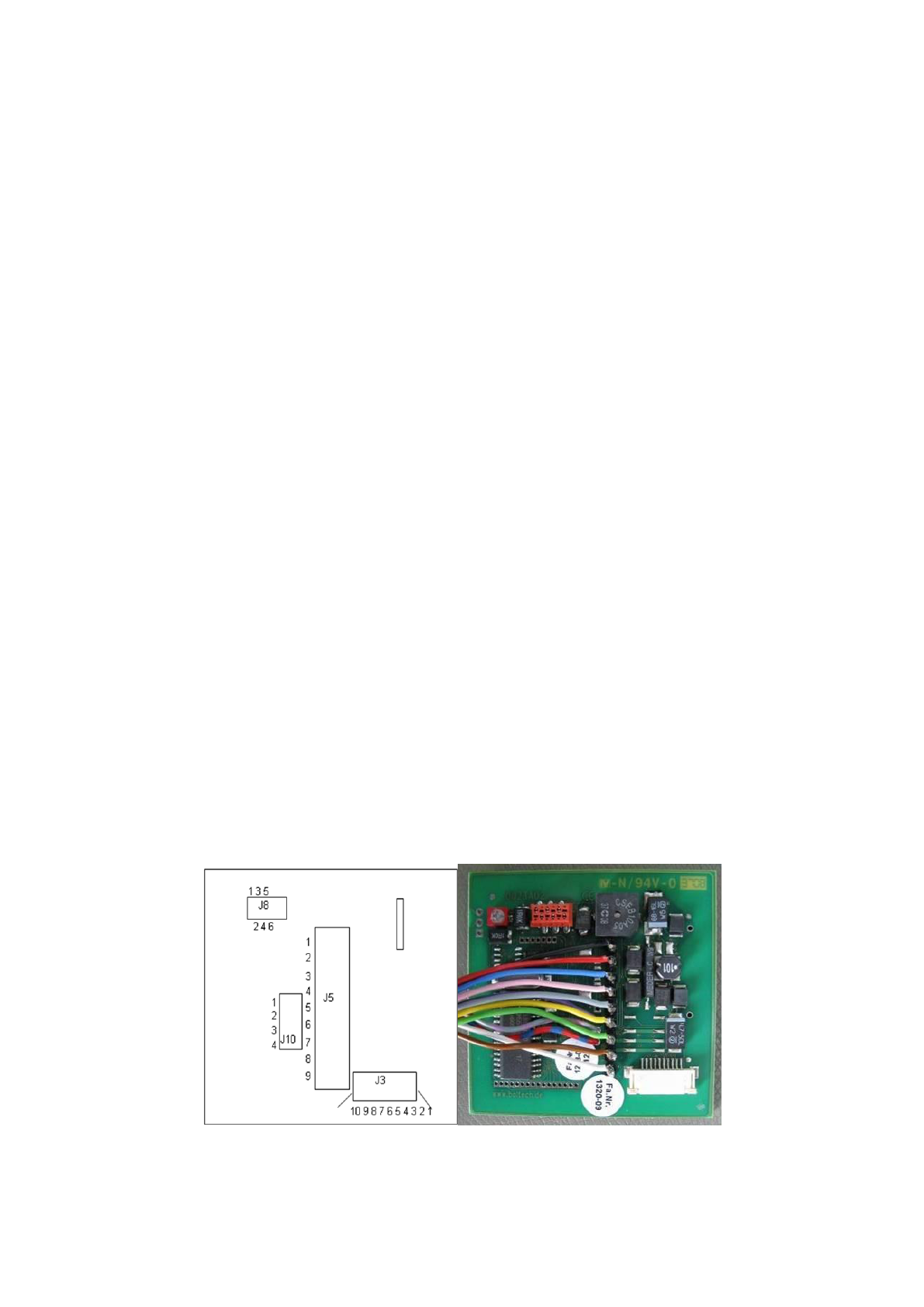

Pinning
Rear View Reader PCB
3
J5: Screw-Clamp, pluggable, 9-Pole. Alternative, potted devices: pigtail cable 1m length.
RS485 / Wiegand
Pin#
Color
Name
Description
1
Black
GND
Power and Signal GND
2
Red
+VIN
Supply Voltage (9…30 VDC)
3
Blue
Mult_A: 485/WIE_D0
RS485 A or Wiegand data 0, depending on configuration
4
Pink
Mult_B: 485/WIE_D1
RS485 B or Wiegand data 1, depending on configuration
5
Grey
LEDGN
Wiegand: LED-control input
6
Yellow
LEDRD
Wiegand: LED-control input
7
Green
REL_WC
Relais working contact (not installed for ACC-Versions)
8
Brown
REL_NO
Relais normal open (not installed for ACC-Versions)
9
White
REL_NC
Relais normal closed. (Special option, available by ordering
from factory: Wiegand-Interface Buzzer control input
RS485 interface termination resistor: 120 Ohms, to be connected between Mult_A and Mult_B at both ends of the
RS485 bus lane cable. Stub line length 1 m max.
J10: Through holes, 4-Pole
RS232/CMOS
Pin#
Color
Name
Description
1
+5V
Power
2
Magenta
GND
GND
3
Grey-pink
RX
RS232 / CMOS
4
Red-blue
TX
RS232 / CMOS
J8: Service Interface AMP MicroMatch 6-Pole
Pin#
Name
Physical
Description
1
TX
RS232 / CMOS
Reader transmit
2
RX
RS232 / CMOS
Reader receive
3
GND
GND
4
+5V
5V 5%
5VDC supply reader (if connected, the +VIN from J5 must not be
connected)
5
NC
RS232 / CMOS
Do not Connect!
6
NC
RS232 / CMOS
Do not Connect!
Operation
Whenever the device is connected to a proper power supply, it will switch on the internal antenna
and periodically scan for a card. Once a card has been detected, the card number is read, the data
converted and sent to the host system through the serial interface. To enable the device to read
cards, tags and key-fobs successfully, they should be placed centered above the reader. The reader
may also provide a keypad that may used to enter user identification number.
4
Technical Data
Supply Voltage:
9…30 VDC
Power consumption :
1.0 W typ.
2.0 W max.
Operating temperature :
-25 to + 65 C°
Operation frequency
13.56 MHz
Additional requirements for the supply voltage: Vripple = 50mVpp max.
RF Characteristics
Operating frequency: 13.56 MHz
Data transmission modulation reader to card: ASK
Data transmission modulation card to reader: ASK/load modulation
Temperature
Operating temperature range: -25…+65°C
Storage temperature range: -25…+80°C
Thermal shock: 30°C/min maximum dT/dt
Humidity
Operating:
standard indoor version: 0..90%; non condensing
potted version: 0..100% condensing IP65
5
General regulatory requirements
FCC Compliance Statement:
This device complies with Part 15 of the FCC rules. The product FCC ID is
OKY1002300101A02B. The operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Canada:
This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la
classe B est conforme à la norme NMB-003 du Canada
