BandRich 35K888 Ruggedized 4G LTE M2M & Vehicle Mount Router User Manual BandLuxe FieldPerfect

BandRich Inc. Ruggedized 4G LTE M2M & Vehicle Mount Router BandLuxe FieldPerfect

Users Manual

User
Manual
BandLuxe
K535 Series
LTE M2M &
Vehicle Mount
Router
P/N:64003700011 Rev.D
1
Table of Contents
Package Contents .......................................................................... 4
Features .................................................................................................................. 4
Hardware Overview ................................................................................................. 5
Installation....................................................................................... 7

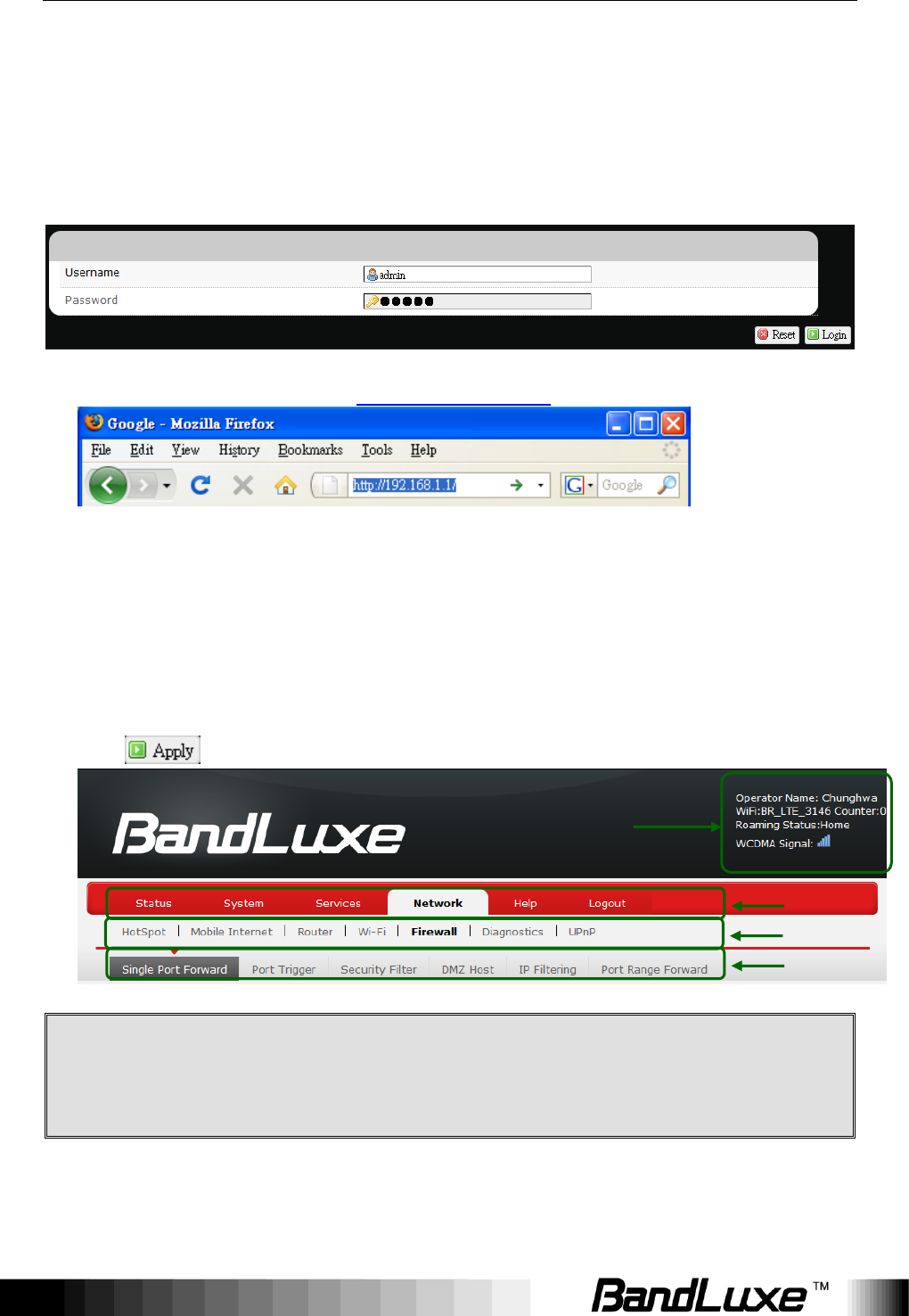

Using Web-based Management ................................................... 10
Status .................................................................................................................... 11

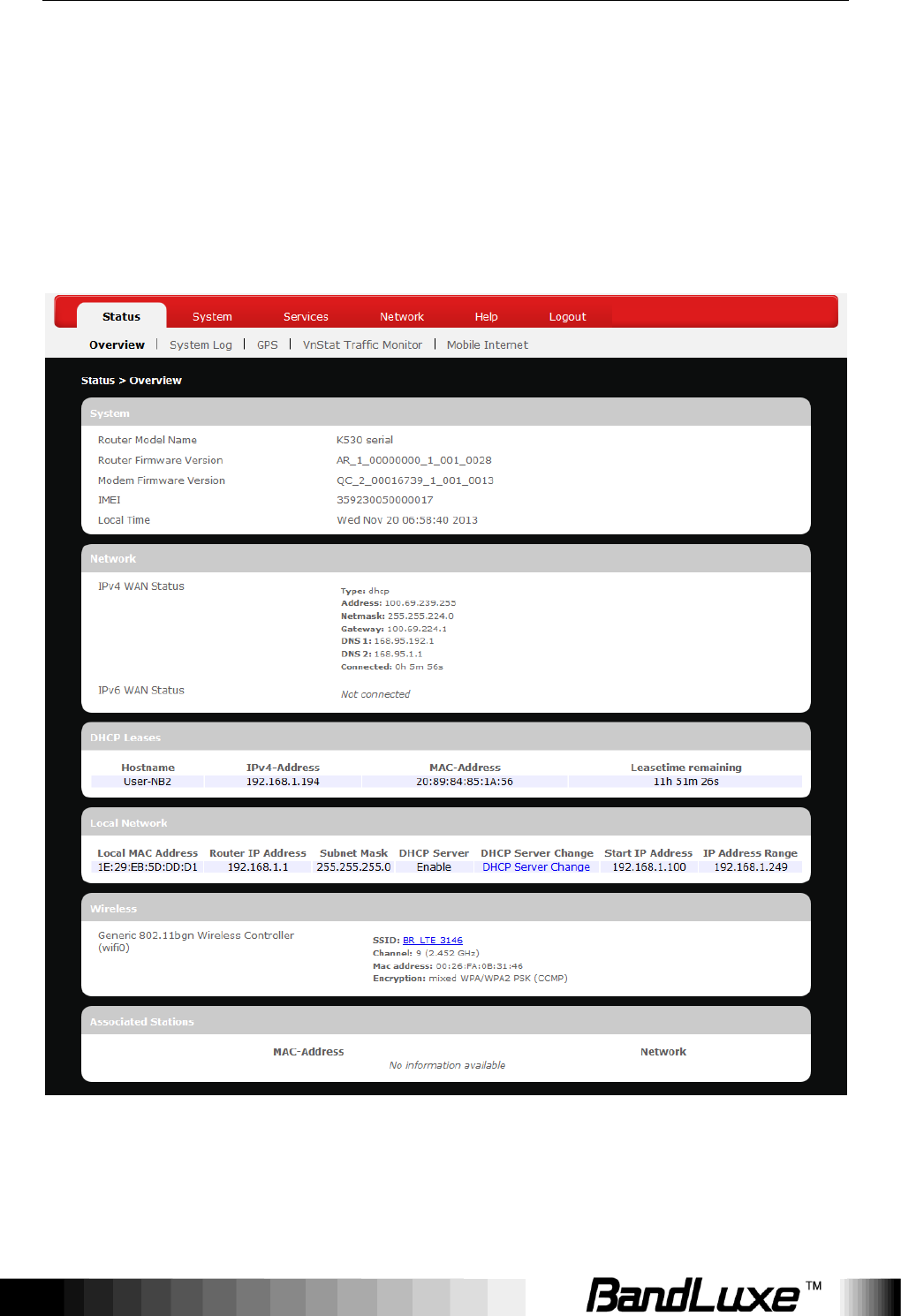

Overview .............................................................................................................. 11
System ............................................................................................................................ 12
Network ........................................................................................................................... 12
DHCP Leases .................................................................................................................. 12
Local Network .................................................................................................................. 12

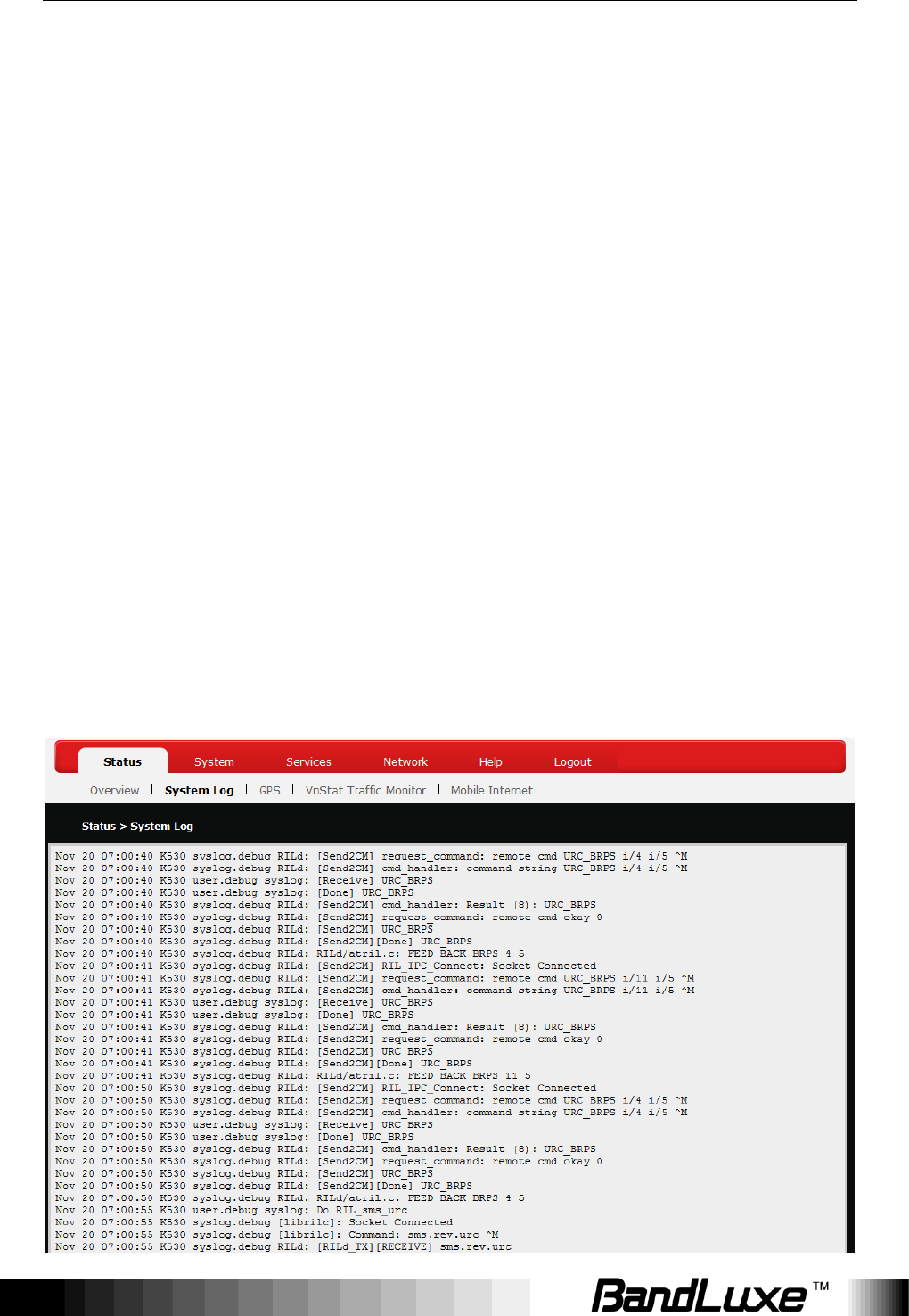

System Log .......................................................................................................... 12

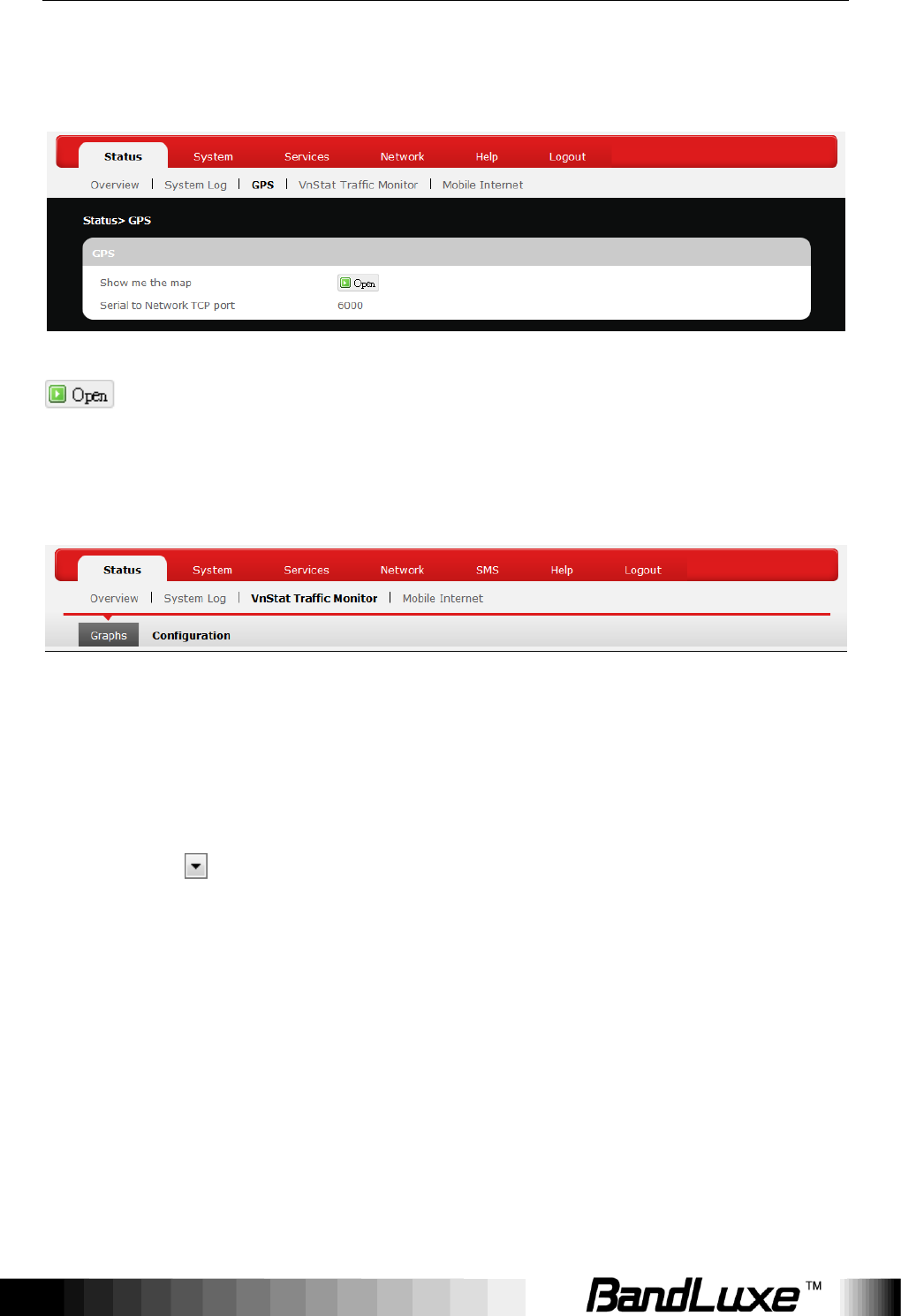

GPS ..................................................................................................................... 13

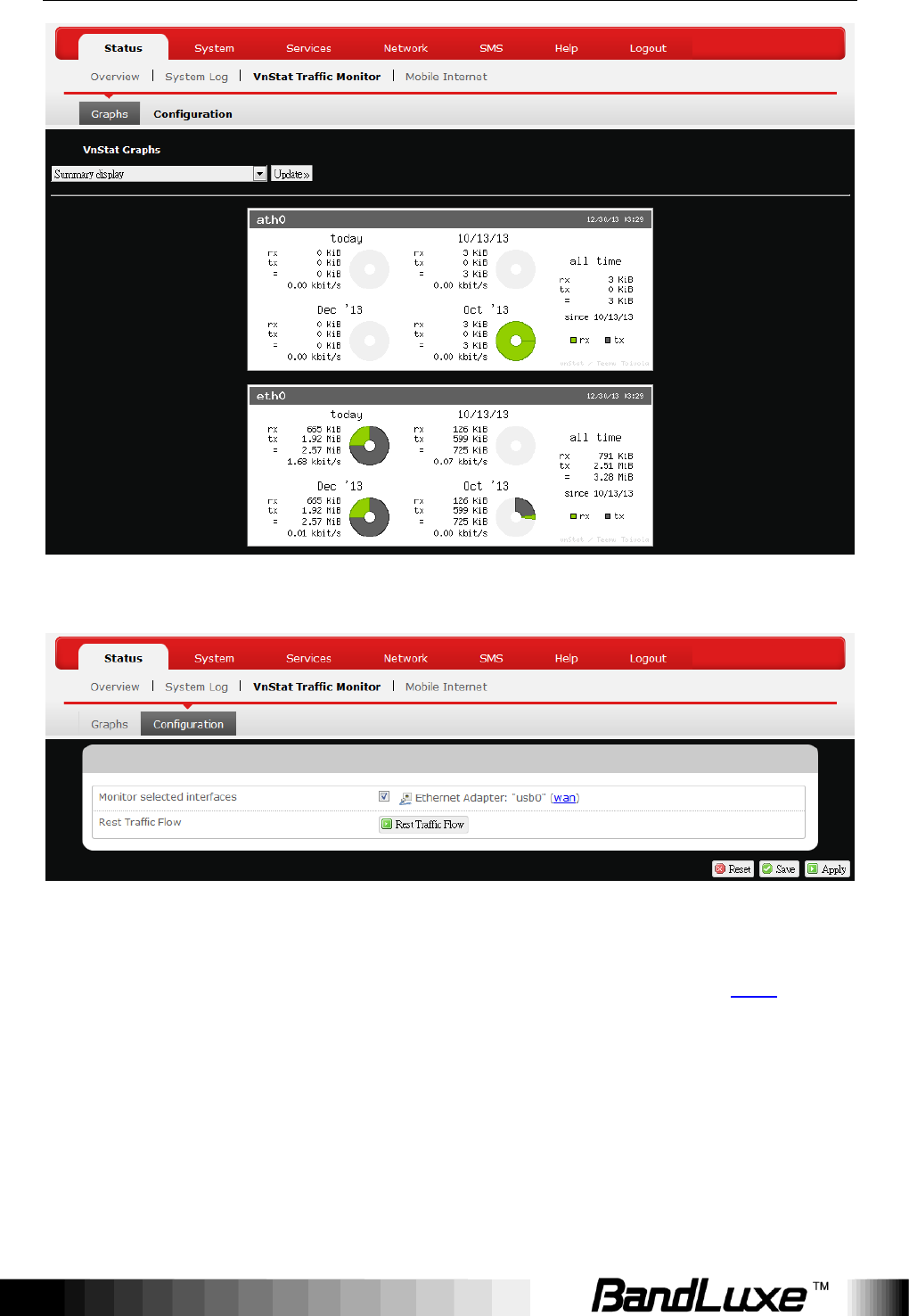

VnStat Traffic Monitor ........................................................................................... 13
Graphs ............................................................................................................................. 13
Configuration ................................................................................................................... 14

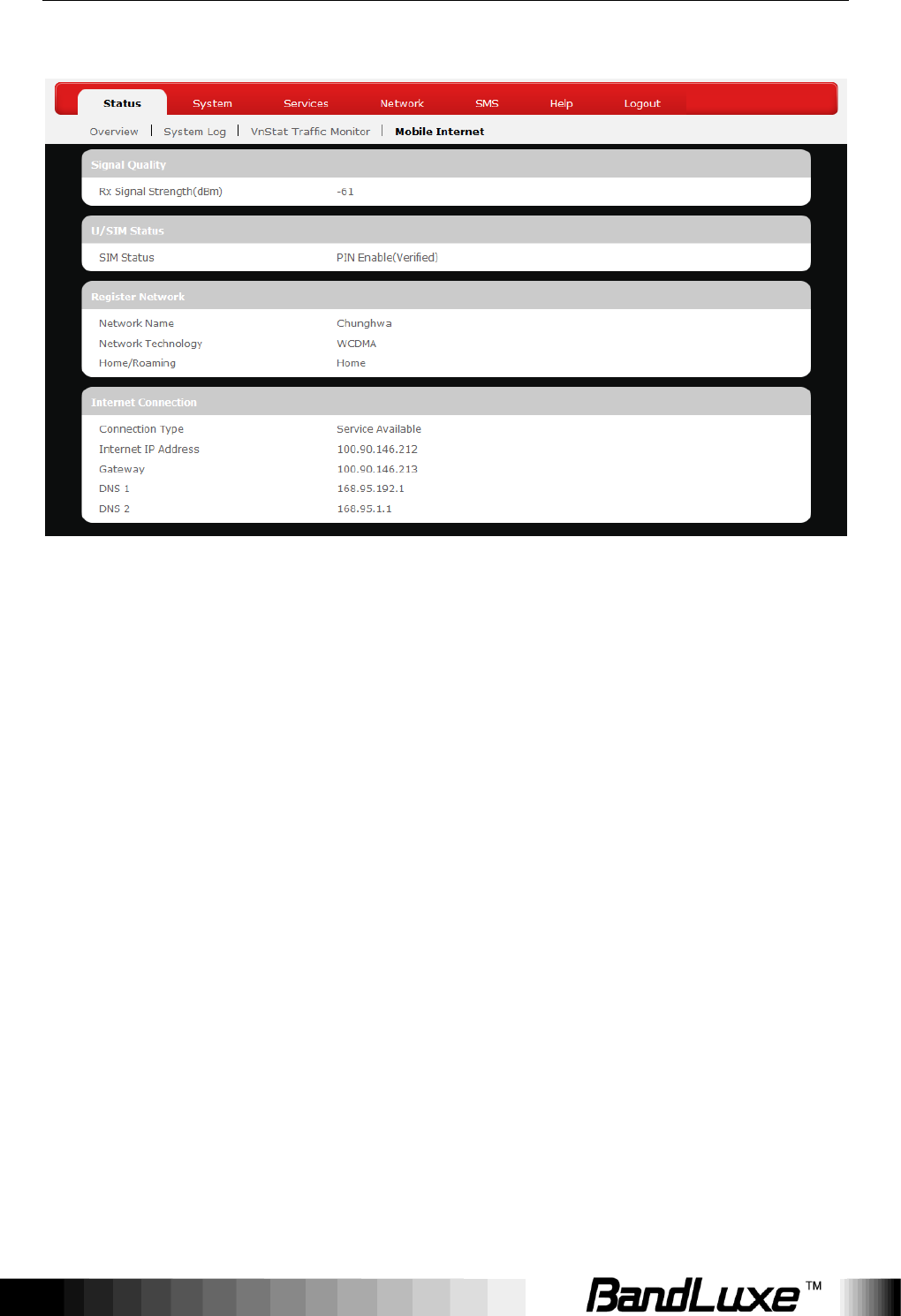

Mobile Internet ..................................................................................................... 15
Signal Quality .................................................................................................................. 15
U/SIM Status ................................................................................................................... 15
Registered Network ......................................................................................................... 15
Internet Connection ......................................................................................................... 16
System .................................................................................................................. 17
System ................................................................................................................. 17

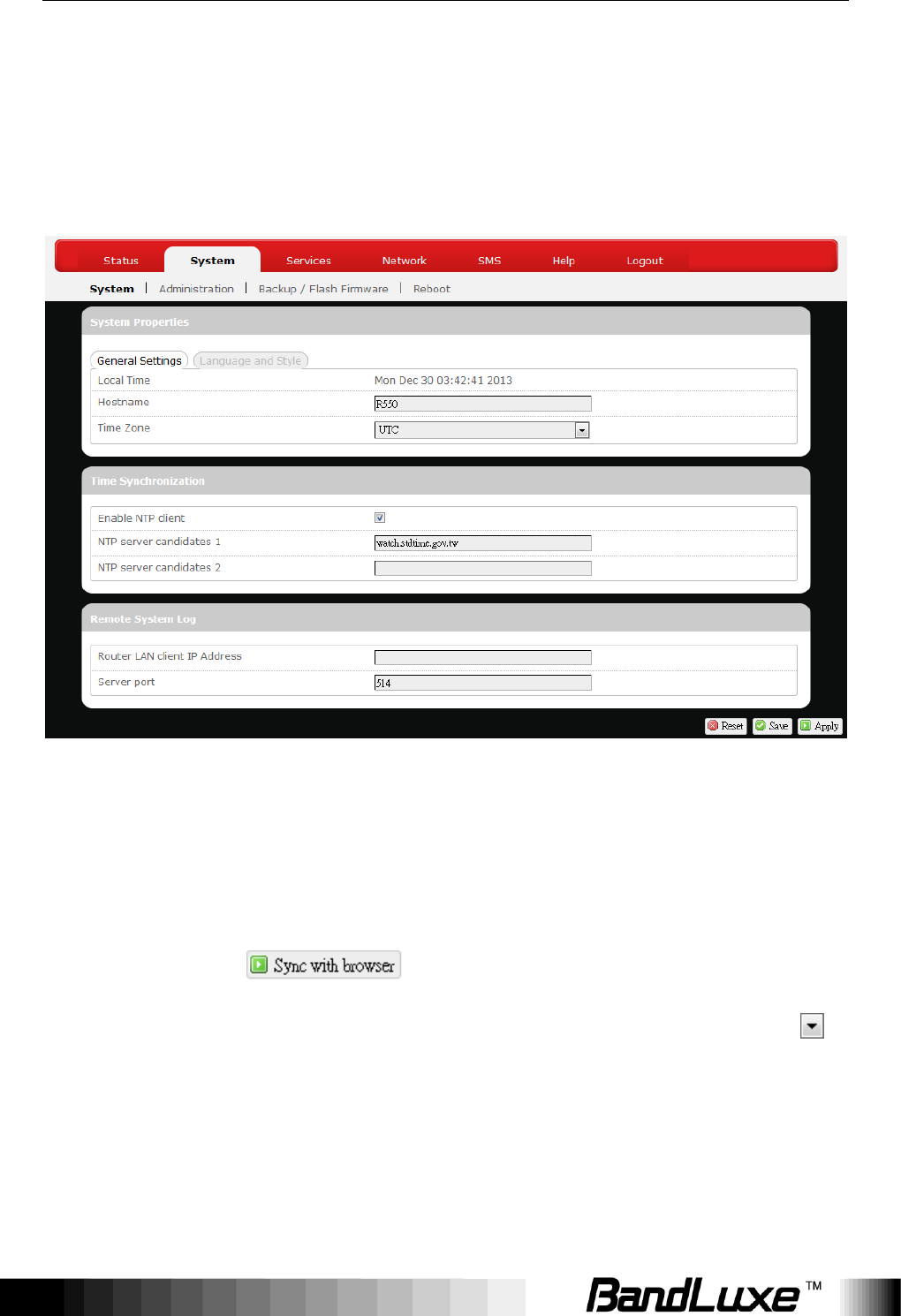

System Properties ........................................................................................................... 17
General Settings .......................................................................................................... 17
Language and Style ..................................................................................................... 18
Time Synchronization ...................................................................................................... 18
Remote System Log ........................................................................................................ 18
Administration ...................................................................................................... 19

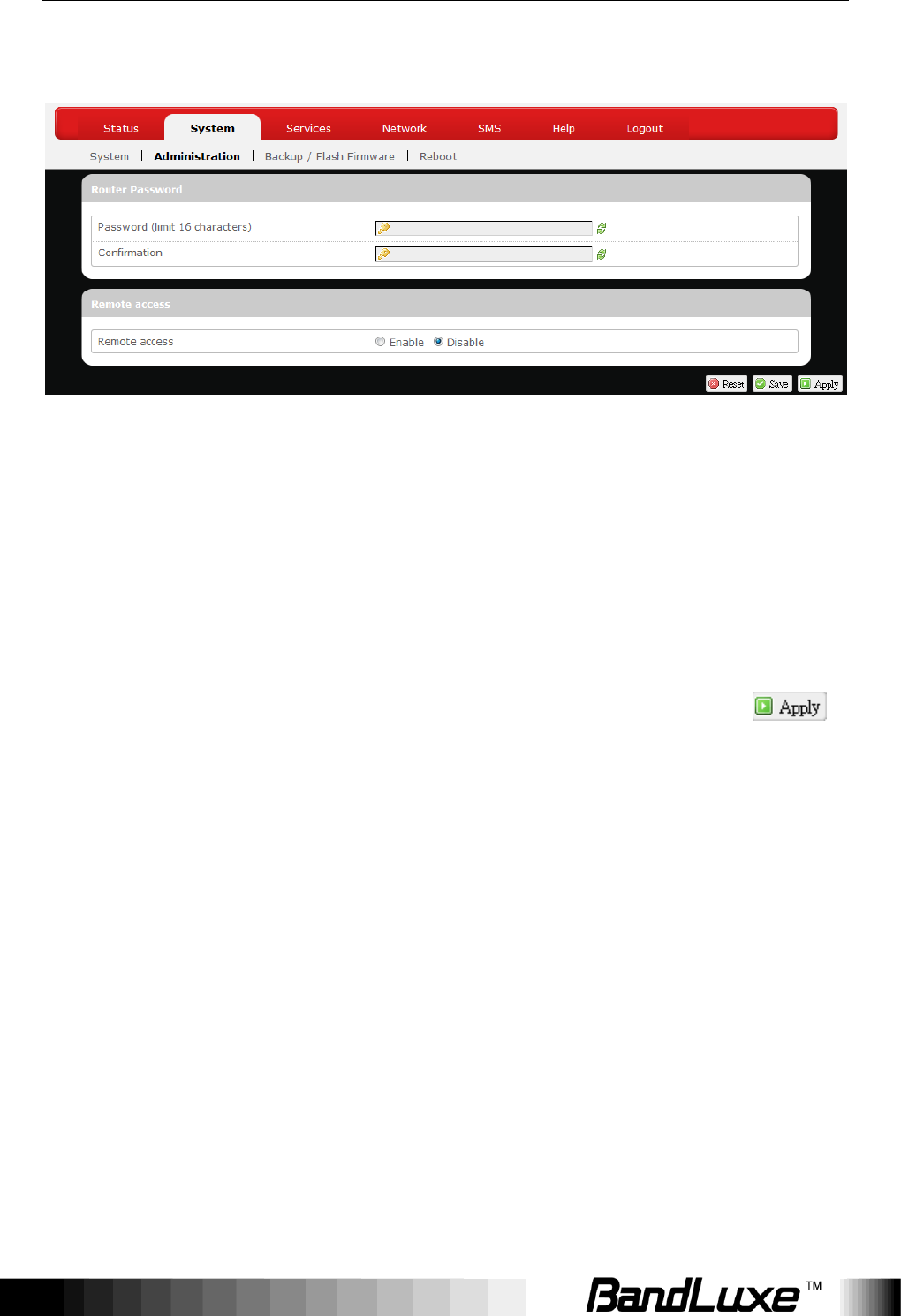

Router Password ............................................................................................................. 19
Remote Access ............................................................................................................... 19

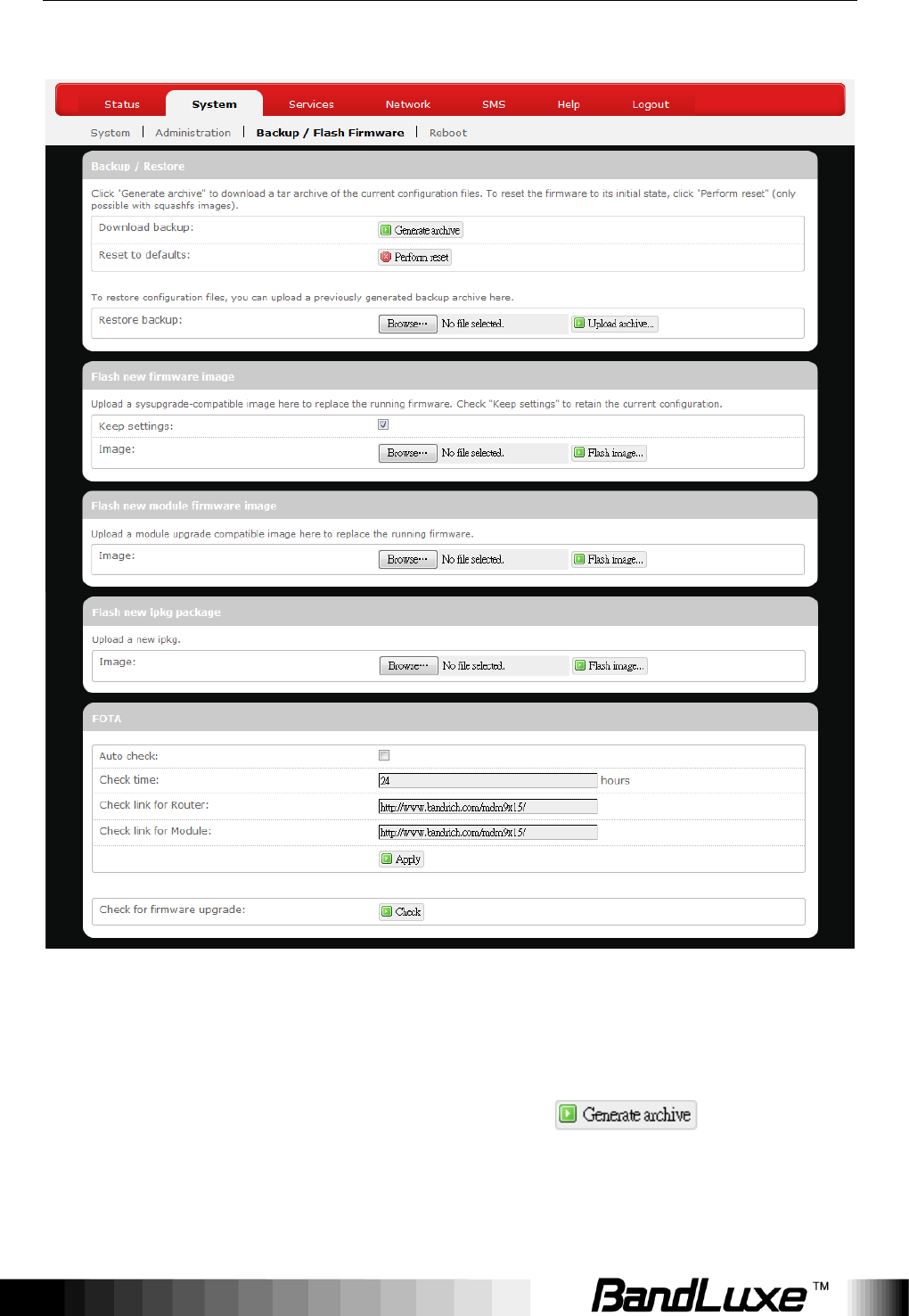

Backup / Flash Firmware ...................................................................................... 20

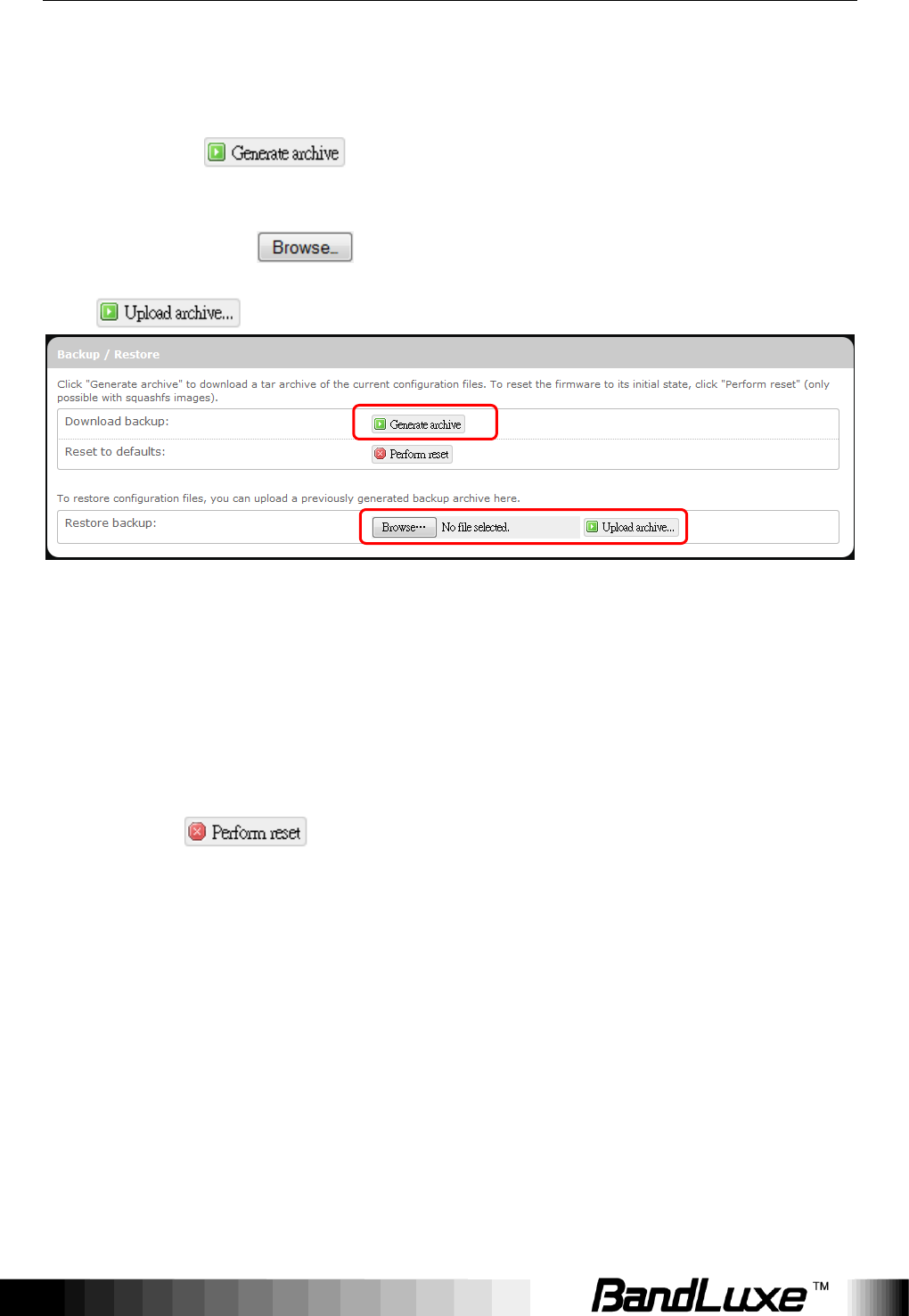

Backup / Restore ............................................................................................................. 20
Download backup ........................................................................................................ 20
Reset to defaults .......................................................................................................... 21
Restore backup ............................................................................................................ 21
Flash new firmware image .............................................................................................. 21
Flash new module firmware image ................................................................................. 21
Flash new ipkg package .................................................................................................. 21
FOTA ............................................................................................................................... 21

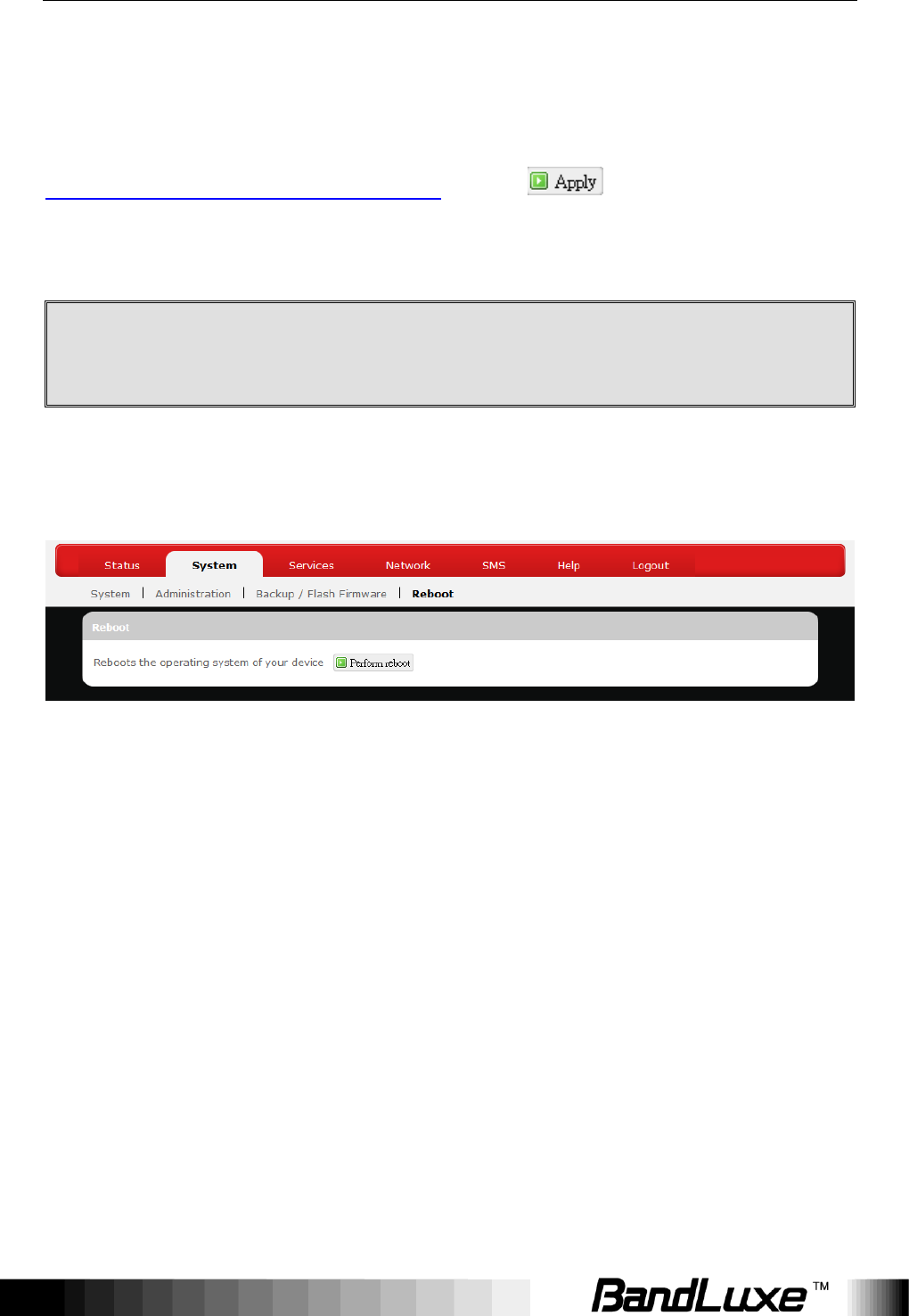

Reboot ................................................................................................................. 22
Services ................................................................................................................ 23

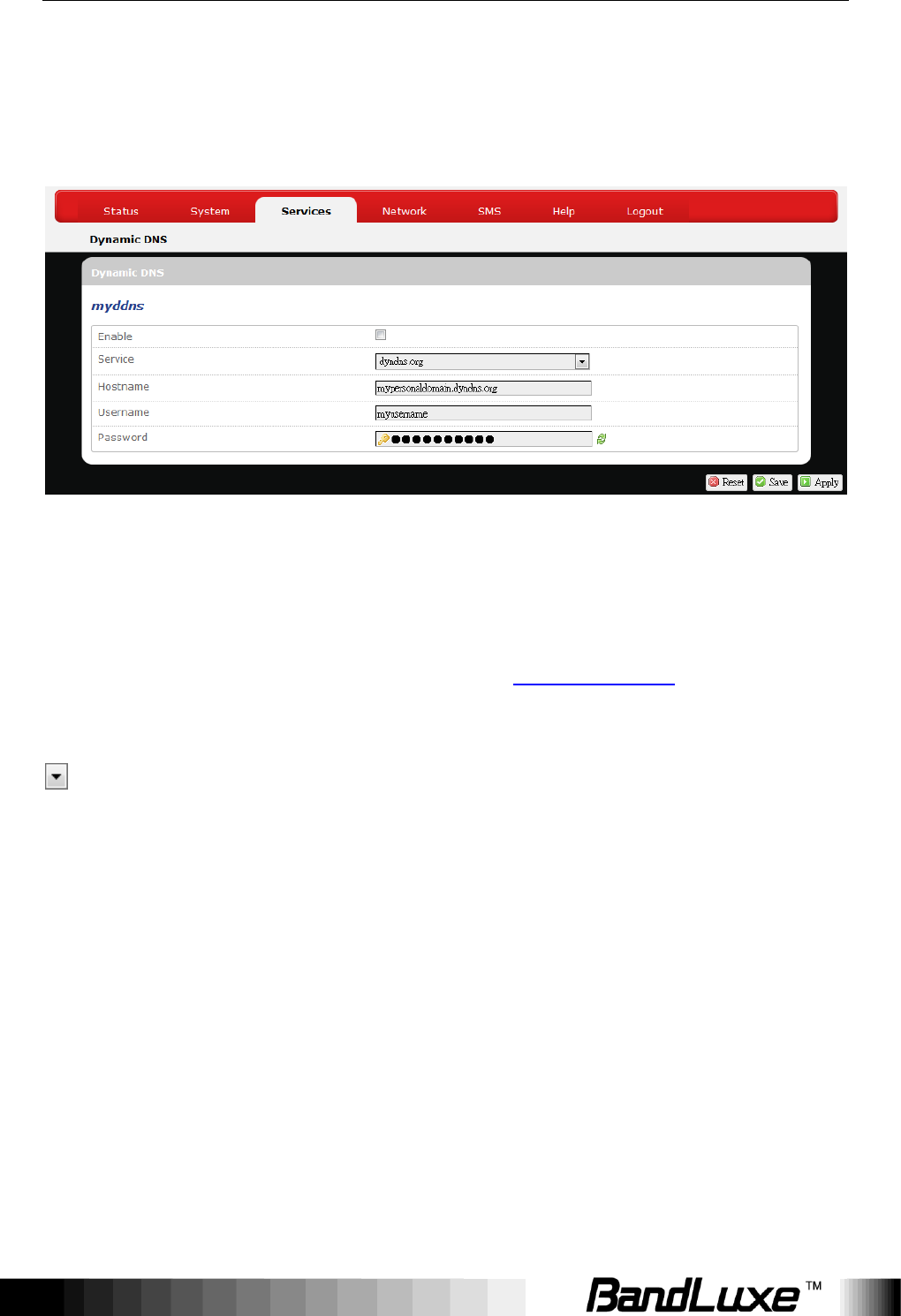

Dynamic DNS ....................................................................................................... 23
Network ................................................................................................................. 24
Interfaces ............................................................................................................. 24

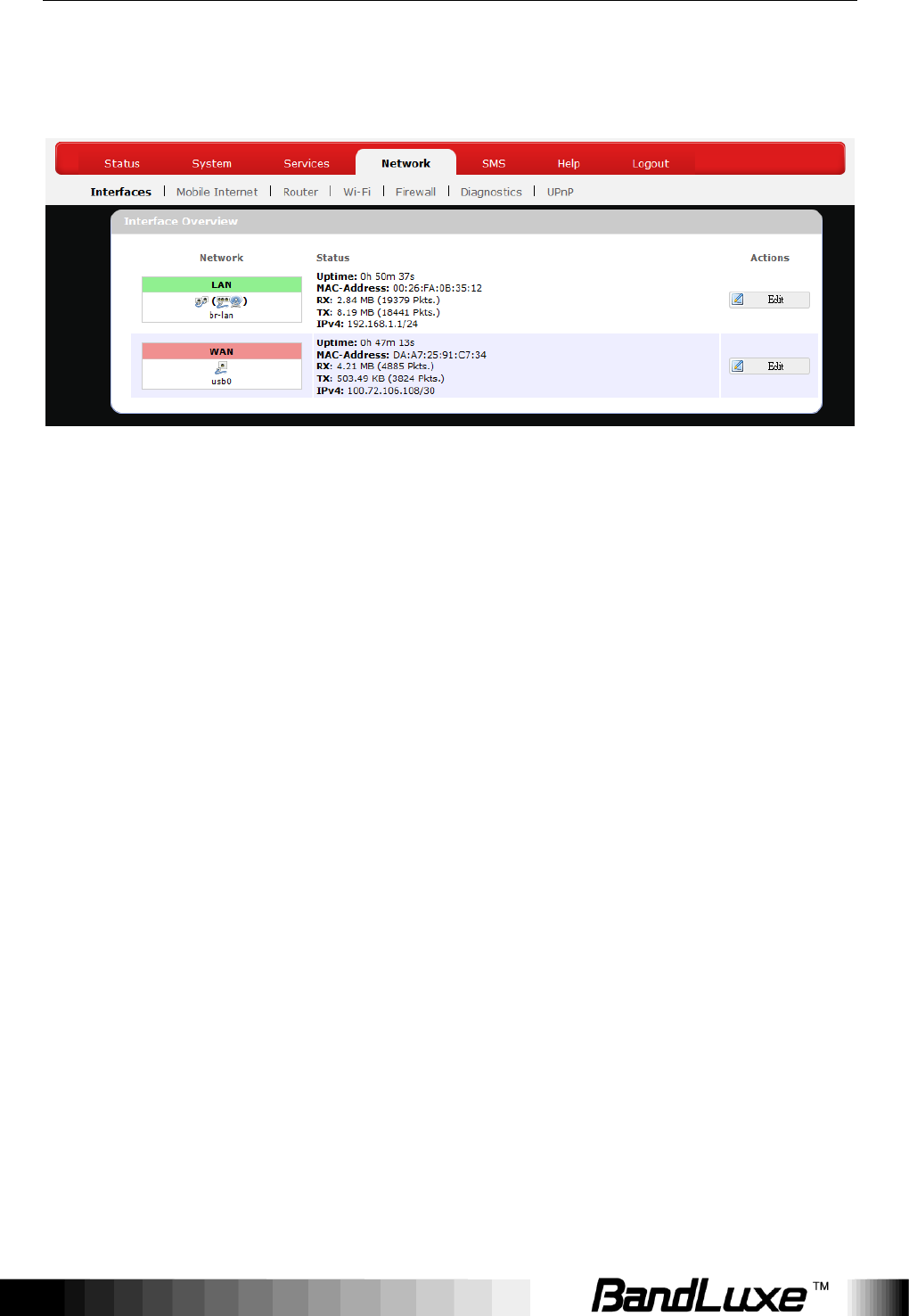

Interface Overview .......................................................................................................... 24

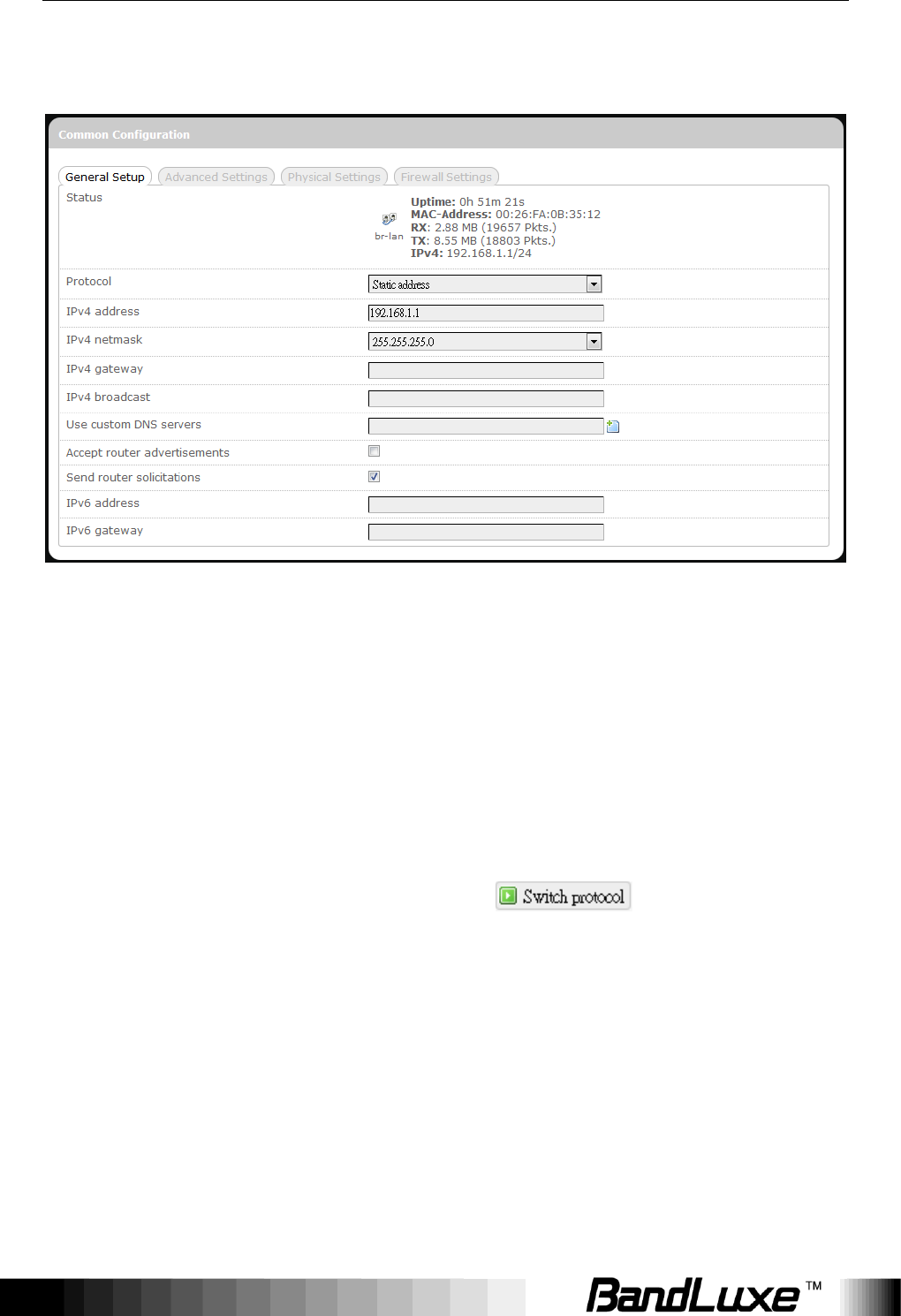

Common Configuration ................................................................................................... 25
General Setup .............................................................................................................. 25
2

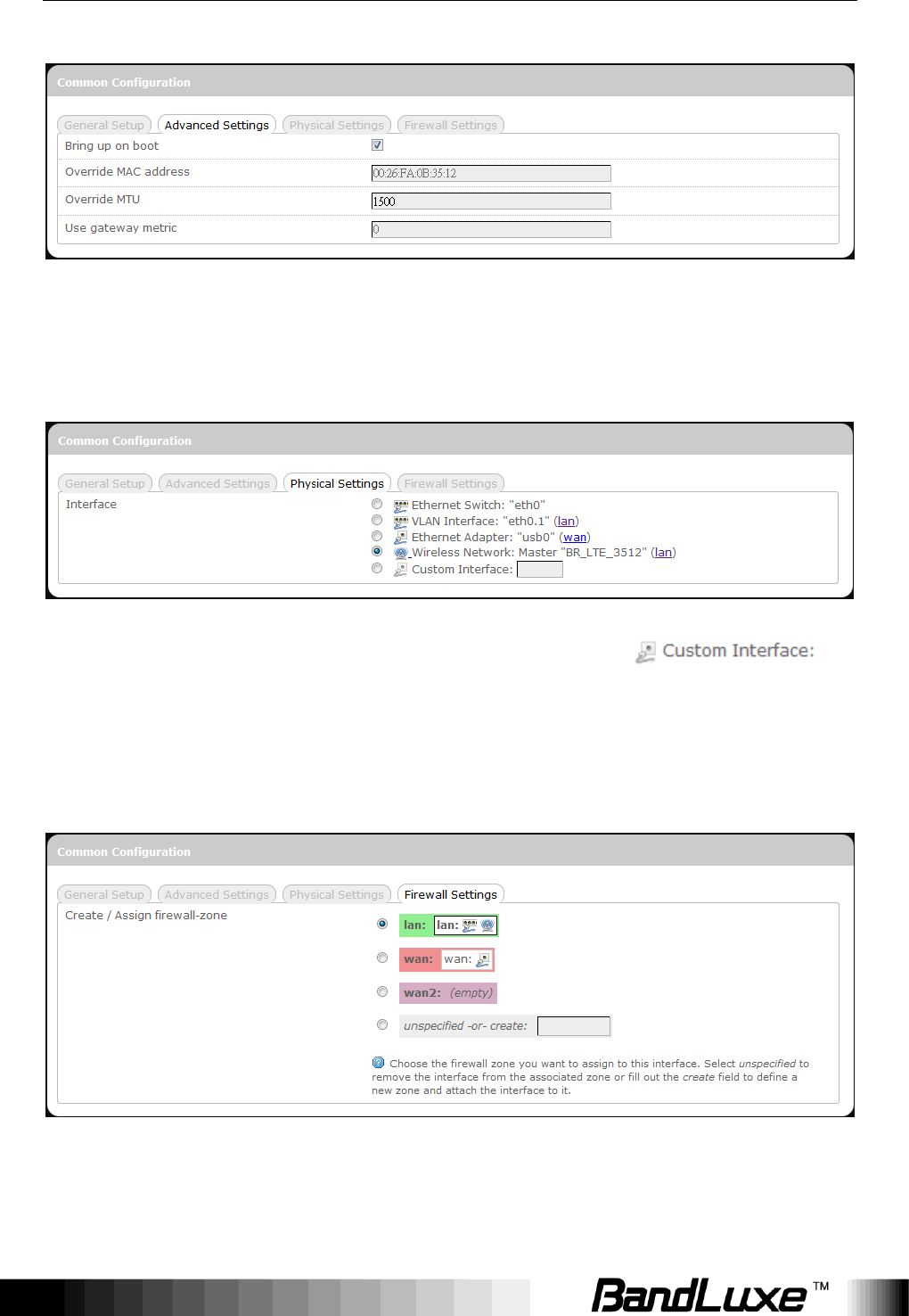

Advanced Settings ....................................................................................................... 26
Physical Settings .......................................................................................................... 26
Firewall Settings ........................................................................................................... 26
Hotspot ................................................................................................................. 28
Chillispot .......................................................................................................................... 28
Mobile Internet ...................................................................................................... 30

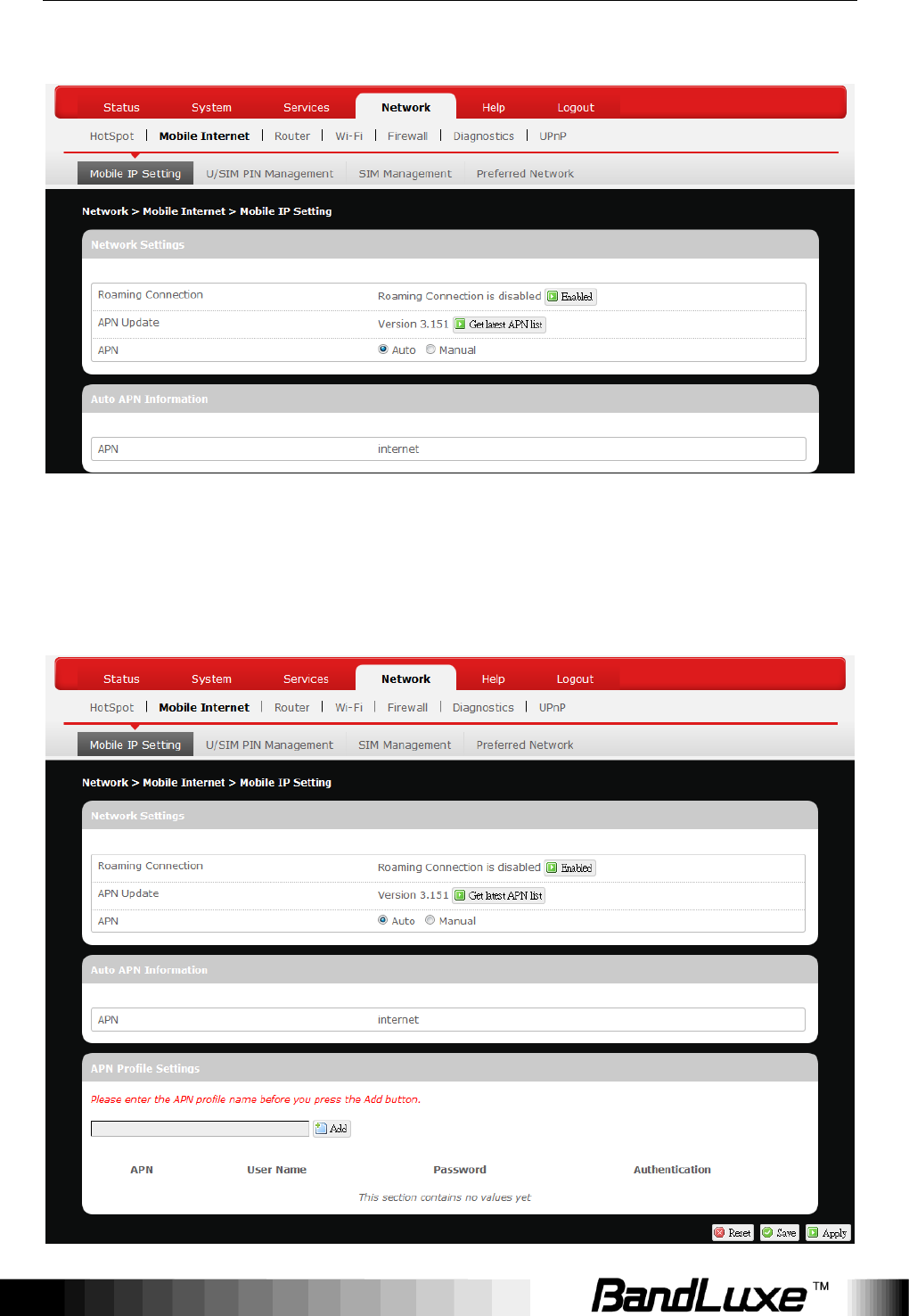

WWAN Setting ................................................................................................................. 30
Network Settings .......................................................................................................... 31
Auto APN Information .................................................................................................. 31
APN Profile Settings .................................................................................................... 31
Reset Modem ............................................................................................................... 31

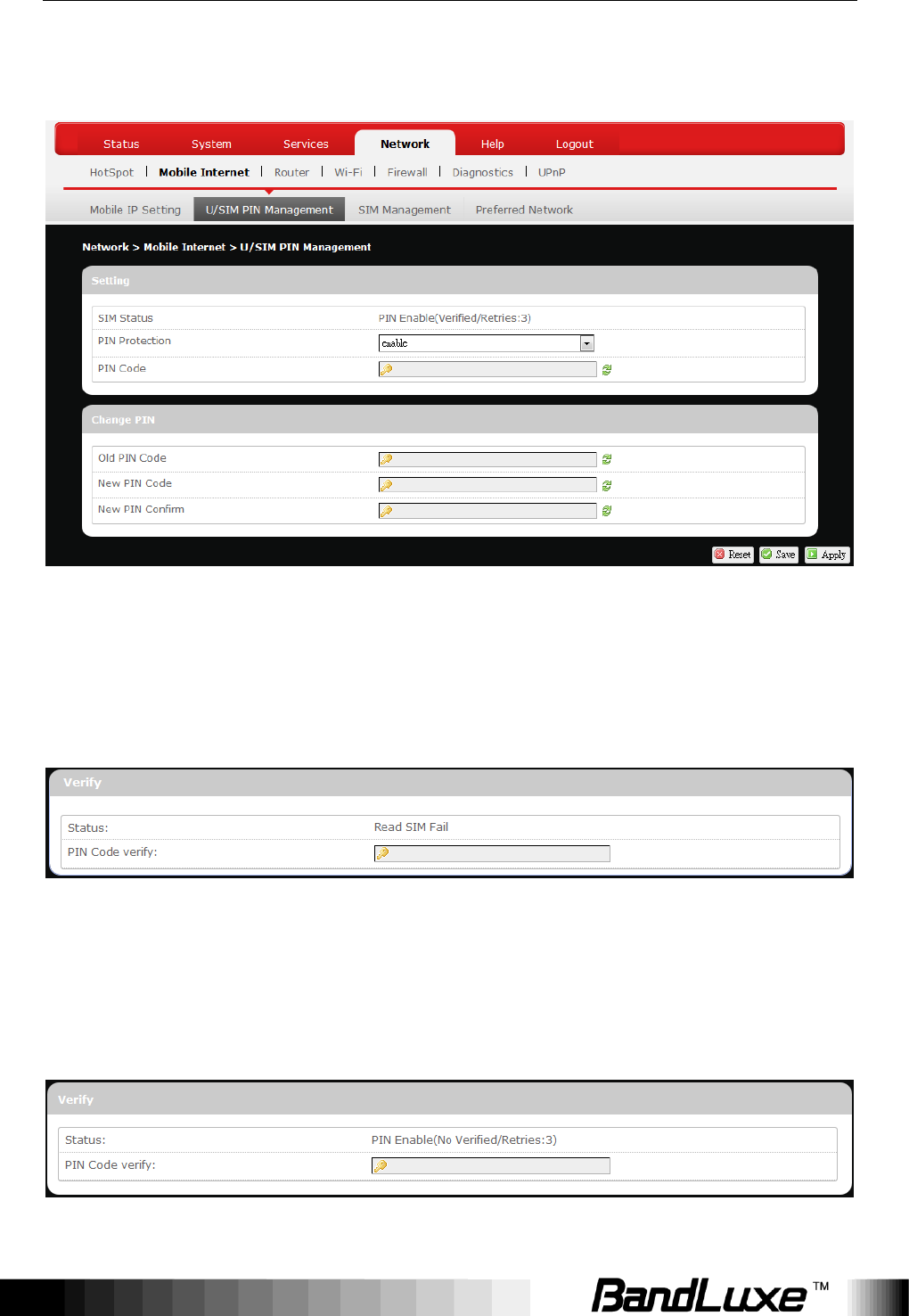

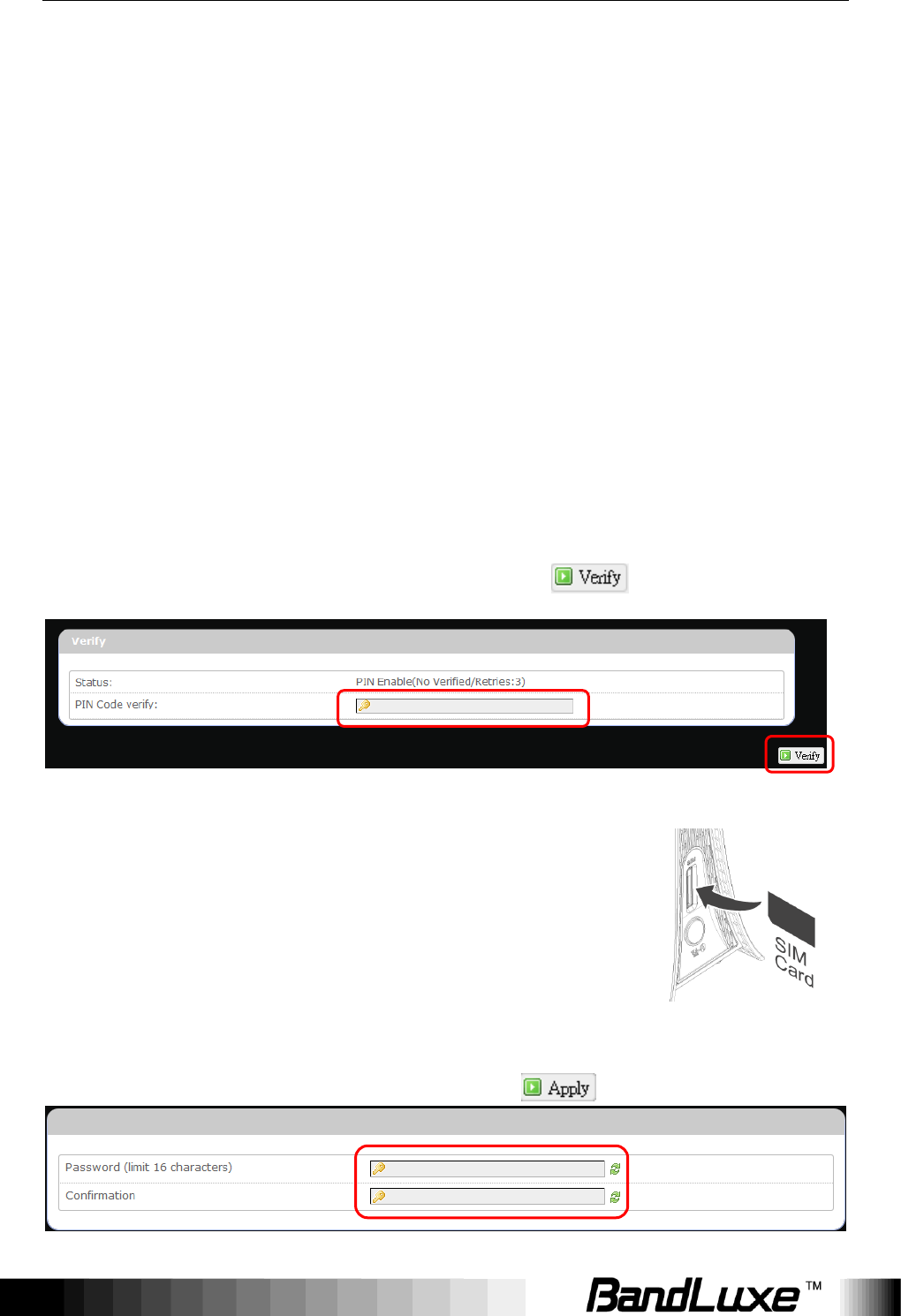

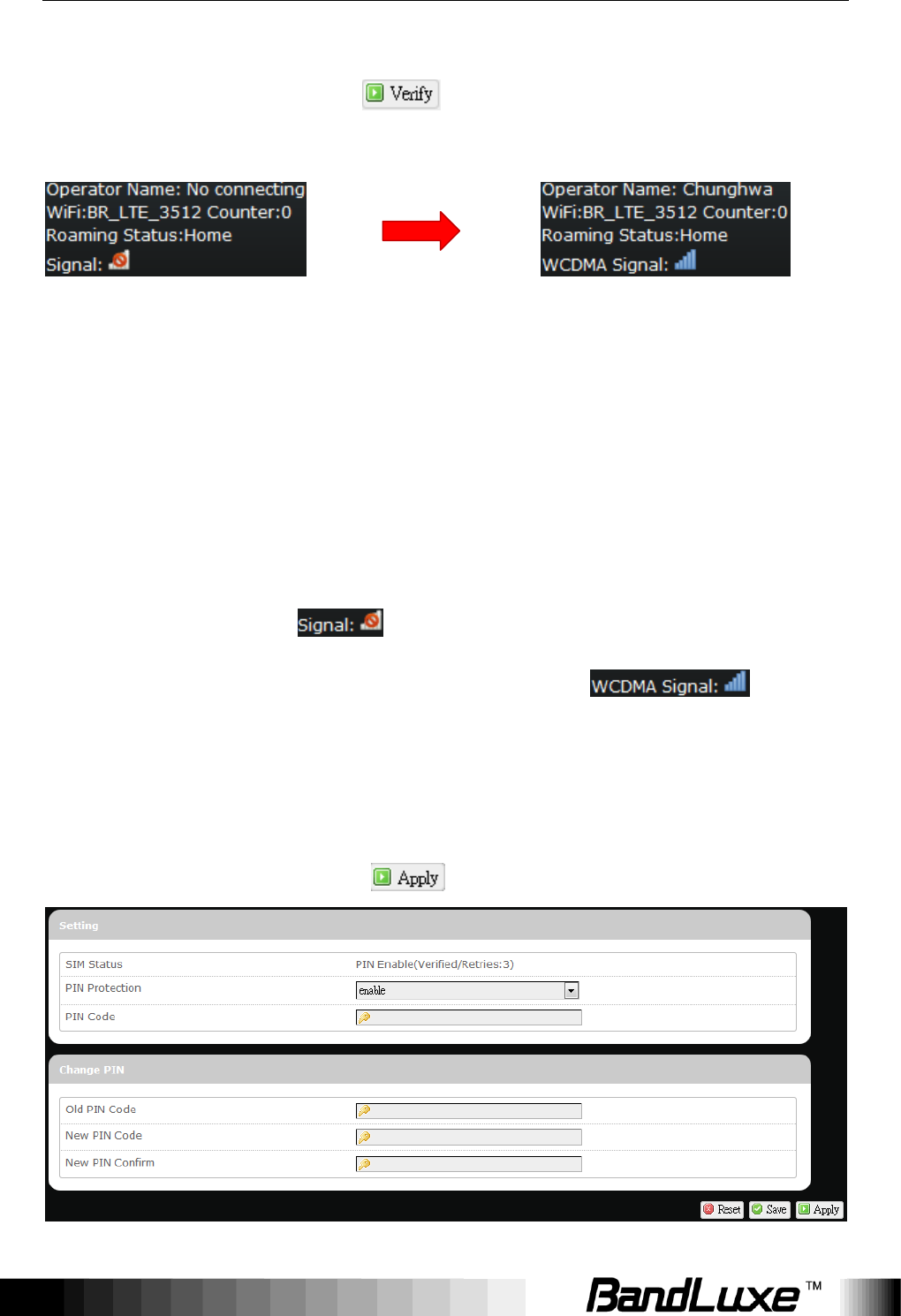

U/SIM PIN Management .................................................................................................. 32
Scenario 1: No mobile internet service ........................................................................ 32
Scenario 2: Mobile internet service pending ................................................................ 32
Scenario 3: Mobile internet service enabled ................................................................ 33

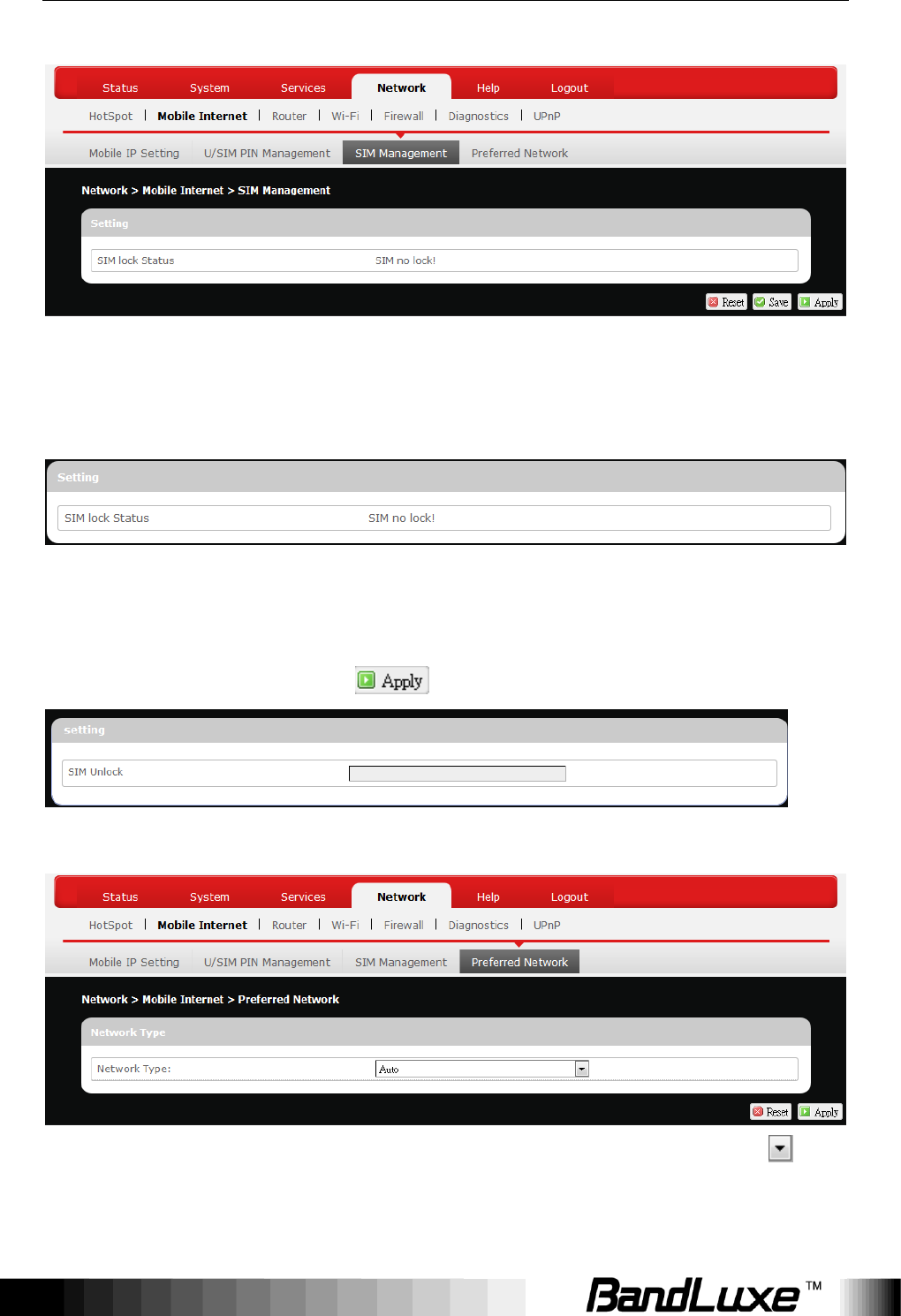

SIM Management ............................................................................................................ 35
Scenario 1: SIM lock absent ........................................................................................ 35
Scenario 2: SIM lock present ....................................................................................... 35
Preferred Network ........................................................................................................... 35
Router .................................................................................................................. 36

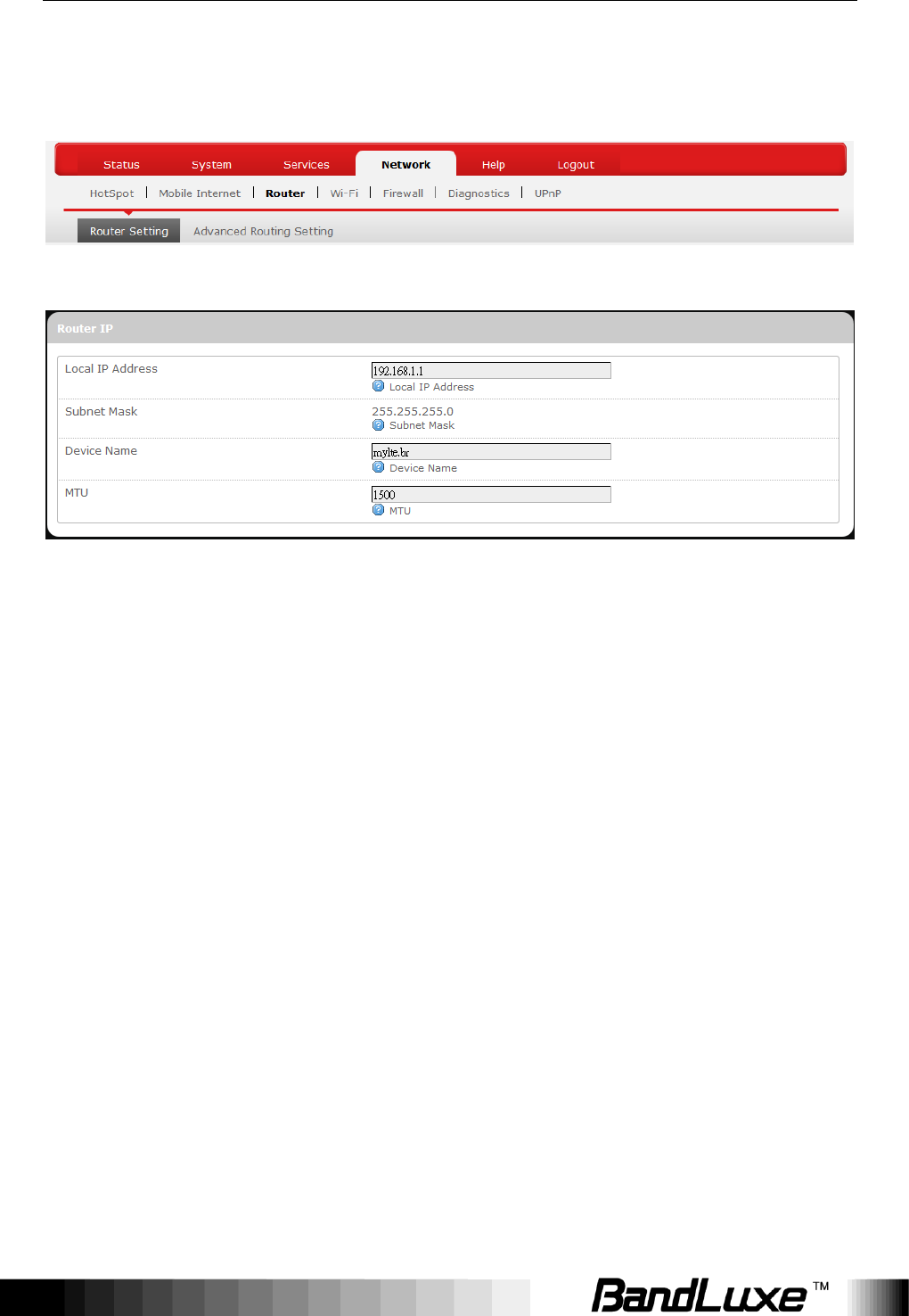

Router Settings ................................................................................................................ 36
Router IP ...................................................................................................................... 36

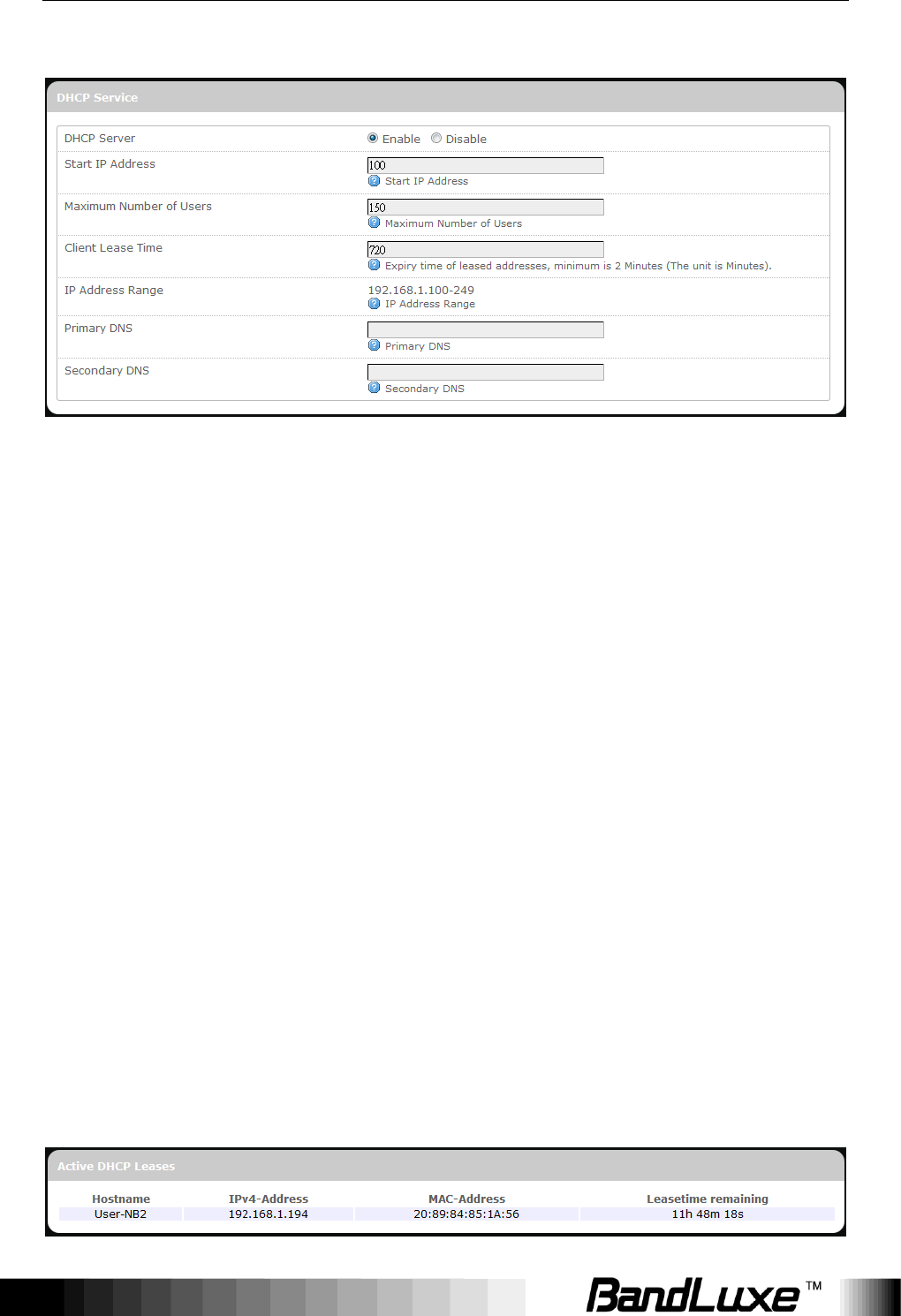

DHCP Service .............................................................................................................. 37
Active DHCP Leases.................................................................................................... 37

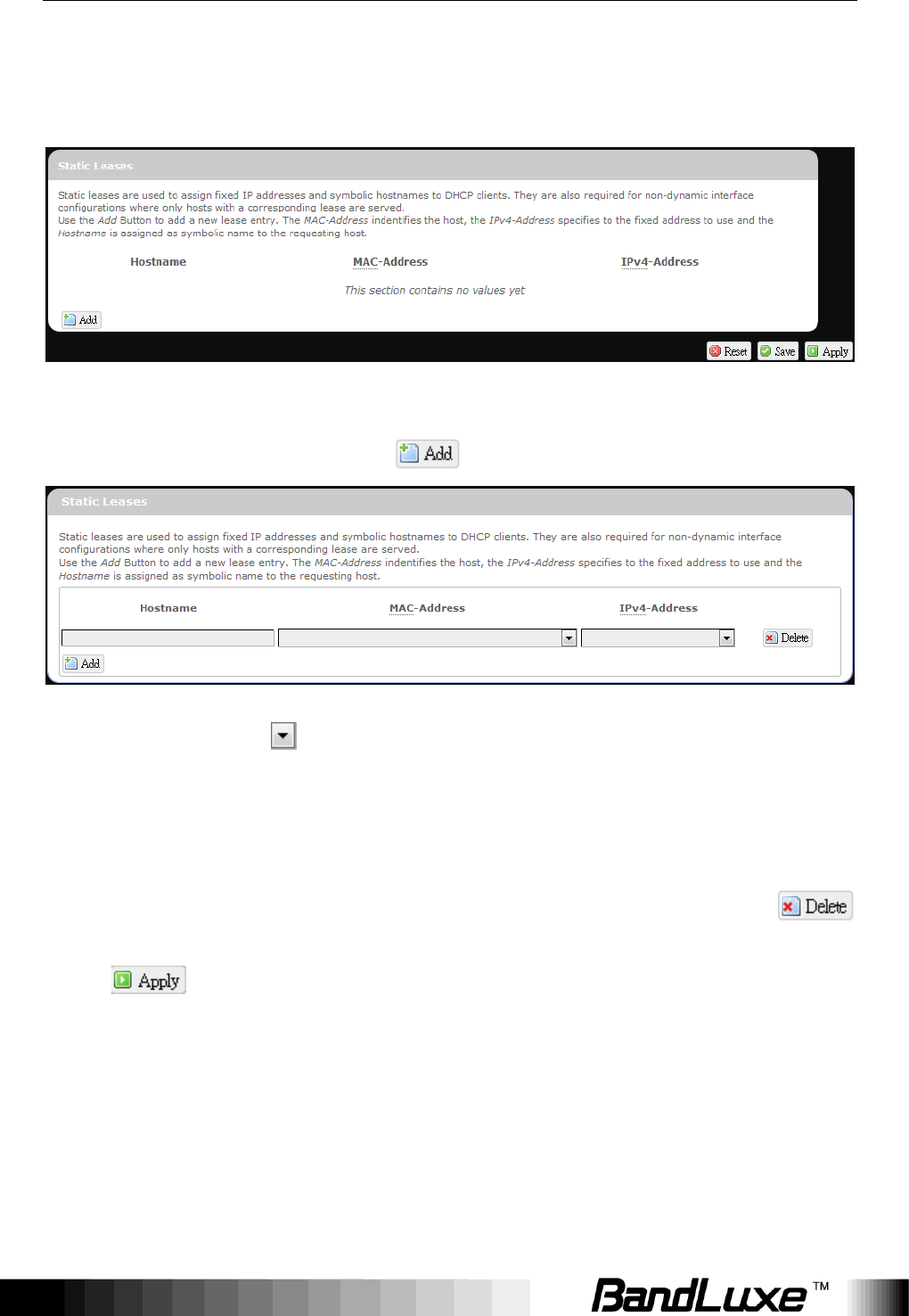

Static Leases ................................................................................................................ 38

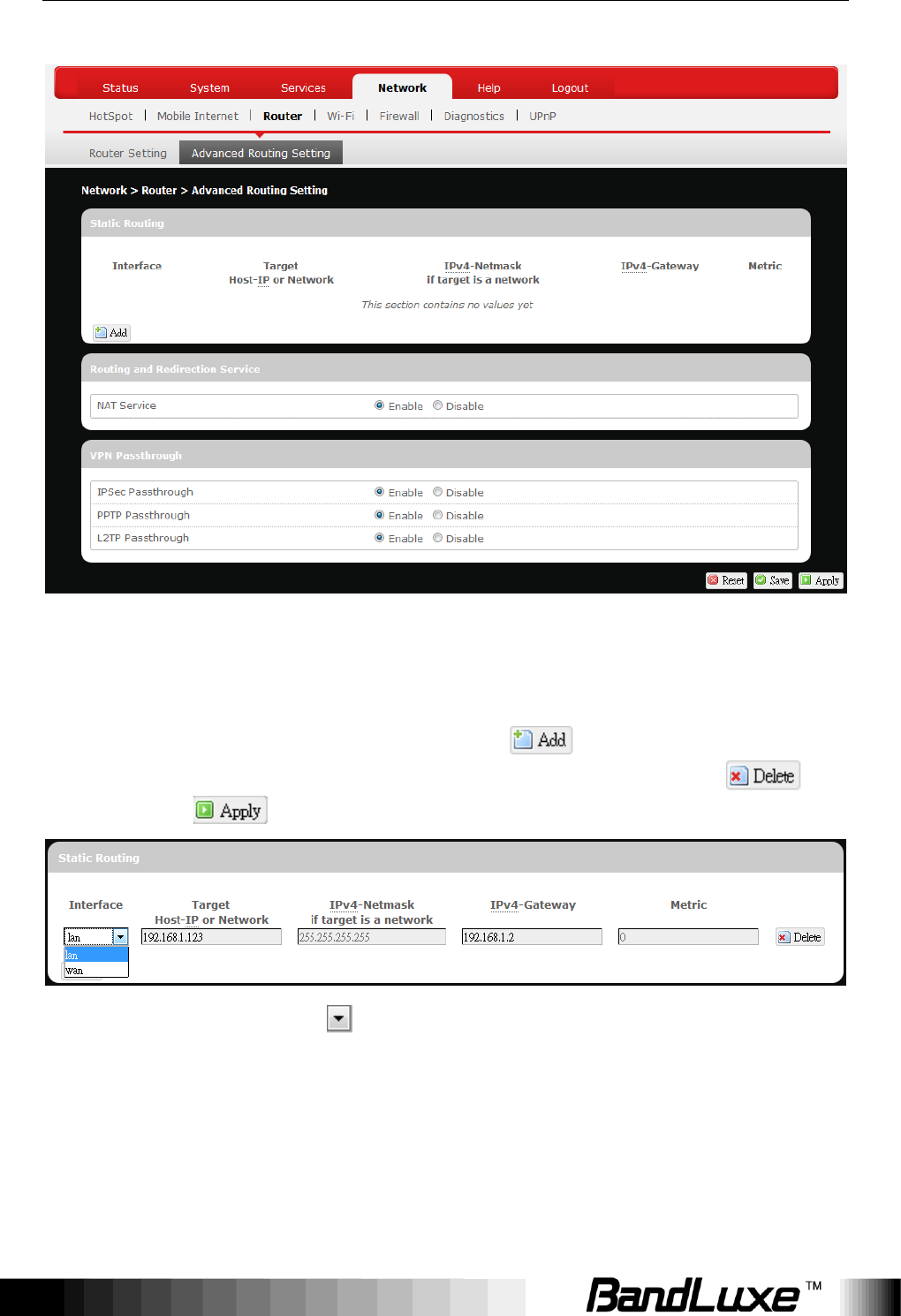

Advanced Routing settings .............................................................................................. 39
Static Routing ............................................................................................................... 39
Routing and Redirection Service ................................................................................. 40
VPN Passthrough......................................................................................................... 40

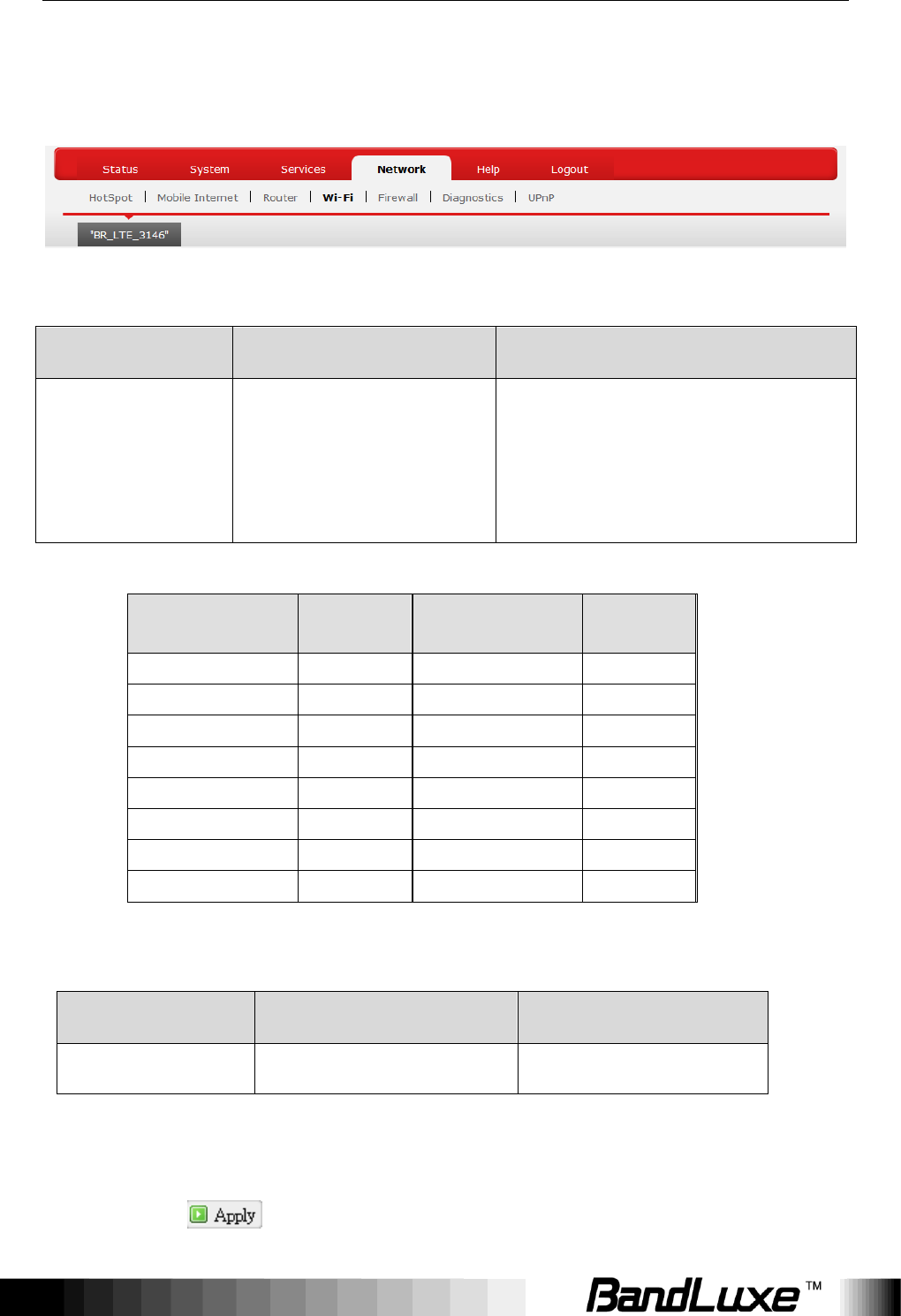

WiFi ...................................................................................................................... 41

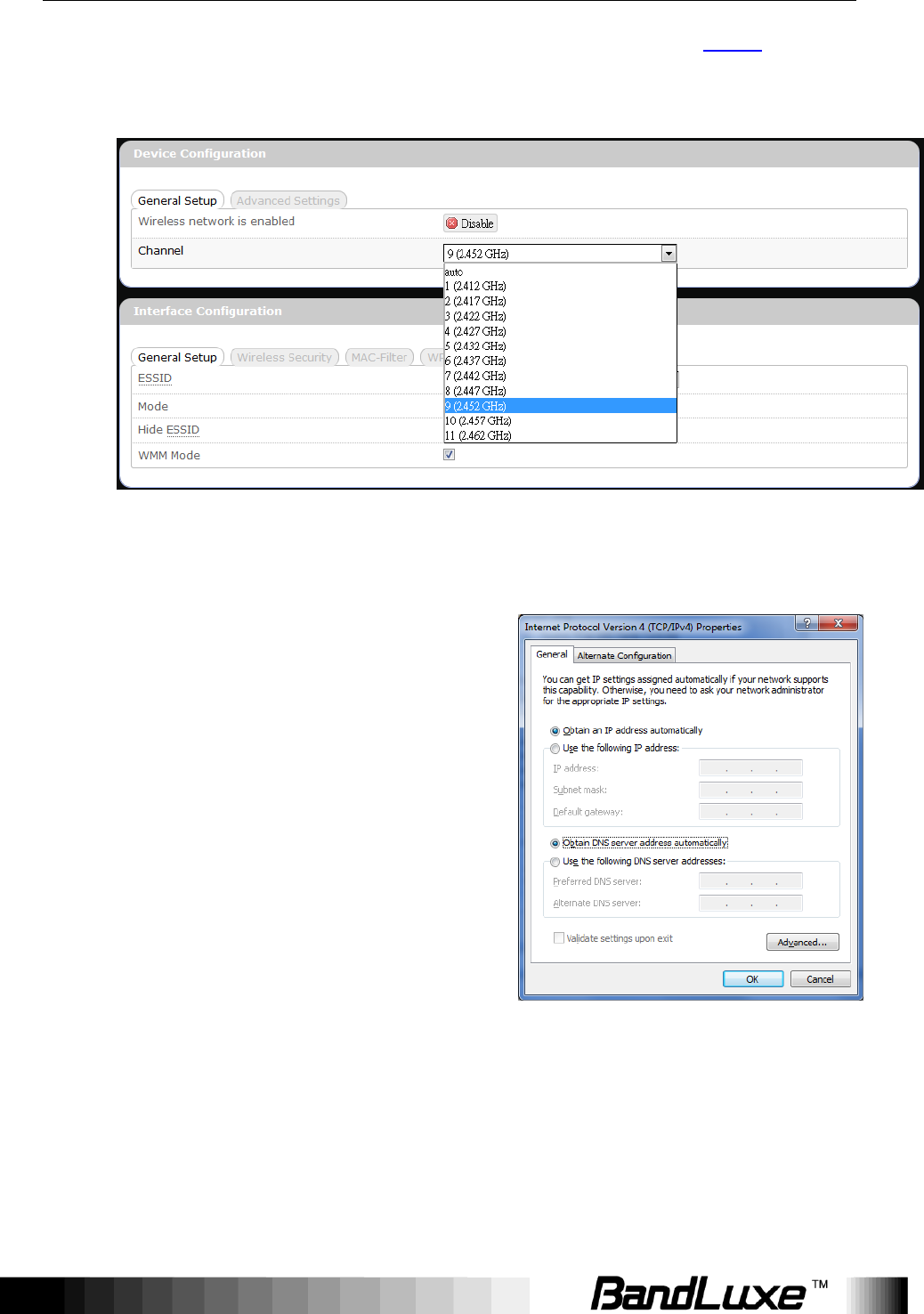

Device Configuration ....................................................................................................... 42
Advanced Settings ....................................................................................................... 43

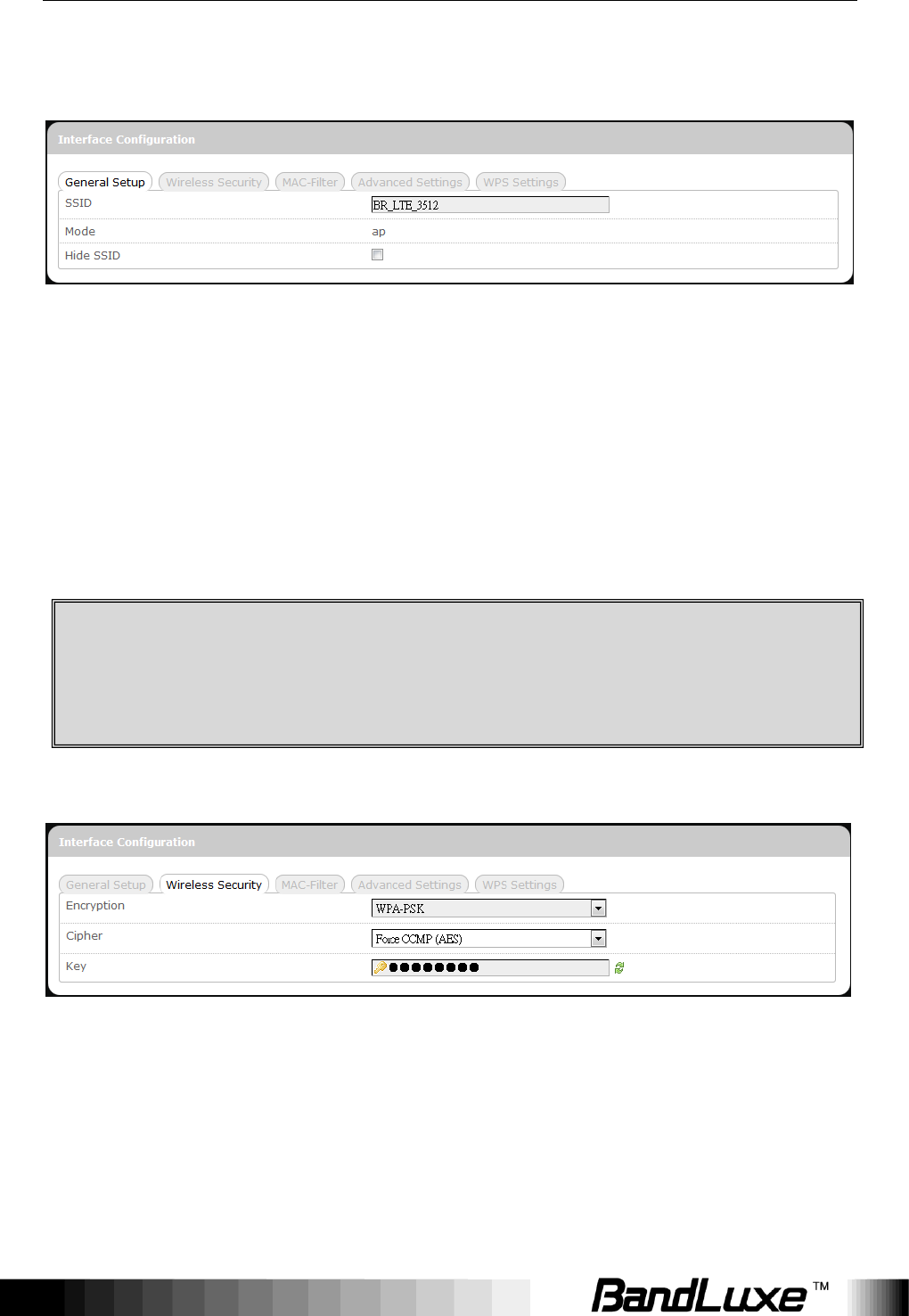

Interface Configuration .................................................................................................... 44
General Setup .............................................................................................................. 44

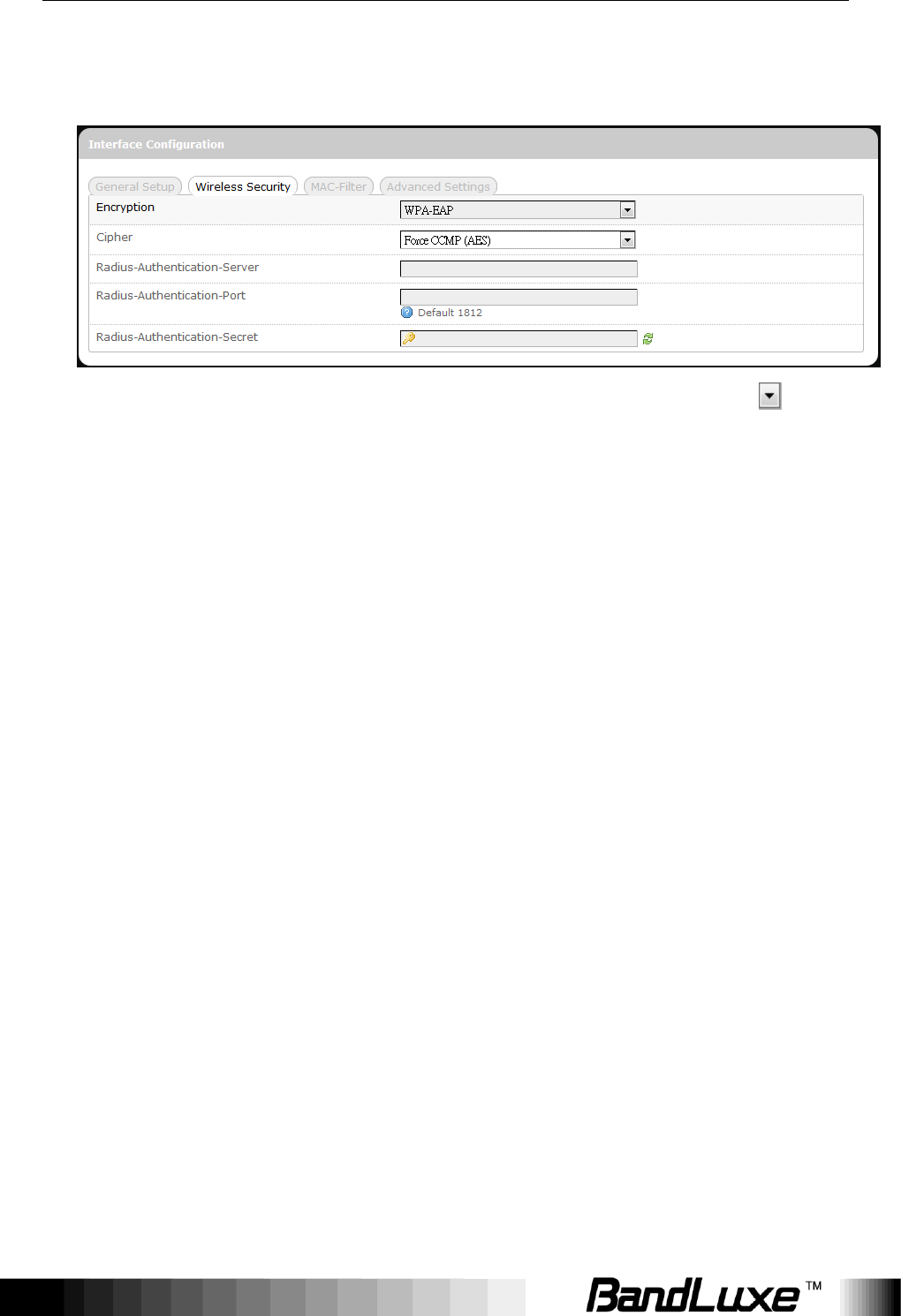

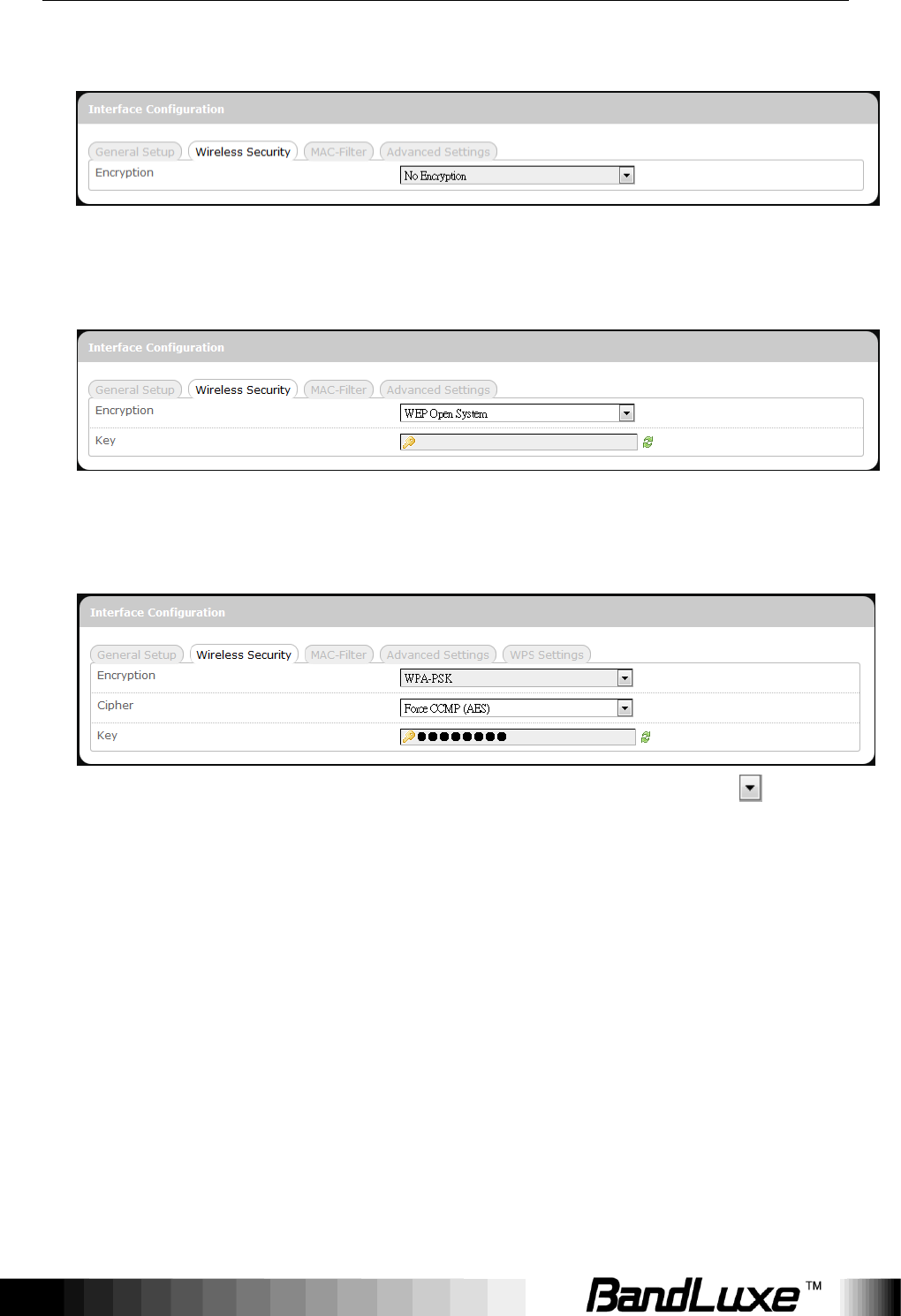

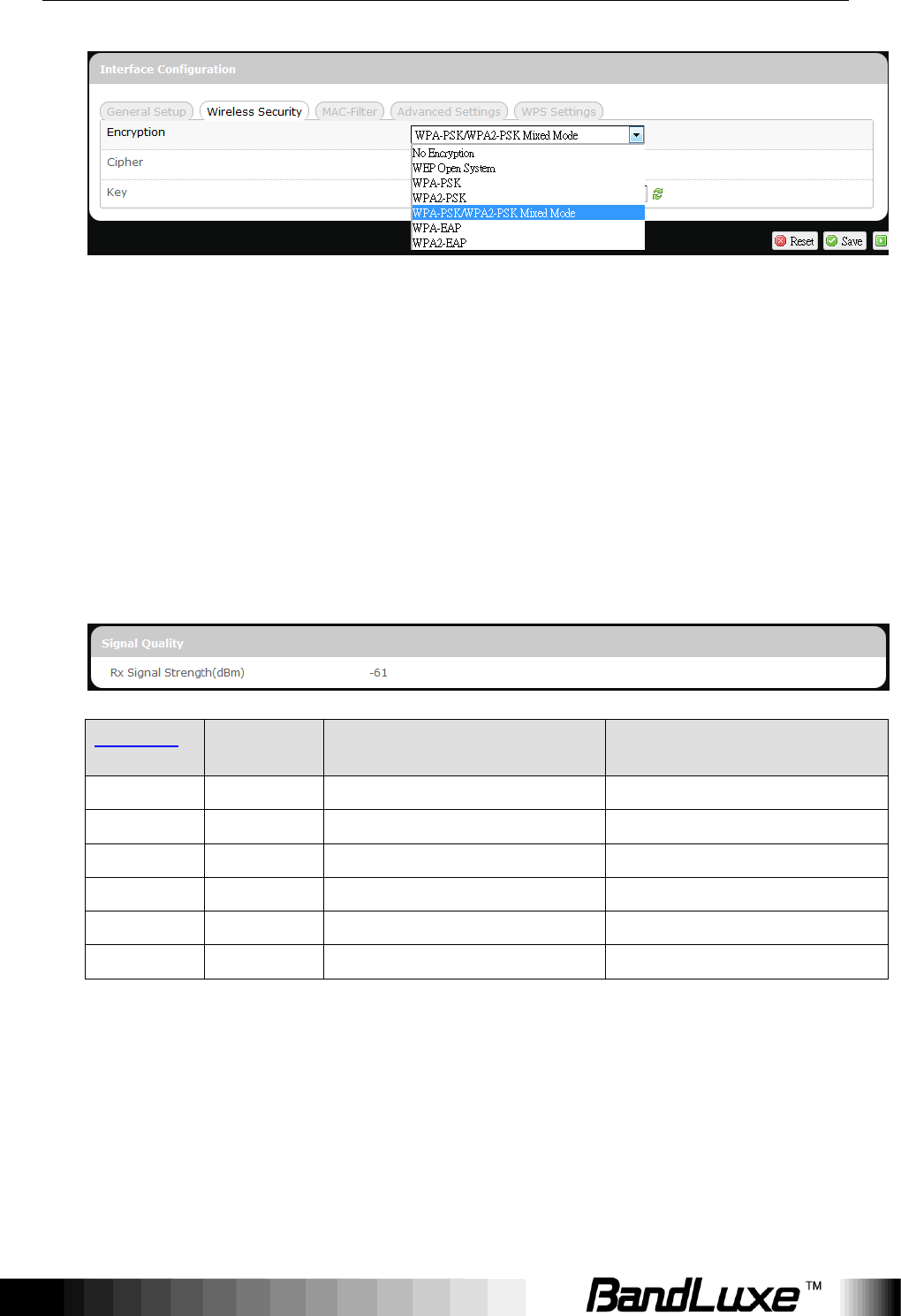

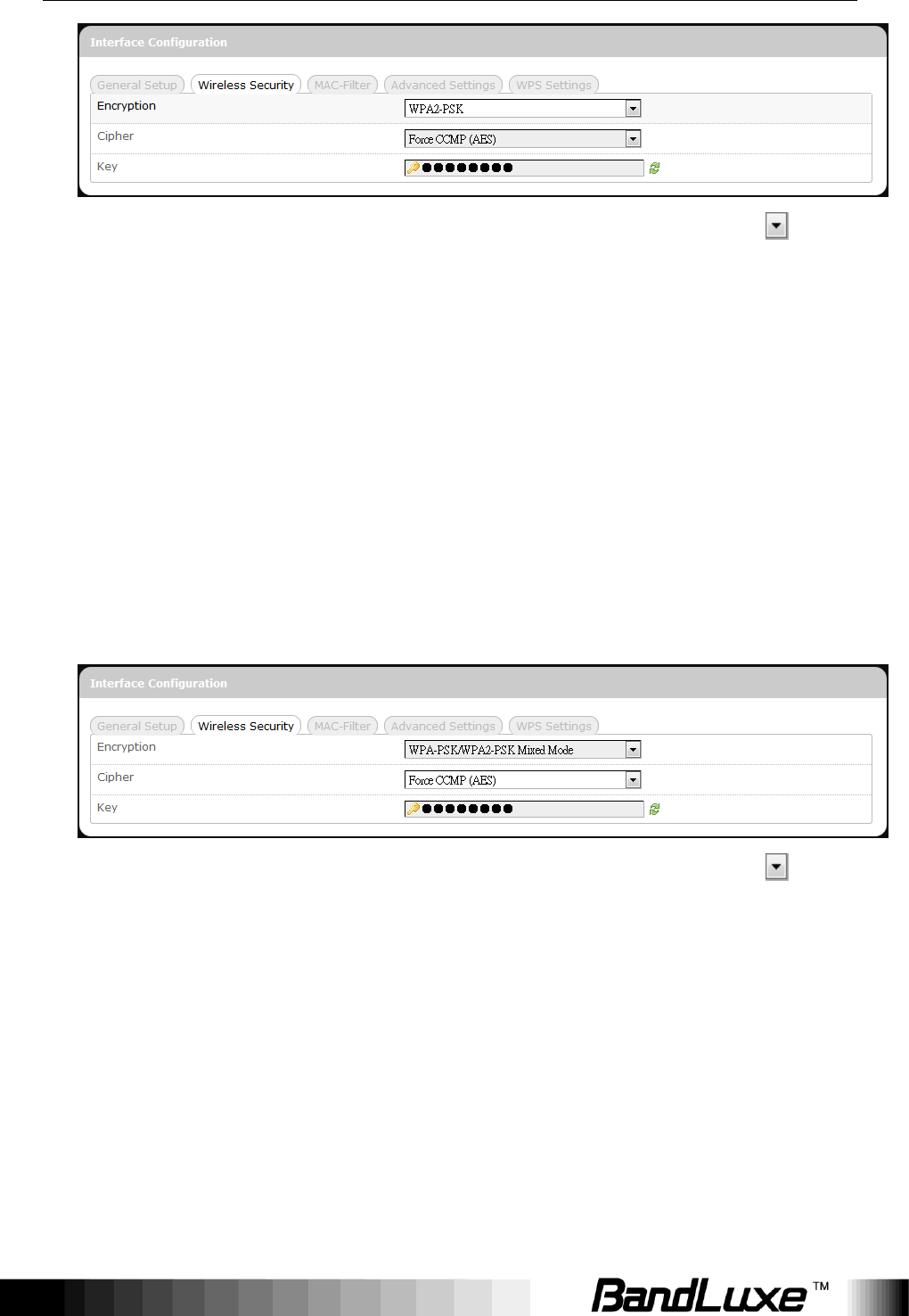

Wireless Security ......................................................................................................... 44

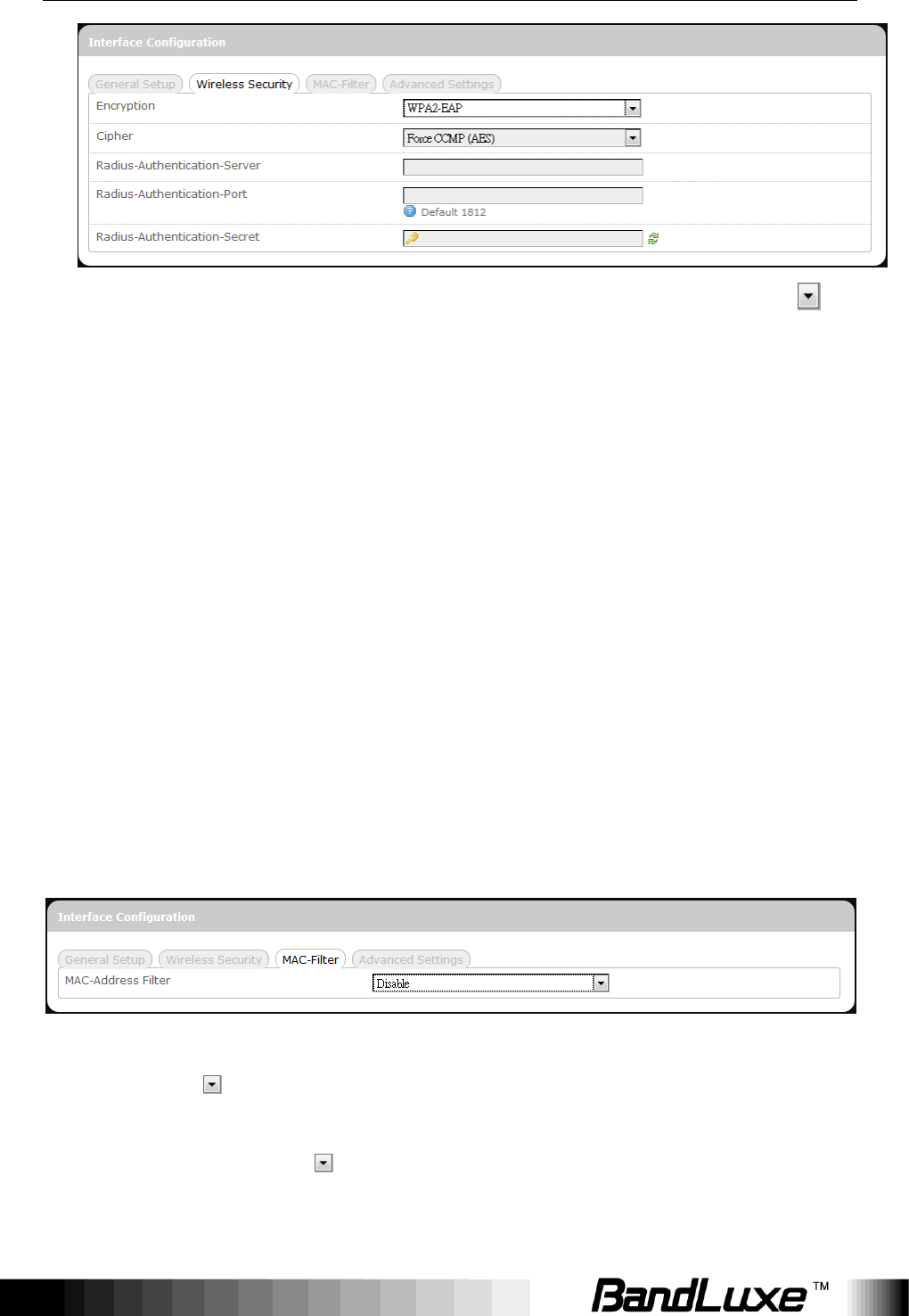

MAC-Filter .................................................................................................................... 48

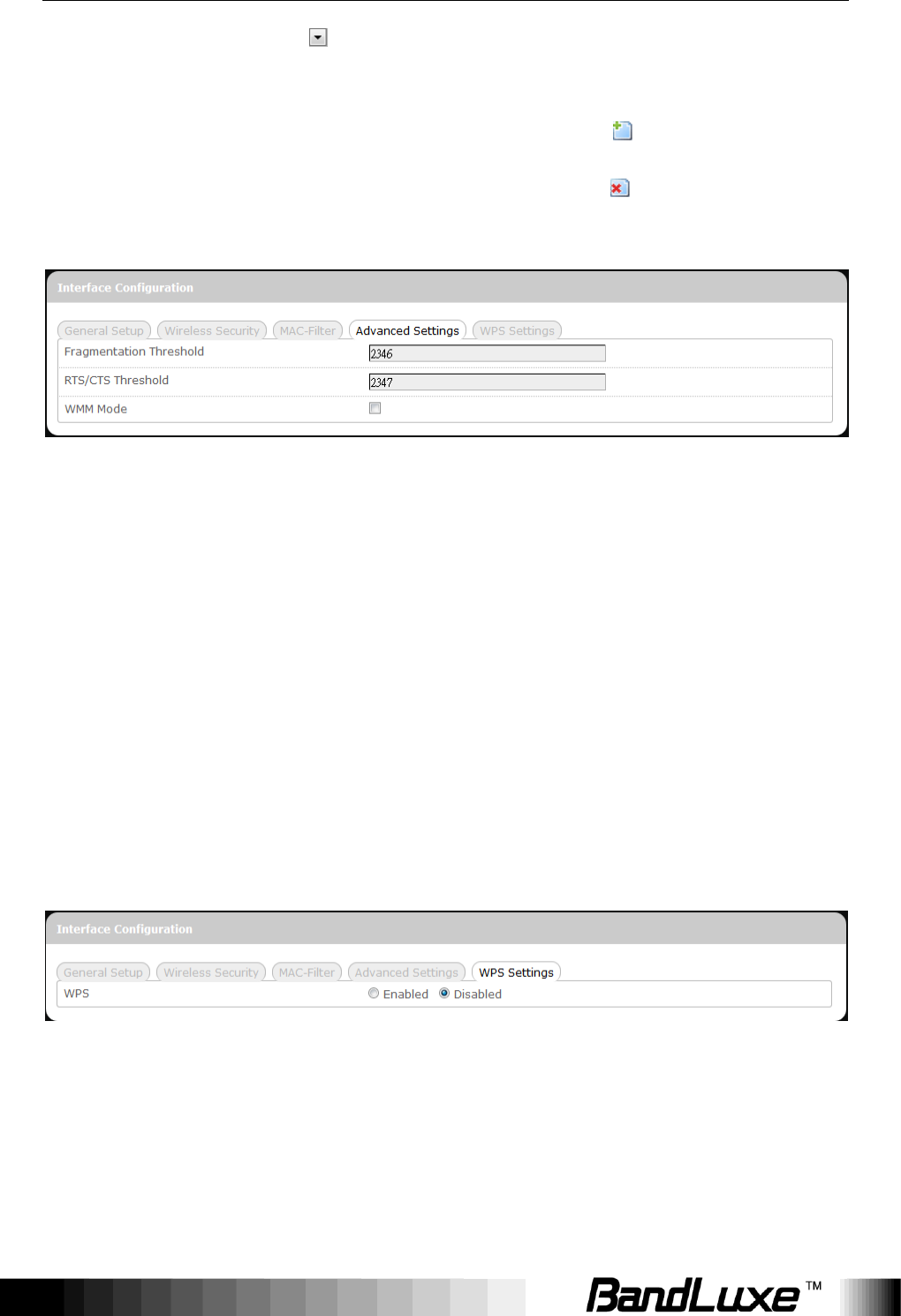

Advanced Settings ....................................................................................................... 49
WPS Settings ............................................................................................................... 49
Switch................................................................................................................... 52
Diagnostics ........................................................................................................... 52
Network Utilities ............................................................................................................... 52
Ping .............................................................................................................................. 52
Traceroute .................................................................................................................... 53
NS Lookup ................................................................................................................... 53
Firewall ................................................................................................................. 54

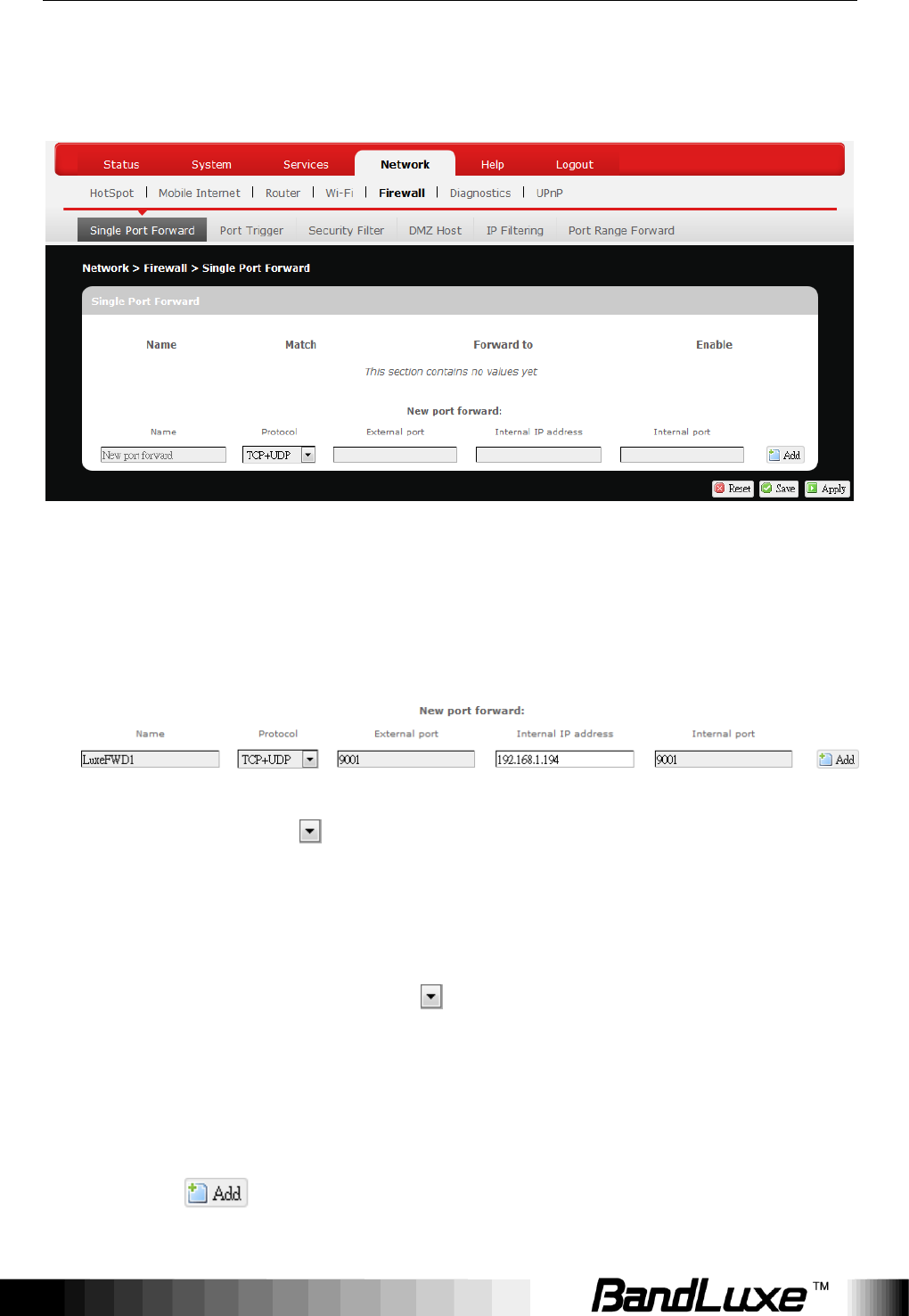

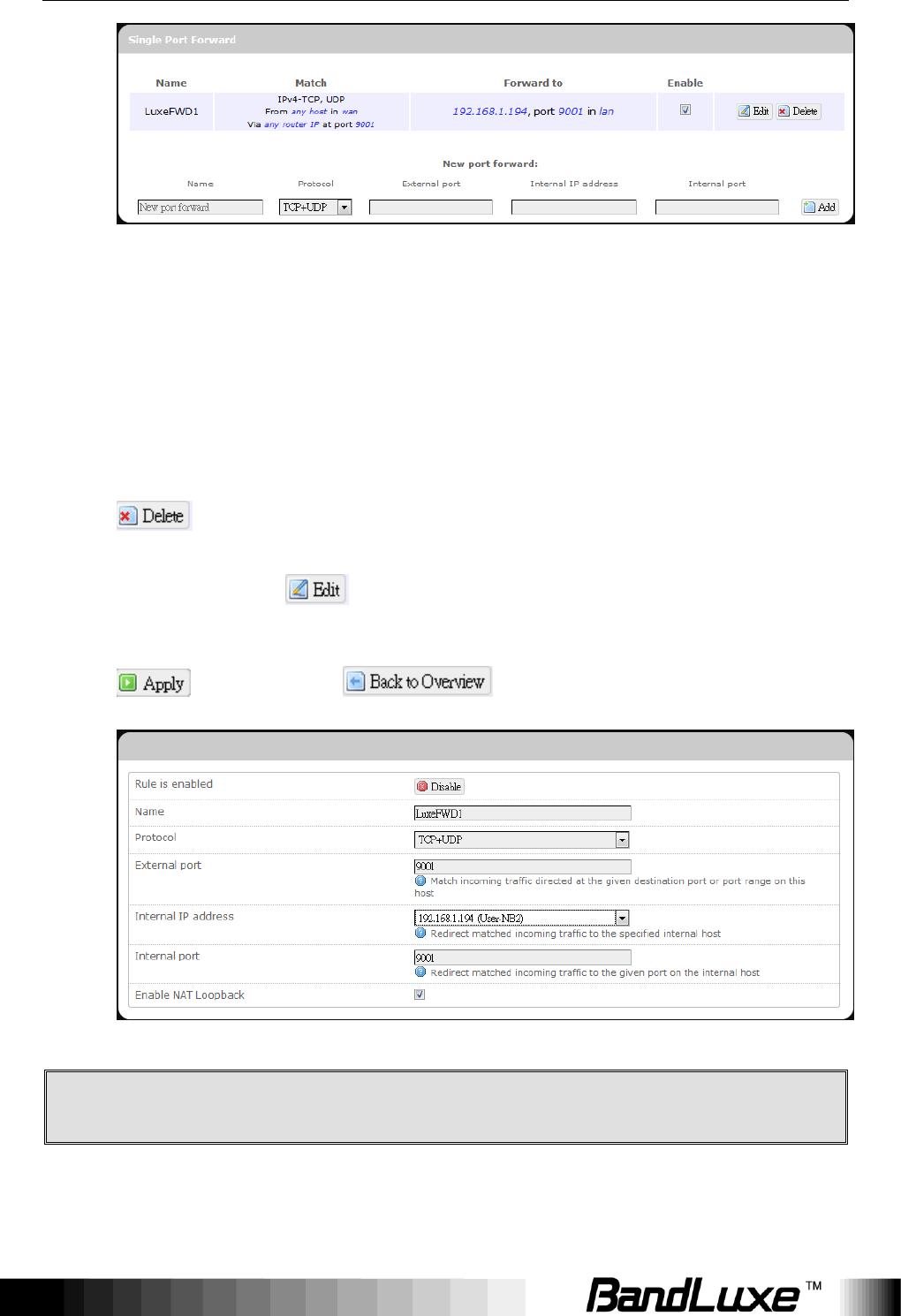

Single Port Forward ......................................................................................................... 54
Single Port Forward ..................................................................................................... 54

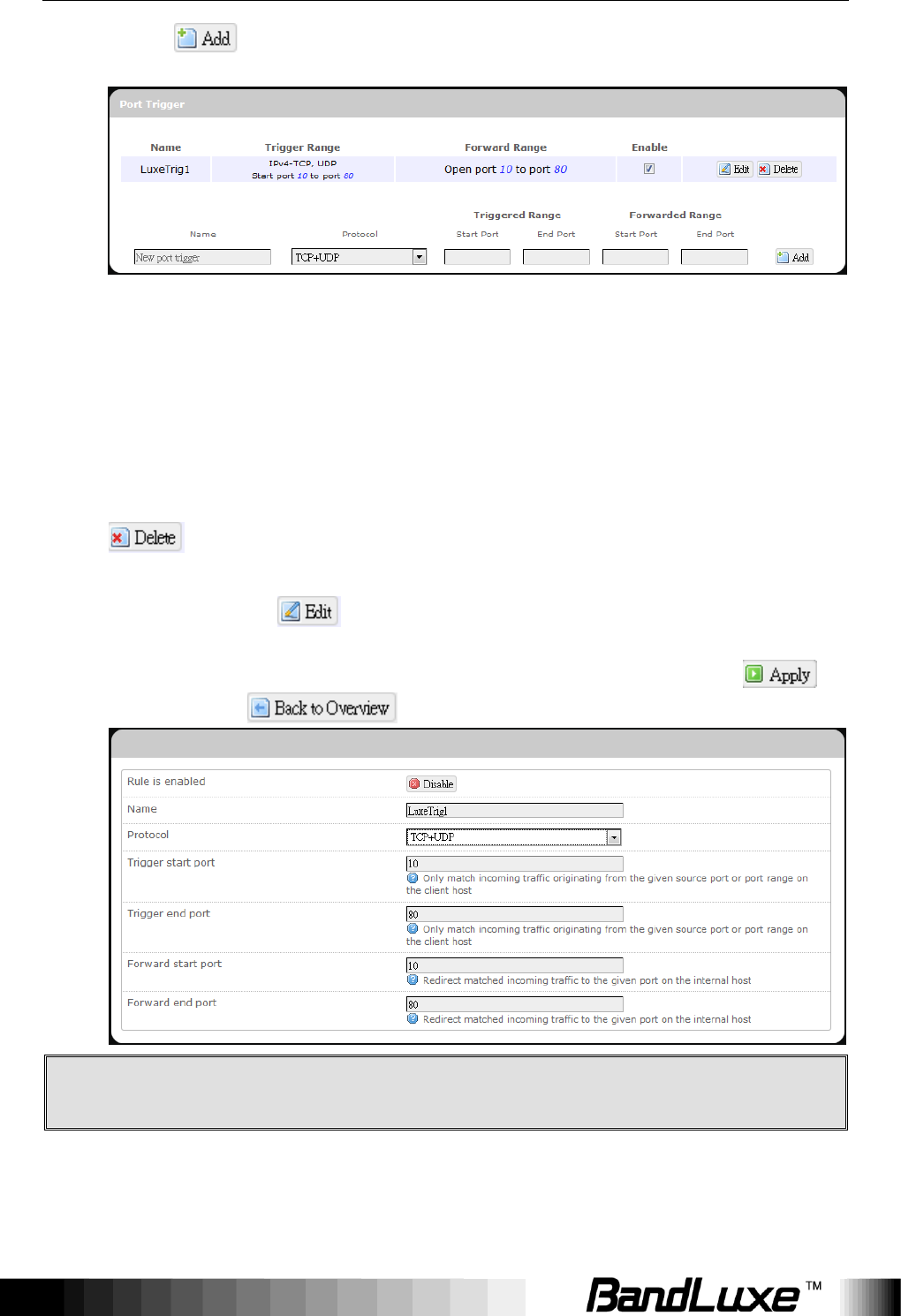

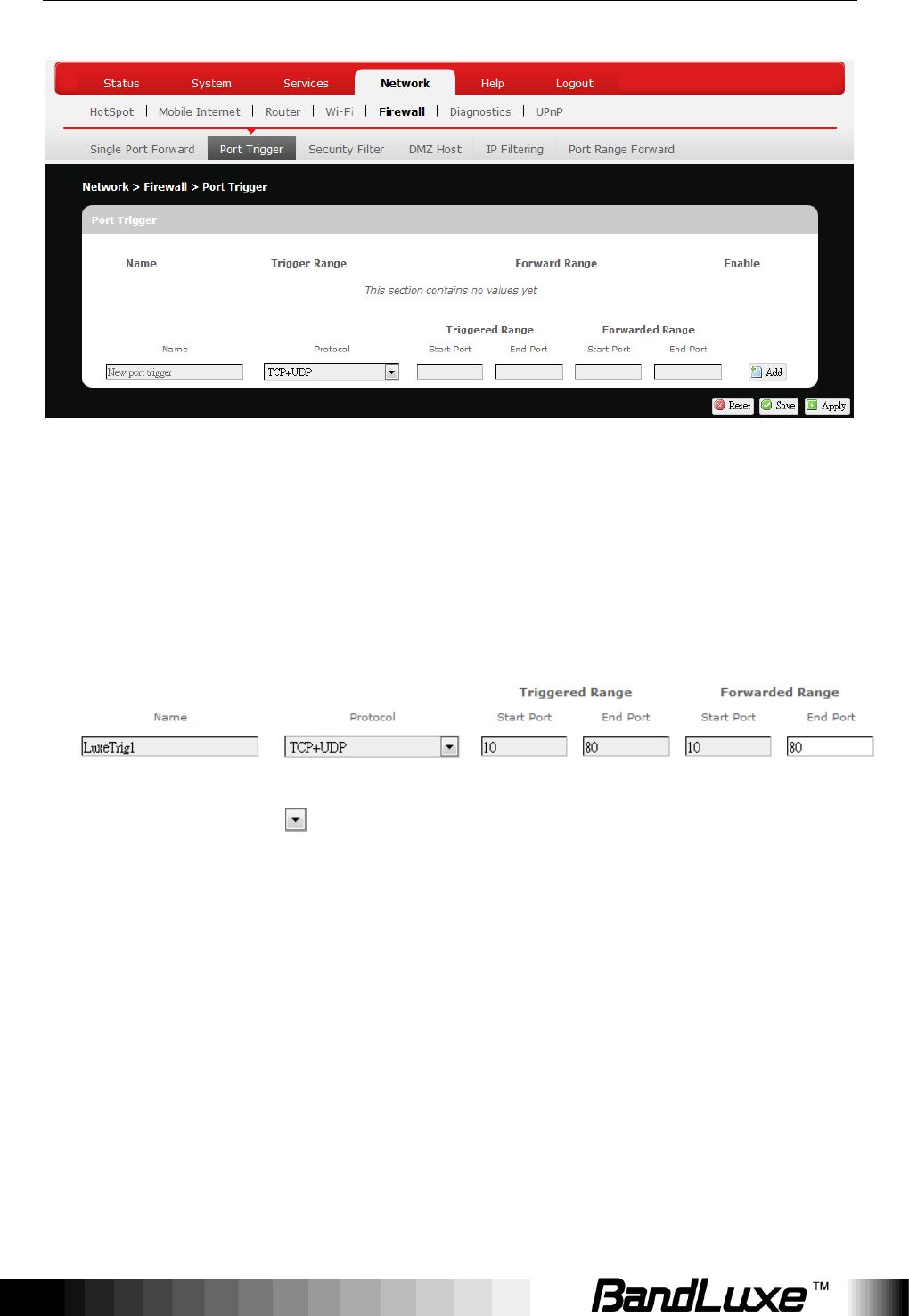

Port Trigger ...................................................................................................................... 56
Port Trigger .................................................................................................................. 56
Security Filter ................................................................................................................... 58
Firewall ......................................................................................................................... 58
Internet Filter ................................................................................................................ 58
Web Filters ................................................................................................................... 59

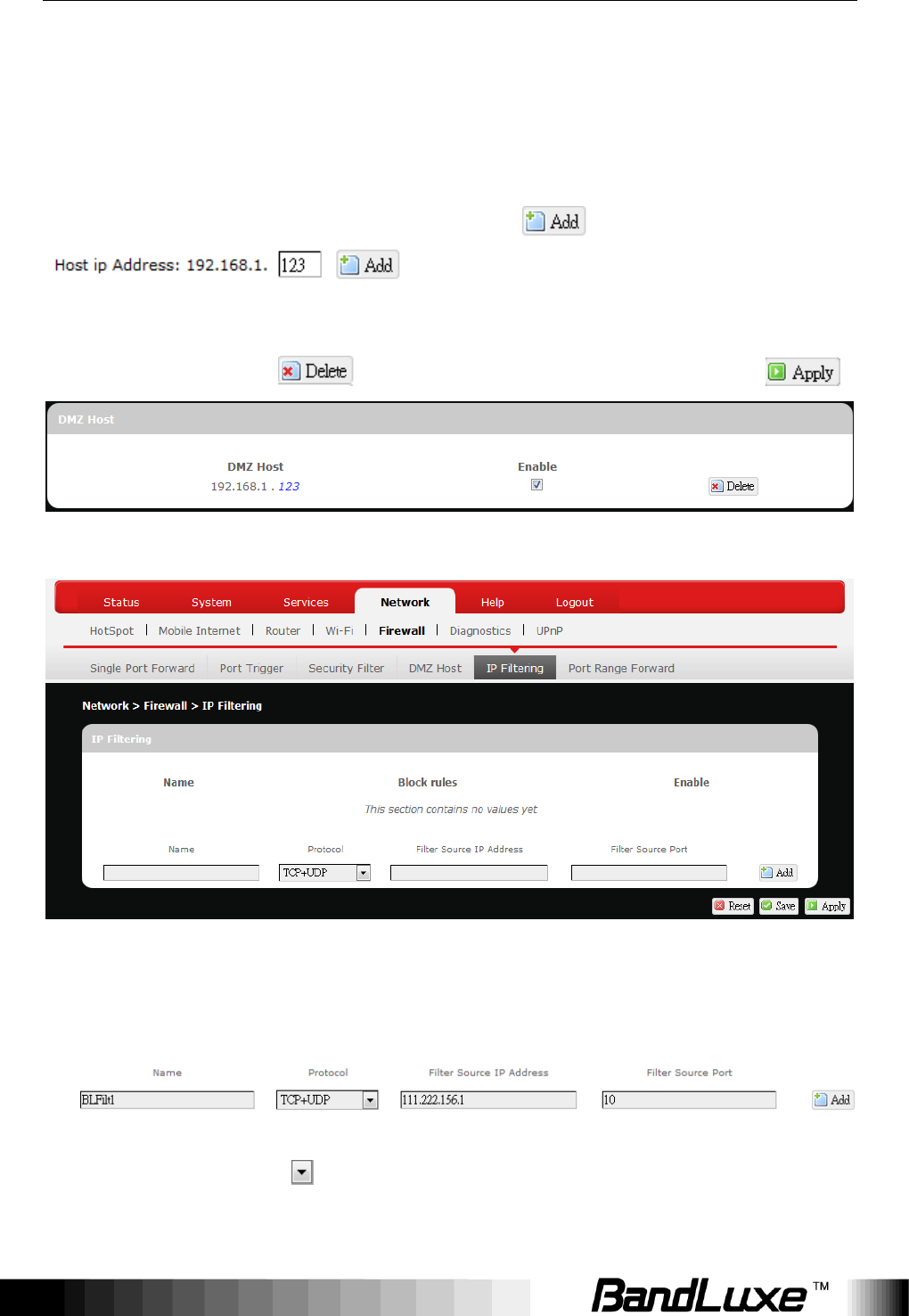

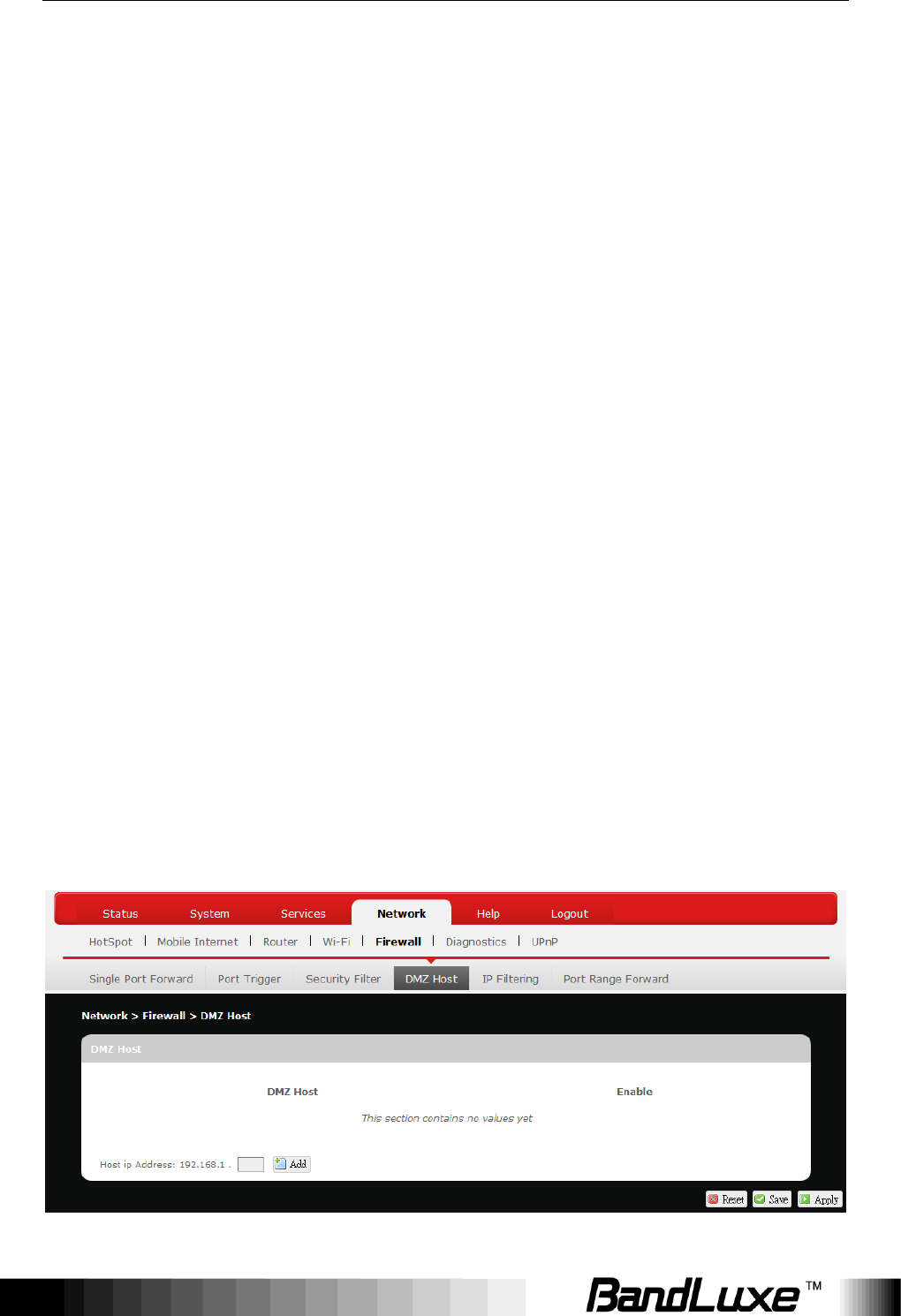

DMZ Host......................................................................................................................... 59

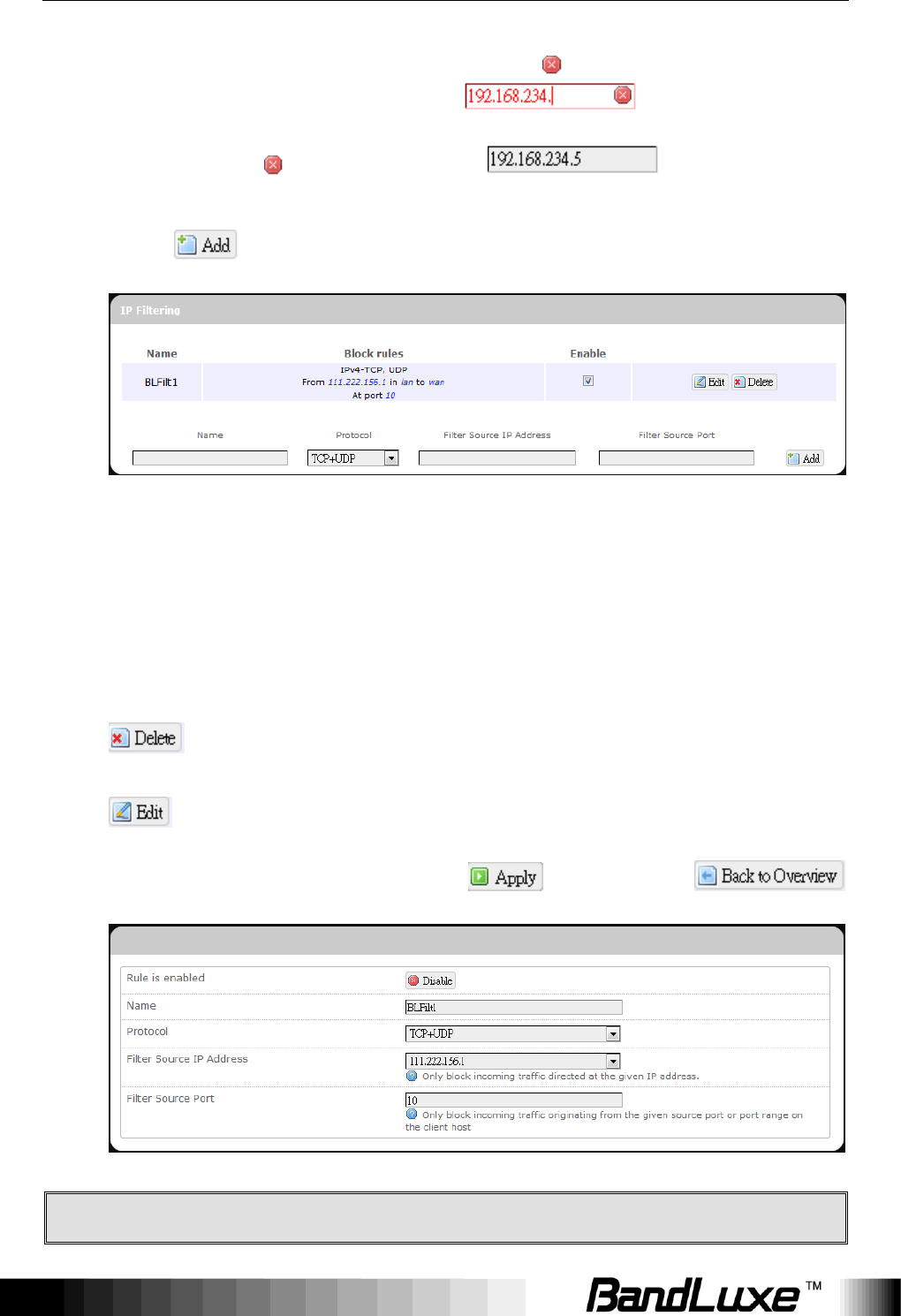

IP Filtering ........................................................................................................................ 60
IP Filtering .................................................................................................................... 60
3

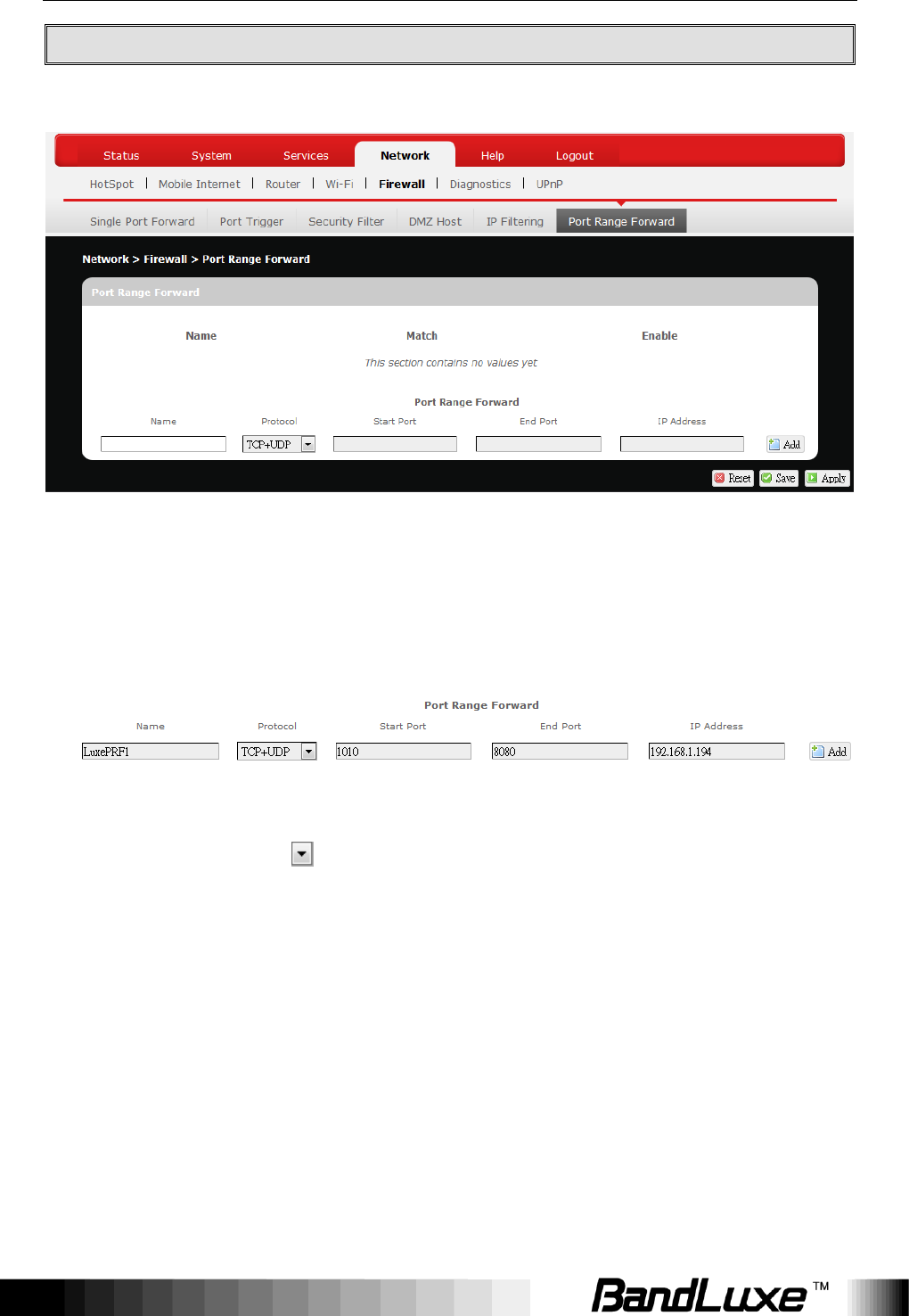

Port Range Forward ........................................................................................................ 62
Port Range Forward .................................................................................................... 62
UPNP ................................................................................................................... 64

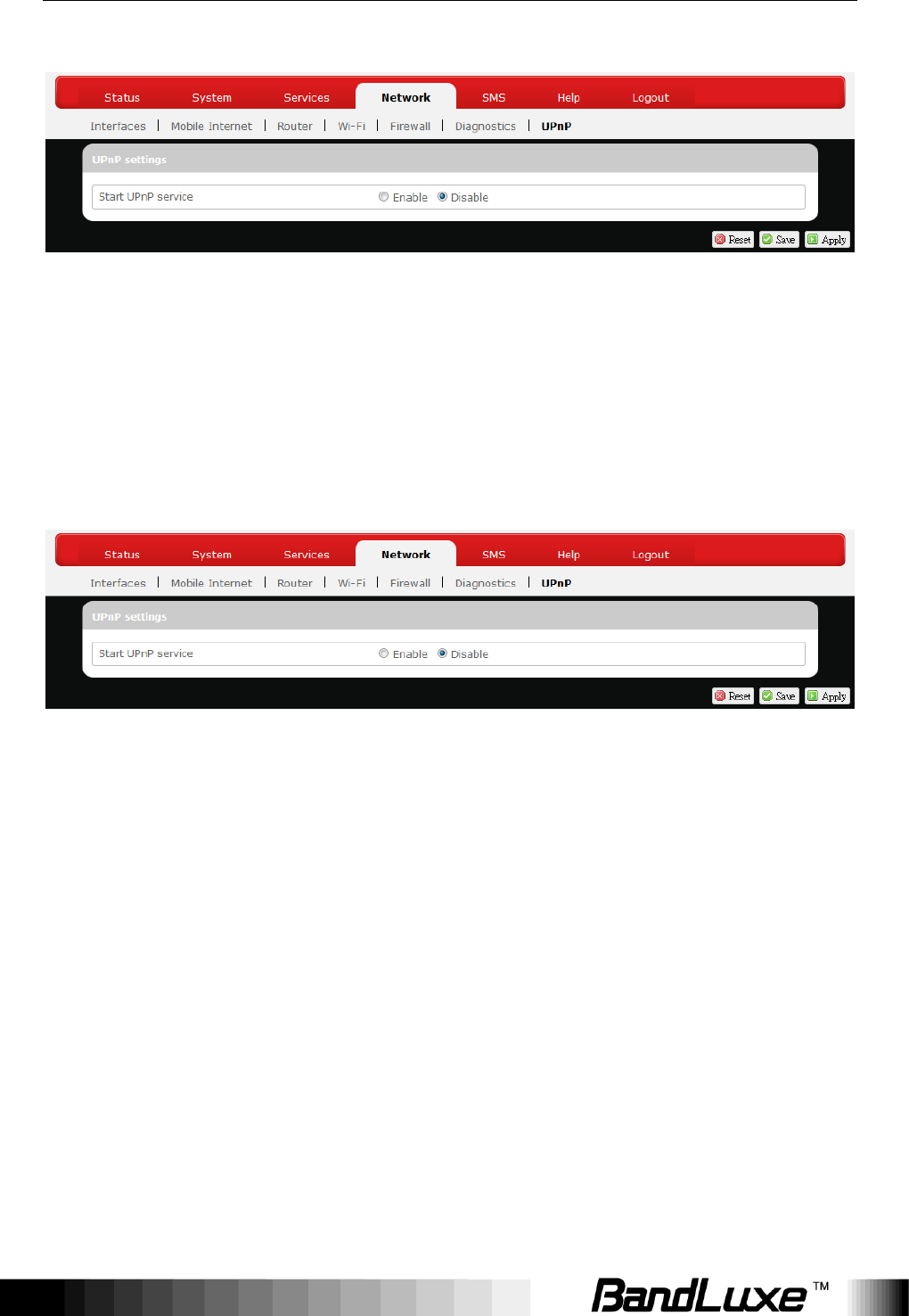

UPnP Settings ................................................................................................................. 64
VPN ...................................................................................................................... 64
IPSec Setting ................................................................................................................... 64
IPSec Profile .................................................................................................................... 64
IPSec Certificate.............................................................................................................. 64

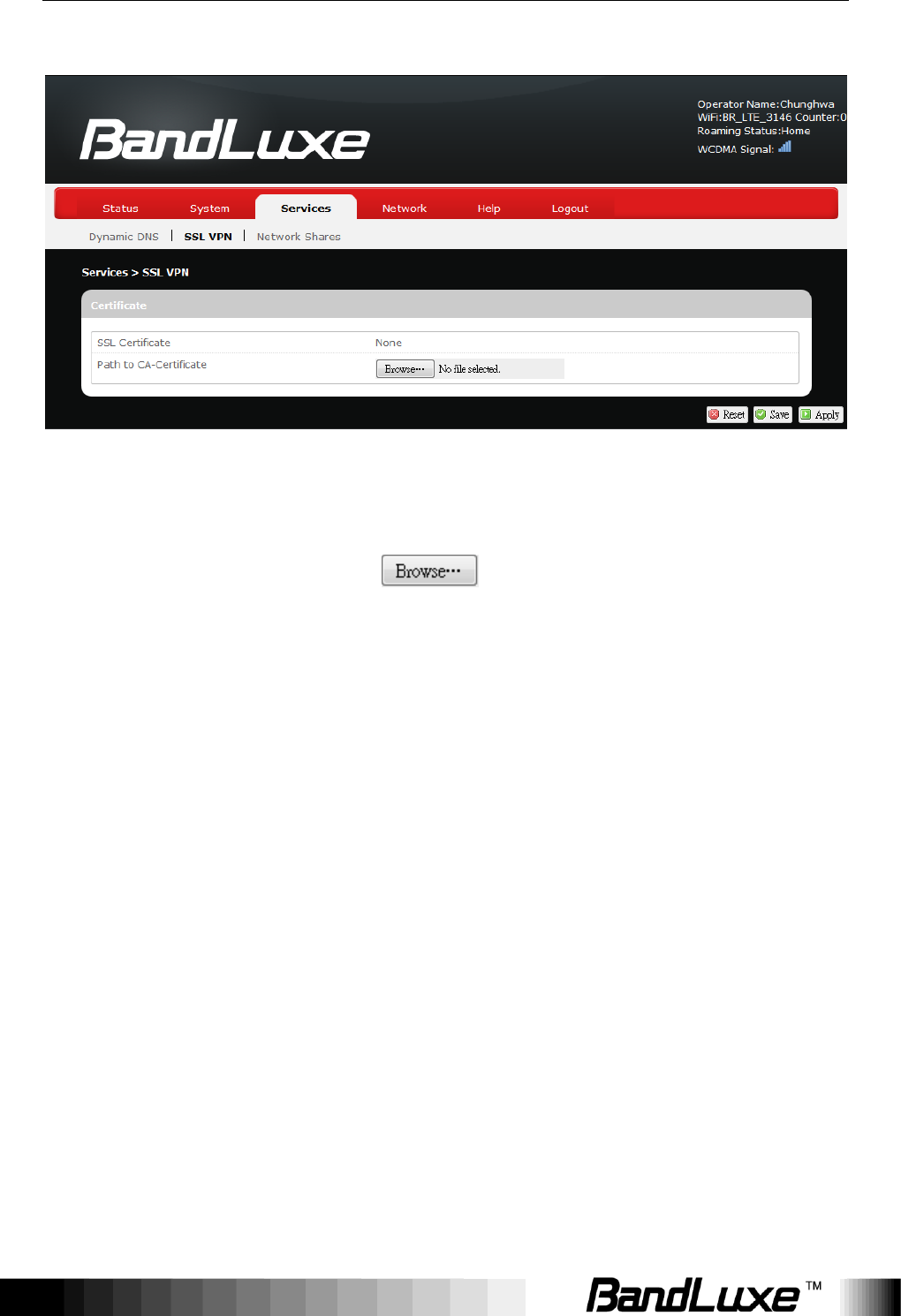

SSL VPN ......................................................................................................................... 65
Help ....................................................................................................................... 66
Logout ................................................................................................................... 66
Appendix A: Vehicle Installation Guide ...................................... 67
Overview ............................................................................................................... 67

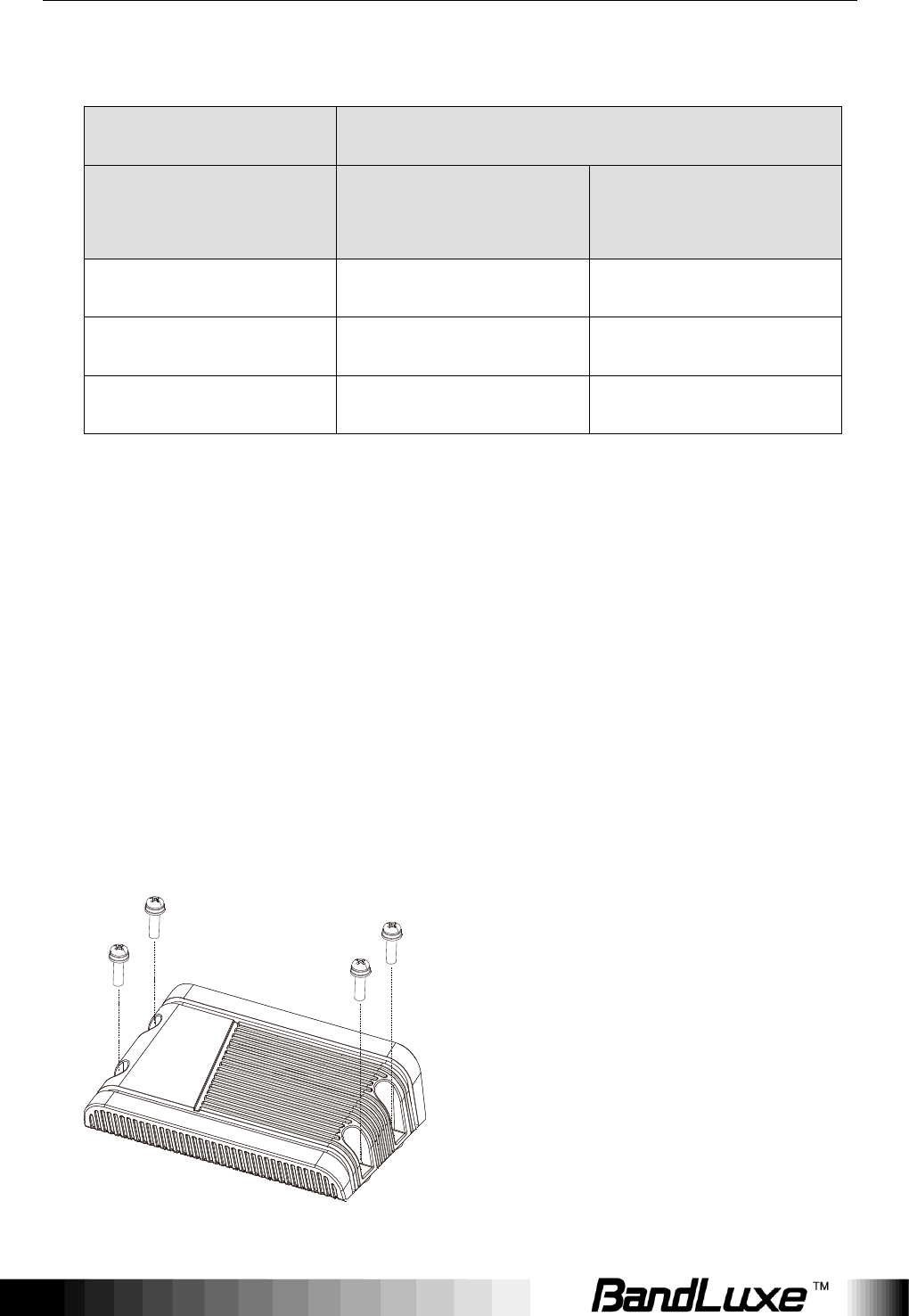

Installation ............................................................................................................. 69
General Guidelines ............................................................................................... 69

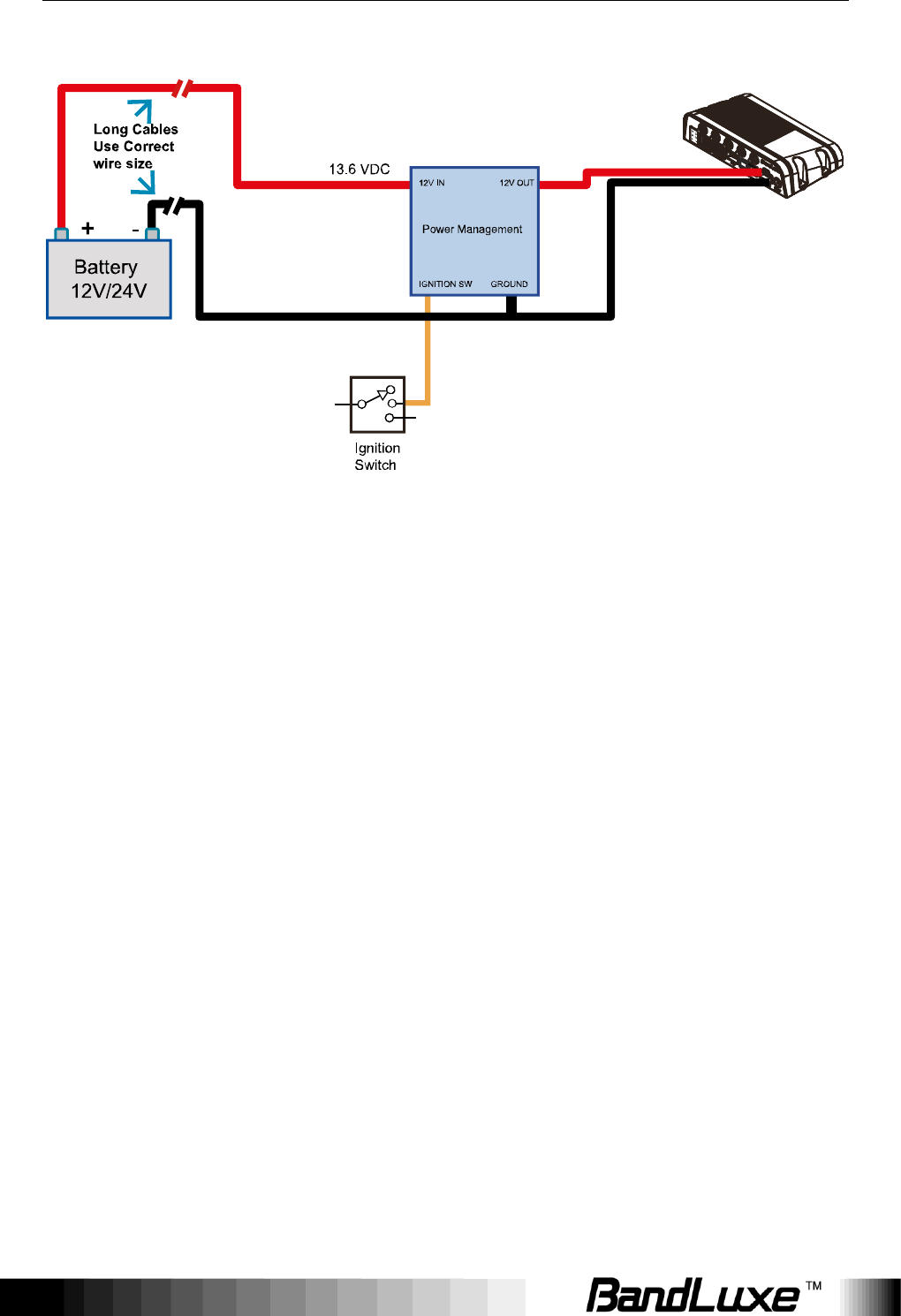

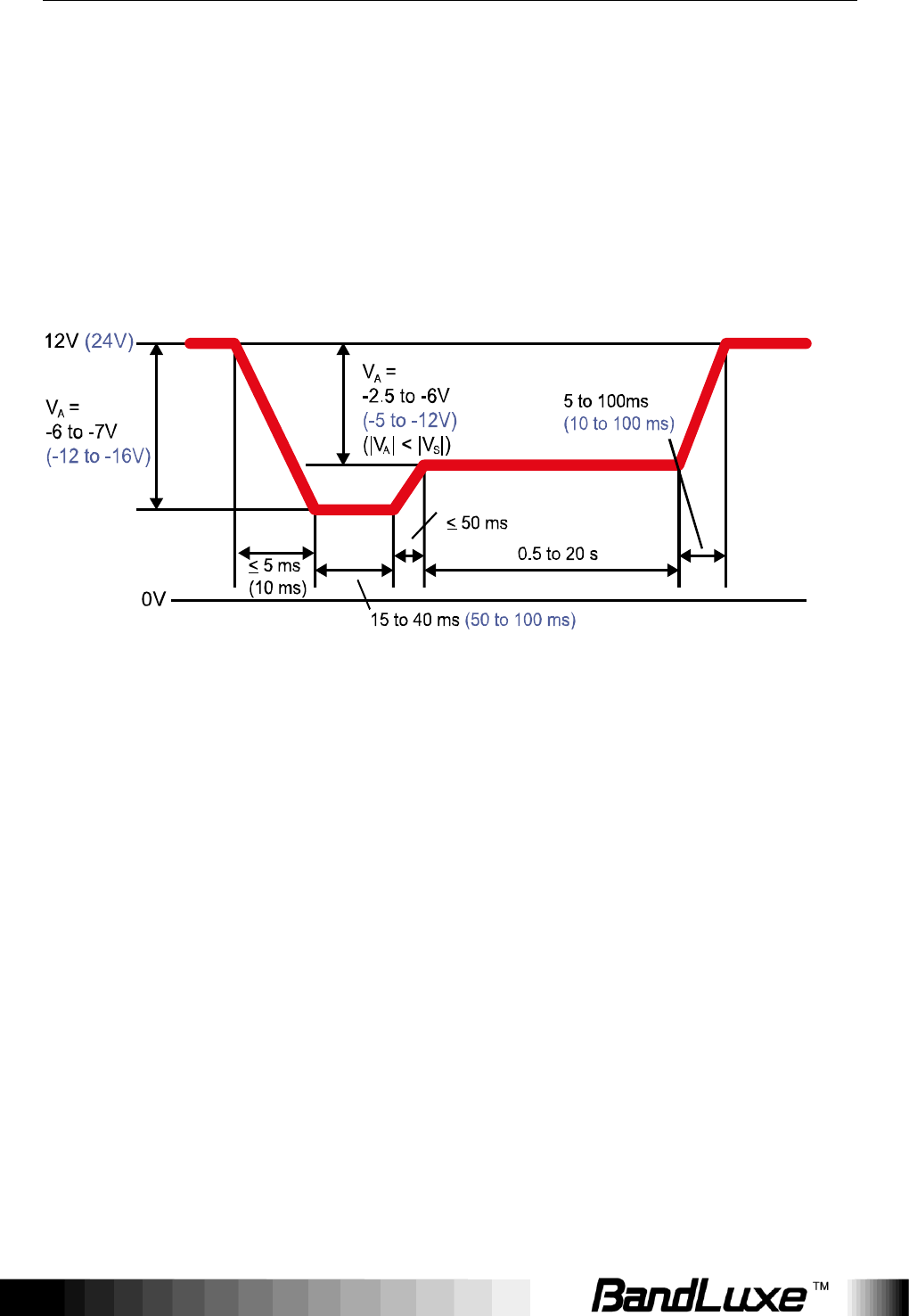

Power Management ............................................................................................. 71

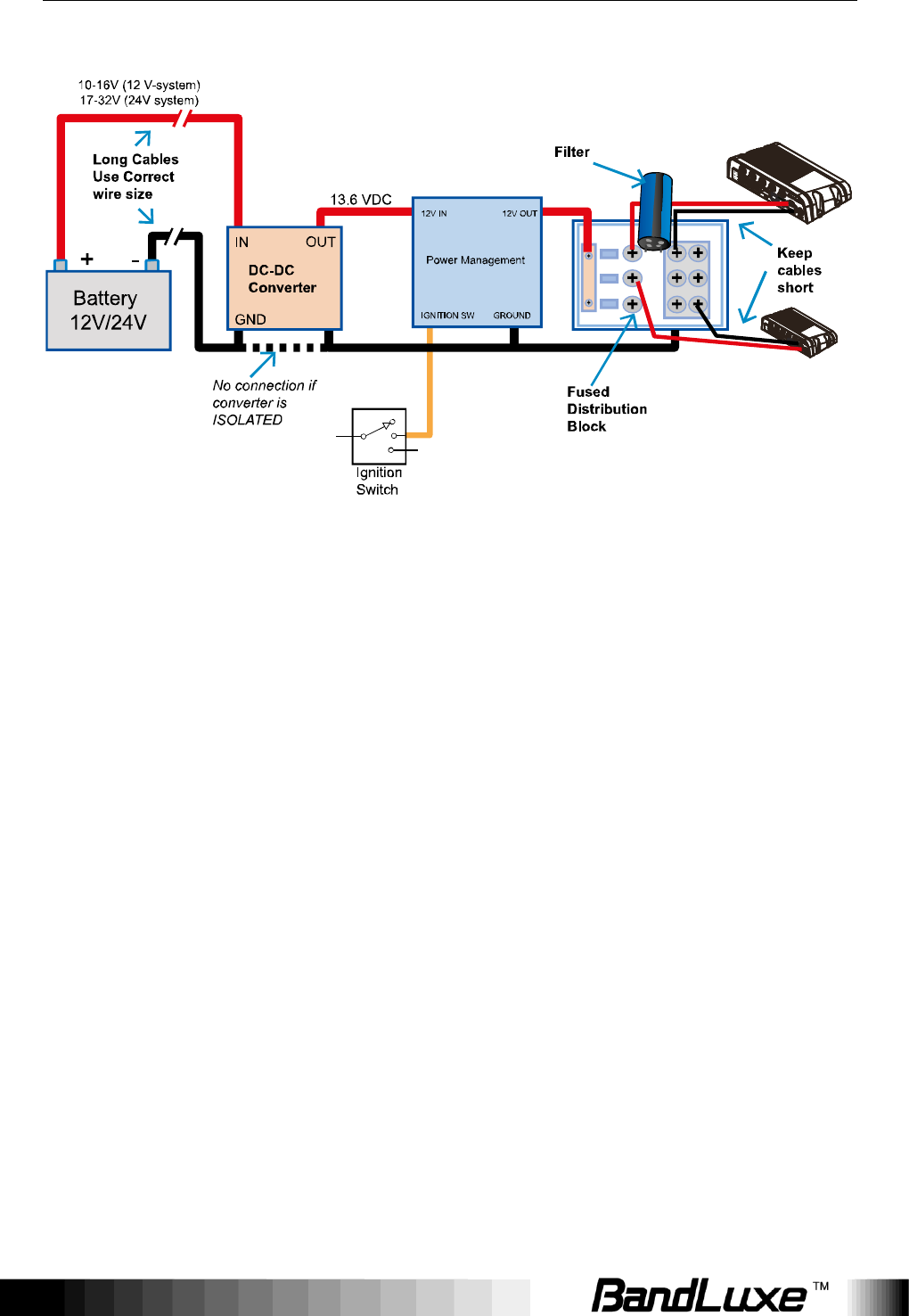

Power Management with Filter ............................................................................. 72
Appendix B: FAQ .......................................................................... 74
Appendix C: Specifications ......................................................... 81
Appendix D: Important Safety Information and Glossary ......... 85
Europe – EU Declaration of Conformity ................................................................ 85
Federal Communication Commission Interference Statement .............................. 86
Glossary ................................................................................................................ 88

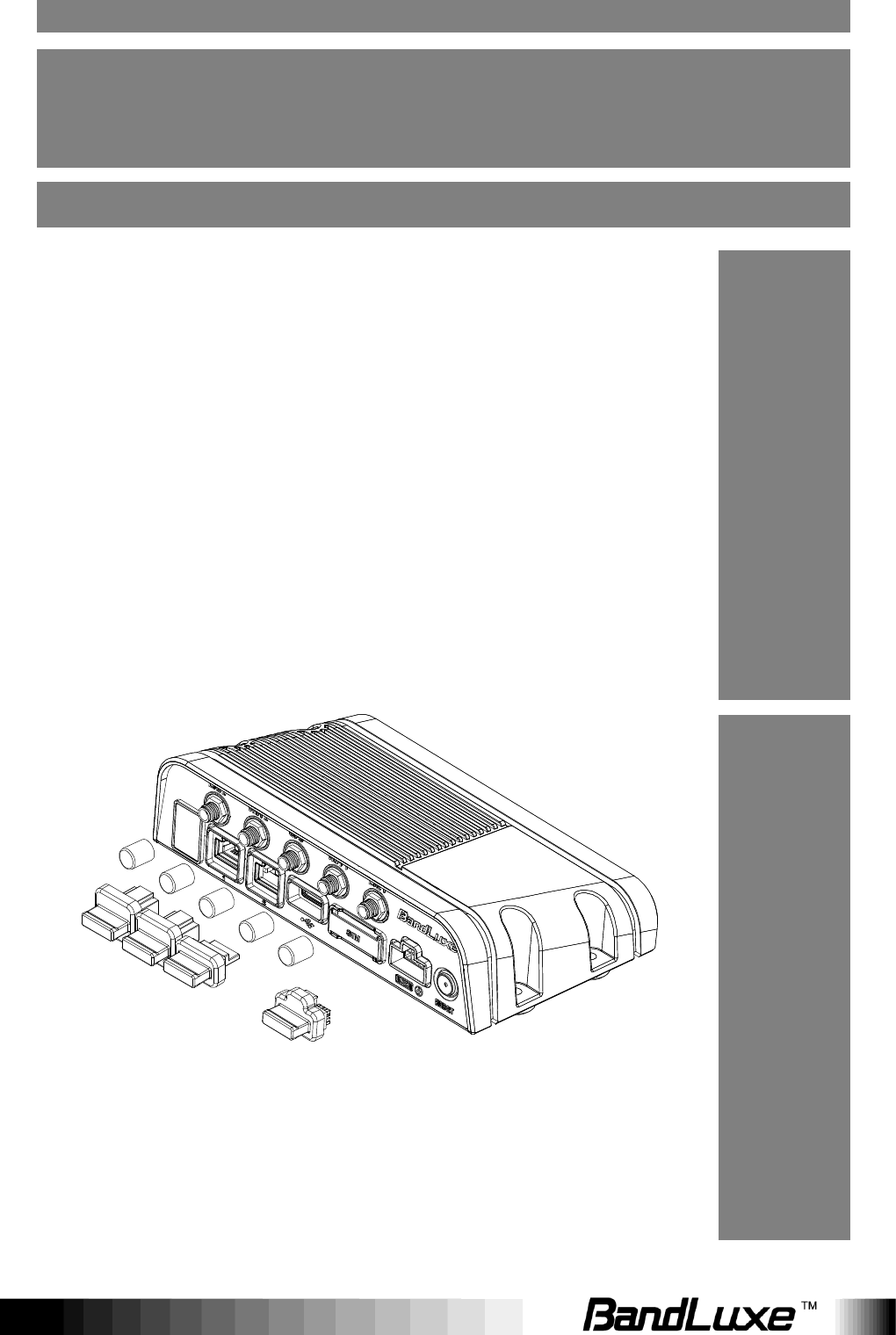

Package Contents
4
Package Contents
Thank you for your purchase of this LTE M2M & Vehicle Mount Router.
This product is designed to access the Internet via 4G technology and
share the bandwidth through a Wi-Fi network. It is easy to configure and
operate even for non-technical users. This manual contains instructions
for installing and configuring the product. Read the manual carefully
before you use the product, so that you can fully exploit the product
functions.

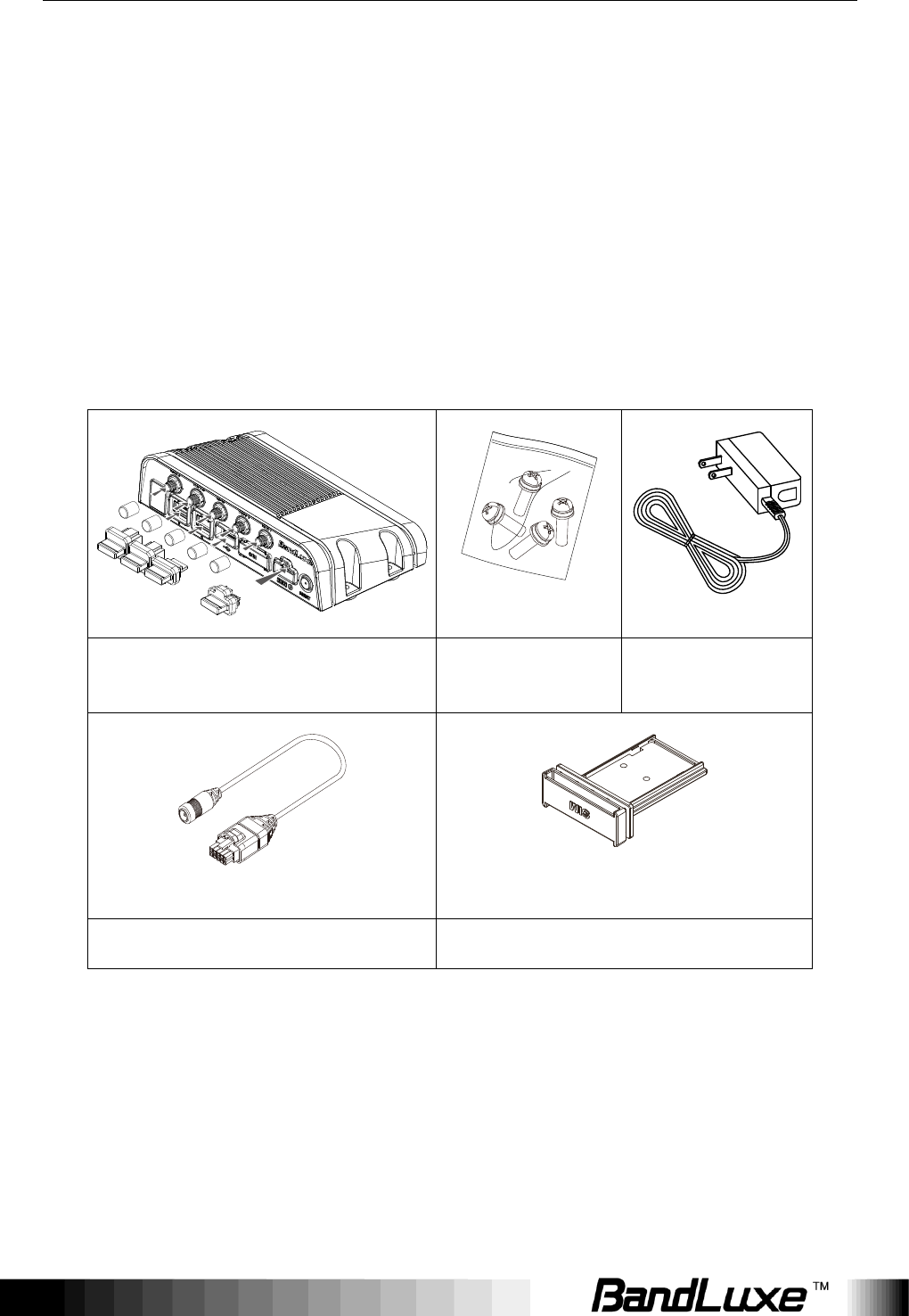

Package Contents
BandLuxe K530 LTE/HSPA+ WiFi
Router with GPS and Waterproof
Connector Protective Caps
Mounting Screws
Power Adapter Cable
Mini-SIM Card Tray
Features
LTE* Cat3 and 3GPP Rel9 compatible with HSPA+ fallback support
(*: LTE is a trademark of ETSI.)
High performance module and router platform targeted for m2m
and mission critical applications
IP 64 and MIL 810G rugged design for extreme environments
Package Contents
5
Operation temperature: -20°C to 70°C (-4°F to 158 °F)
Input voltage: 12V or 24V DC, accepting 9-32V voltage swing
802.11 b/g/n 2x2 MIMO wireless networking
Six status LEDs, two Ethernet ports, and one USB port
IPSec VPN client and VPN pass-through modes
Composite GPS and Glonass features for quicker positioning
location and better accuracy
Hardware Overview
1
4G External Antenna
Port 2
Connect the second 4G External Antenna.
2
WiFi 2
Connect the second WiFi External Antenna.
3
GPS
Connect the GPS External Antenna.
4
WiFi 1
Connect the WiFi External Antenna.
5
4G External Antenna
Port 1
Connect the 4G External Antenna.
6
Reset Button
Press this button to reboot the router.
7
Power Connector
Connect the power adapter cable here.
8
SIM Card Tray Slot
Insert the loaded SIM card tray here for mobile
internet connection.
9
USB Port
Connect the USB device here.
10
LAN Ports 1 and 2
Connect the LAN device(s) as needed.
Package Contents
6
11
Network Status LEDs
11-1
GPS
Blue –
GPS is ON.
(Solid) Position is fixed.
(Flashing) Position is not yet fixed.
11-2
LAN 2
Blue –
LAN Port 2 is transmitting.
11-3
Signal Strength
Blue –
Good signal strength
Green –
Normal signal strength
Red –
Poor signal strength or no signal
11-4
Network Status
Blue –
LTE connection
(Solid) Connection is established.
(Flashing) Connection is not yet
established.
Green –
3G connection
(Solid) Connection is established.
(Flashing) Connection is not yet
established.
Red –
No mobile internet connection
11-5
LAN 1
Blue –
LAN Port 1 is transmitting.
11-6
WiFi
Blue –
WiFi is ON.
Installation
7
Installation
1. Mount the router with the four screws if needed.
2. This router has its own internal SIM card. If you are using an external
SIM card, load the SIM card as shown below:
a) Choose the SIM card tray that matches your SIM card (Mini-SIM or
Micro-SIM). Place the SIM card tray upside down. Secure the SIM
card (contact side up) onto the SIM card tray.
b) Insert your loaded SIM card tray into the slot on the router.
Installation
8

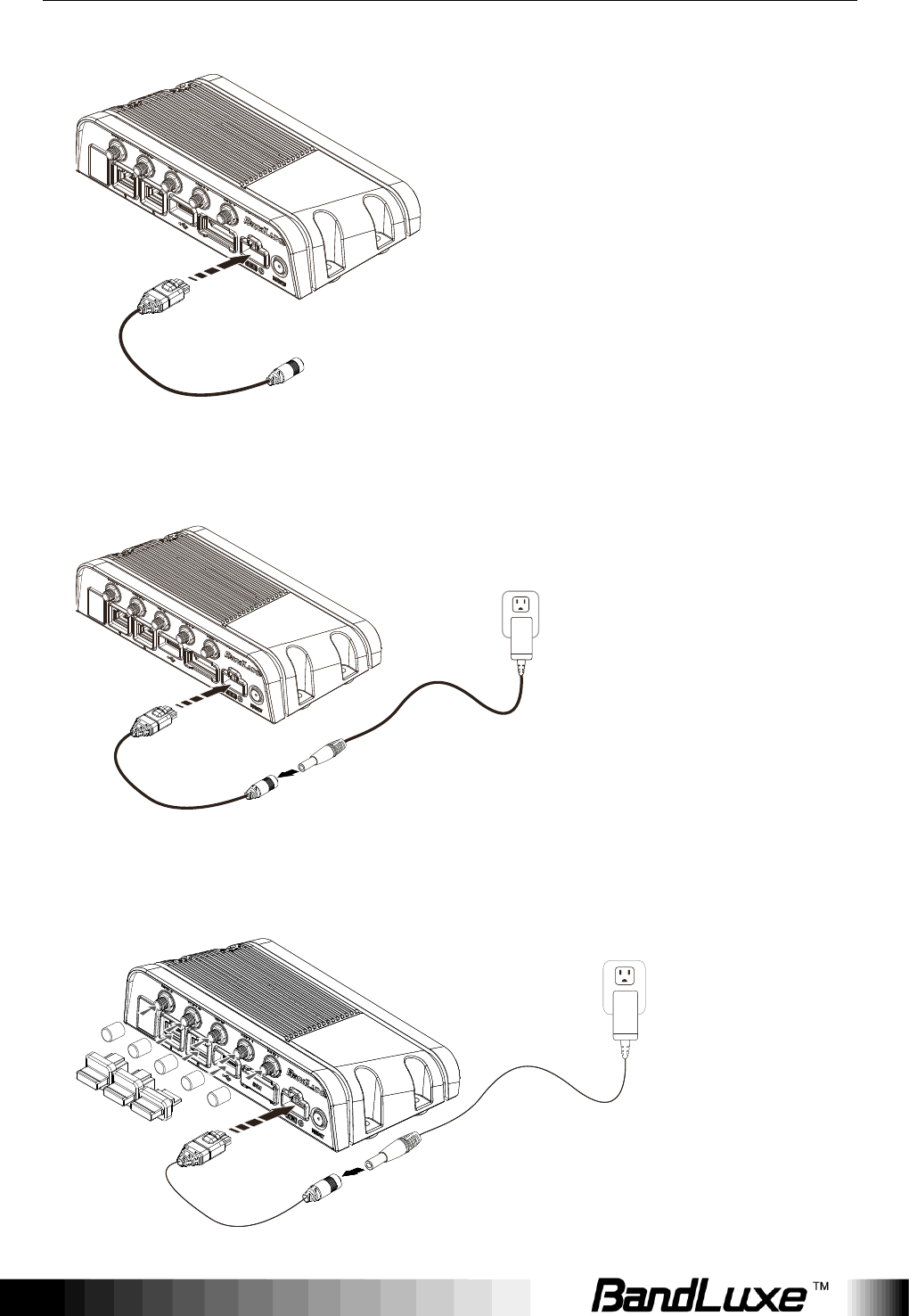

3. Connect the power adapter cable to the router.
4. Connect the power adapter cable to either a power outlet (via the
power adapter) or a 12VDC power source. The router will automatically
be turned ON upon receiving power.
5. To protect the connectors from water and dust intrusion, cover all
unused connectors with their respective waterproof connector
protective caps.
Installation
9
6. One of the following two methods can be chosen to link your PC with
the router.
A. Wireless Connection (for Windows)

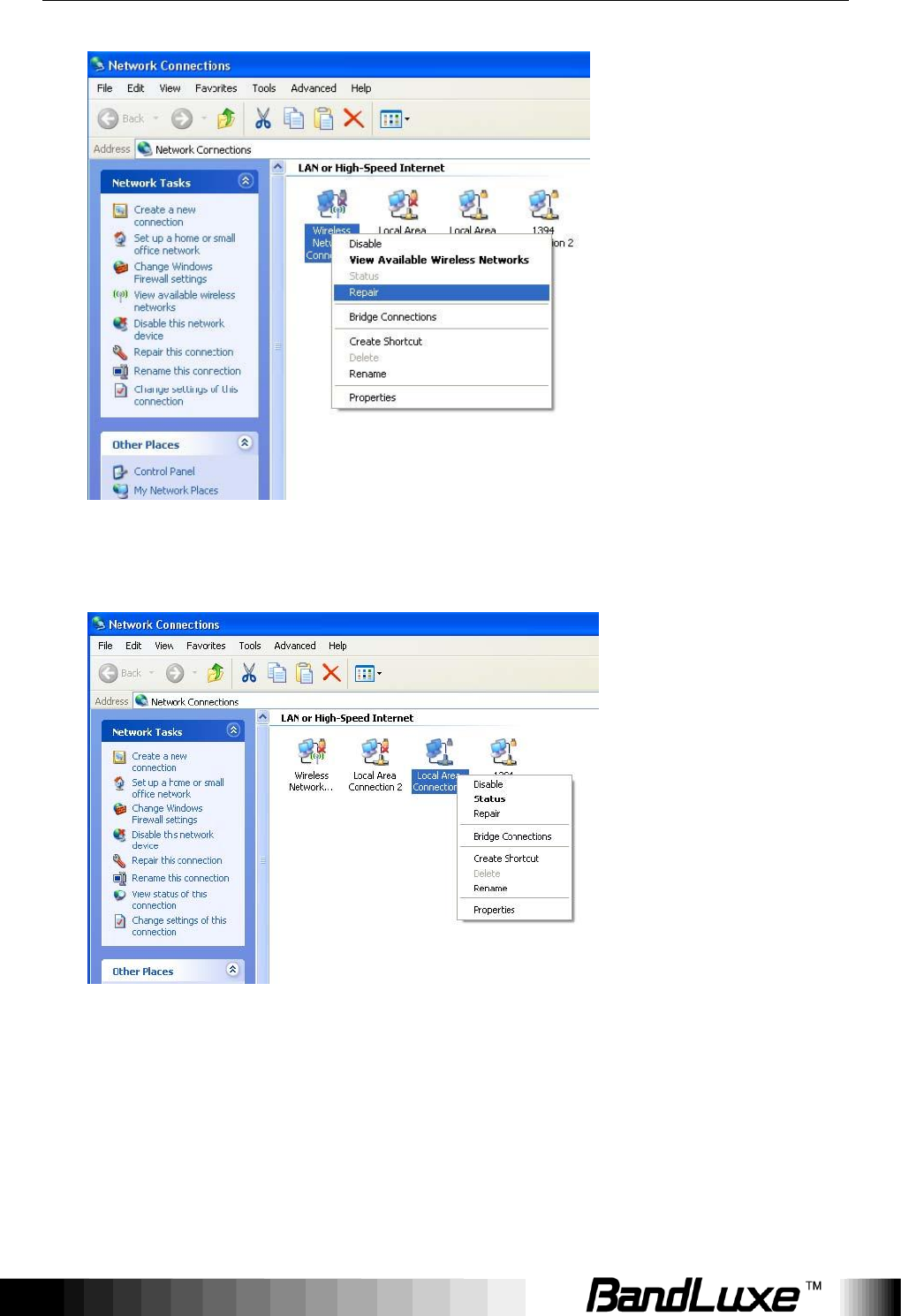

To link your PC to the router via WiFi, in Microsoft Windows, go to
Control Panel > Network Connections. Right click on Wireless
Network Connection and choose View Available Wireless
Networks. Select default SSID [BR_LTE_xxxx] and enter default
password (the last 4 digits of MAC address converted into 2-digit
decimal numbers, please see table below for conversion method).
The “xxxx” corresponds with the last 4 digits of MAC address. Click
Connect.
Wireless Connection (for Mac)
Click the on the upper side of the screen to view available
wireless networks. Select default SSID [BR_LTE_xxxx] and enter
default password (the last 4 digits of MAC address converted into
2-digit decimal numbers, please see table below for conversion
method). The “xxxx” corresponds with the last 4 digits of MAC
address. Click Join.
Conversion Table: Each of the last 4 digits of MAC address is
hexadecimal. Here is the corresponding table between a
hexadecimal digit and its corresponding 2-digit decimal number:
Hexadecimal
Digit
Decimal
Number
Hexadecimal
Digit
Decimal
Number
0
00
8
08
1
01
9
09
2
02
A
10
3
03
B
11
4
04
C
12
5
05
D
13
6
06
E
14
7
07
F
15
B. Wired Connection
To connect your PC to the router via an Ethernet cable, connect one
end of the cable to one of the four LAN ports on the router, and
another end of the cable to an Ethernet port on your computer.
Using Web-based Management
10
Using Web-based Management
This chapter will guide you on how to configure your router via the
web-based utility.
Login
1. Launch a web browser (e.g Mozilla Firefox).
2. In the address bar, enter http://192.168.1.1, then press Enter.
3. On the opening screen, enter the username (admin) and password
(admin).
4. Click Login to login to the main screen.
5. Click one of the menu, submenu, and/or setting tabs to configure the
system. Additionally, the status area displays current wireless network
information and setting-related messages (e.g. the message
Unapplied Change appears whenever new settings are temporarily
stored in the router without being applied, which will remind you to click
the button).
Note:
If SIM Card‟s PIN verification is needed, select Network > Mobile
Internet > U/SIM PIN Management.
Enter the PIN code into text box of “PIN Code Verification”. Click Verify.
Mobile internet access will be enabled shortly after.
m
me
en
nu
u
s
su
ub
bm
me
en
nu
u
s
se
et
tt
ti
in
ng
g
status area
Using Web-based Management
11
Status
This menu displays various statuses of the router. The associated
submenu items are: Overview, System Log, VnStat Traffic Monitor,
and Mobile Internet.
Overview
The Overview submenu renders complete statistics for the router.
Using Web-based Management
12
System
Displays system information: router model name, router firmware version,
modem firmware version, phone number (MDN), ICCID, MIN (MSID),
PRL version, IMEI, MEID, and local time.
Network
Displays current network connection information of IPv4 WAN and/or IPv6
WAN: type of network assignment (e.g. DHCP), network address,
netmask, gateway, DNS addresses 1 & 2, and time connected since the
establishment of the current mobile internet connection.
DHCP Leases
Display DHCP lease information for each client: hostname, IPv4 address,
MAC address, and lease time remaining.
Local Network
Displays local network information: local MAC address, router IP address,
subnet mask, DHCP server, DHCP server change, start IP address, IP
and address range
System Log
Using Web-based Management
13
The System Log submenu tracks system activities after power on.
GPS
The GPS submenu displays Global Positioning System information. Click
to proceed.
VnStat Traffic Monitor
The VnStat Traffic Monitor submenu displays graphic analysis of the
router‟s network traffic history.
Graphs
Displays VnStat network traffic history in various graphic analysis options:
Summary display, Top 10 display, Hourly traffic, Daily traffic, and Monthly
traffic. Click , select an analysis option from the drop-down list, and
click Update. The VnStat Graphs will be updated accordingly.
Using Web-based Management
14
Configuration
VnStat Traffic Monitor configurations can be made here.
a) Monitor selected devices: Click the checkbox to enable/disable
network monitoring of the displayed interface(s). Click the link wan to
jump to the Common Configuration setting under the submenu
Network
Interfaces.
b) Rest Traffic Flow: Click to discard previous network history log and
start anew.
Using Web-based Management
15
Mobile Internet
The Mobile Internet submenu displays mobile internet statistics.
Signal Quality
Displays signal strength of current mobile internet connection in dBm.
U/SIM Status
Displays current SIM card status:
a) Read SIM Fail – No valid SIM card is inserted
b) PIN Disable(Verified) – PIN protection is disabled while the SIM card
status is verified; mobile internet service is available with this status.
c) PIN Enable(No Verified/Retries:#) – PIN protection is enabled while the
SIM card verification is pending (whereas # is the number of allowed PIN
verifications remaining before SIM lock occurs).
d) PIN Enable(Verified) – PIN protection is enabled while the SIM card
status is verified; mobile internet service is available with this status.
Registered Network
a) Network Name – name of your mobile internet service provider
b) Network Technology – mobile internet communication signal type.
Examples are WCDMA (3G) and LTE (4G).
c) Home/Roaming – displays current network roaming status:
Using Web-based Management
16
Home indicates mobile internet connection to the home location where
the SIM card service is registered. Roaming indicates the extended
mobile internet connection service in a location different from the home
location where the SIM card service is registered. An example of roaming
is when you travel abroad.
Internet Connection
Displays information of current internet connection:
Connection Type, Internet IP Address, Gateway, and DNS 1/2.
Using Web-based Management
17
System
This menu is for system information and configurations.
System
System Properties
Click either the “General Settings” or “Language and Style” tab to
configure their respective settings.
General Settings
Local Time – Displays current local time. To synchronize local time with
the browser, click .
Hostname – Enter the desired hostname in this check field.
Time Zone – Sets the time zone associated with this router. Click on
and select the desired region.
Using Web-based Management
18
Language and Style
Language – Sets the desired display language and style of the router.
Click and select the desired display language and style.
Time Synchronization
Enable NTP client: Click the checkbox to enable/disable. With this
option enabled, two more options will appear– “Provide NTP server” and
“NTP server candidates”.
NTP server candidates 1/2: Enter the desired server candidates here.
Remote System Log
Router LAN client IP address: Displays the client IP address of the
router LAN.
Server port: Displays port number of the server.
Using Web-based Management
19
Administration
Router Password
Login password of the router can be changed here. Enter the new
password in the „Password‟ field, and enter the same password once
again in the „Confirmation‟ field.
Remote Access
This field specifies whether or not to allow remote access of this router.
After changing password and/or specifying remote access, click .
The screen will display a confirmation message after successful
password change.
Using Web-based Management
20
Backup / Flash Firmware
Backup / Restore
Download backup
Here you can backup all current settings of the router to a TAR archive file
on your computer or mobile device. Just click . A dialog
window will prompt you to open or save the archive file. Depending on the
browser that you are using, the TAR file may be saved in the system
download folder or a location of your choice.
Using Web-based Management
21
Reset to defaults
Here you can restore the router to its original factory settings. Just click
, and a dialog message will appear to indicate the factory reset
process. After completion of the reset process, the router will
automatically reboot and return to its initial login prompt.
Restore backup
Here you can restore router settings previously saved as a TAR archive
file on your computer or mobile device. Just click to find and
select the previously saved TAR archive file, and then click „Open‟.
Confirm that the TAR filename appears beside the button and
click . The system will reboot after completion of backup
restoration.
Flash new firmware image
This option allows you to upgrade this router with the updated firmware
image. Just click to find and select the firmware image file, and
then click „Open‟. Confirm that the firmware filename appears beside the
button and click . The system will reboot after
successful upgrade.
Flash new module firmware image
This option allows you to upgrade this router with the updated module
firmware image. Just click to find and select the firmware
package file, and then click „Open‟. Confirm that the firmware filename
appears beside the button and click . The system
will reboot after successful upgrade.
Flash new ipkg package
This option allows you to upgrade this router with the updated IPKG
package. Just click to find and select the IPKG package file,
and then click „Open‟. Confirm that the IPKG package filename appears
beside the button and click . The system will reboot
after successful upgrade.
FOTA
This option (Firmware Over The Air) allows you to automatically or
manually upgrade this router‟s firmware wirelessly.
Using Web-based Management
22
For automatic wireless update, enable “Auto check” and enter the desired
time interval (in hours) between each check of the BandRich website for
firmware update. For manual wireless update, disable “Auto check”.
Confirm that the “Check link for Router” and “Check link for Module”
fields have appropriate web address(es) present in their text boxes, i.e.
http://www.bandrich.com/mdm9x15/ . Click to activate the
wireless update configurations into effect.
To immediately check for firmware upgrade, click Check.
Warning: Upgrading firmware may take a few minutes; do not
turn off the power or press the Reset button during upgrade.
Reboot
Click „Perform reboot‟ to restart the router.
Using Web-based Management
23
Services
Dynamic DNS
The Services menu hosts configuration options for DDNS (Dynamic
Domain Name Service), which is a system that allows the domain name
data held in a name server to be updated in real time. It allows an Internet
domain name to be assigned to a computer with a varying (dynamic) IP
address. Before you can use this feature, you need to sign up for DDNS
with a DDNS provider, www.dyndns.org or www.TZO.com.
Enable: Check or un-check this box to enable or disable DDNS.
Service: Specifies the DDNS service URL. From the drop-down list, click
and select an URL from the list.
Hostname: Enter the hostname for your DDNS account.
Username: Enter the username for your DDNS account.
Password: Enter the password for your DDNS account.
Using Web-based Management
24
Network
Interfaces
The Interfaces submenu allows interface configurations of different
networks connected to this router. The configuration items are the same
for each network with different default settings.
Interface Overview
Here you can see the brief network status summary for LAN (local area
network) and WAN (wide area network). To configure LAN or WAN
interfaces, click the appropriate Edit button and follow the below section
Common Configuration for more details.
Using Web-based Management
25
Common Configuration
General Setup
Status:
Displays protocol-dependent statistics of network
connection.
Protocol:
Specifies the protocol to be used for the network.
The available protocols are Static address, DHCP
client, Unmanaged, PPP, PPtP, PPPoE,
PPPoATM, UTMS/GPRS/EV-DO, and L2TP.
The default LAN protocol is Static address,
whereas the default WAN protocol is DHCP client.
Really switch
protocol:
This configuration item appears when the protocol
is changed. Press to confirm protocol
change and show protocol-dependent
configuration items.
(Protocol-dependent
configuration items):
Different protocol-dependent configuration items
will appear according to the protocol chosen.
Using Web-based Management
26
Advanced Settings
This tab is for advanced users to make detailed configurations of
protocol-related settings. Actual configuration items will vary according to
the protocol chosen in the tab item General Setup.
Physical Settings
This tab is for selection of physical interface of the associated network.
Click one of the available physical interfaces or click
and enter your own interface name.
This tab is not available for the following protocols: PPP, PPtP, PPPoE,
PPPoATM, UTMS/GPRS/EV-DO, and L2TP.
Firewall Settings
This tab is for adjustment of firewall settings.
Click the desired network as the desired firewall zone assigned to this
interface. Furthermore, you can remove the interface from the associated
zone by entering “unspecified” in the unspecified -or- create field and
Using Web-based Management
27
clicking , or you can define a new zone by entering your own
firewall name in the unspecified -or- create field and clicking .
Using Web-based Management
28
Hotspot
The Hotspot submenu is for setup and adjustment of mobile internet
connection through WLAN (wireless local area network).
Chillispot
Chillispot:
Enable or disable the chillispot (i.e. hotspot) feature.
Separate WiFi
from the LAN
Bridge:
Enable or disable WiFi separation from the LAN
bridge. If this option is enabled, two additional
configuration items, DHCP Interface and Remote
Network, will appear below.
DHCP Interface
Select the appropriate DHCP interface when the
configuration item “WiFi separation from the LAN
bridge” is enabled. The options are LAN, WAN, or
WLAN&LAN.
Remote Network
Enter the IP address of remote network when the
Using Web-based Management
29
configuration item “WiFi separation from the LAN
bridge” is enabled.
Primary RADIUS
Server IP/DNS:
Enter the IP/DNS address of primary RADIUS server.
Backup RADIUS
Server IP/DNS:
Enter the IP/DNS address of backup RADIUS server.
DNS IP:
Enter the numerical IP address of DNS.
Redirect URL:
Enter the redirection URL if needed.
Share key:
Enter the share key here.
RADIUS NAS ID:
Enter the NAS ID for RADIUS authentication.
UAM Secret:
Enter the secret code for UAM (universal access
method).
UAM Allowed:
Enter the name for UAM allowed.
MACauth:
Enable or disables MAC authorization.
Additional
Chillispot Option:
Enter the additional chillispot option if needed.
Using Web-based Management
30
Mobile Internet
The Mobile Internet submenu is for setup and adjustment of mobile
internet connection and furthermore has four setting tabs: WWAN Setting,
U/SIM PIN Management, SIM Management, and Preferred Network.
WWAN Setting
Using Web-based Management
31
Network Settings
Roaming
Connection:
Enables or disables current roaming setting.
Update Profile:
Click Update to update the network profile.
Update PRL:
Click Update to update the PRL (Preferred Roaming
List).
APN Update:
Displays the current APN (Access Point Name)
version. To get the latest version of APN, click
.
APN:
„Auto‟ – Uses automatic APN profile settings for
network; this is the default APN setting.
„Manual‟ – Allows the manual choice of APN Profile
Settings for network.
Profile
Selection:
This item appears when APN is set to „Manual‟.
Auto APN Information
This section displays automatic APN information.
APN Profile Settings
For Advanced Users
This section allows you to establish your own APN profile settings.
To establish a new APN profile, type in a new APN profile name in the text
box and click .
Enter the APN, username, and password. Click .
Reset Modem
Click Perform reset to reset this router to its factory default settings.
Using Web-based Management
32
U/SIM PIN Management
This submenu features configurable items that are dependent on the
router‟s mobile internet status, as detailed below.
Scenario 1: No mobile internet service
Without a valid SIM card inserted into the router, the Verify dialog will
show the following SIM card status:
Here the Verify dialog shows SIM status as “Read SIM Fail”, meaning that
no valid SIM card is inserted.
Scenario 2: Mobile internet service pending
If a valid SIM card is inserted into the router requiring PIN code
verification, the Verify dialog will show the following SIM card status:
Here the Verify dialog shows the SIM status as “No Verified/Retries:3”,
Using Web-based Management
33
meaning that a valid SIM card is inserted with PIN code verification
pending. Enter your SIM card verification code in the text box of “PIN
Code verify:”, and then click . Once the PIN code verification is
finished, the router is ready to use the SIM card‟s associated mobile
internet access, and the top right status area will be updated accordingly.
Operator Name:
Displays the name of the internet service provider
WiFi:
Shows the active WiFi SSID of this router
Counter:
Shows number of clients currently connected to the
active SSID
Roaming Status:
Displays current roaming status
(Carrier) Signal:
Displays strength of the indicated signal type (Carrier)
For example:
1. Without mobile internet connection, the display will
be (no carrier, no signal).
2. If WCDMA (3G) mobile internet connection is
established, the display will be
(WCDMA carrier, excellent signal strength).
Scenario 3: Mobile internet service enabled
If a valid SIM card is inserted into the router with PIN code verified, the
configuration dialog will be „Setting‟ and/or “Change PIN” to allow further
SIM card management (click after making changes):
Using Web-based Management
34
Setting
SIM Status:
Shows current SIM card status.
“PIN Enable” means that the SIM card is enabled for
mobile internet access.
“PIN Disable(Verified/Retries:#)” means that the SIM
card is enabled for mobile internet access without
requiring PIN code verification. Note that if PIN
protection is re-enabled, # is the number of allowed
PIN verifications remaining before SIM lock occurs.
PIN Protection:
Enables or disables the PIN protection by clicking
and making the appropriate choice from the drop-down
list.
PIN Code
If PIN protection is enabled, you need to enter PIN
code in this text box for making changes in this „Setting‟
dialog.
Change PIN
This option is configurable only if PIN Protection is enabled.
Here you can change the PIN code for enhanced SIM card security.
Old PIN Code:
Enter the old PIN code.
New PIN code:
Enter the new PIN code.
New PIN code
confirm:
Enter the same new PIN code again for PIN code
confirmation.
Click after making changes in „Setting‟ and/or “Change PIN”.
Using Web-based Management
35
SIM Management
Here you can see the current SIM lock status.
Scenario 1: SIM lock absent
“SIM no lock” means that the SIM card is unlocked.
Scenario 2: SIM lock present
If your SIM card is locked for some reason, here you can also enter the
SIM unlock code to unlock it. After entering the SIM unlock code in the
text box “SIM Unlock”, click .
Preferred Network
Here you can select the preferred mobile network type by clicking and
making a choice from the drop-down list. The default choice is Auto.
Other available choice examples are LTE (4G), WCDMA (3G), and GSM
(2G).
Using Web-based Management
36
Router
Router Settings
Router IP
Local IP Address:
The default local IP address of this router is
192.168.1.1. If this address conflicts with another
local network device, you can enter another local IP
address here.
Subnet Mask:
Displays current Subnet Mask
Device Name:
The current device name is displayed in gray color.
The device name can be changed by typing in the
new device name in this text box.
MTU:
The current MTU (maximum transmission unit with
default value of 1500 bytes) is displayed in gray color.
The MTU can be changed by typing in the new MTU
value in this text box.
Using Web-based Management
37
DHCP Service
DHCP Server:
Enables or disables the DHCP Server feature.
Start IP Address:
Specifies the starting number of the last 3 digits of
assigned client IP address. For example, the default
value of 100 means that the first assigned client IP
address will be 192.168.1.100; the next assigned
client IP address will be 192.168.1.101; and so on…
Maximum
Number of Users:
Specifies maximum number of users for this router.
The default setting is 150 users.
Client Lease
Time:
Specifies the amount of lease time allocated to clients
of this router, i.e. the expiry time of leased addresses.
Use „h‟ to indicate hours or use „m‟ to indicate
minutes.
IP Address
Range:
Displays assignable local IP address range of this
router
Primary DNS:
If needed, specify the primary Domain Name System
here.
Secondary DNS:
If needed, specify the secondary Domain Name
System here.
Active DHCP Leases
Using Web-based Management
38
This section displays active DHCP lease information for each client:
Hostname, IPv4 address, MAC address, and Lease time remaining.
Static Leases
This option allows fixed IP address and symbolic hostname assignments
for DHCP clients.
To add a static lease, first click .
Enter the desired hostname. Choose the desired MAC address and
IPv4-Address (click and select a rule from the drop-down list; if
“--Custom--" is selected, the drop-down list will change to a text box to
allow you to enter your custom address).
The MAC address is for host identification, whereas the IPv4 address
specifies the fixed address for static lease.
To remove any unwanted static lease, just click the corresponding
button.
Click after making any changes.
Using Web-based Management
39
Advanced Routing settings
Static Routing
This option allows fixed network routing path assignment (as opposed to
the initial adaptive routing).
To add a static network routing path, click . To remove any
unwanted static network routing path, click the corresponding
button. Click after making any changes.
Interface:
Click and choose „lan‟ (local area network) or
„wan‟ (wide area network).
Target:
Enter the target host IP or network address here.
IPv4-Netmask:
Displays the IPv4-Netmask address (the default is
255.255.255.255). A custom IPv4-Netmask can also
be specified here.
Using Web-based Management
40
IPv4-Gateway:
If needed, a custom IPv4-Gateway address can be
specified here.
Metric:
Specifies the network path priority number (usually
associated with the network path‟s administrative
distance). The lower the metric number, the higher
priority of this static route in the network routing
protocol.
The default value is 0 (highest priority). A different
metric number can also be specified here.

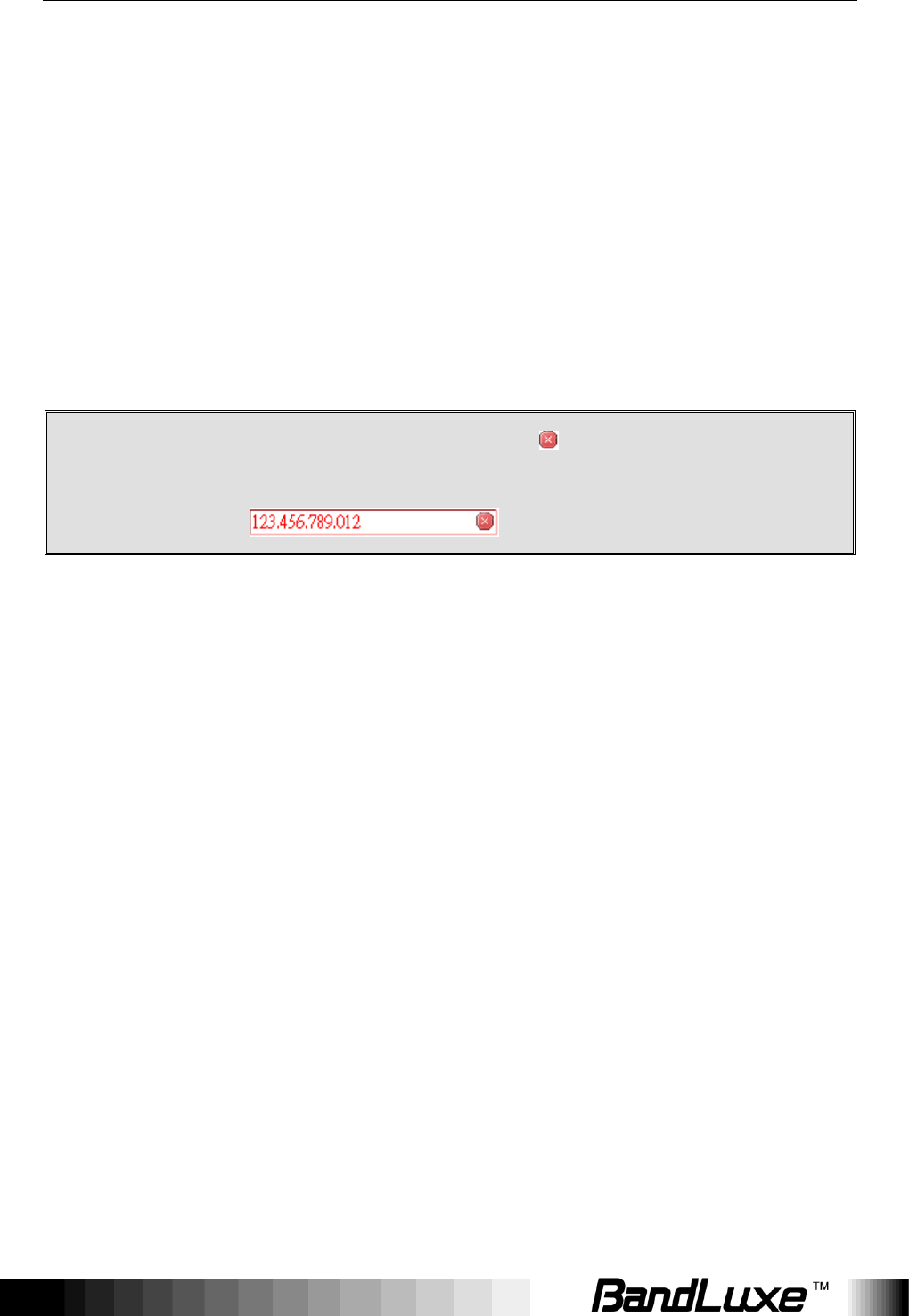

Note:
If contents in the text box is invalid, a will appear on the right
side of the text box, and the text color changes to red. For example,
the following demonstrates an invalid target Host-IP or Network
address:
Routing and Redirection Service
This option enables or disables Network Address Translation (NAT)
service, which is a standard that allows multiple computers on a private
network to share a single IP address.
VPN Passthrough
A Virtual Private Network (VPN) is a type of secured private network
connection, built upon publicly-accessible infrastructure such as the
Internet. They usually provide connectivity to various devices behind a
gateway or firewall.
IPSec
Passthrough:
IP Security (IPSec) provides authentication and
encryption. Since it is mainly a Layer 3 technology, it
can secure all data on the network. To allow IPSec
tunnels to pass through the Router, click „Enabled‟.
PPTP
Passthrough:
Point-to-Point Tunneling Protocol (PPTP) allows you
to establish a connection to an enterprise network. To
allow PPTP tunnels to pass through the Router, click
Enabled.
L2TP
Passthrough:
Layer 2 Tunneling Protocol (L2TP) is an extension of
the Point-to-Point Tunneling Protocol and is also used
to establish virtual private networks. To allow L2TP
Using Web-based Management
41
tunnels to pass through the Router, click Enabled.
WiFi
This submenu item is for configuring all Wi-Fi-related settings. This router
supports up to two WiFi SSIDs. The default SSID is as follows:
Tab Name
Corresponding SSID
Default Password
“BR_LTE_xxxx”
BR_LTE_xxxx
The last 4 digits of MAC
address (xxxx) converted into
2-digit decimal numbers,
please see table below for
conversion method.
Hexadecimal
Digit
Decimal
Number
Hexadecimal
Digit
Decimal
Number
0
00
8
08
1
01
9
09
2
02
A
10
3
03
B
11
4
04
C
12
5
05
D
13
6
06
E
14
7
07
F
15
SSID and Password Example:
MAC Address
Corresponding SSID
Default Password
0026FA0B314A
BR_LTE_314A
03010410
Each tab has identical sets of configuration categories:
Device Configuration and Interface Configuration.
Please click after making any changes in this submenu.
Using Web-based Management
42
Device Configuration
General Setup
or
Wireless
network is
enabled*
WiFi connection of the associated SSID is enabled.
To disable WiFi connection of this SSID, click .
Wireless
network is
disabled*
WiFi connection of the associated SSID is disabled.
To enable WiFi connection of this SSID, click .
* Note: The associated SSID is displayed either in the
selected submenu tab under WiFi or in the WiFi category
item Interface Configuration General Setup SSID.
Channel:
Selects the WiFi channel for communication. The available
choices are:
Channel (carrier frequency)
1 (2.412 GHz)
2 (2.417 GHz)
3 (2.422 GHz)
4 (2.427 GHz)
5 (2.432 GHz)
6 (2.437 GHz)
Using Web-based Management
43
7 (2.442 GHz)
8 (2.447 GHz)
9 (2.452 GHz)
10 (2.457 GHz)
11 (2.462 GHz)
auto
-- custom --
assigns channel automatically
manually specifies WiFi channel
Normally one of the channels is already selected, and no
change is needed unless there exists interference problems
with other WiFi or Bluetooth devices (that also use the
2.4GHz frequency range for communications).
Alternatively, you can select „auto‟ to let the system select
the channel automatically, or you can select
“-- custom --” and enter your own channel specification in
the text box.
Advanced Settings
Mode
Specifies the IEEE wireless standard for WiFi
communication. The choices are:
Auto:
(Default choice) The router
automatically chooses the
optimal IEEE wireless
standard.
802.11b:
Data speed up to 11 Mbps
802.11g:
Data speed up to 54 Mbps
802.11n:
Data speed up to 300 Mbps
HT mode
Specifies channel width for data communications.
The choices are:
20MHz:
Single 20MHz channel
20MHz / 40MHz
Single or dual 20MHz
channels
Dual SSID is
disabled/enabled
Click to activate the second SSID, or click
to deactivate the second SSID.
Using Web-based Management
44
Interface Configuration
General Setup
SSID
Service Set Identification
To change the SSID, click the text box and enter the
new SSID (up to 32 alphanumeric characters)
Mode
Wireless operating mode of this router.
AP:
Wireless Access Point
Hide SSID
Enable this option to make wireless network of this
SSID unavailable to nearby WiFi clients.
Disable this option to make wireless network of this
SSID available to nearby WiFi clients (default setting).
Wireless Security
This router supports wireless data encryption, a must for wireless data
security. The Wireless Security Interface Configuration items will change
according to the chosen encryption method.
CAUTION: To enable “Hide SSID”, we strongly advise you to do so via
wired LAN connection, since wireless LAN connection with this SSID will
be lost with this option applied! If both SSIDs are hidden, then the
communications with this router must be done via a LAN port, or this
router must be reset to factory default settings.
Using Web-based Management
45
The encryption options are:
1. No Encryption
Data transmitted over wireless networks can be seen by others.
2. WEP Open System
Wired Equivalent Privacy encryption with Open System authentication
Key: Enter a password for accessing this SSID‟s wireless network.
3. WPA-PSK
“WiFi Protected Access – Pre-Shared Key” encryption
Cipher: Specify the desired encryption protocol by clicking and
selecting an option from the drop-down list:
auto – (default setting) the system automatically chooses the
optimal encryption protocol
Force CCMP (AES) – Use CCMP (AES) encryption
exclusively (stronger than TKIP)
Force TKIP – Use TKIP encryption exclusively
Force TKIP and CCMP (AES) – Use TKIP and CCMP (AES)
encryption protocols together
Key: Enter a password for accessing this SSID‟s wireless network.
4. WPA2-PSK
“WiFi Protected Access II – Pre-Shared Key” encryption
Using Web-based Management
46
Cipher: Specifies the desired encryption protocol by clicking and
selecting an option from the drop-down list:
auto – (Default setting) the system automatically chooses the
optimal encryption protocol
Force CCMP (AES) – Use CCMP (AES) encryption
exclusively (stronger than TKIP)
Force TKIP – Use TKIP encryption exclusively
Force TKIP and CCMP (AES) – Use TKIP and CCMP (AES)
encryption protocols together
Key: Enter a password for accessing this SSID‟s wireless network.
5. WPA-PSK/WPA2-PSK Mixed Mode
“WiFi Protected Access I + II – Pre-Shared Key” encryption
Cipher: Specifies the desired encryption protocol by clicking and
selecting an option from the drop-down list:
auto – (Default setting) the system automatically chooses the
optimal encryption protocol
Force CCMP (AES) – Use CCMP (AES) encryption
exclusively (stronger than TKIP)
Force TKIP – Use TKIP encryption exclusively
Force TKIP and CCMP (AES) – Use TKIP and CCMP (AES)
encryption protocols together
Key: Enter a password for accessing this SSID‟s wireless network.
Using Web-based Management
47
6. WPA-EAP
“WiFi Protected Access – Extensible Authentication Protocol”
encryption
Cipher: Specifies the desired encryption protocol by clicking and
selecting an option from the drop-down list:
auto – (default setting) the system automatically chooses the
optimal encryption protocol
Force CCMP (AES) – Use CCMP (AES) encryption
exclusively (stronger than TKIP)
Force TKIP – Use TKIP encryption exclusively
Force TKIP and CCMP (AES) – Use TKIP and CCMP (AES)
encryption protocols together
Radius-Authentication-Server: Enter the name of the RADIUS
authentication server.
Radius-Authentication-Port: Enter the port number of the RADIUS
authentication port (the default port number is 1812).
Radius-Authentication-Secret: Enter the desired RADIUS secret
password.
7. WPA2-EAP
“WiFi Protected Access II – Extensible Authentication Protocol”
encryption
Using Web-based Management
48
Cipher: Specifies the desired encryption protocol by clicking
and selecting an option from the drop-down list:
auto – (default setting) the system automatically chooses
the optimal encryption protocol
Force CCMP (AES) – Use CCMP (AES) encryption
exclusively (stronger than TKIP)
Force TKIP – Use TKIP encryption exclusively
Force TKIP and CCMP (AES) – Use TKIP and CCMP
(AES) encryption protocols together
Radius-Authentication-Server: Enter the name of the RADIUS
authentication server.
Radius-Authentication-Port: Enter the port number of the RADIUS
authentication port (the default port number is 1812).
Radius-Authentication-Secret: Enter the desired RADIUS secret
password.
MAC-Filter
MAC-Address Filter:
This tab item allows you to selectively allow or block clients from network
access. Click and select an option from the drop-down list:
1. Disable – The MAC address filter is disabled (default option).
2. White list* – Click and select a desired MAC address from the
drop-down list, or select “-- custom --" and enter a specific client‟s
MAC address.
Using Web-based Management
49
3. Black list* – Click and select an undesired MAC address from
the drop-down list, or select “-- custom --" and enter a specific
client‟s MAC address.
* To add another MAC address to the list, click to add a new
drop-down list; then repeat the MAC address selection/specification.
To remove a MAC address from the list, click .
Advanced Settings
This tab item is for advanced adjustment settings for WiFi connection.
Fragmentation
Threshold
Maximum transmittable data packet frame size
without frame fragmentation; the default value is 2346
RTS/CTS
Threshold
Defines Request-To-Send (transmitter) and
Clear-To-Send (receiver) control packet size; the
default value is 2347
WMM Mode
Enables or disables Wi-Fi Multimedia Mode, which
gives multimedia data contents (voice, video, and
audio) higher priority over wireless networks. The
default setting of WMM Mode is Disabled.
WPS Settings
WiFi Protected Setup Settings
This tab item appears when „Encryption‟ in “Wireless Security” is set to
one of the following: WPA-PSK, WPA2-PSK, or WPA-PSK/WPA2-PSK
Mixed Mode.
WPS: To enable the WPS button for quick WiFi connection setup, click
„Enabled‟, and 2 additional items will appear: Mode and Start.
Using Web-based Management
50
Mode:
Specifies WPS setup mode
PBC Mode –
Push Button Configuration Mode
(Note: To use this setup method, the client
must have a WPS button configured to PBC
Mode.)
PIN Mode –
Personal Identification Number Mode
(Note: To use this setup method, the client
must have a WPS button configured to PIN
Mode.)
After choosing PIN Mode, an additional text
box item “PIN Code” will appear.
PIN Code:
This text box item appears when „Mode‟ is set to “PIN
Mode”.
Enter the 8-digit alphanumeric PIN in the text box. This PIN
must match the PIN of the router client.
If the PIN entered is invalid, the text color will become red
with on the right.
Whenever the PIN entered becomes valid, the text color
will be black without on the right.
Using Web-based Management
51
Start:
After setting up WPS Mode (PBC or PIN), click the router
client‟s corresponding hardware/software WPS button
(actual router client hardware/software WPS button
behavior will depend on router client manufacturer‟s
design).
Click or press-and-hold the router‟s physical
SS/WPS/Reset button for just over 3 seconds to start the
WPS process.
Using Web-based Management
52
Switch
Details of the submenu Switch go here.
Diagnostics
This menu contains tools for effective network analysis and
troubleshooting.
Network Utilities
Ping
This feature allows you to check the status of a connection.
Using Web-based Management
53
1. In the text box next to , enter the IP address or URL that you
want to ping, and then select its corresponding internet protocol by
clicking either the IPv4 or IPv6 radial button.
2. In the text box of “Packet Size”, enter the desired value (default packet
size is 56).
3. In the text box of “Number of Pings”, enter the number of times you
wish to ping (default value is 5).
4. Click to begin the connection status check. „Ping‟ messages
will appear below.
Traceroute
This feature allows you to check the performance of a connection.
1. In the text box next to , enter the IP address or URL that you
want to trace route, and then click to start the performance
text. „Traceroute‟ messages will appear below.
NS Lookup
This feature allows you to retrieve name server information.
1. In the text box next to , enter the IP address or URL that you
want to trace route, and then click to get name server
information. „Nslookup‟ messages will appear below.
Using Web-based Management
54
Firewall
Single Port Forward
Single Port Forward
Port Forwarding allows you to set up public services on your network,
such as web servers, ftp servers, e-mail servers, and other specialized
Internet applications.
To forward a single port:
1. Name: Enter an application name for this port forwarding rule.
2. Protocol: Click and select a protocol from the drop down list –
TCP+UDP (default), TCP, UDP, or Other…
3. External port: Enter the port number of the external port used by
the server or Internet application. Afterward, this port number will
be echoed to the text box of “Internal port”.
4. Internal IP address: Click and select an IP address from
drop-down list, or select “--custom--" and enter IP address in text
box.
5. Internal port: This text box will automatically receive port number
entered in the text box of “External port”, or you can enter your own
port number in the same text box.
6. Click . The port forwarding rule you have just entered will be
added to the Port Forwards list.
Using Web-based Management
55
In the status area, the message Unapplied Change may appear
next to “Operator Name” to indicate configuration changes
temporarily stored in the router.
7. More rules can be added to the Port Forwards list by repeating
Steps 1-6.
8. (a)To enable or disable a Port Forwards list rule, click its check box
under „Enable‟.
(b) To remove any Port Forwards rule, click its corresponding
button.
9. To edit a particular Port Forwards rule in detail, click its
corresponding button, and the rule‟s associated
configuration page (much more flexible and detailed than express
settings in Steps 1-5) will appear. After making any changes, click
. Finally click to exit this configuration
page.
Note:
Numerical and text values shown in the illustrative examples are for
demonstration purposes only and are not for actual operation.
(a) (b)
Using Web-based Management
56
Port Trigger
Port Trigger
Port Triggering allows the Router to watch outgoing data for specific port
numbers. The Router remembers the IP address of the computer that
sends the matching data, so that when the requested data returns
through the Router, the data is pulled back to the proper computer by way
of IP address and port mapping rules.
To add a new Port Triggering rule:
1. Name: enter an application name for this port triggering rule.
2. Protocol: click and select a protocol from the drop down list –
TCP+UDP (default), TCP, UDP, or Other…
3. Triggered Range: enter the Start Port and End Port for the
triggered port number range of the Internet application (please
check its documentation for the port number(s) needed).
4. Forwarded Range: enter the Start Port and End Port for the
forwarded port number range of the Internet application (please
check its documentation for the port number(s) needed).
Using Web-based Management
57
5. Click . The port triggering rule you have just entered will be
added to the Port Triggering list.
In the status area, the message Unapplied Change may appear
next to “Operator Name” to indicate configuration changes stored in
the router.
6. More rules can be added to the Port Triggering list by repeating
Steps 1-5.
7. (a) To enable or disable a Port Forwards list rule, click its check box
under „Enable‟.
(b) To remove any Port Triggering rule, click its corresponding
button.
8. To edit a particular Port Triggering rule in detail, click its
corresponding button, and the rule‟s associated
configuration page (more flexible and detailed than express settings
in Steps 1-4) will appear. After making any changes, click .
Finally click to exit this configuration page.
Note:
Numerical and text values shown in the illustrative examples are for
demonstration purposes only and are not for actual operation.
(a) (b)
Using Web-based Management
58
Security Filter
Here you can make Firewall, Internet Filter, and Web Filters
adjustments for network security.
Firewall
SPI Firewall
Protection:
Enable or Disable Stateful Packet Inspection (SPI)
feature of the firewall. The default setting is „Enable‟.
Internet Filter
Filter Anonymous
Internet Requests:
This filter blocks anonymous internet requests from
outside network. The default setting is „disabled‟.
Filter Multicast:
Multicasting allows for multiple transmissions to
specific recipients at the same time, i.e. the Router
allows IP multicast packets to be forwarded to the
appropriate computers.
To allow multicasting, disable “Filter Multicast” (this is
the default setting).
To block multicasting, enable “Filter Multicast”.
Using Web-based Management
59
Filter Internet NAT
Redirection:
This filter blocks local resource access via NAT
(Network Address Translation) redirection (i.e.
external address) from other local computers. The
default setting is „enabled‟.
Filter IDENT
(Port113):
This feature keeps Port 113 from being scanned by
devices outside of your local network. The default
setting is „disabled‟.
Web Filters
Using the Web Filters feature, you may enable up to four specific filtering
methods.
Proxy:
Use of WAN proxy servers may compromise the Router's
security. Select this option to disable access to any WAN
proxy servers.
Java:
Java is a programming language for websites. Select this
option to disable Java. If you disable Java, you run the
risk of not having access to Internet sites created using
this programming language.
ActiveX:
ActiveX is a programming language for websites. Select
this option to disable ActiveX. If you disable ActiveX, you
run the risk of not having access to Internet sites created
using this programming language.
Cookies:
A cookie is data stored on your PC and used by Internet
sites when you interact with them. Select this option to
disable cookies.
DMZ Host
When a firewall is used, it is sometimes necessary to place some clients
Using Web-based Management
60
(for example Internet games, video conferencing, or VPN connections)
outside of the firewall while leaving the others protected. You can do this
using a Demilitarized Zone (DMZ). This DMZ Host feature allows you to
specify the IP address of the computers that are placed outside the
firewall of your network.
In the text box, enter the last 3 digits of the DMZ host address (the prefix
is 192.168.1 for this router), and then click .
The host IP address will be added to the DMZ Host list, which can be
further disabled or enabled by clicking the „Enable‟ checkbox. To remove
this DMZ Host, click . After setting up the DMZ host, click .
IP Filtering
IP Filtering
IP Filtering allows the Router to discard data from certain IP addresses.
To add a new IP filtering rule:
1. Name: Enter an application name for this IP filtering rule.
2. Protocol: Click and select a protocol from the drop down list –
TCP+UDP (default), TCP, UDP, or Other…
Using Web-based Management
61
3. Filter Source IP Address: Enter the source IP address to be
filtered. The text color will turn red with on the right for any
invalid IP address entered (e.g. ). When the IP
address entered becomes valid, the text color changes back to
black without on the right (e.g. ).
4. Filter Source Port: Enter the source port number to be filtered.
5. Click . The IP filtering rule you have just entered will be added
to the IP Filtering list.
In the status area, the message Unapplied Change may appear
next to “Operator Name” to indicate configuration changes stored in
the router.
6. More rules can be added to the IP filtering list by repeating Steps
1-5.
7. (a) To enable or disable an IP filtering list rule, click its check box
under „Enable‟.
(b) To remove any Port Triggering rule, click its corresponding
button.
8. To edit a particular IP filtering rule in detail, click its corresponding
button, and the rule‟s associated configuration page (more
flexible and detailed than express settings in Steps 1-4) will appear.
After making any changes, click . Finally click
to exit this configuration page.
Note:
Numerical and text values shown in the illustrative examples are for
(a) (b)
Using Web-based Management
62
demonstration purposes only and are not for actual operation.
Port Range Forward
Port Range Forward
Port Range Forward allows you to set up public services on your network,
such as web servers, ftp servers, e-mail servers, and other specialized
Internet applications.
To forward a port range:
1. Name: Enter an application name for this port range forwarding
rule.
2. Protocol: Click and select a protocol from the drop down list –
TCP+UDP (default), TCP, UDP, or Other…
3. Port Range Forward: Specify the range of port forwarding by
entering the Start Port number and the End Port number.
4. IP address: Enter the IP address of the PC running the specific
application.
Using Web-based Management
63
5. Click . The port range forwarding rule you have just entered
will be added to the Port Range Forward list.
In the status area, the message Unapplied Change may appear
next to “Operator Name” to indicate configuration changes
temporarily stored in the router.
6. More rules can be added to the Port Range Forward list by
repeating Steps 1-5.
7. (a) To enable or disable a Port Forwards list rule, click its check box
under „Enable‟.
(b) To remove any Port Forwards rule, click its corresponding
button.
8. To edit a particular Port Forwards rule in detail, click its
corresponding button, and the rule‟s associated
configuration page (more flexible and detailed than express settings
in Steps 1-4) will appear. After making any changes, click .
Finally click to exit this configuration page.
Note:
Numerical and text values shown in the illustrative examples are for
demonstration purposes only and are not for actual operation.
(a) (b)
Using Web-based Management
64
UPNP
Universal Plug and Play – Allows wired and wireless network devices to
discover each other and establish network services.
UPnP Settings
Here you can „Enable‟ or „Disable‟ the UPnP service.
VPN
Virtual Private Network – Allows use of mobile internet for secured private
network.
IPSec Setting
IPSec Setting details go here.
IPSec Profile
IPSec Profile details go here.
IPSec Certificate
IPSec Certificate details go here.
Using Web-based Management
65
SSL VPN
This submenu setting hosts configuration options for SSL VPN (Secure
Socket Layer Virtual Private Network).
SSL Certificate: Displays SSL Certificate information.
Path to CA-Certificate: Click and select an appropriate
CA-Certificate file.
.
Using Web-based Management
66

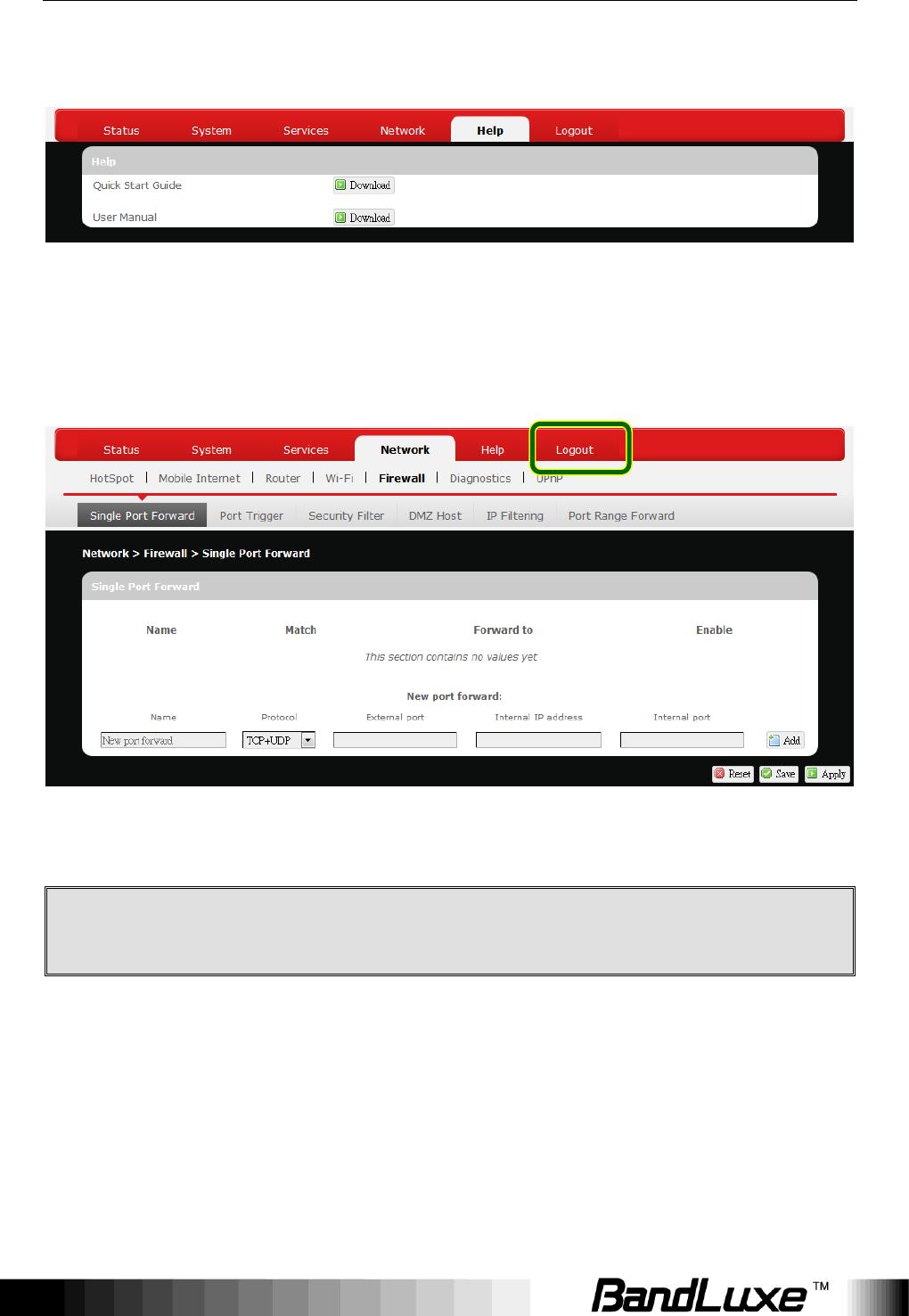

Help
Click the appropriate download link to download the latest Quick Start
Guide or User Manual of this product.
Logout
Exits the web configuration interface and re-directs to login prompt.
Note:
After a period of inactivity, automatic logout will occur. After clicking
any menu item, the login prompt will appear as re-login is needed to
continue using the web configuration interface.
Appendix A: Vehicle Installation Guide
67
Appendix A: Vehicle Installation
Guide
Overview
Your K530 is designed for rugged vehicle use with IP64 and MIL810G
compliances. The IP64 rating ensures that your K530 is dust-tight and is
well-protected against liquid intrusion. The MIL810G rating ensures that
your K530 is well-guarded against tough environmental and climate
conditions. To ensure proper operation of K530, a stable power supply is
essential in addition to secure mount.
However, getting a stable power supply from an operating vehicle can be
a major challenge. Due to constantly changing vehicle and environmental
conditions, as well as different circuit loadings due to different stages of
vehicle operation and use of its onboard electronic products, the raw
voltage supplied by a vehicle‟s battery may vary largely. Therefore, if
untreated, vehicular electrical systems are generally harsh for electrical
equipment onboard. There are two types of voltage supply problems in a
vehicle. One is called brown-out voltage problem, and the other is called
transient voltage problem.
Brown out usually occurs during the start of the engine. In general, when
the car engine starts, the spark plug draws significant stream of
Appendix A: Vehicle Installation Guide
68
instantaneous electrical power from the car battery (ultra high
instantaneous electrical current in terms of hundreds of cranking amps or
more), leaving not much instantaneous electrical energy useful for other
electrical equipment on the vehicle, therefore the voltage supplied to
other electrical equipment drops significantly lower than its normal level. It
is after such instantaneous high demand of electrical power that the
voltage level returns to normal. The diagram below demonstrates the
brown-out phenomenon when the engine is starting.
Transient voltage, sometimes known as spikes, is generally very
noticeable positive or negative voltage changes over a short period of
time. Such voltage fluctuations may be occasional or may be periodic.
The fluctuations are typically caused by interference from the
electrical-mechanical components in the vehicle (alternators, electric
windows and door locks, light switches, loose or corroded connectors or
battery terminals, etc.), or even from additional electrical equipment
connected to the vehicle‟s electrical power system. Without treatment,
sharp spikes are a potential threat to your K530 as well as other electrical

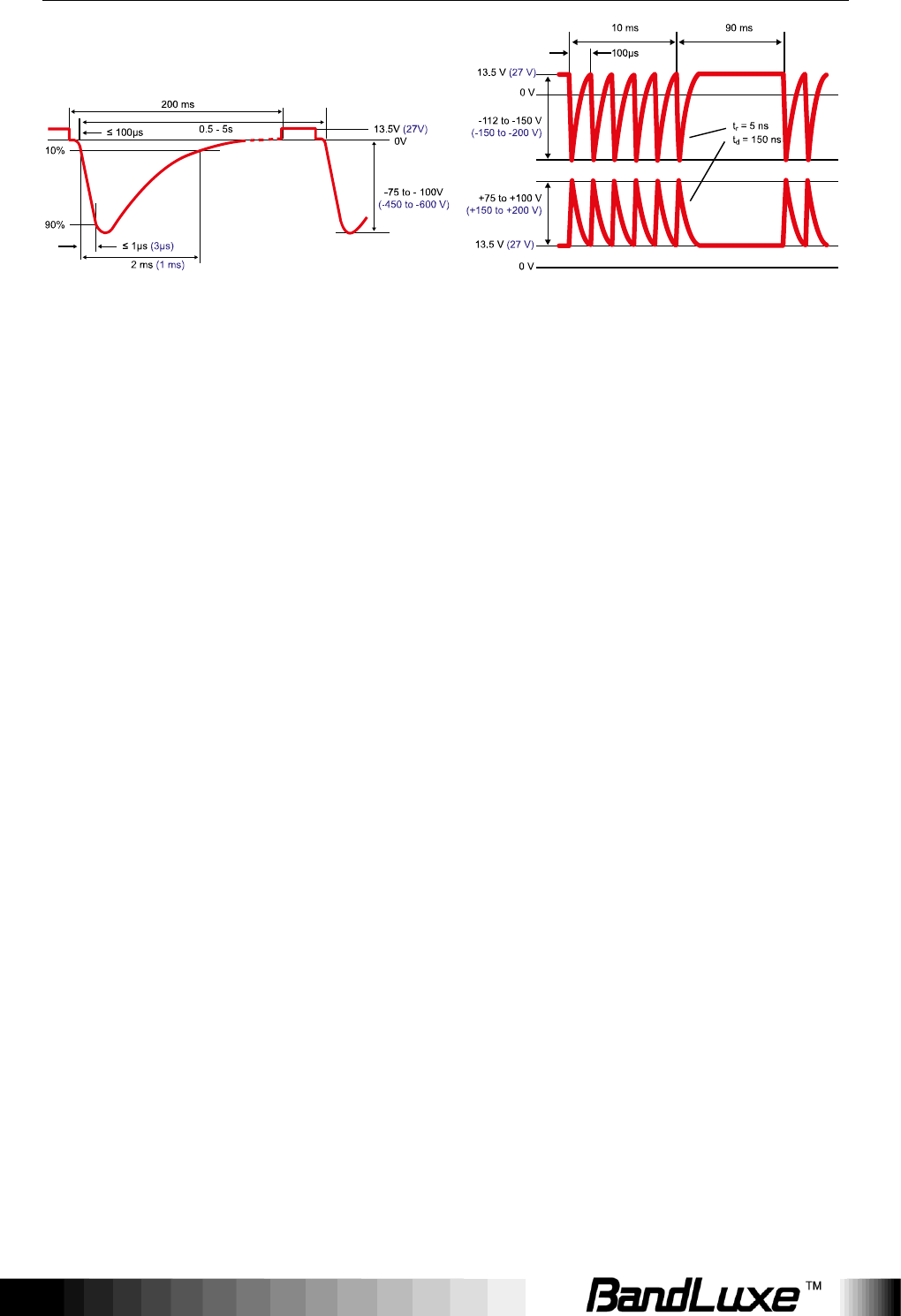

equipment on the vehicle. The diagram below shows some standardized
examples of automotive voltage transients (ISO-7637-2):
Appendix A: Vehicle Installation Guide
69
Your K530 is designed to handle large voltage swings from 9V to 32V, in
case of undesirable voltage transients or brown-outs. However, for best
use and proper protection of your K530, it is necessary to regulate input
voltage before feeding it to the power input of your K530.
There are two ways of electrical voltage regulation. One way is to
implement a power management block that harnesses battery power
during engine startup. The more effective way is to implement a power
management block with filters that further smoothes out residual spikes.
Installation
General Guidelines
Follow these guidelines for optimal vehicle installation of your K530:
1. Place the router as close to the voltage regulators, such as power
management block and filters, as possible. In other words, keep the
power cables short between the router and the output connectors of
the voltage regulators.
Appendix A: Vehicle Installation Guide
70
2. Use the proper wire size according to the expected current load.
Please see the table below:
AWG Rating
Electric Current
Load (Amps)
10-Feet Cable
20-Feet Cable
3-10
14 AWG
12 AWG
11-20
14 AWG
10 AWG
21-35
8 AWG
6 AWG
3. To avoid problems caused by corrosion and other imperfections, use a
dedicated ground wire instead of direct attachment to chassis ground.
4. To minimize noise interference, implementation of isolation or filters
among the router and other electrical devices is recommended.
5. Ensure that your K530 is securely mounted on the vehicle. In addition
to electrical requirements, also consider vibration and temperature
factors when choosing the optimal location for mounting your K530. If
vibration problem is noticeable, anti-vibration rubber grommets may
be used to reduce shock on your K530. Also avoid mounting your
K530 near a spot subject to extreme heat, such as a poorly ventilated
spot that is near the engine or is prone to direct sunlight.
Appendix A: Vehicle Installation Guide
71
Power Management
In this type of installation, voltage regulation is done solely on the power
management block, which routes battery power to the ignition switch
during engine startup, while rendering conditioned output DC power to the
vehicle‟s electrical parts. First connect the long positive red power cable
to the input of power management block, then connect the conditioned
positive power output to your K530. On the ground side, connect the
ground from your K530 together with the ground of the power
management block and the ground of the battery.
Appendix A: Vehicle Installation Guide
72
Power Management with Filter
In this type of installation, voltage regulation is done in two parts. The first
part is on the power management block, which routes battery power to
the ignition switch during engine startup while rendering conditioned
output DC power to the vehicle‟s electrical parts. First connect the long
positive red power cable to the input of the power management block,
then connect the conditioned positive power output to your K530. On the
ground side, connect the ground from your K530 together with the ground
of the power management block and the ground of the battery.
The second part further conditions power voltage with the use of a filter,
which can further smooth out residual transients left over by the power
management block. There are three types of filters: capacitor, inductor,
and Pi.
The capacitor reduces transients by temporarily storing some electrical
energy in the electrostatic field (electrical capacitance caused by voltage
differences between two plates with the dielectric material in between)
and gradually releasing them over time.
The inductor reduces transients by temporarily storing some electrical
energy in the magnetic field (electrical induction caused by electric
currents) and gradually releasing them over time.
Appendix A: Vehicle Installation Guide
73
The Pi filter reduces transients by a specially designed RLC circuit, which
combines both capacitors and inductors utilizing transient-reducing
characteristics of both types of filters.
While any of the three types of filters will do the job, the Pi type is the
optimal choice, combining advantages of both capacitor and inductor
types of filters.
Appendix B: FAQ
74
Appendix B: FAQ
Q: What should I know and how long does it take when I upgrade the
firmware of router or modem?
A: 1. While upgrading the firmware requires some time to finish. During
that, you MUST NOT turn off the power or interrupt the progress.
2. You may use an Ethernet cable or a wireless connection to
upgrade the firmware. We suggest the use of an Ethernet cable.
3. It may take 2 minutes to upgrade the firmware of the router and 5
minutes to upgrade the firmware of the modem.
4. When the firmware of the modem is upgrading, the UMTS LED will
flash among Blue-Green-Red. You should wait until the LED is in
single color (about 4-5 minutes).
Q: How do I connect to the router?
A: 1. Connect an Ethernet cable between PC/Notebook (NB) and the
router.
2. Use WiFi to connect.
Q: What‟s the default “User name” and “Password” for the router?
A: User name: admin
Password: admin
Q: How do I enter GUI and setup the configuration for the router?
A: 1. Connect PC/NB to the router.
2. Open Internet Explorer or other Web browser.
3. Input “http://192.168.1.1”.
4. Input User name and Password.
Q: Why can‟t I connect to the network via built-in 3G module?
A: 1. Check the SIM/USIM to see if it is inserted well.
2. Check the UMTS LED on the router to see if it is solid.
3. Check the Status on GUI to see if the SIM/USIM detected well.
4. Check the Status on GUI to see if the APN it is correct.
5. Check the Internet on GUI to see if the Connection is “Keep Alive”
or not.
Q: Why can't I link on the GUI?
A: If you have changed your WiFi security, SSID, Local IP address, you
have to repair your network to get a new IP that you can link the GUI.
XP:
If you are a WiFi user, click Network Connections and right click on
Appendix B: FAQ
75
Wireless Network Connection, click Repair.
If you use Local Area Connection to connect the Router, click
Network Connections and right click on Local Area Connection,
click Repair.
Vista/7:
1. If you are a WiFi user, please click Network and Sharing Center
> Manage network connections > Wireless Network
Connection > Diagnose.

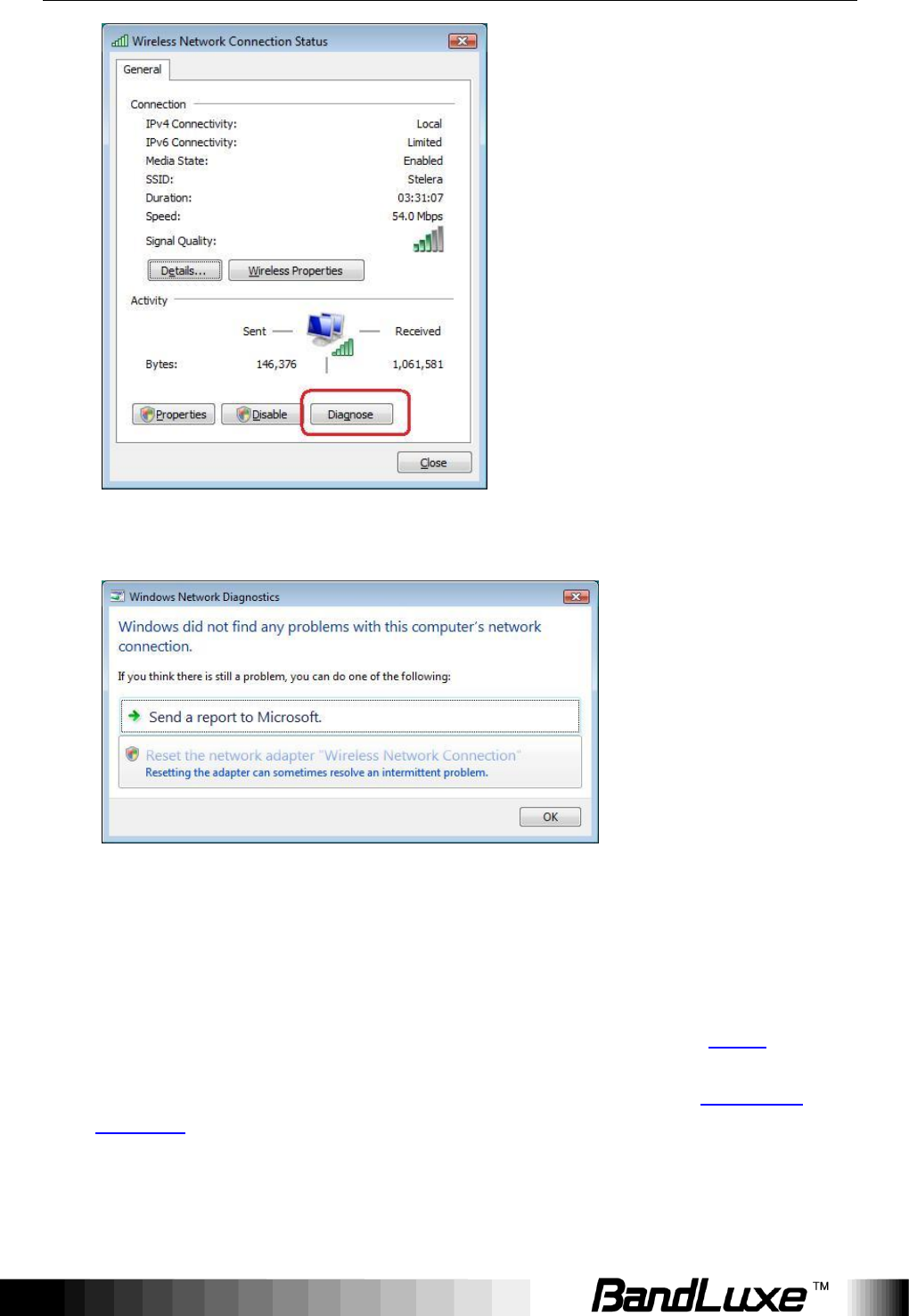

Appendix B: FAQ
76
2. Please click Reset the network adapter “Wireless Network
Connection” and it will began to repair.
3. If you use Local Area Connection to connect the Router, please
click Network and Sharing Center > Manage network
connections > Local Area Connection > Diagnose, follow step
1 and the subsequent messages to repair it.
Q: How do I configure my WiFi settings from GUI?
A: Click the menu tabs Network Wi-Fi to access to the Wi-Fi
submenu, and then click the submenu tab of a particular ESSID.
If you want to configure WiFi Security please click the “Wireless
Security” tab under “Interface Configuration”.
There are seven wireless security encryption options supported by
the Router: WEP Open System, WEP Shared Key, WPA-PSK,
WPA2-PSK, WPA-PSK/WPA2-PSK Mixed Mode, WPA-EAP, and
WPA2-EAP.
Appendix B: FAQ
77
Q: How can I have a long-time link?
A: Click the menu tabs Network Router Router Setting. Under
“DHCP Service”, set Client Lease Time to a large value (e.g. 120h =
120 hours = 5 days).
Q: Why can‟t I use the router in the office?
A: Your router‟s IP address might conflict with the office default settings.
Q: Why is my internet speed is so slow with the router?
A: 1. Click the menu tabs Status Mobile Internet to check the Rx
Signal Strength in dBm. Weak signals will significantly slow down
internet speed.
LEDs ON
Signal
Strength
3G/2G/WCDMA
RSSI reading
4G LTE
RSRP reading
none
0 bars
Weaker than -100 dBm
Weaker than -115 dBm
#12
1 bar
-100 dBm to (just below) -95 dBm
-115 dBm to (just below) -109 dBm
#12to#13
2 bars
-95 dBm to (just below) -90 dBm
-109 dBm to (just below)) -103 dBm
#12to#14
3 bars
-90 dBm to (just below) -83 dBm
-103 dBm to (just below) -95 dBm
#12to#15
4 bars
-83 dBm to (just below) -76 dBm
-95 dBm to (just below) -87 dBm
#12to#16
5 bars
-76 dBm or stronger
-87 dBm or stronger
Appendix B: FAQ
78
2. Click the menu tabs Network Wi-Fi to access the Wi-Fi
submenu, and then click the submenu tab of the currently used
ESSID. Then select a different WiFi Channel under “Device
Configuration.”
Q: I have connected the computer with the router via LAN connection.
Why can‟t I access the router‟s IP address “http://192.168.1.1” ?
A: Your computer‟s IP address and
DNS server addresses may have
been assigned manually. Please set
your computer‟s IP address and
DNS server addresses to be
obtained automatically. The
Windows setup path is:
Control Panel All Control Panel
Items Network and Sharing
Center Local Area Connection
Properties Internet Protocol
Version 4 (TCP/IPv4)).
Q: Why can‟t I use VPN via Router?
A: You may check your office IP settings, the IP settings must not
conflict with each other.
Appendix B: FAQ
79
Q: How do I configure the settings when I use xDSL to link the router?
A: 1. PPPoE: Go to the GUI Internet > Basic Setting > Ethernet
Setting. Change Connection Type to PPPoE. Enter the Username
and Password provided by your ISP. Remember to connect your
xDSL or Modem to the WAN Port on your Router.
2. Static IP: Go to the GUI Internet > Basic Setting > Ethernet
Setting. Change Connection Type to Static IP. Enter the
information in the blank provided by your ISP. Remember to
connect your xDSL or Modem to the WAN Port on your Router.
Q: Can I prevent others from using my router?
A: Yes, there are some ways to prevent others from using your router.
1. Enable your WiFi client filter.
2. Disabled your SSID Broadcast.
3. Setting your WiFi security.
Q: My PIN code is enabled and where can I input the PIN code to use my
Router?
A: Click the menu tabs Network Mobile Internet U/SIM PIN
Management; enter your PIN Code and click .
Q: Why does my U/SIM status display “PIN Disable”?
A: Check that the SIM card (which is properly
activated by your mobile internet service provider) is
inserted correctly in your router.
Q: Where can I change the password of the router?
A: Click the menu tabs System Administration . Enter the new
password twice (set and confirm) and click .
Appendix B: FAQ
80
Q: Can I backup and restore all my settings of the router?
A: Yes. Click the menu tabs System Backup / Flash Firmware
and click , then follow instructions on the screen to save
router settings as a TAR file at a desired location on your computer or
mobile device. Conversely, to restore previously saved router
settings, click (of “Restore backup”); follow screen
instructions to choose the previously saved TAR file; and then click
.
Q: How do I use the Reset button on the router?
A: 1. Short press the Reset button to restart the router.
2. Long press the Reset for more than 10 sec to reset the router to
factory default settings.
Q: Where can I reset the router to factory default settings?
A: 1. Long press the Reset button on the router for more than 10 sec.
2. Click the menu tabs System Backup / Flash Firmware and
click .
Q: If I remove the SIM when 3G is connected, why can‟t I see the SIM
status change?
A: You have to restart the router to see the status. It is best to remove
the SIM card when the router is OFF.
Appendix C: Specifications
81
Appendix C: Specifications
Note: Specifications are subject to change without notice.
Physical
WLAN
802.11 b/g/n (2x2 MIMO)
Cellular modem
Embedded, 3GPP Rel 9, LTE FDD&TDD/WCDMA
Dimensions (LxWxH,
mm)
160 x 94 x 44
Weight (g)
474
Interface
Reset Button
Yes
RJ45 Ports
2 x RJ-45, 10/100 LAN ports
DC Power Jack
12V or 24V, accepting 9-32 V voltage swing
SIM slot
Embedded SIM as default, also 1 x SIM slot for external plug
in for back up
USB Port
1 x USB port, for USB client device plug in only. K530S serve
as USB host.
Connectivity and Data Speed
4G LTE Band
Band 2, Band 4, Band 12, Band 14, Band 17, Band 25
LTE Data Rate
FDD Downlink up to 100Mbps, Uplink up to 50Mbps
TDD Downlink up to 68Mbps, Uplink up to 17Mbps (in
configuration 3)
LTE Bandwidth
Up to 20 MHz
3G WCDMA Band
Band 2, Band4, Band 5
WLAN
802.11 b/g/n, 2x2 MIMO
Antenna
Cellular embedded
main antenna
No
Cellular embedded
diversity antenna
No
Cellular external main
antenna port
Yes SMA type
Appendix C: Specifications
82
Cellular external
diversity antenna port
Yes SMA type
WiFi antenna
No Embedded
WiFi external antenna
port
2 x SMA ports
GPS antenna port
Yes SMA type, supporting 3.3V DC Active Antenna
Router Features
Routing
Static Routing, Dynamic Routing (RIP, BGP, OSPF)
Security
Multiple VPN pass-through (IPSec, PPTP, L2TP), Stateless
and SPI Firewall
NAT-NAPT
Single Port Forwarding, Port Range Forwarding, Port Range
Triggering, Port Filtering, IP Filtering, DMZ, UPnP, Multicast
Pass-Through
VPN
IPSec, SSL
DNS
DNS Agent, DDNS
Other features
IPv4 and IPv6, TCP, UDP, ICMP, ARP, DHCP Server/Client,
HTTP/HTTPs, NTP, ALGs
Wireless LAN
802.11b data rate
1/2/5.5/11 Mbps
802.11g data rate
Up to 54 Mbps
802.11n data rate
Up to 300 Mbps
Security Types
WPA/WPA2 AES/TKIP Encription, WPA/WPA2 PSK,
WPA/WPA2 Enterprise, None/64/128 bits WEP Encryption,
open system authentication.
Device Unique
Default Encryption
Key
Such unique key is linked to IMEI address of the device
Channel Selection
Auto or Manual
Other features
SSID broadcast disable, Dual SSID, Access control (MAC
filtering), WLAN on/off software switch.
Status Indication
LED Display
6 x LEDs:
#1 cellular technology (Blue: LTE, Green: WCDMA, Red: SIM
Appendix C: Specifications
83
error or service failure)
#2 signal strength (tri-color)
#3 LAN 1
#4 LAN 2
#5 GPS
#6 WiFi
Software Features
Web Graphic User
Interface (GUI)
Yes,
Browser supported: IE, Firefox, Safari, Chrome
Web Graphic User
Interface (GUI)
Language Support
English
Connection Status in
Web Graphic User
Interface (GUI)
Network name, Signal strength, Roaming indication, Radio
technology, Connection status, Connection time, Connection
Statistics.
Connection
management
Connection on demand, Connection when available, Auto
APN matching with USIM , APN database update through
browser-based Graphic User Interface (GUI), APN profile,
PIN management, Preferred radio NW type selection
System protection
Password protected administrator and user access authority
(provisioning, configuration, authentication).
GNSS
Supports GPS and Glonass composite location data for
remote server and local access
Support FW version
upgrade
Yes
Device Management
TR-069, OMA-DM, Remote Graphic User Interface (GUI)
Log-in
Accessories
Power Adapter
Input: 100to240V, 50to60Hz AC; Output: 12V DC
Environment
Operation
Temperature
-20°C to 70°C (-4°F to 158°F)
Storage Temperature
-40°C to 80°C (-40°F to 185°F)
Operating Humidity
10% to 85% Non-Condensing
Storage Humidity
5% to 90% Non-Condensing
Appendix C: Specifications
84
Certification & Conformance
RoHS, IP64, MIL 810-G, FCC, Sprint Certification
Appendix D: Important Safety Information and Glossary
85
Appendix D: Important Safety
Information and Glossary
Europe – EU Declaration of Conformity
European Union Notice
Products with CE marking comply with the R&TTE Directive (99/5/EC), the EMC
Directive (2004/108/EC), and the Low Voltage Directive (2006/95/EC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the following European
Norms (in parentheses are the equivalent international standards).
EN 60950-1 (IEC 60950-1)
Safety of Information Technology Equipment.
EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; data transmission equipment operating in the 2.4 GHz
ISM band and using spread spectrum modulation techniques.
EN 301 489-24
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and services;
Part 24: Specific conditions for WCDMA direct spread (UTRA) for mobile and portable
(UE) radio and ancillary equipment.
ETSI EN 301 511
Global system for mobile communications (GSM); Harmonised EN for mobile stations
in the GSM 900 and GSM 1800 bands, covering essential requirements of article 3.2
of the R&TTE directive (1995/5/EC).
ETSI EN 301 489-1
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements.
ETSI EN 301 489-7
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and services;
Part 7: Specific conditions for mobile and portable radio and ancillary equipment of
digital cellular radio telecommunications systems (GSM and DCS).
Appendix D: Important Safety Information and Glossary
86
ETSI EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and services;
Part 17: Specific conditions for 2.4 GHz wideband transmission systems.
ETSI EN 301 908-1 & -2
Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS),
Repeaters and User Equipment (UE) for IMT-2000 Third Generation cellular networks;
Part 1: Harmonised EN for IMT-2000, introduction and common requirements,
covering essential requirements of article 3.2 of the R&TTE Directive.
EN 50385
Product standard to demonstrate the compliance of radio base stations and fixed
terminal stations for wireless telecommunication systems with the basic restrictions or
the reference levels related to human exposure to radio frequency electromagnetic
fields (110 MHz - 40 GHz) - General public.
Federal Communication Commission
Interference Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user‟s authority to operate the equipment.
15.105(b)
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Appendix D: Important Safety Information and Glossary
87
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference and
2) This device must accept any interference received, including interference that may
cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
Appendix D: Important Safety Information and Glossary
88
Glossary
2G: Second-generation mobile networking technology. Represents a switchover from
analog to digital; most 2G networks use GSM.
3G: Third-generation mobile networking technology that enables simultaneous
transfer of voice and non-voice data; most 3G networks use WCDMA.
3.5G: A more recent standard of mobile networking technology; generally uses
HSDPA.
3.75G: A more recent standard of mobile networking technology; generally uses
HSUPA.
4G: A more recent standard of mobile networking technology; generally uses LTE.
APN (Access Point Name/Network): Provides GPRS routing information. Consists
of:
Network ID: Identifies the external service requested by a GPRS user.
Mobile network operator ID: Specifies routing information.
ARFCN (Absolute Radio Frequency Channel Number): The specific ID numbers
for all radio channels used in cellular mobile communications.
bps (bits per second): How data flow is measured.
CHAP (Challenge Handshake Authentication Protocol): CHAP identifiers are
changed frequently and authentication can be requested by the server at any
time.
DNS (Domain Name System): Helps route network traffic by making the addressing
process more user-friendly.
DHCP (Dynamic Host Configuration Protocol): How devices obtain IP addresses
from a server.
DUN (Dial-Up Network): Windows component that enables online access via a
modem.
EDGE (Enhanced Data GSM Environment/Enhanced Data for Global Evolution):
Advanced GPRS that delivers multimedia and other data needing greater
bandwidth at up to 237 kbps.
GPRS (General Packet Radio Service): Delivers data in packets at up to 86 kbps.
GSM (Global System for Mobile Communications): The most popular cellular
network, mostly operates in 850-900 or 1800-1900 MHz; the primary 2G system.
HSDPA (High Speed Downlink Packet Access): Advanced WCDMA that delivers
downlink bandwidth intensive data at up to 7.2Mbps; typically associated with
3.5G.
HSUPA (High Speed Uplink Packet Access): Advanced WCDMA that delivers
uplink bandwidth intensive data at up to 5.76Mbps; typically associated with
3.75G.
Appendix D: Important Safety Information and Glossary
89
HSPA+ (High Speed Packet Access +): This is also known as HSPA Evolved, is the
next step and is more focused on delivering data services enabling speeds of up
to 42Mbps in the downlink and 11Mbps in the uplink.
IMEI (International Mobile Equipment Identity): A number unique to each
GSM/UMTS device that can be used block network access by a stolen mobile
device.
IP (Internet Protocol): Routes packets over a network.
Kbps (Kilobits per second): A data flow measure; 1024 bits/second.
LAN (Local Area Network): A data network with limited range but good bandwidth.
Mbps (Megabits per second): A data flow measure; 1,048,576 bits/second.
Load Balance: A method for distributing network loads across different networks to
optimize network traffic flow and increase network reliability.
LTE (Long Term Evolution): High-speed mobile communication standard based on
the GSM/EDGE and UMTS/HSPA network technologies. LTE provides downlink
peak rates up to 300 Mbit/s and uplink peak rates up to 75 Mbit/s.
PAP (Password Authentication Protocol): The difference between PAP
authentication and a manual or scripted login, is that PAP is not interactive. The
username and password are entered in the client's dialing software and sent as
one data package as soon as the modems have established a connection, rather
than the server sending a login prompt and waiting for a response.
PPP (Point-to-Point Protocol): An internet connection method.
PIN (Personal Identity Number): Four to eight digital numbers SIM card security
code; allows access to the carrier‟s network.
Rx: Shorthand for Reception.
SIM (Subscriber Identity Module): A small card that contains key mobile device
identification, subscription and contact information.
Tx: Shorthand for Transmission.
WCDMA (Wideband Code Division Multiple Access): Advanced EDGE that
supports 384kbps data flow. Most 3G networks use this standard, the same as
UMTS.
UAM (Universal Access Method): A method to allow WiFi access to a wireless
network while roaming. Using a regular web browser, the roaming customer
enters a login page and provides user information (usually username and
password) to access the network.

Navigation menu
