BandRich C105 HSDPA ExpressCard User Manual Stelera 1227
BandRich Inc. HSDPA ExpressCard Stelera 1227
BandRich >
USERS MANUAL
The
Stelera
C105 User
Manual
Contents
Chapter 1 Getting Started 3
Chapter 2 Connecting 8
Chapter 3 Settings 11
Chapter 4 Statistics & Information 13
Chapter 5 Q&A 155
Chapter 6 Important Safety Information and
Glossary 18
The Stelera C105
Chapter 1
Getting Started
4
Chapter 1

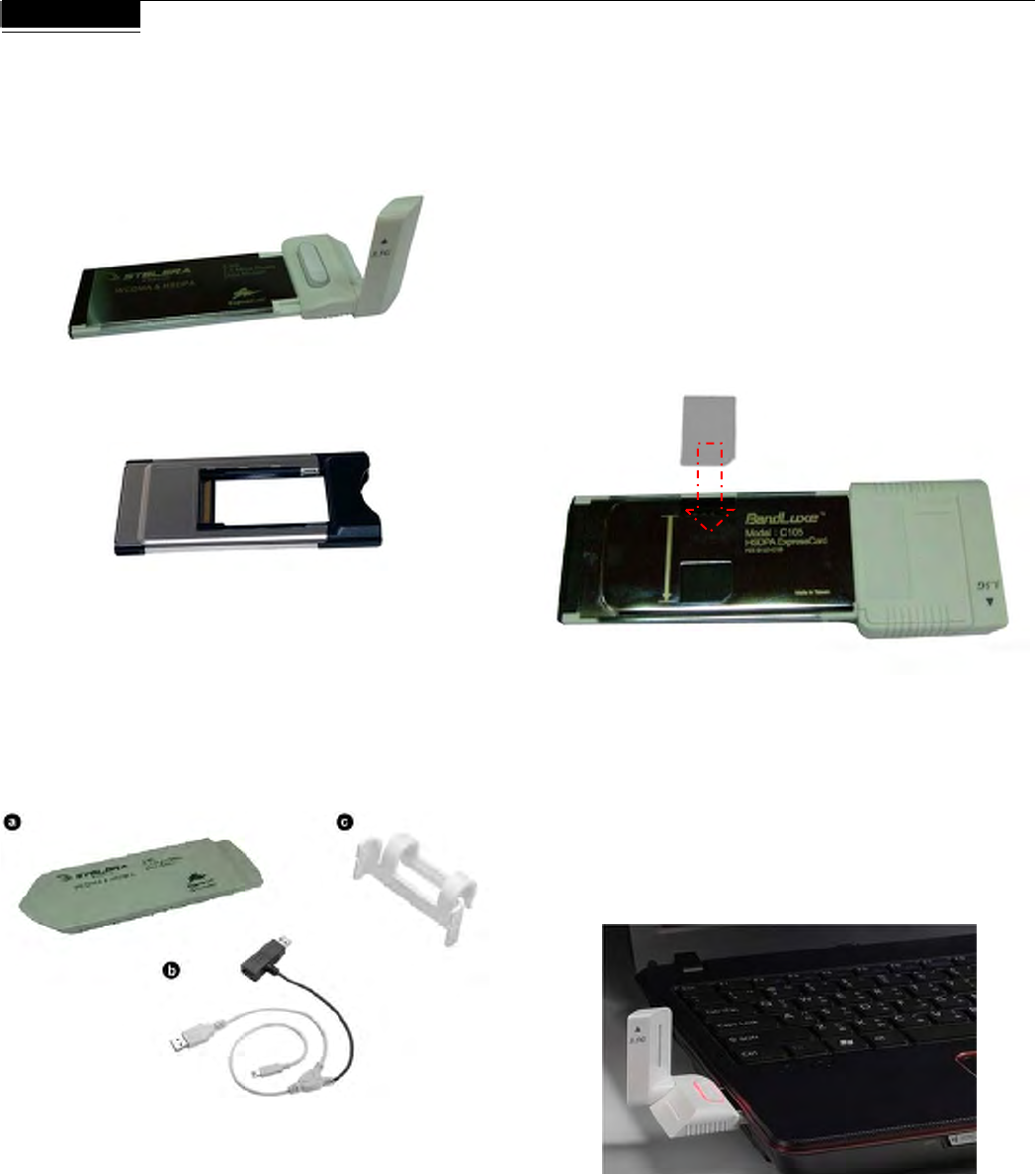

What’s in the box
1. Stelera C105:
Insert this into an ExpressCard Slot if available.
2. PCMCIA Adaptor Casing (optional):
Slide the C105 in this casing if a PCMCIA slot is available.
3. USB Accessories
a. Stelera C105 USB Adaptor Casing: Insert the C105 (1) into
this case if no PCMCIA/ExpressCard slot is available and
connect it to the PC with the USB Cable (3b).
b. USB Cable: Insert the small end into the Adaptor Casing (3a)
and the two large ends into the PC. Two free USB ports are
required for maximum signal strength. The gray port can be
shared with a mouse or keyboard.
c. Notebook Screen Hook: Secures the C105 to a laptop
computer screen.
Features
● Supports 2G, 3G and 3.5G standards
● USB, ExpressCard or PCMCIA Interface
● Windows Vista, XP and 2000 compatibility
● Does not interfere with other USB
peripherals
● Six language interface (English, French,
German, Italian, Spanish and Traditional
Chinese)
● Plug & Play functionality
● Dual Antennas
Before You Install
Information
Before installing the C105, we recommend obtaining the following
information from the SIM Card Mobile network operator:
Access Point Name (APN)
- For many carriers, the APN may simply be Internet.
Phone Number
- The Phone Number to dial to establish a network connection.
Stelera software helps input this number correctly.
Insert SIM Card
1. Face the gold contact points toward each other.
2. Insert the SIM card into the slot.
3. Push the card in until it reaches the end of the arrow next to the
slot.
Hardware Installation
With the SIM card properly inserted, the C105 may now be installed
into the computer, which may be done via PCMCIA/ExpressCard Slot
or USB port.
ExpressCard Slot
1. Slide the C105 into the slot (SIM card side down, LED side up).
2. The LED should light up when connection is established.
5
Chapter 1

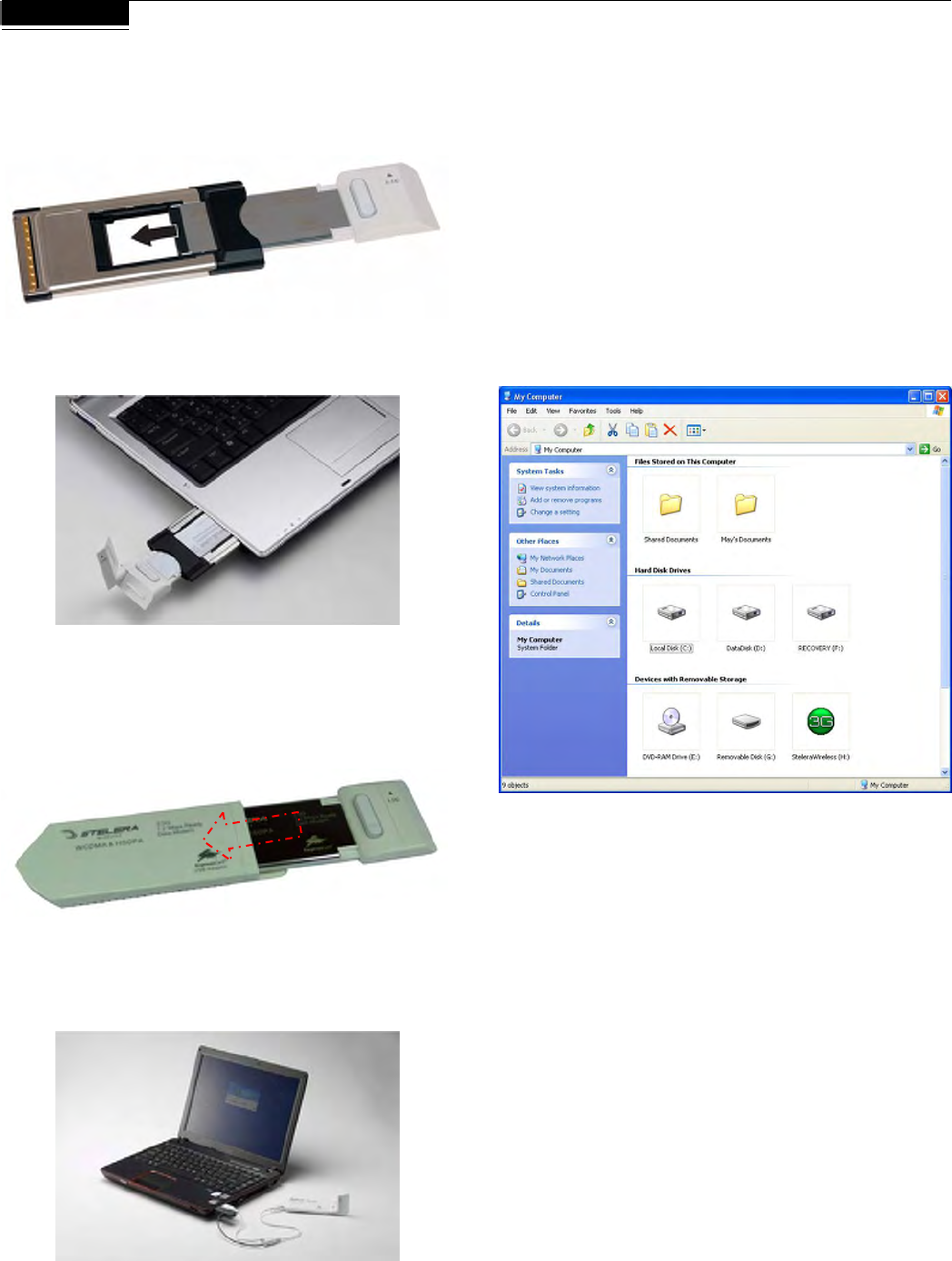

PCMCIA Adaptor
1. Slide the C105 into the PCMCIA Adaptor (LED & Gold Strip Up,
SIM Card Side Down) as far as possible.
2. With the same orientation (antenna side up), slide the C105-
Adaptor unit into the PCMCIA slot.
3. The LED should light up when connection is established.
USB
1. Slide the C105 into the USB adaptor casing (USB adaptor label &
C105 LED side up).
2. Insert the small USB plug into the adaptor casing. Insert the two
large USB plugs into the computer.
3. The LED should light up when connection is established, though it
may be obscured.
Software Installation
The process and appearance of certain software elements in Windows
Vista will be somewhat different than in 2000/XP. These differences
are minor and should not limit the functionality of the C105 in any way.
New Hardware Detection
Windows 2000/XP
Once the C105 is connected, a dialog box should pop-up from the
Toolbar Hardware Connection Icon. The device will be identified as the
Stelera C105 3.5G HSDPA Utility.
Windows Vista
In Vista, a pop-up window may appear. Click Allow to proceed.
After the first pop-up, all other aspects for software installation will be
identical in all compatible versions of Windows.
Software installation should proceed automatically. If it does not, it may
be initiated from My Computer, where the C105 will be identified as a
CD-ROM device. Sometimes a restart will occur during installation. If it
does, reinitiate installation from My Computer.
6
Chapter 1

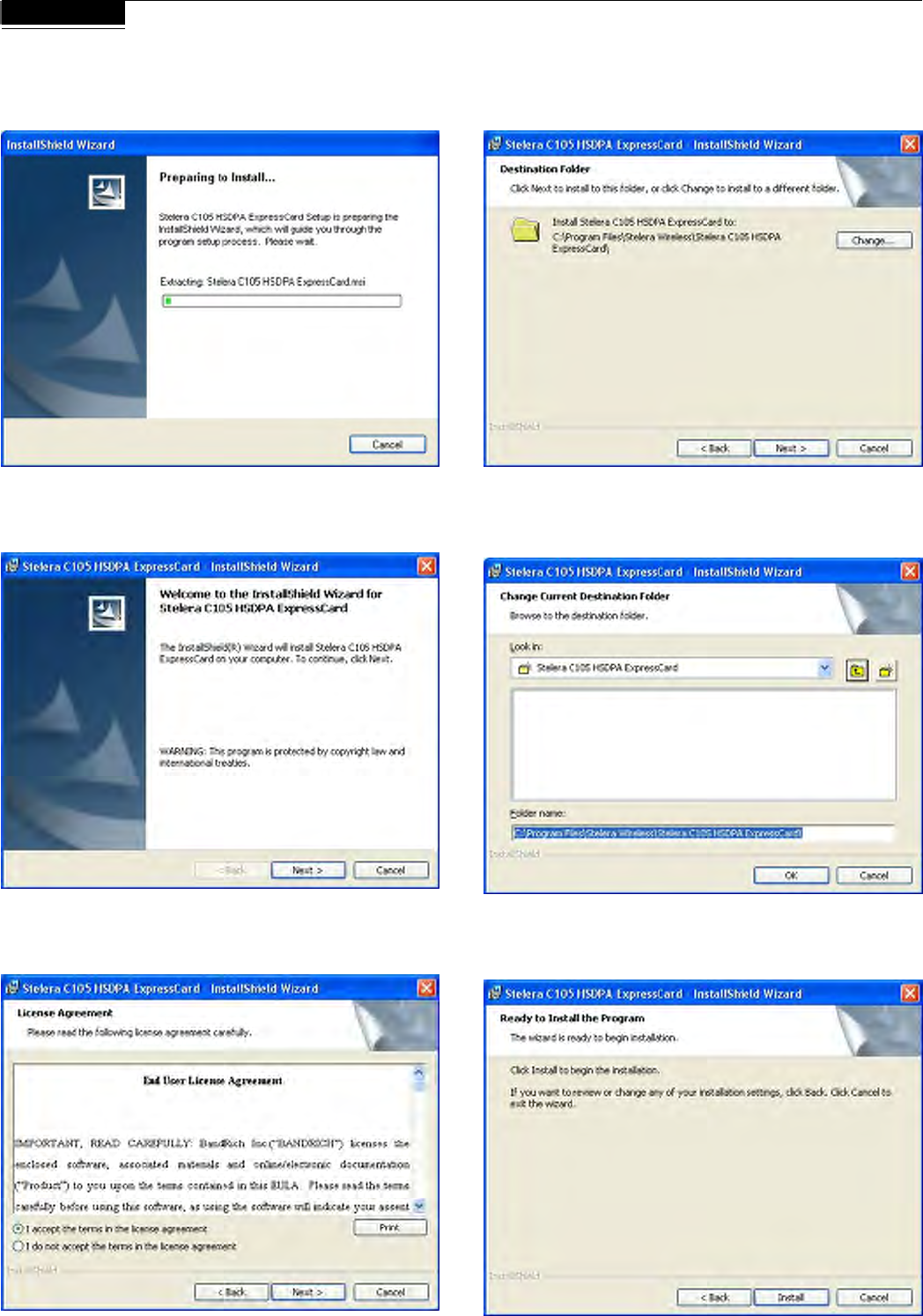

InstallShield Wizard
Preparation
The C105 will automatically use the appropriate language for your OS,
if available.
Welcome
The Setup Wizard window opens automatically. The first page contains
OS compatibility and legal disclaimers. Click Next to continue.
License Agreement
Click I accept the terms in the license agreement >Next to continue.
Select Installation Folder
Click Change to manually select a folder.
Change Current Destination Folder
Highlight the folder and click OK to select it. Click Cancel to close the
Browse window.
Confirm Installation
Click Back to change any preceding information or settings. Click
7
Chapter 1
Install to begin installation.

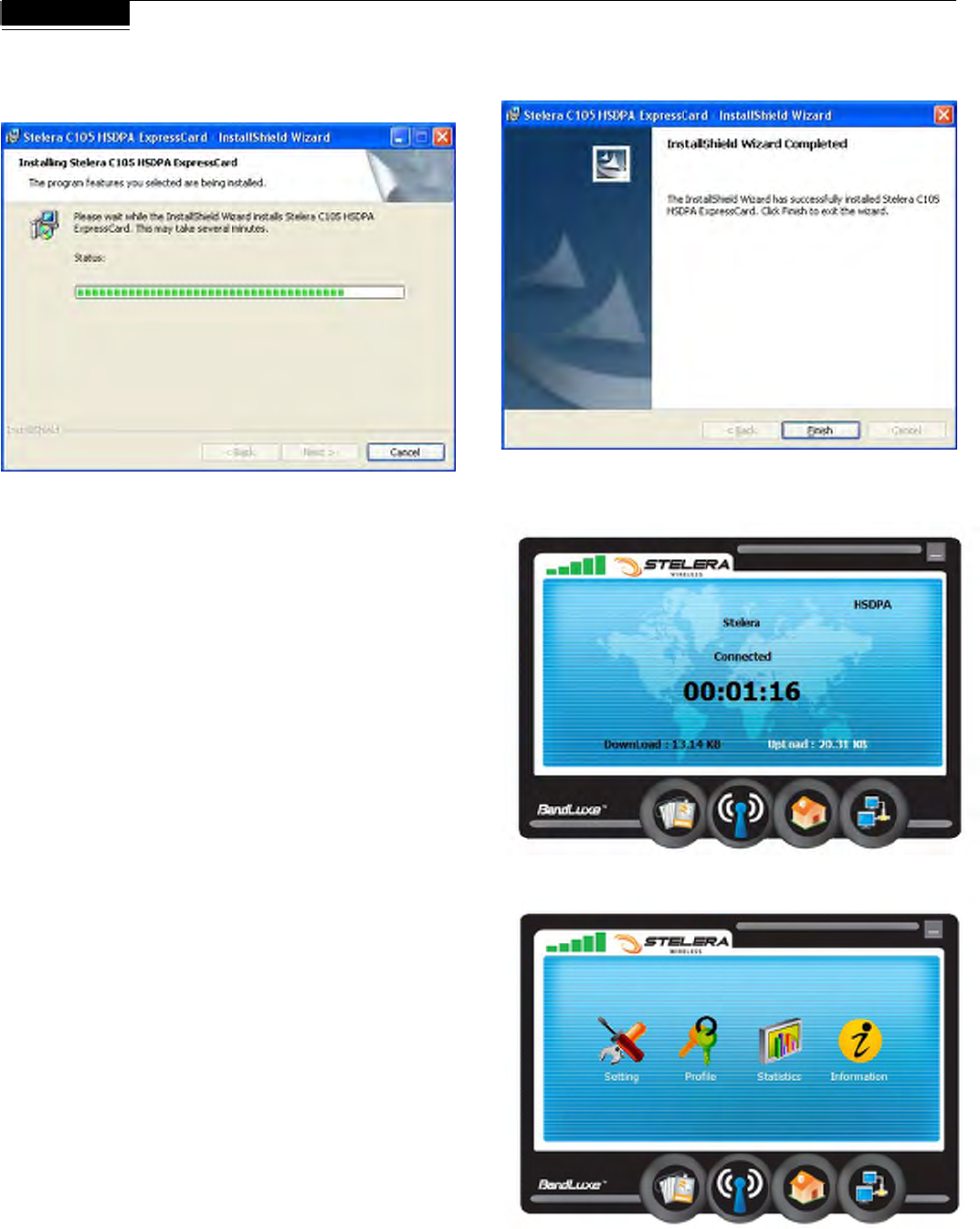

Installation
Installation time will vary, depending on the computer.
Home Screen
1. Signal Strength
2. Minimize
3. Radio Technology
4. Mobile Network Operator
5. Connection Status
6. Connection Time Elapse
7. Total Data Uploaded
8. Total Data Downloaded
9. Compose Message
10. Radio On/Off
11. Menu
12. Home Screen
13. Connect/Disconnect
Note: The Home screen only indicates 3G (internet) connection status.
After installation, the C105 automatically initiates 2G (SMS) functions
upon successful connection to the computer. Text messages can be
sent or received, even if the Home screen indicates no connection.
Menu Screen
Setting: General, SMS, SIM, Radio and Network preferences.
Statistics: Upload, Download graphs and totals.
Contacts: C105, SIM Card and Outlook Contact lists.
Profile: Connection profile setup/options.
Information: Device, Version and Signal specifics.
Installation Complete
When installation is complete, click Finish to exit. The Connection
Manager will open automatically and bring up the Home Screen. The
Quick Start Guide will also automatically open, but only if you have
Adobe Acrobat 6.0+.
The Stelera C105
Chapter 2
Connecting
9
Chapter 2

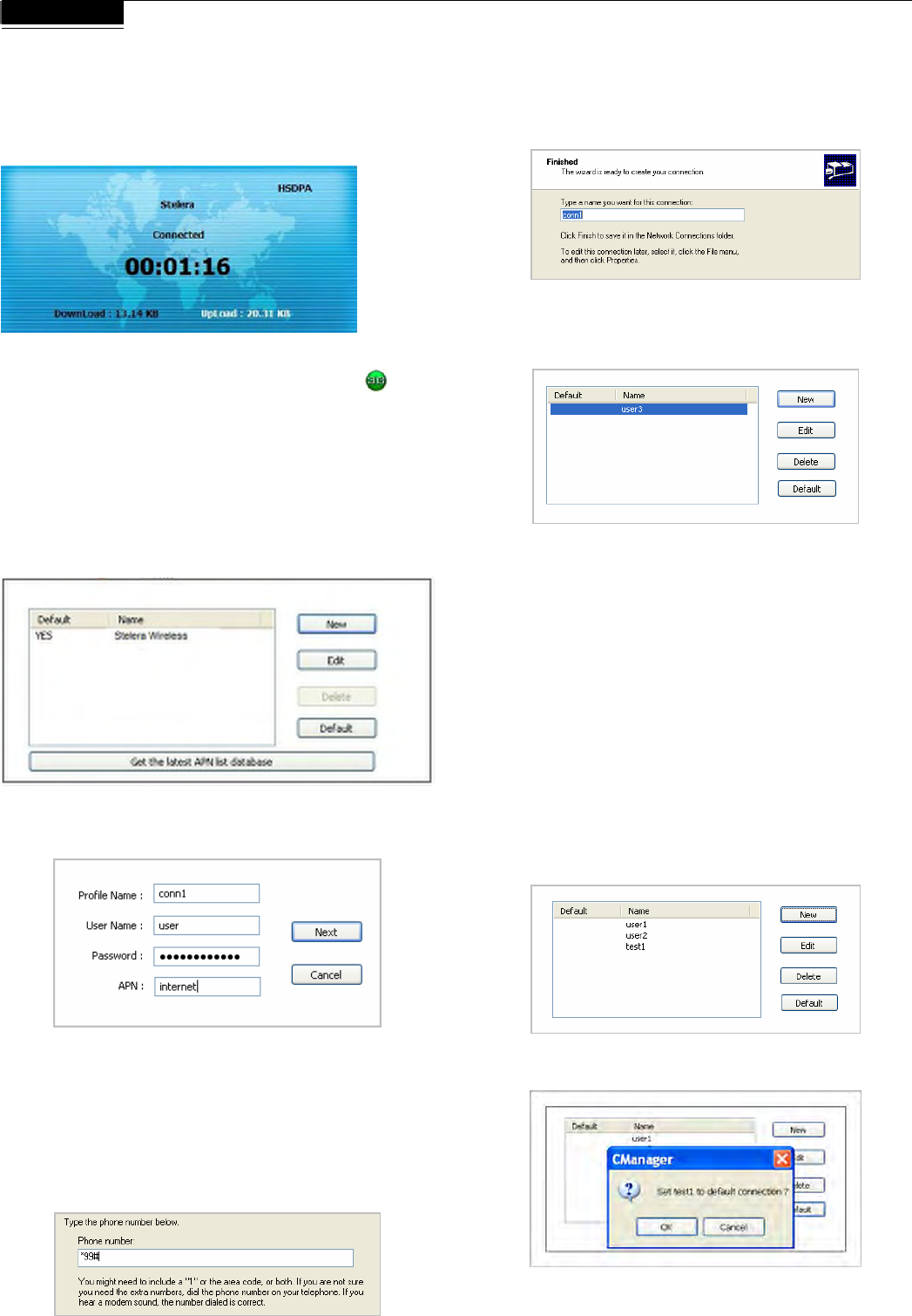

Establishing a Connection
With the C105 fully installed, an online connection can now be made.
The C105 will automatically scan your system and create a default
profile, which should work in the vast majority of cases. To test it,
simply click the Connect button.
Connection should take about 5 seconds. When established, the
Home screen should say Connected, with the onscreen clock running
and the Download/Upload tallies running. The toolbar icon will
also change color to indicate the connection protocol (same as LED
indicator). See Specifications for details.
If connection is unsuccessful, check that the device and SIM card are
properly connected and inserted. If they are, a new internet profile may
need to be created.
Create a Profile
1. Click Menu > Profile. The profile menu will contain the C105
default profile, named Stelera.
2. Click New to create a new profile. Depending on the carrier, all 4
spaces may not need to be filled to proceed.
3. Choose a Profile Name. The name is arbitrary and is helpful when
different connection methods are available.
4. Inquire with the Mobile network operator (SIM carrier) as to whether
the User Name and Password are required.
5. The Password can be any combination of letters, numbers or
symbols and is case sensitive.
6. Enter the Access Point Name (APN), supplied by the SIM card
carrier. With all required slots filled, click Next.
7. Enter the phone number for establishing the wireless connection,
supplied by the SIM card carrier; click Next.
8. The Finished window is a double check of the Profile Name, which
can be modified here. If profile settings need to be changed, click
Back. If everything is fine, click Finish.
9. On the Profile window, click the newly created profile and then click
Default. Click OK to set this profile as the default (only the default
can be connected).
10. The Stelera C105 is now ready for a wireless connection. Click the
Connect icon to establish it. Connection should take about 5
seconds. When established, the Home screen should say
Connected, with the onscreen clock running and the Download/
Upload tallies counting.
Note: If you switch to a different SIM card, the default profile will no
longer be valid. You will have to create a new profile in the
manner just described. If you do not have access to all the
information necessary to create a new profile, uninstall and
reinstall the Stelera software. The new default profile should
work for the new SIM card.
Choose a Profile
Different profiles may be needed, depending on current location.
1. Click Menu > Profile.
2. Highlight the desired profile and click Default.
10
Chapter 2
3. Click OK on the confirmation window if this is the desired profile.
4. The word YES will appear next to the default profile.

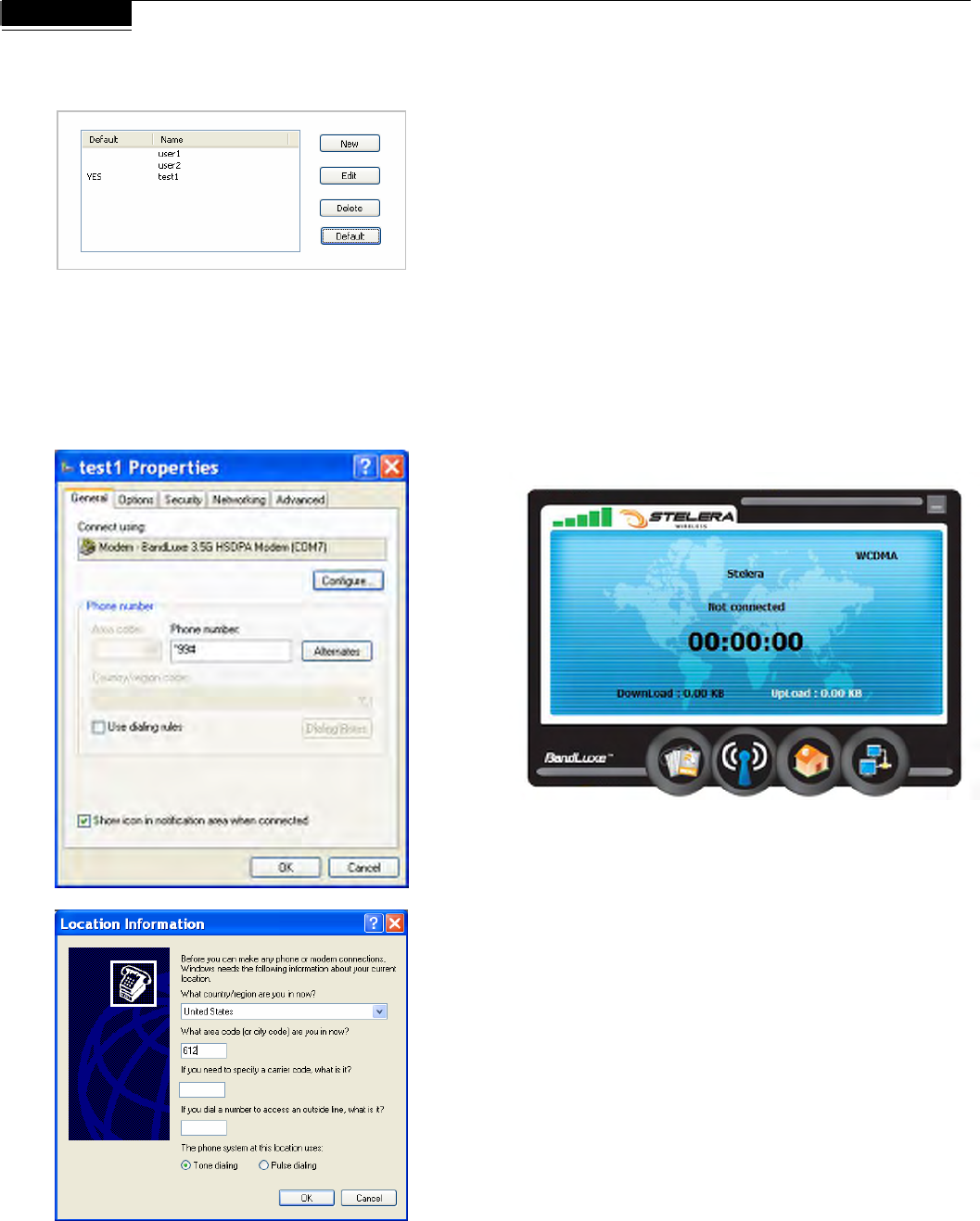

Profile Properties
Profiles can be fine tuned after creation. In the Profile window, simply
click Edit to adjust the default profile. To adjust a non-default profile,
highlight it and then click Edit. Click Next on the Edit window to view
the Properties menu, General Tab .
General
Connect using
If other modems are available, they will be listed here. Click Configure
to adjust the Stelera modem settings.
Phone number
Check Use dialing rules to access the Location Information window to
add more specific dialing information such as tone/pulse dialing,
current region, area & carrier code, and outside line access
number.
Click OK when completed.
This and other Properties menu tabs are generic to the Windows OS
and will not be discussed further.

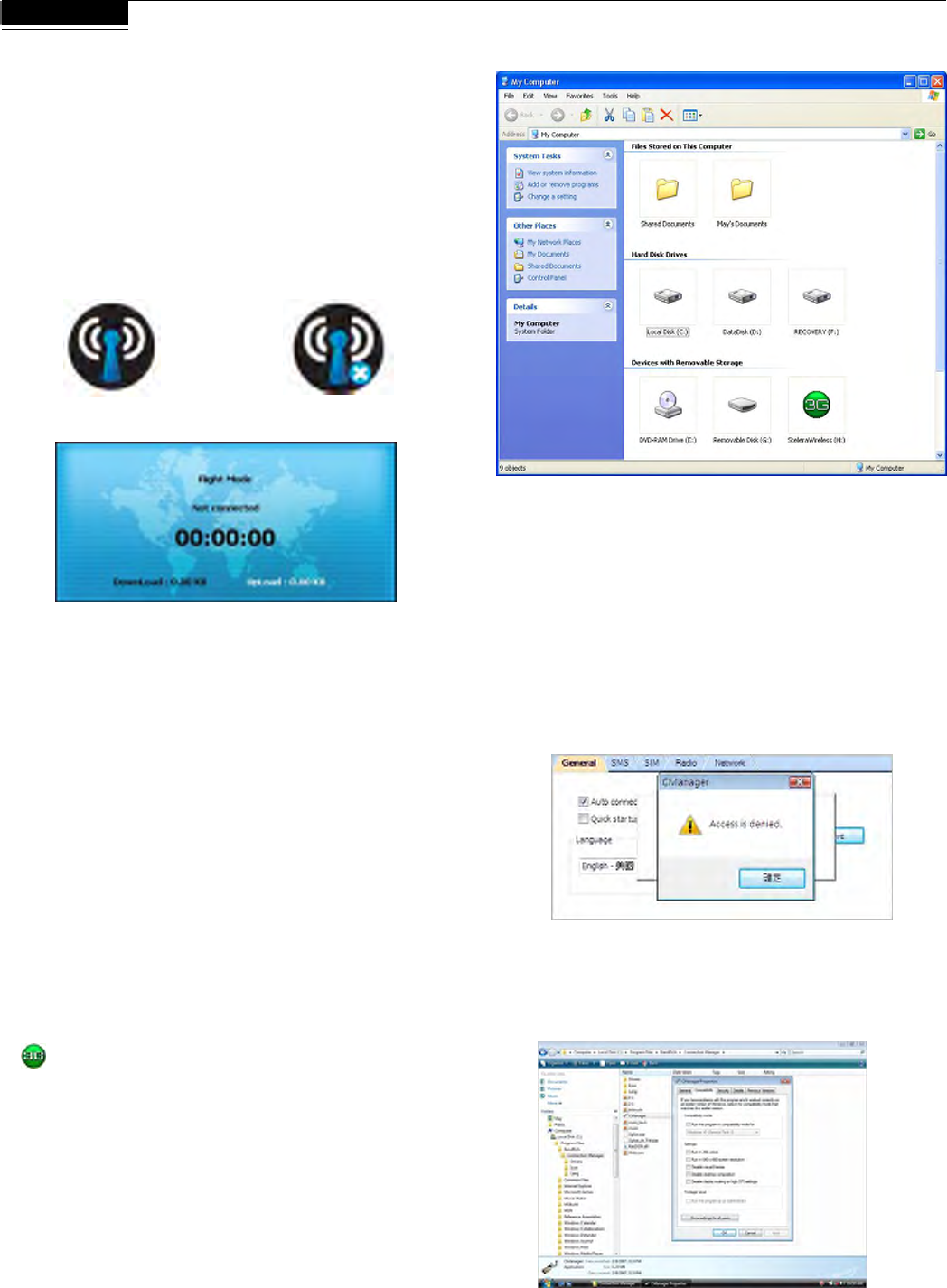

Connecting & Disconnecting
If a default profile has been selected, a connection can be made or
ended at any time by clicking the Connect button on the Menu screen.
However, connection status will not be obvious unless the Home
screen is displayed. The Statistics or Signal Information windows also
clearly display connection status.
The Stelera C105
Chapter 3
Settings
12
Chapter 3

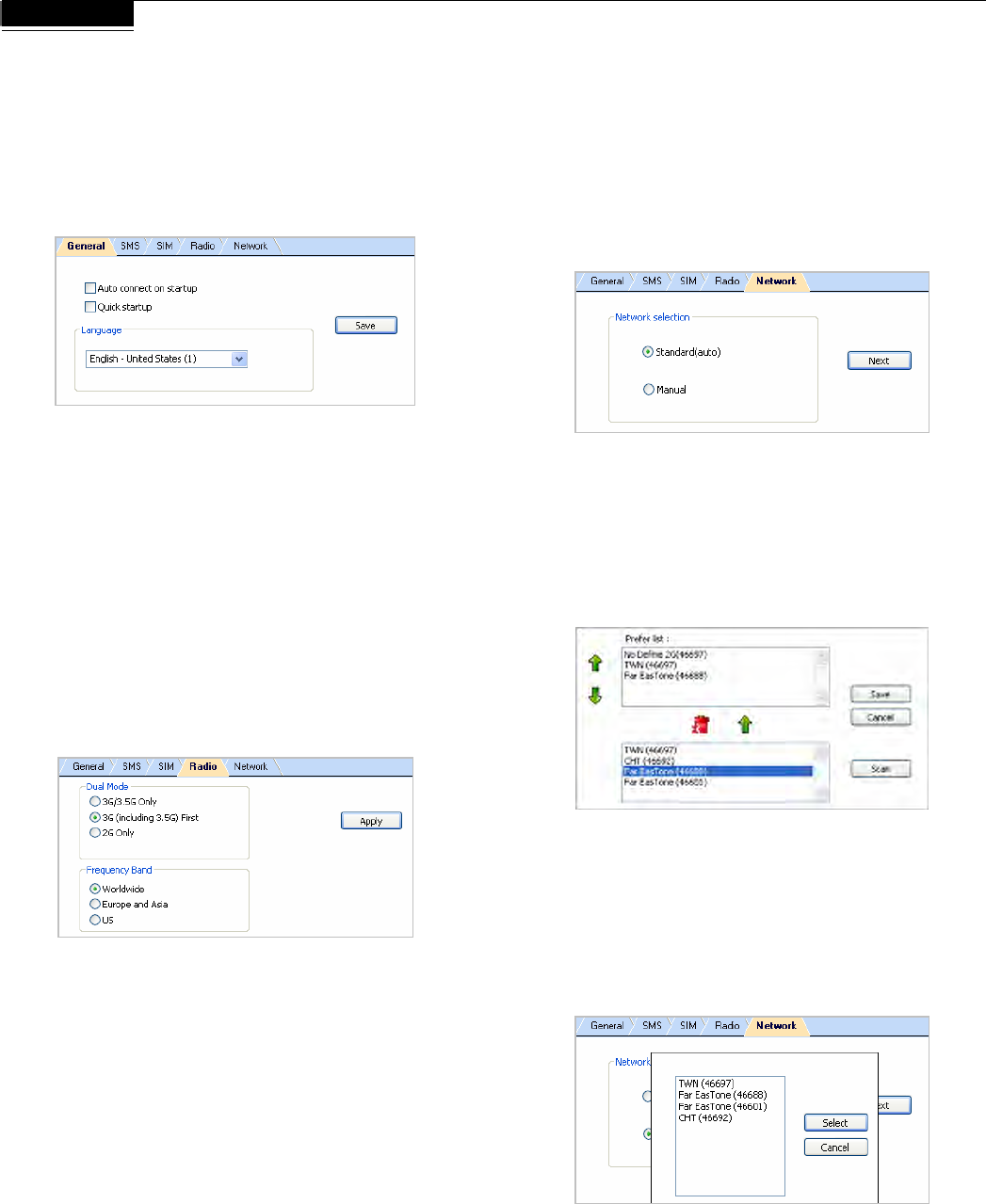

General
Check Auto connect on startup to have the C105 connect to the
internet automatically during startup. If speed is essential, clicking
Quick startup will cause the auto startup to proceed even faster.
However, if you plan to install the C105 onto multiple computers,
disable the Quick startup function. Do not have the C105 connected
to the computer when you turn it on when Quick startup is enabled.
Language
The Connection Manager offers English, French, German, Spanish,
Italian and Traditional Chinese. To choose a language, click the menu
and highlight & select a language. Click Save to implement the chosen
language. The Connection Manager will then return to the Home
Screen with the chosen language.
Radio
Dual Mode- Features various network search options. Note that 3G
(including 3.5G) First is the default setting.
Frequency Band
Save network scanning time by eliminating unnecessary frequencies
or choose Worldwide if local standards are uncertain.
After making changes to either, click Apply.
Network
Network Selection
Standard (auto) Search for networks in the order specified in the
Prefer list. Click Standard (auto) > Next to view and adjust the Prefer
list.
The top list is the Prefer list; the bottom lists all available networks.
Click Scan to bring up the list of all available networks.
In the Prefer list, highlight a network and click the up arrow to the left to
move it up the list (increase its preference); clicking the down arrow
does the opposite. Clicking the red icon removes the highlighted
network from the Prefer list.
In the bottom list, highlight a network and click the up arrow above to
move that network to the Prefer list.
If changes are made, click Save.
Manual
Choose a network from all available. Click Manual > Next to see the
list. Highlight a network and click Select. If no change is needed, click
Cancel.
Note that Network can only be accessed when the C105 is not
connected to a network.
The Stelera C105
Chapter 4
Statistics & Information
14
Chapter 4
Statistics
The Statistics screen displays a graph of recent upload and download
activity. If there is no data, the C105 is offline. Click Menu > Statistics.
Time: Elapsed Connection Time
- Returns to zero upon disconnection
- Reset does not affect it
Max: Maximum Throughput
Download: Current Downloading Throughput
Upload: Current Uploading Throughput
Click Reset to end the current graphs and start over. This will not affect
the actual connection. To leave this window, click Exit.
Information
The Information screen offers version or signal specifications. Click
Menu > Information.
About
Click Menu > Information > About tab to see version data.
IMEI: International Mobile Equipment Identity number
Version: Connection Manager Software Version
F/W Version: Firmware Version
Signal
Click the Signal tab to see signal data. The bottom half of the screen
will be empty when there is no connection or during a 2G connection.
Displayed indicators will vary, depending on your protocol.
Connected (2G)
Connected (3G)
ARFCN: See Glossary
Tx & Rx Power: Transmission/Reception strength, in decibel meters
(dBm)
Frequency: In MHz
Active Set: UMTS cell actually transmitting data, marked YES
Primary Scramble Code: Individual UMTS cell ID code
Ec/Io: Reception/Interference (S/N), Connected (3G) in decibels (dB)
The Stelera C105
Chapter 5
Q&A
16
Chapter 5
Q: I am trying to install the C105 onto another
computer, but the software installation
window is not opening, nor is there an icon
in
My Computer
, what do I do?
A: Quick startup has already been enabled on a different computer.
Reconnect the C105 to that computer and disable this function.
There are two ways to do this.
1. Click
Menu > Setting > General tab. Uncheck Quick startup
and click Save. See Chapter 4 for more information.
2. This method varies depending on the OS.
Vista / XP

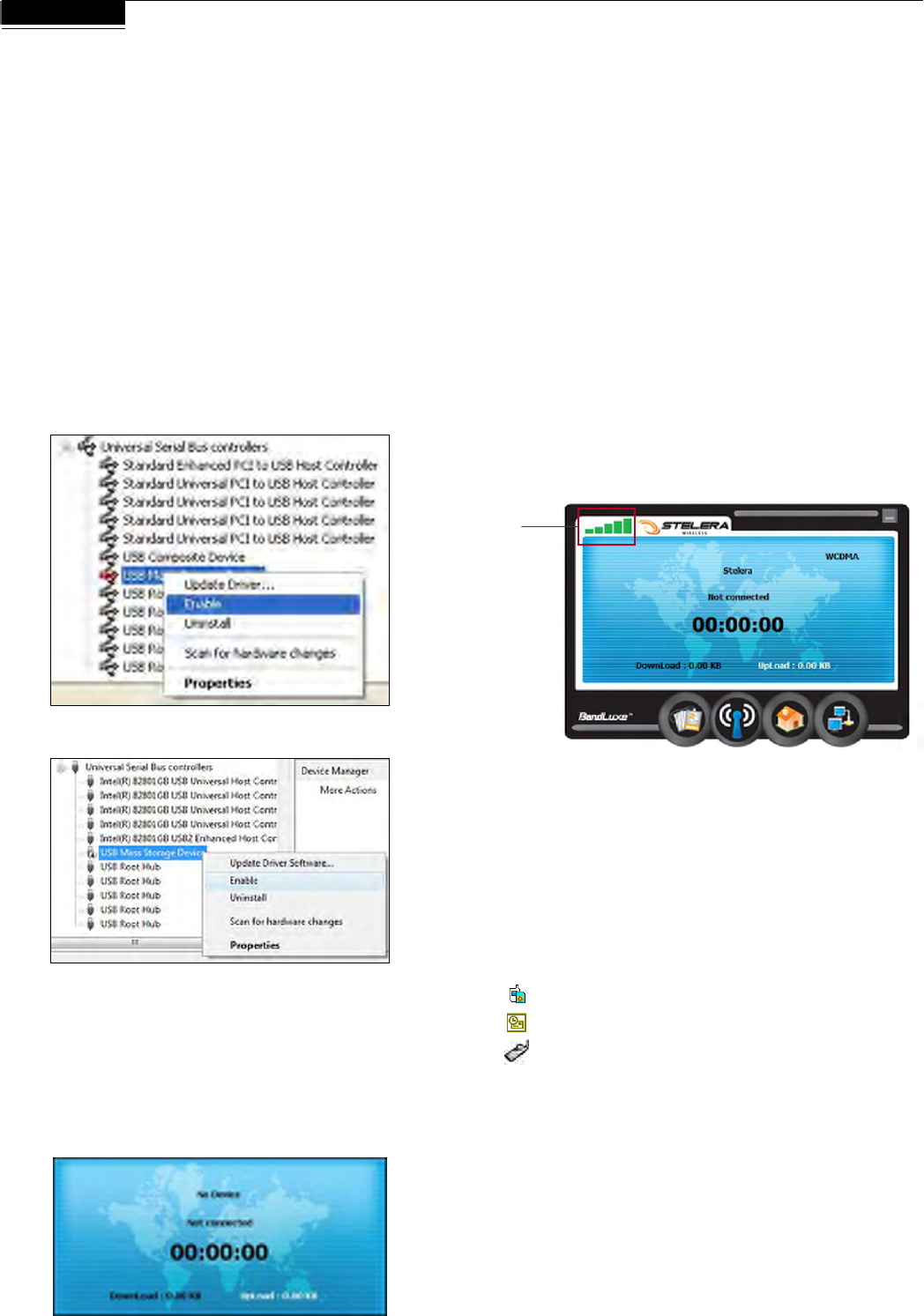

a. Right-click on
My Computer > Manage > Universal Series
Bus controllers. Right-click USB Mass Storage Device and
choose Enable. The C105 should now appear as a CDROM
USB Device.
XP
Vista
b-1 (XP): The InstallShield Wizard should start running
automatically. If it does not, click on the Stelera icon in My
Computer. The software will reload as seen in Chapter 1.
b-2 (Vista): Shortly after enabling the C105, an AutoPlay window
may pop-up. Choose AUTORUN_C105.EXE
Q: Why does the Home screen display
No
Device
?
A: Make sure that the C105 is plugged in/inserted correctly. If it is, and
No Device is still displayed, check the LED.
If the LED is not lit, the problem could be:
- The USB cord or adapter casing is not functioning (if applicable).
- The C105 is not slid correctly into the adapter casing.
- The USB port or PCMCIA/ExpressCard Slot is not active. Check the
Device Manager.
Q:The Home screen is stuck on
Initial SIM Card
,
what do I do?
A: Replug/reconnect the C105. If this does not work, restart the
computer. If this does not work, check the SIM card, which may
have a poor connection or be locked.
Q: Why does the C105 need 2 USB ports?
A: This is necessary to supply sufficient power to transmit during peak
loads and to avoid dropped calls.
Q: The SIM card is working, so why can’t the
C105 make a connection?
A: Check the profile information; click Menu > Profile. See Chapter 2
for details.
If profile settings are in order, the radio or network settings may
need adjustment. Click Menu > Setting. See Chapter 4 for details.
If Radio and Network settings are in order, please check the signal
strength indicator in the upper left corner of the Connection
Manager.
Q: How do I import contacts into the
Connection Manager?
A: Click Menu > Contacts >
- Import from the SIM Card.
- Import from Outlook.
- Import from the C105 Contacts folder.
Signal
strength
indicator
17
Chapter 5
Q:Can I use the Connection Manager on an
airplane?
A: Yes, you can simply unplug the C105. This will allow you to
compose messages, adjust most settings, or perform other
Connection Manager functions. However, removing the SIM card,
while keeping the C105 plugged in, is not the same as unplugging it.
Removing the SIM card will cause the Connection Manager
software to close after a few moments.
You may also keep the C105 plugged in, but in Flight Mode. Click
the Connection Manager RF icon; if the X is on, the radio is off and
the C105 is safe for in-flight use.
Radio On Radio Off/Safe
The words Flight Mode will also appear on the Home Screen.
Q: My OS is Microsoft 2000 SP4, so why is
software installation still not working?
A: Two more Microsoft HotFix downloads are needed:
1. KB893803: Windows Install 3.1
http://www.microsoft.com/downloads/details.aspx?FamilyID=889482fc-5
f56-4a38-b838-de776fd4138c&displaylang=en&Hash=PAFe2q2M7AK
WEGBcm62PeiJS4ViwKMUiwH7KOHOV4d4P8gXcVDuwnXIDI9LT%2b
qx85W4mPHaGPwG4ne6KUKaD3Q%3d%3d#filelist
2. KB842773: Windows 2000 HotFix (Update for BITS 2.0 and
WinHTTP 5.1)
http://www.microsoft.com/downloads/details.
aspx?FamilyID=3ee866a0-3a09-4fdf-8bdb-c906850ab9f2&DisplayLan
g=en
Q: The InstallShield Wizard does not
automatically open when I first plug in the
C105, what do I do?
A: In My Computer, right click on the drive with the Connection
Manager icon and select AutoPlay. This should initiate the
InstallShield Wizard.
STELERA C105(H:)
Q: My computer cannot boot with the C105
connected. Why?
A: As discussed in Chapter 1, during installation the C105 is
displayed in My Computer as a portable storage device.
The computer treats the C105 as if it were a CD drive. Because of this,
your computer may be trying to boot from it, as if it were expecting a
Boot CD. Disconnect the C105 before booting.
Q: How do I view the .pdf Quick Start Guide and
User Manual?
A: Click Start > Programs > Stelera > Stelera C105 3.5G HSDPA
utility and choose either document, both of which require Adobe
Acrobat 6.0.
Q: The Connection Manager is having troubles
running on Vista. What do I do?
A: You may be having a problem with Vista’s user control functions.
1. Open the Connection Manager folder.
2. Right click
CManager.exe > Properties > Compatibility tab.
3. Check Run this program as an
administrator.
4. Click
Apply > OK.
The Stelera C105
Chapter 6
Important Safety
Information and Glossary
19
Chapter 6
Safety Information
Important Notice
Due to the transmission and reception properties of cellular
communications, data can occasionally be lost or delayed. This can be
due to the variation in radio signal strength that results from changes in
the characteristics of the radio transmission path.
Although data loss is rare, the environment where you operate the
C105 may adversely affect communications. Variations in radio signal
strength are referred to as fading. Fading is caused by several different
factors including signal reflection, the ionosphere, and interference
from other radio channels.
BandRich Inc. or its partners will not be held responsible for damages
of any kind resulting from the delays or errors in data transmitted or
received by the Stelera C105, or failure of the Stelera C105 to transmit
or receive such data.
Stelera™ is a registered trademark of BandRich Inc.
Potential Hazards
Do not operate the Stelera C105 in an environment that may be
susceptible to radio interference resulting in danger; specifically:
Areas where prohibited by the law.
- Follow any special rules and regulations and obey all signs and
notices. Always turn off the host device and remove the C105 from
the card slot when instructed to do so, or when you suspect that it
may cause interference or danger.
Where explosive atmospheres may be present.
- Do not operate your C105 in any area where a potentially explosive
atmosphere may exist. Sparks in such areas could cause an
explosion or fire resulting in bodily injury or even death. Be aware
and comply with all signs and instructions.
- Users are advised not to operate the C105 while at a refueling point
or service station. Users are reminded to observe restrictions on
the use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants or where blasting operations
are in progress.
- Areas with a potentially explosive atmosphere are often but not
always clearly marked. Potential locations can include gas stations,
below deck on boats, chemical transfer or storage facilities,
vehicles using liquefied petroleum gas (such as propane or butane),
areas where the air contains chemicals or particles, such as grain,
dust or metal powders, and any other area where you would
normally be advised to turn off your vehicle engine.
Near Medical and life support equipment.
- Do not operate your C105 in any area where medical equipment,
life support equipment, or near any equipment that may be
susceptible to any form of radio interference. In such areas, the
host communications device must be turned off. The C105 may
transmit signals that could interfere with this equipment.
On an aircraft, either on the ground or airborne.
- In addition to FAA requirements, many airline regulations state that
you must suspend wireless operations before boarding an airplane.
Please ensure that the host device is turned off and your C105 is
removed from the card slot prior to boarding aircraft in order to
comply with these regulations. The C105 can transmit signals that
could interfere with various onboard systems and controls.
While operating a vehicle.
- The driver or mobile network operator of any vehicle should not
operate a wireless data device while in control of a vehicle. Doing
so will detract from the driver or mobile network operator’s control
and operation of that vehicle. In some countries, operating such
communications devices while in control of a vehicle is an offense.
Regulations
CE Marking
This device has been tested to and conforms to the regulatory
requirements of the European Union and has attained CE Marking.
The CE Mark is a conformity marking consisting of the letters “CE”.
The CE Mark applies to products regulated by certain European health,
safety and environmental protection legislation. The CE Mark is
obligatory for products it applies to: the manufacturer affixes the
marking in order to be allowed to sell his product in the European
market.
This product conforms to the essential requirements of the R&TTE
directive 1999/5/EC in order to attain CE Marking. A notified body has
determined that this device has properly demonstrated that the
requirements of the directive have been met and has issued a
favorable certificate of expert opinion. As such the device will bear the
notified body number 0678 after the CE mark.
The CE Marking is not a quality mark. Foremost, it refers to the safety
rather than to the quality of a product. Secondly, CE Marking is
mandatory for the product it applies to, whereas most quality markings
are voluntary.
Marking: The product shall bear the CE mark, the notified body
number(s) as depicted to the right. CE 0678.
15.21 Federal Communications Commission
(FCC) Statement
You are cautioned that changes or modifications not expressly
approved by the part responsible for compliance could void the user’s
authority to operate the equipment.
15.105(b) Federal Communications
Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void your
authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE
FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
20
Chapter 6
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
Guidelines when used either in the normal use position against the
ear or when positioned at least 1.5 cm away from the body. When a
carry case, belt clip or holder is used for bodyworn operation, it should
not contain metal and should position the product at least 1.5 cm away
from your body.In order to transmit data files or messages, this device
requires a quality connection to the network. In some cases, transmission
of data files or messages may be delayed until such a connection is
available. Ensure the above separation distance instructions are followed
until the transmission is completed. The highest SAR value for this device
when tested for use at the body is 1.56 W/kg.
Specifications
System Requirements
Operating System: Windows 2000 SP4+, XP SP2+ or Vista
Hard Drive Space: 30 MB
Web Browser: Internet Explorer 6.0+
Interface: ExpressCard slot, 2 USB ports or PCMCIA slot
LED Indicators
Color Indicator Flashing Solid
Off Not Connected/
Flight Mode NA NA
Red SIM Card/Service
No coverage/
still searching
Error (SIM card
missing, failed
verification)
Green WCDMA Available Connected
Blue HSDPA NA Connected
Pink/Purple / GPRS/EDGE Available Connected
Hardware
Dimensions: 119.6 x 42 x 11.3mm (LWH, including antenna)
Weight: 40g
Onboard Memory: 64 MB NAND Flash & 64 MB SDRAM
GSM Bands: 850, 900, 1800, 1900
UMTS Bands: 850, 1900, 2100
Connectivity
Internet: DUN
Data Speed (HSDPA) Downlink: 7.2Mbps/3.6Mbps/1.8Mbps/
in bps: 384Kbps
Uplink: 384Kbps (Max)
Radio/Band Selection: 3/3.5G: EU+Asia (2100), US (850/1900)
2G: EU+Asia (900/1800), US (850/1900)
IP Settings: APN, DNS, DHCP vs. Static, Radius
Glossary
2G: Second-generation mobile networking technology. Represents a
switchover from analog to digital; most 2G networks use GSM.
3G: Third-generation mobile networking technology that enables
simultaneous transfer of voice and non-voice data; most 3G networks
use WCDMA.
3.5G: A more recent standard of mobile networking technology;
generally uses HSDPA.
APN (Access Point Name/Network): Provides GPRS routing
information. Consists of:
Network ID: Identifies the external service requested by a GPRS
user.
Mobile network operator ID: Specifies routing information.
ARFCN (Absolute Radio Frequency Channel Number): The
specific ID numbers for all radio channels used in cellular mobile
communications.
Bps (bits per second): How data flow is measured.
DNS (Domain Name System): Helps route network traffic by making
the addressing process more user-friendly.
DHCP (Dynamic Host Configuration Protocol): How devices obtain
IP addresses from a server.
DUN (Dial-Up Network): Windows component that enables online
access via a modem.
EDGE (Enhanced Data GSM Environment/Enhanced Data for
Global Evolution): Advanced GPRS that delivers multimedia and
other data needing greater bandwidth at up to 237 kbps.
GPRS (General Packet Radio Service): Delivers data in packets at
up to 86 kbps.
GSM (Global System for Mobile Communications): The most
popular cellular network, mostly operates in 850-900 or 1800-1900
MHz; the primary 2G system.
IMEI (International Mobile Equipment Identity): A number unique to
each GSM/UMTS device that can be used block network access by a
stolen mobile device.
IP (Internet Protocol): Routes packets over a network.
HSDPA (High Speed Downlink Packet Access): Advanced WCDMA
that delivers bandwidth intensive data at up to 7.2Mbps; typically
associated with 3.5G.
Kbps (Kilobits per second): A data flow measure; 1024 bits/second.
LAN (Local Area Network): A data network with limited range but
good bandwidth.
Mbps (Megabits per second): A data flow measure; 1,048,576
bits/second.
PPP (Point-to-Point Protocol): An internet connection method.
PIN (Personal Identity Number): Four to eight digital numbers SIM
card security code; allows access to the carrier’s network.
Rx: Shorthand for Reception.
SIM (Subscriber Identity Module): A small card that contains key
mobile device identification, subscription and contact information.
Tx: Shorthand for Transmission.
WCDMA (Wideband Code Division Multiple Access): Advanced
EDGE that supports 384kbps data flow. Most 3G networks use this
standard; aka UMTS.
