BandRich R100 3.5G HSPA WiFi Router User Manual rev
BandRich Inc. 3.5G HSPA WiFi Router rev
BandRich >
User manual rev
BandLuxe
R100 3.5G
WiFi Router User
Manual
Table of Contents
1
Table of Contents
Table of Contents .....................................................................1
Package Contents ....................................................................3
Package Contents.................................................................................3
Features................................................................................................4
Hardware Overview...............................................................................4
Installation ................................................................................6
Internet Setup ...........................................................................9
Basic Setting .........................................................................................9
DDNS..................................................................................................13
Optional...............................................................................................14
Router Setup...........................................................................16

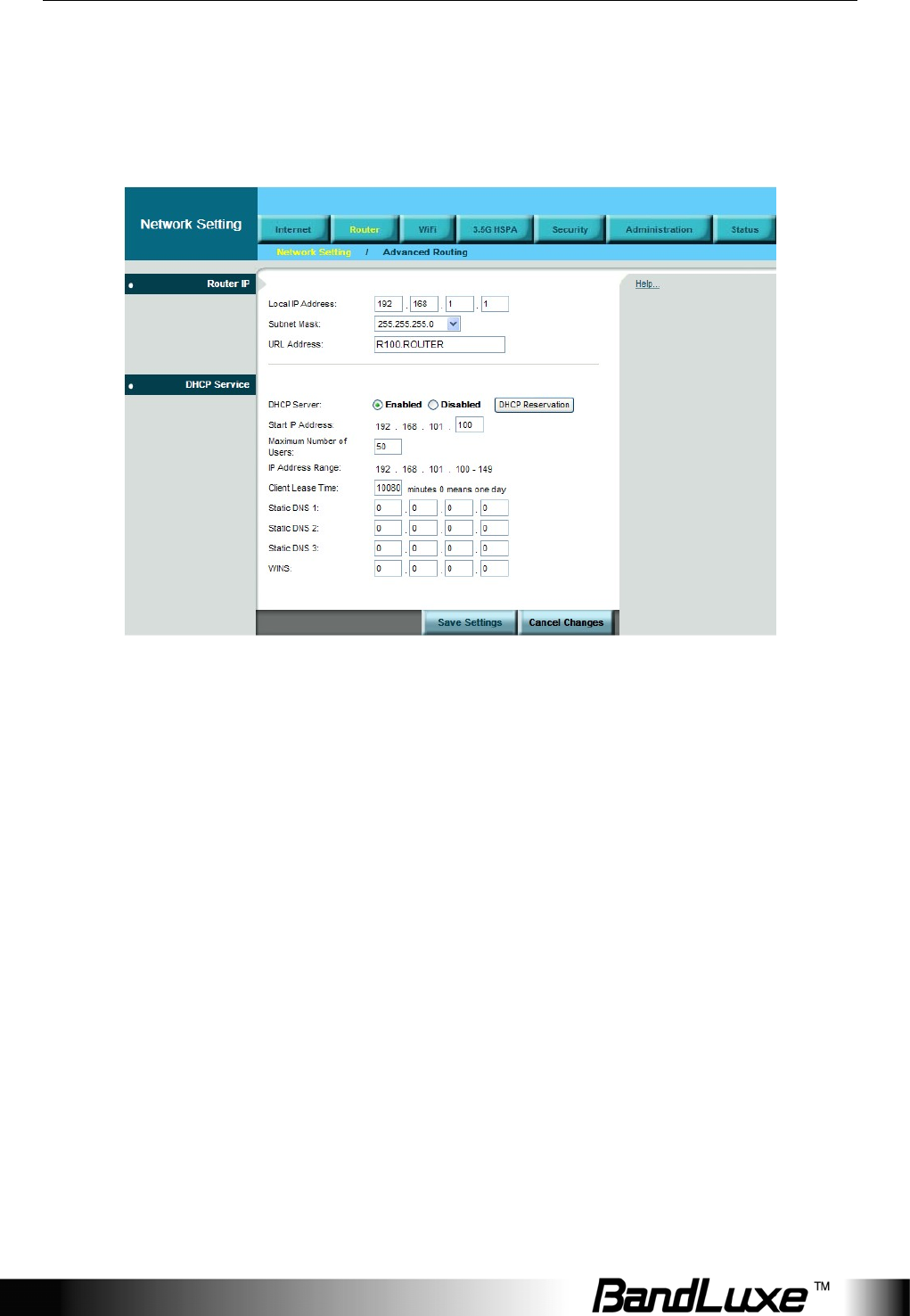

Network Setting...................................................................................16
Advanced Routing...............................................................................18
WiFi Setup...............................................................................20

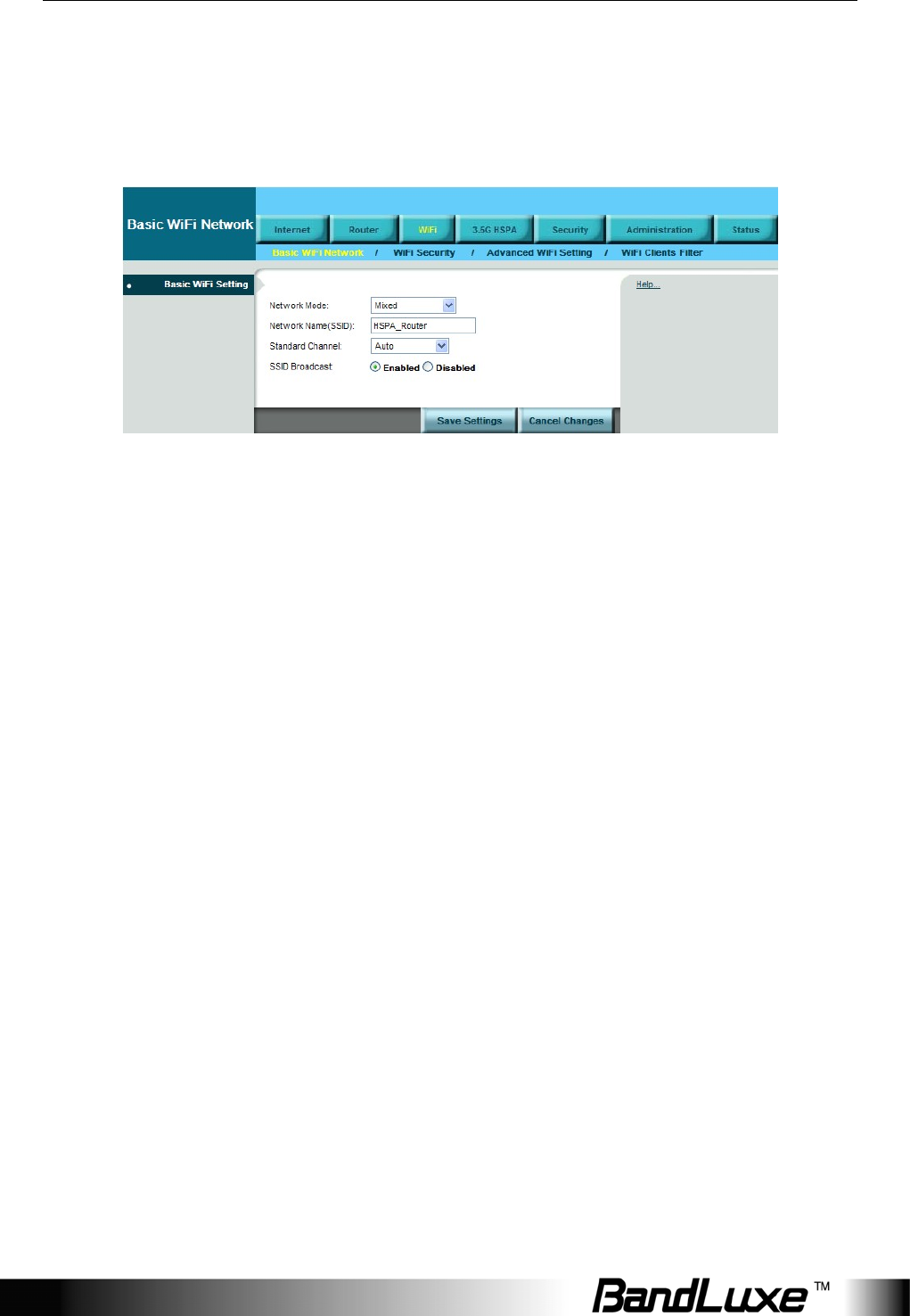

Basic WiFi Network.............................................................................20

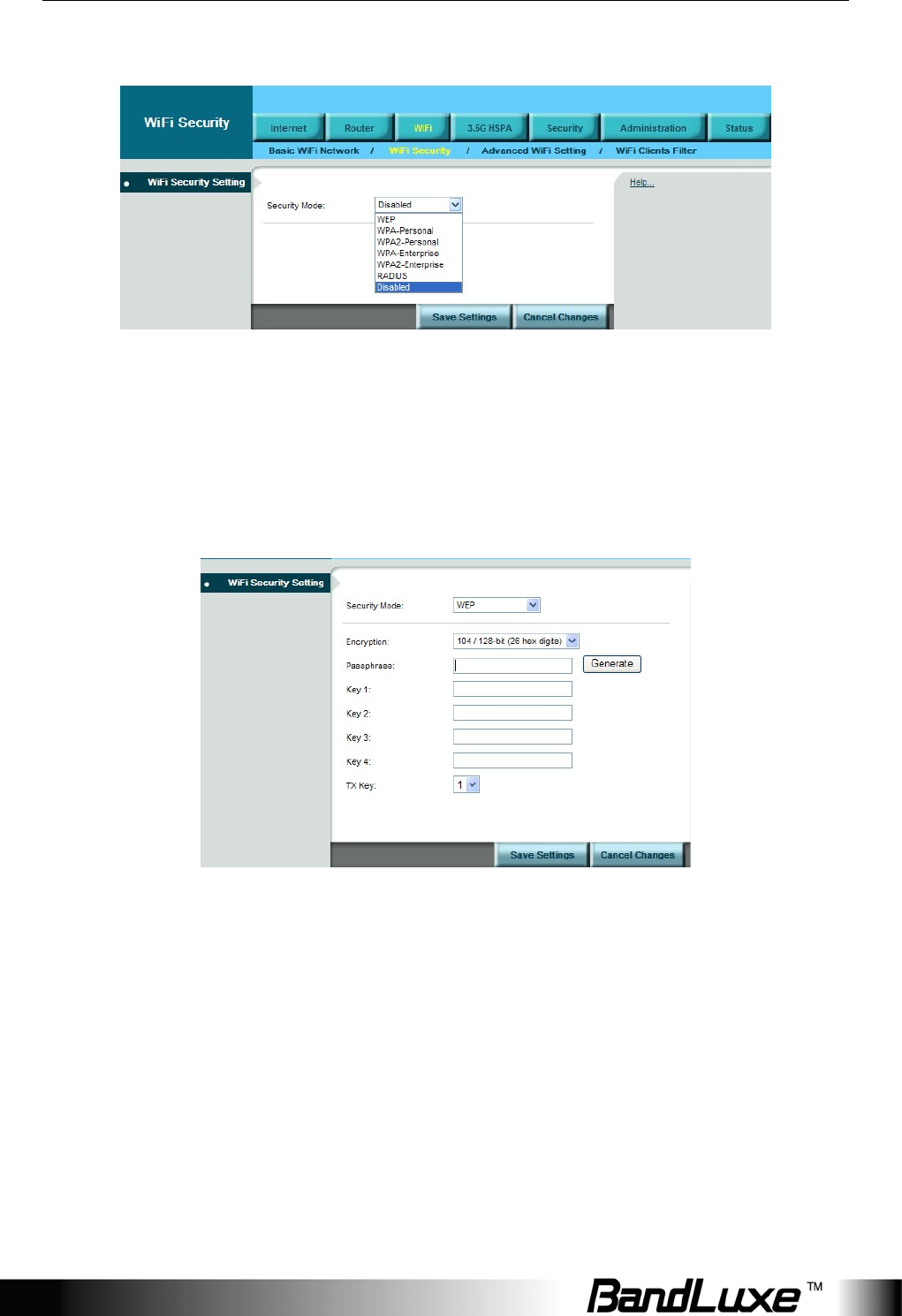

WiFi Security.......................................................................................21
Advanced WiFi Setting........................................................................26

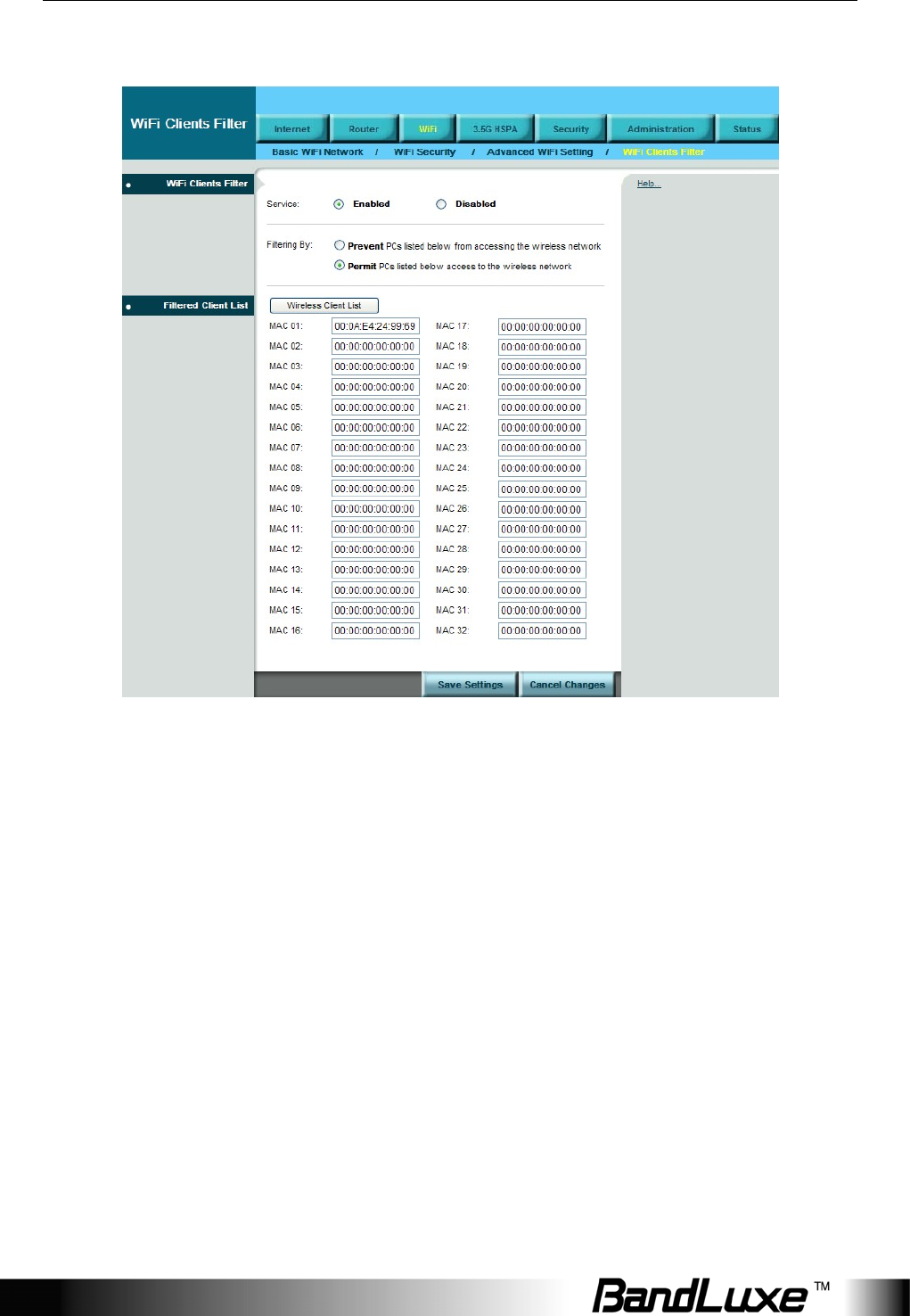

WiFi Clients Filter................................................................................28
3.5G HSPA Setup....................................................................29
PIN Verification....................................................................................29
PIN Management ................................................................................29

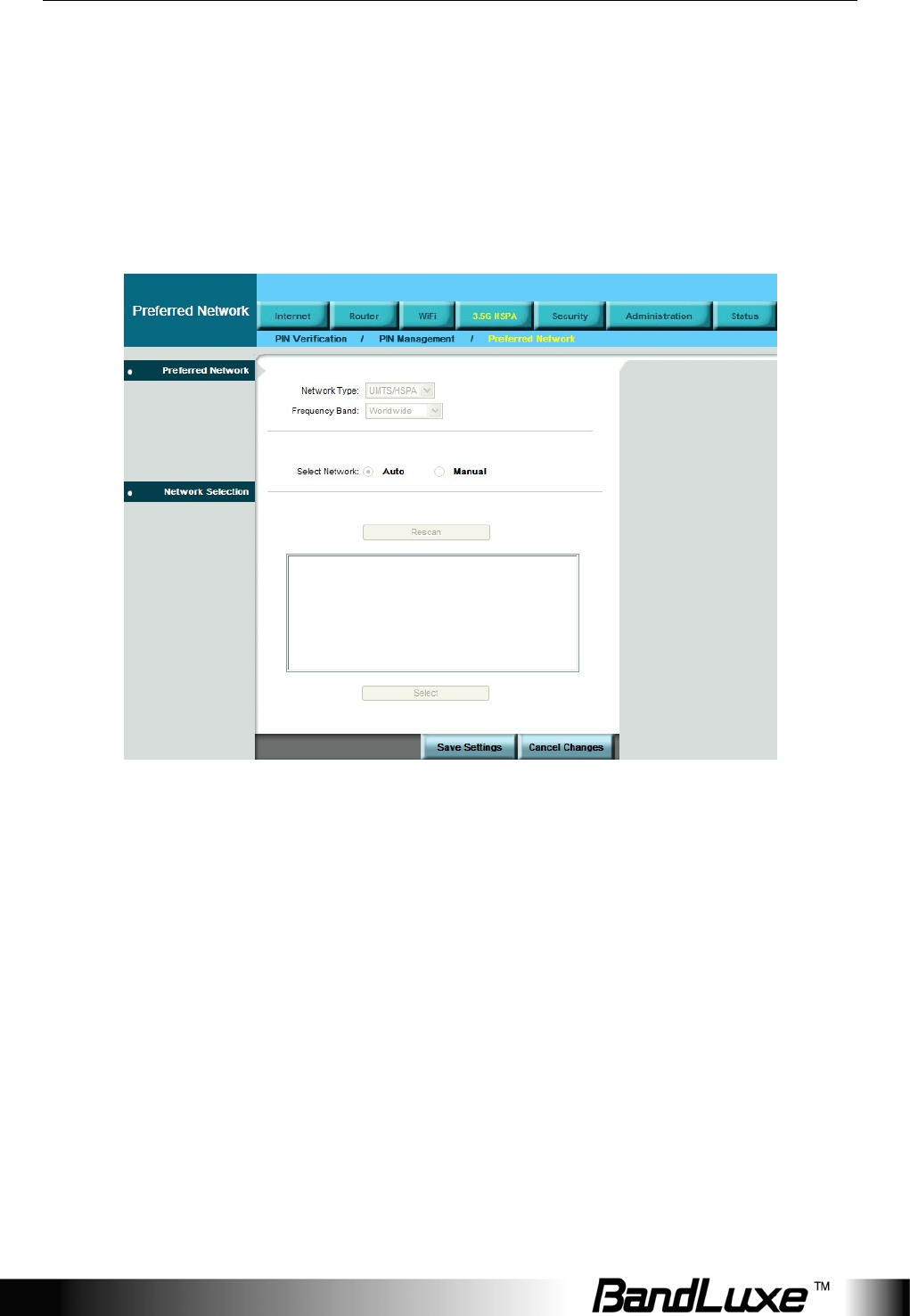

Preferred Network...............................................................................30
Security Setup ........................................................................32
Firewall................................................................................................32

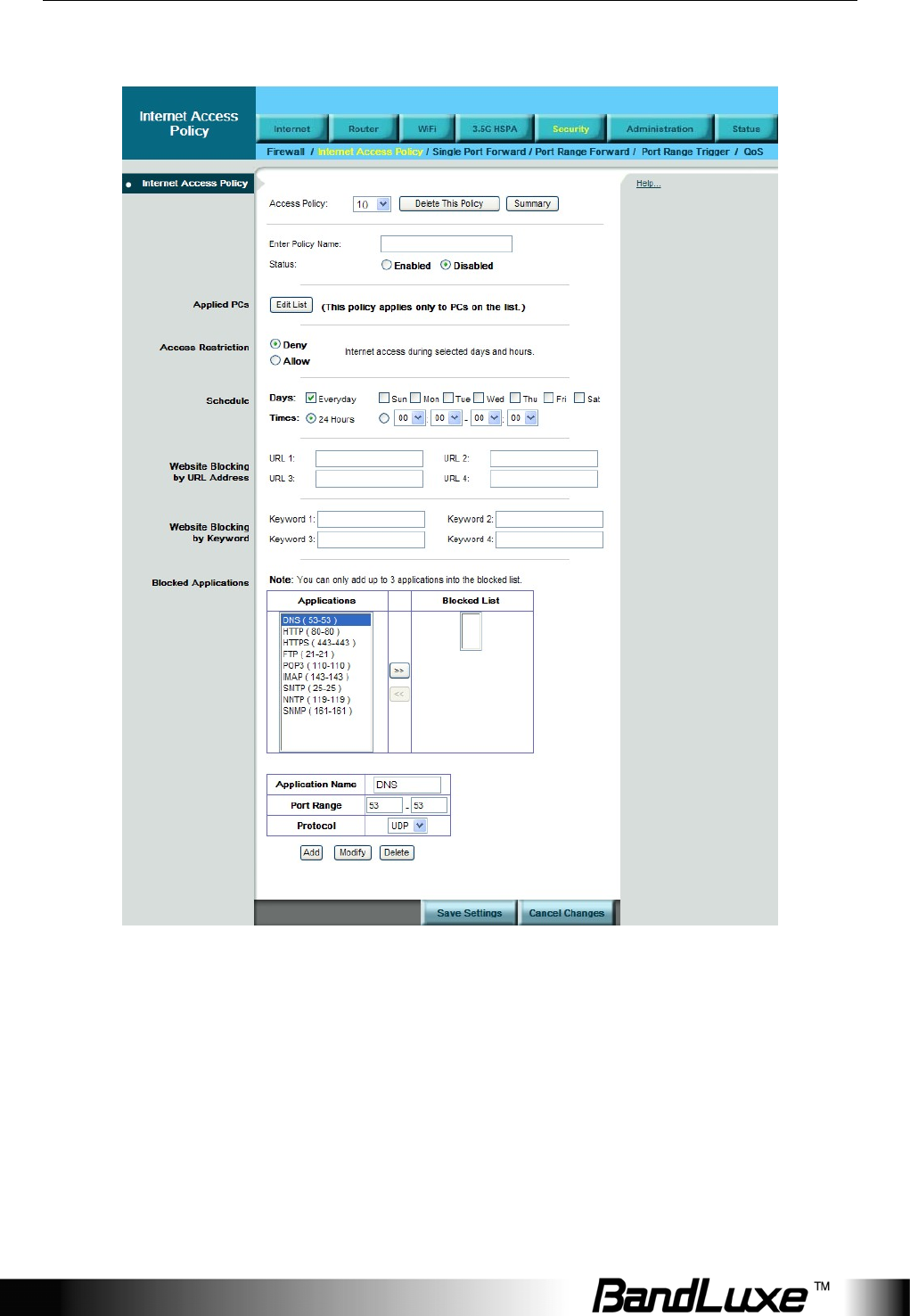

Internet Access Policy.........................................................................34
Single Port Forward ............................................................................36
Port Range Forward............................................................................37
Port Range Trigger..............................................................................38
QoS.....................................................................................................39
Administration Setup.............................................................41
Table of Contents
2
Management ...................................................................................... 41

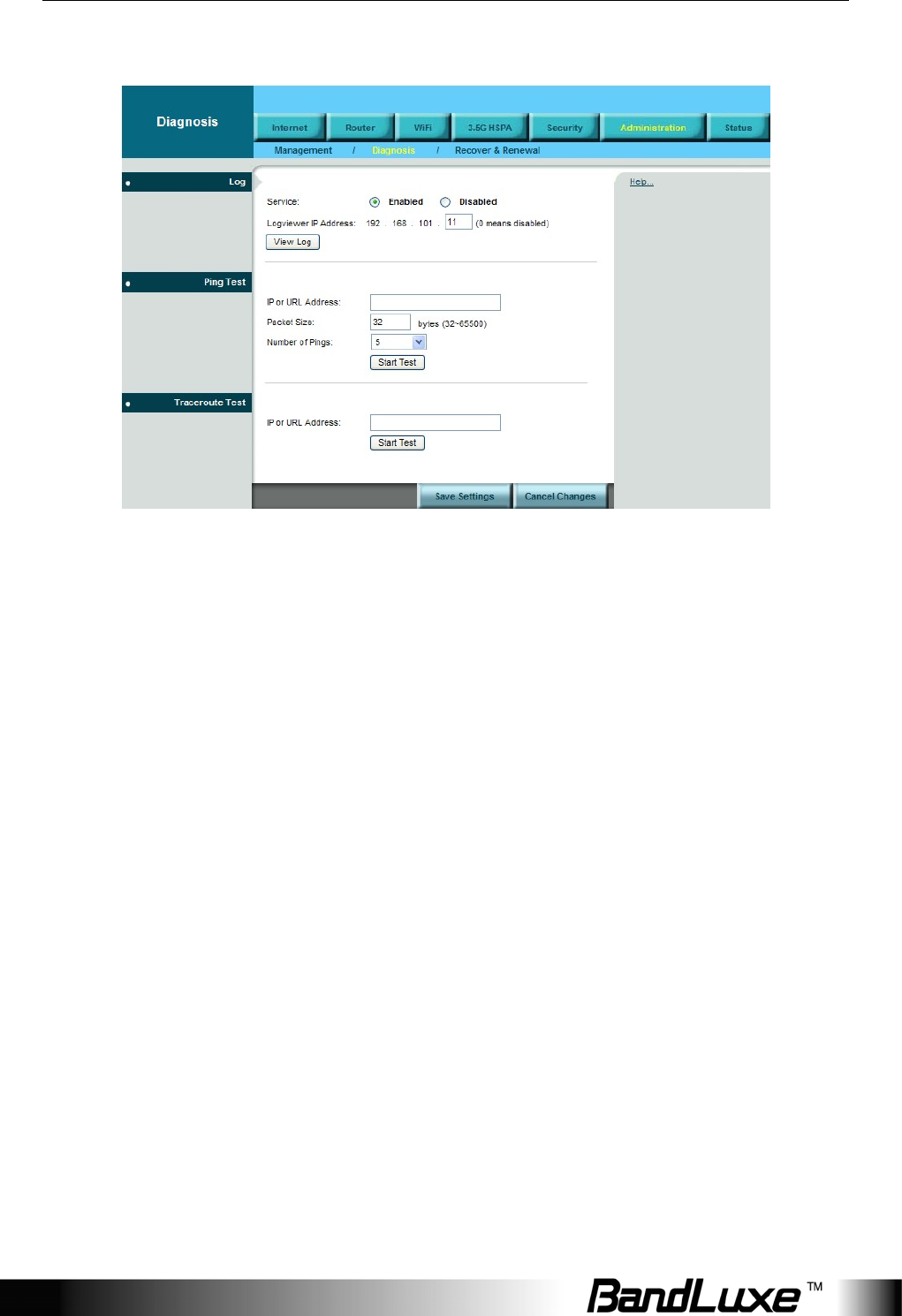

Diagnosis............................................................................................ 43

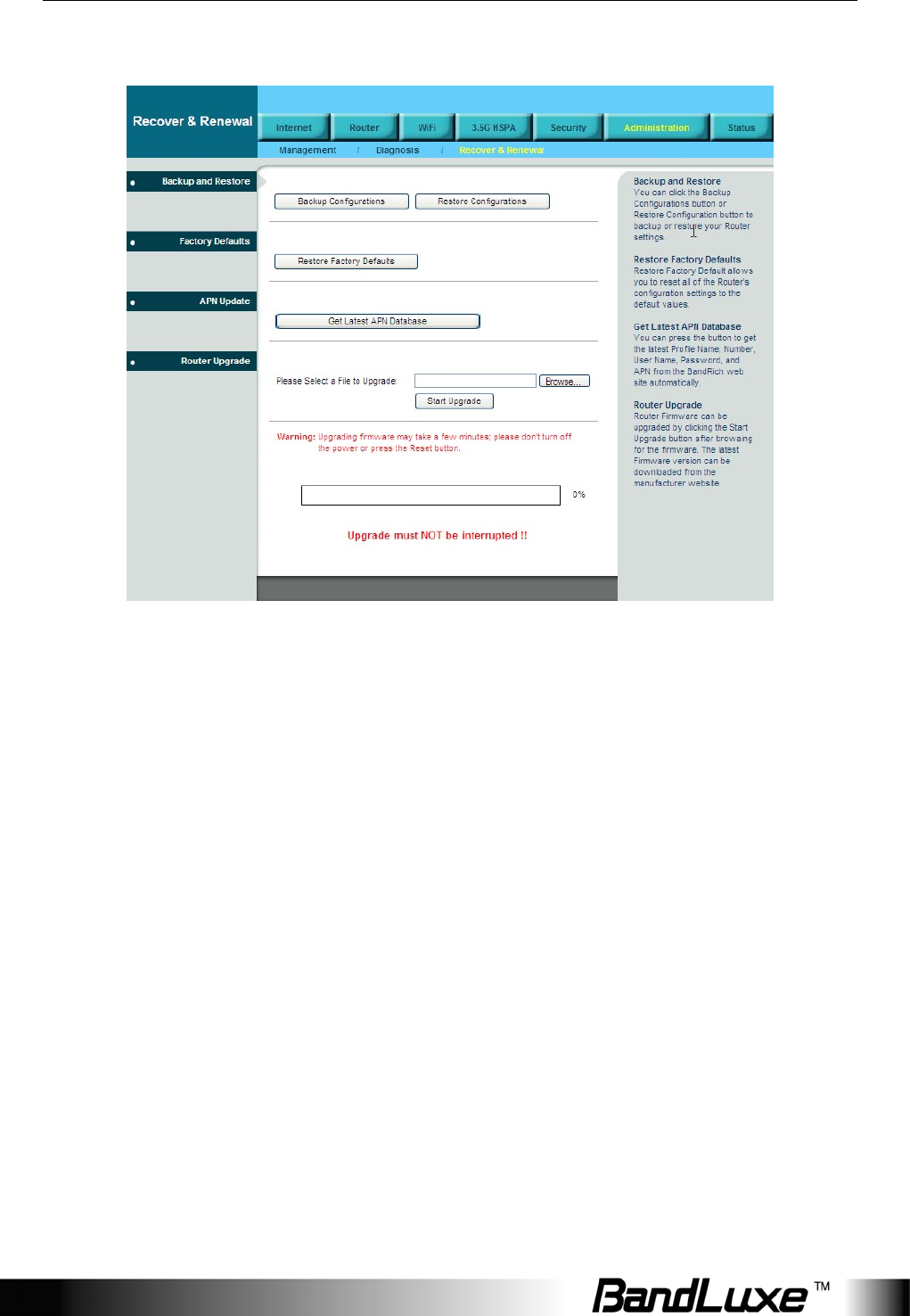

Recover & Renewal............................................................................ 44
Status...................................................................................... 46

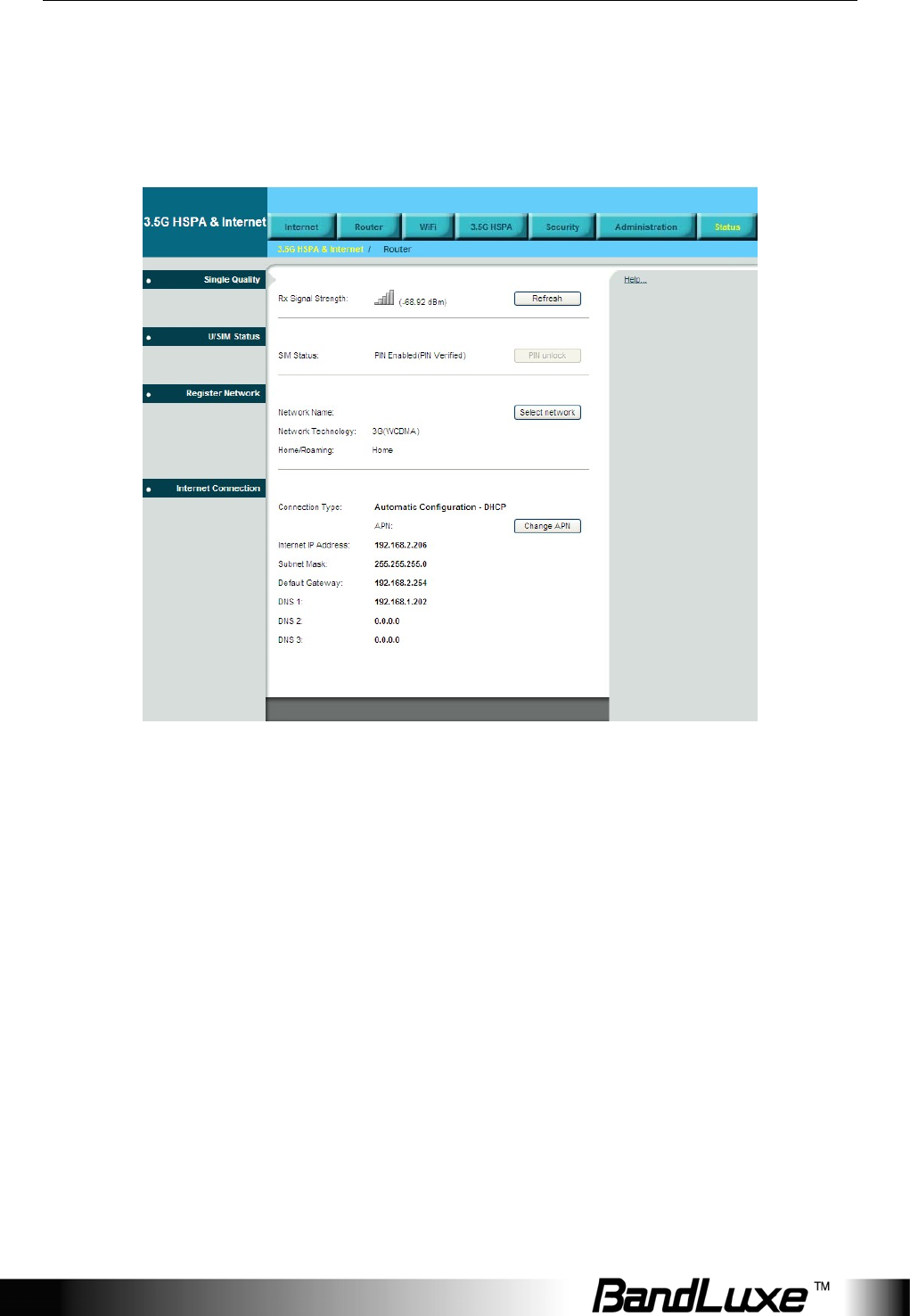

3.5G HSPA & Internet......................................................................... 46
Router................................................................................................. 47
Appendix A: Specification .................................................... 49
Appendix B: Important Safety Information and Glossary.. 52
Europe – EU Declaration of Conformity ............................................. 52
Federal Communication Commission Interference Statement ........... 54
Glossary ............................................................................................. 56
Package Contents
3
Package Contents
Thank you for your purchase of this 3.5G WiFi Router. This product is
designed to access the Internet via 3.5G technology and share the
bandwidth through a WiFi network. It is easy to configure and operate
even for non-technical users. This manual contains instructions for
installing and configuring the product. Read the manual carefully before
you use the product, so that you can fully exploit the product functions.

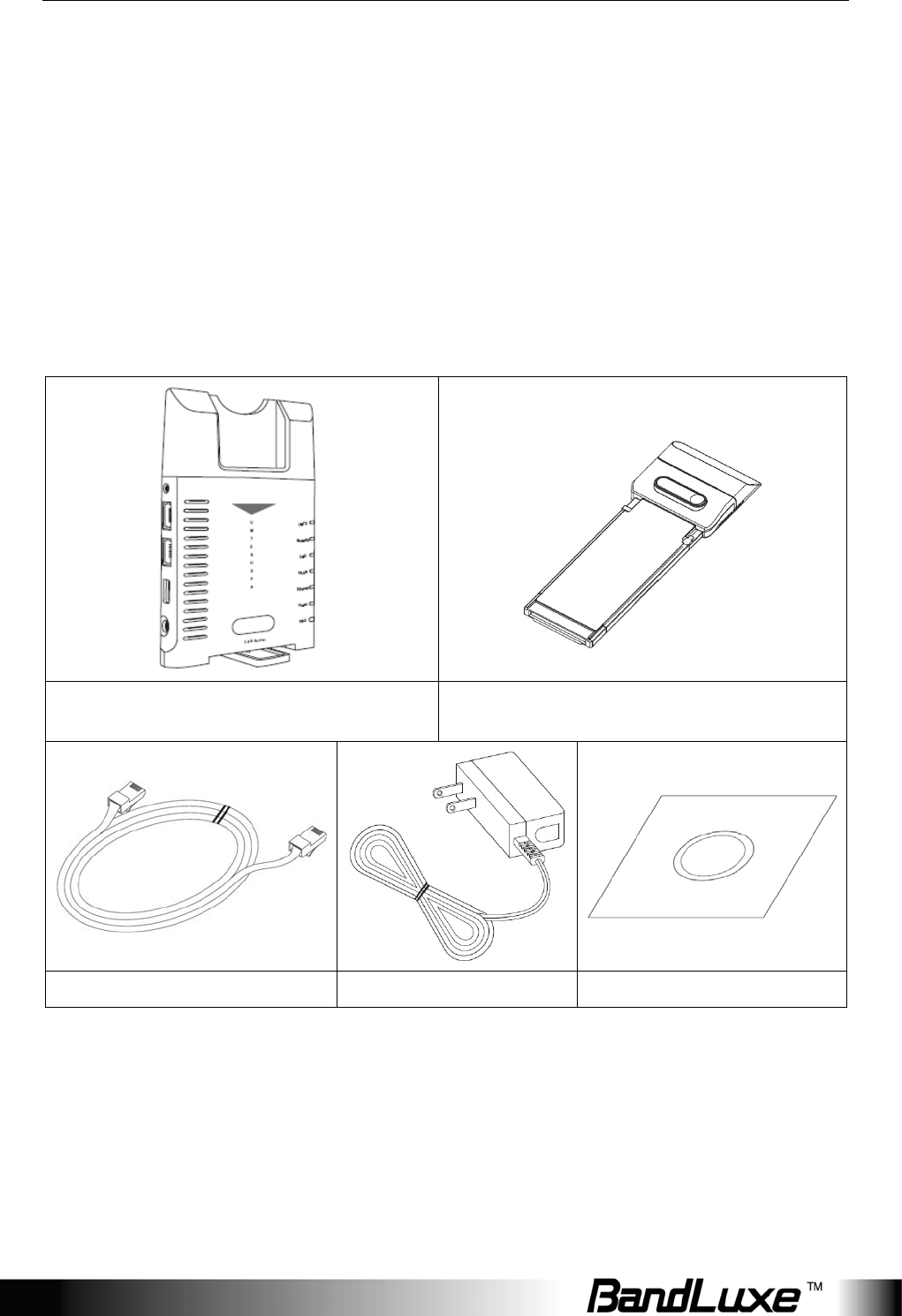

Package Contents
BandLuxe R100 3.5G WiFi Router BandLuxe C100/C100S HSDPA
ExpressCard. (Optional)
Ethernet Cable Power Adaptor Setup CD
Package Contents
4
Features
- Share mobile broadband access for multiple users.
- Router on the road, data card on the move.
- 3.5G ExpressCard for WAN access supported.
- Compatible with 802.11b and 802.11g clients.
- Compact & Stylish Design.

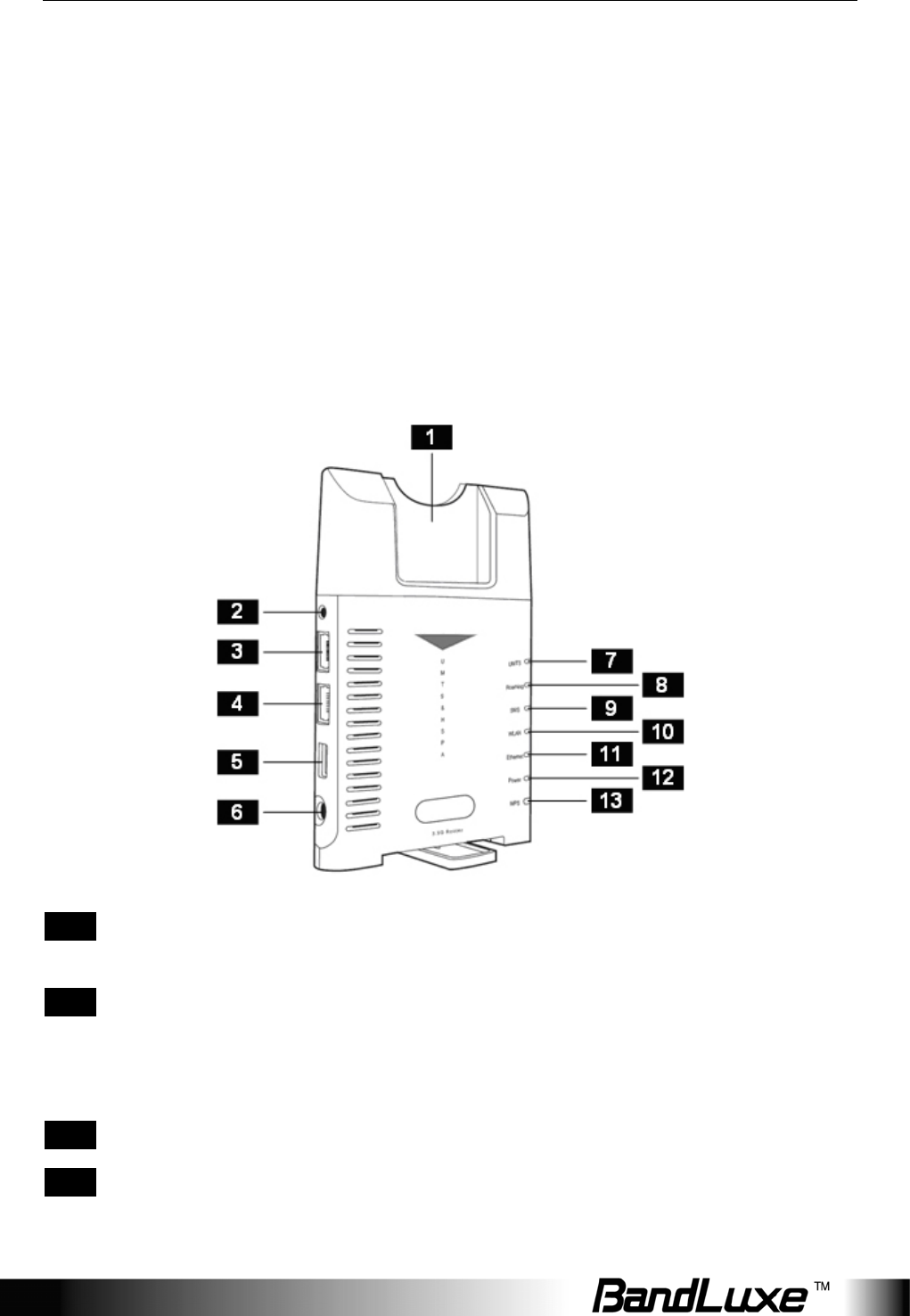

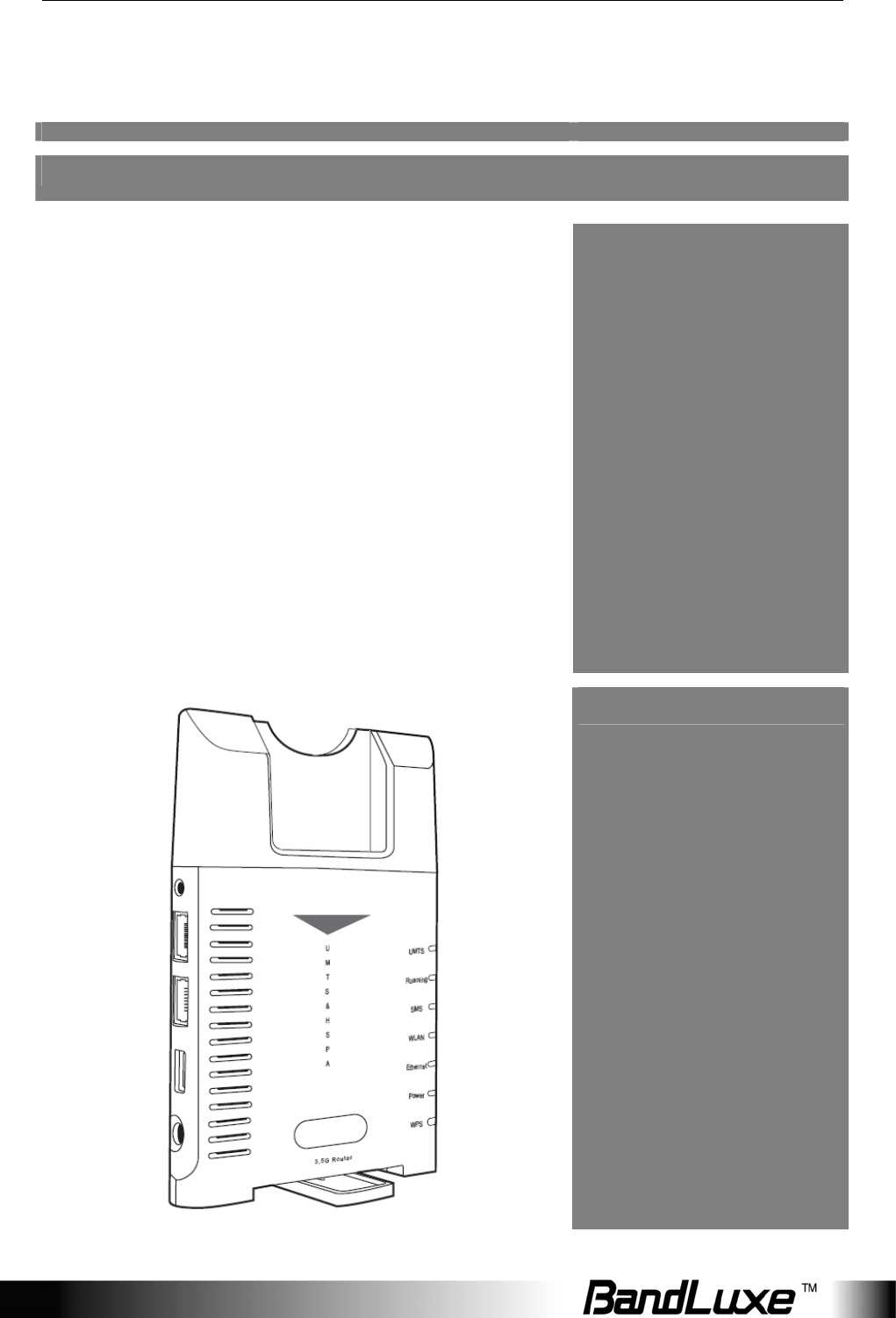

Hardware Overview
1 ExpressCard Slot Connect a BandLuxe C100/C100S HSDPA
ExpressCard or a compatible data card.
2 Factory Reset
button To reset the Router, press the reset button
briefly. To restore the Router's factory settings,
press the reset button for longer than 10
seconds.
3 WAN Port Connect a DSL or Cable modem.
4 LAN Port Connect Ethernet devices such as computers,
switches, and hubs.
Package Contents
5
5 USB Port
6 Receptor Receptor for the Power Adaptor.
7 UMTS LED A solid light shows the Router is connected to a
mobile network and ready. When green, the
mobile network is in 3G mode. When blue, the
mobile network is in 3.5G mode. When purple,
the mobile network is in GPRS mode.
A
blinking
light indicates that the Router is not connected
to a mobile network or not ready. If the LED ligh
t
is not lit, there is no link between the data card
and the Router. Check the switch on the back o
f
the Router and make sure the setting is correct.
8 Roaming LED A solid light shows that the Roaming connection
is on.
9 SMS LED A solid light indicates that a message has been
sent to your SIM card.
10 WLAN LED
A
solid light indicates that the wireless segment
is ready. A flashing light shows that data is
being transmitted via WLAN.
11 Ethernet LED A solid light shows that an Ethernet-enabled
computer is connected via the LAN port but no
data is being transmitted. A flashing light shows
that data is being transmitted via LAN.
12 Power LED A solid light indicates that the power supply is
connected properly.
13 WPS Button
14 ExpressCard/
USB switch
*on the back of Router
Only one of the interfaces (ExpressCard or
USB) can be used at a time.
Installation
6
Installation

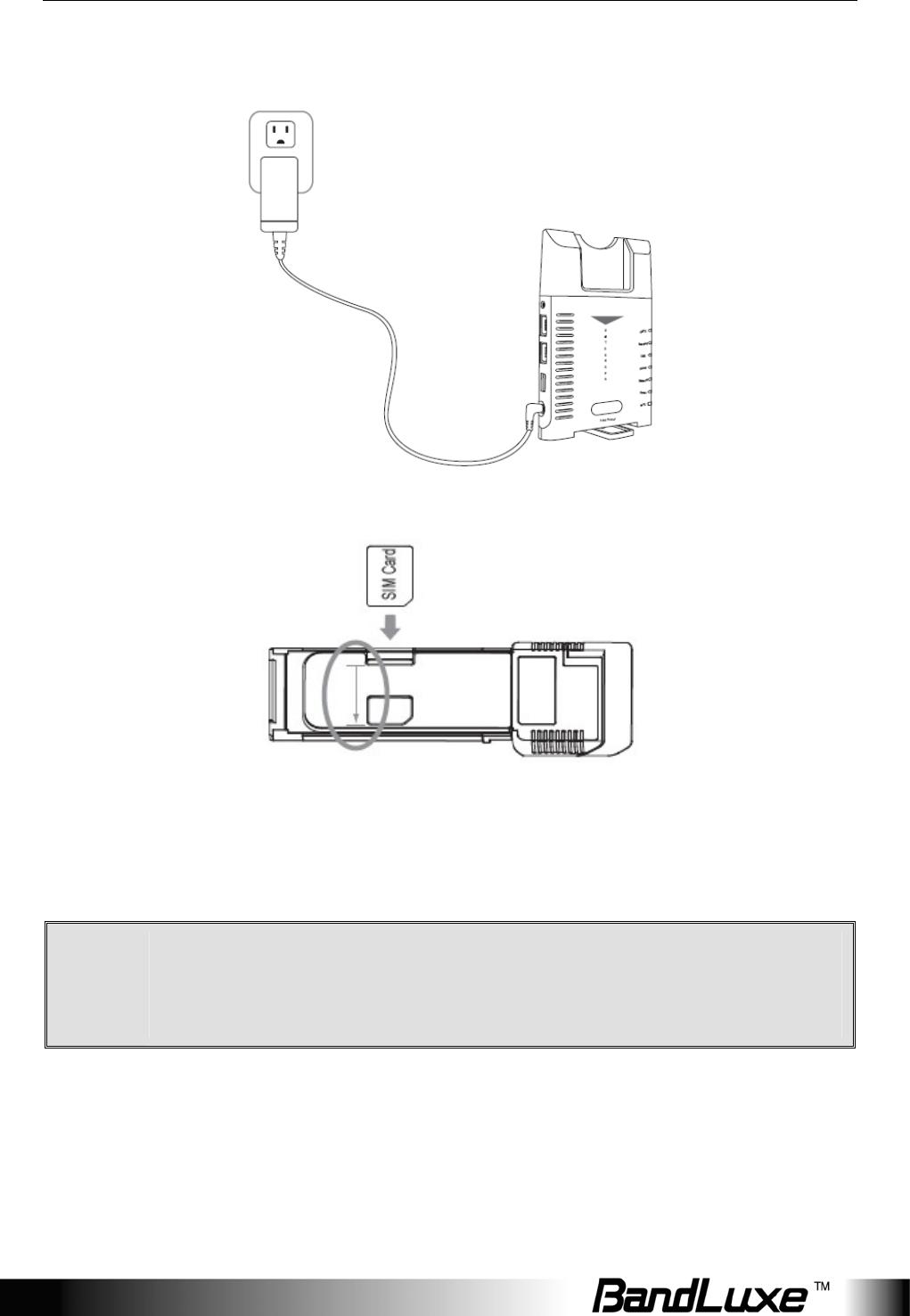

1. Connect the power adaptor to the Router and connect it to an outlet.
2. Insert your SIM card into the slot on the BandLuxe C100/C100S data
card, making sure the SIM card orientation matches the SIM card slot,
as shown in the picture. Then insert the BandLuxe data card into the
Router.
Note: Please use the ExpressCard/USB switch in the back of
the Router to select the interface. Only one of the interfaces
can be used at a time.
Installation
7
3. One of the following two methods can be chosen to link your Router
with PC.
A. To link the Router with your PC via WiFi, in Microsoft Windows, go to
Control Panel > Network Connections, right-click on Wireless
Network Connection,.and choose View Available Wireless
Networks. Select the HSPA_ROUTER wireless network, and click
Connect.

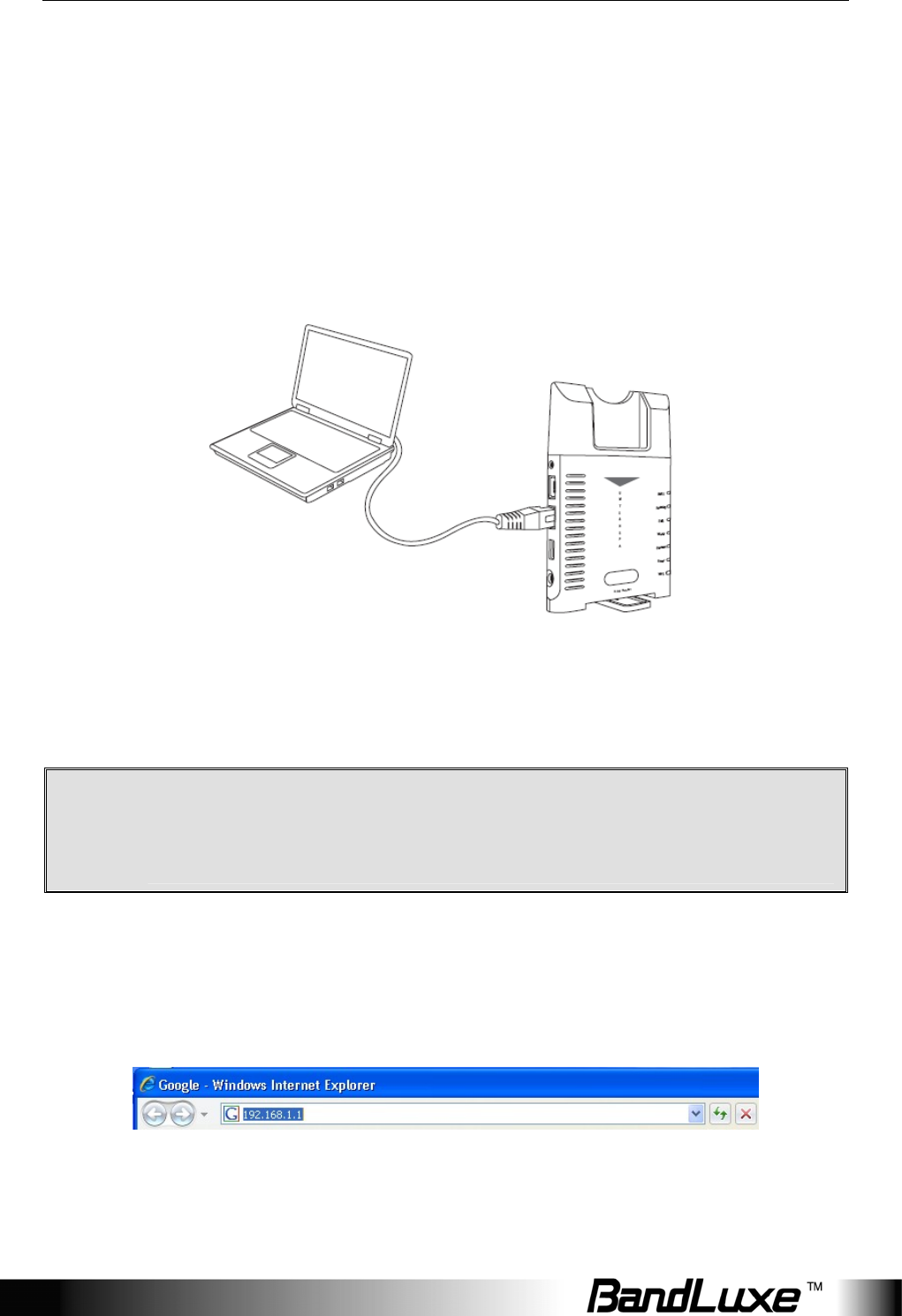

B. To link the Router with your PC via Ethernet cable, connect one end
of the cable to the LAN port on the Router, and the other end of the
cable to the Ethernet port on your computer.
Note: If you choose to access the Internet via Ethernet,
connect one end of the cable to the WAN port of R100, and the
other end to your xDSL/Cable Modem.
The 3.5G WiFi Router uses a web-based configuration utility. To access
the configuration utility, open a browser (for example Internet Explorer)
and enter the IP address (192.168.1.1) or the URL (http://R100.ROUTER)
for the Router in your browser’s address bar.
Installation
8

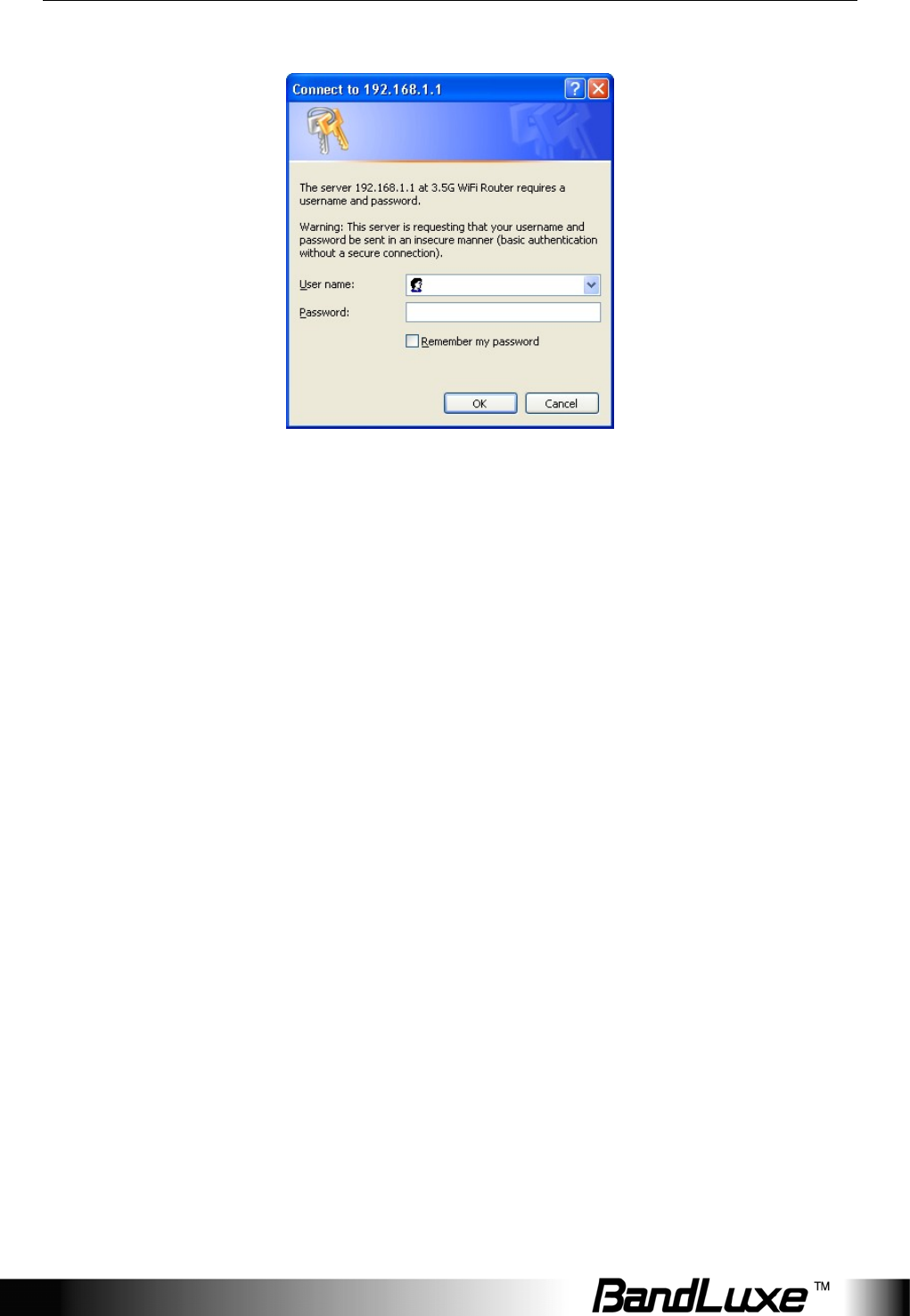

Enter the Router user name (admin) and password (hsparouter).
Internet Setup
9
Internet Setup

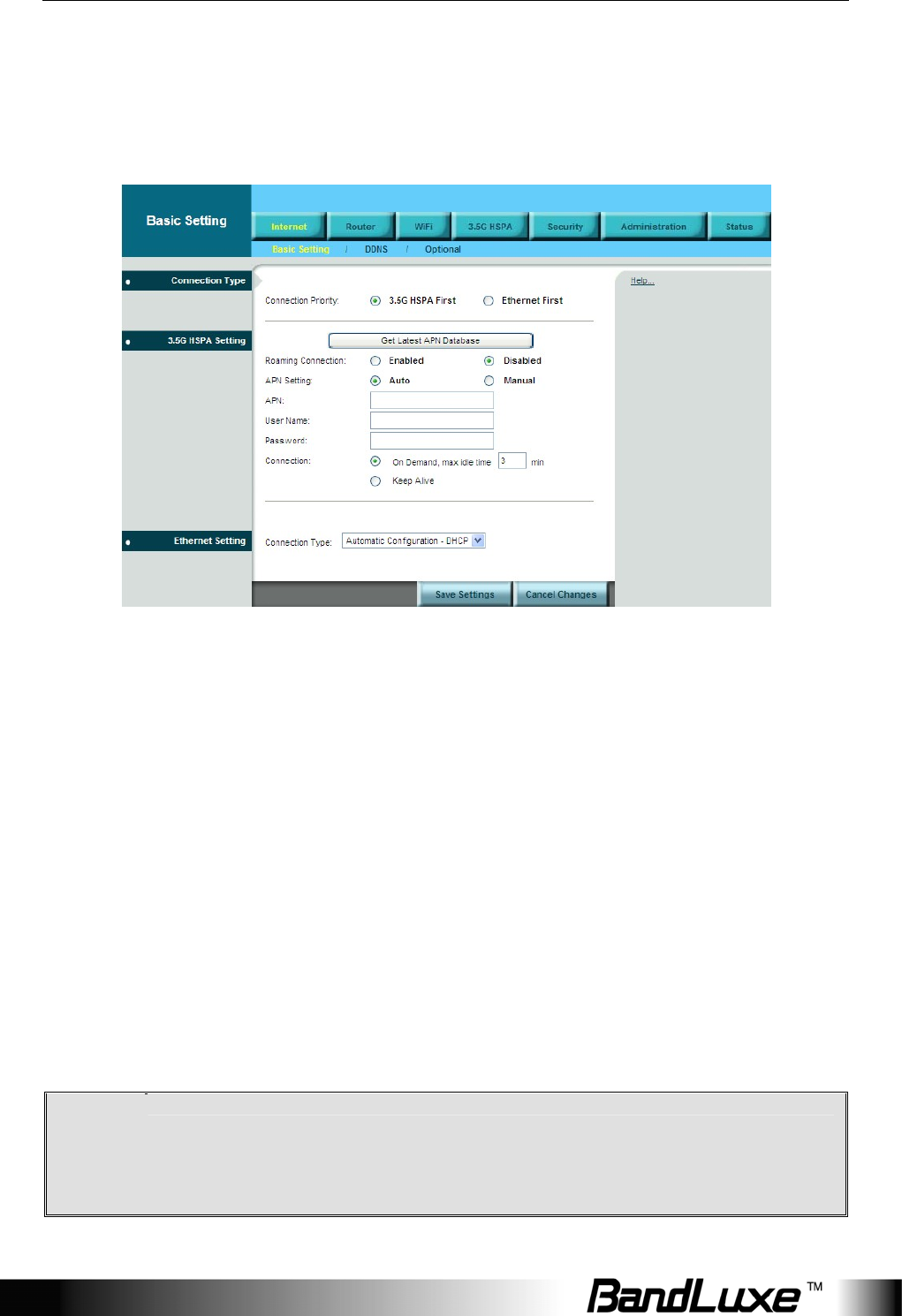

Basic Setting
Connection Type
The 3.5G HSPA Router can link to the internet via 3.5G HSPA or Ethernet.
Select the connection type you prefer.
3.5G HSPA Setting
Get Latest APN Database
Get the latest Profile Name, Number, User Name, Password, and APN
from the web site automatically.
Roaming Connection
To allow roaming network connection, select Enabled. To block roaming
connection, select Disabled.
Note: Charges for roaming connection may be high. Contact
your mobile network operator for more information.
Internet Setup
10
APN Setting
The APN (Access Point Name) is provided by your mobile network
operator. You can choose to set the APN automatically or manually. In
most cases, the 3.5G Router works properly when the APN is set to Auto.
To set the APN manually, contact your mobile network operator for the
APN, User Name and Password of the data service.
Connection
On Demand: You can set the idle time for the 3.5G HSPA connection.
When the Router is idle, the connection will be disconnected
automatically after the idle time expires.
Keep Alive: The connection is always kept on. If the HSPA connection is
disconnected, the Router tries to reconnect.
Ethernet Setting
Automatic Configuration - DHCP
Choose Dynamic IP Address to obtain IP Address information
automatically from your ISP. Select this option if your ISP does not give
you any IP numbers to use. This option is commonly used for cable
modem services.

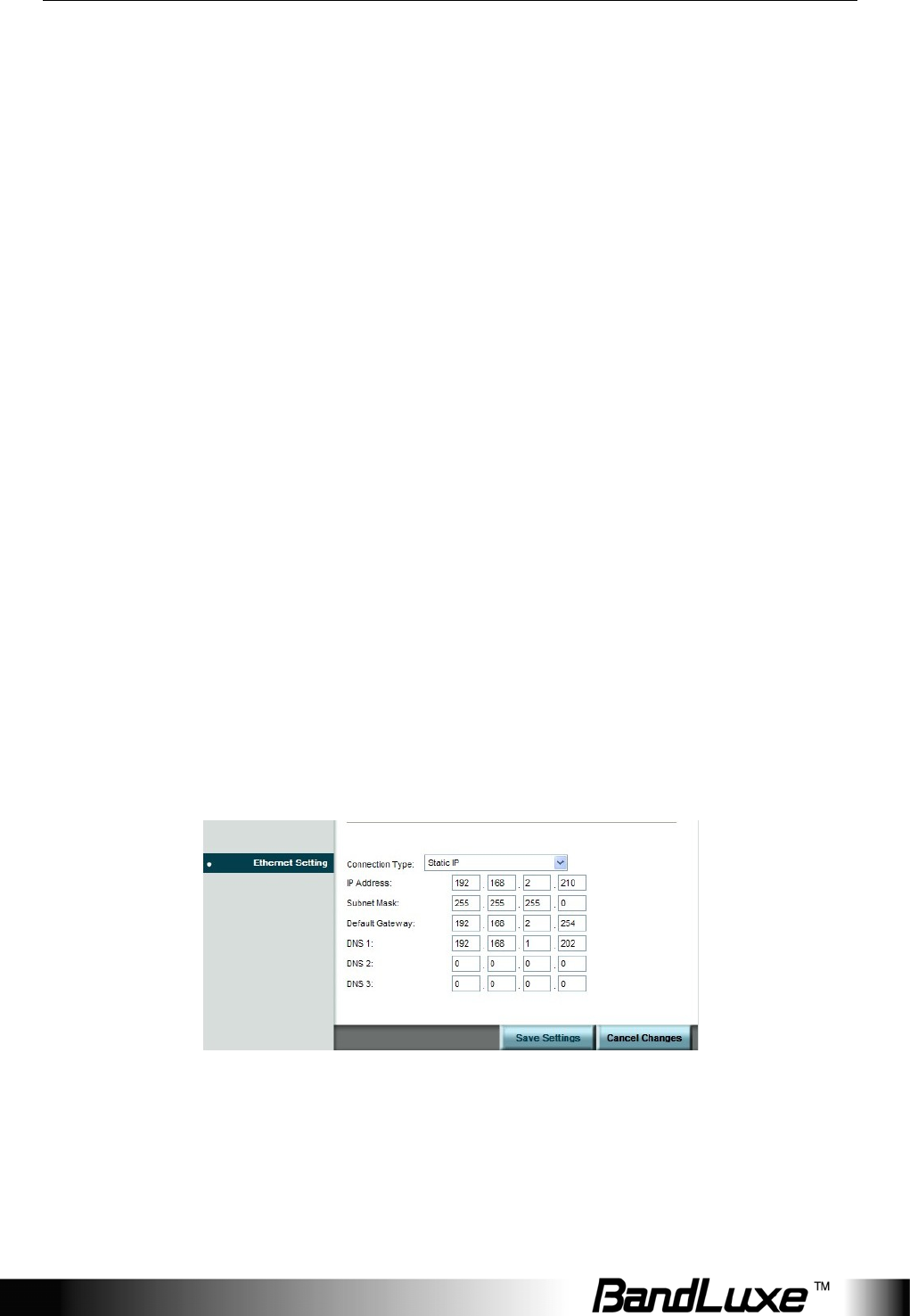

Static IP
Select Static IP if all WAN IP information is provided to you by your ISP.
You will need to enter the IP address, subnet mask, gateway address,
and DNS address(es) provided to you by your ISP.
Internet Setup
11

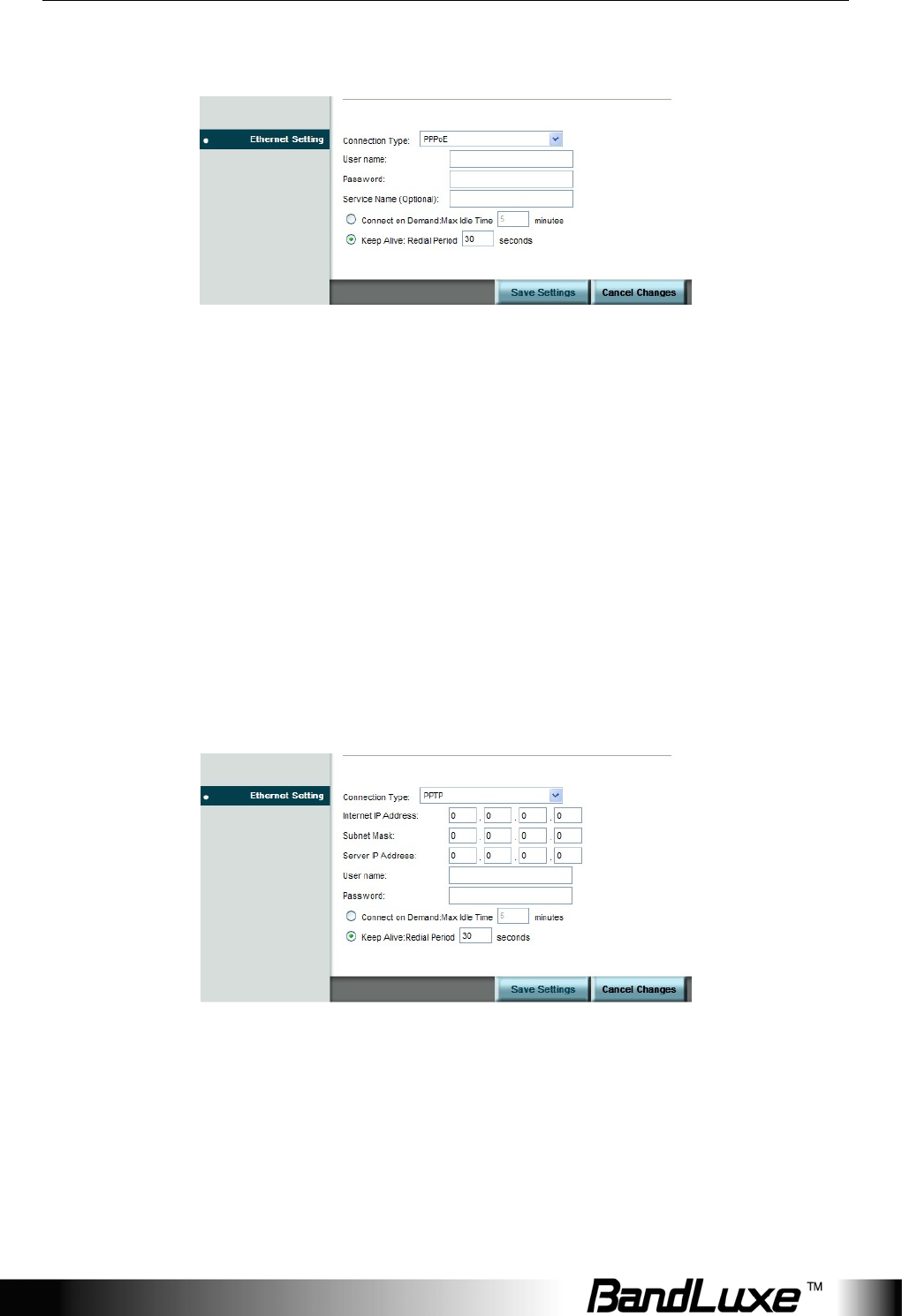

PPPoE
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a
PPPoE connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
Service Name: Enter the ISP Service Name (optional).
Connect on Demand: Enter a maximum idle time during which the
Internet connection is maintained during inactivity.
Keep Alive: If you select this option, the Router will periodically check
your Internet connection. If you are disconnected, then the Router
automatically tries to re-establish your connection. To use this option,
select Keep Alive. In the Redial Period field, specify how often you want
the Router to check the Internet connection.
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol) if your ISP uses a
PPTP connection. Your ISP will provide you with a username and
password.
Internet IP Address: Enter the IP address
Internet Setup
12
Subnet Mask: This is the Router’s Subnet Mask, as seen by users on the
Internet (including your ISP). Your ISP will provide you with the Subnet
Mask.
Server IP Address: Enter the Server IP provided by your ISP (optional).

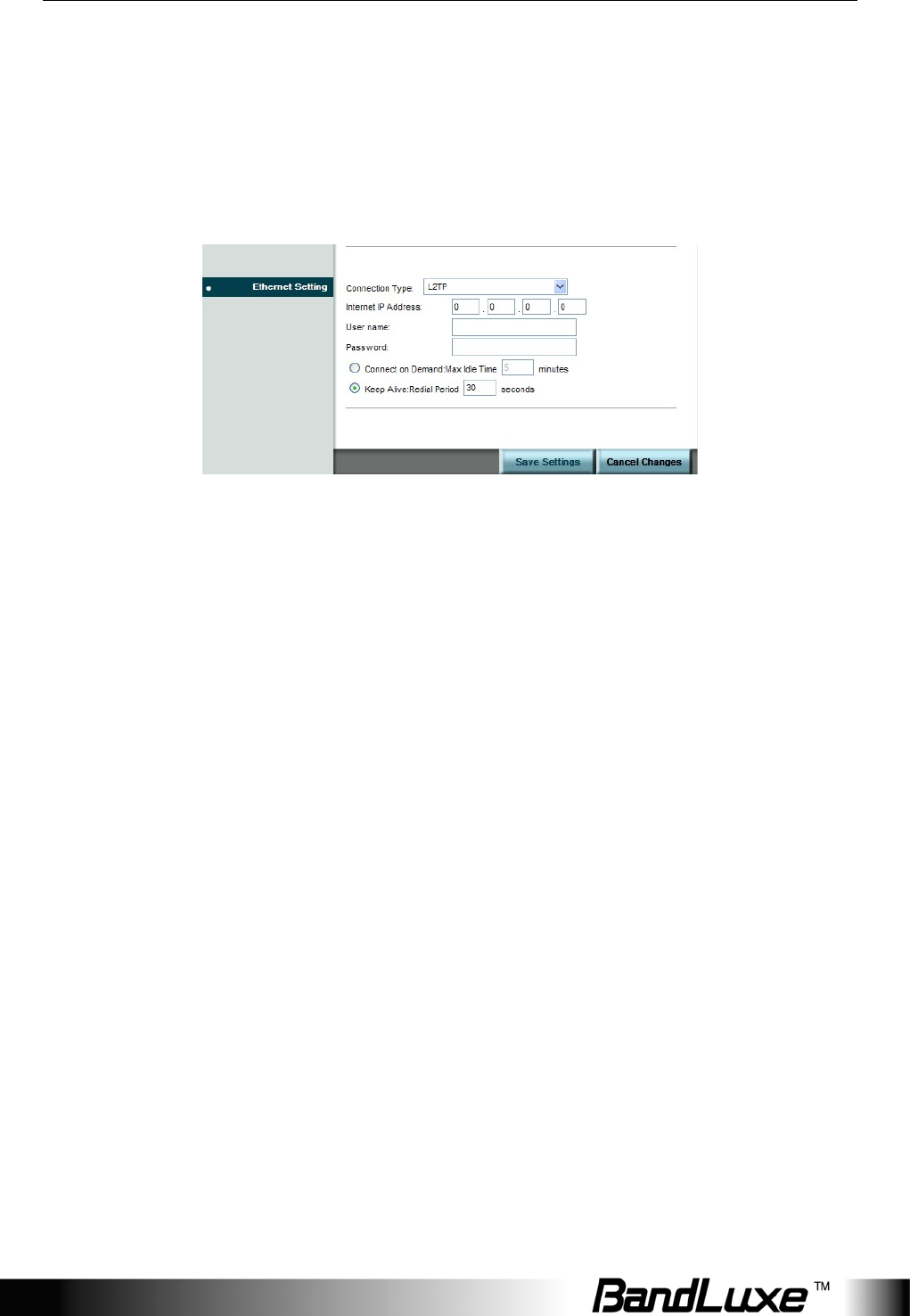

L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP
connection. Your ISP will provide you with a username and password.
Internet IP Address: Enter the IP address provided by your ISP.
Connect on Demand: Enter a maximum idle time during which the
Internet connection is maintained during inactivity.
Keep Alive: Redial Period If you select this option, the Router will
periodically check your Internet connection. If you are disconnected, the
Router automatically tries to re-establish your connection. To use this
option, select Keep Alive. In the Redial Period field, you specify how
often you want the Router to check the Internet connection.
Internet Setup
13

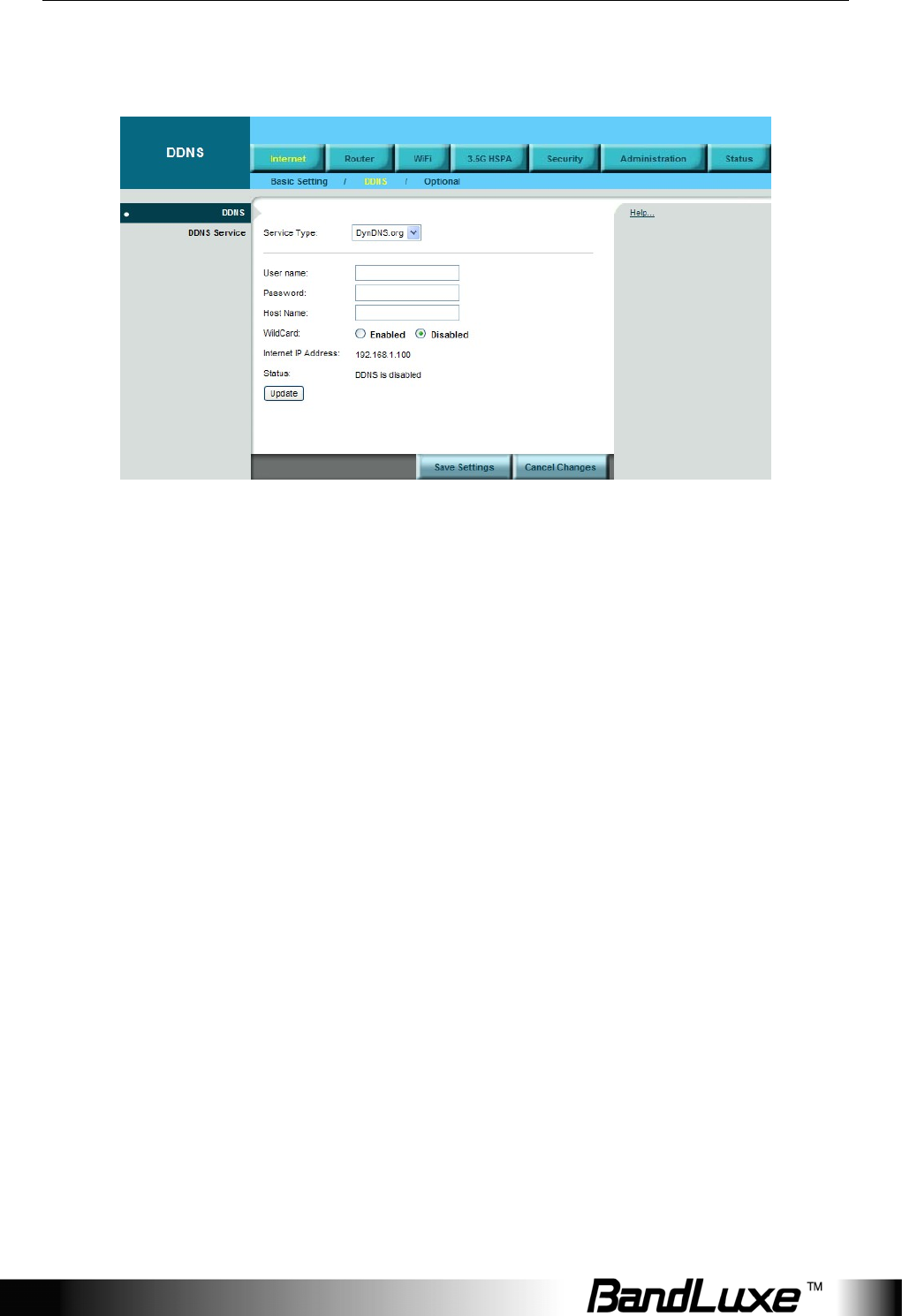

DDNS
DDNS (Dynamic DNS Service) is a system which allows the domain
name data held in a name server to be updated in real time. It allows an
Internet domain name to be assigned to a computer with a varying
(dynamic) IP address. Before you can use this feature, you need to sign
up for DDNS service with a DDNS service provider, www.dyndns.org or
www.TZO.com.
Service Type: From the drop-down list, select your DDNS service type.
User name: Enter the user name for your DDNS account.
Password: Enter the password for your DDNS account.
Host name: The Host Name is optional but may be required by some
ISPs.
WildCard: Some DDNS servers support the wildcard alias feature which
points *.yourhost.dyndns.org to your computers automatically. All aliases
for your domain such as www.yourhost.dyndns.org will point to your
computer by default due to Wildcard Alias. This allows users to access
your computer using all types of derivatives of your domain name.
Internet IP Address: The Router’s Internet IP address is displayed here.
Because it is dynamic, it changes.
Status: This shows whether the DDNS service is enabled or disabled.
Internet Setup
14
Optional
Host Setting
Host Name and Domain Name
These fields allow you to assign a host and domain name for the Router.
Some ISPs require these names as identification. In most cases, leaving
the fields blank will work.
MTU
MTU (Maximum Transmission Unit) specifics the largest packet size
permitted for Internet transmission. To have the Router select the best
MTU for your Internet connection, keep the default setting, Auto.
MAC Address Clone
Some ISPs will require you to register a MAC address in order to access
the Internet. If you do not want to re-register the MAC address with your
ISP, you can assign the MAC address you have currently registered with
your ISP to the Router by clicking the Clone My PCs MAC button.
Internet Setup
15
Time Setting
Select the Time Zone from the drop-down menu according to your current location.
Automatically adjust clock for daylight saving changes: Select the
checkbox to enable Daylight Saving time.
Router Setup
16
Router Setup
Network Setting
Router IP
This is the Router’s IP address and subnet mask which is seen in your
local network. The default IP address is 192.168.1.1, and the default
Subnet Mask is 255.255.255.0. Keeping the default values will work.
DHCP Service
DHCP stands for Dynamic Host Control Protocol. The DHCP Server will
automatically assign an IP address to the computers on the LAN/private
network. If the Router’s DHCP server option is enabled, make sure there
is no other DHCP server on your network.
Router Setup
17

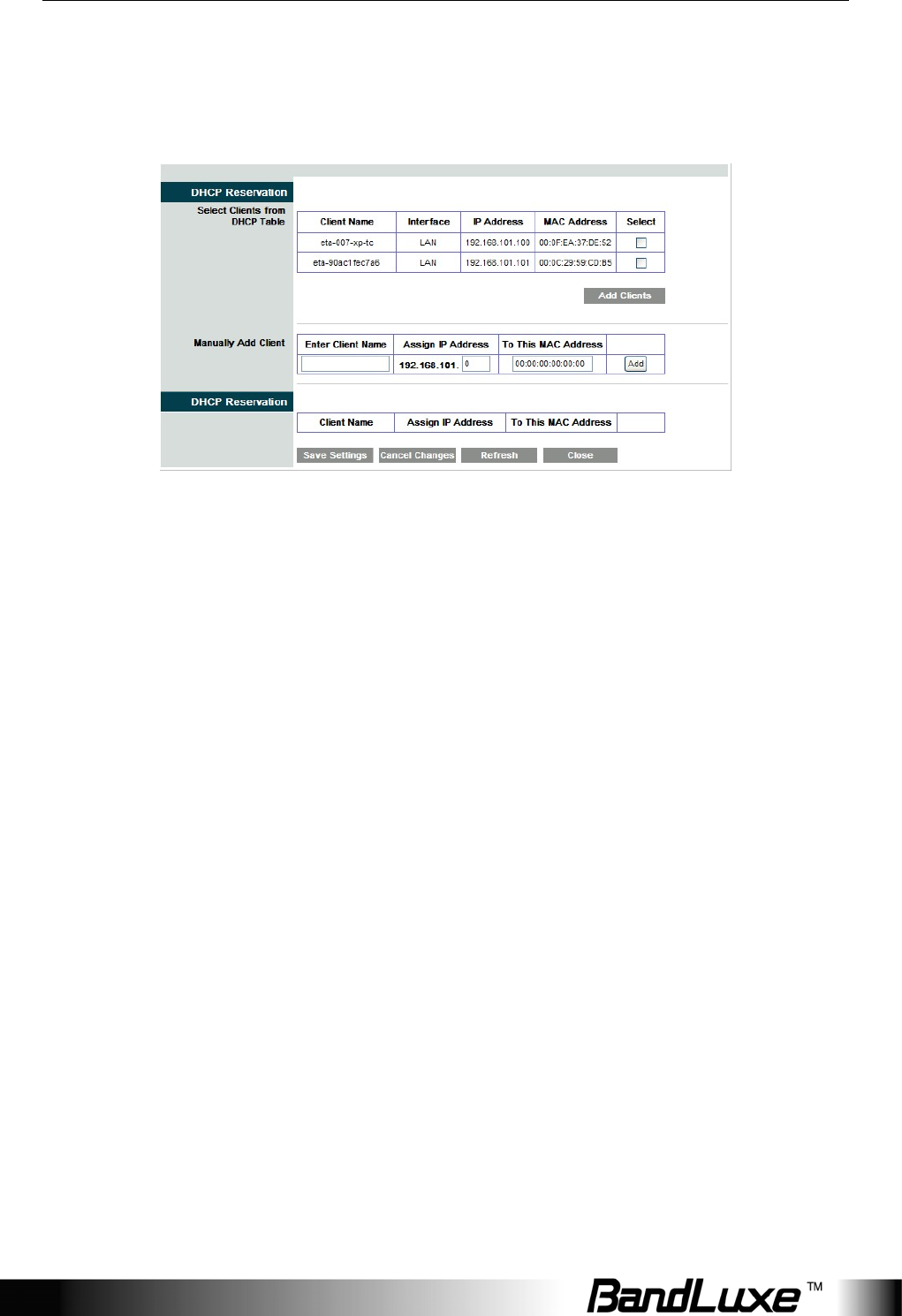

DHCP Reservation
To assign the same IP address to a PC every time it reboots, click the
DHCP Reservation button.
A list of DHCP clients is displayed with the following information: Client
Name, Interface, IP Address, and MAC Address. Select a checkbox to
reserve a client’s IP address. To add clients, click Add Clients. To
manually assign an IP address, enter the client’s name in the Enter
Client Name field. Enter an IP address in the Assign IP Address field.
Enter a MAC Address in the To This MAC Address field. Click Add. A list
of DHCP clients and their fixed local IP addresses is displayed at the
bottom of the screen. If you want to remove a client from this list, click
Remove. To view the most up-to-date information, click Refresh.
Start IP Address: Enter a starting IP address for the DHCP server’s IP
assignment.
Maximum Number of Users: Enter the maximum number of PCs that
you want the DHCP server to assign IP addresses to.
DHCP Lease Time: The length of time for the IP address lease. Enter the
lease time in minutes.
Static DNS (1-3): The Domain Name System (DNS) is how the Internet
translates domain or website names into Internet addresses or URLs.
Your ISP will provide you with at least one DNS Server IP Address. You
can enter up to three DNS Server IP Addresses here. The Router will use
these for quicker access to functioning DNS servers.
WINS: The Windows Internet Naming Service (WINS) manages each
PC's interaction with the Internet. If you use a WINS server, enter that
server’s IP Address here. Otherwise, leave this blank.
Router Setup
18

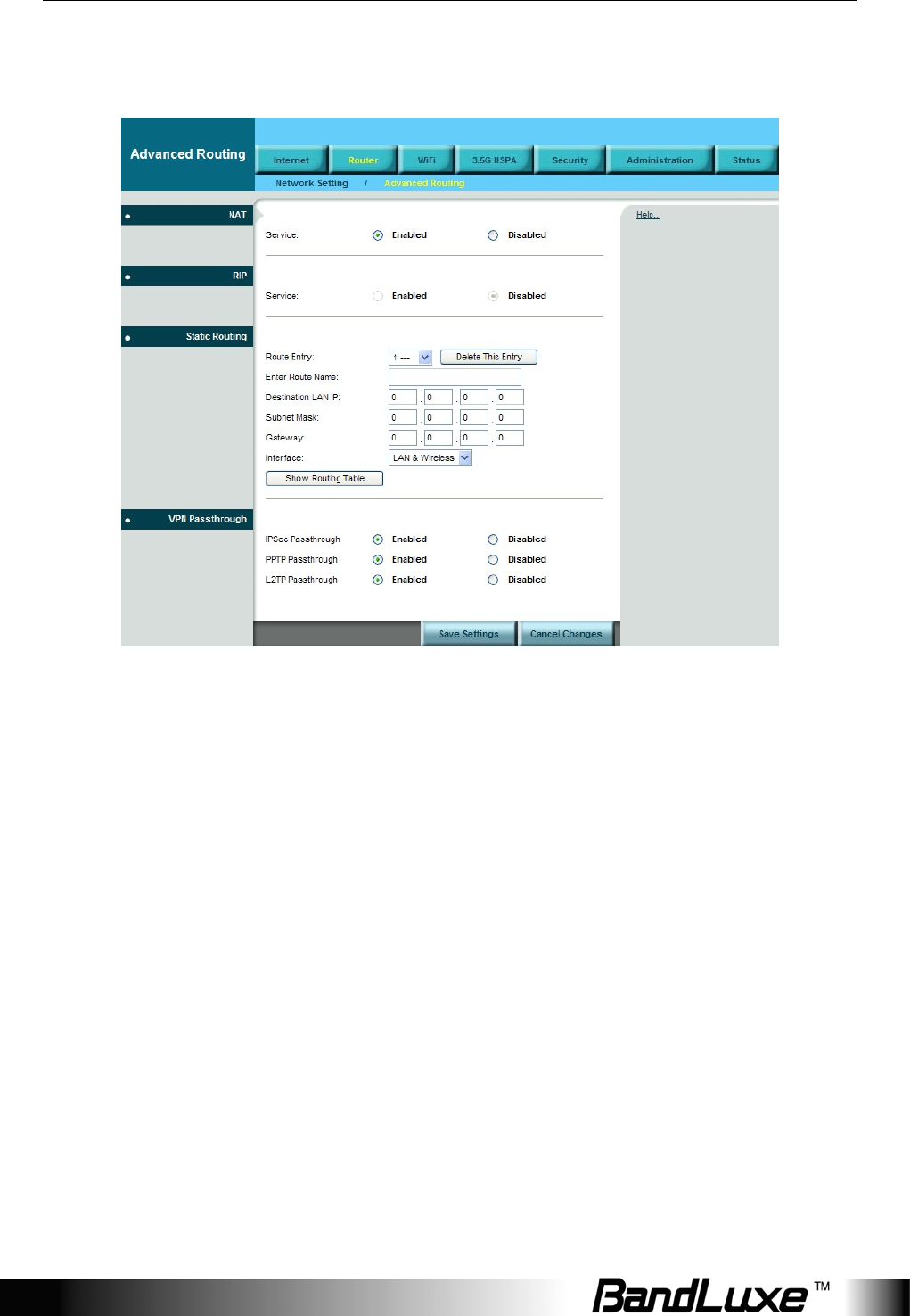

Advanced Routing
NAT Setup
The Network Address Translation (NAT) service is a standard that allows
multiple computers on a private network to share a single IP address.
RIP
The Routing Information Protocol (RIP) helps the Router dynamically
adapt to changes of network connections by communicating information
about which networks each Router can reach and how far away those
networks are.
Static Routing
This section allows you to define fixed routes to defined destinations.
Route Entry: To set up a static route, select a number from the
drop-down list.
Enter Route Name: Enter a name for the route here.
Router Setup
19
Destination LAN IP: Enter the Destination IP address that will be
assigned to a specific network or host.
Subnet Mask: Enter the subnet mask associated with the Destination IP.
Gateway: This is the IP address of the gateway device that allows for
contact between the Router and the remote network or host.
Interface: This interface tells you whether the Destination IP Address is
on the LAN & Wireless (Ethernet and wireless networks) or the WAN
(Internet).
Show Routing Table: Click Show Routing Table to open a screen
displaying how data is routed through your local network. Click Refresh
to update the information.
VPN Passthrough
A Virtual Private Network (VPN) is a type of secured private network
connection, built upon publicly-accessible infrastructure such as the
Internet. They usually provide connectivity to various devices behind a
gateway or firewall.
IPSec Passthrough
IP Security (IPSec) provides authentication and encryption. Since it is
mainly a Layer 3 technology, it can secure all data on the network. To
allow IPSec tunnels to pass through the Router, click Enabled.
PPTP Passthrough
Point-to-Point Tunneling Protocol (PPTP) allows you to establish a
connection to an enterprise network. To allow PPTP tunnels to pass
through the Router, click Enabled.
L2TP Passthrough
Layer 2 Tunneling Protocol (L2TP) is an extension of the Point-to-Point
Tunneling Protocol and is also used to establish virtual private networks.
To allow L2TP tunnels to pass through the Router, click Enabled.
WiFi Setup
20
WiFi Setup
Basic WiFi Network
Basic WiFi Setting
Network Mode: From this drop-down menu, you can select the wireless
standards running on your network. If you have both 802.11g and 802.11b
devices in your network, keep the default setting, Mixed. If you have only
802.11g devices, select Wireless-G Only. If you have only 802.11b
devices, select Wireless-B Only. If you do not want to use any WiFi
network, select Disabled.
Network Name (SSID): Network Name is used for identifying the
Wireless LAN (WLAN). The default SSID is HSPA_ROUTER.
Standard Channel: The radio channel number. The permissible
channels depend on the Regulatory Domain. Keeping the default value.
SSID Broadcast: Disable this function will let your SSID setting not be
exposed to view in the air. For security purposes, you may choose to hide
your network’s SSID by selecting enable from the drop-down list. This will
prevent computers scanning for the presence of wireless networks to
detect your network name. The default setting is Enabled.
WiFi Setup
21
WiFi Security
WiFi Security Setting
R100 provides several different levels of security to protect your WiFi
network. Select a level in the Security Mode drop-down menu.
WEP
The Router supports two WEP (Wired Equivalent Privacy) standards:
64-bit and 128-bit. Select a standard from the drop-down list. The 64-bits
encryption requires 10 hexadecimal digits (letters a-f and numbers 0-9
are valid). The 128-bits encryption requires 26 hexadecimal digits (letters
a-f and numbers 0-9 are valid).You can set up to four different keys.
Passphrase: Strings of hexadecimal characters are not easy to
remember. This conversion utility converts a simple word or phrase into
hex, so that you can easily remember and regenerate the pass-phrase.
TX Key: You can specify which key you want to use for the WiFi network.
WPA, or WiFi Protected Access, is a WiFi standard that was designed to
improve the security features of WEP. WPA uses two encryption methods,
WiFi Setup
22
TKIP and AES, with dynamic keys.
WiFi Setup
23

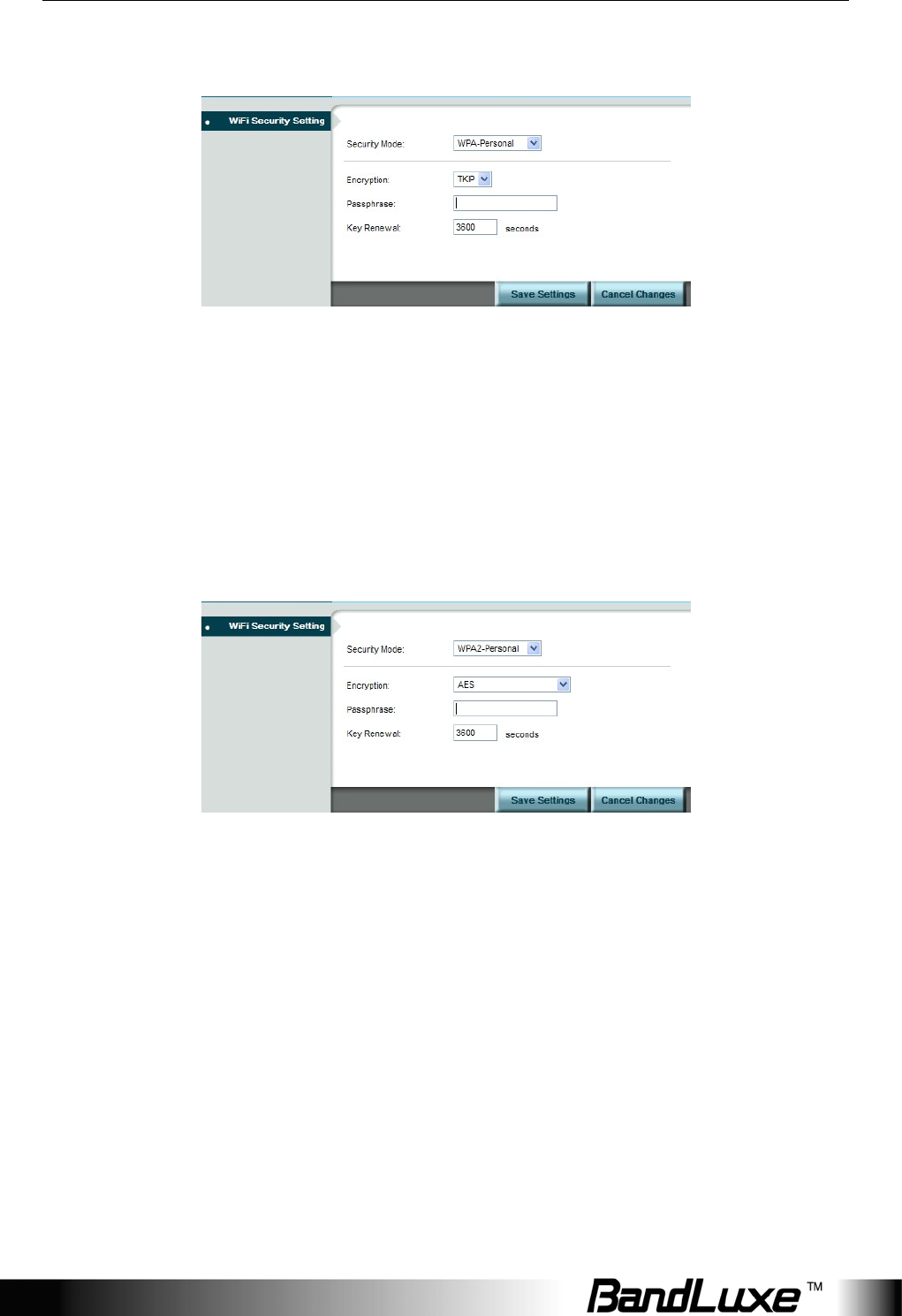

WPA-Personal
Encryption: Choose TKIP or AES from the drop down list. (AES is a
stronger encryption method than TKIP.)
Passphrase: Enter a passphrase between 8-63 characters.
Key Renewal: Enter a key renewal value to tell the Router how often it
should change the encryption keys. The value must be between
60-99999.
WPA2-Personal
WPA2 is a more advanced, more secure version of WPA.
Encryption: Choose AES, or WPA-TKIP, or WPA2-AES from the drop
down list.
Passphrase: Enter a passphrase between 8-63 characters.
Key Renewal: Enter a key renewal value to tell the Router how often it
should change the encryption keys. The value must be between
60-99999.
WiFi Setup
24

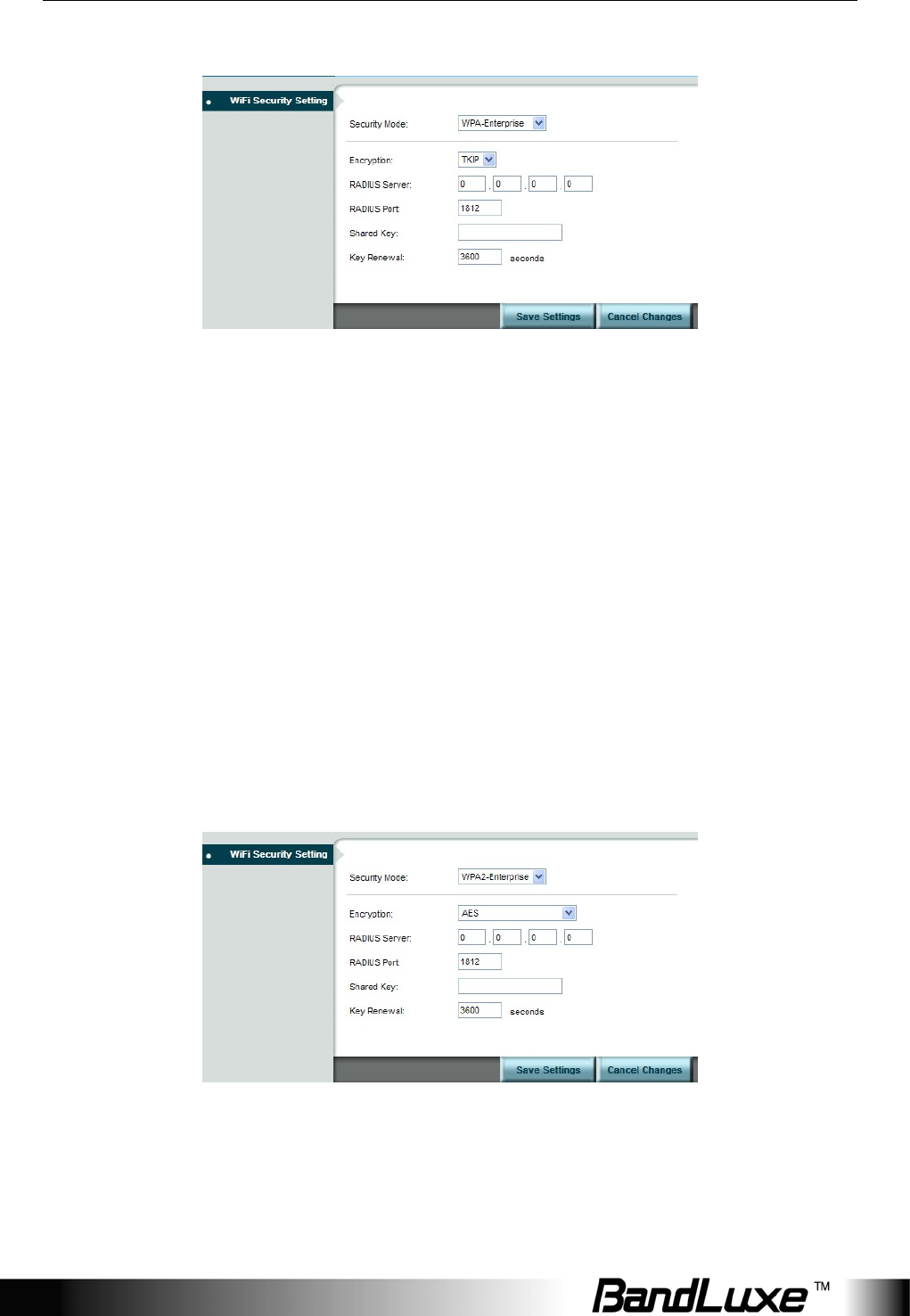

WPA-Enterprise
This option features WPA used in coordination with a RADIUS server.
(This should only be used when a RADIUS server is connected to the
Router.)
Encryption: Choose TKIP or AES from the drop down list. (AES is a
stronger encryption method than TKIP.)
RADIUS Server: Enter the IP Address of the RADIUS server.
RADIUS Port: Enter the port number of the RADIUS server. The default
value is 1812.
Shared Key: Enter the key shared between the Router and the server.
Key Renewal: Enter a key renewal value to tell the Router how often it
should change the encryption keys. The value must be between
60-99999.
WPA2-Enterprise
This option features WPA2 used in coordination with a RADIUS server.
(This should only be used when a RADIUS server is connected to the
Router.)
Encryption: Choose AES or WPA-TKIP or WPA2-AES from the drop
WiFi Setup
25
down list.
RADIUS Server: Enter the IP Address of the RADIUS server.
RADIUS Port: Enter the port number of the RADIUS server. The default
value is 1812.
Shared Key: Enter the key shared between the Router and the server.
Key Renewal: Enter a key renewal value to tell the Router how often it
should change the encryption keys. The value must be between
60-99999.

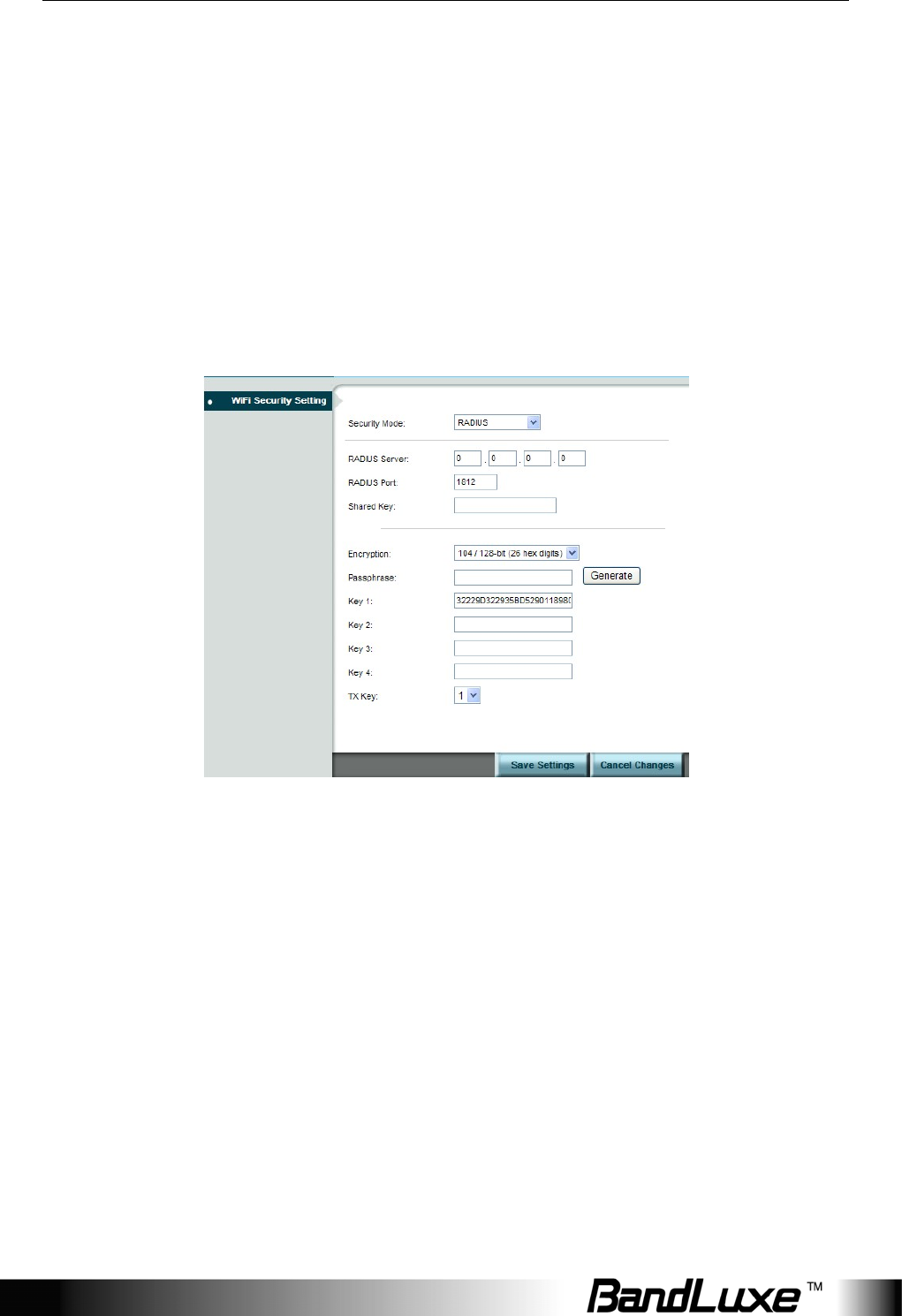

RADIUS
RADIUS stands for Remote Authentication Dial-In User Service. It is a
networking protocol that uses access servers to provide centralized
management of access to large networks.
RADIUS Server: Enter the IP Address of the RADIUS server.
RADIUS Port: Enter the port number of the RADIUS server. The default value is
1812.
Shared Key: Enter the key shared between the Router and the server.
Encryption: Select either 64-bits or 128-bits from the drop-down list The 64-bits
encryption requires 10 hexadecimal digits. The 128-bits encryption requires 26
hexadecimal digits .You can set up to four different keys.
Passphrase: Strings of hexadecimal characters are not easy to remember. This
conversion utility converts a simple word or phrase into hex, so that you can easily
remember and regenerate the pass-phrase.
TX Key: You can specify which key you want to use for the WiFi network.
WiFi Setup
26
Disabled
If you do not want to use any security method for your wireless network,
choose Disabled.

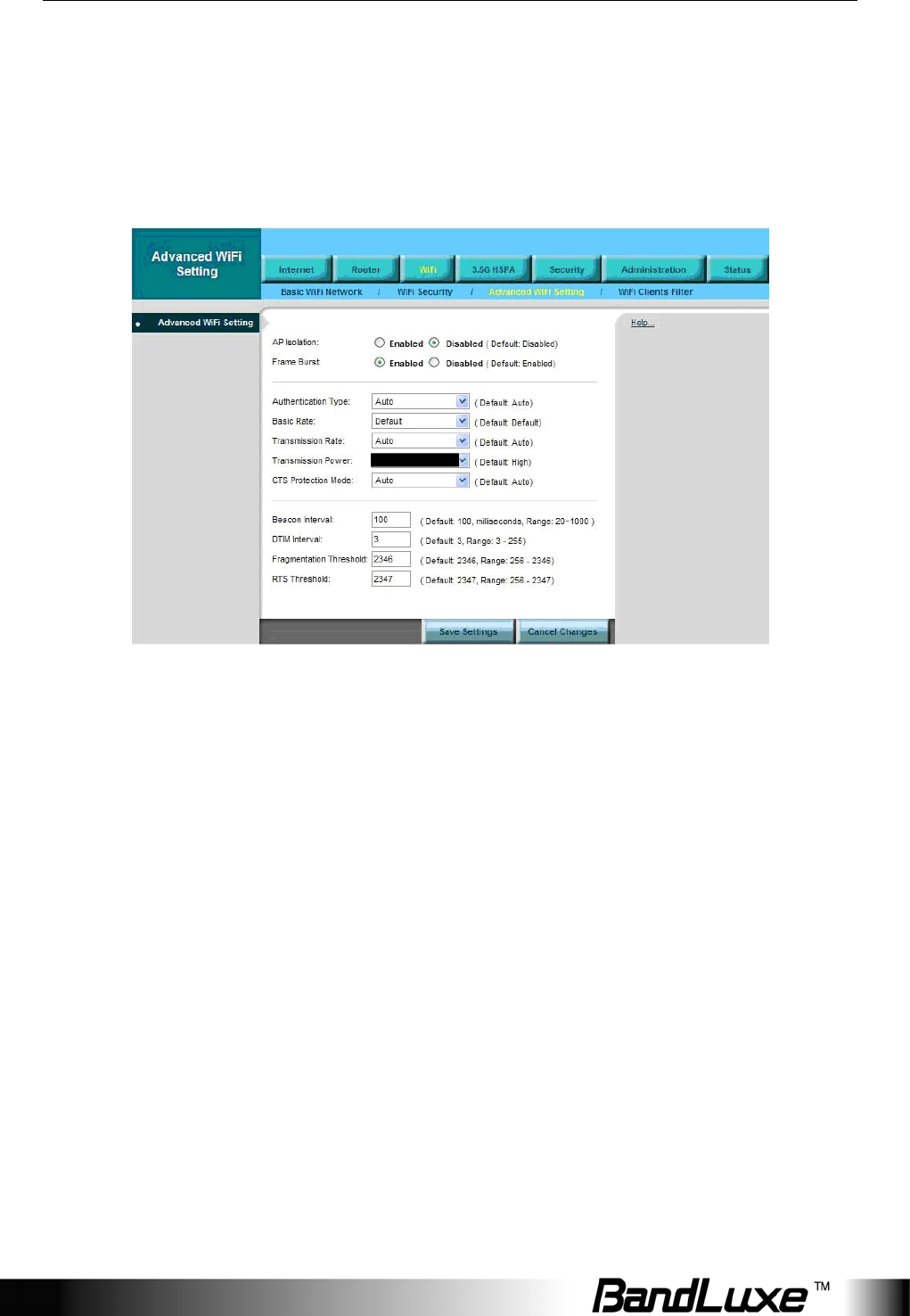

Advanced WiFi Setting
AP Isolation: This isolates all wireless clients and wireless devices on
your network from each other. Wireless devices will be able to
communicate with the Router but not with each other.
Frame Burst: Enabling this option may provide your network with greater
performance.
Authentication Type: The default is Open System authentication, where
the sender and the recipient do not use a WEP key for authentication. To
use a WEP key for authentication, select Shared Key.
Basic Rate: The Basic Rate setting is not actually one rate of
transmission but a series of rates at which the Router can transmit. The
Router advertises its Basic Rate to the other wireless devices in your
network, so they know which rates are used. The Router also advertises
that automatically selects the best rate for transmission. The default
setting is Auto, where the Router can transmit at all standard wireless
rates. The Basic Rate is not the actual rate of data transmission. If you
want to specify the Router’s rate of data transmission, configure the
Transmission Rate setting.
WiFi Setup
27
Transmission Rate: The rate of data transmission should be set
depending on the speed of your wireless network. You can select from a
range of transmission speeds.
CTS Protection Mode: CTS (Clear To Send) is a function used to
minimize collisions among wireless devices on a wireless local area
network (LAN). The default setting is Auto and the Router automatically
uses CTS Protection Mode when your Wireless-G products are
experiencing severe problems and are not able to transmit to the Router
in an environment with heavy traffic. This function boosts the Router’s
ability to catch all Wireless-B and Wireless-G transmissions, but it
severely decreases performance.
Beacon interval: Beacons are packets sent by an Access Point to
synchronize a wireless network. Specify a value. 100 is the default
setting.
DTIM Interval: The default setting for DTIM (Delivery Traffic Indication
Message) is 3. A DTIM is a countdown informing clients of the next
window for listening to broadcast and multicast messages.
Fragmentation Threshold: The fragmentation threshold, which is
specified in bytes, determines whether packets will be fragmented.
Packets exceeding the setting value will be fragmented before
transmission. 2346 is the default setting.
RTS Threshold: This value should remain at its default setting of 2347. If
inconsistent data flow is a problem, only a minor modification should be
made.
WiFi Setup
28
WiFi Clients Filter
WiFi Clients Filter
You can allow or deny specific users to access your wireless network by
using the WiFi Clients Filter.
Service: To use the WiFi Clients Filter, select Enabled. To disable it, select
Disabled.
Filtering By: You can filter users by two methods: Prevent the listed PCs from
accessing the wireless network, or Permit the listed PCs to access the wireless
network. Select the method you want.
Filtered Client List
Enter MAC addresses in the Filtered Client List section, and click Save Settings.
To display a list of network users, click Wireless Client List.
3.5G HSPA Setup
29
3.5G HSPA Setup

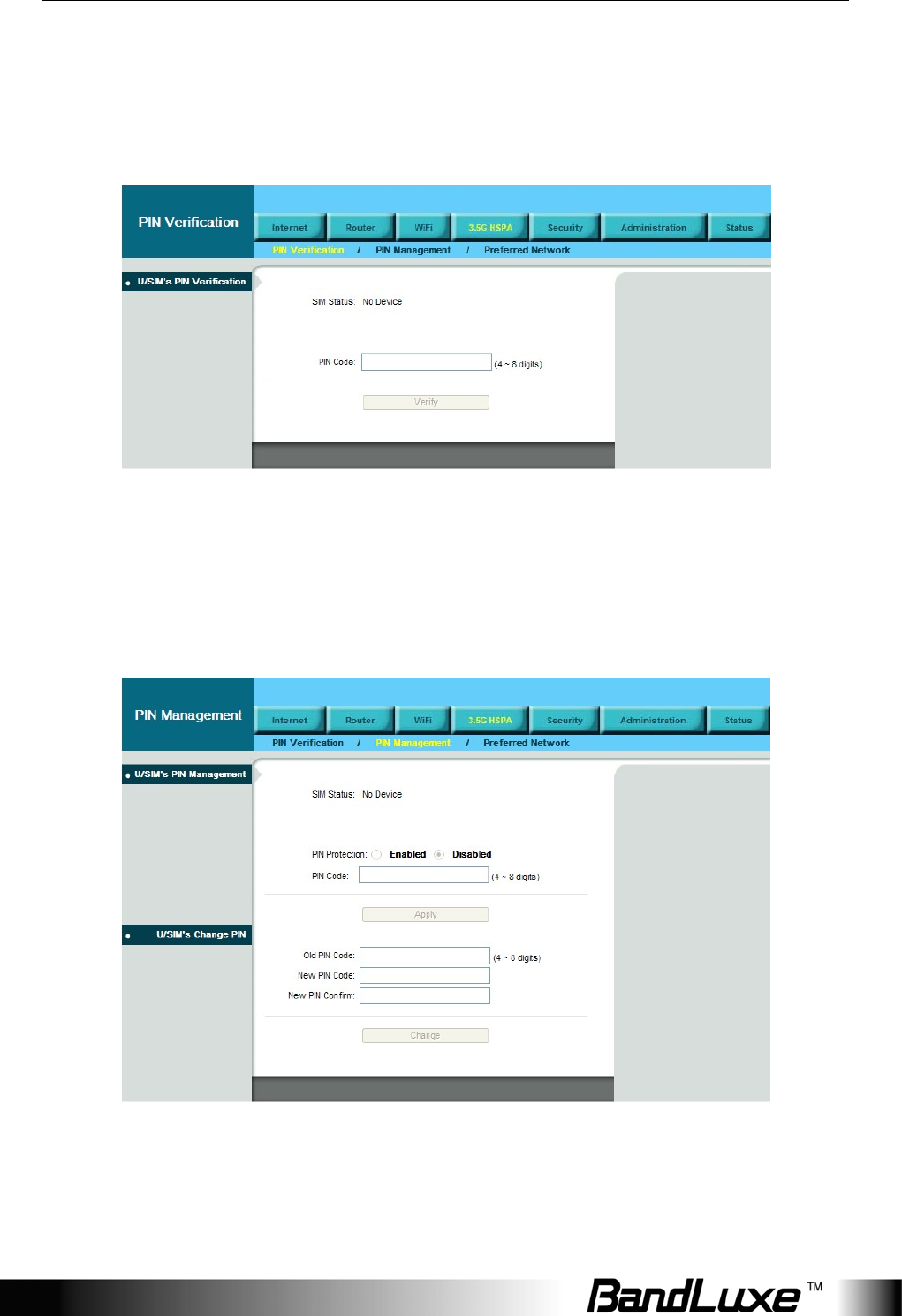

PIN Verification
After the Router is connected to the HSDPA ExpressCard, if your SIM
card PIN protection is enabled, you must enter the PIN code for
verification. Enter the code in the PIN Code field, and click Verify.
PIN Management
U/SIM's PIN Management
After your SIM card is verified, you can enable or disable the PIN protection
on your SIM card. Select Enabled or Disabled, and click Apply.
3.5G HSPA Setup
30
U/SIM's Change PIN
You can change the PIN code on the SIM card. Enter your original PIN
code in the Old PIN Code field, enter the new PIN code in the New PIN
Code field and the New PIN Confirm field, and click Change.
Preferred Network
Preferred Network
Network Type: In the drop-down menu, select the network type your SIM
card supports. If you do not know the network type, select Auto.
Frequency Band: Frequency band is the radio spectrum frequency
designated by the ITU for the operation of the GSM for mobile phones. To
accelerate the band search, choose one of the options from the
drop-down list according to your location (worldwide, Europe/Asia, or
North America). If you do not know the frequency band, select the
Worldwide.
3.5G HSPA Setup
31
Network Selection
To select the mobile network operator automatically, in the Select
Network field, select Auto. To select the operator from a list, select
Manual and click Rescan. The list is displayed below. Select the mobile
network operator you are currently using on your SIM card.
Security Setup
32
Security Setup

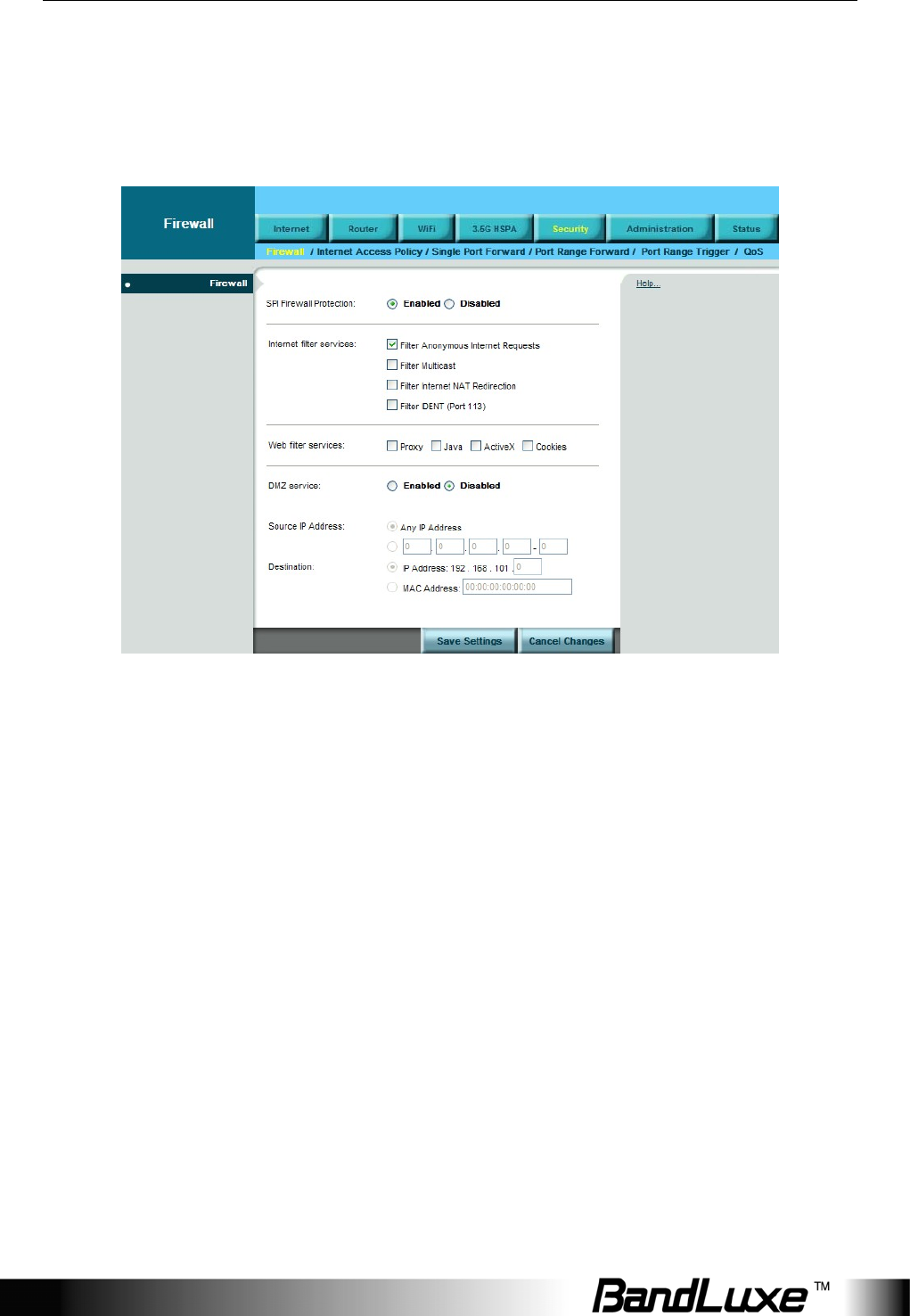

Firewall
Firewall
This tab is used to configure a firewall that filters out various types of
unwanted traffic on the Router’s local network.
SPI Firewall Protection
The SPI (stateful packet inspection) firewall is programmed to recognize
legitimate packets for different types of connections. Only packets
matching a known connection state will be allowed by the firewall; others
will be rejected.
Internet filter services
Filter Anonymous Internet Requests: This feature makes it more
difficult for outside users to work their way into your network.
Filter Multicast: Multicasting allows for multiple transmissions to specific
recipients at the same time. If multicasting is permitted, the Router allows
IP multicast packets to be forwarded to the appropriate computers.
Security Setup
33
Filter Internet NAT Redirection: To use port forwarding to block access
to local servers from local networked computers, select Filter Internet
NAT Redirection.
Filter IDENT (Port 113): This feature keeps port 113 from being scanned
by devices outside of your local network.
Web filter services
Using the Web Filters feature, you may enable up to four specific filtering
methods.
Proxy: Use of WAN proxy servers may compromise the Router's security.
Select this option to disable access to any WAN proxy servers.
Java: Java is a programming language for websites. Select this option to
disable Java. If you disable Java, you run the risk of not having access to
Internet sites created using this programming language.
ActiveX: ActiveX is a programming language for websites. Select this
option to disable ActiveX. If you disable ActiveX, you run the risk of not
having access to Internet sites created using this programming language.
Cookies: A cookie is data stored on your PC and used by Internet sites
when you interact with them. Select this option to disable cookies.
DMZ service
When a firewall is used, it is sometimes necessary to place some clients
(for example Internet games, video conferencing, or VPN connections)
outside of the firewall while leaving the others protected. You can do this
using a Demilitarized Zone. This feature allows you to specify the IP
address of the computers that are placed outside the firewall of your
network.
Source IP Address
If you want to allow any Internet IP address to access the exposed
computer, select Any IP Address. If you want to allow a specific IP
address or range of IP addresses to access the exposed computer, select
the second option and enter the IP address or range of IP addresses in
the fields provided.
Destination
Enter the IP address or MAC address of the computer you want to
expose.
Security Setup
34
Internet Access Policy
Access can be managed by a policy. Use the settings on this screen to
establish and access policies. To display a policy’s settings, select the
policy from the drop-down menu. To delete a policy, select the policy’s
number and click Delete This Policy. To view all the policies, click
Summary. To delete multiple policies, in the Summary screen, selecting
the policies and click Delete).
Security Setup
35
To create an Internet access policy:
1. Select a number from the Access Policy dropdown menu.
2. Enter a policy name in the field provided.
3. To enable the policy, select Enabled.

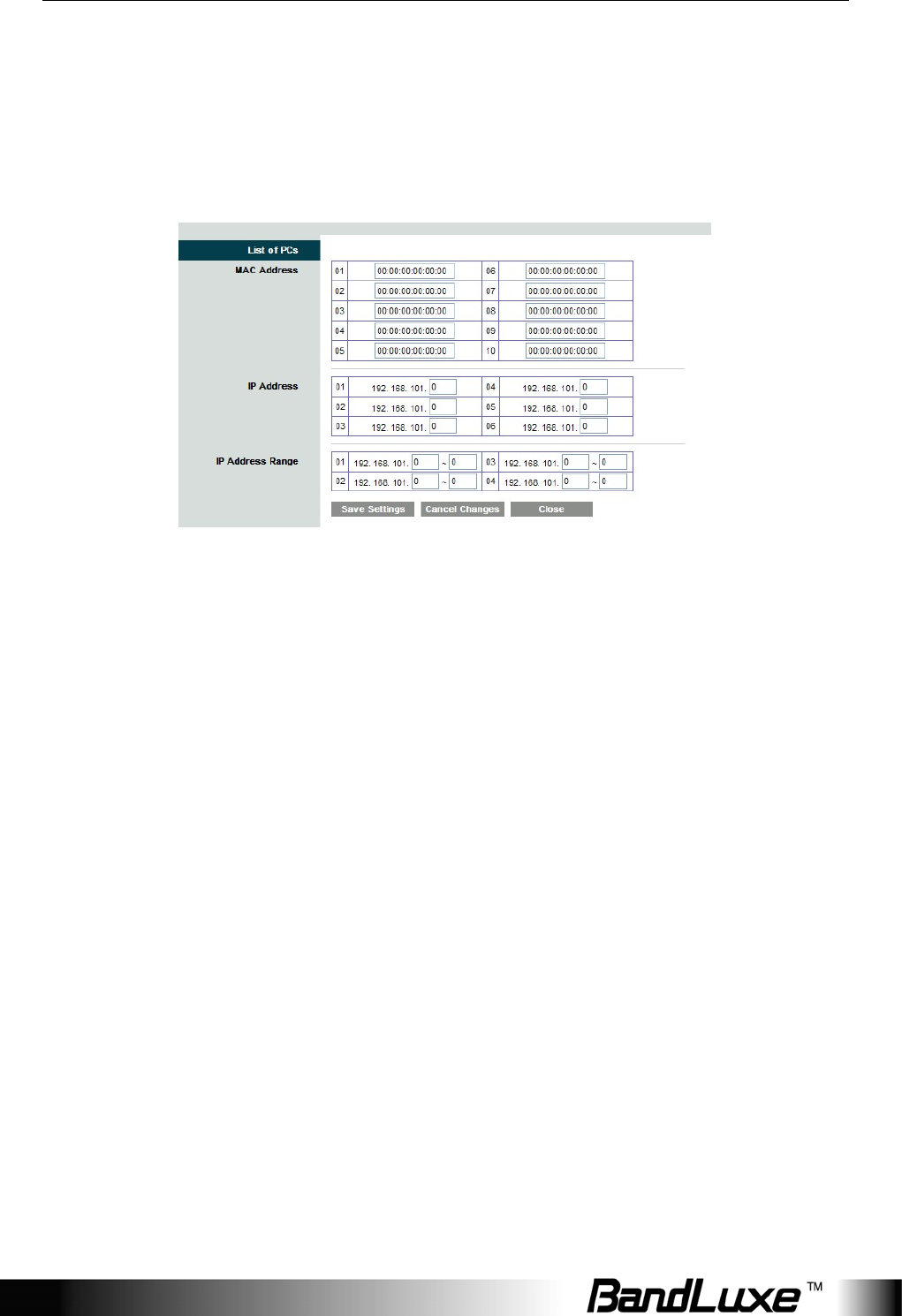

4. To select which PCs are affected by the policy, click Edit List. The List
of PCs screen appears. You can select a PC by MAC Address or IP
Address. You can also enter a range of IP Addresses if you want the
policy to affect a group of PCs. After making your changes, click Save
Settings to apply your changes or Cancel Changes to cancel your
changes. Then click Close.
5. Select the appropriate option, Deny or Allow, depending on whether
you want to block or allow Internet access for the PCs you listed on the
List of PCs screen.
6. Decide which days and what times you want this policy to be enforced.
Select the individual days during which the policy will be in effect, or
select Everyday. To set times for the policy, select 24 Hours, and
enter the times you want.
7. To filter websites by URL, enter URLs in the Website Blocking by
URL Address fields. To filter websites by keywords, enter keywords in
the Website Blocking by Keyword fields.
8. To filter access to various services accessed over the Internet, such as
FTP or telnet, select services in the Applications column, and click
Add to add them to the Blocked List. (You can only add up to 3
applications.) You can also add an application into the Applications
column. Enter the information in the Application Name, Port Range
Security Setup
36
and Protocol fileds, and click Add.

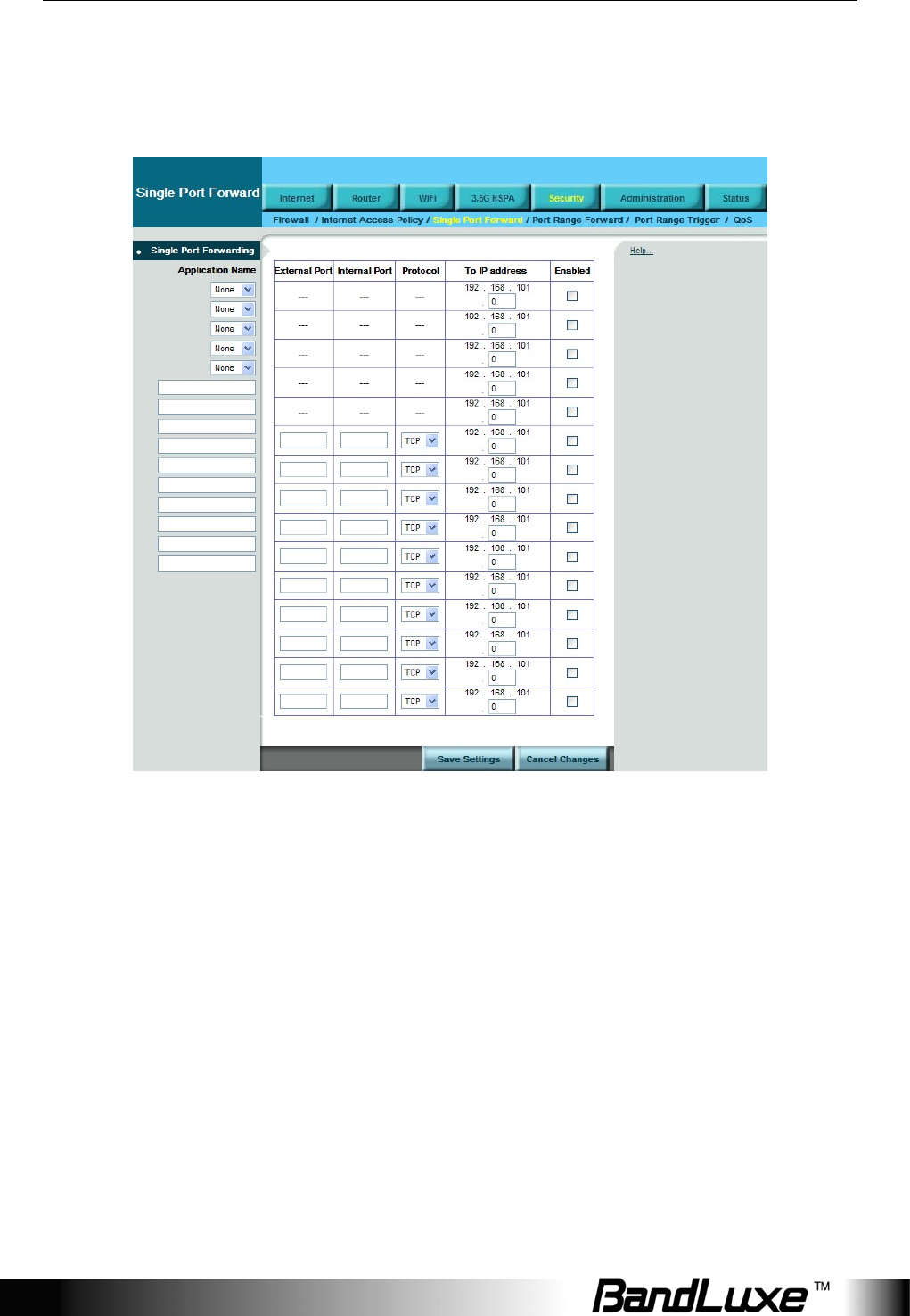

Single Port Forward
Single Port Forwarding
Port Forwarding allows you to set up public services on your network,
such as web servers, ftp servers, e-mail servers, and other specialized
Internet applications. To forward a port, enter the information in each field.
Application Name: You can select an application from the 10 preset applications
in the drop-down menu. For custom applications, enter the name of your application in
one of the available fields.
External Port: Enter the port number of external ports used by the server or
Internet application.
Internal Port: Enter the port number of internal ports used by the server or Internet
application.
Protocol: Select the protocol used for this application: TCP, UDP, or Both.
To IP address: For each application, enter the IP address of the PC running the
Security Setup
37
specific application.
Enabled: To enable port forwarding for the application, select Enabled.
To apply the changes, click Save Settings.
Port Range Forward
Port Range Forwarding
Port Range Forwarding allows you to set up public services on your
network, such as web servers, ftp servers, e-mail servers, and other
specialized Internet applications.
Application Name: Enter the name of your application.
Start - End Port: Enter the number that starts the port range in the left
field and the number that ends the range in the right field.
Protocol: Select the protocol used for this application: TCP, UDP, or
Both.
To IP address: For each application, enter the IP address of the PC
running the specific application.
Enabled: To enable port forwarding for the application, click the Enabled
checkbox to enable port forwarding for the relevant application.
To apply the changes, click Save Settings.
Security Setup
38

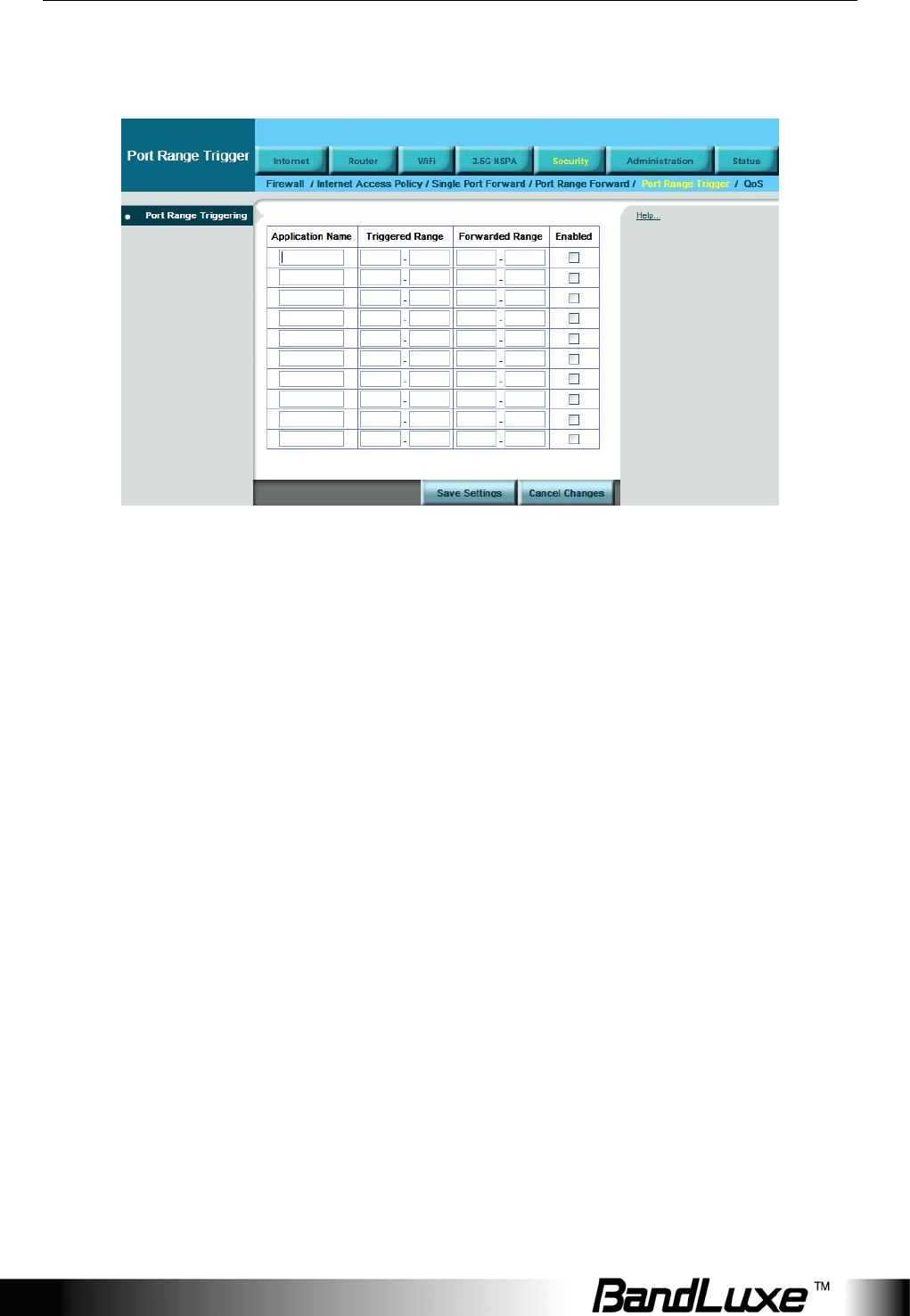

Port Range Trigger
Port Range Triggering
This feature allows the Router to watch outgoing data for specific port
numbers. The Router remembers the IP address of the computer that
sends the matching data, so that when the requested data returns
through the Router, the data is pulled back to the proper computer by way
of IP address and port mapping rules.
Application Name: Enter the application name of the trigger.
Triggered Range: For each application, enter the triggered port number
range. Check with the Internet application documentation for the port
number needed. Enter the starting port number of the Triggered Range in
the left field. Enter the ending port number of the Triggered Range in the
right field.
Forwarded Range: For each application, enter the forwarded port
number range. Check with the Internet application documentation for the
port number needed. Enter the ending port number of the Triggered
Range in the right field.
Enabled: To enable port triggering for the application, select Enabled.
Security Setup
39

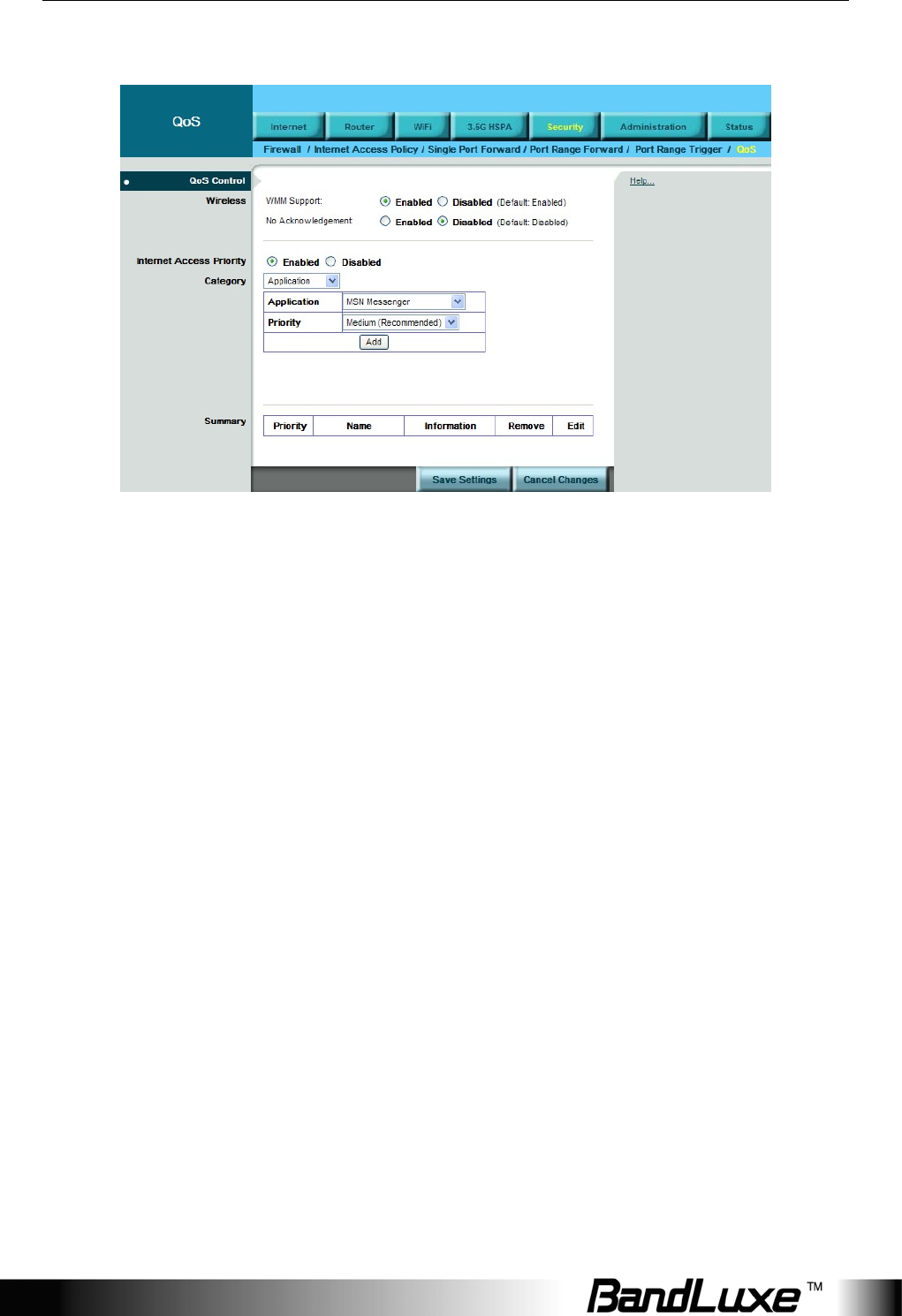

QoS
QoS Control
Quality of service is the ability to provide different priorities to different
applications, users, or data flows, or to guarantee a certain level of
performance to a data flow.
Wireless
WMM Support: If no devices on your network support WMM, select
Disabled. Otherwise, keep the default, Enabled.
No Acknowledgement: If the Router’s Acknowledgement feature is
disabled, the Router will not re-send data if an error occurs, then keep the
default, Disabled. Otherwise, select Enabled.
Internet Access Priority
You can set the Internet bandwidth priority for a variety of applications
and devices. There are four levels priority: High, Medium, Normal, and
Low. To use the Internet Access policies you set, select Enabled.
Category
There are four categories available. Select one of the categories and
proceed to the instructions for your selection.
To add an online games or applications:
Security Setup
40
1. Select the appropriate online games or applications.
2. Select the appropriate priority: High, Medium, Normal, or Low.
3. Click Add to save your changes.
To add a new online games or applications:
1. Select Add a New Game/Application.
2. Enter any name to indicate the name of the entry.
3. Enter the port range that the application will be using. You can have up to three
ranges to define for this bandwidth allocation. Port numbers can range from 1 to
65535.
4. Select the protocol TCP or UDP, or select Both.
5. Select the appropriate priority: High, Medium, Normal, or Low.
6. Click Add to save your changes.
To add an MAC address:
1. Enter a name for your device.
2. Enter the MAC address of your device.
3. Select the appropriate priority: High, Medium, Normal, or Low.
4. Click Add to save your changes.
To add a Voice Device:
1. Enter a name for your voice device.
2. Enter the MAC address of your voice device.
3. Select the appropriate priority: High, Medium, Normal, or Low.
4. Click Add to save your changes.
Summary
This lists the QoS entries you have created for your applications and
devices. Select Edit to edit an item or Remove to remove the item.
Preset items cannot be edited.
Administration Setup
41
Administration Setup

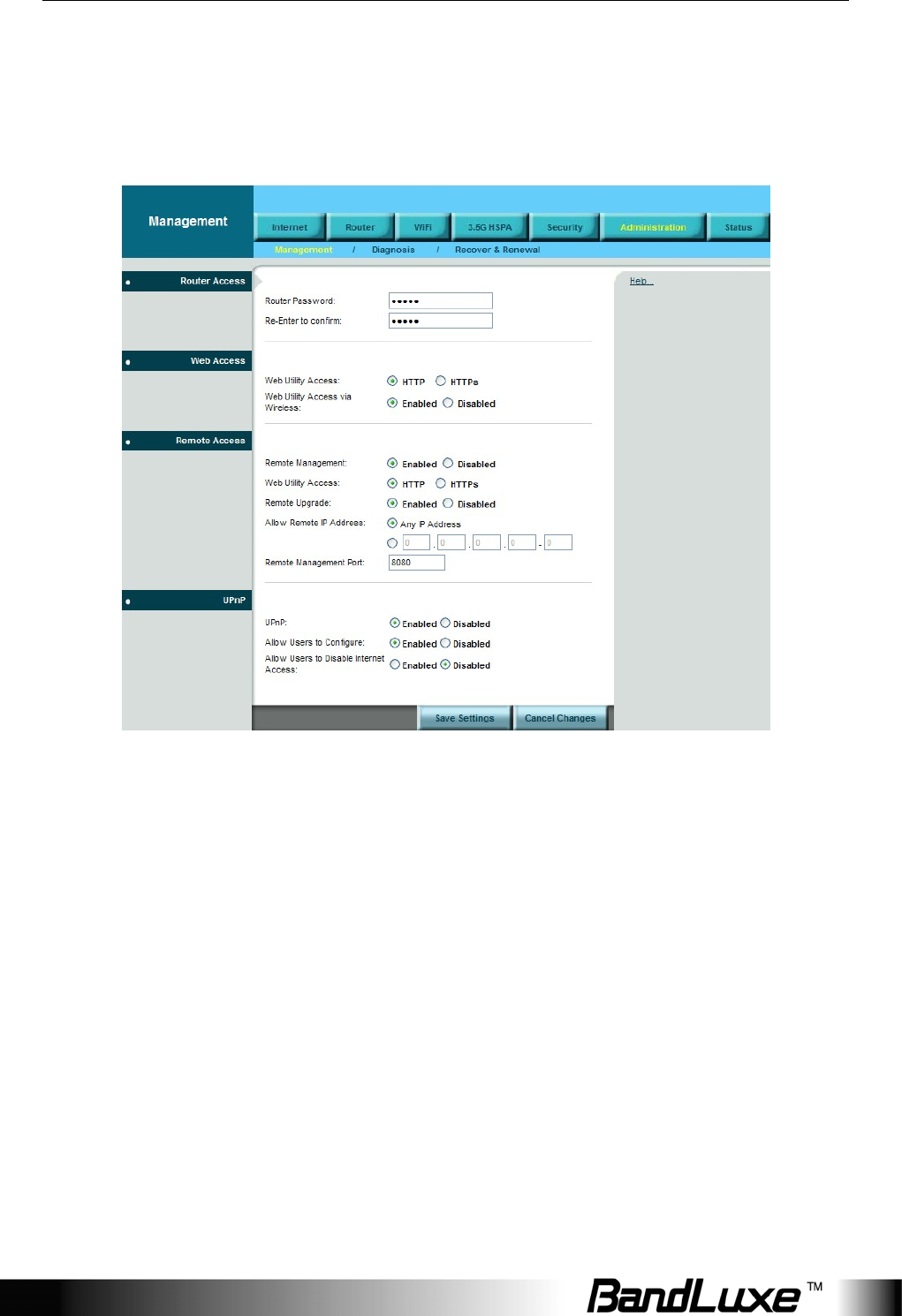

Management
Router Access
You can change the Router’s password here. Enter the password you want to set in
the Router Password field, and re-enter it in the Re-Enter to confirm field.
Then click Save Settings.
Web Access
Web Utility Access: HTTP (HyperText Transport Protocol) is the
communications protocol used to connect to servers on the World Wide
Web. HTTPs uses SSL (Secured Socket Layer) to encrypt data
transmitted for higher security.
Web Utility Access via Wireless: If you are using the Router in a public
domain where you are giving wireless access to your guests, you can
disable wireless access to the Router’s web-based utility. The wireless
access to the Router web-based utility can be disabled. If you disable the
Administration Setup
42
setting, you are only able to access the web-based utility via a wired
connection.
Remote Access
Remote Management: To access the Router remotely, from outside the
network, select Enabled.
Web Utility Access: Choose to access the Router via HTTP or HTTPs.
Remote Upgrade: To enable remote upgrade of the Router, select
Enabled.
Allow Remote IP Address: To allow any IP address to access to access
the Router, select Any IP Address. To allow a specific range of IP
addresses to access the Router, enter IP addresses.
Remote Management Port: Enter the port number that will be open to
outside access.
UPnP
UPnP: Universal Plug and Play (UPnP) is a set of computer network
protocols that allows compatible devices to be ready to work without any
configuration once they are connected to the network.
Allow Users to Configure: To enable manual changes to the Router
while using the UPnP feature, keep the default setting, Enabled. To
disable manual changes, select Disabled.
Allow Users to Disable Internet Access: To prohibit users from
accessing the Router web-based utilities, keep the default setting,
Disabled. Otherwise, select Enabled.
Administration Setup
43
Diagnosis
Log
The Router can keep logs of all traffic for your Internet connection. To
monitor the network, select Enabled.
You can view logs by clicking View Log. If you want to view logs in a
browser, enter an IP address in the Logviewer IP Address field. You can
enter this IP in a browser to view logs.
Ping Test
To check the status of a connection, enter the IP address or URL that you
want to ping in the IP or URL Address field, define the packet size you
want to use in the Packet Size field, And select the number of times you
wish to ping: 5, 10, 15, or Unlimited. Click Start Test to begin the ping
test. A new screen displays the test results.
Traceroute Test
To test the performance of a connection, enter a URL or IP address in the
IP or URL Address field, and click Start Test. A new screen displays the
test results.
Administration Setup
44
Recover & Renewal
Backup and Restore
Backup Configurations
Click Backup Configurations to back up your Router's current
configuration. In the file dialog box, select a location and file name for the
configuration file.
Restore Configurations
Click the Restore Configurations. In the file dialog box, click Browse to
locate the configuration file, and click Restore.
Factory Defaults
To reset the Router's configuration settings to the default values, click
Restore Factory Default.
APN Update
To update the APN database, click Get Latest APN Database. In the
Administration Setup
45
dialog box, click Start.
Router Upgrade
To upgrade the Router's firmware, click Browse and locate the latest
firmware upgrade file. After the file is located, click Start Upgrade. The
upgrade progress is displayed. You can download the latest firmware
from www.bandluxe.com.
; Warning: Upgrading firmware may take a few minutes; do not
turn off the power or press the Reset button during upgrade.
Status
46
Status
3.5G HSPA & Internet
Signal Quality
When you access the Internet via 3G or 3.5G, click Refresh to show the
signal strength.
U/SIM Status
Your SIM card verification status is shown in this area. Clicking Pin
unlock displays the PIN Verification tab.
Register Network
Network Name: This shows the name of your network operator.
Network Technology: This shows the network technology you are
currently using.
Home/Roaming: This indicates whether the Router is in Home or
Status
47
Roaming status.
Internet Connection
Connection Type: This indicates the type of Internet connection you are
using.
Internet IP Address: This is the Router's IP Address, as seen on your
local network.
Subnet Mask and Default Gateway: The Router’s Subnet Mask and
Default Gateway address are displayed here for DHCP and static IP
connections.
DNS1-3: The DNS (Domain Name System) IP addresses currently used
by the Router are shown here.

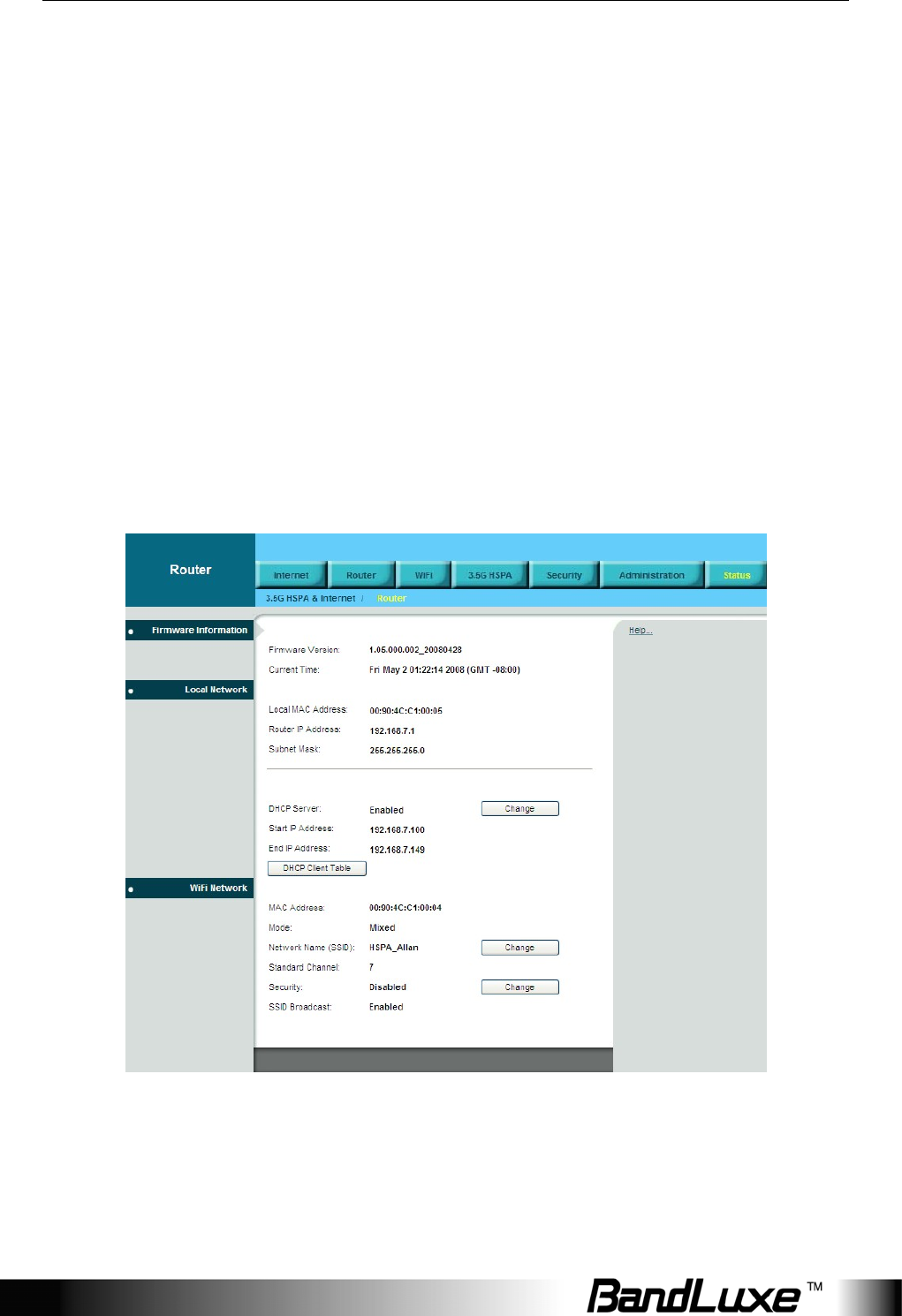

Router
Firmware Information
Firmware Version: This is the Router’s current firmware.
Current Time: This shows the time, as you set on the Optional tab.
Status
48
Local Network
Local MAC Address: This is the Router’s MAC Address, as seen by your
ISP
Router IP Address: The Router’s IP Address that appears on your local
network.
Subnet Mask: This shows the current subnet mask being configured for
your local network.
DHCP Server: The status of the DHCP server function is displayed here.
Start IP Address: This shows the beginning of the range of IP Addresses
used by devices on your local Ethernet network.
End IP Address: The end of the range of IP Addresses used by devices
on your local Ethernet network is shown here.
DHCP Client Table: Click this button to open a screen showing you
which PCs are utilizing the Router as a DHCP server.
WiFi Network
MAC Address: This is the Router’s MAC Address, as seen on your local
wireless network.
Mode: This displays the wireless mode (Mixed, Wireless-G Only,
Wireless-B Only, or Disabled) used by the network.
Network Name (SSID): This displays the wireless network name or
SSID.
Standard Channel: This displays the channel on which your wireless
network is broadcasting.
Security: This shows the security method you are using.
SSID Broadcast: This shows whether the Router's SSID Broadcast
function is on or off.
Appendix A: Specification
49
Appendix A: Specification
Form Factor
Dimension
(L x W x H, mm) 153 x 103 x 24 mm
Weight (g) 160g typical
Interface
ExpressCard/34
interface for HSPA
data modem
Supported
ExpressCard / USB
interface switch Manual switch
Wireless
SecureEasySetup
Button
Yes
LAN port RJ45, 1 port
WAN port RJ45, 1 port
Power plug Yes
Reset button Yes
Connectivity and Data Speed
WLAN 802.11b/g
LAN Ethernet
Antenna
WiFi Antenna 2 embedded antenna @ 2.4-2.5GHz 1 Dipole Antenna and
1 Monopole Antenna Peak Gain 4dBi
Appendix A: Specification
50
Protocol
Default connection "3.5G HSPA First" or "Ethernet First" customizable
Automatic WAN
connection fail-over Supported
Fixed WAN
connection DHCP, Static IP, PPPoE, PPTP, L2TP
UMTS/HSPA
connection
Connection On Demand, Connection when available, Auto
APN matching with USIM
Security
Multiple VPN passthrough (IPsec, PPTP, L2TP), Internet
access restriction, Firewall, DoS Prevention, Traffic and
Event Logging
NAT-NAPT
Port forwarding, Port triggering, DMZ,Multicast
Pass-Through, Static Routing, Dynamic Routing (RIP 1,
RIP2), QoS
DNS DNS Agent, DDNS
ALG Support
Yahoo messenger, AOL messenger, MSN messenger, ICQ,
RealAudio, NetMeeting, Telnet, FTP, Microsoft Traceroute,
Quake, IRC, Microsoft PPTP Client
Other Features IPv4, TCP, UDP, ICMPv4, ARP, DHCP Server/Client,
HTTPs, NTP, TFTP server, MAC Clone
Wireless LAN
802.11b data rate 1/2/5.5/11 Mbps, Auto or Fixed Rate
802.11g data rate 6/9/12/18/24/36/48/54 Mbps, Auto or Fixed Rate
Transmit Power IEEE 802.11g: 15 dBm IEEE 802.11b: 18 dBm
Receive Sensitivity IEEE 802.11 g: -65dBm @ 54Mbps PER=g 10% IEEE
802.11 b: -79+/-2dBm @ 11 Mbps PER^8%
Security
WPA2/WPA/AES/TKIP, WPA/WPA2 PSK mode, 802.1x
(identify all EAP types supported), 64/128 bits WEP
Encryption, MAC address filtering, open system and shared
key authentication, SSID Broadcast Disable
Other Features
Support up to 32 simultaneous wireless users, Broadcom
Wireless SES security implementation , WME, WDS
bridge/repeater modes
Status Indication
LED UMTS, Roaming, SMS, WLAN, Ethernet, Power
Appendix A: Specification
51
Accessories
Power adaptor Supported
Power Consumption
Voltage 12V DC
Current 1A max.
Environment
Operation
Temperature 0°C~45°C (32°F-113°F)
Storage Temperature -20°C~70°C (-4°F-158°F)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Conformance of Environmental Regulation
RoHS
Appendix B: Important Safety Information and Glossary
52
Appendix B: Important Safety
Information and Glossary
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE Directive
1999/5/EC:
- EN60950-1:2001 A11:2004
Safety of Information Technology Equipment
- EN50385 : (2002-08)
- Product standard to demonstrate the compliance of radio base stations and fixed
terminal stations for wireless telecommunication systems with the basic
restrictions or the reference levels related to human exposure to radio frequency
electromagnetic fields (110MHz - 40 GHz) - General public
- EN 300 328 V1.7.1: (2006-10)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using spread spectrum modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
- EN 301 489-1 V1.6.1: (2005-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements
- EN 301 489-17 V1.2.1 (2002-08)
- Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5
GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for
use in all EU member states and EFTA countries, except in France and Italy where
restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in
order to obtain authorization to use the device for setting up outdoor radio links and/or
for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some
areas the RF output power may be limited to 10 mW EIRP in the frequency range of
Appendix B: Important Safety Information and Glossary
53
2454 – 2483.5 MHz. For detailed information the end-user should contact the national
spectrum authority in France.
0560
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve
shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende
udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og
øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät
[Gerätetyp] in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme
[seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of
equipment] is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el
[clase de equipo] cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of
equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ
ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type
d'appareil] est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di
apparecchio] è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē,
ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK
būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type]
atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van
toestel] in overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG.
Appendix B: Important Safety Information and Glossary
54
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel
tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest
zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está
conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z
bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment
= laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Appendix B: Important Safety Information and Glossary
55
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter, except the tested 3.5G HSDPA ExpressCard (FCC ID:
UZI-100). Other 3.5G ExpressCard have not been verified and may not comply with
FCC RF exposure limit and shall not be use with this product.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the intended
destination. The firmware setting is not accessible by the end user.
Appendix B: Important Safety Information and Glossary
56
Glossary
2G: Second-generation mobile networking technology. Represents a switchover from
analog to digital; most 2G networks use GSM.
3G: Third-generation mobile networking technology that enables simultaneous
transfer of voice and non-voice data; most 3G networks use WCDMA.
3.5G: A more recent standard of mobile networking technology; generally uses
HSDPA.
APN (Access Point Name/Network): Provides GPRS routing information. Consists
of:
Network ID: Identifies the external service requested by a GPRS user.
Mobile network operator ID: Specifies routing information.
ARFCN (Absolute Radio Frequency Channel Number): The specific ID numbers
for all radio channels used in cellular mobile communications.
bps (bits per second): How data flow is measured.
DNS (Domain Name System): Helps route network traffic by making the addressing
process more user-friendly.
DHCP (Dynamic Host Configuration Protocol): How devices obtain IP addresses
from a server.
DUN (Dial-Up Network): Windows component that enables online access via a
modem.
EDGE (Enhanced Data GSM Environment/Enhanced Data for Global Evolution):
Advanced GPRS that delivers multimedia and other data needing greater
bandwidth at up to 237 kbps.
GPRS (General Packet Radio Service): Delivers data in packets at up to 86 kbps.
GSM (Global System for Mobile Communications): The most popular cellular
network, mostly operates in 850-900 or 1800-1900 MHz; the primary 2G system.
IMEI (International Mobile Equipment Identity): A number unique to each
GSM/UMTS device that can be used block network access by a stolen mobile
device.
IP (Internet Protocol): Routes packets over a network.
HSDPA (High Speed Downlink Packet Access): Advanced WCDMA that delivers
bandwidth intensive data at up to 7.2Mbps; typically associated with 3.5G.
Kbps (Kilobits per second): A data flow measure; 1024 bits/second.
LAN (Local Area Network): A data network with limited range but good bandwidth.
Mbps (Megabits per second): A data flow measure; 1,048,576 bits/second.
PPP (Point-to-Point Protocol): An internet connection method.
Appendix B: Important Safety Information and Glossary
57
PIN (Personal Identity Number): Four to eight digital numbers SIM card security
code; allows access to the carrier’s network.
Rx: Shorthand for Reception.
SIM (Subscriber Identity Module): A small card that contains key mobile device
identification, subscription and contact information.
SMS (Short Messaging Service): Allows text messages of up to 160 characters.
Tx: Shorthand for Transmission.
WCDMA (Wideband Code Division Multiple Access): Advanced EDGE that
supports 384kbps data flow. Most 3G networks use this standard; aka UMTS.
