BandRich W120 Drawing Board User Manual Manual English
BandRich Inc. Drawing Board Manual English
BandRich >
User Manual
The Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. T
his equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may cause harmful interference to
radio communication. However, there is no guarantee that interference will not occur
in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one of more of the following measures: -
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced Radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change or
modifications not expressly approved by the party responsible for compliance could void yo
ur authority to
operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
1
This device may not cause harmful interference and
2 This device must accept any interference received, including interference that may cause undesired
operation.
The antenna used for this transmitter must not be collocated or operation in conjunction
with any other antenna or transmitter.
Notice : The changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change
to the antenna or the device is permitted. Any change to the antenna or the device could result
in the device exceeding the RF exposure requirements and void user’s authority to operate
the device.
3. After finishing pairing, you will be able to upload your screenshot to your devices or synchronize
the machine’s screen across your devices.

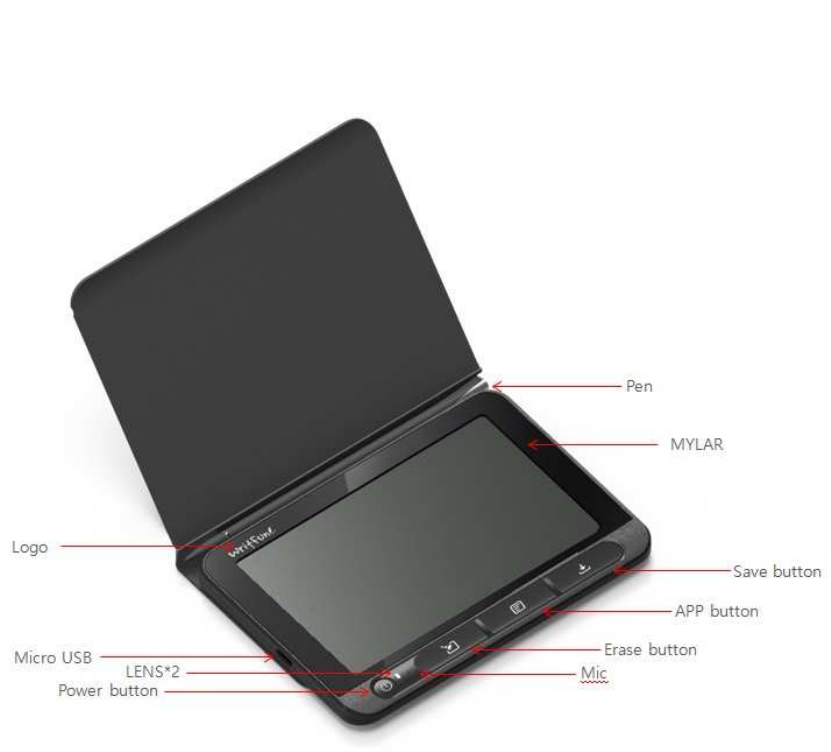

Introduction
1 Micro USB charging hole
2 power indicator ● Green light on - power on/ fully charged
● Red light on - charging
● Red light blinking - low battery power
● Green light blinking - uploading via USB
cable
3 Connection status
indicator (Blue light)
● Blue light on - connected
● Blue light blinking - data uploading
● Blink once - Bluetooth start connecting
4 Power button Press to turn on machine
5 Erase button Press to erase the screen
6 APP button
7 Upload button Press to upload screenshot
8 Writing pen
9 Reset button Insert a paperclip to force shut down machine.
