User Manual

Guide
EarSet 2
3507554 UG01 EarSet 2 Global_MULTI.indd 1 27-03-2006 15:33:09
3507554 UG01 EarSet 2 Global_MULTI.indd 2 27-03-2006 15:33:17
Contents 3
Contents
English, 4
Français, 14
Español, 24
3
3507554 UG01 EarSet 2 Global_MULTI.indd 3 27-03-2006 15:33:18
English
Introducing EarSet 2
EarSet 2 is a headset equipped
with Bluetooth wireless
technology for hands-free call
handling via a mobile phone,
such as Serene, or other
products with Bluetooth
wireless technology.
Make and receive calls, transfer
calls to and from the mobile
phone, and charge the headset
in the enclosed charger. Place the
lid on the charger and it
becomes a practical carrying
case.
Refer to the guide enclosed
with your mobile phone for
detailed information about
display messages, as these vary
from phone to phone.
(A) … Ear hook. Tilt up and down
until the speaker fits your ear.
(B) … Microphone arm. Rotate in
to switch the headset off, and
out to switch it on.
(C) … Switch. Push up and down
to adjust volume. Press or push
to answer an incoming call. Press
and hold to redial the last dialled
number.
(D) … Indicator light. Shows the
state of the headset.
(E) … Ear pad. Put the ear pad on
the speaker for greater listening
comfort.
A
C
D
CB
E
4
3507554 UG01 EarSet 2 Global_MULTI.indd 4 27-03-2006 15:33:19
Indicator light on the headset
The indicator light on the headset
(D) informs you about the current
state of the headset. The signals –
which can only appear while the
headset is on – are explained below:
Light off … No power. Charge the
battery as described in ‘Charge
the headset battery’.
Flashing green, slow … Ready for
use.
Flashing green, rapid … Incoming
or active call.
Flashing red, slow … Ready for use,
but the battery requires charging.
Flashing red, rapid … Indication
during an incoming or active call
that the battery requires charging.
The indicator light flashes red when
there is less than five minutes of
talk time left.
Sound feedback
Beep sounds inform you about the
state of the phone. The sounds and
situations are described below.
One beep
– Limit for speaker volume reached
– Call rejected
– Redial call started
Two beeps
– Call audio on in the headset
(rising tone)
– Call audio off in the headset
(falling tone)
Repeating beep
– Battery low. Repeats three times
at thirty second intervals
– Microphone muted. Repeats
continuously at 1.5 second
intervals
5
3507554 UG01 EarSet 2 Global_MULTI.indd 5 27-03-2006 15:33:19
>> English

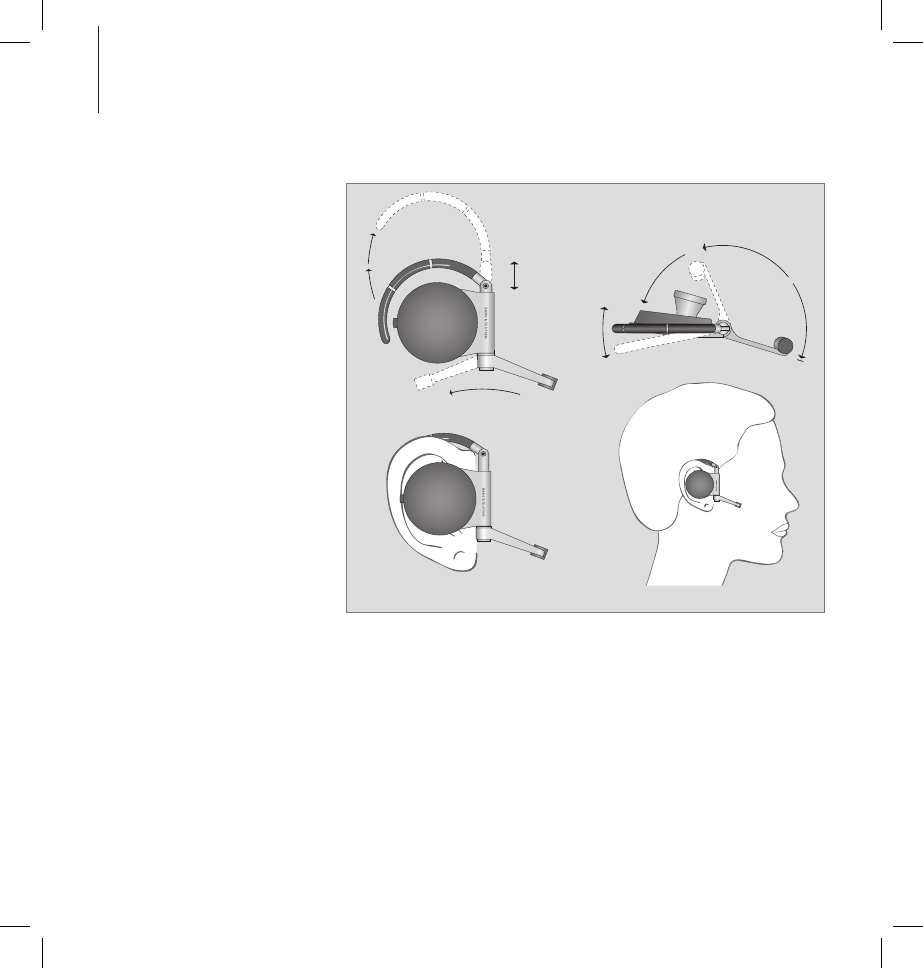

Wear the headset
> Fold the microphone arm out as
shown. This switches on the
headset.
> Place the speaker in your ear,
adjusting the height and angle of
the ear hook as necessary. Make
sure that the microphone always
points towards your mouth. This
ensures the best sound quality.
EarSet 2 is intended for use in dry,
domestic environments only,
within a temperature range of
10–40ºC (50–104ºF).

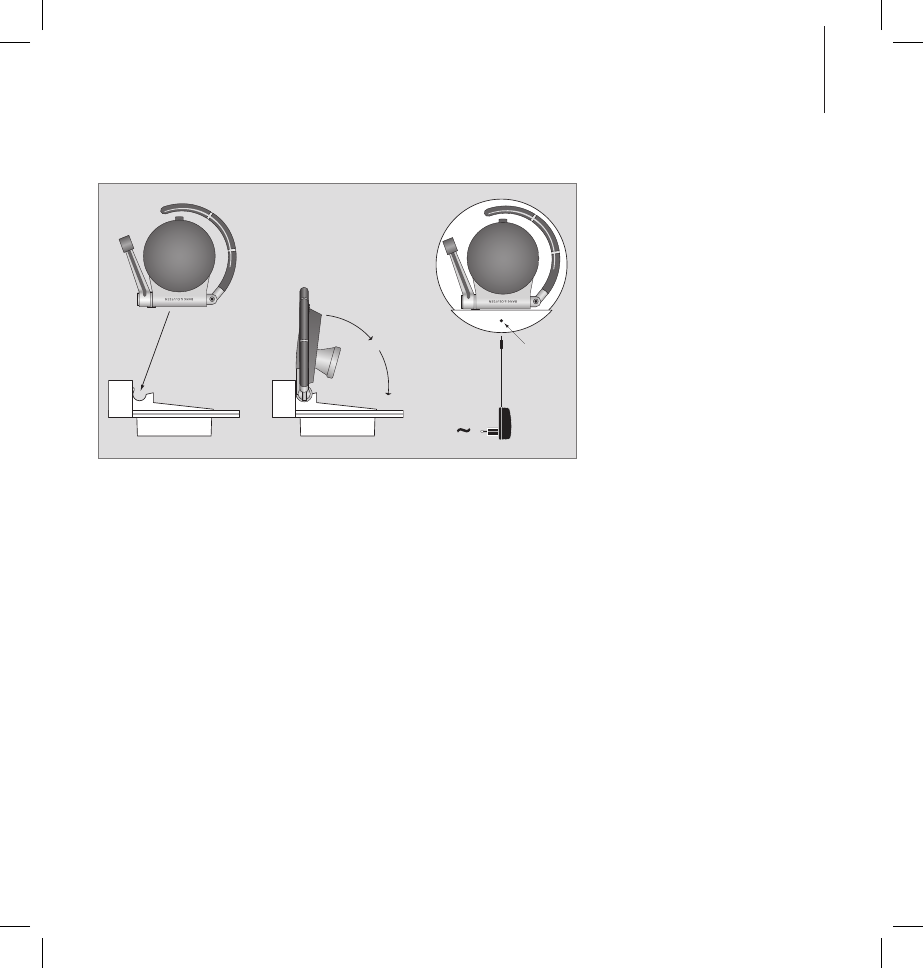

Charge the headset battery
If the headset requires charging,
this occurs automatically when the
headset is placed in the charger.
About charging …
– The charger must be connected
to the power outlet.
– It takes approximately three
hours to fully charge the battery.
– The minimum talk-time per
charge is approximately four
hours.
– Standby time per charge is
approximately 100 hours.
Indicator light on the charger
The indicator light on the charger
(F) informs you about the current
state of the charger.
Light off … Headset not connected
to charger.
Steady red … Charging in progress.
Steady green … Charging
complete.
6
3507554 UG01 EarSet 2 Global_MULTI.indd 6 27-03-2006 15:33:20
WARNING! For use only with
the power supply included with
the product!
Manufacturer: Salcomp
ID-nummer: 8040017, 8040018,
8040020, 8040022, 8040023 or
8040024.
You can always place the headset
in the charger after use, even if the
battery does not need recharging.
Leaving the headset in the charger
does not reduce the lifetime of the
battery.

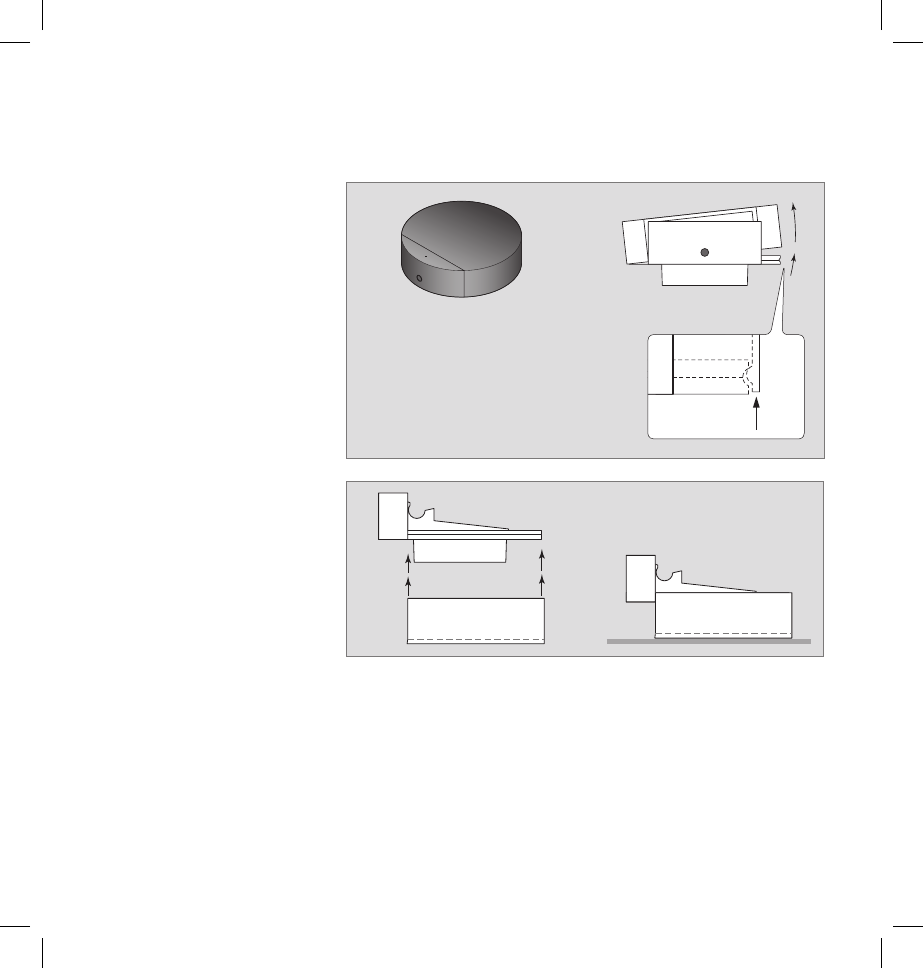

TIP: If you do not wish to use the
charger as a carrying case, you can
use the lid as a table stand. Place
the lid on the table with the top
side down and place the charger in
the lid.
7
3507553 UG01 EarSet 2 EU_multi.indd 7 27-03-2006 15:31:56
>> English
Register the headset to your
mobile phone
To be able to use the headset, you
must first register it to a mobile
phone with Bluetooth or to a
similar device with a hands-free
profile.
You can only register the headset
to one mobile phone or device at a
time.
To register the headset …
> Switch on the mobile phone.
> If you are registering the headset
for the first time, fold the
microphone arm out. This
switches on the headset. The
indicator light flashes red and
green.
> Activate the search function on
your mobile phone as described
in the guide enclosed with the
phone. When the mobile phone
finds the headset, the headset is
identified as EarSet 2 in the
mobile phone’s display.
> If you are prompted for a
pincode by your mobile phone,
enter 0000. The headset is now
registered to the phone.
> If registration fails, switch off the
headset and repeat the
procedure.
Register the headset to a new
mobile phone
> Switch on the mobile phone. Do
the next three steps in five
seconds or less.
> Press and hold the switch.
> Fold the microphone arm out.
> When the indicator light flashes
red and green, release the
switch.
> Activate the search function on
your mobile phone as described
in the guide enclosed with the
phone. When the mobile phone
finds the headset, the headset is
identified as EarSet 2 in the
mobile phone’s display.
> If you are prompted for a
pincode by your mobile phone,
enter 0000. The headset is now
registered to the phone.
> If registration fails, switch off the
headset and repeat the
procedure.
8
3507554 UG01 EarSet 2 Global_MULTI.indd 8 27-03-2006 15:33:21
Make and answer calls
There are several ways to make calls.
This depends on which mobile
phone you use. Refer to the guide
enclosed with your mobile phone
for further instruction.
Make sure that the headset is
switched on. This is done by
folding the microphone arm out.
Ways to make a call …
– Make the call on your mobile
phone. With some models, the
call audio is automatically
transferred to the headset. With
others, you must transfer the call
audio manually. A beep sounds
from the headset when the audio
is transferred.
– If your mobile phone or device
supports voice activated calls,
press the switch to activate the
function.
– If your mobile phone or device
supports redial, press and hold
the switch for at least 1.5
seconds to redial the last dialled
number.
Answer a call …
When an incoming call is registered,
the mobile phone and headset start
ringing.
> To answer the call, push or press
the switch. A beep sounds from
the headset when the call audio
is connected.
> To reject an incoming call, press
and hold the switch until a beep
sounds in the headset.
To end a call …
There are several ways to end a call.
– Press the switch.
– Fold the microphone arm in.
– End the call manually on your
mobile phone.
A beep sounds in the headset
when the call is ended.
When using the headset, make sure
the mobile phone is no further than
10 m (30 ft) from the headset.
To transfer calls between the
mobile phone and headset …
> To transfer a call from your mobile
phone to the headset, press the
switch. A beep sounds from the
headset when the call audio is
connected.
> To transfer a call from the head-
set back to the phone, use the
mobile phone’s transfer function.
It is only possible to use Call Waiting,
place calls on hold and switch
between calls on mobile phones
that support these services and
functions.
9
3507554 UG01 EarSet 2 Global_MULTI.indd 9 27-03-2006 15:33:21
Volume and the microphone
During calls, you can adjust the
volume by pushing the switch up
or down. There are eight possible
settings. When you reach the
upper or lower limit for sound
volume, a beep sounds from the
headset.
The selected volume level is used
for all subsequent calls, but the
maximum volume setting that can
be stored is 6.
To switch the microphone off
during a call, press and hold the
switch until you hear a beep from
the headset. A repeating beep is
heard until the microphone is
switched back on.
To switch the microphone back on,
press or push the switch.
Adjust the headset ringer level
During standby, you can adjust the
headset ringer level by pushing the
switch up or down. There are eight
possible settings. After each
adjustment, the ringer melody is
played once.
The selected ringer level is used for
all subsequent calls.
>> English
10
3507554 UG01 EarSet 2 Global_MULTI.indd 10 27-03-2006 15:33:21
Mount the charger on the wall
If you choose, you can hang the
charger on a wall, using the charger
lid to mount the charger on the
enclosed wall bracket.
65 mm
2.56"
29 mm
1.14"
29 mm
1.14"
G
G
(1)
(2)
11
1 2 3
4 5 6
3507554 UG01 EarSet 2 Global_MULTI.indd 11 27-03-2006 15:33:23
For the US and Canadian
markets only!
CAUTION: This equipment has
been tested and found to comply
with the limits for a class B digital
device, pursuant to part 15 of the
FCC Rules. These limits are
designed to provide reasonable
protection against harmful
interference in a residential
installation.
Operation is subject to the
following two conditions:
1 This device may not cause
harmful interference, and
2 This device must accept any
interference received, including
interference that may cause
undesired operation
Warning: Changes or modifications
made to this equipment not
expressly approved by Bang &
Olufsen may void the FCC
authorization to operate this
equipment.
This equipment generates, uses
and can radiate radio frequency
energy and, if not installed and
used in accordance with the
instructions, may cause harmful
interference to radio
communications. However, there is
no guarantee that interference will
not occur in a particular
installation. If this equipment does
cause harmful interference to radio
or television reception, which can
be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between
the equipment and receiver.
– Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
– Consult the retailer or an
experienced radio/TV technician
for help.
The radiated output power of
Bang & Olufsen Earset 2 is far
below the FCC radio frequency
exposure limits. Nevertheless, the
Bang & Olufsen Earset 2 shall be
used in such a manner that the
potential for human body contact
during normal operation is
minimized.
For the Canadian market only!
This class B digital apparatus meets
all requirements of the Canadian
Interference-Causing Equipment
Regulations and with RSS-210 of
Industry Canada.
CAUTION: To prevent electric
shock, do not use the polarized
plug, attached to this apparatus,
with an extension cord, receptacle
or other outlet unless the blades
can be fully inserted to prevent
blade exposure.
NOTICE: The Industry Canada label
identifies certified equipment. This
certification means that the
equipment meets
telecommunications network
protective, operational and safety
requirements as prescribed in the
appropriate Terminal Equipment
Technical Requirements
document(s). The Department
does not guarantee the equipment
will operate to the user’s
satisfaction.
>> English
12
3507554 UG01 EarSet 2 Global_MULTI.indd 12 27-03-2006 15:33:23
Before installing this equipment,
users should ensure that it is
permissible to be connected to the
facilities of the local
telecommunications company. The
equipment must also be installed
using an acceptable method of
connection. The customer should
be aware that compliance with the
above conditions may not prevent
degradation of service in some
situations. Repairs to certified
equipment should be coordinated
by a representative designated by
the supplier. Any repairs or
alterations made by the user to this
equipment, or equipment
malfunctions, may give the
telecommunications company
cause to request the user to
disconnect the equipment.
Users should ensure for their own
protection that the electrical
ground connections of the power
utility, telephone lines and internal
metallic water pipe system, if
present, are connected together.
This precaution may be particularly
important in rural areas.
CAUTION: Users should not
attempt to make such connections
themselves, but should contact the
appropriate electric inspection
authority, or electrician, as
appropriate.
NOTICE: The Ringer Equivalence
Number (REN) assigned to each
terminal device provides an
indication of the maximum number
of terminals allowed to be
connected to a telephone interface.
The termination on an interface
may consist of any combination of
devices subject only to the
requirement that the sum of the
Ringer Equivalence Numbers of all
the devices does not exceed 5.
To prevent radio interference to the
licensed service, this device is
intended to be operated indoors
and away from windows to
provide shielding. Equipment (or
it’s transmit antenna) that is
installed outdoors is subject to
licensing.
13
3507554 UG01 EarSet 2 Global_MULTI.indd 13 27-03-2006 15:33:23
14
3507554 UG01 EarSet 2 Global_MULTI.indd 14 27-03-2006 15:33:23
The European Parliament and the
Council of the European Union
have issued the Waste Electrical
and Electronic Equipment Directive.
The purpose of the Directive is the
prevention of waste of electrical
and electronic equipment, and to
promote the reuse and recycling
and other forms of recovery of
such waste. As such the Directive
concerns producers, distributors
and consumers.
The WEEE directive requires that
both manufacturers and end-
consumers dispose of electrical
and electronic equipment and
parts in an environmentally safe
manner, and that equipment and
waste are reused or recovered for
their materials or energy.
Electrical and electronic equipment
and parts must not be disposed of
with ordinary household refuse; all
electrical and electronic equipment
and parts must be collected and
disposed of separately.
Products and equipment which
must be collected for reuse,
recycling and other forms of
recovery are marked with the
pictogram shown.
When disposing of electrical and
electronic equipment by use of the
collection systems available in your
country, you protect the
environment, human health and
contribute to the prudent and
rational use of natural resources.
Collecting electrical and electronic
equipment and waste prevents the
potential contamination of nature
with the hazardous substances
which may be present in electrical
and electronic products and
equipment.
Your Bang & Olufsen retailer will
assist with and advise you of the
correct way of disposal in your
country.
Waste Electrical and Electronic Equipment (WEEE) –
Environmental protection
This product fulfils the
conditions stated in the
EEU directives 89/336 and
73/23.
This product is CE marked
according to provisions of
the R&TTE Directive
(99/5/EC). Hereby, Bang &
Olufsen declares that this
product is in compliance
with the essential
requirements and other
relevant provisions of
Directive 1995/5/EC.
15
3507554 UG01 EarSet 2 Global_MULTI.indd 15 27-03-2006 15:33:23

Navigation menu
