DX80 Quick Start Guide
A setup guide for the DX80 wireless system
Printed in USA 09/06 P/N 128185

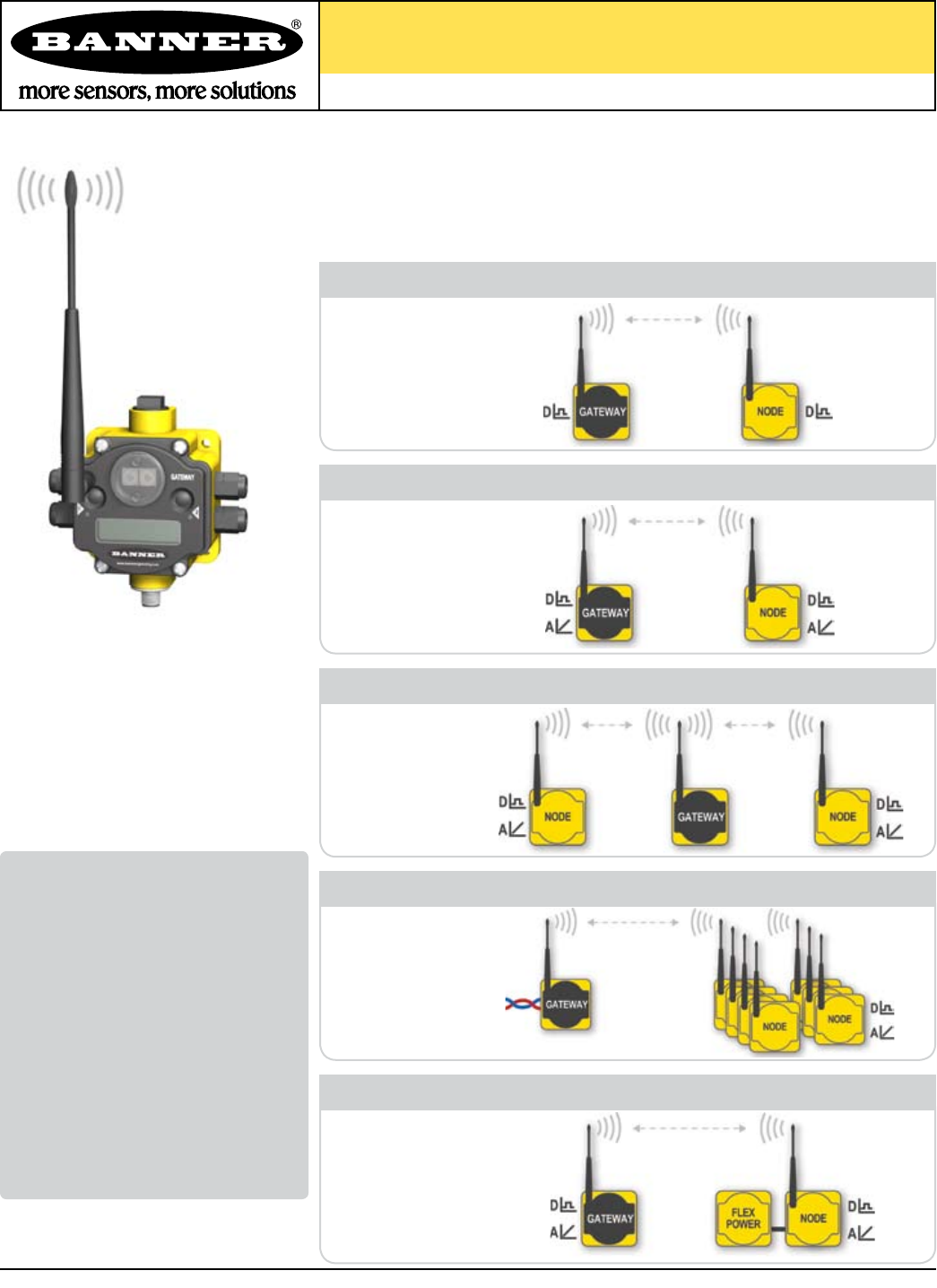

Introducing the Banner DX80 Wireless System
The DX80 wireless system provides continuous monitoring without the burden of wiring or
conduit installation, and can operate independently or in conjunction with a PLC and/or PC
software. Configurations of the DX80 wireless system are shown below.
Overview .................................................. 1
Setting Up ................................................ 2
Quick Start
STEP 1: Set NID & Device Address . 4
STEP 2: Apply Power (Gateway)... 5
STEP 3: Apply power (Node) .........5
STEP 4: Verify Communications ... 6
STEP 5: SiteSurvey ...................... 7
Host Network ........................................... 8

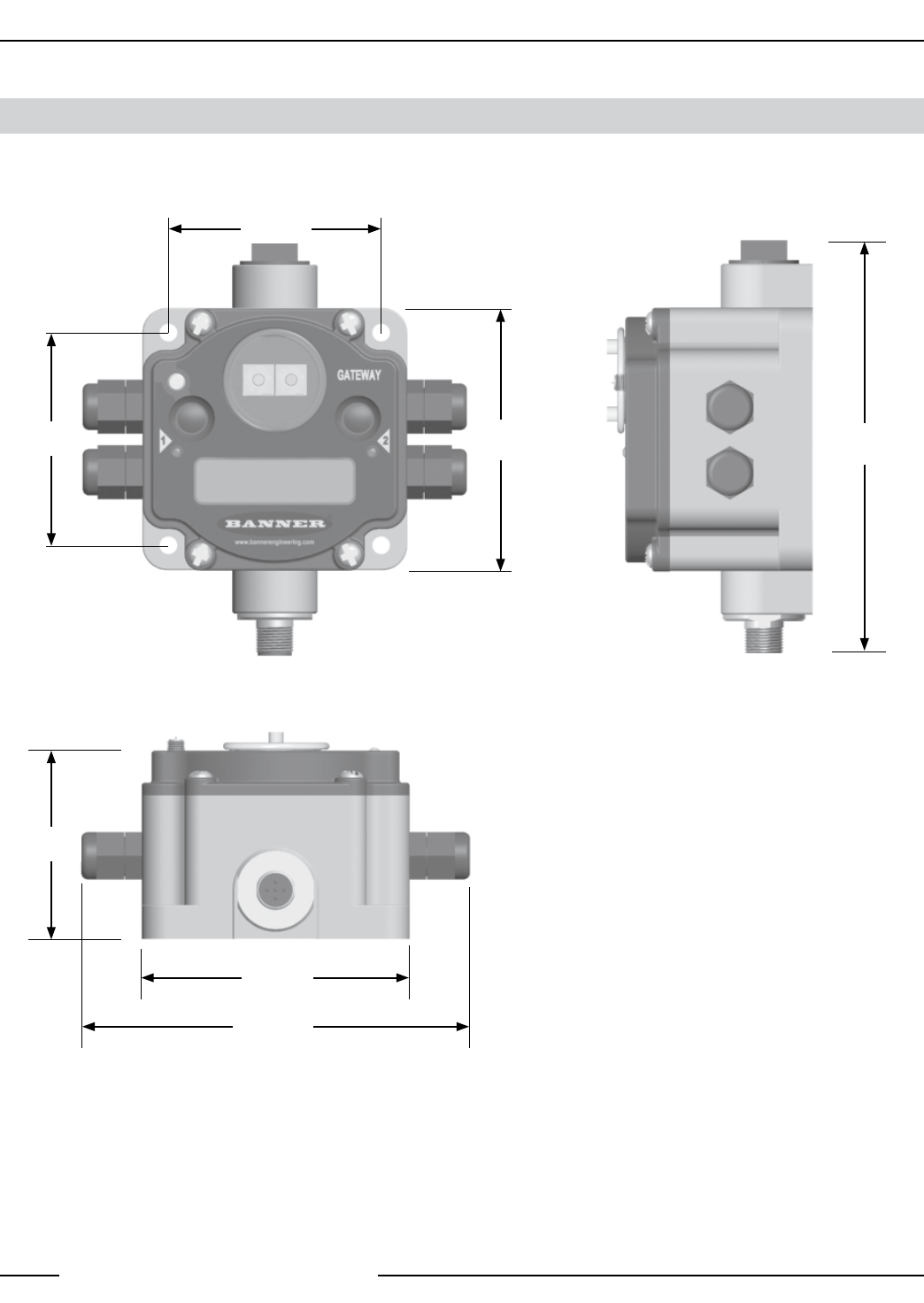

Product Dimensions ............................... 11

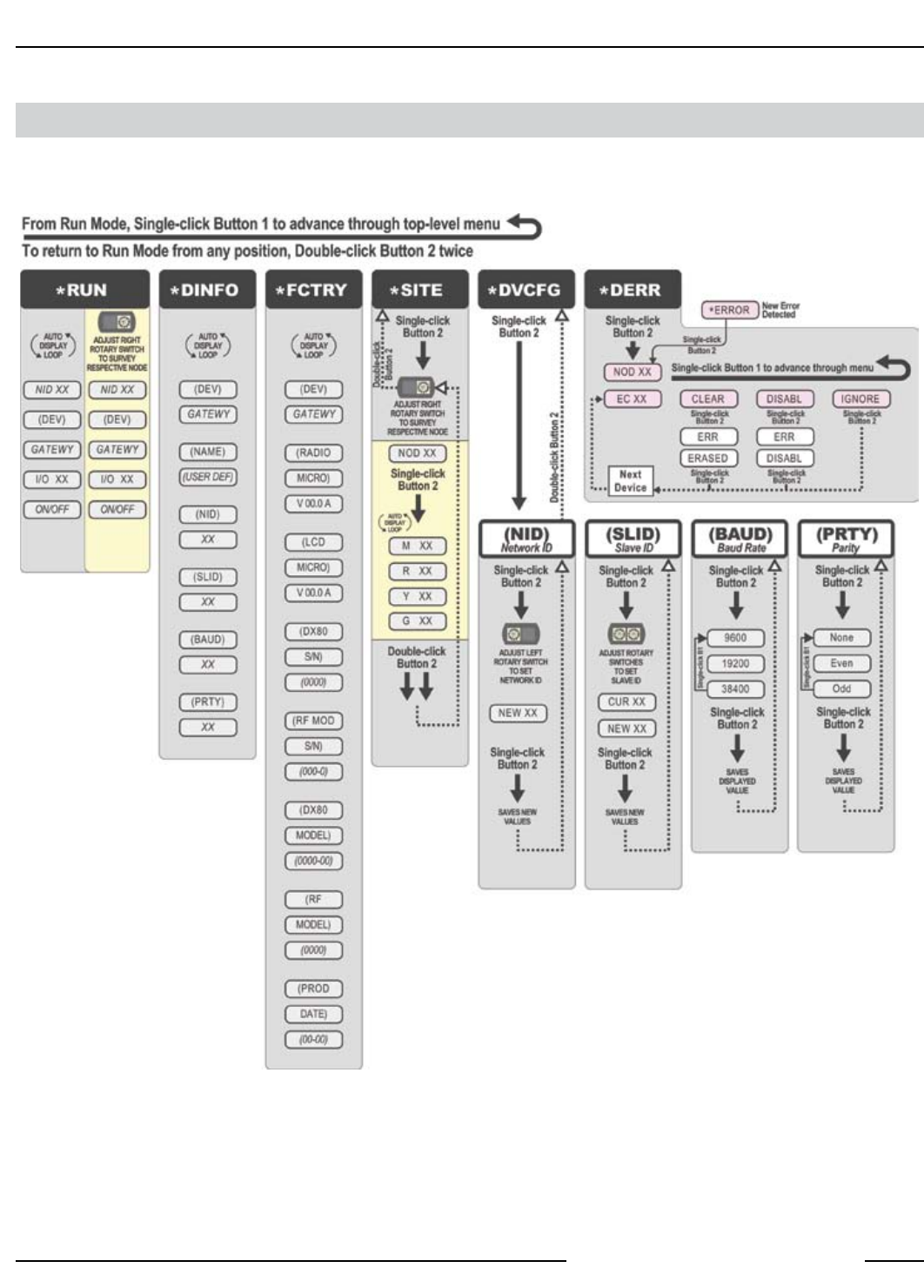

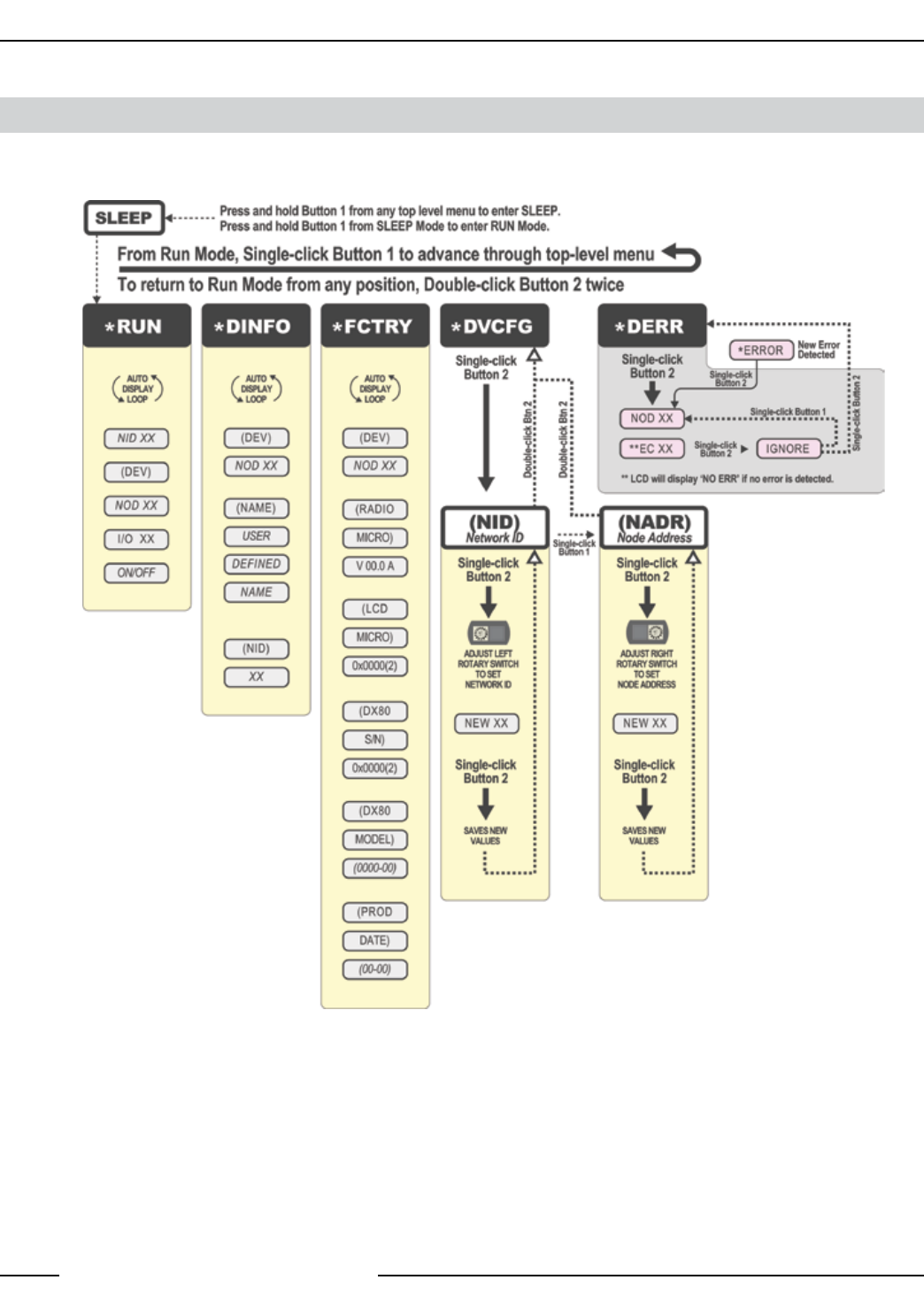

Menu System ........................................... 12
Troubleshooting ....................................... 16
Table of Contents
Digital and Analog
Repeater
Host-Connected
FLEX Power
Model Number
DX80K
*
S6DP
*
DX80K
*
S6MP
*
DX80K
*
S3PE
*
DX80K
*
S3GE
*
All Digital
DX81
Battery Module
Up to 7 Nodes
Model Number
DX80K
*
M6DP1
DX80K
*
M6DP2
DX80K
*
M6DP4
DX80K
*
M6DP7
Model Number
DX80K
*
M6MP1
DX80K
*
M6MP2
DX80K
*
M6MP7
Model Number
DX80K
*
M3PE1
DX80K
*
M3GE1
DX80K
*
S3PE
*
DX80K
*
S3GE
*
DX80K
*
R3PE1
DX80K
*
R3GE1
Model Number
DX80K
*
R6DP1
DX80K
*
R6DP2
DX80K
*
R6DP4
DX80K
*
R6MP1
DX80K
*
R6MP2
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
2
1
2
3
4
5
6
7
SETTING UP
1
2
3
4
5 6
7

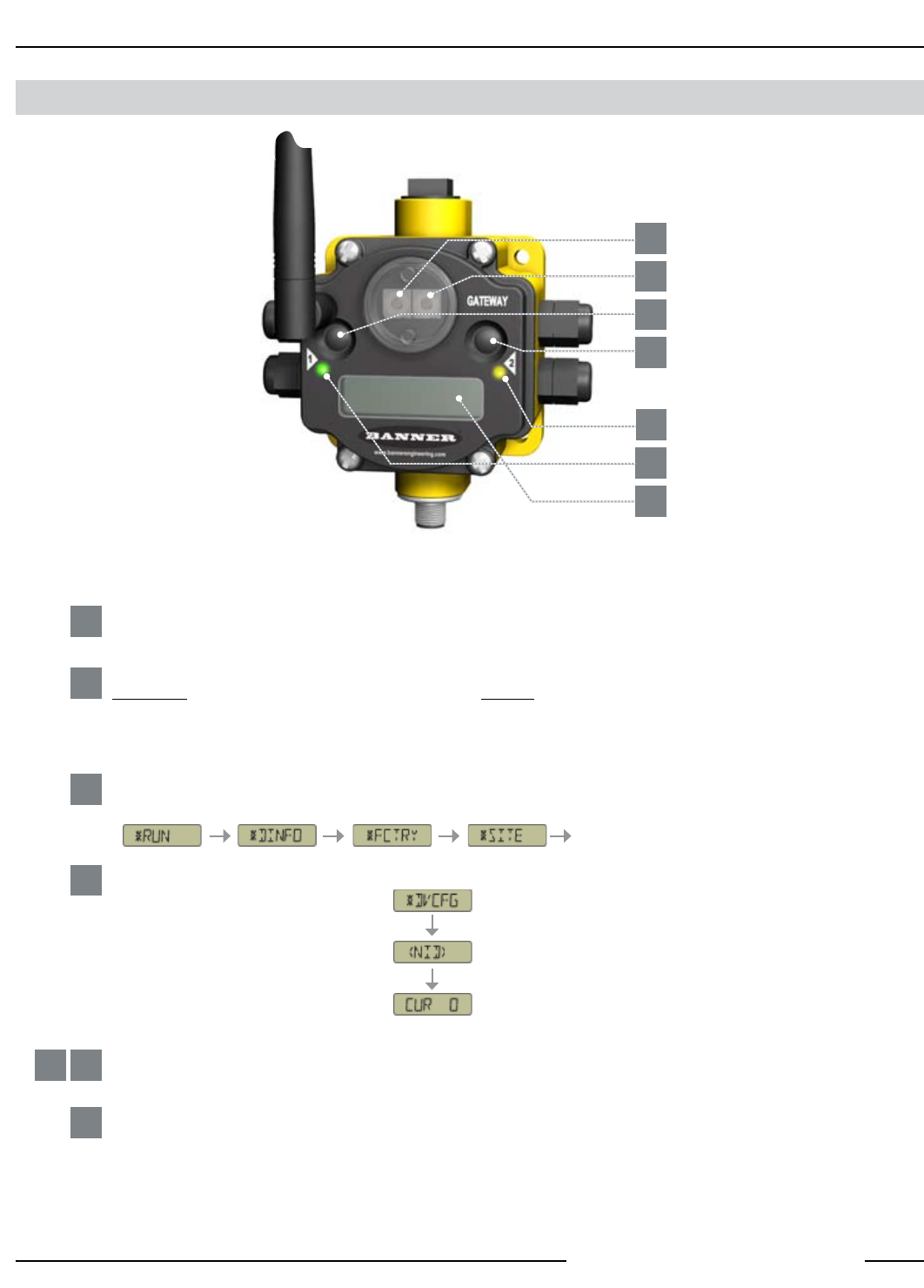

DX80 Gateway and Node Front-Panel Interface
Rotary Switch 1 (left)
Sets the Network ID (NID) to a value from 0 to 15
Rotary Switch 2 (right)
On Gateway: Sets Device Address and displays its settings On Node: Sets the Node’s Device Address (1-7)
Push Button 1
Single-click to advance across all DX80 menus.
Push Button 2
Single-click to move down interactive menus.
Double-click to move back to top-level menu.
LED 1 and 2
Provide real-time feedback to the user regarding RF link status, serial communications activity, and Error state.
LCD Display
Six-character display provides run mode user information and shows enabled I/O point status. This display allows the user to conduct a
Site Survey (RSSI), assign Network ID, and modify other DX80 configuration parameters without the use of a PC or other external software
interfaces.
etc.
etc.
Rotary Switches: Used to set Network ID & Device Address
Push Buttons: Used to navigate the Gateway and Node menus and program device configurations
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
3
SETTING UP

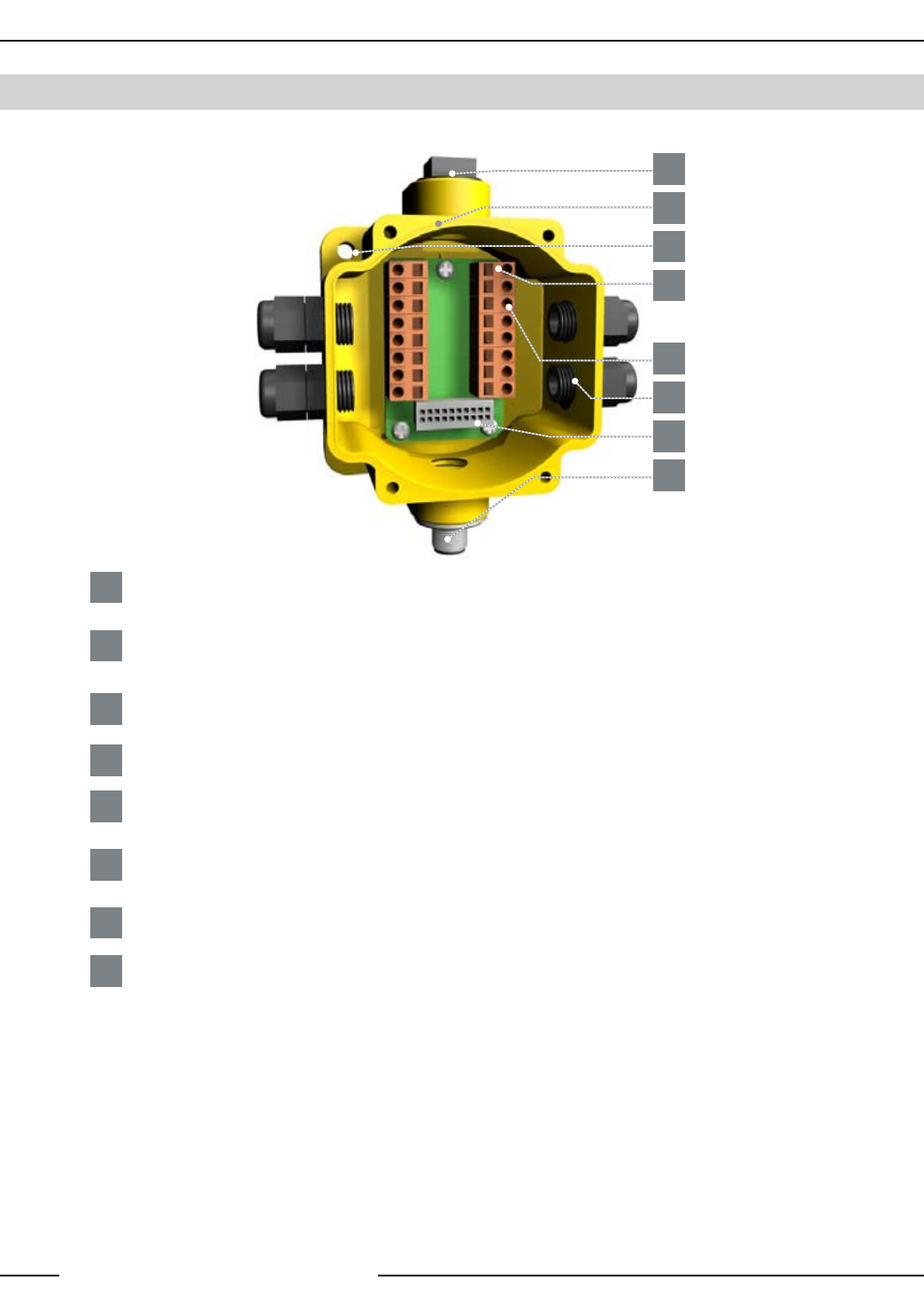

DX80 Gateway and Node Wiring Chamber
1
2
3
4
5
6
7
8
8
1
2
3
4
5
6
7
Port, NPT Gland or Plug
1/2 NPT threaded port can accept provided plug.
Housing
Rugged, industrial DX80 housing is rated IEC IP67
Mounting Hole, #10/M5 Clearance
Mounting Holes accept metric M5 or UNC/UNF #10 hardware -- DIN rail mount adapter bracket available
Wiring Terminal Strip
Wiring Terminal
Wiring terminal is of spring-clip type. Each of the 16 wiring terminals will accept wire sizes: AWG 12-28 or 2.5 mm2
Port, PG-7 Gland or Blank
PG-7 threaded port can accept provided cable glands or blanks.
Ribbon Connector
Ribbon cable connects wiring base to LCD/radio.
5-Pin M12 Euro-style quick-disconnect fitting
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
4

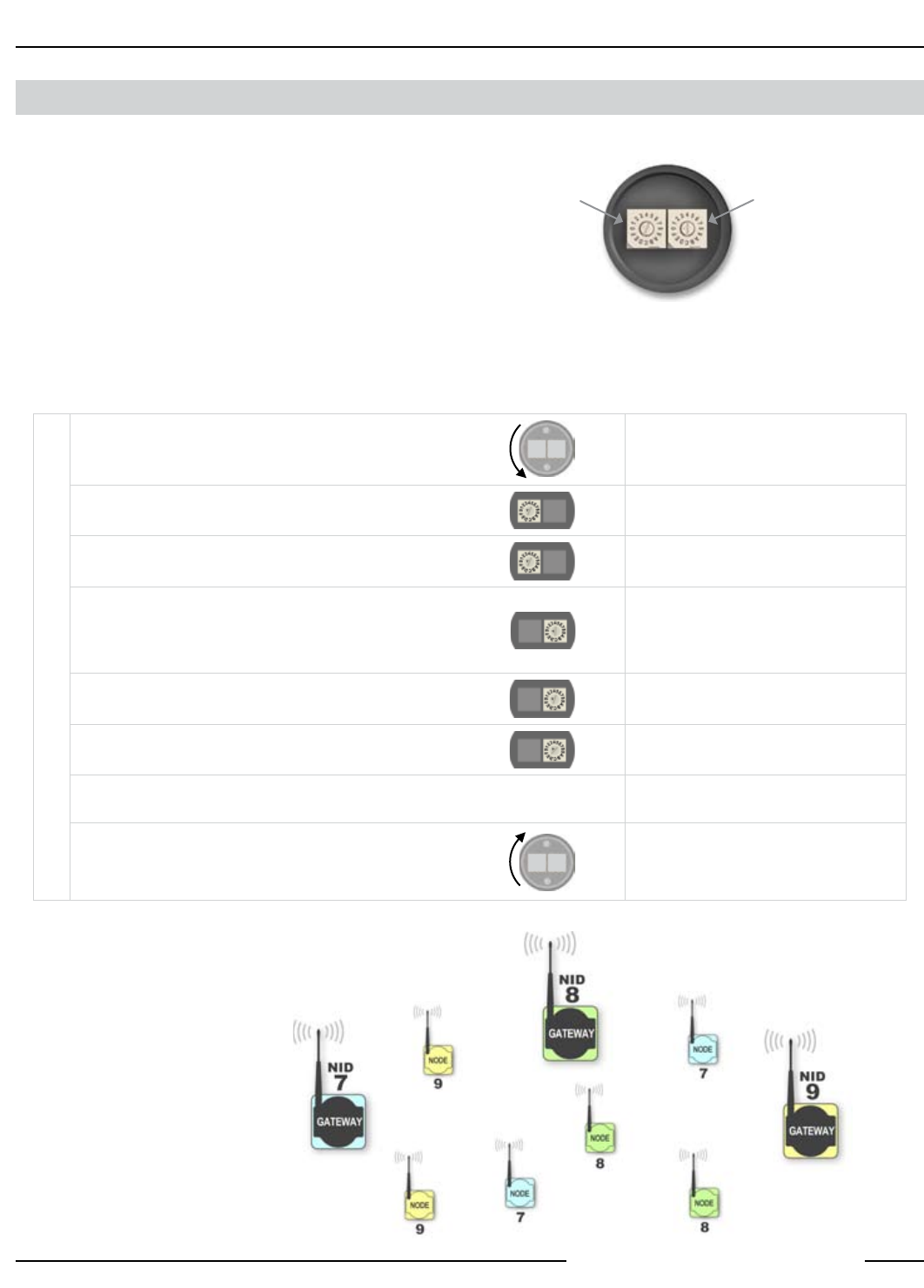

GETTING STARTED – NETWORK SETUP
The Banner DX80 wireless system is a network of devices
consisting of a Gateway and Node(s).
The network is defined by the Network ID (NID) assigned
to the Gateway and its Node(s). Additionally, each device
within this common network (NID) must have a unique
Device Address assigned.
Use the Rotary Switches (shown right) to define both the
NID and Device Address for each device. Follow the steps
below to set up your DX80 network.
Quick Start: STEP 1 > Set Network ID & Device/Node Address
Remove rotary switch access covers. Turn counterclockwise to remove and clockwise
to tighten
On the Gateway, set the Left Rotary Switch to 1. The factory default NID setting on all devices is 1
On all Nodes (within the same network), set the Left
Rotary Switch to 1.
Assign the same NID to all devices within a
single network (0-15). A-F is 10-15 respectively.
On the Gateway, set the Right Rotary Switch to 0.
A Device Address of 0 on the Gateway will
display settings for the Gateway itself. To view
settings for another device on the network, adjust
the Right Rotary Switch on the Gateway to the
respective Device Address.
On the first Node (Device Address = 1), set the Right
Rotary Switch to 1.
On the second Node (Device Address = 2), set the
Right Rotary Switch to 2.
Continue setting the Device Address for each additional
Node using a unique number (..3,4,5).
Install rotary switch access covers.
SET NETWORK IDSET DEVICE ADDRESS
User Action Display/Status Notes
Network ID (NID) Device Address
Rotary Switches on
Gateway & Node
A successful RF link is identified by:
• The Gateway’s LED 1 is Green
• The Node(s) LED 1 is Flashing Green
Multiple Networks:
When more than one network is
operating in the same space, assign
a unique Network ID (NID) to each
network (shown right).
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
5

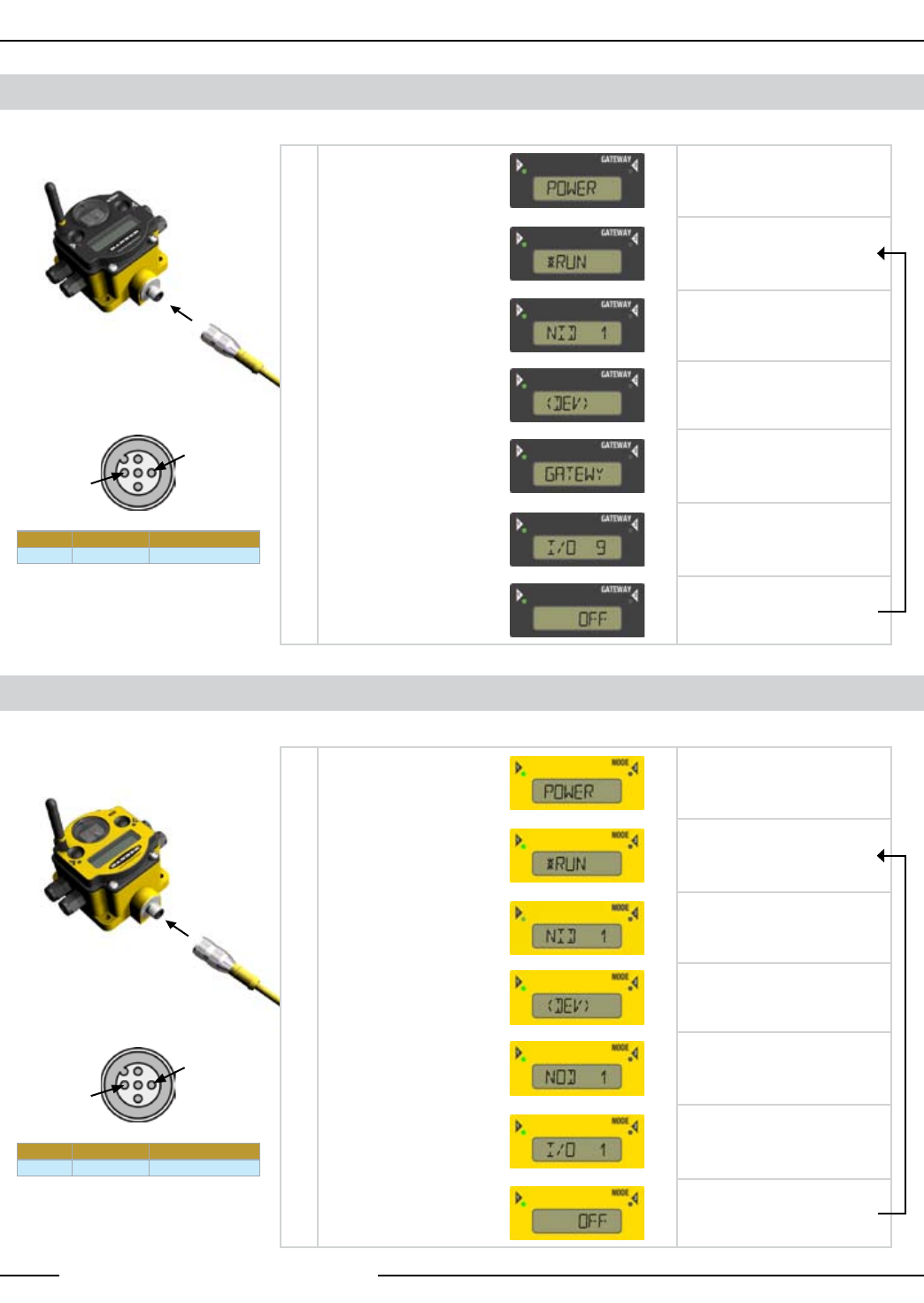

GETTING STARTED – APPLY POWER
To apply power to the Gateway, connect 10-30V dc cable as shown.
To apply power to the Node, connect 10-30V dc cable or DX81 Battery Module as shown.
1 = BROWN
3 = BLUE
Brown 1 10-30V dc Input
Blue 3 Ground Input
1 = BROWN
3 = BLUE
Brown 1 10-30V dc Input
Blue 3 Ground Input
Apply power...
This reading occurs only at
initial application of power to the
Gateway.
The LCD display shows
the current I/O status of
the Gateway.
The Gateway starts in RUN mode.
Displays current Network ID (NID)
Device is ...
... Gateway (Device Address = 0)
Indicates the current status of the
I/O. The display will cycle through
each I/O point of the device, then
return to *RUN.
repeat
Apply power... This reading occurs only at initial
application of power to the Node.
The LCD display shows
the current I/O status of
the Node.
The Node starts in RUN mode.
Displays current Network ID (NID)
Device is ...
... Node 1 (Node Address = 1)
Indicates the current status of the
I/O. The display will cycle through
each I/O point of the device, then
return to *RUN.
repeat
Quick Start: STEP 3 > Apply Power, Node
Quick Start: STEP 2 > Apply Power, Gateway
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
6

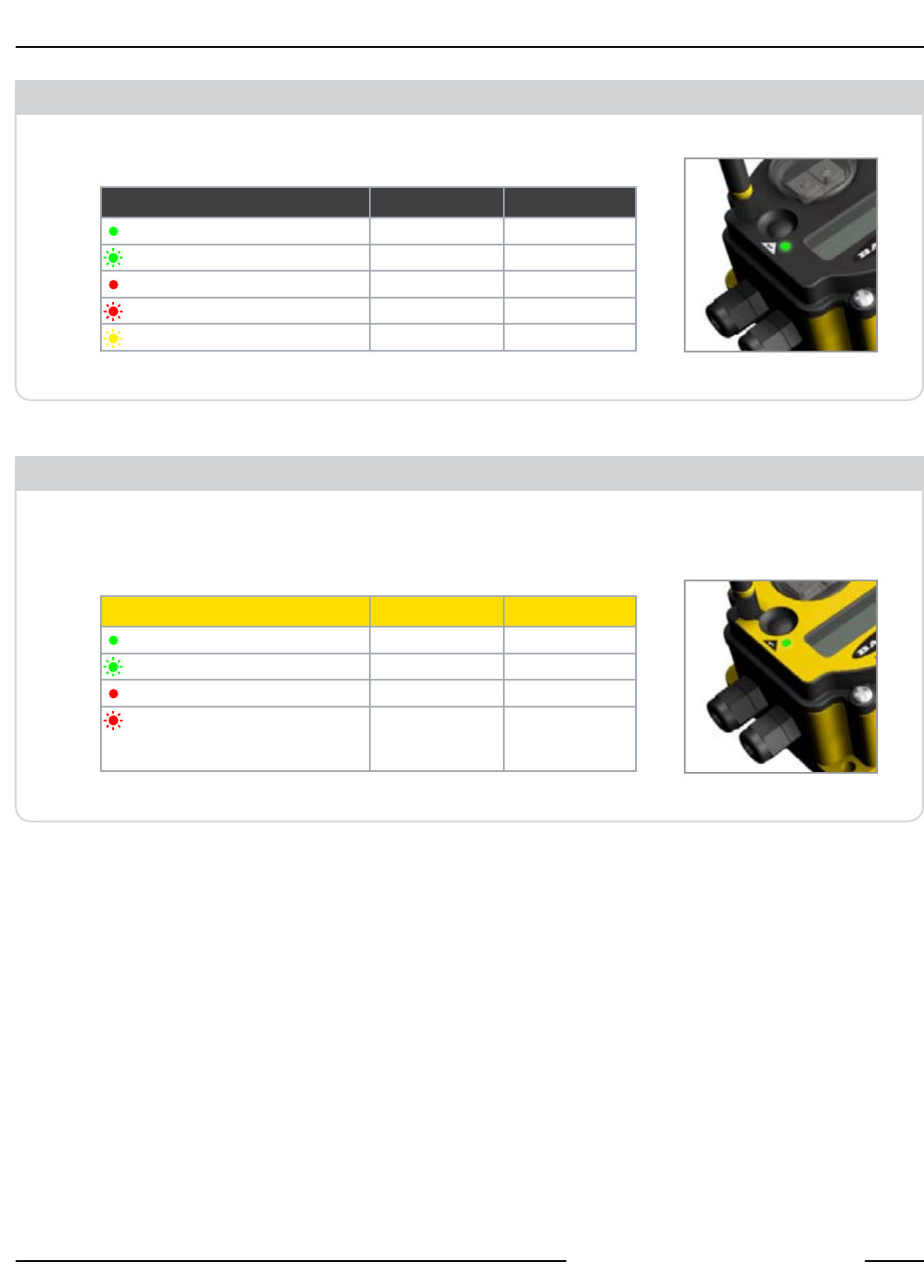

GETTING STARTED – VERIFY COMMUNICATIONS
Verify LED 1 is ON Green.
Verify LED 1 is flashing Green. LED 2 is off. Until communication is established with
the Gateway, the Node’s LED 2 flashes Red. When communication is established, the
Node’s LED 1 flashes Green.
LED Status LED 1 LED 2
Green ON Power ON —
Green FLASHING — —
Red ON System Error RS485 Error
Red FLASHING — RS485 Fault
Yellow FLASHING — RS485 Active
Gateway
LED Status LED 1 LED 2
Green ON — —
Green FLASHING RF Link OK —
Red ON System Error System Error
Red FLASHING — No RF Link with
Gateway
(out of sync)
Node
Quick Start: STEP 4 > Verify Communications, Gateway
> Verify Communications, Node
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
7

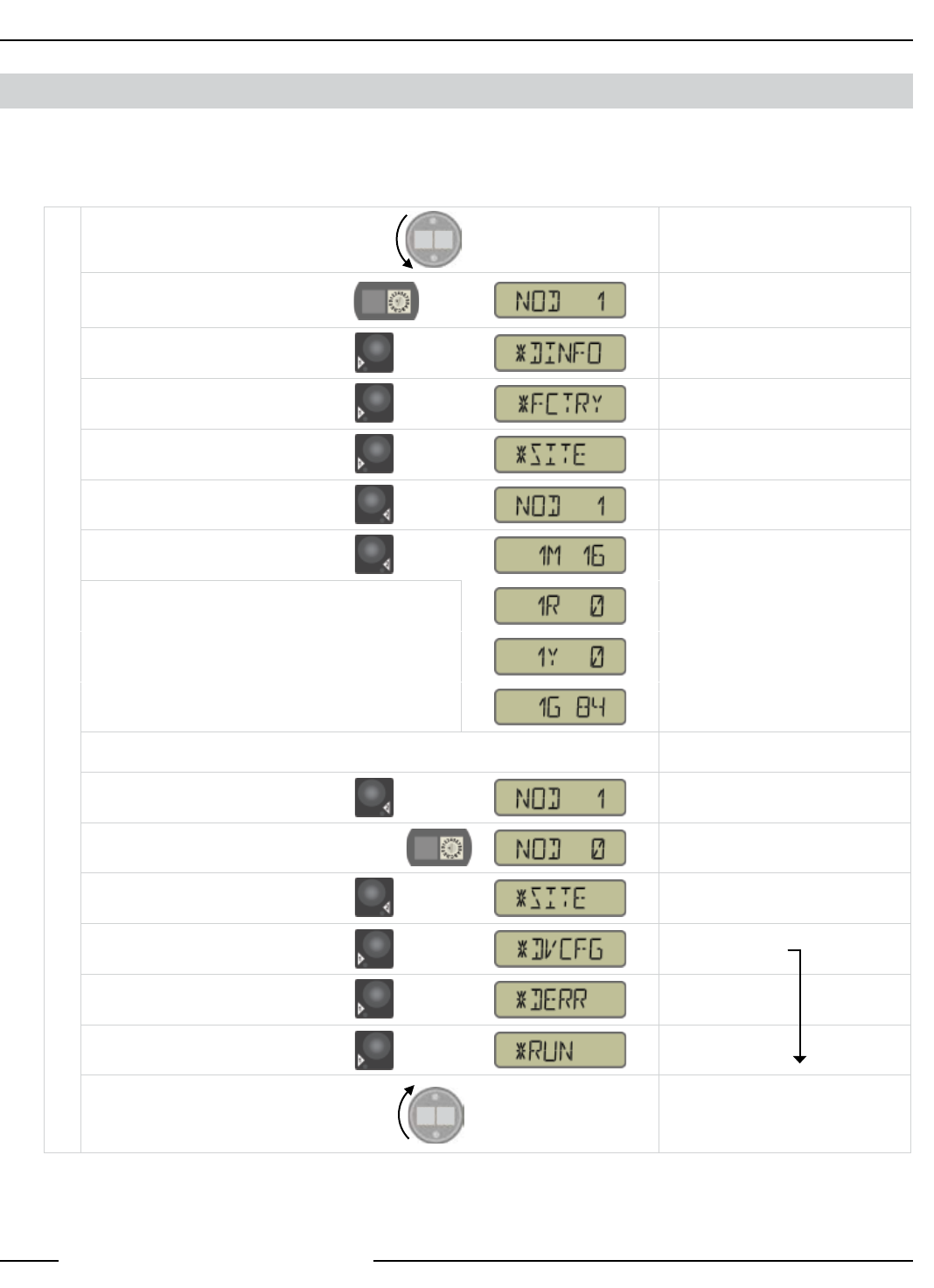

GETTING STARTED – SITE SURVEY
Remove Gateway rotary switch access cover.
Change right rotary switch setting to 1
The Gateway is enabled to read the status
of Node 1 and the display will now scroll
through the Node’s I/O status
Single-click Gateway push button 1 Device Information menu
Single-click Gateway push button 1 Factory Settings menu
Single-click Gateway push button 1 Site Survey menu
Single-click Gateway push button 2 Site Survey will be conducted with Node 1
Single-click Gateway push button 2
Examine reception readings (M,R,Y,G) of the Gateway
at various locations
Double-click Gateway push button 2 End Site Survey
Change right rotary switch back to 0 (Gateway) Change the device readings back to the
Gateway
Double-click Gateway push button 2 Move back to the top level menu
Single-click Gateway push button 1 Return to RUN mode
Single-click Gateway push button 1
Single-click Gateway push button 1
Install Gateway rotary switch access cover.

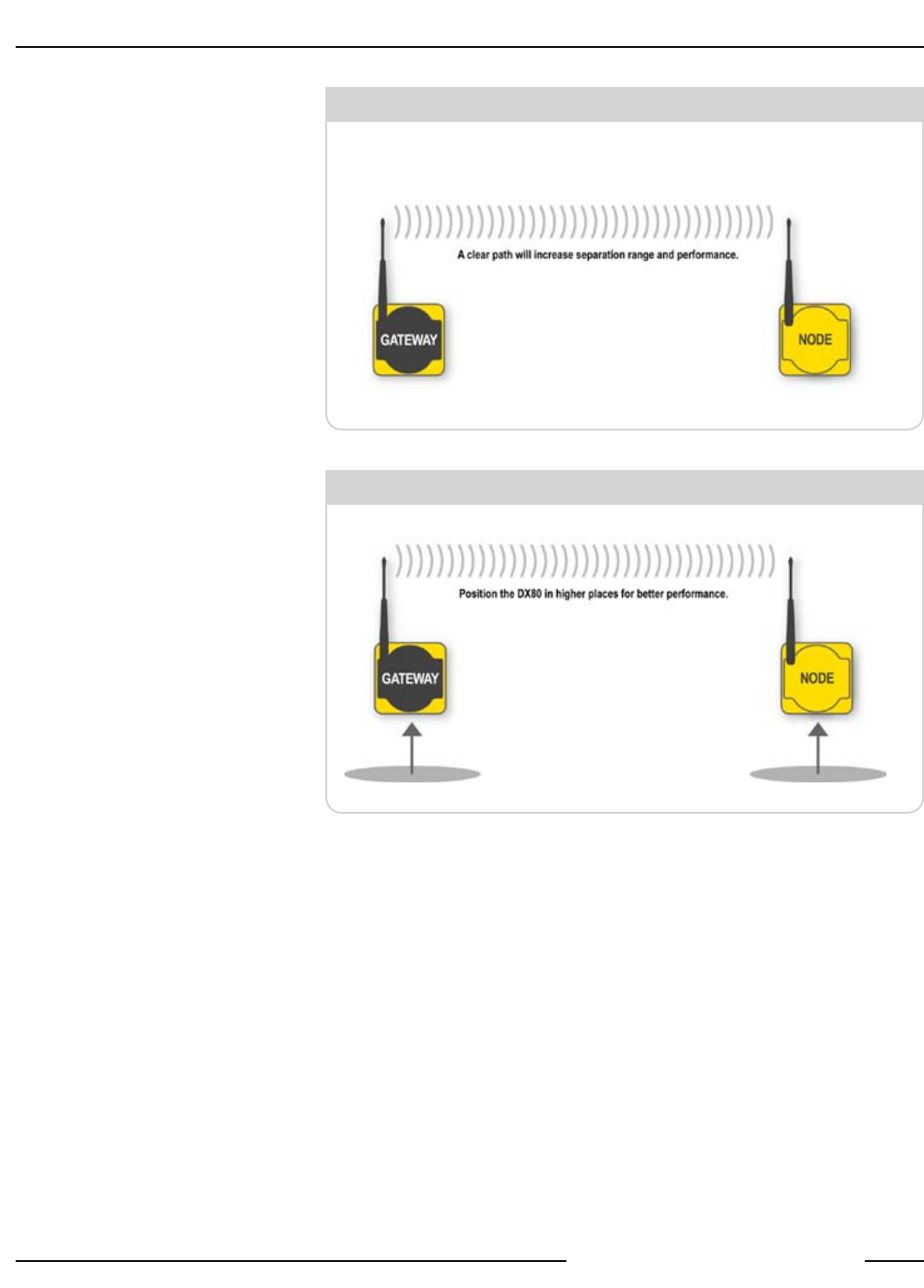

A site survey determines the quality of the link between a Gateway and a given Node. The Gateway is used to perform a site survey.
NOTE: The Site Survey should be performed prior to the permanent installation of your network to ensure robust communication.
SITE SURVEY MENUSURVEY READINGSRETURN TO RUN MODE
User Action Display/Status
The Gateway analyzes the quality of signal
from the Node by counting the number of
data packets it receives from the Node.
M = Missed packet
R = RED marginal signal,
Y = YELLOW good signal,
G = GREEN excellent signal
Install devices in positions that optimize
the number of YELLOW and GREEN data
packets received.
Notes
Quick Start: STEP 5 > Site Survey (optional)
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
8
GETTING STARTED – HOST NETWORK
Host Network – Gateway
Installing a host-connected network is similar to installing a standard DX80 wireless system, except that all device I/O for the Gateway
and each Node can be accessed by a Modbus RTU Master device via serial RS485. (See pages 4-6 for instruction to Apply Power, Verify
Communications, Conduct a Site Survey.) Follow this procedure if it is necessary to change the Gateway Slave ID, Baud Rate and Parity.
All steps (Power up, Site Survey, Applying Devices) are identical to the stand-alone system procedures, except that the Gateway has
no hard-wired inputs or outputs enabled or linked. Instead, all device I/O of the Gateway and each Node can be accessed by a Modbus
RTU Master device via serial RS485. In order to accomplish this, you may first need to configure several system-level communications
parameters on the DX80 Gateway (in addition to the serial hookups shown below).
1 = BROWN
2 = WHITE
3 = BLUE
4 = BLACK 5 = GREY
Brown 1 10-30V dc Input
White 2 RS 485 / D1 / B /+
Blue 3 Ground Input
Black 4 RS485 / D0 / A / -
Grey 5 Comms Gnd
Wiring: 5-pin Euro pinouts for 485+, 485- and
Comms ground
Parameter Description
Slave ID (default = 1) Defines the slave number (1) for the serial
Modbus RTU protocol.
Baud Rate (default = 19200)
Defines communication data rate (19.2, 38.4 or
9.6 kbps) between the Gateway and the Host
through the serial interface.
Parity (default = none) Defines serial parity (none, even, or odd)
between Gateway and Host.
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
9
GETTING STARTED – HOST NETWORK

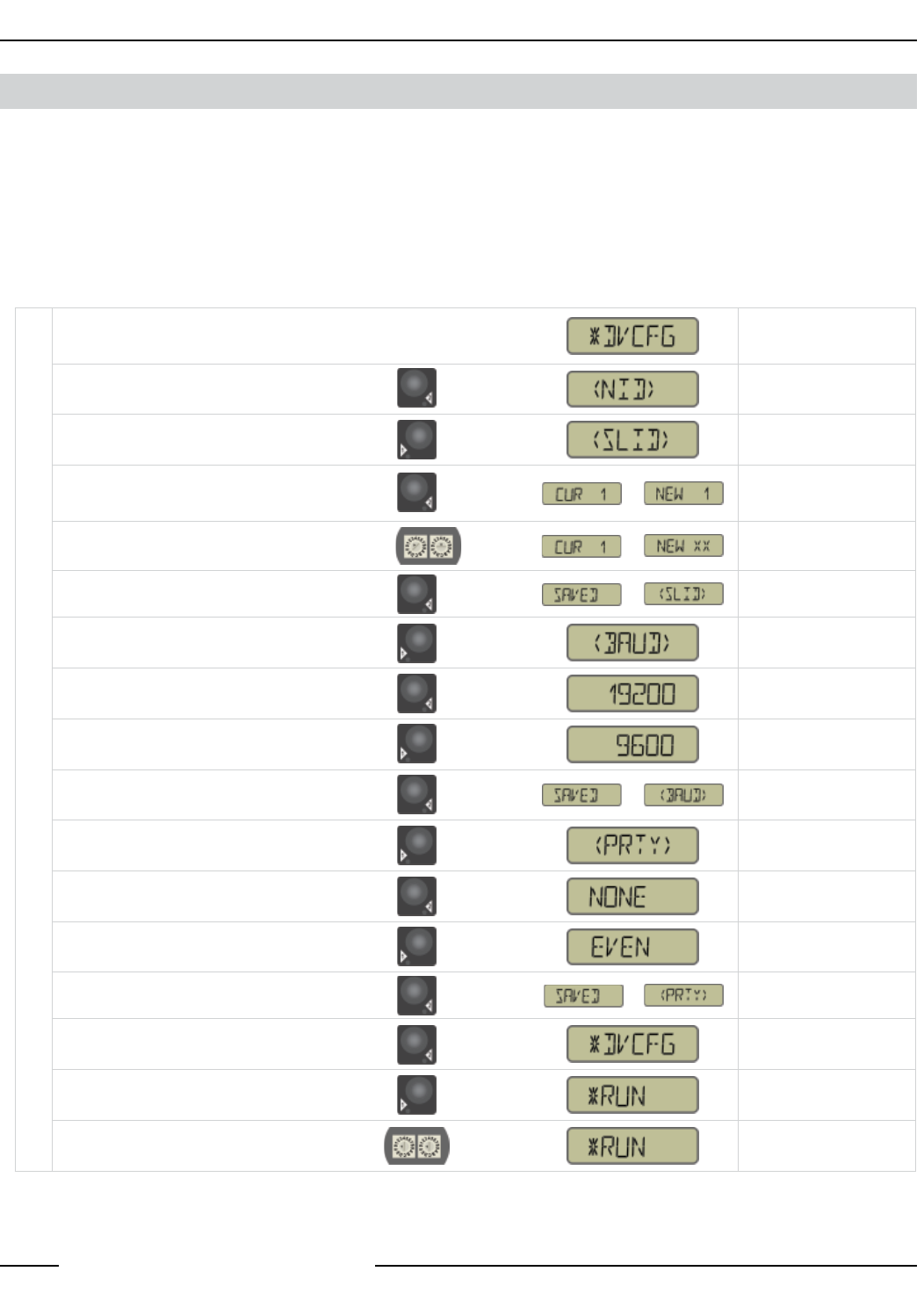

On the Gateway, move to the “Device Configuration” menu
To navigate to the *DVCFG
(Device Configuration)
menu, see page 12.
Single-click Gateway push button 2
Single-click Gateway push button 1 Moves to the Slave ID field,
default value is 1
Single-click Gateway push button 2
The new Slave ID is defined
by the current position of the
rotary switches.
Set rotary switches to the desired new Slave ID Select between 01 to 99
Single-click Gateway push button 2 Slave ID is saved
Single-click Gateway push button 1 Moves to the BAUD rate
field
Single-click Gateway push button 2
Single-click Gateway push button 1 Options are 9600, 19200,
38400, default is 19200
Single-click Gateway push button 2 Baud rate is saved.
Single-click Gateway push button 1 Moves to the Parity field
Single-click Gateway push button 2
Single-click Gateway push button 1 Options are NONE, EVEN,
ODD, default is NONE
Single-click Gateway push button 2 Parity setting is saved.
Double-click Gateway push button 2 Returns to Device
Configuration menu
Click Gateway push button 1 through to *RUN
Adjust Left rotary switch back to NID value
SET SLAVE ID
User Action Display/Status Notes
Similar to Network ID, the Slave ID parameter can be changed in the Device Configuration (*DVCFG) system menu option. Follow the Top
Level System Menu through *DVCFG to the Slave ID (SLID) parameter. The LCD will display an alternating Current value and New value
for the parameter.
Setting the Slave ID
Host Network – Gateway (cont.)
SET BAUD RATESET PARITY
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
10
Clear Communication Paths
DX80 QUICK TIPS
The external antenna should be vertically-
oriented for optimal RF communication.
In addition, consider the height of DX80
position to improve reception levels.
A wireless network can be hindered by
radio interference and obstructions in the
path between a receiver and transmitter.
To achieve the best radio performance,
installation locations for Gateways and
Nodes should be carefully considered.
Increase Height of DX80 Units
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
11
DX80 Gateway & Node Dimensions
DIMENSIONS
65.0 mm
(2.56˝)
TOP VIEW
BOTTOM VIEW
SIDE VIEW
65.0 mm
(2.56˝) 80.3 mm
(3.16˝)
59.3 mm
(2.33˝)
80.8 mm
(3.18˝)
126.7 mm
(4.99˝)
121.8 mm
(4.79˝)
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
12
CONFIGURATION
DX80 Gateway Setup Menu
When power is applied, the DX80 immediately enters RUN state (Gateway or Node). Run state is the normal operating mode for all devices
on the wireless network.
†
If the user gets lost navigating the
menu system, they can double-click
Push Button 2 twice to return to the
top level menu.
Navigating the menu:
* = Top level
< > = Sub-menu item
No characters = Value of
previous item
†
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
13
CONFIGURATION
DX80 Node Setup Menu
When power is applied, the DX80 immediately enters RUN mode (Gateway or Node). RUN mode is the normal operating mode for all
devices on the wireless network.
If the user gets lost navigating the
menu system, they can double-click
Push Button 2 twice to return to the
top level menu.
Navigating the menu:
* = Top level
< > = Sub-menu item
No characters = Value of
previous item
Node LCD Timeout: Press any
button to refresh the display if the
Node has entered this energy-
saving mode.
†
†
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
14
TROUBLESHOOTING

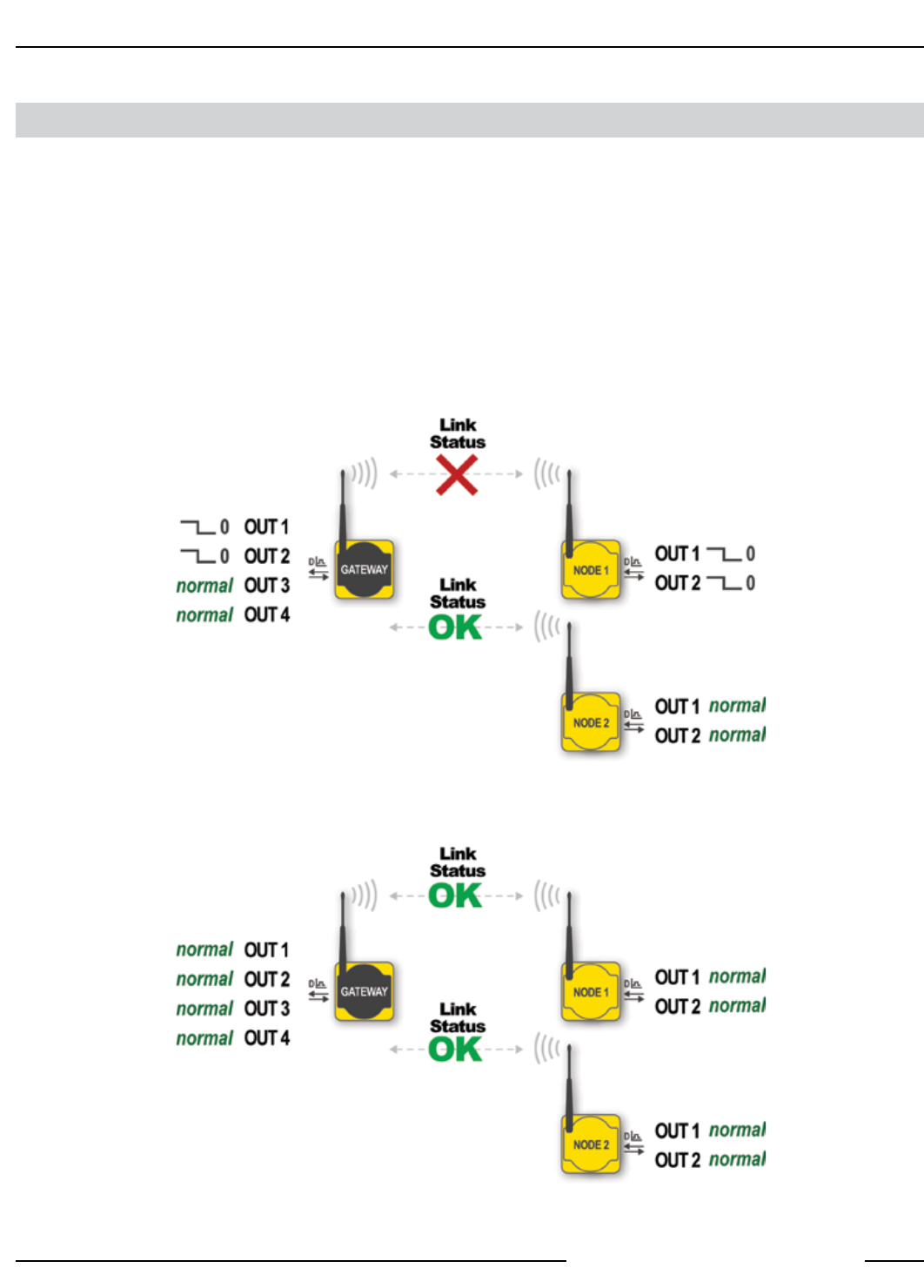

RF Link Time-out & Recovery
Banner DX80 wireless devices employ a deterministic link time-out method to address RF link interruption or failure. As soon as a specific
Node/Gateway RF link times out, all pertinent wired outputs are de-energized until the link is recovered (see kit-specific Supplemental Sheet
for more information). Through this process, users of Banner wireless networks can be assured that disruptions in the communications link
will result in predictable system behavior.
Link time-out utilizes a fully-acknowledged polling method to determine RF link status of each Node on the network. If after a prescribed
number of sequential polling cycles the Node does not acknowledge a message, the Gateway considers the link with the Node to be timed
out. LCD displays on both the Node and Gateway will show *ERROR. Following a time-out, the Node de-energizes outputs; the Gateway (or
Repeater Node, if applicable) sets all outputs linked to the Node in question to a de-energized state, as well.
Once a link has been faulted, the Gateway must receive a number of good packets from the Node in question (with some hysteresis to
prevent link “toggling”) for the link to be reinstated. If the DX80 network is not Host-connected (RS485 serial access not enabled), outputs
are restored to current values when the link is recovered.
Link between Gateway and Node 1 timed out.
Link between Gateway and Node 1 recovered.
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
15
TROUBLESHOOTING

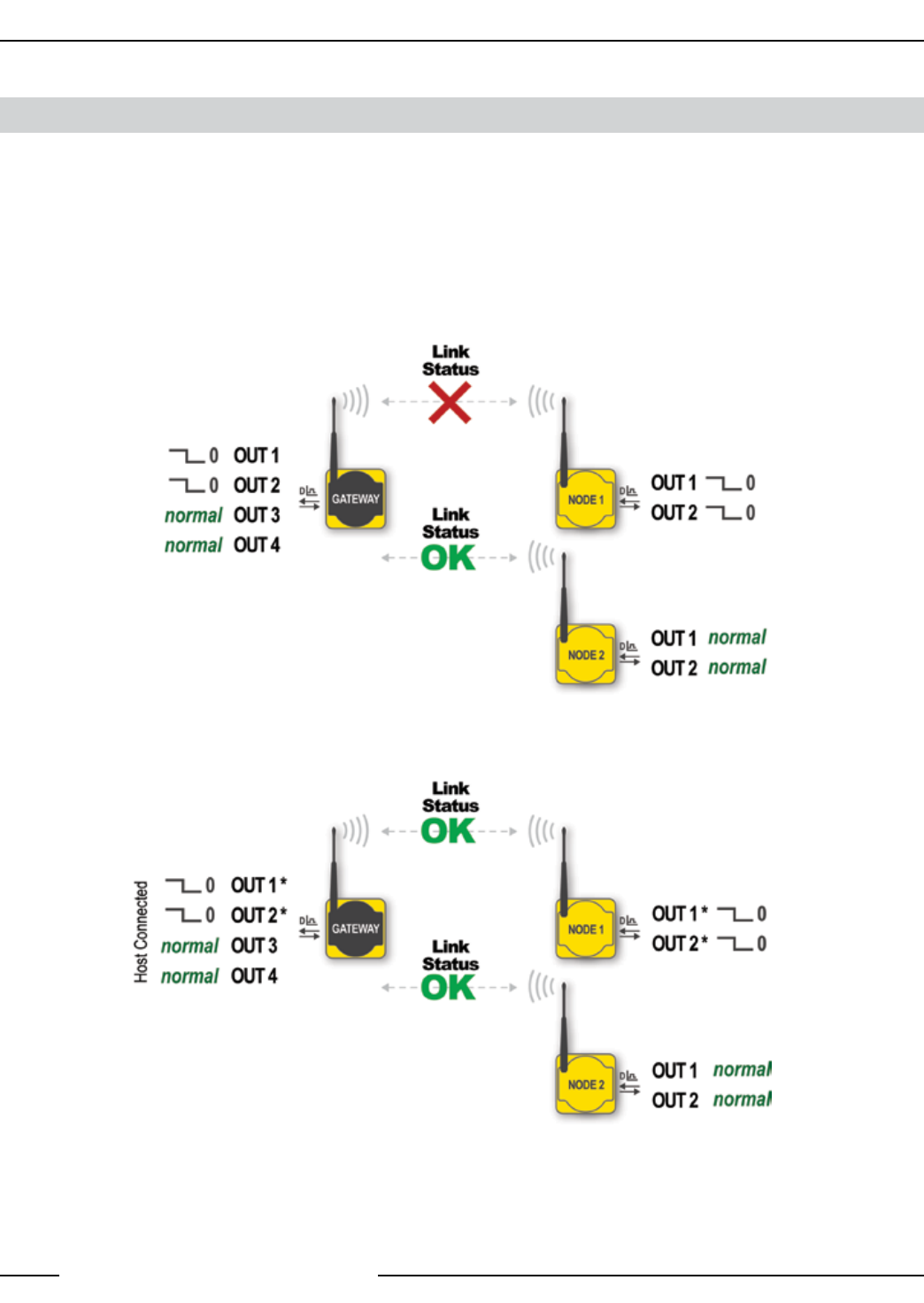

In a Host-connected DX80 system, a link time-out will result in an error code (53 or 0x35xx) being placed in the Node-specific DEVICE
MESSAGE Modbus register (Node 1 = Register 24, Node 2 = Register 40, etc.).
In order for the RF link to be reinstated, the Host must send a control message to clear the device error message. Any Node output
registers will be re-populated by the latest Gateway register map.
RF Link Time-out & Recovery – Host-connected
Link between Gateway and Node 1 recovered.
It is the responsibility of the Host to handle Node device error messages. This will result in outputs being reinstated.
Link between Gateway and Node 1 timed out.
*
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
16
TROUBLESHOOTING
Troubleshooting
A wireless network can be hindered by radio interference as well as obstructions in the path of the receiver and transmitter. To achieve the best radio
performance possible, the installation locations for Gateways and Nodes should be carefully considered. In general, the need for a clear path becomes
greater as the transmission distance increases. Use Site Survey (RSSI) to confirm signal quality before fixing devices for permanent installation.
Problem Description Possible Solutions
Basic power–up issues
No LEDs, No LCD
display
DX80 devices should immediately display ‘POWER’ on the LCD for the first 5-10 seconds after power is applied. A DX80
Gateway will always have a green LED on when power is connected. DX80 Node devices will flash a red LED every 3
seconds or a green LED every second depending upon the RF Link status.
Battery devices can be put into a power down mode using button 1 on the front panel. To put a battery device into power
down mode, hold button 1 for 3-5 seconds. To make a battery device come out of power down mode, hold button 1 for 3-5
seconds.
Recheck power connections and power requirements. Line powered devices require 10-30V DC. The DX81 Battery Module
provides 3.6V DC.
•
•
•
DX80 devices will not Synchronize
Node flashes the red
LED (no sync)
There are two things that MUST be set on every Node device to make it synchronize with the Gateway device:
1) The Network ID on the Node must match the Gateway Network ID. (0-15).
2) Each node must have the rotary switches set to a unique number (1-15).
Refer to “Getting Started – Multiple Networks, Setting Network ID”
If the DX80 Gateway & Node are less than 2 meters apart the devices may not communicate properly (radios may saturate).
The Gateway & Node may be too far apart to achieve sync – consult factory for options.
Qualified antenna should be placed on both the Gateway and Node device.
After system parameter changes it is a good idea to cycle power to cause a resyncing of the devices.
If a Node device goes out of sync it is programmed to try to acquire sync for 5 seconds and then sleep for 15 seconds.
Synchronizing may require up to 20 seconds.
Recycle power on the Gateway & Node devices.
•
•
•
•
•
•
•
•
Site survey (RSSI) returns > 30 MISSED packets
Marginal Site
Survey (RSSI)
results
If the distance between devices is greater than about 5,000 meters (3 miles) line of sight *OR* objects such as trees or
man-made obstructions interfere with the path, and the MISSED packet count exceeds 30 per 100 packets, the following
steps should be considered:
DX80 units should be raised to a higher elevation – either by physically moving the devices, or installing the antenna(s)
remotely at a higher position.
Use high-gain antenna(s) such as Yagi and/or Omni (see Accessories).
Decrease the distance between devices.
•
•
•
•
DX80 Gateway will not talk with the host system
No communications
with the DX80
Gateway using
RS485
Default communications parameters for the RS485 are: 1 start bit, 8 data bits, no parity, 1 stop bit and 19.2k baud. The
DX80 Gateway uses Modbus RTU protocol for all communications. The supported Modbus function codes are 3, 6, and 16.
Make sure the DX80 model supports RS485 serial communications.
Make sure the Slave ID is set properly for the bus environment. Factory default Slave ID = 1.
Factory default for the Modbus timeout is set to 4 seconds (for Modbus kits only). If you are using this feature make sure the
time is properly set.
RS485 termination or biasing is not supplied on the DX80 Gateway and should be provided externally to the DX80.
(Termination is not required by the DX80 Gateway, proper biasing of the serial lines is required.)
•
•
•
•
•
RF link time-out and recovery
DX80 Display shows
*ERROR
The Gateway utilizes fully-acknowledged polling to ensure each Node RF link is robust. Consequently, if after a prescribed
number of sequential polling cycles are not acknowledged by a Node, the Gateway considers the particular link with that
Node to be timed out. All outputs on the Node in question will be set to “OFF” (discrete) or “0” (analog, regardless of type).
If the Node’s RF link is recovered and the Gateway can determine that enough acknowledged polling messages have been
accumulated, then the link is reinstated and outputs are restored to the current values.
•
•
I/O functionality
Particular inputs and/
or outputs are not
working
Use manual scrolling mode within *RUN to freeze the I/O status on the LCD display for the device in question. Verify that
when the input device changes state or changes value, the LCD mirrors the behavior.
Also verify that the LCD on the output side mirrors the linked input’s behavior. If the input device state, LCD on origination
DX80, and LCD on destination DX80 all behave exactly the same, there may be a wiring issue or an interfacing problem.
Consult factory.
•
•
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
17
COMPLIANCE
FCC Certification
The DX80 Module complies with Part 15 of the FCC rules and regulations.
FCC ID: UE300DX80-2400 This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Notices
IMPORTANT: The DX80 Modules have been certified by the FCC for use with other products without any further
certification (as per FCC section 2.1091). Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
IMPORTANT: The DX80 Modules have been certified for fixed base station and mobile applications. If modules will be
used for portable applications, the device must undergo SAR testing.
IMPORTANT: If integrated into another product, the FCC ID label must be visible through a window on the final device or
it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside
of the final device that contains the following text: Contains FCC ID:UE300DX80-2400
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiving module.
• Connect the equipment into an outlet on a circuit different from that to which the receiving module is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Antenna Warning WARNING: This device has been tested with Reverse Polarity SMA connectors with the antennas listed
in Table 1 Appendix A. When integrated into OEM products, fixed antennas require installation preventing end-users from
replacing them with non-approved antennas. Antennas not listed in the tables must be tested to comply with FCC Section
15.203 (unique antenna connectors) and Section 15.247 (emissions).
FCC-Approved Antennas
WARNING: This equipment is approved only for mobile and base station transmitting devices. Antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter.
DX80 Module may be used only with Approved Antennas that have been tested with this module.
Agency Certification
Part Number Antenna Type Maximum Gain
— Integral antenna Unity gain
TBD 1/2 wave dipole ≤2 dBi
TBD Collinear ≤5 dBi
TBD Coaxial ≤7 dBi
Table 1. Type certified Antenna
DX80 Quick Start Guide
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
18
Notes
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
18
P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
DX80 Quick Start Guide
19 P/N 128185
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
Notes
19
WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for one year.
Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture
found to be defective at the time it is returned to the factory during the warranty period. This
warranty does not cover damage or liability for the improper application of Banner products. This
warranty is in lieu of any other warranty either expressed or implied.
Banner Engineering Corp., 9714 Tenth Ave. No., Minneapolis, MN 55441 • Phone: 763.544.3164 • www.bannerengineering.com • Email: sensors@bannerengineering.com
