Please read this manual and save it with your original sales receipt.

Tools needed for assembly: Phillips Screwdriver,

Adjustable Wrench (or Pliers) and Safety Scissors (all not included).

Use only with a Power Wheels® 12 Volt Lead Acid Rechargeable Battery

and Power Wheels® 12 Volt Charger with Type 12V Connector

(both included). Requires four "C" (LR14) alkaline batteries for

FM Radio operation (batteries not included).

Owner's Manual

with Assembly Instructions

For Model L7820

Product features may vary from the picture above.

2

TABLE OF CONTENTS

A

L7820pr-0920

• Your new vehicle requires adult assembly. Please set aside at

least 60 minutes for assembly.

• You must charge your battery for 18 - 30 hours before you use

your vehicle for the first time. We recommend that you start

charging your battery before beginning assembly. Please see

Battery Charging beginning on page 7 for detailed instructions.

• Read this manual carefully for important safety information

and operating instructions before using your vehicle. Keep this

manual for future reference as it contains important information.

• This vehicle is designed for use on: grass, asphalt and other

hard surfaces; on generally level terrain; and by children 3 years

of age and older.

• Use this vehicle ONLY outdoors. Most interior flooring can be

damaged by riding this vehicle indoors. Fisher-Price® will not be

responsible for damage to the floor if the vehicle is used indoors.

• To prevent damaging the motors and gears, teach your child to

stop the vehicle before switching direction. Do not tow anything

behind the vehicle or overload it. Do not exceed the maximum

weight capacity of 130 lbs (59 kg).

• This vehicle has adjustable play seat belts. Please note that the

adjustable seat belts are designed to be a play feature only and

do not function as protective safety restraints.

• For safety reasons, your vehicle has been pre-set so that it will

only operate at low speed. You must remove the high speed

lock-out screw to allow operation of the vehicle at high speed.

Please see page 21 for detailed instructions.

• If you have any questions about your Power Wheels® vehicle,

please call our toll-free service lines at 1-800-348-0751 from

9 AM to 7 PM (EST) Monday through Friday and 11 AM to 5 PM

(EST) Saturday. Trained customer service representatives are

available to take your call in English or French. Habla Español?

Si usted tiene alguna pregunta ó necesita asistencia llame

gratis 1-800-348-0755 para los Estados Unidos. Tenemos

representantes que hablan español para atender su llamada.

• For your convenience, Power Wheels® maintains an

independently owned and operated Authorized Service

Center Network with more than 300 authorized service centers

nationwide. The authorized service centers will repair or replace

parts under warranty at no extra charge, and can perform

non-warranty repairs for a minimal charge. To find the

authorized service center nearest you, please visit us on-line at

www.powerwheels.com or call 1-800-348-0751.

• To register your vehicle, please visit us on-line at

www.powerwheels.com.

IMPORTANT INFORMATION

A

2

TABLE OF CONTENTS

L7820pr-0920

A

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

B

Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

C

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

D

Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

E

Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

F

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

G

Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

H

Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

I

Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

J

Safe Driving Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

K

Vehicle Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

L

FM Radio Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

M

Vehicle Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

N

FCC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

O

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

P

Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

L7820pr-0920

RIDING HAZARD

• In the unassembled state, this package contains small parts. Adult assembly is required.

• Use the charger in dry locations only.

ELECTRICAL HAZARD

WARNING

CAUTION

3

WARNINGS AND CAUTIONS

B

• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.

• PREVENT FIRE

- Never modify the electrical system. Alterations could cause a fire resulting in serious injury

and could also ruin the electrical system.

- Use of the wrong type battery or charger could cause a fire or explosion resulting in

serious injury.

- Use of Power Wheels® components in products other than Power Wheels® vehicles could

cause overheating, fire or explosion.

• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid

(electrolyte). Dropping the battery could result in serious injury.

• Never allow children to charge the battery. Battery charging must be done by adults only. A

child could be injured by the electricity involved in charging the battery.

• Read the safety instructions on the battery.

• Examine the battery, charger and their connectors for excessive wear or damage each time

you charge the battery. If damage or excessive wear is detected, do not use the charger or the

battery until you have replaced the worn or damaged part.

• HOT motors. Handle carefully.

WARNING

L7820pr-0920

• Prevent Injuries and Deaths

• Direct Adult Supervision Required.

• Never Ride at Night.

• Keep Children Within Safe Riding Areas.

These areas must be:

- away from swimming pools and other bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, steep inclines, cars, roads and alleys.

• Riding Rules

Make sure children know and follow these rules for safe driving and riding.

- Always sit on the seat.

- Always wear shoes.

- Only 2 (two) riders at a time.

L7820pr-0920

4

PARTS

C

• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this

product to the store.

• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove

any excess lubricant.

L7820pr-0920

Brush Guard

Vehicle Windshield

Dash

Seat

Sport Bar

Hood

Steering Wheel

Steering Column

Sport Bar Support - 2

Long Seat Belt Strap

Short Seat Belt Strap - 2

Door - 2

(Left and Right)

Door Hinge - 2

(Left and Right)

Steering Wheel Cap

5

TABLE OF CONTENTS

A

L7820pr-0920

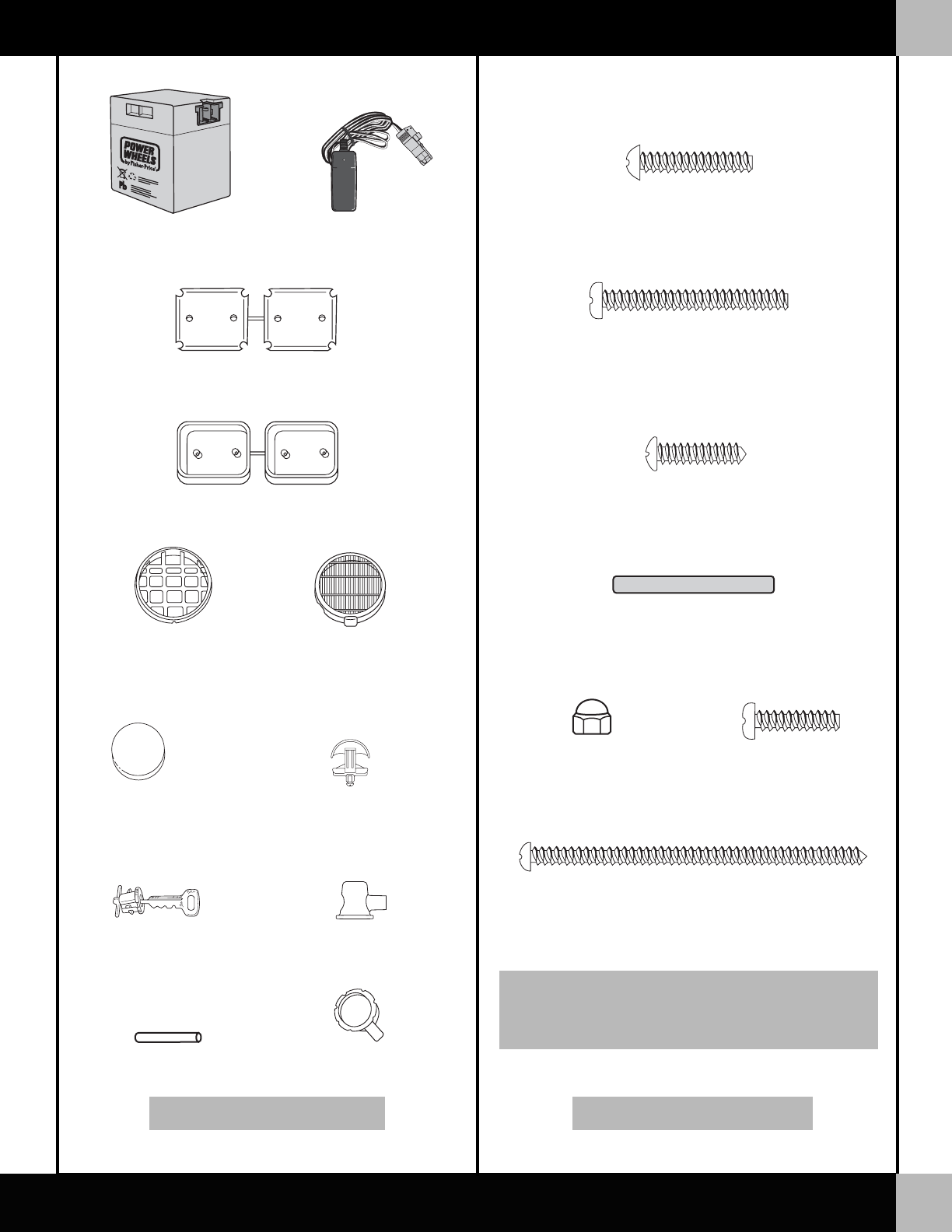

Fasteners Shown Actual Size

For your convenience, we included extra fasteners!

Note: Tighten and loosen all screws with a Phillips

screwdriver. Do not over-tighten the screws.

5

PARTS

C

Part Not Shown: Label Sheet

L7820pr-0920

Hood Latch – 2

Key Assembly

#8 x 1" Screw – 4

#8-32 x 15/8" Screw – 2

#8 Acorn Lock Nut – 2

Taillight Lens Set

12 Volt Charger

Taillight Housing Set

Lens Guard - 2 Headlight Lens - 2

12 Volt Battery

Light Cover – 4

Spacer - 2 Cap

#8 x 3" Screw – 2

#8 x 3/4" Screw – 1

#10 x 3/4" Screw – 23

Steering Column Cap

5/32"x 11/2" Pin – 1

6

TABLE OF CONTENTS

A

L7820pr-0920

6

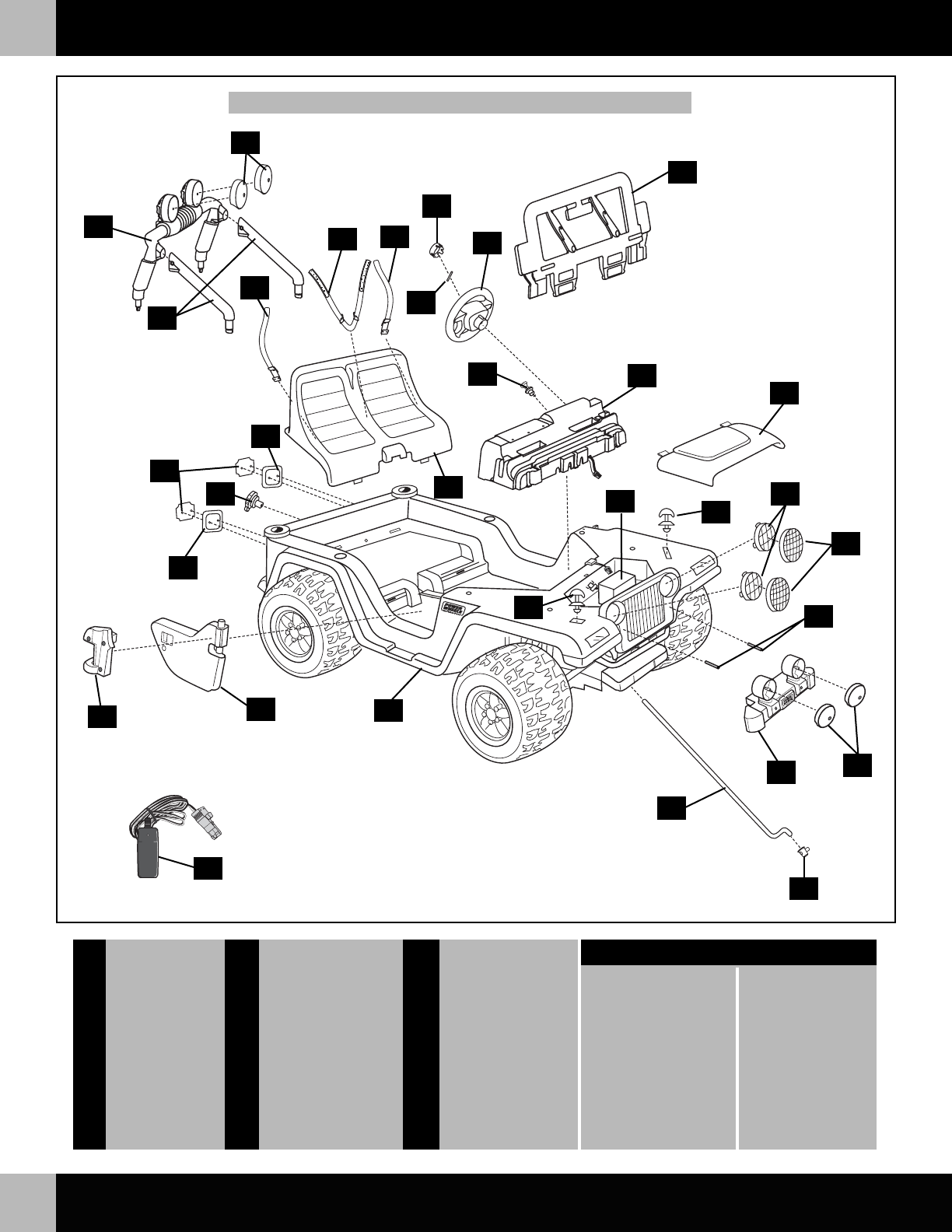

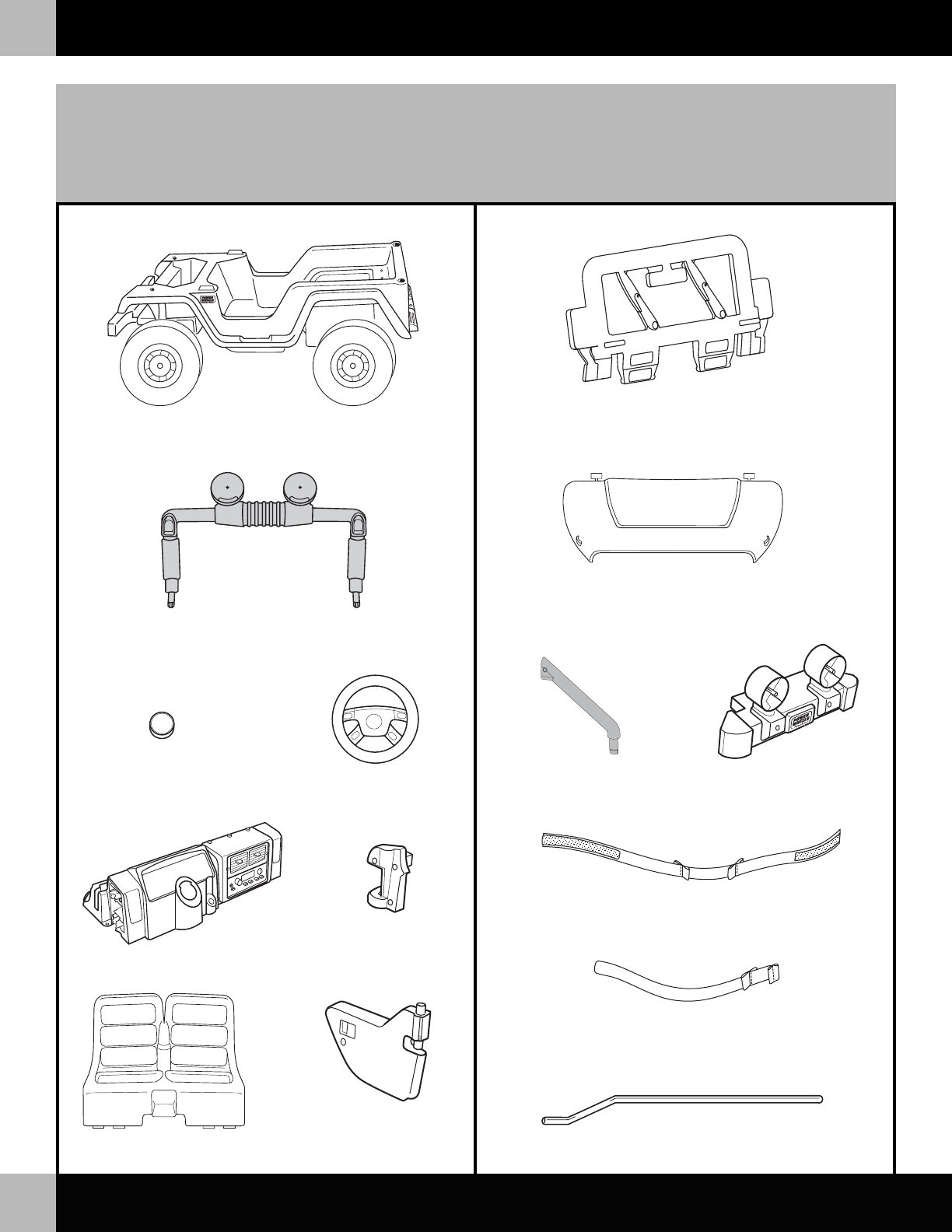

PARTS PICTURE

D

5

21

23

19

22

18

8

7

8

14

611

15

17

14

9

1

24

25

2

20

12

13

3

4

3

Note: Some parts shown are assembled on both sides of the vehicle.

16 23

10

1

Vehicle

2

Steering Column

3

Hood Latch - 2

4

12 Volt Battery

5

12 Volt Charger

6

Key Assembly

7

Taillight Lens - 2

8

Taillight Housing - 2

9

Hood

10

Cap

11

Dash

12

Headlight Lens - 2

13

Lens Guard - 2

14

Short Seat Belt Strap - 2

15

Windshield

16

Brush Guard

17

Steering Wheel

18

Seat

19

Long Seat Belt Strap

20

Spacer - 2

#8 x 1" Screw - 4

#10 x 3/4" Screw - 23

#8 x 3" Screw - 2

#8-32 x 15/8" Screw - 2

21

Sport Bar

22

Sport Bar Support - 2

23

Light Cover - 4

24

Door - 2

25

Door Hinge - 2

26

5/32" x 11/2" Pin

27

Steering Wheel Cap

28

Steering Column Cap

#8 x 3/4" Screw - 1

#8 Acorn Lock Nut - 2

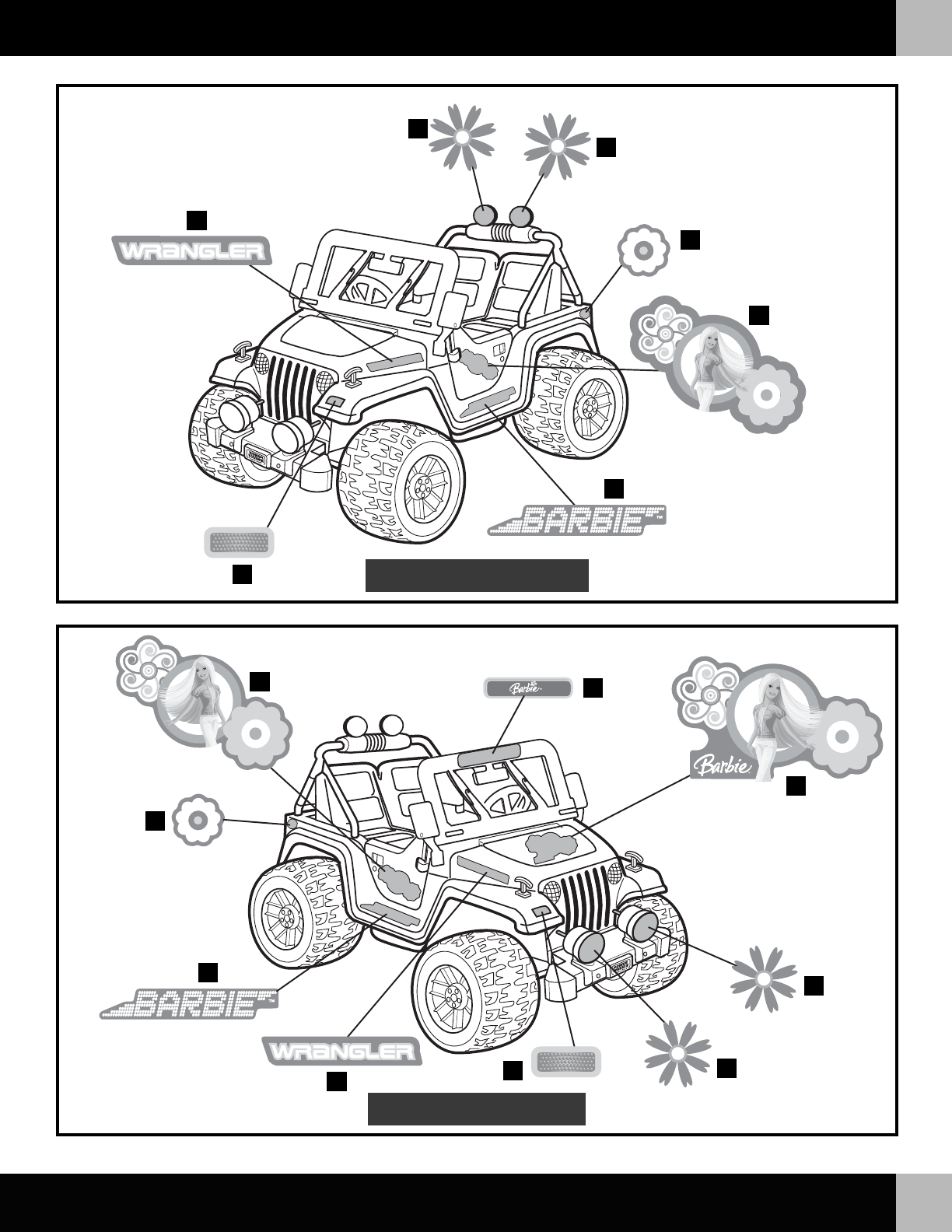

Label Sheet

Parts Not Shown

26

27

28

L7820pr-0920

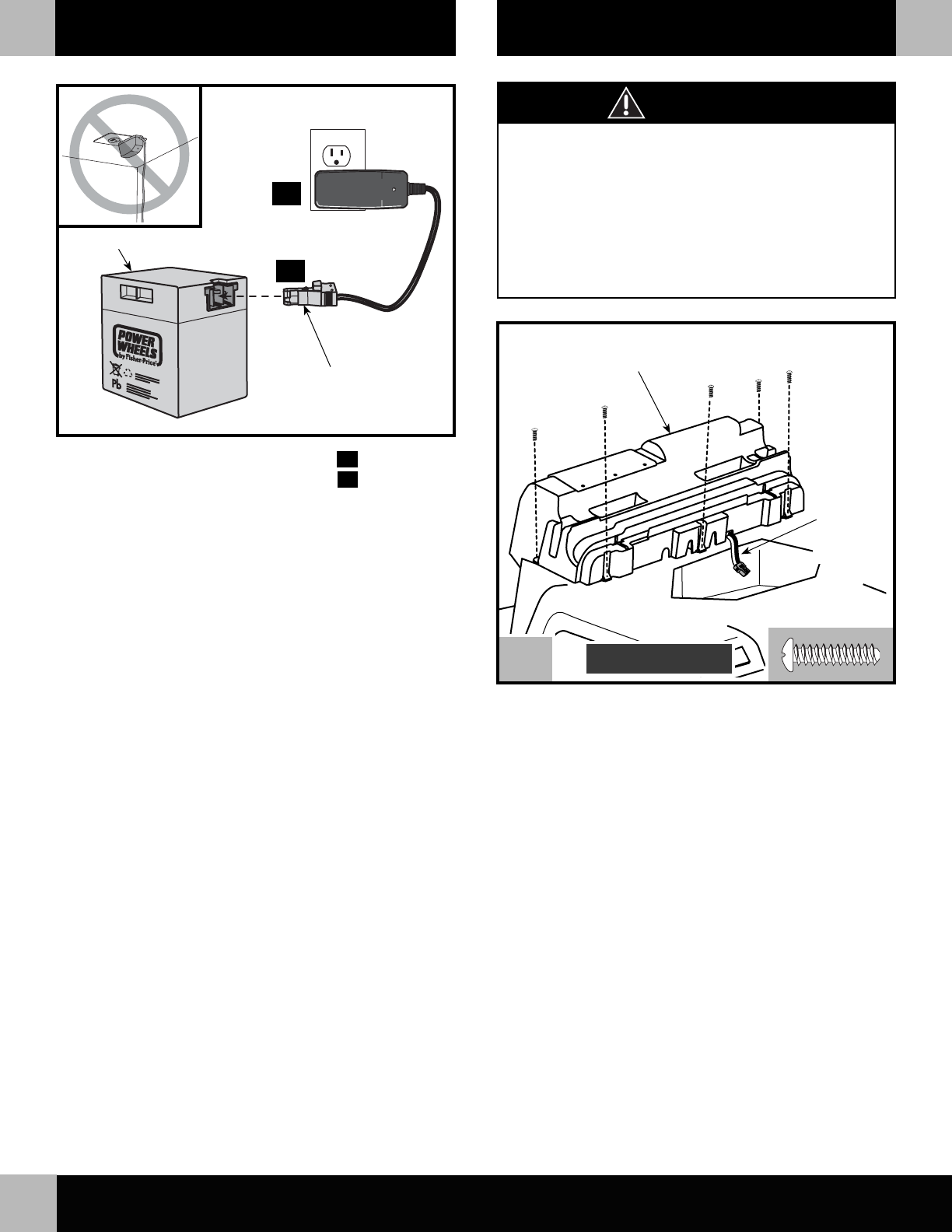

Use the charger in dry locations only.

ELECTRICAL HAZARD

Important Notes

• Your new battery must be charged for at least 18 hours

before you use it in your vehicle for the first time.

• We recommend that you start charging your battery before

beginning assembly of your new vehicle.

• The battery must be upright while charging.

• The charger is not a toy.

• Do not short circuit the battery.

• You do not need to remove the battery from your vehicle to

recharge it.

• Before charging the battery, examine the battery case for cracks

and other damage which may cause sulfuric acid (electrolyte) to

leak during the charging process. If damage is detected, do not

charge the battery or use it in your vehicle. Battery acid is very

corrosive and can cause severe damage to surfaces it contacts.

• Do not charge the battery on a surface (such as kitchen

counter tops) which could be damaged by the acid contained

inside the battery. Take precautions to protect the surface on

which you charge your battery.

• Charge the battery in a well ventilated area.

• Use only a Power Wheels® 12 volt charger with "12V" connector

(input 120 VAC, 60 Hz, 28W with an output of 12 VDC, 1200 mA)

to charge your Power Wheels® 12 volt battery.

• Adults Note: Regularly examine the charger for damage to the

cord, plug, housing, or other parts that may result in the risk

of fire, electric shock or injury. In the event of any damage,

do not use the charger until the damage has been properly

repaired. Please call 1-800-348-0751.

• If your battery is old and will not accept a charge, do not leave

it in the vehicle. Always remove a dead battery from the vehicle.

About Thermal Fuses

Your Power Wheels 12 volt battery is equipped with a built-in

thermal fuse. The thermal fuse is a self-resetting safety device

which automatically “trips” and shuts down operation of the

vehicle if the vehicle is overloaded or the driving conditions too

severe. Once a fuse has “tripped”, remove your foot from the

pedal and wait approximately 25 seconds before operating the

vehicle again. To avoid repeated automatic shut-downs, do not

overload the vehicle by exceeding the 130 lbs (59 kg) maximum

weight capacity or by towing anything behind the vehicle. Avoid

severe driving conditions, such as driving up slopes or running

into fixed objects, which can cause the wheels to stop spinning

while power is still being supplied to the motors and make sure

your child stops the vehicle before switching speeds or direction.

If a thermal fuse in a battery continually trips under normal driving

conditions, please contact your local Power Wheels® Authorized

Service Center. For the location of the Authorized Service Center

nearest to you, visit us on-line at www.powerwheels.com, or

call 1-800-348-0751.

• Battery can fall out and injure a child

if vehicle tips over. Always use battery

retainer.

• PREVENT FIRE

- Never modify the electrical system.

Alterations could cause a fire resulting

in serious injury and could also ruin the

electrical system.

- Use of the wrong type battery or charger

could cause a fire or explosion resulting

in serious injury.

- Use of Power Wheels® components in

products other than Power Wheels®

vehicles could cause overheating, fire

or explosion.

• The battery must be handled by adults

only. The battery is heavy and contains

sulfuric acid (electrolyte). Dropping the

battery could result in serious injury.

• Never allow children to charge the battery.

Battery charging must be done by adults

only. A child could be injured by the elec-

tricity involved in charging the battery.

• Read the safety instructions on the battery.

• Examine the battery, charger and their

connectors for excessive wear or damage

each time you charge the battery. If

damage or excessive wear is detected, do

not use the charger or the battery until you

have replaced the worn or damaged part.

WARNING CAUTION

7

BATTERY CHARGING

E

L7820pr-0920

8L7820pr-0920

F

Charger

Connector

• Plug the charger connector into the battery A.

• Plug the charger into a standard wall outlet B.

Notes:

- Use the charger only in a wall outlet. Do not plug the charger

into a ceiling outlet.

- If power flow to the wall outlet is controlled by a switch, make

sure the switch is “ON”.

• The power indicator on the charger does not indicate the

charge status of your battery. The power indicator allows you

to see that there is power from the wall outlet to the charger.

• Before first-time use, charge the battery for at least 18 hours.

Never charge the battery longer than 30 hours.

• Recharge the battery for at least 14 hours after each use of

your vehicle. Do not charge the battery longer than 30 hours.

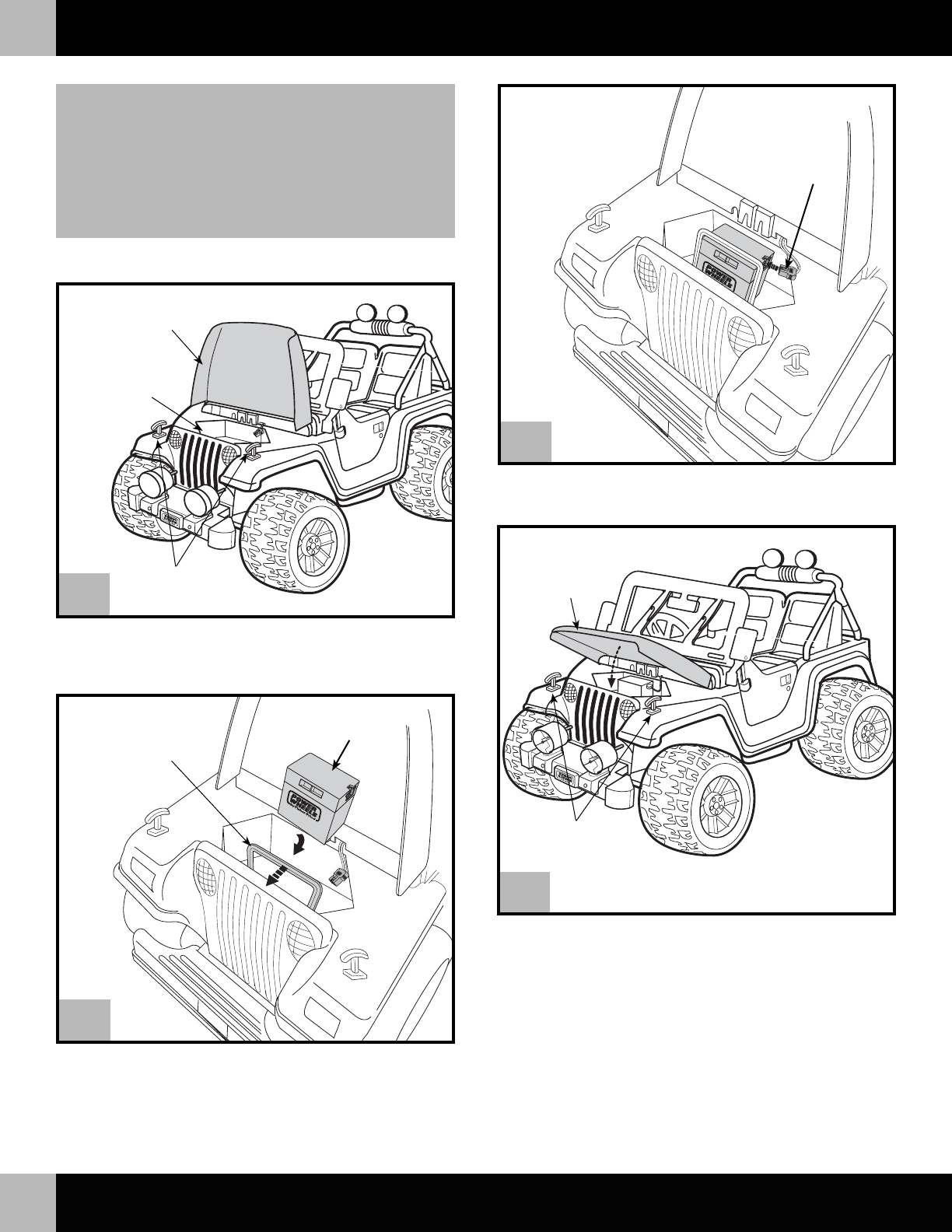

• Once the battery is charged, pull firmly on the charger

connector to disconnect it from the battery. Unplug the

charger from the wall outlet. The battery is now ready to be

installed in your vehicle. Please see the Battery Installation

section on page 18 for detailed instructions on installing your

battery. If your battery is already installed in your vehicle,

simply re-connect the motor harness connector to the battery.

Lower and fasten the hood.

Dash

• Position the dash on the vehicle.

• Make sure the motor harness connector wire is through the

groove in the dash.

• Insert five #10 x 3/4" screws into the dash tabs and tighten.

Motor

Harness

Connector

Wire

Children can be harmed by small parts,

sharp edges and sharp points in the vehicle's

unassembled state, or by electrical items.

Care should be taken in unpacking and

assembly of the vehicle. Children should not

handle parts, including the battery, or help in

assembly of the vehicle.

WARNING

1

ASSEMBLY

BATTERY CHARGING

E

A

B

F

Battery

FRONT VIEW

L7820pr-0920

4

3

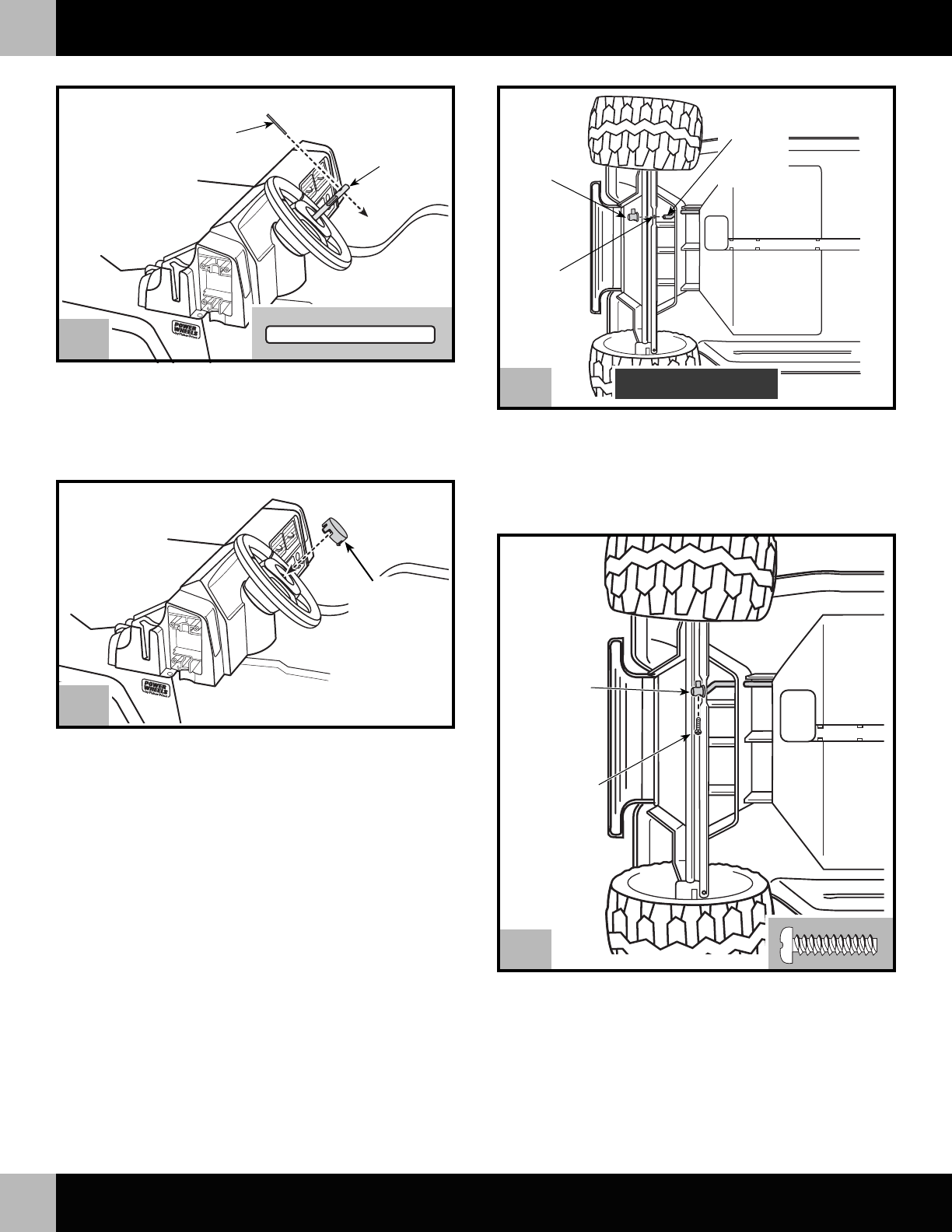

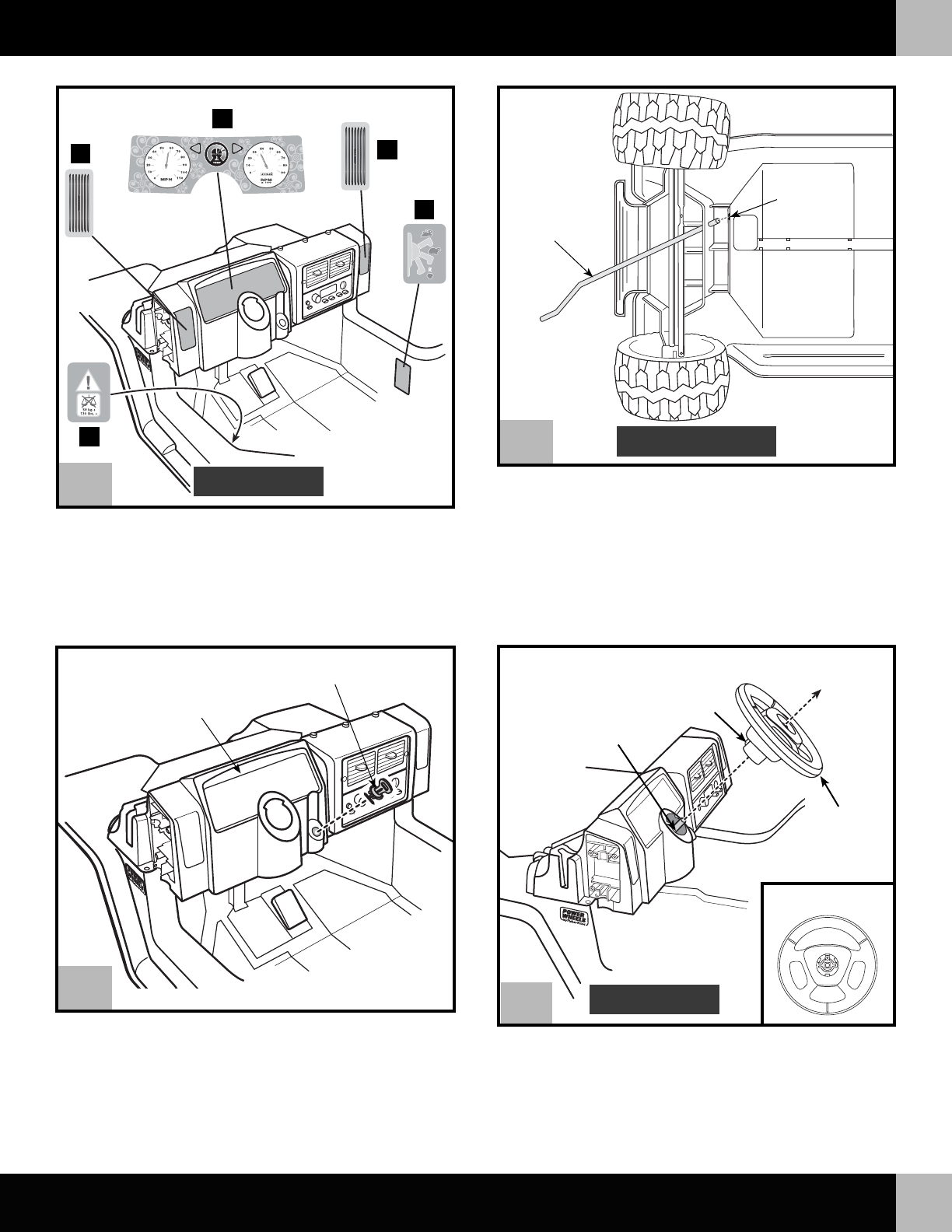

• Wipe the steering column with a paper towel to remove any

excess lubricant.

• Turn the vehicle on its side.

• Insert the straight end of the steering column up through the

hole in the vehicle frame and the vehicle floor and out through

the hole in the dash.

• While holding the steering column in place, turn the

vehicle upright.

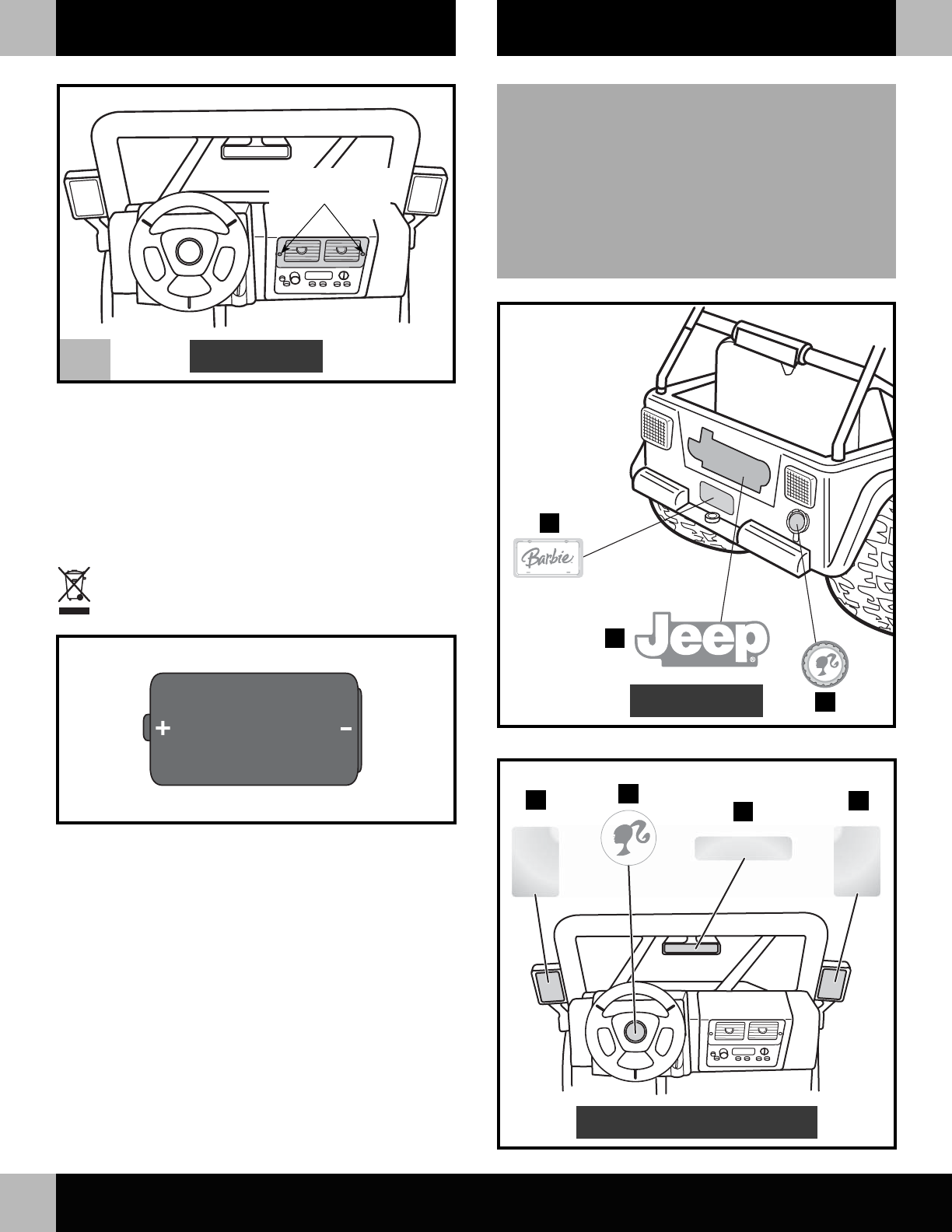

• Before applying the labels, wipe the surface of the vehicle with

a clean, dry cloth to remove any dust or oils.

• Place the labels exactly as shown in the illustration.

• For best results, avoid repositioning a label once it has been

applied to the vehicle.

2

9

ASSEMBLY

F

L7820pr-0920

Dash

Key Assembly

• Insert and “snap” the key assembly into the opening in the

dash, as shown.

Steering

Column

Hole

9

17

9

7

6

DASH VIEW

BOTTOM VIEW

• Position the steering wheel so that the large opening and the

tab on the steering wheel stem are both UP.

• Fit the steering wheel onto the steering column.

Steering

Wheel

Steering

Column

5

Tab UP

Large Opening UP

SIDE VIEW

L7820pr-0920

10

ASSEMBLY

F

L7820pr-0920

8

• Turn the vehicle on its side.

• Insert the end of the steering column through the hole in the

steering rod.

• Fit the steering column cap onto the end of the steering column.

End of

Steering

Column

Steering

Rod Hole

Steering

Column Cap

9

• Insert a #8 x 3/4" screw through the large opening in the

steering column cap and into the hole in the steering column.

Tighten the screw.

• Turn the vehicle upright.

Steering

Column Cap

#8 x 3/4" Screw

• Insert and "snap" the steering wheel cap into the center of the

steering wheel.

• Insert the 5/32" x 11/2" pin through the hole in the end of the

steering column.

• Lower the steering column so that the pin fits inside the center

of the steering wheel.

6

End of

Steering

Column

5/32" x 11/2" Pin

7

Steering

Wheel

Cap

BOTTOM VIEW

L7820pr-0920

12

Hood

Latch

Slot

Hood

Latch

Slot

Hood

Tabs

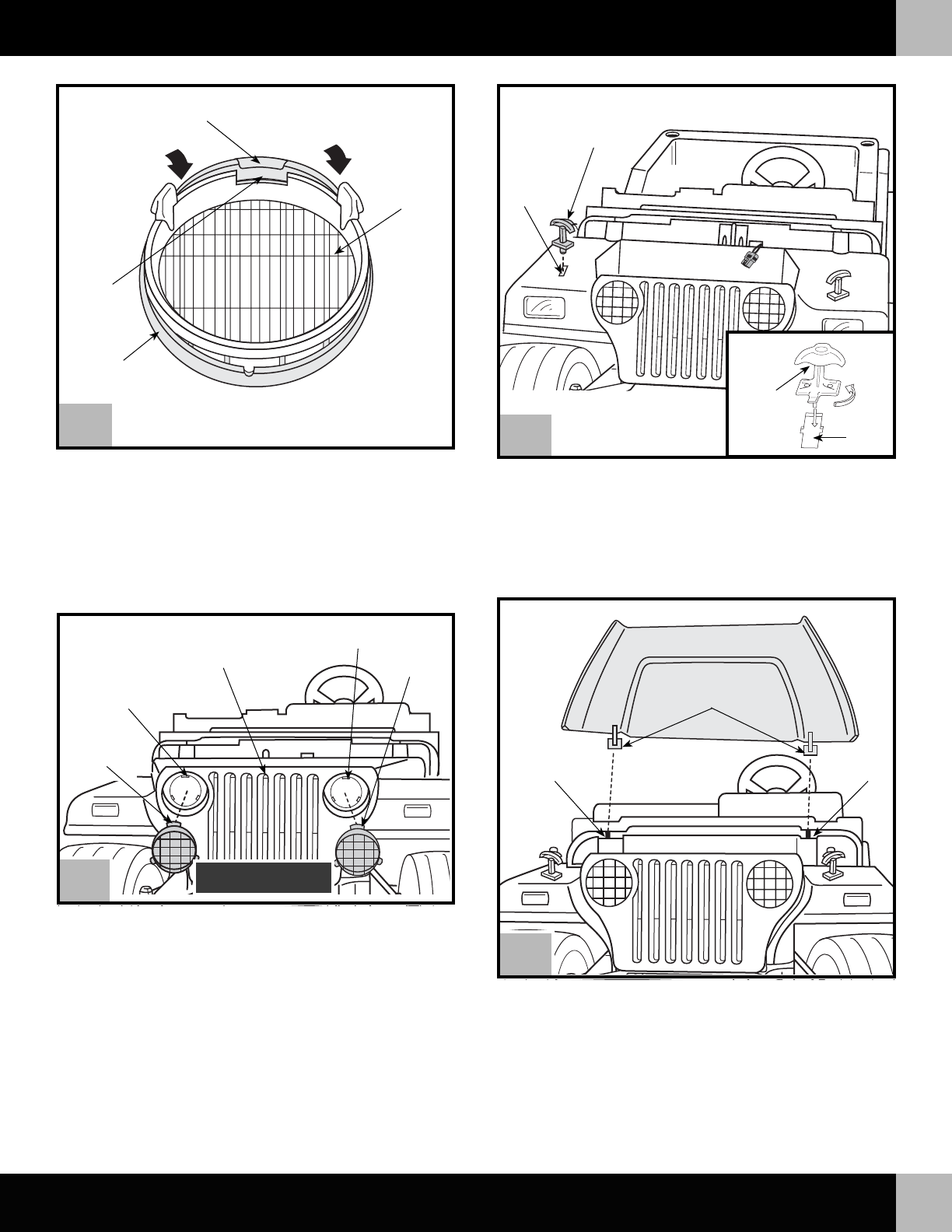

• Insert the tabs on the hood into the slots in the front end of

the vehicle.

• Pull the hood forward and lower it closed.

Slot Slot

• Insert a hood latch into one of the slots in the front end of

the vehicle.

• Twist the base of the hood latch 1/4 turn to secure it in

the vehicle.

• Repeat this procedure to attach the other hood latch to

the vehicle.

11

ASSEMBLY

F

13

L7820pr-0920

Grille

Tab

Tab

Slot

Slot

• Fit a lens assembly tab into the headlight slots in the grille.

• Press firmly to snap the lens assembly into the grille.

• Repeat this procedure to snap the other lens assembly into

the grille.

11

FRONT VIEW

Lens

Lens

Wide

Notch

Lens Guard Wide Tab

Lens Guard

• Fit the wide notch in the side of a headlight lens under the

wide tab on a lens guard.

• Press firmly on the inside of the headlight lens to snap it into

the lens guard.

• Repeat this procedure to assemble the other headlight lens to

the remaining lens guard.

10

L7820pr-0920

17

12

ASSEMBLY

F

L7820pr-0920

16

Spacers

Grille

• Fit two spacers between the grille and the back of the brush

guard, as shown A.

• Insert two #8 x 3" screws through the inside of the headlight, the

spacers and into the holes in the grille B. Tighten the screws.

Brush Guard

• Fit the light covers to the headlights.

• Insert a #10 x 3/4" screw into each light cover. Tighten the screws.

Light

Covers

A

B#8 x 3" Screws

Headlights

Brush Guard

Front Bumper

• Fit and hold the brush guard against the front bumper.

• Insert two #10 x 3/4" screws into the brush guard and tighten.

15

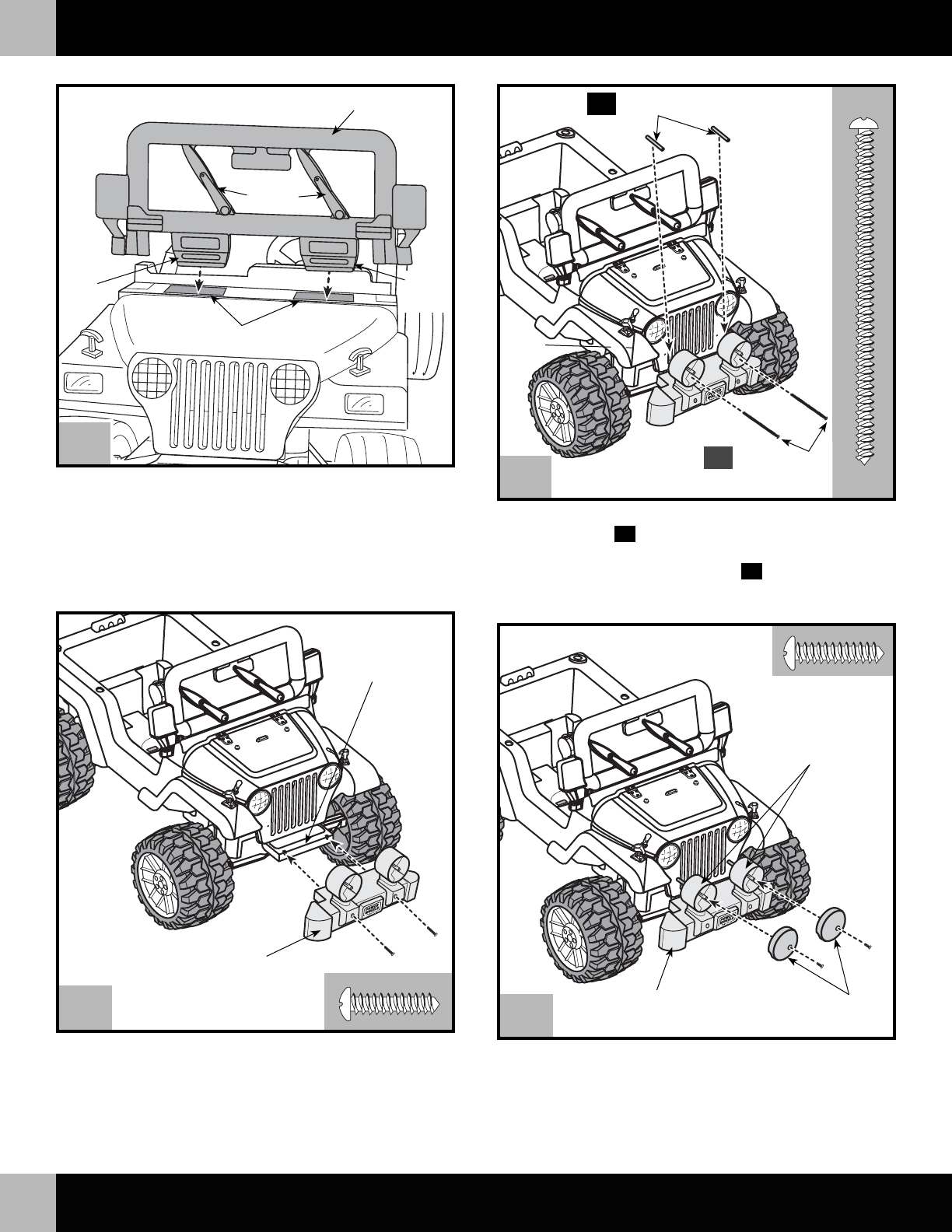

• Position the windshield so that the molded detail on the

wipers faces the front end of the vehicle.

• Insert and “snap” the two large tabs on the windshield into

the large slots in the dash.

• Pull up on the windshield to be sure it is secure.

Windshield

Wipers

Large

Tab Large

Tab

Large Slots

14

L7820pr-0920

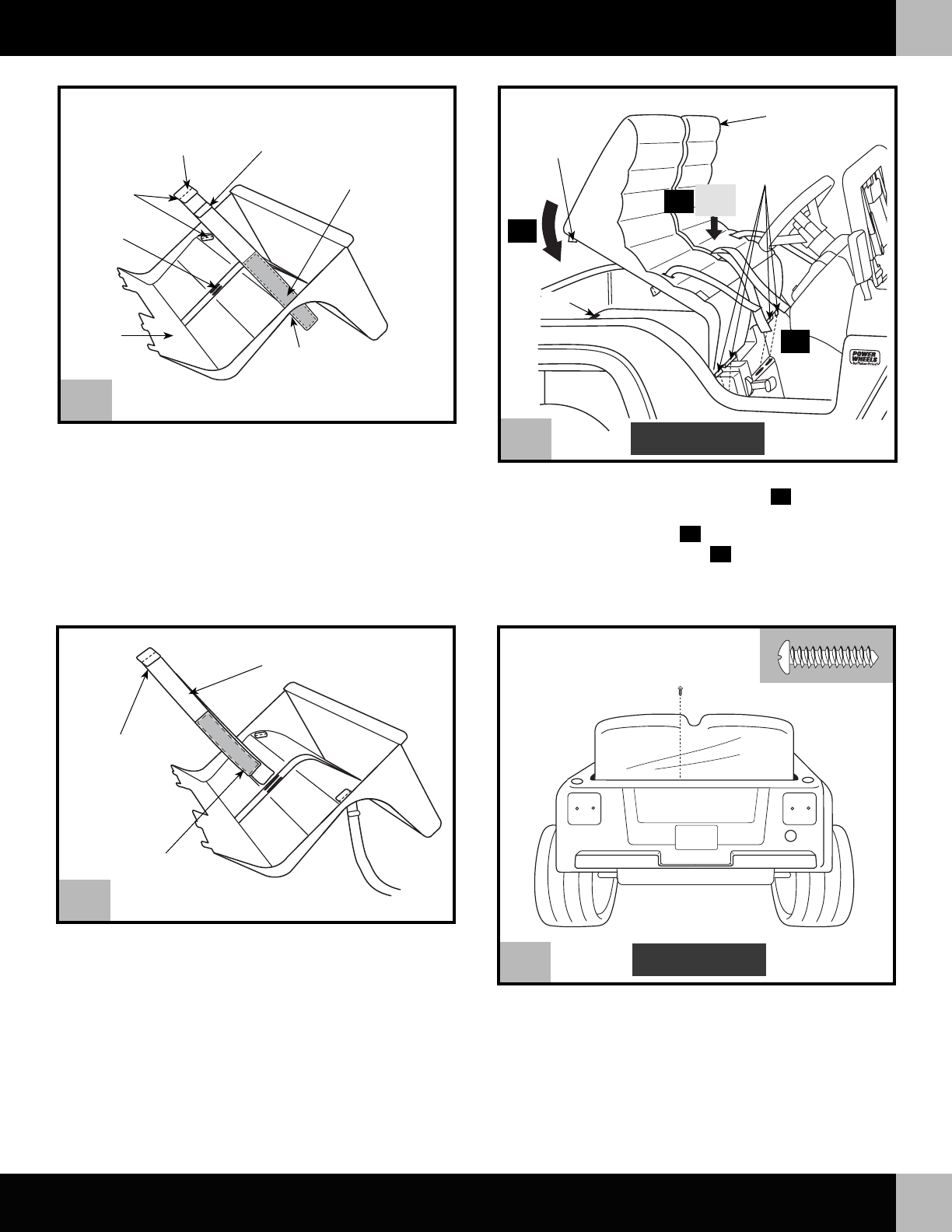

• With the seat at an angle, insert the tabs on the front edge of

the seat into the slots in the foot-well wall A.

• Push down firmly on the edge of the seat above each tab to

snap the tabs into the slots B.

• Rotate the back of the seat down C to snap the seat back tabs

into the slots in the vehicle. Push down firmly on the seat back.

20

13

ASSEMBLY

F

L7820pr-0920

Seat

Seat Back

Tabs

Slot

Tabs

A

B

C

PUSH

HERE

21

• Insert a #10 x 3/4" screw into the rear edge of the seat. Tighten

the screw.

19

• Insert each fastener end of the long seat belt strap through a

slot in the center of the seat. Make sure the fasteners face the

outer edge of the seat.

• Pull each side of the long seat belt strap evenly through the

slots. Make sure to pull each T-loop through a slot.

• Turn the seat upright.

T-Loop

Fastener End

Long Seat Belt Strap

SIDE VIEW

BACK VIEW

18

• Turn the seat upside down.

• Insert the fastener end of a short seat belt strap through the

slot near the outer edge of the seat. Make sure the side of the

seat belt with the fastener faces the outer edge of the seat.

• Pull the short seat belt strap completely through the slot until

the last T-loop at the opposite end of the belt catches against

the slot. You will pull one T-loop through the slot.

• Repeat this procedure to assemble the other short seat belt strap.

Short Seat

Belt Strap

Fastener End

Seat

Slot

T-Loops

Slot

T-Loop (Pull through slot)

23

Sport Bar Support

Side

Fender

PULL

HERE

PUSH

HERE

Rear of

Vehicle

24

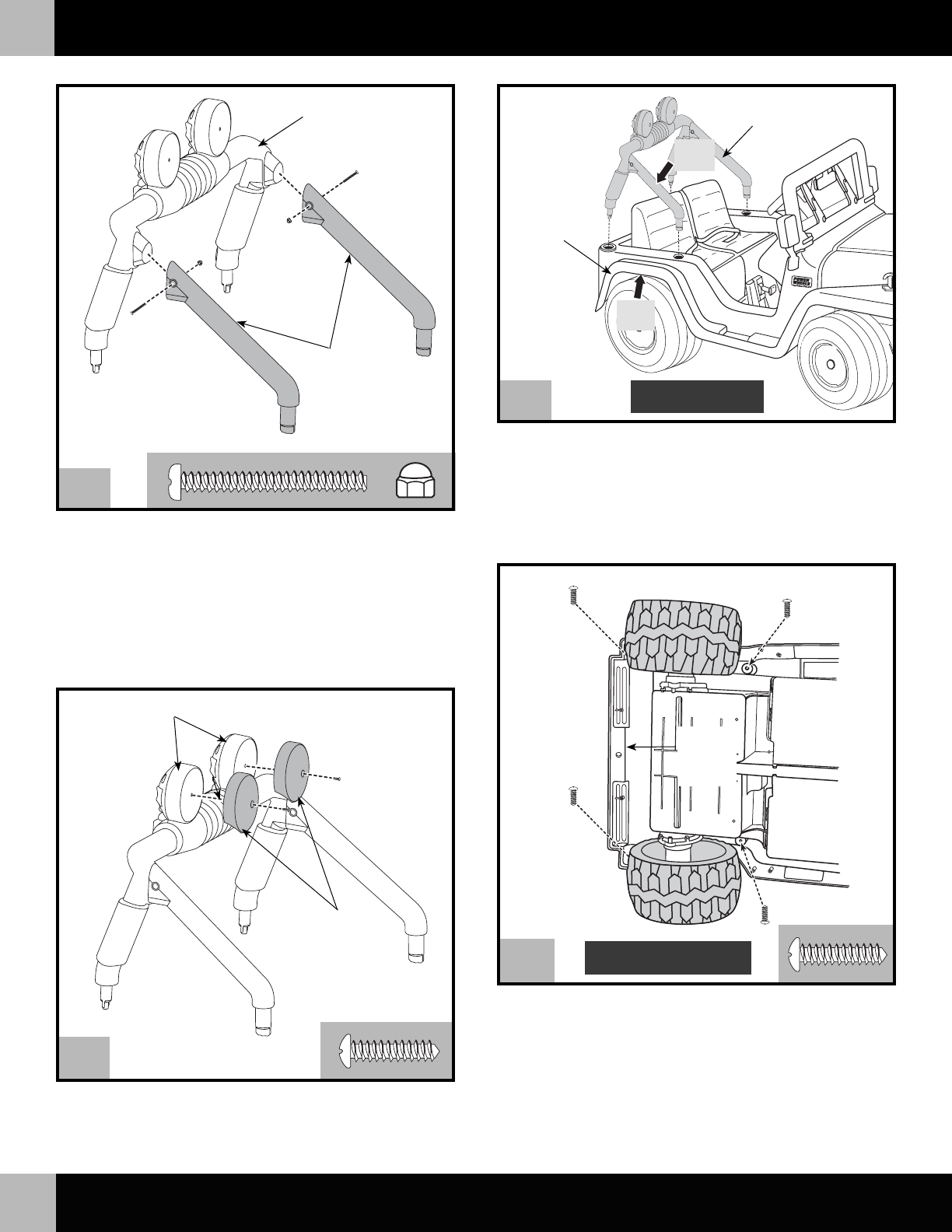

• Fit the sport bar assembly into the holes in the top side of

the vehicle.

• Push down firmly on a sport bar support while pulling up on

the side fender to fit the sport bar into the vehicle.

• Repeat this procedure on the other side of the vehicle.

• Turn the vehicle on its side.

• Insert two #10 x 3/4" screws into the holes (behind the rear

wheels) in the underside of each rear wheel well, through the

vehicle and into the ends of the sport bar. Tighten the screws.

• Next, insert two #10 x 3/4" screws into the holes (in front of the

rear wheels) in the underside of each wheel well, through the

vehicle and into the ends of the sport bar. Tighten the screws.

2323

25

23

• Fit the remaining light covers to the top of the sport bar, as shown.

• Insert a #10 x 3/4" screw into each light cover. Tighten the screws.

SIDE VIEW

BOTTOM VIEW

• Fit a support to one side of the sport bar.

• Insert a #8- 32 x 15/8" screw through the support, the sport bar

and out through the support.

• Fit a #8 acorn lock nut to the end of the screw.

• While holding the acorn lock nut with an adjustable wrench or

pliers, tighten the screw.

• Repeat this procedure to fasten the other support to the sport bar.

22

Sport Bar

Supports

14

ASSEMBLY

F

L7820pr-0920

Light

Covers

Lights

28

27

Door

Hinge

Door

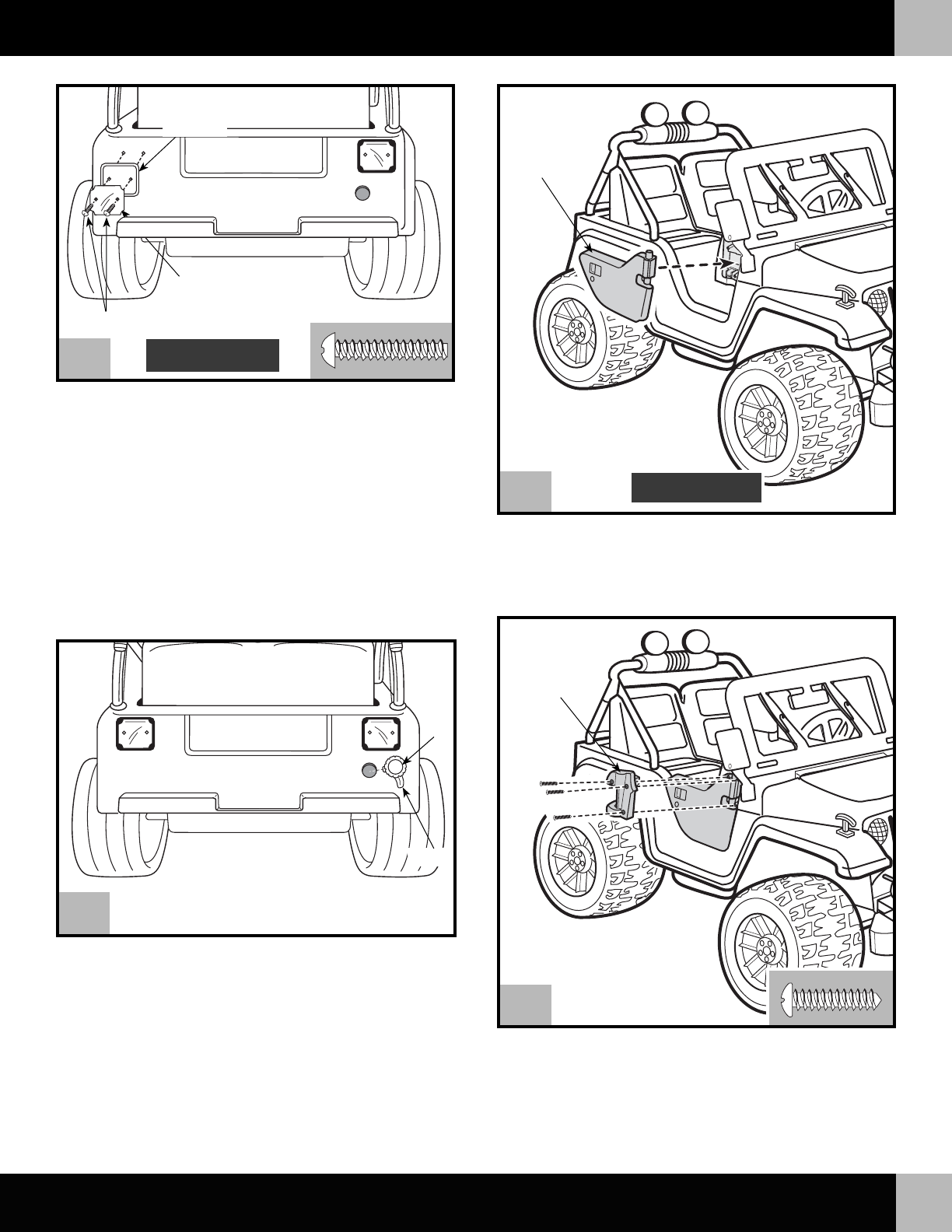

• Fit a door into the groove on the side of the dash.

Hint: Each door is designed to fit one way. If the door does not

fit, try the other door.

29

• Fit a hinge over the top end of the door.

Hint: Each hinge is designed to fit one way. If the hinge does

not fit, try the other hinge.

• Insert three #10 x 3/4" screws into the hinge and tighten.

• Repeat Assembly steps 28 and 29 to assemble the other

door and hinge.

L7820pr-0920 15

SIDE VIEW

• Position the cap so that the tether is down.

• Snap the cap into the hole under the right taillight.

Cap

Tether

26

Taillight

Lens

#8 x 1" Screws

• Turn the vehicle upright.

• Using safety scissors, remove the taillight lenses and the

taillight housings from the plastic connectors. Dispose of the

plastic connectors.

• Face the rear of the vehicle.

• Fit a taillight lens inside a taillight housing.

• Position the taillight housing with lens against the vehicle with

the screw holes aligned, as shown.

• Insert two #8 x 1" screws through the taillight lens, housing

and into the vehicle as shown. Tighten the screws.

• Repeat this procedure to attach the other taillight assembly.

BACK VIEW

Taillight

Housing

ASSEMBLY

F

Jeep® and the Jeep® grille design are registered trademarks of

DaimlerChrysler Corporation. Jeep® Wrangler® and its trade dress

are used under license from DaimlerChrysler. ©DaimlerChrysler Corporation 2007.

• Wash your hands before applying the labels.

• Before applying the labels, wipe the surface of the vehicle

with a clean, dry cloth to remove any dust or oils.

• Place the labels exactly as shown in the illustrations.

• For best results, avoid repositioning a label once it has been

applied to the vehicle.

• After applying a label, rub the label firmly with a clean, dry

cloth to make sure the label is adhered to your vehicle. Start

at the center of a label, and smooth towards the outer edges

to remove air bubbles.

REAR VIEW

16

DECORATION

F

20

14

4

L7820pr-0920

15

INSIDE DASH VIEW

10

5

19

Battery Safety Information

In exceptional circumstances, batteries may leak fluids that can

cause a chemical burn injury or ruin your product. To avoid

battery leakage:

• Do not mix old and new batteries or batteries of different types:

alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).

• Insert batteries as indicated inside the battery compartment.

• Remove batteries during long periods of non-use. Always

remove exhausted batteries from the product. Dispose of

batteries safely. Do not dispose of the product in a fire. The

batteries inside may explode or leak.

• Never short-circuit the battery terminals.

• Use only batteries of the same or equivalent type, as recommended.

• Do not charge non-rechargeable batteries.

• Remove rechargeable batteries from the product before charging.

• If removable, rechargeable batteries are used, they are only to

be charged under adult supervision.

1.5V x 4

"C" (LR14)

G

ASSEMBLY

16 L7820pr-0920

28

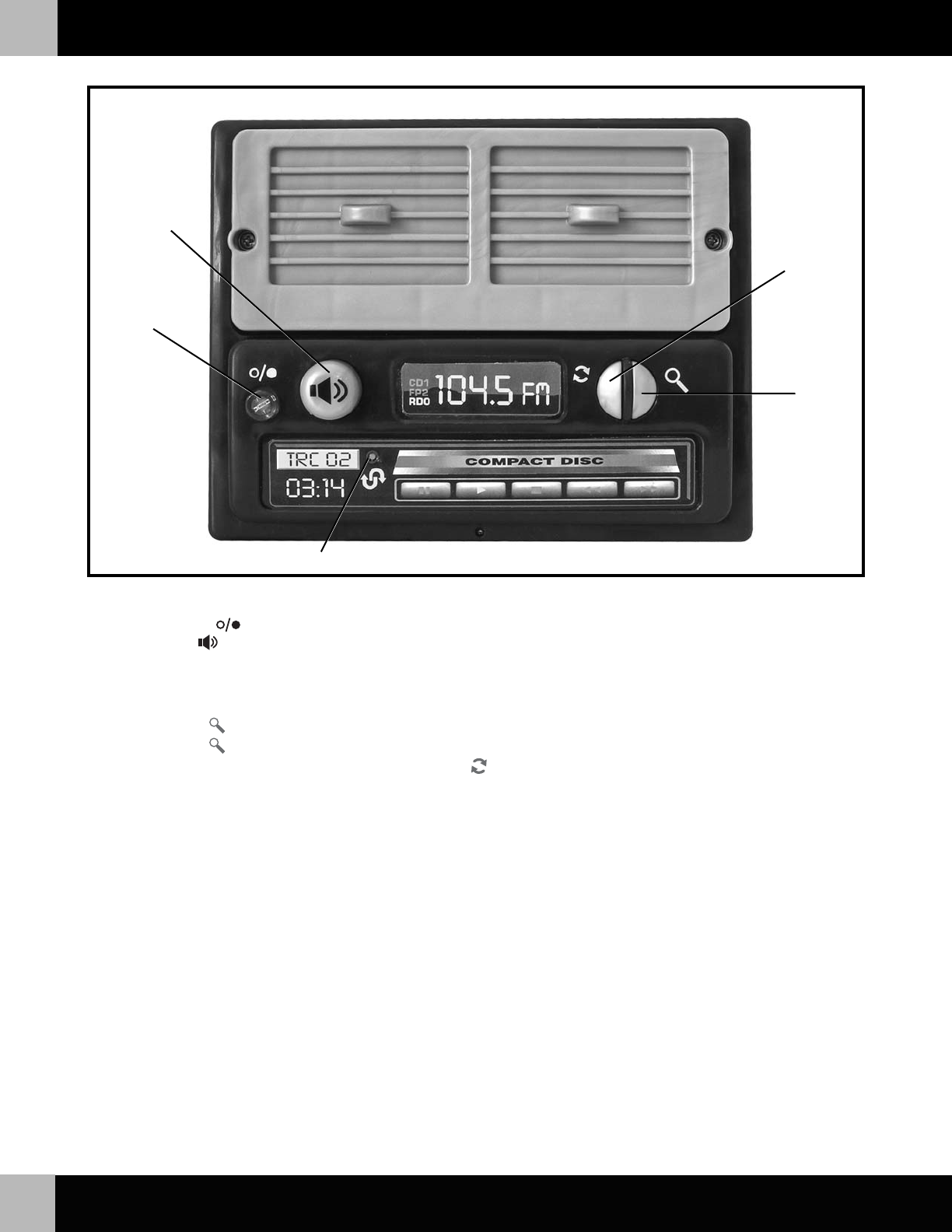

• Locate the FM Radio on the dash. Loosen both screws in the

battery compartment door. Remove the battery compartment door.

• Remove the exhausted batteries and throw them away.

• Insert four, new "C" (LR14) alkaline batteries.

Hint: We recommend using alkaline batteries for longer battery life.

• Replace the battery compartment door and tighten the screws.

• When sounds become faint or stop, it’s time for an adult

to change the batteries! Please refer to page 22 for general

information and tips for use of the FM Radio.

Loosen These

Screws

DASH VIEW

• Protect the environment by not disposing of this product

with household waste (2002/96/EC). Check your local

authority for recycling advice and facilities (Europe only).

L7820pr-0920

FRONT LEFT SIDE

FRONT RIGHT SIDE

17

DECORATION

G

11

18

16

2

11

18

L7820pr-0920

3

1

16

12

13

16

16

3

8

8

L7820pr-0920

4

3

2

1

IMPORTANT! Use only a Power Wheels® 12 volt battery. Use

of any other battery will damage your vehicle. Make sure that

you charge the battery for at least 18 hours using the enclosed

Power Wheels® 12 volt charger before operating your vehicle

for the first time. Charge the battery for at least 14 hours after

each use of the vehicle. Never charge the battery longer than

30 hours. Failure to follow these instructions may damage your

battery and will void your warranty.

• Turn the hood latches a 1/4 turn.

• Lift the hood to access the battery compartment.

• Lift and pull the battery retainer forward.

• Place the battery in the battery compartment and release the

battery retainer.

Power Wheels®

12 Volt Battery

Motor Harness

Connector

• Plug the motor harness connector into the battery.

18

BATTERY INSTALLATION

H

L7820pr-0920

Hood

Battery

Compartment

Hood

Hood Latches

• Lower the hood and secure the hood latches.

Hood

Latches

Battery Retainer

L7820pr-0920

• Your Power Wheels® battery is a non-spillable, sealed lead-

acid battery. They must be recycled or disposed of in an

environmentally sound manner.

• Do not dispose of a lead-acid battery in a fire. The battery may

explode or leak.

• Do not dispose of a lead-acid battery in your regular,

household trash. The incineration, landfilling or mixing of

sealed lead-acid batteries with household trash is prohibited by

law in most areas.

• Protect the environment by not disposing of this product with

household waste (2002/96/EC). Check your local authority for

recycling advice and facilities (Europe only).

• Return an exhausted battery to a federal or state approved lead-

acid battery recycler, such as a Power Wheels® authorized service

center or a local seller of automotive batteries. For the authorized

service center location nearest to you, please visit us on-line at

www.powerwheels.com or call 1-800-348-0751. Contact your

local waste management officials for other information regarding

the environmentally sound collection, recycling and disposal of

lead-acid batteries. If you live in the State of Florida or the State

of Minnesota, it is prohibited by law for anyone to throw away

lead-acid batteries in the municipal waste stream.

Care

If a battery leak develops, avoid contact with the leaking acid

and place the damaged battery in a plastic bag. See information

below for proper disposal.

If acid comes in contact with skin or eyes, flush with cool water

for at least 15 minutes and call a physician.

If acid is internally ingested, give water, milk of magnesia or

egg whites immediately. Never give emetics or induce vomiting.

Call a physician.

• Charge a new battery for at least 18 hours before first use.

Never charge the battery longer than 30 hours. Overcharging

or undercharging the battery may shorten battery life and

decrease vehicle running time.

• After the first charge, recharge the battery for at least 14 hours

after each use. Never charge the battery longer than 30 hours.

Charge the battery after each use, regardless of how long the

vehicle was used.

• The battery must be upright while charging.

• Do not allow the battery to run down completely before charging.

• Charge the battery before storing the vehicle.

• Charge the battery at least once per month, even if the vehicle

has not been used.

• Leaving the battery in a discharged condition will ruin it.

• Always remove an exhausted battery from the vehicle. Battery

leakage and corrosion can damage the vehicle.

• Do not store the battery on a surface (such as a kitchen

counter top) which could be damaged by the acid contained

inside the battery. Take precautions to protect the surface on

which you store the battery.

• Do not store the battery in temperatures above 75° F or

below -10° F.

• Use only a Power Wheels® 12 volt battery. Remember to

charge the new battery for at least 18 hours before first use.

• Prevent the battery from moving freely inside the battery

compart-ment. Always use the battery retainer to secure the

battery in the battery compartment.

• Examine the battery, charger and their connectors for excessive

wear or damage each time you charge the battery. If damage is

detected, do not use the charger or the battery until you have

replaced the worn or damaged part.

Disposal

19

BATTERY CARE AND DISPOSAL

I

L7820pr-0920

L7820pr-0920

Teach Safety Rules to Children

While children can quickly develop the skill necessary to drive

this vehicle, it is important to remember that their judgment skills

are still very immature. Unsupervised driving by children can

lead to serious injury. Before children use this vehicle, an adult

should carefully evaluate the driving area as well as the children’s

skill level and ability to drive this vehicle safely. Children are not

always able to recognize or anticipate hazards, even when they

have been taught about them. There is no acceptable substitute

for direct adult supervision.

Teach appropriate safety rules to your child before allowing

operation of this vehicle. These rules should also be reviewed

with neighborhood children or other playmates who want to drive

this vehicle.

Riding Rules

Make sure children know and follow these rules for safe

driving:

1. Always sit on the seat.

2. Always wear shoes.

3. Only 2 (two) riders at a time. A child who is not sitting on the

seat or who is standing on the vehicle could fall off, cause a tip-

over or block the driver’s view. A child could be seriously injured.

4. Do not allow any child to drive the vehicle in the street or near

moving (motorized) vehicles.

5. Do not allow any child to drive near bodies of water (such as

pools or creeks), obstructions (such as furniture, low tree limbs

or play equipment), or drop-offs (such as stairs or decks).

6. Do not allow any child to drive the vehicle in the dark. A child

could encounter unexpected obstacles and have an accident.

Operate the vehicle only in the daytime or a well-lit area.

7. Do not allow your child to drive on sloped or inclined surfaces.

Restrict your child’s driving to generally level ground ONLY!

8. Do not allow your child to drive down or across a steep slope.

- The vehicle may gain unsafe speed, even if the pedal is

released to stop.

- The vehicle may tilt and tip over.

- The wheels could lose traction, causing the vehicle to slip.

9. Do not allow your child to drive up steep inclines. The motor may

stop and the vehicle could roll backwards at an unsafe speed.

10. Never put anything near any moving parts. Rotating parts

such as motors, gear boxes and wheels can snag fingers,

hair, etc., causing serious injury. Do not allow operation of the

vehicle when it is on its side or in an upside-down position.

11. Do not operate the vehicle near flammable vapors (gasoline,

paint thinner, acetone, liquid wax, etc.). The vehicle’s electrical

switches, like most electrical switches, emit an internal spark

when first turned on or turned off. The presence of flammable

liquids or vapors could cause an explosion or a fire. Keep

all flammable products in tightly sealed containers and away

from the vehicle.

12. Do not allow a child to operate the vehicle without direct

adult supervision. To prevent unsupervised use of the vehicle,

disconnect the motor harness from the battery when the

vehicle is not in use.

RIDING HAZARD

20

SAFE DRIVING RULES

J

WARNING

L7820pr-0920

• Prevent Injuries and Deaths

• Direct Adult Supervision Required.

• Never Ride at Night.

• Keep Children Within Safe Riding Areas.

These areas must be:

- away from swimming pools and other

bodies of water to prevent drownings

- generally level to prevent tipovers

- away from steps, steep inclines, cars,

roads and alleys.

• Riding Rules

Make sure children know and follow

these rules for safe driving and riding.

- Always sit on the seat.

- Always wear shoes.

- Only 2 (two) riders at a time.

Use vehicle on generally level ground ONLY!

L7820pr-0920

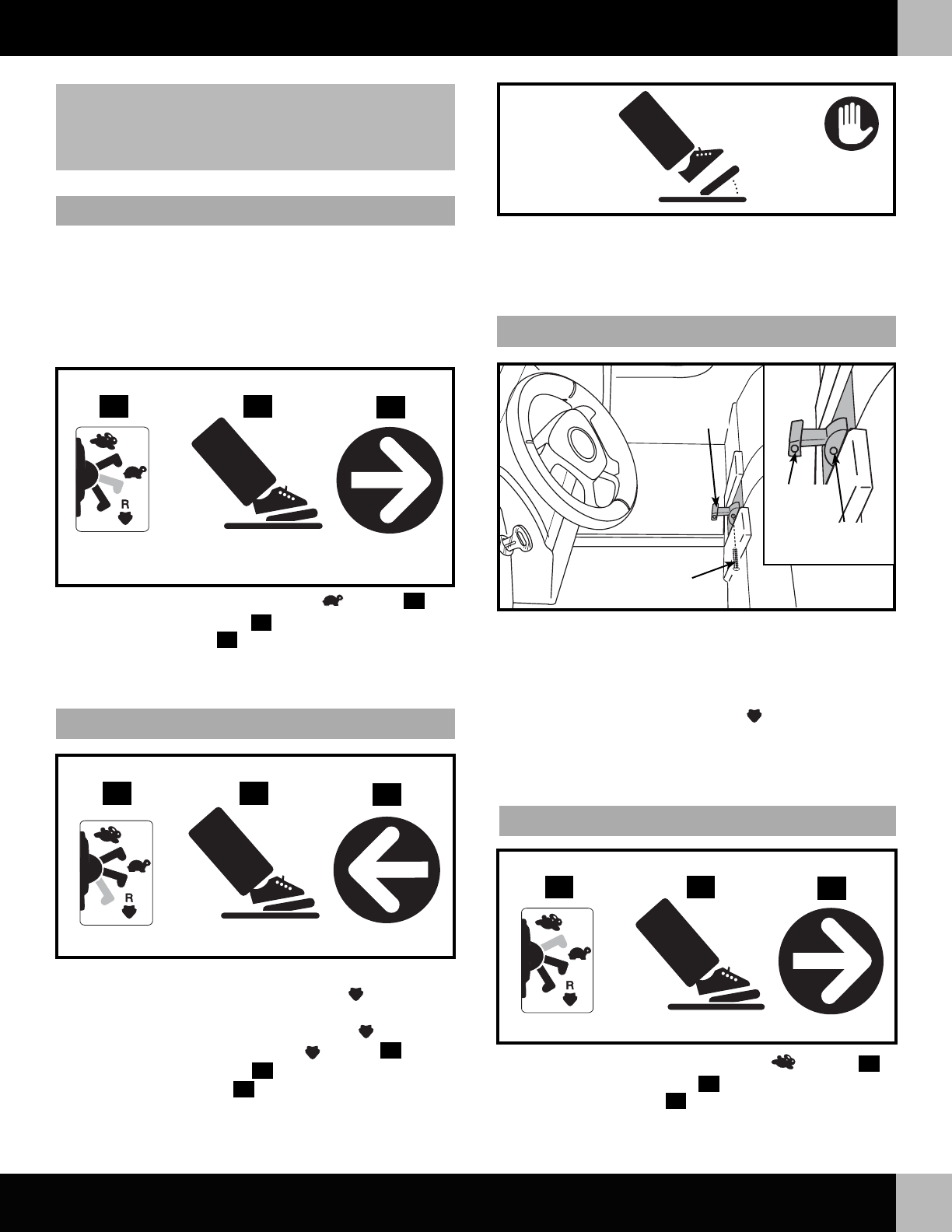

• Your vehicle has a patented, electronic braking system that

automatically stops the vehicle when your child’s foot lifts from

the pedal. Make sure your child is comfortable with steering the

vehicle and automatically knows how to stop.

IMPORTANT! Use this vehicle ONLY outdoors. Most interior

flooring can be damaged by riding this vehicle indoors.

Fisher-Price® will not be responsible for damage to the floor

if the vehicle is used indoors.

21

VEHICLE OPERATION

K

L7820pr-0920

To Back Up

• Make sure the shifter is in the low speed position 1.

• Press down on the foot pedal 2. The vehicle goes forward at

a maximum of 21/2 mph 3. Help your child practice steering to

learn how far and how quickly to turn the steering wheel when

driving forward in low speed.

Beginner Use - Low Speed Drive

As assembled, your vehicle is ready to roll in low speed

(21/2 mph, maximum). It has been pre-set so it will only operate

in low speed. After your child has mastered the basic skills of

driving and understands the rules for safe driving, it’s time to

remove the high speed lock-out screw to allow the vehicle to

operate in low or high speed. See the instructions on this page

to remove the high speed lock-out screw.

1 2 3

IMPORTANT! To avoid damaging the motors and gears, stop the

vehicle before shifting from forward to reverse .

• Once your child is completely comfortable with operating the

vehicle in the forward mode, introduce reverse .

• Make sure the shifter is in the reverse position 1.

• Press down on the foot pedal 2.The vehicle will go in reverse

at a maximum of 21/2 mph 3. The vehicle is designed to

operate in low speed only in reverse. Help your child practice

steering to learn how far and how quickly to turn the steering

wheel when driving in reverse.

1 2 3

To Drive

• Make sure the shifter is in the high speed

position 1.

• Press down on the foot pedal 2. The vehicle goes forward

at a maximum of 5 mph 3. Help your child practice steering

to learn how far and how quickly to turn the steering wheel

when driving forward in high speed.

1 2 3

Advanced Use - High Speed Drive

Shifter

Lock-Out Screw

• Before you disconnect the high speed lock-out, make sure your

child knows how to steer, how to start and stop the vehicle and

knows the rules for safe driving. When the high speed lock-out

is disconnected, the vehicle can be driven forward in low speed

(21/2 mph, maximum) or high speed (5 mph, maximum).

• Make sure the shifter is in the reverse position.

• Loosen and remove the screw in the shifter box.

• Replace the lock-out screw into the hole in the shifter for future use.

It can be re-inserted into the shifter box to lock-out high speed.

Storage

Position

Lock-Out

Position

22 L7820pr-0920

L

Power/Volume

• Press the power button to turn on or off.

• Turn the volume dial to adjust to a comfortable listening level.

Hint: The FM Radio will turn off automatically after about one hour of non-use.

FM Radio

• Press the scan button to find a station.

• Press the scan button again to go to the next station.

• To reset the radio to the first station, press the scan reset button .

• FM Radio reception varies from area to area. If the tuned station is lost due to poor reception, the radio automatically scans to the next

station with good reception.

Hint: Each time power is turned off and back on, the FM Radio will reset to the first station.

IMPORTANT! If the FM Radio functions erratically, press the main reset button with the point of a pen (or similar object).

FM RADIO

Main Reset

Power

Volume

Scan

Reset

Scan

23

VEHICLE CARE

M

L7820pr-0920

O

• Check all screws, cap nuts and their protective coverings

regularly and tighten as required. Check plastic parts on a

regular basis for cracks or broken pieces.

• During snowy or rainy weather, the vehicle should be stored

inside or under a protective cover. Remember to charge the

battery at least once per month while your vehicle is not in

regular use.

• Avoid operating the vehicle in wet or snowy conditions, and do

not spray the vehicle with a hose. Do not wash the vehicle with

soap and water. Water or moisture in the motors or electrical

switches can cause them to corrode, and could cause switch or

motor failure.

• Avoid operating the vehicle on sand, loose dirt or gravel. Sand,

loose dirt or gravel in the motors or electrical switches can

cause them to jam, and could cause switch or motor failure.

• The vehicle can be wiped down with a soft, dry cloth. For a shiny

finish, you can wipe plastic parts with a non-wax furniture polish

applied to a soft-cloth. Do not use automotive wax. Do not use

soap and water or spray the vehicle with a hose.

• To ensure that your vehicle stays in good operating order, we

recommend that you periodically have your vehicle checked by a

Power Wheels® authorized service center. For the location of the

authorized service center nearest you, please visit us on-line at

www.powerwheels.com or call 1-800-348-0751.

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.

Note: Changes or modifications not expressly approved by the

manufacturer responsible for compliance could void the user’s

authority to operate the equipment.

Bumper-to-Bumper* Limited Warranty

*One year limited warranty from the date of

purchase on the Power Wheels® vehicle.

Six month limited warranty on the 12 volt battery.

For the original purchaser, this one year limited warranty

covers the Power Wheels® ride-on vehicle (purchased from

Power Wheels®) against defects in materials and workmanship.

The six month limited warranty applies only to the 12 volt

battery included by Power Wheels® with the original purchase

of the vehicle. This warranty covers normal use and does not

cover the Power Wheels® vehicle or battery if damaged by

unreasonable use, neglect, accident, abuse, misuse, improper

service or other causes not arising out of defects in materials or

workmanship. Evidence of any attempt at consumer repair will

void this warranty. THIS WARRANTY DOES NOT COVER, AND

IS INTENDED TO EXCLUDE, ANY LIABILITY ON THE PART OF

POWER WHEELS®, WHETHER UNDER THIS WARRANTY OR

IMPLIED BY LAW FOR ANY INDIRECT OR CONSEQUENTIAL

DAMAGES FOR BREACH OF WARRANTY. SOME STATES

DO NOT ALLOW THE EXCLUSION OR LIMITATION SO THIS

LIMITATION MAY NOT APPLY TO YOU.

Should you need service or assistance with your vehicle during

the warranty period, do not return the vehicle to the store. Power

Wheels® has provided a nationwide network of authorized service

centers. If there is not an authorized service center in your

area, please visit us on-line at www.powerwheels.com or call

Consumer Relations for information, 1-800-348-0751.

This warranty gives you specific legal rights, and you may also

have other rights which may vary from state to state.

PLEASE SAVE YOUR ORIGINAL SALES RECEIPT.

N

FCC STATEMENT

(United States Only)

LIMITED WARRANTY

L7820pr-0920

24 L7820pr-0920

PROBLEMS AND SOLUTIONS GUIDE

P

PROBLEM POSSIBLE CAUSE SOLUTION

Vehicle does not run Undercharged battery Charge the battery. A new battery should have been

charged for at least 18 hours before using the vehicle for

the first time. After first-time use, recharge the battery for

at least 14 hours after each use. Never charge the battery

longer than 30 hours.

Check all connectors. Make sure the charger is

tightly plugged into the battery, and that the

charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Charger is not working There is no sure way to tell if your charger is working unless

you have a volt meter. If you suspect there is a problem with

your charger, contact your local Power Wheels® authorized

service center. They can test your charger for you.

Tripped thermal fuse The built-in thermal fuse may "trip" and shut down operation

of the vehicle if the vehicle is overloaded or the driving

conditions too severe. Once a fuse has "tripped", remove

your foot from the pedal and wait 25 seconds before

operating the vehicle again. To avoid repeated automatic

shutdowns, do not overload the vehicle by exceeding the

130 lbs maximum weight capacity or by towing anything

behind the vehicle. Do not drive up hills or run into fixed

objects, which can cause the wheels to stop spinning while

power is still being supplied to the motors. If a thermal

fuse continually trips, contact your local Power Wheels®

authorized service center.

Loose wires or loose connectors Check all wires and connectors. Make sure the motor

harness connector is tightly plugged into the battery and that

there are no loose wires around the motors.

Dead battery If your battery is old or if you have not followed Battery

Care instructions, your battery may be dead. If you are

unsure whether or not the battery are dead, you can have

it tested at your local Power Wheels® authorized

service center.

Electrical switch damage The electrical switches can become corroded due to

exposure to water or moisture, or can jam due to loose dirt,

sand or gravel. Contact your local Power Wheels® authorized

service center for diagnosis and repair.

Motor damage Contact your local Power Wheels® authorized service center

for diagnosis and repair.

IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still

experience a problem, please contact Power Wheels® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM and 7 PM

(EST) Monday through Friday and 11 AM and 5 PM (EST) Saturday. Or, contact your local Power Wheels® authorized service center.

For the location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751.

L7820pr-0920 25

PROBLEMS AND SOLUTIONS GUIDE

P

L7820pr-0920

Vehicle was running but Loose wires or loose connectors Check all wires and connectors. Make sure the

suddenly stopped motor harness connector is tightly plugged into the battery,

and that there are no loose wires around the motors.

Tripped thermal fuse The built-in thermal fuse may "trip" and shut down operation

of the vehicle if the vehicle is overloaded or the driving

conditions too severe. Once a fuse has "tripped", remove

your foot from the pedal and wait 25 seconds before

operating the vehicle again. To avoid repeated automatic

shutdowns, do not overload the vehicle by exceeding the

130 lbs maximum weight capacity or by towing anything

behind the vehicle. Do not drive up hills or run into fixed

objects, which can cause the wheels to stop spinning while

power is still being supplied to the motors. If a thermal

fuse continually trips, contact your local Power Wheels®

authorized service center.

Short run time (Less than Undercharged battery Charge the battery. A new battery should have been

1 - 3 hours per charge) charged for at least 18 hours before using the vehicle for

the first time. After first-time use, recharge the battery for

at least 14 hours after each use. Never charge the

battery longer than 30 hours.

Check all wires and connectors. Make sure the motor

harness connector is tightly plugged into the battery, and

that the charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Overcharged battery Do not charge the battery longer than 30 hours. If you

suspect that your battery is damaged as a result of

overcharging, contact your local Power Wheels® authorized

service center. They can test the battery for you.

Battery is old and will not Even with proper care, a rechargeable battery does not

accept full charge last forever. Average battery life is 1 to 3 years depending

on vehicle use and use conditions. Replace only with a

Power Wheels® 12 Volt battery. Do not substitute parts.

Tripped thermal fuse The built-in thermal fuse may "trip" and shut down operation

of the vehicle if the vehicle is overloaded or the driving

conditions too severe. Once a fuse has "tripped", remove

your foot from the pedal and wait 25 seconds before

operating the vehicle again. To avoid repeated automatic

shutdowns, do not overload the vehicle by exceeding the

130 lbs maximum weight capacity or by towing anything

behind the vehicle. Do not drive up hills or run into fixed

objects, which can cause the wheels to stop spinning while

power is still being supplied to the motors. If a thermal

fuse continually trips, contact your local Power Wheels®

authorized service center.

Vehicle runs in low speed, but High speed lock-out not disconnected The vehicle was pre-set to run only in low speed.

does not run in high speed To allow the vehicle to run in low and high speed, you

must disconnect the High Speed Lock-Out. Follow the

Please Note: The vehicle is instructions on page 21 to remove the High Speed

designed to operate in low Lock-Out screw.

speed only in reverse .

When the foot pedal is pressed Operation of vehicle in low speed It is possible that only one rear wheel may spin when both

only one rear wheel spins rear wheels are raised off the ground and the vehicle is in

low speed. This does not necessarily indicate a problem.

Check for proper operation of the drive system by raising

the rear wheels off the ground and pressing the foot pedal.

If only one rear wheel spins, carefully press your hand on

the spinning wheel to slow it down. The other rear wheel

should begin to spin. If the other rear wheel does not begin

to spin, there may be a problem with the vehicle. Contact

your local Power Wheels® authorized service center for

diagnosis and repair.

PROBLEM POSSIBLE CAUSE SOLUTION

L7820pr-0920

26

PROBLEMS AND SOLUTIONS GUIDE

P

L7820pr-0920

Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been

charged for at least 18 hours before using the vehicle for

the first time. After first-time use, recharge the battery for

at least 14 hours after each use. Never charge the battery

longer than 30 hours.

Check all connectors. Make sure the charger connector

is tightly plugged into the battery connector, and that the

charger is plugged into the wall.

Make sure power flow to the wall outlet is “ON”.

Battery needs charging Be sure to charge the battery after each use.

Battery is old and will not Even with proper care, a rechargeable battery does not

accept full charge last forever. Average battery life is 1 to 3 years depending

on vehicle use and use conditions. Replace only with a

Power Wheels® 12 Volt battery. Do not substitute parts.

Vehicle is overloaded Make sure you do not overload the vehicle by allowing

more than two rider at one time, exceeding the 130 lbs.

maximum weight capacity, or by towing objects behind the

vehicle. If the vehicle is overloaded, the built-in thermal fuse in

the battery may "trip", and automatically shut down operation of

the for approximately 25 seconds. Adjust the driving conditions

to prevent repeated automatic shutdowns.

Driving conditions are too stressful Use only on generally level ground.

Sometimes the vehicle doesn’t Loose wire or connector Check all wires around the motors and all connectors to

run, but other times it does make sure they are tight.

Motor or electrical switch damage Contact your local Power Wheels® authorized service

center for diagnosis and repair.

When the foot pedal is pressed, Loose wire or connector Check all wires around the motors and all connectors

the vehicle won’t run without to make sure they are tight.

a push

“Dead Spot” on motor Contact your local Power Wheels® authorized service

center for diagnosis and repair.

Battery’s thermal fuse constantly Damaged battery Contact your local Power Wheels® authorized service

"trips", but the vehicle is not center for diagnosis and repair.

overloaded nor the driving

conditions too severe Child is switching between Teach your child to stop the vehicle before switching

FORWARD and REVERSE direction.

without stopping

Loud clacking or grinding Broken gears Contact your local Power Wheels® authorized service

noise from a motor-gearbox center for diagnosis and repair.

Charger gets warm during use It is normal for some chargers to get No action required.

warm during use and is not reason

for concern. Some chargers do not If your charger does not get warm during

get warm during use. use, it does not mean that it is not working properly.

Battery makes a sizzling or It is normal for some batteries to No action required.

gurgling noise when charging make noise and swell slightly while

charging and is not reason for concern. If your battery does not make noise or swell slightly

during charging, it does not mean that it is

not accepting the charge.

PROBLEM POSSIBLE CAUSE SOLUTION

L7820pr-0920 27

PROBLEMS AND SOLUTIONS GUIDE

P

L7820pr-0920

If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest authorized service center.

FM Radio does not function at all Power is off Power automatically turns off after about one hour of non-use.

Press the power button to turn it back on.

Batteries are weak or dead Replace all four batteries with four, new "C" (LR14)

alkaline batteries.

FM Radio station Poor reception You may find better reception of a particular station in a

changes automatically different location.

Power was turned off and the radio Use the scan button to reset to your favorite station.

reset back to the first station

FM Radio functions erratically Electronic lock-up Press the main reset button on the front of the unit with the

point of the pen (or similar object).

PROBLEM POSSIBLE CAUSE SOLUTION

PRINTED IN CHINA 73610a-0920

Or contact your local independently owned and operated

Power Wheels® Authorized Service Center.

For the location nearest you, visit us on-line at www.powerwheels.com.

Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.

©2007 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.

PRINTED IN MEXICO L7820pr-0920

Before first-time use, you must

charge the battery 18 hours!

Charge the battery immediately after each use.

Charge the battery once a month, even if the vehicle is not used or stored.

Do not return

your vehicle to the store!

Jeep® and the Jeep® grille design are registered trademarks of DaimlerChrysler. Jeep® Wrangler®

and its trade dress are used under license. ©DaimlerChrysler Corporation 2005.
