Barco N V WP1KP16 Wireless interactive Presentation Gateway User Manual

Barco NV Wireless interactive Presentation Gateway

User Manual

WiPG
-
1000
P
Quick Installation Guide
Version: 2.0
Date: September 19, 2016
1. Package Contents

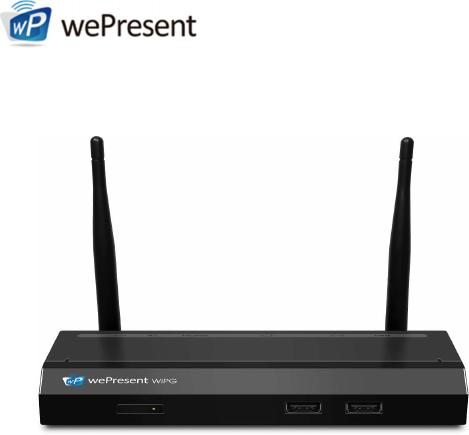

wePresent WiPG-1000P Box
wePresent USB Token
Power Adapter (DC +5V, 2.6A)
2 WiFi Antennas
Quick Installation Guide
Wall Mount Kit
Warranty Card
CE DoC
2. USB Token Contents
MirrorOp Installer for Windows
MirrorOp Installer for Mac
Executable MirrorOp Application for Windows
Executable MirrorOp Application for Mac
SVS Driver (For Mac Extended Screen)
SNMP MIB File
User Manual
3. Physical Details

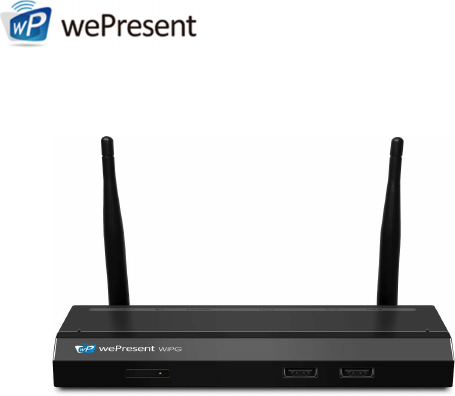

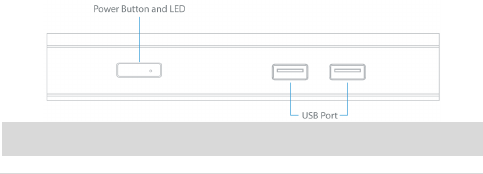

Front Panel
Power Button and LED Power On/Off Button.
LED Indicator: System Loading(Red), Ready(Green)
USB Port (Front) 2 USB Ports for USB Mouse and Keyboard
wePresent WiPG-1000P

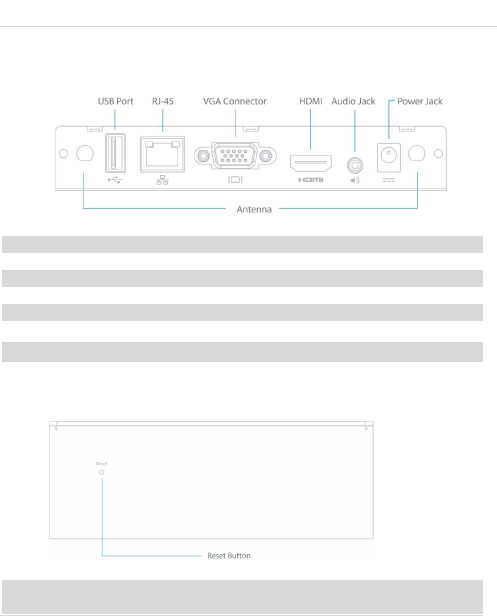

Rear Panel
Antenna WiFi Antenna
USB Port (Rear) USB Port for USB IWB Device (HID Type)
RJ-45 10/100M RJ-45 Port
VGA VGA Connector
HDMI
HDMI Connector
Audio Jack
Audio Jack (3.5mm)
Power Jack
Power Jack (5V/2.6A)
Bottom Side
Reset Button
Press the Reset button and the Power button on
the device to execute hardware reset.
wePresent WiPG-1000P
4. What You Might Need
Projector/Display with VGA/HDMI Interface
Windows or Mac PC/Laptop
Apple iPhone, iPad or iPod Touch
Android Phone or Tablet
Speaker (Optional, for Audio Projection Feature)
USB Mouse and Keyboard (Optional, for Remote Desktop
Feature)
USB HID IWB Device (Optional, for IWB over IP Feature)
5. Quick Installation

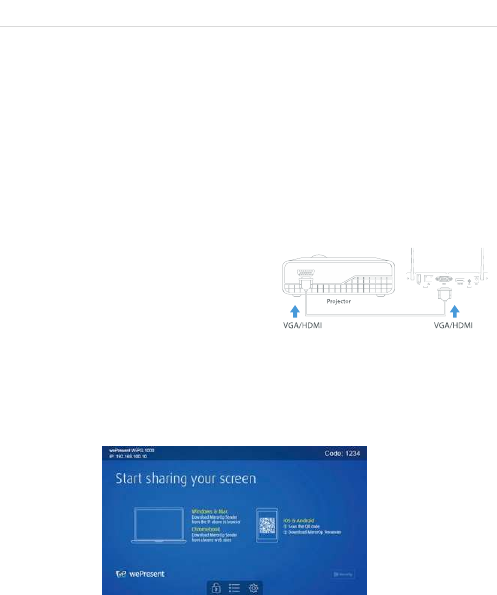

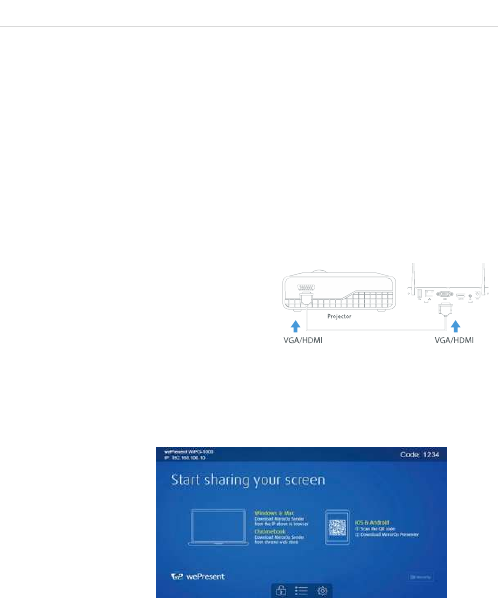

1) Connect WiPG-1000 device to
the projector/display through
the VGA/HDMI port and turn on
the projector/display power.
2) Connect the power adaptor to the WiPG-1000 device and press
the Power button to turn on the WiPG-1000 device. The system
will be ready when the LED light turns green.
• The default standby screen as shown below will be displayed
when the system is ready.
3) Insert the speaker cable to the WiPG-1000 audio jack for audio
output (Optional when using VGA).
wePresent WiPG-1000P
4) Insert the USB mouse or keyboard/USB touch device to
the WiPG-1000 front USB port for on-screen display (OSD)
control. (Optional)
5) The MirrorOp app for iOS and Android can be downloaded from
the iOS App Store or Google Play Store.
6. Windows
Do Not Support Windows Phone, Windows RT
6.1 Install the application

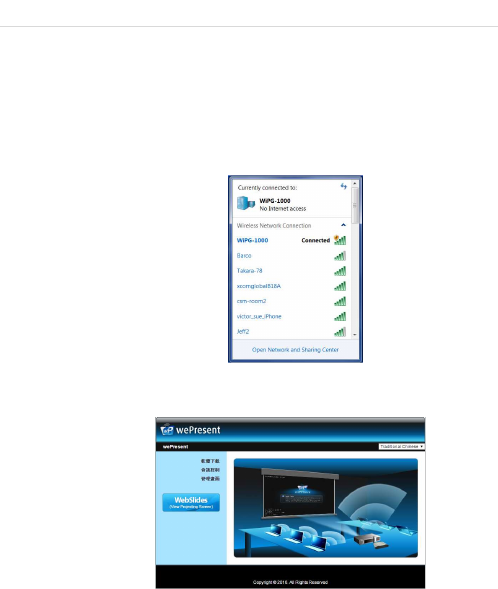

1) Make sure your PC is WiFi-enabled, and connect your PC to
the wePresent WiPG-1000 box through WiFi. You can find the
WiFi network name (SSID) of your WiPG-1000 box on the
standby screen of the projector/display. [Default SSID is
WiPG-1000]

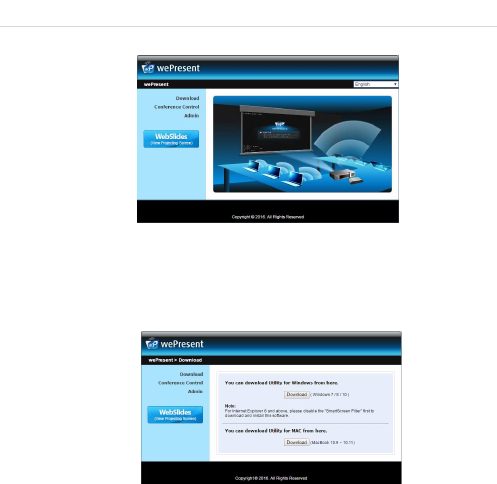

2) Open your browser, and enter the IP address of your WiPG-
1000 box in the address bar of the browser. You can find the
IP address on the standby screen of the projector/display.
[Default IP address is 192.168.100.10]
wePresent WiPG-1000P

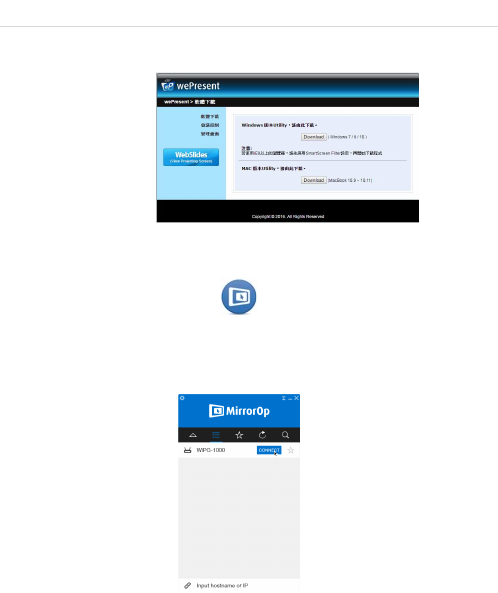

3) Download the wePresent software (i.e. “MirrorOp”) for
“Windows 7/8/10”, and follow the Setup Wizard to install the
software. (You can also install the “MirrorOp” software from
the USB token directly.) Make sure the software is not
blocked by your firewall.
wePresent WiPG-1000P
6.2 Start the application
1) Click the MirrorOp icon on the desktop to execute the
application, or launch the application from the USB token
directly. (You can find the MirrorOp application in the
USB drive.)
2) It will start to search for the wePresent WiPG-1000 receiver
automatically.

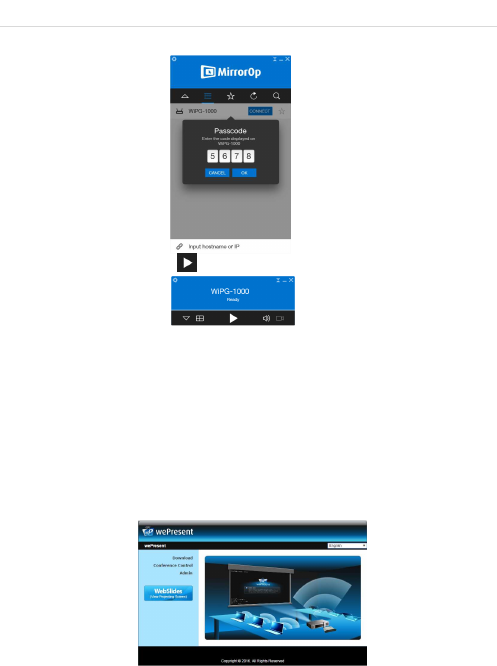

3) Click on the WiPG-1000 device and enter the login code
shown on the display.
wePresent WiPG-1000P

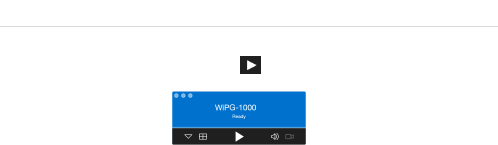

4) Click the “PLAY” button to start the screen sharing.
7. Mac
7.1 Install the application

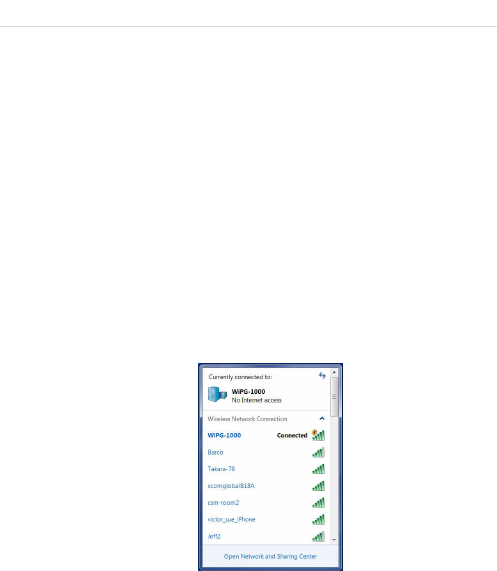

1) Make sure your Mac is WiFi-enabled, and connect your Mac
to the wePresent WiPG-1000 box through WiFi.
2) Open your browser, and enter the IP address of your WiPG-
1000 box in the address bar of the browser. You can find the
IP address on the standby screen of the projector/display.
[Default IP address is 192.168.100.10]
wePresent WiPG-1000P

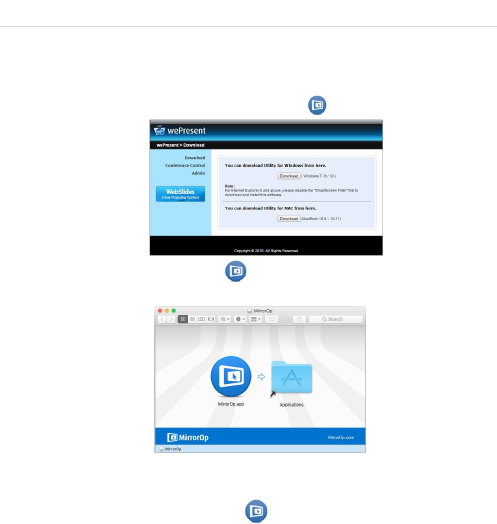

3) Download the software for “Mac 10.7~10.10”, and you will
see a DMG file with a MirrorOp icon .
4) Drag the MirrorOp icon into the Applications folder.
7.2 Start the application

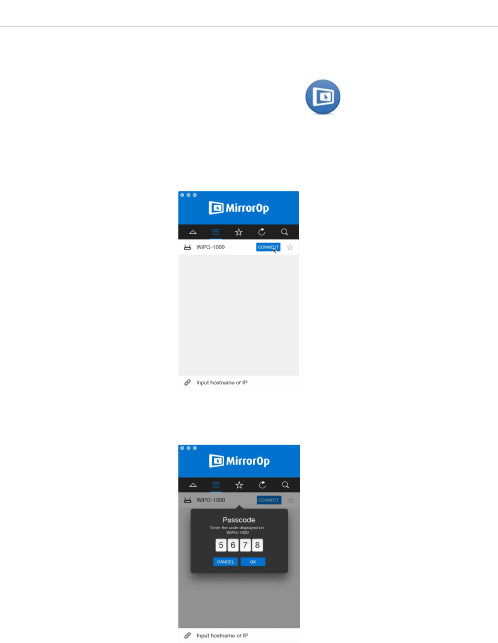

1) Click on the MirrorOp icon from the Applications folder
to execute the application.
2) It will start to search for the wePresent WiPG-1000 receiver
automatically.
wePresent WiPG-1000P
3) Click on the WiPG-1000 device and enter the login code
shown on the display.
4) Click the “PLAY” button to start the screen sharing.
wePresent WiPG-1000P
8. Safety Information
< Federal Communications Commission (FCC) Statement >
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly
wePresent WiPG-1000P
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
< FCC RF Radiation Exposure Statement >
This Transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Caution:
Operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel
mobile satellite systems. Please note that high-power radars are
allocated as primary users (i.e. Priority users) of the bands 5250-
5350 MHz and 5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
wePresent WiPG-1000P
Canada
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes:(1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set
forth for an uncontrolled environment and are safe for intended
operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as possible
from the user body or set the device to lower output power if such
function is available.
Informations concernant l’exposition aux fréquences radio (RF)
Le produit est conforme aux limites d’exposition pour les appareils
portables RF pour les Etats-Unis et le Canada établies pour un
environnement non contrôlé. Le produit est sûr pour un
wePresent WiPG-1000P
fonctionnement tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l’appareil peut être conservé
aussi loin que possible du corps de l’utilisateur ou que le dispositif est
réglé sur la puissance de sortie la plus faible si une telle fonction est
disponible.
The device shall automatically discontinue transmission in cases of
absence of information to transmit, or operational failure.
Note that this is not intended to prohibit transmission of control or
signalling information or the use of repetitive codes where required by
the technology.
The device for operation in the band 5150–5250 MHz is only for
indoor use to reduce the potential for harmful interference to co-
channel mobile satellite systems;
This device is restricted to indoor use.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
CAN ICES-3 (B)/NMB-3(B)
The Country Code Selection feature is disabled for products marketed
in the US/Canada
wePresent WiPG-1000P
. This radio transmitter (9393B-WP1KP16) has been approved by
Industry Canada to operate with the antenna types listed below
with the maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this
device.
No.
Model Ant. Type
Ant.
Connector Gain
(dBi)
Remark
1
AN2450-
4828RS Dipole SMA Male
Reverse
2
2.4GHz /
5GHz
2 2
2.4GHz /
5GHz
Le présent émetteur radio (9393B-WP1KP16) a été approuvé par
Industrie Canada pour fonctionner avec les types d'antenne
énumérés ci-dessous et ayant un gain admissible maximal et
l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur.
No.
Model Ant. Type
Ant.
Connector Gain
(dBi)
Remark
1
AN2450-
4828RS Dipole SMA Male
Reverse
2
2.4GHz /
5GHz
2 2
2.4GHz /
5GHz
Version: 2.0
Date: September 19, 2016
WiPG
-
1
000
P
網路投影閘道器
快速安裝手
wePresent WiPG-1000P
1.
包裝內容
wePresent WiPG-1000P主機
wePresent 隨身碟
電源變壓器 (DC+5V,2.6A)
2支無線天線
壁掛套件
快速安裝手冊
保證書
CE DoC
2.
隨身碟內容
Windows Installer (Windows 安裝程式)
MAC Installer (Mac 安裝程式)
MirrorOp 免安裝版程式 (Windows)
MirrorOp 免安裝版程式 (Mac)
VDD Driver (Windows XP/Vista 虛擬延伸桌面投影驅動程式)
SVS Driver (Mac 虛擬延伸桌面投影驅動程式)
SNMP 管理檔
User Manual (使用者手冊)
3.
主機實體介紹
前蓋設計
電源開關與電源指示燈
電源開關與電源指示燈電源開關與電源指示燈
電源開關與電源指示燈 電源開關按鈕
LED指示燈:系統啟動(紅),待機(綠)
USB
兩組USB 埠可供鍵盤,滑鼠及觸碰設備
wePresent WiPG-1000P

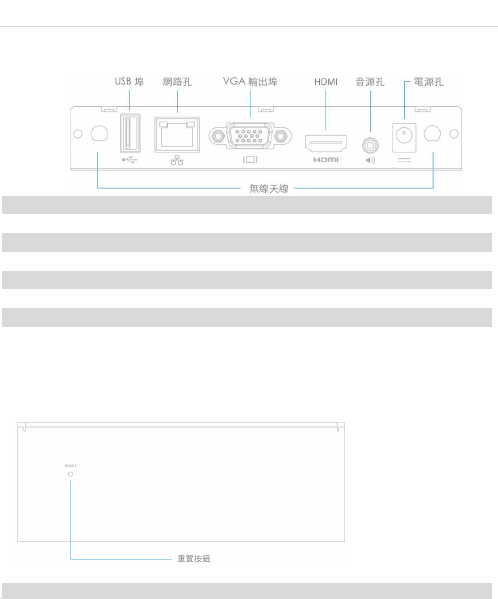

後蓋設計
無線天線
無線天線無線天線
無線天線 WiFi 天線
USB
(後方
後方後方
後方) 提供和觸控螢幕連接的USB (HID類別)
網路孔
網路孔網路孔
網路孔 10/100M 網路孔
VGA VGA 連接埠
HDMI HDMI 連接埠
音源孔
音源孔音源孔
音源孔 音源孔(3.5mm)
電源孔
電源孔電源孔
電源孔 電源孔(5V)
- 操作溫度宣告 : 0~40
- 額定電壓電流 : 5V 2.6A
底部設計
重置按鈕
重置按鈕重置按鈕
重置按鈕 按下重置按鈕並開啟電源,來進行硬體重置
wePresent WiPG-1000P
4.
你可能需要以下設備
投影機/顯示器並且可支援 VGA/HDMI
Windows Mac 電腦/筆記型電腦
Apple iPhoneiPad iPod Touch 裝置
Android Phone Tablet 裝置
喇叭 (非必要,主要做聲音輸出功能)
USB 滑鼠和鍵盤 (非必要,主要做遠端桌面控制功能)
USB HID 互動式電子白 (非必要,可搭配 UMT 功能使用)
5.
快速安裝指南
1)
wePresent WiPG-1000 透過
VGA/HDMI 線連接至投影機 /
顯示器,並將投影機/ 顯示器
的電源打開
2)
將電源變壓器插入WiPG-1000後,請按壓電源開關並開WiPG-1000
當系統已經開機完畢後
當系統已經開機完畢後當系統已經開機完畢後
當系統已經開機完畢後
LED 燈號切換成綠色
當系統完成開機後,它將會顯示預設的待機畫面在投影機/
顯示器的畫面上
3)
將喇叭線插入WiPG-1000 的音源孔來得到音效輸出(選項,配合VGA
)
4)
插入USB滑鼠或鍵盤/USB觸控裝置WiPG-1000 USB埠,來使用遠端
控制功能(選項)
wePresent WiPG-1000P
6.
Windows 系統應用
不支援 Windows Phone, Windows RT
6.1 安裝程式
1) 請先確認您電腦的無線網路已經啟用,並且將您的電腦透過WiFi
連線至wePresent WiPG-1000。您可以找到在開始/待機畫面中,找
WiFi名字(SSID)
2) 開啟網路瀏覽器並輸入裝置主機名稱或者是 IP 位址在瀏覽器位址列
上,您可以在投影畫面上找到 IP 址和主機名稱 (預設主機名稱為
WiPG-1000, 預設 IP 位址為 192.168.100.10)
3) 下載 Windows所使用的軟體,並依照安裝精靈來執行軟體安裝 (
也可以直接在wePresent隨身碟中執行軟體安裝)
請同時確認您的
防火牆可允許軟體通過。
wePresent WiPG-1000P
6.2 執行軟體
1)
點選桌面 MirrorOp 圖示 來執行軟體,或直接從 wePresent
身碟中來執行(您可在 USB 根目錄找到程式)
2)
接下來,程式將會自動找尋 WiPG-1000 裝置
wePresent WiPG-1000P
3)
選擇欲連線的 WiPG-1000 裝置,並輸入登入密碼
4)
登入成功後,按下投影按鈕 開始投
7.
Mac系統應用
7.1
安裝程式

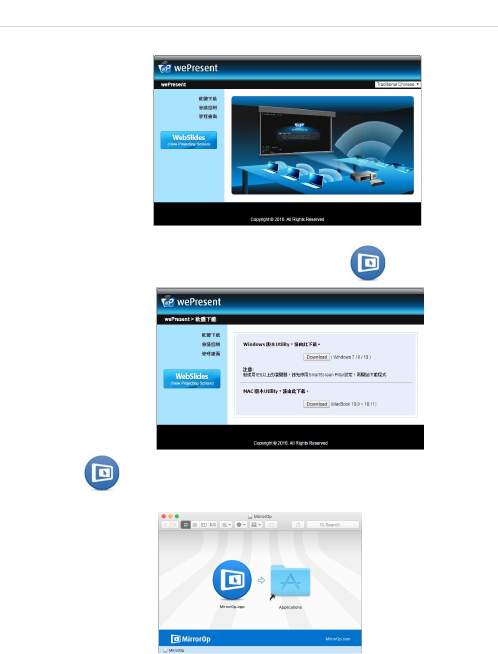

1)
首先啟用您的無線網路功能,並連線WiPG-1000
2)
開啟網路瀏覽器並輸入裝置主機名稱或者是 IP 址在瀏覽器上,您
可以在投影畫面上找到 IP 位址和主機名稱
(預設主機名稱為WiPG-
1000, 預設 IP 位址為 192.168.100.10)
wePresent WiPG-1000P
3)
下載 Mac系統使用的軟體,您將會看到圖示為 的DMG
4)
將 圖示拖曳至「應用程式」資料夾。
wePresent WiPG-1000P
7.2
執行軟體
1)
在軟體資料夾中,點選 MirrorOp 圖示 來執行軟體,或直接
wePresent隨身碟中來執行(您可在USB根目錄找到程式)
2)
接下來,程式將會自動找尋WiPG-1000裝置
3)
選擇欲連線的WiPG-1000裝置,並輸入登入碼
wePresent WiPG-1000P
4)
登入成功後,按下投影按鈕 開始投
wePresent WiPG-1000P
8.
安全資訊
< NCC 警語 >
1. 低功率電波輻射性電機管理辦
低功率電波輻射性電機管理辦低功率電波輻射性電機管理辦
低功率電波輻射性電機管理辦
第十二條
第十二條第十二條
第十二條 經型式認證合格之低功率射頻電機,非經許可,公
司、商號或使用者均不得擅自變更頻率、加大功率或變更原設
計之特性及功能。
第十四條
第十四條第十四條
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合
法通信;經發現有干擾現象時,應立即停用,並改善至無干擾
時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。低功率射
頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機
設備之干擾。
2.
無線資訊傳輸設備必須具備安全功能
無線資訊傳輸設備必須具備安全功能無線資訊傳輸設備必須具備安全功能
無線資訊傳輸設備必須具備安全功能,
,以保護未經授權
以保護未經授以保護未經授
以保護未經授
之一方任意更改軟體進而避免發射機操作於非經認證之
之一方任意更改軟體進而避免發射機操作於非經認證之之一方任意更改軟體進而避免發射機操作於非經認證之
之一方任意更改軟體進而避免發射機操作於非經認證之
頻率
頻率頻率
頻率、
、輸功率
輸出功率輸出功率
輸出功率、
、調他射頻參數設
調他射頻參數設調他射頻參數設
調他射頻參數設定。
3.
無線資訊輸設雷達系統之操
無線資訊輸設雷達系統之操無線資訊輸設雷達系統之操
無線資訊輸設雷達系統之操作。
4.
MPE
MPEMPE
MPE 標準值
標準值及測產標準值及測產
標準值及測產值(
((
(電磁波暴
電磁波暴電磁波暴
電磁波暴量 MPE
MPEMPE
MPE 標準值
標準標準
標準
1mW/cm
1mW/cm1mW/cm
1mW/cm
2
22
2
,送測產品實測值為
送測產品實測值為送測產品實測值為
送測產品實測值為:
:0.02990 mW/cm
0.02990 mW/cm0.02990 mW/cm
0.02990 mW/cm
2
22
2
)
))
)

Navigation menu
