Bartec USA TAP3 Inspection Tool User Manual

Bartec USA LLC. Inspection Tool

User Manual

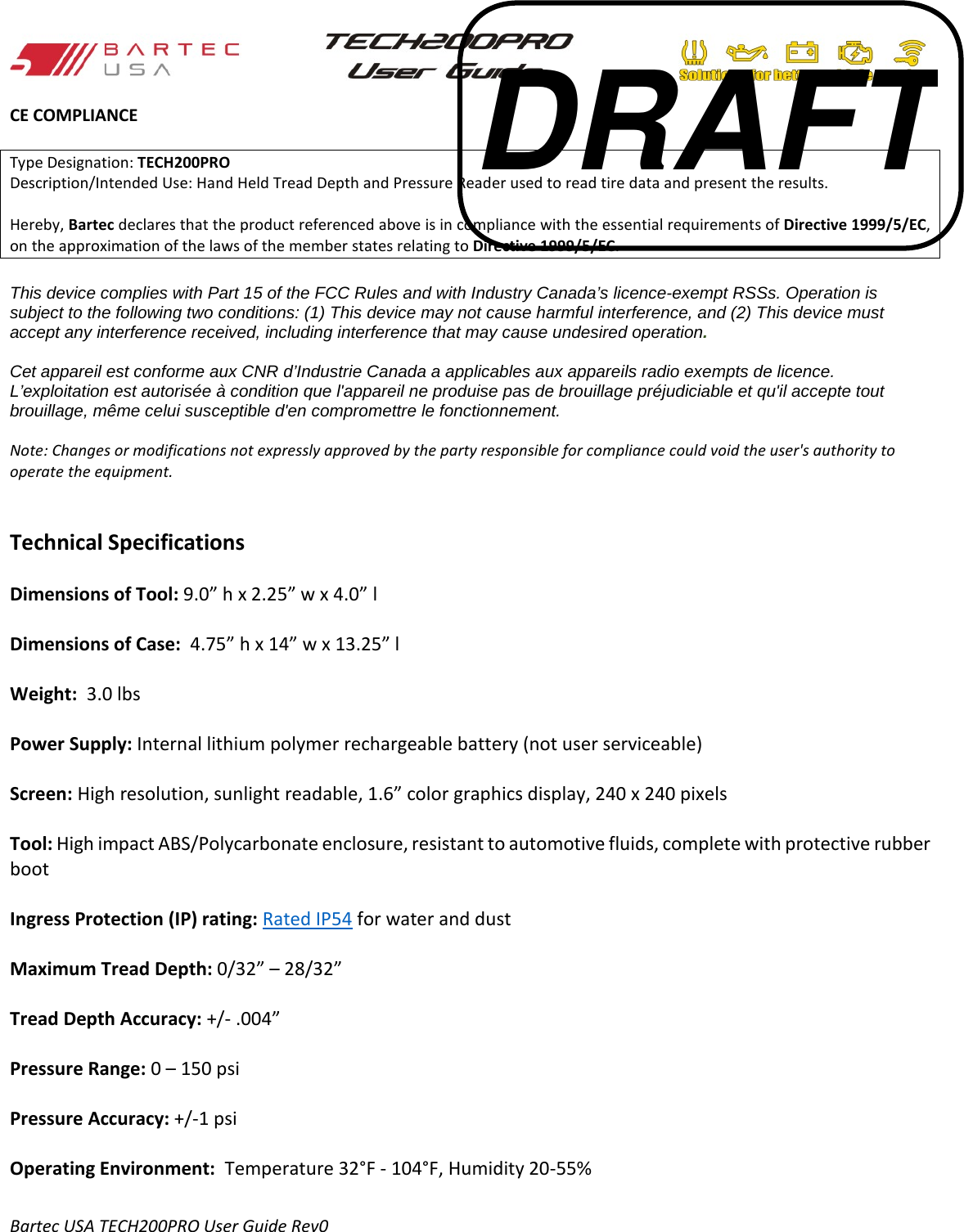

CE COMPLIANCE Type Designation: TECH200PRO Description/Intended Use: Hand Held Tread Depth and Pressure Reader used to read tire data and present the results. Hereby, Bartec declares that the product referenced above is in compliance with the essential requirements of Directive 1999/5/EC, on the approximation of the laws of the member states relating to Directive 1999/5/EC. This device complies with Part 15 of the FCC Rules and with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme aux CNR d’Industrie Canada a applicables aux appareils radio exempts de licence. L’exploitation est autorisée à condition que l'appareil ne produise pas de brouillage préjudiciable et qu'il accepte tout brouillage, même celui susceptible d'en compromettre le fonctionnement. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Technical Specifications Dimensions of Tool: 9.0” h x 2.25” w x 4.0” l Dimensions of Case: 4.75” h x 14” w x 13.25” l Weight: 3.0 lbs Power Supply: Internal lithium polymer rechargeable battery (not user serviceable) Screen: High resolution, sunlight readable, 1.6” color graphics display, 240 x 240 pixels Tool: High impact ABS/Polycarbonate enclosure, resistant to automotive fluids, complete with protective rubber boot Ingress Protection (IP) rating: Rated IP54 for water and dust Maximum Tread Depth: 0/32” – 28/32” Tread Depth Accuracy: +/- .004” Pressure Range: 0 – 150 psi Pressure Accuracy: +/-1 psi Operating Environment: Temperature 32°F - 104°F, Humidity 20-55% Bartec USA TECH200PRO User Guide Rev0 DRAFT
