Welcome
Thank you for purchasing the IEEE 802.11n Wireless USB Adapter. Wireless USB Adapter
has an extra foundation which is designed to make Wireless USB Adapter get better signal
when it is plugging into the foundation and can be easily move around. In addition, Wireless
USB Adapter is backward compatible with 802.11b/g. When Wireless USB Adapter is
connecting to the standard 802.11b, 802.11g or 802.11n APs or routers, it can perform
much better than other standard stations.
Wireless USB Adapter supports higher data throughput than the IEEE802.11n standard (up
to 300Mbps).
For the security of WLAN, Wireless USB Adapter supports 64/128-bit WEP data encryption
which protects your wireless network from eavesdropping.
It also supports WPA/WPA2 which combines IEEE802.1x and TKIP technologies. Client
users are required to authorize before accessing to APs or routers, and the data
transmitted on the network is encrypted and decrypted by a dynamically changed secret
key. Wireless USB Adapter supports WPA2 function which provides a stronger encryption
through AES which is the most advanced WLAN solution for IEEE802.11i. Besides,
Wireless USB Adapter supports WPS function which provides a stronger encryption and
easier configuration through WPA2 which is the most advanced WLAN solution for
IEEE802.11i.
Package Contents
The Wireless USB Adapter package includes the following.
1. Wireless USB Adapter
2. Quick Installation Guide
3. AUTORUN CD
3
Wireless USB Adapter Overview

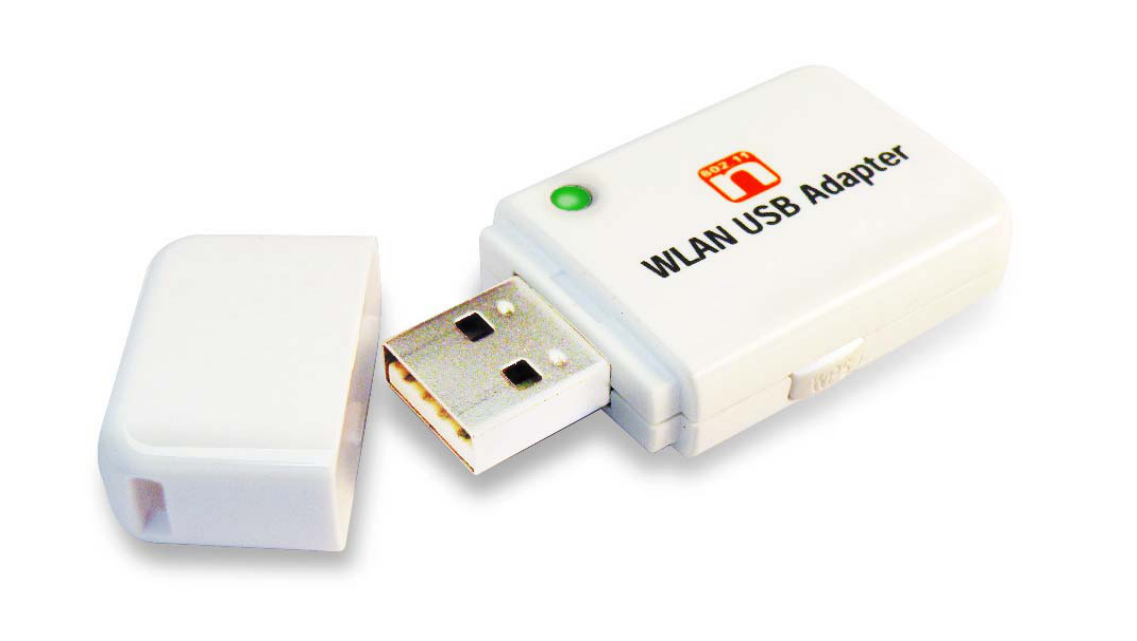

Wireless USB Adapter has the USB interface, LED and WPS button below.
Interface
USB Interface: Connect the USB Interface to a USB port on your computer.
LED Description
LED: The LED stays lighted to indicate WLAN link established and active.
WPS Button
WPS Button: Press this button to do WPS with AP.
4
Wireless USB Adapter Installation
The following instructions will guide you to through the process of installing the Wireless
USB Adapter.
Windows Vista
Step 1:

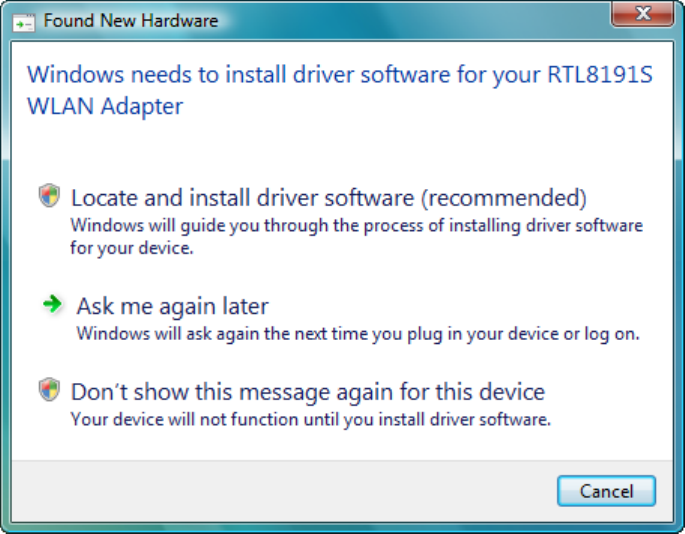

As Windows starts it will detect that new hardware has been added, and start the " Found
New Hardware Wizard ". Click on " Cancel ".
5
Step 2:
Please insert the AUTORUN CD into your CD-ROM drive.

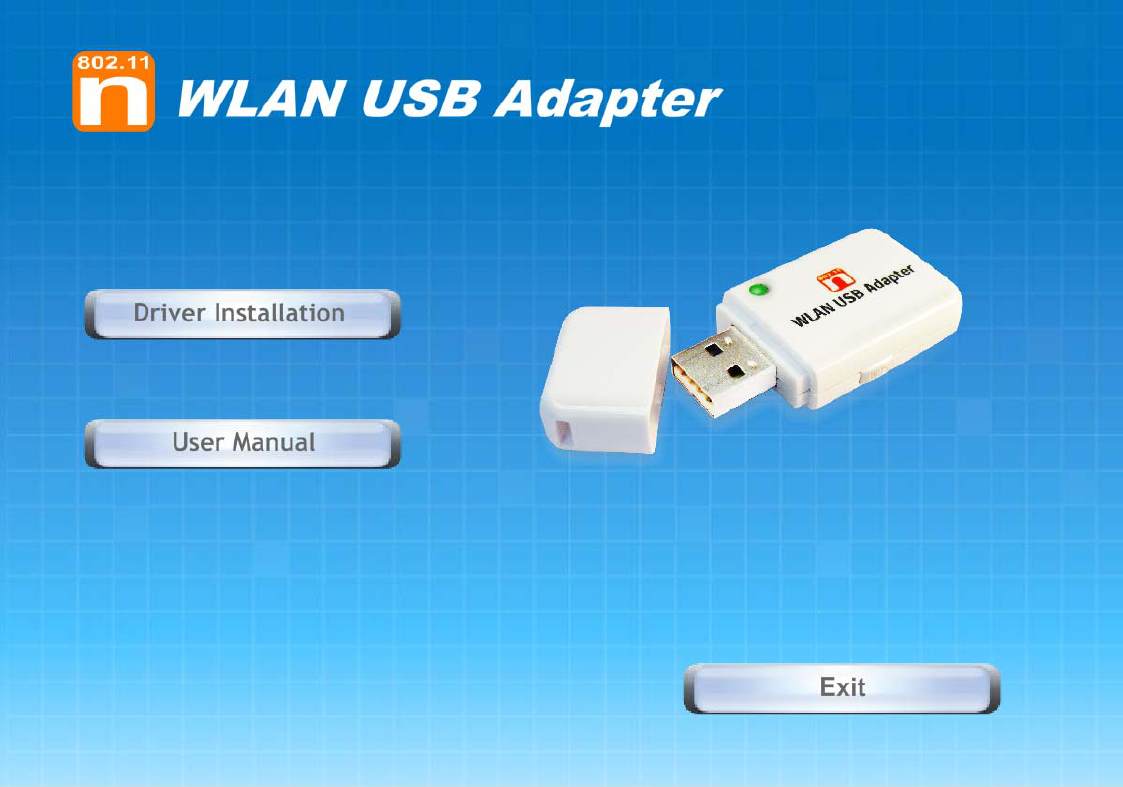

The CD should auto-start, displaying the following window. If it does not start, click on
Start – Run and type in CD: \autorun.exe (where CD is the drive letter of your CD-ROM
drive.) Click " Driver Installation ".
6
Step 3:

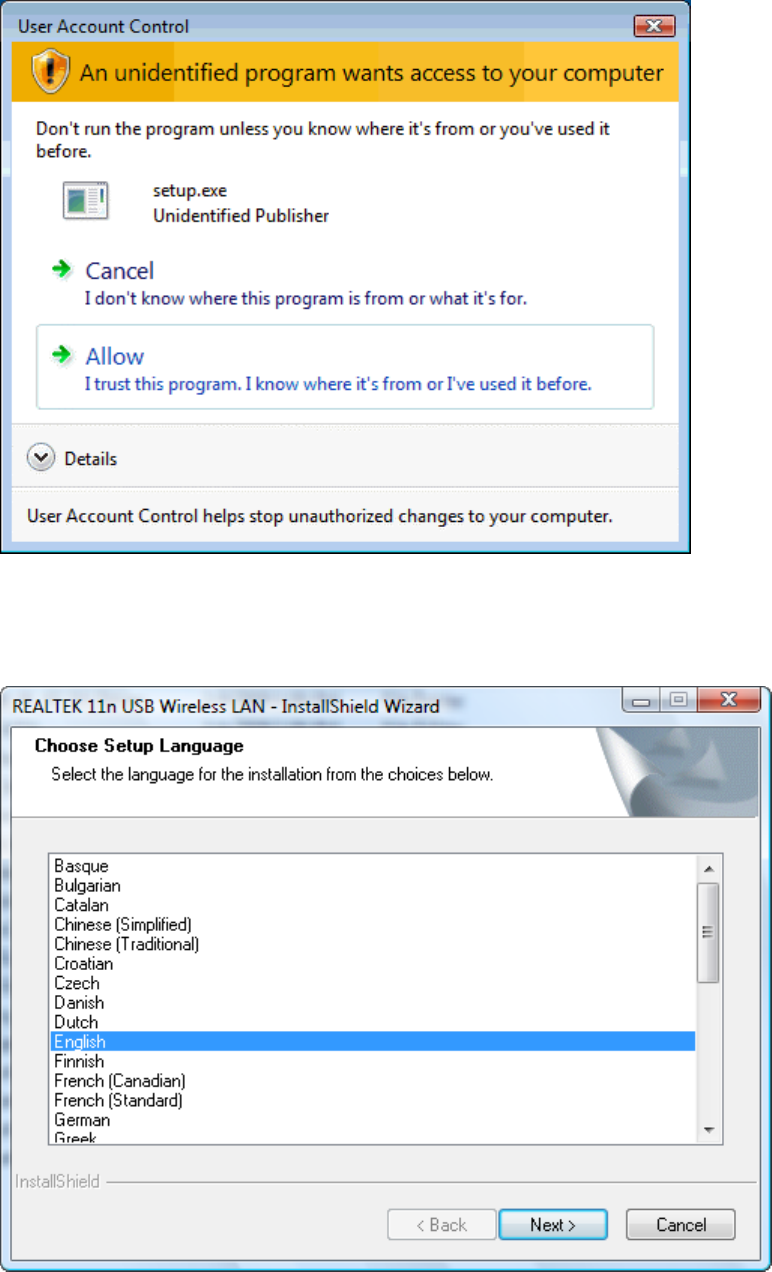

For Security reasons VISTA requires the installer program to have administrator priviledges
so the new policy called " User Account Control " has been introduced in Windows VISTA.
If UAC is enabled Windows pops up a window " User Account Control " Windows need
your permission to continue. User needs to Click " Allow " to proceed with the installation.
Step 4:
Click " Next ".
7
Step 5:
Click " Next ".
Step 6:
Click " Install ".
8
Step 7:
Click " Finish ".
Step 8:
Click " Finish ".
9
Windows XP
Step 1:

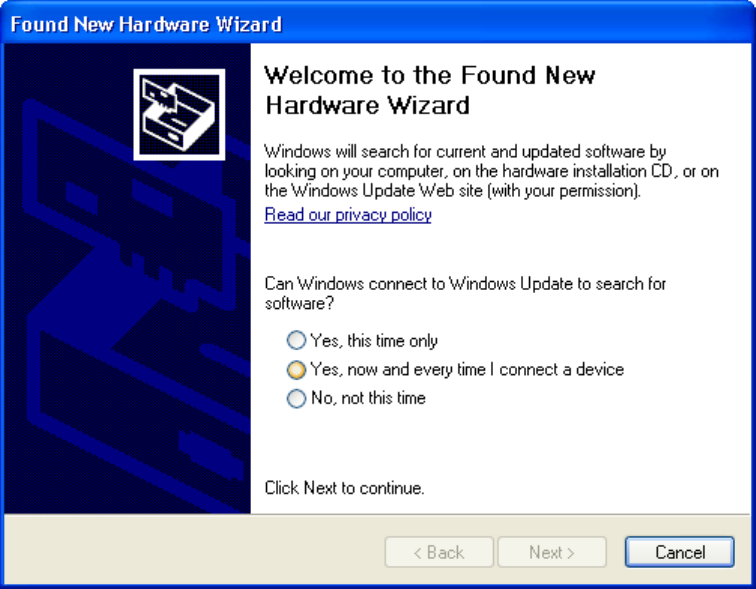

As Windows starts it will detect that new hardware has been added, and start the " Found
New Hardware Wizard ". Click on " Cancel ".
10
Step 2:

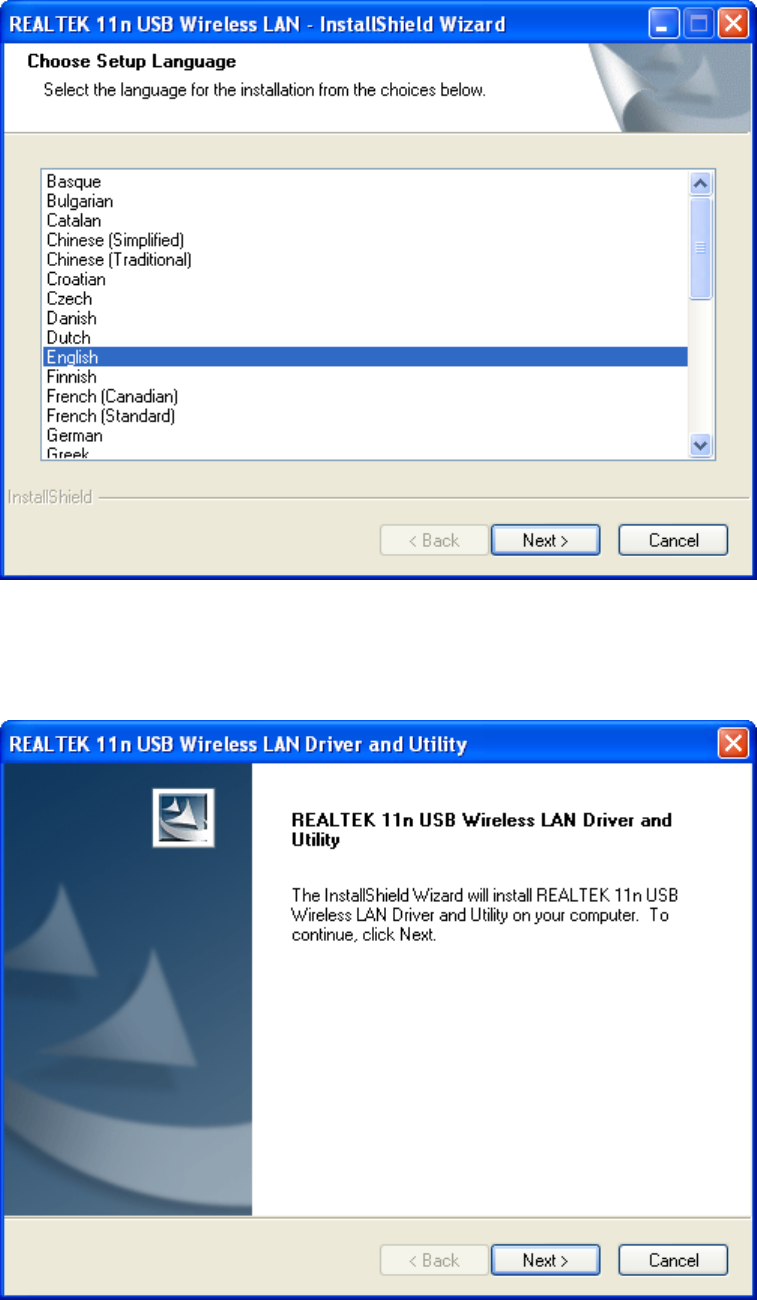

Please insert the AUTORUN CD into your CD-ROM drive.
The CD should auto-start, displaying the following window. If it does not start, click on
Start – Run and type in CD: \autorun.exe (where CD is the drive letter of your CD-ROM
drive.) Click " Driver Installation ".
11
Step 3:
Click " Next ".
Step 4:
Click " Next ".
12
Step 5:

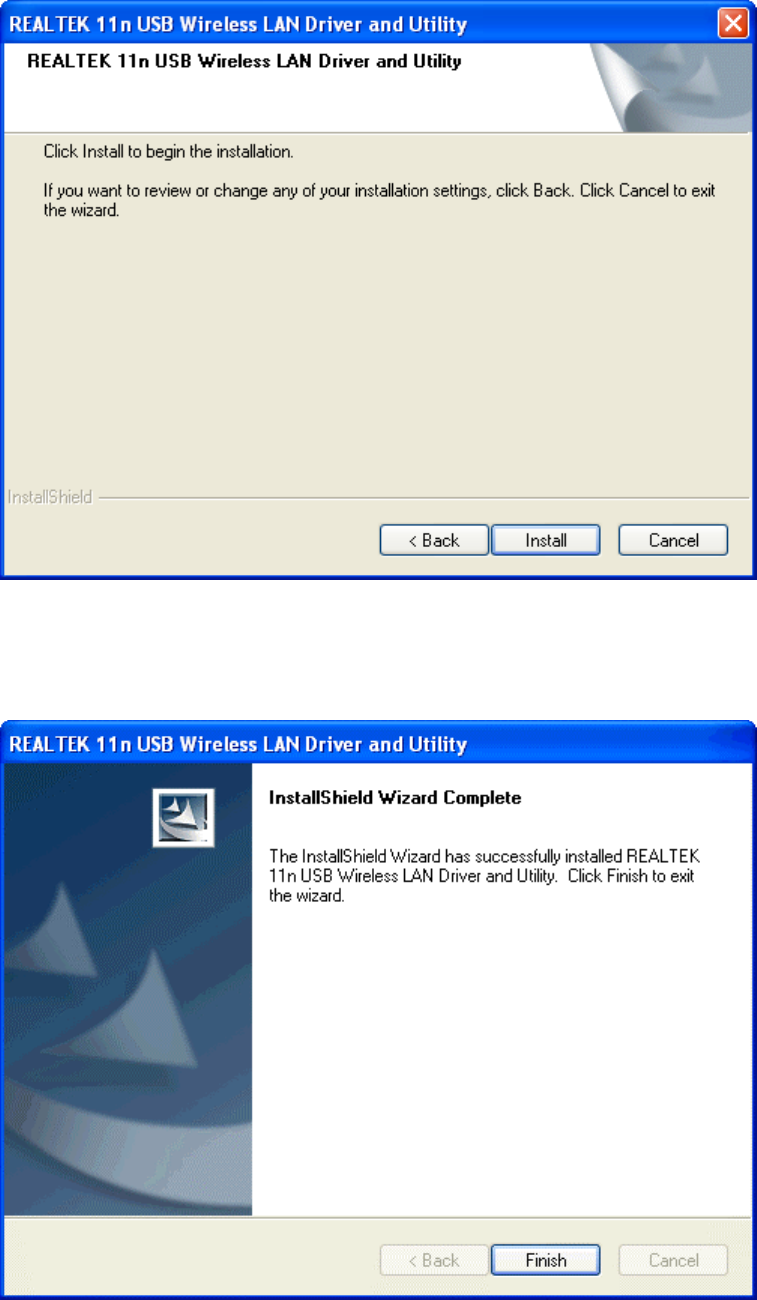

Click " Install ".
Step 6:
Click " Finish ".
13
Windows 2000
Step 1:
As Windows starts it will detect that new hardware has been added, and start the " Found
New Hardware Wizard ". Click on " Cancel ".
14
Step 2:
Please insert the AUTORUN CD into your CD-ROM drive.
The CD should auto-start, displaying the following window. If it does not start, click on
Start – Run and type in CD: \autorun.exe (where CD is the drive letter of your CD-ROM
drive.) Click " Driver Installation ".
15
Step 3:
Click " Next ".
Step 4:
Click " Next ".
16
Step 5:
Click " Install ".
Step 7:
Click " Finish ".
17
Making a Basic Wireless Network Connection
For Windows XP users, your native Windows XP wireless support (Wireless Zero
Configuration Service) has been disabled by default.
Infrastructure mode
An Infrastructure Mode network contains at least one wireless client and one wireless AP or
router. This client connects to Internet or intranet by communicating with this wireless AP or
router.
Step 1:
Double click the icon on your desktop to start the utility or in the task bar.
18
Step 2:
Click the " Available Network " button to scan available access points.
19
Step 3:

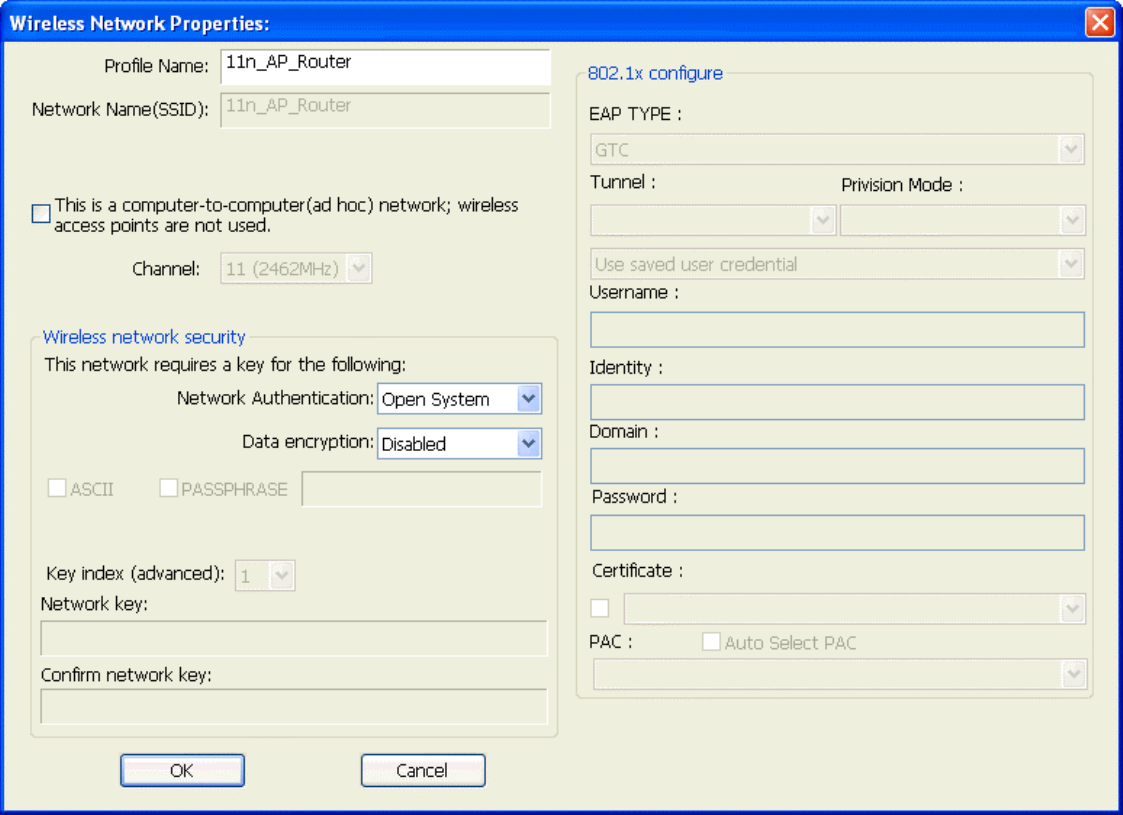

Double click on the SSID of AP that you are going to connect to and create profile that you
are connecting to an open (Encryption is None) wireless network for example the SSID is
11n_AP_Router.
Step 4:
Click the " OK ".
20
Step 5:
Click the " OK ".
21
Step 6:
Now you are ready to use the Wireless Network to Internet or intranet.
22

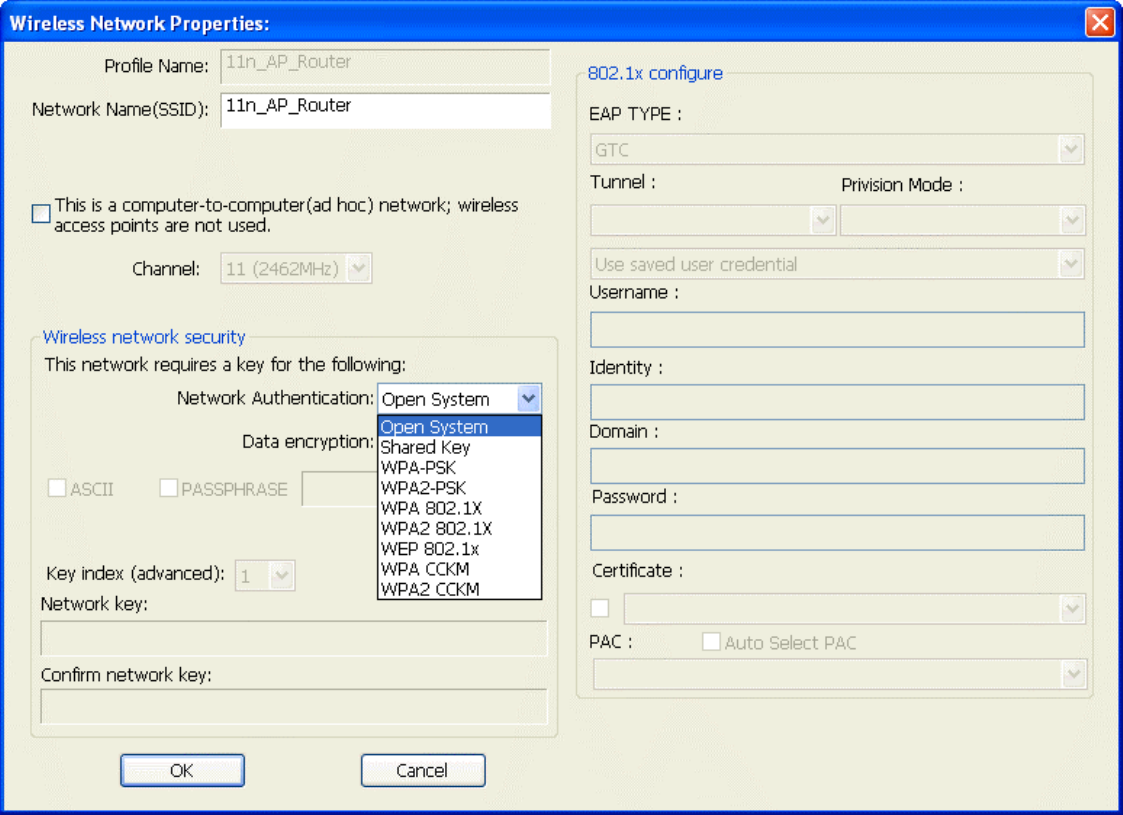

Note: This example is an open wireless network. If you are going to connect to a Wireless
adapter with security protection, you will have to configure the encryption settings in this
profile to be corresponding to the other wireless adapter. Please click on the " Network
Authentication " drop-down list to select an authentication method, and then select a "
Data encryption " type. Fill in each required blanks and click " OK ".
23
Introduction to the Wireless LAN Utility
Note: This management instruction uses Windows XP as the presumed operation system.
Some functions are not supported in Windows 98se or Windows ME.
Starting the Wireless LAN Utility

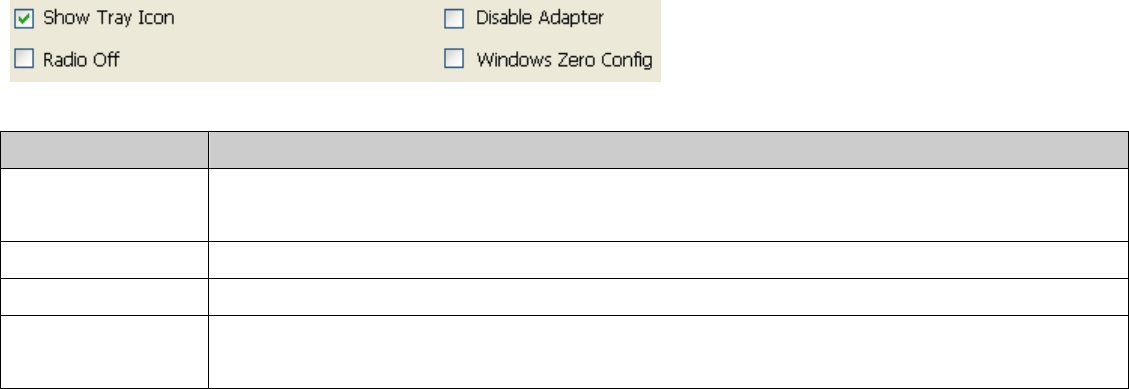

Checkboxes Functions
Show Tray Icon To disable or enable to show the utility icon on your system tray, which is in the
notification area at the lower-right corner of the windows desktop.
Radio Off To disable or enable to prevent this adapter form transmitting or receiving signals.
Disable Adapter To disable or enable the wireless adapter.
Windows Zero
Config
To disable or enable to use the native Windows XP wireless support (Wireless Zero
Configuration Service).
24
General

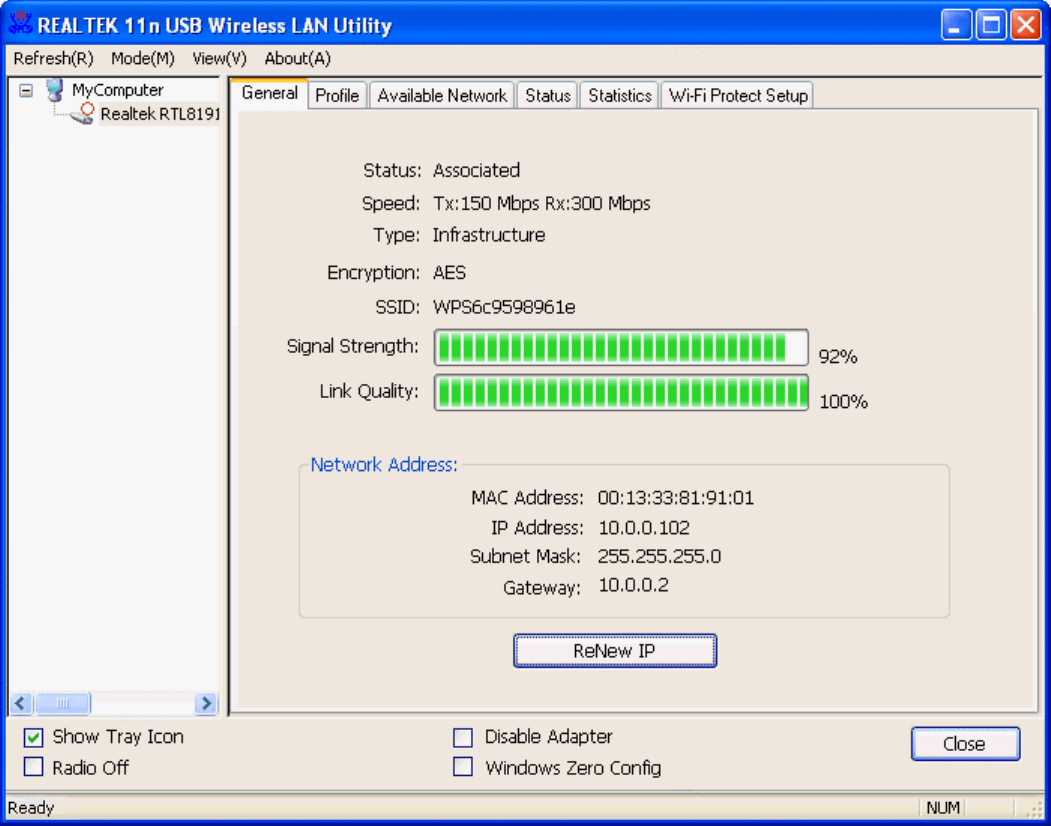

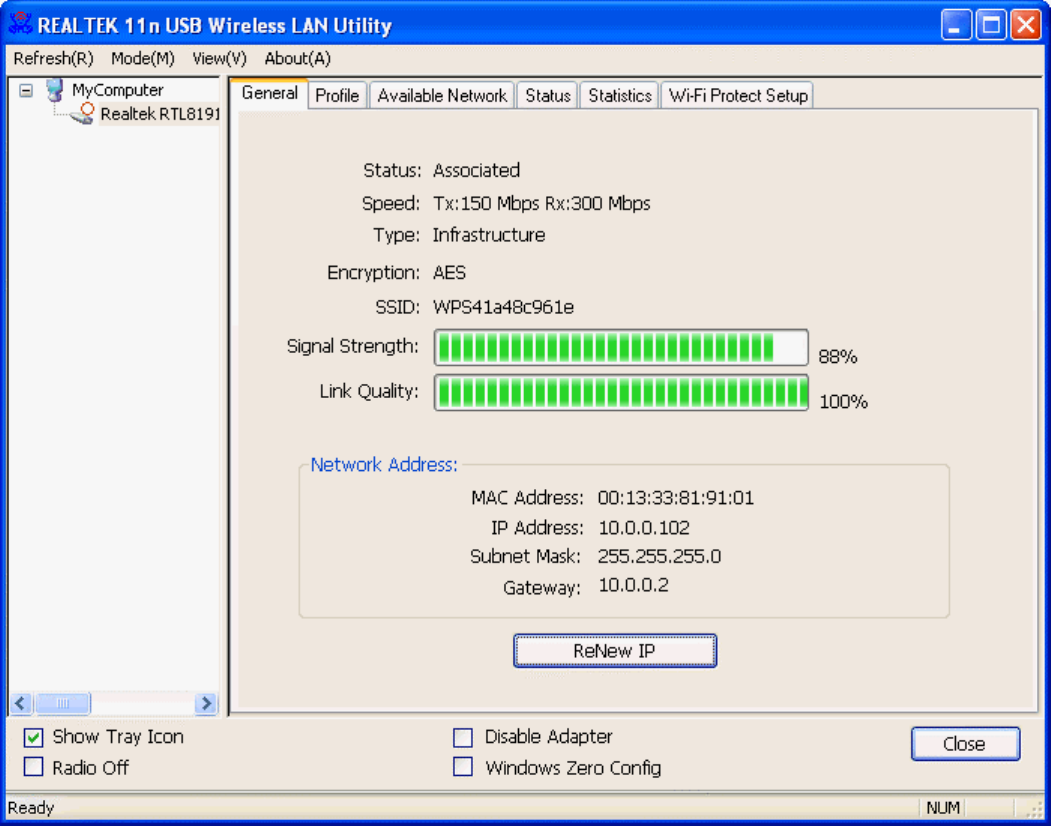

After starting the utility, the general page pops up This General tab provides the information
of your current wireless network connection. You may click the Renew IP button to refresh
those listed information.
Functions
Status Check if the device associated to target network.
Speed The current connection speed
Type Infrastructure or Ad-Hoc mode.
Encryption The encryption mode for connecting to current network profile.
SSID The SSID (network name) of the connected wireless network.
Signal Strength Indicates the signal strength.
Link Quality Indicates the link quality.
Network Address Shows the current IP addresses settings.
25
Profile
The Profile tab lists the preferred connections. You can click the buttons beside to do
configure each connection.
Functions
Add To add a connection profile.
Remove To remove a connection profile.
Edit To modify the configurations for a profile.
Duplicate To make a copy of a profile.
Set Default To select a profile as your default wireless connection.
26
Available Network

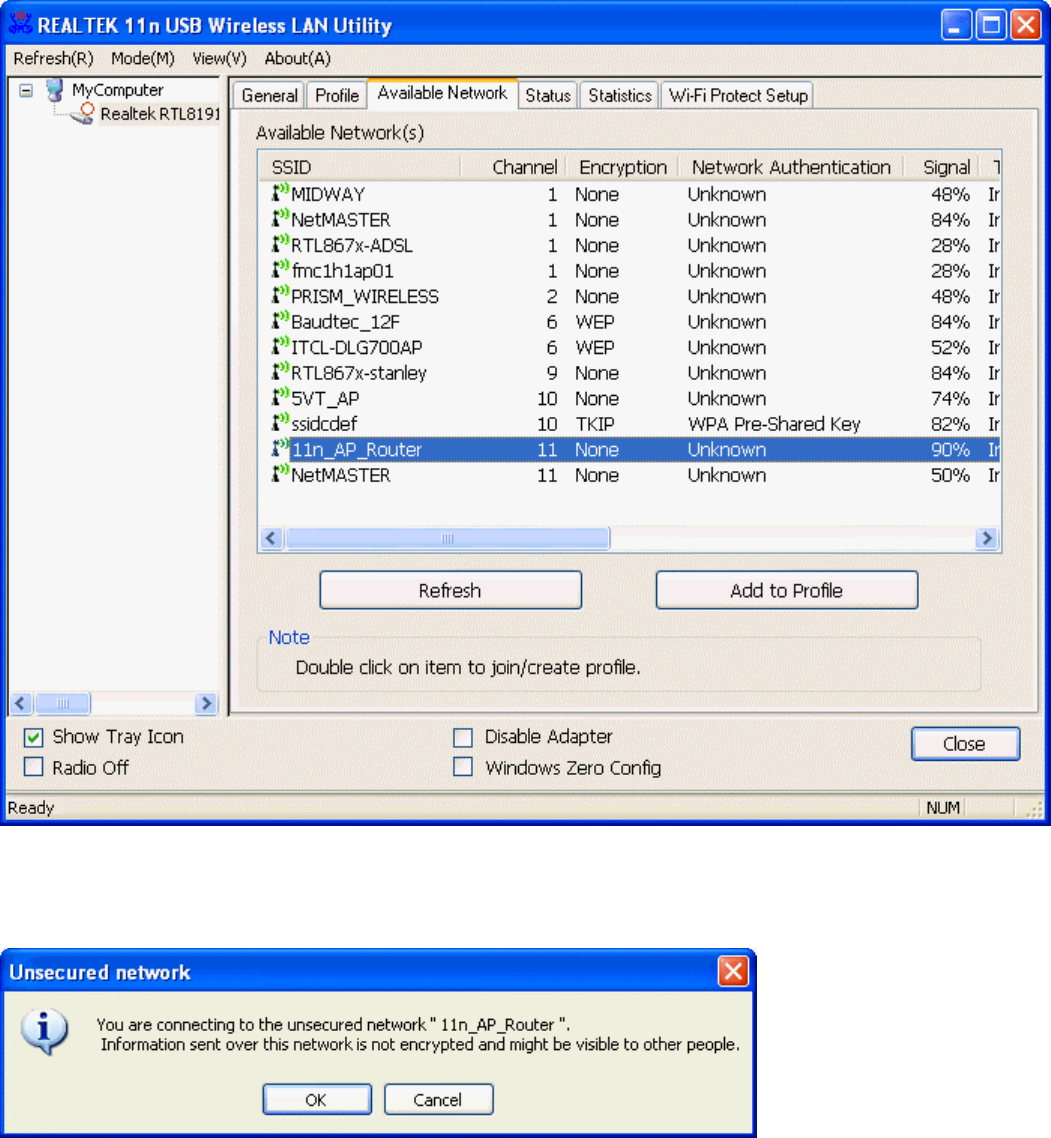

This Available Network tab lists the reachable wireless network.
Functions
Refresh To rescan available Wireless Networks.
Add to Profile To add an available Wireless Network to your profile list.
27
Status
The Status tab shows the current connection status.
28
Statistics

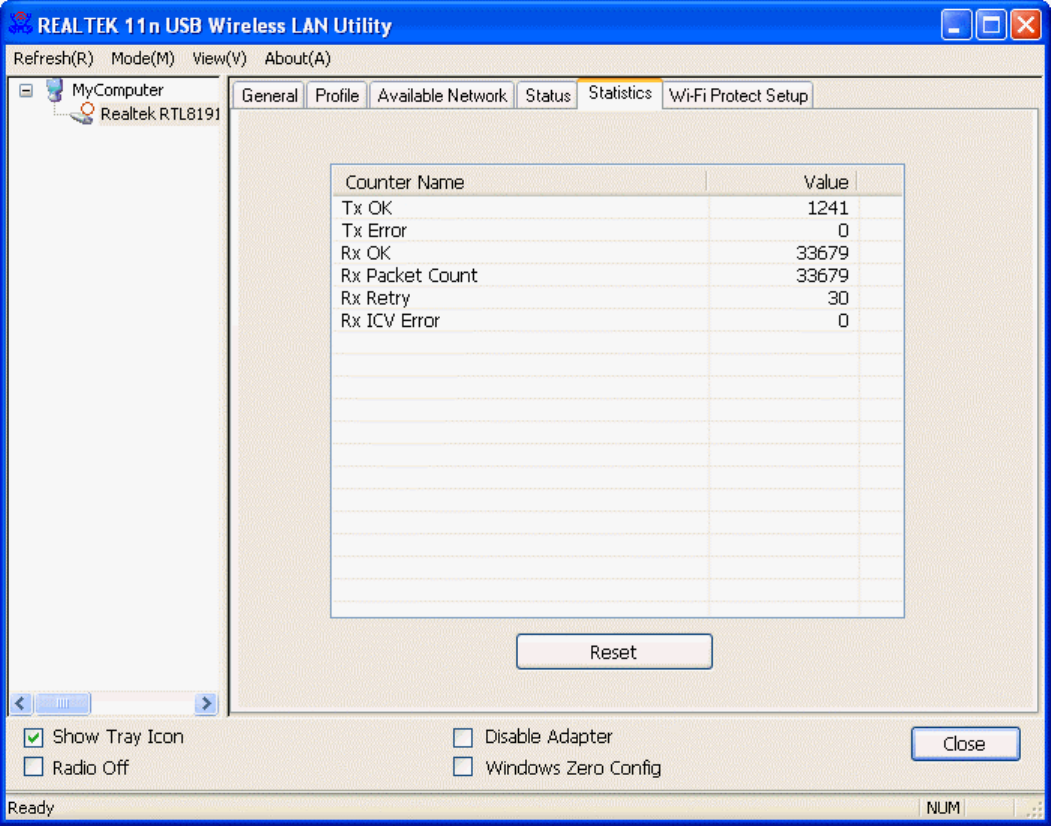

The Statistics tab shows the transmission activity record. Clicking the " Reset " button
recounts the values from zero.
29

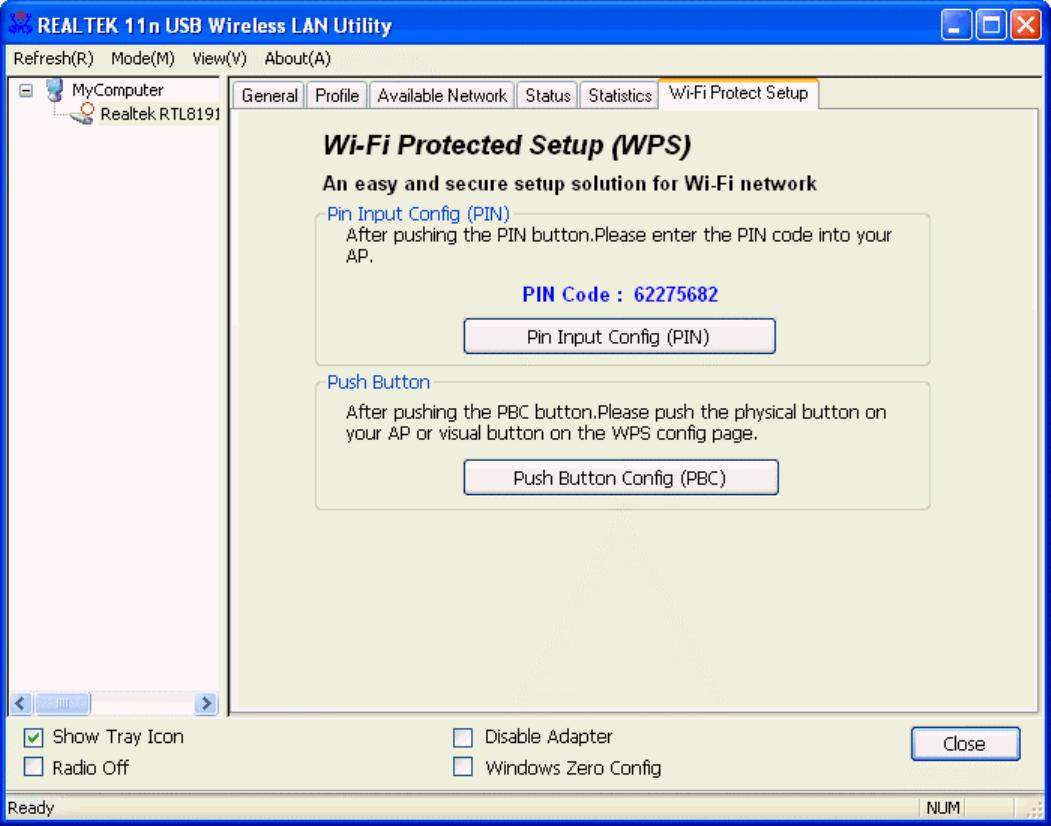

Wi-Fi Protected Setup (WPS)
An easy and secure setup solution for Wi-Fi network.
30

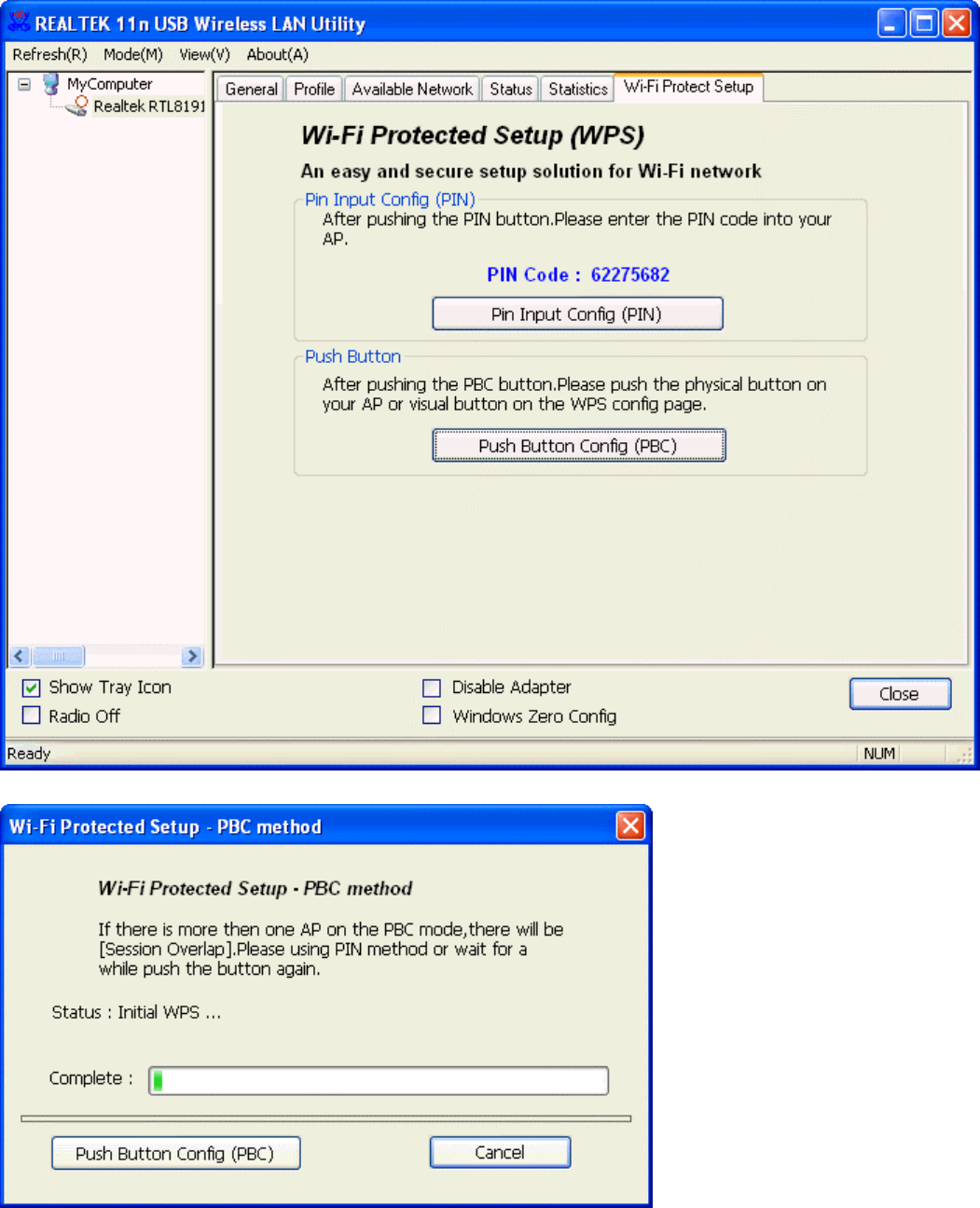

Push Button Config (PBC) Method
If both AP and users’ Wireless LAN Utility has the physical button or visual button of Push
Button Config (PBC), please follow steps below to complete the WPS.
Step 1:
Double click the icon on your desktop to start the utility or in the task bar and then
click the " Wi-Fi Protected Setup " tab.
31
Step 2:
Click on " Push Button Config (PBC) " button.
32
Step 3:
Now you are ready to use the Wireless Network to Internet or intranet.
33
PIN Method 2
If AP know users’ PIN code and the PIN code is 81332342, please follow steps below to
complete the WPS.
Step 1:
Double click the icon on your desktop to start the utility or in the task bar and then
click the " Wi-Fi Protected Setup " tab.
34
Step 2:
Click on " Pin Input Config (PIN) " button.
Step 3:
Click on " Yes " button.
35
Step 4:

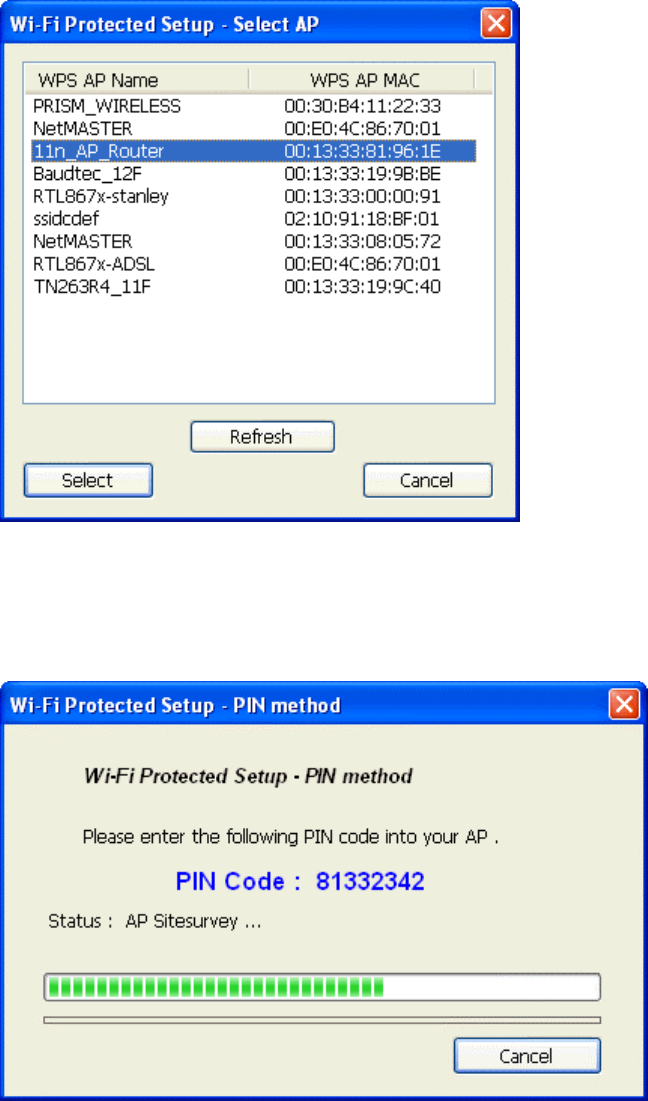

Select the desired WPS AP Name and then click on " Select " button.
Step 5:
Please enter the PIN Code into your AP.
36
Step 6:
Now you are ready to use the Wireless Network to Internet or intranet.
37
Uninstall
Step 1:

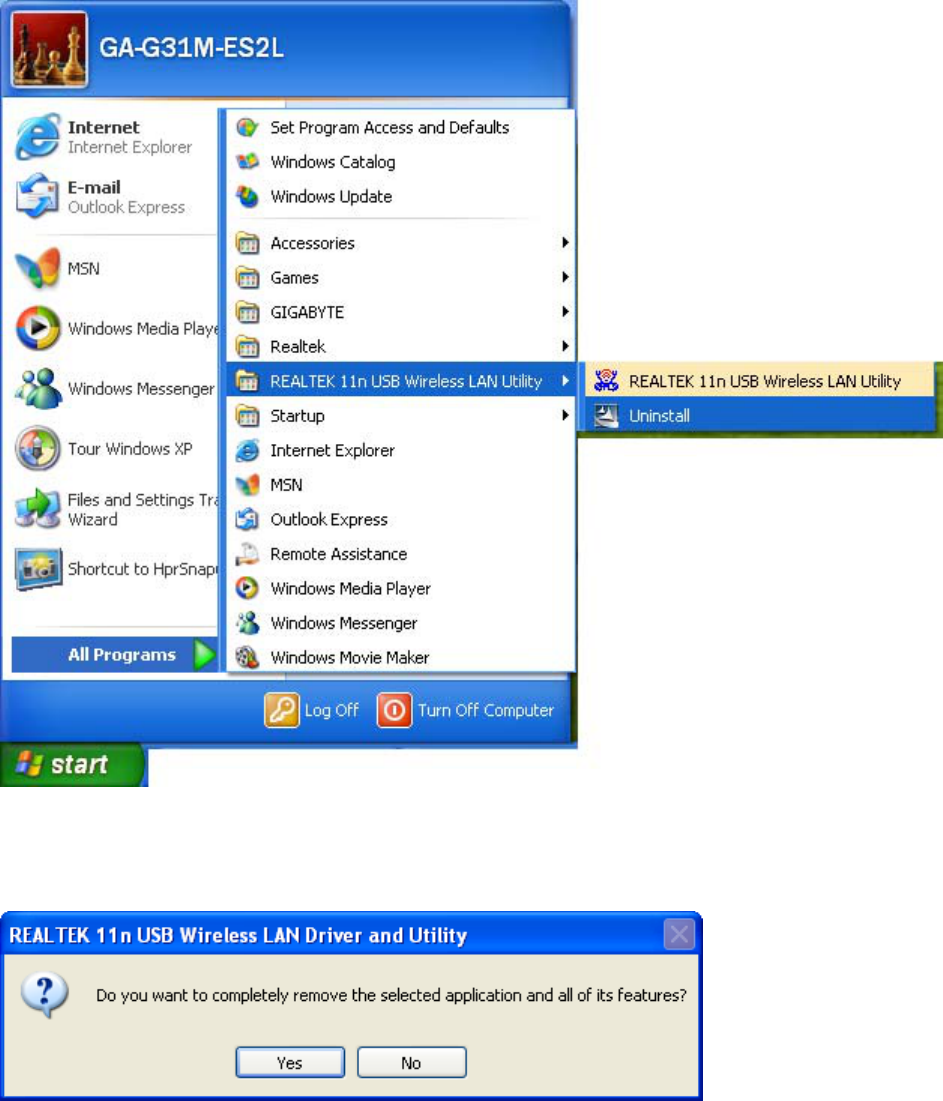

Click " Start -> All Programs -> REALTEK 11n USB Wireless LAN Utility -> Uninstall ".
Step 2:
Click " Yes ".
38
Step 3:
Click " Finish ".
39
Troubleshooting
Session Overlap

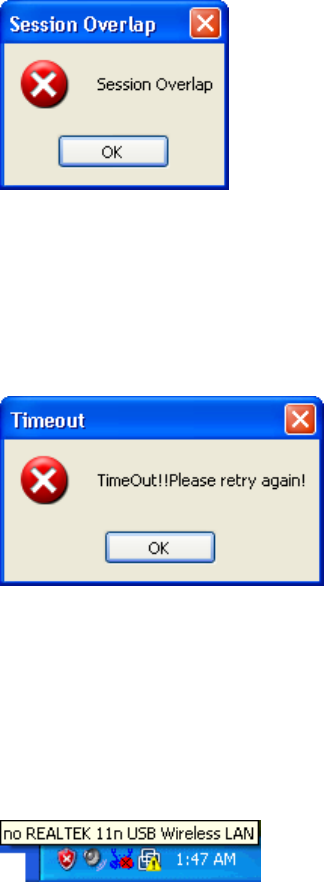

If there is more then one AP on the PBC mode, there will be [Session Overlap].Please
using PIN method or wait for a while push the button again.
TimeOut!!
If you see the message below while doing WPS!! Please retry again!
NO REALTEK 11n USB Wireless LAN
If you see the message below, please plug in the REALTEK 11n USB Wireless LAN to the
USB port of PC.
40
REALTEK 11n USB Wireless LAN is
Disconnected
If you see the message below, please refer to the chapter Making a Basic Wireless
Network Connection to make a Wireless Network Connection.
Cannot get IP Address from Wireless AP
If the Wireless LAN Utility cannot get any the real IP Address from AP, please click on
ReNew IP button to request IP Address again or configure the static IP Address for
REALTEK 11n USB Wireless LAN.
41
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This
equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: – Reorient or relocate the
receiving antenna. – Increase the separation between the equipment and receiver. –
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. – Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
This equipment must not be co-located or operating in conjunction with any other antenna
or transmitter.
Max. SAR Measurement (1g)
802.11b: 0.739 W/kg

Navigation menu
