Beacon Audio BCNBLZ-RPSLVR The Blazar Portable Bluetooth Stereo Device User Manual

Beacon Audio Inc. The Blazar Portable Bluetooth Stereo Device

User Manual

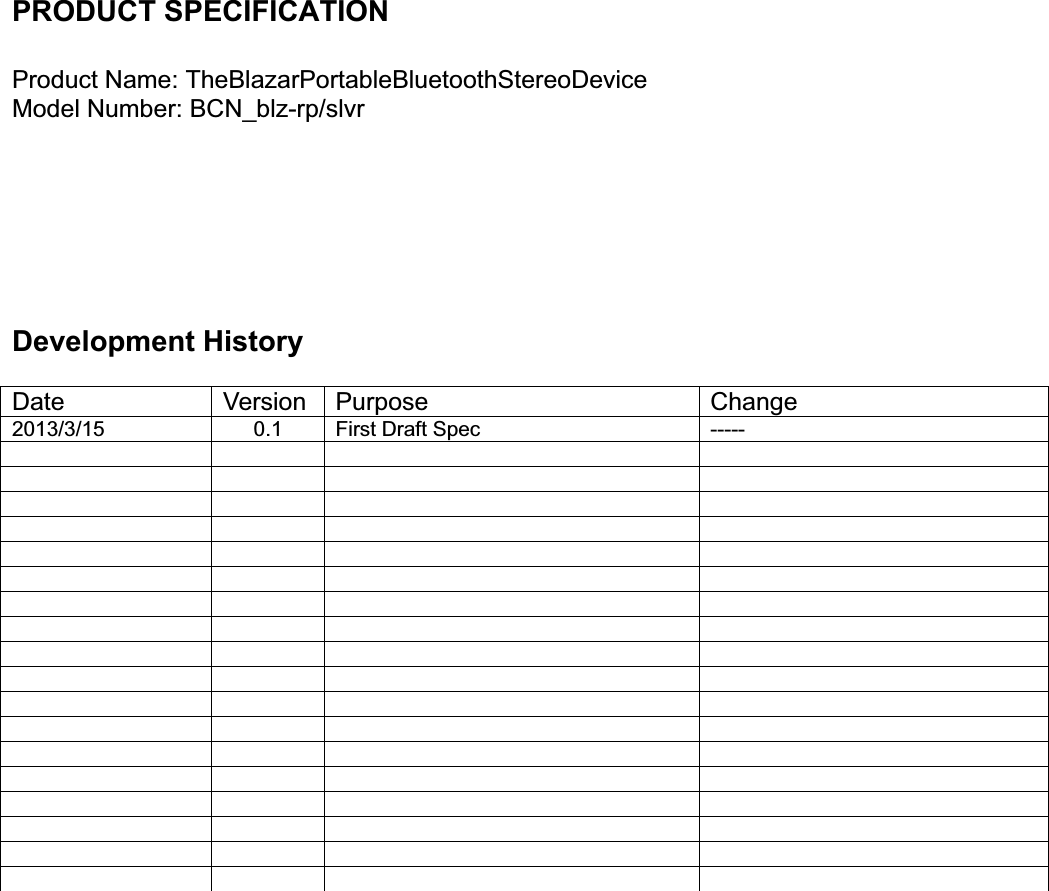

PRODUCT SPECIFICATIONProduct Name: TheBlazarPortableBluetoothStereoDeviceModel Number: BCN_blz-rp/slvrDevelopment HistoryDate Version Purpose Change2013/3/15 0.1 First Draft Spec -----
1. PRODUCT OVERVIEW1.1. CriticalSuccess Factor (DescendingOrder):1) Material Costi) Low price, high performance2) Performance and Feature:ii) Perfect outlookiii) Great Sound Performanceiv) The utility function3) Outlooki) Portable Size forTravel1.2. Product Brief- 2.0 Speakers with the support of Bluetooth andAux- Bluetooth 3.0:A2DP,AVRCP, HFP, HSP- Portable Size- SpeakerPhone(Phone Conference Hands-free)1.3. Feature- Stereo SpeakerSystem using ONE 325ccAcoustic Volume Cubes (Active Driver)- Playtime: Up-to 4.5 hours at 60% Volume- Red/Blue LED w/ Light Pipe around the key- Sound + LED Indication of PowerOn &Off/ Try-to-Connect/ Connected/Disconnecting- 1 Main Powerswitch at the side-1Pair(self pairing ) switch at the side- 1 Button forStand-by/ Pairing/ Play&Pause/Phone CallAnswering- 2 Buttons forVolume Control- 2 Buttons forTrack Selection

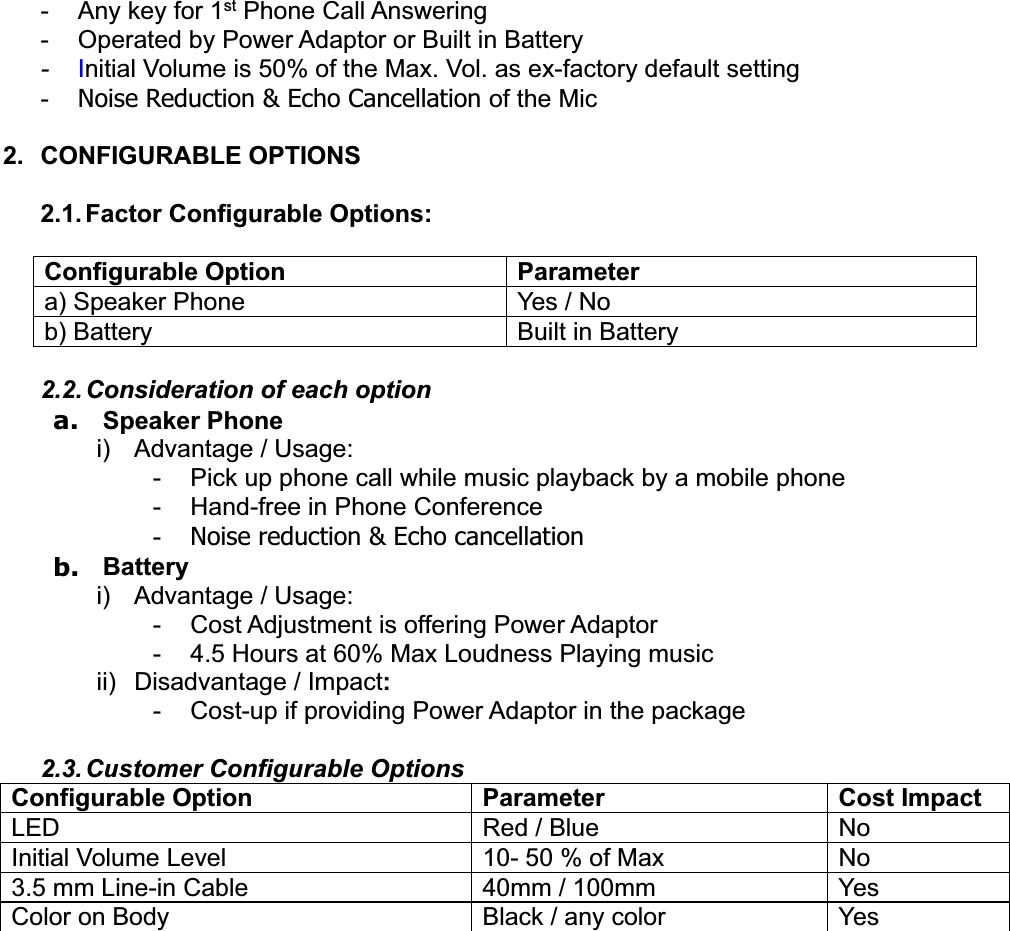

-Any key for1st Phone CallAnswering- Operated by PowerAdaptororBuilt in Battery-Initial Volume is 50% of the Max. Vol. as ex-factory default setting-Noise Reduction & Echo Cancellation of the Mic2. CONFIGURABLE OPTIONS2.1. Factor Configurable Options:Configurable Option Parametera) Speaker Phone Yes / Nob) Battery Built in Battery2.2. Consideration ofeach optiona. Speaker Phonei)Advantage / Usage:- Pick up phone call while music playback by a mobile phone- Hand-free in Phone Conference-Noise reduction & Echo cancellationb. Batteryi)Advantage / Usage:-CostAdjustment is offering PowerAdaptor- 4.5 Hours at 60% Max Loudness Playing musicii) Disadvantage / Impact:- Cost-up if providingPowerAdaptorin the package2.3. Customer Configurable OptionsConfigurable Option Parameter Cost ImpactLED Red / Blue NoInitial Volume Level 10- 50 % of Max No3.5 mm Line-in Cable 40mm / 100mm YesColor on Body Black / any color Yes
3. MECHANICAL SPECIFICATION3.1. Dimension:- Design: Closed: 91 mm x 91mm x91mm(L x D x H)Driver unit: 50mm x23.2. Weight: approx. TBD3.3. Connectors-PowerAdaptorMicro USB at the back- 3.5 mm Line-in Jack3.4. 8-Switches Controli. Main Powerii. Stand-by / Pairing/ Play&Pause/ PhoneAnsweriii. Volume Upiv. Volume Downv. Next Trackvi. Last Trackvii. Self pairingviii. Reset4. ELECTRICAL SPECIFICATION4.1. Audio Requirement:- 325ccAcoustic Vol. w/Active Driver-Driverconfiguration: 2 x 50 mm full rangedriver- Both Batt &Adaptor: RMS Output is 3W + 3W (Total: 6W RMS)- Hum Noise level(in Operation mode): < 500nW in Max Volume- Hum Noise level (Stand-by mode):=0dB- The MaxAudio output signal level should be same as the level drawn fromA2DPSystem SNR: >60 dB@1WTHD: <1% at 1kHzLoudness: SPL >75dB@1kHz sine wave(1m, input: 230mV, Max Volume)Frequency response: 80–16kHz- Microphone CondenserDia. 4.0mm 2.2k- Sensitivity: -34 ± 3dB- S/N = 60dB 3.0V4.2. Bluetooth Requirement- Bluetooth ver.: 3.0- Bluetooth class: 3 (coverage up to 10M, less in buildings)-4.3. Power Requirement:-Stand-byCurrent should be less 50uA- Battery life:4.5 Hours at 60% Max Loudness Playing Bluetooth Music Device4.4. Compatibility (Bluetooth 3.0 or below music device)-MobileNokia:Samsung:SonyEricsson

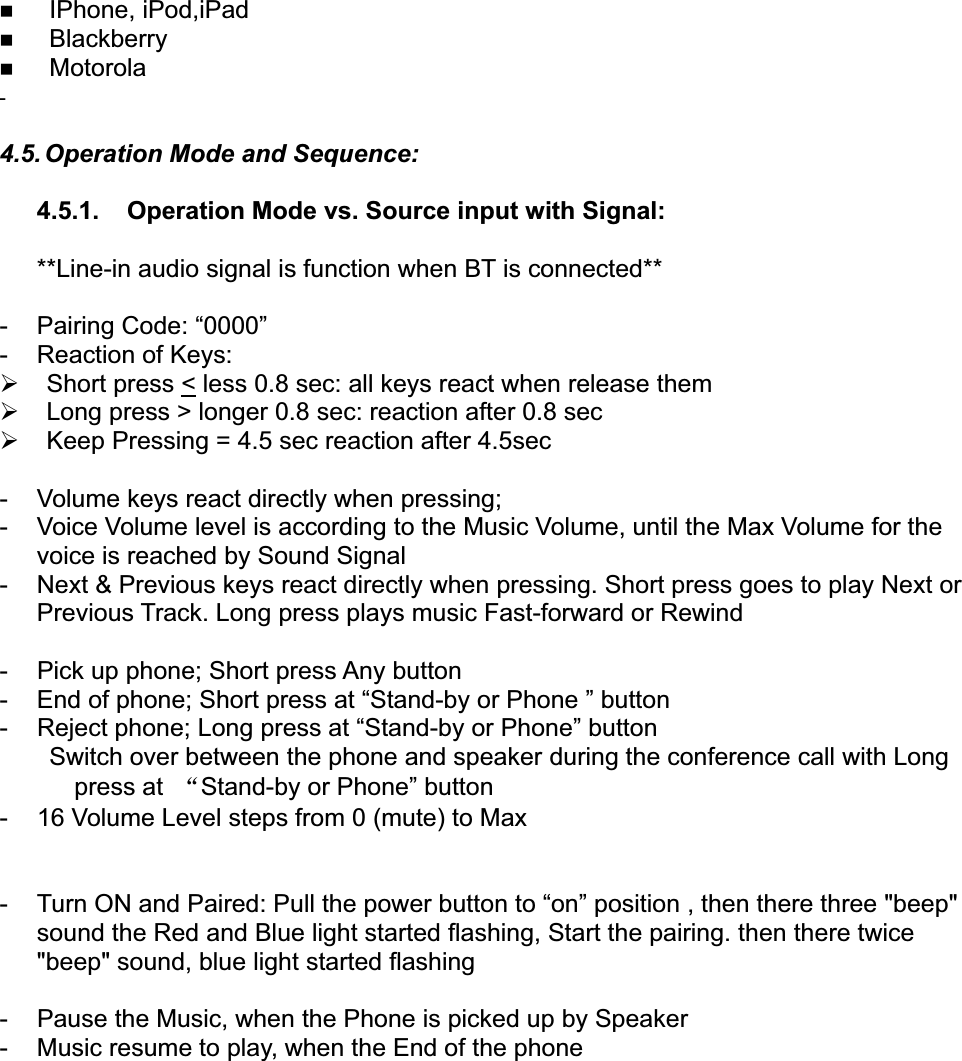

IPhone, iPod,iPadBlackberryMotorola-4.5. Operation Mode and Sequence:4.5.1. Operation Mode vs. Source input with Signal:**Line-in audio signal is function when BT is connected**-PairingCode: “0000”- Reaction of Keys:¾Short press < less 0.8 sec: all keys react when release them¾Longpress > longer0.8 sec: reaction after0.8 sec¾Keep Pressing = 4.5 sec reaction after4.5sec-Volumekeys react directlywhen pressing;- Voice Volume level is accordingto the Music Volume, until the Max Volume forthevoice is reached by Sound Signal- Next & Previous keys react directly when pressing. Short press goes to play Next orPrevious Track. Long press plays music Fast-forward or Rewind- Pick up phone; Short pressAnybutton- End of phone; Short press at “Stand-byorPhone ” button- Reject phone; Long press at “Stand-by orPhone” buttonSwitch over between the phone and speaker during the conference call with Longpress at ĀStand-by or Phone” button- 16 Volume Level steps from 0(mute)to Max- Turn ON and Paired: Pull the powerbutton to “on” position , then there three "beep"sound the Red and Blue light started flashing, Start the pairing. then there twice"beep" sound, blue light started flashing- Pause the Music, when the Phone is picked up by Speaker- Music resume to play, when the End of the phone

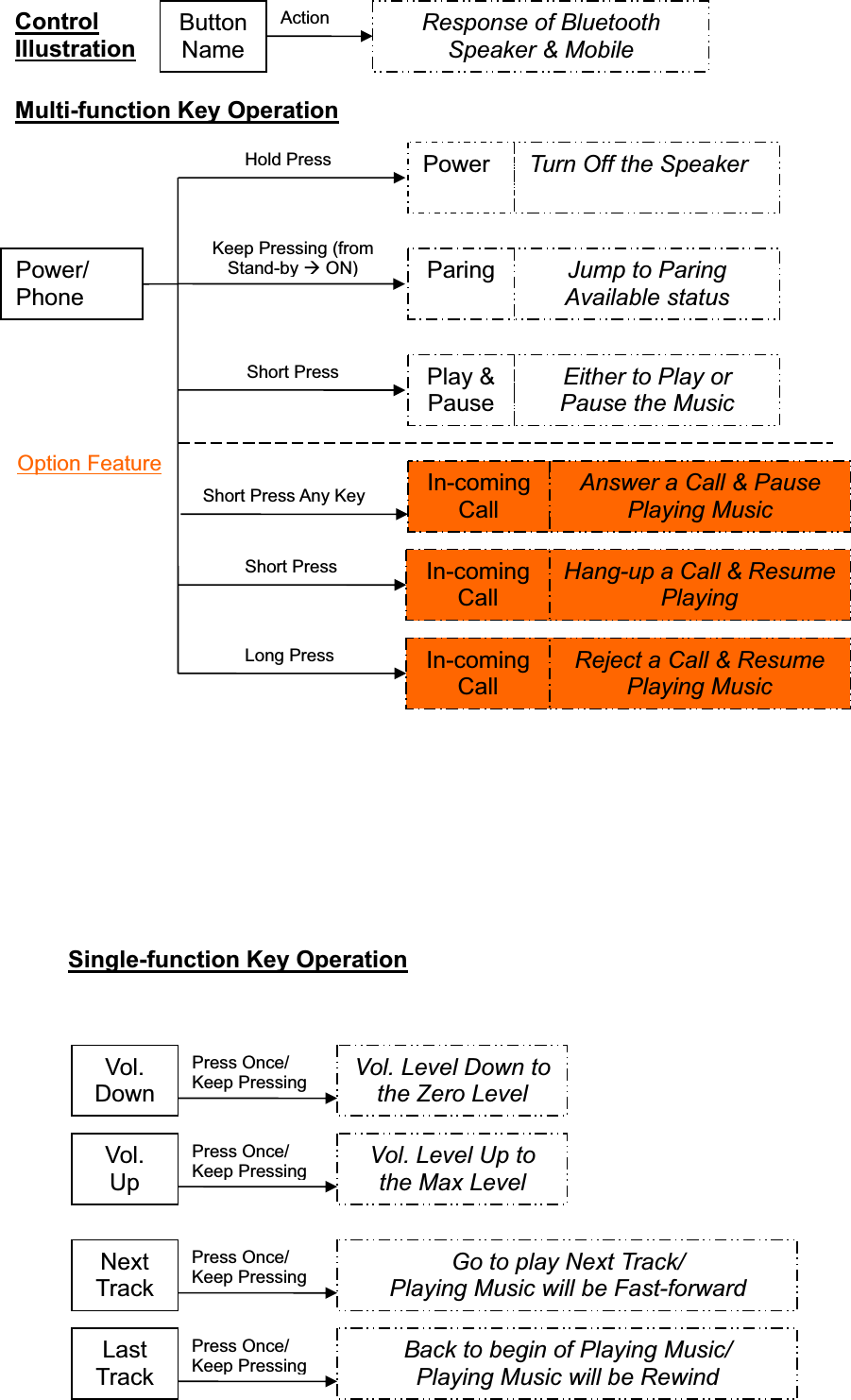

ButtonNameAction Response of BluetoothSpeaker & MobileControlIllustrationVol.DownPress Once/KeepPressingVol. Level Down tothe Zero LevelVol.UpPress Once/KeepPressingVol. Level Up tothe Max LevelNextTrackPress Once/KeepPressingGo to play Next Track/Playing Music will be Fast-forwardLastTrackPress Once/KeepPressingBack to begin of Playing Music/Playing Music will be RewindMulti-function Key OperationSingle-function Key OperationTurn Off the SpeakerPowerHold PressParingKeep Pressing (fromStand-byÆON)Jump to ParingAvailable statusPlay &PauseShort Press Either to Play orPause the MusicOption Feature In-comingCallAnswer a Call & PausePlaying MusicShort Press Any KeyReject a Call & ResumePlaying MusicLong Press In-comingCallHang-up a Call & ResumePlayingShort Press In-comingCallPower/Phone

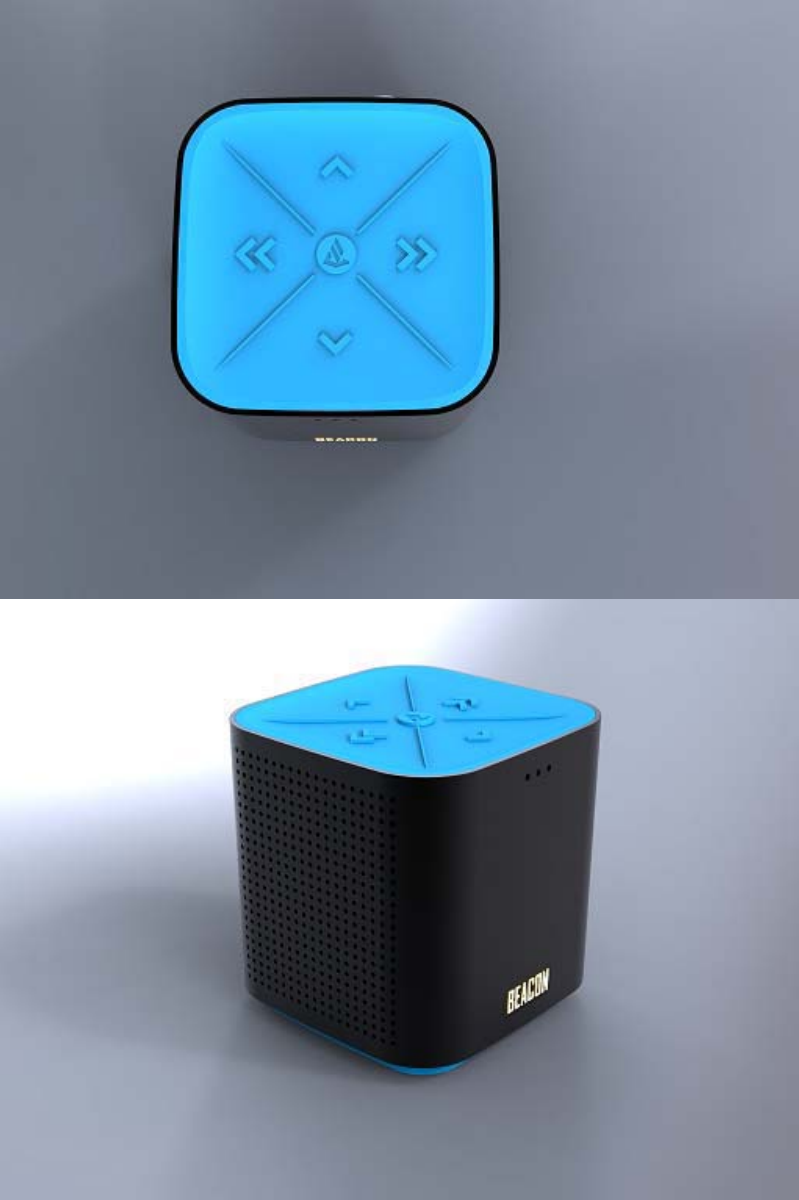

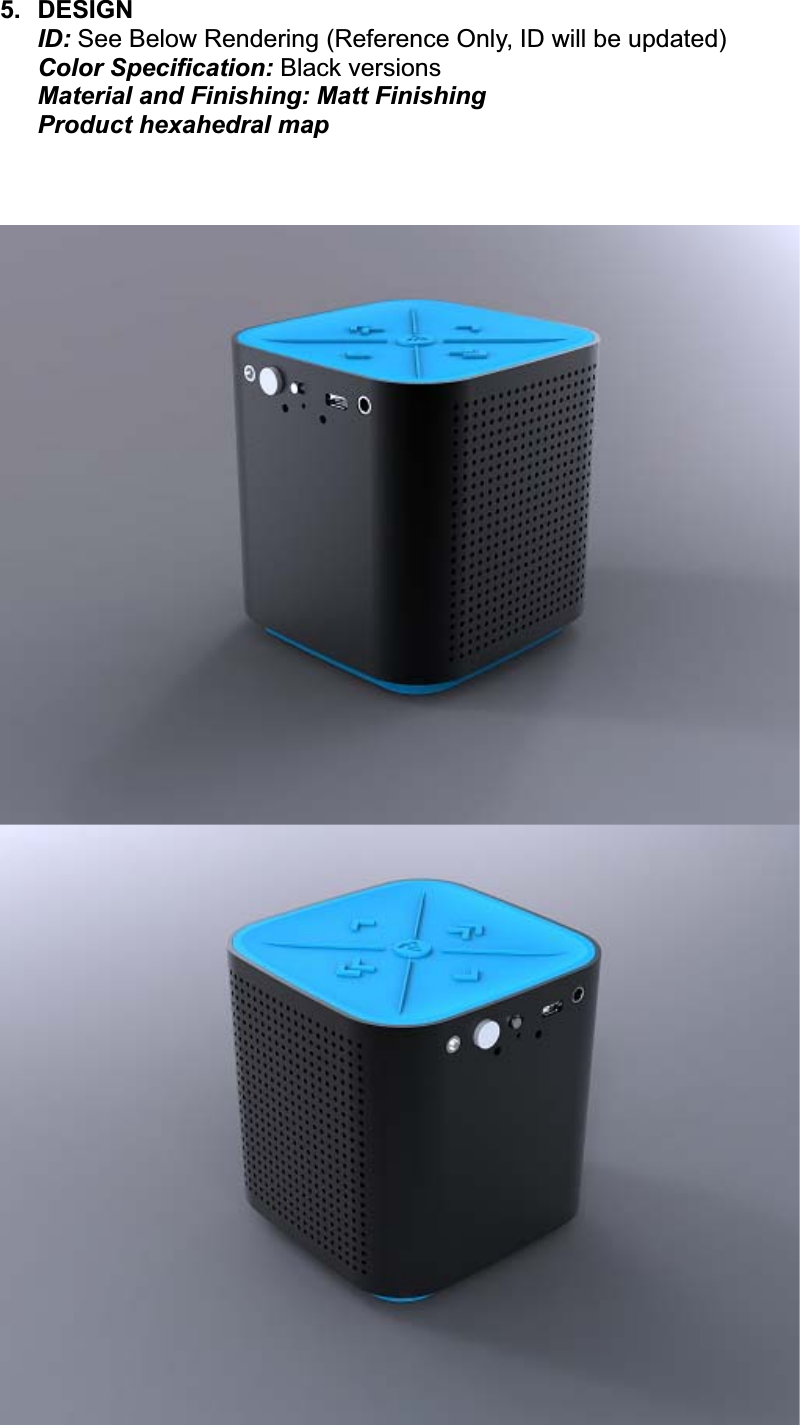

5. DESIGNID: See Below Rendering (Reference Only, ID will be updated)Color Specification: Black versionsMaterial and Finishing: Matt FinishingProduct hexahedral map

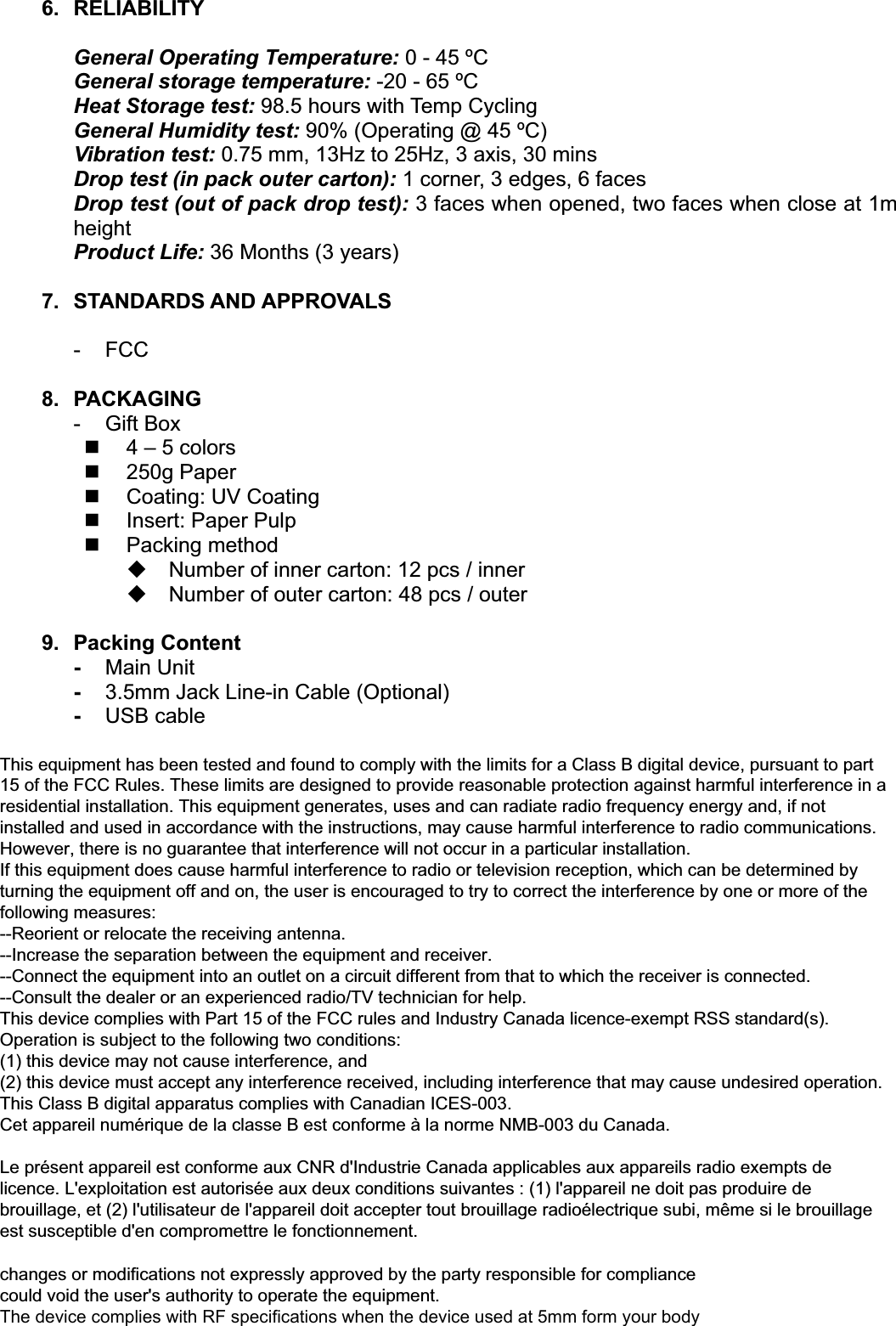

6. RELIABILITYGeneral Operating Temperature: 0-45ºCGeneral storage temperature: -20 - 65 ºCHeat Storage test: 98.5 hours with Temp CyclingGeneral Humidity test: 90% (Operating @ 45 ºC)Vibration test: 0.75 mm, 13Hz to 25Hz, 3 axis, 30 minsDrop test (in pack outer carton): 1 corner, 3 edges, 6 facesDrop test (out of pack drop test): 3 faces when opened, two faces when close at 1mheightProduct Life: 36 Months (3 years)7. STANDARDS AND APPROVALS-FCC8. PACKAGING-GiftBox4–5 colors250gPaperCoating: UV CoatingInsert: PaperPulpPacking methodNumberof innercarton: 12 pcs / innerNumberof outercarton: 48 pcs / outer9. PackingContent-Main Unit-3.5mm Jack Line-in Cable (Optional)-USB cable This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.The device complies with RF specifications when the device used at 5mm form your body
