Beacon Display Technology LCDG22C22 LCD Monitor User Manual
Shenzhen Beacon Display Technology Co., Ltd. LCD Monitor Users Manual
Users Manual
![](/img.php?id=2243937&img=bg1.png)
User Manual
2MP LCD Monitor
C22SP+/G22SP+
Rev.A0
![](/img.php?id=2243937&img=bg2.png)
User Manual
-- 2 --
Content
1. SAFETY SYMBOLS & PRECAUTIONS...........................................................................................................- 3 -
1.1 SAFETY SYMBOLS ............................................................................................................................................- 3 -
1.2 PRECAUTIONS...................................................................................................................................................- 3 -
2. INTRODUCTION .................................................................................................................................................- 6 -
3. QUICK START......................................................................................................................................................- 7 -
4. ADJUSTMENT......................................................................................................................................................- 9 -
2.SHORTCUTS ...............................................................................................................................................................- 9 -
3. KEY FUNCTION ........................................................................................................................................................- 9 -
5. TROUBLE SHOOTING.....................................................................................................................................- 11 -
6. CLEANING..........................................................................................................................................................- 12 -
7. PACKAGE AND ACCESSORY.........................................................................................................................- 13 -
8. SPECIFICATION................................................................................................................................................- 14 -
8.1. SPECIFICATION ...............................................................................................................................................- 14 -

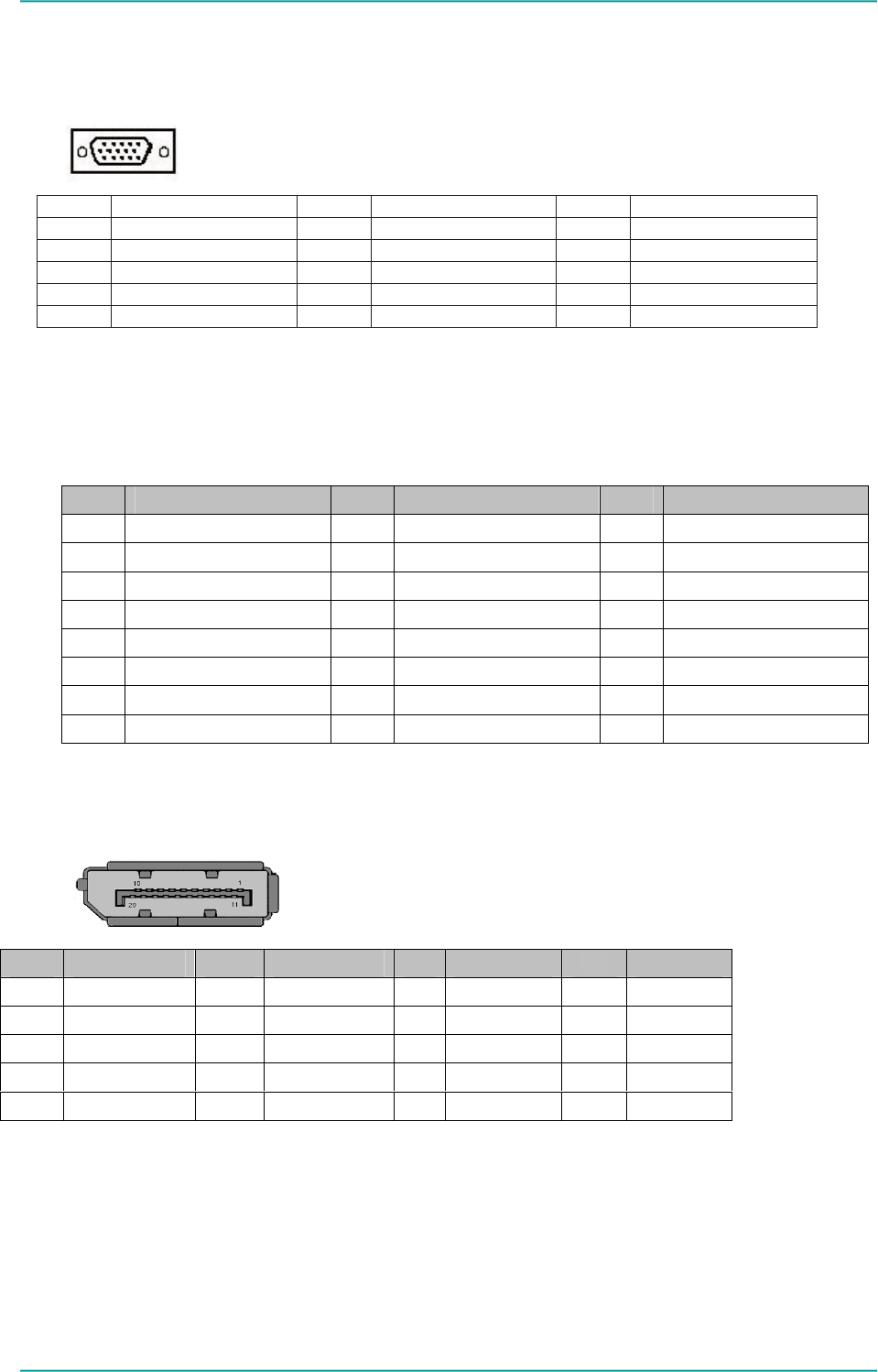

8.2. D-SUB CONNECTOR .......................................................................................................................................- 15 -
8.3. DVI-D CONNECTOR.......................................................................................................................................- 15 -
8.4 DISPLAYPORT CONNECTOR ...................................................................................................................................- 15 -
![](/img.php?id=2243937&img=bg3.png)
User Manual
-- 3 --
1. Safety Symbols & Precautions

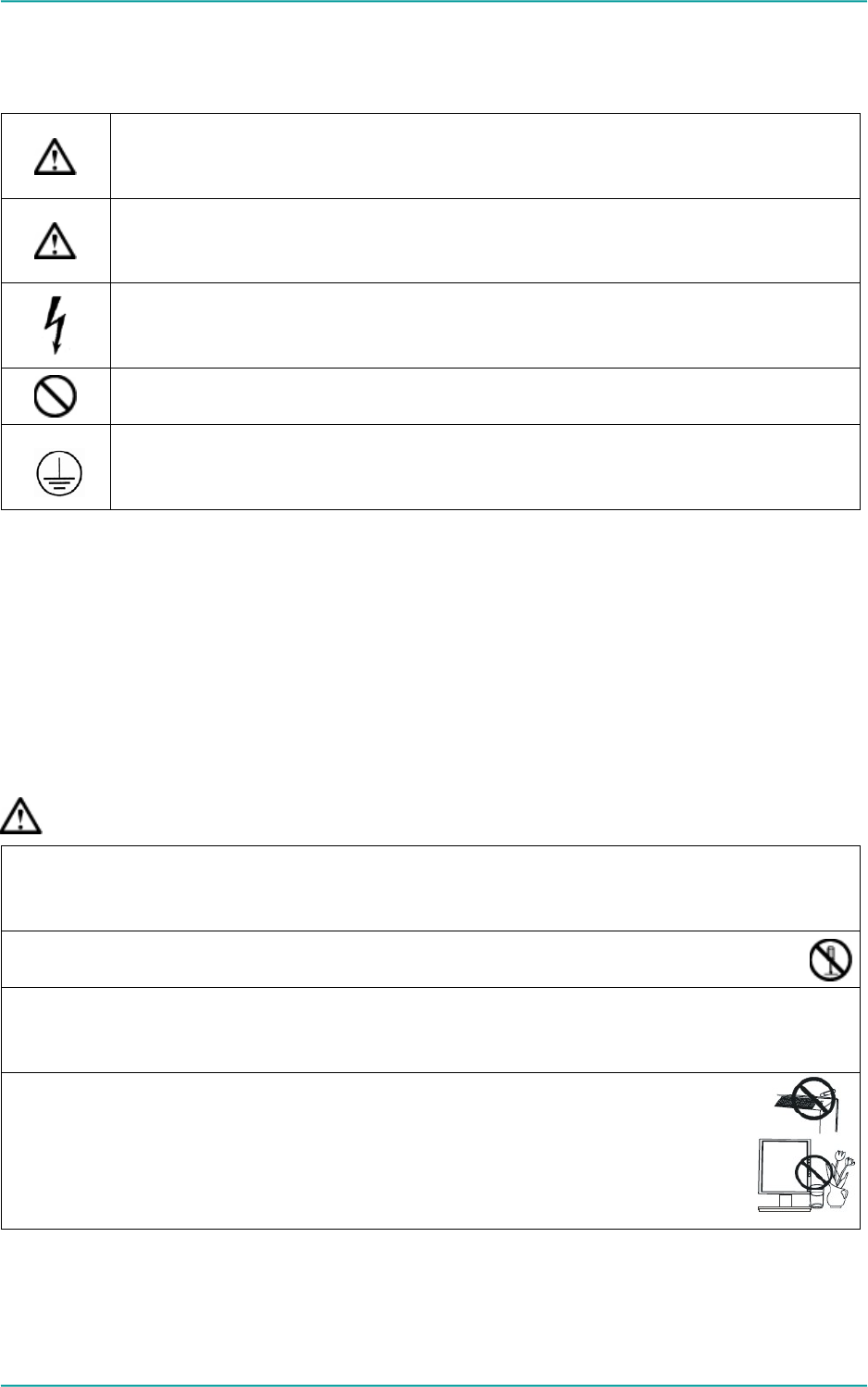

1.1 Safety Symbols
This manual uses below safety symbols. They denote critical information. Please read them carefully.
WARNING
Failure to abide by the information in a WARNING may result in serious injury and can be
life threatening.
CAUTION
Failure to abide by the information in a CAUTION may result in moderate injury and/or
property or product damage.
Alert electrical hazard.
Indicates a prohibited action.
Indicates to ground for safety.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The design of this apparatus is safe to patient.
Do not connect this apparatus to household devices.
We will try the best to assure the newest information be shown in this manual, but the information in this
document is subject to change without prior notice.
1.2 Precautions
To ensure personal safety and proper maintenance, please read this section and the caution statements on the
unit.

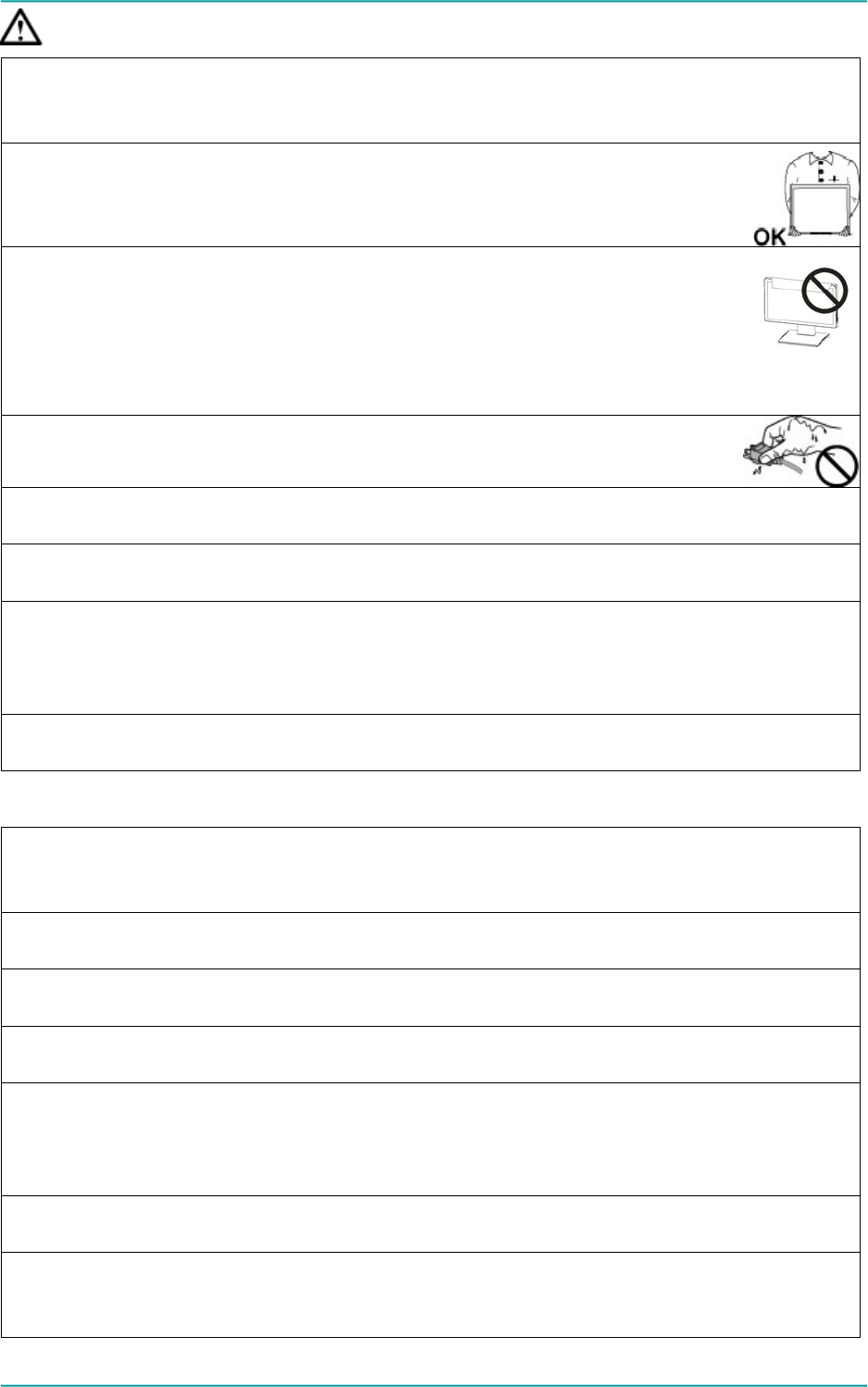

WARNING
If the unit begins to emit smoke, smells like something is burning, or makes strange noises,
disconnect all power connections immediately and contact your dealer for advice.
Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
Do not open the cabinet or modify the unit.
Opening the cabinet or modifying the unit may result in fire, electric shock, or burn.
Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing covers may result in fire, electric
shock, or equipment damage.
Keep small objects or liquids away from the unit.
Small objects accidentally falling through the ventilation slots into the cabinet or spillage
into the cabinet may result in fire, electric shock, or equipment damage. If an object or
liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by
a qualified service engineer before using it again.
![](/img.php?id=2243937&img=bg4.png)
User Manual
-- 4 --

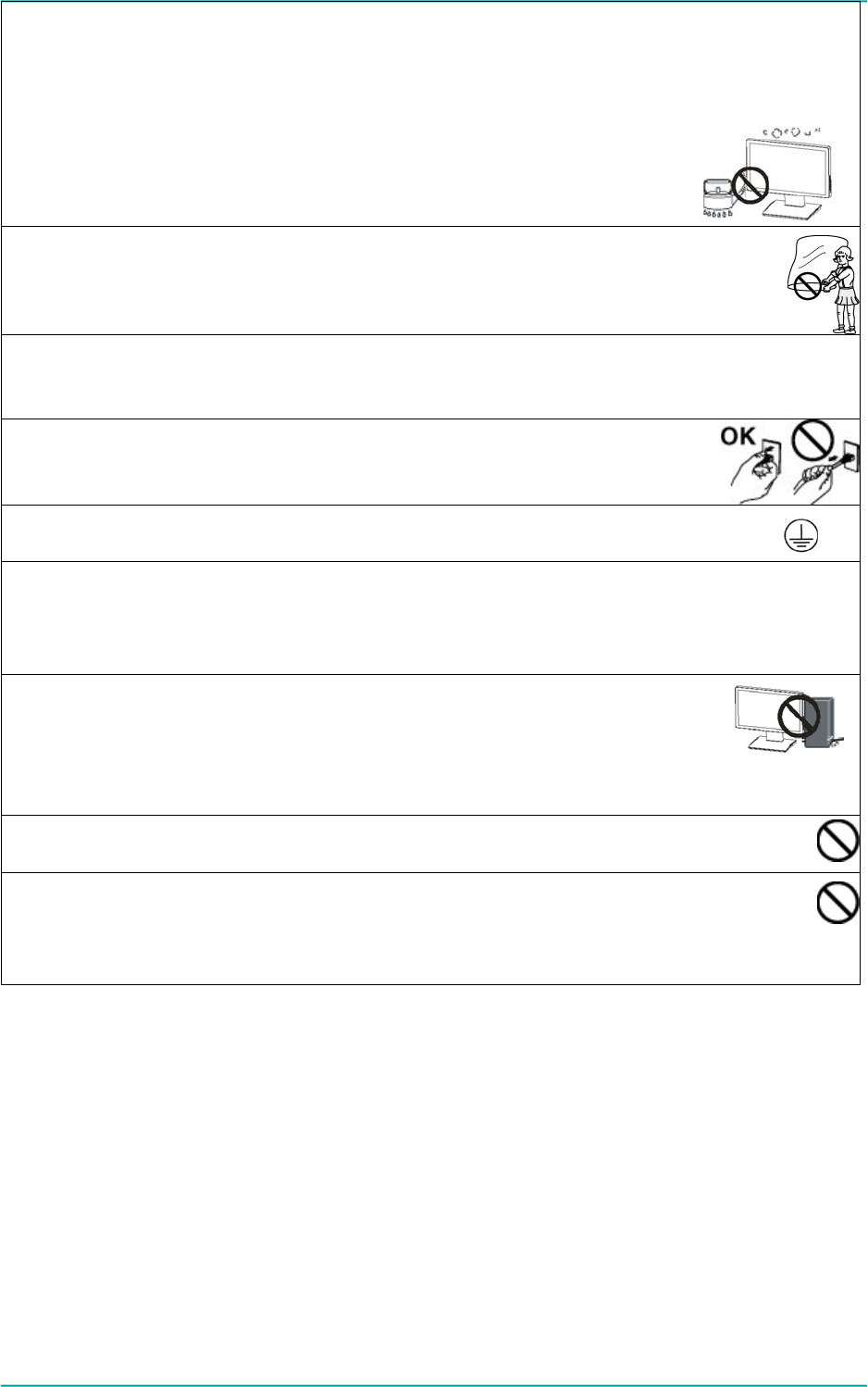

Set up the unit in an appropriate location.
Not doing so may result in fire, electric shock, or equipment damage.
- Do not place the unit outdoors.
- Do not install the unit in transportation systems (ship, aircraft, trains, automobiles, etc.)
- Do not place the unit in a dusty or humid environment.
- Do not place the unit in a location where the steam comes directly on the screen.
- Do not place the unit near heat generating devices or a humidifier.
- Do not place the unit in an inflammable gas environment.
To avoid danger of suffocation, keep the plastic packing bags away from babies and
children.
Use the enclosed power cord and connect to the standard power outlet of your country.
Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric
shock.
To disconnect the power cord, grasp the plug firmly and pull.
Tugging on the cord may damage and result in fire or electric shock.
The equipment must be connected to a grounded main outlet.
Not doing so may result in fire or electric shock.
Use the correct voltage.
- The unit is designed for use with a specific voltage only. Connection to another voltage than specified
in this User’s Manual may cause fire, electric shock, or equipment damage.
- Do not overload your power circuit, as this may result in fire or electric shock.
Handle the power cord with care.
- Do not put the power cord under the unit or other heavy object.
- Do not pull up or twist the power cord.
If the power cord is broken, stop to use it immediately. Using broken power cord may result in fire or
electric shock.
Never touch the plug and power cord if it begins to thunder.
Touching them may result in electric shock.
Do not touch a damaged LCD panel directly with bare hands.
The liquid crystal that may leak from the panel is poisonous if it enters the eyes or mouth. If any
part of the skin or body comes in direct contact with the panel, please wash thoroughly. If some
physical symptoms result, please consult your doctor.
![](/img.php?id=2243937&img=bg5.png)
User Manual
-- 5 --
CAUTION
Handle with care when carrying the unit.
Disconnect the power cord and signal cables and remove the optional unit. Moving the unit with the
cord or the option attached is dangerous. It may result in injury.
When handling the unit, grip the bottom of the unit firmly with both hands ensuring
the panel faces outward before lifting.
Dropping the unit may result in injury or equipment damage.
Do not block the ventilation slots on the cabinet.
- Do not place any objects on the ventilation slots.
- Do not install the unit in a closed space.
- Do not use the unit laid down or upside down.
- Blocking the ventilation slots prevents proper airflow and may result in fire, electric shock, or
equipment damage.
Do not touch the plug with wet hands.
Doing so may result in electric shock.
Periodically clean the area around the plug.
Dust, water, or oil on the plug may result in fire.
Unplug the unit before cleaning it.
Cleaning the unit while it is plugged into a power outlet may result in electric shock.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
If you plan to leave the unit unused for an extended period, disconnect the power cord from the
wall socket after turning off the power switch for the safety and the power conservation.
LCD PANEL
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew
condensation may occur inside and outside the monitor. In that case, do not turn the monitor on and
wait until dew condensation disappears, otherwise it may cause some damages to it.
In order to suppress the luminosity change by long-term use and to maintain the stable luminosity,
please use the monitor with the lower brightness.
The screen may have defective pixels. These pixels may appear as slightly light or dark area on the
screen. This is due to the characteristics of the panel itself, and not the product.
The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to
flicker, please contact your dealer.
Do not press on the panel or edge of the frame strongly, as this may result in damage to the screen.
There will be prints left on the screen if the pressed image is dark or black. If pressure is repeatedly
applied to the screen, it may deteriorate or damage your LCD panel. Leave the screen white to
decrease the prints.
Do not scratch or press on the panel with any sharp objects, such as a pencil or pen as this may result
in damage to the panel. Do not attempt to brush with tissues as this may scratch the LCD panel.
When the screen image is changed after displaying the same image for extended periods of time, an
afterimage may appear. Use the screen saver or timer to avoid displaying the same image for extended
periods of time.
![](/img.php?id=2243937&img=bg6.png)
User Manual
-- 6 --
2. Introduction
The LCD Monitor is intended to be used in displaying and viewing digital images, for clinical review , analysis
and diagnostics by trained medical practitioners. Each monitor has been precisely calibrated to comply with
DICOM Part 14 at factory. It using the latest generation of LED-backlit panel, with high resolution 1600x1200.
With built-in brightness stabilization circuit, the monitor can maintain brightness and stability throughout its life,
make sure compliance with the accuracy requirements of medical images. The display can support both
landscape and portrait mode. C22SP+,G22SP+ surface protection panel with anti- reflection coating,there are
characteristics such as anti- reflection , esay cleanning , anti- scratch screen , etc. The monitor is designed in
conformity with IEC60601-1, IEC60601-1-2 and CCC standard.

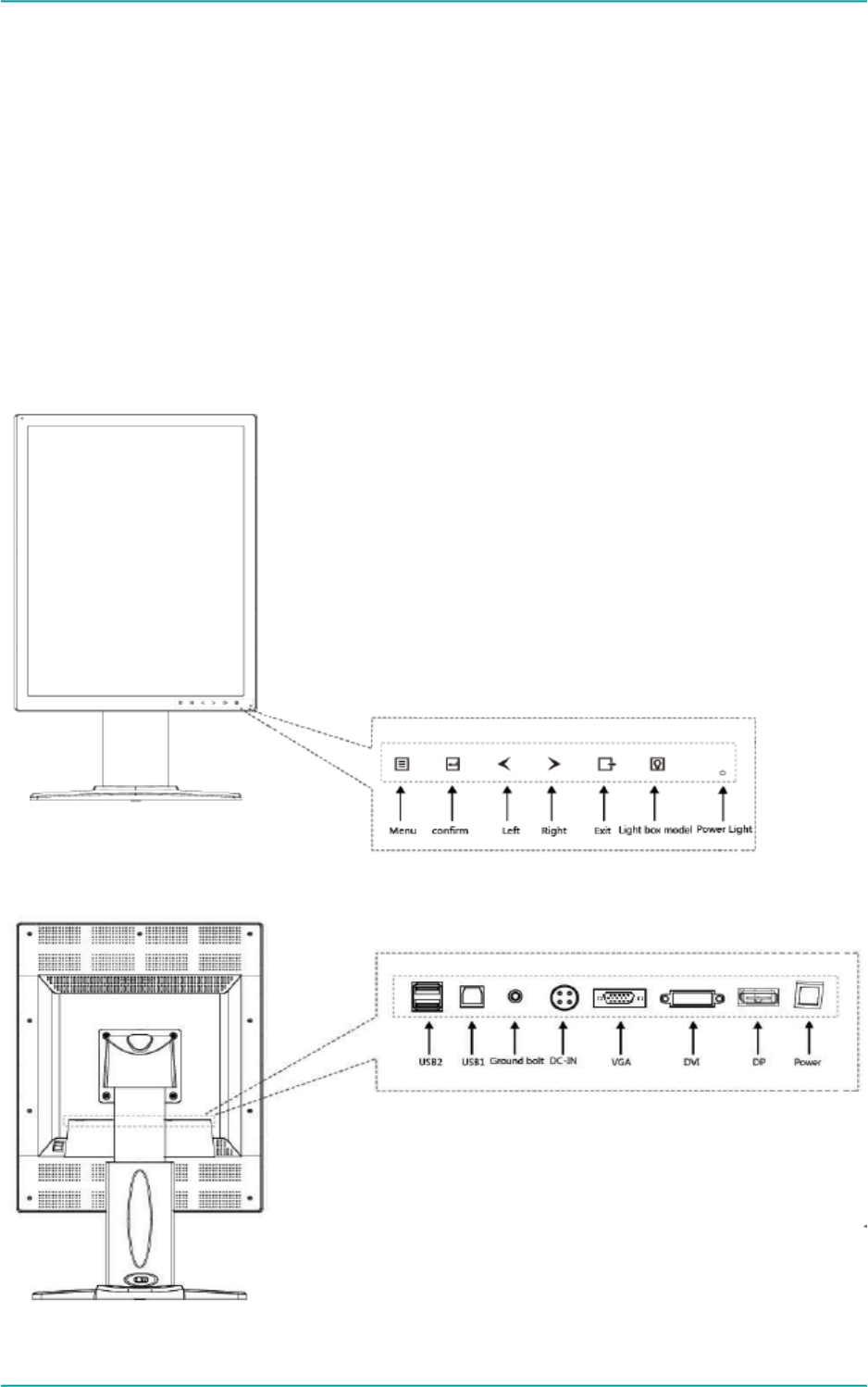

2.1. OSD and Interface
a. Front
b. Back
![](/img.php?id=2243937&img=bg7.png)
User Manual
-- 7 --
3. Quick start
Note: turn off the power to your computer and monitor.

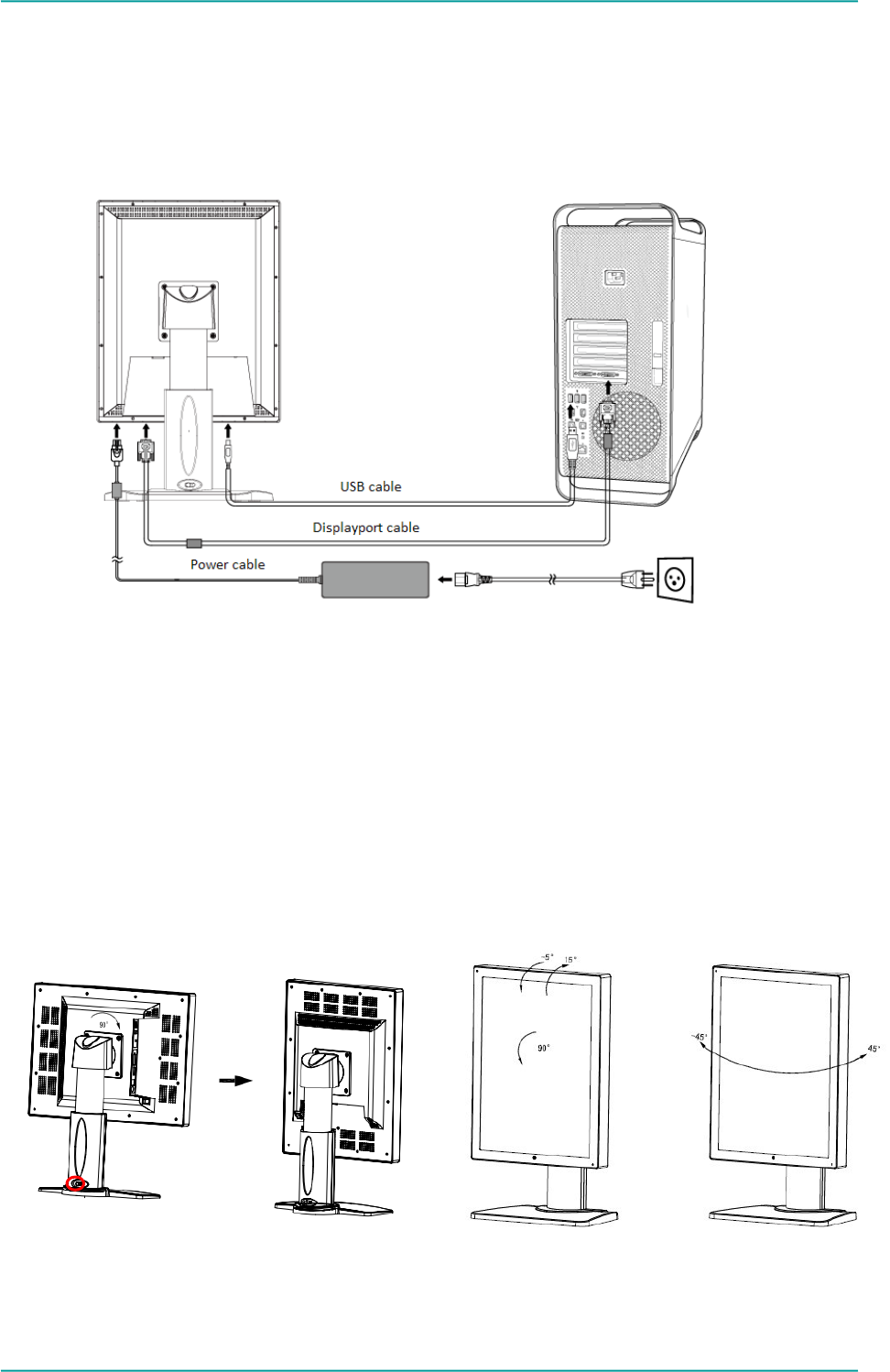

1. Cable Connection
Connect all cables to the appropriate connectors, as shown in below picture.
2. Adjust the height, position and angle of monitor.
Screen Rotation
Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or
pinching with your fingers. To raise the screen, push the button rightward (marked with red circle in below
picture) to unlock the lift firstly and place hands on each side of the monitor and lift up to the highest position.
To rotate screen, place hands on each side of the monitor screen and turn counter-clockwise from Landscape
to Portrait or clockwise from Portrait to Landscape.
Tilt: Grasp both sides of the monitor screen with your hands and adjust the tilt as desired.
Swivel: Grasp both sides of the monitor screen with your hands and adjust the swivel as desired.
![](/img.php?id=2243937&img=bg8.png)
User Manual
-- 8 --
3.Boot
3. Turn on the monitor, the power indicator light will become green. Start the computer and set mode of
monitor as below: 1200 x 1600 (in portrait mode)
If no picture, please refer to the Troubleshooting section of this manual.
Warning
Please use the attached power cable and connect it to the standard power socket.
Make sure the power connector be fully connected to the power socket. To prevent fire or electric
shock, the power cable should be used at specified electric voltage.
This apparatus should be connected to well grounded power socket.
![](/img.php?id=2243937&img=bg9.png)
User Manual
-- 9 --
Color Display Mode
Green Working Mode
Orange Standby Mode
No Shutdown Mode

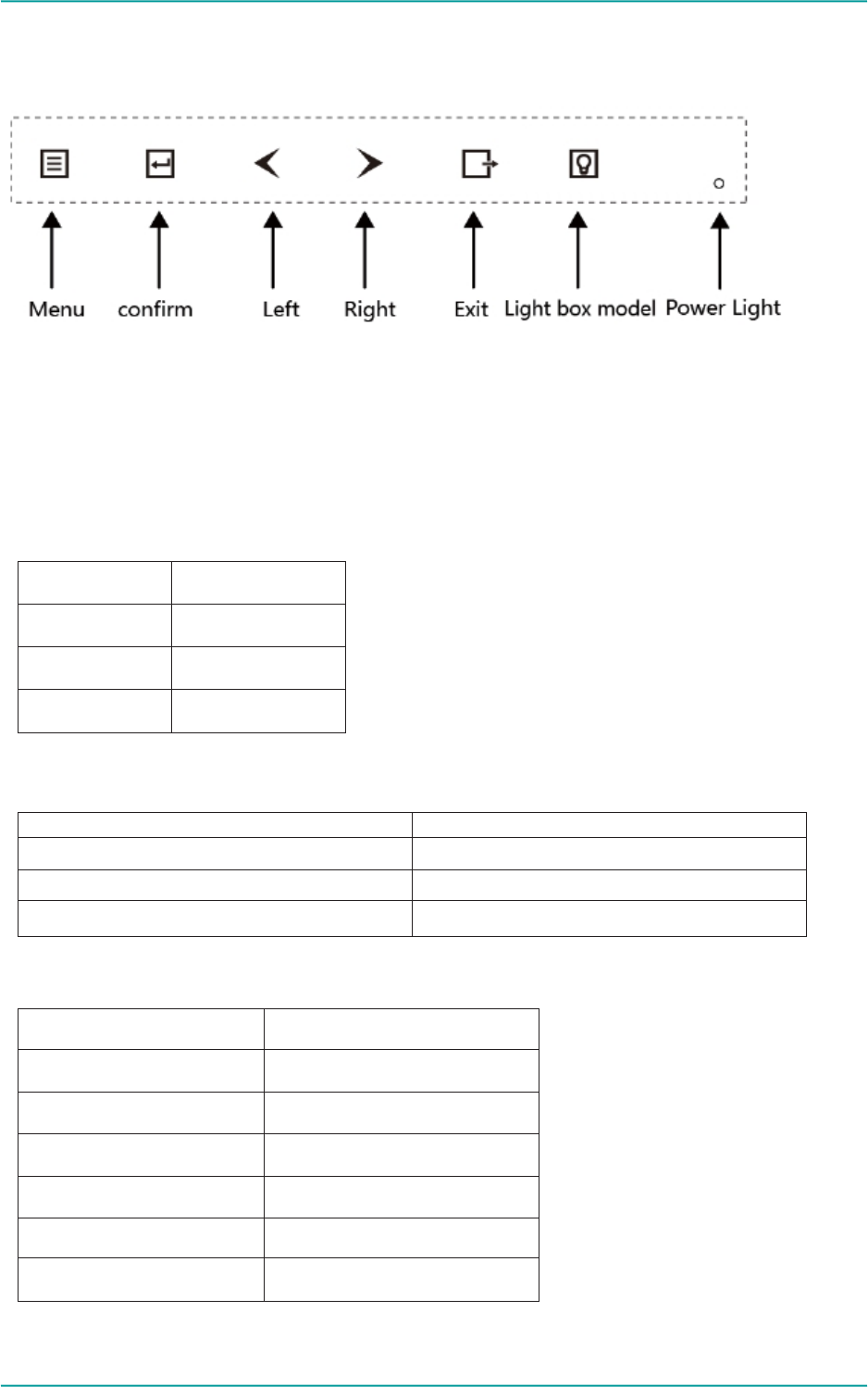

Key Function
Left Adjust the brightness
Right Adjust the contrast
Light box model Press twice enter the light box model
Keys Function
Menu Start menu and move next
Confirm Confirm
Left Decrease value
Right Increase Value
Exit Exit the whole OSD menu
LED light mode Enter LED light mode
4. Adjustment
1. Signal Light
2.Shortcuts
3. Key Function
![](/img.php?id=2243937&img=bga.png)
User Manual
-- 10 --
First Menu Second Menu Third Menu Introduction
Input Source VGA, DVI, DP Select the input
signal source
Brightness 0-100 Adjust brightness
Contrast 0-100 Adjust contrast
Sharpness 0-8 Adjust sharpness
Saturation 0-100 Adjust saturation
Color Temp 5500K, 6500K, 7500K,
8500K,9300K,11000K,USER
Select the preset
color temperature
Image Gamma DICOM650 ,DICOM600
DICOM550,DICOM500,
DICOM450,DICOM400,
DICOM350 ,DSA, DSI,
CT MRI ,2.2, 2.0, 1.8
Select the preset
gamma curve
OSD Language English, Select the OSD
language
OSD Position Btm Right, Btm Left, Center,
Top Left, Top Right Select the OSD
position
OSD Rotation 0°, 90°, 180°, 270° Select the OSD
rotation
Auto Scan Input On, Off Select the scan
mode
ALC On Off Select the ALC
Setup
Factory Reset >>> Default setting
Auto Adjust >>> Automatically set
the screen
H Position 0-100 Adjust horizontal
position of the
screen
V Position 0-100 Adjust vertical
position of the
screen
Clock 0-100 Adjust the clock
VGA
Phase 0-63 Adjust the phase
Sound Not Available for
this product
FW Version eg:V1.00 Software version
information
Source eg: DVI Information about
the active source
Status
Format eg:1600x1200 60Hz Information about
the resolution
4. Menu Introduction
![](/img.php?id=2243937&img=bgb.png)
User Manual
-- 11 --
5. Trouble Shooting
If a problem persists even after applying the suggested remedies, contact a dealer.
Problems Points to check with Possible Solutions
1. No picture
Indicator status: Off
Check if the power cord is correctly connected. If the problem
persists, turn off the monitor for a few minutes, then turn it on and
try again.
Indicator status: Orange Press the keyboard of computer or click the mouse, turn off the
monitor and then restart.
2. The screen is too bright or too
dark.
Adjust the <Brightness> (The backlight of the LCD monitor has a
fixed life span. When the screen becomes dark or begins to
flicker, please contact your dealer.)
3.Image sticking issue appears. - Please check if you use the screen saver or timer when
displaying the same image for long time.
- Image sticking is inherent characteristic of the panel. Avoid
displaying the same image for long time.
4. The screen has defective pixels
(e.g. slightly light or dark).
This is due to the characteristics of the panel itself, not the LCD
monitor.
![](/img.php?id=2243937&img=bgc.png)
User Manual
-- 12 --
6. Cleaning
Periodic cleaning is recommended to keep the monitor clean and to prolong its operation lifetime.
Note: Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or
other strong solvents, as these may cause damage to the cabinet or LCD panel.
Cabinet
To remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild detergent. Do not spray wax
or cleaner directly into the cabinet.
LCD Panel
The LCD surface can be cleaned with a soft cloth, such as cotton or lens paper.
If necessary, stubborn stains can be removed by moistening part of a cloth with water to enhance its cleaning
power.
![](/img.php?id=2243937&img=bgd.png)
User Manual
-- 13 --
7. Package and Accessory
C22SP+/G22SP+ LCD Monitor (Optional)
Graphics card (Optional)
Displayport cable
USB cable
Power cable
Power adapter
User manual
Warranty card
Certificate of quality
![](/img.php?id=2243937&img=bge.png)
User Manual
-- 14 --
Panel 21.3”, TFT Color LED screen, anti-glare, hard coating
Brightness (typ.) 2
900 cd/m
CR (typ.) 1400:1
Viewing angle Horizontal 176°, vertical 176° CR > 10
Pixel Pitch 0.270 mm
Native resolution 1600 x 1200
Display area 432 mm (H) x 324 mm (V)
Power DC 12V/6.67A
Power consumption Max.60 W
Input Connector DVI-D, Display Port, VGA
Plug and play VESA DDC 2B
Dimension 369 mm (W) x 483 mm (H) x 65 mm (D) without Stand
369 mm (W) x 506 ~ 626mm (H) x 235 mm (D) with Stand
Weight 6.0 kg without Stand
9.2 with Stand
11.0kg after packing
Operating temperature and
humidity:
Temperature: 5°C ~ 35°C
Humidity: 15% ~85%
Storage temperature and
humidity: Temperature: -20°C ~ 60°C
Humidity:10% ~90%
Certification UL60601 FCC CE CCC
8. Specification
8.1. Specification
![](/img.php?id=2243937&img=bgf.png)
User Manual
-- 15 --
Pin Signal Pin Signal Pin Signal
1 Red Video 2 Green Video 3 Blue Video
4 NC 5 VGA_PLUG 6 Red GND
7 Green GND 8 Blue GND 9 VGA 5V
10 GND 11 NC 12 DDC SDA
13 H-Sync 14 V-Sync 15 DDC SCL
8.2. D-Sub Connector
(*NC:no connection)
8.3. DVI-D Connector
8.4 Displayport Connector
Pin Signal Pin Signal Pin Signal
1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-
2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+
3 TMDS Data 2/4 Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield
4 TMDS Data 4- 12 TMDS Data 3- 20 TMDS Data 5-
5 TMDS Data 4+ 13 TMDS Data 3+ 21 TMDS Data 5+
6 DDC Clock (SCL) 14 +5V Power 22 TMDS Clock shield
7 DDC Data (SDA) 15 Ground (For +5V) 23 TMDS Clock+
8 NC 16 Hot Plug Detect 24 TMDS Clock-
Pin Signal Pin Signal Pin Signal Pin Signal
1 ML3(n) 6 ML2(p) 11 GND 16 GND
2 GND 7 ML1(n) 12 ML0(p) 17 AUX(n)
3 ML3(p) 8 GND 13 GND 18 HPD
4 ML2(n) 9 ML1(p) 14 GND 19 RTN
5 GND 10 ML0(n) 15 AUX(p) 20 PWR
