Introduction
Congratulations on your purchase of an Insignia Soundbar Home Theater
Speaker with Bluetooth. The soundbar is designed to be suitable for use with
today’s flat panel TVs. It features a variety of connections, including
Bluetooth, and it can either be mounted on the wall or placed on a TV stand.
This user guide explains how to correctly install, operate, and get the best
performance from your soundbar. Read this user guide carefully before
installing your system, and then keep it handy for quick reference.
Important safety instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 2 Tuesday, March 14, 2017 12:13 PM
3
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when
unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as when the
power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15 To reduce the risk of fire or electric shock, do not expose this device to
rain, moisture, dripping, or splashing, and no objects filled with liquids,
such as vases, shall be placed on it.
16 An apparatus with a three-prong, grounding-type plug is a Class I
apparatus, which needs to be grounded to prevent possible electric
shock. Make sure that you connect any Class I device to a grounding-type,
three-prong outlet.
17 DO NOT overload wall outlets or extension cords beyond their rated
capacity as this can cause electric shock or fire.
18 The wall plug is the disconnecting device. The plug must remain readily
operable.
19 No naked flame sources, such as lighted candles, should be placed on the
apparatus.
20 The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, curtains, etc.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 3 Tuesday, March 14, 2017 12:13 PM
4
NS-HSB318
www.insigniaproducts.com
21 The remote control supplied with this product contains a coin/button cell
battery. If the coin/button cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to death.
22 Batteries should not be exposed to excessive heat such as sunshine, fire,
or the like.
23 Keep new and used batteries away from children.
24 If the battery compartment does not close securely, stop using the
product and keep it away from children.
25 If you think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
Placement
• The soundbar cabinet is made out of plastic and is therefore sensitive to
extreme temperatures and humidity. Do not put it in locations subject to
direct sunlight or in humid places, such as near an air conditioner,
humidifier, bathroom, or kitchen.
• Do not put water or other liquids close to the soundbar. If liquid is spilled on
top of the soundbar, it may be damaged.
• The soundbar should be placed on a sturdy, flat surface that is free from
vibration, or mounted on a wall. Do not put the soundbar on an uneven or
unstable surface, where it may fall and cause damage.
Using close to a TV or computer
Some older TVs and computer monitors are magnetically sensitive devices.
They are likely to suffer discoloration or picture distortion when conventional
speakers are placed nearby. If discoloration problems persist, try moving the
soundbar away from your TV or monitor.
Warning
Danger of explosion if the remote control battery is
incorrectly replaced. Replace only with the same or
equivalent type.
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 4 Tuesday, March 14, 2017 12:13 PM
5
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com

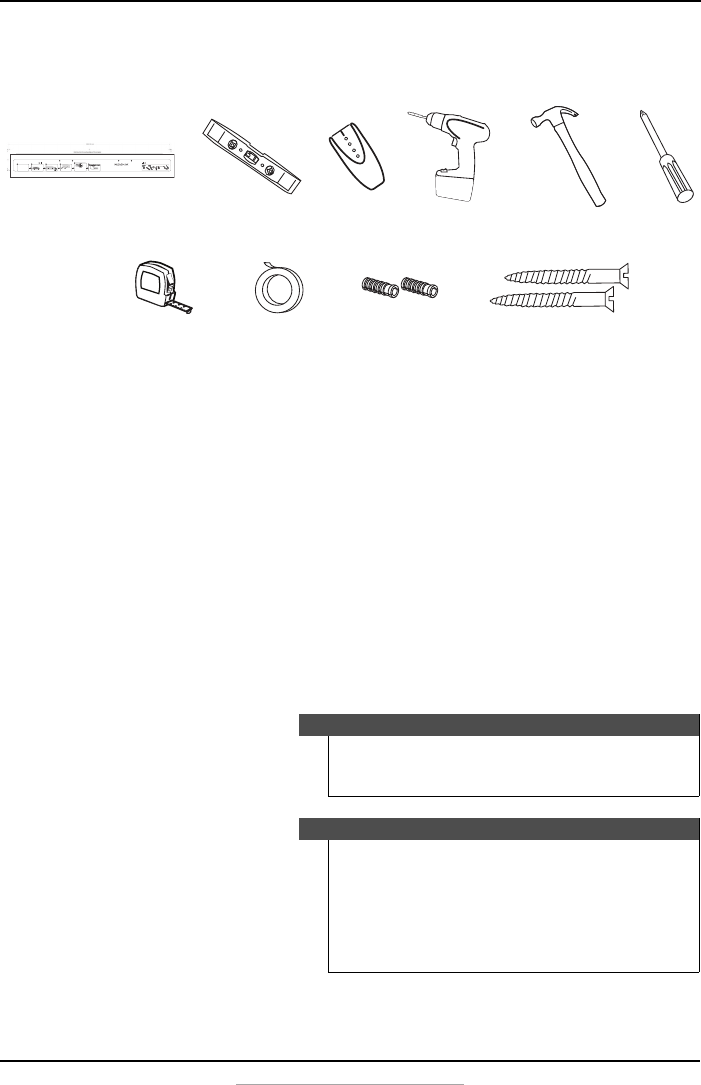

Package contents
V1 14-0130
LEVELING EDGELEVELING EDGE
Drill a hole here
Drill a hole here
Approx. 1/4 in
(6.8 mm)
Wall
20.43 inches (519 mm)
Tools Needed

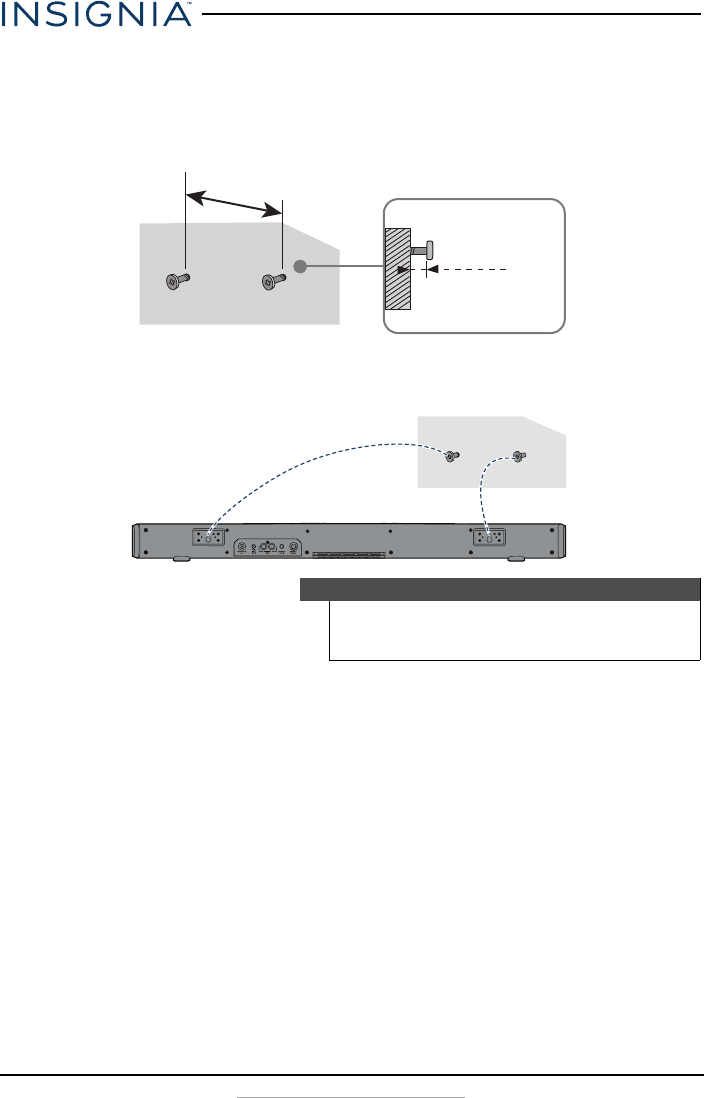

Drill two holes in the wall where the template indicates,
then remove the template.
Wall
Wall
Soundbar
If you are mounting on drywall or concrete, insert wall
anchors (not included) into the holes and use a hammer
to make sure that the anchors are flush against the wall.
Align the speaker hanging brackets with the screws,
then hang the soundbar on the screws.
Position the wall mount template on the wall where you
want to mount your soundbar, level the template, then
tape it to the wall.
Note: Make sure that the template is level.
Select a location close to your TV and directly in
front of the viewing/listening position. For best
sound quality, choose a location where sound waves
are not blocked by furniture or other obstacles. Wall
Anchor
Wall
Screws (2) - #10 x 1 ½"
wood screw (or similar)
Hold a level to the Leveling Edge of this template
Wall mount template
Position holes onto studs behind drywall or use anchors for mounting
Warning: Improper installation can result in serious injury or damage to your soundbar.
If necessary, seek the assistance of a professional.
Wall
anchors (2)
Secure two screws (not included) to the wall or wall anchors
(if required). The screws must protrude from the wall by
about 1/4". Use a #10 wood screw (or similar), 1 1/2" in
length. The screw width must be about 3/16" and the screw
head must be approximately 1/4" to 3/8".
Soundbar

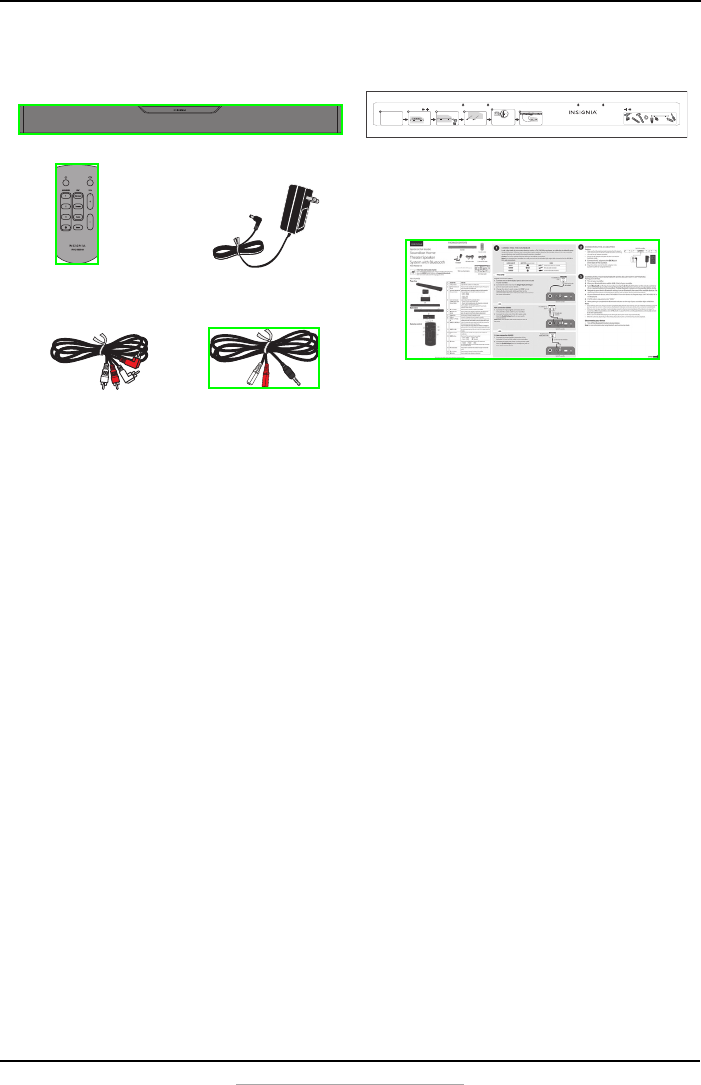

Remote Control with
CR2025 battery AC Adapter
RCA Audio Cable 3.5 mm to RCA cable
Wall Mounting Template
Quick Setup Guide
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 5 Tuesday, March 14, 2017 12:13 PM
6
NS-HSB318
www.insigniaproducts.com
Features

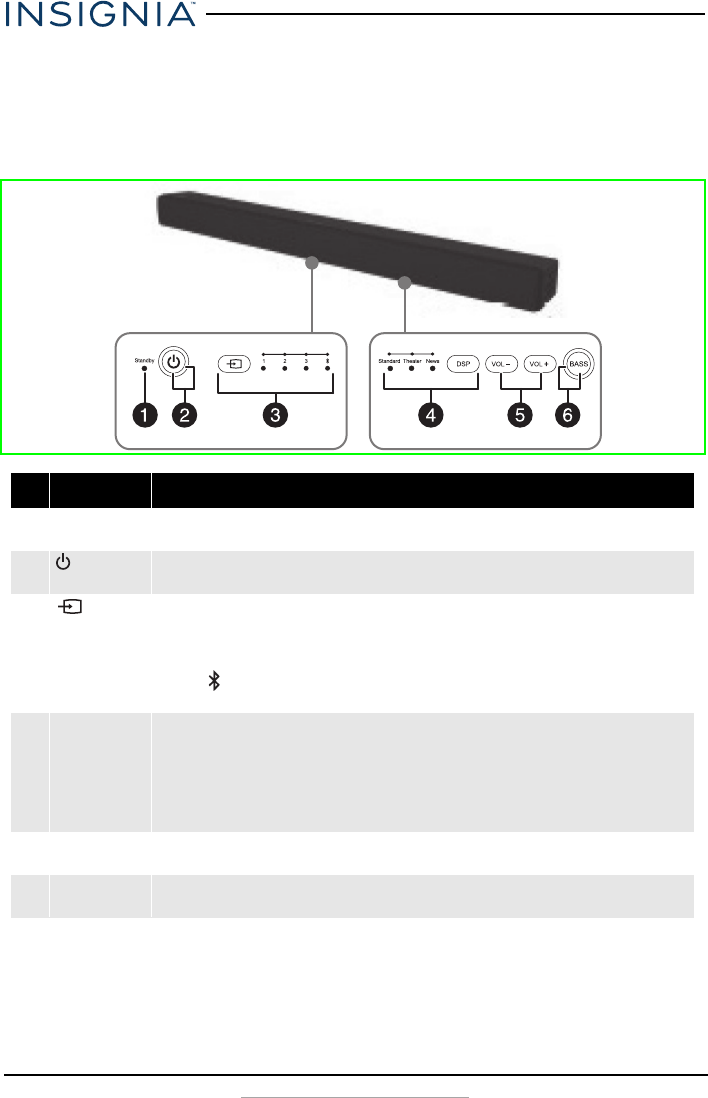

Top view
#Item Description
1Standby
indicator
Lights when the soundbar is in standby mode.
2 (Power)
button
Press to turn on the soundbar. The standby indicator turns off and one source LED (source 1, 2, 3, or
4) lights up. Press again to return the soundbar to standby mode. The standby indicator turns on.
3 (source)
button and input
source indicator
Press repeatedly to cycle through the available sound sources:
•Source 1 - Optical
•Source 2 - LINE IN
•Source 3 - USB
• - Bluetooth
Lights to indicate which sound source is selected.
4Sound mode
indicator and
DSP (digital
signal processor)
button
Lights to indicate the DSP sound mode selected:
• Standard - Lets you enjoy normal sound.
• Theater - Best for enjoying movies. Bass frequencies are enhanced.
• News - Select for clear voice reproduction.
Press repeatedly to cycle through the available Digital Signal Processor (DSP) sound modes
(Standard>Theater>News).
5VOL +/–
buttons
Press to increase or decrease the volume of the soundbar.
6BASS button and
indicator
Press to activate the bass frequency enhancement. The indicator turns green. Press again to turn
off the bass frequency enhancement.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 6 Tuesday, March 14, 2017 12:13 PM
7
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com

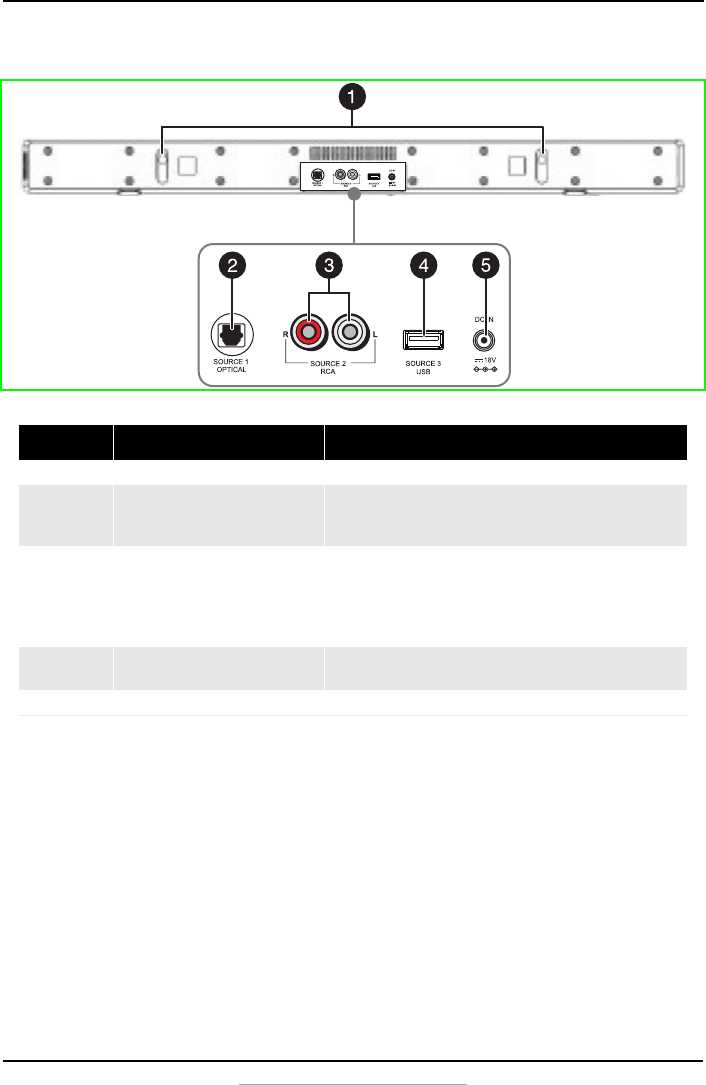

Back view
LED Color Action Description
1Hanging holes Use to hang the soundbar on a wall.

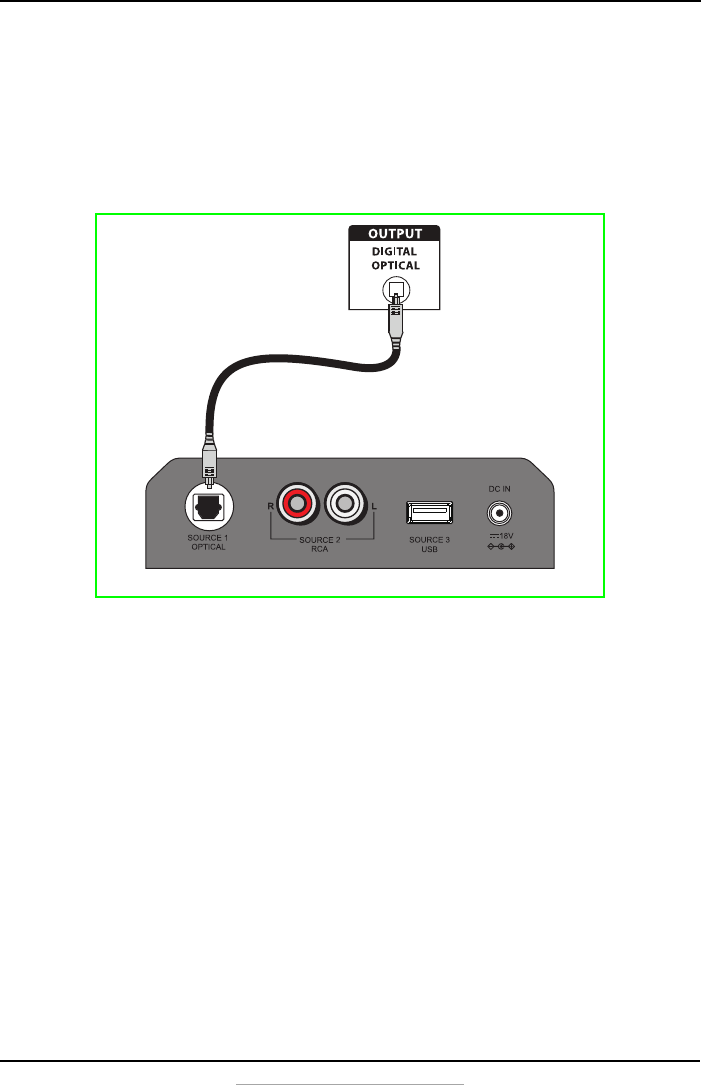

2SOURCE 1 - OPTICAL jack If your TV (or other audio source device) has an Optical OUT
jack, connect a digital optical cable (not included) to your source
device and this jack.
3SOURCE 2 - LINE IN RCA (R and L)
jacks
If your TV (or other audio source device) has RCA OUT jacks,
connect the RCA cables to your source device and these jacks.

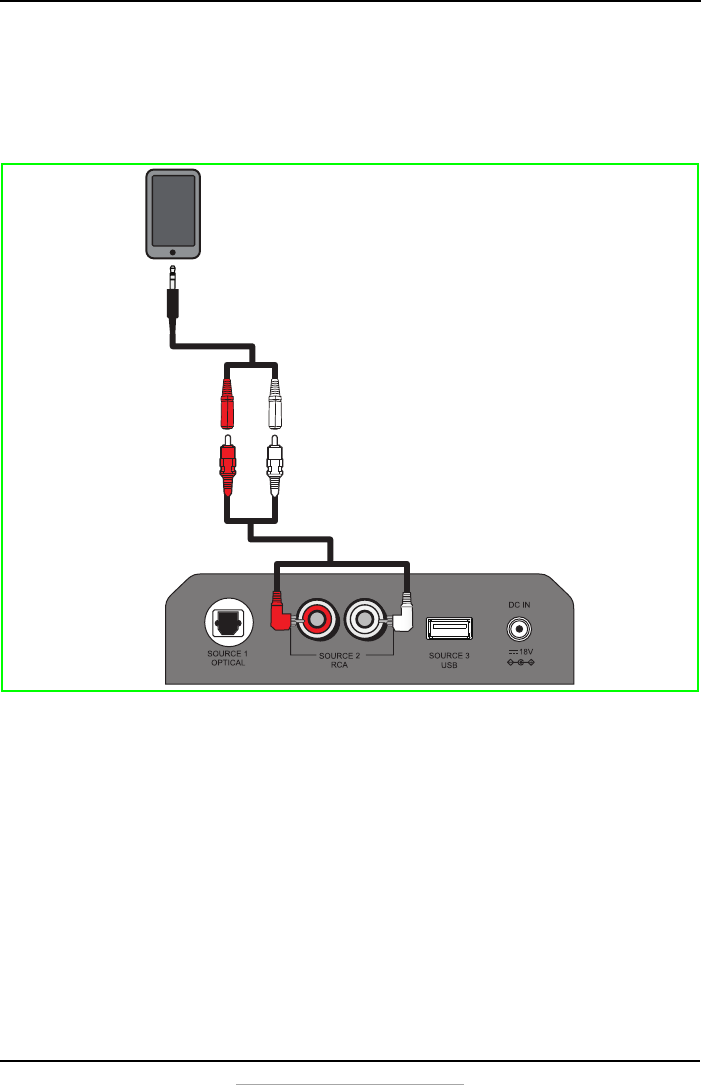

If your TV (or other audio source device) has an AUX OUT or
headphone jack, connect the 3.5 mm to RCA cable to your source
device and this jack.
4SOURCE 3 - USB You can play Wave files from a USB source and charge the USB
device with the 0.5 A connection output.
5DC IN jack Connect the AC adapter to this jack to power the soundbar.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 7 Tuesday, March 14, 2017 12:13 PM
8
NS-HSB318
www.insigniaproducts.com

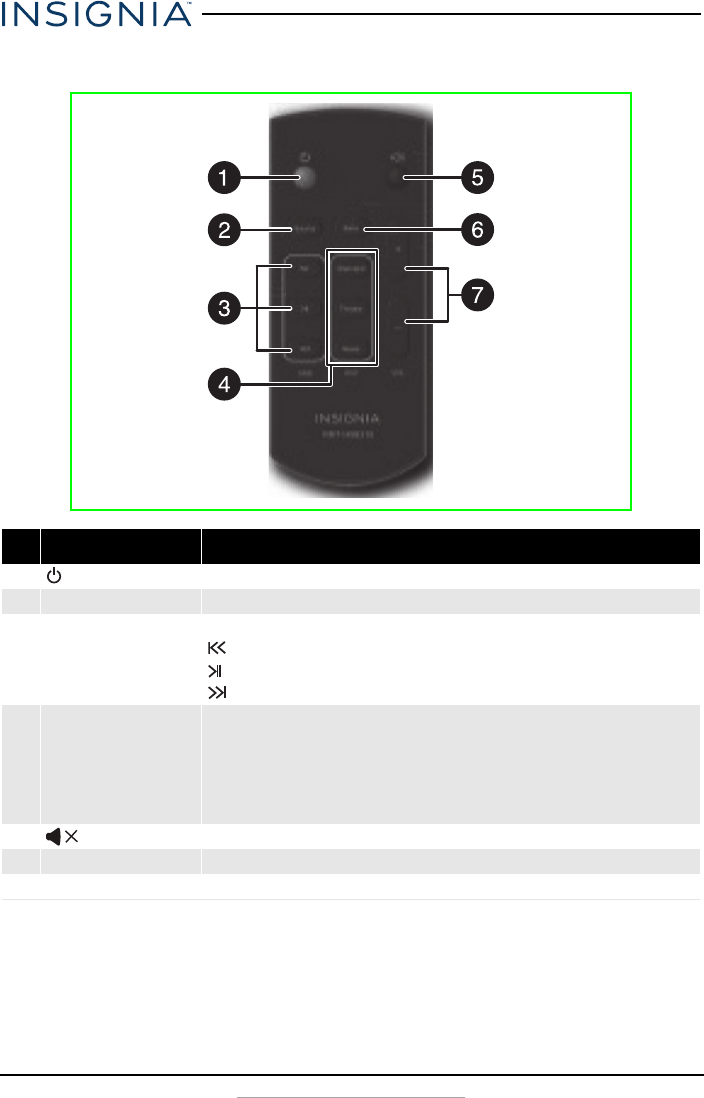

Remote control
#Item Description
1 (Power) button Press to turn on the soundbar. Press again to put the soundbar into standby mode.
2SOURCE button Press repeatedly to cycle through the available sound sources.
3USB buttons When a USB source is selected, you can control playback with the following buttons:
Previous - Press to reverse the last track. Press and hold to reverse the last 10 tracks.
Play/Pause - Press to play or pause playback.
Next - Press to skip to the next track. Press and hold to skip the next 10 tracks.
4DSP buttons Press to select the Digital Signal Processor (DSP) sound mode:
• Standard - Lets you enjoy normal sound.
• Theater - Best for enjoying movies. Bass frequencies are enhanced.
• News - Select for clear voice reproduction.
The corresponding indicator on the soundbar top panel lights to indicate the sound mode
selected.
5 (Mute) button Press to mute the sound from the soundbar. Press again to restore the sound.
6BASS button Press to activate the bass frequency enhancement.
7VOL +/– buttons Press to increase or decrease the volume of the soundbar.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 8 Tuesday, March 14, 2017 12:13 PM
9
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
Using the remote control

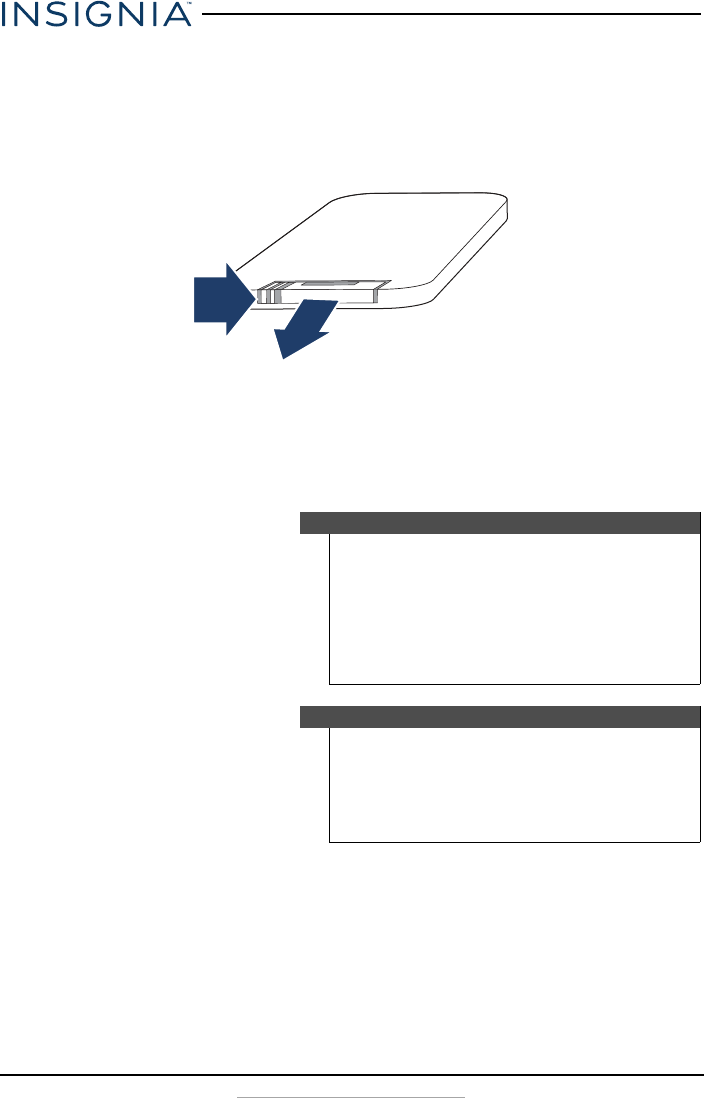

1Remove the plastic tab from the battery compartment before using the
remote control for the first time.
2Point the remote control directly at the IR sensor on the front of the
soundbar. You must be within approximately 23 ft. (7 m) of the soundbar.
Programming a universal remote
If you program your universal remote to an Insignia TV, it will control your
soundbar’s volume. To program your remote:
1Go to www.insigniaproducts.com/remotecodes.
2Find your remote's brand from the list of remote codes.
3Follow the directions that came with your remote to program a remote
code. If several remote codes are provided, you may need to try several
until you find one that works.
Note: Make sure that you program the soundbar to a device on your
remote that is not in use.
Cautions
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet
surface.
• Do not place the remote control in direct
sunlight or near sources of excessive heat.
• If the remote control is not going to be used for
a long time, remove the battery to avoid any
damage that may be caused by leakage and
corrosion.
Note
To control your soundbar's volume you can use an
Insignia TV remote or program a universal remote.
Insignia TV remotes and universal remotes will not be
able to change your soundbar's audio source or DSP
sound mode. Use the controls on your soundbar or
the remote that came with it to change these
settings.
IR Sensor
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 9 Tuesday, March 14, 2017 12:13 PM
10
NS-HSB318
www.insigniaproducts.com
Setting up your soundbar
First step - Choosing your connection
• Look at the back of your sound source device, such as a TV, DVD/Blu-ray
player, or cable box, to identify your audio OUT ports. Choose one
connection option below that fits your audio source. You can connect
several devices and switch the sound source as required.
Caution
• Turn off or unplug all devices while you are
making connections.
• If you mounted your soundbar on a wall, you
must use the included right-angle cable
connectors for the RCA cable connection.

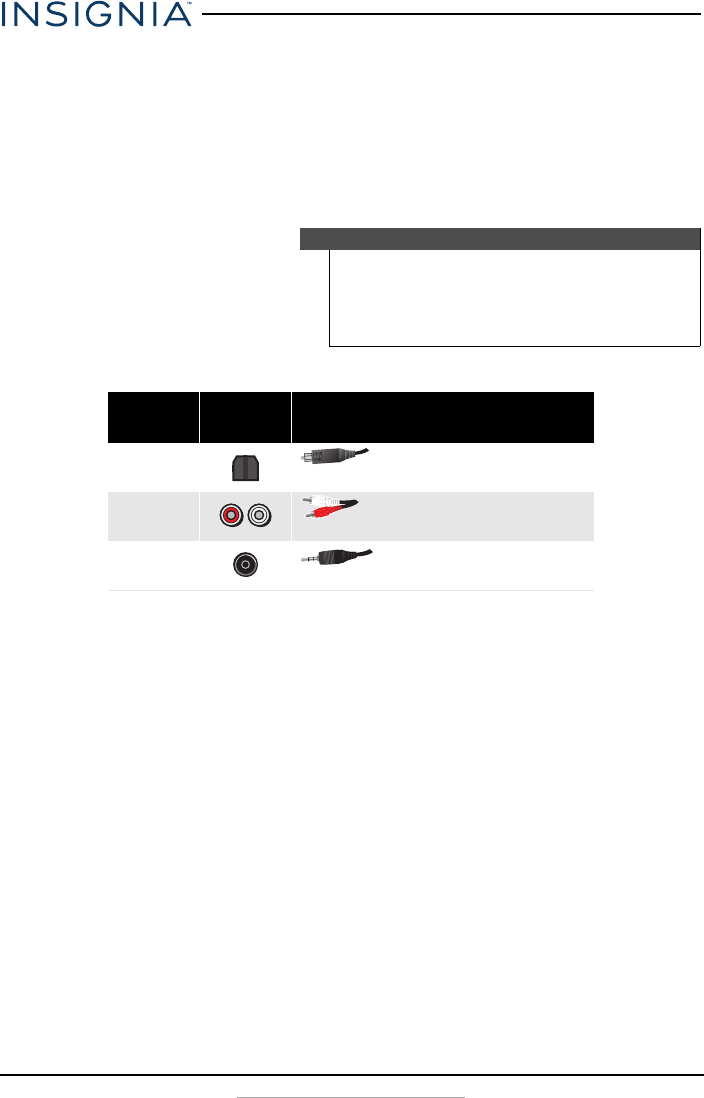

Audio
Quality Jack Type Cable
Best
Digital Optical cable (not included).
See “Digital Optical connection (best)” on page 11.
Good
RCA audio cable (included). See “RCA
connection (good)” on page 13.
Good
3.5 mm to RCA cable (included). See
“3.5mm connection (good)” on page 13.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 10 Tuesday, March 14, 2017 12:13 PM
11
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
Second step - Connecting your soundbar
Digital Optical connection (best)
1Connect one end of the digital optical cable (not included) to your
soundbar.
2Connect the other end into the Digital Optical Output port on your
audio source device.
3Change the device’s audio output to 'PCM' format (typically found in
audio settings). Refer to the documentation that came with your audio
source device for more information.
4Go to "Third step - Connecting the AC adapter" on page 14.
Digital optical cable
(not included)
Back of the soundbar
Audio source (TV,
Blu-ray, or cable box)
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 11 Tuesday, March 14, 2017 12:13 PM
12
NS-HSB318
www.insigniaproducts.com
RCA connection (good)
1Connect the right-angled connectors of the included RCA audio cable to
your soundbar.

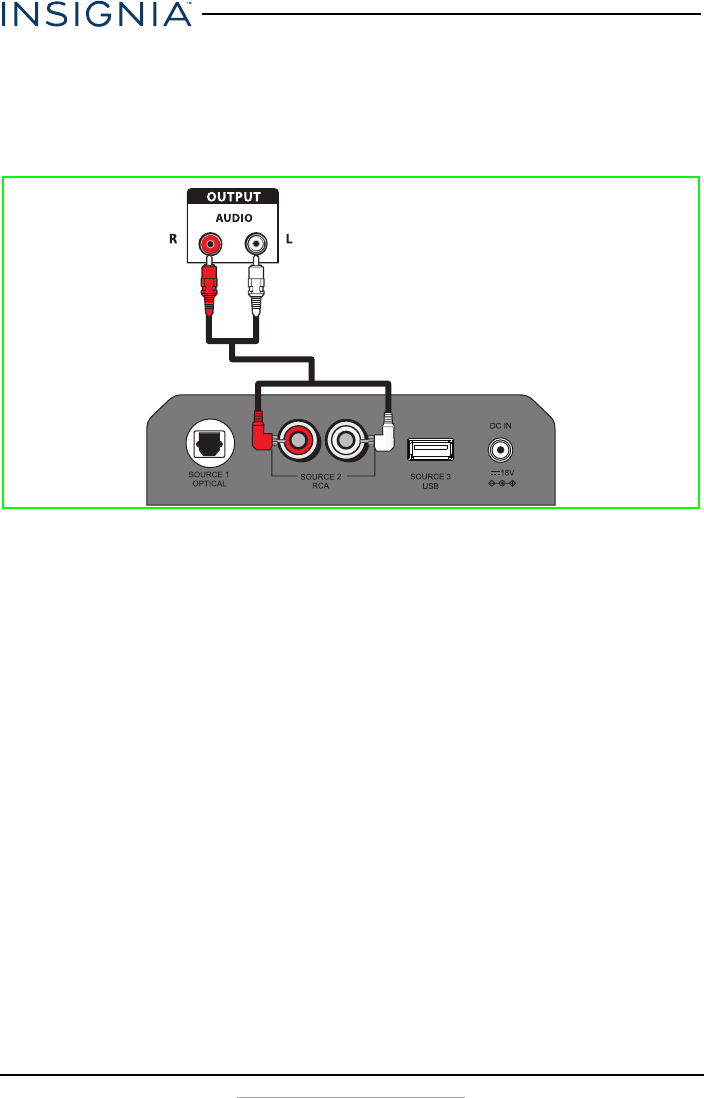

2Connect the other end of the RCA audio cable into the Audio Output
ports on your audio source device.
3Go to "Third step - Connecting the AC adapter" on page 14.
RCA cable (provided)
Audio source (TV,
Blu-ray, or cable box)
Back of the soundbar
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 12 Tuesday, March 14, 2017 12:13 PM
13
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
3.5mm connection (good)
1Connect the right-angled end of the included 3.5 mm to RCA audio cable
to your soundbar’s RCA jacks.
2Plug the other end of the RCA audio cable into the female RCA connectors
on the 3.5 mm to RCA adapter cable.
3Plug the 3.5 mm connector into the headphone jack of your sound source,
such as a smartphone or MP3 player.
Back of the soundbar
Audio source (TV, Blu-ray, cable
box, or smartphone/tablet)
3.5 mm to RCA audio cable (provided)
RCA audio cable (provided)
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 13 Tuesday, March 14, 2017 12:13 PM
14
NS-HSB318
www.insigniaproducts.com
Third step - Connecting the AC adapter
After you have connected your soundbar to an audio source, you need to
connect it to an AC power outlet.
1Connect the AC adapter to the DC IN jack on the back of the soundbar.
2Plug the other end of the AC adapter into a power outlet or surge
protector.
Connecting your soundbar using Bluetooth
Before you can use your soundbar with a Bluetooth device, you need to pair
your device to the soundbar.
Pairing your devices
1Select Bluetooth as the input source by pressing the (Bluetooth) button
on the remote control or the
(
source) button on the soundbar. The
Bluetooth indicator on the soundbar blinks slowly.
2Navigate to your device's Bluetooth settings, turn on Bluetooth, then
search for available devices. For additional information on pairing your
device, see your device’s documentation.
3On your Bluetooth device, select “NS-HSB318” from the device list. Repeat
steps 1-2 if “NS-HSB318” is not displayed.
Cautions
• Make sure that the electrical outlet matches the
AC adapter’s input requirements of 100-240 V,
50/60 Hz before connecting.
• Use only the AC adapter provided.
• Plug in the AC adapter only after all other
connections have been made.
Notes
• Your soundbar must be on to make a Bluetooth
connection.
• Place the Bluetooth device within 30 ft. (10 m) of
your soundbar.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 14 Tuesday, March 14, 2017 12:13 PM
15
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
4If a PIN code is requested, enter “0000.”
5When pairing is completed the Bluetooth indicator on the top of your
soundbar turns on.
Disconnecting your devices
• Turn off the Bluetooth function on your device.
Reconnecting to a paired device
When your soundbar is not paired to a device, the LED indicator blinks
slowly.
Notes
• Some devices, such as an iPhone, connect
immediately after pairing so the Bluetooth
indicator on your soundbar remains on. Other
devices, such as notebook computers, may ask
you if you wish to connect. In this instance, the
Bluetooth indicator continues to blink until a
connection is established.
• Your soundbar saves pairing information for up
to eight devices. However, it can only be
connected and play content from one device at
a time.
• When you turn on your soundbar, it
automatically connects to the last connected
device if that device is in range. To connect to a
different paired device, turn off Bluetooth or
unpair from the currently paired device and
manually connect to the other paired device.
Your soundbar loses the Bluetooth connection
if you…
To reconnect...
Turn it off. Turn on your soundbar. Your soundbar searches
for the last connected Bluetooth device and
reconnects.
Move the Bluetooth device out of range. Move your Bluetooth device within 30 feet of
your soundbar.
Turn off your Bluetooth device. Turn on your Bluetooth device, then make sure
that Bluetooth is on.
Turn off Bluetooth on your Bluetooth device. Turn on Bluetooth on your Bluetooth device.
Connect your Bluetooth device to another
Bluetooth device.
Disconnect your Bluetooth device from the other
Bluetooth device, then set your device to pairing
mode. Select “NS-HSB318” on your Bluetooth
device.
Note
If a device does not automatically reconnect, you
may need to reselect “NS-HSB318” on your Bluetooth
device.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 15 Tuesday, March 14, 2017 12:13 PM
16
NS-HSB318
www.insigniaproducts.com
Connecting to a different device
1On your Bluetooth device you are currently connected to, turn off the
Bluetooth function or unpair the soundbar in your Bluetooth device list.
The soundbar can now be connected to another Bluetooth Device.
2Follow the section “Connecting your soundbar using Bluetooth” on
page 14 to connect a new device.
Receiving a phone call while playing music
• When a call is received while playing music through a phone, the
music stops automatically.
• When the call ends, depending on the setting of your phone, the
current track may resume playback.
Positioning the soundbar

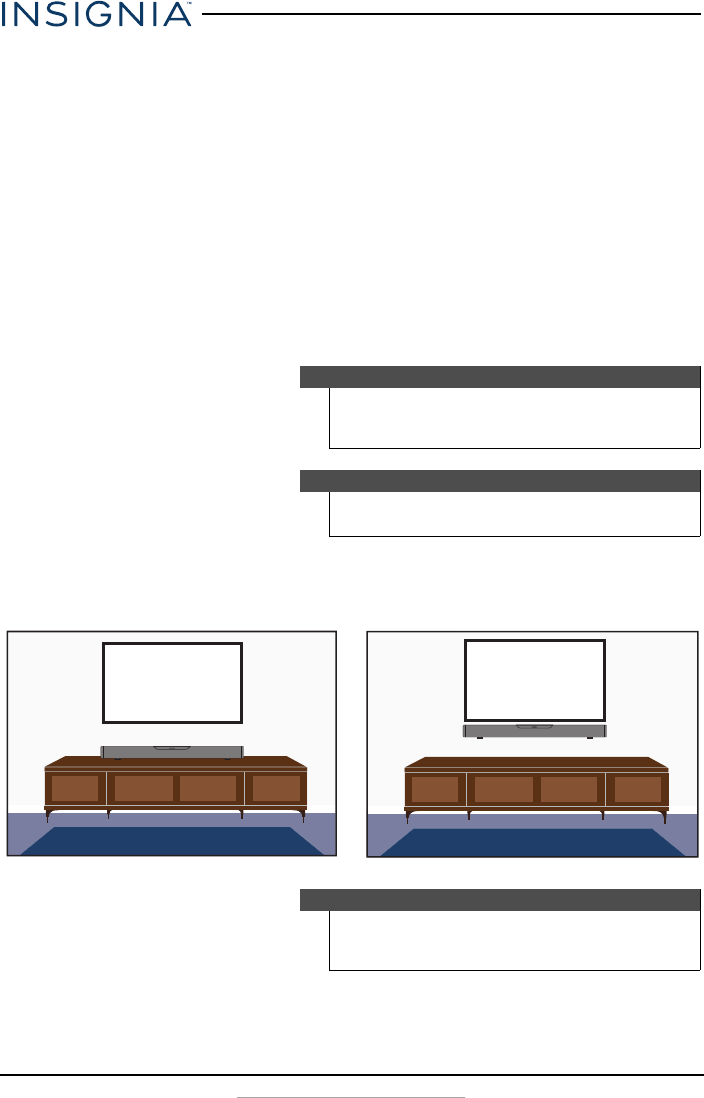

• You can set the soundbar on a flat surface or mount it on a wall.
Warning
Improper installation can result in serious injury or
damage to your soundbar. If necessary, seek the
assistance of a professional.
Cautions
If you are installing screws into drywall or concrete,
use wall anchors designed for that type of surface.
Note
If you connected a subwoofer, you can place it
anywhere in the room because the low frequency
sound is non-directional.
OR
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 16 Tuesday, March 14, 2017 12:13 PM
17
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
Mounting your soundbar on a wall (optional)
You will need:
1Select a location close to your TV and directly in front of the
viewing/listening position. For best sound quality, choose a location
where sound waves are not blocked by furniture or other obstacles.
2If you are mounting your soundbar to drywall, use the stud finder to find
the studs and mark the locations.
3Position the supplied wall mount template to the wall where you want to
mount the soundbar. Make sure that the template is level and note if it’s
aligned with a stud, then tape the template to the wall.
4Drill two holes (what size drill bit is needed?) into the wall where the
template indicates, then remove the template.
5If you are mounting on drywall without studs or on concrete, install wall
anchors (not included) into the holes you drilled, using the instructions
that came with your anchors.
Caution
Make sure that you use wall anchors that are suitable
to your wall type if you need to mount the soundbar
to drywall, concrete, or similar wall type.
Notes
• If you have drilled into a stud, wall anchors are
not required.
• If you cannot drill into wall studs and must drill
into drywall, concrete, or another type of wall,
wall anchors are required. See the instructions
that came with your wall anchors to determine
the drill bit size.
V1 14-0130
LEVELING EDGELEVELING EDGE
Drill a hole here
Drill a hole here
Approx. 1/4 in
(6.8 mm)
Wall
20.43 inches (519 mm)
Tools Needed
Drill two holes in the wall where the template indicates,
then remove the template.
Wall
Wall
Soundbar
If you are mounting on drywall or concrete, insert wall
anchors (not included) into the holes and use a hammer
to make sure that the anchors are flush against the wall.
Align the speaker hanging brackets with the screws,
then hang the soundbar on the screws.
Position the wall mount template on the wall where you
want to mount your soundbar, level the template, then
tape it to the wall.
Note: Make sure that the template is level.
Select a location close to your TV and directly in
front of the viewing/listening position. For best
sound quality, choose a location where sound waves
are not blocked by furniture or other obstacles. Wall
Anchor
Wall
Screws (2) - #10 x 1 ½"
wood screw (or similar)
Hold a level to the Leveling Edge of this template
Wall mount template
Position holes onto studs behind drywall or use anchors for mounting
Warning: Improper installation can result in serious injury or damage to your soundbar.
If necessary, seek the assistance of a professional.
Wall
anchors (2)
Secure two screws (not included) to the wall or wall anchors
(if required). The screws must protrude from the wall by
about 1/4". Use a #10 wood screw (or similar), 1 1/2" in
length. The screw width must be about 3/16" and the screw
head must be approximately 1/4" to 3/8".
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 17 Tuesday, March 14, 2017 12:13 PM
18
NS-HSB318
www.insigniaproducts.com
6Secure two screws (not included) to the wall or wall anchors (if required).
The screws must protrude from the wall by about ¼" (6.35 mm). Use a #10
wood screw (or similar), 1½" (3.8 cm) in length. The screw width must be
about 3/16" (4.76 mm) and the screw head must be approximately ¼" to
3/8" (6.35 to 9.5 mm).
7Align the speaker hanging brackets with the screws, then hang the
soundbar on the screws.
Warning
Improper installation can result in serious injury or
damage to your soundbar. If necessary, seek the
assistance of a professional.
Approx.
¼
"
(6.8 mm)
Wall
20.43
"
(51.9 cm)
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 18 Tuesday, March 14, 2017 12:13 PM
19
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
Using your soundbar
This system lets you access four different sound sources (Source 1 - Optical,
Source 2 - LINE IN, Source 3 - USB, and
- Bluetooth).
Listening to your soundbar
1Press the
(Power) button to turn on your soundbar. The power indicator
turns off.
2Turn on the audio source device connected to your soundbar and begin
playback.
3Press the
button on the soundbar repeatedly to select the audio
source or press the selected source button on the remote control until you
hear sound from your soundbar.
4Adjust the volume on your soundbar or the source audio device to a
comfortable level.
5Press the
(Power) button again to turn off your soundbar. The standby
indicator lights red.
Note
If you use the OPTICAL connection, you must change
your device’s audio output setting to “PCM” format.
Refer to the manual you received with the output
device for additional information.
Warning
Continuous use of high volume sound may
permanently damage your hearing.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 19 Tuesday, March 14, 2017 12:13 PM
20
NS-HSB318
www.insigniaproducts.com
Maintaining your soundbar
Replacing the remote control battery
1Squeeze the battery tray’s sides together and slide it out of the remote
control.
2Remove the old battery and insert the new 3V lithium battery (CR2025)
into the battery tray. Match the polarity of the new battery with the plus
sign (+) in the battery tray.
3Slide the battery tray back into the battery compartment until it clicks into
place.
Cautions
• The battery should not be exposed to excessive
heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the battery
leaks, clean the battery compartment with a
cloth. If chemicals touch your skin, wash
immediately.
• Make sure that the battery is disposed of
correctly. Do not burn or incinerate.
Notes
• Remove the battery when the charge is
depleted.
• If the remote control is not going to be used for
a long time, remove the battery to avoid any
damage that may be caused by leakage and
corrosion.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 20 Tuesday, March 14, 2017 12:13 PM
21
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
Troubleshooting
Check this list for a possible troubleshooting solution before calling for
service.
Problem Possible Solutions
The power does not come on. • Make sure that the AC adapter is securely plugged into the power
outlet and the soundbar.
The remote control does not
work.
• Remove any obstacles between the remote control and the IR
sensor on the soundbar.
• The remote control battery may be exhausted, replace it.
• Move closer to the soundbar. The remote control is only effective
to approximately 23 ft. (7 m).
There is no sound or very
low-level sound is heard from
the soundbar.
• Make sure that you are connected to an audio OUT jack on your
sound source. The port will not send audio out if it is an INPUT.
• Make sure that the volume level of the soundbar is set to an
adequate level.
• If you are using Bluetooth, turn up the volume on your Bluetooth
device.
•Make sure that the volume level is not muted. Press the
(mute) button on the remote control again to restore the sound
output.
•Make sure that the correct audio source is selected. Press the
button repeatedly to switch to the correct audio source.
• Make sure that that the power is on and all connections are
secure.
• Make sure that the volume is turned up on your sound source.
• If you are using the OPTICAL connection, make sure the source
device’s audio source is set to “PCM” format. Refer to the
documentation your received with the audio source device (such
as a TV or DVD/Blu-ray player, etc.) for additional information.
• Make sure that the audio cable you are using is not damaged or
broken. Try using another one.
Your soundbar is not working
properly.
• Unplug the AC adapter from the wall outlet and then try plugging
it in again after 30 seconds.
• If you are using the OPTICAL connection, make sure the source
device’s audio source is set to “PCM” format. Refer to the
documentation your received with the audio source device (such
as a TV, DVD/Blu-ray player, etc.) for additional information.
• Make sure that the audio cable you are using is not damaged or
broken. Try using another one.
The sound is breaking up or
buzzing.
• Make sure that you are connected to an audio OUT jack on your
sound source. The port will not send audio out if it is an INPUT.
• Make sure that all connections are secure and cables are not
broken or damaged.
• If you are using the OPTICAL connection, make sure the source
device’s audio source is set to “PCM” format. Refer to the
documentation your received with the audio source device (such
as a TV or DVD/Blu-ray player, etc.) for additional information.
• Connect to a different source device (such as a TV or DVD/Blu-ray
player) to see if the buzzing still occurs. If it does not, this may
indicate an issue with the original source device.
• Use a different connection method (for example, try Optical
instead of LINE IN) between the soundbar and the source device
to make sure the jacks on both devices are still working.
• Make sure that the audio cable you are using is not damaged or
broken. Try using another one.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 21 Tuesday, March 14, 2017 12:13 PM
22
NS-HSB318
www.insigniaproducts.com
I can hear sound from both my
TV and my soundbar.
• Turn off or mute the internal speakers of your TV. Refer to the TV’s
manual for instructions.
My TV remote does not control
my soundbar.
• If you are using a universal remote control, make sure that it is
programmed to your soundbar. See Programming a universal
remote on page 9.
• Universal remotes will only control your soundbar’s volume. Use
the controls on your soundbar or the remote that came with it to
change the soundbar’s audio source or sound mode.
• Make sure that you aim your universal remote at the remote
sensor on the front of your soundbar.
• Make sure that you select the correct source on your universal
remote.
There is no sound or low volume
in Bluetooth mode.
• Make sure that your Bluetooth device is turned on, Bluetooth is
turned on, and “NS-HSB318” is selected.
• Turn up the volume on your soundbar.
• Turn up the volume on your Bluetooth device.
• Make sure that your Bluetooth device is not muted.
• Make sure that you are playing music from your Bluetooth device.
• Make sure that you have selected the Bluetooth source on your
soundbar.
• Make sure that your soundbar is not paired to another Bluetooth
device.
• Make sure that your Bluetooth device is not paired to a different
Bluetooth speaker.
My soundbar won’t connect to
my Bluetooth device.
• Shorten the distance between your soundbar and your Bluetooth
device.
• Turn your devices off, then on. Re-pair your soundbar and your
Bluetooth device.
• Make sure that your soundbar is not paired to another Bluetooth
device.
• Make sure that your soundbar and Bluetooth device are both in
pairing mode.
• Make sure that your Bluetooth device is not connected to any
other device.
• Make sure that you have selected “NS-HSB318” on your Bluetooth
device.
My Bluetooth device keeps
unpairing.
• Shorten the distance between your soundbar and your Bluetooth
device.
• If the battery on your Bluetooth device is low, recharge the
battery.
“NS-HSB318” does not appear on
my Bluetooth device.
• Shorten the distance between your soundbar and your Bluetooth
device.
• Put your soundbar into pairing mode, then refresh your list of
Bluetooth devices. For more information, see the documentation
that came with your Bluetooth device.
• Make sure that your Bluetooth device is visible to other devices.
For more information, see the documentation that came with
your Bluetooth device.
Problem Possible Solutions
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 22 Tuesday, March 14, 2017 12:13 PM
23
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
Specifications
Designs and specifications are subject to change without notice.
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply within the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced technician for help.
FCC warning
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
Canada IC statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Power output Left and right channel 20 W (10% THD+N)
Frequency response 150 Hz ~ 15 kHz
Subwoofer output 2V
Dimensions (approx.)
(W × D × H)
Weight lbs. ( kg)
Battery 3V lithium battery (CR2025)
Inputs USB connector
RCA stereo audio jack
Digital optical audio jack
Bluetooth
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 23 Tuesday, March 14, 2017 12:13 PM
24
NS-HSB318
www.insigniaproducts.com
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son
fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent
causer un mauvais fonctionnement de l'appareil.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment.
Cet équipement est conforme à l'exposition aux rayonnements IC limites établies pour un
environnement non contrôlé.
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 24 Tuesday, March 14, 2017 12:13 PM
25
Soundbar Home Theater Speaker with Bluetooth
www.insigniaproducts.com
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this
new Insignia-branded product (“Product”), that the Product shall be free of defects in the
original manufacturer of the material or workmanship for a period of one (1) year from the
date of your purchase of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada
from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca, and
is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product.
Your purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of
the Product is determined to be defective by an authorized Insignia repair center or store
personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or
(2) replace the Product at no charge with new or rebuilt comparable products or parts.
Products and parts replaced under this warranty become the property of Insignia and are
not returned to you. If service of Products or parts are required after the Warranty Period
expires, you must pay all labor and parts charges. This warranty lasts as long as you own your
Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or
otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location, please take your original
receipt and the Product to any Best Buy store. Make sure that you place the Product in its
original packaging or packaging that provides the same amount of protection as the original
packaging. If you purchased the Product from a Best Buy online web site (www.bestbuy.com
or www.bestbuy.ca), mail your original receipt and the Product to the address listed on the
web site. Make sure that you put the Product in its original packaging or packaging that
provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States call 1-888-BESTBUY, Canada call
1-866-BESTBUY. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores
or websites to the original purchaser of the product in the county where the original
purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Food loss/spoilage due to failure of refrigerator or freezer
• Customer instruction/education
•Installation
•Set up adjustments
•Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
•Accidental damage
•Misuse
•Abuse
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 25 Tuesday, March 14, 2017 12:13 PM
26
NS-HSB318
www.insigniaproducts.com
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in
communal areas of a multiple dwelling condominium or apartment complex, or
otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods
(burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up
to five (5) pixel failures throughout the display. (Pixel based displays may contain a
limited number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or
pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY
FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR
PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER
EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 26 Tuesday, March 14, 2017 12:13 PM
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.
Made in China.
V1 ENGLISH
17-0227
NS-HSB318_17-0227_MAN_V1_ENG.fm Page 27 Tuesday, March 14, 2017 12:13 PM

Navigation menu
