Beautiful Enterprise RFWSP313 Bluetooth Indoor/Outdoor Speaker User Manual WSP313 r6 x
Beautiful Enterprise Co., Ltd. Bluetooth Indoor/Outdoor Speaker WSP313 r6 x
Users Manual
Bluetooth Indoor/Outdoor Speaker
RF-WSP313
User Manual
2
Safety Information
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding - type plug. A
polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong is
provided for your safety. If the provided plug
does not fit into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the
cart/apparatus combination to avoid injury
from tip-over.
PORTABLE CART WARNING
(Symbol provided by RETAC)
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
15. Apparatus shall not be exposed to dripping
or splashing and no objects filled with
liquids, such as vase,shall not be placed on
the apparatus.
16. The mains plug is used as disconnect
device and it shall remain readily operable
during intended use. In order to disconnect
the mains plug from the mains completely,
the mains plug should be disconnected
from the mains socket outlet completely.
17. The batteries (battery pack & batteries
installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNINGS:
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
DO NOT REMOVE COVER or OPEN THE CABINET.
Dangerous high voltages are present inside the
enclosure. No user serviceable parts inside. Leave all
servicing to qualified service personnel.
3
18. Do not place any naked flame sources,
such as lighted candles, on the apparatus.
19. The battery used in this product must be
properly recycled or disposed of. Please
contact your local recycling center for
proper battery handling and disposal
instructions.
FCC and IC Information:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measure
y Reorient or relocate the receiving antenna
y Increase the separation between the
equipment and receiver.
y Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
y Consult the dealer or an experienced
radio/TV technician for help
Warning: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
Canada IC statements
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 20cm between the radiator and
your body.
Cet équipement est conforme à l'exposition aux
rayonnements IC limites établies pour un
environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de
distance entre le radiateur et votre corps.
For compatibility between the system and another
device with Bluetooth technology, consult the
device's documentation and dealer. In some
countries, there may be restrictions on using
Bluetooth devices. Check with your local
authorities.
is a registered trademark of
Bluetooth SIG, Inc.
Please read rating label on the back panel of
system for power input and other safety
information.
4
CAUTION - Proper Installation
y Install the system in a place which is level,
dry and neither too hot nor too cold. The
appropriate temperature is between 5oC
and 35oC.
y Install the system in a location with
adequate ventilation to prevent internal heat
from building up inside the unit.
y Leave sufficient distance between the
system and TV.
y Keep the system away from TV to avoid
interference with TV.
CAUTION - Proper Ventilation
To avoid risk of electric shock and fire, and to
prevent damage, locate the apparatus as follows:
Front: No obstructions and open spacing.
Sides / Top / Back: No obstructions should be
placed in the areas shown by the dimensions
below.
Bottom: Place on the level surface. Maintain an
adequate air path for ventilation by placing on a
stand with a height of 10 cm (3-15/16") or more.
Front View:
Side View:
Information for Users on
Disposal of Old Equipment
[European Union]
This symbol indicates that the
electrical and electronic equipment
should not be disposed as general
household waste at its end-of-life.
Instead, the product should be
handed over to the applicable
collection point for the recycling in
accordance with your national
legislation.
By disposing of this product
correctly, you will help to conserve natural
resources and will help prevent potential negative
effects on the environment and human health that
could otherwise be caused by inappropriate waste
handling of this product. For more information about
collection point and recycling of this product, please
contact your local municipal office, your household
waste disposal service or the shop where you
purchased the product. Penalties may be
applicable for incorrect disposal of this waste, in
accordance with national legislation.
[Other Countries outside the European
Union]
If you wish to dispose of this product, please do so
in accordance with applicable national legislation or
other rules in your country for the treatment of old
electrical and electronic equipment.
QDID: xxxxxxxx
Attention:
This symbol is
only valid in
the European
Union.

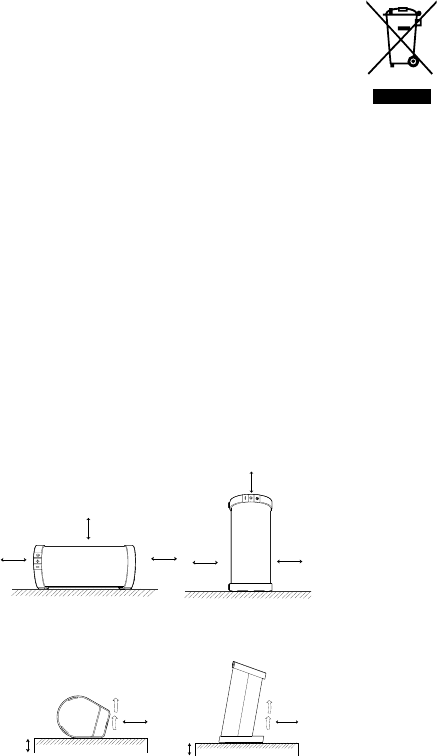

15 cm
(5- 15
/
16")
15 cm
(5-15
/
16")
15 cm
(5-15
/
16")
15 cm
(5-
15
/
16
")
15 cm
(5-
15
/
16
")
15 cm
(5-
15
/
16
")
10 cm
(3-
15
/
16
")
15 cm
(5-
15
/
16
")
Front side Back sid e
10 cm
(3-
15
/
16
")
15 cm
(5-
15
/
16
")
Fro nt si de Back side
5
Contents
Getting Started .............................................................................................. 6
Package Contents ......................................................................................................................... 6
Placing the System........................................................................................................................ 6
Connecting the AC Adaptor ........................................................................................................... 7
Charging the Built-in Battery ......................................................................................................... 7
System Overview .......................................................................................... 8
Front View ..................................................................................................................................... 8
Rear View ...................................................................................................................................... 8
Selecting the Sound Source ........................................................................ 9
Basic Operation .......................................................................................... 10
Turning on/off the System ........................................................................................................... 10
Adjusting the Volume................................................................................................................... 10
Activating the Bass Boost Effect ................................................................................................. 10
Playing back via Bluetooth ........................................................................ 11
Establishing a Bluetooth Connection .......................................................................................... 11
Using Multiple Bluetooth Devices ................................................................................................ 12
Playing back from Macbook or Macbook Pro .............................................................................. 12
Playing back from PC/Notebook ................................................................................................. 12
Playing back from External Source .......................................................... 13
Troubleshooting .......................................................................................... 14
Technical Specifications ............................................................................ 15
6
Thank you for your purchasing this Bluetooth Indoor/Outdoor Speaker.
This system is a set of high-end portable speaker system, and provides 2.1ch stereo system
which you can enjoy its high quality sound via Bluetooth wireless connection or audio cable
connection.
This system is designed for indoor and outdoor use; and with the waterproof feature, it can be
used even in the rain.
This user manual explains how to correctly install, operate, and get the best performance from
your Bluetooth Indoor/Outdoor Speaker. Read this user manual carefully before using your
system, and then retain it handy for quick reference.
Getting Started

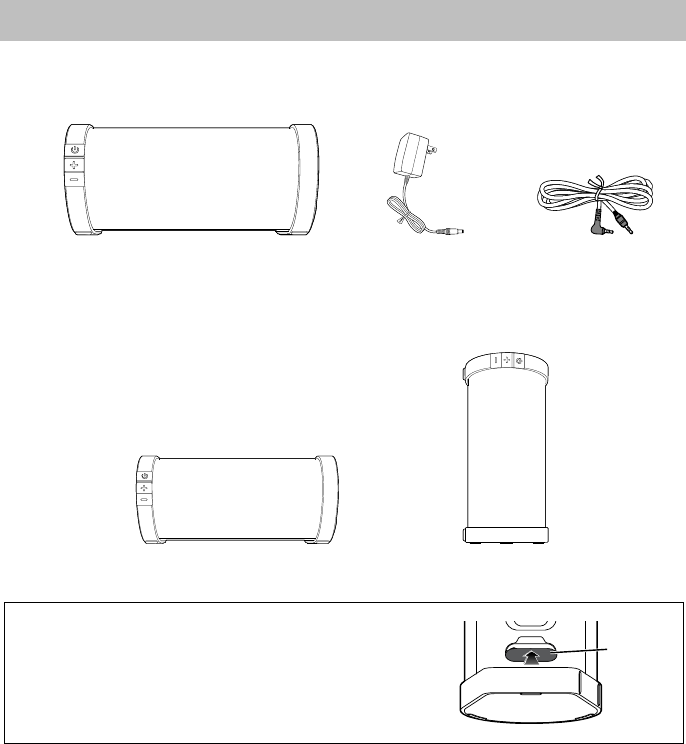

Package Contents
Examine whether the following package contents are all included:
Main Unit AC Adaptor Audio Cable
Placing the System
The system can be placed as horizontal or vertical direction according to your preference.
Horizontal Placement Vertical Placement
Note:
y When the system is used outdoor and in the rain,
please ensure the rubber cover on the back panel
of the system is closed, and the water won’t flow
into tube hole.
Rubber
Cover
7

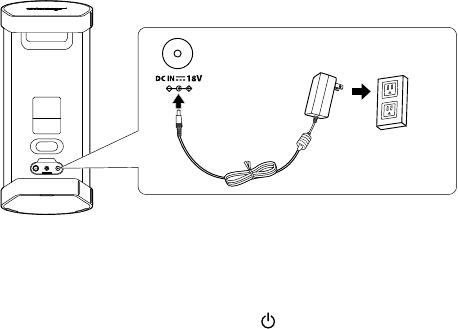

Connecting the AC Adaptor
WARNING! For optimal performance, use only the supplied AC adaptor.
y Ensure that power supply outlet matches with the system AC input 120V~50/60Hz before
connection.
Connect one end of the AC Adaptor to the DC IN jack of the unit and the other end to an
electrical outlet.
Charging the Built-in Battery
This system has a built in Lithium Ion battery to give you up to 7 hours battery playback when not
using the AC adaptor. When the AC adaptor is plugged in, the system will charge. During
charging, the battery indicator (between button and the Volume+ button) will illuminate in
amber. When fully charged, it will turn green; 5 minutes later, the indicator goes out that means
the system enters Power Off mode.
When operating the system in battery mode, the battery indicator blinks in red that means the
battery is low, and the system will enter Power Off mode after 5 minutes.
Notes:
y The battery cannot be replaced by the user.
y It takes about 4~5 hours to charge the battery from empty to full.
y Do not dispose of system in fire; battery may explode or leak.
Type: Li-ion Rechargeable Battery
Rated Voltage: 7.4V
Capacity: 2700mAh
WARNING！
There is a danger of explosion if the battery is incorrectly replaced. Replace it only with the same
or equivalent type. Do not expose it to excessive heat such as sunshine, fire, etc., where it would
be exposed to high temperatures above 60°C.
Power outlet
8

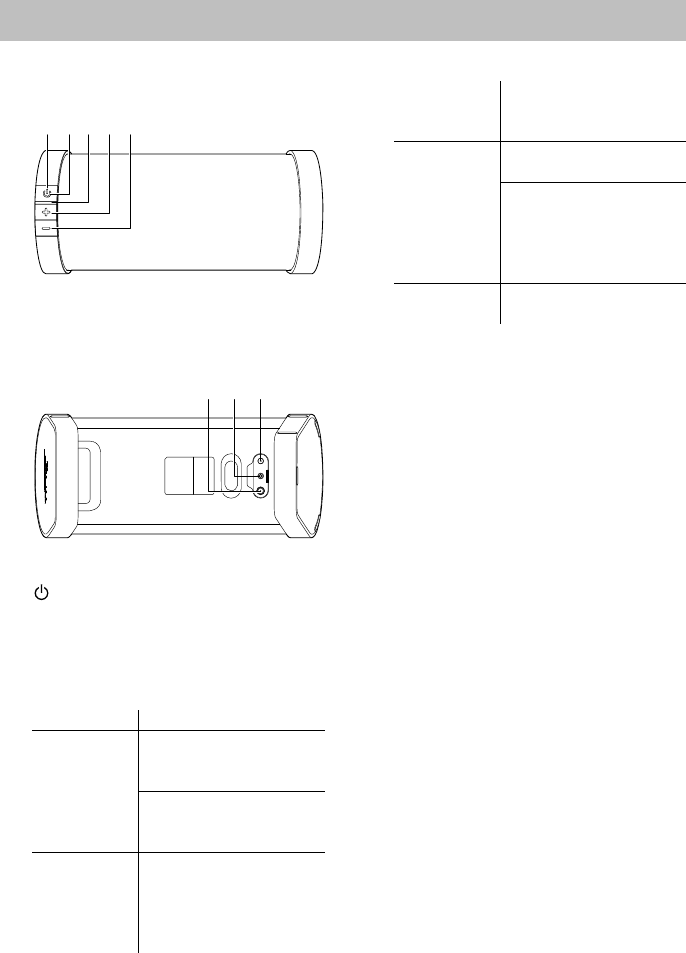

System Overview
Front View
Rear View
1. (On/Off) button
Press to turn on/off the system.
Pair button
Press and hold for 2 seconds to put the
system into pairing mode
2. Power/ Pairing indicator
Power Off Off
Power On Lights in blue and blinks
to indicate the Bluetooth
pairing status
Remains on in blue to
indicate a sound source
is connected
Power On Blink once when
volume +/- button is
pressed; fast blinks
when volume +/- button
is pressed and hold
3. Battery indicator
Power Off Green when full
charged; off after 5
minutes
Power On Red when low battery
level using
Green when full
charged; off after 5
minutes if no
connection or music
playback
Power
Off/On
Amber under charging
4. Volume + button
Press to increase the volume level; press
and hold to increase the volume level
continuously.
5. Volume - button
Press to decrease the volume level;
press and hold to decrease the volume
level continuously.
6. BASS ON/OFF button
Press to activate the bass sound effect or
not.
7. AUX IN jack
For streaming an audio input signals
from an external device.
8. DC IN jack
Connect the supplied AC adaptor.
12345
678
9
Selecting the Sound Source
This system enables you to access two sound sources – AUX IN and Bluetooth.
y If AUX IN jack has been inserted, the sound source will switch to AUX IN mode automatically.
Remove the audio cable from the AUX IN jack, the sound source will switch to Bluetooth
mode automatically.
y When a Bluetooth connection has been established and the system is in Bluetooth mode,
once you insert audio cable, the system will suspend the Bluetooth playback and switch to
AUX IN mode automatically.
To resume the Bluetooth playback, you need to remove the audio cable from the AUX IN
jack, and tap Play button on your Bluetooth device.
y If no music playback in AUX IN mode for 15 seconds, the sound source will automatically
switch to Bluetooth mode.
10
Basic Operation

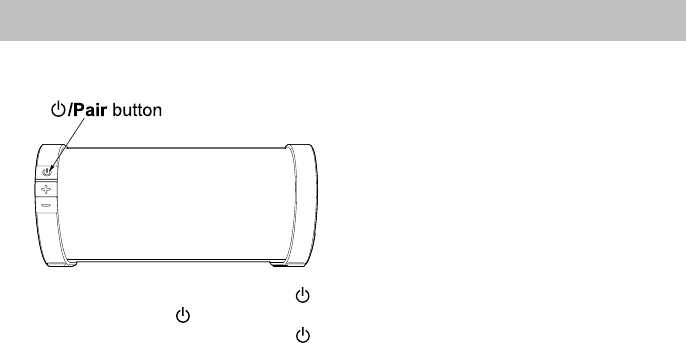

Turning on/off the System
y When in Power Off mode, press the button to turn on the system.
y Press and hold the button for 2 seconds, the system will enter pairing mode.
y When in Power On mode, press the button to turn off the system.
Adjusting the Volume
You can adjust the volume level by pressing the Volume+/- buttons when one of sound sources
is selected.
Each time you press Volume+ or Volume- button, the Power/Pairing indicator will blink once in
blue. If the system is at minimum volume level (or at maximum volume level), then press
Volume- button (or Volume+ button), the Power/Pairing indicator will keep its status as before
without any action.
Activating the Bass Boost Effect
You can enable the bass sound effect for your preference.
y For enabling the bass sound effect, press down BASS ON/OFF button on the back of the
system to lock it in place.
y For disabling the bass sound effect, press BASS ON/OFF button again to unlock.
11
Playing back via Bluetooth
Establishing a Bluetooth
Connection
Notes:
y If your mobile phone supports A2DP,
profiles, its music will play through the
system.
y You can make a Bluetooth connection
with a mobile phone, an
iPhone/iPad/iPod touch or any other
Bluetooth-enabled devices.
1. Press the button to turn on the
system.
2. Press and hold Pair button for 2 seconds
to put the system into pairing mode.
y The Power/Pairing indicator starts
blinking in blue at a fast rate.
y If you press Pair button once again
during the process of pairing, the pairing
operation will be cancelled.
3. During this period, you can operate the
mobile phone, iPad or Bluetooth-enabled
device to pair with the system within a 33
feet (10m) range.
y Please check the user manual of the
iPad or Bluetooth-enabled device with
which you are initiating pair to learn
about Bluetooth connection with any
other devices.
4. Once the system is detected and its
name Rocketfish RF-WSP313 appears
on the display of your Bluetooth-enabled
device, key in the default password 0000
if a prompt requests it.
y The Power/Pairing indicator starts
blinking at a fast rate to indicate that the
system and your device have entered
into the connection mode.
y After a Bluetooth connection is
established successfully, the
Power/Pairing indicator will be solid in
blue.
5. Select the desired music and press Play
button on your Bluetooth-enabled device.
The system automatically starts playing
back the music.
Notes:
y When you want to enjoy music from your
Bluetooth-enabled devices, ensure that
the audio cable has been removed from
the AUX IN jack of Bluetooth
Indoor/Outdoor Speaker or stop AUX IN
music playback for 15 seconds.
y Try again above steps 2 to 4 if the
Power/Pair indicator begins to blink
slowly after blinking quickly for 1 minute,
the pair was unsuccessful.
y Once Bluetooth devices are paired
successfully, you don’t need to pair those
devices with the system again for the
next use. After powering on, the system
attempts to resume the connection
between the system and last connected
device; if failed, the system will enter
pairing mode automatically; if no
Bluetooth device is connected within 1
minute, the system will try to connect the
last Bluetooth connected device again. If
still cannot connect the last paired
Bluetooth device within 10 seconds, the
system enters pairing waiting mode, and
the Power/Pairing indicator blinks slowly.
y The system can be paired with up to 8
Bluetooth devices, once a new device is
paired after 8 devices have been paired,
the device whose latest connection time
is the oldest among the 8 paired devices
is replaced by the new one. If you want to
establish Bluetooth connection with the
device that has been replaced, you need
to perform the pairing process above
steps 2 to 4.
y If no music streams to the system within
15 minutes, the system will enter Power
Off mode automatically. You can turn on
the system again to resume the
Bluetooth connection.
12
Using Multiple Bluetooth Devices
Only one device can be used at a time, but
you can switch between different Bluetooth
devices.
Make sure each device you want to use has
already been paired, to switch devices:
1. On Bluetooth Indoor/Outdoor Speaker,
press and hold Pair button for 2 seconds.
2. On Bluetooth device, select the
connection to Bluetooth Indoor/Outdoor
Speaker.
This device is now the connected device to
Bluetooth Indoor/Outdoor Speaker, (the
previous connected device is now
disconnected). Repeat those steps to switch
the connected device again.
Notes:
y If the system has no sound output,
please check if the volume level of your
Bluetooth device connected to the
system is set to the minimum, or the
Bluetooth device is muted.
y Ensure that the audio cable has been
removed from the AUX IN jack or stop
AUX IN music playback for 15 seconds.
Playing back from Macbook or
Macbook Pro
1. In the desktop screen, select the Open
Bluetooth Preference.
2. If there is any old Rocketfish
RF-WSP313 records, remove them.
Click the Continue button to perform
pairing process.
3. Once completed, the pairing success
screen will come out.
Note:
y Don’t quit the page immediately. You
may notice that the previous dialog
screen still shows the device not
connected. Just ignore it. It’s confusing
to the user. In fact, it’s connected
already.
4. Open iTune, play a song. Then use the
mouse to click the Bluetooth icon at the
top right hand corner of the desktop
screen, select the Rocketfish
RF-WSP313 option and then select the
Use as Audio Device (Stereo). After a
while (a few seconds), the music will
come out from the Bluetooth
Indoor/Outdoor Speaker. If not, select
the Use as Audio Device (Stereo) once
again. The Sound Quality should be
good.
Playing back from PC/Notebook
1. Press the Start button to open the
Device and Printers dialog box.
2. Turn on the Bluetooth Indoor/Outdoor
Speaker, and press and hold Pair button
for 2 seconds on the system to put the
system into the pairing mode.
3. Select the Add a device in the Device
and Printer dialog box. The Rocketfish
RF-WSP313 icon will appear on the
display.
4. Double click the Rocketfish
RF-WSP313 icon and wait until the
device has been added successfully.
5. Click the Close button to close the
Device and Printer dialog box. A
Rocketfish RF-WSP313 icon appears in
the dialog box.
6. Double click the Rocketfish
RF-WSP313 icon and the device
connection screen will be shown.
7. Click the Connect button in the Music
and Audio option.
8. Once connected, the Power/Pairing
indicator on the system will be solid on in
blue and the connection success screen
will be shown.
13
Playing back from External Source
You can enjoy the sound from an optional component such as a digital music player through the
speakers of this system. Be sure to turn off the power of each component before making any
connections. For details, refer to the instruction manual of the component to be connected.

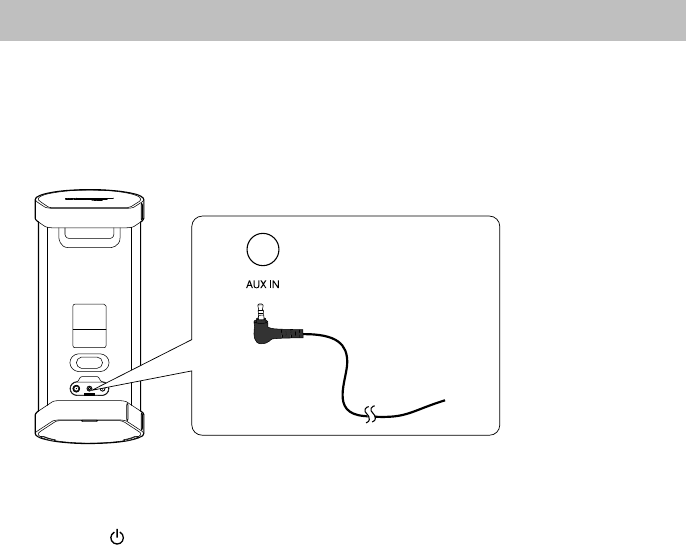

Connect an external device to the AUX IN jack on the back panel of the system using a stereo
audio cable (supplied).
Note:
y When the audio cable is connected to the AUX IN jack, the system will enter to the AUX IN
mode automatically.
1. Press the button to turn on the system.
2. Set the volume of the connected external device to the minimum.
3. Start playback on the external device.
4. Adjust the volume to meet your listening requirement.
To audio output
such as
CD/MD/digital
music player, etc.
14
Troubleshooting
Check this list for a possible troubleshooting solution before calling for service.
In These Cases Check the Following Points
Power does not come on. y Check if the AC adaptor is inserted to power outlet
securely
y The built-in lithium battery is no power. Charge the
battery.
No sound output via
Bluetooth
y Check if the volume level is set to the minimum.
y Check if the volume level of your Bluetooth device
connected to the system is set to the minimum.
y Check to make sure your Bluetooth device is not muted.
y Check if your stereo audio cable is connected to the
AUX IN jack of the system. Unplug the cable.
No sound output in AUX IN
mode
y Check the connection via audio cable is successful and
available.
y Check if the volume level of the system is set to the
minimum.
y Check if the volume level of the connected external
device is set to the minimum.
The system is powered off
automatically
y The system enters the saving energy mode. The system
does not connect with any audio source for more than 15
minutes. Turn on the system again.
y The internal battery is exhausted. First, the battery
indicator of the system starts blinking for 5 minutes in
red; then the system will enter Power Off mode. Charge
the battery or connect the AC adaptor and turn on the
system again.
Bluetooth connection cannot
be established.
y When making a Bluetooth connection between the
system and your device for the first time, if the
connection is fail, you need to power off your device and
power on again to clear the device name, and make the
connection again.
15
Technical Specifications
Model RF-WSP313
Type Bluetooth Indoor/Outdoor Speaker
Support
Bluetooth
Bluetooth 1.2, 2.0 and 2.1 compliant
Water Resistant IPX4
Battery
Operation Time
Up to 7 hours
Speaker Power Total 36W
Input Sensitivity Audio Input TBD
Input Terminal External DC IN (for AC adaptor), AUX IN
Power Source External DC 18V or Internal Rechargeable Battery DC 7.4V
AC Adaptor Input: AC 120V~50/60Hz
Output: DC 18V/2.5A
Dimensions
(Approx.)
Horizontal Placement: 387mm(L) x 166mm(H) x 203mm(D)
Weight 4.1Kgm (net)
Design and specifications are subjected to change without notice.
Save this manual
