Exhibit 7 The user manual of EUT
BTC 3000 REMOTE CONTROLLER
User’s Guide
VERSION : 1.0
Table of Contents
1. PURPOSE............................................................................................................................................1
1.1 General Description ....................................................................................................................1
2. GENERAL SPECIFICATIONS..........................................................................................................2
2.1 Operation Temperature Range.....................................................................................................2
2.2 Operation Humidity Range..........................................................................................................2
2.3 Material Parts & UL Number ......................................................................................................2
3LAYOUT ...........................................................................................................................................3
4BLOCK DIAGRAM..........................................................................................................................4
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
May 23, 2000 Page 1
1. PURPOSE
The following specifications is applied to this remote controller.

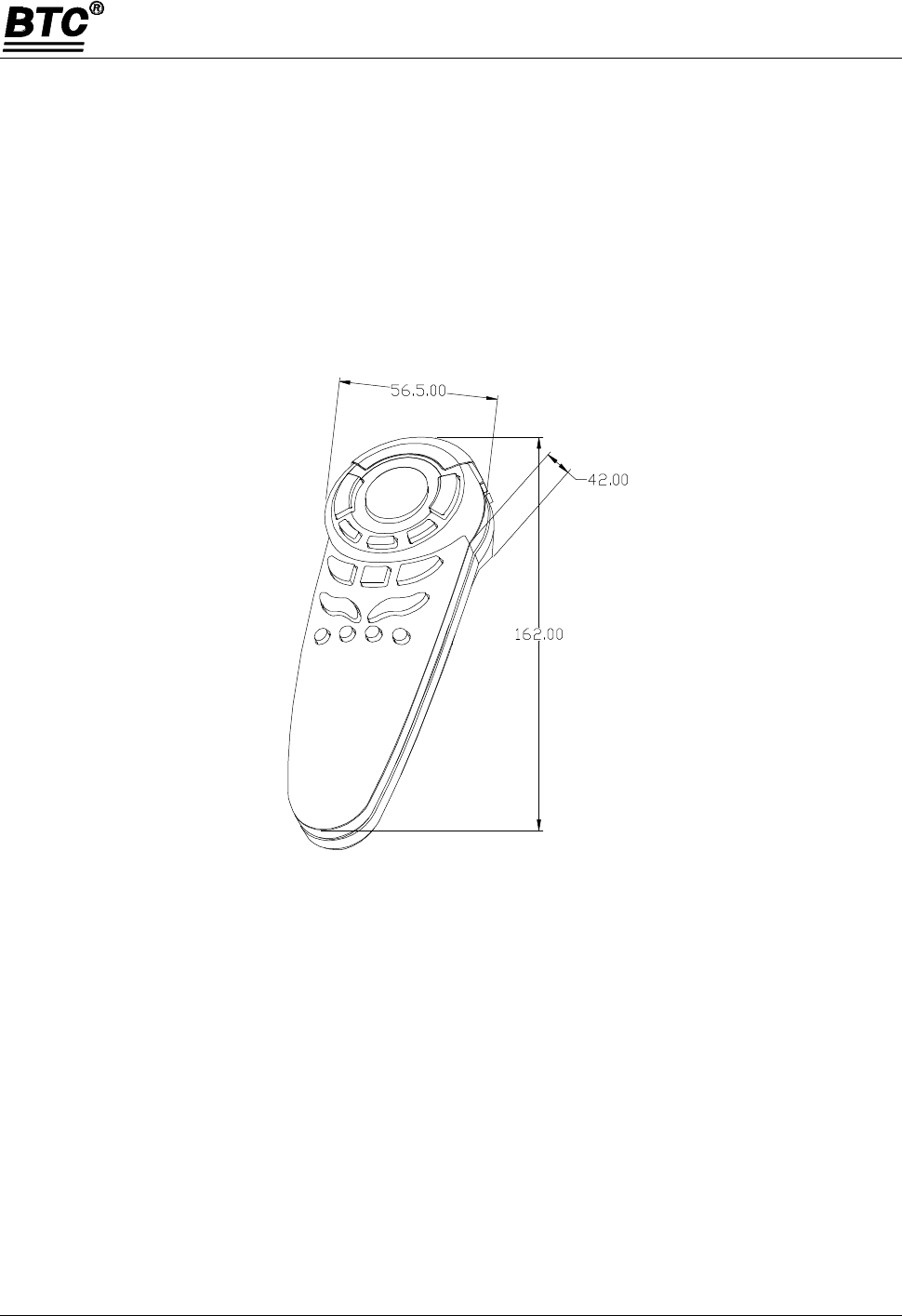

1.1 General Description
Length: 162 mm.
Width: 56.5 mm.
Height: 42 mm.
Weight: 86 g.
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
May 23, 2000 Page 2
2. GENERAL SPECIFICATIONS
2.1 Operation Temperature Range
Operation Temperature Range : 0°C ~ 45°C
Storage Temperature Range : -20°C ~ 60°C
2.2 Operation Humidity Range
Operation Humidity Range : 20% ~ 90%
Storage Humidity Range : 90%RH or less (Non-Condensing)
2.3 Material Parts & UL Number
Component Material Type of
Material Flame
Class UL No. Manufacturer of Material
Enclosure &
Base cover HIPS
HIPS
HIPS
PH-88
HR-1360+
350
94HB
94HB
94HB
E56070
E115797
E115332A
Chi Mei Industrial Co., Ltd.
Cheil Industries Inc.
Gppc Chemical Corp.
Battery Cover HIPS
HIPS
HIPS
PH-88
HR-1360+
350
94HB
94HB
94HB
E56070
E115797
E115332A
Chi Mei Industrial Co., Ltd.
Cheil Industries Inc.
Gppc Chemical Corp.
LED Cover PC
PC PCVM-112
8B35 94V2
94V2 E118859
E61257
Mobay Corp.
General Electric.
Rubber
Dome Silicone
Silicone DY35-840
KE-951 94HB
94HB E55519
E48923
Dow Ccooling Trray Silicon Co., Ltd.
Shin-Etsu Chemical Co., Ltd.
P.C.B XPC ETL-601 94HB E95862 Eternal Chemical Co., Ltd.
Connector Socket
(Wafer) Nylon 66
Nylon 66 A3K
JP2411 94V2
94V2 E41871
E127691
Basf Aktiengesellschaft
Just Make Terminal & Machine Co.,
Ltd.
BEHAVIOR TECH COMPUTER CORP. Remote Controller Ver.1.0
May 23, 2000 Page 3

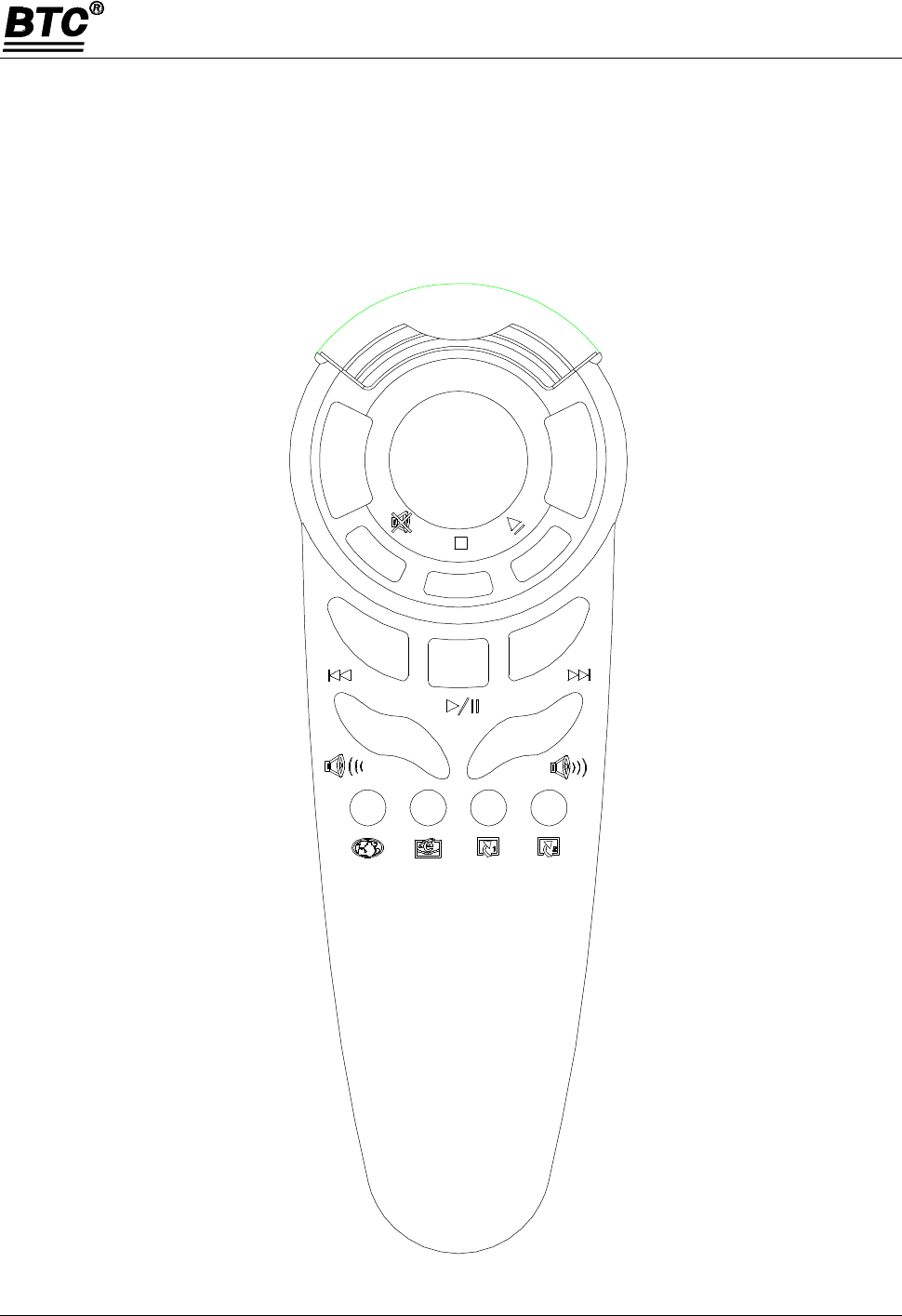

3 LAYOUT
3000 LAYOUT
BEHAVIOR TECH COMPUTER CORP. Remote Control Ver.1.0
May 23, 2000 Page 4

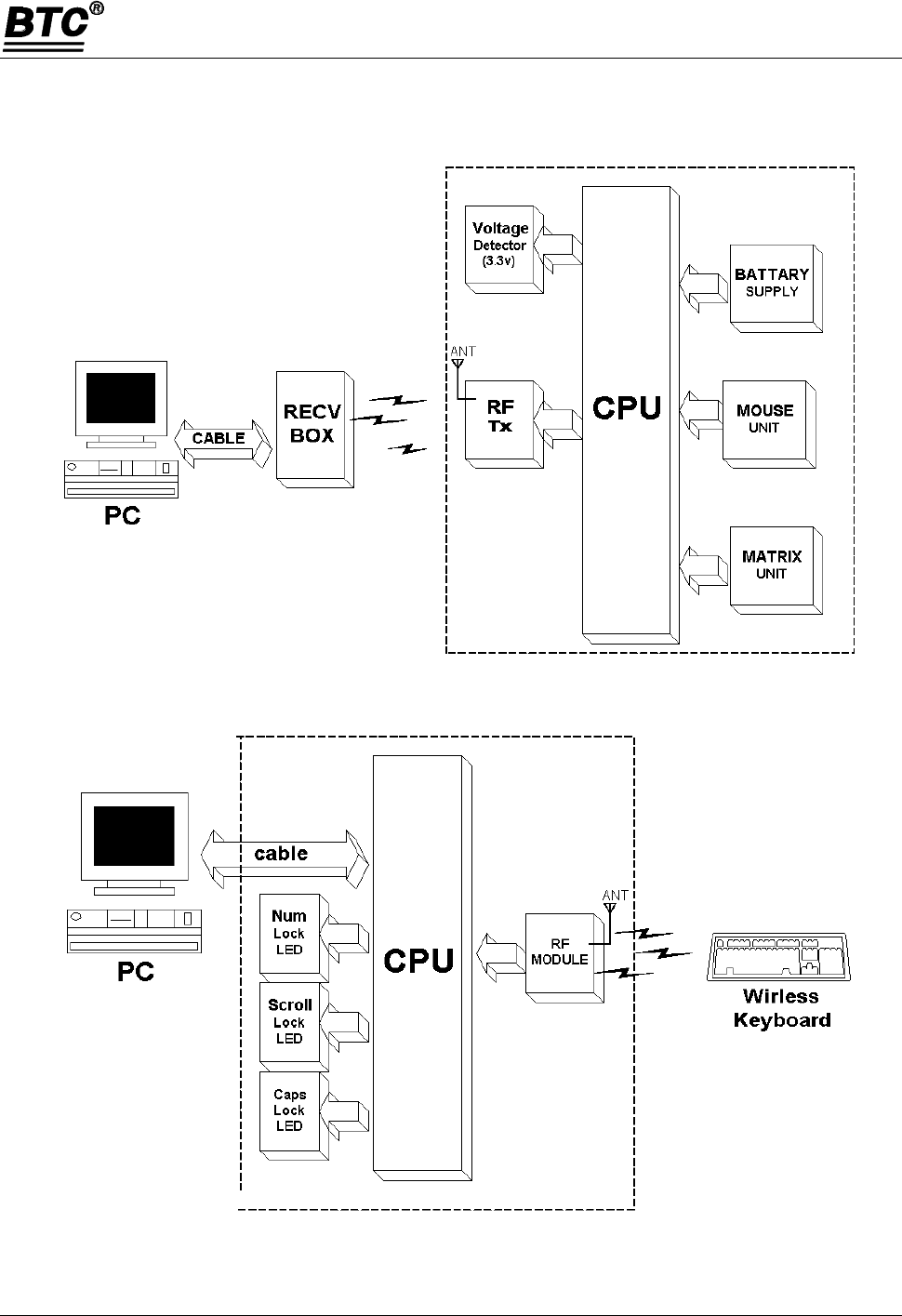

4 BLOCK DIAGRAM
Keyboard
Receiver
