Important Information
1 Battery Installation
When battery power gets too low, the computer will
display a battery low icon on the system tray or flash
10 seconds every minute on right upper screen as
notification.

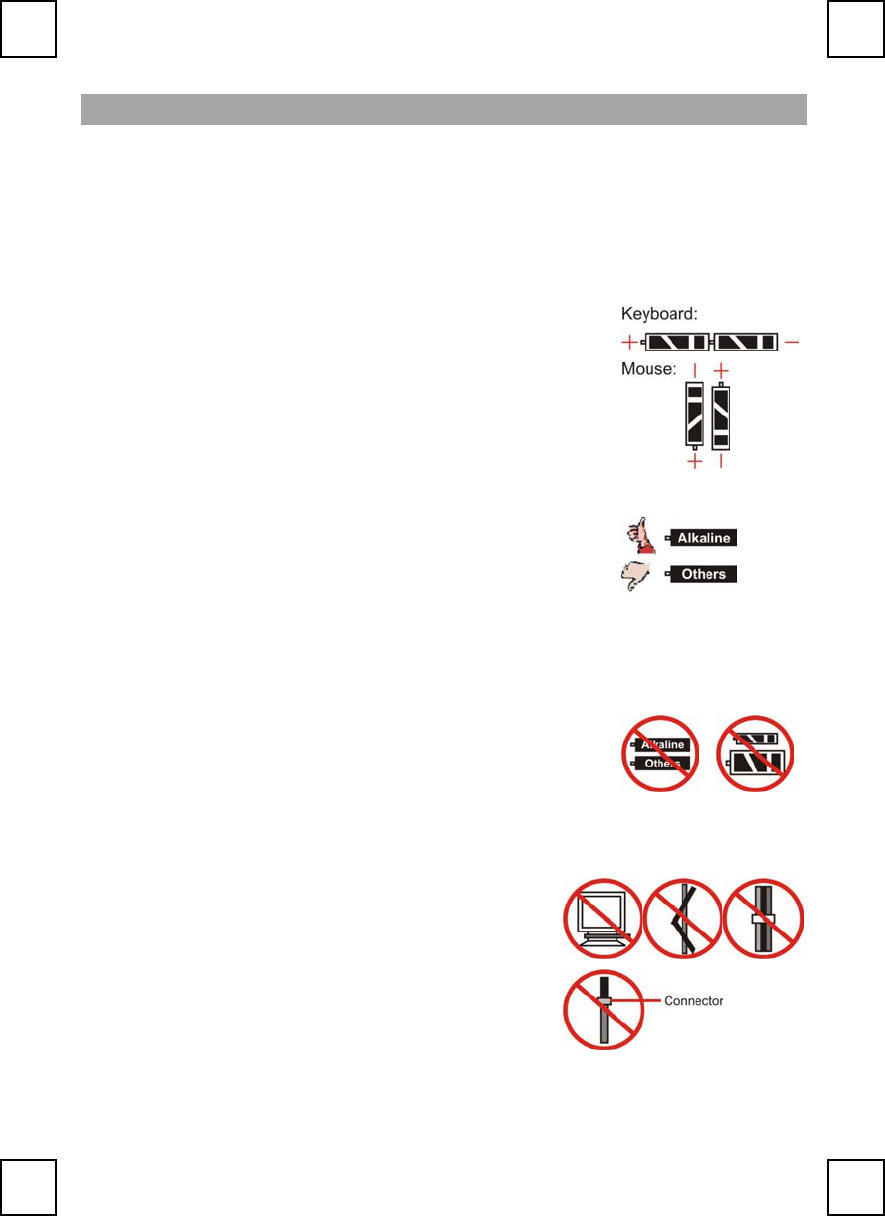

1.1 Open the battery compartment cover on the
bottom of the keyboard and mouse.
1.2 Follow the indication inside to place in keyboard
and mouse batteries.
1.3 Place the battery compartment cover back and
proceed with ID setting of the devices.
Important:
We recommend using alkaline batteries for a
longer battery life.
Always change batteries when battery low icon
appears.
Install keyboard and mouse driver first to
ensure the battery power is monitored.
Don't mix different types of batteries or new
and old batteries together. Always replace old
batteries with new and same type batteries.
Remove batteries after long periods of
non-use. Battery leakage or corrosion may
damage the device quality and cause danger.
2 Receiver cable positioning
2.1 Don't warp receiver cable around monitor
or LCD panel base.
2.2 Don't intertwine receiver cable with power
cables.
2.3 Don't bundle or bind receiver cable with
other signal cables.
2.4 Don't extend receiver cable unless
absolutely necessary, and let receiver
cable run free from other cables.
3
1 Introduction
Congratulations on your purchase of this wireless RF keyboard and mouse! This
keyboard and mouse will finally free you of the constraints of your desktop by
providing a wireless connection between your keyboard/mouse and your PC. Pass
around the keyboard or mouse during meetings without having to bother about a
cable blocking your way or write e-mails and surf the Internet from the comfort of
your living room couch!
This keyboard and mouse kit consists of a keyboard, a mouse and a receiver. The
receiver is connected to your PC through a cable with both a keyboard and mouse
connector. The keyboard and mouse can operate freely within a radius of at least
3.28 feet (about 1 meter) from the receiver, which itself has a maximum range from
your PC of around 3.28 feet (about 1 meter). Because the keyboard and mouse
use radio frequencies to transmit the wireless signal, it has no constrictions on
viewing angles such as with infrared devices like your TV’s remote control, etc.
Besides providing unprecedented freedom of movement when operating the
keyboard or mouse, the kit also offers more extra functionality by introducing
dedicated buttons for often used Internet browser functions. (Please note: The
Internet keys work only under Microsoft Internet Explorer 5.0 or later version!).
In order to enjoy your keyboard and mouse to their full potential we recommended
you read this manual carefully prior to installation.
What's in this package
A wireless keyboard with palmrest
A wireless mouse
A receiver
A Manual
A Quick Guide
Batteries (4 pcs of AA alkaline batteries)
4
2 System Requirements
Microsoft Windows 98, Windows ME, Windows 2000 or Windows XP
operating system
Microsoft Internet Explorer 5.0 or later version (for the Internet keys)
CD-ROM drive (for CD and Video operation)
Standard sound card (for CD and Video operation)
Available PS/2 keyboard port and mouse port.
Please refer to table below for the other system requirements for the features.
Operating System
Function
Description Windows 98 Windows ME / Windows 2000 /
Windows XP
Wireless
Functionality
Available immediately after
hardware installation
Available immediately after
hardware installation
Keyboard Extra
Multimedia
Buttons
Available immediately after
hardware installation
Available immediately after
hardware installation
Keyboard Battery
Low Indication
Available immediately after
hardware installation
Available immediately after
hardware installation
Mouse Battery
Low Indication
Available immediately after
hardware installation
Available immediately after
hardware installation
5
3 Hardware Installation
3.1 Connecting and Battery Information
Step 1: Make sure your PC is switched off.
Step 2: Plug in the receiver’s PS/2 mouse connector into the mouse port of
your PC and the PS/2 keyboard connector into the keyboard port.
Step 3: Take the keyboard and make sure the batteries on the back are
installed correctly. (Follow the polarity signs in the battery
compartment.)
Step 4: Take the mouse and make sure the batteries on the back are
installed correctly. (Follow the polarity signs in the battery
compartment.)
Step 5: Turn on your PC, and this RF keyboard kit will be automatically
detectived by the system.
Remarks:
1. Both the keyboard and mouse use 2pcs standard UM-3 (AA) 1.5V
alkaline batteries.
2. Battery life is approximately 2-3 months, depending on the intensity of
usage.
3. Make sure the receiver is placed in a location relatively free of strong
electromagnetic or transmission sources in order to ensure optimal
reception of the keyboard and mouse signal.

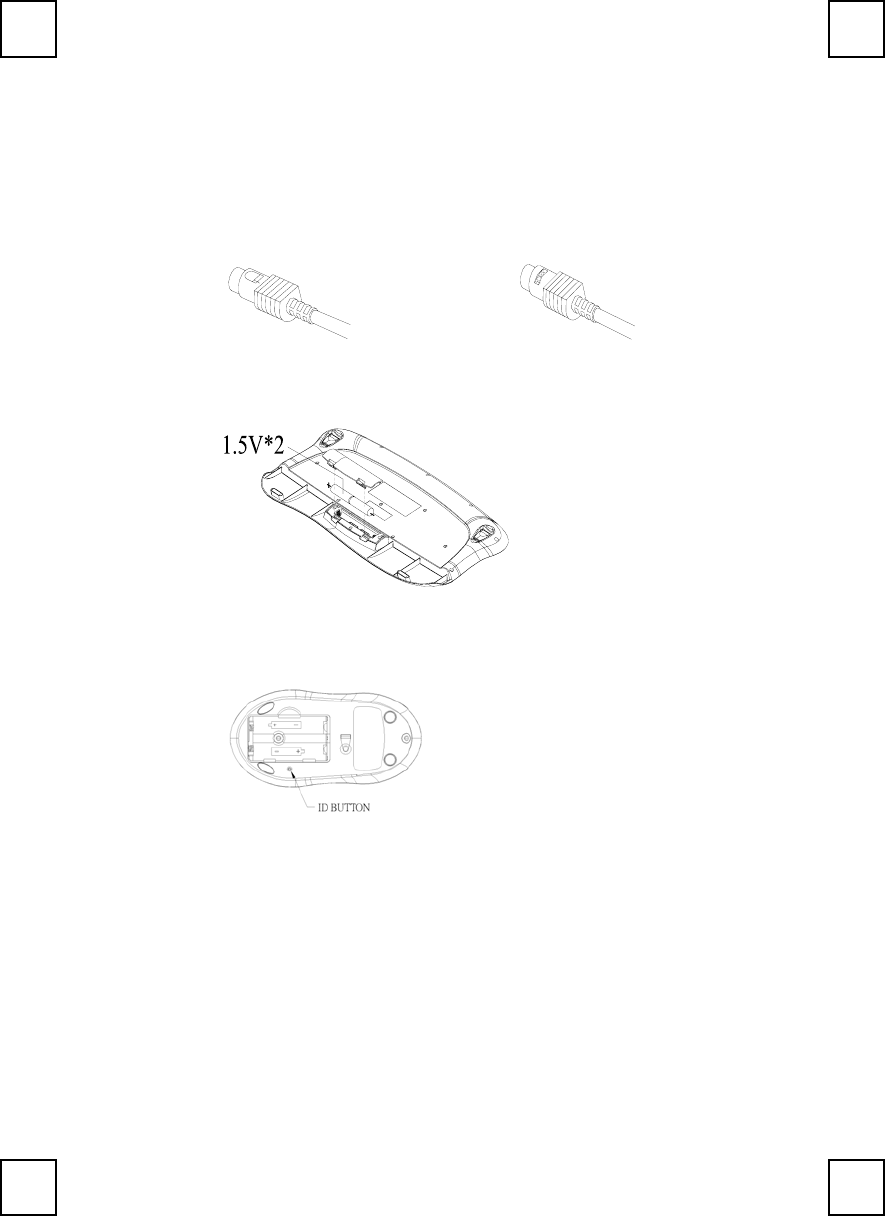

Bottom View of Keyboard
Mouse
Connector
Keyboard
Connector
Bottom View of Mouse
6
3.2 ID Setting
This wireless keyboard kits contains 255 sets ID. This extra ID-recognition
function helps to protect against interference from other RF keyboards in the
same environment.
The word CONNECT labels the ID button on each unit.
The LED under ID button of receiver shows connecting condition.

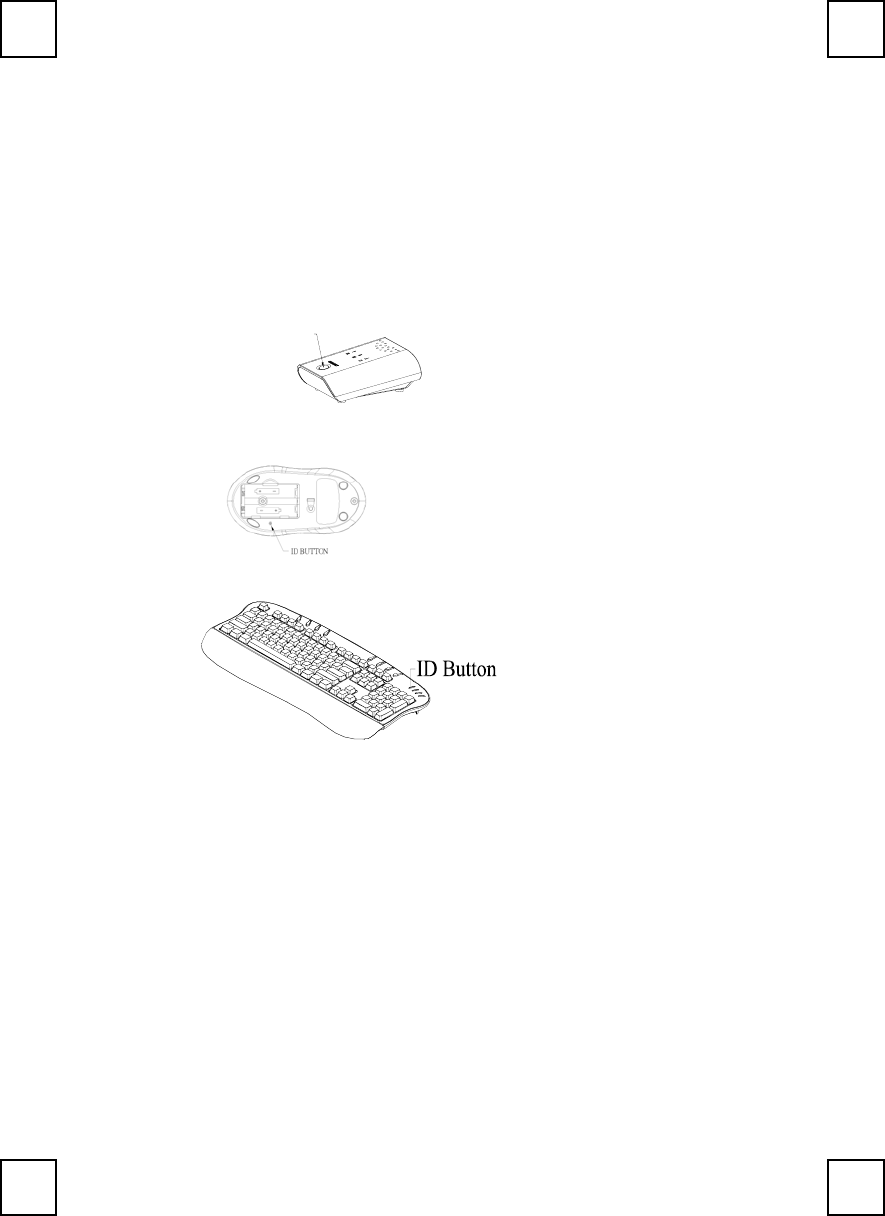

Step 1: Firstly, press the ID button on the top of the receiver once.
ID Button(LED)
Step 2: Next, press the ID button on the bottom of the mouse once.
Step 3: Then press the ID button on the top of the keyboard once.
Note: The whole procedure should be complete within 30 seconds.
Remarks:
1. You must follow the procedure above to set the ID of receiver,
mouse and keyboard. Once the receiver ID button is pressed you
have 30 seconds to complete the entire process, or you will need to
begin again.
2. Once the keyboard and receiver are plugged in, the LED under the
receiver ID button will flash. Once the ID is set, it will remain steadily lit.
3. When changing the batteries of keyboard or mouse, there is no need to
reset all the ID’s. Simply reset one of them.
ID Button on Receiver
(With a LED under the ID button)
ID Button of Mouse
ID button on Ke
y
board
7
3.3 Battery Low & LED Indication
Keyboard Battery Low Indication
When the keyboard battery is low, the Green LED light under the ID
button of receiver will flash steadily. Please change batteries when the
Green LED light flashes steadily. After you change the batteries, the
Green LED will steady lit.
ID Button(LED)
Mouse Battery Low Indication
When the mouse battery is low, the Red LED indication will light up
under mouse scroll wheel when the mouse is moved. Please change
batteries immediately when the Red LED indication lights up to ensure
the good use of this mouse. After you change the batteries, the Red
LED indication will disappear.

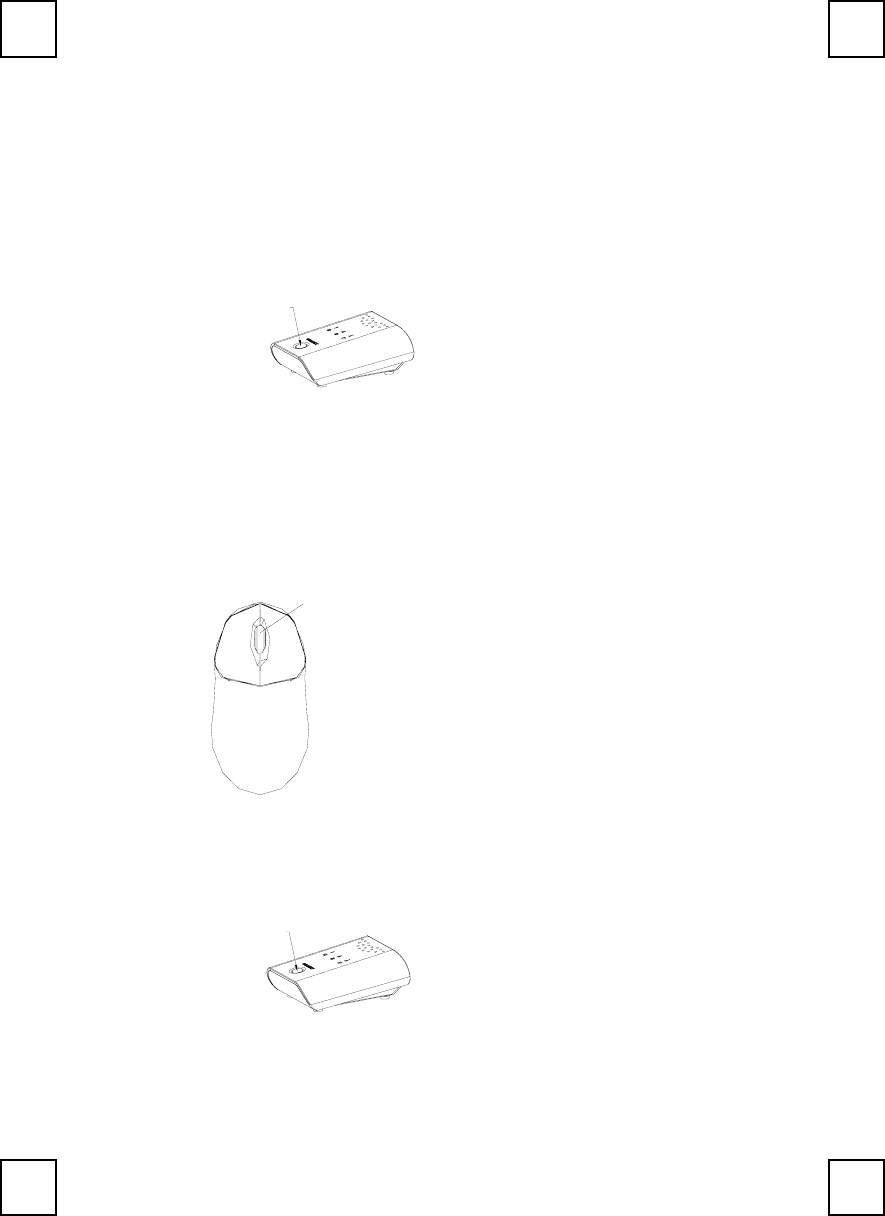

SCROLL WHEEL
LED Indication on the Receiver
Num Lock, Caps Lock, and Scroll Lock LED indication will be shown on
the receiver top cover, at the same side as ID button on receiver.
ID Button(LED)
ID Button on Receiver
(
With a LED under the ID button
)
Scroll Wheel on Mouse
(
With a RED LED beneath
)
8
4 Using the Keyboard
Besides the usual keys, this keyboard also has extra-dedicated keys, which provide
multimedia and Internet functionality:
Hot Key Functions
There is a row of hot keys on the top of keyboard. The functions are described as
below:
E-Mail
To open the default program you use for mail.
Note: You can select “Tools → Internet Options
→ Programs → Email” to change the default
settings of E-mail system.
WWW / Home
To start your Microsoft Internet Explorer 5.0 (or
above) and bring up the homepage you set.
Note: You can select “Tools → Internet Options
→ Programs” to change the default settings of
Internet Browser.
Favorites To select a web page from your favorite lists
Play / Pause Play file in the current track. Press again to
pause.
Mute Mute or resume sound output
Volume
Control To raise or lower the volume
9
5 Troubleshooting
If you are experiencing problems with your keyboard or mouse please check the
following:
1. Make sure the USB connector is inserted into your PC USB port.
2. Check to see if the batteries in the keyboard and mouse are installed correctly.
Make sure the polarity of the batteries corresponds with the polarity signs in
the battery compartment.
3. Replace the batteries on time to make sure the batteries are not low in power.
After replacing the batteries of keyboard or mouse, please also remember to
set the ID. There is no need to reset all the ID’s. Simply reset one of them.
4. Please remember to set the ID when your keyboard kits do not work properly.
5. It is strongly recommended to place the receiver in front of the monitor in order
to prevent signal disturbance from the monitor.
6. If your PC system’s BIOS setup has options for the keyboard or mouse - make
sure they are set to default settings. If you are not familiar with the BIOS, refer
to your PC’s manual for more information.
7. Use the mouse only on a clean, flat, non-slippery surface in order to ensure
smooth and accurate cursor action.
8. Keep all items away from direct sunlight, moisture, dirt, extreme heat and
abrasive chemical (cleaning) solutions.
9. Should the receiver, the keyboard or mouse become accidentally immersed or
splashed by liquids, switch off your PC immediately, unplug all items and refer
to your dealer for further assistance. In these cases please refrain from using
any of the items before consulting with your dealer!
If above troubleshooting suggestions still do not solve your problem then please
refer to your direct dealer for technical support.
封底內頁
封底
3100505360
Version 1.0
Feb. 2004
Printed in China
