Behavior Tech Computer KB6100 Corded Keyboard User Manual EU 6100

Behavior Tech Computer Corporation Corded Keyboard EU 6100

Users Manual

6
61
10
00
0
K
KE
EY
YB
BO
OA
AR
RD
D
U
US
SE
ER
R'
'S
S
G
GU
UI
ID
DE
E
This keyboard is fully compatible with IBM AT and PS/2.

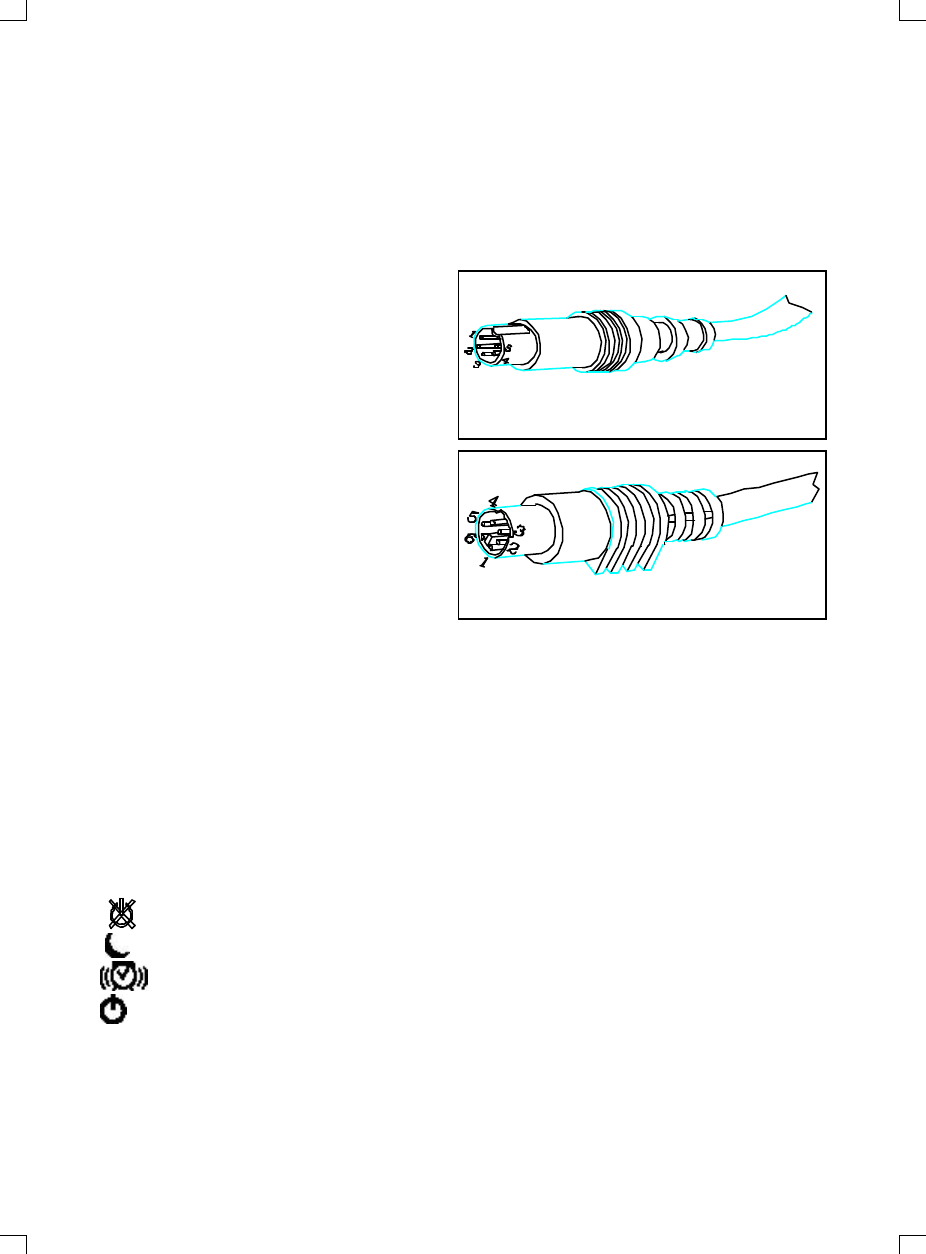

Keyboard Cable Connector
AT Compatible Cable
(5-pin Din Connector)
Pin# Signal Name Voltage
1 Keyboard Clock +5VDC Signal
2 Ground 0
3 Keyboard Data +5VDC Signal
4 Power Supply +5VDC
5 No Connection
PS/2 Compatible Cable
(6-pin Miniatures Din Connector)
Pin# Signal Name Voltage
1 Keyboard Clock +5VDC Signal
2 Ground 0
3 Keyboard Data +5VDC Signal
4 Reserved 0
5 +5VDC +5VDC
6 Reserved 0
The ACPI Power Management Keys and Their Functions
System requirement:
Ø Microsoft Windows 98 operating system.
Ø The system supporting ACPI or APMII.
Ø ATX motherboard and ATX power supply.
The functions of the power management are specified and performed by Windows 98 operating
system, no vendor-specified driver is needed to use them, but the Windows 98 operating system is
necessary. There could be one or two or three ACPI power management keys on the keyboard, those
functions are as follows.
Power off key: Power down the system.
Sleep key: Put the system to sleep.
Wake up key: Wake up or powers up the system.
Power key: (Single key with three functions above)
Ø Press this key and hold over four seconds to power down the system.
Ø Press this key and release it within four seconds to put the system to sleep.
Ø When the system is asleep or powered down, press this key and release it within four
seconds to wake up or power up the system.
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. (2) This device must accept any
interference received, including interference that may cause undesired operation.
Information to User:
F Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
Shielded interface cable, if any, must be used in order to comply with emission
limits.
IBM AT and PS/2 are registered trademarks of International Business Machines Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
All other trademarks are trademarks of their respective holders.
3100504464
Version 1.0
November 1999
Printed in China
