Behavior Tech Computer KB6300 Keyboard User Manual 6300 E

Behavior Tech Computer Corporation Keyboard 6300 E

Users Manual

6
63
30
00
0
K
KE
EY
YB
BO
OA
AR
RD
D
U
US
SE
ER
R'
'S
S
G
GU
UI
ID
DE
E
This keyboard is fully compatible with IBM PS/2.
System Requirements
Microsoft Windows NT4.0, Windows 95, Windows 98, Windows 2000,Windows
ME or Windows XP operating system.

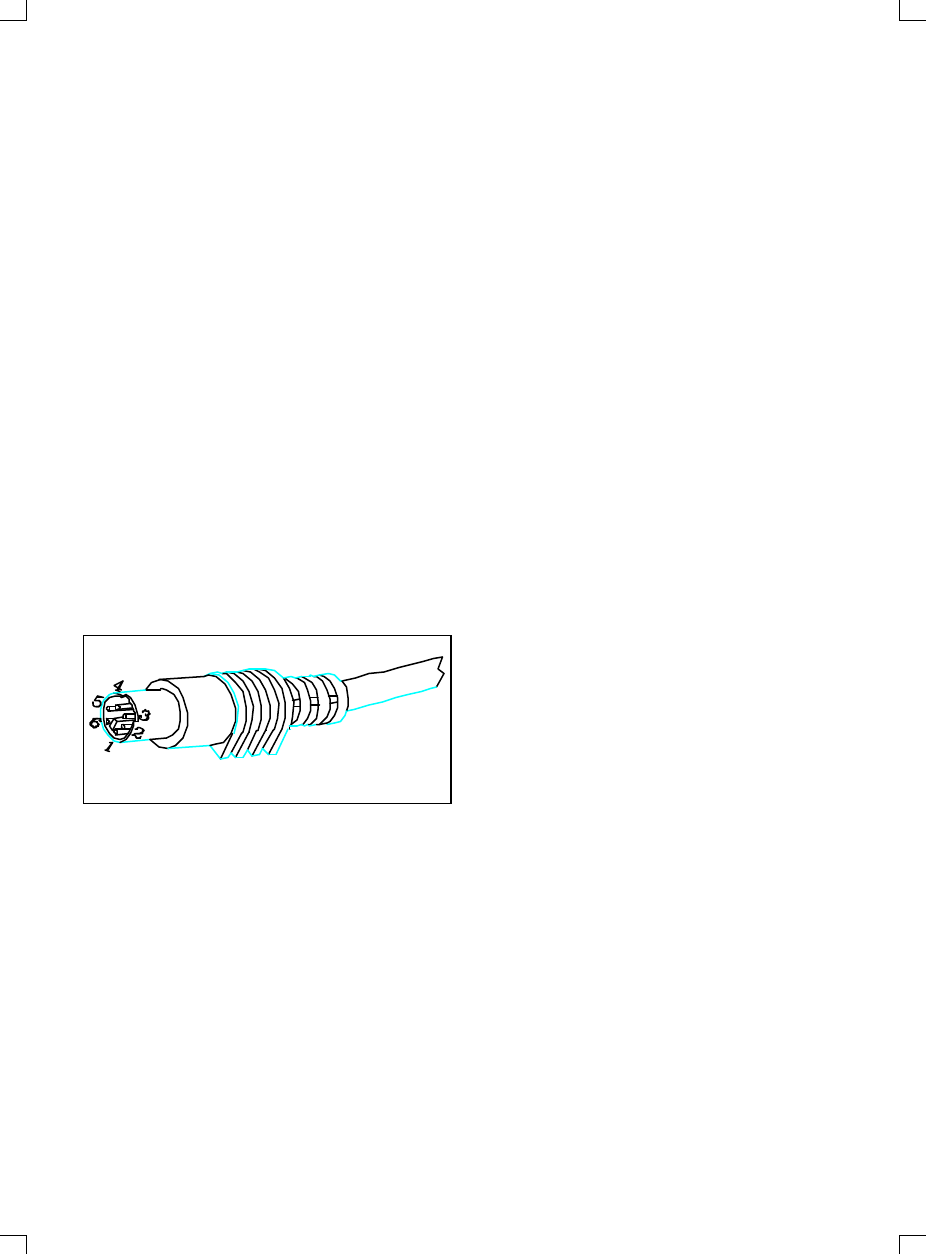

Keyboard Cable Connector
PS/2 Compatible Cable
(6-pin Miniatures Din Connector)
Pin# Signal Name Voltage
1 Keyboard Clock +5VDC Signal
2 Ground 0
3 Keyboard Data +5VDC Signal
4 Reserved 0
5 +5VDC +5VDC
6 Reserved 0
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. (2) This device must accept
any interference received, including interference that may cause undesired operation.
Information to User:
F Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
Shielded interface cable, if any, must be used in order to comply with emission
limits.
IBM AT and PS/2 are registered trademarks of International Business Machines Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
All other trademarks are trademarks of their respective holders.
2004-05-04
Printed in China
