1 Introduction
Congratulations on your purchase of this USB wireless RF keyboard and
mouse! This keyboard and mouse will finally free you of the constraints of
your desktop by providing a wireless connection between your
keyboard/mouse and your PC. Pass around the keyboard or mouse
during meetings without having to bother about a cable blocking your
way or write e-mails and surf the Internet from the comfort of your living
room couch!
This keyboard and mouse kit consists of a keyboard, a mouse and a
receiver. The keyboard and mouse can operate freely within a radius of
at least 3.28 feet (1meter) from the receiver, which itself has a maximum
range from your PC of around 3.28 feet (1meter). The wireless keyboard
contains multimedia keys and three ACPI keys to make you save more
hand-movement and access to Internet much quickly. Because the
keyboard and mouse use radio frequencies to transmit the wireless signal
it has no constrictions on viewing angles such as with infrared devices like
your TV’s remote control, etc.
Besides providing unprecedented freedom of movement when
operating the keyboard or mouse, the kit also offers more extra
functionality by introducing dedicated buttons for often used Internet
browser functions as well as Sleep functions. (Please note: The Internet
keys work only under Microsoft Internet Explorer 5.0 or later version!).
And last but not least, this package also provides a special driver, which
provides unique shortcut functions.
In order to enjoy your keyboard and mouse to their full potential we
recommended you read this manual carefully prior to installation.
What's in this package
A wireless keyboard with palmrest
A wireless mouse
A receiver
A driver disk
A user's guide
2
Batteries (2 pcs of AA , and 2 pcs of AAA alkaline batteries)
3
2 System Requirements
Microsoft Windows 98, Windows ME, Windows 2000 or Windows
XP operating system
Microsoft Internet Explorer 5.0 or later version (for the Internet keys)
Standard sound card (for CD and Video operation)
The system supporting ACPI or APM II (for power management
buttons)
ATX mother board and ATX power supply (for power management
buttons)
Please refer to table below for the other system requirements for the
features.
Operating System
Function Description
Windows 98
Windows ME /
Windows 2000 /
Windows XP
Wireless
Functionality
Available immediately
after hardware
installation
Available immediately
after hardware
installation
Keyboard Extra
Multimedia Buttons
Requires keyboard
driver installation (see
driver disk for details)
Requires keyboard
driver installation (see
driver disk for details)
Keyboard Extra
ACPI Keys
Requires enabling of
system ACPI (Power
Management) function
Available immediately
after hardware
installation
Keyboard Battery
Low Function
Requires installation of
keyboard driver (see
driver disk for details)
Requires installation of
keyboard driver (see
driver disk for details)
Keyboard LED Light
Function
Requires installation of
keyboard driver (see
driver disk for details)
Requires installation of
keyboard driver (see
driver disk for details)
4
Mouse Battery Low
Function
Requires installation of
keyboard driver (see
driver disk for details)
Requires installation of
keyboard driver (see
driver disk for details)
5
3 Hardware Installation
Slide Switch Setting
Step 1: Make sure your PC is switched off.

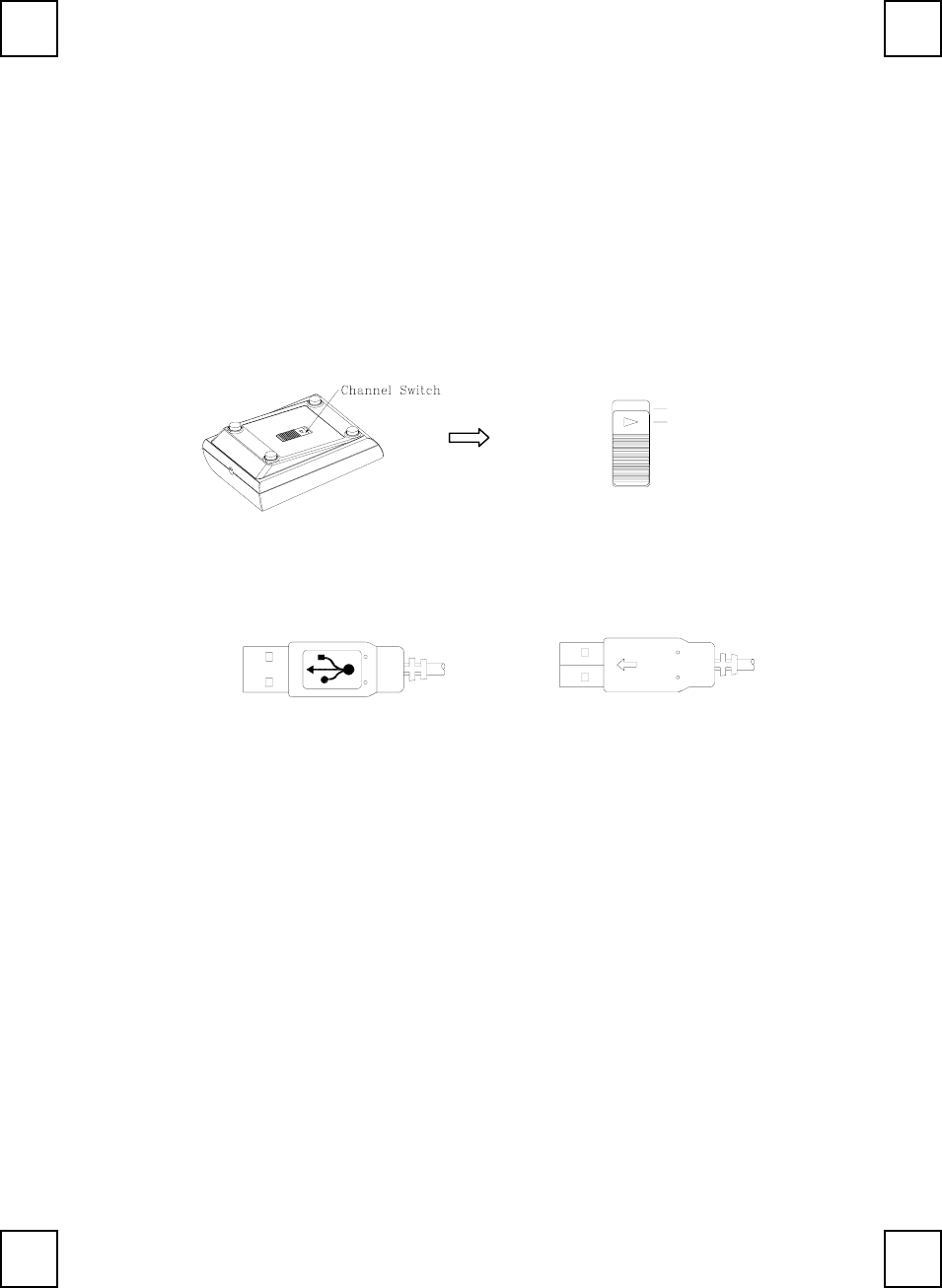

Step 2: Take the receiver and select channel CH1 or CH2 by using the
slide switch on the side of the receiver. (Remember your
selection.)
CH1
CH2
Step 3: Connect the receiver to your PC by plugging in the receiver’s USB
plug into your PC.
Step 4: Take the keyboard and make sure the batteries on the back are
installed correctly. (Follow the polarity signs in the battery
compartment.)
Back View of Receiver Channel Switch of Receiver
Front View of Receiver Plug Back View of Receiver Plug
6
Channel Switch
(-)
Battery 1.5V 2pcs
(+) ID Button
Bottom View of Keyboard
7
Step 5: Use the slide switch in the battery compartment of the keyboard
to select the same channel as the one selected in step 2 on the
receiver.
ID Button
CH1 CH2

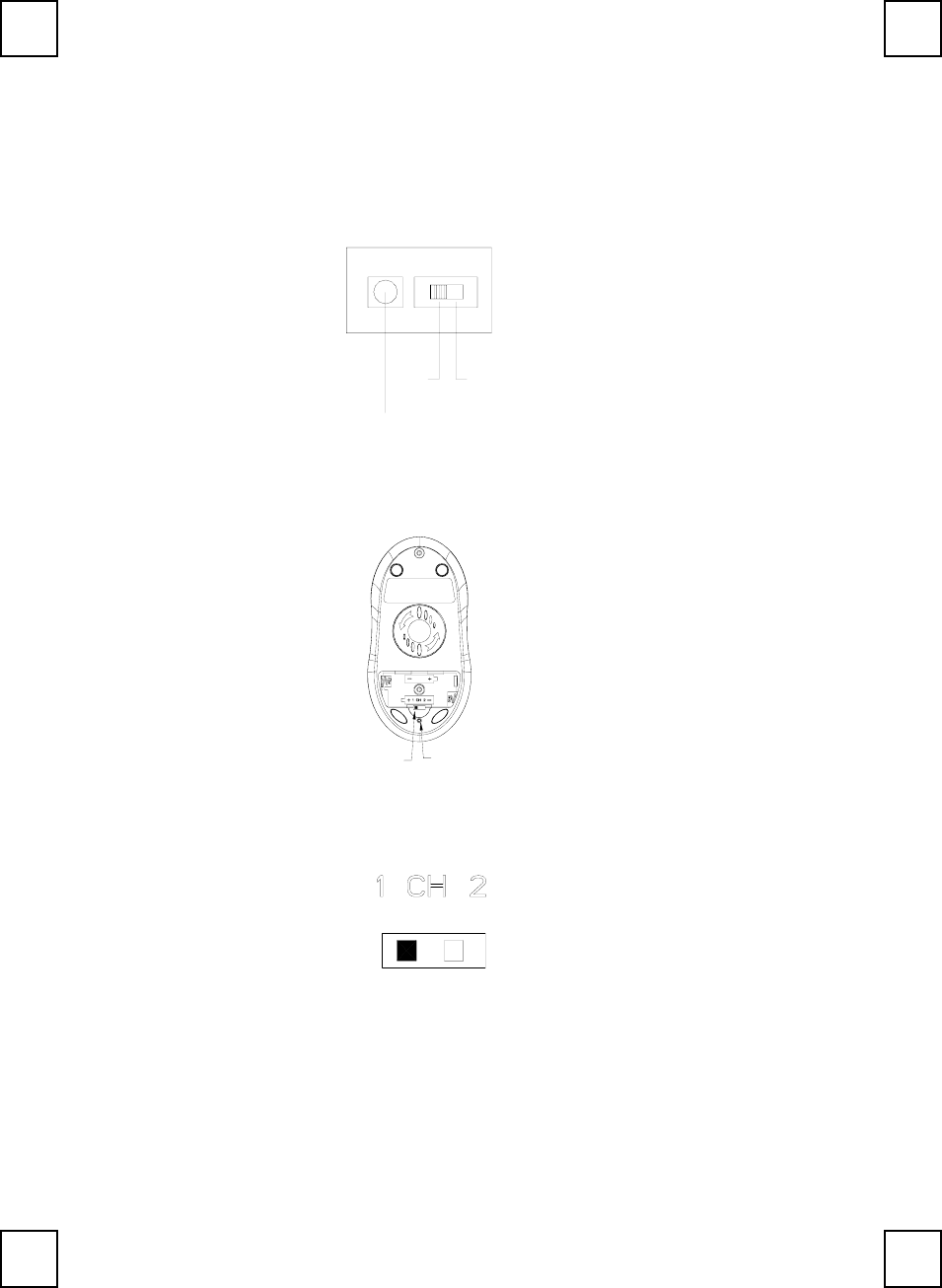

Step 6: Take the mouse and make sure the batteries on the back are
installed correctly. (Follow the polarity signs in the battery
compartment.)
CHANNEL
SWITCH
ID
BUTTON
Step 7: Use the slide switch in the battery compartment of the mouse to
select the same channel as the one selected in step 2 and 5.
(Open the battery cover to find the switch channel setting)
Remarks:
1. Both of the keyboard and mouse use 2pcs.standard UM-3 (AA) 1.5V
alkaline batteries.
2. Battery life is approximately 3-4 months, depending on the intensity of
usage.
Channel Switch & ID Setting of
keyboard
Bottom View of Mouse
Channel Switch of Mouse
8
3. Make sure the receiver is placed in a location where is relatively free of
strong electromagnetic or transmission sources in order to ensure
optimal reception of the keyboard and mouse signal.
9

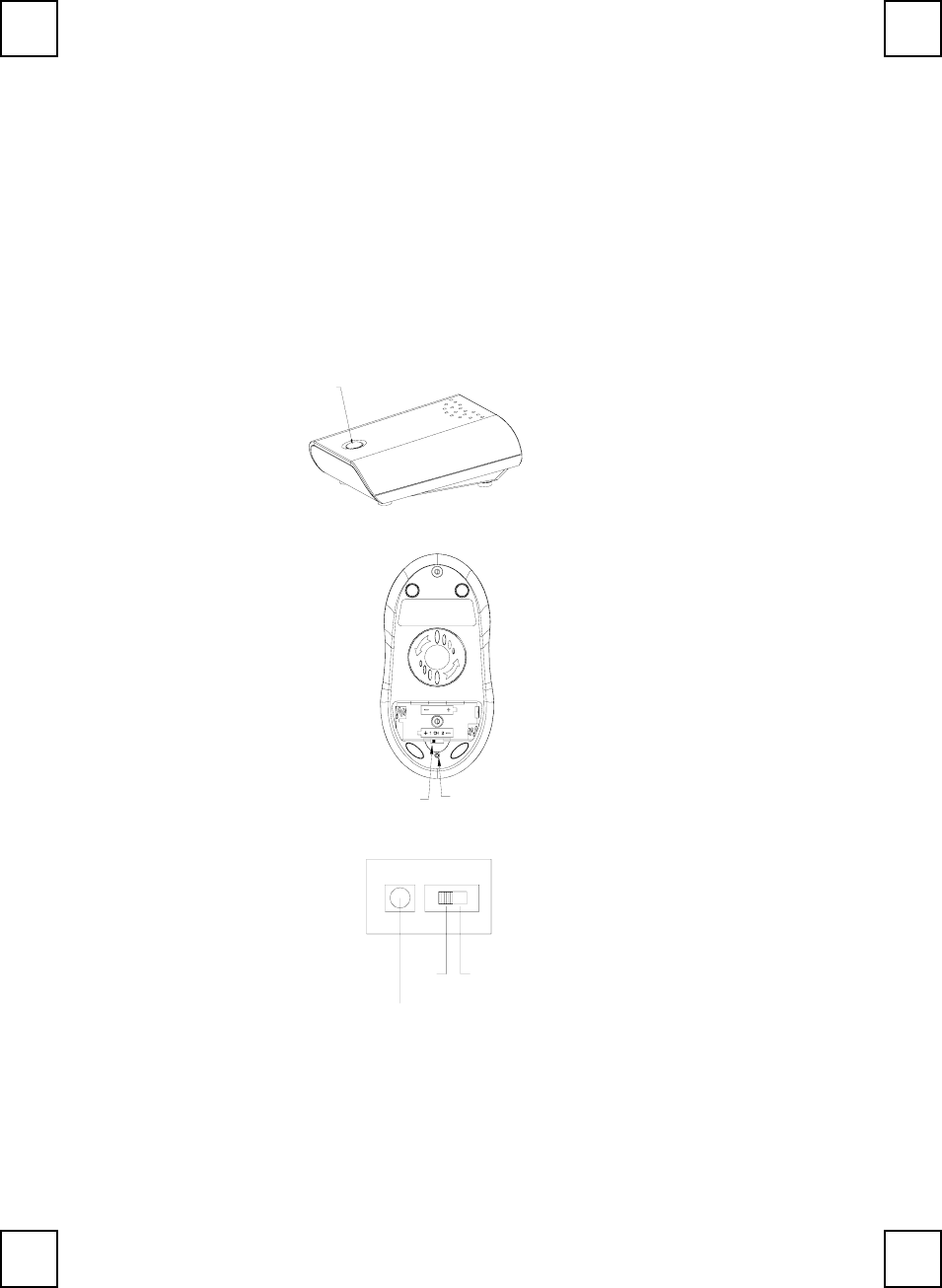

ID Setting
This wireless keyboard kits contains 2 channels, and each channel
contains 256 sets ID. This extra ID-recognition function helps to protect
against interference from other RF keyboards in the same environment.
After completing the hardware installation you must set the ID of the
receiver, mouse and keyboard.
Step 1: Press the ID button on the top of the receiver once.
ID Button
Step 2: Press the ID button on the bottom of the mouse once.
CHANNEL
SWITCH
ID
BUTTON
Step 3: Press the ID button on the bottom of the keyboard once.
ID Button
CH1 CH2
Remarks:
1. You must follow the procedure above to set the ID of receiver, mouse
and keyboard. Once the receiver ID button is pressed you have 30
seconds to complete the entire process, or you will need to begin
ID Button of Receiver
ID Button of Mouse
ID Button of Keyboard
10
again.
11
2. Once the keyboard and receiver are plugged in, the yellow receiver
light will flash. Once the ID is set, it will remain steadily lit..
3. When changing the batteries of keyboard or mouse, there is no need
to reset all the ID’s. Simply reset one of them.
4. When keyboard batteries are low, a battery low icon will show on
the right-bottom corner of the Windows task bar.
5. When mouse batteries are low, a battery low icon will show on the
right-bottom corner of the Windows task bar
6. The wireless mouse is designed to conserve battery life and will enter
a power saving “Sleep” mode if it is inactive for 20 minutes. Click a
button on the mouse to wake it up. Move the mouse does not wake it
up.

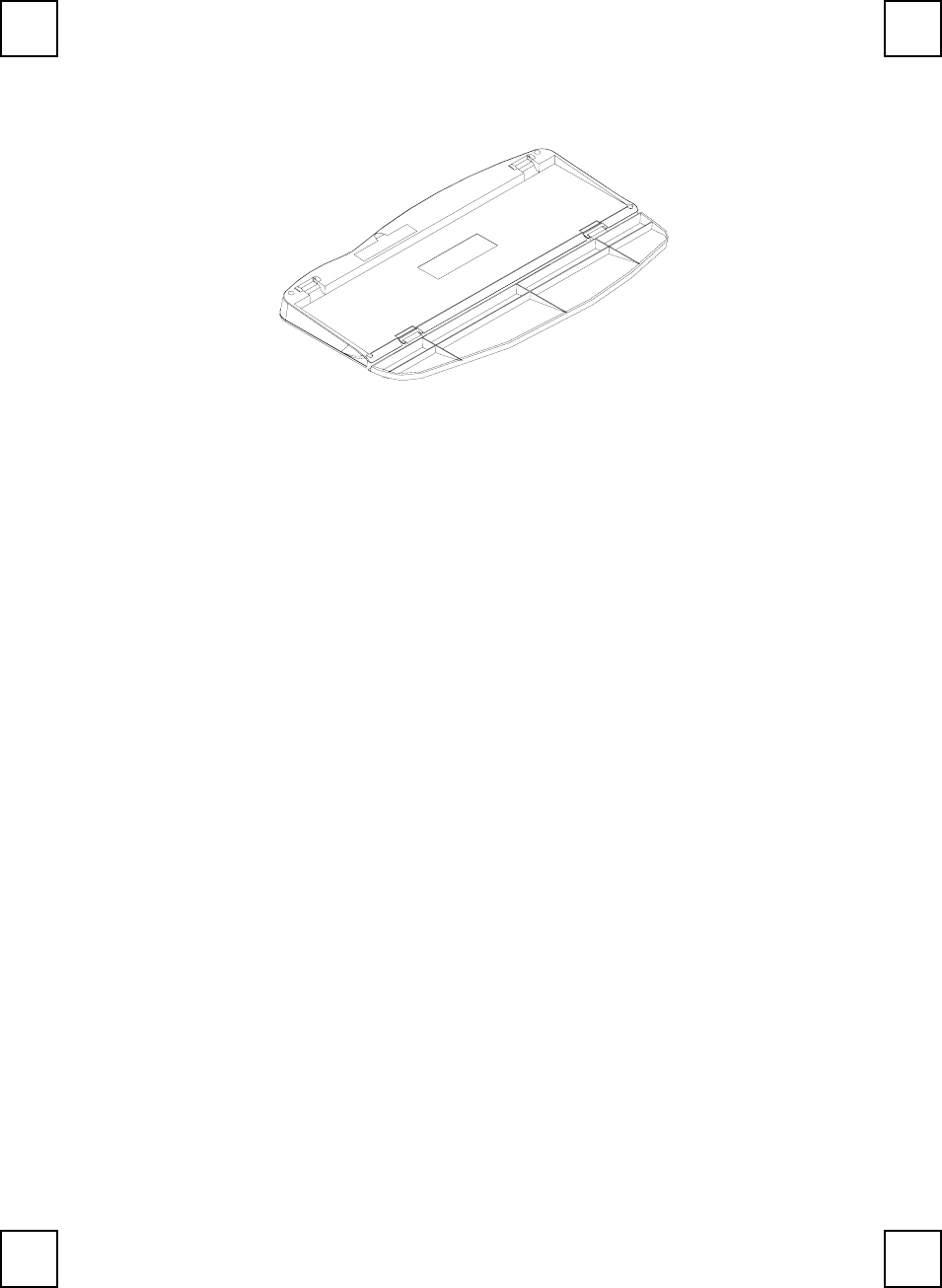

Detachable Palmrest
At your discretion, you may choose to connect the palmrest with
keyboard.

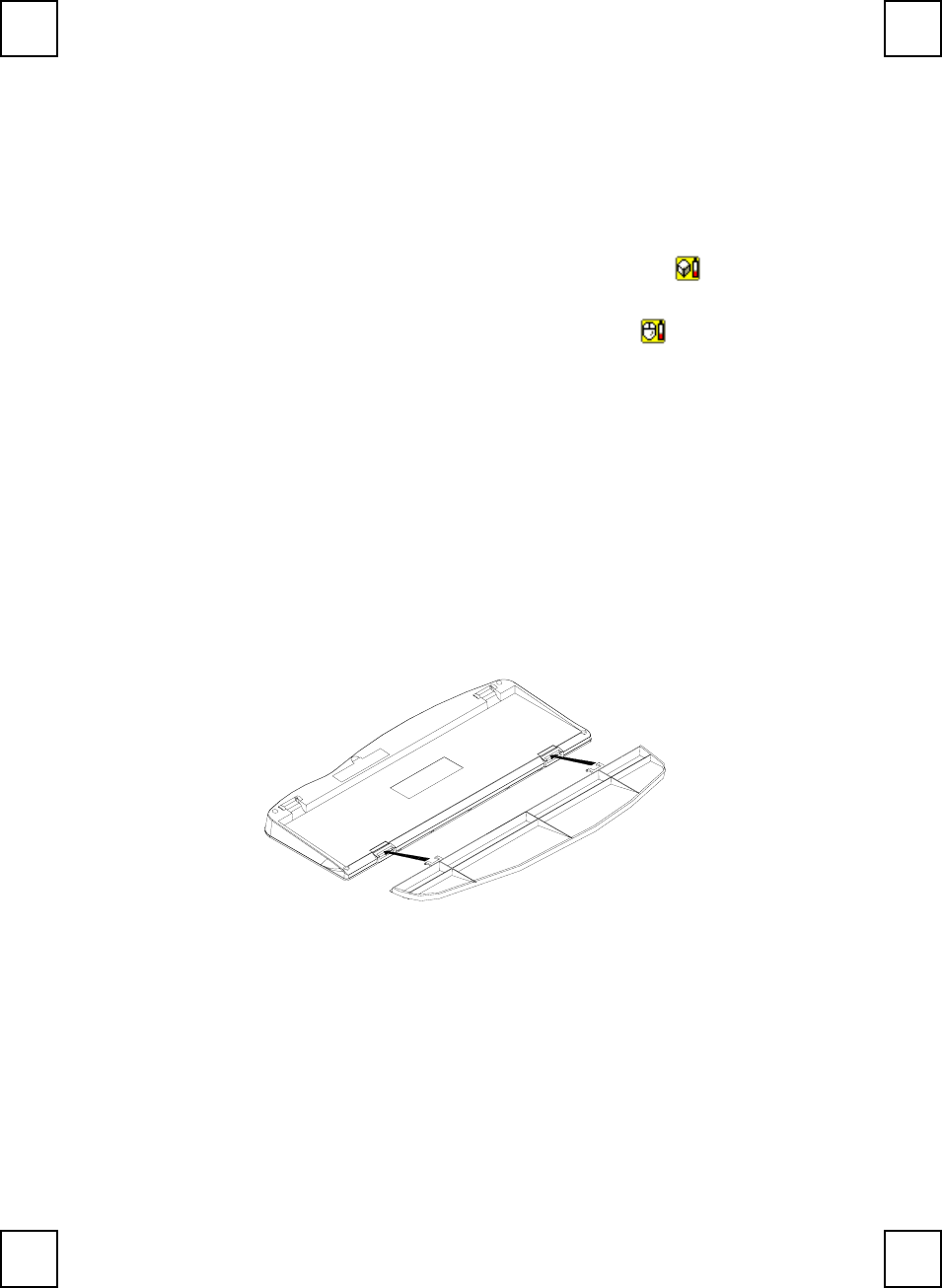

To connect the palmrest with the keyboard please follow figure 1 & figure
2.
Figure 1
12
Figure 2
13
4 Software Installation
After finishing the hardware installation as described in this manual and
starting up your PC, you should be able to immediately take advantage
of the wireless function of the wireless keyboard and mouse. If the
keyboard and mouse are not working properly, see Chapter 6
Troubleshooting for tips on how to solve your problem.
4.1 Keyboard Driver Installation
If your operating system is Windows ME, Windows 2000 or
Windows XP, you can immediately take advantage of the
extra function buttons on the keyboard (except “Battery Low” and
“LED Light” functions). But, if your operating system is Windows 98,
you will have to install the keyboard driver software to take
advantage of these functions. The keyboard driver program is
located on the driver disk included in the box.
1. Remove any existing keyboard software from the computer.
2. Insert the driver disk in your computers and run "SetupKey.exe".
3. Follow the on screen instructions to finish the installation
procedure. The driver by default will be installed at
C:\Program Files\KMaestro.
14
5 Using the Keyboard and Mouse
5.1 Using the Keyboard
Besides the usual keys, this keyboard also has extra-dedicated keys,
which provide the following ACPI, multimedia and Internet
functionality:

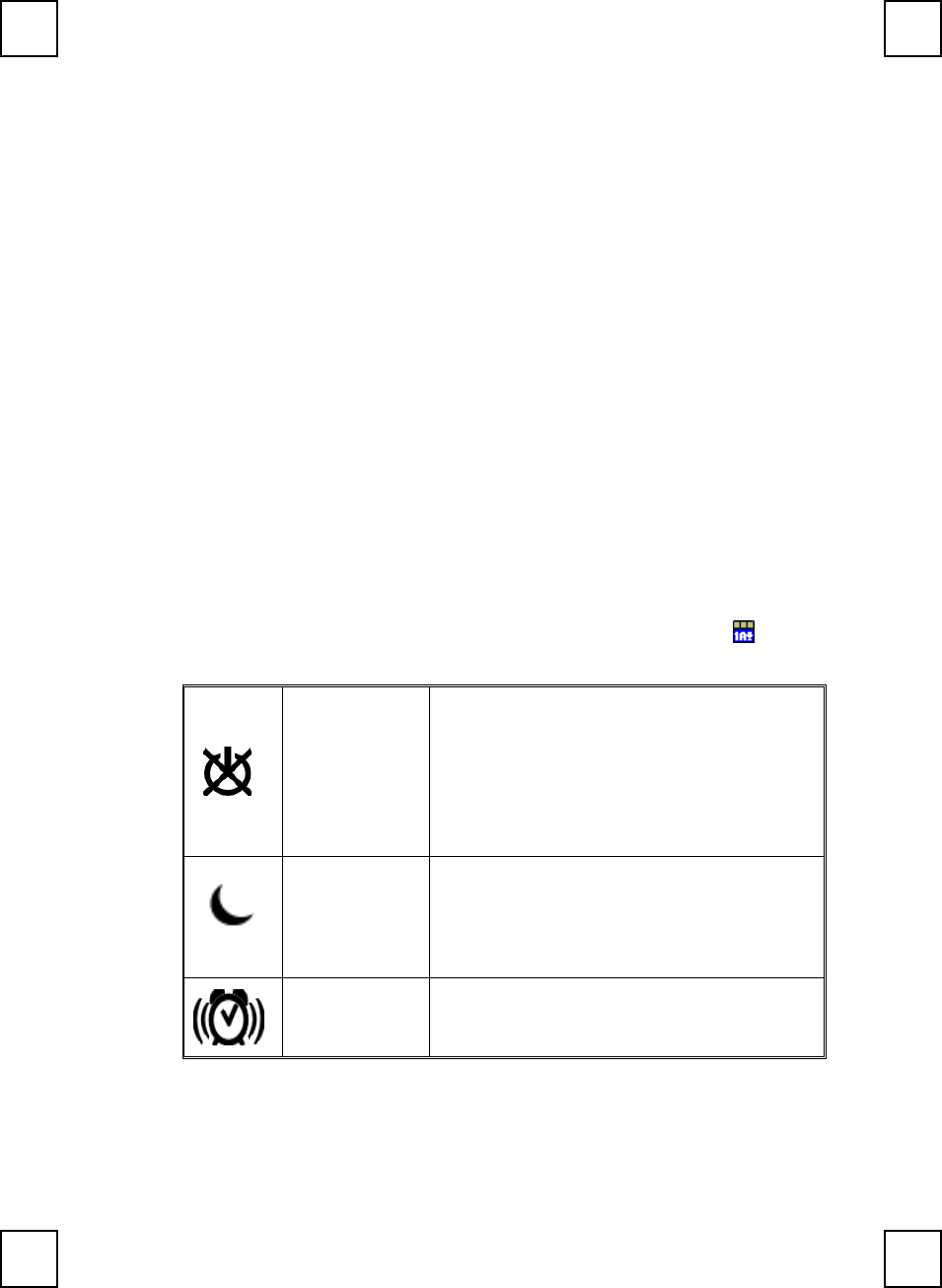

z ACPI Keys:
Your keyboard has the power management keys that are Power
off, Sleep, and Wake up three keys. They are also can be called
ACPI (Advanced Configuration and Power Interface) keys.
As these ACPI keys are performed not completely under Windows
98; the KeyMaestro driver provides an option to enable the ACPI
keys. When the option is enabled, the driver will take Windows'
place to process these keys.
Note: For detailed information, please read the online help by right
clicking the mouse on the KeyMaestro Keyboard icon in the
Windows task bar and selecting Help.
Power Off
Close the operating system and powers
down the system.
P.S: Although this key is a standard key
under Windows 98, Windows 98
processes it as a Sleep key.
Sleep
Put your system to sleep (power-saving)
mode. Any key will wake up your
system and return to the previous
working status.
Wake Up Wake up your system and returns to the
previous working status.
15

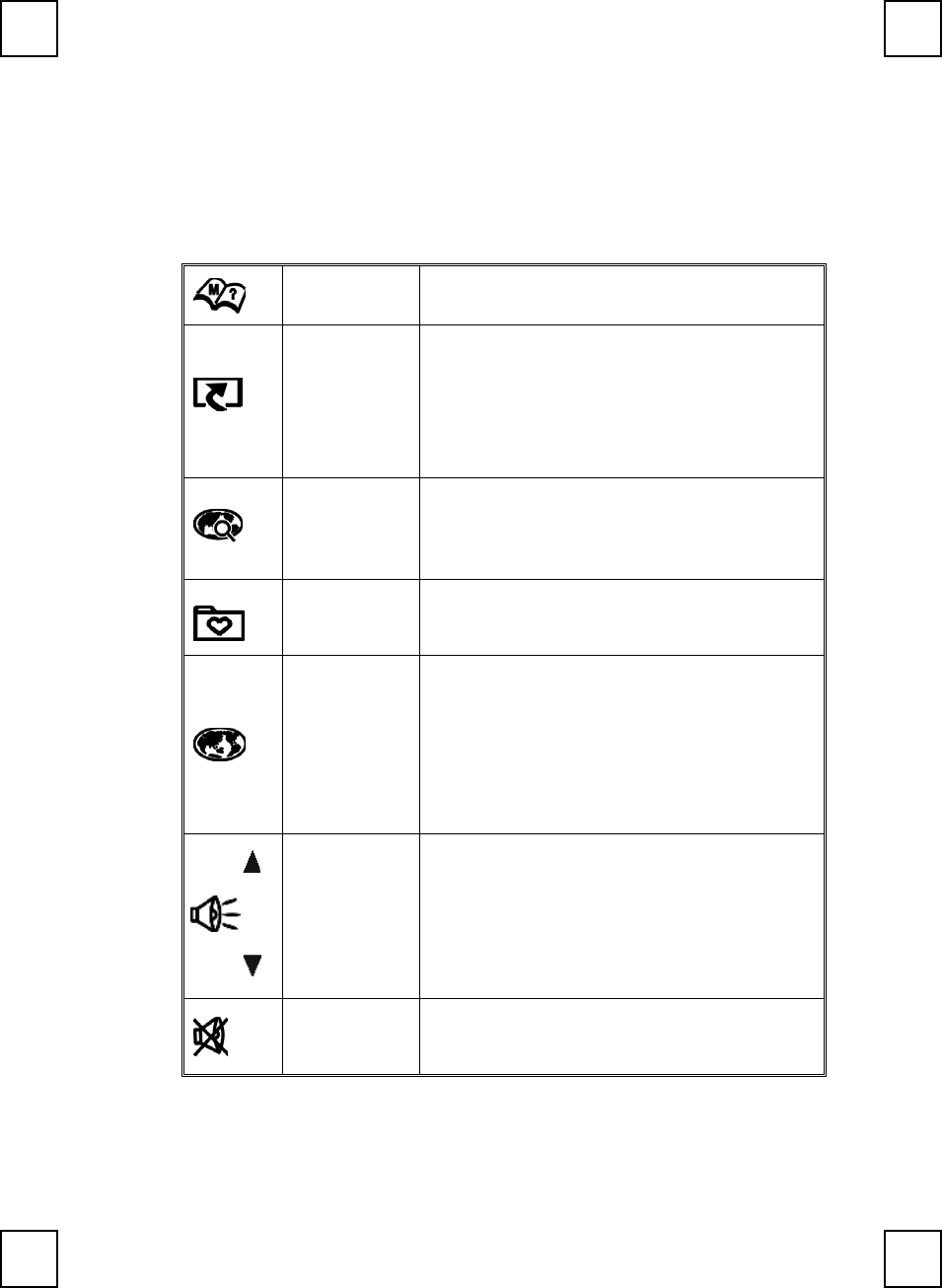

z Multimedia Keys
There is a row of multimedia keys on the top of keyboard. The
functions are described as below:
Help Display the help file on the screen.
Shortcut
Provide you to create an easy access to
the documents and programs you use
most often. The default setting for
Shortcut button is to launch Windows
accessory program “Notepad”.
WWW
Search
Launch to your Internet Browser
application and go to the Search Engine
web site.
Favorites
Folder
Open My Favorite folder for you to select
your favorite web site.
WWW
Home
Launch to your Internet Browser
application which should be pre-
installed. If you have installed two
browsers in your system, the system
default one will be opened. Mostly the
system default is the later installed one.
Volume
Control
Control the volume to up or down of
your audio output to the speakers.
Mute Mute the sound output. Repress this
button to resume.
16
Play/Pause
When the CD or Video is playing, press
this button to pause it, and press the
button again to resume it from the
current position.
17
Stop Stop the playing.
Previous Skip backward to the previous file/track.
Next Skip forward to the next file/trac.
Eject Eject/ load the CD tray.
5.2 Using the Mouse
After plugging the receiver in your computer and setting the mouse
ID as described in chapter 3- Hardware Installation, you can take
advantage of this wireless mouse immediately when you start up
the computer.
18
6 Troubleshooting
If you are experiencing problems with your keyboard or mouse please
check the following:
1. Take out the receiver’s connector and check the receiver’s plug for
possible broken pins. If the plugs appear normal then reinsert the
plugs on your PC.
2. Check to see if the batteries in the keyboard and mouse are installed
correctly. Make sure the polarity of the batteries corresponds with the
polarity signs in the battery compartment.
3. Replace the batteries to make sure the batteries are not low in
power. After replacing the batteries of keyboard or mouse, please
also remember to set the ID. There is no need to reset all the ID’s.
Simply reset one of them.
4. Please remember to set the ID when your keyboard kits do not work
properly.
5. It is strongly recommended to place the receiver in front of the
monitor in order to prevent signal disturbance from the monitor.
6. If your PC system’s BIOS setup has options for the keyboard or mouse,
make sure they are set to default settings. If you are not familiar with
the BIOS, refer to your PC’s manual for more information.
7. If you have problems using the sleep button, make sure that the
power management in your PC has been enabled both in the BIOS
and in Windows. For more information on your PC’s BIOS settings,
please refer to your PC’s manual. For more information on how to
enable the power management features in Windows, refer to your
Windows manual.
8. Use the mouse only on a clean, flat, non-slippery surface in order to
ensure smooth and accurate cursor action. If you use a mouse-pad,
choose a light-colored one, not a dark one.
9. Keep all items away from direct sunlight, moisture, dirt, extreme heat
and abrasive chemical (cleaning) solutions.
10. Should the receiver, the keyboard or mouse become accidentally
immersed or splashed by liquids, switch off your PC immediately,
unplug all items and refer to your dealer for further assistance. In
19
these cases please refrain from using any of the items before
consulting with your dealer!
If above troubleshooting suggestions still do not solve your problem then
please refer to your direct dealer for technical support.
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulation.
Cet appareil numerique de la class B respecte toutes les exigences du Règlement sur le materiel
brouilleur du Canada.
Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment. Shielded interface cable, if any, must
be used in order to comply with emission limits.
封底內頁
3100505100
Version 1.0
October 2002
Printed in China
封底
