Behavior Tech Computer KBMX2120 KEYBOARD User Manual Manual
Behavior Tech Computer Corporation KEYBOARD Manual
Exhibit 7 The user manual of EUT
9
90
00
05
5
K
KE
EY
YB
BO
OA
AR
RD
D
U
US
SE
ER
R'
'S
S
G
GU
UI
ID
DE
E
This keyboard is fully compatible with IBM AT and PS/2.

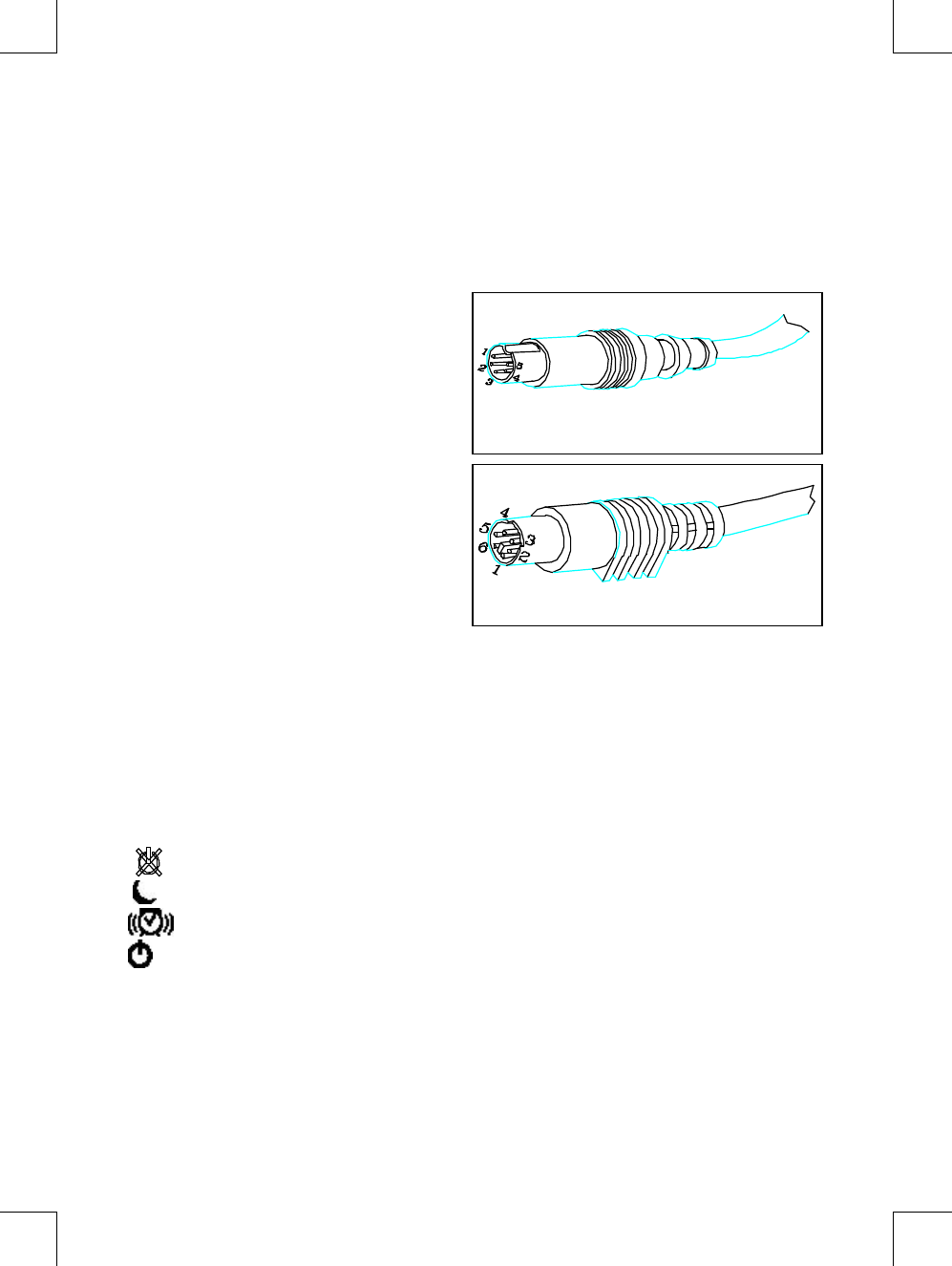

Keyboard Cable Connector
AT Compatible Cable
(5-pin Din Connector)
Pin# Signal Name Voltage
1Keyboard Clock +5VDC Signal
2Ground 0
3Keyboard Data +5VDC Signal
4Power Supply +5VDC
5No Connection
PS/2 Compatible Cable
(6-pin Miniatures Din Connector)
Pin# Signal Name Voltage
1Keyboard Clock +5VDC Signal
2Ground 0
3Keyboard Data +5VDC Signal
4Reserved 0
5+5VDC +5VDC
6Reserved 0
The ACPI Power Management Keys and Their Functions
System requirement:
Ø Microsoft Windows 98 operating system.
Ø The system supporting ACPI or APMII.
Ø ATX motherboard and ATX power supply.
The functions of the power management are specified and performed by Windows 98 operating system,
no vendor-specified driver is needed to use them, but the Windows 98 operating system is necessary.
There could be one or two or three ACPI power management keys on the keyboard, those functions are
as follows.
Power off key: Power down the system.
Sleep key: Put the system to sleep.
Wake up key: Wake up or powers up the system.
Power key: (Single key with three functions above)
Ø Press this key and hold over four seconds to power down the system.
Ø Press this key and release it within four seconds to put the system to sleep.
Ø When the system is asleep or powered down, press this key and release it within four
seconds to wake up or power up the system.
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
♦ Reorient or relocate the receiving antenna
♦ Increase the separation between the equipment and receiver
♦ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
♦ Consult the dealer or an experienced radio/TV technician for help.
♦ Use only shielded cables to connect I/O devices to this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference. (2) This device must
accept any interference received, including interference that may cause undesired
operation.
Information to User:
F Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment. Shielded interface cable, if any, must be used in order to comply
with emission limits.
IBM AT and PS/2 are registered trademarks of International Business Machines Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
All other trademarks are trademarks of their respective holders.
3100504464
Version 1.0
November 1999
Printed in
China
