1 Introduction
Congratulations on your purchase of the 2001ARF wireless keyboard and
mouse kit! This keyboard and mouse kit will finally free you of the constraints of
your desktop by providing a wireless connection between the keyboard or
mouse and your PC. Pass around the keyboard or mouse during meetings
without having to bother about a cable blocking your way or write e-mails and
surf the Internet from the comfort of your living room couch!
The 2001ARF keyboard and mouse kit consists of a keyboard, a mouse and a
receiver. The receiver is connected to your PC through a cable with both a
keyboard and mouse connector. The keyboard and mouse can operate freely
within a radius of at least 1.5 meters from the receiver, which itself has a
maximum range from your PC of around 1.5 meters. Because the 2001ARF kit
uses radio frequencies to transmit the wireless signal it has no constrictions on
viewing angles such as with infrared devices like your TV’s remote control, etc.
Besides providing unprecedented freedom of movement when operating the
keyboard or mouse, the 2001ARF kit also offers even more extra functionality
by introducing 7 dedicated buttons for often used Internet browser functions as
well as a Sleep button. (Please note: The Internet keys work only under
Microsoft Internet Explorer 5.0 or later version!). And last but not least, this
package also provides a special driver that provides unique shortcut functions.
In order to enjoy your 2001ARF kit to the fullest it is recommended that you first
read this manual carefully before installation of the 2001ARF keyboard and
mouse kit.
What's in this package
A wireless keyboard with palmrest
A wireless mouse
A receiver
A driver disc
A user's guide
Batteries (2 pcs of AA; 2 pcs of AAA)
2
2 System Requirements
Microsoft Windows NT 4.0, Windows 95, Windows 98, Windows
ME, Windows 2000 or Windows XP operating system
CD-ROM drive or DVD drive
Microsoft Internet Explorer 5.0 or later version (for the Internet keys)
The system supporting ACPI or APM II (for power management buttons)
ATX mother board and ATX power supply (for power management buttons)
Available PS/2 keyboard port and mouse port.
IBM PC or its compatibles
Please refer to below table for the other system requirements for the 2001ARF’s
various features.
Operating System
Function Description Windows NT 4.0 /
Windows 95 /
Windows 98
Windows ME /
Windows 2000 /
Windows XP
Wireless
Functionality
Available immediately
after hardware
installation
Available immediately
after hardware installation
Keyboard Extra
Internet Buttons
Requires installation of
keyboard driver (see
driver CD for details)
Available immediately
after hardware installation
Keyboard Extra ACPI
Keys
Requires enabling of
system ACPI (Power
Management) function
Available immediately
after hardware installation
Mouse Driver
Shortcut Function
Requires installation of
mouse driver (see driver
CD for details)
Requires installation of
mouse driver (see driver
CD for details)
Keyboard Battery
Low Function
Requires installation of
keyboard driver (see
driver CD for details)
Requires installation of
keyboard driver (see
driver CD for details)
Keyboard LED Light
Function
Requires installation of
keyboard driver (see
driver CD for details)
Requires installation of
keyboard driver (see
driver CD for details)
3
3 Hardware Installation
Step 1: Make sure your PC is switched off.
Step 2: Connect the receiver to your PC by plugging in the receiver’s green
connector into the mouse port of your PC and the purple connector into
the keyboard.
Step 3: Take the keyboard and make sure the batteries on the back are installed
correctly. (Follow the polarity signs in the battery compartment.)
ID Button
1.5V 2pcs
Step 4: Take the mouse and make sure the batteries on the back are installed
correctly. (Follow the polarity signs in the battery compartment.)
ID Button
Remarks:
1. The keyboard uses 2pcs. standard UM-3 (AA) 1.5V batteries, and the mouse
uses 2pcs. UM-4 (AAA) 1.5V batteries.
2. Battery life is approximately 3-4 months, depending on the intensity of usage.
Mouse Connector Keyboard Connector
Bottom View of Keyboard
Bottom View of Mouse
4
3. Make sure the receiver is placed in a location where is relatively free of
strong electromagnetic or transmission sources in order to ensure optimal
reception of the keyboard and mouse signal.
ID Setting
Each channel contains 256 sets ID. This extra ID-recognition function helps to
protect against interference from other RF keyboards in the same environment.
After completing the hardware installation you must set the ID of the
receiver, mouse and keyboard.
Step 1: Press the ID button on the side of the receiver once.
ID Button
Step 2: Press the ID button on the bottom of the mouse once.
ID Button
Step 3: Press the ID button on the bottom of the keyboard once.
ID Button
1.5V 2pcs
ID Button of Receiver
ID Button of Mouse
5
Remarks:
1. You must follow the procedure above to set the ID of receiver, mouse and
keyboard. Once the receiver ID button is pressed you have 35 seconds to
complete the entire process, or you will need to begin again.
2. Once the keyboard and receiver are plugged in, the yellow receiver light will
flash. Once the ID is set, it will remain steadily lit..
3. When changing the batteries of keyboard or mouse, there is no need to
reset all the ID’s. Simply reset one of them.
4. When the keyboard batteries are low, a battery low icon will show on the
right-bottom corner of the Windows task bar instead of the KeyMaestro
driver icon .
Detachable Palmrest
At your discretion, you may choose to connect the palmrest with keyboard.

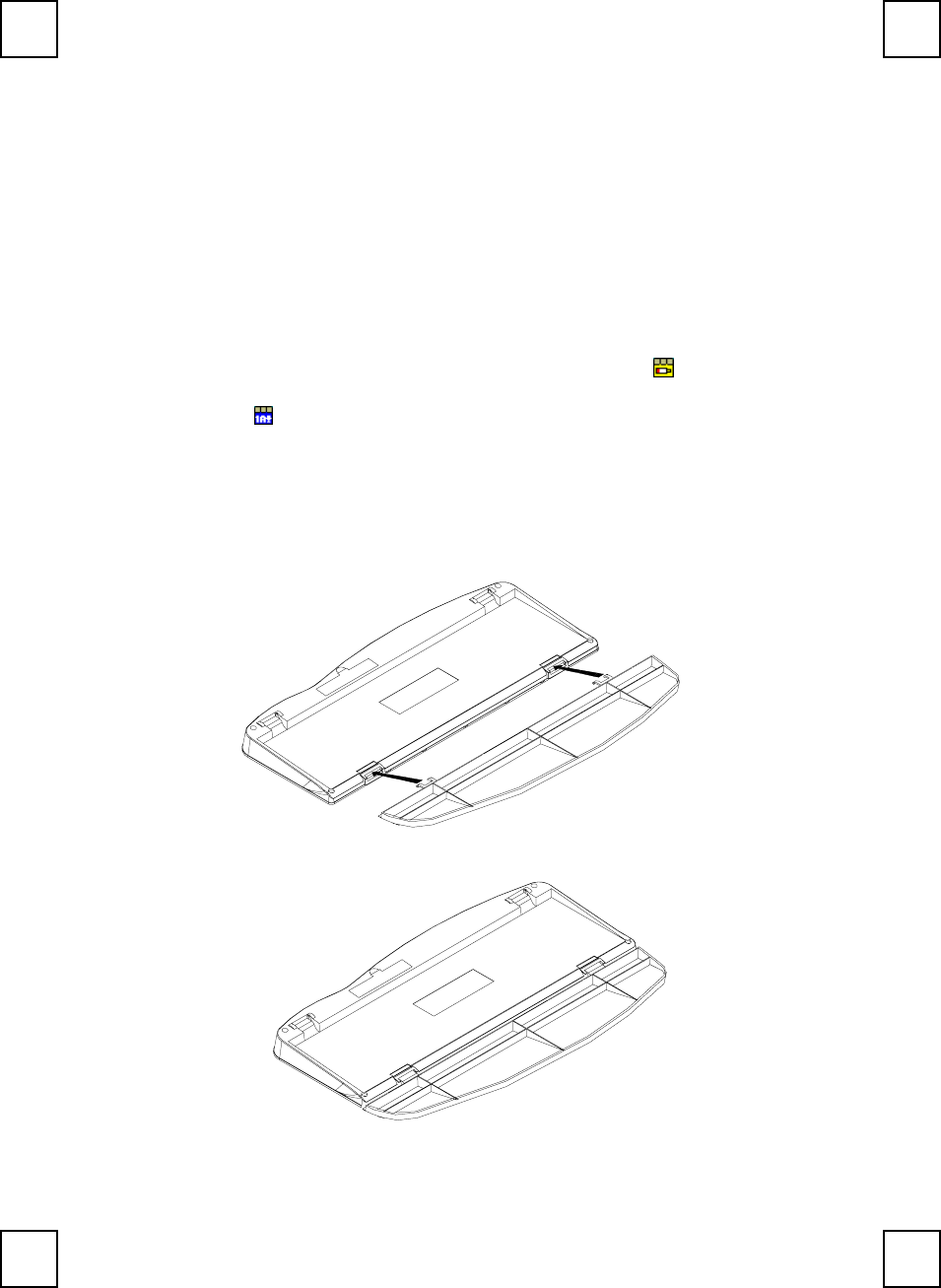

To connect the palmrest with the keyboard please follow figure 1 & figure 2.
Figure 1
Figure 2
6
4 Software Installation
After finishing the hardware installation as described above and starting up your
PC, you should be able to immediately take advantage of the wireless function
of the 2001ARF wireless keyboard and mouse kit. If the keyboard and mouse
are not working properly, then please check Chapter 6 Troubleshooting for tips
on how to solve your problem.
4.1 Keyboard Driver Installation
If your operating system is Windows ME, Windows 2000 or
Windows XP, you can immediately take advantage of the extra
function buttons on the keyboard (except ‘Battery Low’ and ‘LED Light’
functions). But, if your operating system is Windows NT 4.0, Windows 95
or Windows 98, you will have to install the keyboard driver software to
take advantage of these functions. The keyboard driver program is
located on the driver CD included in the box.
1. Insert the driver CD into your computers CD-ROM drive.
2. Run the setup.exe in the \keyboard-driver directory of the driver CD.
3. Follow the onscreen instructions to finish the installation procedure.
4. For detailed information on how to install the driver, please refer to
the readme.htm file.
4.2 Mouse Driver Installation
In order to take advantage of the special shortcut button
functionality of the mouse, you will have to install the mouse driver
which is located on the driver CD included in the box.
1. Make sure the driver CD is in your computers CD-ROM drive.
2. Run the setup.exe in the \mouse-driver directory of the driver disk.
3. Follow the on screen instructions to finish the installation procedure.
4. For detailed information, please refer to the readme.htm file.
7
5 Using Keyboard and Mouse
5.1 Using the Keyboard
Besides the usual keys, this keyboard also has extra-dedicated keys,
which provide the following ACPI and Internet functionality:
Please note:
In order to use these keys under Windows 95, Windows
98 or Windows NT 4.0 it is necessary to have the KeyMaestro keyboard
driver installed. Please refer to Chapter 4 for more information.
Sleep
puts your system to sleep (power-saving)
mode. Any key will wake up your system
and return to the previous working status.
P.S: Windows NT 4.0 does not support
Sleep function. This key will be processed
as Power Off by KeyMaestro driver if the
option is enabled.
Back returns to the last page you viewed.
Forward views the next page you viewed before.
Stop If a page you are trying to view is taking too
long to open, click this button to stop.
Search opens the internet search menu.
Web/Home opens the default Internet browser.
Favorites opens the Internet “My Favorite” folder.
E-mail
opens the default program you use for mail.
You may select Tools→Internet→Options→
Programs→Email to change the default
settings of Internet Explorer.
For detailed information about the driver, please read the online help by
clicking the KeyMaestro Keyboard icon and selecting Help.
8
5.2 Using the Mouse Driver
After installing the mouse driver as described in Chapter 4 you will be
able to startup the Mouse Control Panel by right clicking on the
KeyMaestro Mouse icon in the Windows task bar. This
should appear after restarting your machine. You can also invoke the
Mouse Control Panel by choosing Start→Programs→KeyMaestro Mouse
→KeyMaestro Mouse.

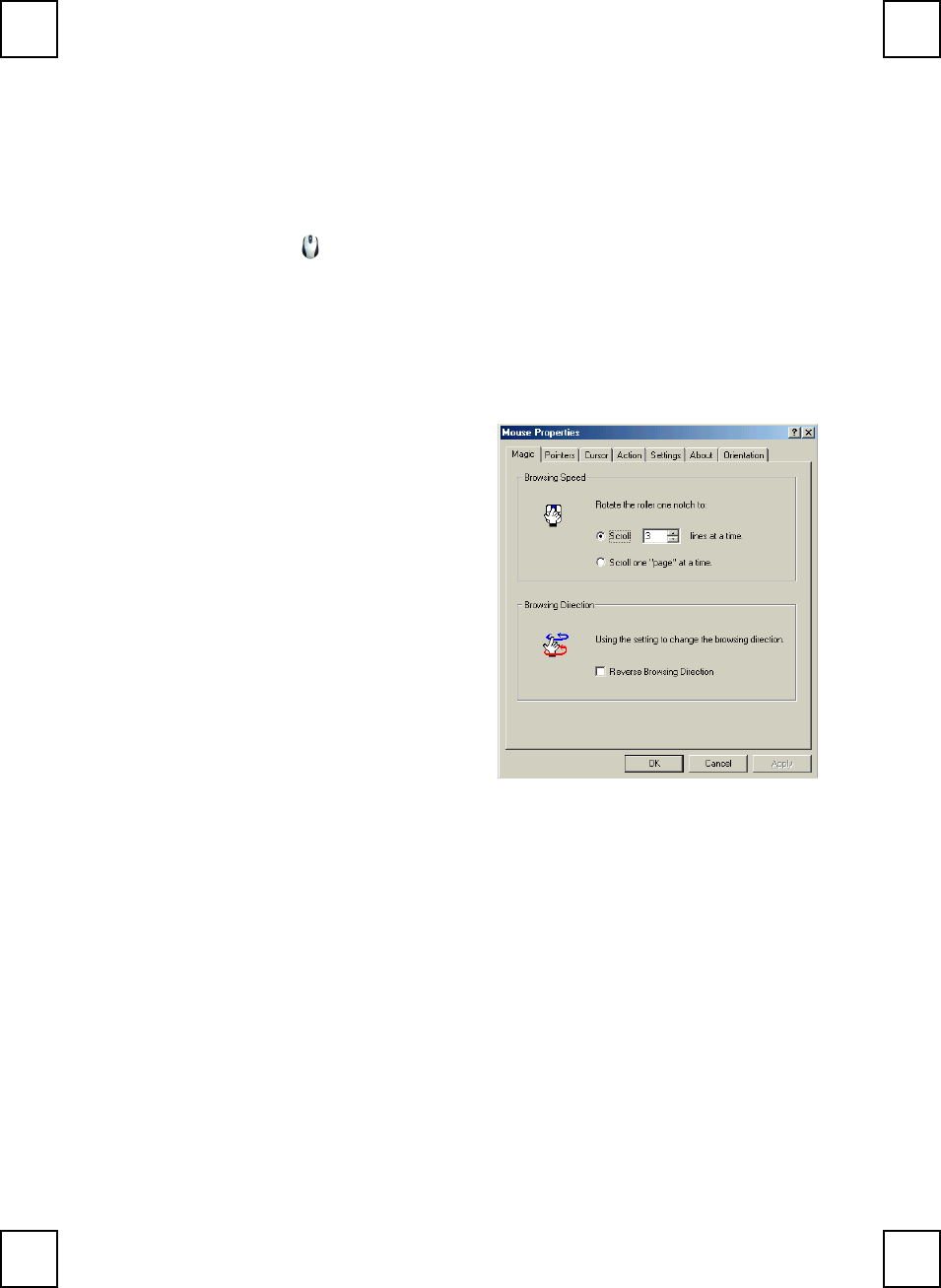

The Mouse Control Panel (KeyMaestro Mouse Properties) window
consist of the following folders:
Magic folder:
allows you to change the
browsing speed and the
direction of the browsing
button.
Pointers folder:
allows you to choose your
favorite pointer shape.
Cursor folder:
select the special cursor
functions such as trails for
your cursor or loop
function.
Action folder:
re-define the mouse keys function and speed.
Settings folder:
re-assign mouse button shortcuts and/or toggle Office 97 mouse
mode on/off.
About folder:
shows the current driver version information.
Orientation folder:
allows you to setup the angle of the mouse when moving upwards.
9
The Definition of Mouse Extra Function:
Function Definition
Quick Jump
Let you to open 8 special functions quickly. For the
detailed, please refer to the ”Quick Jump Function
Introduction” in next section.
Double Click
Replace the "double click" movement to activate an
application or function, it can save the valuable mouse-
clicks.
Window Zoom
To magnify or de-magnify the data view of a document i
n
an application that supports it. (this function is workabl
e
when the application you used is with the ctrl + wheel
scrolling function, ie, Word, Excel, PowerPoint and
FrontPage ...)
Switch AP
Switch quickly from one opened application to the othe
r
applications without extra cursor move. Press the
“Switch AP” button you set and scroll the wheel button t
o
switch the applications.
Auto Panning Move the cursor and then the document will scroll slowl
y
in the direction you just moved.
WWW Back Return to the last page you viewed.
WWW Forward View the next page you viewed before.
Quick Jump Function Introduction
Also, after installing the mouse driver and invoking the
KeyMaestro mouse driver program you will have access to 9
special function icons by pressing the scroll wheel once. These 9
functions are:
Mouse Control Panel
A
ctivate the Mouse Control Panel Menu.
Control Panel
A
ctivate the “Control Panel” window.
Horizontal Scroll Bar
Set the cursor to the horizontal scroll ba
r
to scroll the document horizontally. (the
function does not support Windows XP)
10
Vertical Scroll Bar
Set the cursor to the vertical scroll bar t
o
scroll the document vertically. (the
function does not support Windows XP)
Windows Explorer
A
ctivate the 'Windows Explorer' window.
Size Grip
A
djust the frame size of the windows yo
u
o
pened (the function does not support
f
ull screen. The function is also not
performed when the frame of
a
pplications are not adjustable).
Minimize All Windows
Allow you to minimize all the current
opened applications immediately (this
function is only performed when the
applications are with the minimize
function)
Recall the Last Active
Window Recall the last active window.
Exit Exit the quick jump function panel.
Clicking once more on the scroll wheel will close these icons.
Note: For more detailed information please read the online help by right
clicking on the KeyMaestro Mouse icon in the Windows task
bar and select Help.
11
6 Troubleshooting
When the keyboard or the mouse doesn't work properly, please check the
following:
1. Take out the receiver’s connector and check both the receiver’s mouse and
keyboard plug for possible broken pins. If the plugs appear normal then
reinsert the plugs into their respective connectors on your PC.
2. Make sure the mouse plug is inserted in the mouse connector on your PC
and the keyboard plug is inserted into the keyboard connector on your PC.
Compare the icons on both the cable and backside of your PC if necessary.
3. Check that if the batteries in the keyboard and mouse are installed
correctly. Make sure the polarity of the batteries corresponds with the
polarity signs in the battery compartment.
4. Replace the batteries to make sure the batteries are not low in power.
5. Check to see if the channel switch for the receiver, keyboard and mouse
are set to the same channel. Try the alternate channel for the receiver,
keyboard and mouse in case the initially selected channel appears to work
improperly, other devices in the vicinity of the receiver may cause
interference.
6. It is strongly recommended to place the receiver in front of the monitor in
order to prevent signal disturbance from the monitor.
7. If your PC system’s BIOS setup has options for the keyboard or mouse,
make sure they are set to default settings. If you are not familiar with the
BIOS, refer to your PC’s manual for more information.
8. If you have problems using the sleep button, make sure that the power
management in your PC has been enabled both in the BIOS and in
Windows. For more information on your PC’s BIOS settings, refer to your
PC’s manual. For more information on how to enable the power
management features in Windows, refer to your Windows manual.
9. If you have problems using the extra browser buttons and/or the special
mouse functions, ensure you have installed the keyboard and mouse driver
correctly as described in this manual’s Chapter 4: Software Installation.
Also check your hardware requirements meet those listed in this manual.
10. Use the mouse only on a clean, flat, non-slippery surface in order to ensure
12
smooth and accurate cursor action.
11. Keep all items away from direct sunlight, moisture, dirt, extreme heat and
abrasive chemical (cleaning) solutions.
12. Should the receiver, the keyboard or mouse become accidentally
immersed or splashed by liquids, switch off your PC immediately, unplug all
items and refer to your dealer for further assistance. In these cases please
refrain from using any of the items before consulting with your dealer!
If above troubleshooting suggestions still do not solve your problem then please
refer to your direct dealer for technical support.
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulation.
Cet appareil numerique de la class B respecte toutes les exigences du Règlement sur le materiel brouilleur du
Canada.
Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment. Shielded interface cable, if any, must be used in
order to comply with emission limits.
3100504921
Version 1.0
January 2002
Printed in China
