Installing the Wireless
Keyboard and Mouse Set

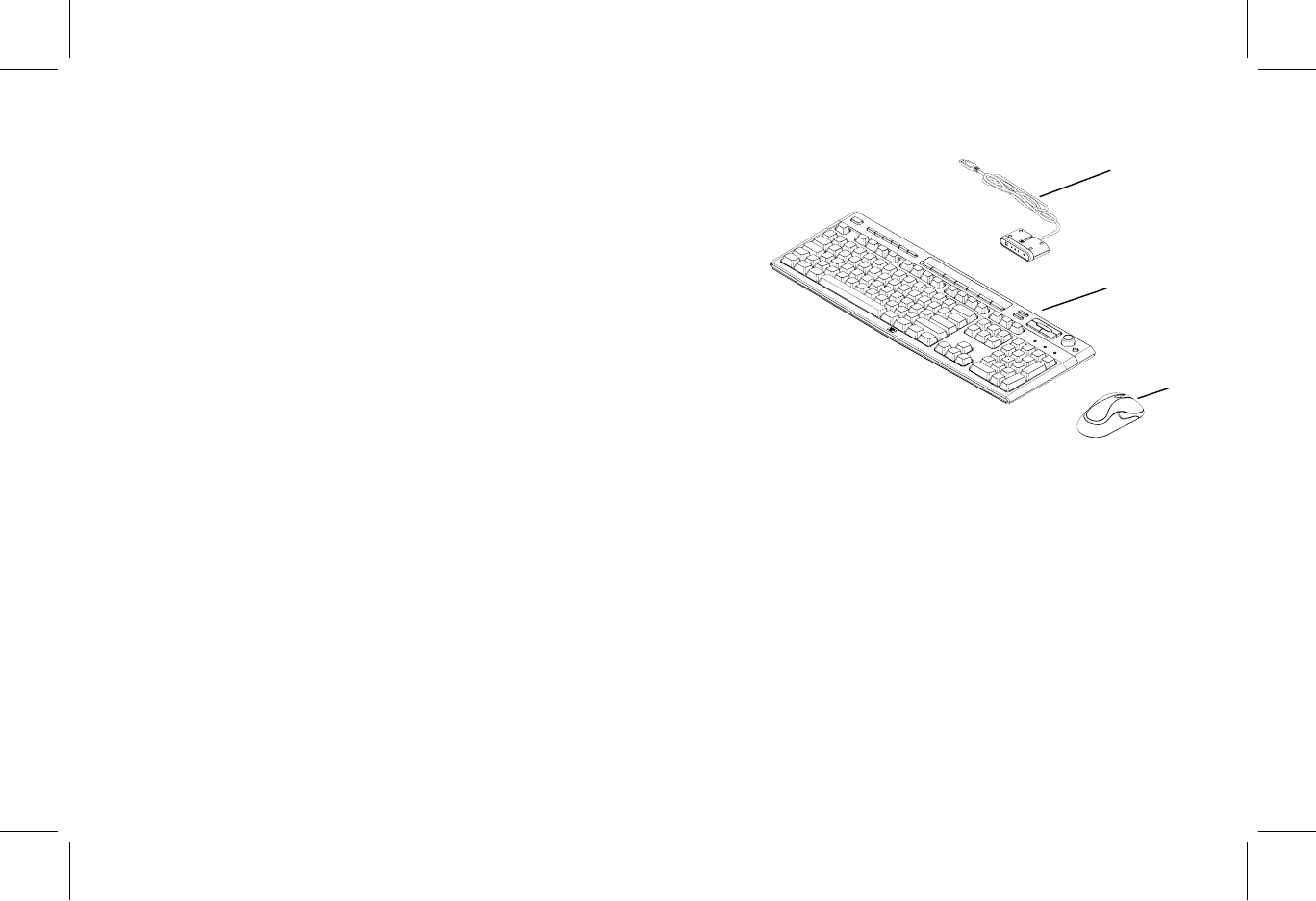

The wireless keyboard and mouse set
consists of a receiver (A) that plugs into the
computer, a wireless keyboard (B), and a
wireless mouse (C).
Note: This wireless set is compatible with your
HP Pavilion home PC and not intended
for use with other computers.
Note: You can replace the batteries in the mouse
and keyboard without turning off the
computer. The computer must be on to
change the ID setting on the three units.
A
B
C
2 HP Pavilion home PC
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 2 of 12 Printed: 09/01/04 07:19 PM
Getting the Mouse Ready
Note: Do not use rechargeable batteries in the
mouse. Alkaline batteries are recommended.

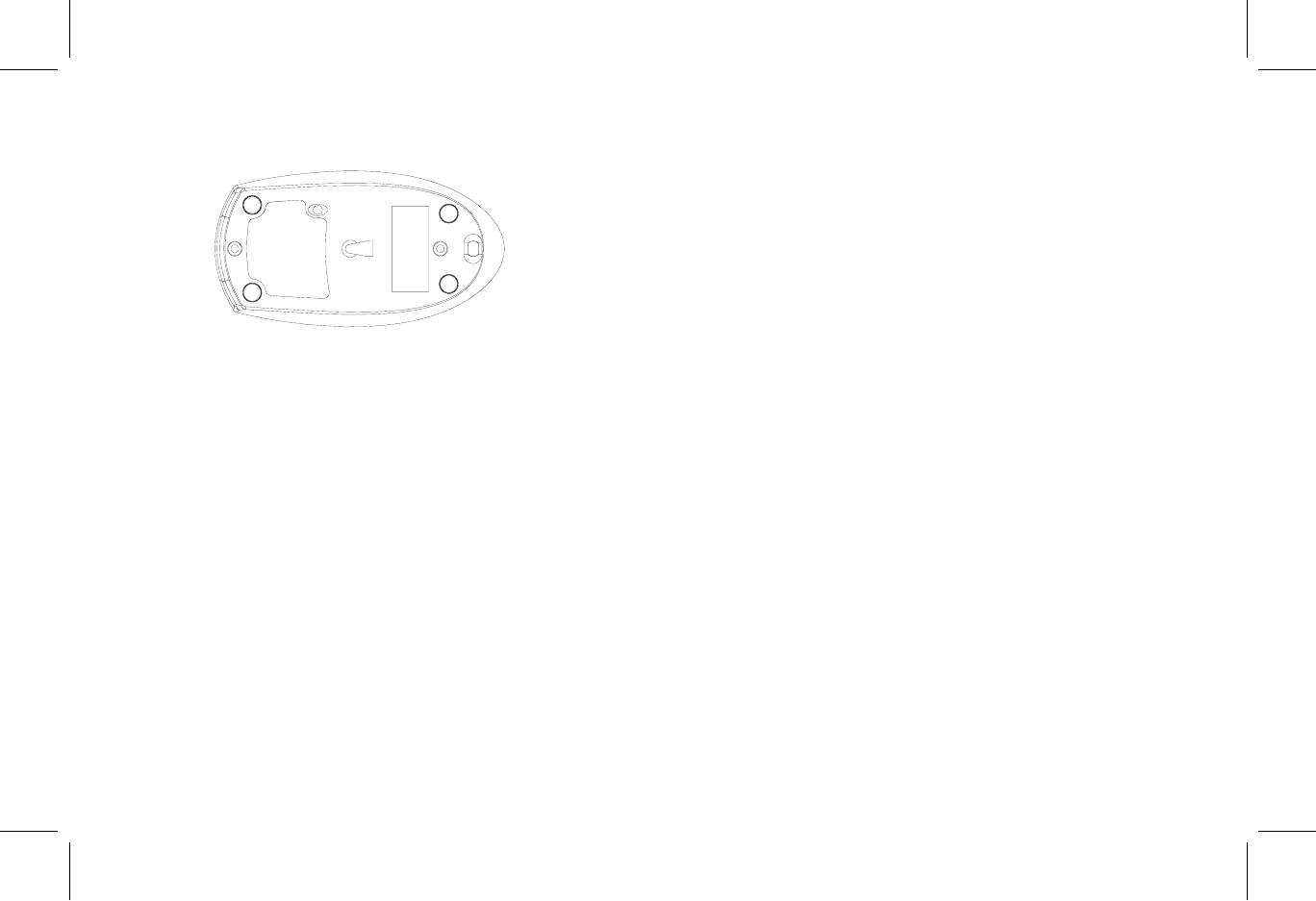

Install the two AA alkaline batteries
(provided) in the wireless mouse: Turn on
the battery cover from the bottom of the
mouse, and then insert the batteries into the
compartment. Note the battery icons, and
make sure batteries are placed in the
correct direction. Replace the cover.
Note: The red LED turns on indicating the batteries
are installed correctly.
HP Pavilion home PC 3
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 3 of 12 Printed: 09/01/04 07:19 PM
Getting the Keyboard Ready
II
G
H
Note: Do not use rechargeable batteries in the
keyboard. Alkaline batteries are recommended.

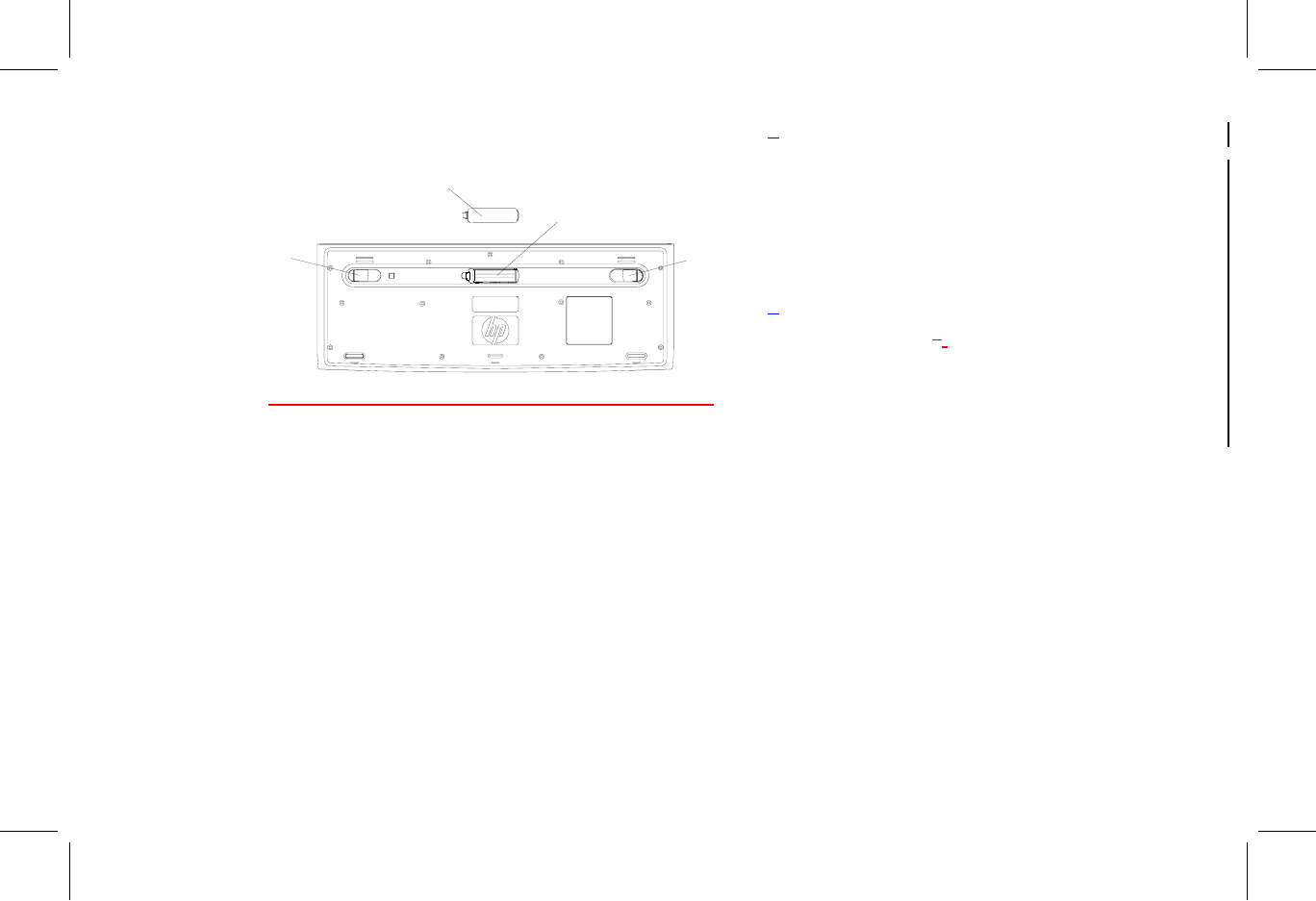

1Install the two AA alkaline batteries
(provided) in the wireless keyboard: Remove
the cover (G) from the bottom of the
keyboard, and insert the batteries into the
compartment (H). Note the battery icons,
and make sure batteries are placed in the
correct direction. Replace the cover.
2Adjust the keyboard height by lifting the
adjustment bar (JI).
4 HP Pavilion home PC
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 4 of 12 Printed: 09/01/04 07:19 PM
Getting the Receiver Ready
The receiver (A) must be placed upright and
positioned properly to avoid interference
from other electrical equipment.
1Turn off your computer, and disconnect the
power cord and modem/phone cable.

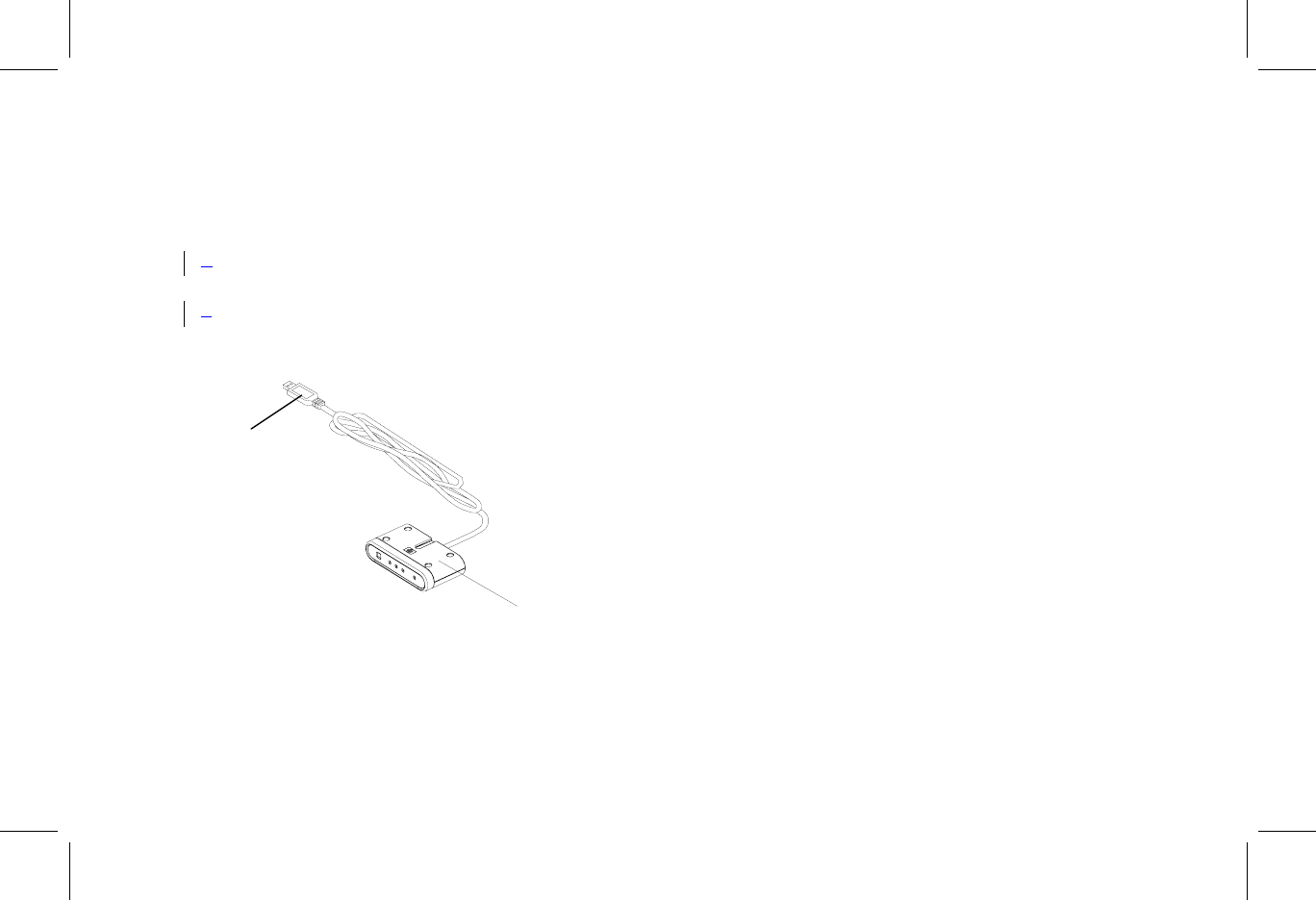

2Connect the receiver cable (L) to the USB
connector on the back of the computer.
A
L
HP Pavilion home PC 5
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 5 of 12 Printed: 09/01/04 07:19 PM
3Set the receiver upright and follow these
guidelines.
nA: Minimum 20 cm (8 inches) clearance
between the receiver and other
electronic devices.
nB: Maximum 1.5 m (59 inches) working
distance between the receiver and
wireless mouse or wireless keyboard.
6 HP Pavilion home PC
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 6 of 12 Printed: 09/01/04 07:19 PM
nC: Minimum 20 cm (8 inches) clearance between the receiver and the monitor.
nPlace no electronic device between the receiver and wireless mouse or wireless keyboard.

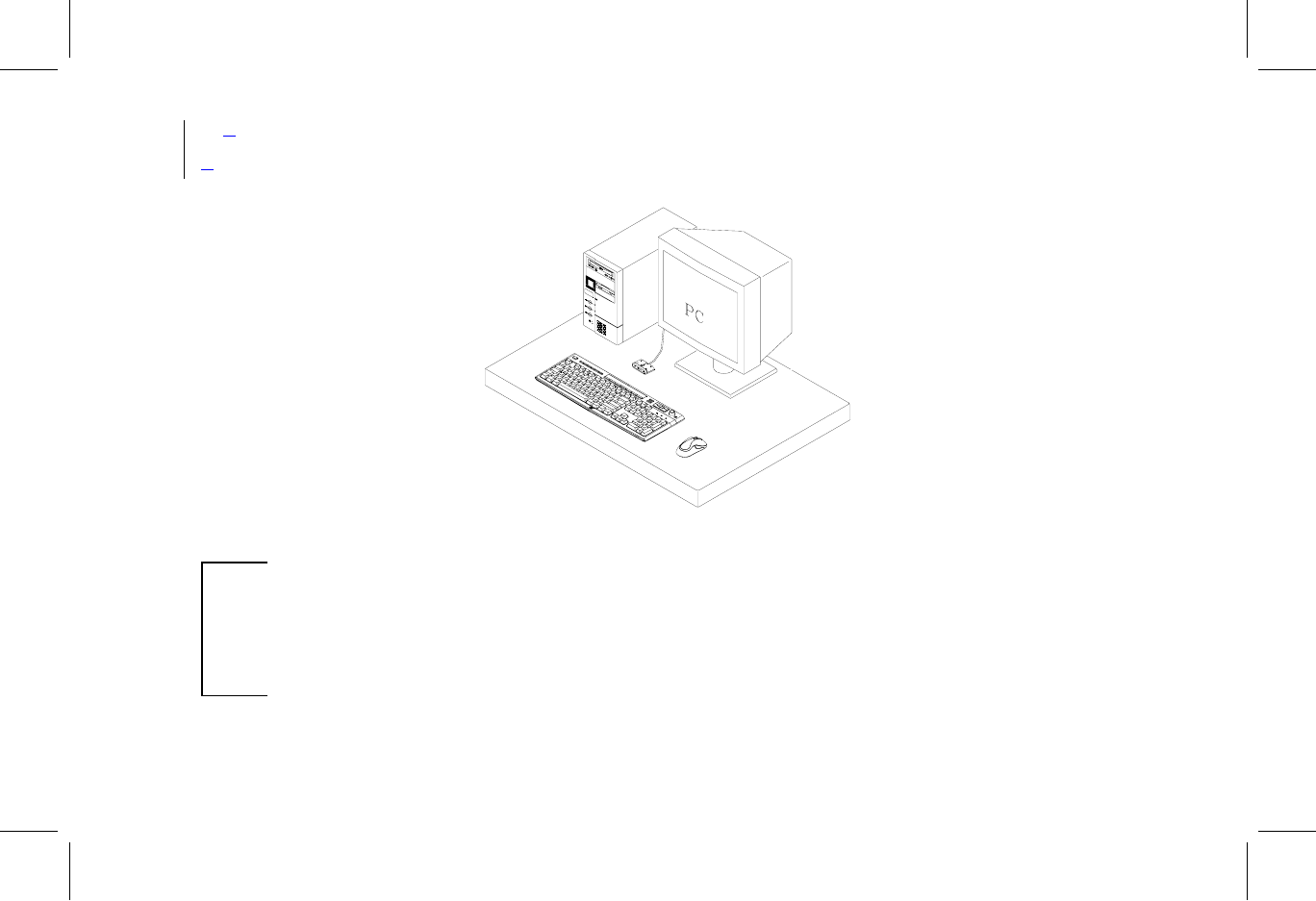

Note: This is one example of the setup. Other setup positions are also possible.
Warning: To avoid causing interference, keep the receiver at least 20 cm (8 inches) away from the
monitor.
HP Pavilion home PC 7
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 7 of 12 Printed: 09/01/04 07:19 PM
Setting Up the Wireless Set
The mouse and keyboard have 255 IDs that
are randomly selected when you press the
ID button. This helps protect against
interference from other wireless devices in
the same area.
Important: The word CONNECT labels the ID button
on the bottom of each unit. To press the ID
button, use a blunt pointed object, like the tip
of a ball point pen.
1 Connect the power cord and
modem/telephone cable to the
computer. Turn on the computer.
Receiver

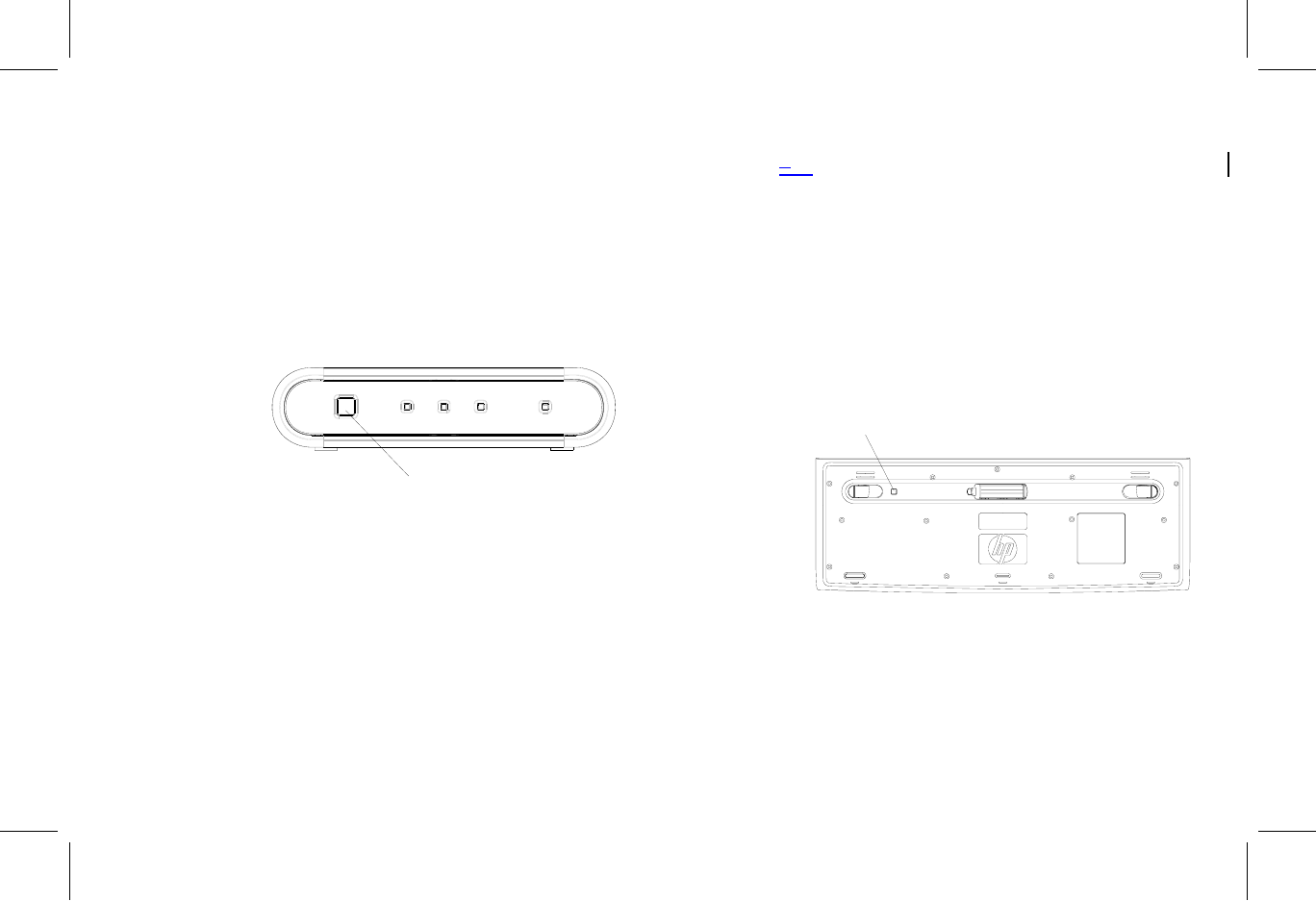

2 On the bottom of the receiver, press the
ID button (D) once with a blunt pointed
object.
The top activity LED (N, a blue light) on the
receiver will start flashing and will continue
flashing until the next step are completed
or until 30 seconds pass.
D
Important: If 30 seconds pass before you complete
steps 3, you must repeat steps 2, 3 to set the
IDs.
8 HP Pavilion home PC
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 8 of 12 Printed: 09/01/04 07:19 PM
N
O
P
Q
Mouse

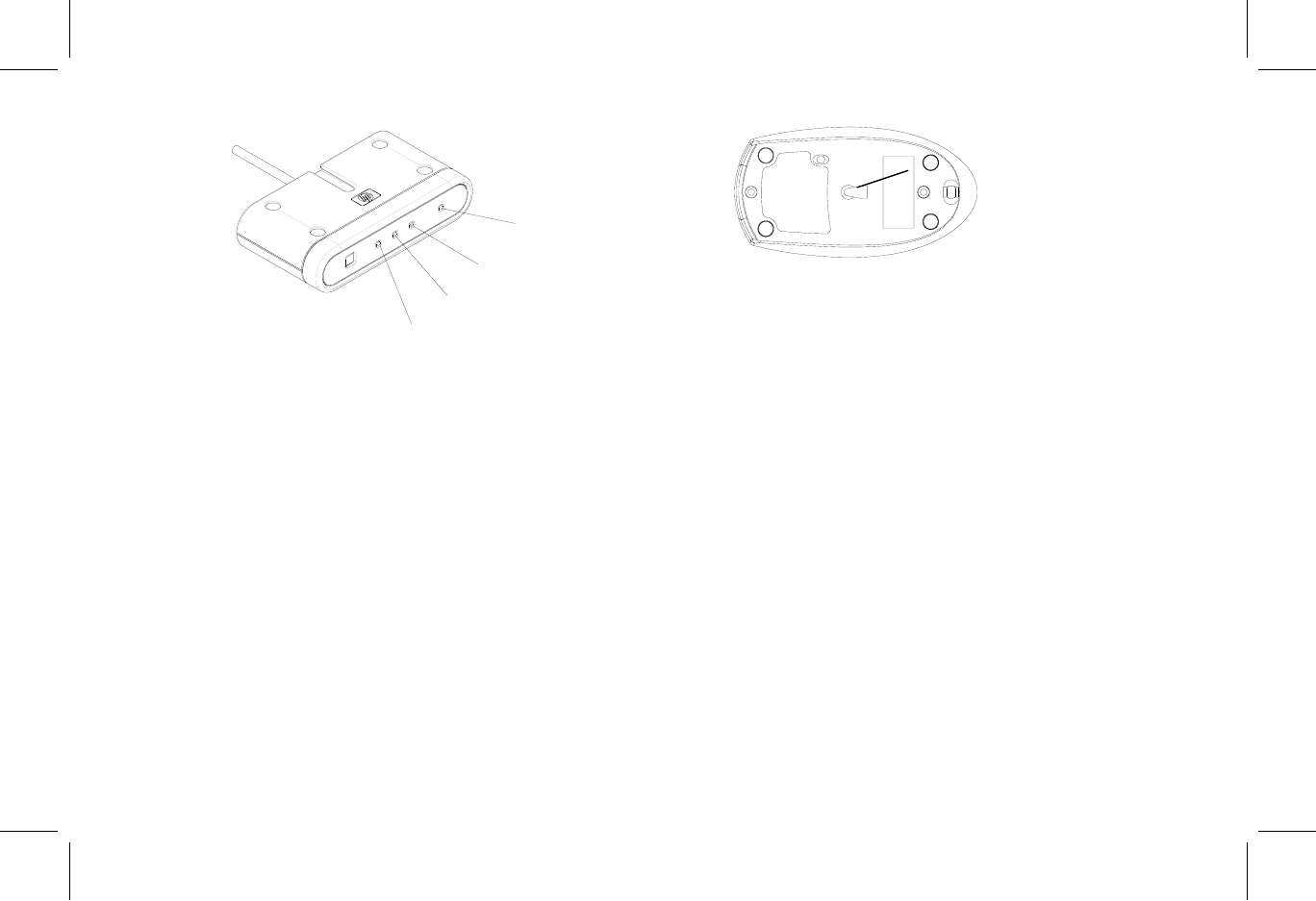

3 On the bottom of the mouse, press the
ID button once with a blunt pointed
object.
The mouse sends a new ID and flashes the
mouse sensor LED three times. The
receiver flashes the blue top activity LED
(N) three times and then stops to show it
has accepted the new ID for the mouse.
Note: At this time, when you move the mouse across
a surface, the blue activity LED (N) on the
receiver will go on and off indicating the
mouse and the receiver are working together.
Important: The mouse goes into a sleep or suspend
mode after 20 minutes of inactivity. Click a
button on the mouse to wake it. (Moving the
mouse does not wake it.)
K
HP Pavilion home PC 9
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 9 of 12 Printed: 09/01/04 07:19 PM
Receiver

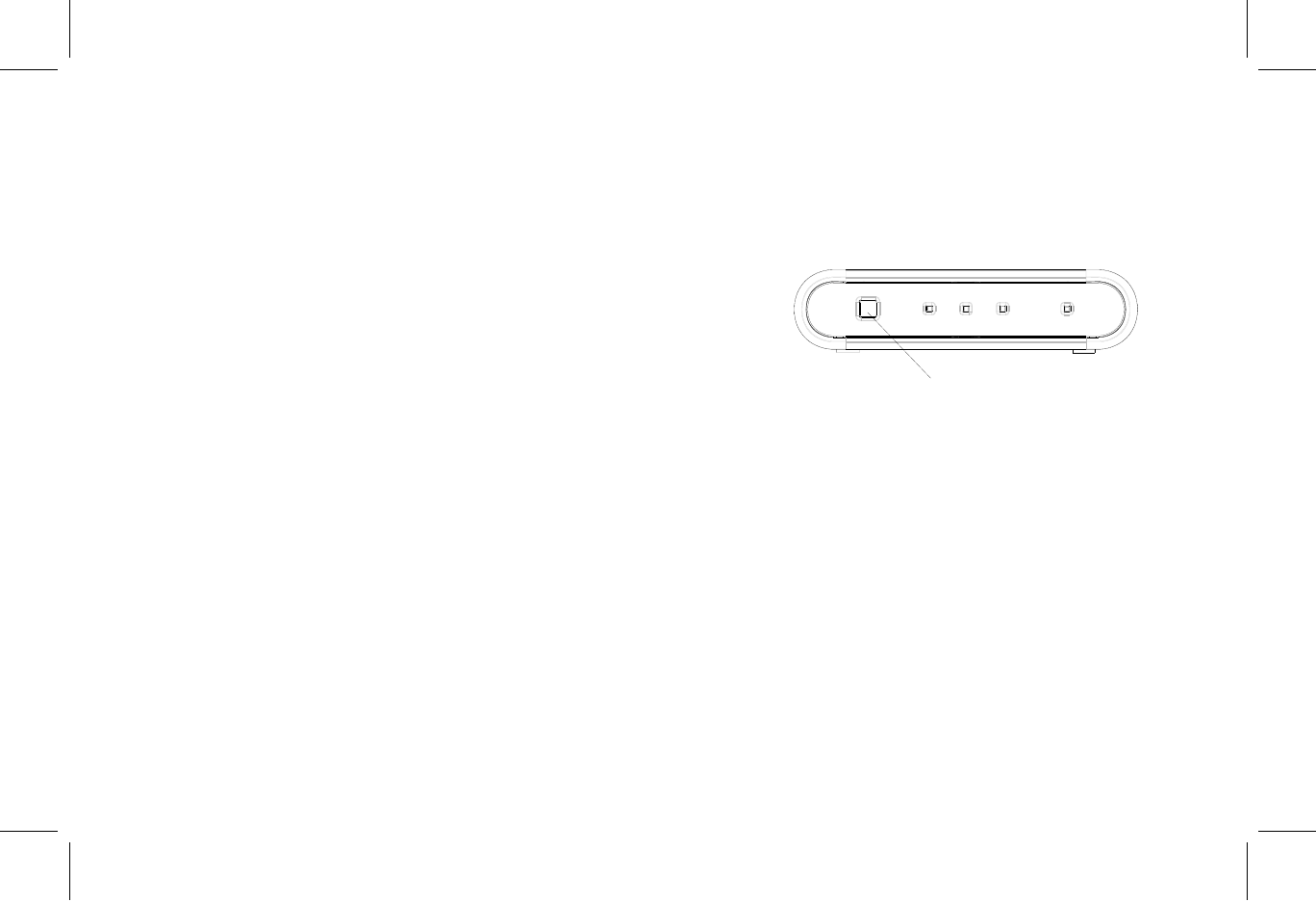

4 On the bottom of the receiver, press the
ID button (D) once with a blunt pointed
object.
The top activity LED (N, a blue light) on the
receiver will start flashing and will continue
flashing until the next step are completed
or until 30 seconds pass.
D
Important: If 30 seconds pass before you complete
steps 5, you must repeat steps4, 5 to set the IDs.
Keyboard
45 On the bottom of the keyboard, press
the ID button (J) once with a blunt
pointed object.
The keyboard sends a new ID. The
receiver flashes the top activity LED (N, a
blue light) three times and then stops to
show it has accepted the new ID for the
keyboard.
G
J
10 HP Pavilion home PC
Filename: 5219urf 2+ users guide US_ Title: hp pavilion home pc
Template: Normal.dot Author: pamela Last Saved By: Authur
Revision #: 3 Page: 10 of 12 Printed: 09/01/04 07:19 PM
