Ultra-Compact 200-Watt, 2-Way, 4 Ω Loudspeaker System and 70.7 V / 100 V Loudspeaker System
CL208/CL208T
Features
bracket included bracket included
• Dual150-Watt8"low-frequencytransducersprovide
deepbassforsmalltomediumsizedrooms
• Constantdirectivity90°Hx70°Vrotatablewaveguide
with1.35"high-frequencytransducer
• Passivecrossoverwithoverloadcircuitryensures
optimaldriverprotection
• Professionalspeakerconnector(compatiblewith
NeutrikSpeakonconnectors)and4-position
terminalstrip
• Internallybracedandacousticallyinert15°trapezoidal
birchplywoodenclosureidealforarrayapplications
• Multiplethreadedinsertsforexibleinstallation
includingOmnimount™boltpattern;
includesmatchingyokebracket
• Powdercoatedsteelgrillewrappedwithacoustically
transparentfabricandfoammatchingcabinetcolor
• Availableineitherblack(CL208/CL208T)orwhite
(CL208-WH/CL208T-WH)
2
Ultra-Compact 200-Watt, 2-Way, 4 Ω Loudspeaker System and 70.7 V / 100 V Loudspeaker System
CL208/CL208T
Product Overview Technical Specications
• Frequency range (-10 dB) 49 Hz - 20 kHz
• Frequency response 55 Hz - 15 kHz
(±3 dB)
• Nominal dispersion 90º H x 70º V
• Directivity factor (Q) 7.5
• Directivity index (DI) 8.8 dB
• Sensitivity 91 dB
(1 W @ 1 m passive)
(half space)
• Crossover modes Passive
• Crossover frequency 2.5 kHz
• Power handling
(long term, IEC passive) 200 W RMS @ 28.3 V
Transducers
• Nominal impedance 4 Ω
• Low frequency driver 2 x 8" @ 150 W
• High frequency driver 1.35" @ 30 W
• Horn waveguide 90º H x 70º V, rotatable
• Maximum continuous 114 dB
SPL (passive)
• Maximum peak 120 dB
SPL (passive)
• Overload protection Full range power limiting to protect
drivers and crossovers
CL208 CL208T
• Transformer 70 V: 25 W, 50 W, 100 V: 50 W, 100 W,
100 W, 200 W 200 W
• Enclosure Trapezoidal 15° side angle,
laminated birch plywood
• Grille Steel
• Rigging points 14 x M6 threaded points; 4 x M6 threaded
inserts for OmniMount™ 30 series
• Termination NL4 and 4-position 5-position
terminal strip terminal strip
connection connection
• Dimensions (H x W x D) 28.4 x 10.2 x 11.9" / 720 x 260 x 302 mm
• Weight 32.4 lbs / 14.7 kg 35.9 lbs / 16.3 kg
• Included accessories Yoke and bracket
* Optional accessories Model CLFK array bracket
TheEUROCOMCL208/CL208Tisanultra-compact
professionaltwo-wayloudspeakersystemthatisideal
forawidevarietyofxedinstallationapplications.
Featuringcleanlinesandauniquefabric-nished
wrap-aroundgrille,theCL208/CL208Tisfullyathomein
eventhemostelegantsettings,includingtheatersand
auditoria,housesofworship,themedentertainment,
andsportingvenues.Perfectformainsinsmallvenues,
theCL208/CL208Talsoexcelsforllanddelaysystemsin
largerrooms.
Builtofhigh-qualitylaminatedBalticbirchplywood,
theCL208/CL208T’slightweightcabinetcombines
naturalrigidityandacousticinertnesswiththeadditional
strengthofinternalsteelbracing.Threadedmounting-
pointinsertsintheinternalbracketsprovidearated
loadfactorofatleast10timesoverallcabinetweight,
makingtheCL208/CL208Texceptionallysafeforown
installation,eithersinglyorinarrays.
TheCL208/CL208Tachievesfully-professional
performanceandreliabilitywithnewly-designed
componentswhosefrequencyresponse,sensitivity,
andpowerhandlingareallcustom-tailoredforCLSeries
loudspeakers.BEHRINGERmaintainscompletecontrol
overqualityandsoniccharacterbymanufacturingallCL
Seriescomponents—startingwiththepulpusedforcone
fabrication—inourownfactories.
Dual8"(200mm)lowfrequencydriversprovidingfull,
richlowsarematchedtoa1.35"(34mm)highfrequency
driverviaaninternalpassivecrossoverat2.5kHztodeliver
clear,smoothsoundacrosstheentireaudiblespectrum.
Arotatablewaveguideallowsoptimalapplicationof
the90°x70°coveragepatternregardlessofspeaker
orientation,whichmaybeeitherverticalorhorizontal.
EveryaspectoftheCL208/CL208Thasbeenthought
throughtomaximizevalueandconvenienceforboth
theinstallerandtheenduser.Theresultisanattractive,
durable,installation-readyloudspeakersystemthatwill
delivertop-notchsoundday-after-dayforyearstocome.
3
Ultra-Compact 200-Watt, 2-Way, 4 Ω Loudspeaker System and 70.7 V / 100 V Loudspeaker System
CL208/CL208T
Summary description:Theloudspeakershallbeaprofessional2-wayxed-installationloudspeakersysteminasteel-braced
plywoodenclosureusingabypassableinternalcrossovernetworkwithtwo8"/200mmlow-frequencyconetransducersand
awaveguide-mountedhigh-frequencydomedriver.
Drivers:Theloudspeakersystemshallusetwotransducers:
• Low-frequencydriversshallbe8"/200mmdirect-radiatingconetransducers
• High-frequencydrivershallbea1.35"/34mmdiaphragmcompressiondrivermountedonarotatable90°x70°waveguide
constructedofpolypropylene
Enclosure:Theloudspeakersystemshallbehousedinanenclosureconstructedoflaminatedbirchplywoodthatisinternally
bracedwithsteel.Theenclosureshallbenishedwithdurable,scu-freeblackorwhitepaint.Thefrontoftheenclosureshall
beprotectedwithaperforatedgrilleofpowder-coatedstructuralsteelbehindfabric-wrappedacousticallytransparentfoam.
Thebackoftheenclosureshallhavearecessedsteelinputplateforconnectors.
Rigging and mounting:Theexterioroftheenclosureshallbettedwith14M6threadedriggingpoints.Therearofthe
enclosureshallhave4M6threadedinsertsforOmniMount™30series.Theenclosureshallprovideattachmentpointsforan
optionalyokebracket.
I/O and connectors:Theloudspeakershallhavethefollowingconnectors:
• OneNL4connector,wiredinparallelasafull-rangeinputtothepassivecrossover(CL208)
• One4-positionterminalstripwithcaptivewireclampsandremovableplasticcover,withINterminalswiredinparallelto
OUTterminalsandtotheNL4connectors(CL208)
• One5-positionterminalstripwithcaptivewireclampsandremovableplasticcover,with70Vand100Vterminalswiredtothe
primarysideofthematchingtransformer(CL208T)
Performance criteria:Theloudspeakersystemshallmeetthefollowingperformancecriteria:
• Nominalimpedanceshallbe4ΩformodelsCL208/CL208-WH
• CL208T/CL208T-WHTransformertapsshallbe25W,50W,100W,200W(70.7V),50W,100W,200W(100V)
• Sensitivity(1W/1mpassive)shallbe91dB
• Usablefrequencyrange(-10dB)shallbe49Hz-20kHz
• Frequencyresponse(±3dB)shallbe55Hz-15kHz
• Powerhandling(IEC268-5,passive)shallbe200WRMS@28.3V(CL208)/200WRMS(CL208T)
• Nominaldispersionshallbe90°x70°(axisdependentonhornorientation)
• MaximumSPL(1m,passive)shallbe114dBcontinuousand120dBpeak(CL208/CL208T)
Dimensions and weight:Theloudspeakersystemshallhavethefollowingcharacteristics:
• Heightshallbe28.4"/720mm
• Widthshallbe10.2"/260mm
• Depthshallbe11.9"/302mm
• NetWeightforCL208shallbenomorethan32.4lbs/14.7kg
• NetWeightforCL208Tshallbenomorethan35.9lbs/16.3kg
Model:TheloudspeakershallbetheBEHRINGEREUROCOMCL208/CL208-WH/CL208T/CL208T-WH.
Architect’s and Engineer’s Specications
4
Ultra-Compact 200-Watt, 2-Way, 4 Ω Loudspeaker System and 70.7 V / 100 V Loudspeaker System
CL208/CL208T
CL208 TEST DATA
Beamwidth VS. Frequency
Direcvity Index, Q
Frequency Response, 1W@1m
CL208 TEST DATA
Beamwidth VS. Frequency
Direcvity Index, Q
Frequency Response, 1W@1m
Horizontal Off-Axis Frequency Response
Vercal Up Off-Axis Frequency Response
Vercal Down Off-Axis Frequency Response
Impedance VS. Frequency
Horizontal Off-Axis Frequency Response
Vercal Up Off-Axis Frequency Response
Vercal Down Off-Axis Frequency Response
Impedance VS. Frequency
Horizontal Off-Axis Frequency Response
Vercal Up Off-Axis Frequency Response
Vercal Down Off-Axis Frequency Response
Impedance VS. Frequency
Beamwidth VS. Frequency
CL208 TEST DATA
Beamwidth VS. Frequency
Direcvity Index, Q
Frequency Response, 1W@1m
Directivity Index, Q
Frequency Response, 1 W @ 1 M
Horizontal Off-Axis Frequency Response
Vercal Up Off-Axis Frequency Response
Vercal Down Off-Axis Frequency Response
Impedance VS. Frequency
Horizontal Off-Axis Frequency Response
Vertical Up Off-Axis Frequency Response
Impedance VS. Frequency
Vertical Down Off-Axis Frequency Response
5
Ultra-Compact 200-Watt, 2-Way, 4 Ω Loudspeaker System and 70.7 V / 100 V Loudspeaker System
CL208/CL208T

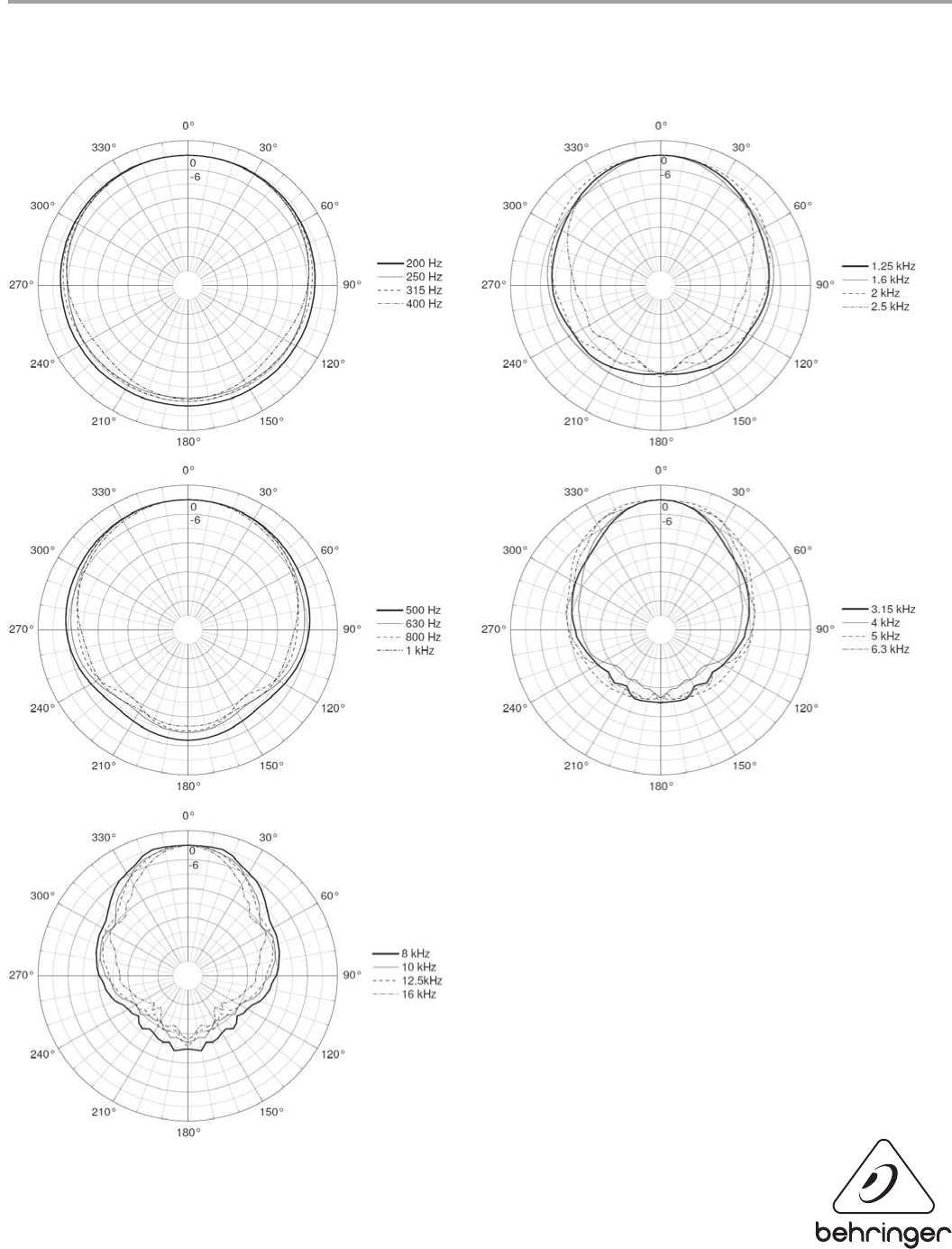

Horizontal 1/3 Octave Polars
Horizontal 1/3 Octave Polars
Vercal 1/3 Octave Polars
Horizontal 1/3 Octave Polars
6
Ultra-Compact 200-Watt, 2-Way, 4 Ω Loudspeaker System and 70.7 V / 100 V Loudspeaker System
CL208/CL208T

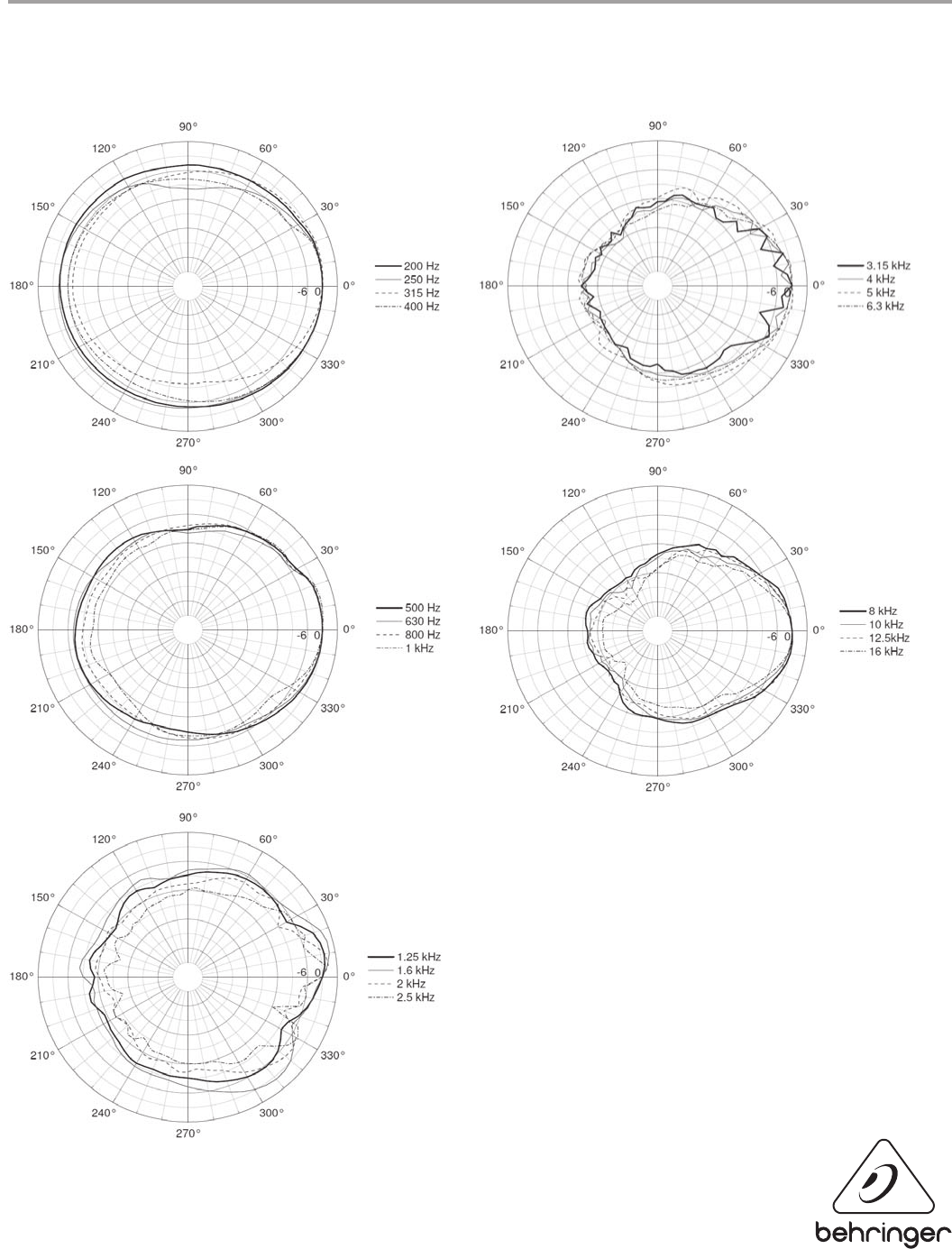

Vertical 1/3 Octave Polars
Vercal 1/3 Octave Polars
Ultra-Compact 200-Watt, 2-Way, 4 Ω Loudspeaker System and 70.7 V / 100 V Loudspeaker System
CL208/CL208T
Copyright © 2013 MUSIC Group IP Ltd. All rights reserved. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, and TURBOSOUND are part of the MUSIC Group (music-group.com). The information contained herein is correct at the time of
printing. Technical specifications and appearance are subject to change without notice. Colors and specifications may vary from actual product. MUSIC Group IP Ltd. accepts no liability for any damages or loss which may be suffered
by any person who relies either wholly or in part upon any description, photograph or statement contained herein. All trademarks are the property of their respective owners. Products are sold through authorized Fulfillers and
Resellers only. Fulfillers and Resellers are not agents of MUSIC Group IP Ltd. or any of its affiliates and subsidiaries, and have absolutely no authority to bind MUSIC Group IP Ltd. by any express or implied undertaking or representation.
MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands.
Dimensional Drawings
TOP
133.96 mm [5.274 in]
108.00mm [4.2520in]
35.00mm [1.3780in]35.00mm [1.3780in]
372.00mm [14.6457in]
301.71 mm [11.878 in]
178.10 mm [7.012 in]
30.0º
FRONT
720.00 mm [28.346 in]
REAR
260.50 mm [10.2559 in]
50.80 mm [2.0000 in]
SIDE
360.00 mm [14.1732 in]
123.62 mm [4.8667 in]
R2500.00 mm [98.4252 in]
