User Manual
EUROPOWER PMP2000
800-Watt 14-Channel Powered Mixer with Multi-FX Processor
2EUROPOWER PMP2000 User Manual
Table of Contents
Thank you .......................................................................2
Important Safety Instructions ...................................... 3
Legal Disclaimer ............................................................. 3
Limited warranty ............................................................ 3
1. Introduction ............................................................... 5
1.1 Before you get started ...................................................... 5
1.1.1 Shipment .......................................................................... 5
1.1.2 Initial operation ............................................................. 5
1.1.3 Online registration ....................................................... 5
2. Control Elements ....................................................... 5
2.1 Front panel ............................................................................ 5
2.2 Rear panel ............................................................................. 6
3. Eects Processor ........................................................ 7
4. Installation ................................................................. 7
4.1 Mains voltage ....................................................................... 7
4.2 Mains connection ............................................................... 7
4.3 Audio connections ............................................................. 7
4.4 Loudspeaker connections ............................................... 8
5. Wiring Examples ........................................................ 8
6. Specications ............................................................. 9
Thank you
Congratulations! With the PMP2000 you have acquired a state-of-the-art
14-channel power mixer that sets new standards. Right from the start, our goal
has been to design a revolutionary device that can be used for a great variety of
applications. And indeed, this overwhelming power mixer gives you plenty of
functionality and a broad range of connection and expansion options.
3EUROPOWER PMP2000 User Manual
Important Safety
Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY
Terminals marked with this symbol carry
electrical current of su cient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼" TS or twist-locking plugs pre-installed. Allother
installation or modi cation should be performed only
by quali edpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be su cient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
quali ed personnel.
Caution
To reduce the risk of  re or electric shock,
do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects  lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by quali ed service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by quali ed
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not  t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories speci ed by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table speci ed by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to quali ed service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
TECHNICAL SPECIFICATIONS AND APPEARANCES
ARE SUBJECT TO CHANGE WITHOUT NOTICE AND
ACCURACY IS NOT GUARANTEED. BEHRINGER,
KLARKTEKNIK, MIDAS, BUGERA, AND TURBOSOUND
ARE PART OF THE MUSIC GROUP MUSICGROUP.COM.
ALL TRADEMARKS ARE THE PROPERTY OF THEIR
RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO
LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED
BY ANY PERSON WHO RELIES EITHER WHOLLY OR
IN PART UPON ANY DESCRIPTION, PHOTOGRAPH
OR STATEMENT CONTAINED HEREIN. COLORS AND
SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT.
MUSIC GROUP PRODUCTS ARE SOLD THROUGH
AUTHORIZED FULLFILLERS AND RESELLERS ONLY.
FULLFILLERSAND RESELLERS ARE NOT AGENTS OF
MUSICGROUP AND HAVE ABSOLUTELY NO AUTHORITY
TO BIND MUSICGROUP BY ANY EXPRESS OR IMPLIED
UNDERTAKING OR REPRESENTATION. THIS MANUAL
IS COPYRIGHTED. NO PART OF THIS MANUAL MAY
BE REPRODUCED OR TRANSMITTED IN ANY FORM
OR BY ANY MEANS, ELECTRONIC OR MECHANICAL,
INCLUDING PHOTOCOPYING AND RECORDING OF ANY
KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS
WRITTEN PERMISSION OF MUSICGROUPIPLTD.
ALL RIGHTS RESERVED.
© 2013 MUSICGroupIPLtd.
Trident Chambers, Wickhams Cay, P.O. Box 146,
Road Town, Tortola, British Virgin Islands
For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
Limited Warranty, please see complete details online at
www.music-group.com/warranty.
4EUROPOWER PMP2000 User Manual

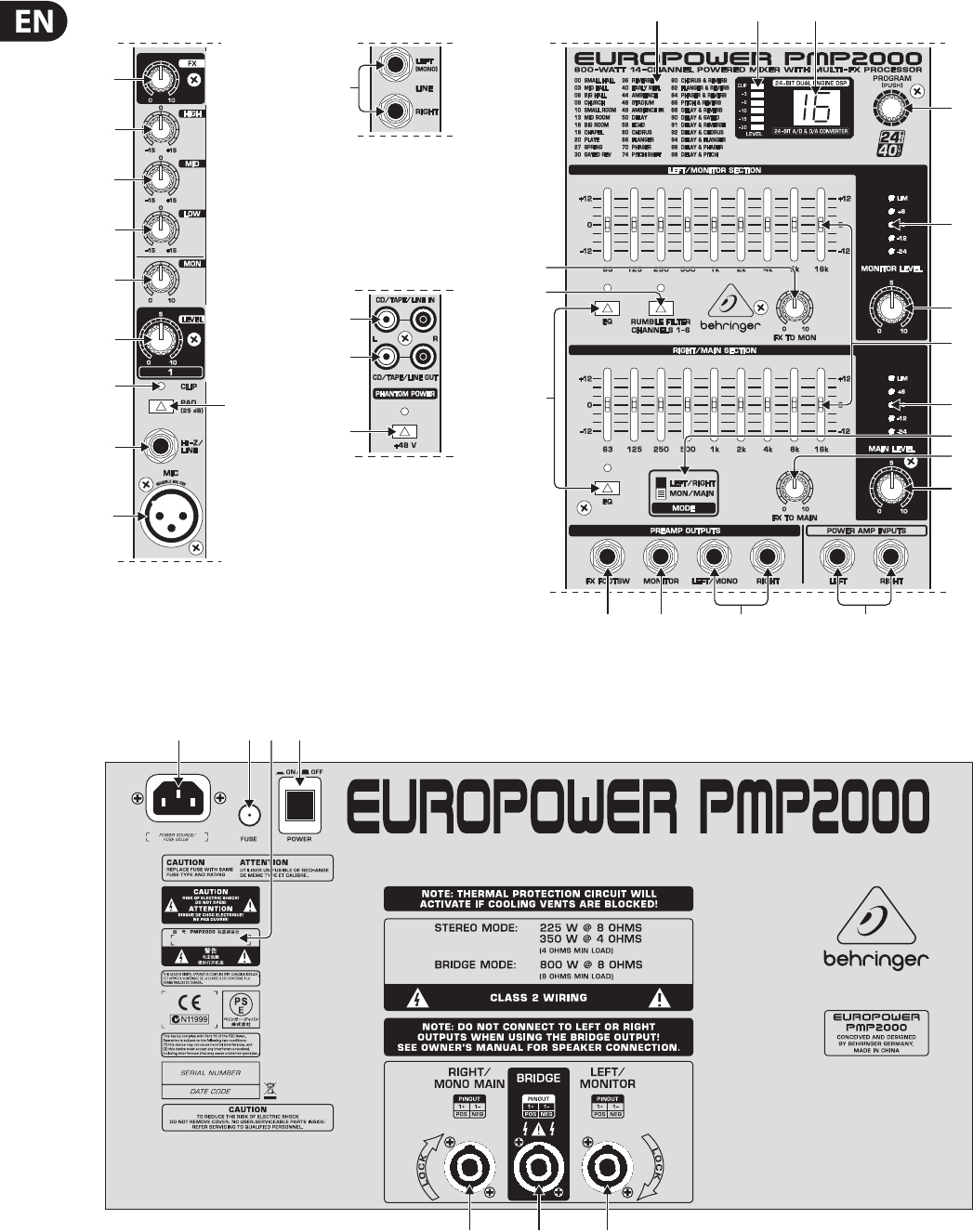

(27)
(11)
(17)
(18)
(29) (30) (31)
(32)
(20)
(24)
(22)
(21)
(19)
(15)
(23)
(25) (26) (28)
(16)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(9)
(10)
(8)
(12)
(13)
(14)
Mono channel
Tape inputs/outputs &
phantom power switch
Stereo line input
Main Section
(36) (37) (38)
(33) (35)(34)(39)
Rear panel connectors
5EUROPOWER PMP2000 User Manual
1. Introduction
BEHRINGER is a company with its roots in professional recording studio
technology. For many years now we have been successful in developing products
for studio and live use. These include microphones and 19" devices of all kinds
(compressors, enhancers, noise gates, tube processors, headphone ampliers,
digital eects devices, DI boxes, etc.), monitor and P.A. speakers and professional
live and recording mixers. Our entire technical know-how has gone into
yourPMP2000.
◊ This manual first describes the terminology used, so that you fully
understand the PMP2000 and its functions. Please read the manual
carefully and keep it for future reference.
1.1 Before you get started
1.1.1 Shipment
Your PMP2000 was carefully packed at the factory and the packaging is designed
to protect the unit from rough handling. Nevertheless, we recommend that
you carefully examine the packaging and its contents for any signs of physical
damage which may have occurred during transit.
◊ If the unit is damaged, please do NOT return it to BEHRINGER,
but notify your dealer and the shipping company immediately.
Otherwise, claims for damage or replacement may not be granted.
1.1.2 Initial operation
Be sure that there is enough space around the unit for cooling and, to avoid
overheating, please do not place the PMP2000 near radiators etc.
◊ Before you connect the PMP2000 to the mains, please make sure that
the voltage setting on the unit matches the local voltage!
◊ If you set the unit to a different mains voltage, be sure to use a fuse
of the correct type and rating. Please refer to the “Specifications”
for details.
◊ Blown fuses must be replaced by fuses of the same type and rating!
Please refer to the “Specifications” for details.
The mains connection is made using the enclosed power cord and a standard IEC
receptacle. It meets all of the international safety certication requirements.
◊ Please make sure that all units have a proper ground connection.
For your own safety, never remove or disable the ground
conductor from the unit or of the AC power cord. The unit shall
always be connected to the mains socket outlet with a protective
earthing connection.
To avoid damage on the device, do not
• earth the loudspeaker outputs
• connect the loudspeaker outputs to each other
• connect the loudspeaker outputs to those of other ampliers
IMPORTANT NOTES CONCERNING INSTALLATION
The sound quality may diminish within the range of powerful broadcasting
stations and high-frequency sources. Increase the distance between the
transmitter and the device and use shielded cables for all connections.
1.1.3 Online registration
Please register your new BEHRINGER equipment right after your purchase
by visiting http://behringer.com and read the terms and conditions of our
warrantycarefully.
Should your BEHRINGER product malfunction, it is our intention to have it
repaired as quickly as possible. To arrange for warranty service, please contact
the BEHRINGER retailer from whom the equipment was purchased. Shouldyour
BEHRINGER dealer not be located in your vicinity, you may directly contact
one of our subsidiaries. Corresponding contact information is included in the
original equipment packaging (Global Contact Information/European Contact
Information). Should your country not be listed, please contact the distributor
nearest you. A list of distributors can be found in the support area of our website
(http://behringer.com).
Registering your purchase and equipment with us helps us process your repair
claims more quickly and eciently.
Thank you for your cooperation!
2. Control Elements
2.1 Front panel
Your EUROPOWER PMP2000 comes with 14 input channels, which only dier
in terms of pad switch, peak LED and interface panel. Since the EQ, eect,
monitorand level controls are identical on all channels, they will be described
only once on the enclosed sheet.
(1) The FX control determines the signal level that is routed from the respective
channel to the built-in eects processor.
◊ Please note that the effects processor is muted as long as the
FX TO MAIN control ((22)) is set fully counter-clockwise.
(2) The HIGH control in the EQ section governs the high frequencies of the
respective channel.
(3) Use the MID control to boost/cut the mid range.
(4) The LOW control allows you to raise or lower the bass frequencies.
(5) The MON control determines the channel’s volume assigned to the
monitormix.
(6) Use the LEVEL control to set the volume level of the respective channel.
(7) Use the CLIP LED to ensure that the input gain is set properly. The CLIP LED
should light up only with peak signals, but never all the time.
(8) The PAD button reduces the channel input sensitivity by 25 dB. Thus, you
can also connect high-level line signals to the respective channel input.
(9) This HI-Z/LINE input can be used to connect line level signal sources, such as
keyboards, electric and bass guitars.
(10) This is the channel’s balanced XLR microphone input.
(11) The stereo line input of channels 7 - 12 can be used to connect, for example,
keyboards with stereo outputs or a stereo drum computer.
◊ Please remember to use either the microphone or the line input on a
specific channel. Never use both at the same time. This rule applies to
channels 1 - 12.
◊ When you connect a mono line signal to channels 7 - 12, please always
use the left input. The mono signal will then be reproduced on both
stereo sides.
6EUROPOWER PMP2000 User Manual
(12) The CD/TAPE/LINE IN RCA input of channel 13/14 allows you to feed in
external stereo signals from your CD player or tape deck, for example.
(13) The CD/TAPE/LINE OUT RCA output provides the stereo main mix signal of
your PMP2000 and can be routed to, say, a recording machine.
◊ When the CD/TAPE OUT signal is connected to a tape deck whose output
signal is routed back to the CD/TAPE IN on the PMP2000, feedback can
be produced as soon as you start recording. Be sure to interrupt the
connection to the CD/TAPE IN before recording!
(14) The phantom power supply provides the voltage necessary for the operation
of condenser microphones. Use the PHANTOM POWER switch to activate
the supply together for channels 1 - 12 (XLR connector). The LED above the
switch is lit when phantom power is on.
(15) This is the PMP2000’s graphic stereo equalizer, which comprises two units
and can be used to adapt the sound to the room acoustics.
• The stereo equalizer is eective on the main mix when both units have been
activated with the EQ IN buttons (16) and the MODE switch (21) is set to its
upper position (“LEFT/RIGHT”).
• The stereo equalizer uses one unit each to process the main and monitor
mix signals, if both units are on and the MODE switch (21) is set to its lower
position (“MON/MAIN”).
(16) Use the EQ IN buttons to switch the two equalizer units on or o.
(17) Press the RUMBLE FILTER button to activate the low-cut lter of
channels 1 - 6. This lter eliminates unpleasant bass frequencies
(e.g. microphone pop noise).
(18) The FX TO MON control determines the eects intensity of the multi-eects
processor as part of the monitor mix. Turn the control fully counter-clockwise
to add no eect to the monitor mix.
(19) The MONITOR LEVEL control adjusts the volume of the monitor mix.
(20) Use the MONITOR LEVEL display to control the monitor signal level.
The upper LED (LIM) lights up when the built-in limiter is activated,
thusprotecting against overload.
(21) With this MODE switch you can determine whether the PMP2000 works as a
stereo amplier (“LEFT/RIGHT”) or as a dual mono amplier (“MON/MAIN”).
Please note that the equalizer function also depends on this switch setting
(see (15)).
(22) The FX TO MAIN control functions as FX return for the built-in eects
processor. Use this control to add the desired eect signal to the main mix.
No eect signal is added when the FX TO MAIN is set fully counter-clockwise.
(23) The MAIN LEVEL control governs the overall volume of the PMP2000.
(24) The MAIN LEVEL display reads the output level of the PMP2000. The upper
LED (LIM) lights up when the built-in limiter is activated, thus protecting
against signal peaks.
(25) Use the FX FOOTSW(itch) jack to connect any commercially available foot
controller. It allows you to bypass the eects unit.
(26) This is the balanced MONITOR output of your PMP2000. Use it to feed an
external monitor amp or active wedge.
(27) These two ¼" TS jacks allow you to route the output signal to an external
amplier. This allows you to, say, use only the mixing and eect section of
the PMP2000. The signal is taken pre-power amp. Of course, you can also use
only the left jack as a mono output.
(28) These two ¼" TS jacks can be used to connect external signals, such as the
main mix signal from an additional mixing console (pre-power amp).
(29) Here, you will nd a list of all multi-eect presets available.
(30) This is the LED level meter of the eects processor. Please make sure that the
clip LED lights up with signal peaks only. If it is lit constantly, this indicates
that the eects processor is overdriven, which can lead to unpleasant
distortion.
(31) The Eect display reads the currently selected preset.
(32) Turn the PROGRAM control to select the eect presets. Press the control
briey to conrm your selection.
2.2 Rear panel
(33) The mains connection is on a standard IEC receptacle. An appropriate power
cord is supplied with the unit.
(34) FUSE HOLDER. Before connecting the unit to the mains, ensure that the
voltage setting matches your local voltage. Blown fuses should only be
replaced by fuses of the same type and rating.
(35) Use the POWER switch to put your PMP2000 into operation. The POWER
switch should always be in the “O ” position when you are about to connect
your unit to the mains.
◊ Attention: The POWER switch does not fully disconnect the unit from
the mains. Unplug the power cord completely when the unit is not used
for prolonged periods of time.
(36) This is the RIGHT/MONO MAIN loudspeaker output of your PMP2000,
whereyou can connect the right loudspeaker of a stereo system. For this
purpose, switch (21) must be set to its upper position. If, however, you run
a mono main mix (switch (21) set to its lower position), this loudspeaker
output provides the main mix signal in mono.
◊ The impedance of the loudspeaker connected here must not fall
below 4 Ω.
(37) The BRIDGE loudspeaker output allows you to combine the left and
right stereo channel in one mono output, which is useful for applications
that require the use of one loudspeaker only. To use the BRIDGE output,
switch (21) must be set to “LEFT/RIGHT”.
◊ Always connect the BRIDGE jack to a loudspeaker with a minimum
impedance of 8 Ω!
◊ Please note that the power delivered to the speaker connected to
the BRIDGE output is considerably higher than the power provided to
the speakers wired to the parallel speaker outputs. Please read the
information given on the rear panel of your PMP2000.
◊ When using the BRIDGE loudspeaker output, NEVER use any of the
other two connectors (RIGHT/MONO MAIN and LEFT/MONITOR) at the
same time!
(38) This is the LEFT/MONITOR loudspeaker output of your PMP2000, to which
you can connect the left loudspeaker of a stereo system (switch (21) set to
its upper position). If you do a main mix in mono (switch (21) set to its lower
position), this loudspeaker output provides the monitor signal in mono.
◊ The impedance of the loudspeaker connected here must not fall
below 4 Ω.
◊ Information on how to properly connect your speaker with regard to
polarity can be found on the rear of the unit (PIN assignment).
(39) SERIAL NUMBER.
7EUROPOWER PMP2000 User Manual
3. Eects Processor
24-Bit Multi-Eects Processor
This built-in eects module produces high-grade standard eects such as
reverb, chorus, anger, delay and various combination eects. The integrated
eects module has the advantage of requiring no wiring. This way, the danger
of creating ground loops or uneven signal levels is eliminated at the outset,
completely simplifying the handling. These eect presets are designed to be
added to dry signals. If you move the FX TO MAIN/MON control, you mix the
channel signal (dry) and the eect signal.
◊ Turn down the FX controls in those channel strips whose signals you
don’t wish to process.
4. Installation
4.1 Mains voltage
Before connecting the PMP2000 to the mains, please carefully check that your
equipment is set to the correct voltage! Blown fuses must be replaced by fuses of
the same type and rating!
4.2 Mains connection
The mains connection is made using the enclosed power cord and a standard IEC
receptacle. It meets all of the international safety certi cation requirements.
◊ Please make sure that all units have a proper ground connection.
For your own safety, never remove or disable the ground conductor
from the unit or of the AC power cord.
4.3 Audio connections
The in and outputs of your BEHRINGER PMP2000 are designed as unbalanced
¼"mono jacks—except for the mono channel line inputs, which come as
balanced ¼" stereo jacks. Of course, all in and outputs work with both balanced
and unbalanced connectors. The tape ins and outs are on stereo RCA connectors.
◊ Please ensure that only qualified personnel install and operate the
PMP2000. During installation and operation, the user must have
sufficient electrical contact to earth. Electrostatic charges might affect
the operation of the unit.

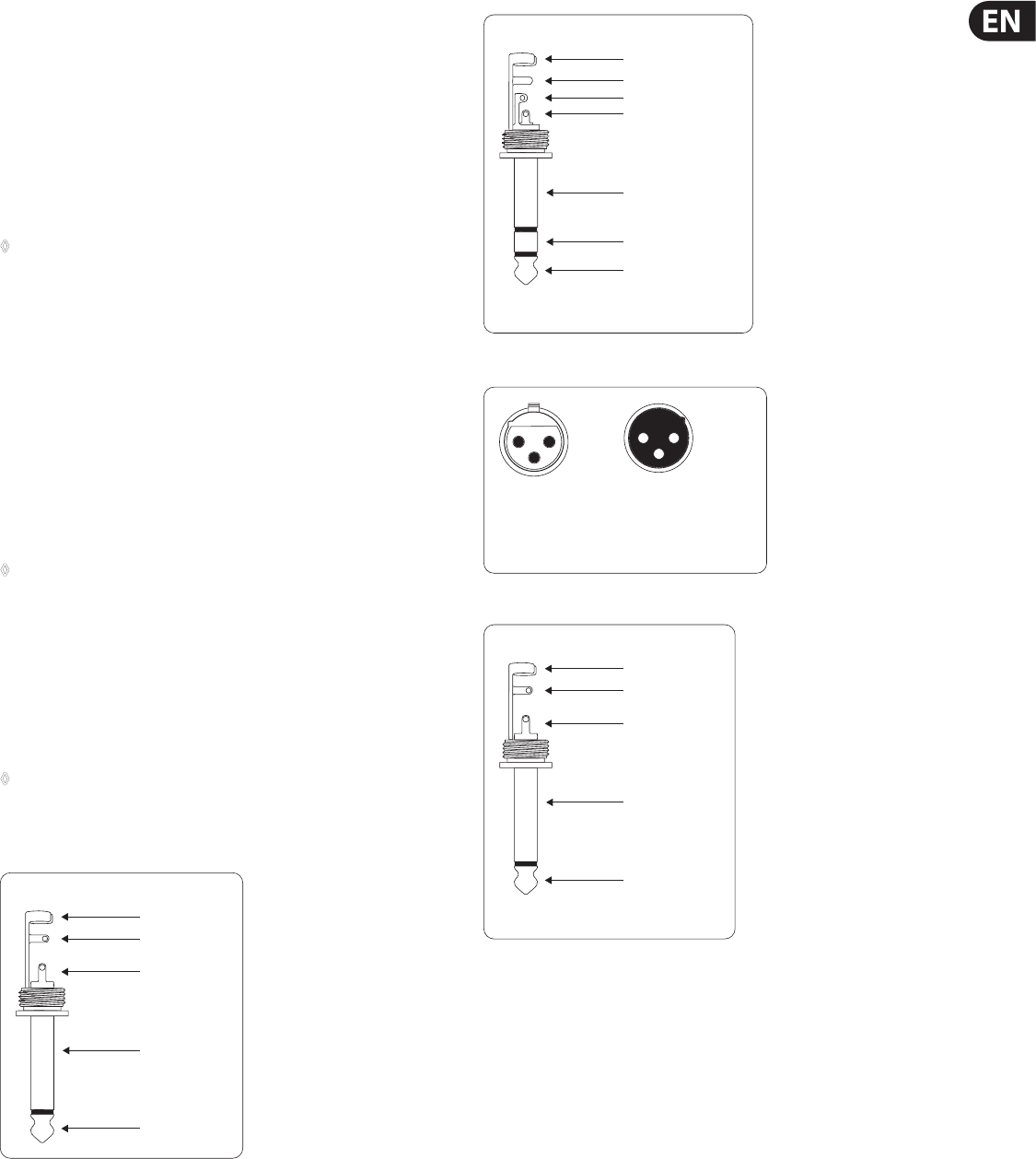

strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.1: ¼" mono plug
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
Fig. 4.2: ¼" stereo plug
For unbalanced use, pin 1 and pin 3 have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
output
12
3
Fig. 4.3: XLR connectors
strain relief clamp
sleeve
tip
sleeve
pole 1/ground
tip
pole 2
The footswitch connects both poles momentarily
¼" TS footswitch connector
Fig. 4.4: ¼" TS connector for footswitch
8EUROPOWER PMP2000 User Manual

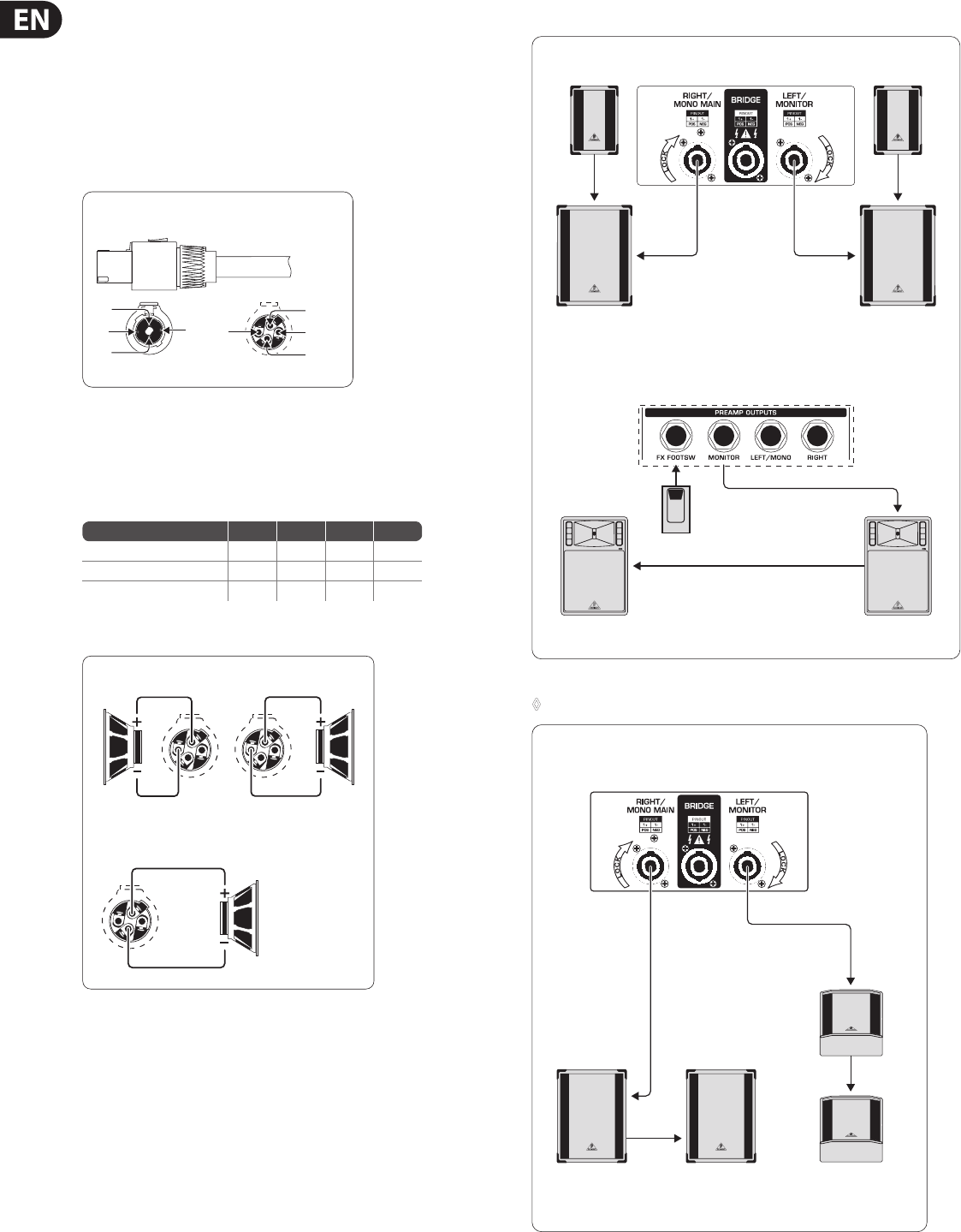

4.4 Loudspeaker connections
Your EUROPOWER is equipped with high-quality Neutrik Speakon-compatible
loudspeaker connectors, which ensure safe and trouble-free operation.
TheSpeakon connector was especially developed for high-power loudspeakers.
Once it is plugged in, it safely locks into position and cannot be accidentally
disengaged. It prevents the occurrence of electrical shock and ensures the
correct polarity. Each of the connectors carries only the assigned single signal
(see tab. 4.1/ g. 4.6 and the information on the rear panel of the power mixer).
1-
2-
2+
1+
1- 2-
2+
1+
front view rear view
Professional speaker connector
(compatible with Neutrik Speakon connectors)
Fig. 4.5: Loudspeaker connector
Please be sure to only use commercial Speakon cables (type NL4FC)
forconnecting your loudspeakers to the PMP2000. Please check the pin
assignment of your loudspeakers and cables dependent on the PMP2000 speaker
output you choose.
1+ 1- 2+ 2-
RIGHT/MONO MAIN POS NEG — —
LEFT/MONITOR POS NEG — —
BRIDGE POS NEG — —
Tab. 4.1: Polarity conguration of speaker connectors
BRIDGE
+1
+2
16 Ω
8 Ω
LEFT/MONITOR
+1
-1
16 Ω
8 Ω
4 Ω
+1
-1 16 Ω
8 Ω
4 Ω
RIGHT MONO MAIN
Fig. 4.6: PMP2000 loudspeaker connector assignment
5. Wiring Examples
Loudspeaker connection (FOH mix)
PMP2000
rear panel
(part view)
2 x BEHRINGER EUROLIVE
Stack (B1500 & B1020, both passive)
Loudspeaker connection (monitor mix)
PMP2000 front panel (part view)
2 x BEHRINGER B300 (active)
Footswitch
Fig. 5.1: PMP2000 as stereo amplier (example)
◊ Please set the MODE switch (21) to “LEFT/RIGHT” for this application.
Loudspeaker connection enabling both mono FOH
and mono monitor mixes
PMP2000
rear panel
(part view)
2 x BEHRINGER
EUROLIVE B1520 (passive)
2 x BEHRINGER
EUROLIVE F1520
(passive)
Fig. 5.2: PMP2000 as double mono amplier (example)
9EUROPOWER PMP2000 User Manual
◊ For this application, however, please set the MODE switch (21) to
“MON/MAIN”!
EUROPOWER PMP2000
Keyboard
Stereo channel 7/8
DAT recorder
Vocal
microphones Electric
guitar
Tape in/out
V-AMP 3
ULTRA-G GI100
Electric bass
Mono
channel 5
Mono
channel 6
Mono
channels
1 - 4

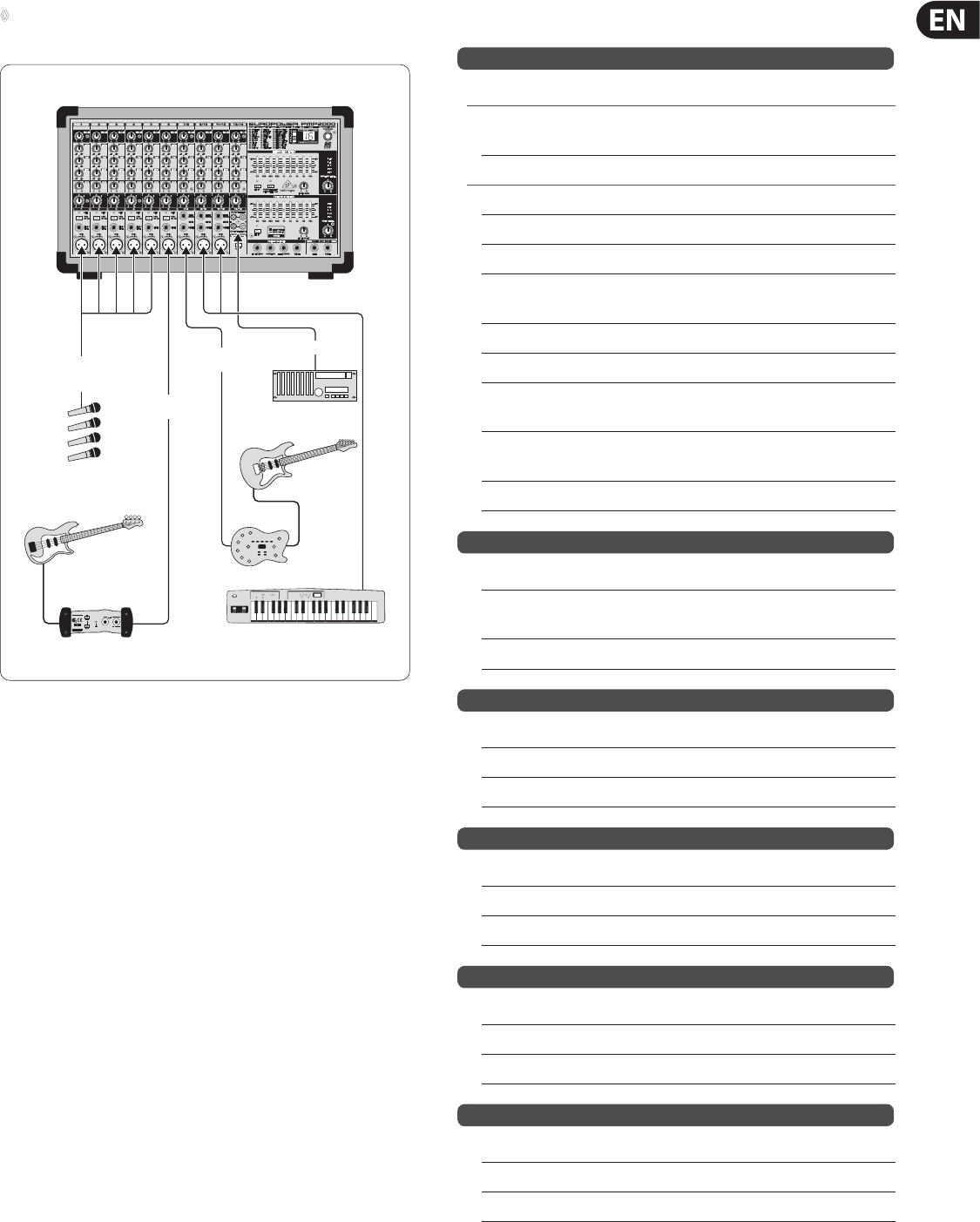

Fig. 5.3: Standard setup (example)
6. Specications
Mono Inputs
Microphone Inputs
Type XLR, electronically balanced,
discreteinput circuit
Mic E.I.N. (20 Hz - 20 kHz)
@ 0 Ω source resistance -122 dB / 125 dB A-weighted
@ 50 Ω source resistance -122 dB / 125 dB A-weighted
@ 150 Ω source resistance -121 dB / 124 dB A-weighted
Frequency response <10 Hz - 100 kHz (-1 dB),
<10 Hz - >200 kHz (-3 dB)
Gain +33 dB, +8 dB with pad
Max. input level +12 dBu @ +8 dB gain
Impedance approx. 2.2 kΩ balanced /
approx. 1.1 kΩ unbalanced
Signal-to-noise ratio 110 dB / 114 dB A-weighted
(-11 dBu In @ +33 dB gain)
Distortion (THD + N) 0.001% / 0.0008% A-weighted
Mono Line Inputs
Type ¼" TRS connector, balanced
Impedance approx. 80 kΩ balanced,
approx. 40 kΩ unbalanced
Max. input level 30 dBu
Stereo Line Inputs
Type ¼" TRS connector, unbalanced
Impedance approx. 40 kΩ unbalanced
Max. input level +28 dBu
EQ
Low 60 Hz / ±15 dB
Mid 700 Hz/ ±15 dB
High 6 kHz / ±15 dB
Preamp Outputs Left/Mono & Right
Type ¼" TRS connector, unbalanced
Impedance approx. 1.5 kΩ
Max. output level +21 dBu
Power Amp Inputs
Type ¼" TRS connector, unbalanced
Impedance approx. 47 kΩ
Max. input level +21 dBu
10 EUROPOWER PMP2000 User Manual
Monitor Output
Type ¼" TRS connector, unbalanced
Impedance 1.5 kΩ
Max. output level +21 dBu
DSP 24-bit Texas Instruments
Converter 24-bit Sigma-Delta,
64/128-times oversampling
Sampling rate 40 kHz
Main Mix System Data1
Noise
Main mix @ -∞, -76 dB / -80 dB A-weighted
Channel fader -∞
Main mix @ 0 dB, -72 dB / -76 dB A-weighted
Channel fader -∞
Main Mix @ 0 dB, -71 dB / -75 dB A-weighted
Channel fader @ 0 dB
Power Amp Speci cations
RMS @ 1% THD (Sine Wave), Both Channels Driven:
8 Ω per channel 165 W
4 Ω per channel 250 W
RMS @ 1% THD (Sine Wave), Bridged Mode:
8 Ω 500 W
Peak Power, Both Channels Driven
8 Ω per channel 225 W
4 Ω per channel 350 W
Peak Power, Bridged Mode
8 Ω 800 W
Loudspeaker Connections
Loudspeaker connector Professional speaker con nectors
(compatible to Neutrik Speakon)
Load Impedance
Left/monitor 4/8/16 Ω
Right/mono main 4/8/16 Ω
Bridge 8/16 Ω
Power Supply
Voltage and Fuse
USA/Canada 120 V~, 60 Hz
T 10 A H 250 V
Europe/U.K./Australia 230 V~, 50 Hz
T 5 A H 250 V
China/Korea 220 V~, 50/60 Hz
T 6.3 A H 250 V
Japan 100 V~, 50 – 60 Hz
T 12 A H 250 V
General export model 230 V~, 50 Hz
T 5 A H 250 V
120 V~, 60 Hz
T 10 A H 250 V
Power consumption max. 1 kW
Mains connection Standard IEC receptacle
Dimensions/Weight
Dimensions (H x W x D) approx. 11 x 18 ⁄ x 10 ⁄"
approx. 280 x 460 x 270 mm
Weight (net) approx. 30.9 lbs / 14 kg
Measuring conditions:
1: 20 Hz - 20kHz; measured at preamp output. All channels: level controls in center position; EQ flat.
Reference = 0 dBu.
BEHRINGER is constantly striving to manintain the highest professional standards. As a result of these eff orts,
modifi cations may be made from time to time to existing products without prior notice. Specifications and
appearance may differ from those listed or illustrated.
11 EUROPOWER PMP2000 User Manual
FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE
INFORMATION
Responsible Party Name: MUSIC Group Services US Inc.
Address: 18912 North Creek Parkway,
Suite 200 Bothell, WA 98011,
USA
Phone/Fax No.: Phone: +1 425 672 0816
Fax: +1 425 673 7647
EUROPOWER PMP2000
complies with the FCC rules as mentioned in the followingparagraph:
This equipment has been tested and found to comply with the limits for a ClassB
digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the followingmeasures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician forhelp.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Important information:
Changes or modications to the equipment not expressly approved by MUSIC Group
can void the user’s authority to use the equipment.
EUROPOWER PMP2000
We Hear You

Navigation menu
