User Manual

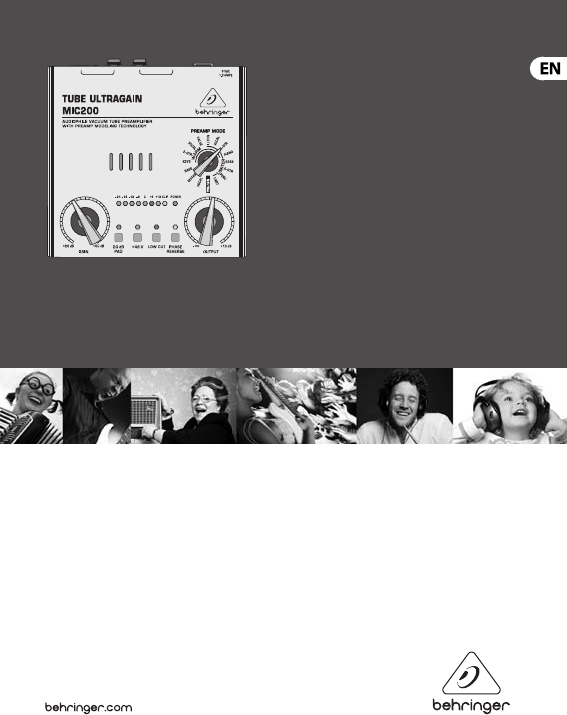

TUBE ULTRAGAIN MIC200

Audiophile Vacuum Tube Preamplier with

Preamp Modeling Technology

INPUT OUTPUT

2TUBE ULTRAGAIN MIC200 User Manual

Thank you

Thank you for the condence you have placed in us by purchasing the MIC200.

Your MIC200 is a professional mic preamp that can be used in a variety of

applications. Due to its incredible functionality and the broad range of connection

options, the MIC200 can even be used as a preamp for electric and bass guitars,

keyboards and percussion instruments. No matter where you use your MIC200,

you always get optimal performance, be it live or on the stage, in a professional

recording studio or at home!

Table of Contents

Thank you ............................................................................................ 2

Important Safety Instructions ........................................................... 3

Legal Disclaimer .................................................................................. 4

Limited Warranty ................................................................................ 5

1. Introduction .................................................................................. 10

1.1 The design concept .................................................................................... 10

1.2 Online registration ..................................................................................... 11

2. Control Elements .......................................................................... 12

2.1 User interface ............................................................................................... 13

2.2 Rear panel ...................................................................................................... 16

3. Wiring Examples .......................................................................... 17

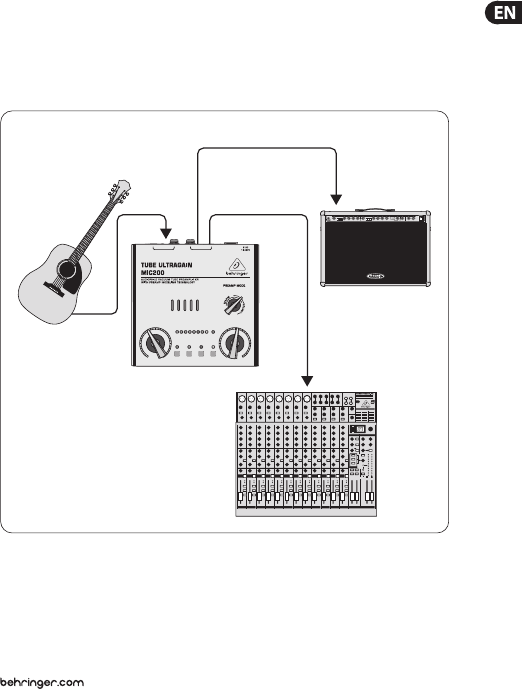

3.1 Enhancing vocals and instruments in

live applications ..................................................................................................17

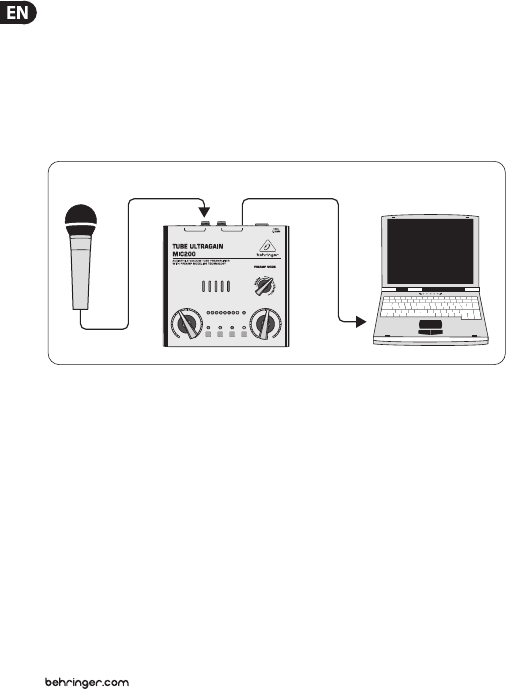

3.2 “Direct to Disk” application in studio or

homerecording environments ......................................................................18

3.3 The MIC200 as DI-box ............................................................................... 19

4. Audio Connectors ........................................................................ 20

5. Specications ............................................................................... 22

3TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

Important Safety

Instructions

This symbol, wherever

it appears, alertsyou

to the presence of

uninsulated dangerous voltage inside the

enclosure-voltage that may be su cient

to constitute a risk ofshock.

This symbol, wherever

it appears, alertsyou

to important operating

and maintenance instructions in the

accompanying literature. Please read

the manual.

Caution

◊ To reduce the risk of electric

shock, do not remove the top

cover (or the rear section).

No user serviceable parts

inside. Refer servicing to

qualified personnel.

Caution

◊ To reduce the risk of fire or

electric shock, do not expose this

appliance to rain and moisture.

The apparatus shall not be

exposed to dripping or splashing

liquids and no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Caution

◊ These service instructions are

for use by qualified service

personnel only. To reduce

the risk of electric shock do

not perform any servicing

other than that contained in

the operation instructions.

Repairs have to be performed by

qualified service personnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus

near water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the

manufacturer’sinstructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves,

or other apparatus (including ampli ers)

that produce heat.

4TUBE ULTRAGAIN MIC200 User Manual

9. Do not defeat the safety purpose

of the polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding-type

plug has two blades and a third grounding

prong. The wide blade or the third

prong are provided for your safety. Ifthe

provided plug does not  t into your outlet,

consult an electrician for replacement of

the obsolete outlet.

10. Place the power cord so that it is

protected from being walked on and

sharp edges. Be sure that the power

cord is protected particularly at plugs,

convenience receptacles and the point

where it exits from the apparatus.

11. The apparatus shall be connected to

a MAINS socket outlet with a protective

earthing connection.

12. Where the MAINS plug or an

appliance coupler is used as the

disconnect device, the disconnect device

shall remain readily operable.

13. Only use attachments/accessories

specied by the manufacturer.

14. Use only with

the cart, stand, tripod,

bracket, or table specied

by the manufacturer, or

sold with the apparatus. When a cart is

used, use caution when moving the cart/

apparatus combination to avoid injury

from tip-over.

15. Unplug this apparatus during

lightning storms or when unused for long

periods of time.

16. Refer all servicing to quali ed

service personnel. Servicing is required

when the apparatus has been damaged in

any way, such as power supply cord or

plug is damaged, liquid has been spilled

or objects have fallen into the apparatus,

the apparatus has been exposed to rain or

moisture, does not operate normally,

or has been dropped.

TECHNICAL SPECIFICATIONS AND

APPEARANCES ARE SUBJECT TO

CHANGE WITHOUT NOTICE AND

ACCURACY IS NOT GUARANTEED.

BEHRINGER IS PART OF THE MUSIC

GROUP MUSICGROUP.COM.

ALLTRADEMARKS ARE THE PROPERTY

OF THEIR RESPECTIVE OWNERS.

MUSICGROUP ACCEPTS NO LIABILITY

FOR ANY LOSS WHICH MAY BE

SUFFERED BY ANY PERSON WHO RELIES

LEGAL DISCLAIMER

5TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

EITHER WHOLLY OR IN PART UPON

ANY DESCRIPTION, PHOTOGRAPH

OR STATEMENT CONTAINED HEREIN.

COLORS AND SPECIFICATIONS MAY

VARY FROM ACTUAL PRODUCT.

MUSIC GROUP PRODUCTS ARE

SOLD THROUGH AUTHORIZED

FULLFILLERS AND RESELLERS ONLY.

FULLFILLERSAND RESELLERS ARE

NOT AGENTS OF MUSICGROUP AND

HAVE ABSOLUTELY NO AUTHORITY

TO BIND MUSICGROUP BY ANY

EXPRESS OR IMPLIED UNDERTAKING

OR REPRESENTATION. THIS MANUAL

IS COPYRIGHTED. NO PART OF THIS

MANUAL MAY BE REPRODUCED OR

TRANSMITTED IN ANY FORM OR BY ANY

MEANS, ELECTRONIC OR MECHANICAL,

INCLUDING PHOTOCOPYING AND

RECORDING OF ANY KIND, FOR

ANY PURPOSE, WITHOUT THE

EXPRESS WRITTEN PERMISSION OF

MUSICGROUPIPLTD.

ALL RIGHTS RESERVED.

© 2012 MUSICGROUPIPLtd.

Trident Chambers, Wickhams Cay,

P.O. Box 146, Road Town, Tortola,

BritishVirgin Islands

§ 1 Warranty

(1) This limited warranty is valid only if

you purchased the product from a MUSIC

Group Authorized Reseller in the country

of purchase. A list of authorized resellers

can be found on BEHRINGER’s website

behringer. com under “Where to Buy”,

or you can contact the MUSIC Group o ce

closest to you.

(2) MUSICGroup* warrants the

mechanical and electronic components

of this product to be free of defects in

material and workmanship if used under

normal operating conditions for a period

of one (1) year from the original date

of purchase (see the Limited Warranty

terms in §4 below), unless a longer

minimum warranty period is mandated

by applicable local laws. If the product

shows any defects within the speci ed

warranty period and that defect is not

excluded under §4, MUSICGroup shall,

at its discretion, either replace or repair

the product using suitable new or

reconditioned product or parts. Incase

MUSICGroup decides to replace the

entire product, thislimited warranty shall

apply to the replacement product for the

remaining initial warranty period, i.e.,

LIMITED WARRANTY

6TUBE ULTRAGAIN MIC200 User Manual

one (1) year (or otherwise applicable

minimum warranty period) from the date

of purchase of the original product.

(3) Upon validation of the warranty

claim, the repaired or replacement

product will be returned to the user

freight prepaid by MUSICGroup.

(4) Warranty claims other than those

indicated above are expressly excluded.

PLEASE RETAIN YOUR SALES RECEIPT. ITIS

YOUR PROOF OF PURCHASE COVERING

YOUR LIMITED WARRANTY. THIS LIMITED

WARRANTY IS VOID WITHOUT SUCH

PROOF OFPURCHASE.

§ 2 Online registration

Please do remember to register your

new BEHRINGER equipment right after

your purchase at behringer. com under

“Support” and kindly read the terms

and conditions of our limited warranty

carefully. Registeringyour purchase and

equipment with us helps us process your

repair claims quicker and more e ciently.

Thankyouforyour cooperation!

§ 3 Return materials

authorization

(1) To obtain warranty service, please

contact the retailer from whom the

equipment was purchased. Should your

MUSIC Group Authorized Reseller not

be located in your vicinity, you may

contact the MUSICGroup Authorized

Ful ller for your country listed under

“Support” at behringer. com. Ifyour

country is not listed, please check if

your problem can be dealt with by our

“OnlineSupport” which may also be

found under “Support” at behringer. com.

Alternatively,please submit an online

warranty claim at behringer. com BEFORE

returning the product. All inquiries must

be accompanied by a description of the

problem and the serial number of the

product. Afterverifying the product’s

warranty eligibility with the original

sales receipt, MUSICGroup will then

issue a ReturnMaterials Authorization

(“RMA”)number.

(2) Subsequently, the product must be

returned in its original shipping carton,

together with the return authorization

number to the address indicated by

MUSICGroup.

(3) Shipments without freight prepaid

will not beaccepted.

§ 4 Warranty Exclusions

(1) This limited warranty does not

cover consumable parts including,

but not limited to, fuses and batteries.

Where applicable, MUSICGroup warrants

7TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

the valves or meters contained in the

product to be free from defects in material

and workmanship for a period of ninety

(90) days from date of purchase.

(2) This limited warranty does not cover

the product if it has been electronically or

mechanically modi ed in any way. If the

product needs to be modi ed or adapted

in order to comply with applicable

technical or safety standards on a national

or local level, inany country which is not

the country for which the product was

originally developed and manufactured,

thismodi cation/adaptation shall not

be considered a defect in materials or

workmanship. Thislimited warranty

does not cover any such modi cation/

adaptation, regardless of whether it

was carried out properly or not. Under

the terms of this limited warranty,

MUSICGroup shall not be held responsible

for any cost resulting from such a

modi cation/adaptation.

(3) This limited warranty covers only

the product hardware. It does not cover

technical assistance for hardware or

software usage and it does not cover

any software products whether or not

contained in the product. Any such

software is provided “AS IS” unless

expressly provided for in any enclosed

software limitedwarranty.

(4)

This limited warranty is invalid if the

factory- appliedserial number has been

altered or removed from theproduct.

(5) Free inspections and maintenance/

repair work are expressly excluded from

this limited warranty, inparticular, if

caused by improper handling of the

product by the user. This also applies

to defects caused by normal wear and

tear, in particular, of faders, crossfaders,

potentiometers, keys/buttons, guitar

strings, illuminantsand similar parts.

(6) Damage/defects caused by the

following conditions are not covered by

this limited warranty:

• improper handling, neglect or

failure to operate the unit in

compliance with the instructions

given in BEHRINGER user or service

manuals;

• connection or operation of the

unit in any way that does not

comply with the technical or

safety regulations applicable in the

country where the product is used;

• damage/defects caused by acts of

God/Nature (accident,  re,  ood,

etc) or any other condition that is

beyond the control of MUSICGroup.

8TUBE ULTRAGAIN MIC200 User Manual

(7)

Any repair or opening of the

unit carried out by unauthorized

personnel (user included) will void the

limitedwarranty.

(8) If an inspection of the product by

MUSICGroup shows that the defect in

question is not covered by the limited

warranty, the inspection costs are payable

by thecustomer.

(9) Products which do not meet the

terms of this limited warranty will

be repaired exclusively at the buyer’s

expense. MUSICGroup or its authorized

service center will inform the buyer of

any such circumstance. If the buyer fails

to submit a written repair order within

6 weeks after noti cation, MUSICGroup

will return the unit C.O.D. with a separate

invoice for freight and packing. Such costs

will also be invoiced separately when the

buyer has sent in a written repair order.

(10) MUSIC Group Authorized Resellers

do not sell new products directly in online

auctions. Purchasesmade through an

online auction are on a “buyer beware”

basis. Online auction con rmations

or sales receipts are not accepted for

warranty veri cation and MUSICGroup

will not repair or replace any product

purchased through an online auction.

§ 5 Warranty transferability

This limited warranty is extended

exclusively to the original buyer

(customer of authorized reseller) andis

not transferable to anyone who may

subsequently purchase this product.

No other person (reseller,etc.) shallbe

entitled to give any warranty promise on

behalf of MUSICGroup.

§ 6 Claim for damage

Subject only to the operation of

mandatory applicable local laws,

MUSICGroup shall have no liability to

the buyer under this warranty for any

consequential or indirect loss or damage

of any kind. In no event shall the liability

of MUSICGroup under this limited

warranty exceed the invoiced value of

the product.

§ 7 Limitation of liability

This limited warranty is the complete

and exclusive warranty between you

and MUSICGroup. It supersedes all other

written or oral communications related

to this product. MUSICGroup provides no

other warranties for this product.

9TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

§ 8 Other warranty rights

and nationallaw

(1) This limited warranty does not

exclude or limit the buyer’s statutory

rights as a consumer in any way.

(2) The limited warranty regulations

mentioned herein are applicable unless

they constitute an infringement of

applicable mandatory local laws.

(3) This warranty does not detract from

the seller’s obligations in regard to any

lack of conformity of the product and any

hidden defect.

§ 9 Amendment

Warranty service conditions are subject

to change without notice. For the

latest warranty terms and conditions

and additional information regarding

MUSICGroup’s limited warranty,

please see complete details online at

behringer. com.

* MUSICGroup Macao Commercial O shore

Limited of RuedePequim No. 202-A,

Macau Finance Centre 9/J, Macau, including all

MUSICGroup companies

10 TUBE ULTRAGAIN MIC200 User Manual

1. Introduction

With the MIC200, you have purchased an extremely musical mic preamp that is

equipped with a 12AX7 vacuum tube. Thanks to BEHRINGER’s preamp modeling,

its main advantages are the number of preamp settings you can select. Additionally,

features like an integrated limiter, phase reverse function, phantom power supply,

highly accurate LED meter, switchable pad function and low cut lter make the

MIC200 a very powerful piece of equipment.

1.1 The design concept

The heart of the TUBEULTRAGAIN is an extremely low-noise microphone preamp

circuitry that uses discrete components and produces a highly trans-parent

sound. In combination with our BEHRINGER tube technology, the operational

ampliers 4580 and a sophisticated circuit topology, the TUBEULTRAGAIN yields

excellent noise and distortion properties. The innovative UTC circuitry that has

been developed by our engineering team oers an abundance of sound-shaping

possibilities. Absolute musicality was our major goal when we designed the

TUBE ULTRAGAIN. The result is a device that, thanks to our tube circuitry, lends an

incredible punch to percussion instruments. On the other hand, instruments that

are rich in upper harmonics will receive more transparency. The sound will be warm,

detailed and brilliant.

Surely you know the recording problem that single instruments or vocals sometimes

don’t cut through. Thanks to the TUBEULTRAGAIN, vocals gain in presence and

volume without masking other instruments. As a result, your voice will be perfectly

integrated in the mix.

11TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

1.2 Online registration

Please register your new BEHRINGER equipment right after your purchase by visiting

http://behringer.com and read the terms and conditions of our warranty carefully.

Should your BEHRINGER product malfunction, it is our intention to have it repaired

as quickly as possible. To arrange for warranty service, please contact the BEHRINGER

retailer from whom the equipment was purchased. Should your BEHRINGER dealer

not be located in your vicinity, you may directly contact one of our subsidiaries.

Corresponding contact information is included in the original equipment packaging

(Global Contact Information/European Contact Information). Should your country

not be listed, please contact the distributor nearest you. A list of distributors can be

found in the support area of our website (http://behringer.com).

Registering your purchase and equipment with us helps us process your repair claims

more quickly and eciently.

Thank you for your cooperation!

12 TUBE ULTRAGAIN MIC200 User Manual

2. Control Elements

INPUT OUTPUT

(9)(1) (2) (4) (5) (6) (7) (3) (8)

Fig. 2.1: User interface of the MIC200

13TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

2.1 User interface

(1) The GAIN control allows you to control the gain from +26 to +60 dB to

the input signal. This control should be set all theway to the left when (dis)

connecting a sound source from the MIC200. When all connections are made,

slowly start raising the gain control.

(2) We recommend using the LED meter to adjust gain. The LED chain displays the

output signal level in dB. Please make sure that the clip LED never lights up

permanently. It should light up only at peak signals, but it should never be on

all the time.

(3) If your MIC200 is connected to the mains via the enclosed power supply unit,

the POWER LED lights up to indicate that your MIC200 is running.

(4) The 20 dB PAD switch reduces the input sensitivity by 20 dB (switchpressed).

The appropriate setting depends on the equipment connected. Generally

speaking, lowering the signal level in mic applications is not recommended.

No matter what your application is, the clip LED warns you to reduce the gain

setting to avoid distortion.

(5) This +48 V switch activates the phantom power supply for the XLR input.

Phantom power supply is required for operating condenser microphones.

Dynamic microphones require no phantom power.

(6) Press the LOW CUT switch to eliminate undesired subsonic noise, such as

oor rumble.

(7) With the PHASE REVERSE switch, the input signal is reversed by 180°.

This function is available for both mic and line signals. Use this function

in a multi-microphone setup if you detect phase cancellations in specic

frequency bands.

14 TUBE ULTRAGAIN MIC200 User Manual

(8) The OUTPUT control governs the output level within a range from

-∞to+10dB. If the control is turned all the way to the left, there is no

output signal at all. The more the control is turned to the right, the higher the

output level.

(9) The PREAMP MODE rotary switch gives you a wide selection of

preamppresets. The options available are: WARM, WARM/LIMITER,

LIMITERandNEUTRAL:

WARM (moving clockwise, starting at 9 o’clock):

These settings make sense if you wish to add that typical warmth associated with

analog signals.

• KEYB: For electronic keyboard instruments of all types

• E-GTR: Electric guitar

• VOCAL: Speech and vocals

• VALVE: Warm, analog tube sound

WARM + LIMITER (moving clockwise, starting at 12o’clock):

Use these settings when working with high volumes or with sounds with frequent

signal peaks, and if directly recording an instrument with a mic (e. g. drums) to insert

additional warmth.

• MULTI: Various applications

• VOCAL: Speech and vocals

• A-GTR: Acoustic guitar

• PIANO: Piano/grand piano

15TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

LIMITER (moving clockwise, starting at 3 o’clock):

Select these settings if you wish to use the limiter function without adding

tube warmth.

• BASS: Bass guitar

• A-GTR: Acoustic guitar

• PERC: Percussion and drums

• LIMIT: Neutral limiter setting

NEUTRAL (moving clockwise, starting at 6 o’clock):

These settings are ideal for neutral and natural sound reproduction without limiter

and without tube sound.

• NEUTRAL: Neutral sound setting

• VOCAL: Optimized setting for speech and vocals

• GUITAR: Optimized setting for guitars and guitar amps

• BASS: Optimized setting for electric bass guitar

◊ Since presets cannot cover all possible applications, experiment with

different settings until you find those that work best for you. Think of

presets as the starting points for your sound configuration.

16 TUBE ULTRAGAIN MIC200 User Manual

2.2 Rear panel

(12) (11) (10)

Fig. 2.2: The rear panel of your MIC200

(10) The balanced ¼" TRS INPUT of your MIC200 can be used to connect your

electric guitar, for example. This input is wired parallelly to the XLR input.

Ideally, the balanced XLR INPUT should be used to connecta microphone.

◊ In contrast to its outputs, the MIC200’s inputs should never be

used simultaneously!

(11) This is the balanced XLR OUTPUT of your MIC200. Use this connector to feed the

XLR input of your mixing console, multitrack recorder or power amp.

The balanced ¼" TRS OUTPUT of your MIC200 can also be connected to a mixer,

recording system or power amp.

(12) Use the POWER SUPPLY CONNECTOR to hook up the enclosed power supply

unit. Next to this connector you’ll nd the strain relief clamp, which prevents

accidental release of the power supply.

The device’s SERIAL NUMBER is found on the bottom side of the unit.

17TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

3. Wiring Examples

You’ll be surprised how exibly you can set up your MIC200. The following chapter

describes some typical wiring examples.

3.1 Enhancing vocals and instruments in

live applications

Here, the MIC200 is wired before the mixer’s channel input. Thus, the sound gains

in warmth and transparency. Thanks to the limiter setting for vocals (VOCAL),

distortion is eliminated eectively.

XLR-input XLR-output Microphone input

INPUT OUTPUT

Fig. 3.1: Standard live application

18 TUBE ULTRAGAIN MIC200 User Manual

3.2 “Direct to Disk” application in studio or

homerecording environments

If you are looking for a device that considerably enhances the sound of your digital

workstation, this is where the MIC200 comes in. Many hard disk recorders lack a

certain “liveliness”. In addition, they are often equipped with “lousy” microphone

preamps. Such problems can be solved perfectly with the MIC200.

¼" TRS outputXLR input

INPUT OUTPUT

Fig. 3.2: Connection of the MIC200 and the soundcard of your PC

19TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

3.3 The MIC200 as DI-box

Your MIC200 is excellently suited for this application. For example, you can connect

an unbalanced acoustic guitar signal to the MIC200 to prevent hum or interference

noise. What you get is a balanced, noise-free signal.

¼" TRS

input Insert

¼" TRS output

XLR output

Microphone input

INPUT OUTPUT

Fig. 3.3: The MIC200 as DI-box

20 TUBE ULTRAGAIN MIC200 User Manual

4. Audio Connectors

output

For unbalanced use,

pin 1 and pin 3

have to be bridged

1 = ground/shield

2 = hot (+ve)

3 = cold (-ve)

input

12

3

12

3

Balanced use with XLR connectors

Fig. 4.1: XLR connectors

strain relief clamp

sleeve

tip

sleeve

(ground/shield)

Unbalanced ¼" TS connector

tip

(signal)

Fig. 4.2: ¼" TS connector

21TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

strain relief clamp

sleeve

ring

tip

sleeve

ground/shield

For connection of balanced and unbalanced plugs,

ring and sleeve have to be bridged at the stereo plug.

Balanced ¼" TRS connector

ring

cold (-ve)

tip

hot (+ve)

Fig. 4.3: ¼" TRS connector

22 TUBE ULTRAGAIN MIC200 User Manual

5. Specications

Audio Inputs

XLR Input

Connector balanced / unbalanced

Type transformerless, DC-decoupledinput

Impedance approx. 2kΩ

Max. input level +7dBu / -20 dB with pad

¼" TRS Input

Connector balanced / unbalanced

Type transformerless, DC-decoupledinput

Impedance approx. 1MΩ

Max. input level +16dBu / -20 dB with pad

E.I.N.1 (20 Hz - 20 kHz)

@ 0Ω source resistance -125.5dBu / -128.5dBu A-weighted

@ 150Ω source resistance -124dBu / -126.8dBu A-weighted

@ 600Ω source resistance -120dBu / -122.7dBu A-weighted

Audio Outputs

Connectors XLR connector + ¼" TRS jack balanced / unbalanced

Type transformerless, DC-decoupledoutput

Impedance approx. 700Ω balanced, approx.350Ω unbalanced

Max. output level approx. +26dBu @ 100kΩ

23TUBE ULTRAGAIN MIC200 User Manual TUBE ULTRAGAIN MIC200 User Manual

System Data

Signal-to-noise ratio 90dB A-weighted @ -28dBu inputlevel

Frequency Response

Mic input <10Hz to 47kHz (±3dB)

Line input <10Hz to 55kHz (±3dB)

Function Controls

GAIN variable (+26dB to +60dB)

OUTPUT variable (-∞ to +10dB)

Preamp mode control selection of various preamp settings for microphone

andinstruments

Function Switches

20 dB PAD level attenuation (20dB)

+48 V activates the phantom power

LOW CUT High pass lter (cut-ofrequency90Hz)

PHASE REVERSE Phase reverse (180°)

Indicators

Input Level 8-segment LED meter:

-24, -18, -12, -6, 0, +6, +12, Clip

Power LED indicates operation

24 TUBE ULTRAGAIN MIC200 User Manual

Power Supply

Mains Voltage

USA/Canada 120V~, 60Hz

Europe/U.K./Australia 230V~, 50Hz

China 220V~, 50Hz

Korea 220V~, 60Hz

Japan 100V~, 50 / 60Hz

Mains connector external power supply 9V~ / 1300mA

Physical / Weight

Dimensions (H x W x D) approx. 2.5 x 5.3 x 5.3" / 64x 135x 135mm

Weight (without power supply) approx. 1.0kg

1 Equivalent Input Noise

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts,

modifications may be made from time to time to existing products without prior notice. Specifications and appearance

may differ from those listed or illustrated.

We Hear You
