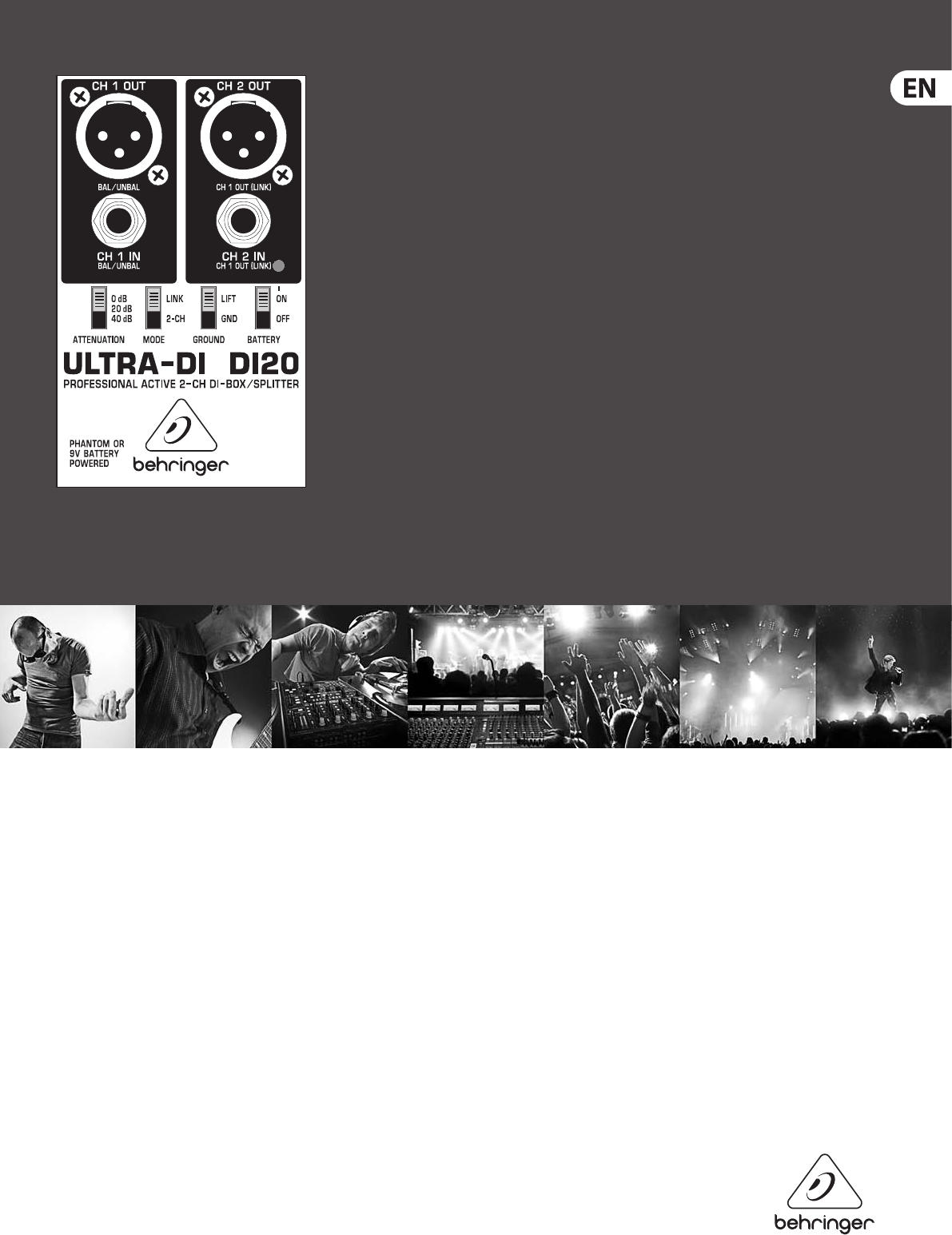

Technical Specications
ULTRA-DI DI20
Professional Active 2-Channel DI-Box/Splitter
2ULTRA-DI DI20 Technical Specifications
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed
or illustrated.
TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, AND TURBOSOUND ARE PART OF THE MUSIC GROUP (MUSIC-GROUP.COM).
ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH
OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY. FULLFILLERS AND RESELLERS ARE NOT AGENTS
OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED UNDERTAKING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED
IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IP LTD. ALL RIGHTS RESERVED.
© 2013 MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands
ULTRA-DI DI20
Professional Active 2-Channel DI-Box/Splitter
Professional and multi-purpose direct injection box for stage and studio applications
Provides impedance and signal matching for the direct connection of instruments to mixers and ampliers
Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs
Additional Split mode (channel 1 assigns signal to both XLR outputs)
Ultra-at frequency response due to servo-balanced operation
Internal battery automatically shuts o when phantom power is applied
Allows direct connection to speaker outputs with up to 3,000 Watts
Ground Lift switch eliminates typical ground loop problems
Input 2 usable as channel 1 Link output (additional to XLR output)
¼" TRS and gold-plated XLR connectors
Ultra-rugged, road-suitable metal case
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Specications
Frequency response 10 Hz to 70 kHz (-3 dB)
Noise 100 dBu
Distortion < 0.014% (1 kHz, 0 dBu in)
Input resistance > 250 kΩ
Connection impedance > 600 Ω
Input ¼" mono jack
Output XLR balanced
Max. input level +12/+32/+52 dBu
Phantom power 18 V DC to 48 V DC
Battery power 9 V 6LR91
Dimensions approx. 6 x 5 x 2 ⁄"
approx. 150 x 130 x 60 mm
Weight approx. 240 g
