User Manual
ULTRAGRAPH PRO
FBQ6200/FBQ3102/FBQ1502
Audiophile 31-Band and 15-Band Stereo Graphic Equalizer
with FBQ Feedback Detection System
![](asset-2.png)
2ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
Thank you
Thank you very much for ex pressing your con dence in our products by
purchasing one of our equalizers. This 2-channel high-end equalizer was
designed with our experience and know-how in lter technology spanning
many years. Our analog and digital equalizers are used the world over in various
reputable studios, P.A. systems and radio and TV stations. Just like with the
rest of our product line, when we started designing the new ULTRAGRAPH PRO
models, we had put forth uncompromizing demands in terms of controls, sound,
technical data and t-and-nish quality.
Table of Contents
Thank you .......................................................................2
Important Safety Instructions ...................................... 3
Legal Disclaimer ............................................................. 3
Limited warranty ............................................................ 3
1. Introduction ............................................................... 4
1.1 Before you get started ...................................................... 4
1.1.1 Shipment .......................................................................... 4
1.1.2 Initial operation ............................................................. 4
1.1.3 Warranty ........................................................................... 4
1.2 The user’s manual ............................................................... 4
2. Control Elements and Connectors ........................... 5
2.1 Front panel ............................................................................ 5
2.2 Rear panel ............................................................................. 6
2.3 Additional FBQ6200 control elements ...................... 6
2.3.1 Limiter .............................................................................. 6
2.3.2 Noise generator ............................................................ 7
2.3.3 Subwoofer section ....................................................... 7
3. Application Examples ............................................... 7
3.1 Master equalizer in sound
reinforcementsystems ............................................................ 8
3.2 Equalizer in the monitor path ........................................ 8
3.2.1 Priming a monitor system ......................................... 9
3.3 Using the ULTRAGRAPH PRO in the studio ............... 9
3.4 Special sound eects ........................................................ 9
4. Installation ................................................................. 9
4.1 Rack mounting .................................................................... 9
4.2 Audio connections ............................................................. 9
5. Specications ........................................................... 10
![](asset-3.png)
3ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
Important Safety
Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY
Terminals marked with this symbol carry
electrical current of su cient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼" TS or twist-locking plugs pre-installed. Allother
installation or modi cation should be performed only
by quali edpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be su cient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
quali ed personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by quali ed service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by quali ed
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories speci ed by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table speci ed by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to quali ed service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
TECHNICAL SPECIFICATIONS AND APPEARANCES
ARE SUBJECT TO CHANGE WITHOUT NOTICE AND
ACCURACY IS NOT GUARANTEED. BEHRINGER,
KLARKTEKNIK, MIDAS, BUGERA, AND TURBOSOUND
ARE PART OF THE MUSIC GROUP MUSICGROUP.COM.
ALL TRADEMARKS ARE THE PROPERTY OF THEIR
RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO
LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED
BY ANY PERSON WHO RELIES EITHER WHOLLY OR
IN PART UPON ANY DESCRIPTION, PHOTOGRAPH
OR STATEMENT CONTAINED HEREIN. COLORS AND
SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT.
MUSIC GROUP PRODUCTS ARE SOLD THROUGH
AUTHORIZED FULLFILLERS AND RESELLERS ONLY.
FULLFILLERSAND RESELLERS ARE NOT AGENTS OF
MUSICGROUP AND HAVE ABSOLUTELY NO AUTHORITY
TO BIND MUSICGROUP BY ANY EXPRESS OR IMPLIED
UNDERTAKING OR REPRESENTATION. THIS MANUAL
IS COPYRIGHTED. NO PART OF THIS MANUAL MAY
BE REPRODUCED OR TRANSMITTED IN ANY FORM
OR BY ANY MEANS, ELECTRONIC OR MECHANICAL,
INCLUDING PHOTOCOPYING AND RECORDING OF ANY
KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS
WRITTEN PERMISSION OF MUSICGROUPIPLTD.
ALL RIGHTS RESERVED.
© 2013 MUSICGroupIPLtd.
Trident Chambers, Wickhams Cay, P.O. Box 146,
Road Town, Tortola, British Virgin Islands
For the applicable warranty terms and conditions
and additional information regarding MUSIC Group’s
Limited Warranty, please see complete details online at
www.music-group.com/warranty.
![](asset-4.png)
4ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
1. Introduction
FBQ Feedback Detection System
The FBQ Feedback Detection System is one of the most outstanding characteristcs
of our graphic equalizers. This ingenious circuitry lets you immediately recognize
and eliminate feedback frequencies. The FBQ Feedback Detection System
uses the LEDs in the frequency band faders to indicate the critical frequencies.
Thisway, what once used to be a labor-intensive search for feedback frequencies
is now an activity that even a child could master.
In normal operation, the fader LEDs indicate frequency ranges with the highest
energy levels, therefore replacing a separate audio analyzer. If you keep an eye
on the LEDs while you play back your music (or during the sound check before
a show), you can easily identify those frequency ranges showing the highest
energy levels. Similarly, increased signal levels on individual frequency bands
indicate a higher likelihood that feedback may occur.
All three models feature a dedicated subwoofer output with adjustable cut-o
frequency. You can also adjust the fader range from ±6 to ±12 dB for each
channel independently.
The FBQ1502 requires just one rack space, yet it oers you tons of eective
methods for adjusting the sound characteristics, and is ultra-compact and
extremely simple to operate.
The FBQ3102 features 31 frequency bands per channel as well as adjustable
high-pass and low-pass lters. These lters further augment the adjustability
options available to you.
With its integrated limiters, noise generator and the adjustable subwoofer
output with signal level display and its 62 lighted 45 mm faders, the FBQ6200 is
our top model in this category.
Future-oriented BEHRINGER technology
To assure the highest possible degree of usability, all our equipment is
manufactured adhering to the highest quality standards in the audio
industry. Your equalizer has been manufactured under ISO9000 certied
managementsystem.
Relay-controlled hard bypass
The so-called hard bypass relays were integrated into the development concept
of the FBQ6200 and the FBQ3102. These relays assure that your equalizer is
automatically switched into bypass mode in the event of loss of power or faulty
power delivery. These fail-safe relays also produce a slight delay during powering
up in order to avoid dangerous switch-on thumps.
Balanced inputs and outputs
The BEHRINGER ULTRAGRAPH PRO models feature electronic servo-balanced
inputs and outputs. The servo function performs automatically, recognizingwhen
unbalanced signals are connected and internally converts the nominal signal
level so that no signal level dierence between input and output signals occurs
(6 dB correction).
◊ The following user’s manual is intended to familiarize you with the
unit’s control elements, so that you can master all the functions.
After having thoroughly read the user’s manual, store it at a safe place
for future reference.
1.1 Before you get started
1.1.1 Shipment
The ULTRAGRAPH PRO was carefully packed at the factory to assure secure
transport. Should the condition of the cardboard box suggest that damage may
have taken place, please inspect the unit immediately and look for physical
indications of damage.
◊ Damaged units should NEVER be sent directly to us. Please inform the
dealer from whom you acquired the unit immediately as well as the
transportation company from which you took delivery of the unit.
Otherwise, all claims for replacement/repair may be rendered invalid.
1.1.2 Initial operation
Please make sure the unit is provided with sucient ventilation, and never place
the ULTRAGRAPH PRO on top of an amplier or in the vicinity of a heater to avoid
the risk of overheating.
◊ Before plugging the unit into a power socket, please make sure you
have selected the correct voltage:
The fuse compartment near the power plug socket contains three triangular
markings. Two of these triangles are opposite one another. The voltage
indicated adjacent to these markings is the voltage to which your unit has
been set up, andcan be altered by rotating the fuse compartment by 180°.
ATTENTION: Thisdoes not apply to export models that were for example
manufactured only for use with 120 V!
◊ If you alter the unit’s voltage, you must change the fuse accordingly.
The correct value of the fuse needed can be found in the
chapter “Specifications”.
◊ Faulty fuses must be replaced with fuses of appropriate rating without
exception! The correct value of the fuse needed can be found in the
chapter “Specifications”.
Power is delivered via the cable provided with the unit. All requiered safety
precautions have been adhered to.
◊ Please make sure that the unit is grounded at all times. For your own
protection, you should never tamper with the grounding of the cable or
the unit itself.
1.1.3 Warranty
Please take a few minutes and send us the completely lled out warranty
card within 14 days of the date of purchase. You may also register online at
behringer.com. The serial number needed for the registration is located on the
rear of the unit. Failure to register your product may void future warranty claims.
1.2 The user’s manual
The user’s manual is designed to give you both an overview of the control
elements, as well as detailed information on how to use them. In order to help
you understand the links between the controls, we have arranged them in groups
according to their function. Should you need detailed information about specic
topics not covered in this manual, please visit our website at behringer.com.
Forexample, additional information about power amps and eects processors is
found there.
![](asset-5.png)
5ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
2. Control Elements and Connectors
2.1 Front panel
In this chapter we will describe various control elements of your equalizer.
Allcontrols and connectors are explained in detail, and you will also nd useful
hints on how to best use them. Since the three equalizers in the FBQ series
are fairly similar, let’s start with the control elements of the FBQ1502 and
the FBQ3102 that are similar to the control elements found on the FBQ6200.
TheFBQ6200 additionally features extra control elements that will be explained
in detail later on.
(1) The INPUT/OUTPUT LEVEL METER lets you keep an eye on the signal level
in order to avoid distortion. Depending on the position of the I/O METER
IN/OUT switch (2), the display shows either the input or the output signal
(switchdepressed) level. When the signal level reaches roughly +18 dB,
thatis, 3dBbelow clipping starts to occur, the red CLIP LED lights up.
The level meter on the FBQ1502 displays only the output signal level.
◊ Attention: extreme frequency boosts in connec tion with a high input
signal level may lead to over driving your equipment. Should this
occur, it is necessary to reduce the input signal level by using the
INPUT control.
(4) (5)
(3)
(4)
(2) (1) (3)
(5) (6) (7)
(1)
(6)
(8) (9)

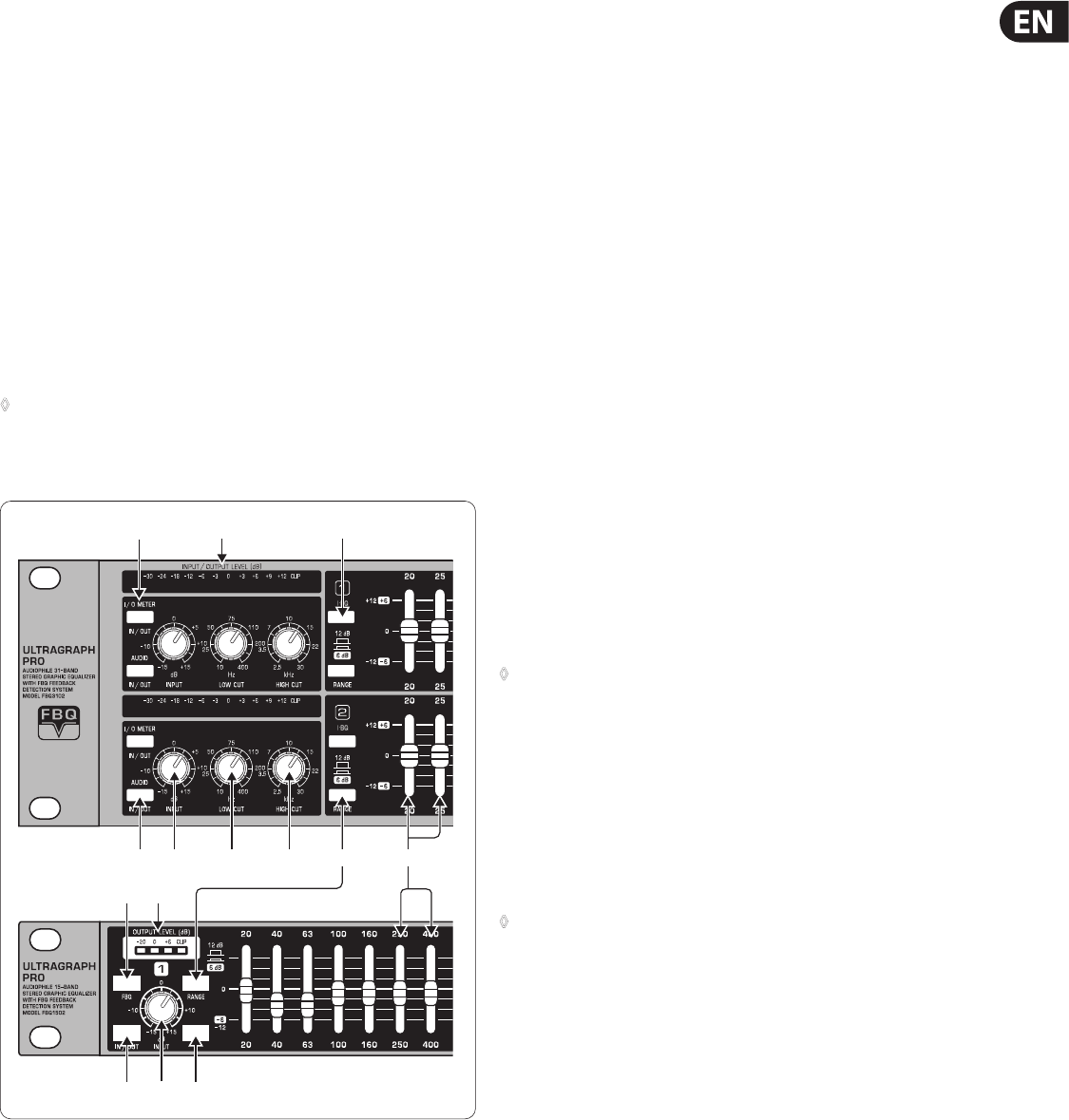

Fig. 2.1: Front panel control elements of the FBQ3102 (above) and of the FBQ1502 (below)
(2) The I/O METER IN/OUT switch lets you alternate between displaying the
input and the output signal level. When the switch is depressed, the output
signal level is shown. The FBQ1502 does not feature this switch.
(3) When you press the FBQ switch, the FBQ feedback detection system
is activated. The frequency (or frequen cies) that evoke feedback is/are
indicated by means of a lighted fader LED. All other LEDs are toned down.
Now, simply lower the respective frequency range somewhat until you
eliminate the feedback and the LED no longer lights up.
(4) The AUDIO IN/OUT switch is used to enable or disable the entire equalizer
section. The FBQ1502 does this electronically, while the FBQ3102 and the
FBQ6200 feature a relay-driven hard bypass function. As long as the switch
is not depressed or while the equalizer is not powered up, the inputs and the
outputs are directly connected to one another. The AUDIO IN/OUT switch is
used to alternate between A and B, i.e. to compare the original unprocessed
signal with the processed signal.
(5) The INPUT control is used to adjust the input signal level. You can
boost/attenuate the signal level from +15 to -15 dB.
(6) The LOW CUT control is used to adjust the lower cut-o frequency of your
ULTRAGRAPH PRO. The high-pass lter (18 dB/oct.) covers the range between
10 and 400 Hz, whereby the lter lets the signal pass through unprocessed,
when the control is in the 10 Hz position.
The FBQ1502 features a switchable high-pass lter (LOW CUT) instead of a
low cut control, and its cut-o frequency is 25 Hz.
(7) The HIGH CUT control is used to adjust the upper cut-o frequency of your
ULTRAGRAPH PRO. The low-pass lter (18 dB/oct.) covers the range between
2.5 and 30 kHz, whereby the lter lets the signal pass through unprocessed
when the control is in the 30 kHz position.
◊ Use the high-pass and low-pass filters to define the frequency range
you wish to process. This provides you with an efficient way to limit the
bandwidth you work with.
(8) The RANGE switch lets you alternate between the maximum value
of lowering/increasing of individual frequencies from 12 dB to 6 dB
(switchdepressed).
(9) These are the 31 SLIDING CONTROLS (FBQ1502: 15 sliding controls per
channel) for individual frequency bands. When in “0” position, the particular
frequency range is not processed at all. To boost a frequency range, pull the
sliding control upward; to attenuate, pull the sliding control downward.
◊ To emphasize a frequency range, you don’t necessarily have to move
its respective sliding control upward; try lowering surrounding
frequency ranges instead. This way, you avoid causing the next piece of
equipment in your sound path to overdrive. You also preserve valuable
dynamic reserve (“headroom”).
Sliding controls feature LEDs that indicate the signal level of their particular
frequency ranges through their varying illumination intensity: what better
way to show critical frequencies that evoke feedback. How to best use
your ULTRAGRAPH PRO to detect these critical frequencies is described in
chapter3.2.1.
![](asset-6.png)
6ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
2.2 Rear panel
(10)
(11) (12) (13)

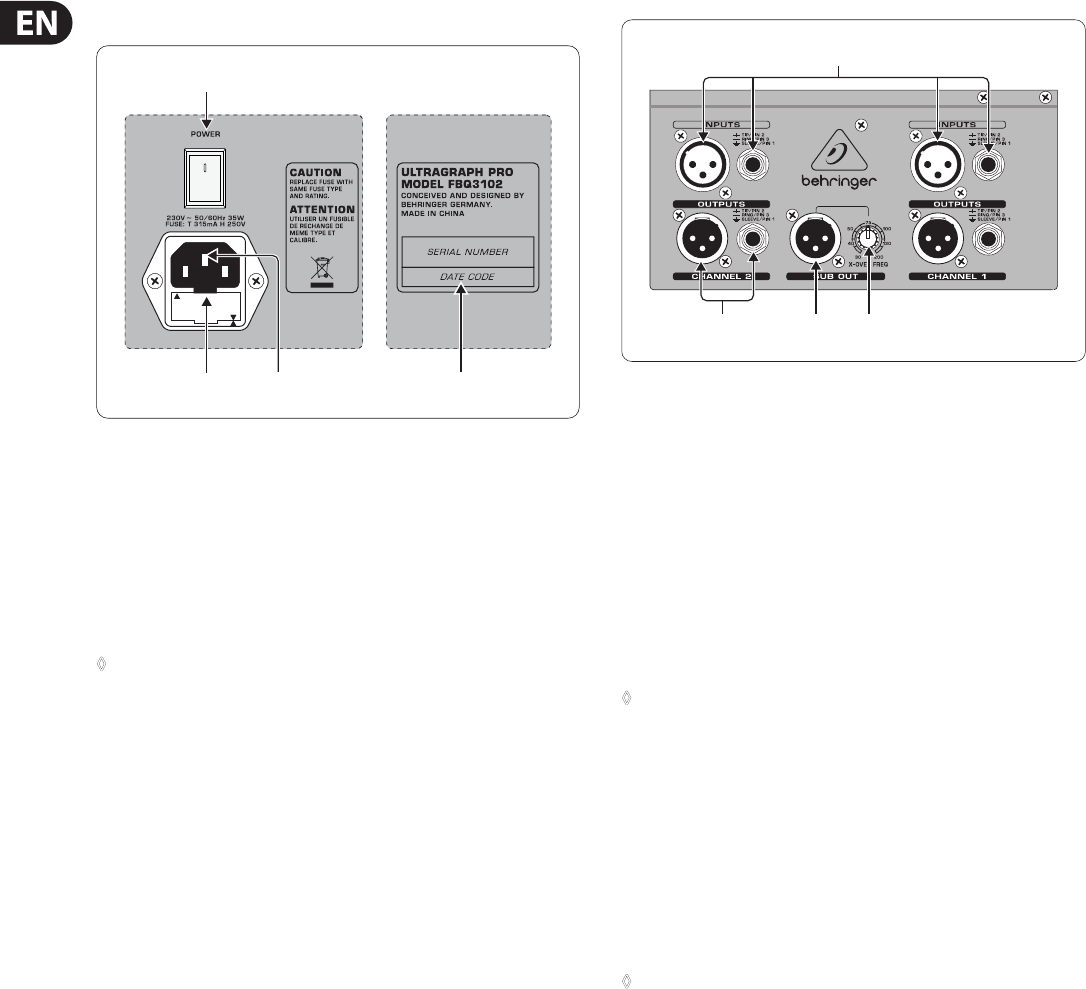

Fig. 2.2: Control elements and important information on the rear of the FBQ3102
(10) The POWER switch powers up your ULTRAGRAPH PRO. The POWER switch
should always be in the “O” position when you are about to connect your
FBQ to the mains.
To disconnect the unit from the mains, pull out the main cord plug.
Wheninstalling the product, ensure that the plug is easily accessible.
Ifmounting in a rack, ensure that the mains can be easily disconnected
by a plug or by an all-pole disconnect switch on or near the rack.
◊ Please keep in mind: The POWER switch does not entirely separate the
unit from the mains. Please disconnect the power cord from the mains
if you will not be using your FBQ for longer periods of time.
FBQ1502’s power switch is located at the front.
(11) The connection to the mains is done via a standard IEC connector.
Amatching cable is included.
(12) FUSE COMPARTMENT / VOLTAGE SELECTION. Before connecting the unit
to a power outlet, please make sure that the selected voltage matches your
local voltage. When replacing fuses, please make sure that you always use
fuses of the same type. Some units allow for switching between 230 V
and 120 V. Please note: when connecting a unit intended for the European
market to a 120 V power outlet, you must also replace the factory fuse with a
higher-value fuse.
(13) SERIAL NUMBER. Please take a few minutes and send to us a completely
lled out warranty card within 14 days of the original date of purchase.
Otherwise, warranty claims may be rendered invalid. Or ll out the warranty
information online at behringer.com.
(16) (17)(15)
(14)
Fig. 2.3: Connectors at the rear of the FBQ3102
(14) INPUT. These are the audio inputs of the FBQ3102. All three equalizers in the
series feature the same input and output connectors in the form of balanced
¼" TRS and XLR connectors.
(15) OUTPUT. These are the audio outputs. The ¼" connectors and their
respective XLR connectors are wired in parallel.
(16) SUB OUT. This balanced XLR connector provides the output signal for your
subwoofer. A summed up mono signal for the subwoofer is provided here.
Please connect the subwoofer amplier’s input to this connector.
(17) Use the X-OVER FREQ control to select the desired crossover frequency for
thesubwoofer.
◊ The bandwidth limitation enacted through the high-pass
filter (LOW CUT) also affects the frequency response of the
subwoofer output.
2.3 Additional FBQ6200 control elements
2.3.1 Limiter
One of the FBQ6200’s outstanding features is its integrated limiter.
A limiter is a device that protects your loudspeakers and other equipment
connected to your FBQ6200 (or your recordings) from overdriving and the signal
distortion associated.
◊ Please take into consideration that when you increase the presence
of multiple frequency bands, the overall signal level increases
subs tantially as well. The limiter will process very quickly in such
situations. This can be avoided by performing signal corrections by
lowering certain frequency ranges instead of increasing others.
To produce creative sound effects, you can also purposely “force” the
peak limiter into action.
(18) The ULTRAGRAPH PRO FBQ6200 features a built-in limiter for each channel.
Use the LIMITER switch for its activation.
![](asset-7.png)
7ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
(19) (21) (22)(20)(18)
(26) (25) (24)
(23)

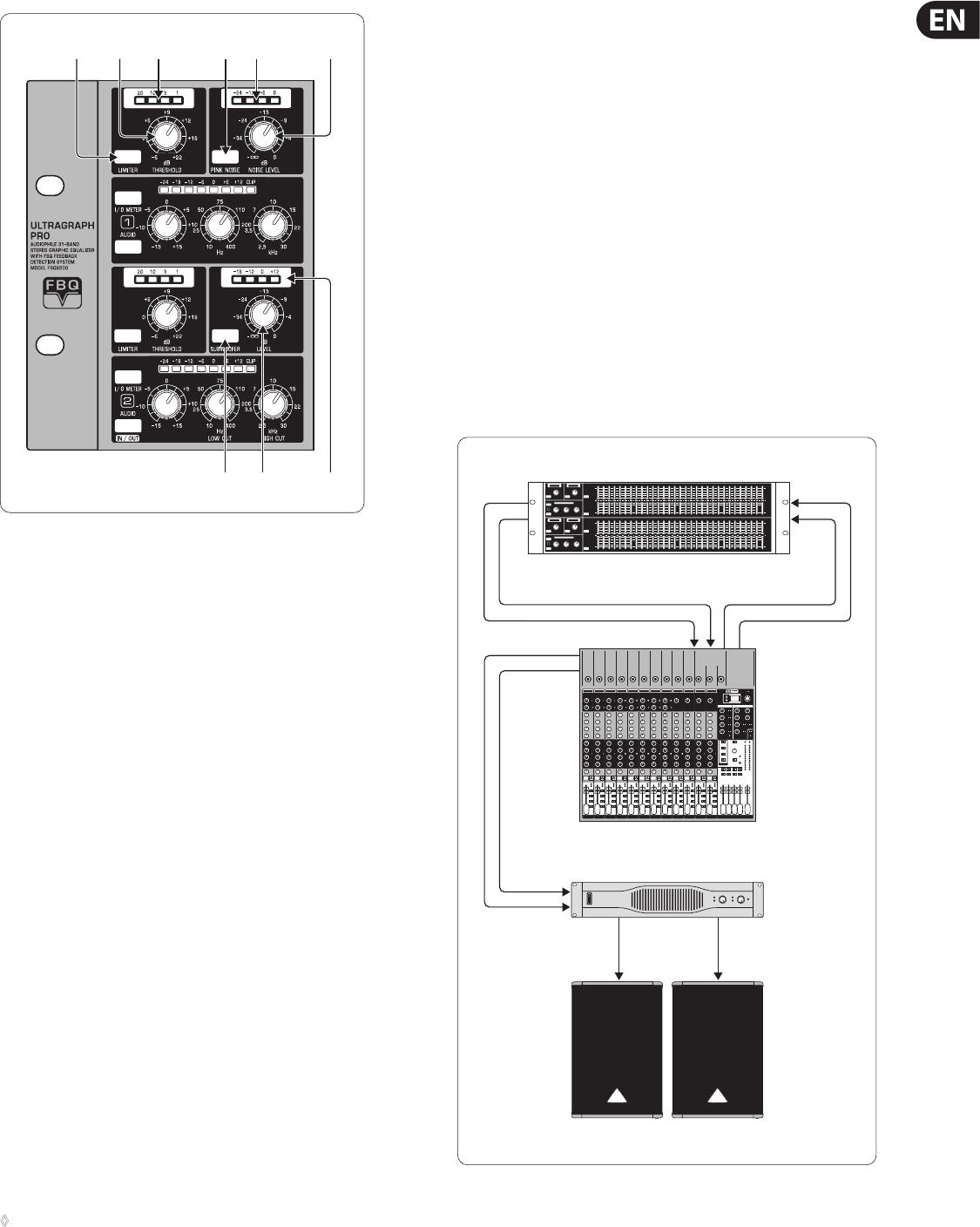

Fig. 2.4: FBQ6200 control elements
(19) The limiter display informs you about the amount of gain reduction
perfomed by the limiter.
(20) The limiter connes the signal to an adjustable signal level. Use the
THRESHOLD control to adjust the threshold value of the limiter from -6to
+22 dB. When the control is in the “-6 dB” setting, the gain reduction is
very pronounced; the more you turn the control toward “+22 dB”, the gain
reduction is lower. When the threshold control is in its right-most position,
the limiter is not applied.
2.3.2 Noise generator
By using the built-in noise generator, you can create the so-called “pink noise”
that can be used to adjust your P.A. system to specic acoustic characteristics of
various venues.
(21) Activate the pink noise generator by using the PINK NOISE switch.
Thebuilt-in switch illumination blinks red when the pink noise generator
isactivated.
(22) Read o the noise generator’s signal level on the LED display.
(23) Use the NOISE LEVEL control to adjust the volume of the pink noise
yougenerate.
Room resonance and sound transfer characteristics of the P.A. system cause some
frequencies to be more prominently present while other frequencies are less
present. Pink noise is a neutral signal that can be played back via the P.A. system
in order to measure these sound characteristics.
Such a measurement of the frequency response by using a special microphone
in conjunction with a real-time analyzer (a real-time analyzer is for example
integrated into the BEHRINGER ULTRACURVE PRO DEQ2496) delivers the basis
for setting up the equalizer. More pronounced frequencies are lowered,
andthose frequencies that are not so prominently featured are increased,
thusapproximately achieving linear reproduction.
◊ Try to orient yourself on a frequency whose signal level lies in the 0 dB
to -3 dB range in order to avoid overdriving the equipment connected
(e.g. power amplifier, crossover).
2.3.3 Subwoofer section
(24) The LED display indicates the signal level present at the SUB OUT connector.
(25) The signal level present at the subwoofer output connector can be adjusted
by using the LEVEL control.
(26) To activate the subwoofer output, please depress the SUBWOOFER switch.
In general, the location of a subwoofer is not critical, since the source of
deeper freqencies is not easily determined. However, to achieve optimal sound
resolution, you should try to position the subwoofer in a central location between
the two main speakers. This way, you minimize run-time dierences and the
sound quality deterioration associated with them.
3. Application Examples
The exible concept of the ULTRAGRAPH PRO models, with the diverse
possibilities in sound processing, open up an entire range of application
possibilities for you. Only the most typical applications with their settings will be
presented here.
XENYX X2442USB
ULTRAGRAPH PRO FBQ6200
Main inserts
l & r
Inputs
l & r
Outputs
l & r
EP2000
EUROLIVE B1520 PRO
Fig. 3.1: The ULTRAGRAPH PRO FBQ6200 as master equalizer
![](asset-8.png)
8ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
3.1 Master equalizer in sound
reinforcementsystems
This diagram shows a typical set-up with the ULTRAGRAPHPRO models
(seeg.3.1).
To achieve optimal results, you should pay attention to several issues:
Before you start correcting the frequency response of a setup, it is advisable to
rst let the music and other sound sources run “uncorrected”, as this is something
that has proven itself in practice. If distortion occurs, such overdriving is the rst
issue to be overcome in your setup. Loudspeaker location is also very important.
No equalizer in this world can signicantly correct the dull sound created through
reexion of wall structures and ceilings. Often, very dramatic improvements can
be made by simply placing and aligning speakers correctly.
If you are using an active multi-way system you should take some run-time and
phase correction measures before you work with the ULTRAGRAPH PRO (our
crossover network SUPER-XPRO CX3400 provides all the necessary tools with
its variable split frequencies, phase reverse switches and electronic run-time
correction facility). Onlyafter making these preliminary adjustments should you
start implementing them on your ULTRAGRAPHPRO.
Disturbing noise (e. g. mains-induced hum) as well as narrow-band resonances
should rst be tackled by using the ULTRAGRAPHPRO (also see ch. 3.2.1).
Youshould denitely perform all these adjustments before modifying the
overallsound.
Now you have a basic setup and now it’s time to start ne-tuning your sound.
Some ground rules:
A linear response curve is not ideal for every application. For example,
whendealing with the spoken word, intelligibility is what is most important.
Therefore,thetransmission curve should drop o in the bass segment of the
signal because otherwise only interference is transmitted.
In general, extremely low and high frequencies are transmitted with much
lower amplitudes. There is no sense in “forcing” a small full-range speaker to
reproduce frequencies below 50 Hz; apart from a need for higher power reserves,
speakerdamage will be the most likely result.
◊ Always respect the physical limitations of your system.
After setting up your system as precisely as possible to the desired transmission
curve, walk around the venue in order to get an impression of what your signal
sounds like in dierent locations. Do not forget to take regular breaks while you
do this, and also try to use various program sources to truly develop a feeling for
what your system really sounds like and how the venue carries the sound.
◊ Setting up your equalizer well takes a lot of time and patience! If you
notice that only extreme settings on your equalizer create a usable
frequency response, this is probably a good indication that a cardinal
mistake may have been committed elsewhere in the P.A. system or
room acoustics.
An equalizer is no solution for bad equipment, but it is an extremely useful and
eective sound tool for musical ne-tuning. Fine-tuning often leads to amazing
improvements in acoustic penetration and in the overall sound quality of your
entire setup.
3.2 Equalizer in the monitor path
When using your ULTRAGRAPH PRO in the monitor path, the same applies as
when using it as described in section 3.1.
Basically, the stage volume should be as low as possible because:
1. this protects your hearing,
2. there are fewer feedback problems, and
3. it is easier to create a good FOH sound.
Often, monitor volume level is increased during a concert. Use intermissions in
the program to lower all monitor paths roughly 3 dB. The musicians will hardly
notice this reduction because their hearing can recover somewhat during an
intermission. This way you can achieve valuable headroom for possible use later
in the program.
Extremely deep frequencies are usually completely removed to avoid creating a
“queasy” feedback stage sound. To this end, use the low-cut lter and set it up in
such a way that extremely deep feedback completely disappears, creating a more
transparent monitor sound.
VP1220F
EP2000
ULTRAGRAPH PRO FBQ3102
XENYX X2222USB
Outputs
left & right
Aux sends
1 & 2

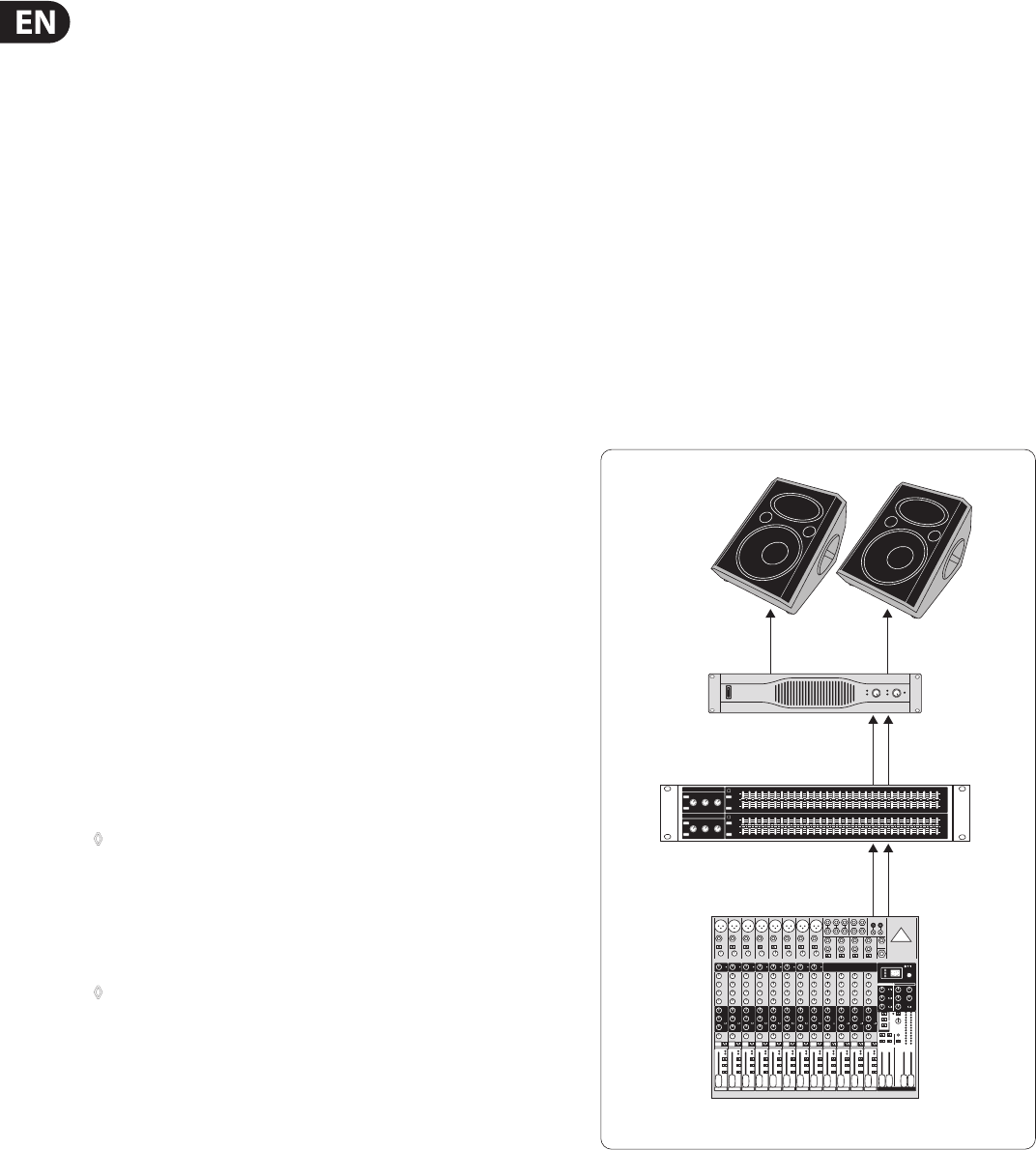

Fig. 3.2: The ULTRAGRAPH PRO FBQ3102 in a monitor system
![](asset-9.png)
9ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
3.2.1 Priming a monitor system
Priming describes the process of detecting and supressing feedback frequencies.
After placing and leveling your mics and monitors (incl. power amps), you should
crank up the aux send controls of your mixer.
Now, activate the FBQ feedback detection system by pressing the FBQ switch (3).
The slide control LEDs (9) will turn dark. Then, increase the amplication on your
mixer by using the aux send master control until you notice feedback starting to
occur. Feedback frequencies will now be easily visible through intensive lighting
of the relevant LEDs.
Pull down the slide controls whose LEDs are lit until the feedback subsides.
Repeat this procedure to weed out other possible feedback frequencies.
Afterhaving adjusted all critical frequencies, when you crank up the aux send
master control, you will be able to hear only the initial multi-frequency feedback.
Your monitors have reached their maximum volume.
Leave all other faders in the middle position as long as no need for frequency
correction occurs (e.g. measuring with a real-time analyzer). Set the desired
stage volume, and you will have a tremendous amount of headroom available
toyou, without creating audible feedback.
3.3 Using the ULTRAGRAPH PRO in the studio
Additional applications await the ULTRAGRAPH PRO models in the studio.
Nolimits stand in the way of your imagination. Here are just a few examples
ofpossible uses:
EQing your studio monitors:
You can conduct a graphic equalization of your monitors. Besides, you can supress
narrow-band room resonance. An analyzer, for example the analyzer integrated
into our digital equalizer ULTRACURVE PRO DEQ2496, can help you when you are
looking for room resonance and a linear frequency response.
General sound processing:
Equalizers can be used to process both single-channel and master signals.
Toprocess single-channel signals, you should connect the ULTRAGRAPHPRO
via the channel inserts on your mixer. To control several signals with your
ULTRAGRAPH PRO, use either subgroup or main mix inserts. Nowadays,
theoverall sound of a mix is often “tweaked” with equalizers. Often, a mix is not
uniform, that is, frequency ranges are either too prominent or not prominent at
all. A graphic equalizer lets you nd a tting ratio between the intensity of these
various frequency ranges in order to achieve a homegenous sound.
3.4 Special sound eects
In recording studios as well as stage or radio plays, the ULTRAGRAPH PRO will be
your valuable sound tool for modifying the sound of voices (e.g. telephone voice)
or to lter instruments so that they t in an existing mix.
The tables on the separate add-on sheet give you an idea of specic frequencies
and their acoustic signicance, and suggest some possible uses for your
ULTRAGRAPH PRO.
4. Installation
4.1 Rack mounting
The FBQ1502 requires one height unit (1 HU) for mounting in a 19" rack,
theFBQ3102 two height units, and the FBQ6200 three height units. Please allow
at least an additional 4" of space for the connectors on the back panel.
Be sure that there is enough space around the unit for cooling and please do
not place your ULTRAGRAPHPRO on high-temperature devices such as power
ampliers etc. to avoid overheating.
For rack mounting, please use M6 metal nuts and bolts.
4.2 Audio connections
You will need many dierent cables for the various applications. The following
illustrations show how these cables should be laid out. Please use exclusively
high-grade cabels.
The ULTRAGRAPH PRO is installed with electronically servo-balanced inputs and
outputs to avoid hum noise problems.
You can, of course, also connect unbalanced devices to the balanced inputs/
outputs. Either use mono plugs, or connect the ring and sleeve of stereo plugs
(bridge pin 1 and pin 3 when using XLR connectors).
◊ Please ensure that only qualified personnel install and operate the
ULTRAGRAPH PRO. During installation and operation the user must
have sufficient electrical contact to earth. Electrostatic charges might
affect the operation of the unit.

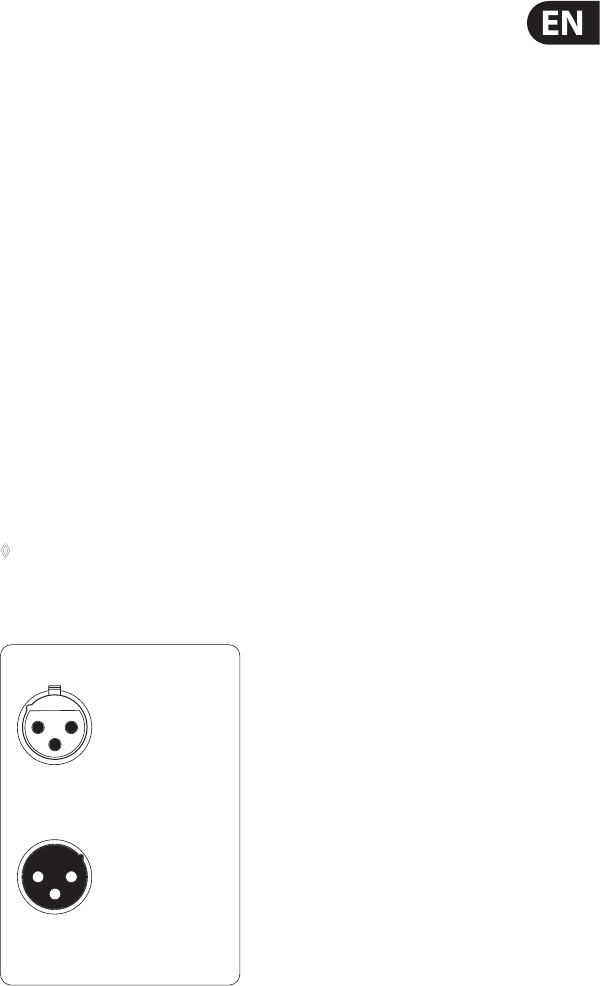

output
For unbalanced use, pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
12
3
Balanced use with XLR connectors
Fig. 4.1: XLR connectors
![](asset-a.png)
10 ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual

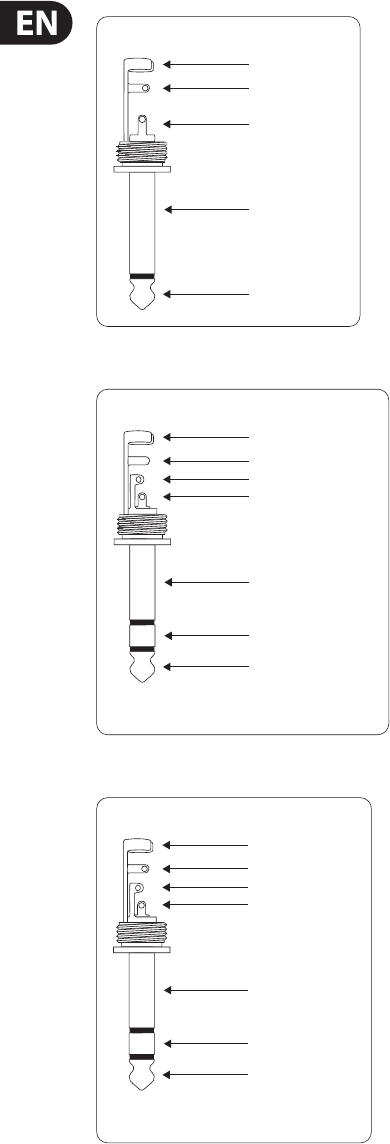

strain relief clamp
sleeve
tip
sleeve
(ground/shield)
Unbalanced ¼" TS connector
tip
(signal)
Fig. 4.2: ¼" TS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
Fig. 4.3: ¼" TRS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
Connect the insert send with the input and the
insert return with the output of the eects device.
Insert send return ¼" TRS connector
ring
return (in)
tip
send (out)
Fig. 4.4: ¼" TRS connector for insert send/return applications
![](asset-b.png)
11 ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
5. Specications
FBQ6200
Audio Inputs
INPUTS RF-ltered, servo-balanced XLR and
¼" TRS connectors
Impedance 40 kW balanced and unbalanced
Maximum input level +21 dBu balanced and unbalanced
CMRR typ. 40 dB, >55 dB @ 1 kHz
Audio Outputs
OUTPUTS servo-balanced XLR and
¼" TRS connectors
SUBWOOFER OUT balanced XLR connector,
level variable o to 0 dB
Crossover frequency variable, 30 - 200 Hz
System Specications
Frequency response 10 Hz to 30 kHz, ±3 dB
S/N ratio 22 Hz to 22 kHz >94 dB @ +4 dBu
Distortion (THD) typ. 0.006% @ +4 dBu, 1 kHz, Gain 1
Crosstalk typ. -65 dB @ 1kHz
Roll-O Filter Section
Type 12 dB/oct., Butterworth
Input variable (-15 dB to +15 dB)
Low Cut variable (10 Hz to 400 Hz)
High Cut variable (2.5 kHz to 30 kHz)
Graphic Equalizer
Type analog 31-band equalizer
Frequency range 20 Hz to 20 kHz in 31 1/3-octave bands
(ISO frequencies)
Bandwidth 1/3 octave
Control range ±6 dB or ±12 dB (switchable)
Limiter Section
Attack/Release 20 msec / 90 msec
Threshold variable, -6 dB to +22 dB (o)
LED meter Gain reduction 20/10/3/1 dB
Noise Generator
Type Pink noise, level variable, o to 0 dBu,
LED level meter -24/-12/-6/0 dB
Function Switches
FBQ activates the FBQ Feedback
Detection System
Audio In/Out switch to bypass the equalizer functions
I/O Meter In/Out switches the meter display from
input to output
Range shift of the maximum cut/boost range
for all 31/15 bands
Low Cut —
Limiter activates the limiter
Pink Noise activates the noise generator
Subwoofer activates the subwoofer output
Indicators
Input/output level 8-segment LED display:
-24/-18/-12/-6/0/+6/+12 dB/CLIP
Subwoofer 4-segment LED display:
-18/-12/0/+12 dB
Power Supply
Mains Voltage
USA / Canada 120 V~, 60 Hz
Europe / U.K. / Australia 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
General export model 120/230 V~, 50 - 60 Hz
Power consumption 35 W
Fuse 100 - 120 V~: T 630 mA H
200 - 240 V~: T 315 mA H
Mains connection standard IEC receptacle
Dimensions / Weight
Dimensions (H x W x D) 150 x 133 x 482.6 x mm
(5.9 x 5.2 x 19 x ")
Weight 3.04 kg (6.7 lbs)
![](asset-c.png)
12 ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
FBQ3102
Audio Inputs
INPUTS RF-ltered, servo-balanced XLR and
¼" TRS connectors
Impedance 40 kW balanced and unbalanced
Maximum input level +21 dBu balanced and unbalanced
CMRR typ. 40 dB, >55 dB @ 1 kHz
Audio Outputs
OUTPUTS servo-balanced XLR and
¼" TRS connectors
SUBWOOFER OUT balanced XLR connector
Crossover frequency variable, 30 - 200 Hz
System Specications
Frequency response 10 Hz to 30 kHz, ±3 dB
S/N ratio 22 Hz to 22 kHz >94 dB @ +4 dBu
Distortion (THD) typ. 0.006% @ +4 dBu, 1 kHz, Gain 1
Crosstalk typ. -65 dB @ 1kHz
Roll-O Filter Section
Type 12 dB/oct., Butterworth
Input variable (-15 dB to +15 dB)
Low Cut variable (10 Hz to 400 Hz)
High Cut variable (2.5 kHz to 30 kHz)
Graphic Equalizer
Type analog 31-band equalizer
Frequency range 20 Hz to 20 kHz in 31 1/3-octave bands
(ISO frequencies)
Bandwidth 1/3 octave
Control range ±6 dB or ±12 dB (switchable)
Limiter Section
Attack/Release —
Threshold —
LED meter —
Noise Generator
Type —
LED level meter —
Function Switches
FBQ activates the FBQ Feedback
Detection System
Audio In/Out switch to bypass the equalizer functions
I/O Meter In/Out switches the meter display from input
to output
Range shift of the maximum cut/boost range
for all 31/15 bands
Low Cut —
Limiter —
Pink Noise —
Subwoofer —
Indicators
Input/output level 12-segment LED display: -30/-24/-18/
-12/-6/-3/0/+3/+6/+9/+12 dB/CLIP
Subwoofer —
Power Supply
Mains Voltage
USA / Canada 120 V~, 60 Hz
Europe / U.K. / Australia 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
General Export Model 120/230 V~, 50 - 60 Hz
Power consumption 35 W
Fuse 100 - 120 V~: T 630 mA H
200 - 240 V~: T 315 mA H
Mains connection standard IEC receptacle
Dimensions / Weight
Dimensions (H x W x D) 150 x 89 x 482.6 x mm (5.9 x 3.5 x 19")
Weight 2.64 kg (5.8 lbs)
![](asset-d.png)
13 ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual
FBQ1502
Audio Inputs
INPUTS RF-ltered, servo-balanced XLR and
¼" TRS connectors
Impedance 40 kW balanced and unbalanced
Maximum input level +21 dBu balanced and unbalanced
CMRR typ. 40 dB, >55 dB @ 1 kHz
Audio Outputs
OUTPUTS servo-balanced XLR and
¼" TRS connectors
SUBWOOFER OUT balanced XLR connector
Crossover frequency variable, 30 - 200 Hz
System Specications
Frequency response 10 Hz to 200 kHz ±3dB
S/N ratio 22 Hz to 22 kHz >94 dB @ +4 dBu
Distortion (THD) typ. 0.006% @ +4 dBu, 1 kHz, Gain 1
Crosstalk typ. -65 dB @ 1kHz
Roll-O Filter section
Type 12 dB/oct., Butterworth
Input variable (-15 dB to +15 dB)
Low Cut switchable, Cuto @ 25 Hz
High Cut —
Graphic Equalizer
Type analog 15-band equalizer
Frequency range 20 Hz to 16 kHz in 15 bands
(ISO frequencies)
Bandwidth 2/3 octave
Control range ±6 dB or ±12 dB (switchable)
Limiter Section
Attack/Release —
Threshold —
LED meter —
Noise Generator
Type —
LED level meter —
Function Switches
FBQ activates the FBQ Feedback
Detection System
Audio In/Out switch to bypass the equalizer functions
I/O Meter In/Out —
Range shift of the maximum cut/boost range
for all 31/15 bands
Low Cut activates the high pass lter
Limiter —
Pink Noise —
Subwoofer —
Indicators
Input/output level 4-segment LED display:
-20/0/+6 dB/CLIP (output only)
Subwoofer —
Power Supply
Mains Voltage
USA / Canada 120 V~, 60 Hz
Europe / U.K. / Australia 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
General export model 120/230 V~, 50 - 60 Hz
Power consumption 22 W
Fuse 100 - 120 V~: T 630 mA H
200 - 240 V~: T 315 mA H
Mains connection standard IEC receptacle
Dimensions / Weight
Dimensions (H x W x D) 215 x 44.5 x 482.6x mm
(8.5 x 1.8 x 19 x")
Weight 2.34 kg (5.1 lbs)
BEHRINGER continuously strives to assure the highest quality standards possible. Required modifications may
be implemented without prior notice. Technical data and the appearance of the unit may deviate from the above
values and/or illustrations.
![](asset-e.png)
We Hear You
