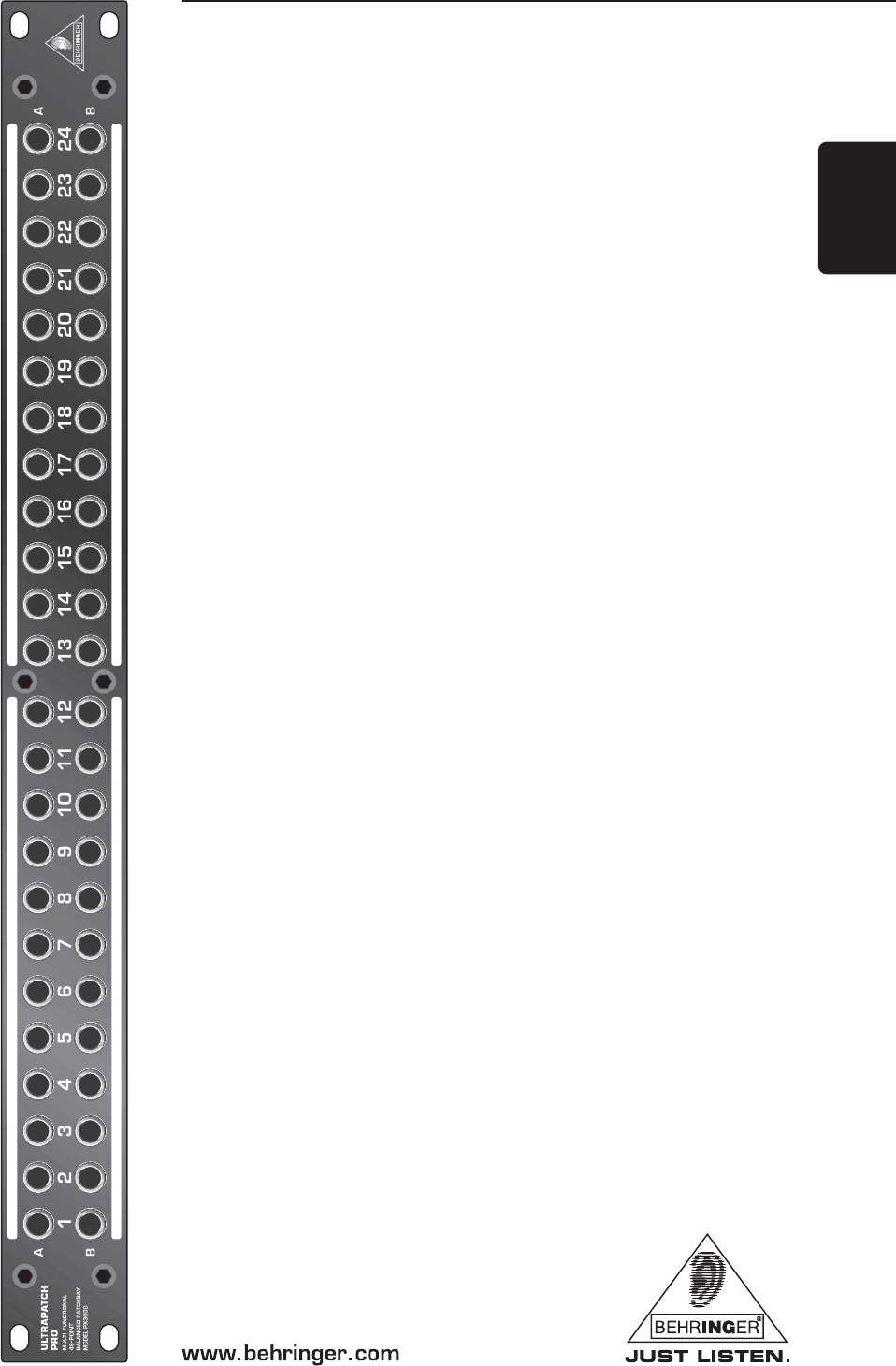

ULTRAPATCH PRO PX3000

ENGLISH

Version 1.0 March 2004

Technical Specifications

2

ULTRAPATCH PRO PX3000

PX3000

ULTRAPATCH PRO

3-Mode Multi-Functional 48-Point Balanced Patchbay

sProfessional and fully balanced patchbay eliminates cable clutter in your studio, adding order and clarity

sFully balanced high-quality ¼" TRS connectors

sThree modes, easily selectable per channel via top-side switches

sNORMAL interconnects the two rear jacks of one channel; Inserting a plug into one of the front jacks

interrupts the connection of the rear jacks

sTHRU interconnects each rear jack with its corresponding front jack

sHALF NORMAL interconnects the two rear jacks of one channel; Inserting a plug into the lower front jack

interrupts the connection of the rear jacks

sSuper-rugged metal construction for long life and durability

sDesigned in Germany. Manufactured under ISO9000 certified management system

3

ULTRAPATCH PRO PX3000

SPECIFICATIONS

Connectors 1/4" TRS, balanced

Dimensions (H x W x D) approx. 1 3/4" x 19" x 3 2/3"

(44.5 mm x 482.6 mm x 93 mm)

Weight approx. 4 lbs (1.8 kg)

BEHRINGER is constantly striving to maintain the highest professional

standards. As a result of these efforts, modifications may be made from

time to time to existing products without prior notice. Specifications and

appearance may differ from those listed or illustrated.
