User Manual

V-TONE

GMX1200H

True Analog Modeling 2 x 60-Watt Stereo Guitar Amplier Head with 2 Independent Channels,

each Featuring 27 Modeled Sounds, FX Processor, Tuner and MIDI Control

GMX212

True Analog Modeling 2 x 60-Watt Stereo Guitar Amplier with 2 Independent Channels,

each Featuring 27 Modeled Sounds, FX Processor, Tuner and MIDI Control

GMX210

True Analog Modeling 2 x 30-Watt Stereo Guitar Amp with 2 Independent Channels,

each Featuring 27 Modeled Sounds, FX Processor, Tuner and MIDI Control

GMX112

True Analog Modeling 60-Watt Guitar Workstation with 2 Independent Channels,

each Featuring 27 Modeled Sounds, FX Processor, Tuner and MIDI Control

GMX110

True Analog Modeling 30-Watt Guitar Amp with 2 Channels, 27 Modeled Sounds,

FX Processor, Tuner and MIDI Control

2V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

Table of Contents

Important Safety Instructions ...................................... 3

Legal Disclaimer ............................................................. 3

Limited Warranty ........................................................... 3

1. Introduction ............................................................... 5

1.1 The concept .......................................................................... 5

1.2 Dynamizer technology and analogmodeling ......... 5

1.3 Before you get started ...................................................... 5

1.3.1 Shipment ......................................................................... 5

1.3.2 Initial operation ............................................................. 5

1.3.3 Online registration ....................................................... 6

2. Control Elements andConnections ......................... 6

2.1 Front panel ............................................................................ 6

2.2 Rear panel ............................................................................. 7

3. Applications ............................................................... 8

3.1 Practice setup with playback .......................................... 8

3.2 Recording setup with an external

eectsdevice ............................................................................... 8

3.3 Live setup with a MIDI foot controller ........................ 9

3.4 Wiring the GMX1200H ...................................................... 9

4. Eects Processor ...................................................... 10

4.1 FXT—eects tracking ...................................................... 10

4.2 The eects........................................................................... 10

4.3 MIDI control ........................................................................ 12

5. Tuner ......................................................................... 13

5.1 Tuning your guitar ............................................................ 13

5.2 Setting up the “a” reference tone ............................... 13

6. Installation ............................................................... 13

6.1 Audio connections ........................................................... 13

6.2 Speaker connection ......................................................... 14

6.3 MIDI connection ............................................................... 14

7. Appendix .................................................................. 14

7.1 MIDI implementation ...................................................... 14

7.2 Eect presets ...................................................................... 15

8. Specications ........................................................... 16

3V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

LEGAL DISCLAIMER

LIMITED WARRANTY

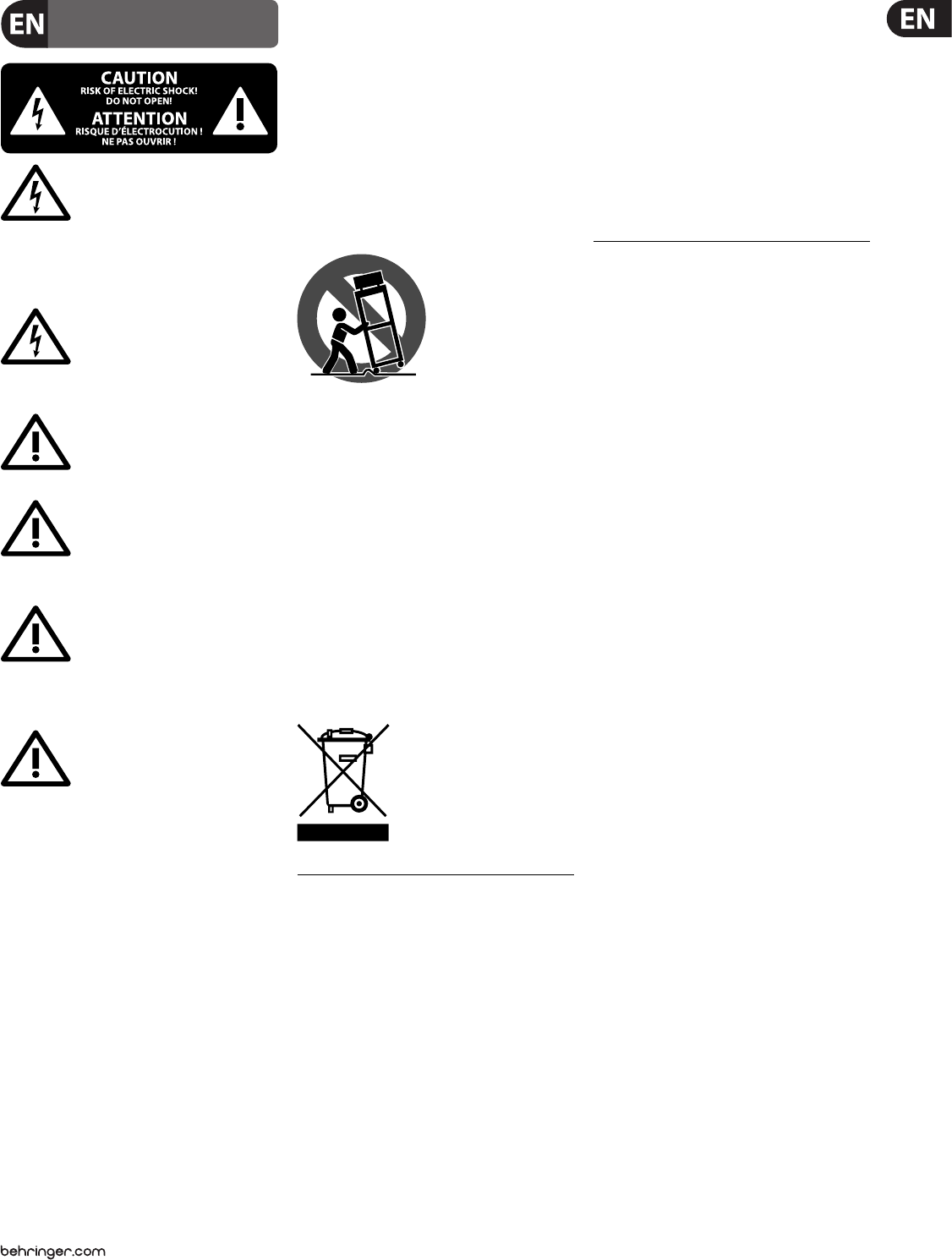

Terminals marked with this symbol carry

electrical current of su cient magnitude

to constitute risk of electric shock.

Use only high-quality professional speaker cables with

¼" TS or twist-locking plugs pre-installed. Allother

installation or modi cation should be performed only

by quali edpersonnel.

This symbol, wherever it appears,

alertsyou to the presence of uninsulated

dangerous voltage inside the

enclosure-voltage that may be su cient to constitute a

risk ofshock.

This symbol, wherever it appears,

alertsyou to important operating and

maintenance instructions in the

accompanying literature. Please read the manual.

Caution

To reduce the risk of electric shock, donot

remove the top cover (or the rear section).

No user serviceable parts inside. Refer servicing to

quali ed personnel.

Caution

To reduce the risk of  re or electric shock,

do not expose this appliance to rain and

moisture. The apparatus shall not be exposed to dripping

or splashing liquids and no objects  lled with liquids,

suchas vases, shall be placed on the apparatus.

Caution

These service instructions are for use

by quali ed service personnel only.

Toreduce the risk of electric shock do not perform any

servicing other than that contained in the operation

instructions. Repairs have to be performed by quali ed

servicepersonnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other apparatus

(including ampli ers) that produce heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding-type plug

has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. Ifthe

provided plug does not  t into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11. Use only attachments/accessories speci ed by

themanufacturer.

12. Use only with the

cart, stand, tripod, bracket,

or table speci ed by the

manufacturer, orsold with

the apparatus. When a cart

is used, use caution when

moving the cart/apparatus

combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to quali ed service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power supply cord or plug

is damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed

to rain or moisture, does not operate normally, or has

beendropped.

15. The apparatus shall be connected to a MAINS socket

outlet with a protective earthing connection.

16. Where the MAINS plug or an appliance coupler is

used as the disconnect device, the disconnect device shall

remain readily operable.

TECHNICAL SPECIFICATIONS AND APPEARANCES

ARE SUBJECT TO CHANGE WITHOUT NOTICE AND

ACCURACY IS NOT GUARANTEED. BEHRINGER IS

PART OF THE MUSIC GROUP MUSICGROUP.COM.

ALL TRADEMARKS ARE THE PROPERTY OF THEIR

RESPECTIVE OWNERS. MUSICGROUP ACCEPTS NO

LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED

BY ANY PERSON WHO RELIES EITHER WHOLLY OR

IN PART UPON ANY DESCRIPTION, PHOTOGRAPH

OR STATEMENT CONTAINED HEREIN. COLORS AND

SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT.

MUSIC GROUP PRODUCTS ARE SOLD THROUGH

AUTHORIZED FULLFILLERS AND RESELLERS ONLY.

FULLFILLERSAND RESELLERS ARE NOT AGENTS OF

MUSICGROUP AND HAVE ABSOLUTELY NO AUTHORITY

TO BIND MUSICGROUP BY ANY EXPRESS OR IMPLIED

UNDERTAKING OR REPRESENTATION. THIS MANUAL

IS COPYRIGHTED. NO PART OF THIS MANUAL MAY

BE REPRODUCED OR TRANSMITTED IN ANY FORM

OR BY ANY MEANS, ELECTRONIC OR MECHANICAL,

INCLUDING PHOTOCOPYING AND RECORDING OF ANY

KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS

WRITTEN PERMISSION OF MUSICGROUPIPLTD.

Trident Chambers, Wickhams Cay, P.O. Box 146,

Road Town, Tortola, British Virgin Islands

§ 1 Warranty

(1) This limited warranty is valid only if you purchased

the product from a MUSIC Group Authorized Reseller in

the country of purchase. A list of authorized resellers can

be found on BEHRINGER’s website behringer. com under

“Where to Buy”, or you can contact the MUSIC Group o

closest to you.

(2) MUSICGroup* warrants the mechanical and

electronic components of this product to be free of defects

in material and workmanship if used under normal

operating conditions for a period of one (1) year from

the original date of purchase (see the Limited Warranty

terms in §4 below), unless a longer minimum warranty

period is mandated by applicable local laws. If the product

shows any defects within the speci ed warranty period

and that defect is not excluded under §4, MUSICGroup

shall, at its discretion, either replace or repair the product

using suitable new or reconditioned product or parts.

Incase MUSICGroup decides to replace the entire product,

thislimited warranty shall apply to the replacement

product for the remaining initial warranty period, i.e.,

one (1) year (or otherwise applicable minimum warranty

period) from the date of purchase of the original product.

(3) Upon validation of the warranty claim, the repaired

or replacement product will be returned to the user

freight prepaid by MUSICGroup.

(4) Warranty claims other than those indicated above

are expressly excluded.

PLEASE RETAIN YOUR SALES RECEIPT. IT IS YOUR PROOF

OF PURCHASE COVERING YOUR LIMITED WARRANTY.

THIS LIMITED WARRANTY IS VOID WITHOUT SUCH PROOF

OFPURCHASE.

§ 2 Online registration

Please do remember to register your new BEHRINGER

equipment right after your purchase at behringer. com

under “Support” and kindly read the terms and conditions

of our limited warranty carefully. Registeringyour

purchase and equipment with us helps us process

your repair claims quicker and more e ciently.

Thankyouforyour cooperation!

§ 3 Return materials authorization

(1) To obtain warranty service, please contact the

retailer from whom the equipment was purchased.

Should your MUSIC Group Authorized Reseller not be

located in your vicinity, you may contact the MUSICGroup

Authorized Ful ller for your country listed under

Important Safety

Instructions

4V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

“Support” at behringer. com. Ifyour country is not

listed, please check if your problem can be dealt with

by our “OnlineSupport” which may also be found under

“Support” at behringer. com. Alternatively,please submit

an online warranty claim at behringer. com BEFORE

returning the product. All inquiries must be accompanied

by a description of the problem and the serial number

of the product. Afterverifying the product’s warranty

eligibility with the original sales receipt, MUSICGroup

will then issue a ReturnMaterials Authorization

(“RMA”)number.

(2) Subsequently, the product must be returned in

its original shipping carton, together with the return

authorization number to the address indicated by

MUSICGroup.

(3) Shipments without freight prepaid will not

beaccepted.

§ 4 Warranty Exclusions

(1) This limited warranty does not cover consumable

parts including, but not limited to, fuses and batteries.

Where applicable, MUSICGroup warrants the valves or

meters contained in the product to be free from defects

in material and workmanship for a period of ninety (90)

days from date of purchase.

(2) This limited warranty does not cover the product

if it has been electronically or mechanically modi ed

in any way. If the product needs to be modi ed or

adapted in order to comply with applicable technical

or safety standards on a national or local level, inany

country which is not the country for which the

product was originally developed and manufactured,

thismodi cation/adaptation shall not be considered a

defect in materials or workmanship. Thislimited warranty

does not cover any such modi cation/adaptation,

regardless of whether it was carried out properly or not.

Under the terms of this limited warranty, MUSICGroup

shall not be held responsible for any cost resulting from

such a modi cation/adaptation.

(3) This limited warranty covers only the product

hardware. It does not cover technical assistance for

hardware or software usage and it does not cover

any software products whether or not contained in

the product. Any such software is provided “AS IS”

unless expressly provided for in any enclosed software

limitedwarranty.

(4) This limited warranty is invalid if the

factory- appliedserial number has been altered or

removed from theproduct.

(5) Free inspections and maintenance/repair work

are expressly excluded from this limited warranty,

inparticular, if caused by improper handling of the

product by the user. This also applies to defects caused

by normal wear and tear, in particular, of faders,

crossfaders, potentiometers, keys/buttons, guitar strings,

illuminantsand similar parts.

(6) Damage/defects caused by the following conditions

are not covered by this limited warranty:

• improper handling, neglect or failure to operate the

unit in compliance with the instructions given in

BEHRINGER user or service manuals;

• connection or operation of the unit in any way

that does not comply with the technical or safety

regulations applicable in the country where the

product is used;

• damage/defects caused by acts of God/Nature

(accident,  re,  ood, etc) or any other condition that

is beyond the control of MUSICGroup.

(7) Any repair or opening of the unit carried out by

unauthorized personnel (user included) will void the

limitedwarranty.

(8) If an inspection of the product by MUSICGroup

shows that the defect in question is not covered by the

limited warranty, the inspection costs are payable by

thecustomer.

(9) Products which do not meet the terms of this

limited warranty will be repaired exclusively at the buyer’s

expense. MUSICGroup or its authorized service center will

inform the buyer of any such circumstance. If the buyer

fails to submit a written repair order within 6 weeks after

noti cation, MUSICGroup will return the unit C.O.D. with

a separate invoice for freight and packing. Such costs will

also be invoiced separately when the buyer has sent in a

written repair order.

(10) MUSIC Group Authorized Resellers do not sell new

products directly in online auctions. Purchasesmade

through an online auction are on a “buyer beware” basis.

Online auction con rmations or sales receipts are not

accepted for warranty veri cation and MUSICGroup will

not repair or replace any product purchased through an

online auction.

§ 5 Warranty transferability

This limited warranty is extended exclusively to the

original buyer (customer of authorized reseller) andis

not transferable to anyone who may subsequently

purchase this product. No other person (reseller,etc.)

shallbe entitled to give any warranty promise on behalf

of MUSICGroup.

§ 6 Claim for damage

Subject only to the operation of mandatory applicable

local laws, MUSICGroup shall have no liability to the buyer

under this warranty for any consequential or indirect

loss or damage of any kind. In no event shall the liability

of MUSICGroup under this limited warranty exceed the

invoiced value of the product.

§ 7 Limitation of liability

This limited warranty is the complete and exclusive

warranty between you and MUSICGroup. It supersedes

all other written or oral communications related to this

product. MUSICGroup provides no other warranties for

this product.

§ 8 Other warranty rights and

nationallaw

(1) This limited warranty does not exclude or limit the

buyer’s statutory rights as a consumer in any way.

(2) The limited warranty regulations mentioned herein

are applicable unless they constitute an infringement of

applicable mandatory local laws.

(3)

This warranty does not detract from the seller’s

obligations in regard to any lack of conformity of the

product and any hidden defect.

§ 9 Amendment

Warranty service conditions are subject to change without

notice. For the latest warranty terms and conditions

and additional information regarding MUSICGroup’s

limited warranty, please see complete details online at

behringer. com.

* MUSICGroup Macao Commercial O shore Limited of

RuedePequim No. 202-A, Macau Finance Centre 9/J, Macau,

including all MUSICGroup companies

5V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

1. Introduction

Thank you for the trust that you have placed in us by buying your V-TONE.

Youhave gotten your hands on a latest-generation guitar amp that sets

completely new standards when it comes to analog modeling.

Our primary goal during development was to simulate the typical sounds of

analog guitar amps, and at the same time give you a powerful sound tool

that you can use exibly. In doing so, we constantly strove to create a piece of

equipment that is intuitive and easy to use.

The demands placed on a guitar amp are nowadays very broad. A guitarist should

oer a wide array of sounds, but at the same time be able to quickly adapt to

specic requirements of various applications—be it home recording, studio,

liveperfor-mances, etc. That’s why it is very important to us to be able to oer

you a maximal sound diversity as well as diverse connection possibilities with our

V-TONE. Fret not: you will quickly master the V-TONE and will be able to quickly

learn how to use all of its capabilities easily and intuitively.

With its up-to-date circuitry, its digital signal processor (DSP) and its integrated

tuner, the V-TONE features the functionality and dependability of a truly modern

guitar amp. Yet it is user-friendly and problem-free as if it were a classic tube

combo. We highly recommend taking your time to truly learn all of the V-TONE’s

functions so you can reach its maximum potential.

1.1 The concept

The BEHRINGER company philosophy guarantees a perfectly thought-out circuitry

concept, with components that were selected without cutting any corners.

Theoperational ampliers that BEHRINGER uses in the V-TONE are some of the

most noise-free operational amps around, and are characterized by extreme

linearity and low distortion. They are complemented by low-tolerance resistors

and capacitors, high-value potentiometers and switches as well as additional

select components.

The robust housing of your V-TONE, with its oversize power supply, gives you the

peace of mind that the V-TONE will hold its own even under the most demanding

stage conditions. The housing is made of high-grade, environment-friendly MDF

wood consisting of multiply impregnated layers.

1.2 Dynamizer technology and

analogmodeling

When an electric instrument is amplied, that’s where you either make it or

break it. Unlike the signals that have been mixed and mastered, the signals of

electric instruments have extremely high signal peaks, placing the dynamic

range of the amp’s circuitry under immense strain. How your amp reacts to these

signal peaks is one of its most dening characteristics.

That’s why we’ve equipped all V-TONE Series amps with our unique Dynamizer

preamplier circuitry. It guarantees a lively sound with a lot of punch, evenwhen

the amp is pushed to its limits. Combine that with our V-TONE analog modeling,

and not only do you have amazingly authentic tube sounds at your ngertips,

you also get the dynamic performance typical of the respective amp type.

Crystal-clear guitar tones come through with transparency, warmth and the

compression typical of tube amps. Even as distortion increases, the sound

remains lively and full of power, without losing any of its assertiveness.

All along, you have full control over the volume. Plainly talking, you can take

the same sound you are used to at your practice room and replicate it in your

bedroom at much more reasonable volume levels, or you can even record

yourselfwhile playing.

◊ This user’s manual will allow you to familiarize yourself with the

control elements of your new V-Tone and learn all of its functions.

After reading this manual, store it where you can easily find it for

future reference.

1.3 Before you get started

1.3.1 Shipment

The V-TONE was carefully packed at the assembly plant to ensure

securetransport.

If the cardboard box is damaged, please inspect the V-Tone equipment

immediately for physical damage.

◊ Damaged equipment should NEVER be sent directly to us.

Please inform the dealer from whom you acquired it immediately as

well as the transportation company from which you took delivery.

Otherwise, all claims for replacement/repair may be rendered invalid.

◊ If the unit needs to be shipped, please always use the original

packaging to avoid damage.

◊ Never let unsupervised children play with the V-TONE or with

its packaging.

◊ Please dispose of all packaging materials in an environmentally-

friendly fashion.

1.3.2 Initial operation

Please make sure that your V-TONE is provided with sucient ventilation,

andnever place it on other ampliers or in the vicinity of a heater to avoid the

riskof overheating.

◊ Before plugging your V-TONE into a power socket, please make sure you

have selected the correct voltage:

The fuse retainer near the power cord connector has three triangular markings.

Two of these triangles point in opposite directions. Your V-TONE is set up for the

voltage indicated near these markings, and can be altered by turning the fuse

mount by 180 degrees. ATTENTION: This does not apply to export models

built for 120 V, for example!

◊ If you use your V-TONE unit with a different voltage, you must change

the fuses accordingly. The correct value of the fuses needed can be

found in the section “Specifications”.

◊ Faulty fuses must be replaced with fuses of appropriate rating,

without exception! The correct value of the fuses needed can be

found in the section “Specifications”.

Power is delivered via the cable that was delivered with the V-TONE.

Allmandatory safety precautions have been adhered to.

◊ Please make sure that all of your equipment is grounded at all times.

For your own protection, you should never tamper with the grounding

of the cable or the unit itself. The unit shall always be connected to a

mains socket outlet with a protective earthing connection.

MIDI connection is established using a standard DIN connector. Data transfer

occurs via isolated opto-couplers. Additional information can be found in

section6 “Installation”.

IMPORTANT NOTES CONCERNING INSTALLATION

◊ The sound quality may diminish within the range of powerful

broadcasting stations and high-frequency sources. Increase the

distance between the transmitter and the device and use shielded

cables for all connections.

6V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

1.3.3 Online registration

Please register your new BEHRINGER equipment right after your purchase

by visiting http://behringer.com and read the terms and conditions of our

warrantycarefully.

Should your BEHRINGER product malfunction, it is our intention to have it

repaired as quickly as possible. To arrange for warranty service, please contact

the BEHRINGER retailer from whom the equipment was purchased. Shouldyour

BEHRINGER dealer not be located in your vicinity, you may directly contact

one of our subsidiaries. Corresponding contact information is included in the

original equipment packaging (Global Contact Information/European Contact

Information). Should your country not be listed, please contact the distributor

nearest you. A list of distributors can be found in the support area of our website

(http://behringer.com).

Registering your purchase and equipment with us helps us process your repair

claims more quickly and eciently.

Thank you for your cooperation!

2. Control Elements

andConnections

Control elements of your V-TONE guitar amp are described in this section.

Allcontrols and connections are explained in detail, and we give you useful tips

on how to use them. An illustration of control elements with corresponding

numbering can be found on the separately included supplementary sheet.

Because models GMX112, GMX210, GMX212 and GMX1200H each feature two

identical MODELING CHANNELS, control elements (4) through (11) will only be

described once in the following section.

2.1 Front panel

(1) The connector labeled INPUT is the ¼“ jack input of your V-TONE. Use it

to connect your guitar. Use a commercially available ¼“ jack mono cable

(no DIY, ask your specialized dealer) with good mechanical and electrical

shielding to avoid unpleasant surprises during rehearsals or concerts.

(2) On the GMX110, the CLEAN control modies the volume of the

CLEANchannel in relation to the MODELING CHANNEL.

(3) Use the CHANNEL key to alternate between the two modeling channels

(except for the GMX110). The channel LED (5) lights up when the channel is

activated. On the GMX110, the CHANNEL key switches between CLEAN and

MODELING CHANNEL. CLEAN CHANNEL is active when the channel LED (5)

is not lit up. With all models you can also switch between channels using

the provided footswitch. A long hit (approx. 2 seconds) on the CHANNEL key

activates the guitar tuner.

(4) The DRIVE control determines the amount of distortion in the respective

MODELING CHANNEL. Using this, you can ideally adjust the VTONE pre-amp

to the output level of your guitar pick-up to achieve the desired amount

of distortion (depending on the amp, mode and speaker combination

youselected).

(5) The CHANNEL LED indicates the currently selected channel.

(6) Use the AMP switch to select one of the three guitar amps that orient

themselves on classic tube amps. You will surely recognize these classic

amp sounds as soon as you hear them. If you select TWEED, expect crystal-

clear, transparent sounds with dynamic bass. You get aggressive mids and

pressure-rich, inescapable assertiveness and endurance when you select

BRITISH. Rounder and more evened-out (yet still sophisticated) sounds can

be dialed up if you select CALIF.(ORNIAN); perfect for lead sounds!

(7) Use the MODE switch to choose one of three possible gain settings

(CLEAN,HI GAIN and HOT) you wish to use with the basic sound you selected

with the AMP switch.

(8) The SPEAKER switch oers the simulations of two classic guitar speakers:

4 x 12“ speaker in an enclosed casing (U.K.) and 2 x 12“ speaker in an open

casing (US). Additionally, we have included a frequency response correction

(FLAT), specially modied to go with V-TONE’s cabinet.

(9) The LOW control on the EQ section lets you cut or boost the bass frequencies.

(10) Use the MID control to cut or boost the mids.

(11) The HIGH control regulates the upper frequency range.

(12) If the tuner is activated, these LEDs (in connection with the FX display)

indicate your guitar’s tune. Activate the tuner by keeping the CHANNEL

pressed for roughly 2 seconds.

(13) The FX DISPLAY indicates either the program number of the preset you

selected or the value of the parameter dialed up using the FX control.

(14) Use the PRESET control to dial up one of the eect presets (between 01

and99). The preset you dialed up is loaded when you make no further

changes for about one second after dialing up that preset.

(15) Use the IN/OUT key to activate/deactivate the selected eect. When the

eect is activated, the LED located above the switch lights up. You can save

your own eect settings by keeping this key pressed for about 2 seconds

(also see section 4). The eect can also be activated/deactivated using the

provided footswitch.

◊ If the MIDI function is deactivated (see ch. 4.2), FX tracking

is active, i.e. a separate effect can be selected for each of the channels

of your V-TONE. FXT is explained in detail in section 4.1.

(16) The FX control adjusts the mix ratio between the original and the

eectsignal.

(17) The LEVEL control adjusts the volume of the respective channel.

AdjustLEVEL to achieve the desired volume balance between both channels.

◊ The GMX110 features no such control. However, use ( 2 ) to control the

volume of the CLEAN channel in respect to the MODELING channel;

use MASTER (19) to control the overall volume.

◊ The GMX112 and GMX210 feature the LEVEL control only on

MODELING CHANNEL 1. It controls the volume of the channel in

respect to the second channel.

(18) The PRESENCE control gives you an additional way to cut or boost the highs

(GMX212 and GMX1200H).

(19) The MASTER control regulates the overall volume as well as

headphonevolume.

(20) The POWER switch powers up your V-TONE. The POWER switch should

always be in the “O” position before you connect the V-TONE to the main

power source.

◊ Please note: The POWER switch does not fully disconnect the unit from

the mains power cord plug or extention cord. To disconnect the unit

from the main power source, pull out the main cord plug or appliance

coupler. When installing the product, ensure the plug or appliance

coupler is readily operable. Unplug the power cord when the unit is not

used for prolonged periods of time.

◊ GMX110’s POWER switch is located on the rear.

7V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

2.2 Rear panel

(21) Connect the stereo jack connector of the provided footswitch to the

FOOTSWITCH connector. The footswitch has several functions: it lets you

switch between two channels, and it also lets you activate/deactivate an

eect. Additionally, the tuner can also be activated using the footswitch.

Todo that, keep the CHANNEL key pressed for about 2 seconds.

(22) MIDI IN. This connector lets you remotely control your V-TONE via MIDI.

Youcan activate/deactivate eects or switch between channels. You can use

eect bypass via program changes and parameter edits as well as edit the

presets via controllers (also see sections 6.3 and 7.1).

(23) You can connect two external loudspeakers (L/R) to the LOUDSPEAKER

connectors (GMX212 and GMX1200H). The outputs deliver 60 W into

8 W per channel. For optimum performance, please only connect

loudspeakers with a minimum impedance of 8 W each (see also section

6.2). Whenthese connectors are used the internal loudspeakers are

automaticallydisconnected.

◊ The GMX210 features no external loudspeaker connectors.

The loudspeaker connector on the GMX110 and GMX112 is described

under (32).

(24) The PHONES connector lets you monitor the signal from your V-TONE with

standard headphones. The BEHRINGER HP series is well suited for this,

forexample. When the PHONES connector is used, the internal loudspeakers

and speaker outputs are disconnected.

(25) Those signals that are connected to the SLAVE IN connectors are directly

routed to the V-TONE’s power amp. This way, you can connect an external

guitar preamp or modeling amp (e. g. V-AMP 2 or V-AMP PRO) without using

the internal preamp on your V-TONE.

◊ The GMX110 and GMX112 feature no SLAVE IN connectors.

(26) You can take the stereo signal of your V-TONE at the TAPE outputs (RCA) and

record it, for example.

(27) The TAPE inputs (RCA) let you feed an additional stereo signal into your

V-TONE. You can play along to the beat of a drum computer or play to music

from a CD or MD player.

(28) You can take the stereo signal of your V-TONE at the LINE outputs to record

it or route it to a P.A. system. This output is independent from the MASTER

control and does not render the AUX signal. Additionally, its frequency

response is corrected (speaker simulation).

◊ The GMX110 and GMX112 feature no LINE outputs.

(29) Use the AUX IN control to adjust the volume of the signal that is fed in via

the AUX IN connectors (e. g. drum computer, playback).

◊ On the GMX110 and GMX112, this control is called TAPE INPUT.

It regulates the volume of the signal fed in at the TAPE IN connectors.

(30) The AUX IN lets you feed an additional stereo signal into the amp. This way,

you can play to a backing track that supports you on-stage but should not

be audible via the LINE outputs connecting the GMX210/GMX212 to the

P.A.system. Additionally, you can use AUX IN together with the INSERT SEND

as a parallel insert loop. To do that, connect the INSERT SEND to the input of

your eects device; connect the AUX IN (TAPE IN on the GMX110 and GMX112)

to the output of your eects unit (the INSERT RETURN connector should not

be in use!). This way, the signal ow in your V-TONE is not interrupted. With

the AUX IN control, you can determine the extent to which the external

eects unit alters the original signal. Keep in mind that the eects unit

should be set up to 100% eects signal (100% “wet”).

(31) Your V-TONE features a serial insert loop that can be used to connect

external eects (e. g. a wah-wah pedal). Connect the SEND connector on the

V-TONE to the input of your eects unit. The SEND connector is tapped into

directly before (i.e. pre) the digital signal processor (DSP) of your V-TONE.

Connectthe output of your external eects unit to the RETURN connector

ofyour V-TONE.

◊ You can use the INSERT SEND as a parallel output without the effects.

This is useful, for example, when you want to record a dry guitar signal.

As long as the RETURN connector has nothing plugged into it, the signal

will not be interrupted internally.

(32) Use the SPEAKER OUT connector to connect one additional loudspeaker

to your GMX110/GMX112. This loudspeaker should have an impedance of

4Ω. When this connector is used, the internal loudspeaker is automatically

muted. Additional information about connecting an external loudspeaker

can be found in section 6.2.

(33) FUSE RETAINER/VOLTAGE SELECTOR. Please make sure that the voltage

indicated by the voltage selector matches the local voltage before you

connect the unit to the main power supply. Always replace blown fuses

with fuses of the same type and rating. Some units feature a fuse retainer

in which a selection between 230 V and 120 V is possible. Please be aware:

When using your unit outside of Europe with 120 V, a fuse with a higher

rating is required.

(34) Power is supplied via an IEC connector. The matching cable is provided with

the unit.

(35) SERIAL NUMBER.

8V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

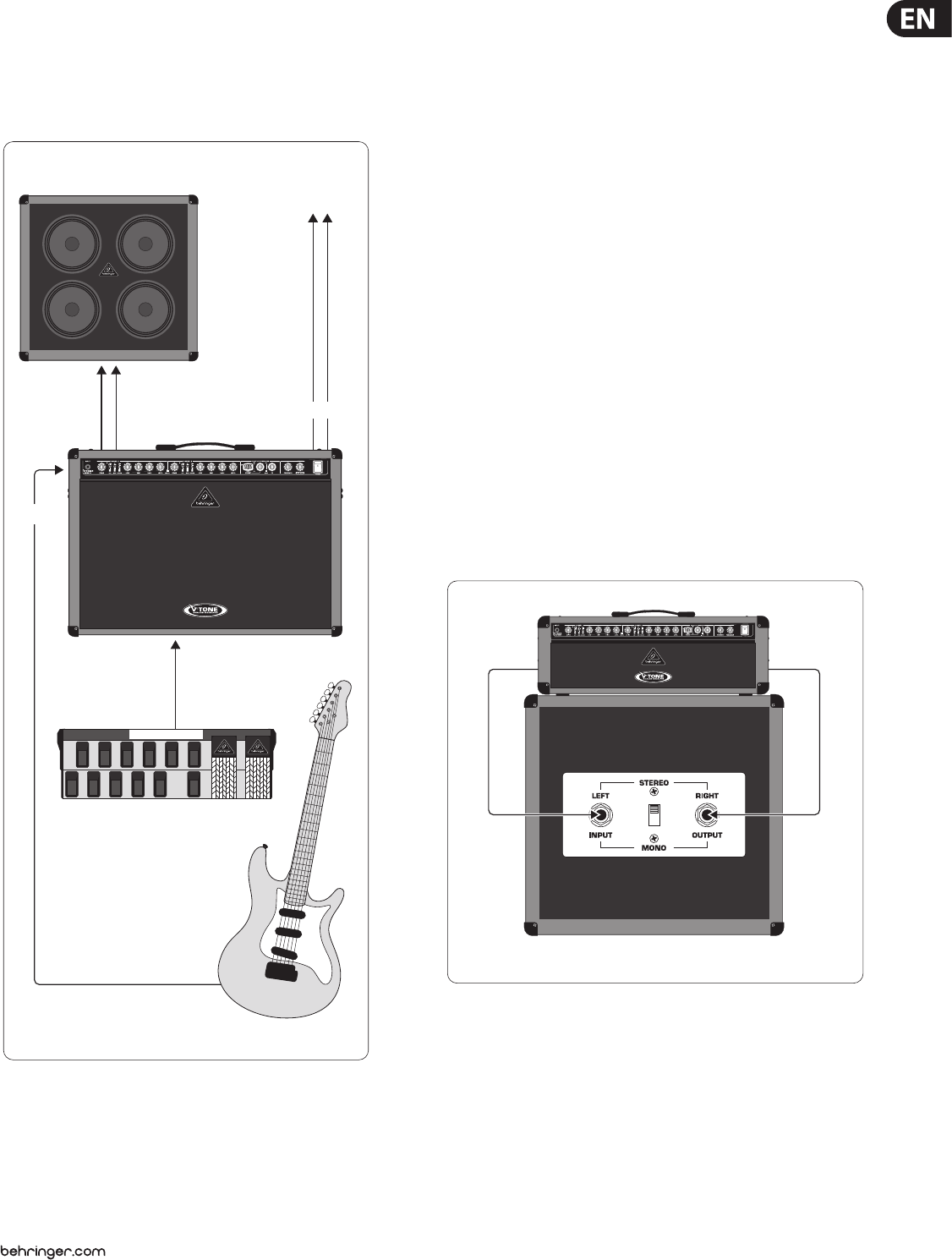

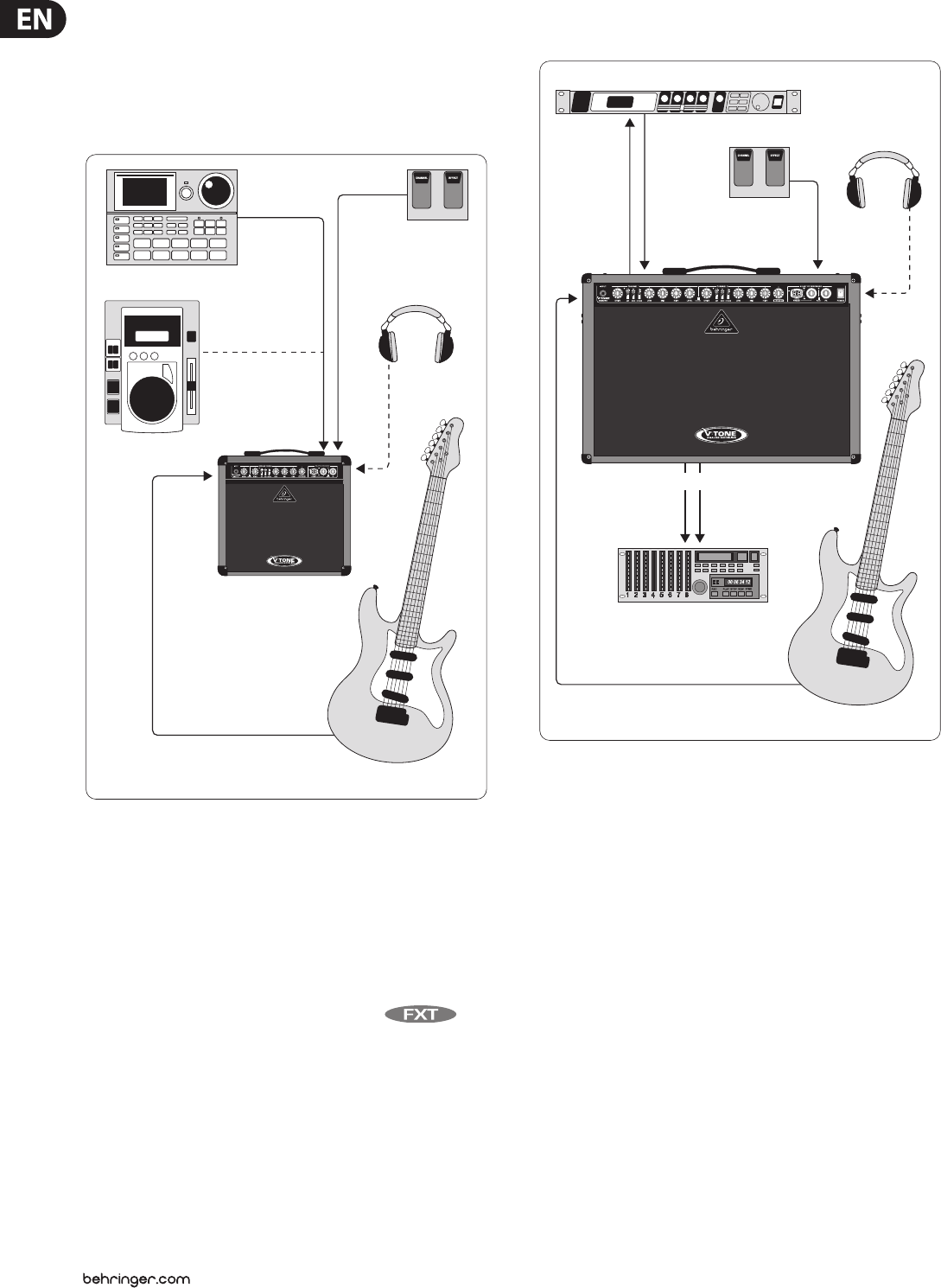

3. Applications

The V-TONE features many dierent connectors, allowing you to adapt to all

kinds of application challenges. We have listed just a few examples to show the

exibility your V-TONE.

3.1 Practice setup with playback

Aux/Tape In

CD Player

Footswitch

HPS3000

BEHRINGER

V-TONE GMX110

Electric Guitar

Drum Computer

Fig. 3.1: Standard setup

To use your V-TONE in practice rooms, or to jam at home, connect your V-TONE

as illustrated in gure 3.1. Connect a CD player or a drum computer to the

TAPE input. You can control the volume of the connected signal by using the

TAPEINPUT control (on the GMX210, GMX212 and the GMX1200H, the AUX

control adjusts the signal connected to the AUX IN). If you want (or haveto!)

topractice using headphones, connect your headphones to the PHONES

connector on your V-TONE. The loudspeaker is automatically muted. Connectthe

provided dual footswitch to the footswitch connector on the V-TONE. Use the

CHANNELfootswitch to switch between the channels. If is active

(see section 4.1), the eects selected for both channels are loaded. Use the

IN/OUT footswitch to activate/deactivate the eect. Keeping CHANNEL depressed

for about 2 seconds activates the internal tuner.

3.2 Recording setup with an external

eectsdevice

FX In FX Out

Insert Return/

Aux In

Insert Send

DSP2024P

Electric Guitar

Footswitch

BEHRINGER

V-TONE GMX210

Line Out

Multi-track Recorder

HPS3000

Fig. 3.2: Recording setup

If you want to use your V-TONE in home recording or studio situations, wesuggest

wiring your equipment as illustrated in gure 3.2. Of course, youcancontinue

using a CD player or a drum computer. However, for clarity’s sake we’ve omitted

those two in this illustration. Connect the input of your eects unit to the

INSERT SEND connector of the V-TONE; connect the output on your eects unit

totheINSERT RETURN connector on the V-TONE.

If you wish to record the guitar signal together with the stereo eects,

connectthe LINE outputs to your mixer, audio sequencer or a multi-track

recorder. Torecord the dry guitar signal without the internal eects, it is best

to use the INSERT SEND connector on the V-TONE. You can also use both outputs

at the same time to for example record the dry signal without permanently

committing to a single eect. At the same time, the LINE output (with the eect

signal) lets you listen to yourself while recording.

Of course, you can insert a Wah pedal or some other stomp box instead of an

external 19” eects unit. To achieve a parallel stereo insert, you can connect the

eect return to the AUX input, and then use the AUX IN control to determine the

extent to which the eect is present. In this case, the eects unit should be set

up to 100% eect signal, and the INSERT RETURN connector should have nothing

plugged into it.

9V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

If you want to use another guitar preamp, or a modeling amp (e. g. the V-AMP 2

or the V-AMP PRO), connect it to the SLAVE IN connectors (except for the GMX110

and GMX112). The V-TONE now operates only as a power amp, with its preamp

section inactive.

3.3 Live setup with a MIDI foot controller

MIDI Out

BEHRINGER

V-TONE GMX212 MIDI In

Electric Guitar

FCB1010

Input

Loudspeaker

Output Left

Loudspeaker

Output Right Line Out

Sound

Reinforcement

System

BEHRINGER

ULTRASTACK BG412V

Fig. 3.3: Setup with a MIDI foot controller and an external loudspeaker

In this illustration, we’ve omitted the headphones and the additional equipment

from gure 3.1; this illustration serves as an expansion of the standard setup.

You can use the MIDI foot controller to control channel and eects changes,

volume, Wah and so on. (Additional information about MIDI can be found in

section 4.3). The LINE OUT signal with the speaker simulation can be fed into

yourmixer or your P.A. system’s stagebox.

External guitar loudspeakers can be connected to the loud-speaker outputs of the

GMX212 in order to get more punch and higher volume on the stage. You can do

this in two ways: use two separate loudspeakers for stereo applications, or use a

single stereo box (e.g. the BEHRINGER ULTRASTACK BG412V).

Instead of loudspeaker outputs, the GMX110 and GMX112 feature single

SPEAKEROUT connectors ((32)) used for connecting an external loudspeaker.

3.4 Wiring the GMX1200H

The GMX1200H head features two LOUDSPEAKER outputs (EXT LEFT and

EXTRIGHT) that can be used to connect one or two external loudspeakers.

Toget the most power from the GMX1200H, both loudspeaker outputs should

be used and connected to speakers with minimum 8 Ohms impedance.

Loudspeakeroutputs are automatically muted as soon as you activate the tuner

or connect a set of headphones (see section 5.1). To assure optimal and safe use

ofyour amplier, please also read section 6.2.

When the GMX1200H is used with a single BEHRINGER ULTRASTACK BG412V,

the rear panel switch of the BG412V must be in the stereo position and the two

outputs should be connected as shown in g. 3.4.

When using two speaker cabinets to form a classic full-stack please make sure the

impedance of each speaker cabinet is between 8 to 16 Ohms (see g. 3.5).

Loudspeaker

Output Right

BEHRINGER V-TONE GMX1200H

BEHRINGER ULTRASTACK BG412V

Rear panel

Loudspeaker

Output Left

Fig. 3.4: GMX1200H with an ULTRASTACK BG412V in stereo mode

10 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

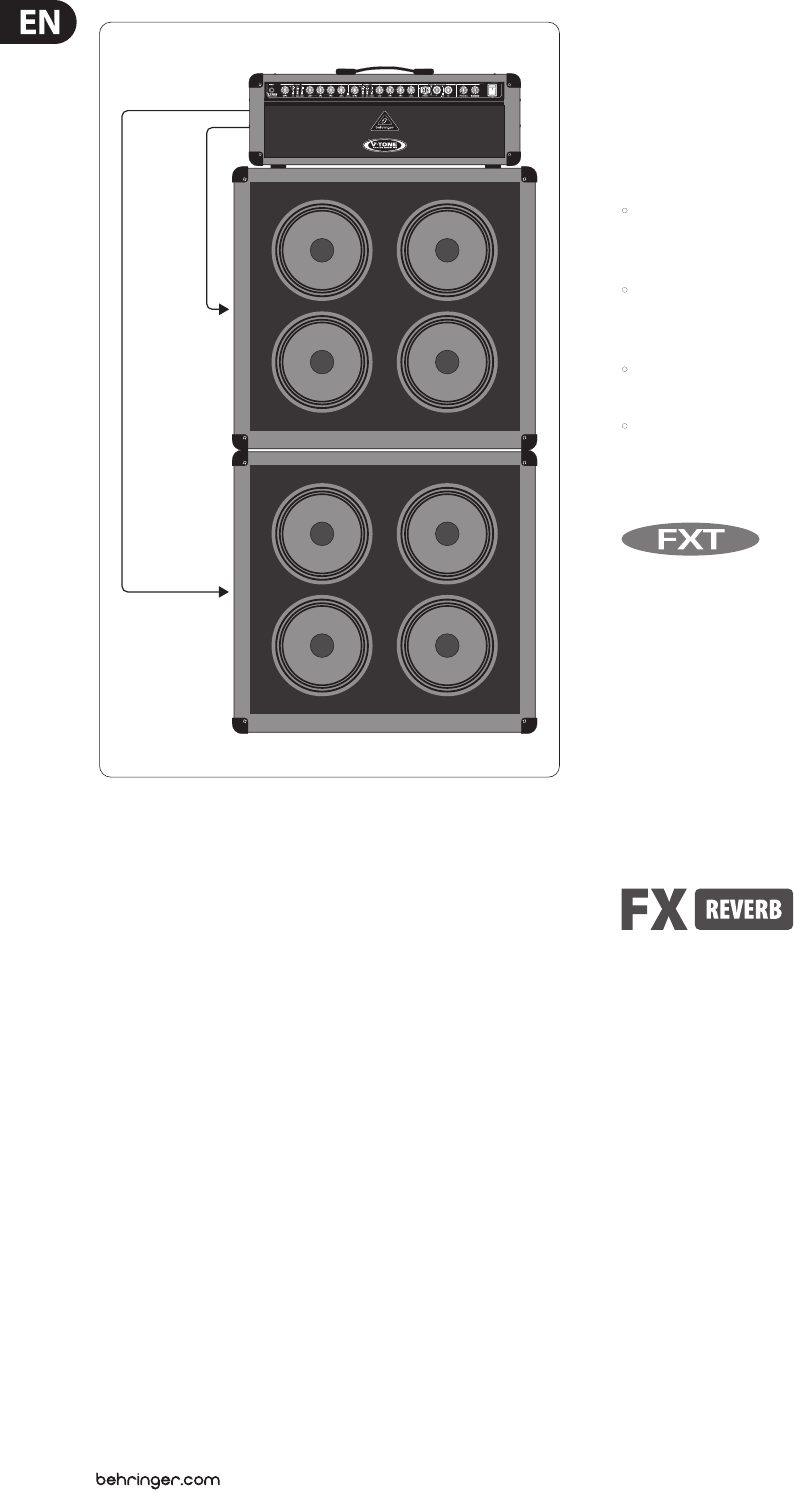

Loudspeaker

Output Left

BEHRINGER V-TONE GMX1200H

Loudspeaker

Output Right

Speaker cabinets are 8 to 16 Ω each

Fig. 3.5: GMX1200H with two speaker cabinets

4. Eects Processor

Eects are the icing on the cake when it comes to creative sound designs. Onthe

one hand, direct recordings (i.e. recordings without a microphone, which is

possible with the V-TONE) are all about placing the guitar sound in an articially

created space since no natural ambience is possible. On the other, eects such

as delay, chorus, anger and tremolo are an integral part of the modern guitar

sound. For this reason, we’ve equipped the V-TONE with an eects processor that

lets you create a professional-grade sound that you are used to hearing on your

favorite recordings. This way, you are one giant step closer to emulating your fave

sounds without having to schlep a rackfull of eects everywhere you go.

The integrated multi-eects processor oers the same audio quality found in

our 19" eects unit VIRTUALIZER PRO, known for being used in studios. You get

31 dierent groups of rst-class eects at your disposal, for example reverb,

chorus, anger, delay, pitch shifter, compressor, expander, Wah variations,

variouscombination eects and even tube and speaker simulations. All in

all, there are 99 presets you can use, oering you a wide variety of dierent-

sounding eects. You can edit one parameter on each preset directly on the

V-TONE and three parameters via MIDI. Additionally, the multi-eects processor

lets you mix and match dierent eects with dierent speakers, depending on

each preset. Presets can be overwritten with your own creations.

The multi-eects processor works basically in stereo, whereby only the TAPE and

PHONES outputs are inuenced in the case of the GMX110/GMX112. Both signals

(left and right) are added up for the speaker and the mono power amp of the

GMX110/GMX112. However, you can still use stereo eects for recording purposes

by utilizing the TAPE OUT or by playing with a second amp in stereo. The GMX210

and GMX212 can produce the eects in stereo because they have two built-in

speakers. Stereo reproduction is also possible with the GMX1200H when the

speakers are connected to it in stereo.

• Turn the PRESET control to dial up an eect preset. While the preset is

loading up, the new program number blinks in the display. The preset you

dialed up is active shortly thereafter. This new preset is shown in the display.

• Use the FX control to edit the eect. Eect mix is shown in the display.

After3 seconds, the display shows the preset number again. The decimal

point in the 2-digit display blinks each time you make a change.

• To store an edit, keep the IN/OUT key pressed for about 2 seconds.

Thisoverwrites the previous settings.

• To restore factory presets (reset function), keep IN/OUT pressed while

powering up the V-TONE.

4.1 FXT—eects tracking

FXT is an extremely useful function that lets you assign a specic eect to each

channel of the V-TONE, and then activate these eects when you switch between

the channels.

This way, you can for example assign a DELAY eect to the MODELING CHANNEL1,

and assign a REVERB/CHORUS combination eect to the MODELING CHANNEL 2.

A single tap on the CHANNEL key or the footswitch lets you switch between the

channels, and the V-TONE automatically loads up the correct eect.

When MIDI is active, the above no longer applies. You can switch between the

channels and the eects independently from one another. How MIDI is activated

is described in ch. 4.3.

4.2 The eects

0 Reverb: Reverb is still the most important eect for mixing or live

performance. That’s why we at BEHRINGER make a point of giving you as many

as nine dierent reverb programs so that you can use the most suitable reverb

program for any situation. The Reverb eect 0 uses a medium pre-delay.

01-02 Spring Reverb: Even on a guitar amp with digital multi-eects,

youshould still be able to use a classic spring reverb. This eect simulates

the typical sound of the spring reverb known from countless guitar amps,

andwithout having the negative eect of producing rattling noises when the

amp vibrates.

03-04 Studio: This eect simulates the characteristics of midsize rooms.

Thisspatial simulation sounds very natural and can be used in various setups.

05-06 Chamber: You really get the feeling you’re dealing with some serious

walls. This eect is ideal for creating reverb that doesn’t come through as a clear

eect, and a dry guitar sound gets some natural feeling instilled into it.

07-08 Stage: Very nice reverb, great for widening and freshening up the sound

of a clean-sounding guitar.

11 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

09-10 Concert: Here, you can choose between a small theater (preset 9) and a

big concert hall (preset 10). Compared to Studio Reverb, this reverb is livelier and

has richer highs.

11-12 Plate: The sound of the classic plates. A true classic, it gives your guitar

sound a nice, pleasant note.

Reverbs 01 to 12 are all available in two versions. The rst one basically uses a

short pre-delay (a delay until the reverb tail starts). The second variation always

uses a long pre-delay.

13-14 Early Reections: The resonance of a room is comprised out of the

so-called “early reections” and a reverb tail. This eect concentrates itself

on the simulation of the rst 15 early reections. Since human hearing uses

these reections to size up a room, you can create very subtle density without

alienating the signal with long reverb tails. This eect is particularly noticeable

when you use headphones.

15-16 Ambience: Ambience can create the vastness of large rooms without

letting the sound “perish” due to a long reverb tail. This eect is particularly well

suited for lending more assertiveness to solo instruments and voices.

17-20 Delay/Reverb: First, an ordinary delay is created. Then, the signal goes

through a reverb with an editable mix ratio.

21-29 Delay (stereo): “Delay” refers to the delay in the input signal, with one

or more repetitions of the signal (feedback). With stereo delay, the delay times in

the left and the right channel are not the same length (in order to create a stereo

eect). The delay time in the left channel amounts to two-thirds of the delay

time value in the right channel.

30-33 Phaser: Technically speaking, a phaser is a modulation eect in which

multiple phase shifting takes place. Signal attenuation or amplication of the

signal happens through the modulation of the frequency-dependent phase shift

via an LFO (Low Frequency Oscillator). Depending on the preset, the phaser can

be used either to lightly modulate or to totally alienate the signal. The sound

reminds of a constantly modulating lter.

34-37 Chorus: Let’s picture a string quartet in which each musician plays the

exact same sheet music. However, it is only natural that musicians can never

be 100% in tune. This way, signals that are perpetually out of tune are created,

andthey are furthermore temporally superimposed. To recreate this eect,

copies of the original signal are delayed in chorus for 20 - 40 ms, are tuned out

slightly and then modulated through the LFO. This creates a pleasant-sounding

oating eect. We’ll refrain for making any recommendations because this eect

is used so often and in so many dierent ways. Any recommendation about when

to use it would undoubtedly leave out too many other possible uses.

38-42 Chorus/Reverb: First, the signal goes through a chorus eect with

varying intensity, and then it goes through a reverb. Adjustable parameter:

chorus mix.

43-47 Chorus/Delay: The signal rst goes through a chorus eect with varying

intensity, and then it goes through a delay eect with varying feedback and

delay time values.

48-51 Flanger: Using an LFO, the pitch of the eect signal is somewhat

modulated in constant tempo, and is then brought back to the input signal.

Thiseect goes hand in hand with the sound of a distorted guitar.

52-56 Flanger/Reverb: The signal rst goes through a anger with varying

intensity, and then it goes through a reverb.

57-61 Flanger/Delay: The signal is rst passed through a anger with varying

intensity, and then it goes through a delay eect.

62-63 Tremolo/Reverb: The tremolo eect refers to more or less rapid and

intensive variations in the volume.

64-66 Tremolo/Delay: A more or less rapid and intensive variation of the

volume that is also coupled to a delay eect.

67-68 Rotary Speaker: A simulation of a classic organ eect that is normally

achieved with a terribly heavy casing and slowly or quickly rotating speakers.

Thephysical principle of the Doppler eect is used to modulate the signal.

69-70 Rotary Drive: An absolutely “in” eect that’s combined with a delay.

And,as whip cream on top, this eect gets an LFO-controlled notch lter.

Thedelay mix ratio is adjustable. This eect is excellent for solo sounds due to

itshigh volume.

71-74 Auto Wah: Depending on the attack time, the Auto Wah eect lets

the lower frequencies pass through and more or less suppresses the highs.

The sensitivity value of the lter can be adjusted via the FX MIX control. If you

primarily play low-end sounds, dial up a lower value. The higher the frequency of

the sound you create, the higher the FX MIX value should be.

75-81 Pitch Shifter: This eect modies the pitch of the input signal.

Musicalintervals and harmonics are created, and the propagation of a single

voice can be adjusted. You can create signals that are majorly out of tune

(e.g.signals shifted upward by several half-tones), such as the strange-sounding

voices often used in cartoons. There are several default intervals already built

into the presets.

82-85 Pitch Shifter/Reverb: The signal rst goes through a pitch shifter with

various transpositions in half-tone increments (or smaller). A reverb follows.

Adjustable parameter: pitch shifter mix.

86-89 PitchShifter/Delay: The signal rst goes through the pitch shifter with

various intervals, and then it’s run through a delay eect. Use FX MIX to adjust

the pitch shifter mix parameter.

12 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

90-91 Compressor: A signal’s dynamic characteristics are often limited to

assure its integration into the overall mix. This can be done by using a compressor

or a limiter. A limiter connes the signal to the values above or below a

previously determined threshold value rather abruptly, whereas the compressor

does basically the same, but the threshold area is rather “softly” delineated,

soprogram intervention is not so suddenly felt. Use the FX MIX control to

determine the sensitivity for the compressor. This eect prolongs the sustain of

your guitar, or you can also for example make the strumming on a funky-style

guitar more audible (chicken scratch).

92-93 Expander: Background noise of all kinds (hissing, hum, etc.) limitthe

dynamic range of the desired signal. As long as the main signal’s level is

considerably higher than the noise oor, background noise is inaudible; the main

signal basically masks the underlying noise signal. You can use the expander to

eectively broaden the dynamic range of a signal. The signal is weakened when

the amplitudes are smaller, whereby background noise is lowered. The FX MIX

control determines the expander’s threshold.

94-99 Guitar Combo: This eect simulates the sound characteristics of a small

guitar combo, simulating not only two tube stages, but also the cabinet and the

speaker. Use the FX MIX control to adjust the mix of direct and combo signals.

4.3 MIDI control

Thanks to its built-in MIDI interface, you can integrate your V-TONE into any MIDI

setup. The V-TONE is capable of receiving both program change and MIDI controller

information. So, you can change programs via MIDI using a MIDI foot controller or

a computer-based sequencing software, and you can also control individual eect

parameters and edit your own eects. Our MIDI foot controller FCB1010 gives you

precisely these options, and is a perfect match for all BEHRINGER guitar amps.

This is how you activate the MIDI functions:

• Connect the MIDI IN connector of your V-TONE to the MIDI OUT jack of a MIDI

foot controller (see g. 3.3).

• Keep CHANNEL and IN/OUT keys simultaneously depressed for 2 seconds.

• Use the PRESET control to select a MIDI channel (1 through 16, “ON” =

Omni mode, “OF” = o). When the display no longer blinks, the selected

MIDI channel is activated. Omni mode means that your V-TONE receives and

processes relevant MIDI information on all channels. Of course, you should

select the same channel both on your MIDI foot controller and the V-TONE

(see your MIDI foot controller user’s manual). The left decimal point on the

display jitters when MIDI data is received on the V-TONE, giving you visual

conrmation about the information currently being received.

◊ Once you activate MIDI, FX tracking is no longer active, i.e. there is

no assignment between an effect number and a channel. This means

that when you switch a channel, the previously set effect is not

automatically loaded up. As this assignment feature would probably

cause confusion when controlling the V-TONE via a MIDI foot controller,

it makes sense only when it is controlled from the enclosed footswitch

or directly from the V-TONE. To operate your V-TONE without MIDI

remote control, please disable the MIDI function (display reads “OF”).

You can control dierent functions of your V-TONE using MIDI. To this end,

theV-TONE receives MIDI instructions (so-called messages). The messages that

need to be sent to your V-TONE have to be created either on a MIDI foot controller

or on a MIDI sequencer. Basically, these are Program Change Messages and

Controller Messages:

Program Changes: You can dial up presets using MIDI program changes.

Sinceprogram changes start at 0 and go up to 127, program change

0corresponds to preset 0, program change 1 to preset 1, and so on

(comparetable 7.1 in the appendix). After the switch is done, the preset is

directlyactive, i.e. independent from a possibly set bypass.

Eect parameters: Three parameters of the eects processor can be adjusted

in real time. This way, you can create your own eects, modify existing eects

to your specic needs (e.g. adapt the delay time to the tact of your song)

orremotely control using a MIDI foot controller.

Select a controller number for the footswitch on your MIDI foot controller.

Usecontrol numbers 12, 13 or 14. Using the footswitch on your MIDI foot

controller, you can now modify the values of the three adjustable parameters in

real time or directly enter their values. Which three parameters for the respective

eect can be edited is shown in the following table:

Eect Preset

No.

Parameter 3

CC 12

Parameter 2

CC 13

Parameter 1

CC14

REVERB 0 - 16 — Reverb

Time Mix

DELAY/

REVERB 17 - 20 Delay Time* Delay Mix Reverb

Mix

DELAY 21 - 29 Delay Time* Feedback Mix

PHASER 30 - 33 LFO Speed* Feedback Depth

CHORUS 34 - 37 LFO Speed* Depth Mix

CHORUS/

REVERB 38 - 42 Reverb Time Reverb

Mix

Chorus

Mix

CHORUS/

DELAY 43 - 47 Delay Time* Delay Mix Chorus

Mix

FLANGER 48 - 51 LFO Speed* Resonance Depth

FLANGER/

REVERB 52 - 56 Reverb Time Reverb

Mix Depth

FLANGER/

DELAY 57 - 61 Delay Time* Delay Mix Depth

TREMOLO/

REVERB 62, 63 LFO Speed* Reverb

Mix

Tremolo

Mix

TREMOLO/

DELAY 64 - 66 LFO Speed* Delay Mix Tremolo

Mix

ROTARY

SPEAKER 67, 68 LFO Speed* Reverb

Mix Depth

ROTARY

DRIVE 69, 70 LFO Speed* Delay Mix Depth

AUTO WAH

REVERB 71, 72 Reverb Mix Depth Sensitivity

AUTO WAH

DELAY 73, 74 Delay Mix Depth Sensitivity

PITCH

SHIFTER 75 - 81 — — Pitch Mix

PITCH

SHIFTER/

REVERB

82 - 85 Reverb Time Reverb

Mix Pitch Mix

PITCH

SHIFTER/

DELAY

86 - 89 Delay Time* Delay Mix Pitch Mix

COMPRESSOR 90, 91 Delay Time/

Rev Time

Delay Mix/

Rev Mix Sensitivity

EXPANDER 92, 93 Rev Time/

Delay Time

Rev Mix/

Delay Mix Threshold

GUITAR

COMBO 94 - 99 Delay Time*/

Rev Time

Delay Mix/

Rev Mix Drive

*) Tap tempo: MIDI Control No. 64

2) depends on Variation

Table 4.1: MIDI-controllable eect parameters

13 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

Channel switching: Changing modeling CHANNELS is done via controller #10.

If you send value 0 via this controller, then channel 1 is active. Sending value 1

activates channel change to channel 2. Program change instructions can also

be used to change channels. Program change #123 activates channels 1 and

program change #124 activates channel 2 of your V-TONE.

In addition to switching channels, you can also deactivate the eect. To this end,

send value 0 via controller #11. Value 1 activates the eect again.

Sending program change #127 activates the tuner. As soon as another program

change number is sent, the tuner is automatically deactivated.

You determine the input volume of the eect module by using MIDI controller

#7. This lets you adjust the volume of your V-TONE to your own requirements.

Since this controller does not control master volume, you should rst adjust

the maximum volume you need by using the master volume control, andthen

use MIDI controller #7 to lower the volume. This function is also called

“volumecontroller”.

The operating range of the Wah eect is adjusted using MIDI controller #27.

Furthermore, if you’re using LFO-controlled modulation eects, you can

deactivate LFO and implement modulation via MIDI controller #27. To activate

this MIDI controller, you should rst set up the LFO velocity either directly on your

V-TONE or set the respective MIDI controller to value 0.

Of course, you can use a MIDI sequencer or a computer-based MIDI editor for

MIDIremote control, particularly in the home recording environment.

5. Tuner

• The integrated tuner is activated by pressing the CHANNEL key for about

2seconds (directly on the amp or on the footswitch).

5.1 Tuning your guitar

The chromatic tuner automatically recognizes the frequencies of guitar notes.

For A string, this means a frequency of 110 Hz. When you connect your guitar to

the V-TONE and strum a string, the tuner tries to recognize the tone and shows

it in the display. Because the tuner functions chromatically, it can also recognize

semitones. These are shown in the display with a “b” accompanying the value.

However, it may be the case that a played note (shown in the display as for

example “a”) slightly deviates from the ideal tone. This will be indicated by

lighting up at least one of the red tuner LEDs (HIGH/LOW) near the FX display.

Thefaster the LED blinks, the harsher the deviation of the played tone from

the note shown in the display. If the middle LED (green) lights up, the tone you

played is completely in tune with the tone indicated in the display.

When the tuner is active, the loudspeaker outputs are typically muted.

However,sometimes it is preferable not to mute the signal in order to let you

have acoustic control of what you are doing while you are tuning your guitar.

Forthis reason, the V-TONE has an integrated tuner level function.

• You can adjust tuner volume from 0 to 99 by using the FX control.

At“0”theguitar signal is completely muted. After a successfully

implemented adjustment, the display auto-matically goes back to

tunermode.

5.2 Setting up the “a” reference tone

To put complete freedom at your disposal when tuning your instrument,

youhave the option to change the preset of the reference tone “a”. Here is a

quickintro to the subject.

The so-called “chamber tone a” has been continually revised upwards ever

since it was rst measured: tuning forks of Bach, Handel or Mozart were at 415,

420or421 Hz (vibrations pro second).

Nowadays, orchestras set the “a” with 444 Hz, and the Berlin Philharmonic

Orchestra wishes to stay ahead: their “chamber tone a” lies at a full 447 Hz.

The reference tone “a” of the V-TONE is programmed at 440 Hz. Let’s say,

you want to work with a big orchestra that works with the chamber tone

“a” set to 444 Hz. To activate the function that changes the chamber tone,

dothefollowing:

• Activate the tuner by keeping the CHANNEL key pressed for a few seconds.

• By turning the PRESET control, you can adjust the “a” reference tone up

or down in 1 Hz increments for a maximum of 15 Hz. The last two digits

of the frequency value are always shown in the display, since the rst

digit is always a 4. For example, when you start with the 440 Hz basic

tone, andthen press the right arrow key four times, the display shows 44,

whichcorresponds to a frequency of 444 Hz.

After about 3 seconds, the display goes back to tuner mode. Your changes are

automatically stored. Ideal tones for the remaining strings are automatically set

up using the newly adjusted frequency as a reference.

A quick hit on the CHANNEL key lets you leave tuner mode and go back to

ampmode.

6. Installation

6.1 Audio connections

With the exception of the headphone output and the AUX input (stereo jacks),

audio inputs and outputs of your BEHRINGER V-TONE are provided in the form of

mono jack connectors. Tape inputs and outputs use RCA connectors.

◊ Please keep in mind that your V-TONE should be installed and operated

only by those who possess sufficient technical knowledge about

its installation and operation. Everyone dealing with your V-TONE

should be sufficiently grounded both during the installation as well as

during actual usage. Failure to do so may cause undesirable or faulty

operation due to electromagnetic discharges, etc.

strain relief clamp

sleeve

tip

sleeve

(ground/shield)

Unbalanced ¼" TS connector

tip

(signal)

Fig. 6.1: ¼" TS connector

14 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

strain relief clamp

sleeve

ring

tip

sleeve

ground/shield

¼" TRS headphones connector

ring

right signal

tip

left signal

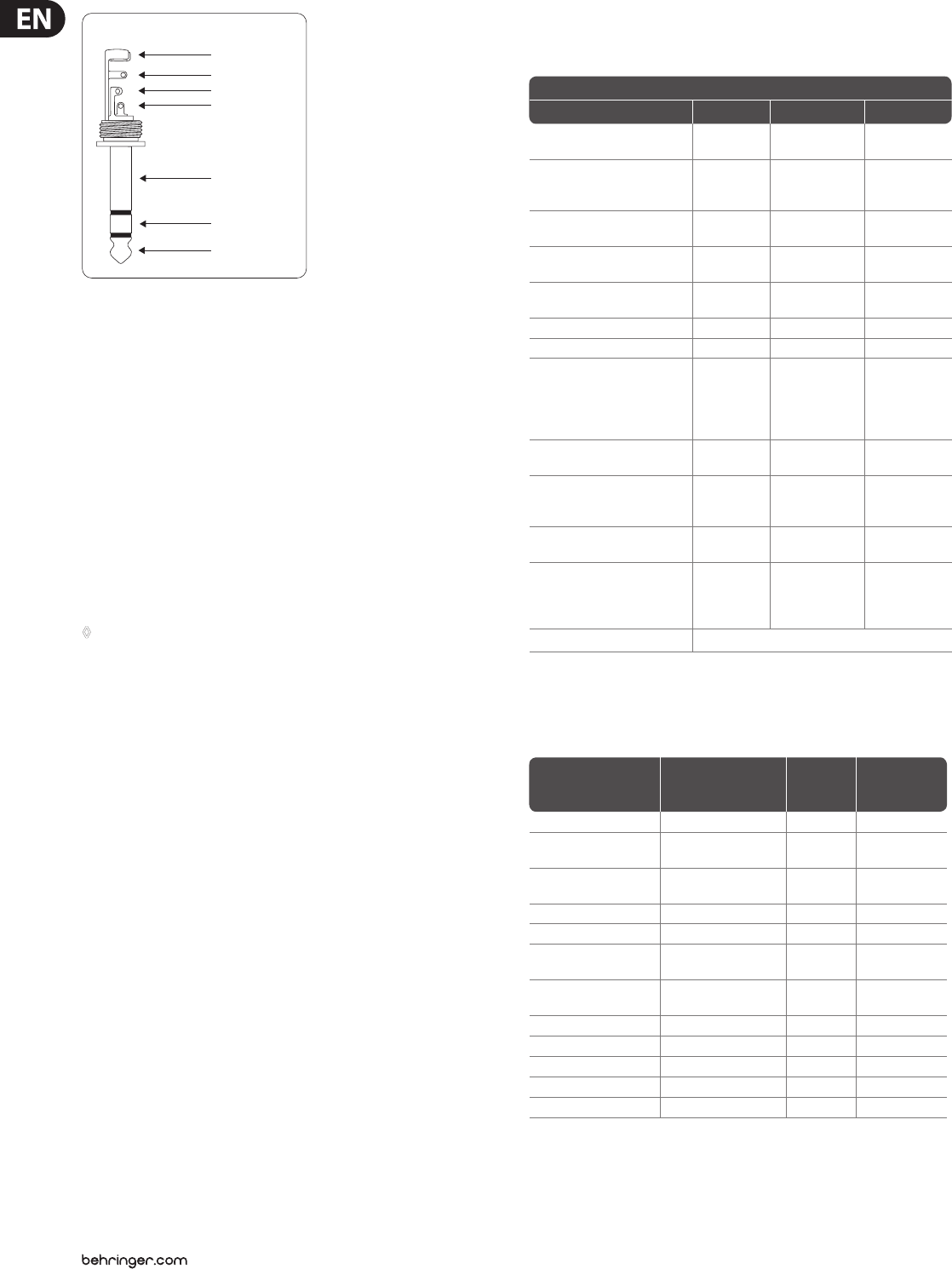

Fig. 6.2: ¼" stereo TRS connector for AUX and PHONES

6.2 Speaker connection

The GMX110 and GMX112 feature a SPEAKER connector to which you can connect

an additional loudspeaker. This additional loudspeaker should be able to handle

at least 30 Watts @ 4 Ω (GMX110) and 60 Watts @ 4 Ω (GMX112) respectively.

The GMX212 and GMX1200H feature two LOUDSPEAKER-outputs (EXT LEFT and

EXT RIGHT) for connecting two loudspeakers or a single stereo loudspeaker

unit. The output power rating is 60 W per channel. To assure optimal power

delivery from the amp, you should use 8-Ω loudspeakers that can handle at

least60Watts.

This goes for all models: You can also use loudspeakers with higher impedance

values, but this lowers proportionally the power delivery as the resistance

increases. Doubling the impedance halves the power value (double the

Ohms=half the Watts).

◊ Since SPEAKER and LOUDSPEAKER outputs are connectors where

amplified signals are given out, never connect equipment with

line-level inputs to these two connectors, e. g. mixer inputs.

6.3 MIDI connection

The MIDI standard (Musical Instruments Digital Interface) was rst developed

at the beginning of the ’80s, with the goal of enabling mutual communication

between electronic instruments of various manufacturers. Over the years,

thenumber of possible MIDI applications has increased substantially;

nowadays,it is perfectly normal to connect entire studios via MIDI.

At the center of this network is a computer with a sequencing software,

usedtocontrol not only keyboards but also eects processors and other

peripheral equipment. In such a studio, you can control your V-TONE in real

time from a computer. Using a MIDI footswitch presents itself as a great idea,

especially in live applications, because it allows you to control not only eect

parameters but also switch between channels and eects.

The standard 5-pole DIN MIDI connector is located on the rear of your V-TONE.

To connect your V-TONE with other MIDI equipment, you will need a MIDI cable.

Pre-packed cables available at music stores are used for this purpose. Such cables

should not be longer than 15 m (45 ft).

MIDI IN receives MIDI control data. The receiving channel is adjusted using the

CHANNEL and IN/OUT key combination On = Omni means that MIDI data are

being received and processed on all channels (compare section 4.2).

7. Appendix

7.1 MIDI implementation

MIDI Implementation Chart

Function Transmitted Recognized Remarks

Basic

Channel Default Changed X

OFF, 1 - 16

OFF, 1 - 16 memorized

Mode Default

Messages Altered

1, 2

Note

Number True Voice X

Velocity Note ON

Note OFF

After

Touch

Keys

Channels

Pitch Bender X X

Control X O see add. table

Progr.

Change True # X

0 - 99

123

124

127

123 = Channel 1

124 = Channel 2

127 = Tuner

System

Exclusive X X

System

Common

Song Pos.

Song Sel.

Tune

System

Real Time

Clock

Commands

Aux

Messages

Local ON/OFF

All notes OFF

Active Sense

Reset

Notes

O = YES, X = NO

Mode 1: OMNI ON

Mode 2: OMNI OFF

Tab. 7.1: MIDI implementation

Parameter Name Display Range

Midi

Control

Number

Control

Value

Range

Volume Controller — 7 0 .. 127

Channel Select Channel 1 = 0

Channel 2 = 1 10 0, 1

Eect Bypass OFF = 0

ON = 1 11 0, 1

Parameter 3 depends on eect * 12 0 .. 127 (max.)

Parameter 2 depends on eect * 13 0 .. 127 (max.)

Parameter 1

(MIX) depends on eect * 14 0 .. 127 (max.)

Wah / Modulation

Controller —27 0 = o

1 .. 127

Mod FX send on/o — 21 0/127

Reverb send on/o —22 0/127

Delay send on/o — 23 0/127

Tap Tempo —64 value > 63

Tuner Bypass Volume —82 0 .. 127

* for details see Tab. 4.1

Tab. 7.2: V-TONE MIDI controllers 7.2 Eect presets

15 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

7. 2 Eect presets

Preset-No. Eect Variation FX MIX Default

0REVERB medium Pre-Delay Mix 40

1SPRING

REVERB

short Pre-Delay Mix 25

2long Pre-Delay Mix 25

3STUDIO short Pre-Delay Mix 40

4long Pre-Delay Mix 40

5CHAMBER short Pre-Delay Mix 30

6long Pre-Delay Mix 30

7STAGE short Pre-Delay Mix 35

8long Pre-Delay Mix 40

9CONCERT short Pre-Delay Mix 40

10 long Pre-Delay Mix 40

11 PLATE short Pre-Delay Mix 50

12 long Pre-Delay Mix 50

13 EARLY

REFLECTIONS

min. Density Mix 50

14 max. Density Mix 50

15 AMBIENCE min. Reections Mix 40

16 max. Reections Mix 40

DELAY /

REVERB

—Reverb Mix 40

18 —Reverb Mix 45

19 —Reverb Mix 40

20 —Reverb Mix 50

STEREO

DELAY

Model Mix 60

22 Model Mix 70

23 Model Mix 50

24 Model Mix 70

25 Model Mix 75

26 Model Mix 80

27 Model Mix 60

28 Model Mix 70

29 Model Mix 100

PHASER

Model Depth 25

31 Model Depth 50

32 Model Depth 25

33 Model Depth 90

CHORUS

fat Mix 60

35 slow Mix 70

36 stereo Mix 60

37 stereo Mix 30

CHORUS /

REVERB

ultra Chorus Mix 40

39 slow Chorus Mix 40

40 medium I Chorus Mix 20

41 medium II Chorus Mix 50

42 fast Chorus Mix 40

CHORUS /

DELAY

ultra Chorus Mix 70

44 slow Chorus Mix 50

45 medium I Chorus Mix 50

46 medium II Chorus Mix 30

47 hold Chorus Mix 40

FLANGER

—Depth 90

49 —Depth 127

50 —Depth 60

51 —Depth 60

Preset-No. Eect Variation FX MIX Default

FLANGER /

REVERB

ultra Depth 50

53 slow Depth 50

54 medium I Depth 50

55 medium II Depth 40

56 fast Depth 40

FLANGER /

DELAY

ultra Depth 60

58 medium I Depth 80

59 slow Depth 50

60 medium II Depth 20

61 hold Depth 65

62 TREMOLO /

REVERB

Slow Tremolo Mix 65

63 Fast Tremolo Mix 45

64 TREMOLO /

DELAY

slow (with reverb) Tremolo Mix 45

65 ultra (with reverb) Tremolo Mix 40

66 medium (with reverb) Tremolo Mix 30

67 ROTARY

SPEAKER

slow (with reverb) Depth 70

68 fast (with reverb) Depth 100

69 ROTARY

DRIVE

slap back Depth 40

70 spinning echo Depth 90

71 AUTO WAH

REVERB

fast Sensitivity 50

72 slow Sensitivity 50

73 AUTO WAH

DELAY

distortion Sensitivity 60

74 clean Sensitivity 30

PITCH

SHIFTER

-12 Pitch Mix 40

76 -5 Pitch Mix 30

77 +3 Pitch Mix 25

78 +4 Pitch Mix 30

79 +7 Pitch Mix 20

80 +4 % Pitch Mix 25

81 +8 % Pitch Mix 20

PITCH

SHIFTER /

REVERB

-12 Pitch Mix 60

83 +3 Pitch Mix 10

84 +4 % Pitch Mix 20

85 +8 % Pitch Mix 30

PITCH

SHIFTER /

DELAY

-12 Pitch Mix 50

87 -5 Pitch Mix 20

88 +4 Pitch Mix 20

89 +7 Pitch Mix 20

90 COMPRESSOR fast (with Delay) Sensitivity 60

91 slow (with Reverb) Sensitivity 50

92 EXPANDER fast (with Ambience) Threshold 10

93 slow (with Delay) Threshold 25

GUITAR

COMBO

Crunch (with Delay) Drive 60

95 Edge (with Delay) Drive 50

96 Overdrive

(with Reverb) Drive 80

97 Distortion 1

(with Delay) Drive 126

98 Distortion 2

(with Delay) Drive 70

99 Distortion 3

(with Reverb) Drive 70

Tab. 7.3: V-TONE eect presets

16 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

8. Specications

GMX1200H

Audio Inputs

GUITAR IN ¼" TS jack, RF ltered

Input impedance approx. 1MΩ unbalanced

INSERT RETURN ¼" TS jack

Input impedance approx. 10kΩ unbalanced

SLAVE IN ¼" TRS jack (tip = input)

Input impedance approx. 30kΩ unbalanced

AUX IN ¼" TRS jack

Input impedance approx. 10kΩ unbalanced

TAPE IN RCA connector

Input impedance approx. 10kΩ unbalanced

Audio Outputs

INSERT SEND ¼" TS jack, low-impedance, line-level

Output impedance approx. 100Ω unbalanced

LINE OUT ¼" TS jack

Output impedance > 1kΩ unbalanced

Max. output level +8dBu unbalanced

TAPE OUT RCA connector

Output impedance approx. 3kΩ unbalanced

Max. output level +9dBu unbalanced

PHONES OUTPUT ¼" TRS jack

Max. output level +15dBu / 100Ω (+23dBm)

SLAVE OUT ¼" TRS jack (ring = output)

Output impedance approx. 2kΩ unbalanced

Max. output level +21dBu unbalanced

Loudspeaker Output

Type 2 x ¼" TS jack

Min. load impedance 8Ω

System Data

Peak power 2 x 60W / 8Ω

MIDI Interface

Type 5-pin DIN socket, MIDI IN

Digital Processing

Converters 24-bit delta-sigma,

64/128-times oversampling

Sampling rate 46.875kHz

Display

Type 2-digit numeric LED display

Power Supply

Power consumption max. 200W

Mains Voltage/Fuse

100 - 120V~ (50/60Hz) T 5A H 250V

220 - 240 V~ (50/60Hz) T 2.5A H 250V

Mains connector Standard IEC receptacle

Physical/Weight

Dimensions (H x W x D) 11 x 28 x 9.4"

280x 712x 240mm

Weight 34.2lbs / 15.5kg

17 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

GMX212

Audio Inputs

GUITAR IN ¼" TS jack, RF ltered

Input impedance approx. 1MΩ unbalanced

INSERT RETURN ¼" TS jack

Input impedance approx. 10kΩ unbalanced

SLAVE IN ¼" TRS jack (tip = input)

Input impedance approx. 30kΩ unbalanced

AUX IN ¼" TRS jack

Input impedance approx. 10kΩ unbalanced

TAPE IN RCA connector

Input impedance approx. 10kΩ unbalanced

Audio Outputs

INSERT SEND ¼" TS jack, low-impedance, line-level

Output impedance approx. 100Ω unbalanced

LINE OUT ¼" TS jack

Output impedance > 1kΩ unbalanced

Max. output level +8dBu unbalanced

TAPE OUT RCA connector

Output impedance approx. 3kΩ unbalanced

Max. output level +9dBu unbalanced

PHONES OUTPUT ¼" TRS jack

Max. output level +15dBu / 100Ω (+23dBm)

SLAVE OUT ¼" TRS jack (ring = output)

Output impedance approx. 2kΩ unbalanced

Max. output level +21dBu unbalanced

Loudspeaker Output

Type 2 x ¼" TS jack

Min. load impedance 8Ω

System Data

Peak power 2 x 60W / 8Ω

MIDI Interface

Type 5-pin DIN socket, MIDI IN

Digital Processing

Converters 24-bit delta-sigma,

64/128-times oversampling

Sampling rate 46.875kHz

Display

Type 2-digit numeric LED display

Loudspeaker

Type 2 x 12"

Model BUGERA Vintage Guitar Series

Power Supply

Power consumption max. 200W

Mains Voltage/Fuse

100 - 120V~ (50/60Hz) T 5A H 250V

220 - 240 V~ (50/60Hz) T 2.5A H 250V

Mains connector Standard IEC receptacle

Physical/Weight

Dimensions (H x W x D) 19.4 x 28 x 10"

493x 712x 255mm

Weight 53.8 lbs / 24.4kg

18 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

GMX210

Audio Inputs

GUITAR IN ¼" TS jack, RF ltered

Input impedance approx. 1MΩ unbalanced

INSERT RETURN ¼" TS jack

Input impedance approx. 10kΩ unbalanced

SLAVE IN ¼" TRS jack (tip = input)

Input impedance approx. 30kΩ unbalanced

AUX IN ¼" TRS jack

Input impedance approx. 10kΩ unbalanced

TAPE IN RCA connector

Input impedance approx. 10kΩ unbalanced

Audio Outputs

INSERT SEND ¼" TS jack, low-impedance, line-level

Output impedance approx. 100kΩ unbalanced

LINE OUT ¼" TS jack

Output impedance > 1kΩ unbalanced

Max. output level +8dBu unbalanced

TAPE OUT RCA connector

Output impedance approx. 3kΩ unbalanced

Max. output level +9dBu unbalanced

PHONES OUTPUT ¼" TRS jack

Max. output level +15dBu / 100Ω (+23dBm)

SLAVE OUT ¼" TRS jack (ring = output)

Output impedance approx. 2kΩ unbalanced

Max. output level +21dBu unbalanced

System Data

Peak power 2 x 30W / 4Ω

MIDI Interface

Type 5-pin DIN socket, MIDI IN

Digital Processing

Converters 24-bit delta-sigma,

64/128-times oversampling

Sampling rate 46.875kHz

Display

Type 2-digit numeric LED display

Loudspeaker

Type 2 x 10"

Model BUGERA Vintage Guitar Series

Power Supply

Power consumption max. 150W

Mains Voltage/Fuse

100 - 120V~ (50/60Hz) T 3.15A H 250V

220 - 240 V~ (50/60Hz) T 1.6A H 250V

Mains connector Standard IEC receptacle

Physical/Weight

Dimensions (H x W x D) 18.6 x 23.8 x 10"

473x 605x 255mm

Weight 40.2lbs / 18.2kg

19 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

GMX112

Audio Inputs

GUITAR IN ¼" TS jack, RF ltered

Input impedance approx. 1MΩ unbalanced

INSERT RETURN ¼" TS jack

Input impedance approx. 10kΩ unbalanced

TAPE IN RCA connector

Input impedance approx. 10kΩ unbalanced

Audio Outputs

INSERT SEND ¼" TS jack, low-impedance, line-level

Output impedance approx. 1kΩ unbalanced

TAPE OUT RCA connector

Output impedance approx. 3kΩ unbalanced

Max. output level +9dBu unbalanced

PHONES OUTPUT ¼" TRS jack

Max. output level +15dBu / 100Ω (+23dBm)

Loudspeaker Output

Type ¼" TS jack

Min. load impedance 4Ω

System Data

Peak power 1 x 60W / 4Ω

MIDI Interface

Type 5-pin DIN socket, MIDI IN

Digital Processing

Converters 24-bit delta-sigma,

64/128-times oversampling

Sampling rate 46.875kHz

Display

Type 2-digit numeric LED display

Loudspeaker

Type 1 x 12"

Model BUGERA Vintage Guitar Series

Power Supply

Power consumption max. 150W

Mains Voltage/Fuse

100 - 120V~ (50/60Hz) T 3.15A H 250V

220 - 240 V~ (50/60Hz) T 1.6A H 250V

Mains connector Standard IEC receptacle

Physical/Weight

Dimensions (H x W x D) 18.6 x 23.8 x 10"

473x 605x 255mm

Weight 38lbs / 17.2kg

20 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

GMX110

Audio Inputs

GUITAR IN ¼" TS jack, RF ltered

Input impedance approx. 1MΩ unbalanced

INSERT RETURN ¼" TS jack

Input impedance approx. 10kΩ unbalanced

TAPE IN RCA connector

Input impedance approx. 10kΩ unbalanced

Audio Outputs

INSERT SEND ¼" TS jack, low-impedance, line-level

Output impedance approx. 1kΩ unbalanced

TAPE OUT RCA connector

Output impedance approx. 3kΩ unbalanced

Max. output level +9dBu unbalanced

PHONES OUTPUT ¼" TRS jack

Max. output level +15dBu / 100Ω (+23dBm)

Loudspeaker Output

Type ¼" TS jack

Min. load impedance 4Ω

System Data

Peak power 1 x 30W / 4Ω

MIDI Interface

Type 5-pin DIN socket, MIDI IN

Digital Processing

Converters 24-bit delta-sigma,

64/128-times oversampling

Sampling rate 46.875kHz

Display

Type 2-digit numeric LED display

Loudspeaker

Type 1 x 10"

Model BUGERA Vintage Guitar Series

Power Supply

Power consumption max. 70W

Mains Voltage/Fuse

100 - 120V~ (50/60Hz) T 2A H 250V

220 - 240 V~ (50/60Hz) T 1A H 250V

Mains connector Standard IEC receptacle

Physical/Weight

Dimensions (H x W x D) 15.7 x 16.7 x 8.4"

400x 423x 213mm

Weight 24.3lbs / 11kg

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts,

modifications may be made from time to time to existing products without prior notice. Specifications and

appearance may differ from those listed or illustrated.

21 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

22 V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110 User Manual

FEDERAL COMMUNICATIONS

COMMISSION COMPLIANCE

INFORMATION

Responsible Party Name: MUSIC Group Services US Inc.

Address: 18912 North Creek Parkway,

Suite 200 Bothell, WA 98011,

USA

Phone/Fax No.: Phone: +1 425 672 0816

Fax: +1 425 673 7647

V-TONE GMX1200H/GMX212/GMX210/GMX112/GMX110

complies with the FCC rules as mentioned in the followingparagraph:

This equipment has been tested and found to comply with the limits for a ClassB

digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the followingmeasures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician forhelp.

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

Important information:

Changes or modications to the equipment not expressly approved by MUSIC Group

can void the user’s authority to use the equipment.

V-TONE GMX1200H/GMX212/GMX210/

GMX112/GMX110

We Hear You
