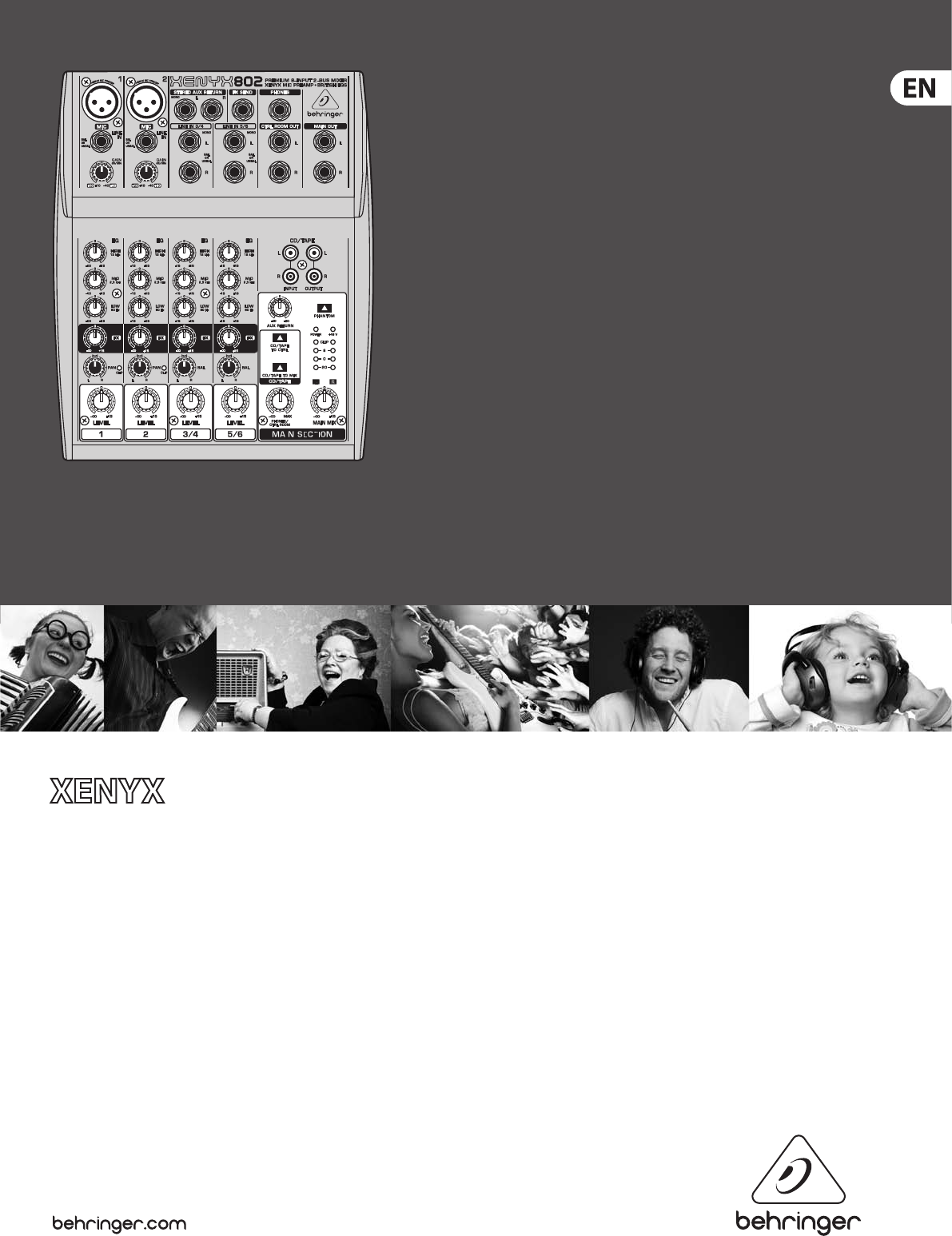

Technical Specications
802
Premium 8-Input 2-Bus Mixer with Xenyx Mic Preamps
and British EQs
2XENYX 802 Technical Specifications
XENYX 802
Premium 8-Input 2-Bus Mixer with Xenyx Mic Preamps and British EQs
Premium ultra-low noise, high headroom analog mixer
2 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
Neo-classic “British” 3-band EQs for warm and musical sound
1 post fader FX send per channel for external FX devices
1 stereo aux return for FX applications or as separate stereo input
Main mix outputs plus separate control room, phones and stereo CD/tape outputs
CD/tape inputs assignable to main mix or control room/phones outputs
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
Mono Inputs
Microphone Inputs (XENYX Mic Preamp)
Type XLR connector, electronically
balanced, discrete input circuit
Mic E.I.N.1(20 Hz - 20 kHz)
@ 0Ω source resistance -134dB / 135.7dB A-weighted
@ 50Ω source resistance -131dB / 133.3dB A-weighted
@ 150Ω source resistance -129dB / 130.5dB A-weighted
Frequency Response
<10Hz - 150kHz -1dB
<10Hz - 200kHz -3dB
Gain range +10dB to +60dB
Max. input level +12dBu @ +10dB GAIN
Impedance approx. 2.6kΩ balanced
Signal-to-noise ratio 110dB / 112dB A-weighted
(0dBu In @ +22dB GAIN)
Distortion (THD + N) 0.005% / 0.004% A-weighted
Line Input
Type ¼" TRS jack, electronically balanced
Impedance approx. 20kΩ balanced,
approx. 10kΩ unbalanced
Gain range -10dB to +40dB
Max. input level +22dBu @ 0dB GAIN
Fade-Out Attenuation2 (Crosstalk Attenuation)
Main fader closed 90dB
Channel muted 89.5dB
Channel fader muted 89dB
Frequency Response (Mic In → Main Out)
<10Hz - 90kHz +0dB / -1dB
<10Hz - 160kHz +0dB / -3dB
Stereo Inputs
Type ¼" TRS jack, electronically balanced
Impedance approx. 20kΩ
Max. input level +22dBu
Equalizer
EQ Mono Channels
LOW 80Hz / ±15dB
MID 2.5kHz / ±15dB
HIGH 12kHz / ±15dB
EQ Stereo Channels
LOW 80Hz / ±15dB
MID 2.5kHz / ±15dB
HIGH 12kHz / ±15dB
Specications
3XENYX 802 Technical Specifications
BEHRINGER is constantly striving to manintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those
listed or illustrated
Technical specifications and appearance are subject to change without notice. The information contained herein is correct at the time of printing. All trademarks are the property of their respective owners. MUSIC Group accepts no liability for any loss
which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. Colors and specifications may vary slightly from product. BEHRINGER products are sold through authorized dealers
only. Distributors and dealers are not agents of MUSIC Group and have absolutely no authority to bind MUSIC Group by any express or implied undertaking or representation. This manual is copyrighted. No part of this manual may be reproduced or
transmitted in any form or by any means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written permission of MUSIC Group IP Ltd. ALL RIGHTS RESERVED. © 2011 MUSIC Group IP Ltd.
Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands
Send/Return
Aux Sends
Type ¼" TS jack, unbalanced
Impedance approx. 120Ω
Max. output level +22dBu
Stereo Aux Returns
Type ¼" TRS jack, electronically balanced
Impedance approx. 20kΩ balanced /
approx. 10kΩ unbalanced
Max. input level +22dBu
Outputs
Main Outputs
Type ¼" TRS jack, unbalanced
Impedance approx. 120Ω unbalanced
Max. output level +22dBu
Control Room Outputs
Type ¼" TS jack, unbalanced
Impedance approx. 120Ω
Max. output level +22dBu
Headphones Output
Type ¼" TRS jack, unbalanced
Max. output level +19dBu / 150Ω (+25dBm)
Main Mix System Data3 (Noise)
Main mix @ -∞, -106dB / -109dB A-weighted
channel fader @ -∞
Main mix @ 0dB, -95dB / -98dB A-weighted
channel fader @ -∞
Main mix @ 0dB, -84dB / -87dB A-weighted
channel fader @ 0dB
Power Supply
Power consumption 13W
USA/Canada
Adapter BEHRINGER PSU MX3UL
Mains voltage 120V~, 60Hz
Europe/U.K./Australia
Adapter BEHRINGER PSU MX3EU
Mains voltage 230V~, 50Hz
China
Adapter BEHRINGER PSU MX3CC
Input 220V~ 50Hz; 80mA
Output 2 x 18.5V~, 2 x 150mA
Korea
Adapter BEHRINGER PSU MX3KR
Mains voltage 220V~, 60Hz
Japan
Adapter BEHRINGER PSU MX3JP
Mains voltage 100V~, 50/60Hz
Physical/Weight
Dimensions (H x W x D) 1.9" / 1.5 x 7.4 x 8.7"
47mm / 37 x 189 x 220mm
Weight (net) 3.5lbs / 1.6kg
1 Equivalent Input Noise.
2 Measuring conditions: 1 kHz rel. to 0 dBu; 20 Hz - 20 kHz; line input; main output; unity gain.
3 20 Hz - 20 kHz; measured at main output. Channels 1 - 4 unity gain; EQ flat; all channels on main mix; channels 1/3 as far left
as possible; channels 2/4 as far right as possible; reference = +6 dBu.
