Beijing InHand Networks Technology Co IR6X5PAP Industrial Cellular Router User Manual

Beijing InHand Networks Technology Co,. Ltd. Industrial Cellular Router

Contents

User Manual

InRouter 6X5 Series
Compact Design: 4 Ethernet LAN switch ports, RS232/485
(DB9), Wi-Fi (2.4GHz 802.11b/g/n),3G/UMTS or Ethernet WAN
connection
Power supply: 9-26V DC Power Terminal
High security: Advanced VPN (IPSec/SSL/GRE/L2TP/PPTP)
Centralized management platform: InHand Device Manager
Cloud
Reliable for almost all industrial conditions
Smart 4 Ethernet LAN/Wi-Fi/ Serial to Ethernet WAN/HSPA+/UMTS
Router
Overview
InRouter6X5 series are compact designed industrial cellular routers which can help users to quickly access to high-speed
Internet and support secure and reliable data transmission. The products combine together with the functions of unmanaged
switch, serial server, 3G Router, IP modem, Advanced VPN client and even WIFI and provide with high cost-effective solution
for applications in industrial automation and control, fleet monitoring, video surveillance, advertising media, and outlets
networking. You can even configure it easily through the browser on your IOS or Android terminals without connection to the
router by cable.
Besides flexibility, InRouter6X5 series can provide reliable data link. For example, the multi-level linkage detection ensures
linkage stability especially for applications in unattended areas. The outstanding performance under wide temperature and
harsh electromagnetic field enables the capability to work under harsh conditions.
The most amazing thing is InRouter6x5 support almost the VPN security protocols which only exist in advanced VPN Routers.
It is compatible with the major VPN routers including the brands of Cisco, HuaWei, Juniper etc.
Specification
Interfaces
WAN Interfaces
Ethernet WAN: Static IP/PPPoE/DHCP Client
Cellular WAN: HSPA+: 21Mbps (DL)/5.76Mbps (UL)
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
UMTS /HSPA/HSPA+: 850/900/1900/2100 MHz
Authentication: CHAP/PAP/MS-CHAP/MS-CHAPV2
LAN Interfaces
Auto Adaption: 4 10M/100M Ethernet ports, auto-adaptive
MDI/MDI-X auto crossover
Isolation Protection: 1.5KV isolation protection
Power supply
9-26V DC 5.08mm 2pin Terminal power supply
Serial ports
Number: 1 RS232/RS485 DB9
Protocol: Modbus RTU, Transparent TCP, Virtual COM
Wi-Fi (Optional)
Environmental
Operating temperature: -20°C~70°C
Storage temperature:-40°C ~85°C
Humidity: 5%~95%, no-condensing
Protection grade: IP40
EMC
ESD: EN61000-4-2 Surge: EN61000-4-5
EFT: EN61000-4-4 RF: EN61000-4-3
RC: EN61000-4-6 Oscillatory Wave Immunity: EN61000-4-12
Variation Magnetic Field Immunity: EN61000-4-8
Safety
Anti-shock:IEC60068-2-27
Anti-drop: IEC60068-2-32
Anti-vibration: IEC60068-2-6
Reliable Network Link
Built-in hardware watchdog, self-recovery
PPP link detection disaster self-recovery
Professional upgrades mechanism, assure upgrade safety
TCP/IP Protocols
ICMP, IP, TCP, UDP, DHCP, PPP, ARP, Telnet, DNS, VRRP, HTTP, HTTPS, VPN
(IPSec/SSL/PPTP/L2TP/GRE)
Installation
Optional Wall mounting kits or DIN mounting Kits
Warranty
Warranty Period: 1 year, for more period please contact InHand sales

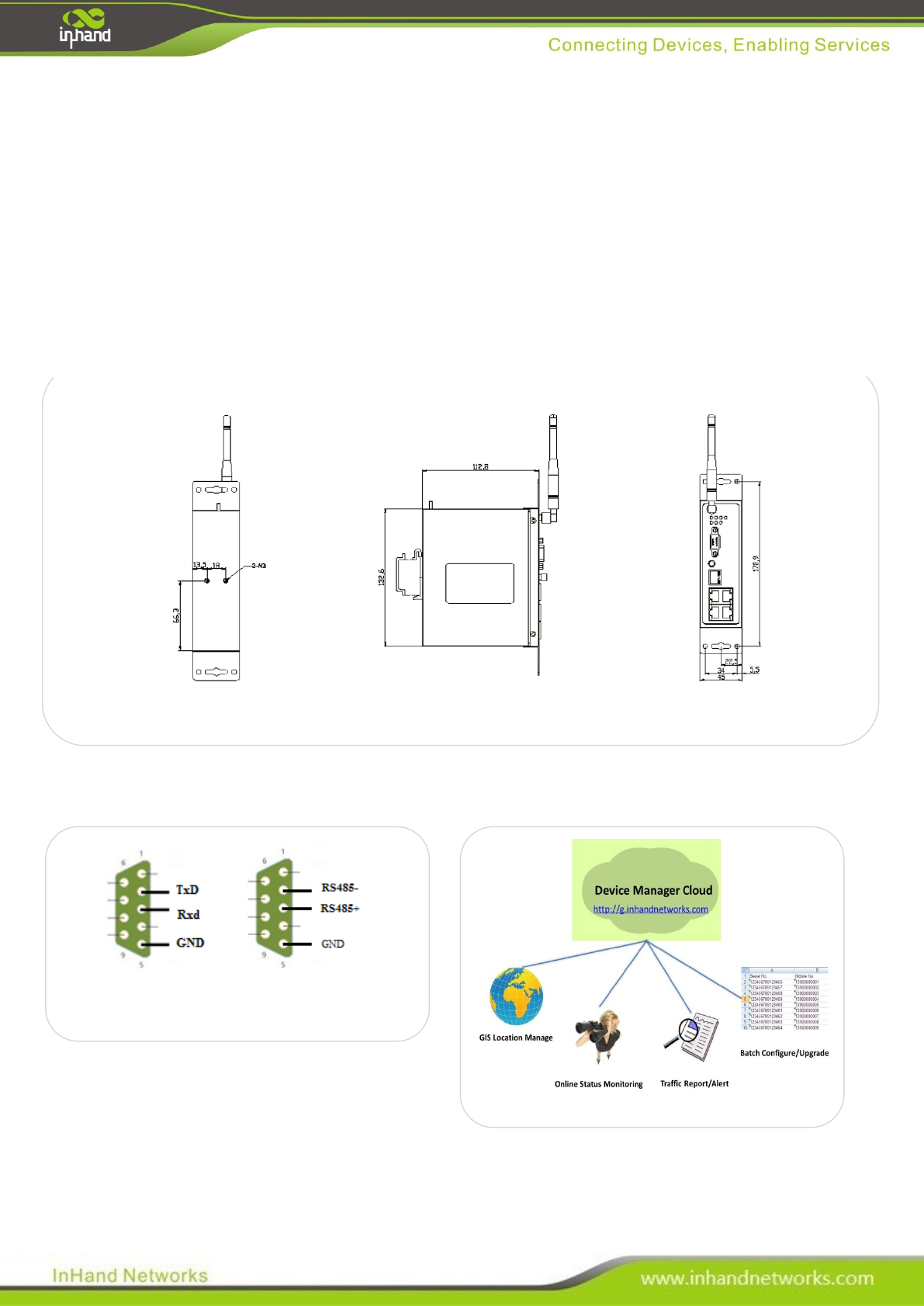

Dimensions (Unit: mm)
Side View
Front View
Back View
DB9 RS232 /RS485 Port
RS232
RS485
Device Manager Cloud
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
Model
IR6x5
Part Number
IR6<X>5-<N>-<P>-<S>
X
(Option VPN)
0: no VPN;
1: standard VPN (IPSec/PPTP/L2TP/GRE);
9: advanced VPN(IPSec/PPTP/L2TP/GRE/OpenVPN) + X.509 CA
support
N
（Network）
UE00: No wireless module
WH01: UMTS/HSDPA (850/900/1900/2100 MHz)
VZ16:CDMA2000 EVDO\1X( 800MHz/1900MHz/2100MHz)
VZ01: EVDO(800MHz/1900MHz. for China/India only)
PH01:HSPA+ (850/900/1900/2100 MHz)
S
(Serial port)
<NA> : RS232
485 : RS485
Example
IR6 1 5 WH01-AP:
Standard VPN (IPSec/PPTP/L2TP/GRE)
WH01: UMTS/HSDPA (850/900/1900/2100 MHz)
Wi-Fi : AP mode
RS232 serial port
Order Information
FCC Warning Statement
Connecting Devices, Enabling Services
info@inhandnetworks.com
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body
