Beijing InHand Networks Technology Co R7X1GS Industrial Cellular Router User Manual IR7x1GS55 Series 2 6
Beijing InHand Networks Technology Co,. Ltd. Industrial Cellular Router IR7x1GS55 Series 2 6
User Manual
InRouter 700 Series User’s Manual www.inhandnetworks.com
InRouter 7x1GS55 Series User’s Manual
Fifth Edition, August, 2011
(For Firmware Version: 1.3.5.v2275)
© 2011 InHand Networks, All rights reserved.
Republication without permission is prohibited.
InRouter 700 Series User’s Manual
Copyright Notice
Copyright © 2011 InHand Networks
All rights reserved.
Reproduction without permission is prohibited.
Trademarks
InHand is a registered trademark of InHand Networks. Other registered marks cited in this manual represented their
respective companies.
Disclaimer
Information in this document is subject to change without notice and does not represent an obligation on the part of InHand
Networks.
This user manual may include intentional technical or typographical errors. Changes are periodically made to the manual to
correct such errors, and these changes are not informed in new editions.
Technical Support Contact Information
InHand Networks, China
Tel: +86-010-64391099
Fax: +86-010-64399872
Email: support@inhandnetworks.com
InRouter 700 Series User’s Manual www.inhandnetworks.com
1
Release Notes
2011. 3. 24th: Add description for functions:
1. WOL (Wakeup Over LAN) at “Networks”Æ”LAN”;
2. SMS control (reboot/show status) at “Service”Æ”SMS”;
3. “User+X.509” mode for OpenVPN client;
Add Notice:
1. WAN/LAN settings: don’t set the WAN/LAN IP as 192.168.3.1 (the default IP of DMZ port);
2011.8.21st: Add description for functions:
1. “Double Dialup”, set backup parameters for PPP dialup at “Networks”Æ”Dialup”;
2. “Double IPSec”, set backup IPSec tunnel at “VPN” Æ “IPSec Tunnels”;
3. “DHCP Relay” at “Service” Æ “DHCP Relay”;
4. “DNS Relay” at “Service” Æ “DNS Relay”
5. Enable “SSH configuration”;
6. Disable “Multi Manager” function at “System” Æ “Admin Access”;
7. “Loopback” at “Networks” Æ “Loopback”;
8. “Port Mirror” at “Networks” Æ “Port Mirror”;
InRouter 700 Series User’s Manual www.inhandnetworks.com
2
Contents
Contents ...................................................................................................................................................................................... 2
Introduction to InRouter 700 Series ........................................................................................................................................... 3
1.1Overview ................................................................................................................................................................ 4
1.2Package Checklist ................................................................................................................................................... 6
1.3Product Features ..................................................................................................................................................... 7
1.3.1 Interfaces ........................................................................................................................................................... 7
1.3.2 Functions ........................................................................................................................................................... 8
1.3.3 Environmental Limits ........................................................................................................................................ 9
1.3.4 Power Requirements .......................................................................................................................................... 9
1.3.5 Physical Characteristics ..................................................................................................................................... 9
1.3.6 Advanced Industrial Features .......................................................................................................................... 10
1.3.7 Device Management Software ......................................................................................................................... 10
1.3.8 Warranty .......................................................................................................................................................... 10
1.4Product Models ..................................................................................................................................................... 11
Quick Installation Guide ........................................................................................................................................................... 13
2.1Typical Application ............................................................................................................................................... 14
2.2Panel Layout ......................................................................................................................................................... 14
2.3Quick Connection to Internet ............................................................................................................................... 16
2.3.1 Insert SIM Card ............................................................................................................................................... 16
2.3.2 Antenna Installation ......................................................................................................................................... 16
2.3.3 Power Supply ................................................................................................................................................... 16
2.3.4 Connect ............................................................................................................................................................ 16
2.3.5 First Connect InRouter with Your PC .............................................................................................................. 17
2.3.6 Start to configure your InRouter 700(Optional) .............................................................................................. 19
2.3.7 Connect InRouter with Internet ....................................................................................................................... 20
2.4Quick IPSec VPN Configuration .......................................................................................................................... 21
2.5Reset to Factory Defaults ..................................................................................................................................... 23
2.5.1Hardware Method ..................................................................................................................................... 23
2.5.2 Web Method ..................................................................................................................................................... 24
Advanced Configuration .......................................................................................................................................................... 25
3.1Configuration on Web .......................................................................................................... ................................. 26
3.1.1 Preparation ....................................................................................................................................................... 26
3.1.2 System ............................................................................................................................................................. 27
3.1.3 Network ........................................................................................................................................................... 32
3.1.4 Service ............................................................................................................................................................. 40
3.1.5 Firewall ............................................................................................................................................................ 45
3.1.6 QoS .................................................................................................................................................................. 47
3.1.7 VPN ................................................................................................................................................................. 48
3.1.8 Tools ................................................................................................................................................................ 55
3.1.9 Status ............................................................................................................................................................... 56
3.2 Support ....................................................................................................................................................................... 59
InRouter 700 Series User’s Manual www.inhandnetworks.com
3
I
Introduction to InRouter 700 Series
◆ Overview
◆ Product Models
◆ Product Features & Specifications
◆ Package Checklist
InRouter 700 Series User’s Manual www.inhandnetworks.com
4
1.1 Overview
InRouter 700 series industrial grade routers provide users with stable and high speed connection between remote devices
and customer’s center via 2.5G/3G networks. They allow wide voltage power supply (9-48V DC), large range operating
temperature from -25°C to 55°C (-10 ~ 131°F)/ humidity: 95% RH, and fully satisfy various EMC verifications, which
ensure stability and reliability under harsh industrial conditions. The InRouter 700 can be placed on a desktop or
DIN-mounted.
InRouter 700 series products support VPN (IPSec/PPTP/ L2TP/GRE/SSL VPN), which create high-security links between
remote equipment and customer’s center.
In Addition, InRouter 700 series products support the Device Manager remote device manage platform, which realizes
remote operation including remote control, remote monitor, parameters configure, firmware upgrade, log/alarm management,
information statistics/display, batch configuration/update and etc.
InRouter 700 Series User’s Manual www.inhandnetworks.com
5
Important Safety Information
This product is not intended for use in the following circumstances
• Area(s) where radio transmission equipment (such as cell phone) are not permitted.
• Hospitals, health care facilities and area(s) where cell phones are restricted by law.
• Gas stations, fuel storage and places where chemical are stored.
• Chemical plants or places with potential explosion hazard.
• Any metal surface that may weaken the radio signal level.
RF safety distance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
(c) The provisions of paragraphs (a) and (b) do not apply to digital devices exempted from the technical standards under the
provisions of Section 15.103.
(d) For systems incorporating several digital devices, the statement shown in paragraph (a) or (b) needs to be contained only
in the instruction manual for the main control unit.
(e) In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet,
the information required by this section may be included in the manual in that alternative form, provided the user can
reasonably be expected to have the capability to access information in that form. RF exposure warning This equipment must
be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure compliance
Warning
This is a class B product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
InRouter 700 Series User’s Manual www.inhandnetworks.com
6

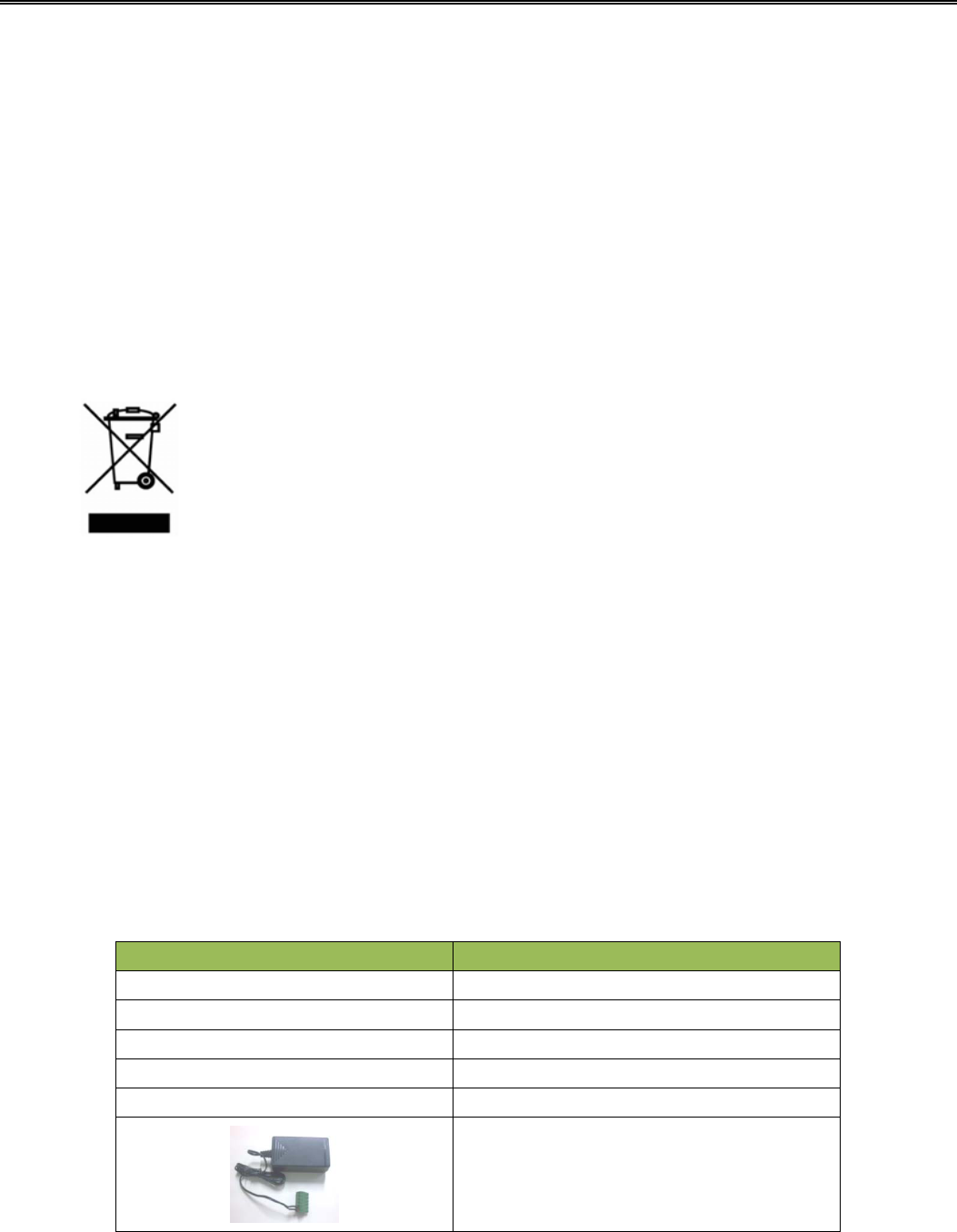

WEEE Notice
The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on
13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse,
recycling and other forms of recovery of such wastes so as to reduce disposal.
The WEEE logo (shown at the left) on the product or on its box indicates that this product must not be disposed of
or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste
equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated
collection and proper recovery of your electronic and electrical waste equipment at the time of disposal will allow
us to help conserving natural resources. Moreover, proper recycling of the electronic and electrical waste
equipment will ensure safety of human health and environment.
For more information about electronic and electrical waste equipment disposal, recovery, and collection points,
please contact your local city centre, household waste disposal service, shop from where you purchased the
equipment, or manufacturer of the equipment.
1.2 Package Checklist
We put each InRouter 700 cellular router in a box with standard accessories. Additionally, there’re optional accessories
can be ordered. When you receive our package, please check carefully, and if there’re items missing or appearing to be
damaged, please contact with your InHand Networks sales representative.
Items in package include:
Standard Accessories:
Accessories Description
InRouter 700 Serials Wireless Router 1
Cable 1 Cross line,CAT-5,1.5M
Document and Software CD 1
Antenna 5m Cellular Antenna
Power Supply
Power Adapter, 100-265V AC in, 12V DC out
(included in IR7xx)
InRouter 700 Series User’s Manual www.inhandnetworks.com
7
Power plug, American Standard
(included in IR7xx)

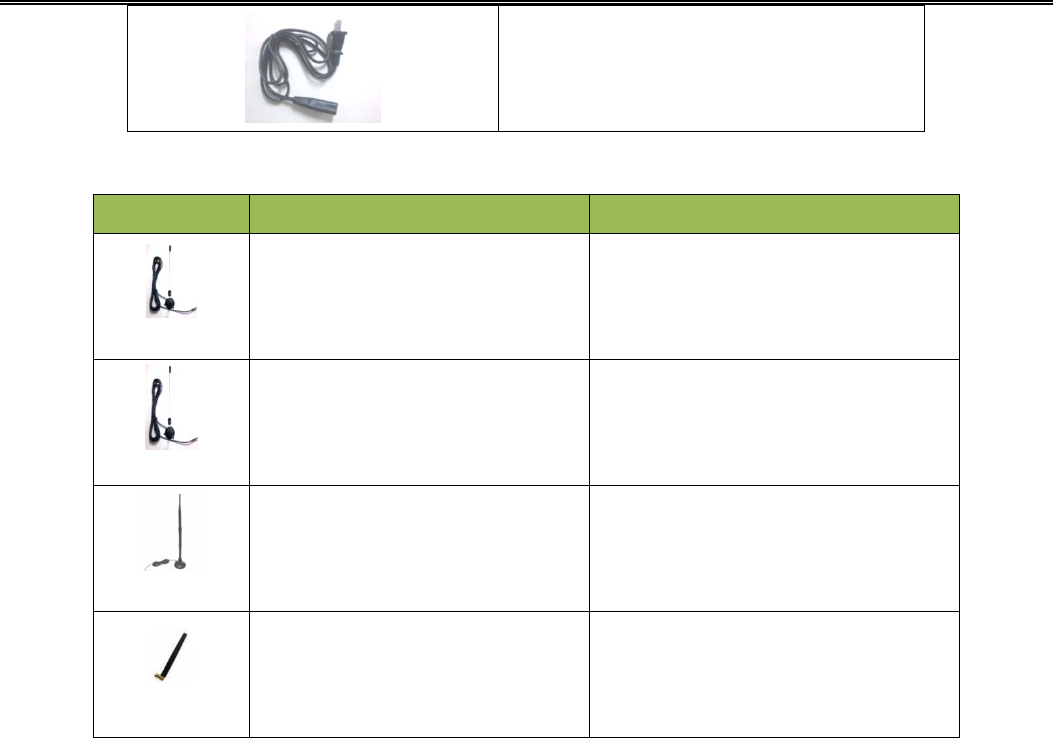

Optional Antennas:
Picture Type Description
GSM/GPRS Cellular Antennas
HSUPA /HSDPA/WCDMA:
850/900/1800/1900/2100 MHz
GSM/GPRS/EDGE:
850/900/1800/1900MHz
UMTS/HSDPA/WCDMA Cellular
Antennas
HSUPA /HSDPA/WCDMA:
850/900/1800/1900/2100 MHz
GSM/GPRS/EDGE:
850/900/1800/1900MHz
Anti-thief antenna
HSUPA /HSDPA/WCDMA:
850/900/1800/1900/2100 MHz
GSM/GPRS/EDGE:
850/900/1800/1900MHz
Stick antenna
HSUPA /HSDPA/WCDMA:
850/900/1800/1900/2100 MHz
GSM/GPRS/EDGE:
850/900/1800/1900MHz
1.3 Product Features
1.3.1 Interfaces
WAN
Cellular WAN:
Band Options:
HSUPA /HSDPA/WCDMA
850/900/1900/2100MHz
GSM/GPRS/EDGE
850/900/1800/1900MHz
Ethernet WAN:
Ethernet: 10/100 Mbps, RJ45 connector, Auto MDI/MDIX
Magnetic Isolation Protection: 1.5 KV built-in
LAN
IR701/711/791:
Number of Ports: 1
Ethernet: 10/100 Mbps, RJ45 connector, Auto MDI/MDIX
InRouter 700 Series User’s Manual www.inhandnetworks.com
8
Magnetic Isolation Protection: 1.5 KV built-in
IR704/714/794:
Number of Ports: 4
Ethernet: 10/100 Mbps, RJ45 connector, auto MDI/MDIX
Magnetic Isolation Protection: 1.5 KV built-in
Serial
A. Serial Type: RS232/485
B. Data bit: 5/6/7/8
C. Stop bit: 1/2
D. Check bit: N/O/D
E. Baud rate: 1,200bit/s~ 115,200bit/s
SIM Interface
SIM Control: 3 V
1.3.2 Functions
PPP
Supported VPDN/APN, fast access to virtual private dial-up network (VPDN) provided by mobile operator, ensure
high-security data transmission.
Support PPPoE (Point to Point Protocol over Ethernet) Protocol.
Support CHAP/PAP/MS-CHAP/MS-CHAP V2 authorization
Support Connection Detection, auto-recovery, auto-link, ensure reliable communication.
Support On-demand connection, SMS Activity
Dynamic IP
Support DHCP, applied as Server/Client
Dynamic DNS
Support Dynamic DNS-IP Binding
Flux Management
Support rate limiting,
Firewall Function
Package filtering
Port Mapping
Virtual Address Mapping
DMZ zone
MAC addresses binding.
InRouter 700 Series User’s Manual www.inhandnetworks.com
9
Route function
Support Static Routing Table
VPN (not available for IR701/704)
IPSec VPN
L2TP VPN
PPTP VPN
GRE
SSL VPN (for IR791/794 only)
Link Backup
VRRP
Support VRRP protocols, realizing immediate link backup
Hot Link Backup (for IR704/714/794 only)
Support Wireless Hot Link Backup for cable link via only one device
DNS Forwarding
Support DNS Forwarding, support DNS record
Network tools
Support Ping, Trace Route and Telnet
Wakeup Over LAN (WOL)
Support Wakeup over LAN, to wakeup industrial PC over Eth. after receives SMS.
RSSI + Cell ID Display
1.3.3 Environmental Limits
Operating Temperature: -25 to 55°C (-10 to 158°F)
Operating Humidity: 5 to 95% RH
Storage Temperature: -40 to 85°C (-40 to 167°F)
1.3.4 Power Requirements
Power Inputs: 1 terminal block, including power jack and serial.
Input Voltage: 9 -48 VDC
1.3.5 Physical Characteristics
Housing: Steel, providing IP30 protection
Weight: 490g
Dimensions (mm)
IR701/711/791:
InRouter 700 Series User’s Manual www.inhandnetworks.com
10
IR704/714/794:
1.3.6 Advanced Industrial Features
Physical Characteristics
Housing: Metal, IP30
EMC Features
ESD: EN61000-4-2, level 4
Surge: EN61000-4-5, Level 3
Electric Fast Transient/burst: EN61000-4-4, Level 4
RF Electromagnetic Field Immunity: EN61000-4-3, Level 3
RF conducted interference: EN61000-4-6, Level 3
Damped oscillation Immunity: EN61000-4-12, Level 3
Power-frequency electromagnetic fields Immunity: EN61000-4-8, Level 5
Anti-shock: IEC60068-2-27
Drop: IEC60068-2-32
Vibration: IEC60068-2-6
1.3.7 Device Management Software
Device Manager:
Centralized management solution for InHand Networks Devices
1.3.8 Warranty
Warranty Period: 3 year (Optional service for 5 years)

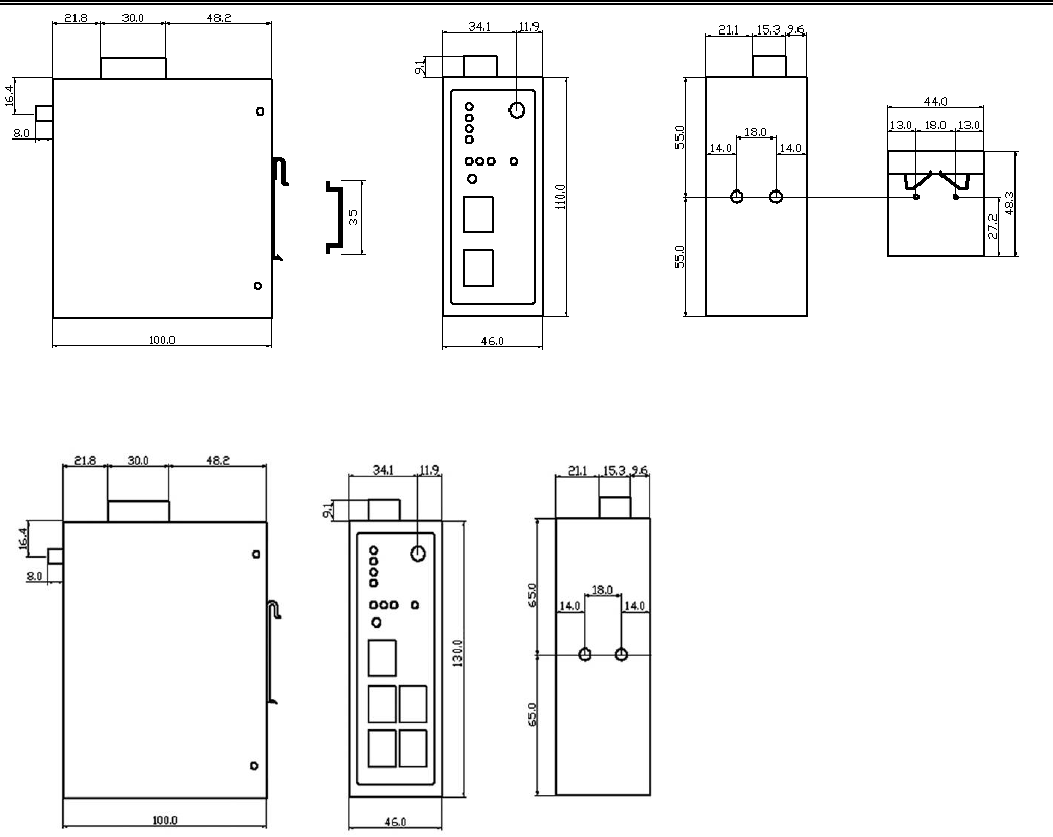

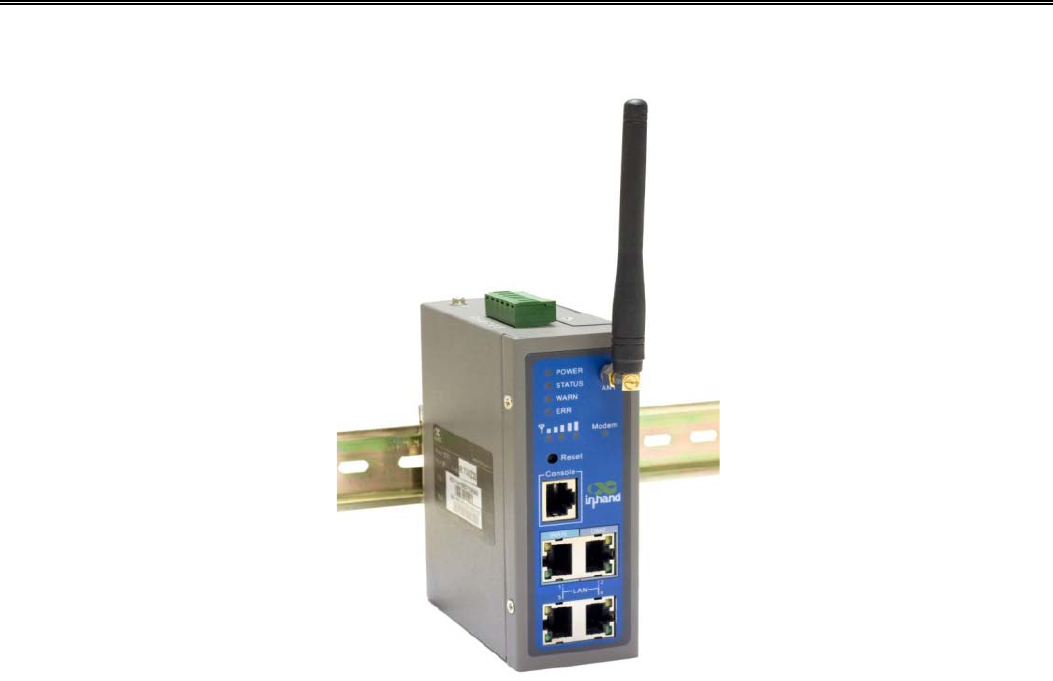

Side View DIN Rail Kit Front View Rear View DIN Rail Kit
Side View Front View Back View
InRouter 700 Series User’s Manual www.inhandnetworks.com
11
1.4 Product Models
The current models of InRouter 700 Series include: InRouter 701/711/791GS55, InRouter 701/711/791WH01,
InRouter 704/714/794WH01.
The models are classified according to main difference including cellular network, VPN support and interface for device.
Model Serial LAN Cellular WAN Ethernet WAN VPN
CA
X.509
base64
GPRS Models
IR701GS55
RS232/485
Optional
1 RJ45
GSM/GPRS
850/ 900/1800/1900 MHz
N/A N/A N/A
IR711GS55 1 RJ45 N/A IPSec/PPTP/L2TP/GRE N/A
IR791GS55 1 RJ45 N/A IPSec/PPTP/L2TP/GRE/SSL Support
IR704GS55 1 RJ45 ADSL/DHCP/ PPPoE/Static IP N/A N/A
InRouter 700 Series User’s Manual www.inhandnetworks.com
12
IR714GS55 1 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE N/A
IR794GS55 1 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE/SSL Support
UMTS Models
IR701WH01
RS232/485
Optional
1 RJ45
HSUPA /HSDPA/WCDMA:
850/900/1800/1900/2100 MHz
GSM/GPRS/EDGE: ,
850/900/1800/1900MHz
N/A N/A N/A
IR711WH01 1 RJ45 N/A IPSec/PPTP/L2TP/GRE N/A
IR791WH01 1 RJ45 N/A IPSec/PPTP/L2TP/GRE/SSL Support
IR704WH01 4 RJ45 ADSL/DHCP/ PPPoE/Static IP N/A N/A
IR714WH01 4 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE N/A
IR794WH01 4 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE/SSL Support
EVDO 450MHz
Models
IR701VC80
RS232/485
Optional
1 RJ45
EVDO 450MHz Rev.A
CDMA 450MHz
N/A N/A N/A
IR711VC80 1 RJ45 N/A IPSec/PPTP/L2TP/GRE N/A
IR791VC80 1 RJ45 N/A IPSec/PPTP/L2TP/GRE/SSL Support
IR704VC80 4 RJ45 ADSL/DHCP/ PPPoE/Static IP N/A N/A
IR714VC80 4 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE N/A
IR794VC80 4 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE/SSL Support
USB Models
IR701UE
RS232/485
Optional
1 RJ45
USB Modem
N/A N/A N/A
IR711UE 1 RJ45 N/A IPSec/PPTP/L2TP/GRE N/A
IR791UE 1 RJ45 N/A IPSec/PPTP/L2TP/GRE/SSL Support
IR704UE 4 RJ45 ADSL/DHCP/ PPPoE/Static IP N/A N/A
IR714UE 4 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE N/A
IR794UE 4 RJ45 ADSL/DHCP/ PPPoE/Static IP IPSec/PPTP/L2TP/GRE/SSL Support
InRouter 700 Series User’s Manual www.inhandnetworks.com
13
II
Quick Installation Guide
◆ Typical Application
◆ Panel Layout
◆ Quick Connect to Internet
◆ Quick IPSec VPN Configuration
◆ Reset to Factory Defaults
InRouter 700 Series User’s Manual www.inhandnetworks.com
14
2.1 Typical Application

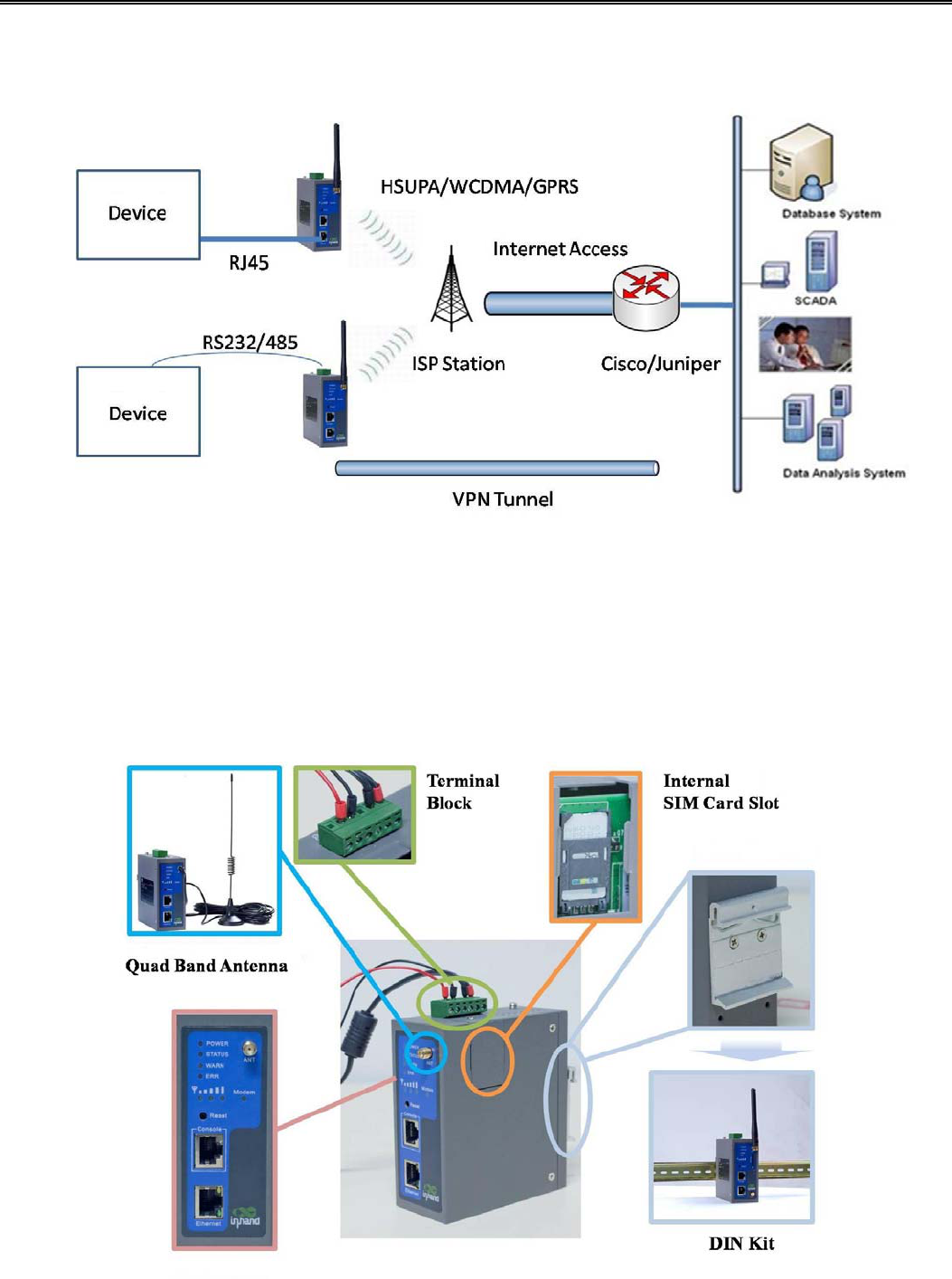

InRouter 700 series can be used to connect your device (with RS232/485/Ethernet Interface) to internet via
GPRS/HSUPA cellular. Meanwhile, to ensure the security and access, InRouter 700 series support VPN, enabling
remote access and secure data transmission through internet.
2.2 Panel Layout
IR701/711/791:
InRouter 700 Series User’s Manual www.inhandnetworks.com
15
IR704/714/794:

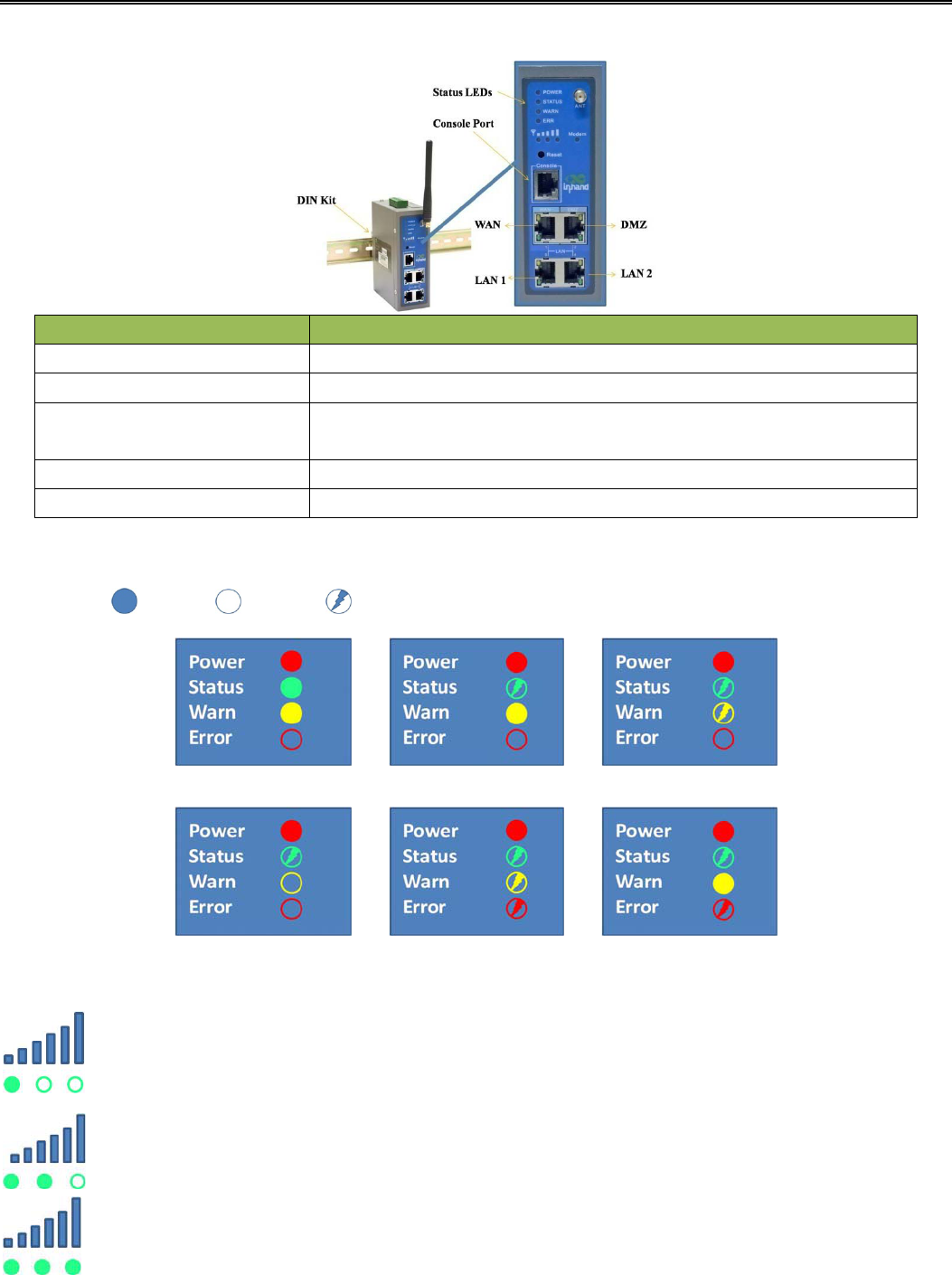

Interface Description
Power Interface Access 9-48 V DC Power Supply
Serial Access to the serial line, realizing
Ethernet Ports One 10/100Base-TX RJ45 Port (IR701/711/791GS55, IR701/711/791WH01, IR701/711/791UE)
Four 10/100Base-TX RJ45 Ports, (IR704/714/794UE, IR704/714/794WH01)
ANTENNA 2.5G/3G antenna
SIM Card Connector Put SIM card
Description of LED
Legend: On-- Off-- Blink--
Power on Start to run firmware Begin dial to Internet
Connect to internet Upgrading firmware Restore factory default
Signal Status LED Description
----- Signal: 1-9 (bad signal level, route cannot work, please check the antenna and local signal level)
------ Signal: 10-19 (Router work normally under this signal level)
------ Signal: 20-31 (Perfect signal level)
InRouter 700 Series User’s Manual www.inhandnetworks.com
16
2.3 Quick Connection to Internet
2.3.1 Insert SIM Card
Open InRouter SIM/UIM card case at the button, insert the SIM card and close the case.
For the external USB modem type, insert the USB card into the USB port.
2.3.2 Antenna Installation
After install the IR7X1GS55, connect the interface of enhanced antenna and the interface of skin antenna and screw
closely. Put the amplifier of enhanced antenna to where there receives good signal. Max allowed antenna gain is 0.5dBi.
Attention: The position and angle may influence the quality of signal.
2.3.3 Power Supply
Link the power supply in the product package with InRouter, watch where the InRouter Power LED on the panel is
light up. If not, please connect with InHand for technical supports.
You can configure IR7X1GS55 after the Power LED lights up.
2.3.4 Connect
Link the IR7X1GS55 with PC:
(1) Using the cable to link IR7X1GS55 with PC;
(2) After the connection, you can see one LED of RJ45 Interface turns green and the other flashes.
USB Modem
InRouter 700 Series User’s Manual www.inhandnetworks.com
17
2.3.5 First Connect InRouter with Your PC

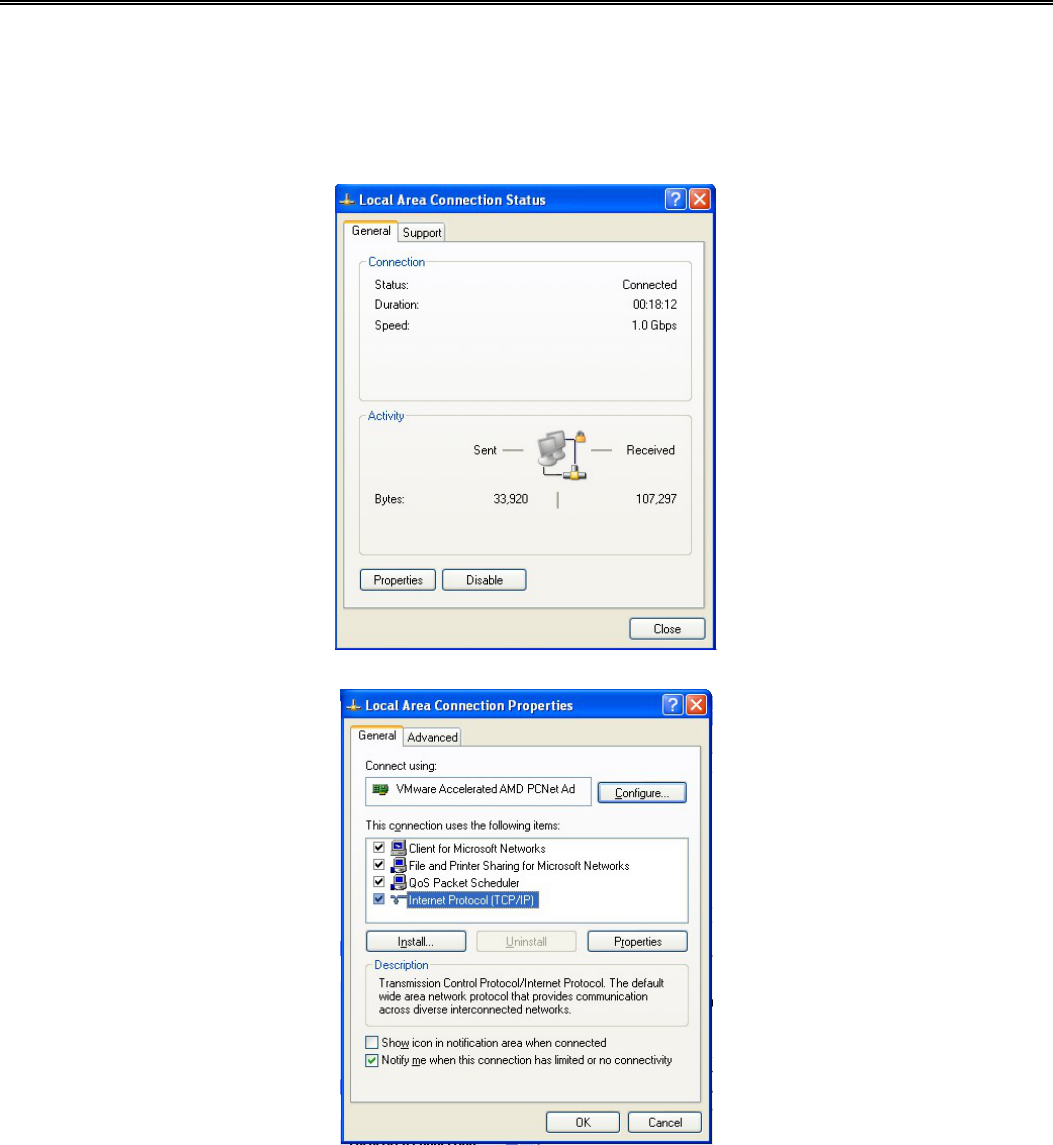

IR7X1GS55 Router can auto-distribute IP address for PC. Please set the PC to automatically obtain IP address via
DHCP. (Based on the Windows operation system):

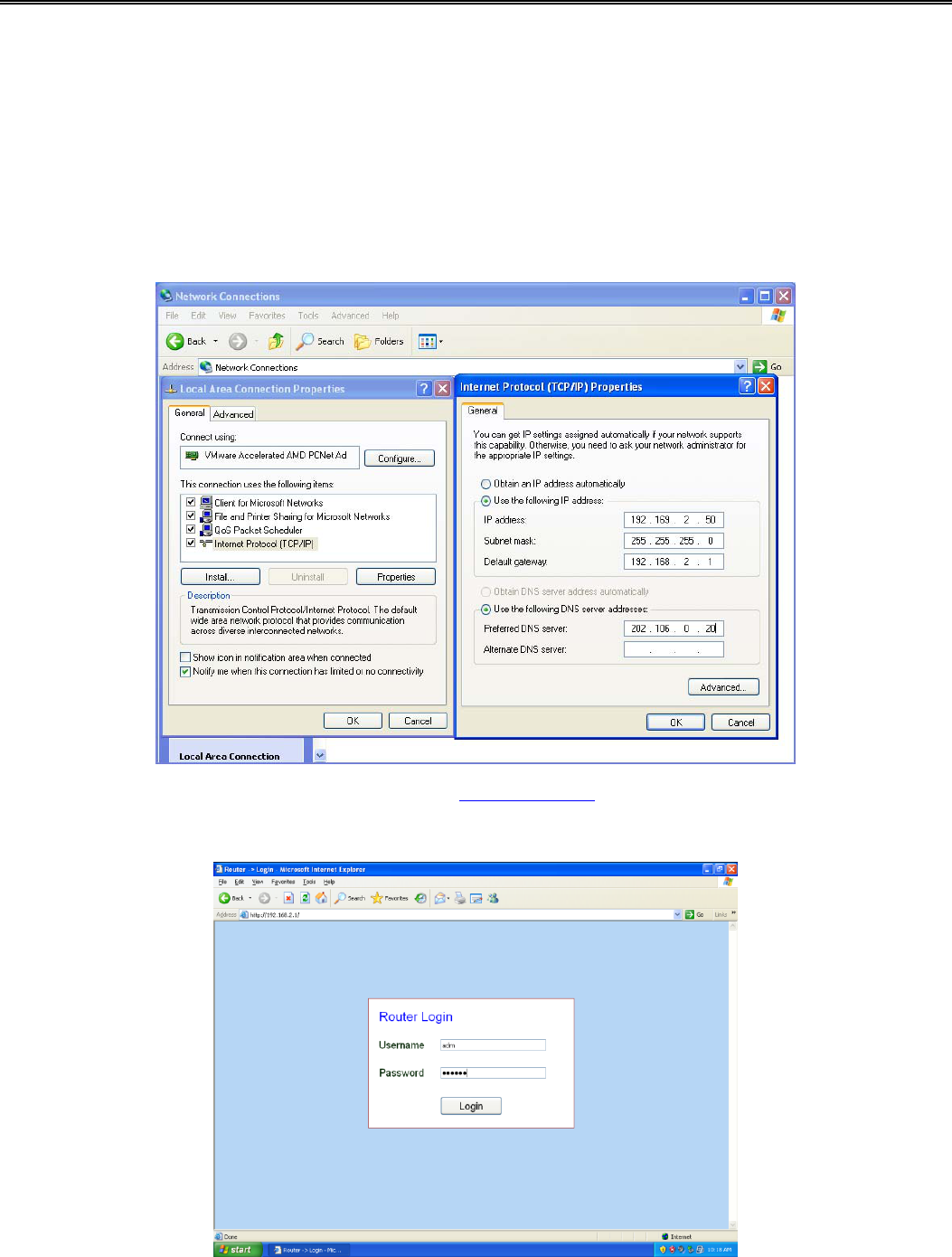

1) Open “Control Panel”, double click “Network Connections” icon, and enter “Network Connections” Screen.
2) Double click “Local Area Connection”, enter “Local Area Connection Status” screen:
3) Click “Properties”, enter “Local Area Connection Properties” screen
Choose “Internet Protocol (TCP/IP)”, click “properties” button, ensure your PC can obtain IP and DNS address
automatically. (Or you can set your PC in the subnet: 192.168.2.0/24, for example, set IP: 192.168.2.10, Net Mask:
255.255.255.0, Default Gateway: 192.168.2.1)
InRouter 700 Series User’s Manual www.inhandnetworks.com
18
Click “OK”, InRouter will allocate an IP address: 192.168.2.X, and a gateway: 192.168.2.1(the default address of
IR7X1GS55).

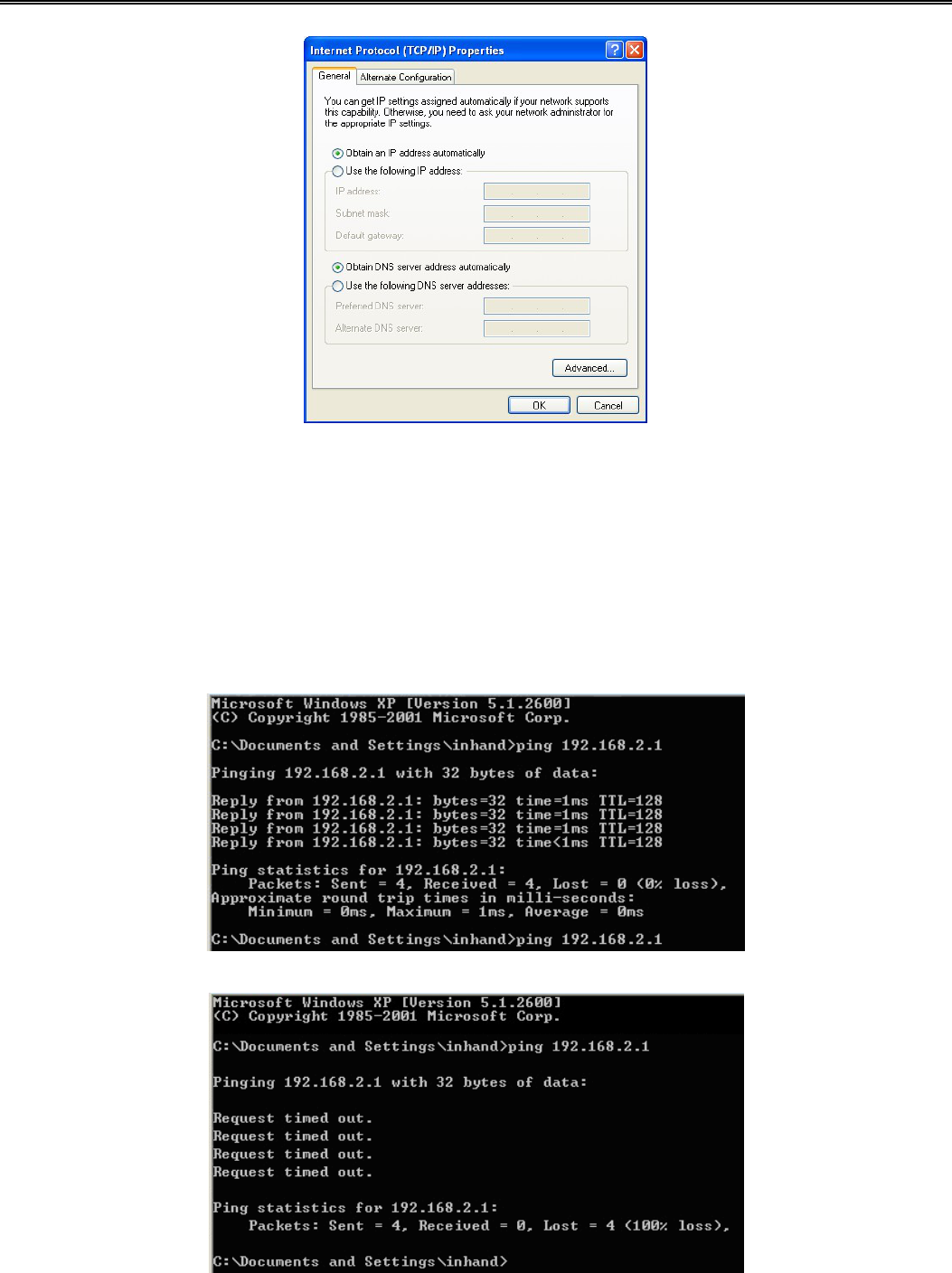

After configure TCP/IP protocols, you can use ping command to check whether the link between PC and Router is built
correctly. There is an example to execute Ping command under Windows XP as below:
Ping 192.168.2.1
If the screen shows:
Then the link between the PC and Router is correct connected. Else if it shows:
Then the connection seems not build, and you need to check thoroughly following the former instructions.
InRouter 700 Series User’s Manual www.inhandnetworks.com
19
2.3.6 Start to configure your InRouter 700(Optional)
After you have finished the former steps, you can configure the Router:

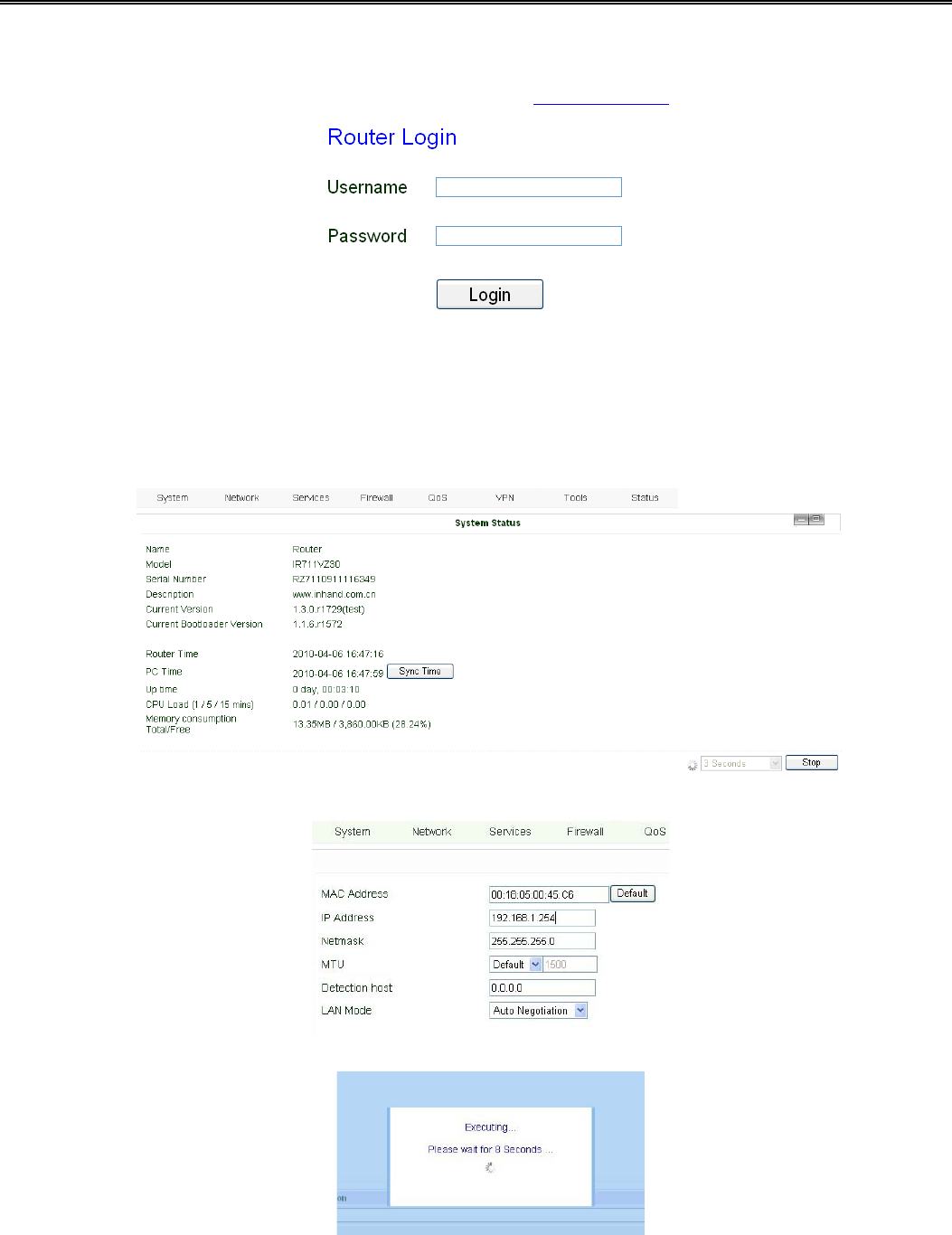

1) Open IE browser, input the default IP address of the Router: http://192.168.2.1, you can see the login web below:
Input “username” (default: adm) and the “password” (default: 123456), and then click “login” to enter the operation screen.
2) Change the IP configuration:
Attention: After configuration, please click “apply” to activate your configuration.
If you want to set your own IP of InRouter 700, please follow the instructions below:

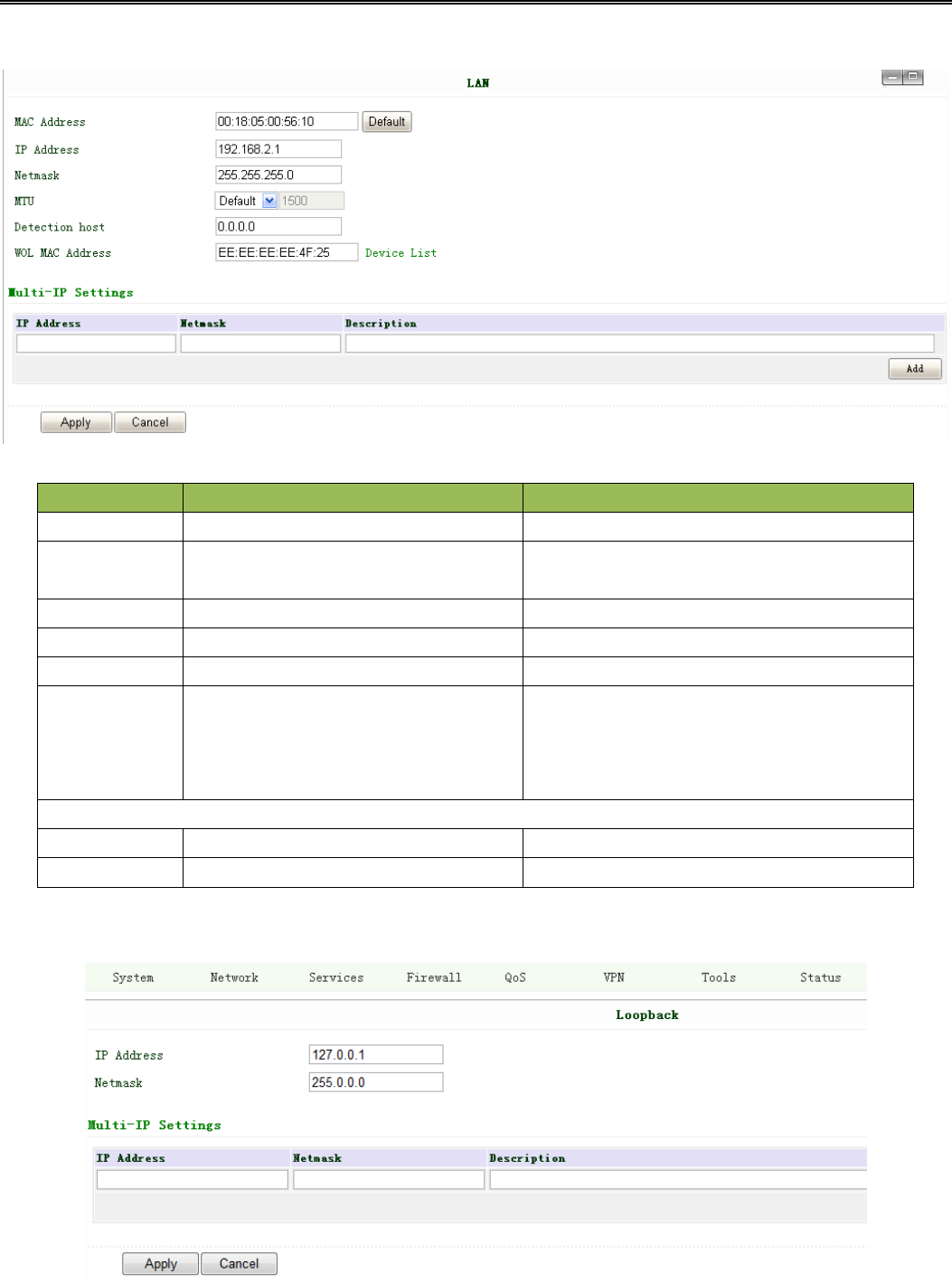

Click “Network”=>“LAN”, change the IP address to 192.168.1.254:
3) Click “Apply”, then you will see:
Now the IP address of IR7X1GS55 has been reset, and in order to enter the configuration web, you need set your PC in
the same subnet, for example: 192.168.1.10/24 then input the changed IP address (192.168.1.254) in your IE Browser.
InRouter 700 Series User’s Manual www.inhandnetworks.com
20
2.3.7 Connect InRouter with Internet
Following the configuration steps below to enable IR7X1GS55 to connect with the internet.

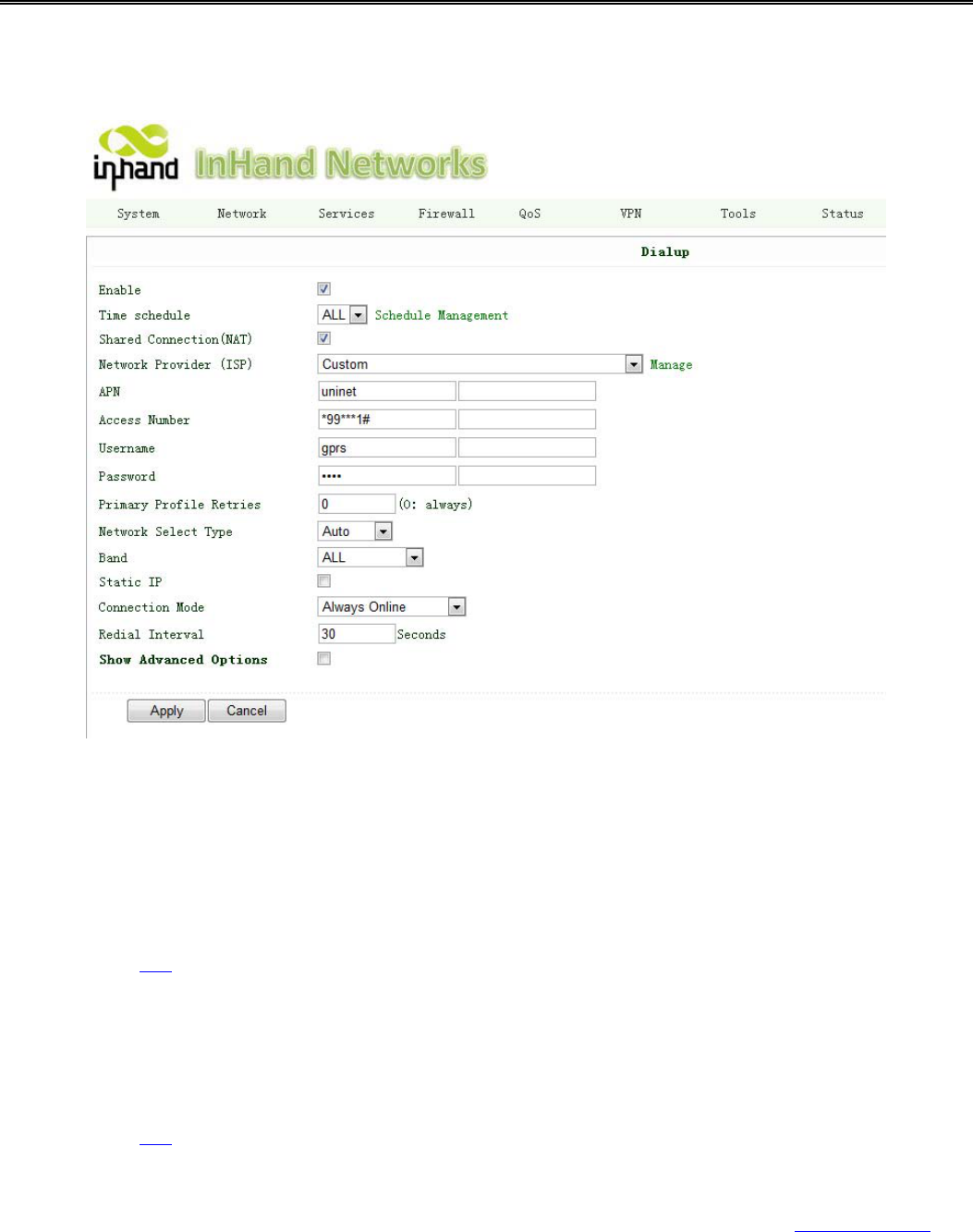

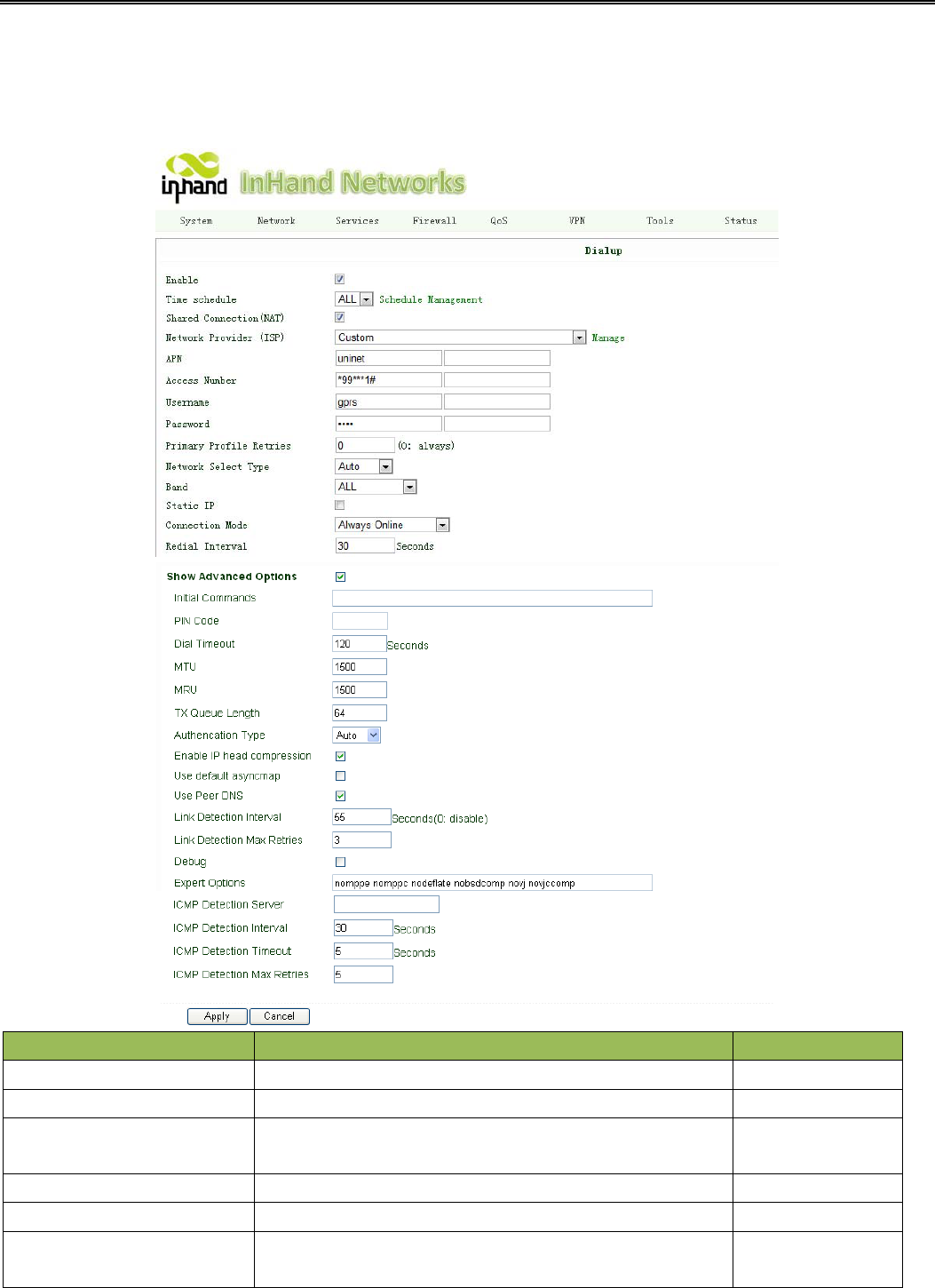

Click “Network”=>“Dialup”, enter dialup configuration web:
Please check the APN, Dialup Number, Username and Password:
Dialup Number, Username and Password are provided by local mobile operator. You can contact them for more details.
The following example shows parameters provided by China Mobile, Vodafone and Cingular. Please contact with local
operator for details.
1: China Mobile
APN: CMNET
Phone Number: *99#
User Name: web
Password: web
2: Vodafone
APN: internet
Phone Number: *99#
User Name: web
Password: web
After correct configuration, InRouter 700 can now connect with Internet. Open IE Browser, input www.google.com, you

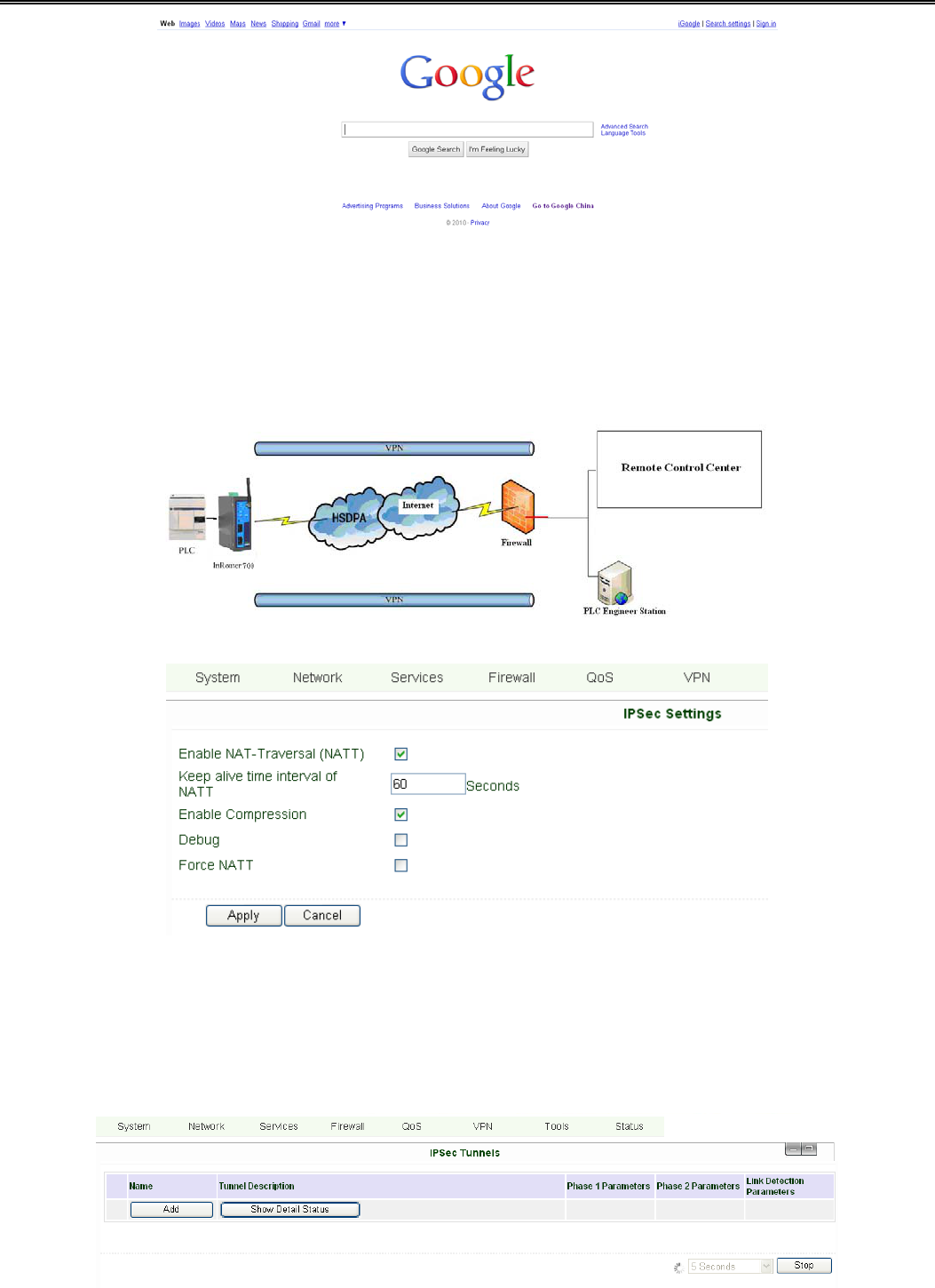

can see the Google web as below:
InRouter 700 Series User’s Manual www.inhandnetworks.com
21
2.4 Quick IPSec VPN Configuration
If you need to build a VPN tunnel to realize access to your PLC far away through internet or you need ensure the
security by using VPN. Here’s a quick configuration guide of IPSec for InRouter 700 Series.
Connect PC with Router to enter router configuration web, select “VPN” => “IPSec setting”:

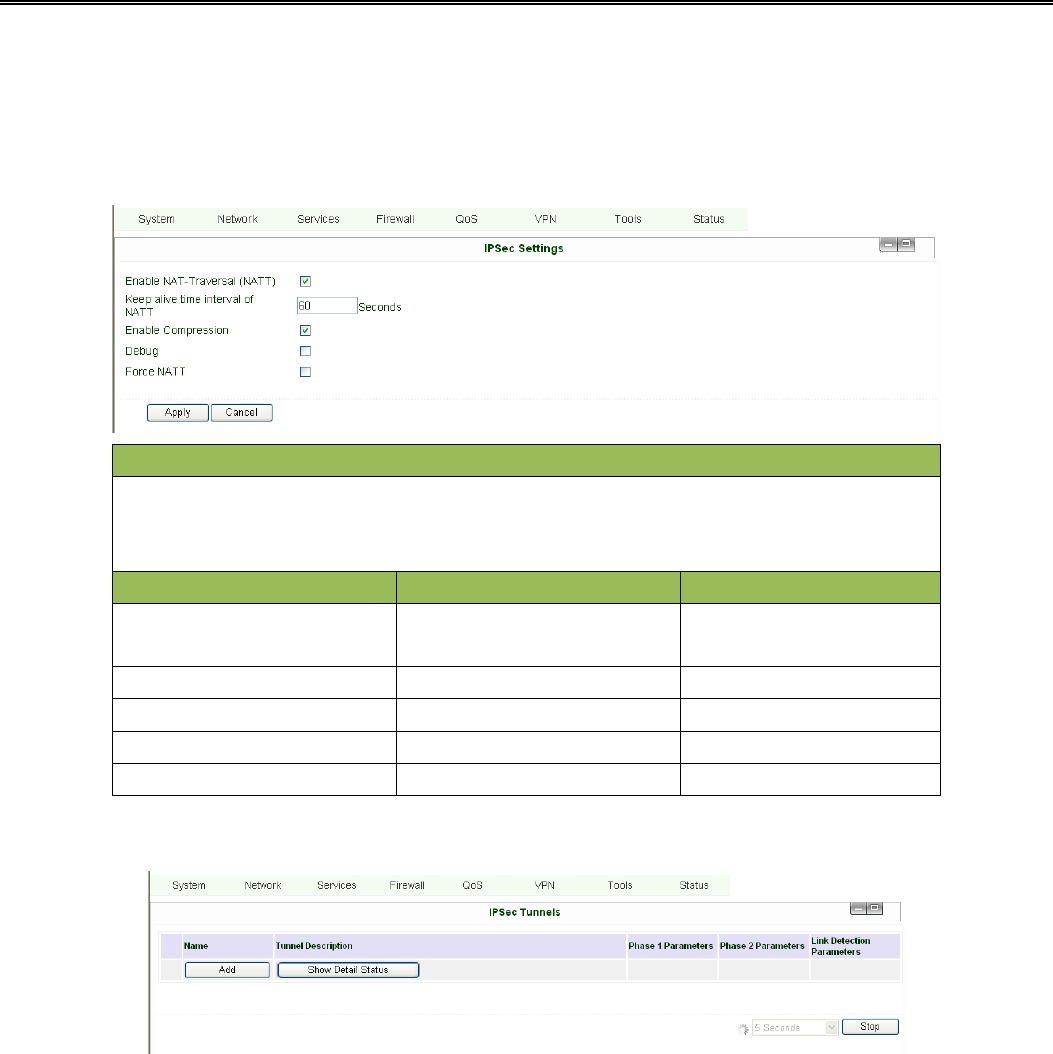

Enable NAT-Traversal (NATT): select enable.
Keep alive time interval of NATT: set the “Keep alive time interval of NATT”, default is 60 seconds.
Enable Compression: select enable.
Please change the parameters according to concrete situation.
Click “Apply” to finish configuration.
1） Select “VPN”=> “IPSec Tunnels” to check or modify parameters of IPSec Tunnels.
InRouter 700 Series User’s Manual www.inhandnetworks.com
22

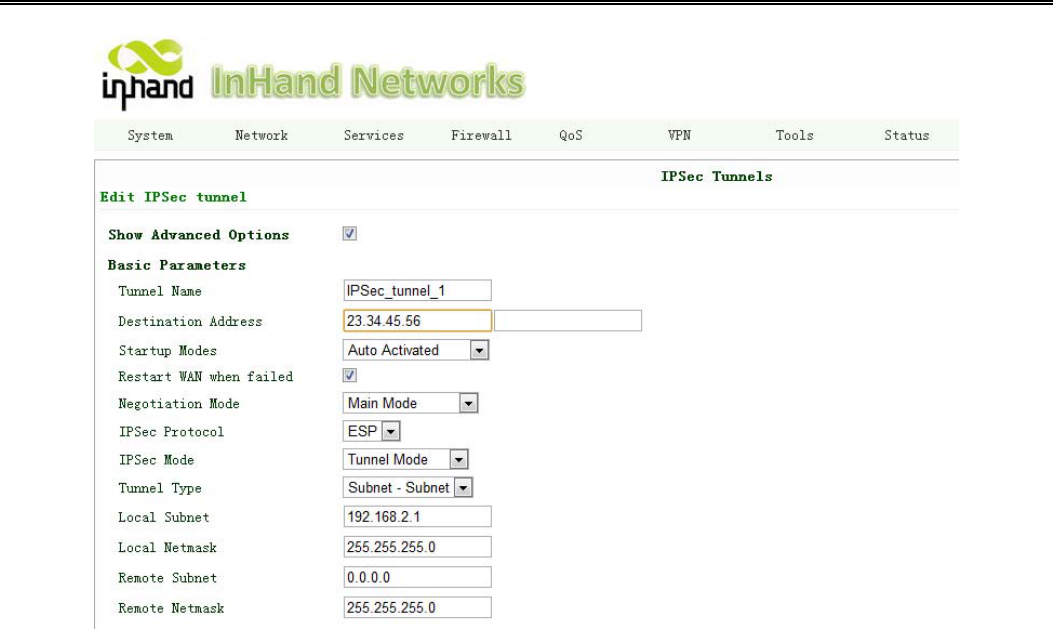

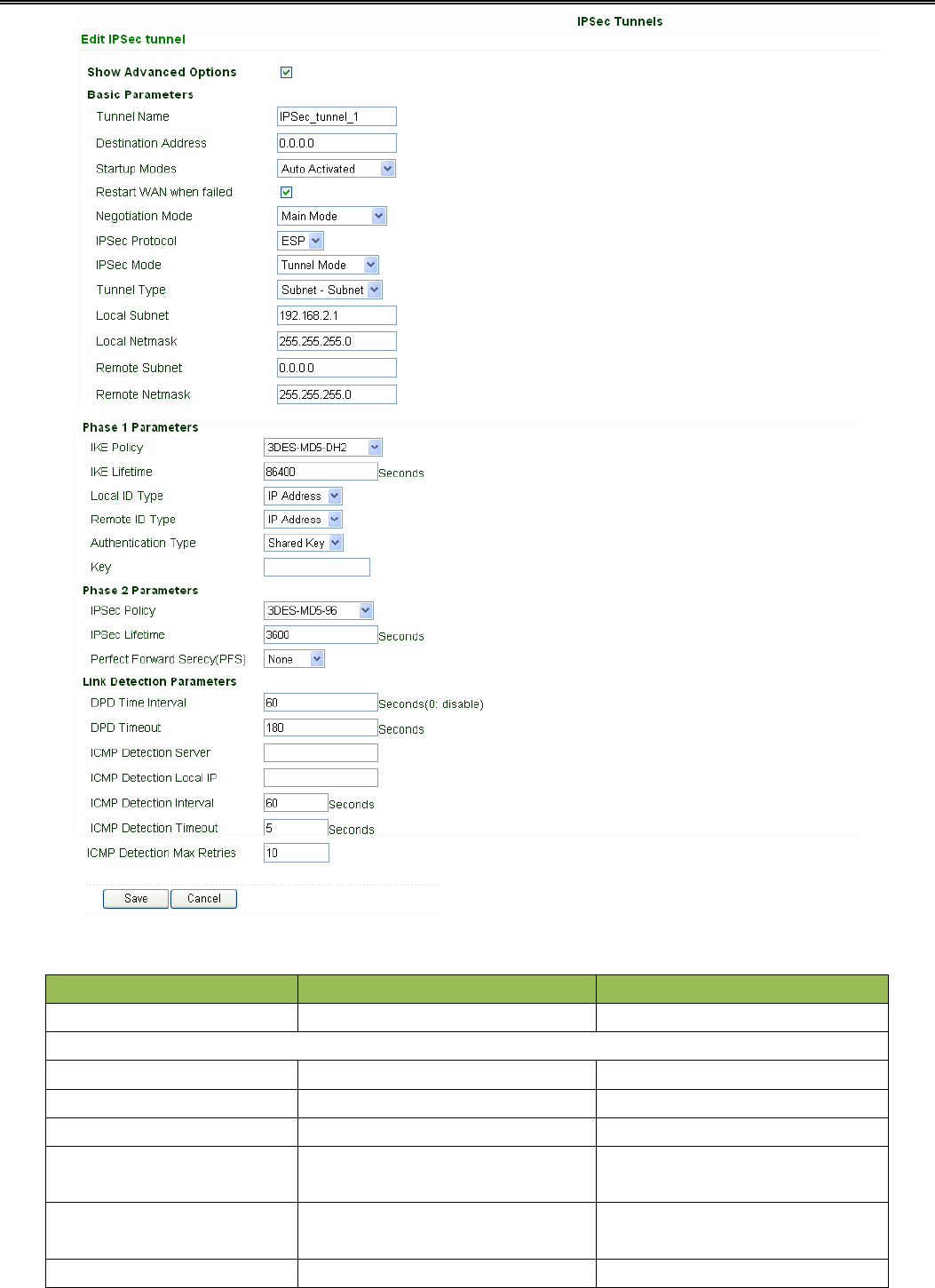

Click “Add” to add a new IPSec Tunnel:
Basic Parameters: set basic parameters of IPSec tunnel.
Tunnel Name: name IPSec tunnel, the default is IPSec_tunnel_1.
Destination Address: set to VPN server IP/domain, e.g.: the domain provided by GJJ is gjj-ovdp.3322.org.
Startup Modes: select Auto Activated.
Negotiation Mode: optional between Main Mode and Aggressive Mode. Generally, select Main Mode.
IPSec Protocols: optional among ESP, AH. Generally, select ESP.
IPSec Mode: optional between Tunnel Mode and Transport Mode. Generally, select Tunnel Mode.
Tunnel Type: optional among Host-Host, Host-Subnet, Subnet-Host and Subnet-Subnet.
Local Subnet: IPSec local subnet protected. E.g.: 172.16.16.0.
Local Net Mask: IPSec local Net Mask protected. E.g.: 255.255.255.252.
Remote Subnet: IPSec remote subnet protected. E.g.: 172.16.0.0.
Remote Net Mask: IPSec remote Net Mask protected. E.g.: 255.240.0.0.
Phase 1 Parameters: configure parameters during the Phase 1 of IPSec negotiation.
IKE Policy: optional between 3DES-MD5-96 and AES-MD5-96, suggest selecting 3DES-MD5-96.
IKE Lifetime: the default is 86400 seconds.
Local ID Type: optional among FQDN, USERFQDN, IP address, suggest selecting IP address.
Remote ID Type: optional among FQDN, USERFQDN, IP address, suggest selecting IP address.
Authentication Type: optional between Shared Key and Certificate, generally choose Shared Key.
Key: set IPSec VPN negotiating key.
Phase 2 Parameters: configure parameters during the Phase 2 of IPSec negotiation.
IPSec Policy: optional between 3DES-MD5-96 and AES-MD5-96, suggest selecting 3DES-MD5-96.
IPSec Lifetime: the default is 3600 seconds.
Perfect Forward Encryption: Optional among None, GROUP1, GROUP2 and GROUP5. This parameter should match
with the server, generally, select “None”.
Click “Save” to finish adding IPSec Tunnel:
InRouter 700 Series User’s Manual www.inhandnetworks.com
23

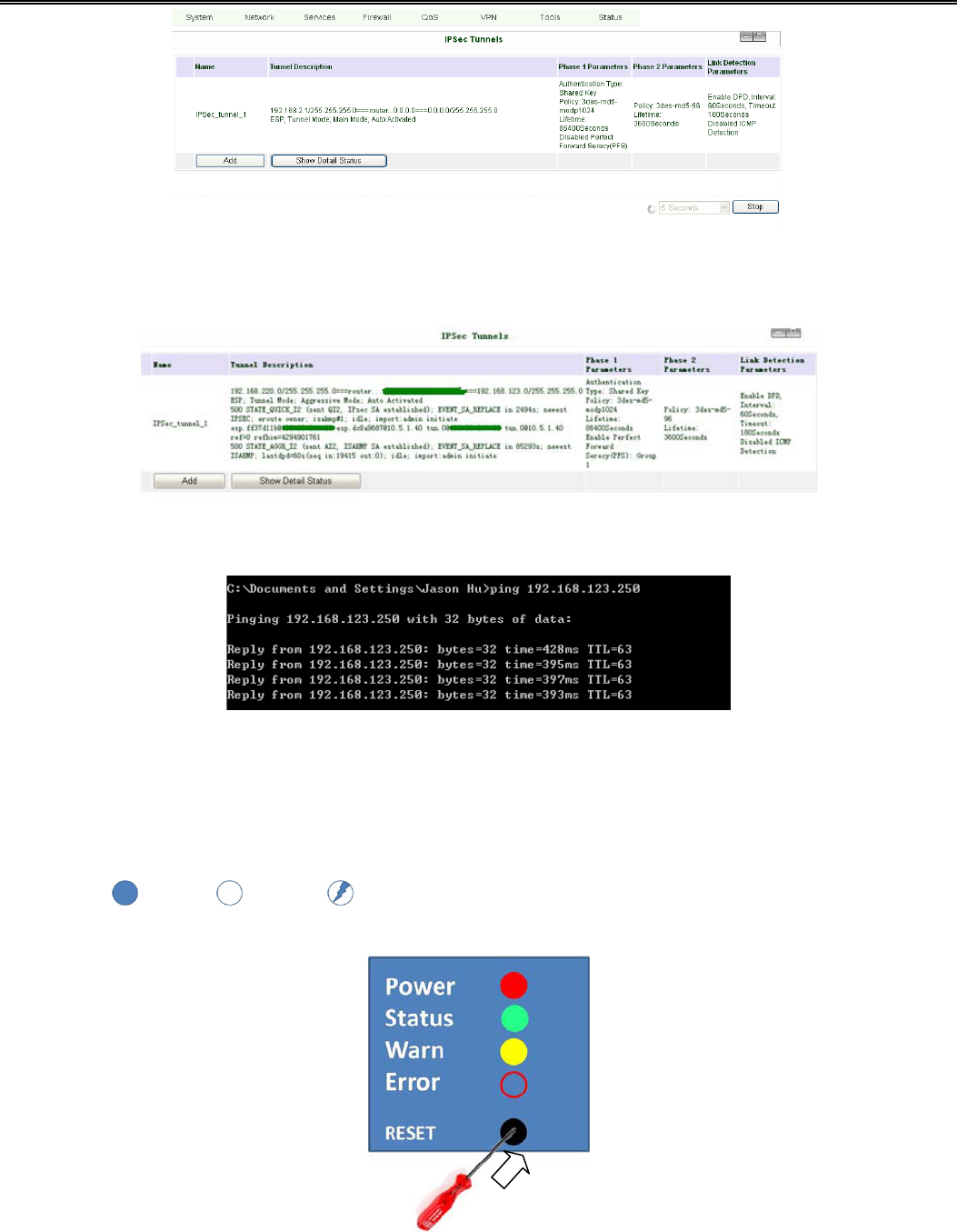

You can click “Show Detail Status” to observe the specific connection details, or click “Add” to add a new tunnel.
Now you succeed to build a high-security IPSec tunnel, here’s an example:
We set an IPSec Tunnel from subnet: 192.168.220.0/24 to subnet: 192.168.123.0/24, when it succeeds, the web will show:
And the PC in IPSec client subnet can get access to the server’s subnet.
Open command in your PC, then ping a PC in the server’s subnet:
2.5 Reset to Factory Defaults
2.5.1 Hardware Method
Legend: On-- Off-- Blink--
1) Push RESET button while powering on IR7X1GS55:
2) When you see ERROR LED turns on (about 10 seconds after powering on), stop push RESET button:
InRouter 700 Series User’s Manual www.inhandnetworks.com
24
3) After a few seconds, the ERROR LED then turns off, now push RESET button again:
4) Then you will see ERROR and STATUS blinking, which means reset to factory defaults successfully!
Factory default settings:
IP: 192.168.2.1
Net Mask: 255.255.255.0
Serial parameter: 19200-8-N-1
2.5.2 Web Method
1) Login the web interface of IR7X1GS55, select “System”Æ”Config Management”:
2) Click “Restore default configuration” to Reset IR7X1GS55.
InRouter 700 Series User’s Manual www.inhandnetworks.com
25
III
Advanced Configuration
◆ Configuration on Web
InRouter 700 Series User’s Manual www.inhandnetworks.com
26
3.1 Configuration on Web
InRouter must be correctly configured before use. This Chapter will show you how to configure via Web.
3.1.1 Preparation
Firstly, connect your devices with IR7X1GS55 by cable or HUB (switch), then set the IP of PC and IR7X1GS55 in the
same subnet, for example: Set PC IP to 192.168.2.50, net mask: 255.255.255.0, gateway (default IP of IR7X1GS55:
192.168.2.1 ):
Open IE browser, input the IP address of IR7X1GS55: http://192.168.2.1 (default IP of IR7X1GS55).
Then you’ll see the Login Web below, you need to login as Administrator. Input the username and password (default:
adm/123456).
Click “Login” to enter configure web:
InRouter 700 Series User’s Manual www.inhandnetworks.com
27

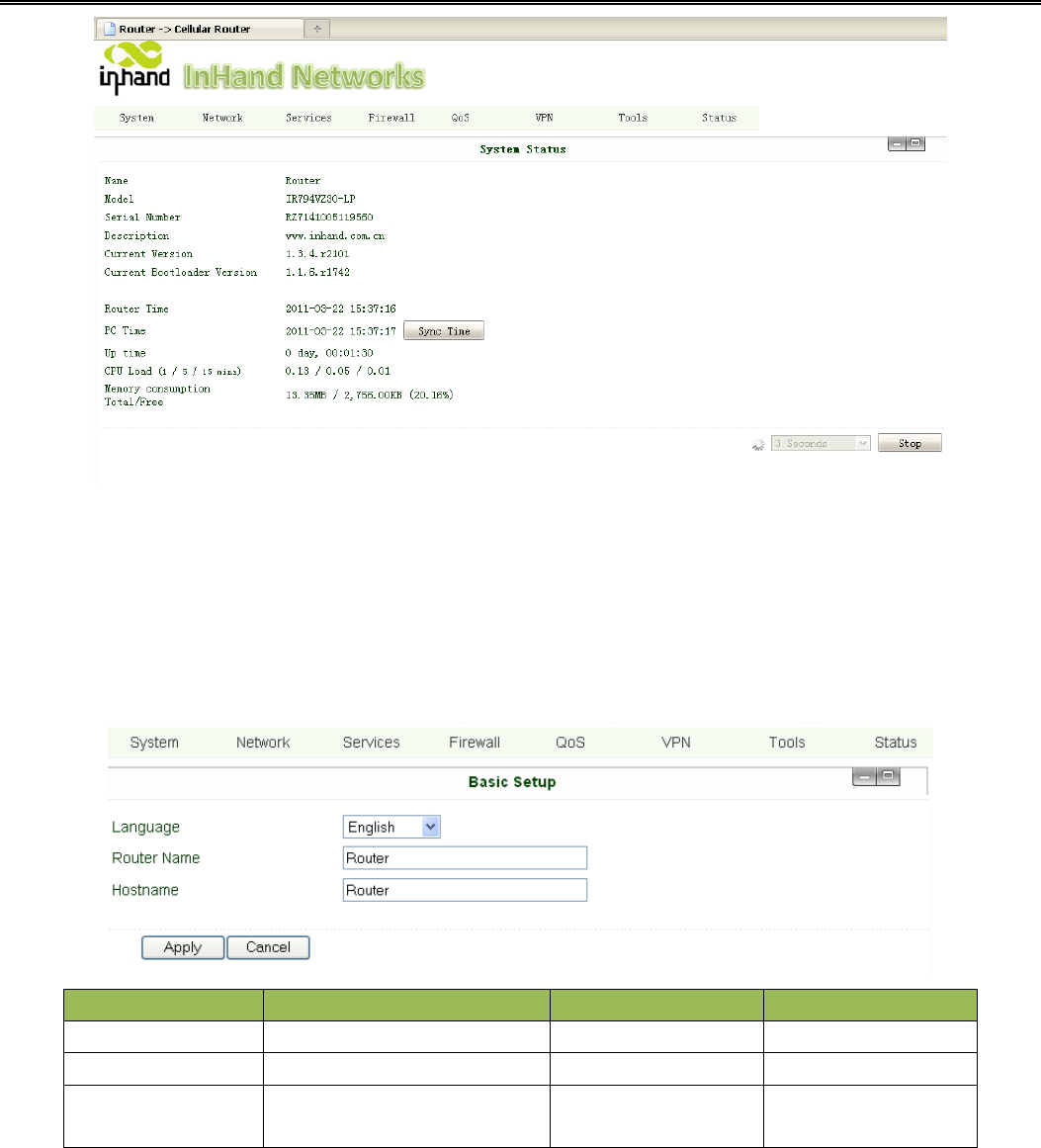

3.1.2 System
System settings include the 9 settings: Basic Setup, Time, Serial Port, Admin Access, System Log, Config
Management, Update, Reboot and Logout.
(1) Basic Setup
Parameters Name Description Default Example
Language Choose language of configuration web Chinese English
Router Name Set name of InRouter Router My InRouter
Host Name Name the device/PC linked with
IR7X1GS55
Router My InRouter
InRouter 700 Series User’s Manual www.inhandnetworks.com
28

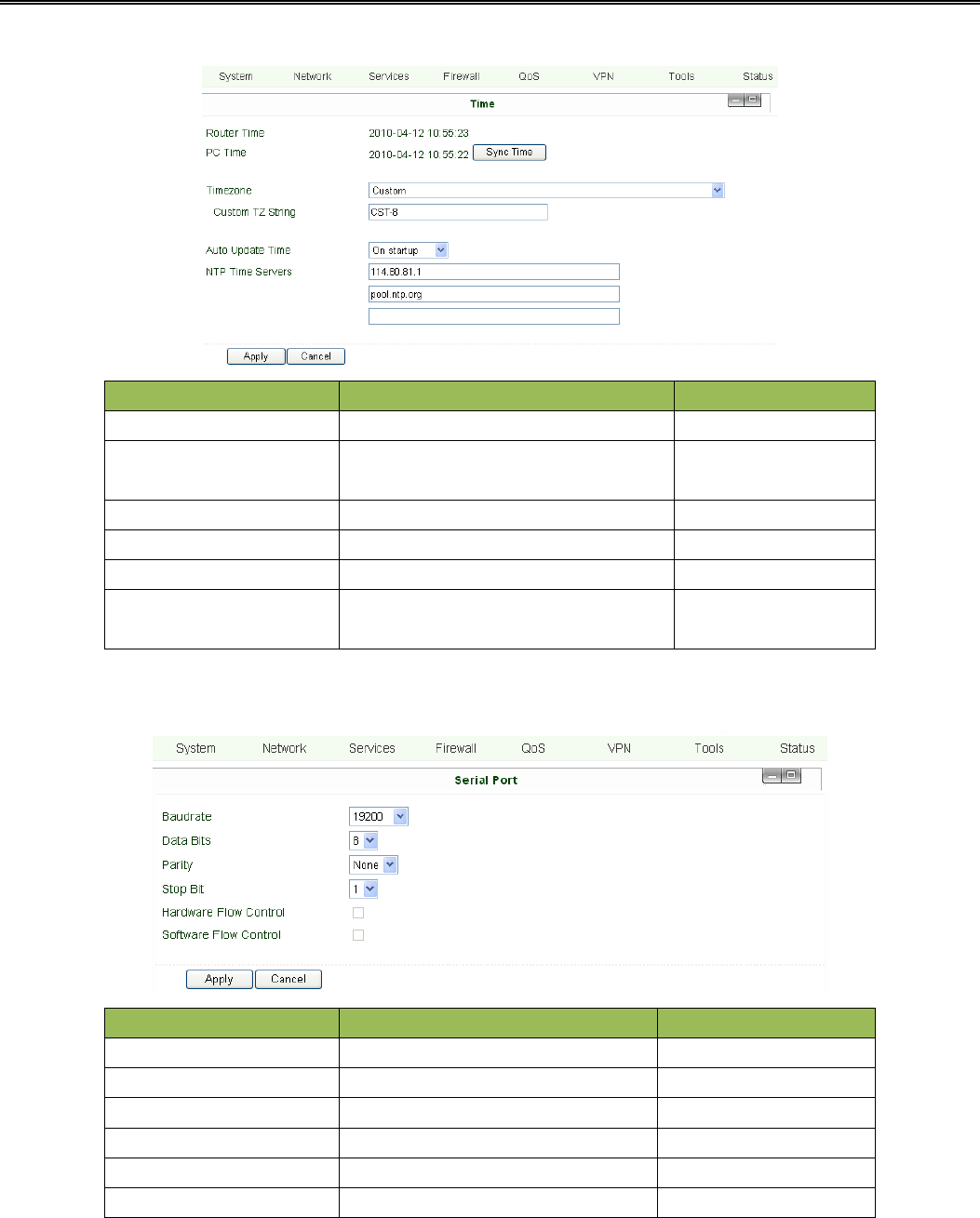

(2) Time
Name Description Default
Router Time Display router time 1970-1-1 8:00:00
PC Time Display PC time (or the time of device linked with
router)
Time Zone Set time zone Custom
Custom TZ string Set the string of time zone of Router CST-8
Auto Update Time Time Update Interval Disabled
NTP Time Servers (after enable the
Auto Update Time)
Setting for NTP Time server. (Three at the most) pool.ntp.org
(3) Serial Port
Name Description Default
Baud Rate Serial baud rate 19200
Data Bit Serial data bits 8
Parity Set parity bit of serial data. None
Stop Bit Set stop bit of serial data. 1
Hardware Flow Control Enable Hardware Flow Control Disable
Software Flow Control Enable Software Flow Control Disable
InRouter 700 Series User’s Manual www.inhandnetworks.com
29

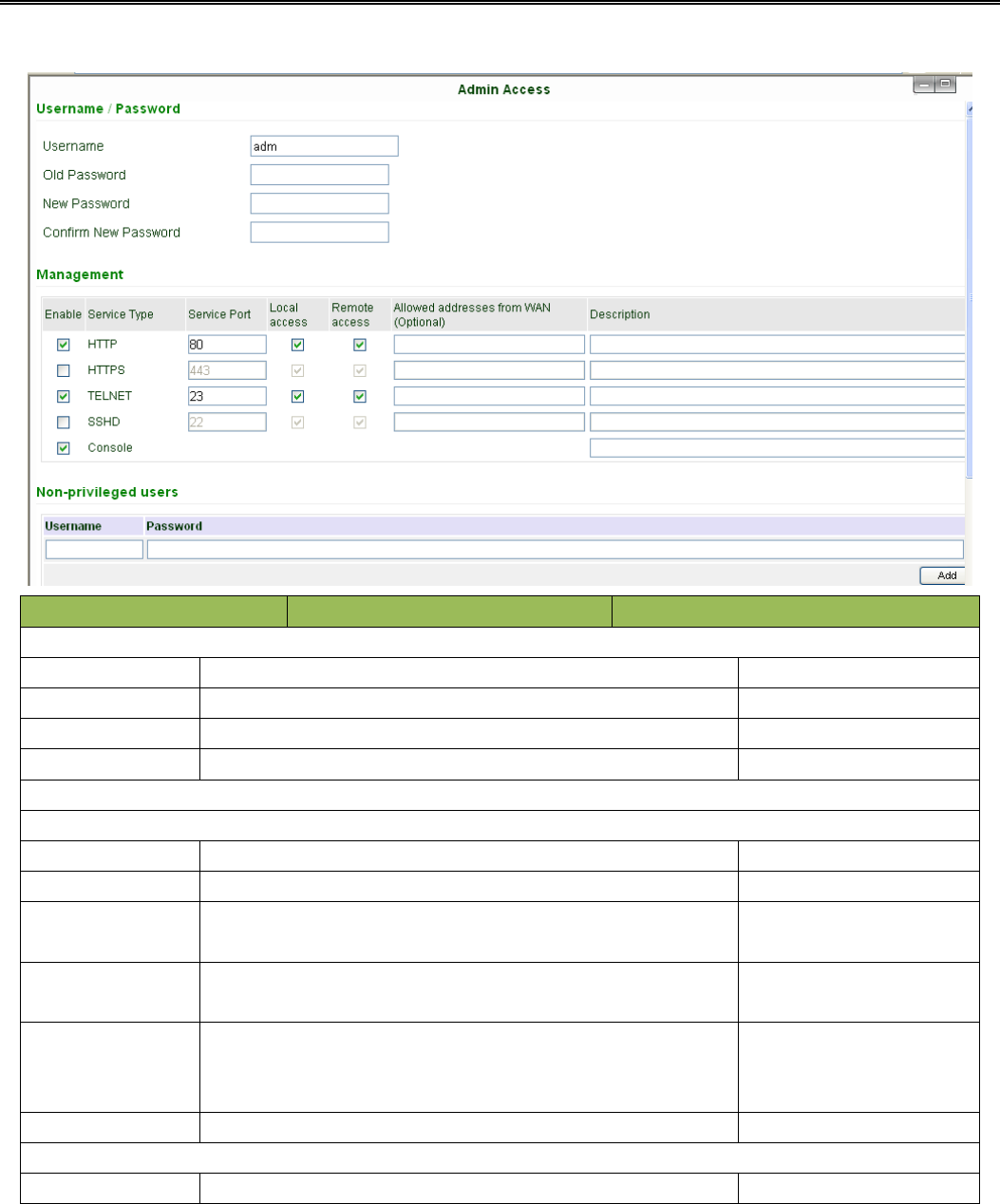

(4) Admin Access
Name Description Default
Username/Password
Username Username for configuration web login adm
Old Password To change the password, you need to input the old one 123456
New Password Input new password
Confirm New Password Input the new password again
Management
HTTP/HTTPS/TELNET/SSHD/Console
Enable Select to enable Enable
Service Type HTTP/HTTPS/TELNET/SSHD/Console 80/443/23/22/Blank
Local Access Enable—allow manage Router by LAN(e.g.: HTTP)
Disable—forbid manage Router by LAN.
Enable
Remote Access Enable—allow to manage IR7X1GS55 by WAN. (e.g.: HTTP)
Disable—forbid to manage IR7X1GS55 by WAN. (e.g.: HTTP)
Enable
Allowed Access from WAN
(Optional)
Set the range of allowed IP address for WAN
(HTTP/HTTPS/TELNET/SSHD)
Control services server can be set at
this time, for example 192.168.2.1/30
or 192.168.2.1-192.168.2.10
Description Describe the parameters of management (non-influence to IR7X1GS55)
Other Parameters
Log Timeout Set the Log Timeout, configuration web will be disconnected after timeout 500 seconds
InRouter 700 Series User’s Manual www.inhandnetworks.com
30
(5) System Log
Name Description Default
Log to Remote System Enable remote log server Disable
IP address/Port (UDP) Set the IP and Port of remote log server Port: 514
(6) Config Management
Name Description
Router Configuration Import/Backup configuration file
Restore default configuration Click to reset IR7X1GS55 (to enable RESET, you need to reboot IR7X1GS55)
Network Provider (ISP) Used to configure the APN, username, password and other parameters of major operators
(7) System Upgrade

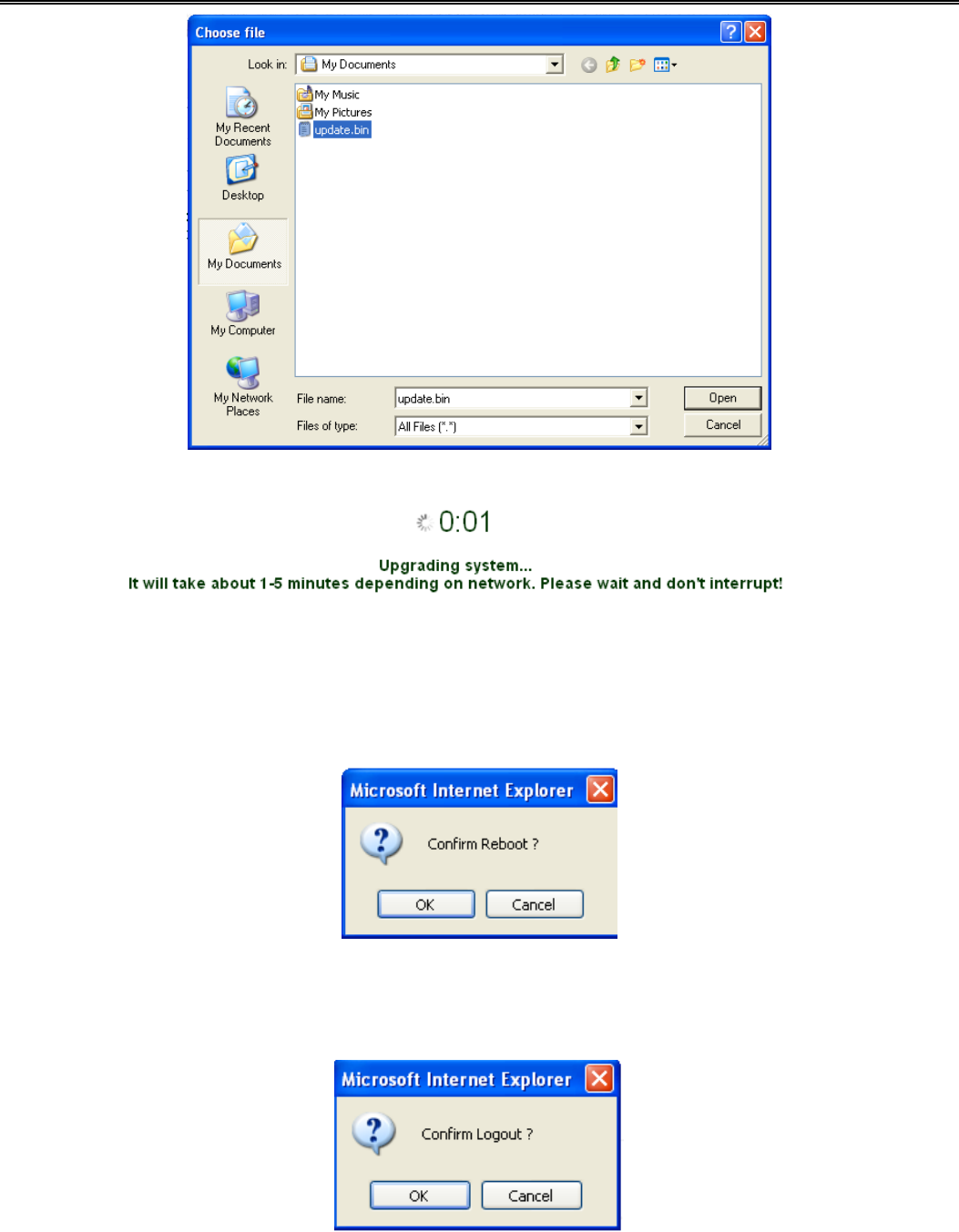

If need to upgrade system, click “System”=>”System upgrade” to enter update page, then follow the steps below:
Click “Browse”, choose the upgrade file;
InRouter 700 Series User’s Manual www.inhandnetworks.com
31
Click “update”, and then click “sure” to begin update as it shows below.
Upgrade firmware succeed, and click “reboot” to restart IR7X1GS55.
(8) Reboot
If you need to reboot system, please click ”System”=>”Reboot”, Then click ”OK” to restart system.
(9) Logout
If you need to logout system, click “System”=>”Logout”, and then click “OK”.
InRouter 700 Series User’s Manual www.inhandnetworks.com
32
3.1.3 Network
Network settings include configurations of Dialup, LAN, DNS, DDNS, Static Route, and etc.
(1) Dialup
Name Description Default
Enable Enable PPP dialup Enable
Time Schedule Set time for online and offline ALL
SHARED Enabled—device linked with Router Can access to internet.
Disable—device Can NOT access to internet via Router.
Enable
ISP Select local ISP, if not listed here, please select ”Customer” Customer
Network Select Type Choose mobile network type HSDPA (or GPRS)
APN APN parameters provided by Local ISP, you can set TWO different group of
dialup parameters (APN/Username/Password) and set one as backup
cmnet/uninet
InRouter 700 Series User’s Manual www.inhandnetworks.com
33
Access Number Dialup parameters provided by Local ISP “*99#”“*99***1#” or #777
Username Dialup parameters provided by Local ISP “gprs” or ”CDMA”
Password Dialup parameters provided by Local ISP “gprs” or ”CDMA”
Primary Profile Retries After retries and dialup still failed, router will try backup dialup parameters (if you
have set two IPSec tunnels and one as backup, router will also stop the main one and
try another, more details please see at “VPN” Æ “IPSec” )
0 (always use main
parameters and never use
backup)
Static IP Enable Static IP if your SIM card can get static IP address Disable
Connection Mode Optional Always Online, Always Online
Redial Interval When Dial fails, InRouter will redial after the interval 30 seconds
Show Advanced Options Enable configure advanced options Disabled
Initial Commands Used for advanced parameters Blank
Dial Timeout Set dial timeout (IR7X1GS55 will reboot after timeout) 120 seconds
MTU Set max transmit unit 1500
MRU Set max receive unit 1500
TX Queue Length Set length of transmit queue 3
Enable IP header compression Enable IP header compression Disabled
Use default asyncmap Enable default asyncmap, PPP advanced option Disabled
Using Peer DNS Click Enable to accept the peer DNS Enabled
Link Detection Interval Set Link Detection Interval, you need to disable 30 seconds
Link Detection Max Retries Set the max retries if link detection failed 3
Debug Enable debug mode Enable
Expert Option Provide extra PPP parameters, normally user needn’t set this. Blank
ICMP Detection Server Set ICMP Detection Server, blank represents none Blank
ICMP Detection Interval Set ICMP Detection Interval 30 seconds
ICMP Detection Timeout Set ICMP Detection Timeout (IR7X1GS55 will reboot if ICMP time out) 5 seconds
ICMP Detection Max Retries Set the max number of retries if ICMP failed 5

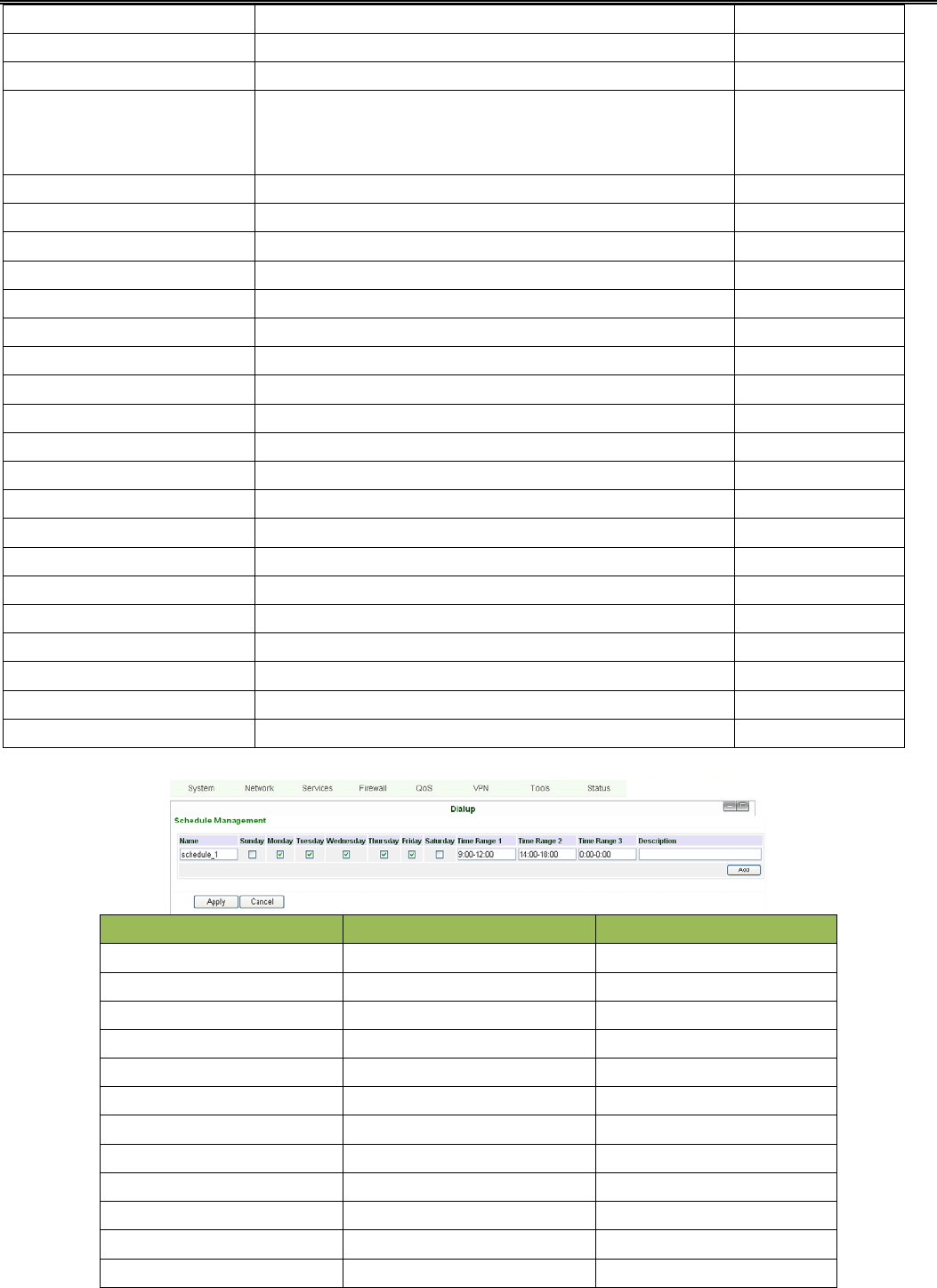

Dialup----Time Schedule Management:
Name Description Default
Name Name the schedule schedule 1
Sunday Blank
Monday Enable
Tuesday Enable
Wednesday Enable
Thursday Enable
Friday Enable
Saturday Blank
Time Range 1 Set Time Range 1 9:00-12:00
Time Range 2 Set Time Range 2 14:00-18:00
Time Range 3 Set Time Range 3 0:00-0:00
Description Describe configuration Blank
InRouter 700 Series User’s Manual www.inhandnetworks.com
34
(2) WAN (for InRouter704/714/794 only)

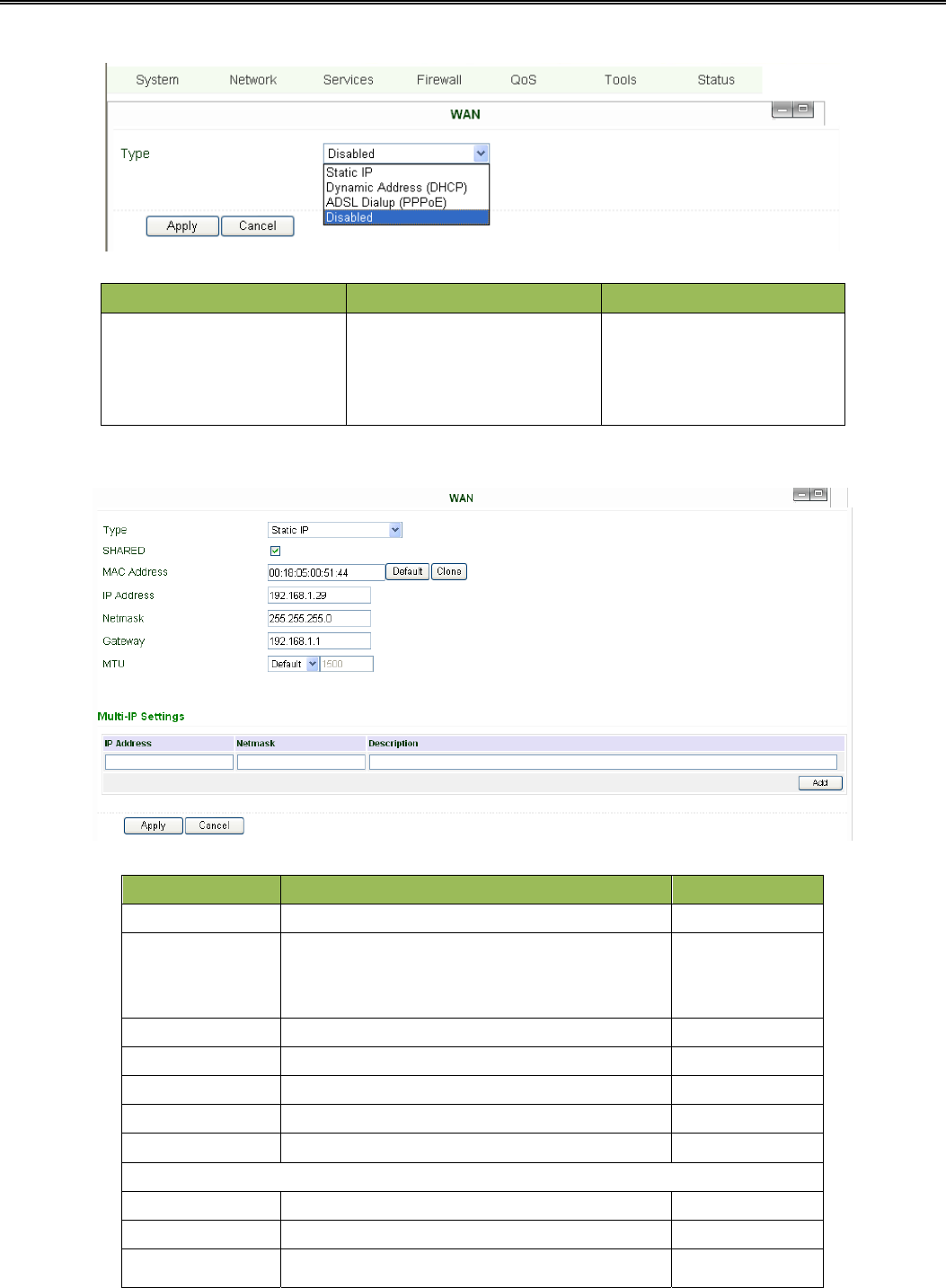

This page is to set the type of WAN port:
Name Description Default
Type Static IP;
Dynamic Address(DHCP);
ADSL Dialup(PPPoE);
Disabled
Disabled
Attention: There can only be one WAN type at one time, enabling one type WAN will disabled another.
WAN—Static IP
Notice: please DO NOT set WAN address as: 192.168.3.x (an IP for DMZ port).
Name Description Default
Type Static IP
SHARED Enabled—the local device linked with Router can get access to
internet.
Disable—the local device can’t get access to internet via Router.
Enable
MAC Address Set MAC Address
IP Address Set WAN port IP 192.168.1.29
Net Mask Set WAN port Net Mask 255.255.255.0
Gateway Set WAN Gateway 192.168.1.1
MTU Set Max Transmission Unit, optional between default and manual 1500
Multi-IP Settings(can set 8 additional IP address at the most)
IP address Set the additional IP address of LAN Blank
Net Mask Set Net Mask Blank
Description Describe the settings Blank
InRouter 700 Series User’s Manual www.inhandnetworks.com
35

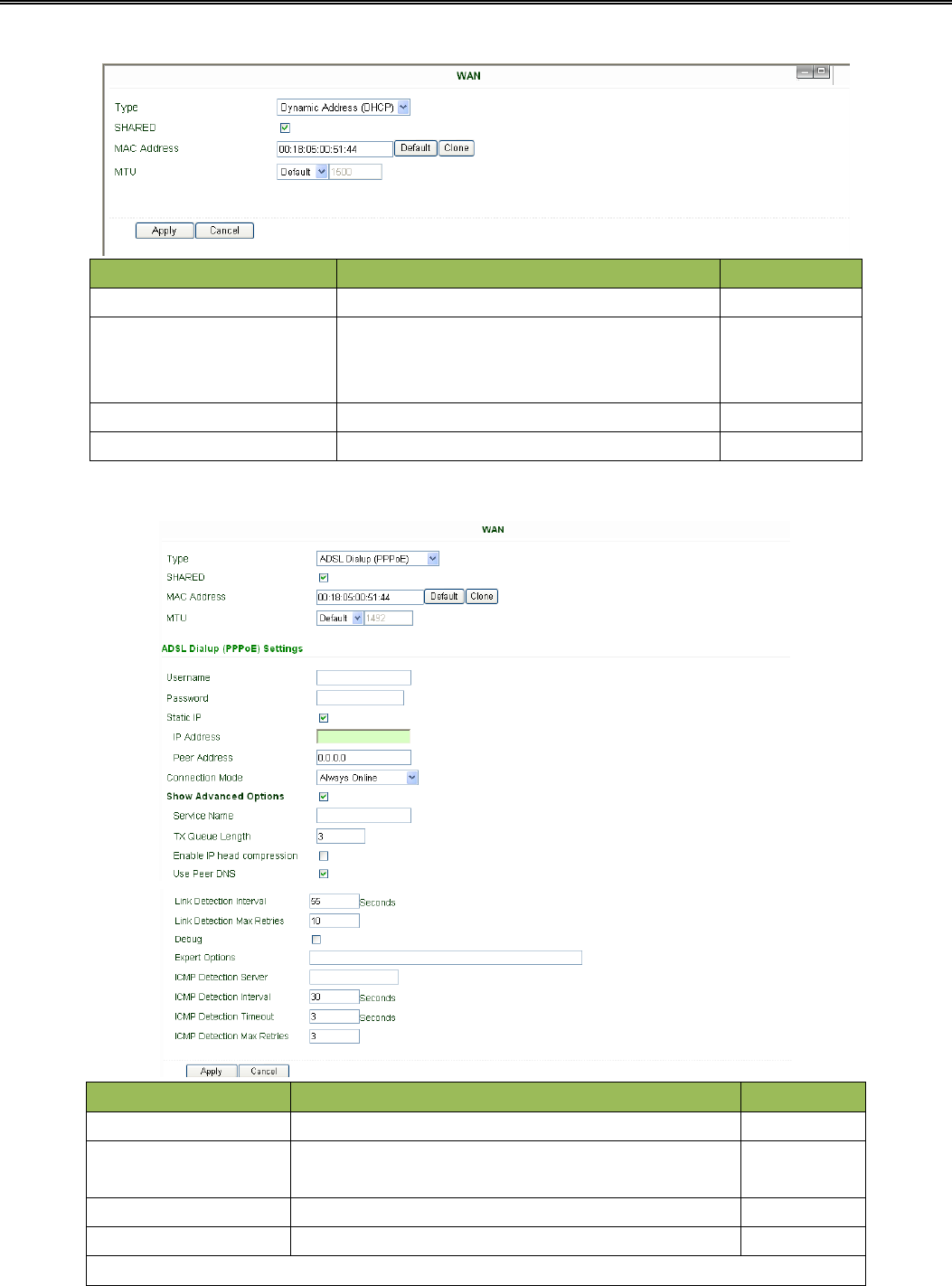

WAN—Dynamic Address (DHCP)
Name Description Default
Type Dynamic Address (DHCP)
SHARED Enabled—the local device linked with Router can get access to
internet.
Disable—the local device can’t get access to internet via Router.
Enable
MAC Address Set MAC Address
MTU Set Max transmission unit, optional between default and manual 1500
WAN --ADSL
Name Description Default
Type ADSL Dialup (PPPoE)
SHARED Enabled—the local device linked with Router can get access to internet.
Disable—the local device can’t get access to internet via Router.
Enable
MAC Address Set MAC Address
MTU Set Max Transmission Unit, optional between default and manual 1500
ADSL Dialup (PPPoE) Settings
InRouter 700 Series User’s Manual www.inhandnetworks.com
36
Username Set username for dialing up Blank
Password Set password for dialing up Blank
Static IP Enable Static IP Disabled
IP address Static IP Address Blank
Peer IP Set Peer IP Blank
Connection Mode Set connection mode (Connect on Demand/Always Online/ Manual) Always Online
Advanced Options
Show advanced options Enable advanced configuration Disabled
Service Name Name the service Blank
TX Queue Length Set TX Queue Length 3
Enable IP head compression Click to enable IP head compression Disabled
User Peer DNS Enable User Peer DNS Disabled
Link Detection Interval Set link detection interval 55 seconds
Link Detection Max Retries Set link detection max retries 10 (times)
Debug Select to enable debug-mode Disabled
Expert Options Set expert parameters Blank
ICMP Detection Server Set ICMP Detection Server Blank
ICMP Detection Time Set ICMP Detection Time 30
ICMP Detection Timeout Set ICMP Detection Timeout 3
ICMP Detection Max Reties Set ICMP Detection Max Reties 3

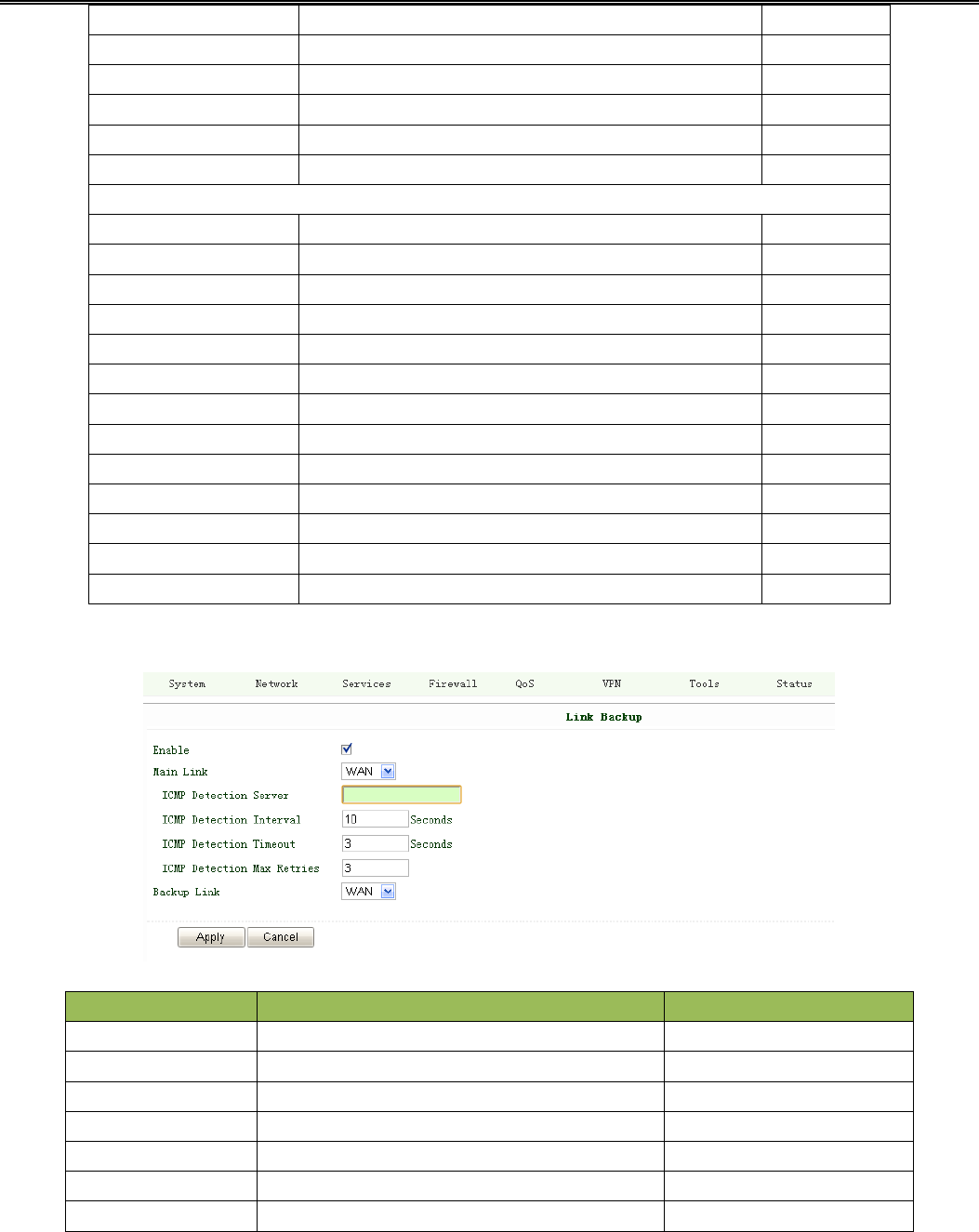

(3) Link Backup (for IR704/714/794 only)
Link Backup, to realize link backup between Cellular WAN and Ethernet WAN, when one fails, IR7X1GS55 will try the other
Name Description Default
Enable Enable Link Backup service Disabled
Main Link InRouter will choose this for normal WAN connection WAN (Ethernet WAN)
ICMP Detection Server ICMP can ensure a link to certain destination
ICMP Detection Interval Time interval between ICMP packages 10
ICMP Detection Timeout Timeout for each ICMP package 3 (seconds)
ICMP Detection Max Retries After the retries if no ICMP succeed, dialup will try the backup link 3
Backup Link Select the backup link WAN
InRouter 700 Series User’s Manual www.inhandnetworks.com
37
(4) LAN
Notice: please DO NOT set LAN address as: 192.168.3.x (an IP for DMZ port).
Name Description Default
MAC Address The MAC address in LAN 00:10:A1:86:95:02 (Provided by InHand) , for manufactures
IP Address Set IP Address in LAN 192.168.2.1 (If Changed, you need to input the new address for
entering the configuration web)
Net Mask Set Net Mask of LAN 255.255.255.0
MTU Set MTU length, optional between Default and Manual 1500
Detection Host Set Detection Host Address 0.0.0.0
WOL MAC Address Set the MAC of PC in the LAN of router, for Wakeup
Over LAN (WOL) function, you should also set
“Networks”Æ “Dialup” and change dialup mode into
“Trigger by SMS”.
Blank
Multi-IP Settings (Support additional 8 IP addresses at the most)
IP Address Set additional IP Address of LAN Blank
Description Description about this IP address Blank
(5) Loopback
InRouter 700 Series User’s Manual www.inhandnetworks.com
38
Name Description Default
IP Address The IP Address for loopback 127.0.0.1
Net Mask Set Net Mask of loopback host 255.0.0.0
Multi-IP Settings (Support additional 8 IP addresses at the most)
IP Address/Net mask Set additional IP/Net mask of loopback host Blank
Description Description about this IP address Blank

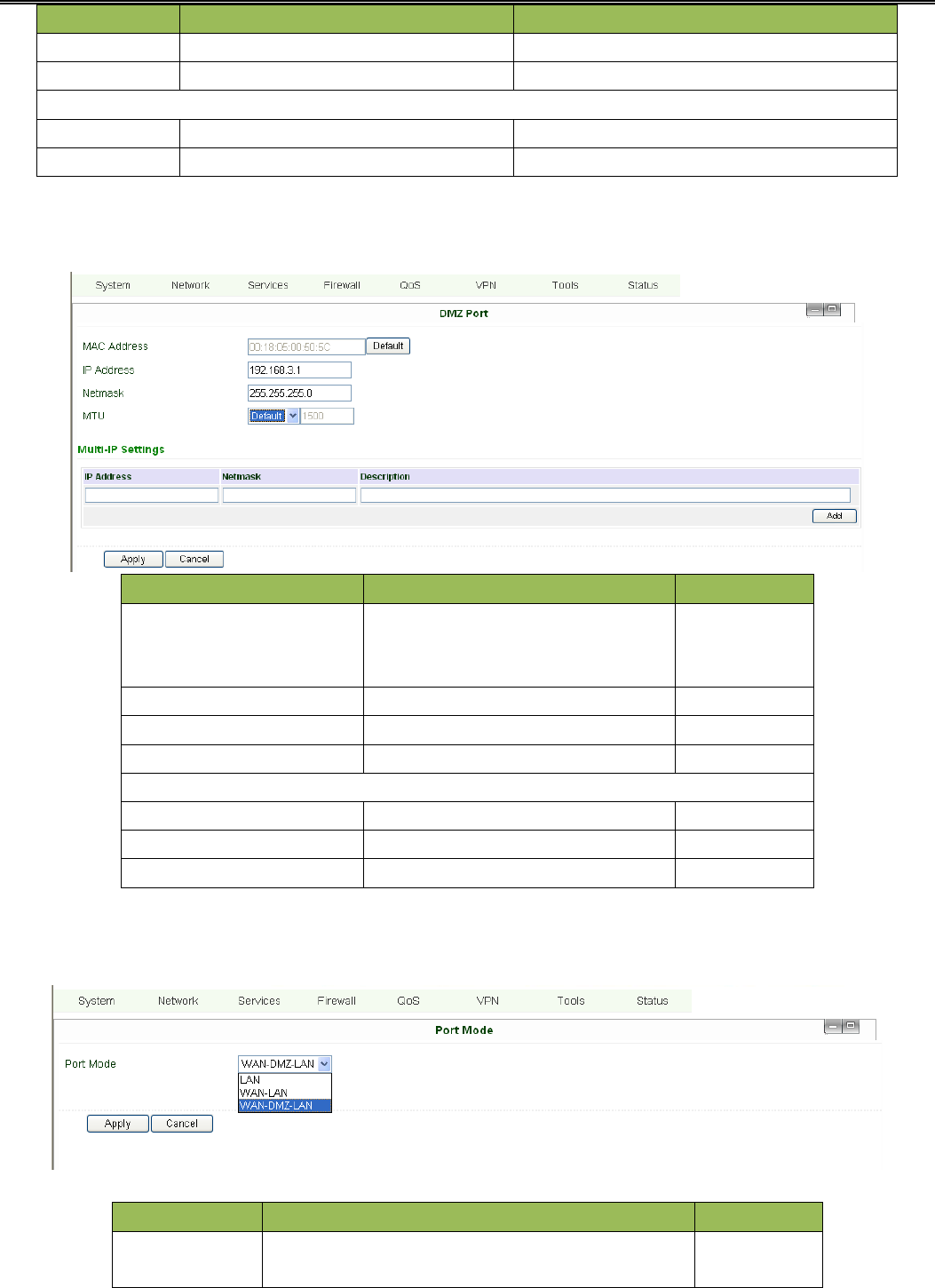

(6) DMZ Port (for InRouter704/714/794 only)
Configure this page after select WAN-DMZ-LAN mode in Port Mode page.
Name Description Default
MAC Address Set MAC address of DMZ port (Provided by
Manufacture:
InHand)
IP Address Set IP Address of DMZ port 192.168.3.1
Net Mask Set Net Mask of DMZ port 255.255.255.0
MTU Optional between Default & Manual Default (1500)
Multi-IP Settings (8 additional IP address at the most)
IP Address Set additional IP address for DMZ port Blank
Net Mask Set Net Mask Blank
Description Description of additional IP address Blank
(7) Port Mode (for InRouter704/714/794 only)
Notice: please DO NOT set WAN IP/LAN IP/DMZ IP the same; it will disable your link to internet!
Name Descriptions Default
Port Mode LAN (four LAN ports)
WAN-LAN (3 LAN ports and 1 WAN port)
WAN-DMZ-LAN
InRouter 700 Series User’s Manual www.inhandnetworks.com
39
WAN-DMZ-LAN (1 WAN port, 1 DMZ port and 2 LAN ports)
(8) Port Mirror (for InRouter704/714/794 only)

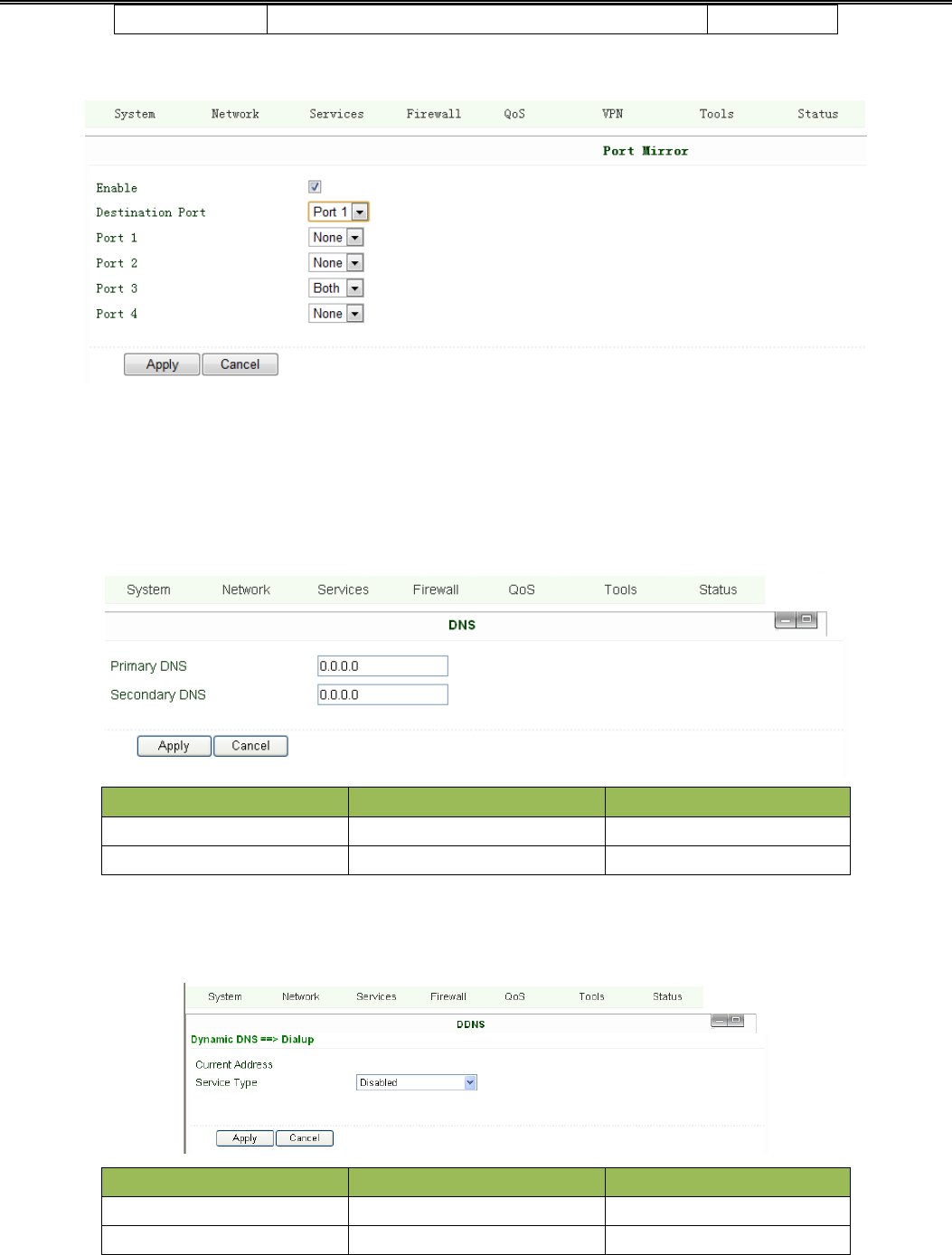

This function is used for Engineer capture packages of different ports of IR7X1GS55.
Destination Port: the port to which you wand to send the copied packages.
Here we set Port 3 as example, after you set Port 1 as destination port, and Port 3“Both”, you can link your PC to Port 1 and
get the packages sent and received by Port 3.
(9) DNS
Name Description Default
Primary DNS Set Primary DNS Blank
Secondary DNS Set Secondary DNS Blank
(10) DDNS (Dynamic DNS)
Name Description Default
Current Address Show the current IP address Blank
Service Type Select DDNS Provider Disabled
InRouter 700 Series User’s Manual www.inhandnetworks.com
40
Name Description Default

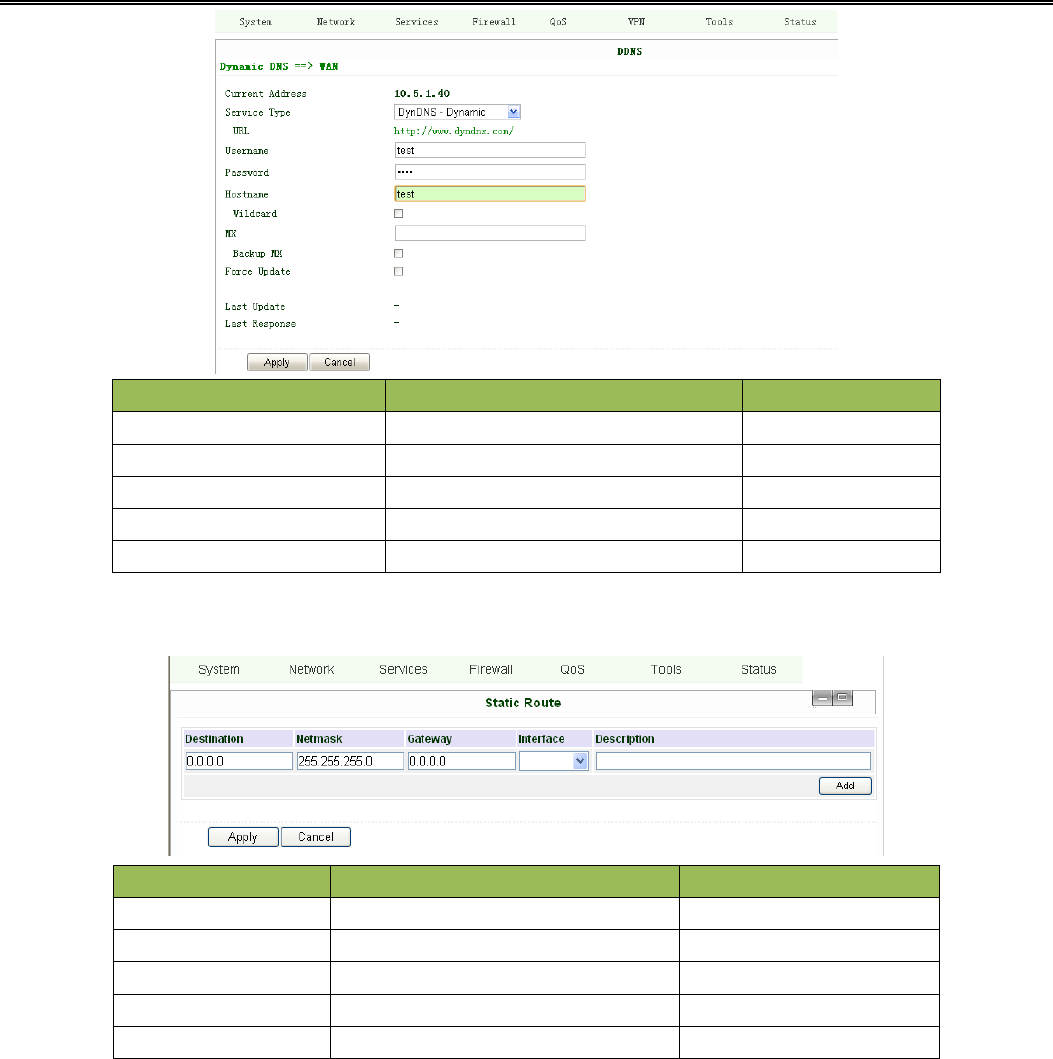

Service Type DynDNS - Dynamic
URL http://www.dyndns.com/
Username Registered username for DDNS
Password Registered password for DDNS
Hostname Registered hostname for DDNS
(11) Static Route
Name Description Default
Destination Set IP address of destination Blank
Net Mask Set subnet Mask of destination 255.255.255.0
Gateway Set the gateway of destination Blank
Interface Optional LAN/WAN port access to destination Blank
Description Describe static route Blank
3.1.4 Service
Service settings include DHCP Service, DNS Forwarding, VRRP and other related parameters.
InRouter 700 Series User’s Manual www.inhandnetworks.com
41

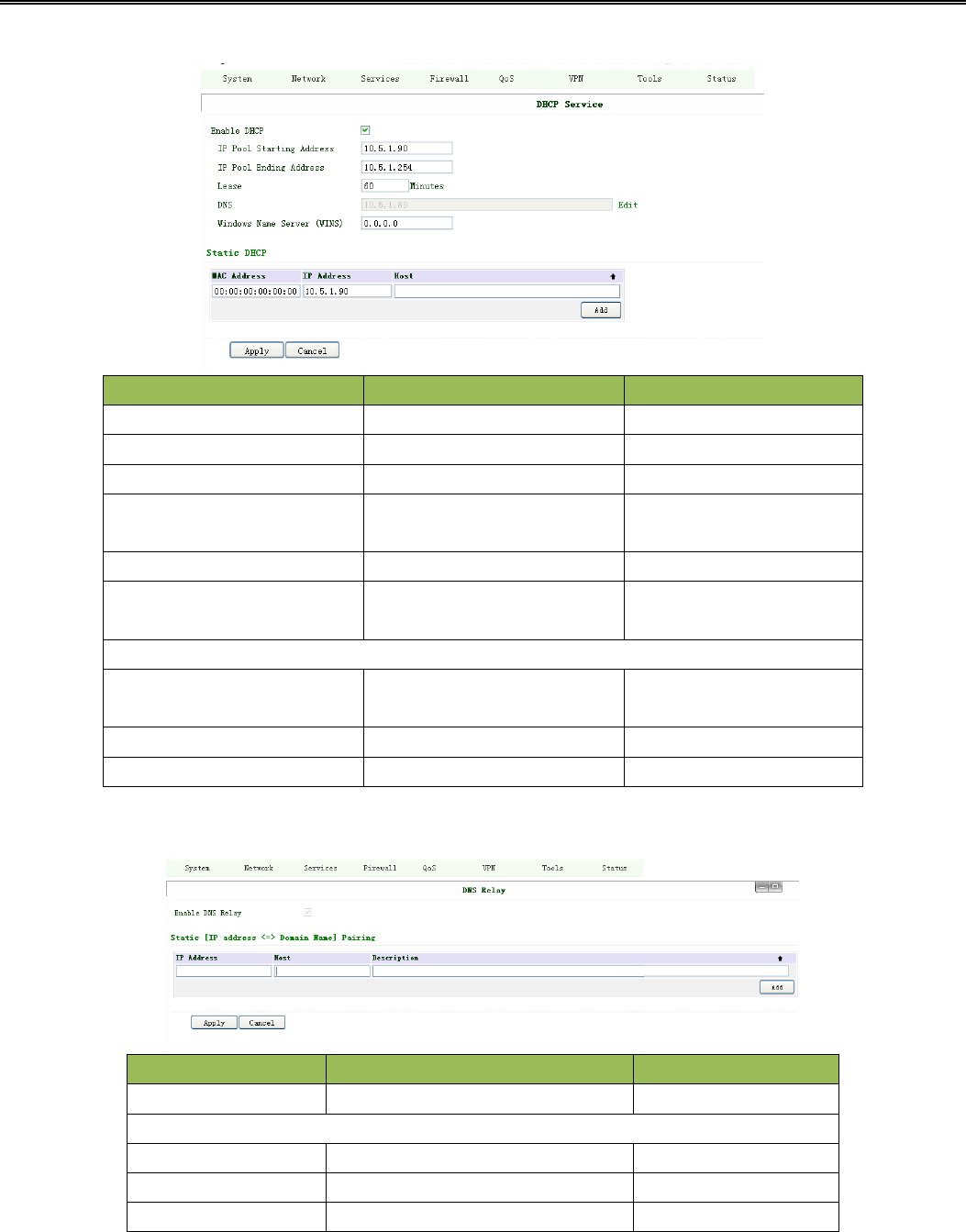

(1) DHCP Service
Name Description Default
Enable DHCP Click to enable DHCP Enable
IP Pool Starting Address Set the starting IP address of DHCP pool 192.168.2.2
IP Pool Ending Address Set the ending IP address of DHCP pool 192.168.2.100
Lease Set the valid time lease of IP address
obtained by DHCP
60 minutes
DNS Set DNS Server 192.168.2.1
Windows Name Server
(WINS)
Set WINS Blank
Static DHCP (can set 20 designated IP address at the most)
MAC Address Set the MAC address of a designated IP
address
Blank
IP address Set the static IP address 192.168.2.2
Host Set the hostname Blank
(2) DNS Relay
Name Description Default
Enable DNS Relay Click to enable DNS Relay Disabled
Designate IP address<=>DNS couples (20 at the most)
IP Address Set IP address <=> DNS couples Blank
Host Set the name of IP address <=> DNS couples Blank
Description Describe IP address <=> DNS couples Blank
InRouter 700 Series User’s Manual www.inhandnetworks.com
42

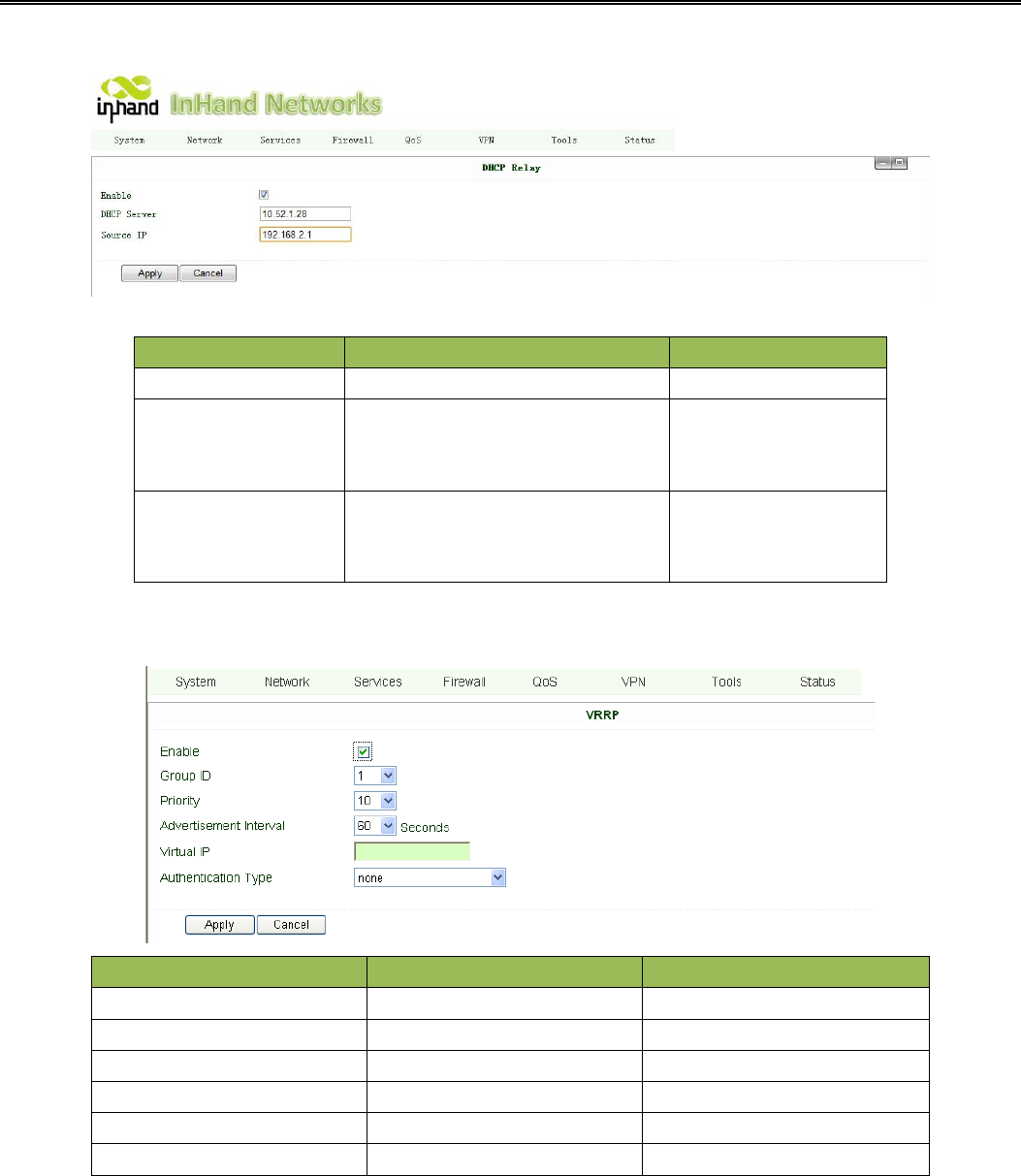

(3) DHCP Relay
This function can realize DHCP relay and send relay packages to LAN interface of router.
Name Description Default
Enable DHCP Relay Click to enable DHCP Relay Enable (after enable DHCP)
DHCP Server Set the DHCP Server’s address, always you need
ensure DHCP server is in the same LAN or VPN
subnet as IR7X1GS55’s LAN
Blank
Source IP The interface IR7X1GS55 will forward the DHCP
acknowledge packages (always set the LAN IP of
IR7X1GS55)
Blank
(4) VRRP
Name Description Default
Enable Select to enable VRRP Disable
Group ID Select group id of routers (range 1-255) 1
Priority Select priority for router (range 1—254) 10 (bigger number stands for higher priority)
Advertisement Interval Set ad interval 60 sec
Virtual IP Set Virtual IP Blank
Authentication Type Optional: None/Password type None
InRouter 700 Series User’s Manual www.inhandnetworks.com
43

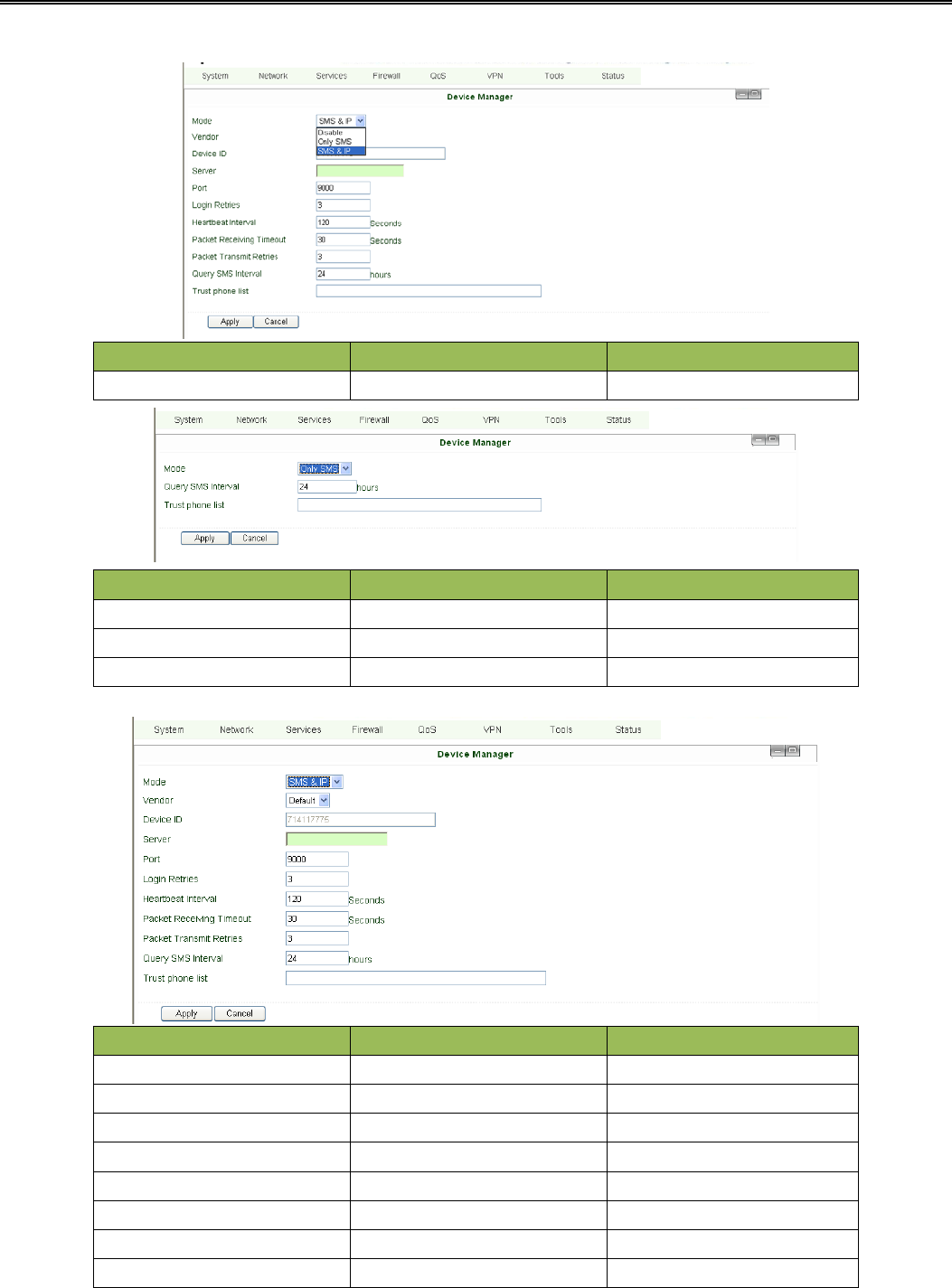

(5) Device Manager
Name Description Default
Mode Disabled/Only SMS/SMS+IP Disable
Name Description Default
Mode Only SMS
Query SMS Interval Set how long to check SMS 24 hours
Trust Phone List Add trust Cell Phone List
Name Description Default
Mode SMS+IP Mode
Vendor Set Vendor Name Default
Device ID Set Device ID
Server Set Device Manager Server IP
Port Set Port For DM 9000
Login Retries Set login retries 3
Heartbeat Interval Set interval of heartbeat 120
Packet Receiving Timeout Set packet receiving timeout 30
InRouter 700 Series User’s Manual www.inhandnetworks.com
44
Packet Transmit Retries Set packet transmit reties 3
Query SMS Interval Set how long to check SMS 24
Trust phone list Set trust cell phone list
(6) DTU
Name Description Default
Enable Click to enable DTU Disable
DTU Protocol Set DTU protocol, Please see more in related Quick Guide Transparent
Protocol Optional between TCP/UDP UDP
Work Mode Set DTU as client or server Client
DTU ID Set ID of DTU Blank
Multi Server Set the IP address and Port of server to receive data. Blank
(7) SMS
Name Description Default
Enable Click to enable SMS control Disable
Status Query Set Status Query SMS, and you can see status of router
by send SMS (e.g.: show status).
Reboot Let the router reboot
SMS Access Control
Default Policy Block or Accept control SMS from certain Phone Block
InRouter 700 Series User’s Manual www.inhandnetworks.com
45
Phone List Include phone numbers accepted or blocked to send
SMS to router
Notice: before using this function, please notice you have a SIM card with SMS function in the router, else, please
contact local mobile operator.
SMS you will get in your mobile phone:
Host: (SN);
Uptime: (the uptime of router for this time of reboot);
State: (Online/Offline) (Cellular WAN IP)
LAN: (Up) (LAN IP)

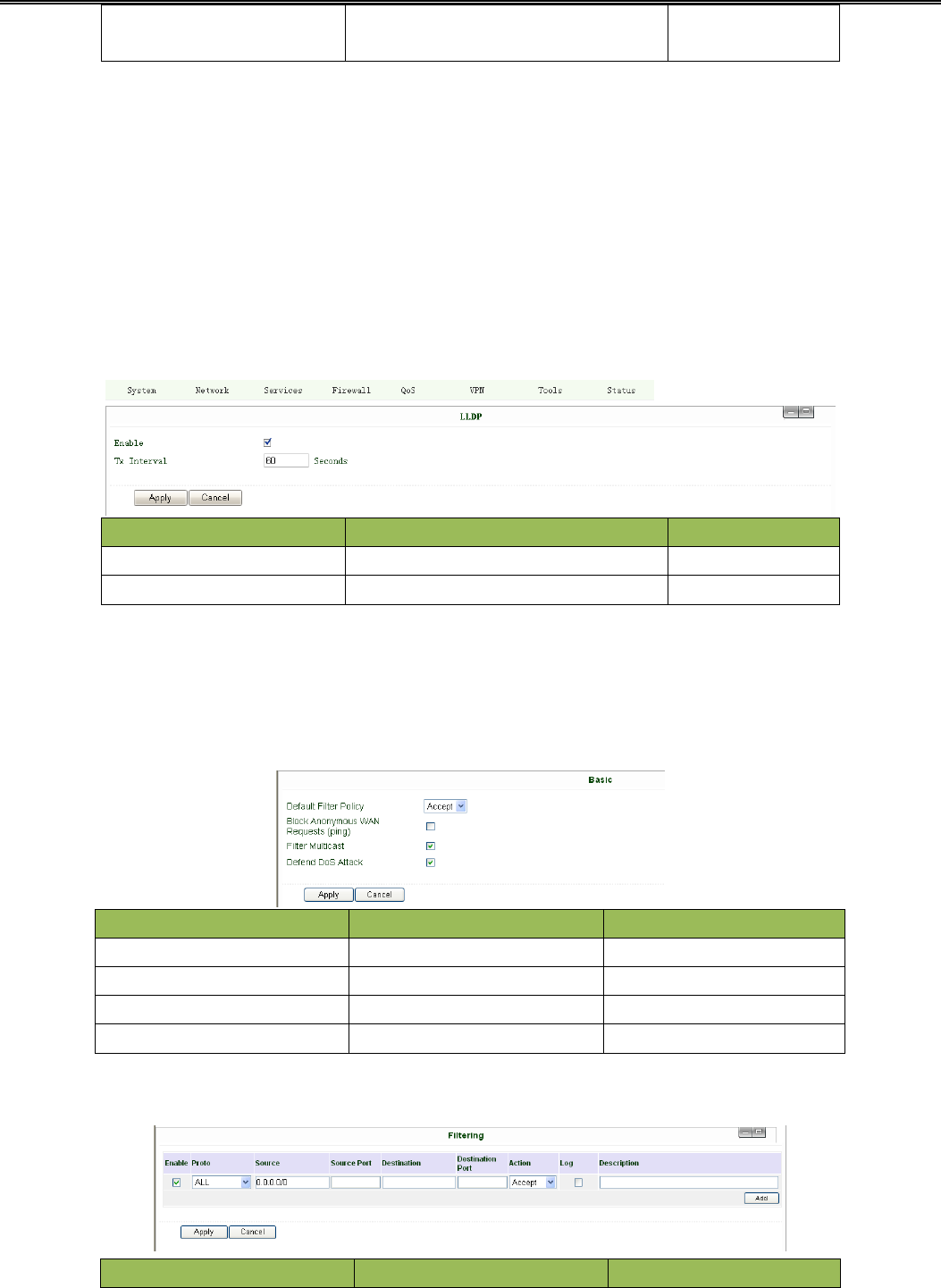

(8) LLDP (Link Layer Discovery Protocol)
Name Description Default
Enable Click to enable LLDP Disable
Tx Interval Set DTU protocol Transparent
3.1.5 Firewall
This page is to set parameters concerned with firewall.
(1) Basic Configuration
Name Description Default
Default Filter Policy Optional between Accept /Refused Accept
Block Anonymous WAN Request (ping) Click to enable filer ping request Disable
Filter Multicast Click to enable filter multicast Enable
Defend DoS Attack Click to enable Defend DoS Attack Enable
(2) Filtering
Name Description Default
InRouter 700 Series User’s Manual www.inhandnetworks.com
46
Enable Click to enable filtering Blank
Protocol Optional among TCP/UDP/ICMP All
Source IP address Set Source IP address Blank
Source Port Set Source Port Blank
Destination IP Set destination IP Blank
Destination Port Set destination port Blank
Action Accept/Deny Accept
Log Click to enable login Disable
Description Describe your configuration Blank

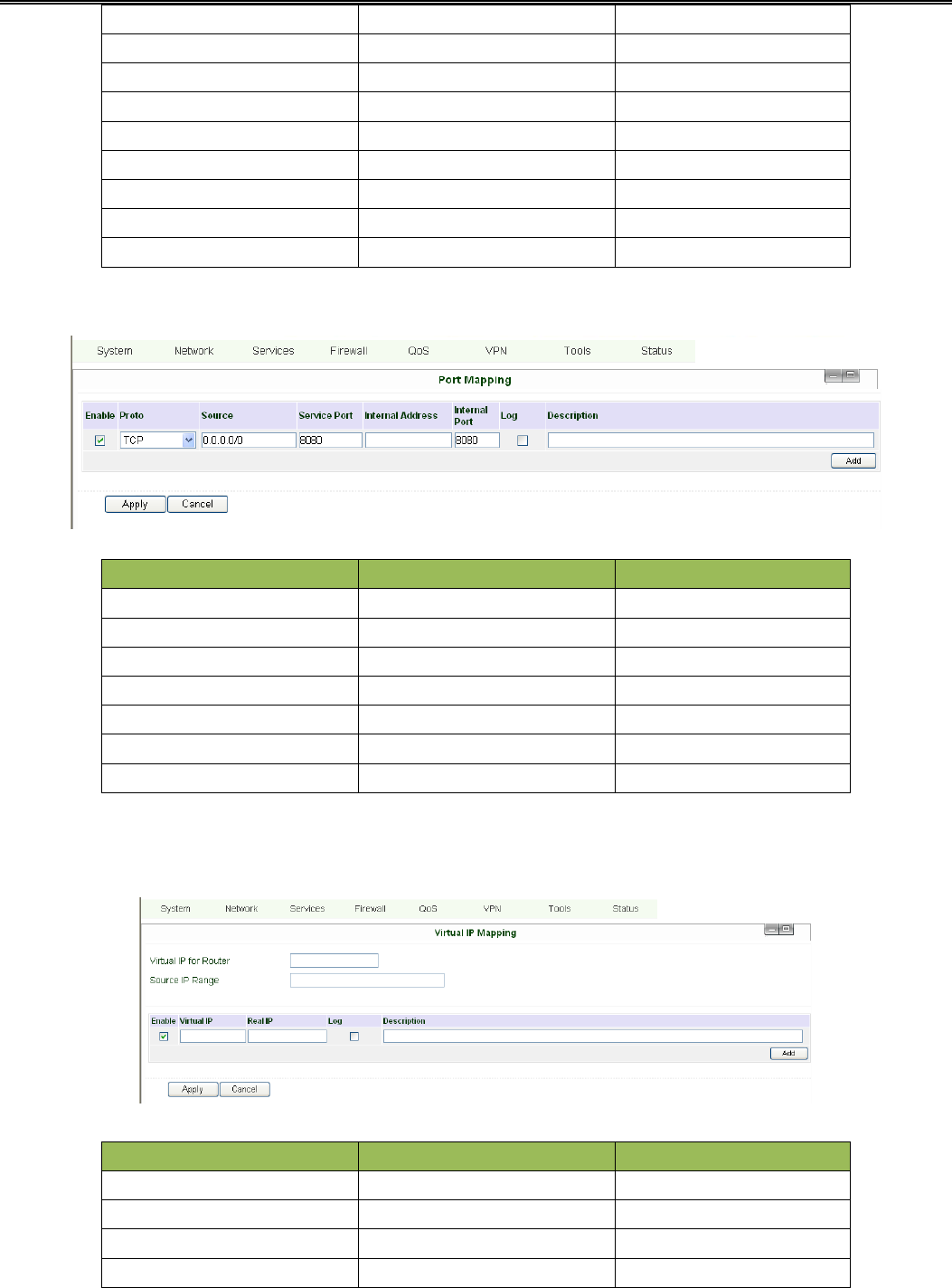

(3) Port Mapping
Name Description Default
Enable Click Enable Port Mapping Disable
Source To fill with source IP 0.0.0.0/0
Service Port Fill the port of service 8080
Internal Address Set the internal IP for mapping Blank
Internal Port Set the Port mapping to internal 8080
Log Click to enable log about port mapping. Disable
Description Describe meanings of each mapping Blank
(4) Virtual IP Mapping
An internal PC’s IP can match to a virtual IP, and external network can access to internal PC via this virtual IP address.
Name Description Default
Virtual IP for Router Set Virtual IP for Router Blank
Source IP Range Set range of source IP address Blank
Virtual IP Set virtual IP Blank
Real IP Set real IP Blank
InRouter 700 Series User’s Manual www.inhandnetworks.com
47
Log Enable logging concerned with virtual IP Disable
Description Describe this configuration Blank

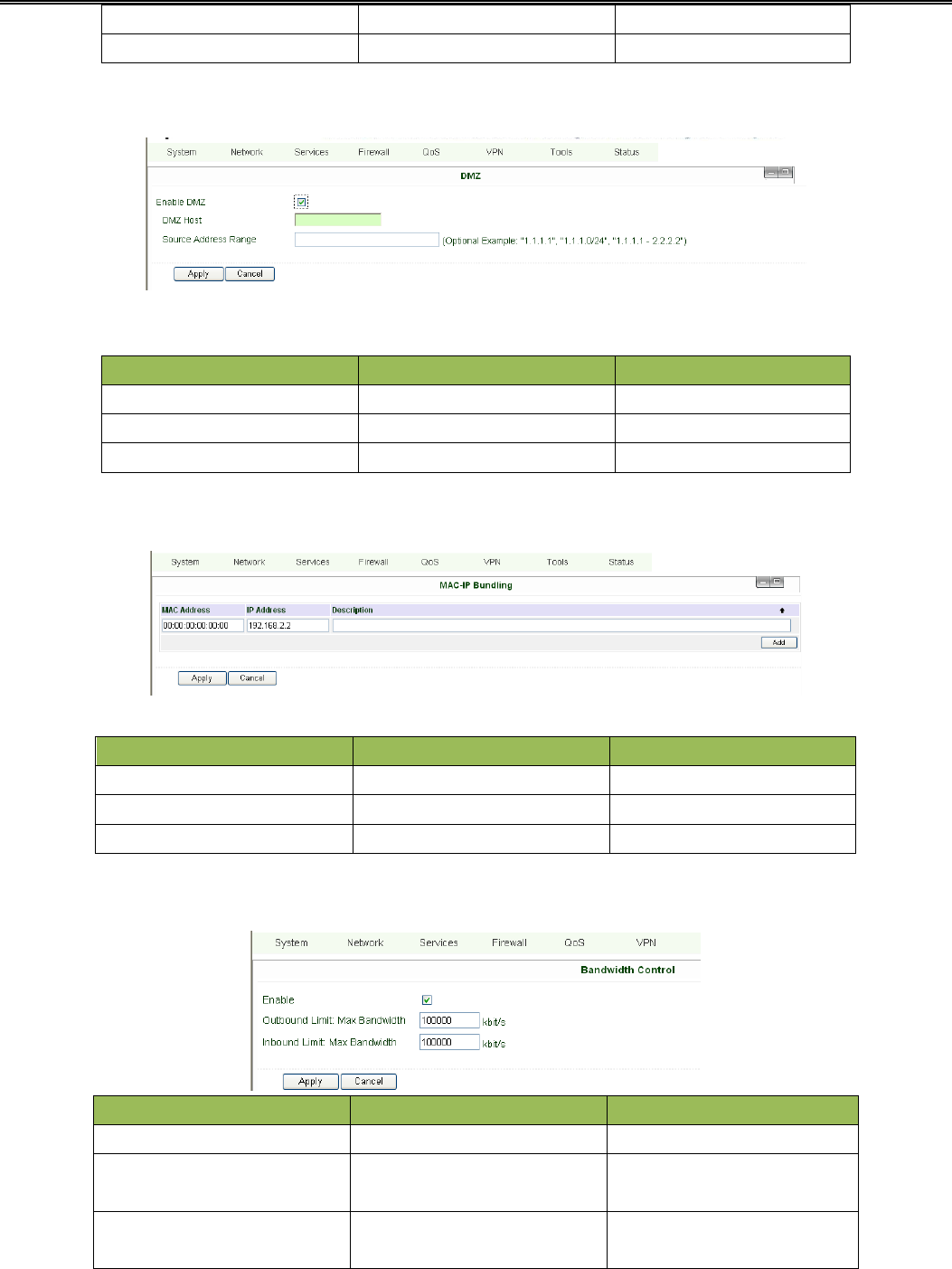

(5) DMZ (All Port Mapping)
Mapping all the ports and then external PC can get access to all the ports of internal device behind IR7X1GS55.
Attention: this function cannot help to map the admin port of IR7X1GS55 (e.g.: 80 TCP) to the device’s port.
Name Description Default
Enable DMZ Click to Enable DMZ Disable
DMZ Host Set host IP of DMZ Blank
Source Address Range Set IP address with restrict IP access Blank
(6) MAC-IP Bundling
When firewall denies all access to the external network, only PC with MAC-IP Bundling can access to external network
Name Description Default
MAC Address Set Bundling Mac address Blank
IP Address Set Bundling IP address 192.168.2.2
Description Describe this configuration Blank
3.1.6 QoS
Name Description Default
Enable Click to enable Disable
Outbound Limit Max
Bandwidth
Set the limit speed of out- bound
bandwidth
100000kbit/s
Inbound Limit Max
Bandwidth
Set the limit speed of inbound bandwidth 100000kbit/s
InRouter 700 Series User’s Manual www.inhandnetworks.com
48
3.1.7 VPN
This page introduces the parameters set in InRouter 700’s Web.
(1) IPSec Settings (For IR711/791/714/794 only)
To build an IPSec VPN Tunnel, you need first set IPSec properties in this page, then turn to IPSec Tunnels to add your VPN:
IPSec Settings
Description: 1. Select to Enable or Disable NATT, normally we need to enable, unless you ensure there is no NAT routers in the
network.
2．Select to enable Compression Mode or Debug
Name Description Default
Enable NAT Transversal
(NATT)
Click to enable NATT Enable
Keep alive time interval of NATT Set live time for NATT 60 sec
Enable Compression Click to enable Enable
Enable Debug Click to enable Disable
Force NATT Click to enable Disable
(2) IPSec Tunnels (For IR711/791/714/794 only)
Click “Add” and enter the configuration web:
InRouter 700 Series User’s Manual www.inhandnetworks.com
49
Name Description Default
Show Advanced Options Click to enable advanced options Disable
Basic Parameters
Tunnel Name To name the tunnel IPSec_tunnel_1
Destination Address Set the destination address of IPSec VPN Server Blank
Startup Mode Auto Activate/Trigged by Data/Passive/Manually Activated Enable
Negotiation Mode Optional: Main Mode or
Aggressive Mode
Main Mode
IPSec Mode
(Enable Advanced options)
Optional: ESP or AH ESP
IPSec Mode Optional: Tunnel Mode or Transport Mode Tunnel Mode
InRouter 700 Series User’s Manual www.inhandnetworks.com
50
(Enable Advanced options)
Tunnel Type Optional:
Host——Host, Host——Subnet, Subnet——Host,
Subnet——Subnet
Subnet——Subnet Mode
Local Subnet Set IPSec Local Protected Subnet 192.168.2.1
Local Subnet Net Mask Set IPSec Local Protected Subnet Net Mask 255.255.255.0
Remote Subnet Address Set IPSec Remote Protected Subnet Blank
Remote Subnet Net Mask Set IPSec Remote Protected Subnet Net Mask 255.255.255.0
Phase 1 Parameters
IKE Policy Optional: 3DES-MD5-96 or AES-MD5-96 3DES-MD5-96
IKE Lifetime Set IKE 的 Lifetime 86400 sec
Local ID Type Optional: FQDN, USERFQDN, or IP Address IP Address
Local ID (Only for FQDN 和 USERFQDN) Set the ID according to ID type Blank
Remote ID Type Optional: FQDN,
USERFQDN, or IP Address
IP Address
Remote ID (Only for FQDN and USERFQDN) Set the ID according to ID type Blank
Authentication Type Optional: Shared Key or Certificate Shared Key
Key (While choosing Shared Key Authentication
Type)
Set IPSec VPN Negotiation Key Blank
Phase 2 Parameters
IPSec Policy Optional: 3DES-MD5-96 or AES-MD5-96 3DES-MD5-96
IPSec Lifetime Set IPSec Lifetime 3600sec
Perfect Forward Secrecy (PFS) Optional: Disable, GROUP1, GROUP2, GROUP5 Disable ((Enable Advanced options)
Link Detection Parameters (Enable Advanced options)
DPD Time Interval Set DPD Time Interval 60sec
DPD Timeout Set DPD Timeout 180sec
ICMP Detection Server Set ICMP Detection Server Blank
ICMP Detection Local IP Set ICMP Detection Local IP
ICMP Detection Interval Set ICMP Detection Interval 30sec
ICMP Detection Timeout Set ICMP Detection Interval 5sec
ICMP Detection Max Retries Set ICMP Detection Max Retries 3

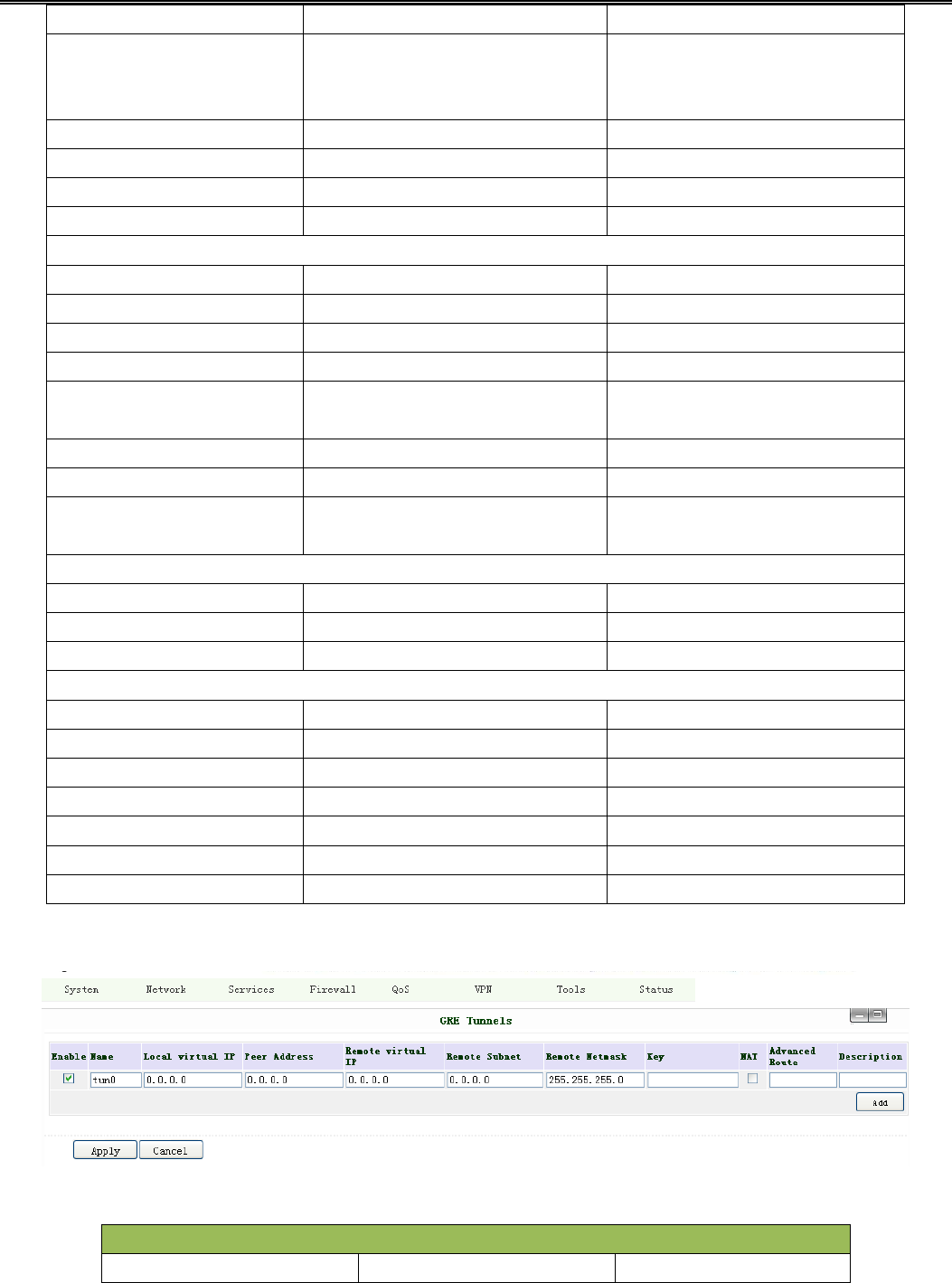

(3) GRE Tunnels (For IR711/791/714/794 only)
GRE Tunnels
Name Description Default
InRouter 700 Series User’s Manual www.inhandnetworks.com
51
Enable Click Enable Enable
Tunnel Name Set GRE Tunnel Name tun0
Local Virtual IP Set Local Virtual IP 0.0.0.0
Remote Address Set Remote Address 0.0.0.0
Remote Virtual IP Set Remote Virtual IP 0.0.0.0
Remote Subnet Address Set Remote Subnet Address 0.0.0.0
Remote Subnet Net Mask Set Remote Subnet Net Mask 255.255.255.0
Key Set Tunnel Key Blank
NAT Click Enable NAT Function Disable
Description Add Description Blank

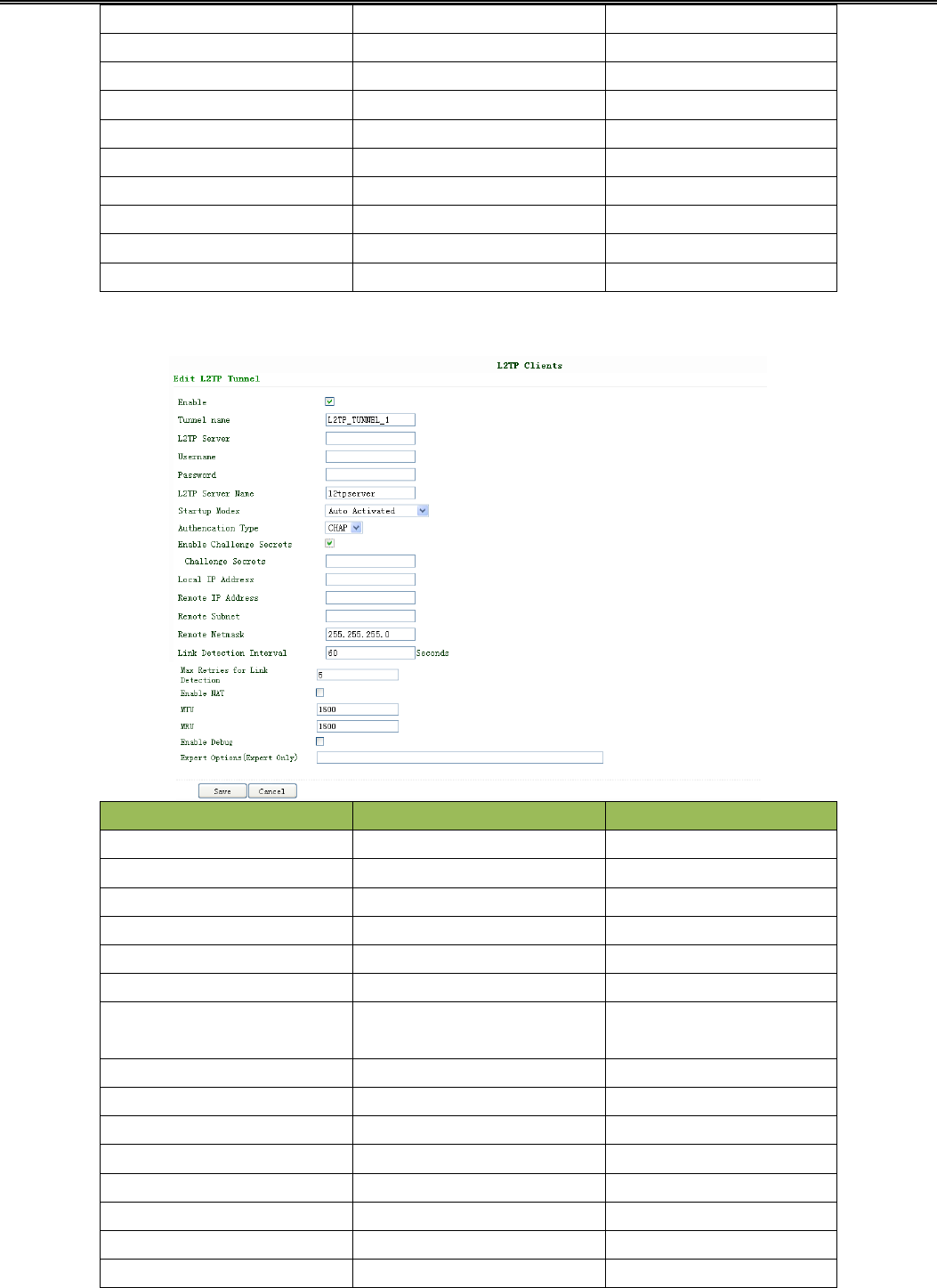

(4) L2TP Clients (For IR711/791/714/794 only)
Name Description Default
Enable Click Enable Enable
Tunnel Name Set Tunnel Name L2TP_TUNNEL_1
L2TP Server SetL2TP Server Address Blank
Username Set Server Username Blank
Password Set Server Password Blank
Server Name Set Server Name l2tpserver
Startup Modes Set Startup Modes: Auto Activated,
Trigged by Data, Manually Activated
Auto Activated
Authencation Type Set Authencation Type: CHAP, PAP CHAP
Enable Challenge secrets Set to enable Challenge secrets Disable
Local IP Address Set Local IP Address Blank
Remote IP Address Set Remote IP Address Blank
Remote Subnet Set Remote Subnet Blank
Remote Subnet Net Mask Set Remote Subnet Net Mask 255.255.255.0
Link Detection Interval Set Link Detection Interval 60
Max Retries for Link Detection Set Max Retries for Link Detection 5
InRouter 700 Series User’s Manual www.inhandnetworks.com
52
Enable NAT Click Enable NAT Disable
MTU Set MTU parameters 1500
MRU Set MRU parameters 1500
Enable Debug Mode Click Enable Debug Mode Disable
Expert Options Set Expert Options Blank

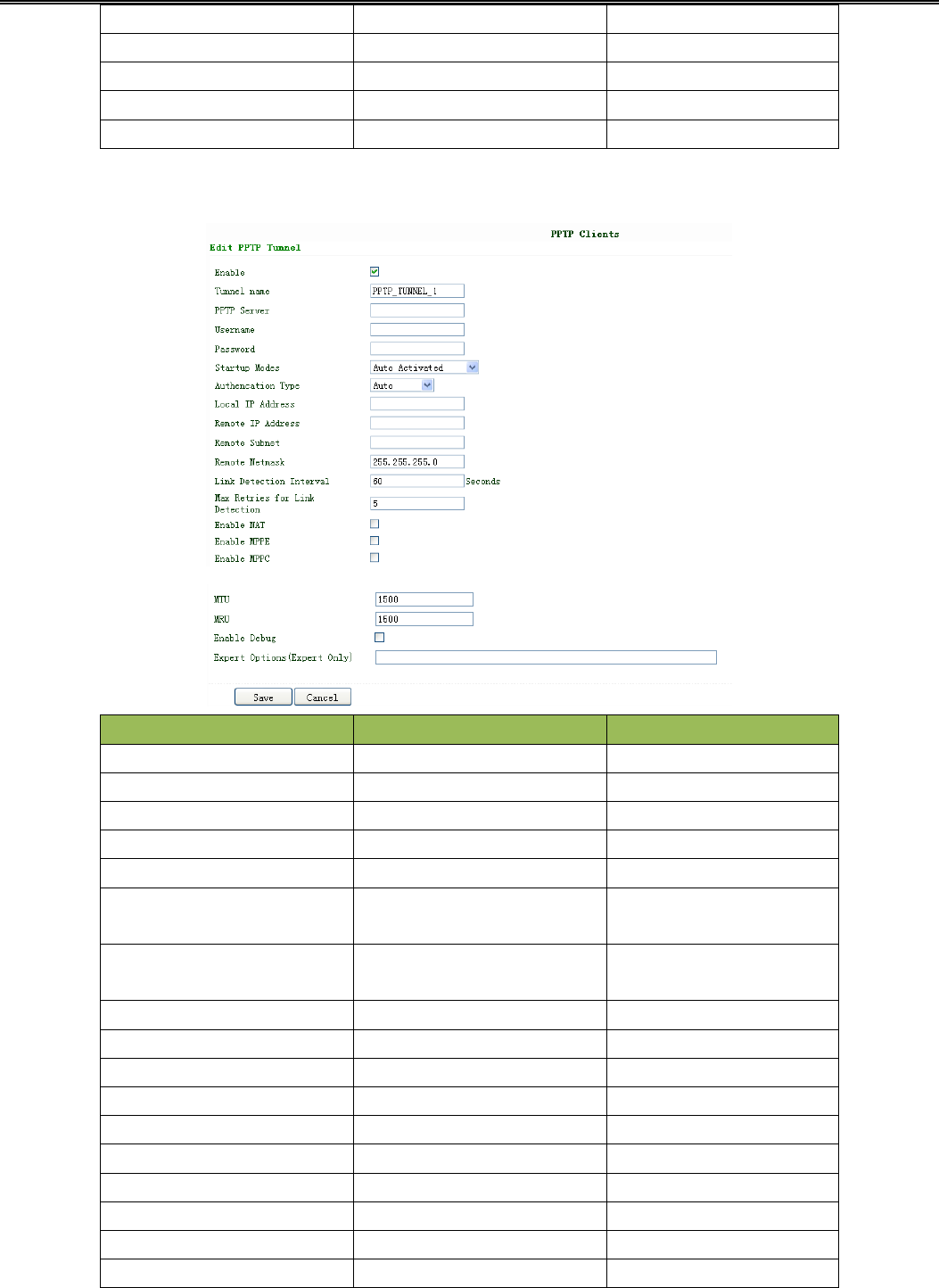

(5) PPTP Clients (For IR711/791/714/794 only)
Name Description Default
Enable Click Enable Enable
Tunnel Name Set Tunnel Name PPTP_TUNNEL_1
PPTP Server Set PPTP Server Address Blank
Username Set Server Username Blank
Password Set Server’s Password Blank
Startup Mode: Set Startup Modes: Auto Activated,
Trigged by Data, Manually Activated
Auto Activated
Authencation Type Set Authencation Type: CHAP, PAP,
MS-CHAPv1, MS-CHAPv2
Auto
Local IP Address Set Local IP Address Blank
Remote IP Address Set Remote IP Address Blank
Remote Subnet Set Remote Subnet Blank
Remote Subnet Net Mask Set Remote Subnet Net Mask 255.255.255.0
Link Detection Interval Set Link Detection Interval 60
Max Retries for Link Detection Set Max Retries for Link Detection 5
Enable NAT Click Enable NAT Blank
Enable MPPE Click Enable MPPE Blank
Enable MPPC Click Enable MPPC Blank
MTU Set MTU parameters 1500
InRouter 700 Series User’s Manual www.inhandnetworks.com
53
MRU Set MRU parameters 1500
Enable Debug Mode Click Enable Debug Mode Blank
Expert Options For InHand R&D only Blank

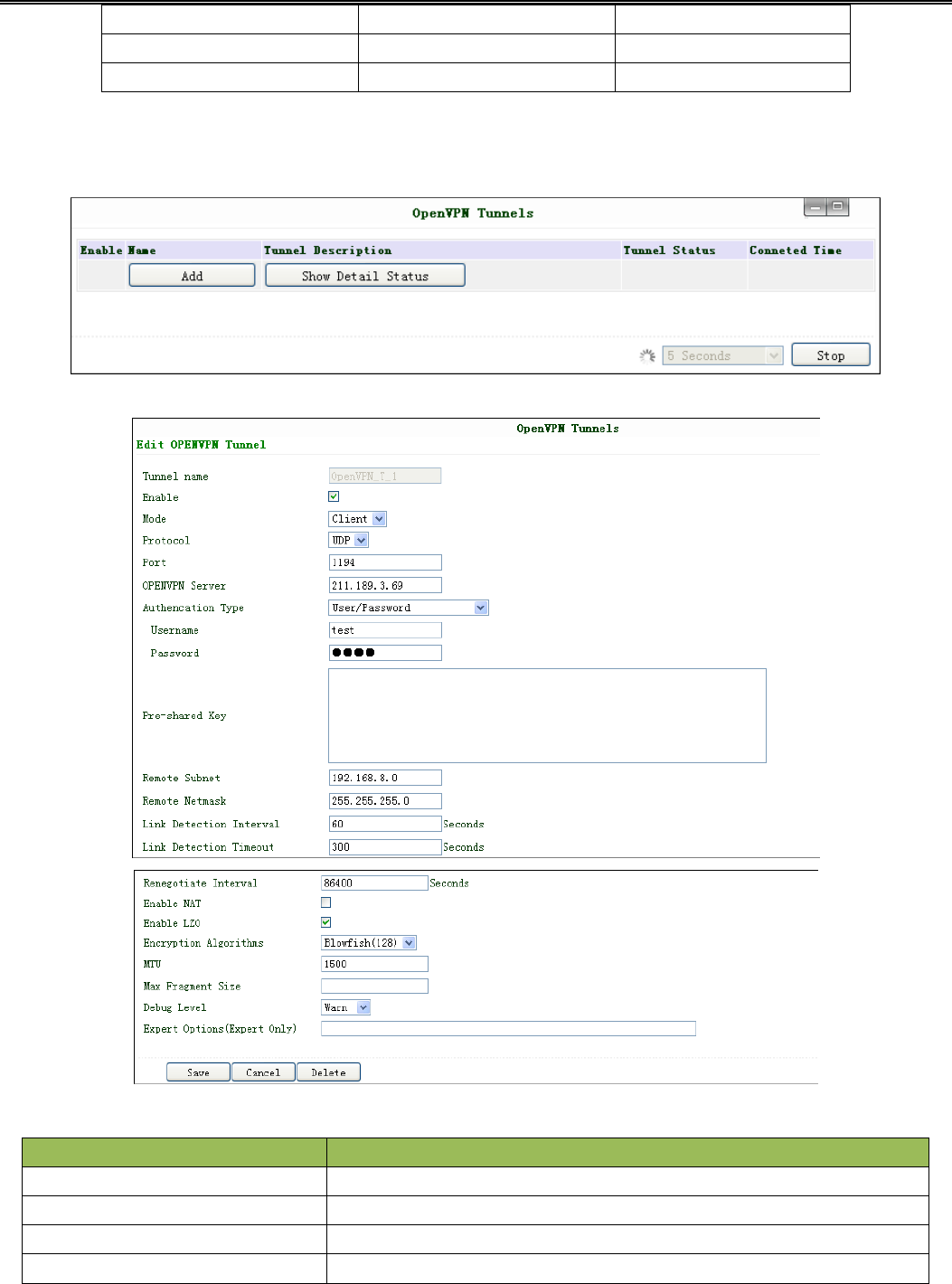

(6) Open VPN Tunnels (for IR791/794 only)
In the configuration WEB of 700, select “VPN”=> “Open VPN Tunnels” as below:
Click “Add” to add a new Open VPN tunnel:
Name Description
Tunnel name Can’t be set
Enable Enable this configuration
Mode Client or Server
Protocol UDP or TCP
InRouter 700 Series User’s Manual www.inhandnetworks.com
54
(7) Open VPN Advanced (for IR791/794 only)
This configuration page is only used for the Open VPN Server.
Name Description
Enable Client-to-Client Enable client access to other clients
Client Management
Tunnel Name Tunnel Name of the Client
Username/Common Name Username (using Username/password mode) or Common Name in CA (CA mode)
Port Import or Export Certificate (CRL)
OPEN VPN Server OPEN VPN Server’s IP or DNS
Authencation Type (1) None ----- for host to host connection (not available when 700 as server)
(2) Pre-shared Key ----- for host to host connection (not available when 700 as server)
(3) User/Password ----- For multi users to access
CA needed: Client: root CA (ca.crt)
Server: root CA (ca.crt), public key (pub.crt), private key (pri.key)
(4) X.509 Cert (multi-client) ----- CA mode for multi users to access
CA needed: Client: root CA (ca.crt), public key (pub.crt), private key (pri.key)
Server: root CA (ca.crt), public key (pub.crt), private key (pri.key)
(5) X.509 Cert -----CA mode for host to host tunnel
CA needed: Client: root CA (ca.crt), public key (pub.crt), private key (pri.key)
Server: root CA (ca.crt), public key (pub.crt), private key (pri.key)
(6) User+X.509 mode------username + password + CA certificate
CA needed: Client: root CA (ca.crt), public key (pub.crt), private key (pri.key)
Server: root CA (ca.crt), public key (pub.crt), private key (pri.key)
Pre-shared Key Set shared key or TLS-AUTH static password
Remote Subnet, Remote Net mask Set the static route of the router, always towards the subnet of its peer
Link Detection Interval, Link Detection Timeout Always use default
Renegotiate Interval Always use default
Enable NAT Set NAT mode, meanwhile it will disable route mode
Enable MPPE Enable MPPE, always set in server
Enable LZO Enable LZO compression
Encryption Algorithms Set encryption algorithms, must match with the server
MTU, Max Fragment Size Always use default
InRouter 700 Series User’s Manual www.inhandnetworks.com
55
Local Static Route The client subnet
Remote Static Route The server subnet
Attention: CA can only be produced by customer’s PC; InRouter 700 cannot produce CA.

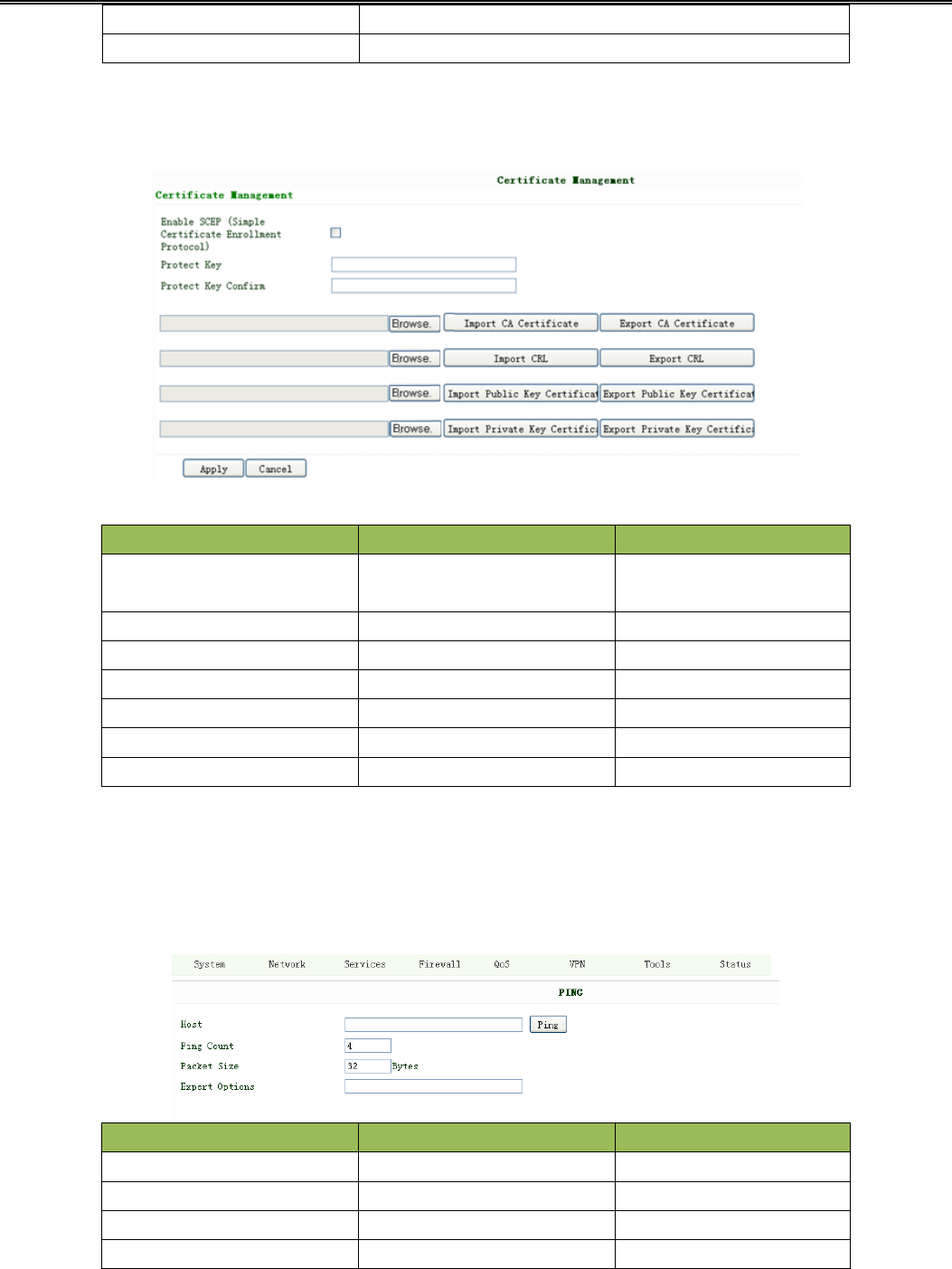

(8) Certificate Management (for IR791/794 only)
Name Description Default
Enable SCEP
(Simple Certificate Enrollment Protocol)
Click Enable
Certificate Protected Key Set Certificate Protected Key Blank
Certificate Protected Key Confirm Confirm Certificate Protected Key Blank
Import/Export CA Certificate Import or Export (CA) Certificate Blank
Import/Export Certificate (CRL) Import or Export Certificate (CRL) Blank
Import/Export Public Key Certificate Import or Export Public Key Certificate Blank
Import/Export Private Key Certificate Import or Export Private Certificate Blank
3.1.8 Tools
Tools contain PING Detection, Route Trace, Link Speed Test and etc.
(1) PING
Name Description Default
Host Destination for PING Blank
Ping Count Set PING Counts 4 times
Packet Size Set PING Packet Size 32 Bytes
Expert Options Advanced parameters Blank
InRouter 700 Series User’s Manual www.inhandnetworks.com
56

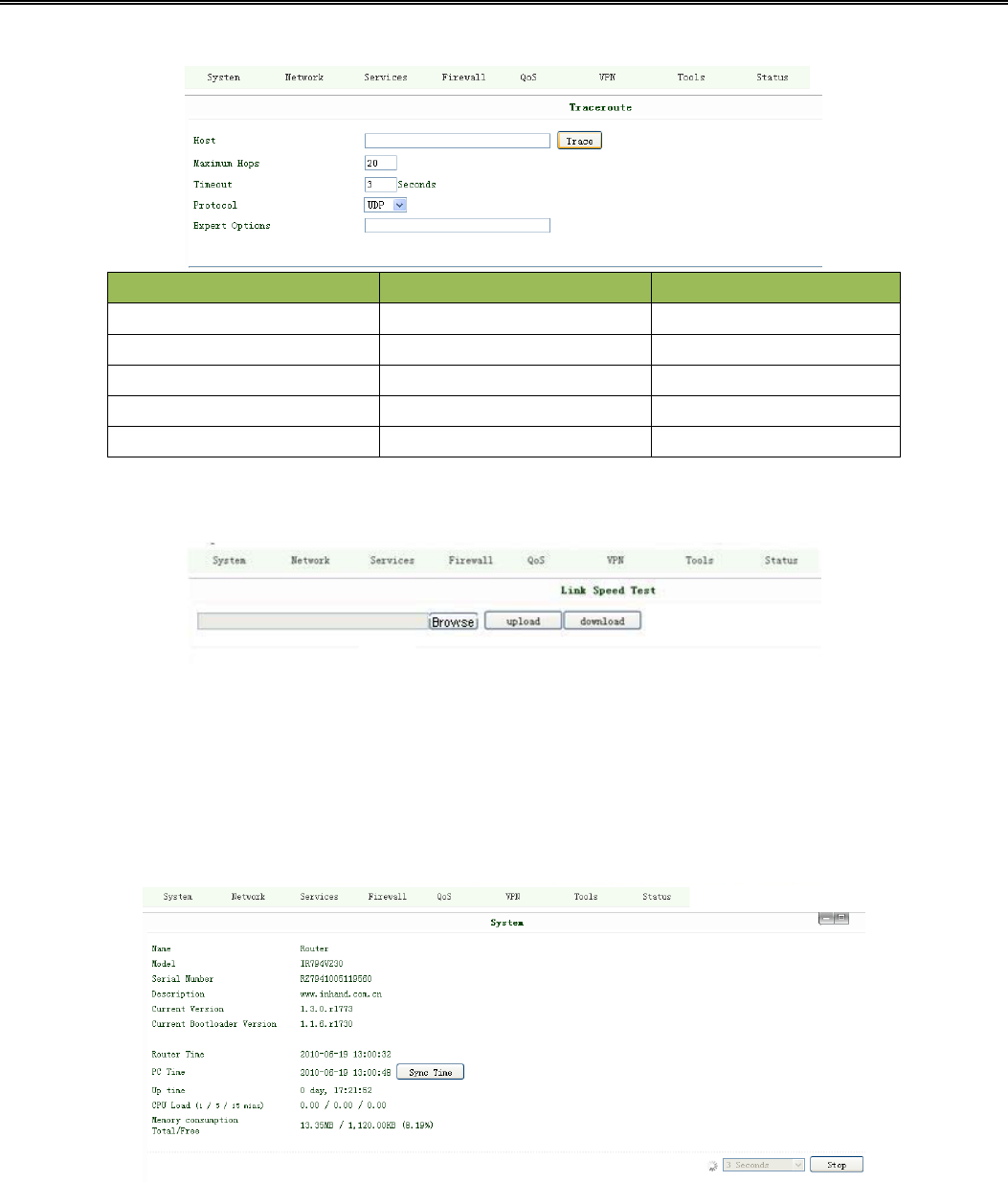

(2) Trace Route
Name Description Default
Host Destination for Trace Route Blank
Max Hops Set Max Hops 20
Time Out Set Time Out 3 sec
Protocol Optional: ICMP/UDP UDP
Expert Options Advanced parameters Blank
(3) Link Speed Test
Test link speed via unload or download
3.1.9 Status
Status contains System, Modem, Network Connections, Route Table, Device List and Log.
(1) System Status
This page shows the status of system, including Name, Model Type, Current Version and etc.
InRouter 700 Series User’s Manual www.inhandnetworks.com
57

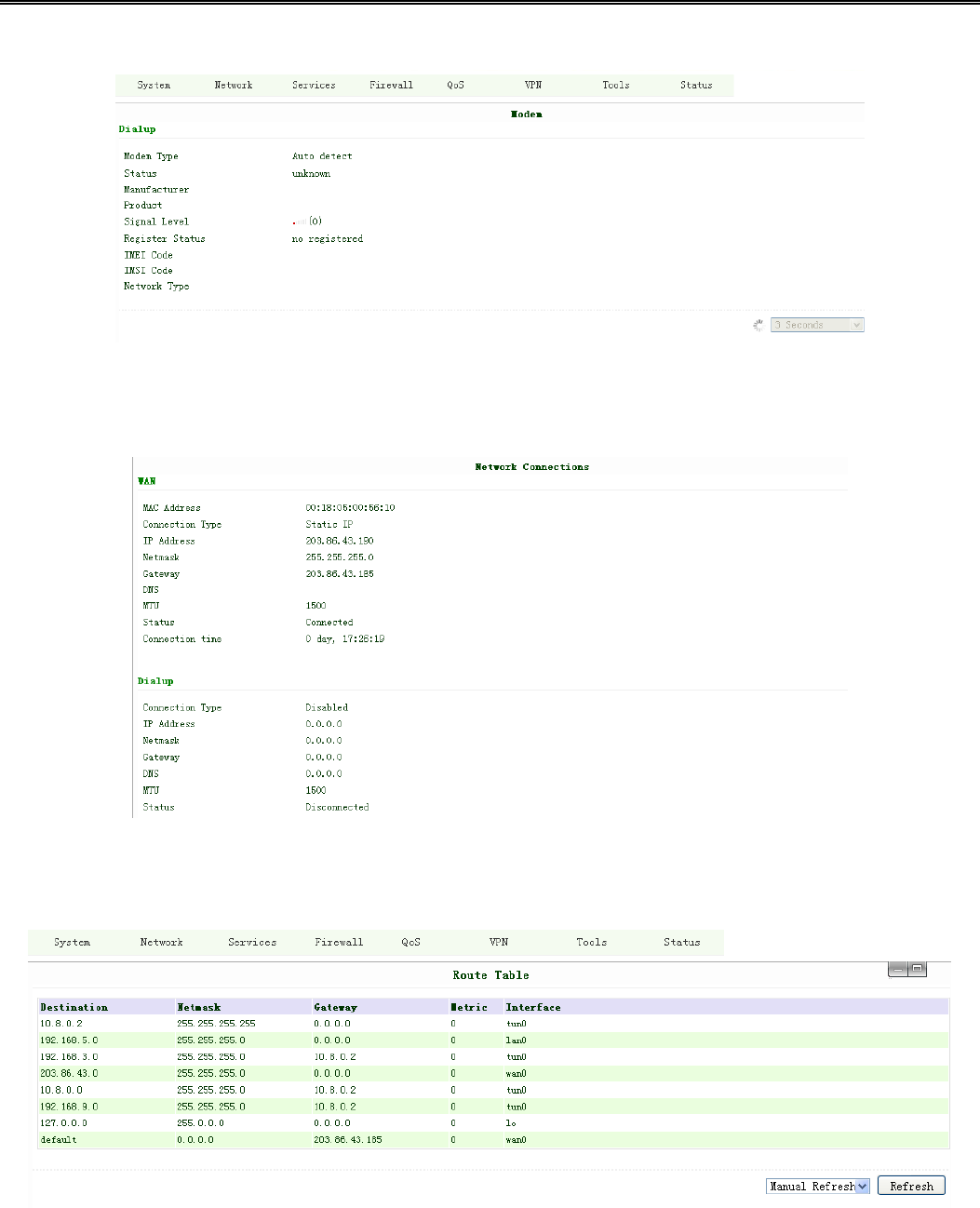

(2) Modem Status
This page shows the status of Modem, including the signal level.
(3) Network Connections
This page shows the network connections via WAN or LAN
(4) Route Table
This page shows the route table of IR7X1GS55.
InRouter 700 Series User’s Manual www.inhandnetworks.com
58

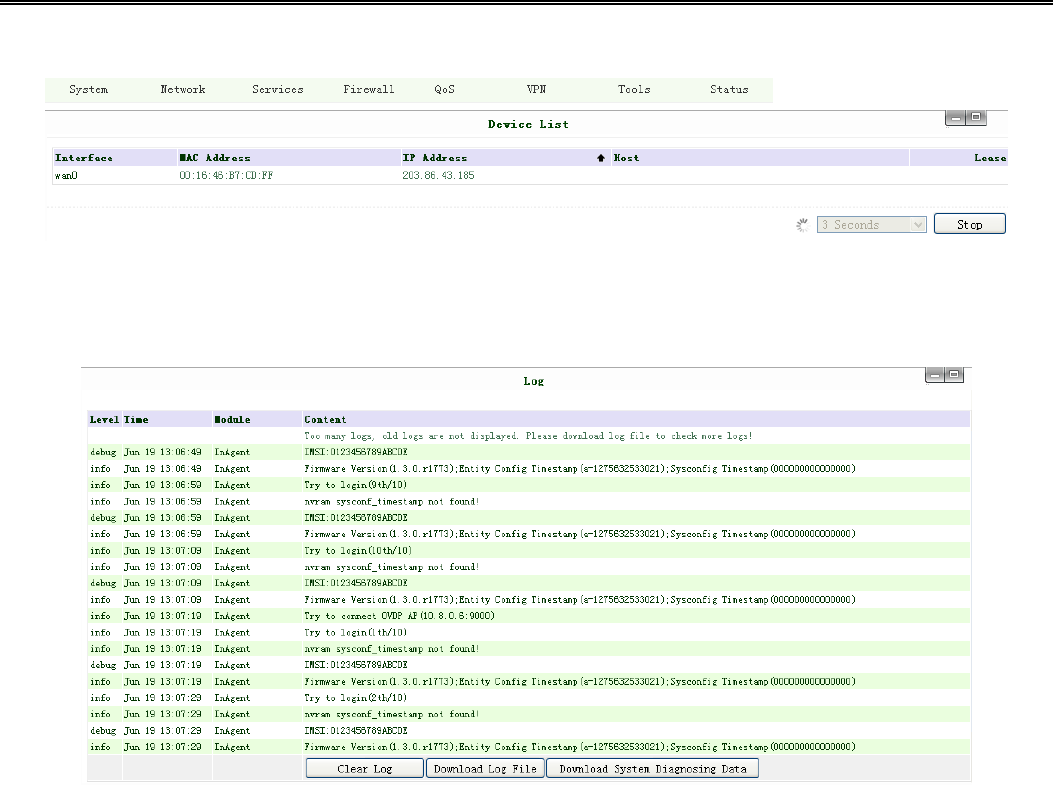

(5) Device List
This page shows the devices linked with IR7X1GS55.
(6) Log
This page shows the log of system, including download log file.
For some situation when there’re some problems that can’t be diagnosed at the moment, you’ll be asked to provide the
diagnose log to InHand engineers, you can click “Download System Diagnosing Data” then send the diagnose log to us.
InRouter 700 Series User’s Manual www.inhandnetworks.com
59
3.2 Support
In case you have problems with the installation and use, please address them to us by e-mail:
support@inhandnetworks.com.
Copyright © 2011 InHand Networks, All rights reserved.
Tel: 86-10-64391099-8022
Fax: 86-10-64399872
Address: Wangjing Science Park, Road Lizezhonger, Chaoyang District, Beijing, P. R. C, 100102
Website: http://www.inhandnetworks.com
Email: info@inhandnetworks.com
Subject to alterations without notice.
