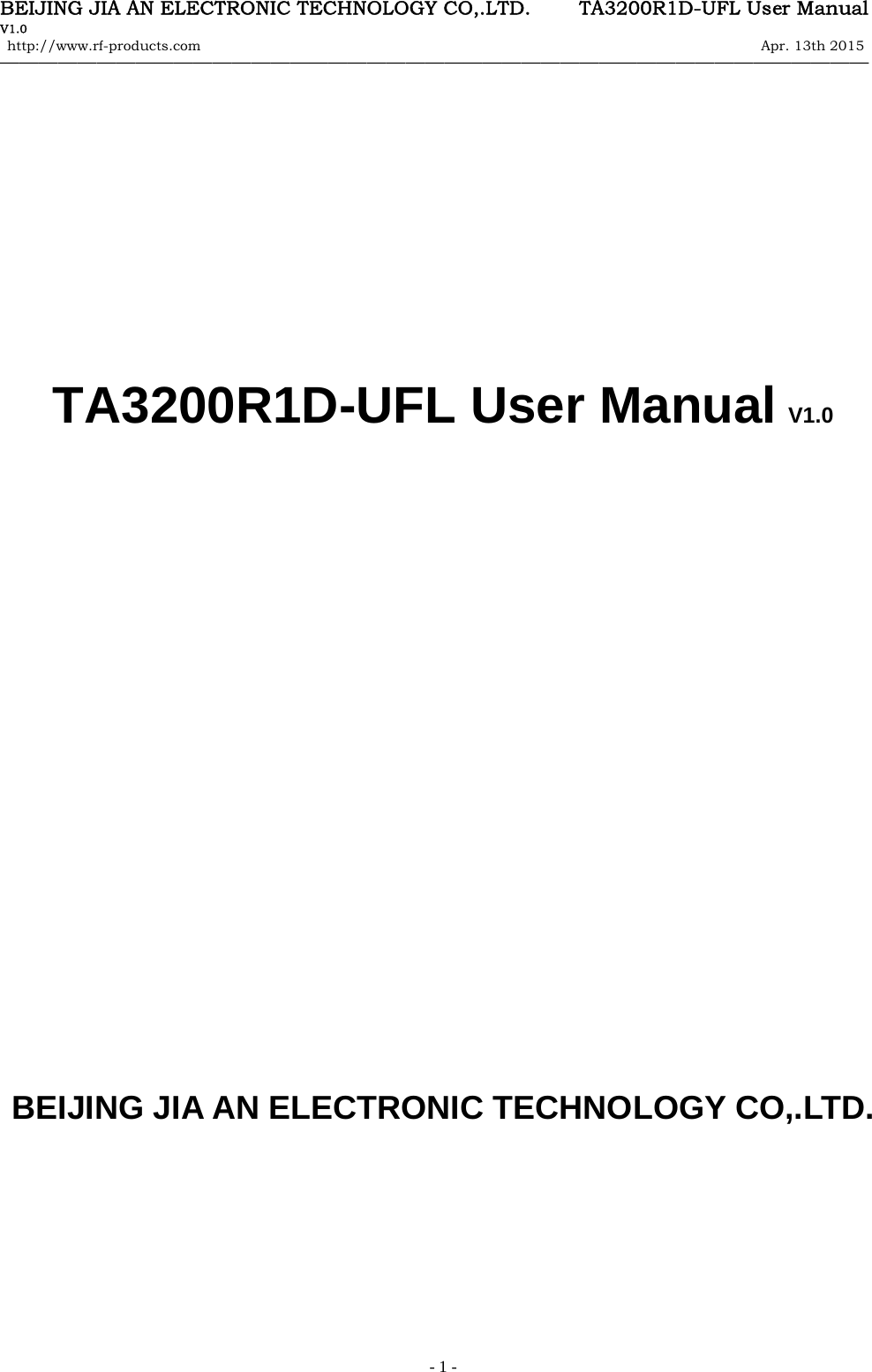

BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 1 - TA3200R1D-UFL User Manual V1.0 BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD.

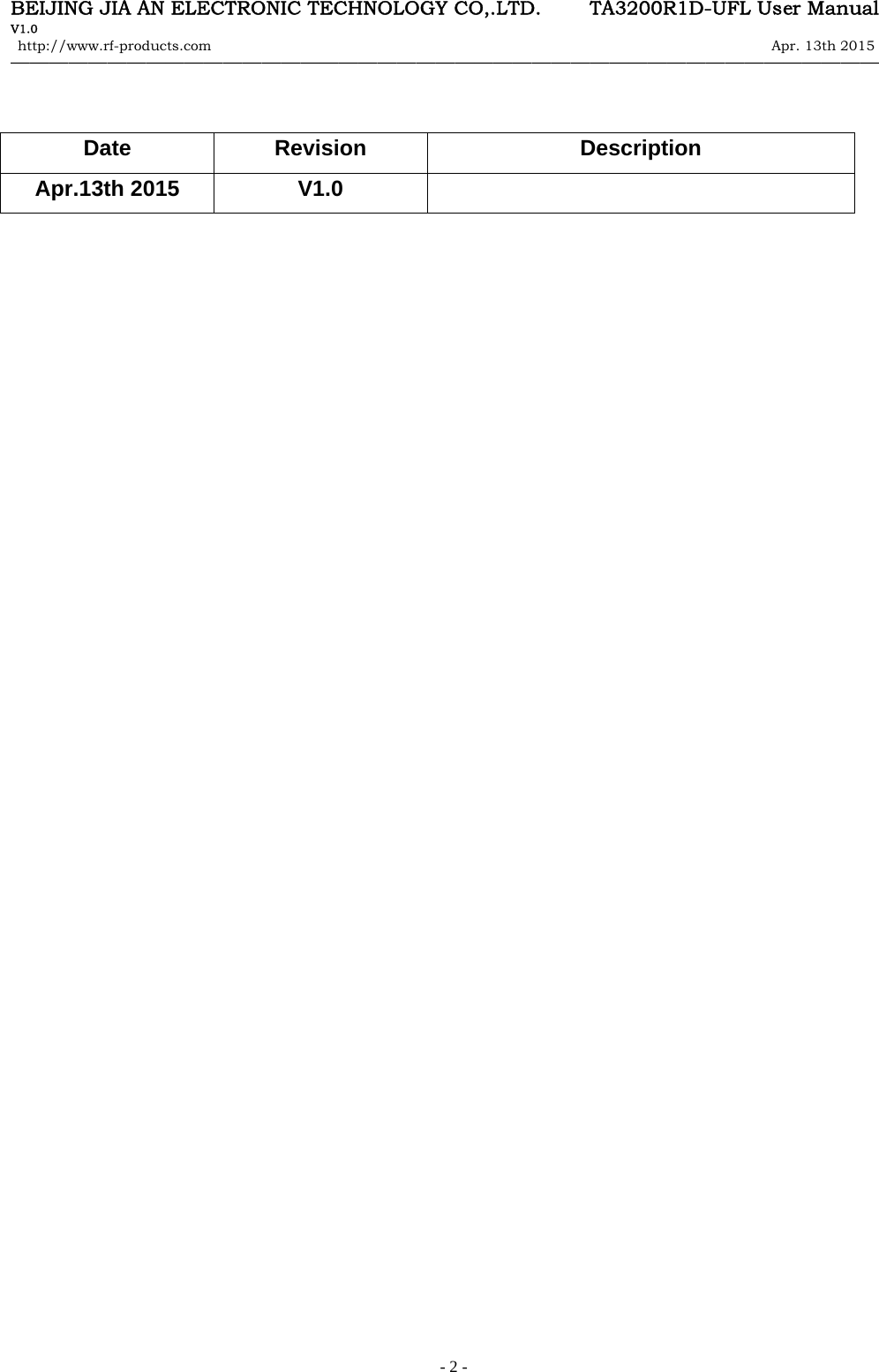

BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 2 - Date Revision Description Apr.13th 2015 V1.0

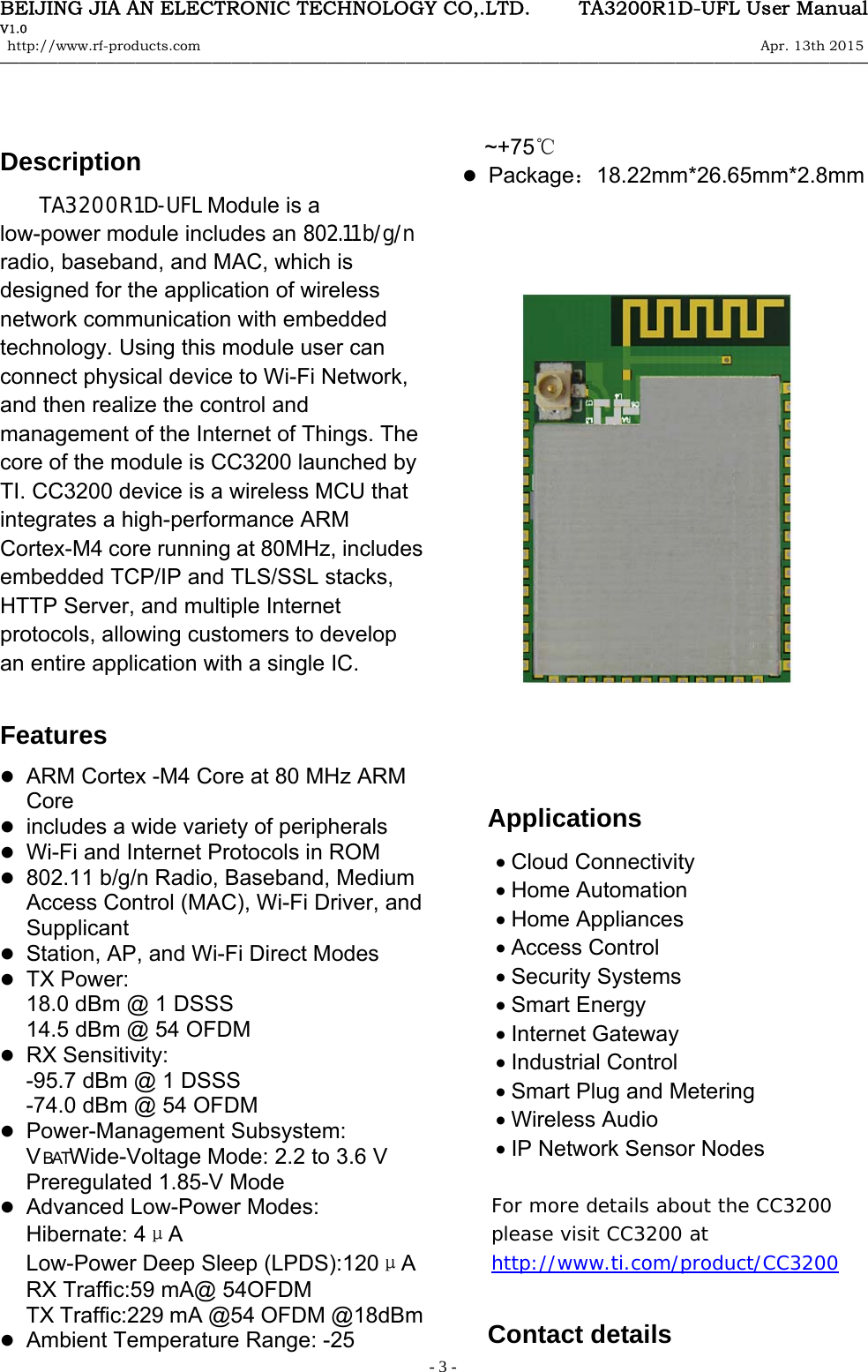

BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 3 - Description TA3200R1D-UFL Module is a low-power module includes an 802.11 b/g/n radio, baseband, and MAC, which is designed for the application of wireless network communication with embedded technology. Using this module user can connect physical device to Wi-Fi Network, and then realize the control and management of the Internet of Things. The core of the module is CC3200 launched by TI. CC3200 device is a wireless MCU that integrates a high-performance ARM Cortex-M4 core running at 80MHz, includes embedded TCP/IP and TLS/SSL stacks, HTTP Server, and multiple Internet protocols, allowing customers to develop an entire application with a single IC. Features  ARM Cortex -M4 Core at 80 MHz ARM Core  includes a wide variety of peripherals  Wi-Fi and Internet Protocols in ROM  802.11 b/g/n Radio, Baseband, Medium Access Control (MAC), Wi-Fi Driver, and Supplicant  Station, AP, and Wi-Fi Direct Modes  TX Power: 18.0 dBm @ 1 DSSS 14.5 dBm @ 54 OFDM  RX Sensitivity: -95.7 dBm @ 1 DSSS -74.0 dBm @ 54 OFDM  Power-Management Subsystem: V BATWide-Voltage Mode: 2.2 to 3.6 V Preregulated 1.85-V Mode  Advanced Low-Power Modes: Hibernate: 4μA 　 Low-Power Deep Sleep (LPDS):120μA RX Traffic:59 mA@ 54OFDM TX Traffic:229 mA @54 OFDM @18dBm  Ambient Temperature Range: -25 ~+75℃  Package：18.22mm*26.65mm*2.8mm Applications Cloud Connectivity Home Automation Home Appliances Access Control Security Systems Smart Energy Internet Gateway Industrial Control Smart Plug and Metering Wireless Audio IP Network Sensor Nodes For more details about the CC3200 please visit CC3200 at http://www.ti.com/product/CC3200 Contact details
BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 4 -For more information, please send email to us. Email： helen@alarmsources.com sarolyn@alarmsources.com Pin Description Pad Number Pin Name Description CC3200 Pkg pin number1 GND Ground 65 2 ANTSEL1 Antenna Selection Control 29 3 ANTSEL2 Antenna Selection Control 30 4 nRESET Master chip reset. Active low 32 5 SOP2 Sense On Power 2 21 6 SOP1 Sense On Power 1 34 7 SOP0 Sense On Power 0 35 8 NC 9 NC 10 NC 11 GND Ground 65 12 GND Ground 65 13 VBT_CC Chip Supply Voltage (VBAT) 10,37,39,44,54 14 VDD_ANA2 ANA2 DCDC O 47 15 GPIO_30 General-Purpose I/O 53 1 16 17 28294418.22mm26.65mm

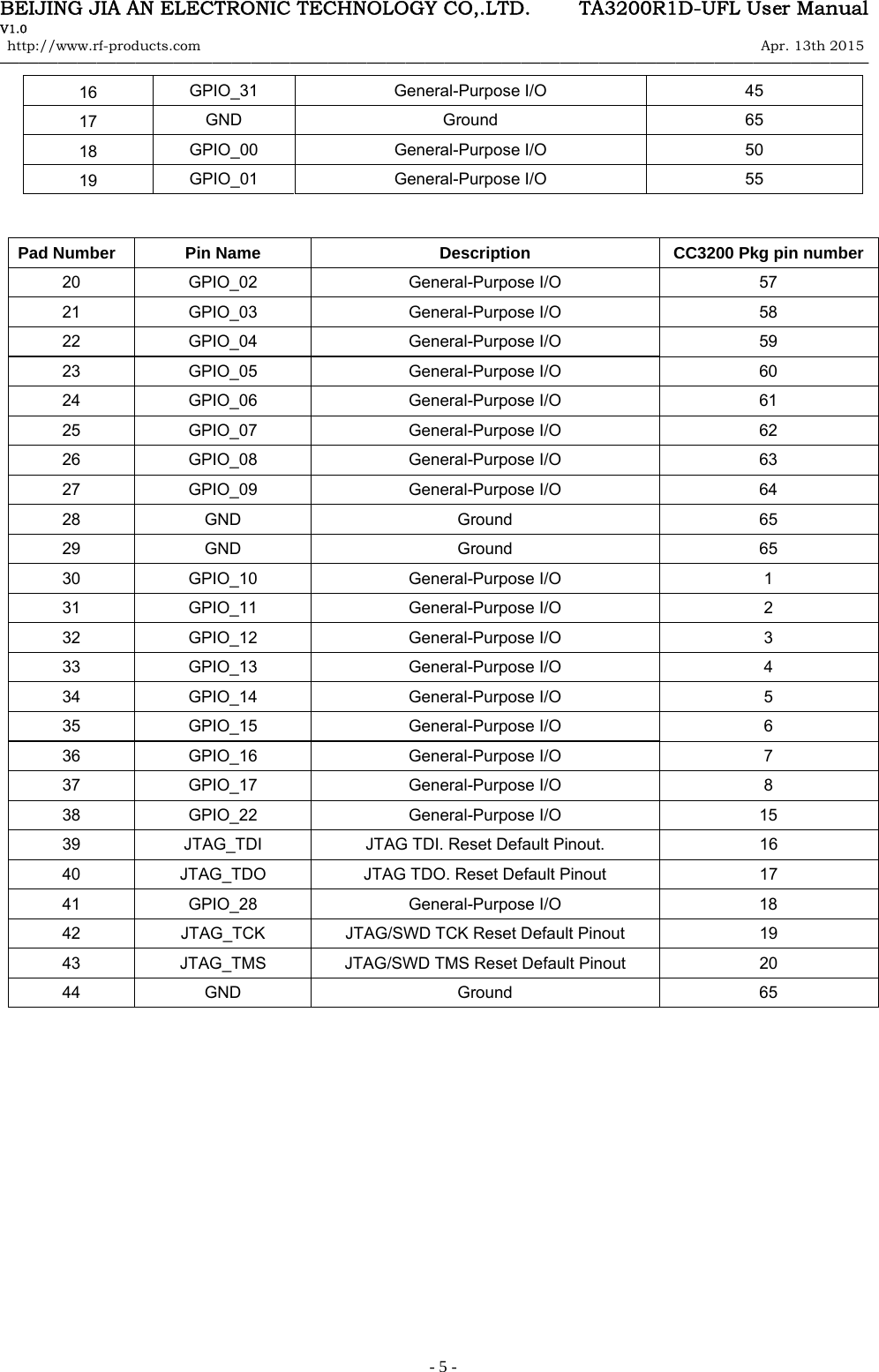

BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 5 - 16 GPIO_31 General-Purpose I/O 45 17 GND Ground 65 18 GPIO_00 General-Purpose I/O 50 19 GPIO_01 General-Purpose I/O 55 Pad Number Pin Name Description CC3200 Pkg pin number20 GPIO_02 General-Purpose I/O 57 21 GPIO_03 General-Purpose I/O 58 22 GPIO_04 General-Purpose I/O 59 23 GPIO_05 General-Purpose I/O 60 24 GPIO_06 General-Purpose I/O 61 25 GPIO_07 General-Purpose I/O 62 26 GPIO_08 General-Purpose I/O 63 27 GPIO_09 General-Purpose I/O 64 28 GND Ground 65 29 GND Ground 65 30 GPIO_10 General-Purpose I/O 1 31 GPIO_11 General-Purpose I/O 2 32 GPIO_12 General-Purpose I/O 3 33 GPIO_13 General-Purpose I/O 4 34 GPIO_14 General-Purpose I/O 5 35 GPIO_15 General-Purpose I/O 6 36 GPIO_16 General-Purpose I/O 7 37 GPIO_17 General-Purpose I/O 8 38 GPIO_22 General-Purpose I/O 15 39 JTAG_TDI JTAG TDI. Reset Default Pinout. 16 40 JTAG_TDO JTAG TDO. Reset Default Pinout 17 41 GPIO_28 General-Purpose I/O 18 42 JTAG_TCK JTAG/SWD TCK Reset Default Pinout 19 43 JTAG_TMS JTAG/SWD TMS Reset Default Pinout 20 44 GND Ground 65

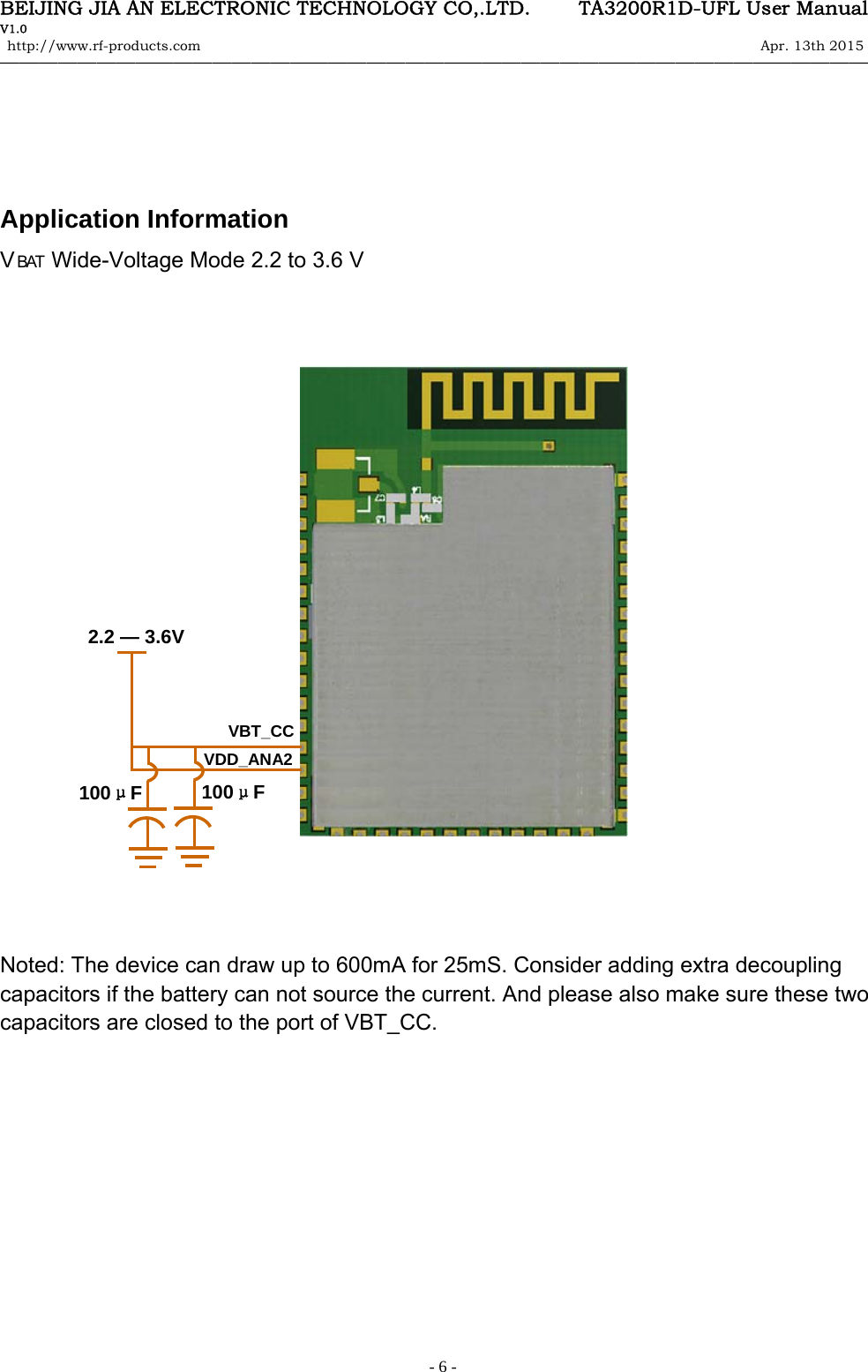

BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 6 - Application Information V BAT Wide-Voltage Mode 2.2 to 3.6 V Noted: The device can draw up to 600mA for 25mS. Consider adding extra decoupling capacitors if the battery can not source the current. And please also make sure these two capacitors are closed to the port of VBT_CC. VBT_CC VDD_ANA2 100μF 100μF 2.2 — 3.6V

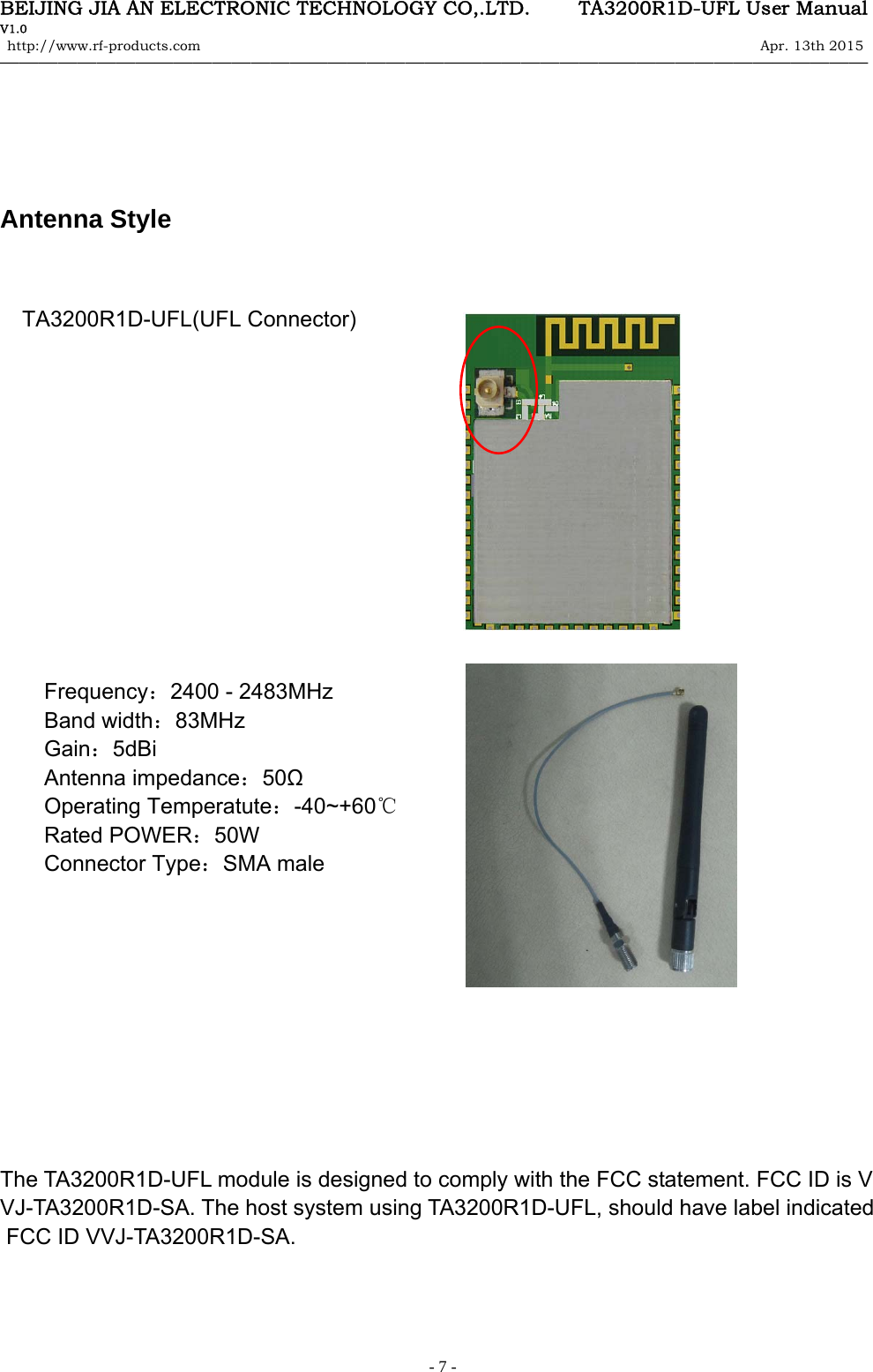

BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 7 - Antenna Style TA3200R1D-UFL(UFL Connector) Frequency：2400 - 2483MHz Band width：83MHz Gain：5dBi Antenna impedance：50Ω Operating Temperatute：-40~+60℃ Rated POWER：50W Connector Type：SMA male The TA3200R1D-UFL module is designed to comply with the FCC statement. FCC ID is VVJ-TA3200R1D-SA. The host system using TA3200R1D-UFL, should have label indicated FCC ID VVJ-TA3200R1D-SA.

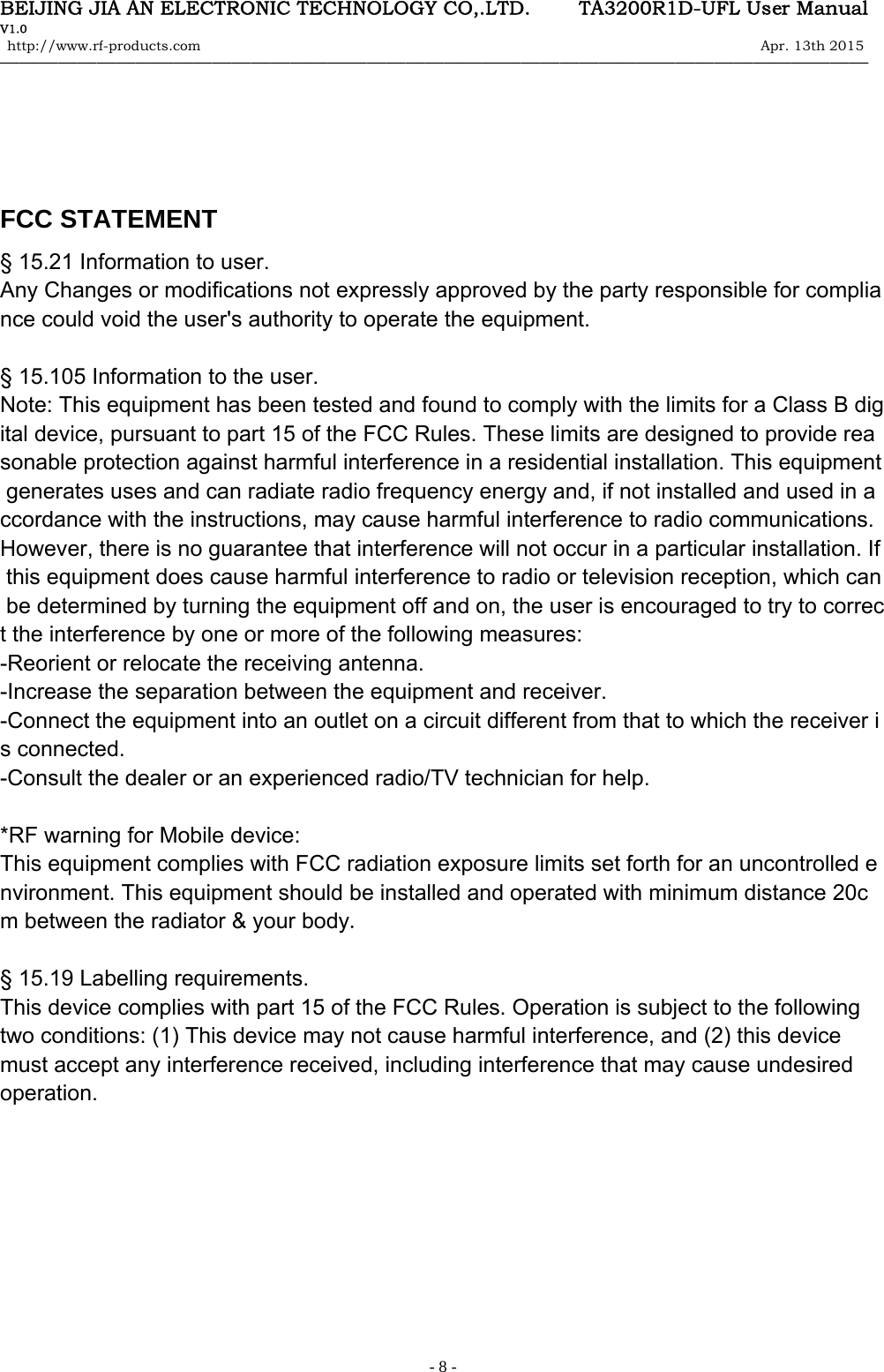

BEIJING JIA AN ELECTRONIC TECHNOLOGY CO,.LTD. TA3200R1D-UFL User Manual V1.0 http://www.rf-products.com Apr. 13th 2015 ————————————————————————————————————————————— - 8 - FCC STATEMENT § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
