Beijing Jia An Electronic Technology Co WB822D Bluetooth Module User Manual
Beijing Jia An Electronic Technology Co,. Ltd Bluetooth Module
User Manual
CANSEC INTERNATIONAL LTD. WB822D User Manual V1.0.1
http://www.rf-products.com August 30 2017
———————————————————————————————————————
Page 1of 6
WB822D User Manual V1.0.1

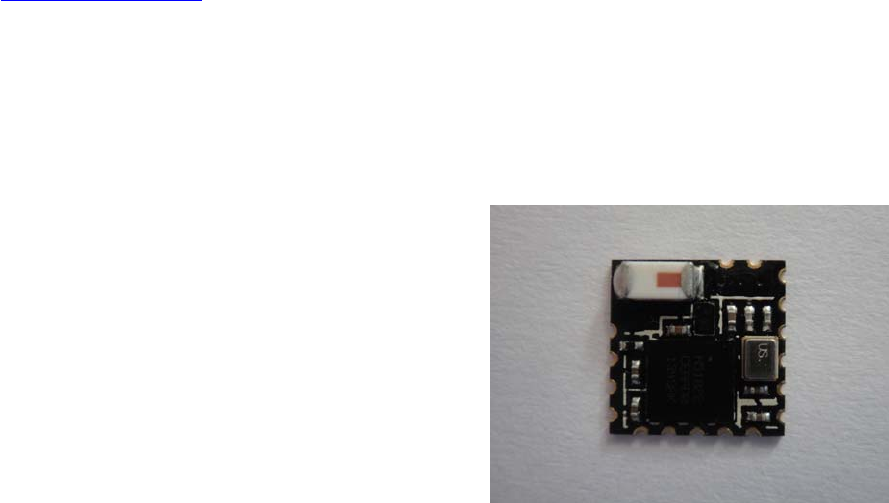

Description
WB822D Module is designed based on
nRF51822 RF SoC chip. nRF51822 is an
ultra-low power 2.4GHz wireless System on
Chip(Soc) integrating the nRF51 series
2.4GHz transceiver, a 32bit ARM Cortex-M0
CPU, flash memory, and analog and digital
peripherals. nRF51822 can support
Bluetooth low energy and a range of
proprietary 2.4GHz protocols, such as Gazell
from Nordic Semiconductor.
Key Features
y2.4GHz transceiver
y-93dBm sensitivity in Bluetooth low
energy mode
y205kbps, 1 Mbps, 2 Mbps supported
data rates
yTX Power -20 to +4dBm in 4dB steps
yTX power -30dBm Whisper mode
y13mA peak RX, 10.5mA peak TX (0
dBm)
y9.7mA peak RX, 8mA peak TX (0dBm)
with DC/DC
yRSSI (1dB resolution)
yARM Cortex -M0 32 bit processor
y275 μA/MHz running from flash
memory
y1505μA/MHz running from RAM
ySerial Wire Debug (SWD)
yFlexible Power Management
ySupply voltage range 1.8V to 3.6V
y4.2μs wake-up using 16MHz RCOSC
y0.6μAat3VOFFmode
y1.2μA at 3V in OFF mode +1region
RAM retention
y2.6μA at 3V ON mode, all blocks IDLE
yTiny Size 8mm X 8mm X 1.7mm
yOperating Temperature: -25℃~+75℃
Applications
y2.4-GHz Bluetooth low energy System
yHuman-Interface Devices
(Keyboard, Mouse, Remote Control)
ySports and Leisure Equipment
yProximity/Alert sensors
yConsumer Electronics
yiBeacon Station/Micro-loacation indoor
navigation
ySmart Phone Accessories
y
y
AntennaType:ChipAntenna
AntennaGain:0.5dBi(PeakGain)
CANSEC INTERNATIONAL LTD. WB822D User Manual V1.0.1
http://www.rf-products.com August 30 2017
——————————————————————————————————————
—
Page 2of 6

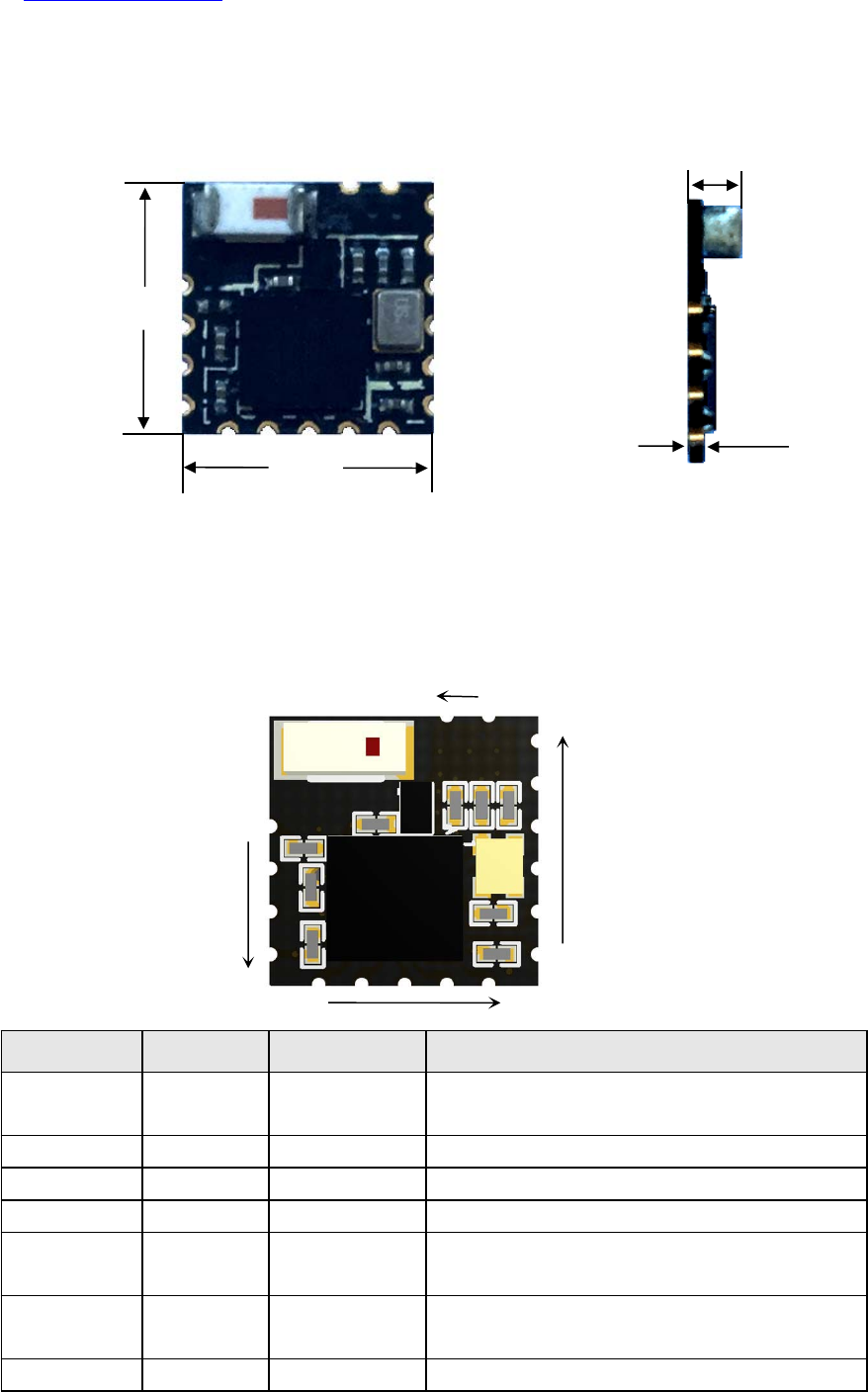

Mechanical Drawing
Terminal Description
Pad Number Name Function Description
1 SWDIO/nR
ESET
Digital I/O Programming I/O
2 SWDCLK Digital input HW debug and flash programming I/O
3 VDD Power 1.8V -3.6V Power Supply
4GNDGNDGround
5 P0.05/AIN6 Digital I/O
Analog input
General purpose I/O
ADC input 6
6 P0.03/AIN4 Digital I/O
Analog input
General purpose I/O
ADC input 4
7 P0.01/AIN2 Digital I/O General purpose I/O
8.00m
m
8.00m
m
1.80m
m
0.50m
m
Tolerance:±0.2mm
1
5
10
16
CANSEC INTERNATIONAL LTD. WB822D User Manual V1.0.1
http://www.rf-products.com August 30 2017
——————————————————————————————————————
—
Page 3of 6
Analog input ADC input 2
8 P0.02/AIN3 Digital I/O
Analog input
General purpose I/O
ADC input 3
9P0.00/ARE
F0
Digital I/O
Analog input
General purpose I/O
ADC Reference voltage
10 P0.27/AIN1
/XL1
Digital I/O
Analog input
General purpose I/O
ADC input 1
Crystal connection for 32.768kHz crystal
oscillator or external 32.768kHz crystal
reference
11 P0.26/AIN0
/XL2
Digital I/O
Analog input
Analog output
General purpose I/O
ADC input 0
Crystal connection for 32.768kHz crystal
oscillator
12 P0.24 Digital I/O General purpose I/O
13 P0.21 Digital I/O General purpose I/O
14 P0.22 Digital I/O General purpose I/O
15 P0.25 Digital I/O General purpose I/O
16 GND GND Ground
17 GND GND Ground

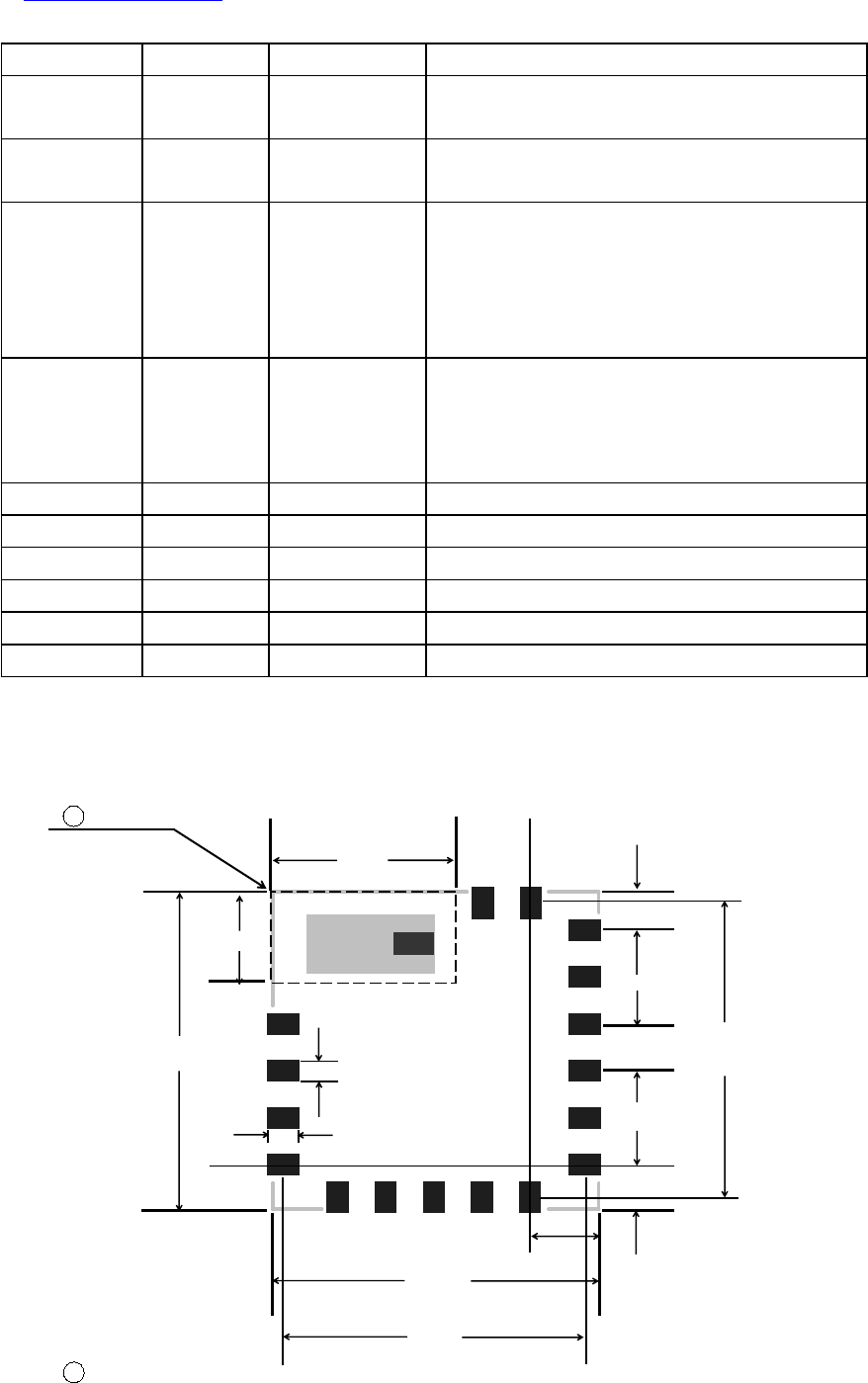

Recommended PCB Layout for Package
1
1Noted: Please make sure without any wiring or ground under the antenna area.
8.6mm
1.76mm
1.2mm
1.27mm
8mm
1mm
8.6mm
5mm
3mm
8mm
0.6m
m
0.9mm
CANSEC INTERNATIONAL LTD. WB822D User Manual V1.0.1
http://www.rf-products.com August 30 2017
——————————————————————————————————————
—
Page 4of 6
Operation Notice

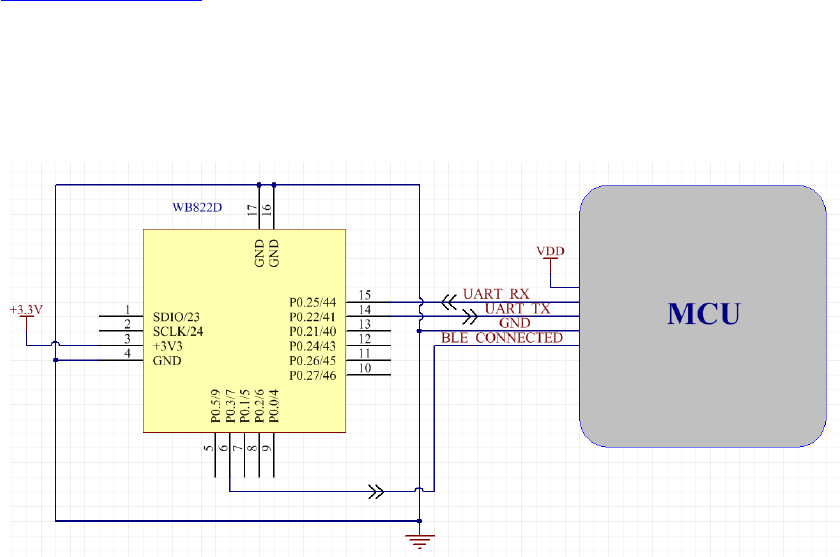

Connecting WB822D Module to MCU (on the main board) via UART Interface as below:
The WB822D module will start BLE broadcasting using a name “ACEUni_UART”. Run an
App (such as “LightBlue”) on the phone you can scan and connect to the WB822D module.
The BLE_CONNECTION pin will be pull high to indicate that the BLE Connected is
complete. And now the data transceiver is viable between the WB822D module and the
MCU.
For the MCU the UART Parameters are：
Baud rate: 115200bps
Start bits: 1
Data bits: 8
Stop bits: 1
Parity Check bits: none
CANSEC INTERNATIONAL LTD. WB822D User Manual V1.0.1
http://www.rf-products.com August 30 2017
——————————————————————————————————————
—
Page 5of 6

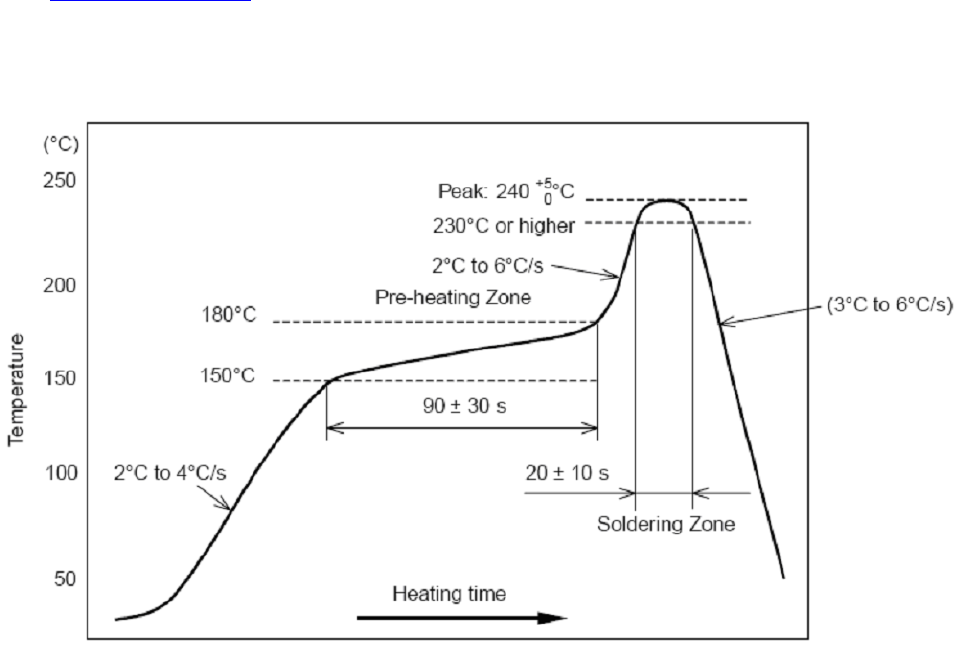

Soldering Recommendations
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CANSEC INTERNATIONAL LTD. WB822D User Manual V1.0.1
http://www.rf-products.com August 30 2017
——————————————————————————————————————
—
Page 6of 6
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
The WB822D (Bluetooth) module is designed to comply with the FCC statement. FCC ID is VVJ-WB822D.
The host system using WB822D(Bluetooth module) , should have label indicated it contain modular’s FCC
ID:VVJ-WB822D.
This radio module must not installed to co-locate and operating simultaneously with other radios in host syste
m , additional testing and equipment authorization may be required to operating simultaneously with other ra
dio.
