Beijing MADV Technology YKQ01FJ MADV Camera Remote Control User Manual

Beijing MADV Technology Co. Ltd MADV Camera Remote Control

User Manual

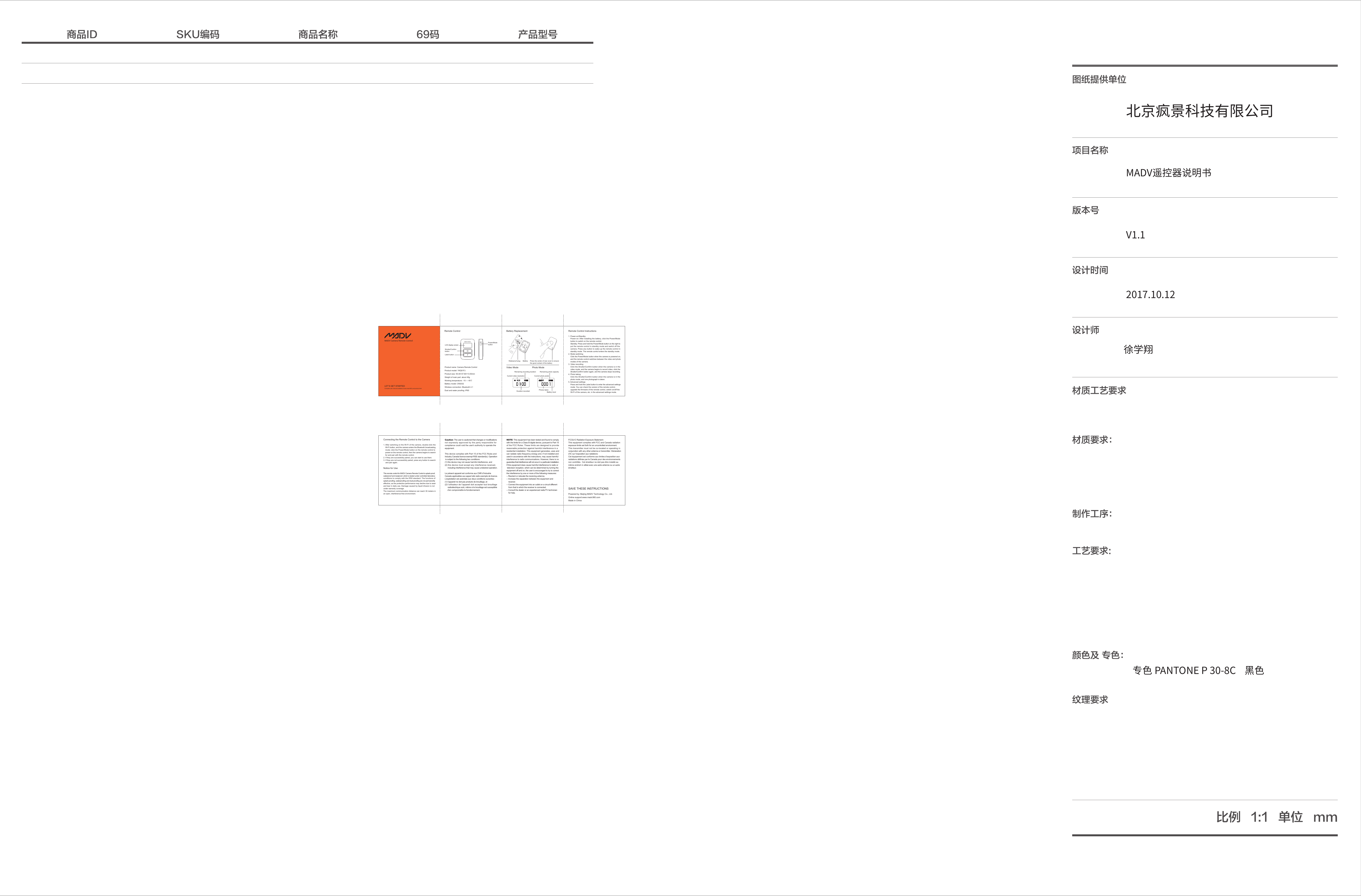

北京疯景科技有限公司MADV遥控器说明书V1.12017.10.12徐学翔专色 PANTONE P 30-8C 黑色Remote ControlMODEShutter/Confirm buttonLabel buttonPower/Mode buttonLCD display screenSphere CameraProduct name: Camera Remote ControlProduct model: YKQ01FJProduct size: 55.40×37.60×13.00mmWeight of main part: about 45gWorking temperature: -10 — 45℃Battery model: CR2032Wireless connection: Bluetooth 4.1Dust and water proofing: IP65Battery ReplacementBatteryCurrent photo pixelsRemaining photo capacityCurrent video resolutionRemaining recording durationDuration recorded Battery levelPhoto ModeVideo ModePress the center of rear cover to ensure the good contact of the batteryWaterproof plugPhotos takenMADV Camera Remote Control LET’S GET STARTEDComplete user manual available at www.madv360.com/product.htmlSAVE THESE INSTRUCTIONSPowered by: Beijing MADV Technology Co., Ltd. Online support:www.madv360.comMade in ChinaRemote Control Instructions1. Power-on/StandbyPower-on: After installing the battery, click the Power/Mode button to switch on the remote control;Standby: Press and hold the Power/Mode button on the right to put the remote control in standby mode and switch off the camera. Press any button to wake up the remote control in standby mode. The remote control enters the standby mode.2. Mode switchingClick the Power/Mode button when the camera is powered on, and the remote control switches between the video and photo modes of the camera.3. Video recordingClick the Shutter/Confirm button when the camera is in the video mode, and the camera begins to record video; click the Shutter/Confirm button again, and the camera stops recording.4. Photo takingClick the Shutter/Confirm button when the camera is in the photo mode, and one photograph is taken.5. Advanced settingsPress and hold the Label button to enter the advanced settings mode. You can check the version of the remote control, upgrade the firmware of the remote control, switch on/off the Wi-Fi of the camera, etc. in the advanced settings mode.Connecting the Remote Control to the Camera1. After switching on the Wi-Fi of the camera, double-click the Wi-Fi button, and the camera enters the Bluetooth broadcasting mode; click the Power/Mode button on the remote control to power-on the remote control, then the camera begins to search for and pair with the remote control.2. If they are successfully paired, you can start to use them.3. If they are not successfully paired, press any button to searchand pair again.Notice for UseThis remote control for MADV Camera Remote Control is splash-proof, waterproof and dustproof, which is tested under controlled laboratory conditions to comply with the IP65 standard. The functions of splash-proofing, waterproofing and dust-proofing are not permanently effective, as the protective performance may decline due to wear and tear in daily use. Damage caused by liquid infusion is not under warranty coverage.The maximum communication distance can reach 30 meters in an open, interference-free environment.Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appar=eils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.FCC& IC Radiation Exposure Statement:This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Déclaration d’IC sur l’exposition aux radiations:Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des environnements non contrôlés. Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur.
