Beijing Polycon Medical Engineering RC2200 XAE Remote controller User Manual x
Beijing Polycon Medical Engineering Company XAE Remote controller x
Users Manual
XAERemoteControllerUserManual
1、Product Introduction
RC 2200 remote controller easy to operate,suitable for Motorized Ceiling
Suspension Tube Stand (C2200) and Motorized Wall Stand (S1800) motion
control，Example as follows：
ModelNumber:RC2200

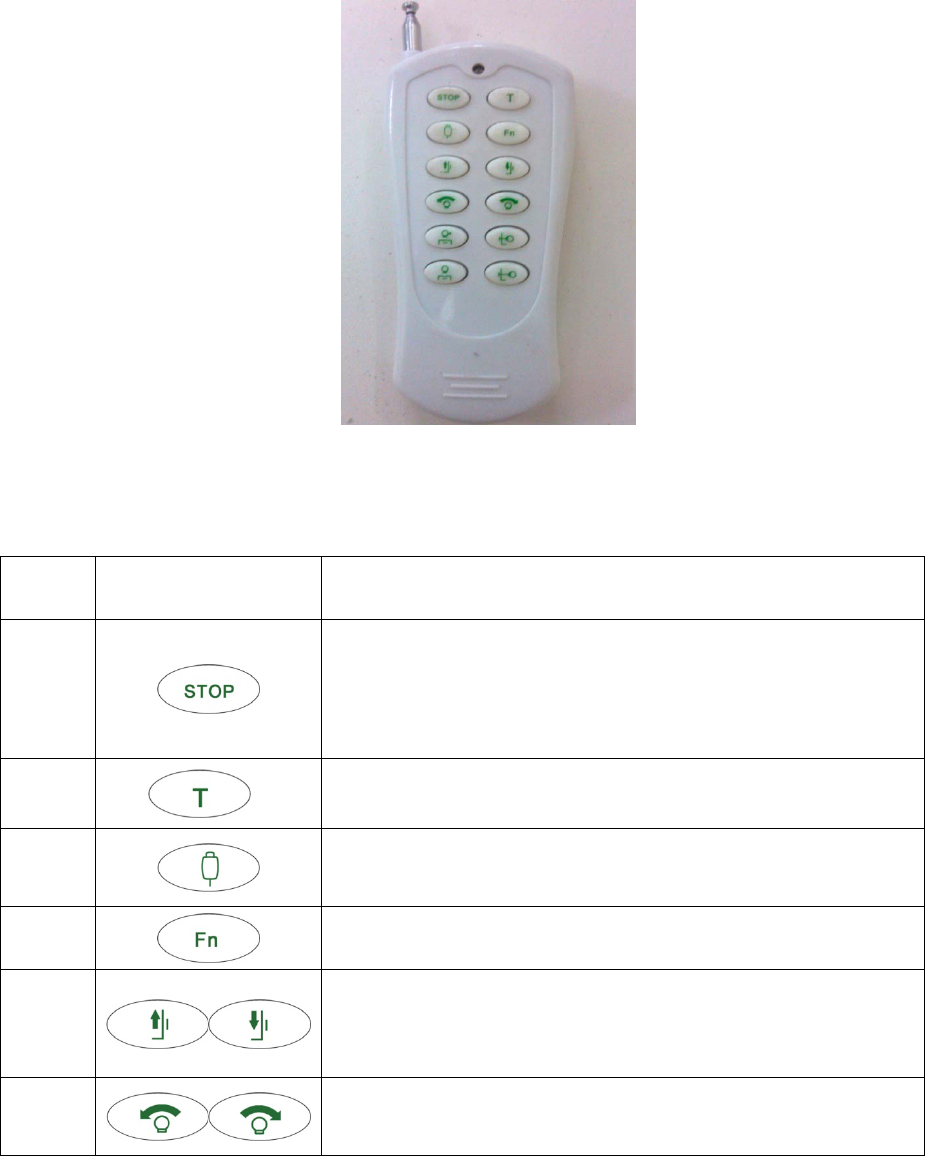

3、WirelessControlPadButtonFunctions
No. Picture Function description
1
Emergency STOP Key: by pressing the STOP key all
movement will be stopped. Once pressed, STOP icon on touch
screen will flash. Press again STOP icon will stop flashing and
operate in normal mode.
2 Extensionkey
3 API control key (option)
4 Extensionkey
5、6
Detector up / down movement - pressing and hold, the
detector move up or down, release the key to stop motion.
Touch the key when the key was red.
7、8
Press and hold, X-ray tube rotates in direction of
counterclockwise or clockwise.

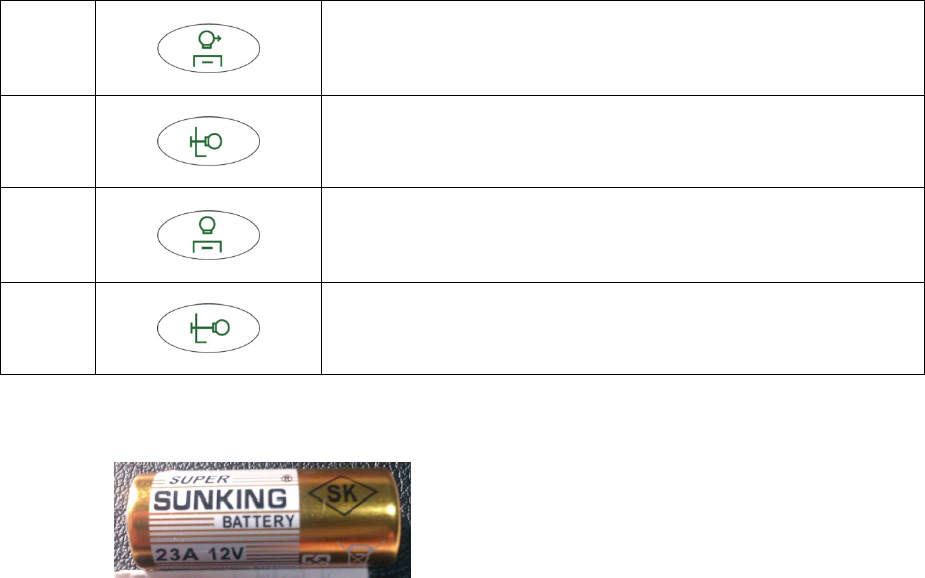

9
TablepositionKeyB‐‐Press and hold, thetubewillbe
automaticallymovedtothepre‐setposition, runningaredflashingkey
toresumenormalpositionisreached.
10
Chest positionKey 1 -- Press and hold , the tube will be
automatically moved to the pre-set position at SID=1m.
11
TablepositionKeyA‐Press and hold ,thetubewill
automaticallymovestothepre‐setposition, runningaredflashingkey
toresumenormalpositionisreached.
12
Chest positionKey 2 -- Press and hold , the tube will be
automatically moved to the pre-set position at SID=1.8m.
4、Battery requirements
The remote controller battery specification is A23 Size E23A +12V

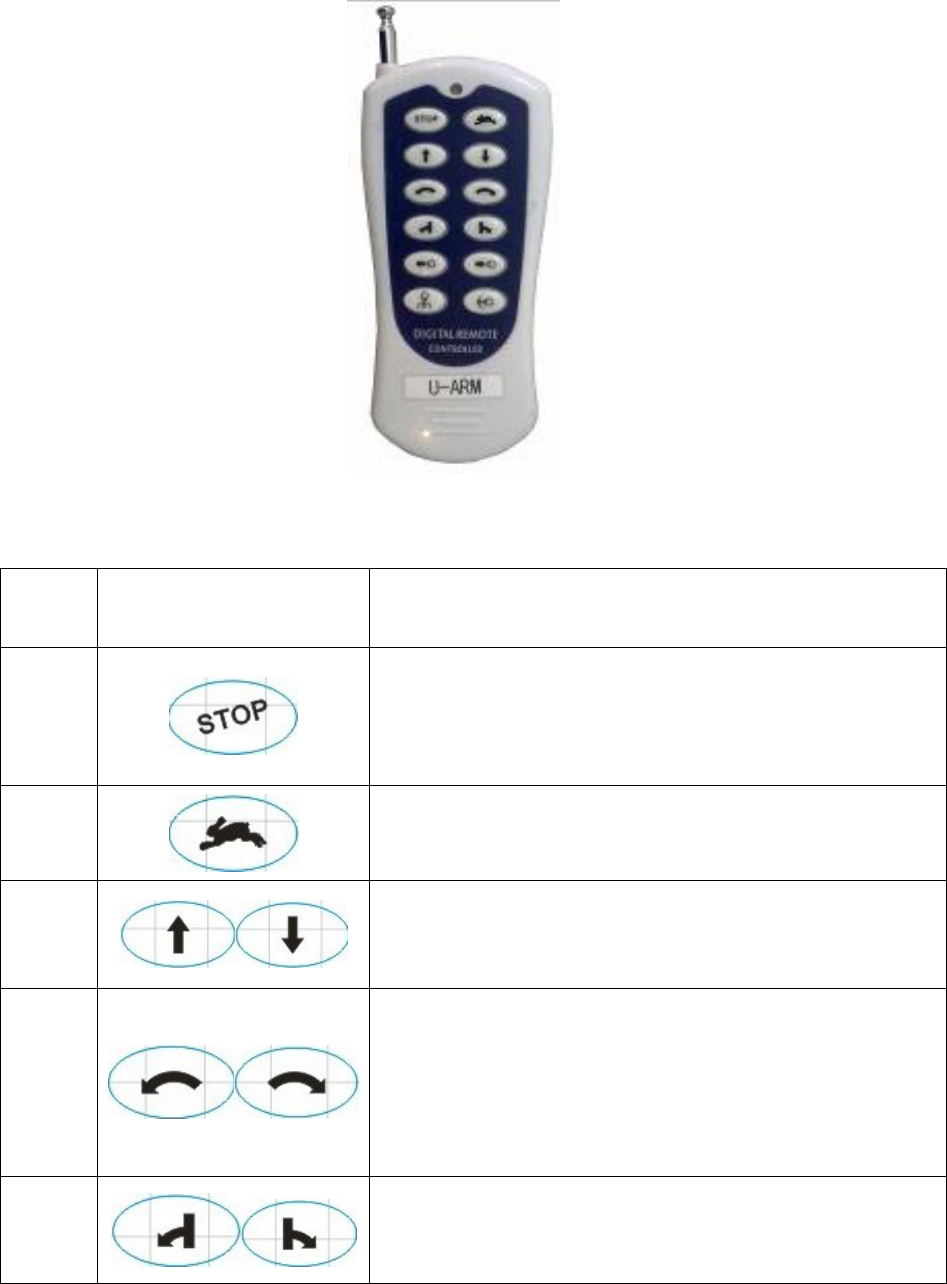

The RC 1600 remote controller to make uc arm to position up/down, rotation, SID
adjustment and rotation of detector.， Example as follows：
ModelNumber:RC1600
WirelessControlPadButtonFunctions
No. Picture Function description
1
Emergency stop switch : press stop switch will be stop any
movement. Once touch switch and the picture will be flash.
Touch it again picture will stable and operate in normal
situation.
2
Speed key. Fast speed and lower speed.
3
Arm movement in up/down direction. Stop in max. top and
min. bottom.
4
U arm rotation key, arm move to 0 º and 90 º will stop once
and if you keep to press key the movement will be continue.
The u arm will move up when arm rotate to close floor. U
arm rotate from 0 º to+ 120 º /-30 º.
Attention : The over rotation will be mangle the cables in
the arm.
5
The press keys for rotation detector. Move in clockwise +2
5 º and anticlockwise -45 º. It will be stop at 0 ºposition .
It will stop once when move to 0 º, if keep press key the
movement will be continue.

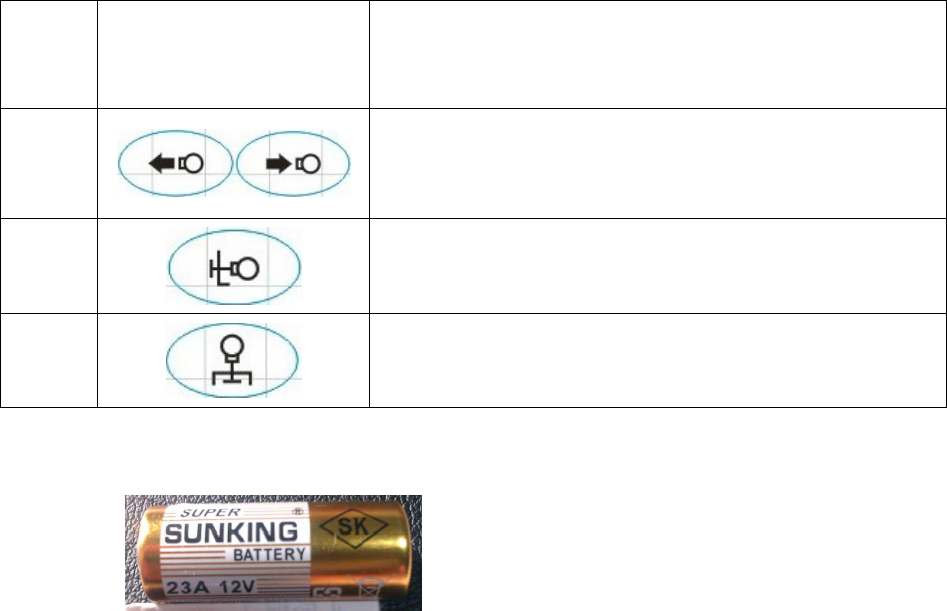

6
SID movement control. The movement stop when the key
release.It will stop at 1 m and 1.8 m position.
7
The keep touch key for chest position (1 m stand position).
8
Keep touch key for table position. Any time loosen the key
the movement will be stop. The high of detector position
may re-set through the setting program.
Batteryrequirements
The remote controller battery specification is A23 Size E23A +12V
DeclarationofConformity
This device complies with Part 15 of the FCC Rules. Its operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Please take attention that changes or modification not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
Note: This product has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
