Beijing Roborock Technology RS001 S501-01, S551-01 User Manual

Beijing Roborock Technology Co., Ltd. S501-01, S551-01

User manual

Roborock Robotic Vacuum Cleaner Manual
Please read this manual carefully before using the product and keep it properly
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THISAPPLIANCE), Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
WARNING
To reduce the risk of fire, electric shock, or injury:
·Do not use outdoors or on wet surfaces
·Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
·Use only as described in this manual. Use only manufacturer’s recommended attachments
·Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
·Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
·Do not run appliance over cord. Keep cord away from heated surfaces.
·Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
·Do not handle charger, including charger plug, and charger terminals with wet hands
·Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
·Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
·Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
·Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
·Do not use without dust bag.
·Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking
up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that
have the switch on invites accidents.
·For use only with Roborock CDZ02RR charger.Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
·Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of
injury and fire.
·When battery pack is not in use, keep it away from other metal objects, like paper clips,coins, keys, nails, screws or
other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
Security Information
1
·Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
·Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk of injury.
·Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above
130°C may cause explosion.
·Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range
specified in the instructions. Charging improperly or at temperatures
outside of the specified range may damage the battery and increase the risk of fire.
Have servicing performed by a qualified repair person using only identical replacement parts.This will ensure that
the safety of the product is maintained.
·Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use
and care.
·Place the cords from other appliances out of the area to be cleaned.
·Do not operate the vacuum in a room where an infant or child is sleeping.
·Do not operate the vacuum in an area where there are lit candles or fragile objects on the
floor to be cleaned.
·Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may
accidentally hit or bump into.
·Do not allow children to sit on the vacuum.
·Do not use the vacuum cleaner on a wet surface.
·Risk Of Injury. Brush May Start Unexpectedly.Disconnect the main Brush Before Cleaning or Servicing.
·Do not use the product when the temperature is higher than 40℃ or lower than 4℃, or there is any liquid or sticky
substance on the floor
SAVE THESE INSTRUCTIONS
Household use only.
Security Information
2
IMPORTANTES MESURES DE S CURIT
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CETAPPAREIL), Le non-respect des mises en
garde et des instructions peut causer des chocs électriques, des incendies et/ou des blessures graves.
AVERTISSEMENT
Pour réduire les risques d’incendie, de choc électrique ou de blessure:
·Ne pas exposer à la pluie, Ranger à l’intérieur.
·Ne pas permettre aux enfants de jouer avec l’appareil. Une attention particulière est nécessaire lorsque l’
appareil est utilize par des enfants ou à proximité de ces derniers.
·N’utiliser que conformément à cette notice avec les accessories recommandés par le fabricant.
·Ne pas utiliser si le cordon ou la fiche est endommagé. Retourner l’appareil à un atelier de reparation s’il
ne fonctionne pas bien, s’il est tombé ou s’il a été endommagé, oublié à l’extérieur ou immergé.
·Ne pas tirer soulever ni trainer l’appareil par le cordon. Ne pas utiliser le cordon comme une poignée, le
coincer dans l’embrasure d’une porte ou l’appuyer contre des arêtes vives ou des coins. Ne pas faire rouler l’
appareil sur le cordon. Garder le cordonà l’écart des surfaces chaudes.
·Ne pas débrancher en tyrant sur le cordon. Tirer plutt la fiche.
·Ne pas manipuler le chargeur, y compris la prise du chargeur, et les bornes du chargeur avec les mains mouillées
·N’insérer aucun objet dans les ouvertures. Ne pas utiliser l’appareil lorsqu’une ouverture est bloquée. S’
assurer que de la poussière, de la peluche, des cheveux ou d’autres matières ne réduisent pas le debit d’air.
·Maintenir les cheveux, les vêtements amples, les doigts et toutes les parties du corps à l’écart des ouvertures
et des pieces mobiles.
·User de prudence lors du nettoyage des escaliers.
·Ne pas aspirer des liquids inflammables ou combustibles, comme de l’essence, et ne pas faire fonctionner dans
des endroits où peuvent se trouver de tells liquides.
·Ne pas aspirer de matières en combustion ou qui dégagent de la fumée, comme des cigarettes, des allumettes
ou des cendres chaudes.
·Ne pas utiliser l’appareil si le sac à poussière ou le filter n’est pas en place.
Security Information
3
· Emêcher une mise en marche accidentelle. S’assurer que l’interrupteur est à la position arrêt avant de
raccorder la batterie, de lever ou de déplacer l’appareil. Transporter
l’appareil en gardant un doigt sur l’interrupteur, ou mettre sous tension un appareil dont l’interrupteur est
à la position marche peut causer un accident.
·Pour emploi seulement avec Roborock CDZ02RR chargeur.Recharger uniquement avec le chargeur prescrit
par le fabricant. Un chargeur convenant à un type de batterie peut présenter un risque d’incendie lorsqu’il est
utilisé avec une autre batterie.
·Utiliser uniquement les batteries recommandées pour l’appareil. L’utilisation d’autres types de batteries
peut présenter un risque de blessure ou d’incendie.
·Lorsque l’appareil n’est pas utilisé, tenir la batterie loin d’objets métalliques comme des trombones,
des pièces de monnaie, des clés, des clous, des vis ou autres petits objets
qui pourraient établir une liaison entre les bornes. Un courtcircuit des bornes des batteries peut causer
des brûlures ou un incendie.
·En condition d’usage abusif, du liquide peut s’échapper de la batterie ; éviter tout contact avec ce
liquide. En cas de contact accidentel, rincer abondamment avec de l’eau. En cas de contact avec les yeux,
consulter également un médecin. Le liquide projeté peut causer des irritations ou des brûlures.
·Ne pas utiliser une batterie ou un appareil endommagé ou qui a été modifié. Des batteries
endommagées ou modifies peuvent avoir un comportement imprévisible pouvant causer un incendie,
une explosion ou un risque de blessure.
·Ne pas exposer une batterie ou un appareil à la flamme ou à des températures excessives.
L’exposition à une flamme ou à des températures supérieures à 130 °C peut causer une explosion.
·Respecter toutes les instructions de chargement et ne pas charger la batterie ou l’appareil à des
températures qui ne sont pas incluses dans la gamme de températures indiquées dans la notice
d’instructions. Un chargement mal effctué.
·Confier les réparations à une personne qualifiée qui utilisera uniquement des pièces de remplacement
identiques. Cette façon de faire garantira la sécurité du produit.
·Ne pas modifier ni tenter de réparer l’appareil ou la batterie sauf comme il est indiqué dans les
instructions d’utilisation et d’entretien.
·Éloigner les cordons d’autres appareils de la zone à nettoyer.
Security Information
4
Security Information
·Ne pas utiliser l’aspirateur dans une pièce où un nourrisson ou un enfant dort.
·Ne pas utiliser l’aspirateur dans un endroit où il ya des bougies allumées ou des objets fragiles sur le
plancher à nettoyer.
·Ne pas utiliser l’aspirateur dans une pièce où il ya des bougies allumées sur les meubles que l’aspirateur
peut heurter ou se cogner accidentellement.
· Ne pas laisser les enfants s’assoir sur l’aspirateur.
·Ne pas utiliser l’aspirateur sur une surface mouillée.
Risque de blessures. La brosse motorisée peut se mettre en marche d’une manière imprévue.
Déconnecter la brosse principale avant le nettoyage ou le service.
Please do not use the product when the temperature is higher than 40℃ or lower
than 4℃, or there is any liquid or sticky substance on the floor
5
Security Information
�����������������������������
This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, mê
me si le brouillage est susceptible d'en compromettre le fonctionnement.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and
7
Security Information
used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
MPE Requirements
To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or
more should be maintained between the antenna of this device and persons during
device operation.
To ensure compliance, operations at closer than this distance is not recommended.
8
Battery and Charging
Please keep the dock charger away from heat (such as heating plates)
The battery must be removed from the appliance before it is scrapped
Do not wipe or clean the chargers shrapnel with a piece of wet cloth or wet hands
Please make sure the cleaner is powered off in shipment and original packaging is advised
If left unused for a long period, please store the cleaner in a cool and dry place after
having it fully charged and switched off, charge it at least every three months to avoid the
battery being over discharged
The battery is to be disposed of safely.Please do not discard waste batteries. Leave them
to a professional recycling organization
The appliance must be disconnected from the supply mains when removing the battery
6
Battery pack charging temperature
Battery pack using temperature
0℃~45℃ @Max Charging Current：0.5C
-20℃~60℃ @Max Discharge Current：0.5C
Battery pack storage
temperature
Storage(1month) -20℃~60℃
@Less than 70% RH
If the battery pack store at 25℃over the 3
months period, it should be recharged.
Long Storage(3months) -20℃~45℃
@Less than 70% RH
Long Storage(1year) -20 ℃~20 ℃
@Less than 70% RH

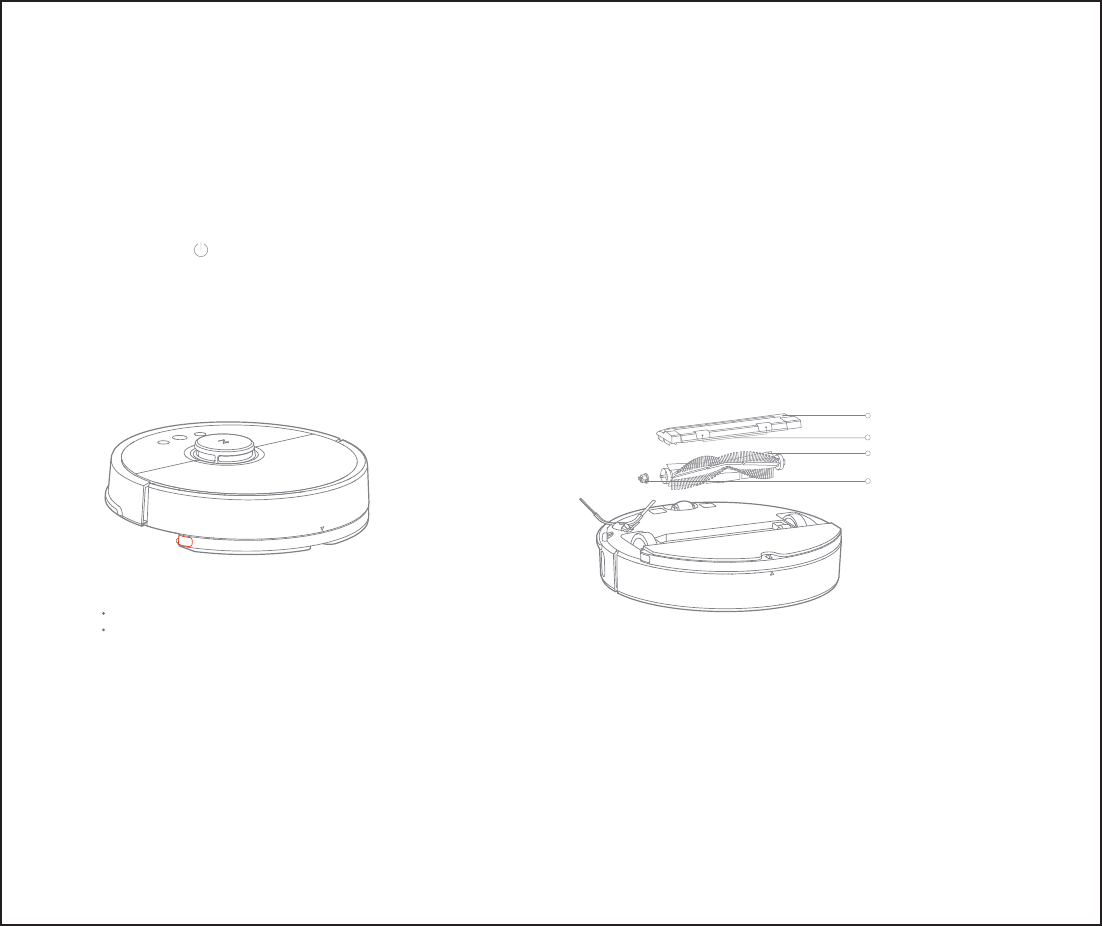

Bumper
LDS*Laser distance sensor
LDS cover
bumper sensor

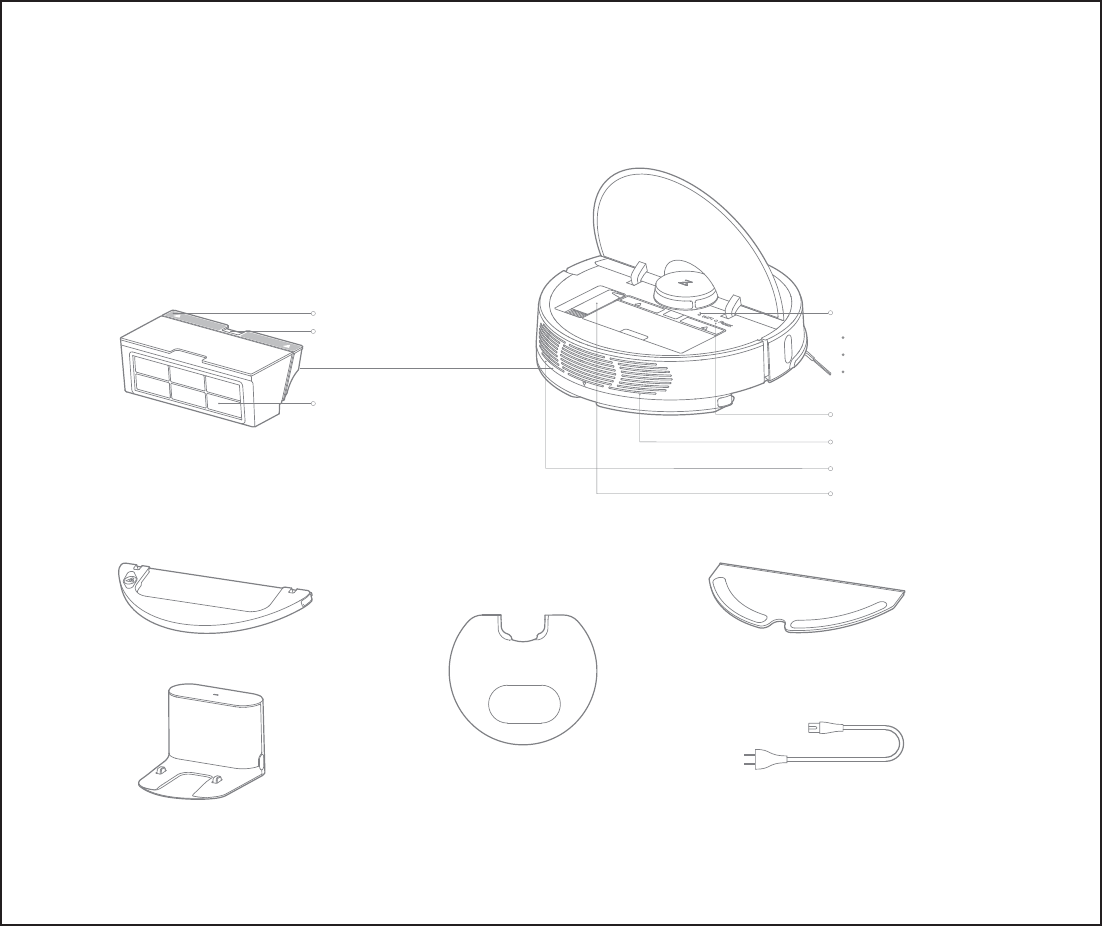

Main Unit
Product Introduction
10
Open lid
Circular indicator light
White: power ≥20%
Red: power ＜20%
Slow blinking: charging or launching
Red flash: fault status
Cleaning On/Off
Short press to start cleaning
Press and hold to turn on or off
Spot cleaning
Short press to start regional cleaning
Note:
Press any button to stop
the robotic vacuum during cleaning,
recharging, or spot cleaning
Recharge
Short press to start recharging
Reset Wi-Fi
Press the spot cleaning button
and the recharge button
at the same time for 3 seconds
Side brush
Omni-directional
wheel
Charging contact pieces
Wall sensor
Main brush
Main wheel
Buckle of main
brush cover
Cliff sensor
Dust Bin
Product Introduction
11
Wi-Fi indicator light
Slow blinking: Waiting to connect
Fast blinking: Connecting
Stable light: Wi-Fi is connected
Filter
Dust bin buckle
System Reset button
Speaker
Air vent
Cleaning tool of main brush
Dust bin lid
Accessories
Power cable
Dock charger
Mopping cloth
Water tank
Moistureproof mat
Installation
12
3
Connect to the mobile phone client4
Search "Mi Home" in the App Store or scan the QR code to download
and install the mobile phone client.
Turn on and charge the machine
The color of the circular light
indicator refers to the quantity
of electricity
White: power ≥20%
Red: power ＜20%
Note: Robotic vacuum cleaner may not be powered on when battery is low,
connect the robotic vacuum cleaner to the dock charger.
Plug the dock charger into the interface of the
moistureproof mat, and make sure it's firmly
installed.
Keep the dock charger on a level surface, flat
against a wall, plug into power outlet.
This moistureproof mat can keep the floor dry
Ensure to leave enough space to the dock charger
(0.5 meters on both sides, more than 1.5 meters in the front).
It will cause unexpected power outages and/or dock charger displacement if
the power cable is dragged by main unit accidentally due to disorganized placed.
The dock charger indicator is on after it's plugged into power outlet,
the indicator is off when main unit is being charged.
More than 1.5 meters
More than 0.5 meters
More than 0.5 meters
Press and hold the button to turn on the main unit ,wait until
the indicator light is on for a while ,then place the main unit on
the dock charger to charge.
Installation

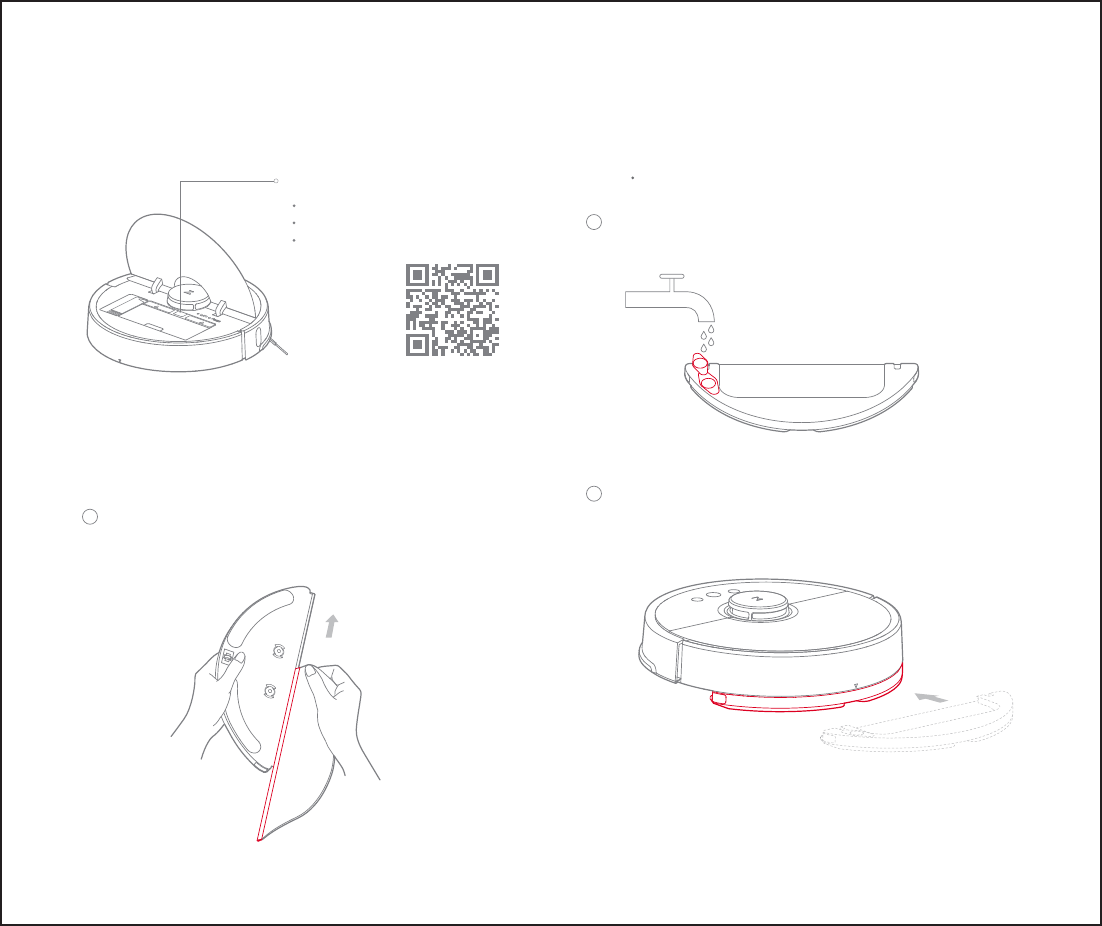

Install the mopping cloth: Wet the mopping cloth and wring it
until it doesn't drip.
.
Insert it into the bottom along the slot of the water tank and stick
it firmly.
Install the mopping module5
1
Note: If the mobile phone fails to connect to the cleaner, please refer to
the "Instruction" - "Reset Wi-Fi" operation
Note:
Do not use the mopping module when no one is at home
Install the module: Push in the module along the bottom of the
main unit and follow the alignment mark on the mopping module.
A click sound means it is installed properly.
Fill the water tank: Open the tank lid, fill it with water, and put
back the tank lid.
13
Slow blinking: Waiting to connect
Fast blinking: Connecting
Stable light: Wi-Fi is connected
2
3
Wi-Fi indicator light
Note:In order to achieve a better mopping effect, it is recommended to use the main unit
to clean the floor three times before install the mopping module.
Scan to download the APP
Please use moistureproof mat if you put the dock charger on wood floor
Installation
When the circular indicator light on the main unit changes from
slow blinking to stable, it means charging has completed. Briefly
press button or start cleaning through the mobile phone client.
Start cleaning6
When the main unit is back on the dock charger after cleaning,
press the buckles on both sides by hand, drag and remove the
mopping module.
Remove the mopping module7
14
Operating Instruction
Note:
Remove tank when charging or not in use
Note: It is recommended to replace the main brush every 6-12 months
so as to ensure it cleans effectively.
Main brush * Clean it every week as recommended
1. Turn over the machine, press the buckle and take off the cover.
2. Take out the main brush in an upwards movement and clean
the bearing of the main brush.
3. Use the matching cleaning tool of the main brush to cut off the
hairs entangled on the main brush.
4. Install the main brush, press tight the cover and fix the buckle.
Buckle
Main brush cover
Main brush
Bearing of the main brush
Daily Maintenance
15

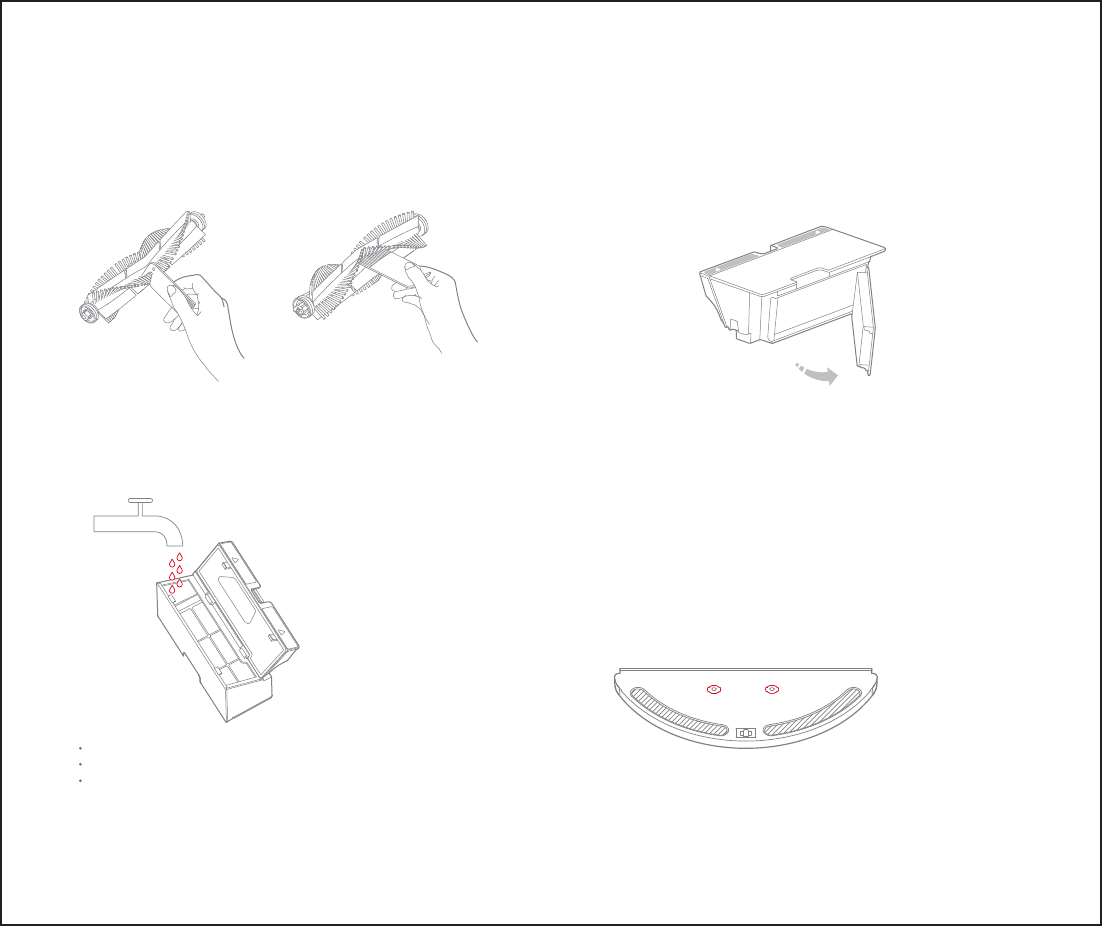

Instruction for using the cleaning tool of the main brush
Wash the filter by water only, detergents are not allowed to use.
Please do not use finger or brush to clean the filter to avoid any possible damage.
Change of filter
Please remove the filter and replace it as shown in the picture.
Water tank filter element component
* It is recommended to replace it every 1-3 months
1. Use your finger to remove the two filter element component
from the gap.
2. Fit the new filter element and make sure it is in the right place .
Note: It is recommended to replace the filter element component every 1-3
months so as to ensure effective cleaning
Please dry out the filter at least for 24 hours after washing.
Pour the water into the dust bin, close the dust bin cover, shake
the dust bin left and right, pour out the dirty water, repeat this
step several times, until the filter clean.
Note:
Daily Maintenance
16
Note: You may rinse it with tap water and install it after it gets dry
1. Turn over the machine and take out the omni-directional
wheel by pulling upwards.
2. Clean the hair and dirt off the wheel and the axle.
3. Install the wheel and press it tight.
Omni-directional wheel
* It is recommended to clean it every month
Wheel
Axle
Supporting frame
Main Unit Sensor
Wipe the sensors of the main unit with a soft, dry cloth, including:
1. The four cliff sensors at the bottom of the main unit.
2. The wall sensor on the right side of the main unit.
3. The charging contact pieces at the bottom of the main unit.
Omni-directional wheel
Charging contact pieces
Side brush
Cliff sensor
Dock Charger
* It is recommended to clean it every month.
Wipe the battery connectors of the dock charger
with a soft, dry cloth.
Restore Factory Settings
If the machine does not function properly after resetting, please
hold the button when the machine is on, and press the reset
button at the same time, until you hear the voice prompt "start
restoring the initial version", then the main unit has been restored
to the factory settings.
Wall sensor
Basic Parameters
Dock Charger
Main Unit
353 350 96.5mm
Lithium-ion battery 14.4V/5200mAh
Item
Size
Battery
Rated Power
Weight
Parameters
58W
3.5kg
Wireless
Rated Voltage
Smart connect
14.4V DC
Parameters
42W
100-240V AC
50/60Hz
151 130 98mm
Item
Size
Rated Power
Rated Input
Rated Output
Rated Frequency
20V DC 1.8A
Robotic Vacuum Cleaner
If you need after-sales service, please visit Roborock's official website at www.roborock.com
or call the customer service at 400-900-1755
or follow Roborock's official WeChat account at：石头科技roborock
Manufacturer: Beijing Roborock Technology Co., Ltd.
Product Model: S50****, S55**** （* can be 0 to 9, A to Z, a to z, "-", "_", "\", "/" or blank, for marketing purpose.)
Address of Manufacturer: Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza,
No. 8 Heiquan Road, Haidian District, Beijing, P.R. CHINA
17

Navigation menu
