Manual Operation
1
User Guide on installation of
TPCAST Wireless Adaptor for
Oculus
CE-02H-UG-EN-001
1
1
2
3
4
5
6
7
Installation of Software Client
What's in the box?
Instructions of main components
Connection instructions
Operation instructions
Instructions on setup of PC transmitter
Safety and note
Frequently asked questions
8
CONTENTS
2
TPCAST Wireless Adaptor for Oculus and portable power bank
will get warm in the normal usage, if the partial temperature
reached 120 F, please stop using, in order to avoid burning people or
other hazards.
Because there is no cable effect, you should pay attention to
the safety of game area during using TPCAST Wireless Adaptor for
Oculus, to ensure that will not touch to the surrounding objects, or
take the experience under the care of others.
Please read the user guide prior to operating of the product. Update the
soft copy of user guide on a regular basis to improve the accuracy and
completeness. Please visit the website of www.tpcastvr.com to get the up-to-
date version.
TPCAST customer service: 18884662479
3

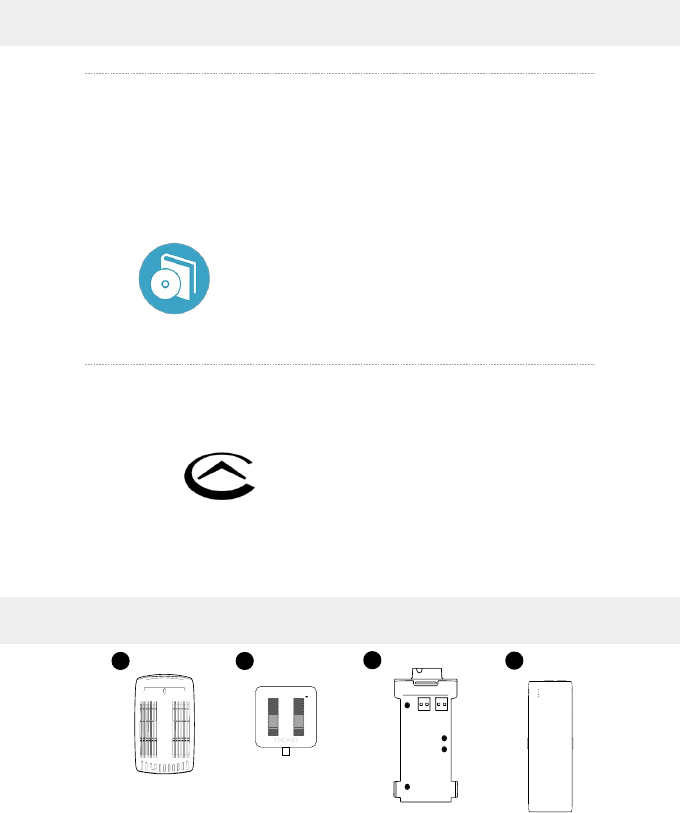

1. CLIENT SOFTWARE INSTALLATION
1. Download the software client
Visit the website of TPCAST which is www.tpcastvr.com and log in, browse the page of
TPCAST wireless adaptor for Oculus, click to download the connection assistant for Oculus.
The current version of client is compatible with Windows 7, Windows 8 or later version,
Windows 10.
Click here to download TPCAST wireless adapter
installation software version
2. Install the connection assistant software
1) Double click the icon to run the downloaded .exe le for installation. If already installed
any other versions of the client, please uninstall and restart the PC according to the prompt.
2) Following the system instructions, select the installation path and finish the client
installation. A shortcut icon of the connection assistant will be generated on the desktop.
2

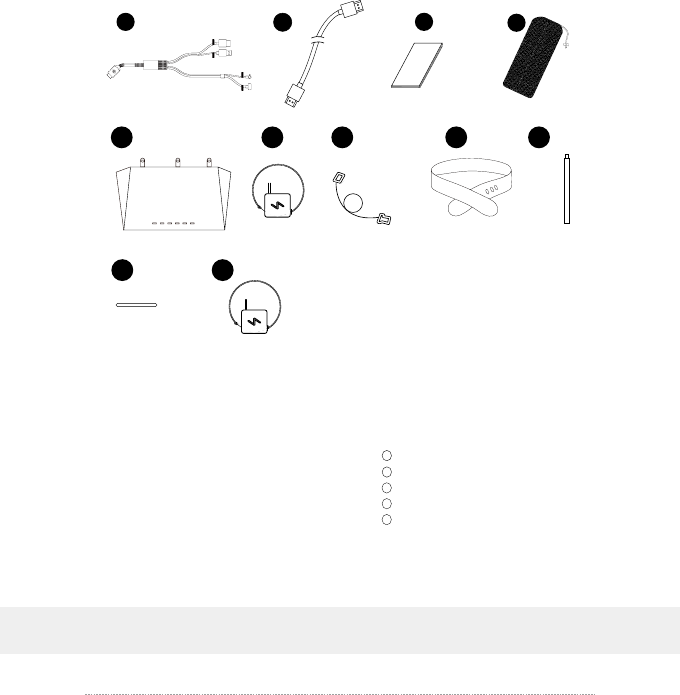

WHAT'S IN THE BOX
.
www.tpcastvr.com/support-oculus
TPCAST Oculus Setup.exe
1 2 34
4
① HMD receiver
② PC transmitter
③ Power box
④ Portable Power bank of 20100mAh
⑤ Dedicated cable for long distance connection
⑥ HDMI cable
⑦ Instructions and warranty card

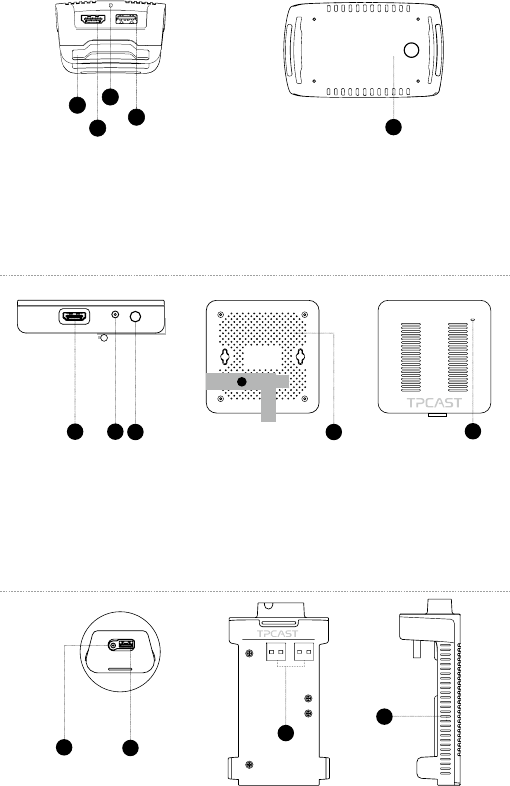

3. COMPONENTS DESCRIPTION
1. HMD receiver
910 11 12 13
14 15
578
6
A1 A2
B1 B2
12
11
13
14
15
⑧ Nylon bag
⑨ Router
⑩ Router power supply
Network cable
Belt
PC transmitter Rod
PC transmitter Chassis
PC transmitter power supply
5
① HMD strap and cable port
② HDMI short connection port
③ Indicator for video signal connection
④ USB port
⑤ Video link pairing button
2. PC transmitter
① HDMI connection port
② DCIN power port
③ Video link pairing button
④ Port for xing the platform
⑤ Indicator for video signal connection
3. Power Box
1 2 3 4 5
12
3
4
5
1
2
3
4
6
① DCIN power port for dedicated long distance connection cable
② USB port for dedicated long distance connection cable
③ Battery connector, USB port
④ Indicator light

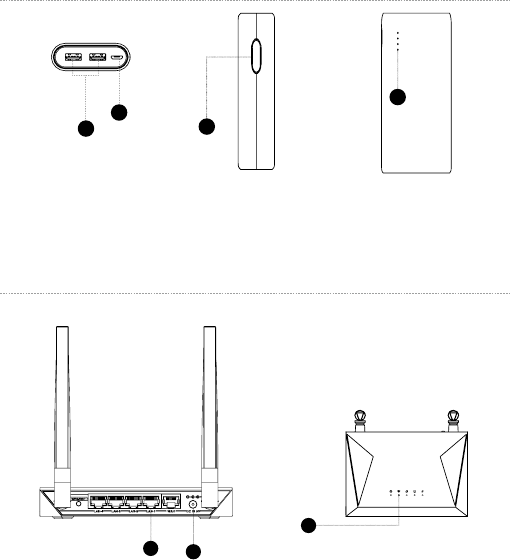

4. Portable power bank
① USB power output port
② Micro USB charging port
③ Battery indicator button
④ Battery indicator
5. Router
① Network cable port
② Router power adaptor port
③ Status light for the router
1
2
4
3
2
3
1
7

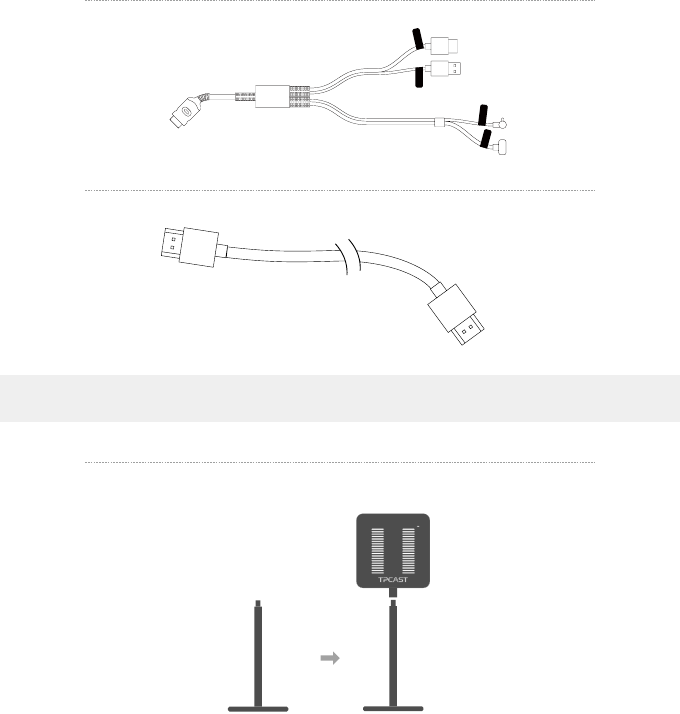

6. Cable
Dedicated cable for long distance connection
7. HDMI cable
4. CONNECTION INSTRUCTIONS
1. PC transmitter connection instructions
Step one: Screw the support rod onto the chassis, and then screw the PC transmitter onto
the support rod.
Step two: Plug the PC transmitter power adaptor DC plug into the DCIN interface. Insert one
end of the HDMI cable into the PC transmitter's HDMI port and the other end into the PC's
1 2
A2
A1
B1
B2
8
HDMI port.

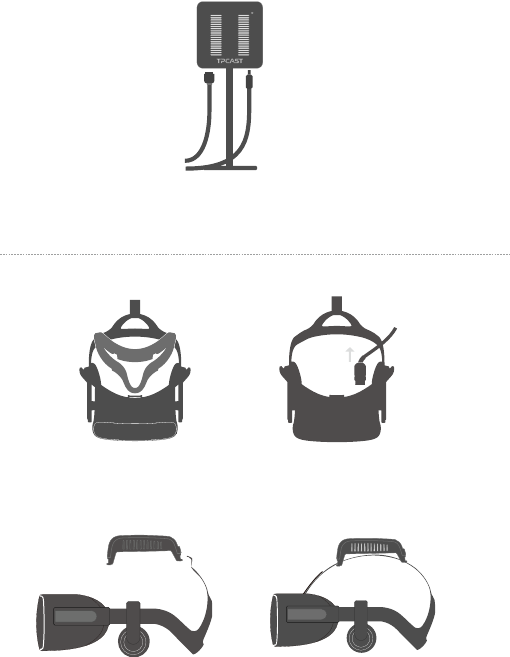

Step three: Adjust the location and angle of the PC transmitter to face the gaming area.
2.Connecting the HMD receiver
Step one: Referring to the angles shown in the illustration, remove the helmet's foam
bracket, unplug the cables, and take out from the head strap.
Step two: As shown in the illustration, thread the HMD strap through the tail end of the
helmet's receiver and out from the front end marked with the letters "TPCAST". Then, pass it
through the helmet's wire hole and secure it.
Step three: Insert the connectors of the dedicated long connection cable marked with
the Oculus logo into the interfaces on the helmet. Insert connectors A1 and A2 into the
corresponding interfaces on the helmet receiver.
9

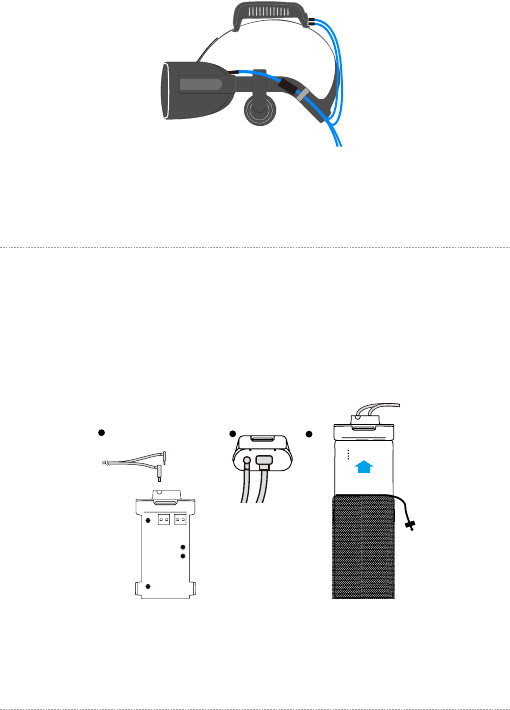

Step four: Straighten out the cable and reattach the foam bracket. Adjust the strap length to
t the user and ensure the cable connections are secure.
3. Power box connection instructions
Step one: As shown in the gure, insert connectors B1 and B2 of the dedicated long
connection cable into the power supply and HDMI ports on the power box respectively.
Step two: As shown in the gure, plug in the battery to the power box. The blue battery
light on the battery turns on to indicate the remaining level. To improve the utilization rate
of battery capacity, please only connect to the portable power bank before operation of the
product. After the operation, remove the portable power bank.
Step three: Put the installed battery and the power box in a portable pack and string the
pack to ensure the power box, does not fall during motion.
4. Router connection instructions
Step one: Connect the router power adaptor and conrm power indicator on the front of
panel is on.

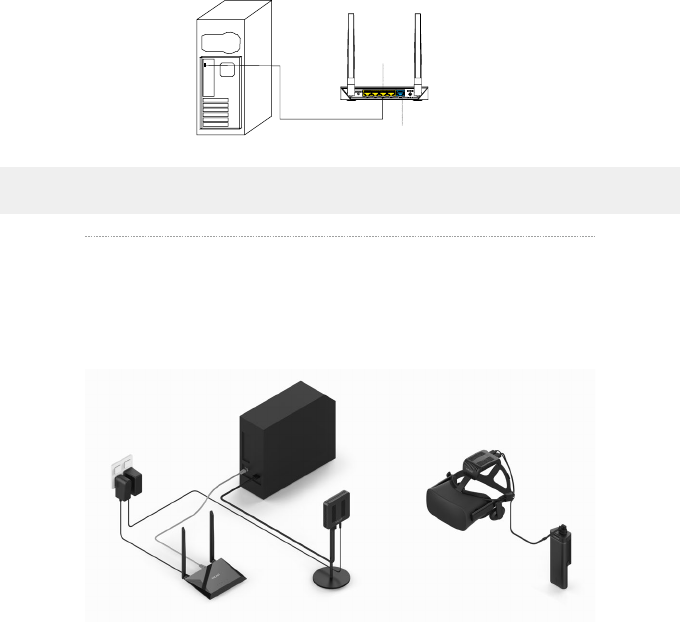

Step two: Connect the yellow (LAN) port of router to the PC host through network cable, as
123
10
shown in the gure.
Step three: In PC’s network connection Settings of Windows system, select “Local connection”
to connect the router of wireless adaptor, change the connection of TCP/IP Settings to
automatically obtain IP address and DNS server address.
Note: Use the router as is, DO NOT modify the router’s settings.DO NOT restore the factory
default settings. To optimize the user experience, it is recommended to place the router in an
open location without obstacles, with a 90-degree antenna. Avoid putting the router under a
desk, behind a computer case, or in any other enclosure environment.
5. OPERATION INSTRUCTIONS
1. Connection verication
Verify that the TPCAST wireless adaptor connections are secure and tight including:
o The HMD receiver
o The PC transmitter
o The power box
o The portable power bank
o The router
Make sure that the battery is fully charged.
LAN Port
WAN Port
11
2. Set up PC transmitter
Set up the PC transmitter on the desktop and facing the game area, ensure there is no
obstruction between PC transmitter and HMD receiver

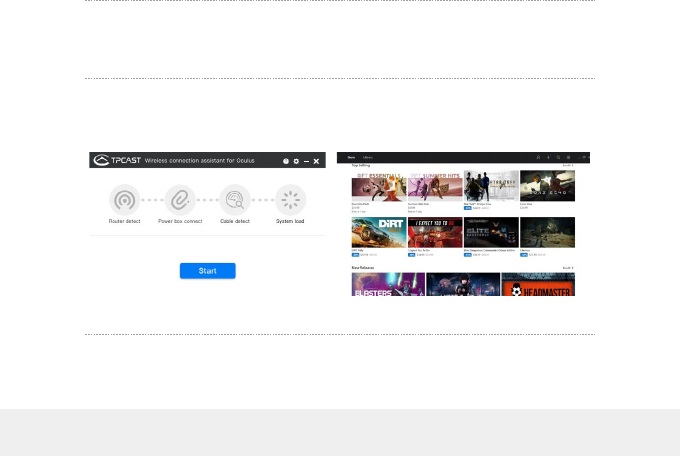

3. Run wireless adaptor connection assistant
Double-click the PC desktop client icon, then click “Start” after the client started. It will
automatically test the environment of wireless adaptor working in turn. When wireless
connection starts, please start Oculus home software.
4. Enjoy wireless VR
In normal operation of the wireless adaptor, the indicators of both transmitter and receiver
will change from fast blinking to normal light mode. The HMD display and control should
function normally.
6. SAFETY PRECAUTIONS
Safety: The TPCAST wireless adaptor for Head-Mounted Display (HMD) has no cable
attached, and it provides full motion and freedom. Please pay attention to security and safety
in the play area during gaming, and take care to not run into objects. Alternatively, you can
play under the supervision of another person.
Cable: To prevent damage to the cables it is suggested not to pull the cable to fetch the
devices. If there is a need to unplug the cables, pull lightly from the connector.
Heat rejection: The wireless adaptor generates heat during normal operation, and the
temperature may rise. If abnormal temperature occurs, stop activity immediately and contact
TPCAST customer support.
Battery safety: The portable power bank as included in the adaptor package is power supply
dedicated for this product, you must not replace with any non-TPCAST portable power bank,
and any PC transmitter damage caused accordingly will waive the warranty of the adaptor.
In order to mitigate the risk of re hazard or combustion hazard, please do not disassemble,
squeeze the portable power bank and shall not expose the power supply to environment
exceeding 60℃ ,or toss into the re or water.
12
Children use: Children are not allowed to use this product. Please keep this product in
appropriate locations beyond the reach of children, and do not grant access to children. If
elder children are allowed to use this product, please do proceed under the close watch of
adults.
Recharging: The battery can be recharged with a regular cellular phone charger, and a
charger of 2A is recommended to reduce the charging period. 9~12 hours will be needed to
complete a single full charge. A charger of the capacity of more than 2.4A shall not be used
for recharging.
Service and maintenance: The adaptor is non-waterproof; therefore, attention should be
paid to adequately protect it, including a blower, air duct, etc. should not be used to dry the
product in the case it gets wet as the product may get damaged.
• Do not drop or disassemble the adaptor, as it can cause an electrical shock or re.
• Operate and maintain the product in an environment of 14 to 104 degrees Fahrenheit.
• Use the product as directed only and do not connect to any incompatible products.
• Refer to the local regulations on disposal of electronic waste for proper waste management.
• Avoid inserting small objects into the products through the vent openings.
• Do not clean this product with any irritating chemical, detergent, liquid soap or aerosol.
13
Status of indicator/lamp
Indicator
Video
signal
connection
indicator
Video
signal
connection
indicator
Power
box lamp
Battery
charge
lamp
Portable
power bank
HMD
receiver
PC
transmitter
Power box
Green
Green
Red
Blue Normal light Each stands for 25% charge
Off
Off
Slow blinking
Slow blinking
Fast blinking
Fast blinking
Normal light
Normal light
Off Power off
Blinking/
normal light
System
in normal operation
Video in transmission
Video in transmission
Successfully paired
with the transmitter
Successfully paired
with the transmitter
Power off or system standby
Power off or system standby
To be paired
To be paired
Location Color Status Description
