Introduction
PureAV RemoteTV
Congratulations and thank you for purchasing the PureAV RemoteTV. This
product delivers superior-quality MPEG-2 audio video in two rooms at once
through the 5GHz frequency range, without interruption, so you can experience
home entertainment like never before. Now you can view your favorite movies
anywhere in your home without the hassle of running cables or moving media
players from room to room. PureAV RemoteTV delivers the quality, ease of
use, and freedom you need. Please review this User Manual carefully to ensure
you enjoy the superior home entertainment experience PureAV offers.
This package consists of two primary pieces—the PureAV RemoteTV Transmitter
(the Transmitter) and the PureAV RemoteTV Receiver (the Receiver). The
Transmitter sends audio and video from a source component, such as a
cable box, satellite receiver, digital video recorder, or DVD/CD player to the
Receiver, which is connected to a receiving component, such as a TV, LCD,
or plasma display. The Transmitter converts analog input into high-quality
digital MPEG-2 transport streams, which are transmitted wirelessly to the
Receiver. The Receiver decodes the digital MPEG-2 stream and converts it to
the analog format to display on an audio video device. Our Remote Control
Extender lets you use an existing remote to control your video source in
the other room. This saves you the hassle of walking back and forth and
the expense of buying a separate remote.
2
PureAV RemoteTV
Benefits
• Provides long reach between Transmitter and Receiver for full-house
coverage up to 350 ft. or 106m (subject to change due to environment)
• Provides uninterrupted service and optimal resolution utilizing
proprietary wireless technology to reduce interference and deliver
up to 40Mbps of bandwidth—far exceeding the performance of the
average wireless audio video sender
• Incorporates component-video connectivity option for obtaining optimal
resolution and brighter, more accurate movies and programs
• Delivers superior video quality using MPEG-2 technology in both the
encoder/Transmitter and decoder/Receiver
• Allows use of an existing remote to control the video source in one room
from a receiving source in the other room with the included Remote
Control Extender (IR pass-through device)
• Contains integrated antennas; requires no external antennas
• Thwarts viewing by unauthorized receivers with 3DES content encryption
• Supports NTSC video format
• Supports standard-definition TV (SDTV) at full D1 MP@ML levels
• Connects to TV via AV or SV terminal
• Installs easily; simply plug in audio and video cables and go*
*For optimal performance, we recommend upgrading your cables to
premium PureAV Silver Series RCA Audio and Component Video
Cables. PureAV Interconnects are designed to deliver the full potential
of your home theater components, and capture the true sound and
image experience of today’s high-tech music and movies.
Component Video separates color into its primary components
using three cables to transmit three distinct signals. This provides
brighter, more accurate colors and sharper detail. If your equipment
does not have a Component Video option, upgrade to S-Video.
S-Video separates brightness from color using two separate
conductors to create clean, accurate video reproduction,
exceeding the performance of Composite Video.
3
PureAV RemoteTV
Package Contents
• One PureAV RemoteTV Transmitter
• One PureAV RemoteTV Receiver
• Two RCA Audio Video Cables
• Two 5VDC Adapters
• One PureAV Remote Control Extender (IR adapter)
• User Manual
4
PureAV RemoteTV
System Application Diagram
5

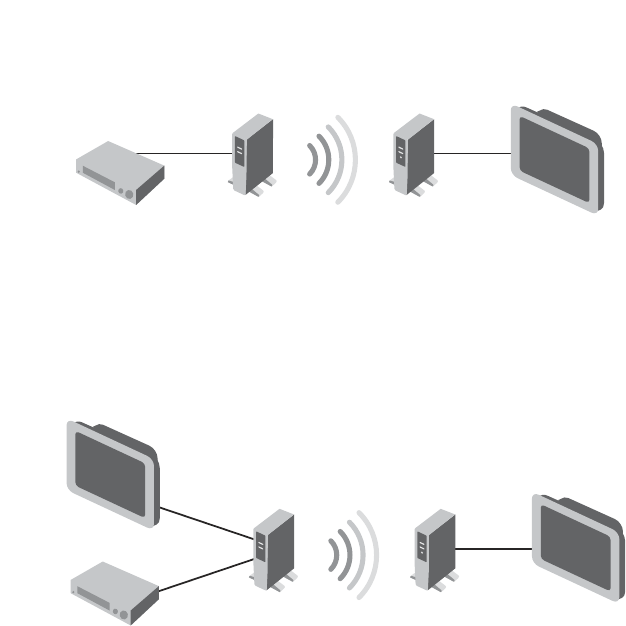

Following are two types of connections that can be made using the
PureAV RemoteTV.
a) A single audio video stream sent wirelessly to a single receiver.
b) A single audio video stream sent wirelessly to a single receiver while
connected to a local display.

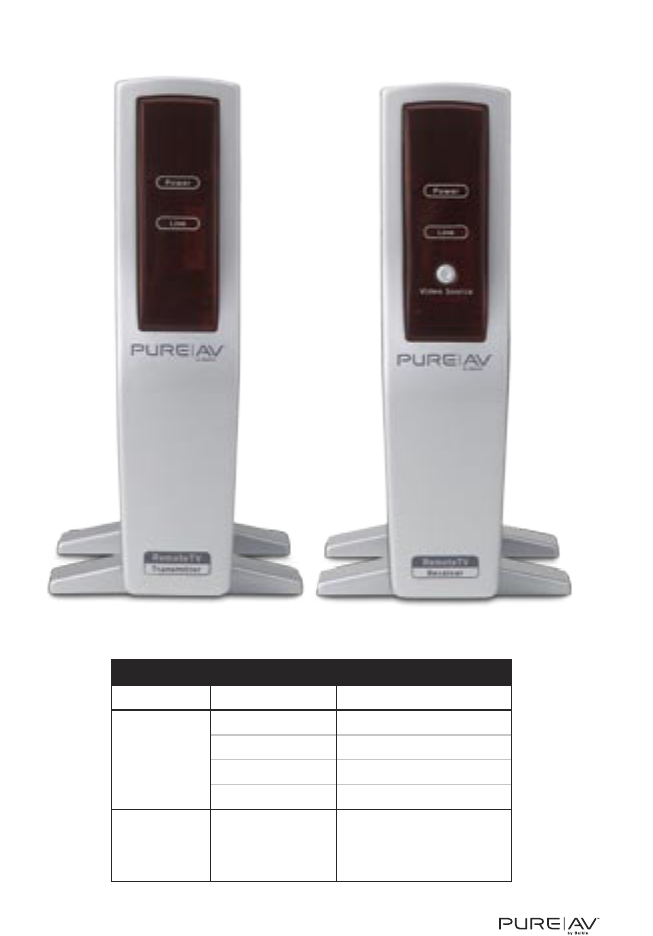

Transmitter and Receiver Details
PureAV RemoteTV
6
Transmitter Receiver
This section describes the front and rear panels of the PureAV RemoteTV
Transmitter and RemoteTV Receiver.

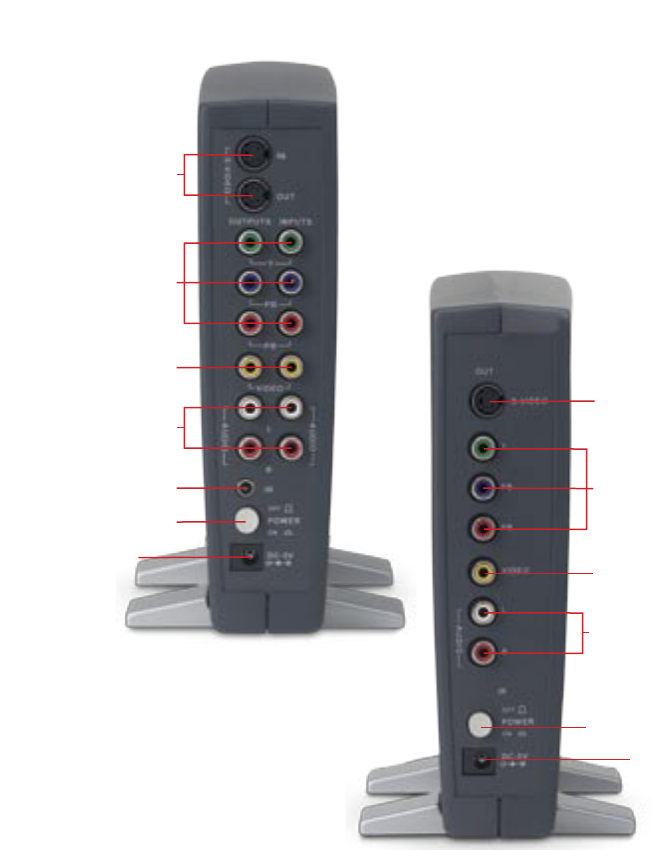

Front Panel
PureAV RemoteTV
Transmitter and Receiver Details
7
S-Video
Output
Component-Video
Output
Composite-Video
Output
Left/Right
Audio Output
ON/OFF Button
DC-5V Inlet
DC-5V Inlet
S-Video
Input/Output
Component-Video
Input/Output
Composite-Video
Input/Output
Left/Right Audio
Input/Output
IR Blaster Port
ON/OFF Button
Transmitter
Receiver
Rear Panel

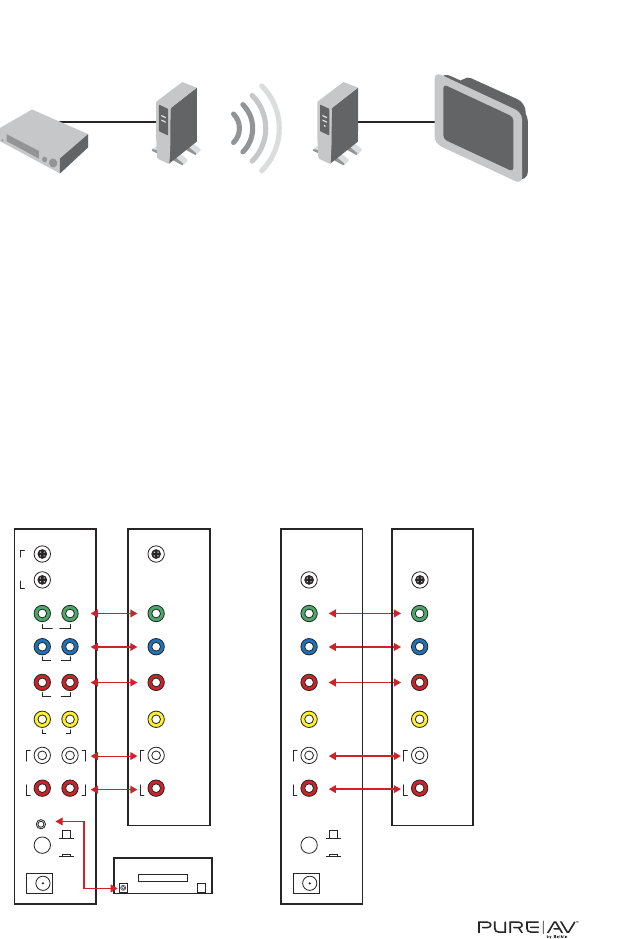

Installation Using Local Display
PureAV RemoteTV

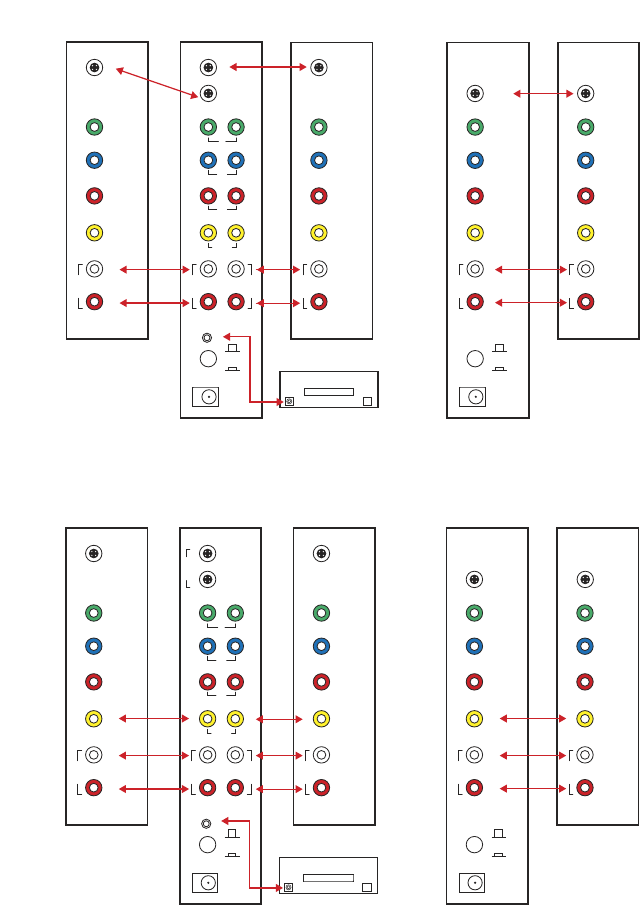

Here are several examples illustrating how to connect the PureAV
RemoteTV using a source device and two displays.
8
S-VIDEO
INPUTS
TV Rear Panel
Y
OUT OUT
PB
PR
VIDEO
L
R
AUDIO
OUT
IN
S-VIDEO
OUTPUTS
Transmitter Rear Panel
L
R
IR
IR
POWER
POWER
DC-5V
OFF
ON
INPUTS
AUDIO
AUDIO
Y
PB
PR
VIDEO
S-VIDEO
OUTPUTS
DVD Player Rear Panel
DVD Player Front Panel
Y
PB
PR
VIDEO
Y
PB
PR
VIDEO
L
R
AUDIO
S-VIDEO
OUT
S-VIDEO
IN
Receiver Rear Panel
L
R
POWER
DC-5V
OFF
ON
AUDIO
TV Rear Panel
Y
PB
PR
VIDEO
L
R
AUDIO

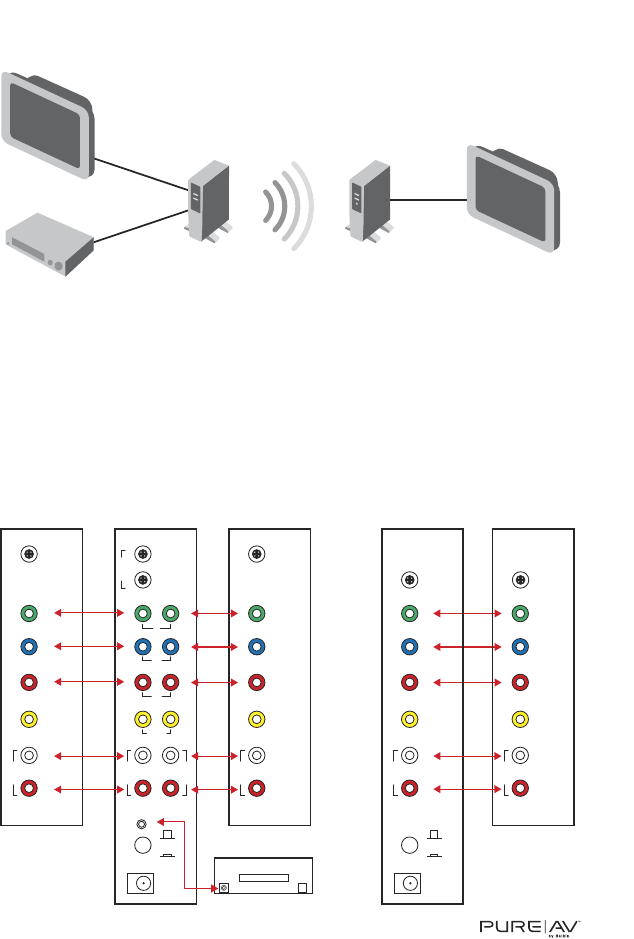

PureAV RemoteTV
Installation Using Local Display
9
S-VIDEO
INPUTS
TV Rear Panel
Y
IN OUT
PB
PR
VIDEO
L
R
AUDIO
OUT
IN
S-VIDEO
OUTPUTS
Transmitter Rear Panel
L
R
IR
IR
POWER
POWER
DC-5V
OFF
ON
INPUTS
AUDIO
AUDIO
Y
PB
PR
VIDEO
S-VIDEO
OUTPUTS
DVD Player Rear Panel
DVD Player Front Panel
Y
PB
PR
VIDEO
Y
PB
PR
VIDEO
L
R
AUDIO
S-VIDEO
OUT
S-VIDEO
IN
Receiver Rear Panel
L
R
POWER
DC-5V
OFF
ON
AUDIO
TV Rear Panel
Y
PB
PR
VIDEO
L
R
AUDIO
S-VIDEO
INPUTS
TV Rear Panel
Y
IN
PB
PR
VIDEO
L
R
AUDIO
OUT
IN OUT
S-VIDEO
OUTPUTS
Transmitter Rear Panel
L
R
IR
IR
POWER
POWER
DC-5V
OFF
ON
INPUTS
AUDIO
AUDIO
Y
PB
PR
VIDEO
S-VIDEO
OUTPUTS
DVD Player Rear Panel
DVD Player Front Panel
Y
PB
PR
VIDEO
Y
PB
PR
VIDEO
L
R
AUDIO
S-VIDEO
OUT IN
S-VIDEO
Receiver Rear Panel
L
R
POWER
DC-5V
OFF
ON
AUDIO
TV Rear Panel
Y
PB
PR
VIDEO
L
R
AUDIO
Installation without Local Display
PureAV RemoteTV
10

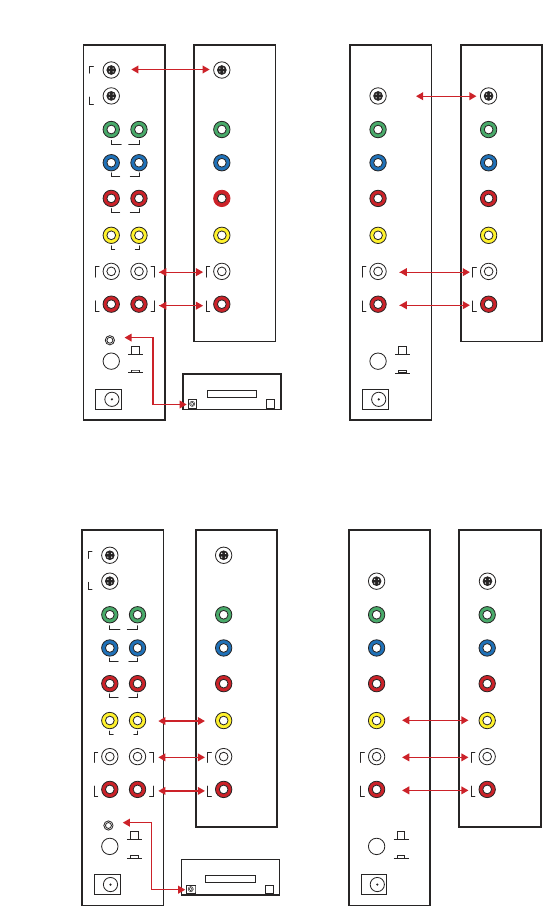

Here are several examples illustrating how to connect the PureAV
RemoteTV using a source device and one display in another location.
OUT
IN OUT
S-VIDEO
OUTPUTS
Transmitter Rear Panel
L
R
IR
IR
POWER
POWER
DC-5V
OFF
ON
INPUTS
AUDIO
AUDIO
Y
PB
PR
VIDEO
S-VIDEO
OUTPUTS
DVD Player Rear Panel
DVD Player Front Panel
Y
PB
PR
VIDEO
Y
PB
PR
VIDEO
L
R
AUDIO
S-VIDEO
OUT
S-VIDEO
IN
Receiver Rear Panel
L
R
POWER
DC-5V
OFF
ON
AUDIO
TV Rear Panel
Y
PB
PR
VIDEO
L
R
AUDIO
PureAV RemoteTV
Installation Without Local Display
11
OUT
IN OUT
S-VIDEO
OUTPUTS
Transmitter Rear Panel
L
R
IR
IR
POWER
POWER
DC-5V
OFF
ON
INPUTS
AUDIO
AUDIO
Y
PB
PR
VIDEO
S-VIDEO
OUTPUTS
DVD Player Rear Panel
DVD Player Front Panel
Y
PB
PR
VIDEO
Y
PB
PR
VIDEO
L
R
AUDIO
S-VIDEO
OUT
S-VIDEO
IN
Receiver Rear Panel
L
R
POWER
DC-5V
OFF
ON
AUDIO
TV Rear Panel
Y
PB
PR
VIDEO
L
R
AUDIO
OUT
IN OUT
S-VIDEO
OUTPUTS
Transmitter Rear Panel
L
R
IR
IR
POWER
POWER
DC-5V
OFF
ON
INPUTS
AUDIO
AUDIO
Y
PB
PR
VIDEO
S-VIDEO
OUTPUTS
DVD Player Rear Panel
DVD Player Front Panel
Y
PB
PR
VIDEO
Y
PB
PR
VIDEO
L
R
AUDIO
S-VIDEO
OUT IN
S-VIDEO
Receiver Rear Panel
L
R
POWER
DC-5V
OFF
ON
AUDIO
TV Rear Panel
Y
PB
PR
VIDEO
L
R
AUDIO
Installation
PureAV RemoteTV
12
Follow the steps below to begin using the PureAV RemoteTV.
1. Connect your audio and video cables to the appropriate ports of
the PureAV RemoteTV Transmitter (the Transmitter) and the
PureAV RemoteTV Receiver (the Receiver) as illustrated in the
previous pages.
2. Plug the IR adapter into the IR port located on the rear panel of the
Transmitter and place the head near the IR port of the source device
as illustrated in the previous pages (TV, DVD player, VCR, etc.) (This
allows you to control the functions of the source device through the
Receiver using the source device’s remote control).
3. Plug in the power supplies of both the Transmitter and Receiver,
and then turn each unit on.
4. Check the status LEDs on the Transmitter and Receiver. If the
LINK LED on both the Transmitter and Receiver are green, the
wireless connection has been established and the setup procedures
are complete.
5. Turn on the source device (DVD player, VCR, etc.) Turn on the remote
device (TV or other display).
6. Each time the Receiver is turned on, it will default to composite-video
mode. If you are using s-video or component video cables, press the
“Video Source” button to cycle through the available video modes
(composite, component, or s-video).
Note: Be sure that you are aware which set of AV inputs you used when
connecting the Receiver to the TV or other display. (Most TVs and video
displays are equipped with multiple audio video inputs, i.e., AV1, AV2,
etc.) It will be necessary to select the same AV input mode using your
display’s remote control. Refer to your display’s user manual to configure
this setting.
13
PureAV RemoteTV
Frequently Asked Questions
What should I do if the LINK LED on both the RemoteTV Transmitter
and RemoteTV Receiver are green, but no video is displayed on
my TV?
1. Make sure your TV or video display is set to the correct AV input mode.
Consult your display’s user manual for information.
2. Make sure that the Receiver is set to the correct video input mode. For
example, if you are using an s-video cable for video input, press the
“Video” button on front of the Receiver until “S-Video” is displayed on
your TV or video-display screen.
What if the PureAV RemoteTV is not working properly at the
advertised distance?
Since the built-in antennas are directional in nature, it may be
necessary to reorient the position of the RemoteTV Receiver and/or
RemoteTV Transmitter.
Is the PureAV RemoteTV compatible with high-definition television
(HDTV) broadcasts, or with my HDTV cable box?
The PureAV RemoteTV is only compatible with standard-definition (SD)
broadcast and cable signals.
Can I watch two different programs on the two TVs that are connected
to the RemoteTV device?
No. If the primary TV is connected to the RemoteTV Transmitter, the
secondary TV, which is connected to the RemoteTV Receiver, will display
the same video program.
Can I purchase an extra RemoteTV Receiver to connect multiple
displays to the same source?
No, currently only one RemoteTV transmitter can be connected to one
RemoteTV Receiver.
What type of security measures does the PureAV RemoteTV provide?
Link-layer authentication, encryption, and access control are built-in to
ensure the privacy of the content viewed. Encryption is provided by 3DES,
and authentication through RSA and X509 signatures. Host-layer protocols
such as EAPOL Kerberos and pre-shared key methods are supported.
Does the PureAV RemoteTV interoperate with IEEE 802.11a?
No. Because the MAC layers are fundamentally different, the two systems
do not communicate or interoperate with each other.
Does the PureAV RemoteTV interfere with IEEE 802.11a?
No, the PureAV RemoteTV has built-in DFS (Dynamic Frequency Selection)
capabilities and avoids RF channels that are occupied by other networks.
14
Specifications
General
Audio • Analog stereo (L+R)
Video • MPEG-2 (encoding), full D1 resolution
(480 lines, interlaced)
• Luminance and chrominance signal processing
for NTSC
• Video input: Composite (CVBS), S-video (Y/C),
and Component (YPrPb)
RF Information
Frequency Band • 5GHz U-NII frequency band, unlicensed
Output Power • 31.6mW (15 dBM)
Nominal Operating • Up to 350 ft. or 106m (subject to change due
Range to environment)
MAC Layer • 3DES link-layer encryption with pre-shared
secret key
• Dynamic TDMA/TDD
Modulation • Orthogonal Frequency Division Multiplexing (OFDM)
Technology
Physical
LED • Power, LINK connection
Unit Weight • 350g
Dimensions • 16cm X 13cm X 5cm (W x H x D)
Environmental
Temperature Range • 0º C to 40º C - Operating
• 0º C to 70º C - Storage
Humidity • 5%~90% Typical
(non-condensing)
PureAV RemoteTV
15
PureAV RemoteTV
PureAV Power Protection
The PureAV power-protection line improves your home theater experience by
eliminating problems before they reach your equipment and enables you to
enjoy the clearest picture and cleanest sound possible from your home theater
system. PureAV power solutions are designed to effectively clean and organize
the AC power that is connected to your home theater system while protecting
your valuable equipment from harmful power disturbances. Using advanced
design elements and top-quality construction as well as superior circuitry,
PureAV power solutions offer the most complete protection from power surges,
AC contamination, and spikes. The Silver Series Power Consoles are designed to
fit perfectly in your home theater system or mount on a professional AV rack,
adding a level of integrated organization and sophistication to your system.
Power Consoles
The PureAV Power Consoles integrate Multi-Phase
PureFilter™ Circuitry and Advanced Overvoltage
Protection into an elegantly designed console that
delivers the clearest picture and cleanest sound to your
home theater system or high-end audio equipment. The
Power Console is designed to fit perfectly in your home
theater system or mount on a professional AV rack.
Power Conditioners
PureAV Power Conditioners combine Multi-Phase
PureFilter Circuitry with Advanced Overvoltage
Protection to isolate and eliminate line noise generated
by digital components and external sources such as
household appliances. The innovative, low-profile
design allows for easy mounting on walls or furniture.
Isolators
The PureAV Home Theater Surge Protectors with
advanced Isolator Technology use a series of filters
to isolate the outlet banks, contain power line noise,
and deliver pure, clean power to your sensitive
home theater and audio equipment. The heavy-metal
construction and high level of surge protection
ensures that your system will survive most dangerous
power disturbances.
Surge Protectors
Home Theater Surge Protectors with Power Filter
Technology clean the electricity in your home by
removing power spikes, surges, and interference
from your AC power and delivers clean, clear and
safe power to all of your sensitive home theater and
audio equipment.
AP41300-12
AP11201-12
F9A1033-12
F9A923-08
16
PureAV RemoteTV
Information
Belkin Corporation Limited Lifetime Product Warranty
Belkin Corporation warrants this product against defects in materials and
workmanship for its lifetime. If a defect is discovered, Belkin will, at its
option, repair or replace the product at no charge provided it is returned
during the warranty period, with transportation charges prepaid, to the
authorized Belkin dealer from whom you purchased the product. Proof of
purchase may be required.
This warranty does not apply if the product has been damaged by
accident, abuse, misuse, or misapplication; if the product has been
modified without the written permission of Belkin; or if any Belkin serial
number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED
OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any
modification, extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT
NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR
REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA STORED
IN, OR USED WITH, BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or exclusions of implied warranties, so the above
limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from
state to state.
17
PureAV RemoteTV
Information
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220,
declare under our sole responsibility that the product,
AV55000
to which this declaration relates, complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
Caution: Exposure to Radio Frequency Radiation.
The radiated output power of this device is far below the FCC radio
frequency exposure limits. Nevertheless, the device shall be used in
such manner that the potential for human contact during normal
operation is minimized. When connecting an external antenna to the device,
the antenna shall be placed in such a manner to minimize the potential for
human contact during normal operation. In order to avoid the possibility of
exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8 inches) during normal operation.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try and correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications
The FCC requires the user to be notified that any changes or
modifications to this device that are not expressly approved by Belkin
Corporation may void the user‘s authority to operate the equipment.
18
PureAV RemoteTV
Information
Canada Industry Canada (IC)
The wireless radio of this device complies with RSS 139 & RSS 210 Industry
Canada. This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003
du Canada.
Europe-European Union Notice
Radio products with the CE 0682 or CE alert marking comply
with the R&TTE Directive (1995/5/EC) issued by the
Commission of the European Community.
Compliance with this directive implies conformity to the following European
Norms (in brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the
identification label on your Belkin product.
Products with the CE marking comply with the EMC Directive (89/336/EEC)
and the Low Voltage Directive (72/23/EEC) issued by the Commission of the
European Community. Compliance with these directives implies
conformity to the following European Norms (in brackets are the
equivalent international standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11)- Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) - Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled with CE 0682 or CE
alert marking and may also carry the CE logo.
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter
or antenna, and
3) The antenna should be integral if the end device is intended to be
operated in 5.15 ~ 5.25GHz frequency range.
As long as 3 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can
not be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna
may be installed such that 20 cm may be maintained between the antenna and
users (for example :TV adapter..etc.). The final end product must be labeled in a
visible area with the following: “Contains TX FCC ID: K7SAV55000”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the users manual of the
end product which integrate this module.
The users manual for end users must include the following information in a
prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements, the antenna used for this transmitter must be installed
to provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or transmitter”.
If the end product integrating this module is going to be operated in 5.15 ~
5.25GHz frequency range, the warning statement in the user manual of the end
product should include the restriction of operating this device in indoor could
void the user’s authority to operate the equipment.
Belkin Corporation
501 West Walnut Street
Compton • CA • 90220 • USA
Tel: 310.898.1100
Fax: 310.898.1111
Belkin Ltd.
Express Business Park • Shipton Way
Rushden • NN10 6GL • United Kingdom
Tel: +44 (0) 1933 35 2000
Fax: +44 (0) 1933 31 2000
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk • The Netherlands
Tel: +31 (0) 20 654 7300
Fax: +31 (0) 20 654 7349
Belkin Ltd.
7 Bowen Crescent • West Gosford
NSW 2250 • Australia
Tel: +61 (0) 2 4372 8600
Fax: +61 (0) 2 4372 8603
© 2004 Belkin Corporation. All rights reserved. All trade names are
registered trademarks of respective manufacturers listed.
P74657
pureav.com
