Page 1 of 40
Belkin
Wireless G Notebook Card
User Manual
F5D7010 / F5D7010v7
Table of Contents
1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Benefits of a Home Network………………………………………………x
Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . X
Placement of your Wireless Networking Hardware for
Optimal Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
3 Installing and Setting up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Step 1: Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .X
Step 2: Insert …………………………………… X
Step 3: Configure. . . . . . . . . . . . . . . . . X
4 Using the Belkin Wireless Networking Utility.. . . . . X
Accessing the Belkin Wireless Networking Utility from the Windows System Tray
Network Status
Available Networks
Network Status and Solution Tips
Setting Wireless Network Profiles . . . . . . . . . . . . . . . . . . . . . X
Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Configuring your Belkin Wireless G Notebook Card to use Security
5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
6 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X
Introduction
Thank you for purchasing the Belkin Wireless G Notebook Card. Now you can
take advantage of this great new technology and gain the freedom to network
your home and office computers wirelessly. This Card allows you to connect a
notebook computer to your network. Please be sure to read through this User
Manual completely, and pay special attention to the section entitled “Placement
of your Wireless Networking Hardware for Optimal Performance”.
Page 2 of 40
Benefits of a Home Network
Your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email,
and chat
Advantages of a Wireless Network
• Mobility –you’ll no longer need a dedicated “computer room”—now you can
work on a networked laptop or desktop computer anywhere within your wireless
range
• Easy installation – Belkin Easy Installation Wizards make setup simple
• Flexibility – set up and access printers, computers, and other networking
devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products let you expand
your network to include devices such as printers and gaming consoles
• No cabling required – you can spare the expense and hassle of retrofitting
Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range of
interoperable networking products
Placement of your Wireless Networking Hardware for Optimal Performance
Your wireless connection will be stronger the closer your computer is to your
wireless router (or access point). Typical indoor operating range for your wireless
devices is between 100 and 200 feet. In the same way, your wireless connection
and performance will degrade somewhat as the distance between your wireless
router (or access point) and connected devices increases. This may or may not
be noticeable to you. As you move farther from your wireless router (or access
point), connection speed may decrease. Factors that can weaken signals simply
by getting in the way of your network’s radio waves are metal appliances or
obstructions, and walls.
Page 3 of 40
If you have concerns about your network’s performance that might be related to
range or obstruction factors, try moving the computer to a position between five
and 10 feet from the wireless router (or access point) in order to see if distance is
the problem. If difficulties persist even at close range, please contact Belkin
Technical Support.
Note: While some of the items listed below can affect network performance, they
will not prohibit your wireless network from functioning; if you are concerned that
your network is not operating at its maximum effectiveness, this checklist may
help.
1. Placement of your Wireless Router (or Access Point)
Place your wireless router (or access point), the central connection point of your
network, as close as possible to the center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless clients,” (i.e.
computers enabled by Belkin Wireless Notebook Cards, Wireless Desktop Cards,
and Wireless USB Adapters):
• Ensure that your wireless router’s (or access point’s) antennas are parallel to
each other, and are positioned vertically (toward the ceiling). If your wireless
router (or access point) itself is positioned vertically, point the antennas as much
as possible in an upward direction.
• In multistory homes, place the wireless router (or access point) on a floor that is
as close to the center of the home as possible. This may mean placing the
wireless router (or access point) on an upper floor.
• Try not to place the wireless router (or access point) near a cordless 2.4GHz
phone.
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that may emit
radio “noise”, such as microwave ovens. Other objects that can inhibit wireless
communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
Page 4 of 40
If your wireless signal seems weak in some spots, make sure that objects such
as these are not blocking the signal’s path between your computers and wireless
router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending to the
above issues, and you have a cordless phone:
• Try moving cordless phones away from the wireless router (or access point)
and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that operates on the
2.4GHz band (check manufacturer’s information). If this fixes the problem, your
phone may be interfering.
• If your phone supports channel selection, change the channel on the phone to
the farthest channel from your wireless network as possible. For example,
change the phone to channel 1 and move your wireless router (or access point)
to channel 11. (Your channel selection will vary depending on your region.) See
your phone’s user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment
buildings or office complexes, there may be wireless networks nearby that can
conflict with yours. Use the Site Survey capabilities of your Belkin Wireless
Networking Utility to locate any other wireless networks, and move your wireless
router (or access point) and computers to a channel as far away from other
networks as possible.
Experiment with more than one of the available channels in order to find the
clearest connection and avoid interference from neighboring cordless phones or
other wireless devices.
For more Belkin wireless networking products, use the detailed Site Survey and
wireless channel information included in your User Manual.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and are used
where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect remotely to
an office network
• The “Bring Your Own Access” program from America Online (AOL), which lets
you use AOL through broadband provided by another cable or DSL service
• Most online banking websites
Page 5 of 40
• Many commercial websites that require a user name and password to access
your account
Secure connections can be interrupted by a computer’s power management
setting, which causes it to “go to sleep.” The simplest solution to avoid this is to
simply reconnect by re-running the VPN or AOL software, or by re-logging into
the secure website.
A second alternative is to change your computer’s power management settings
so it does not go to sleep; however, this may not be appropriate for portable
computers. To change your power management setting in Windows, see the
“Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and AOL,
please review steps 1–4 in the previous pages to be sure you have addressed
these issues.
These guidelines should allow you to cover the maximum possible area with your
wireless router. Should you need to cover an even wider area, we suggest the
Belkin Wireless Range Extender/Access Point.
For more information regarding our networking products, visit our website at
www.belkin.com/networking or call Belkin Technical Support.
Overview
Product Features
The Card complies with the IEEE 802.11g standard in order to communicate with
other 802.11g-compliant wireless devices at 54Mbps. The Card is compatible
with all 802.11g devices as well as other 802.11b products at 11Mbps. 802.11g
products operate on the same 2.4GHz frequency band as 802.11b Wi-Fi®
products.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated easy-to-use Wireless Configuration Utility
• CardBus interface, for operation in virtually any notebook computer
• WPA, WPA2, 64-bit WEP (Wired Equivalent Privacy), or 128-bit encryption
• Wireless access to networked resources
• Support for both Infrastructure and Ad-Hoc (peer-to-peer) networking modes
• Data rate of up to 54Mbps (802.11g), or 11Mbps (802.11b)
• Easy installation and use
• External antenna
• LED power and network link indicators
Page 6 of 40
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking without cables
• Connection rates of up to 54Mbps Provides immediate high-speed wireless
connectivity at home, work, and hotspot locations without compromising the use
of existing 802.11b products
• Compatibility with 802.11b products
802.11g wireless LAN solutions are backward-compatible with existing Wi-Fi
(IEEE 802.11b) products and with other products that display the 54g™ mark
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or open areas where
wiring is difficult to install
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange
or change locations
• Temporary LANs for special projects or peak time
Sets up temporary networks such as at trade shows, exhibitions, and
construction sites, which need networks on a short-term basis; also companies
who need additional workstations for a peak activity period
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO users need
Product Specifications
Host Interface: 32-bit CardBus
Power Consumption: Tx/Rx peak 450/260mA @
3.3VDC (max)
Operating Temperature: 32–185 degrees F (0–85 degrees C)
Storage Temperature: -40–194 degrees F (-40–90 degrees C)
Humidity: Max. 95% (non-condensing)
Typical Operating Range: Up to 400 ft. (231m) (wireless performance
may vary depending on the
networking environment)
(insert image p.7 of P74682)
(a) Link LED
Lights up when the Card links to a wireless network
(b) Activity LED
Lights up when the Card is active
(c) Card Connector
Part of the Card that fits into your computer’s CardBus slot
![](/img.php?id=745215&img=bg7.png)
Page 7 of 40
System Requirements
• PC-compatible laptop with one available CardBus slot
• Windows® 98SE, Me, 2000, XP
Package Contents
• Wireless G Notebook Card
• Quick Installation Guide
• Installation Software CD
• User Manual
3 Installing and Setting up the Card
1. Install
IMPORTANT: Install the Software before Inserting the Card
1.1 Insert the Installation Software CD into your CD-ROM drive.

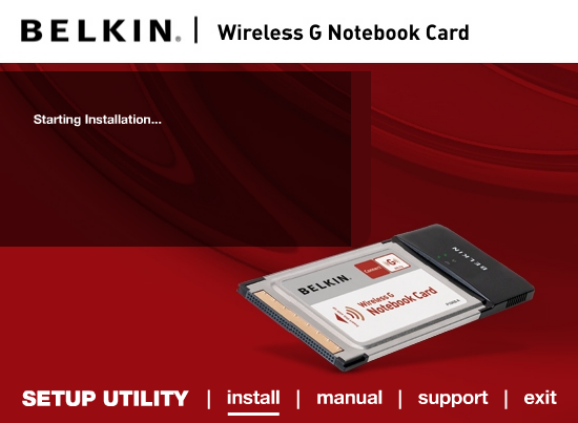

1.2 The Belkin Setup Utility screen will automatically appear. (This may take 15–
20 seconds.) Click “install” to start the installation.
Note: If the Belkin Setup Utility screen does not appear within 20 seconds,
access your CD-ROM by double-clicking on the “My Computer” icon; then
double-click on the CD-ROM drive into which the installation CD has been placed.
![](/img.php?id=745215&img=bg8.png)
Page 8 of 40
Double-click on the folder named “files”, then double-click on the icon named
“setup.exe”.

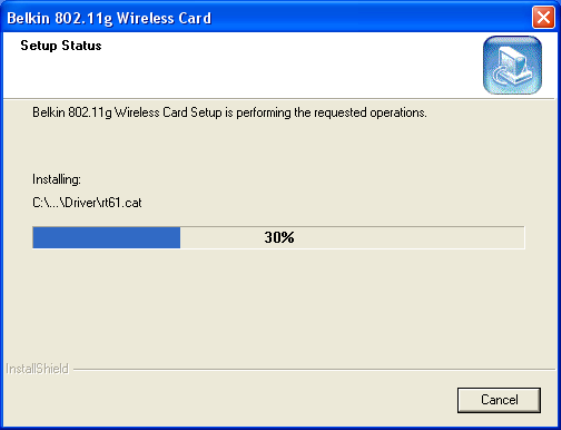

1.3 The first in a series of progress-monitoring screens will let you know where
you are in the setup process. Click “Next”.

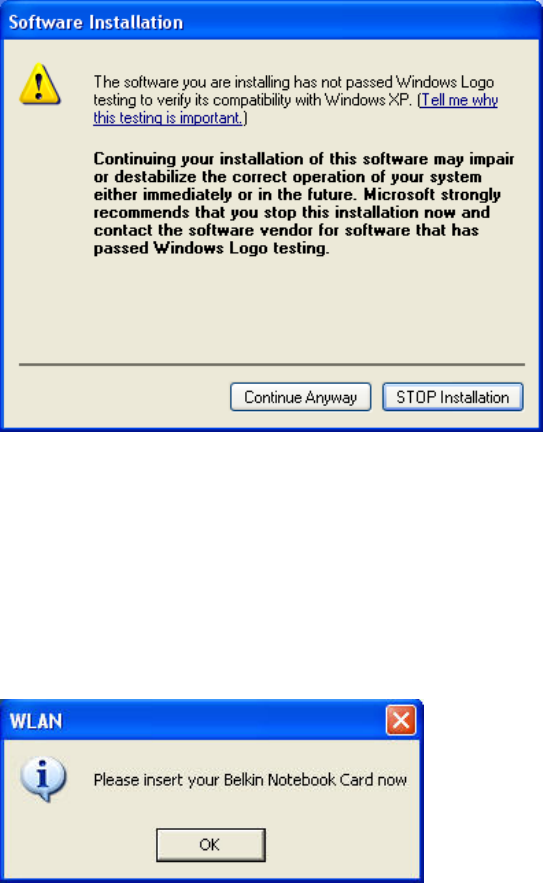

1.4 You might see a screen similar to this one. This DOES NOT mean there is a
problem. Our software has been fully tested and is compatible with this
operating system. Select “Continue Anyway” and follow the on-screen
instructions.
![](/img.php?id=745215&img=bg9.png)
Page 9 of 40
2. Insert
Insert the Card into your Computer
(Please insert image of CardBus insert into laptop)
2.1 Please insert your Card, then click “OK”.

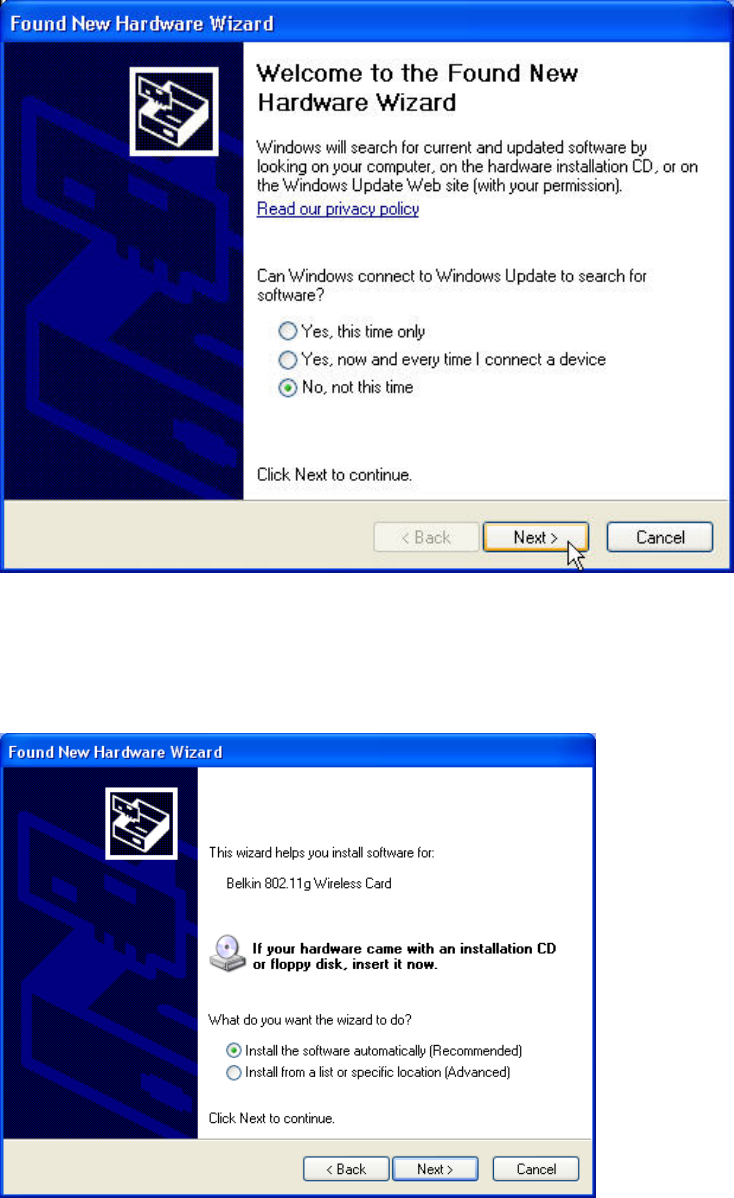

2.2 The Found New Hardware Wizard might appear. (This may take 3–15
seconds.) If it does, continue with the following instruction. Select “Yes, this time
only” and click “Next” to install the hardware.
![](/img.php?id=745215&img=bga.png)
Page 10 of 40
2.3 Select “Install the software automatically” and click “Next” to install the
hardware.
![](/img.php?id=745215&img=bgb.png)
Page 11 of 40

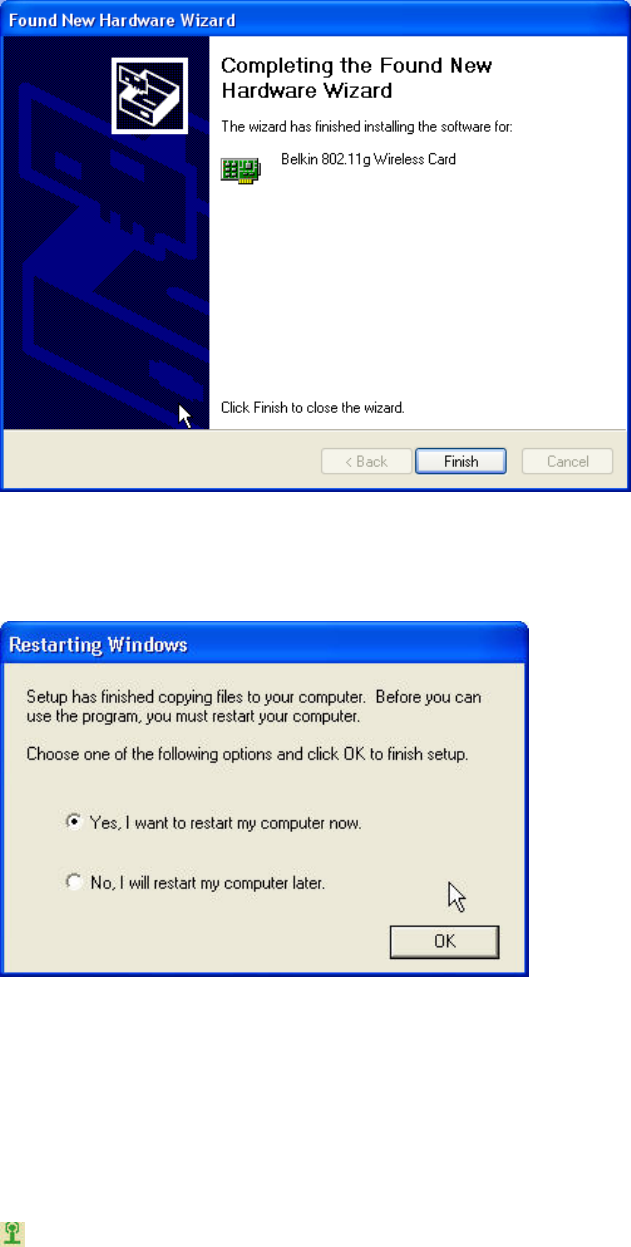

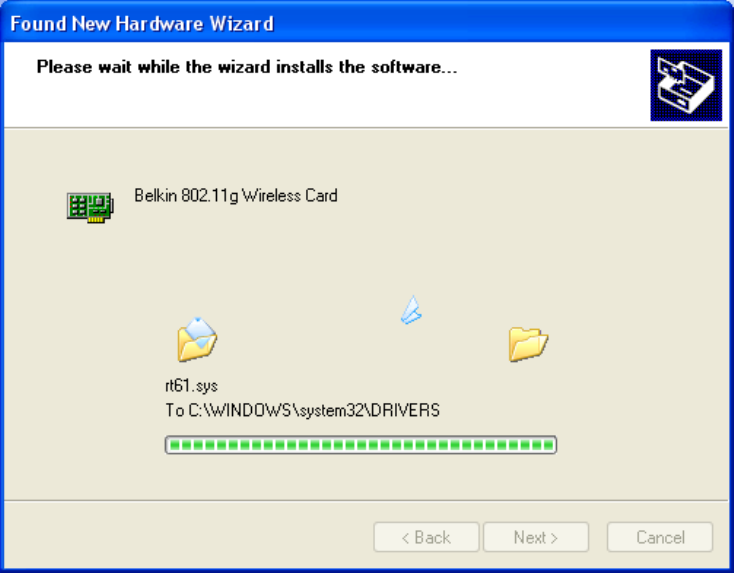

2.4 The Wizard will now install your software.
2.5 The installation is now complete. Click “Finish” to exit.
![](/img.php?id=745215&img=bgc.png)
Page 12 of 40
2.6 Your computer must reboot for the changes to take effect. Close all other
applications and save your data. Then, select “Yes, I want to restart my computer
now.” Click “OK” to reboot.
3. Configure
Use the Belkin Wireless Networking Utility
3.1 After restarting your computer, double-click the Belkin Wireless Networking
Utility icon on the desktop screen.
[insert F5D7010-06.jpg]
![](/img.php?id=745215&img=bgd.png)
Page 13 of 40
3.2 The Belkin Wireless Networking Utility screen will appear.
[insert F5D7010-07.jpg]
3.3 Select a network to connect to from the “Available Networks” list and click
“Connect”.
[insert F5D7010-09.jpg]
Note: In order to see your available networks, you must be near a working
wireless router or access point.
3.4 The Belkin Wireless Networking Utility icon can also be found on the system
tray.
[insert F5D7010-10.jpg]
Note: Double-clicking on the Belkin Wireless Networking Utility icon on the
system tray will bring up the “Utility” screen.
Installation is now complete.
![](/img.php?id=745215&img=bge.png)
Page 14 of 40
Using the Belkin Wireless Networking Utility
After successfully installing the Belkin Wireless Networking Utility (WNU), configurations for
wireless connection and security are just a few easy clicks away.
Accessing the Belkin Wireless Networking Utility from the Windows System Tray
To access the WNU, simply place your mouse pointer and right-click over the WNU icon on the
Windows task tray.
[insert F5D7010-10.jpg] [insert F5D7010-11.jpg]
If the icon is not present, click on “Start > Programs > Belkin > Belkin Wireless Utility”.
[insert F5D7010-
22.jpg]
![](/img.php?id=745215&img=bgf.png)
Page 15 of 40

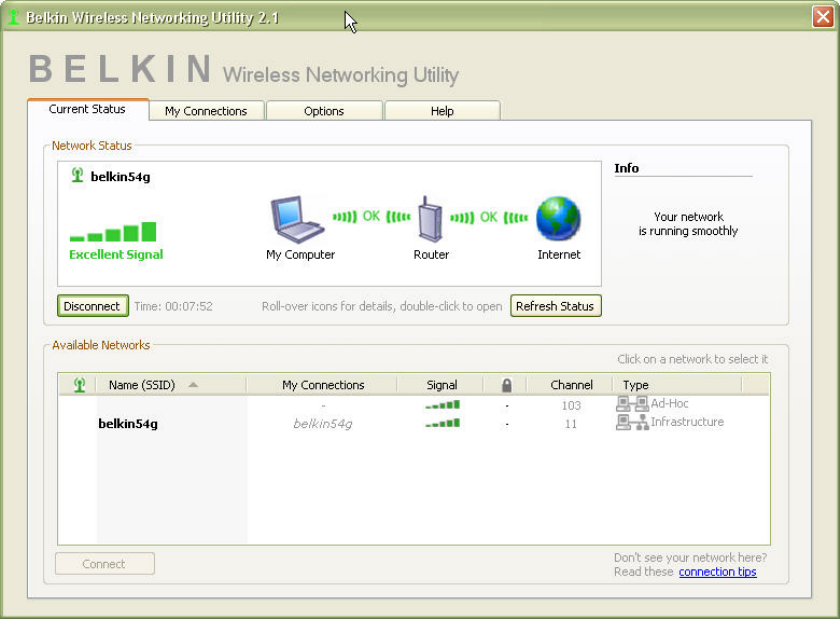

The WNU’s default screen is the “Current Status” tab. The “Current Status” tab displays the
current Network Status and Available Networks.
Network Status
This window displays the connectivity status of the current network. It even displays connectivity
between the computer and router, and router and Internet. In the event of a connectivity problem,
this window can be used to determine the problem’s source (e.g. computer, router, or
Internet/modem).
Available Networks
This window displays the available networks at the current location as well as their SSID, Signal
Strength, Security Type, Channel, and Network Type.
Lost Wireless Connection
If the current wireless connection is lost, a window will pop up and the WNU will attempt to
reconnect.
Connection Failure
Other options will appear during attempts to reconnect. To stop connecting, click “Stop” and to
reattempt connection, click “Retry”.
![](/img.php?id=745215&img=bg10.png)
Page 16 of 40
Network Status and Solution Tips
To further understand the current Network Status, click “Open Wireless Utility”. The default
screen will be the “Current Status” tab and the “Network Status” section determines which
connections are good and/or faulty.
[insert F5D7010-12.jpg]
The WNU also features a “Solution Tips” section that provides troubleshooting guidelines.
Setting Wireless Network Profiles

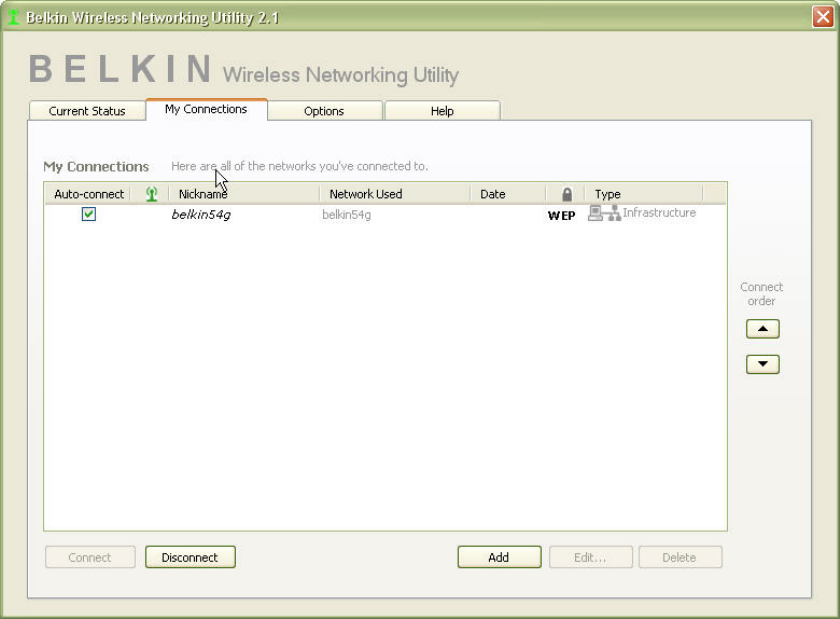

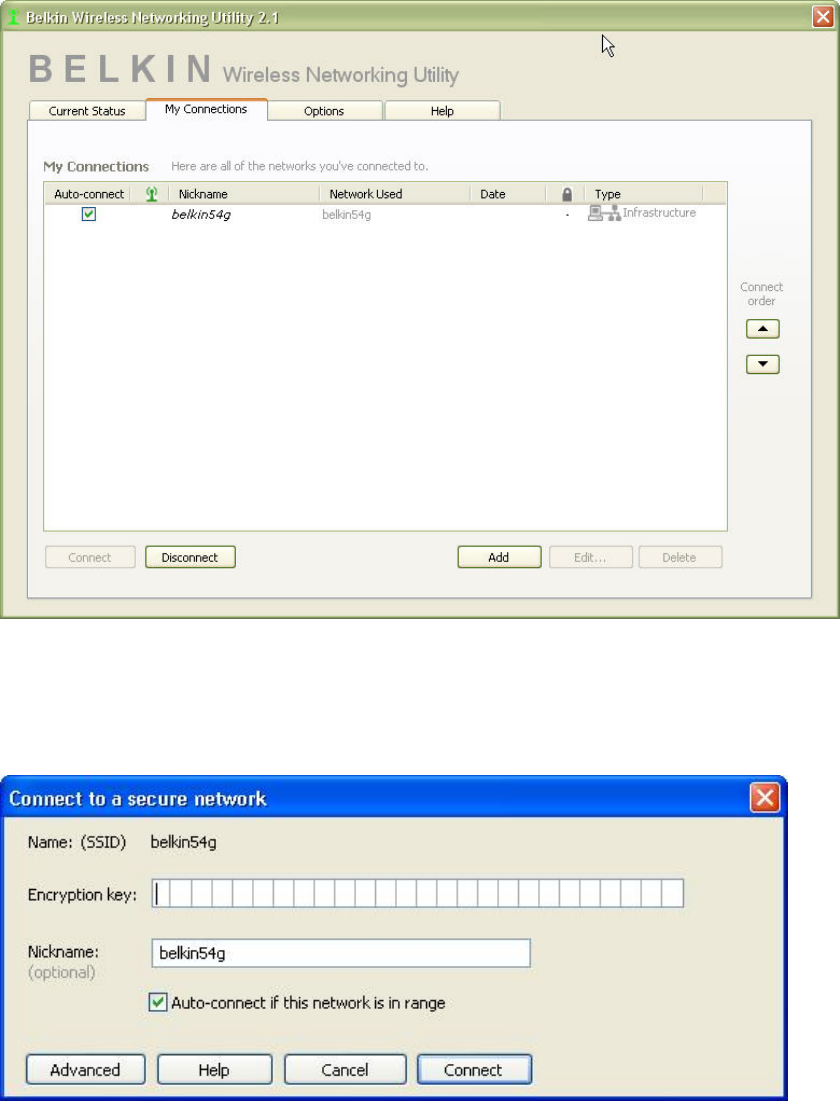

The “My Connections” tab on the WNU allows you to add, edit, and delete connection profiles. It
also displays signal strength, security, and network type.
[insert F5D7010-13.jpg]
![](/img.php?id=745215&img=bg11.png)
Page 17 of 40
Securing your Wi-Fi® Network
If you choose to connect to a secure network, determine the type of security (WPA or WEP*) and
use the appropriate field in the dialog box.
*Note: Types of security
Note: When you select a network using encryption, you will first see the simple security screen.

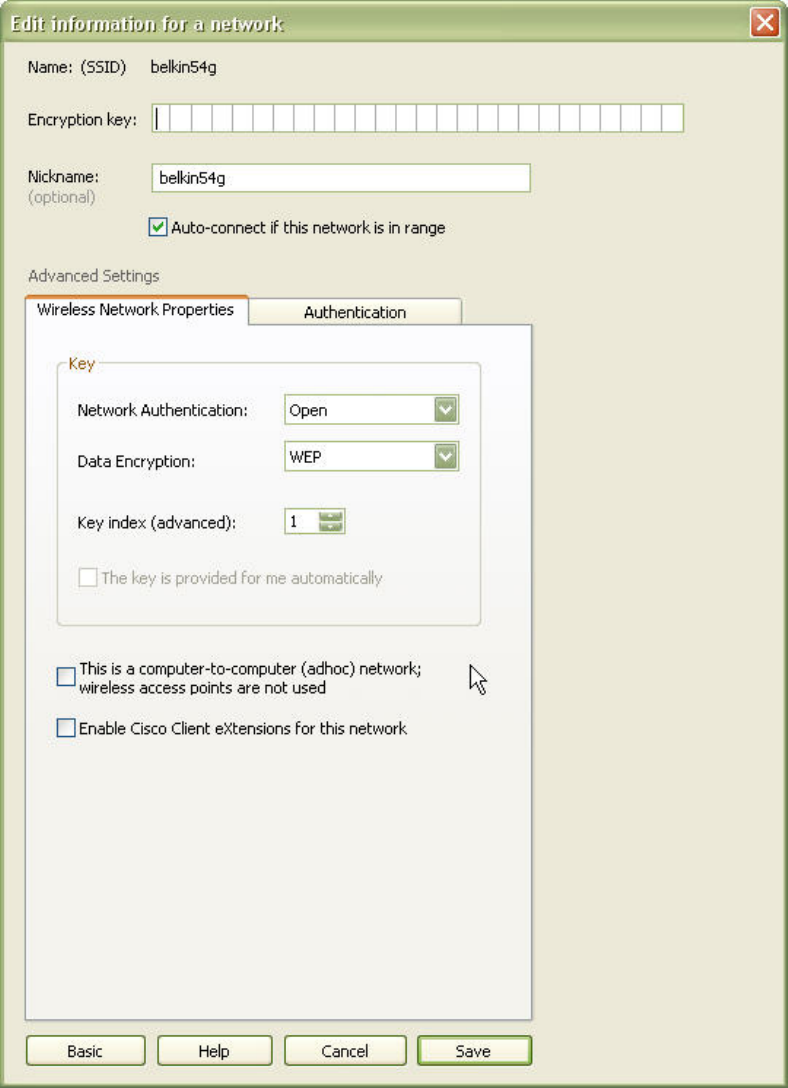

Click the “Advanced” button to see other security options (below).
[insert F5D7010-14.jpg]
![](/img.php?id=745215&img=bg12.png)
Page 18 of 40
Wireless Equivalent Privacy (WEP) is a less secure, but more widely adopted
wireless security protocol. Depending on the security level (64- or 128-bit), the
user will be asked to input a 10- or 26-character hex key. A hex key is a
combination of letters, a–f, and numbers, 0–9.
Page 19 of 40
Wireless Protected Access (WPA) is the new standard in the wireless security.
However, not all wireless cards and adapters support this technology. Please
check your wireless adapter’s user manual to check if it supports WPA. Instead
of a hex key, WPA uses only passphrases, which are much easier to remember.
The following section, intended for the home, home-office, and small-office user,
presents a few different ways to maximize the security of your wireless network.
At the time of publication, four Encryption Methods are available:
Encryption Methods:
Name 64-Bit Wired
Equivalent
Privacy
128-Bit Wired
Equivalent
Privacy
Wi-Fi Protected
Access-TKIP Wi-Fi Protected
Access 2
Acronym 64-bit WEP 128-bit WEP WPA-TKIP/AES
(or just WPA) WPA2-AES (or
just WPA2)
Security Good Better Best Best
Features Static keys Static keys Dynamic key
encryption and
mutual
authentication
Dynamic key
encryption and
mutual
authentication
Encryption
keys based
on RC4
algorithm
(typically 40-
bit keys)
More secure
than 64-bit
WEP using a
key length of
104 bits plus
24 additional
bits of system-
generated data
TKIP (Temporal
Key Integrity
Protocol) added
so that keys are
rotated and
encryption is
strengthened
AES (Advanced
Encryption
Standard) does
not cause any
throughput loss
(insert chart from P74488-A, p.16)
WEP (Wired Equivalent Privacy)
WEP is a common protocol that adds security to all Wi-Fi-compliant wireless
products. WEP gives wireless networks the equivalent level of privacy protection
as a comparable wired network.
64-Bit WEP
Page 20 of 40
64-bit WEP was first introduced with 64-bit encryption, which includes a key
length of 40 bits plus 24 additional bits of system-generated data (64 bits total).
Some hardware manufacturers refer to 64-bit as 40-bit encryption. Shortly after
the technology was introduced, researchers found that 64-bit encryption was too
easy to decode.
128-Bit Encryption
As a result of 64-bit WEP’s potential security weaknesses, a more secure
method of 128-bit encryption was developed. 128-bit encryption includes a key
length of 104 bits plus 24 additional bits of system-generated data (128 bits total).
Some hardware manufacturers refer to 128-bit as 104-bit encryption. Most of the
new wireless equipment in the market today supports both 64-bit WEP and 128-
bit WEP encryption, but you might have older equipment that only supports 64-bit
WEP. All Belkin wireless products will support both 64-bit WEP and 128-bit
encryption.
Encryption Keys
After selecting either the 64-bit WEP or 128-bit encryption mode, it is critical that
you generate an encryption key. If the encryption key is not consistent throughout
the entire wireless network, your wireless networking devices will be unable to
communicate with one another. You can enter your key by typing in the hex key.
A hex (hexadecimal) key is a combination of numbers and letters from A–F and
0–9. For 64-bit WEP, you need to enter 10 hex keys. For 128-bit WEP, you need
to enter 26 hex keys.
For instance:

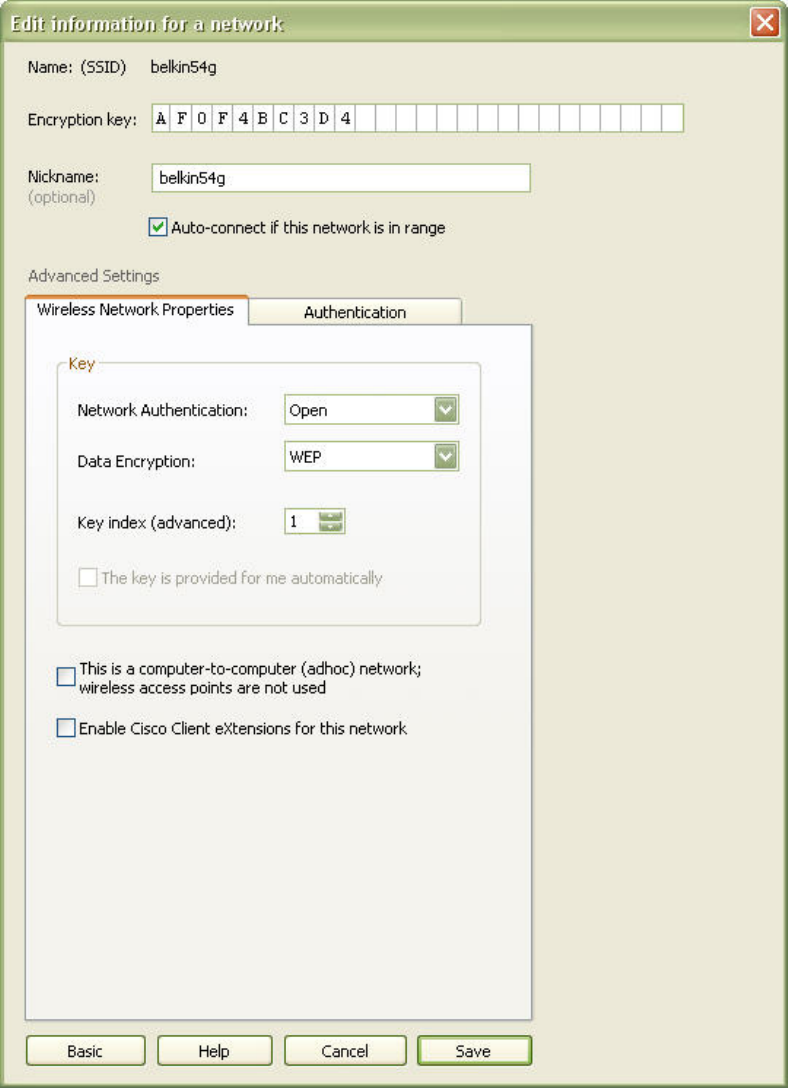

AF 0F 4B C3 D4 = 64-bit WEP key
C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit WEP key
Write down the hex WEP key from your wireless router (or access point) and
enter it manually into the hex WEP key table in your Card’s configuration screen.
WPA (Wi-Fi Protected Access)
WPA is a new Wi-Fi standard that improves upon the security features of WEP.
To use WPA security, the drivers and software of your wireless equipment must
be upgraded to support it. These updates will be found on your wireless vendor’s
website. There are three types of WPA security: WPA-PSK (no server),WPA
(with radius server), and WPA2.
WPA-PSK (no server) uses what is known as a pre-shared key as the network
key. A network key is a password that is between eight and 63 characters long. It
can be a combination of letters, numbers, or characters. Each client uses the
same network key to access the network. Typically, this is the mode that will be
used in a home environment.
Page 21 of 40
WPA (with radius server) works best in a business environment, in which a
radius server automatically distributes the network key to clients.
WPA2 requires Advanced Encryption Standard (AES) for encryption of data,
which offers much greater security than WPA. WPA uses both Temporal Key
Integrity Protocol (TKIP) and (AES) for encryption.
Setting up your Belkin Wireless Router (or Access Point) to use Security
To start using security, you need to first enable WEP or WPA for your wireless
router (or access point). For Belkin Wireless Routers (or Access Points), these
security features can be configured by using the web-based interface. See your
wireless router’s (or access point’s) manual for directions on how to access the
management interface.
IMPORTANT: You must now set all wireless network cards/adapters to match these
settings.
Configuring your Belkin Wireless G Notebook Card to use Security
At this point, you should already have your wireless router (or access point) set to use WPA or
WEP. In order for you to gain wireless connection, you will need to set your Wireless G Notebook
Card to use the same security settings.
Changing the Wireless Security Settings
The Belkin Wireless G Notebook Card supports the latest WPA security feature as well as the
legacy WEP security standard. By default, wireless security is disabled.
To enable security, you will first need to determine which standard is used by the router (or
access point). (See your wireless router’s or access point’s manual for directions on how to
access the security settings.)

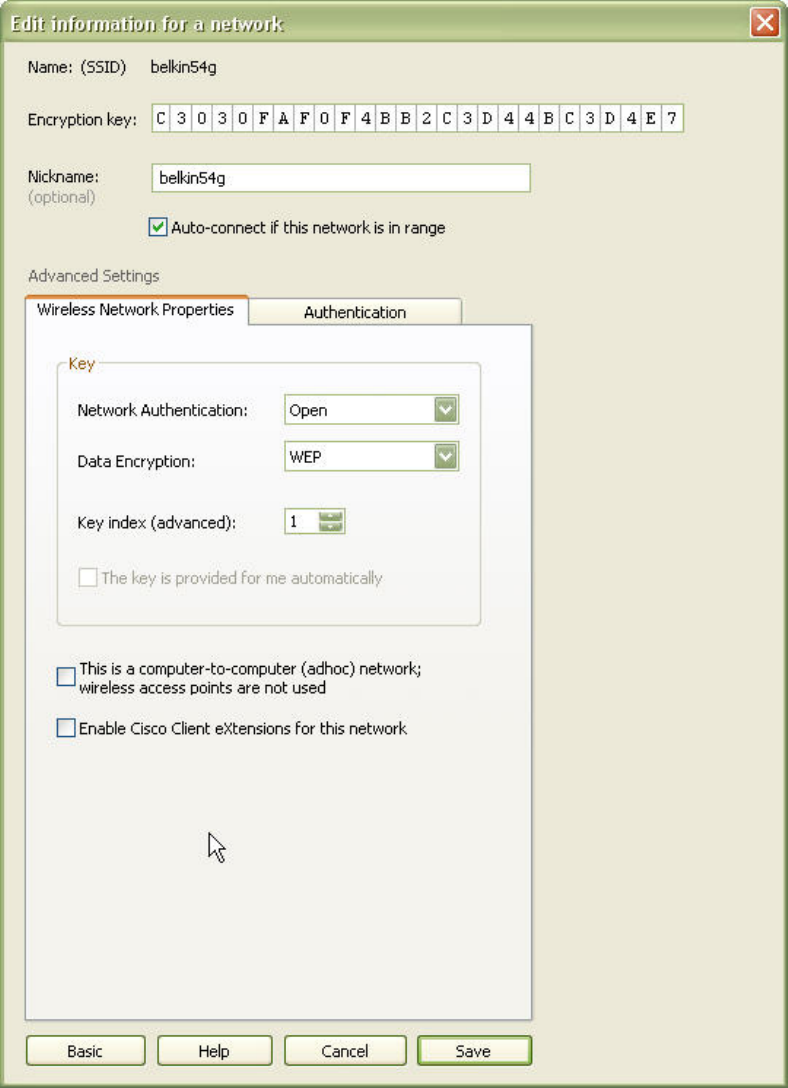

[insert F5D7010-18.jpg]
![](/img.php?id=745215&img=bg16.png)
Page 22 of 40
To access the security settings on your Card, click the “My Connections” tab and
point to the connection for which you want to change security settings. Click
“Edit” to change settings.
WEP Setup
64-Bit WEP Encryption
1. Select “WEP” from the “Data Encryption” drop-down menu.
2. After selecting your WEP encryption mode, you can enter your key by typing in
the hex key manually.
A hex (hexadecimal) key is a combination of numbers and letters from A–F and
0–9. For 64-bit WEP, you need to enter 10 hex keys.
For instance:
AF 0F 4B C3 D4 = 64-bit WEP key
insert F5D7010-15.jpg]
![](/img.php?id=745215&img=bg17.png)
Page 23 of 40
3. Click “Save” to finish. Encryption in the wireless router (or access point) is now
set. Each of your computers on your wireless network will now need to be
configured with the same security settings.
Page 24 of 40
WARNING: If you are using a wireless client to turn on the security settings in
your wireless router (or access point), you will temporarily lose your wireless
connection until you activate security on your wireless client. Please record the
key prior to applying changes in the wireless router (or access point). If you don’t
remember the hex key, your client will be locked out of the wireless router (or
access point).
128-Bit WEP Encryption
1. Select “WEP” from the drop-down menu.
2. After selecting your WEP encryption mode, you can enter your key by typing in
the hex key manually. A hex (hexadecimal) key is a combination of numbers and
letters from A–F and 0–9. For 128-bit WEP, you need to enter 26 hex keys.
For instance:
C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit WEP key
[insert F5D7010-16.jpg]
![](/img.php?id=745215&img=bg19.png)
Page 25 of 40
3. Click “Save” to finish. Encryption in the wireless router (or access point) is now
set. Each of the computers on your wireless network will now need to be
configured with the same security settings.
Page 26 of 40
WARNING: If you are using a wireless client to turn on the security settings in
your wireless router (or access point), you will temporarily lose your wireless
connection until you activate security on your wireless client. Please record the
key prior to applying changes in the wireless router (or access point). If you don’t
remember the hex key, your client will be locked out of the wireless router (or
access point).
WPA-PSK (no server)
Choose this setting if your network does not use a radius server. WPA-PSK
(no server) is typically used in home and small office networking.
1. From the “Network Authentication” drop-down menu, select “WPA-PSK (no
server)”.
2. Enter your network key. This can be from eight to 63 characters and can be
letters, numbers, or symbols. This same key must be used on all of the clients
(network cards) that you want to include in your wireless network.
[insert F5D7010-17.jpg]
![](/img.php?id=745215&img=bg1b.png)
Page 27 of 40
3. Click “Save” to finish. You must now set all clients (network cards) to match
these settings.
![](/img.php?id=745215&img=bg1c.png)
Page 28 of 40

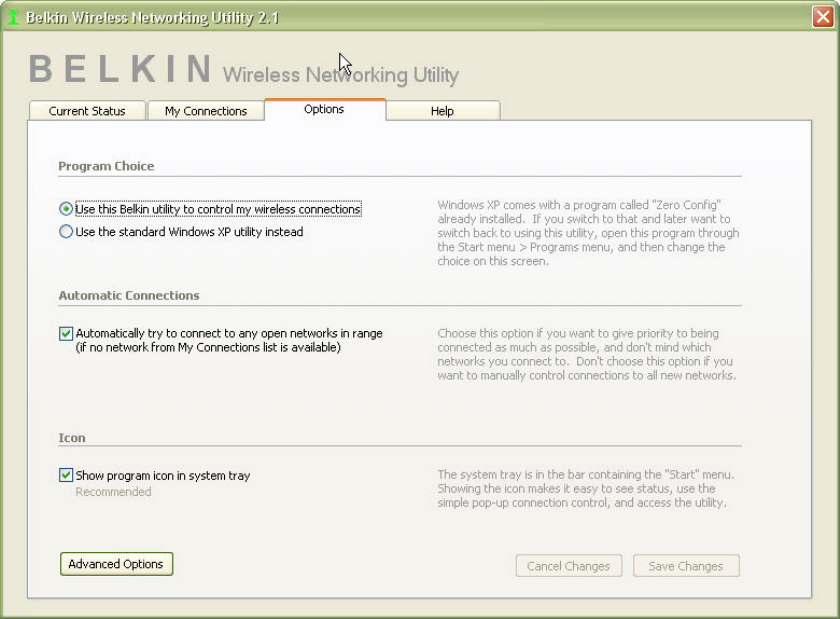

Wireless Networking Utility Options
[insert F5D7010-19.jpg]
The “Options” tab on the WNU provides the user the ability to customize his or her WNU settings.
Wireless Networking Utility Help
The WNU “Help” tab provides users with access to online and telephone support, as well as
advanced diagnostic tools.
[insert F5D7010-20.jpg]
![](/img.php?id=745215&img=bg1d.png)
Page 29 of 40
Advanced Diagnostic Tools
The “Advanced Diagnostic Tools” section is the central control panel for all the
settings of the hardware and software components of the wireless network. It
provides an array of tests and connectivity services to ensure optimal network
performance.
[insert F5D7010-21.jpg]
![](/img.php?id=745215&img=bg1e.png)
Page 30 of 40
Troubleshooting
I can’t connect to the Internet wirelessly.
If you are unable to connect to the Internet from a wireless computer, please
check the following items:
1. Look at the lights on your wireless router. If you’re using a Belkin Wireless
Router, the lights should be as follows:
• The “Power” light should be on.
• The “Connected” light should be on, and not blinking.
• The “WAN” light should be either on or blinking.
If your Belkin Wireless Router’s lights have the above characteristics, go to
number 2 below.
If this is NOT the case, make sure:
![](/img.php?id=745215&img=bg1f.png)
Page 31 of 40
• The router’s power cord is plugged in.
• All cables are connected between the router and the modem.
• All the modem’s LEDs are functioning correctly. If not, see your modem’s user
manual.
• Reboot the router.
• Reboot the modem.
If you continue to have issues, please contact Belkin Technical Support.
If you are not using a Belkin Wireless Router, consult that router manufacturer’s
user guide.
2. Open your wireless utility software by clicking on the icon in the system tray at
the bottom right-hand corner of the screen. If you’re using a Belkin Wireless Card,
the tray icon should look like this (the icon may be red or green):
[insert F5D7010-06.jpg]
3. The exact window that opens will vary depending on the model of wireless
card you have; however, any of the utilities should have a list of “Available
Networks”.
Available networks are wireless networks to which you can connect.
If you are using a Belkin 802.11g (G Plus) Router, or Belkin 802.11g (54g)
Router, “Belkin54g” is the default name.
If you are using a Belkin 802.11b Router, the default name should be “WLAN”.
If you are NOT using a Belkin Router, please consult your router manufacturer’s
user manual for the default name.
The name of your wireless network appears in “Available Networks”.
If the correct network name is listed in the “Available Networks” list, please follow
the steps below to connect wirelessly:
1. Click on the correct network name in the “Available Networks” list.
2. If the network has security (encryption) enabled, you will need to enter the
network key. Click “Connect”. For more information regarding security, see the
page entitled: “Securing your Wi-Fi Network” on page xx of this User Manual.
3. Within a few seconds, the tray icon in the lower right-hand corner of your
screen should turn green, indicating a successful connection to the network.
If you are still unable to access the Internet after connecting to the wireless
network, please contact Belkin Technical Support.
Page 32 of 40
The name of your wireless network DOES NOT appear in the list
of “Available Networks”.
If the correct network name is not listed, check the SSID settings to see if they
match. The SSID is case-sensitive and the spelling on each computer must be
exactly the same in order for the Card to connect to the wireless router (or
access point).
Note: To check the SSID settings or look for an available network, double-click
the Signal Indicator icon to bring up the “Wireless Networks” screen. Click “Add”
if you do not see the network you are trying to connect to and type in the SSID.
For more information about setting up an SSID, please reference your router
manufacturer’s user manual.
If issues persist even at close range, please contact Belkin Technical Support.
Installation CD-ROM does not start Belkin Wireless Networking Utility.
If the CD-ROM does not start the Belkin Wireless Networking Utility automatically,
it could be that the computer is running other applications that are interfering with
the CD drive. If the Belkin Wireless Networking Utility screen does not appear
within 15-20 seconds, open up your CD-ROM drive by double-clicking on the “My
Computer” icon. Next, double-click on the CD-ROM drive that the Installation CD
has been placed in to start the installation. Then double-click on the folder named
“Files”. Next, double-click on the icon named “setup.exe”.
Power LED does not come ON; Card is not working.
If the LED indicators are not ON, the problem may be that the Card is not
connected or installed properly. Verify that the Card is plugged firmly into the
CardBus slot of your computer. Check to see that the drivers for the Card have
been installed. Right-click on the “My Computer” icon on your desktop. Choose
“Properties” and navigate to the “Device Manager” and see if your CardBus Card
is listed without any errors. If an error is indicated, contact Belkin Technical
Support.
Link LED is blinking slowly; I cannot connect to a wireless network or the
Internet.
If your Card appears to be functioning properly, but you cannot connect to a
network or you have a red wireless icon at the bottom of your screen, the
problem may be that there is a mismatch between the network name (SSID)
settings in your wireless network properties.
Check the SSID settings to see if they match. The SSID is case-sensitive and the
spelling on each computer must be exactly the same in order for the Card to
connect to the wireless router (or access point).
Page 33 of 40
Note: To check the SSID settings or look for an available network, double-click
the Signal Indicator icon to bring up the “Wireless Networks” screen. Click “Add”
if you do not see the network you are trying to connect to and type in the SSID.
For more information about setting up an SSID, please reference your router
manufacturer’s user manual. If issues persist even at close range, please contact
Belkin Technical Support.
Link LED is solid but I cannot connect to the Internet.
If you have a signal but can’t get online or obtain an IP address, the problem may
be that there is a mismatch between the encryption key settings in your computer
and wireless router (or access point). Check the WEP key settings to see if they
match. The key is case-sensitive and the spelling on each computer and wireless
router (or access point) must be exactly the same in order for the Card to
connect to the router. For more information about encryption, please see
“Securing your Wi-Fi Network” on page 16 of this User Manual.
If issues persist even at close range, please contact Belkin Technical Support.
Data transfer is sometimes slow.
Wireless technology is radio-based, which means connectivity and the
throughput performance between devices decreases when the distance between
devices increases. Other factors that will cause signal degradation (metal is
generally the worst culprit) are obstructions such as walls and metal appliances.
As a result, the typical indoor range of your wireless devices will be between 100
to 200 feet. Note also that connection speed may decrease as you move farther
from the wireless router (or access point).
In order to determine if wireless issues are related to range, we suggest
temporarily moving the computer, if possible, to five to 10 feet away from the
wireless router (or access point). Please see the section titled “Placement of your
Wireless Networking Hardware for Optimal Performance” on page 2 of this User
Manual. If issues persist even at close range, please contact Belkin Technical
Support.
Signal strength is poor.
Wireless technology is radio-based, which means connectivity and the
throughput performance between devices decreases when the distance between
devices increases. Other factors that will cause signal degradation (metal is
generally the worst culprit) are obstructions such as walls and metal appliances.
As a result, the typical indoor range of your wireless devices will be between 100
to 200 feet. Note also that connection speed may decrease as you move farther
from the wireless router (or access point). In order to determine if wireless issues
are related to range, we suggest temporarily moving the computer, if possible, to
five to 10 feet away from wireless router (or access point).
Changing the wireless channel – Depending on local wireless traffic and
interference, switching the wireless channel of your network can improve
Page 34 of 40
performance and reliability. The default channel the router is shipped with is
channel 11. You may choose from several other channels depending on your
region; see your router’s (or access point’s) user manual for instructions on how
to choose other channels.
Limiting the wireless transmit rate – Limiting the wireless transmit rate can
help improve the maximum wireless range, and connection stability. Most
wireless cards have the ability to limit the transmission rate. To change this
property, go to the Windows Control Panel, open “Network Connections” and
double-click on your Card’s connection. In the “Properties” dialog, select the
“Configure” button on the “General” tab (Windows 98 users will have to select the
Wireless Card in the list box and then click “Properties”), then choose the
“Advanced” tab and select the rate property. Wireless client cards are usually set
to automatically adjust the wireless transmit rate for you, but doing so can cause
periodic disconnects when the wireless signal is too weak; as a rule, slower
transmission rates are more stable. Experiment with different connection rates
until you find the best one for your environment; note that all available
transmission rates should be acceptable for browsing the Internet. For more
assistance, see your wireless card’s literature. If issues persist even at close
range, please contact Belkin Technical Support.
Why are there two wireless utilities in my system tray?
Which one do I use?
There are several features and advantages from using the Belkin Wireless
Networking Utility over the Windows XP Wireless Zero Configuration utility. We
offer a site survey, detailed link information, and adapter diagnosis, to name a
few.
It’s essential to know which utility is managing your Card. We recommend using
the Belkin Wireless Networking Utility. To use the Belkin Wireless Networking
Utility, follow the steps below:
Step 1 Right-click on the network status icon in the system tray and select the
“Status” tab.
Step 2 From the “Status” tab, uncheck the “Use Windows to configure my wireless network
settings” box. Once the box is unchecked, click the “Close” button to close the window.
You are now using the Belkin Wireless Networking Utility to configure the Card.
Card does not perform or connection is unstable when computer has
a second built-in wireless network card (such as a mini PCI or
Intel® Centrino™).
This condition occurs if your computer has a built-in wireless card while your
Belkin Wireless Card is also active. This happens because Windows must now
handle two active wireless connections.
![](/img.php?id=745215&img=bg23.png)
Page 35 of 40
You need to disable the built-in wireless card from your computer under “Network
Adapters” in the Device Manager.
Card does not perform or connection is slow when computer has a built-in
wired Ethernet card.
This condition occurs if your computer has an active Ethernet card while your
Wireless Card is also active. This happens because Windows must now handle
two active network connections. You need to disable the Ethernet card from your
computer under “Network Adapters” in the Device Manager.
What’s the difference between 802.11b, 802.11g, 802.11a, and Pre-N?
Currently there are four levels of wireless networking standards, which transmit
data at very different maximum speeds. Each is based on the designation for
certifying network standards. The most common wireless networking standard,
802.11b, transmits information at 11Mbps; 802.11a and 802.11g work at 54Mbps;
and Pre-N works at 108Mbps. Pre-N, the precursor to the upcoming 802.11n
release, promises speeds that exceed 802.11g, and up to twice the wireless
coverage area. See the following chart for more detailed information.
Wireless Comparison Chart
Wireless
Technology 802.11b 802.11g 802.11a Belkin Pre-N
Speed 11Mbps 54Mbps 54Mbps 600% faster than
standard
802.11g*
Frequency Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed band
2.4GHz
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed band
2.4GHz
5GHz—
uncrowded band Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed band
2.4GHz
Compatibility Compatible with
802.11g Compatible with
802.11b Incompatible with
802.11b or
802.11g
Compatible with
802.11g or
802.11b
Coverage* Depends on
interference—
typically 100–200
ft. indoors
Depends on
interference—
typically 100–200
ft. indoors
Interference
range is typically
50–100 ft.
Up to 800% wider
coverage than
standard
802.11g*
Advantage Mature—legacy
technology Common—
widespread use
for Internet
sharing
Less
interference—
great for
multimedia
Leading edge—
best coverage
and throughput
![](/img.php?id=745215&img=bg24.png)
Page 36 of 40
application
*Distance and connection speeds will vary depending on your networking environment.
Technical Support
You can find technical support information at www.belkin.com or
www.belkin.com/networking. If you want to contact technical support
by phone, please call:
US: 877-736-5771
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Europe: www.belkin.com/support
Information
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare
under our sole responsibility that the product, F5D7010v7, to which this
declaration relates, complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Caution: Exposure to Radio Frequency Radiation. The radiated output power of
this device is far below the FCC radio frequency exposure limits. Nevertheless,
the device shall be used in such a manner that the potential for human contact
during normal operation is minimized. When connecting an external antenna to
the device, the antenna shall be placed in such a manner to minimize the
potential for human contact during normal operation. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20cm (8 inches) during normal
operation.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
Page 37 of 40
This equipment generates, uses, and can radiate radio frequency energy. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications to this
device that are not expressly approved by Belkin Corporation may void the user’s
authority to operate the equipment.
Canada-Industry Canada (IC)
The wireless radio of this device complies with RSS 210 Industry Canada.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du
Canada.
Europe-European Union Notice
Radio products with the CE 0682 or CE alert marking comply with the R&TTE
Directive (1995/5/EC) issued by the Commission of the European Community.
Compliance with this directive implies conformity to the following European
Norms (in brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label on your Belkin
product.
Products with the CE marking comply with the EMC Directive (89/336/EEC) and
the Low Voltage Directive (72/23/EEC) issued by the Commission of the
European Community. Compliance with these directives implies conformity to the
following European Norms (in brackets are the equivalent international
standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11) – Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled with CE 0682 or CE alert
marking and may also carry the CE logo.
Belkin Corporation Limited Lifetime Product Warranty
This device has been designed to operate with an antenna having a maximum gain of 1.57dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The
required antenna impedance is 50ohms.
Page 38 of 40
What this warranty covers.
Belkin Corporation warrants to the original purchaser of this Belkin product that
the product shall be free of defects in design, assembly, material, or
workmanship.
What the period of coverage is.
Belkin Corporation warrants the Belkin product for the lifetime of the product.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to
Belkin Corporation for inspection upon Belkin’s request at the sole expense of
the purchaser, or if Belkin Corporation determines that the Belkin product has
been improperly installed, altered in any way, or tampered with. The Belkin
Product Warranty does not protect against acts of God (other than lightning) such
as flood, earthquake, war, vandalism, theft, normal-use wear and tear, erosion,
depletion, obsolescence, abuse, damage due to low voltage disturbances (i.e.
brownouts or sags), non-authorized program, or system equipment modification
or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin Corporation at 501 W. Walnut St., Compton CA 90220,
Attn: Customer Service, or call (800)-223-5546, within 15 days of the
Occurrence. Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on
how to forward your receipt and Belkin product and how to proceed with
your claim.
Belkin Corporation reserves the right to review the damaged Belkin product. All
costs of shipping the Belkin product to Belkin Corporation for inspection shall be
borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is
impractical to ship the damaged equipment to Belkin Corporation, Belkin may
designate, in its sole discretion, an equipment repair facility to inspect and
estimate the cost to repair such equipment. The cost, if any, of shipping the
Page 39 of 40
equipment to and from such repair facility and of such estimate shall be borne
solely by the purchaser. Damaged equipment must remain available for
inspection until the claim is finalized. Whenever claims are settled, Belkin
Corporation reserves the right to be subrogated under any existing insurance
policies the purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN
CORPORATION, THERE ARE NO OTHER WARRANTIES, EXPRESSED OR,
EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED
WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY,
ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so
the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN CORPORATION BE LIABLE FOR INCIDENTAL,
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES
SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING
OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights,
which may vary from state to state. Some states do not allow the exclusion or
limitation of incidental, consequential, or other damages, so the above limitations
may not apply to you.
BELKIN
Wireless G Notebook Card
Belkin Tech Support
US: 877-736-5771
310-898-1100 ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Europe: www.belkin.com/support
Belkin Corporation
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
![](/img.php?id=745215&img=bg28.png)
Page 40 of 40
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
Belkin Ltd.
4 Pioneer Avenue
Tuggerah Business Park
Tuggerah, NSW 2259, Australia
+61 (0) 2 4350 4600
+61 (0) 2 4350 4700 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered
trademarks of respective manufacturers listed. Windows is either a registered
trademark or trademark of Microsoft Corporation in the United States and/or
other countries.
P74682-D
[P# not yet in Oracle]
