Belkin F5D7050A 54 Mbps Wireless USB Network Adapter User Manual P74471 B F5D7050 man indd
Belkin International, Inc. 54 Mbps Wireless USB Network Adapter P74471 B F5D7050 man indd
Belkin >
Users Manual
Knowing Your Router
Belkin, Ltd.
7 Bowen Crescent • West Gosford
NSW 2250 • Australia
Tel: +61 (0) 2 4372 8600
Fax: +61 (0) 2 4372 8603
Belkin Components B.V.
Starparc Building • Boeing Avenue 333
1119 PH Schiphol-Rijk • The Netherlands
Tel: +31 (0) 20 654 7300
Fax: +31 (0) 20 654 7349
Belkin Tech Support
US: 877.736.5771
310.898.1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 666 040
Belkin Corporation
501 West Walnut Street
Compton • CA • 90220 • USA
Tel: 310.898.1100
Fax: 310.898.1111
Belkin Components, Ltd.
Express Business Park • Shipton Way
Rushden • NN10 6GL • United Kingdom
Tel: +44 (0) 1933 35 2000
Fax: +44 (0) 1933 31 2000
© 2004 Belkin Corporation. All rights reserved. All trade names are registered trademarks
of respective manufacturers listed. 54g is a trademark of Broadcom Corporation in the U.S.
and other countries. Apple, AirPort, Mac, Mac OS, and AppleTalk are trademarks of Apple
Computer, Inc., registered in the U.S. and other countries.
P74471-B
Wireless G USB
Network Adapter
Knowing Your Router
F5D7050
2.4GHz • Wireless802.11g
Mbps
Connect your desktop or notebook
computer to a FAST wireless network
User Manual
Wireless G USB
Network Adapter
1
1
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Benefits of a Home Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Advantages of setting up a Belkin Wireless Network . . . . . . . . . . 1
Placement of your Wireless Networking
Hardware for Optimal Performance . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Factors for Placement and Setup . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Knowing your Wireless USB Network Adapter . . . . . . . . . . . 8
3 Installing and Setting Up the USB Network Adapter . . . . . . . 9
Step 1: Install the Software . . . . . . . . . . . . . . . . . . . . 9
Step 2: Connect your USB Adapter to your PC . . . . 10
Step 3: Let Windows Finish the Installation . . . . . . . 11
4 Uninstalling the Software and Drivers . . . . . . . . . . . . . . . . 13
5 Using the Belkin Wireless LAN Monitor Utility . . . . . . . . . 14
6 Securing your Wireless Network . . . . . . . . . . . . . . . . . . . 26
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8 Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Table of Contents
1
1
2
1
3
4
5
6
7
section
8
Thank you for purchasing the Belkin Wireless G USB Network Adapter
(the Adapter). Now you can take advantage of this great new technology
and gain the freedom you need around the home or office without using
cables. The Wireless USB Network Adapter works like a conventional
network adapter, but without the wires. The easy installation and setup
will have you networking wirelessly in minutes. Please be sure to read
through this User Manual completely, and pay special attention to the
section entitled “Placement of your Wireless Networking Hardware
for Optimal Performance” on page 2. By following our simple setup
instructions your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet e-mail,
and chat
Here are some of the advantages of setting up a Belkin
Wireless Network:
• Mobility – you’ll no longer need a dedicated “computer room”—
now you can work on a networked laptop or desktop computer
anywhere within your wireless range
• Easy installation – Belkin Easy Installation Wizard makes
setup simple
• Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
• Easy Expansion – the wide range of Belkin networking products
let you expand your network to include devices such as printers
and gaming consoles
• No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range
of interoperable networking products
Introduction
32
Introduction
32
Introduction

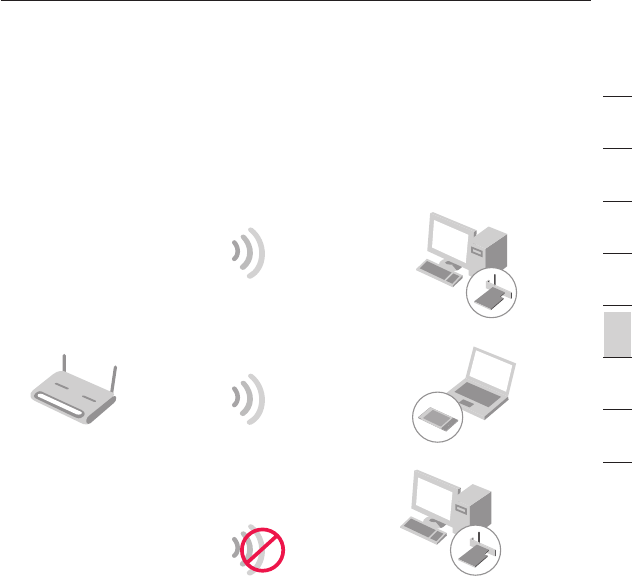

Placement of your Wireless Networking Hardware for
Optimal Performance
Your wireless connection will be stronger the closer your computer
is to your Wireless Router (or Access Point). Typical indoor operating
range for your wireless devices is between 100 and 200 feet. In the
same way, your wireless connection and performance will degrade
somewhat as the distance between your Wireless Router (or Access
Point) and connected devices increases. This may or may not be
noticeable to you. As you move further from your Wireless Router
or Access Point, connection speed may decrease. Factors that can
weaken signals simply by getting in the way of your network’s radio
waves are metal appliances or obstructions, and walls.
If you have concerns about your network’s performance that might be
related to range or obstruction factors, try moving the computer to a
position between five and ten feet from the Wireless Router, in order
to see if distance is the problem. If difficulties persist even at close
range, please contact Belkin Technical Support.
IMPORTANT FACTORS FOR PLACEMENT AND SETUP
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Placement of your Wireless Networking Hardware
Place your Wireless Router (or Access Point), the central connection
point of your network, as close as possible to the center of your
wireless network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook Network
Cards, Wireless Desktop Network Cards, and Wireless USB Adapters):
• Ensure that your Wireless Router (or Access Point) networking
antennas are parallel to each other, and are positioned vertically
(toward the ceiling). If your Wireless Router (or Access Point)
itself is positioned vertically, point the antennas as much as
possible in an upward direction.
3
Introduction
Introduction
3
Introduction
2
1
3
4
5
6
7
section
8
• In multistory homes, place the Wireless Router (or Access Point)
on a floor that is as close to the center of the home as possible.
This may mean placing the Router on an upper floor.
• Try not to place the Wireless Router (or Access Point) near a
cordless 2.4GHz phone.
2. Avoid Obstacles and Interference
Avoid placing your Wireless Router or Access Point near devices that
may emit radio “noise”, such as microwave ovens. Dense objects that
can inhibit Wireless communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based UV tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between your
computers and Wireless Router or Access Point)
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending
to the above issues, and you have a cordless phone:
• Try moving cordless phones away from Wireless Routers (or
Access Points) and your wireless-enabled computers
• Unplug and remove the battery from any cordless phone that
operates on the 2.4GHz band (check manufacturers information).
If this fixes the problem, your phone may be interfering.
• If your phone supports channel selection, change the channel
on the phone to the furthest channel from your wireless network,
as possible. For example, change the phone to channel 1 and
move your Wireless Router to channel 11. See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz
cordless phone.
54
Introduction
54
Introduction
4. Choose the “quietest” channel for your wireless network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless

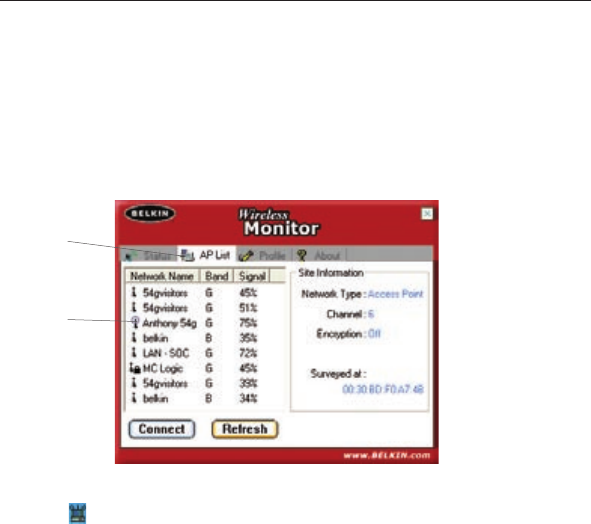

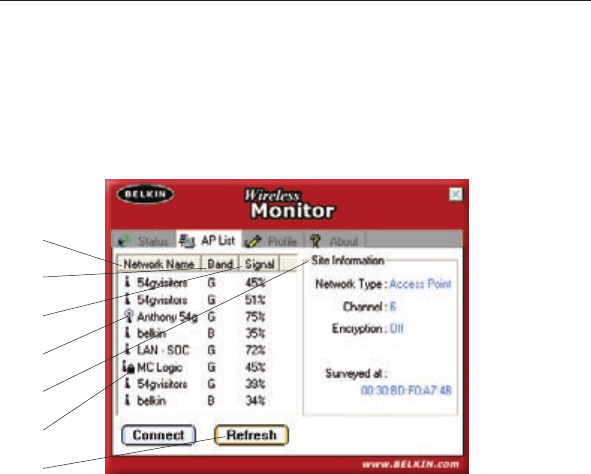

networks nearby that can conflict with yours. Use the Site Survey
capabilities of your Wireless LAN Utility to locate any other wireless
networks (see page 16 of this manual), and move your Wireless Router
(or Access Point) and computers to a channel as far away from other
networks as possible.
Experiment with more than one of the available channels, in order to
find the clearest connection and avoid interference from neighboring
cordless phones or other wireless devices.
5. Secure connections, VPNs, and AOL
Secure connections are connections that typically require a user name
and password, and are used where security is important. Secure
connections include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most on-line banking websites
• Many commercial websites which require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by re-running the VPN or
AOL software, or by re-logging into the secure web site.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this may
not be appropriate for portable computers. To change your power
management setting under Windows, see the “Power Options” item in
the Control Panel.
5
Introduction
Introduction
5
Introduction
2
1
3
4
5
6
7
section
8
If you continue to have difficulty with Secure Connection, VPNs and
AOL please review steps 1-4 above to be sure you have addressed
these issues.
These guidelines should allow you to cover the maximum possible
area with your Wireless Router. Should you need to cover an
even wider area, please go to the networking product section on
(www.belkin.com/networking) for more details on Belkin’s Wireless
Range Extender/Access Point.
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call our Technical Support.
76
Introduction
76
Introduction
Features
The Adapter complies with the IEEE 802.11g standard in order
to communicate with other 802.11g and 802.11b-compliant
wireless devices.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated, easy-to-use profile manager for storing multiple
wireless network settings for work, school, home, or any
other setup
• USB 2.0 interface, for Plug-and-Play installation and convenience
in virtually any desktop or notebook computer
• WPA security (Windows XP only), 64-bit WEP or 128-bit Encryption
• Wireless access to networked resources
• Support for both infrastructure and ad-hoc (peer-to-peer)
networking modes
• Packet transfer rate of up to 54Mbps
• Easy installation and use
• LED link/activity indicator
• Desktop stand allows you to position your Adapter for optimal
wireless performance
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking—without cables.
• Compatible with 802.11b
802.11g wireless LAN solutions are backward-compatible with
existing Wi-Fi (802.11b) products and with other 802.11g products.
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or
open areas where wiring is difficult to install.
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange
or change locations.
7
Introduction
Introduction
7
Introduction
2
1
3
4
5
6
7
section
8
• Temporary LANs for special projects or peak time
Sets up temporary networks such as at trade shows, exhibitions,
and constructions sites, which need networks on a short-term
basis; also companies who need additional workstations for a
peak activity period.
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick small network installation SOHO
users need.
Product Specifications
Host Interface: USB 2.0
This product is compatible with the
USB 1.1 and USB 2.0 specification.
To achieve maximum networking
speeds (54Mbps), this device must be
connected to a USB 2.0 host port on a
PC. Connection of this device to a USB
1.1 host port will yield a maximum of
11Mbps networking speed.
Power Consumption: 500mA (max)
Certification: FCC Class B, CE Mark, C-Tick
Operating Temperature: 32–131° F (0–55° C)
Storage Temperature: -13–158° F (-25–70° C)
Typical Operating Range: Up to 200’*
*Distance and connection speeds will vary depending on your networking environment
System Requirements
• PC with one available USB port
• Windows® 98SE, 2000, Me, or XP
Package Contents
• Belkin Wireless USB Network Adapter with Desktop Stand
• Quick Installation Guide
• Installation Software CD
• User Manual
98
Knowing your Wireless USB Network Adapter
98
Protective Cap
Activity LED
Blinking Green: Scanning
Off: No Activity
On: Connected to network
USB Adapter
Desktop stand
(Optional Use)
The cap can be stored on the
opposite end of the USB connector.
The cap snaps over the USB
connector for protection.
9
Installing and setting up the USB Network Adapter
9
section
4
5
6
7
8
1
2
3
3
Step 1 Install the Software
WARNING: Install the software before inserting the Adapter
1.1 Insert the CD into your CD-ROM drive.
1.2 The Belkin Wireless USB Network Adapter Setup Utility screen will
automatically appear. If it does not appear within 15–20 seconds,
then select your CD-ROM drive and double-click on the folder
named “Files”. Next double-click on the icon named “Start.exe”.
1.3 In the menu window, drag your mouse
over the “Install” button then select
“Click here” to start the software
installation program.
1.4 The installer will start. Click “Next”
to continue.
1.5 If you are using Windows 2000 or
Windows XP, you will see a message
similar to the one below. This DOES
NOT mean there is a problem. Click
“Continue Anyway”.
1110
Installing and setting up the USB Network Adapter
1110
1.6 When the installer is done installing
the software, you will see the following
screen. Click “Finish”.
Step 2 Connect the USB Adapter to your PC
2.1 After the software installation is
finished, the message “You can plug
in your WLAN adapter now” will appear.
Plug the Adapter into an available
USB port on your desktop or
notebook computer.
For desktops: For notebooks:
Product Placement
The best location for your adapter is on top of your computer’s monitor.
Placing the Adapter on your desktop is acceptable, however, avoid
placing the Adapter near metal objects such as a computer case or
speakers. Any object that is metal has the ability to block the radio
signals from the Adapter.
or
11
Installing and setting up the USB Network Adapter
11
section
2
1
3
4
5
6
7
8

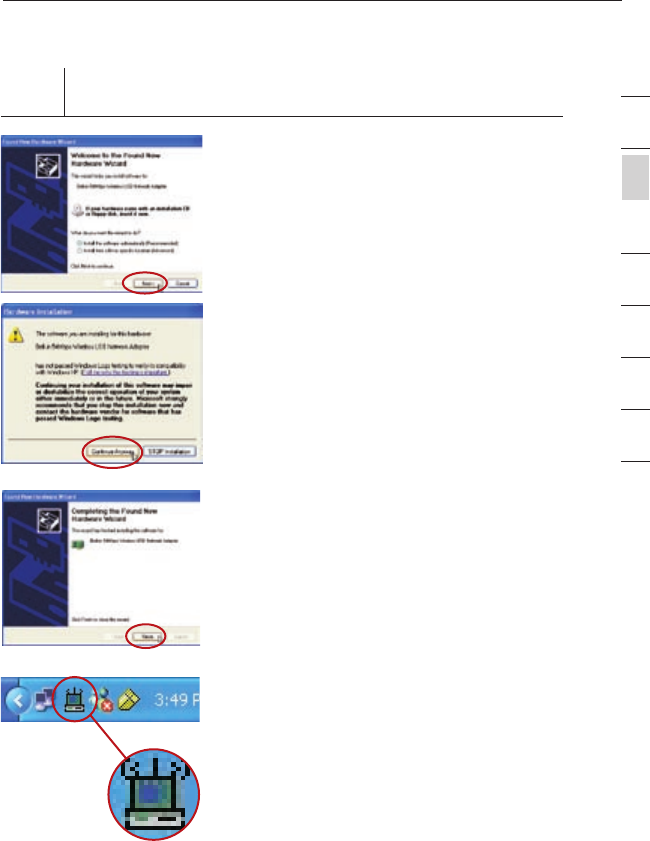

Step 3 Let Windows Finish the Installation
3.1 After connecting your Adapter,
Windows will detect that new hardware
has been installed. Depending on your
version of Windows, a window similar
to the one pictured here will appear.
Select the option “Install the software
automatically (Recommended)” and
click “Next”.
3.2 If you are using Windows 2000 or
Windows XP, you will see a message
similar to this one. This DOES NOT
mean there is a problem. Click
“Continue Anyway”.
3.3 If you are using Windows 98SE or
Me, you will be asked to restart your
computer. Select “Restart”. If you are
using Windows 2000 or XP, you will see
a window similar to this one.
Click “Finish”.
3.4 When the installation is complete, the
Belkin Wireless Monitor icon will appear
on your desktop. To open the Monitor
Utility, double-click on this icon.
1312
Installing and setting up the USB Network Adapter
1312
Uninstalling the Software and Drivers
3.5 A small icon in your system tray (bottom right corner of most
screens) will appear. This is your shortcut to the Belkin Wireless
Monitor. It also indicates the status of your connection:
Red: No connection to a wireless network
Blue: Connected to a wireless network.
If you already have a wireless router (or an access point) in your home or
office, the Adapter will automatically attempt to connect to your wireless
network. In most cases, the Adapter will be able to connect to your

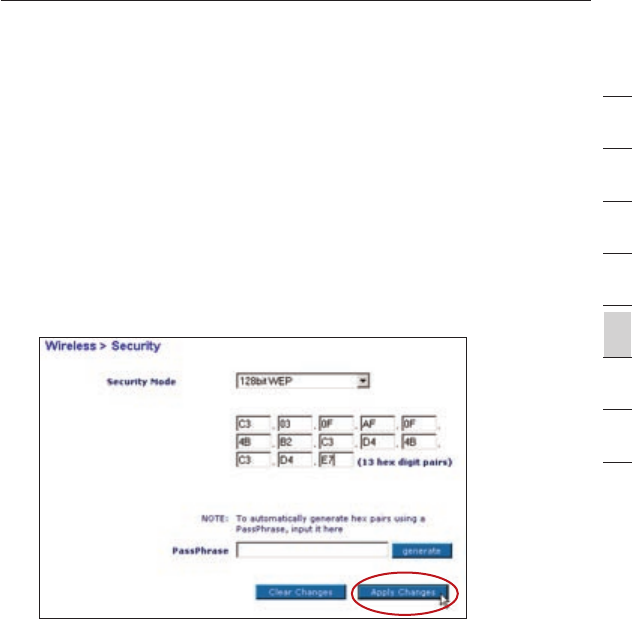

network automatically. If you are using encryption, you will have to set
the encryption settings of your adapter to match that of your wireless
router (or access point) before the Adapter can successfully connect to
your wireless network. For information about configuring your Adapter,

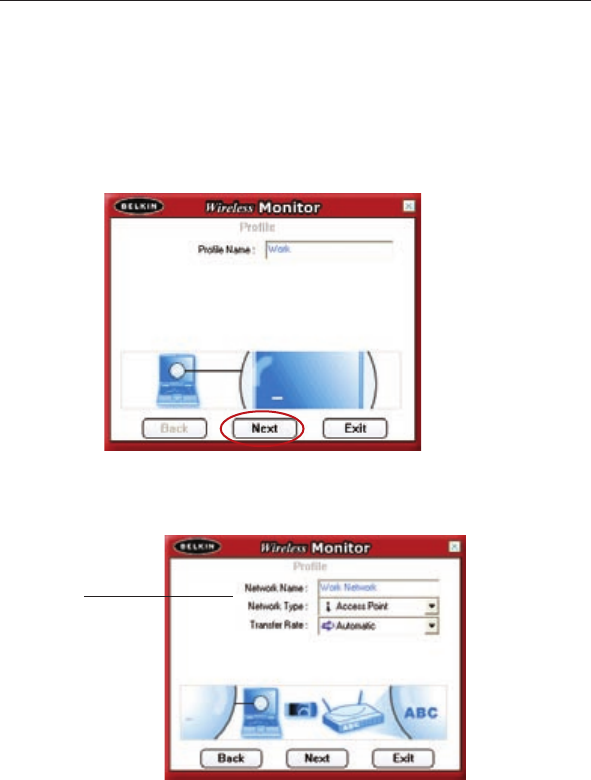

see the section in this manual called “Profile Tab: Creating a Profile” on
page 17.
13
Uninstalling the Software and Drivers
13
section
2
1
3
4
5
6
7
8
If you need to remove the software and drivers for any reason, you
can easily accomplish this in one of two ways. You can insert the
software CD and click on the “Uninstall” option in the menu, or you
can go to the Windows Control Panel and select the “Add/Remove
Programs” option. The Belkin Wizard will walk you through the
removal process.
1514
Using the Belkin Wireless LAN Monitor Utility
1514
Using the Belkin Wireless LAN Monitor Utility
When you launch the Wireless LAN Monitor Utility (the Utility), you will
be presented with the screen below. The following small icon will also
be present in your system tray.
Double-clicking on the icon in the system tray will open the Wireless
Monitor window.
USING THE BELKIN WIRELESS MONITOR UTILITY
Status Tab
When the utility is on your desktop, you can control your USB adapter
through the utility. The first tab you will see is the “Status” tab. From
this tab you can see your current connection status on the screen.
The example below shows that there is a connection between the
computer and the Wireless Router (or Access Point) by displaying 1’s
and 0’s between the two. The diagram below also shows there is a
connection between your computer, the Wireless Router (or Access
Point), and the Internet by displaying 1’s and 0’s between the Wireless
Router (or Access Point) and the Internet.
If there is no connection between the computer and Wireless Router
(or Access Point), an “X” will be displayed. This is the same for the
Internet connection.
1’s and 0’s displayed here indicates a connection
(a)
(b)
15
Using the Belkin Wireless LAN Monitor Utility
15
section
2
1
3
4
5
6
7
8
(a) Current Profile String
This indicates the name of the profile you are currently using, if any. If
a question mark appears next to the text in this box, it indicates that
there is no profile set up for the network you are currently connected
to. The name of the network you are connected to will be displayed in
this box if no profile for that network exists.

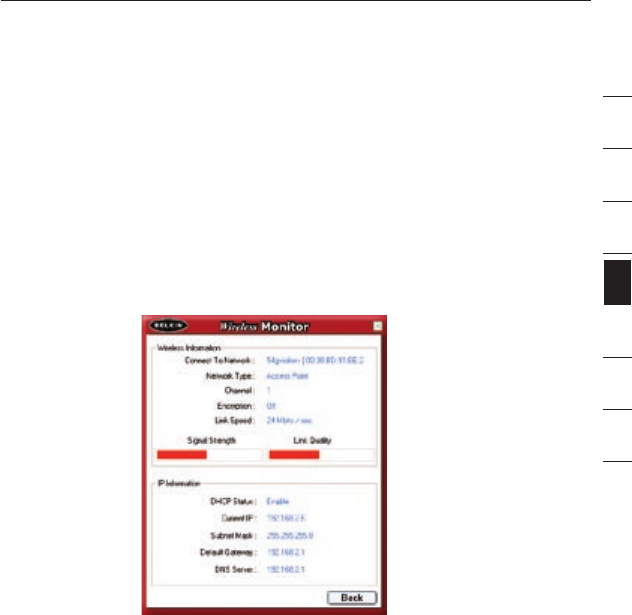

(b) More Button
Press the “More” button to see detailed specifics about the network
you are connected (below) to including the Signal Strength, Signal
Link Quality, IP information, and the name of the wireless network you
are connected to.
1716
Using the Belkin Wireless LAN Monitor Utility
1716
Using the Belkin Wireless LAN Monitor Utility
Access Point (AP) List Tab
To view a list of all available networks in your area, select the “AP
List” tab. In the window, you will be presented with a list showing you
the available networks.
(a) Network Name
This column shows you the name of the wireless network that is
available. On the left side of the network name are small icons which
tell you certain things about the network. A blue circle around the
network icon (e) indicates that you are currently connected to this
network. A small padlock (f) next to a network name indicates that
this network is secured (either by WEP or WPA encryption). It is not
possible to connect to a secured network without the proper network key.
(b) Band
This column shows you which band the network is operating on. “G”
indicates that this is 802.11g based network. “B” indicates this is an
802.11b based network.
(c) Signal
This column indicates the signal strength of the wireless network.
Typically, the stronger the signal strength, the closer the network is to
your physical location. The lower the signal strength, the further away
from the network you are.
(a)
(b)
(c)
(e)
(d)
(f)
(g)
17
Using the Belkin Wireless LAN Monitor Utility
17
section
2
1
3
4
5
6
7
8
(d) Site Information
When you highlight a network name in the AP list by clicking on it
one time, the detailed information about that network will be available
here. You will see what type of network it is (Access Point or Peer-to-
Peer), what channel the network is operating on, status of encryption
(security) On or Off, and below “Surveyed at:” you will see the MAC
address of that wireless network.
How to connect to a wireless network in the Access Point (AP) list
There are two ways to connect to a network that appear in the AP list.
1. Highlight the network name by clicking on it one time, then click
the “Connect” button on the bottom of the window.
or
2. Double click a network name that is in the AP list. This will
connect you to the network automatically.
Note: if the network you are attempting to connect to is using encryption,
you will be prompted to create a profile with the encryption settings.
How to update the Access Point (AP) list information
Pressing the “Refresh” (g) button will make the USB adapter scan the
“air” for available wireless networks. The list will be updated.
Profile Tab: Creating a Profile
Using Profiles allows you to save configurations for different wireless
networks. For instance, if you use your Adapter at your place of
work and also at your home, your wireless network settings may be
different for each location. Profiles let you store settings for each
location and name them for easy identification. You can quickly
change from one profile to another profile without having to remember
the particular settings of a certain network.
1918
Using the Belkin Wireless LAN Monitor Utility
1918
Using the Belkin Wireless LAN Monitor Utility
Creating a new Profile
1. Click “Add” to open the new profile screen. Type in a name for
the profile. The name can be anything you want. You should pick
something easy to remember like “Work”, for your work network
or “Home”, for your home network. Click “Next” to continue.
2. The next screen you will see allows you to type in the name of
the network you will be connecting to, the type of network it is,
and optionally you can set the data rate for that network.
(a) In the “Network Name” box, type in the exact name of the
network you will be connecting to. The “Network Name” is
the same as the network SSID.
(a)
19
Using the Belkin Wireless LAN Monitor Utility
19
section
2
1
3
4
5
6
7
8
(b) In the “Network Type” box, select the type of network you will
be connecting to. Select “Access Point” if it is a network with
a wireless router or access point (This is most common). Select
“Peer-to-Peer” if this is a direct connection to another computer.
(c) In the “Transfer Rate” box, it is suggested that you leave this
on “Automatic” unless there is a specific need to change
this setting.
Click “Next” to continue.
3. The next screen allows you to input security encryption settings
for the network. If the network is not encrypted, then leave the
mode in “Off” and click “Complete.
If the network is encrypted, you will need to have the network key and
key type (open or shared). This information is available from the network
administrator or is the same as your wireless router or access point.
TIP: Most networks with WEP use “Open System” key type. For more
detailed information go to the section titled “Securing your Wireless
Network” on page 26 of this manual.
(a) Select the Authentication Mode from the drop-down menu.
(b)
(c)
(a)
2120
Using the Belkin Wireless LAN Monitor Utility
2120
Using the Belkin Wireless LAN Monitor Utility

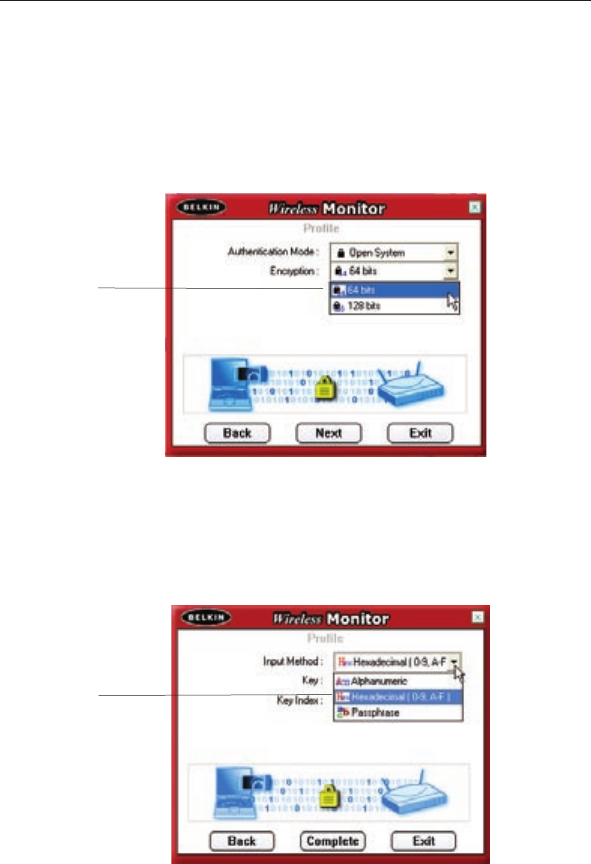

(b) After selecting the Authentication Mode, select the encryption
type your network uses from the Encryption drop-down menu.
Please see the section of this manual titled “Securing your
Wireless Network” on page 26 for information on which type
of WEP encryption to use. Click “Next”.
(c) The next screen allows you to select the key input method,
either Alphanumeric, Hexadecimal or Passphrase. The method
you choose will be determined by and should be the same as
the method used by your wireless router or access point.
TIP: Most keys are Hexadecimal (consists of letters and numbers
from 0-9 and A-F)
(b)
(c)
21
Using the Belkin Wireless LAN Monitor Utility
21
section
2
1
3
4
5
6
7
8
(d) Enter the key in the “Key” box and select the key to use in
the “Key Index” drop-down menu. This information should be
provided by your network administrator.
TIP: Most keys use Key Index 1.

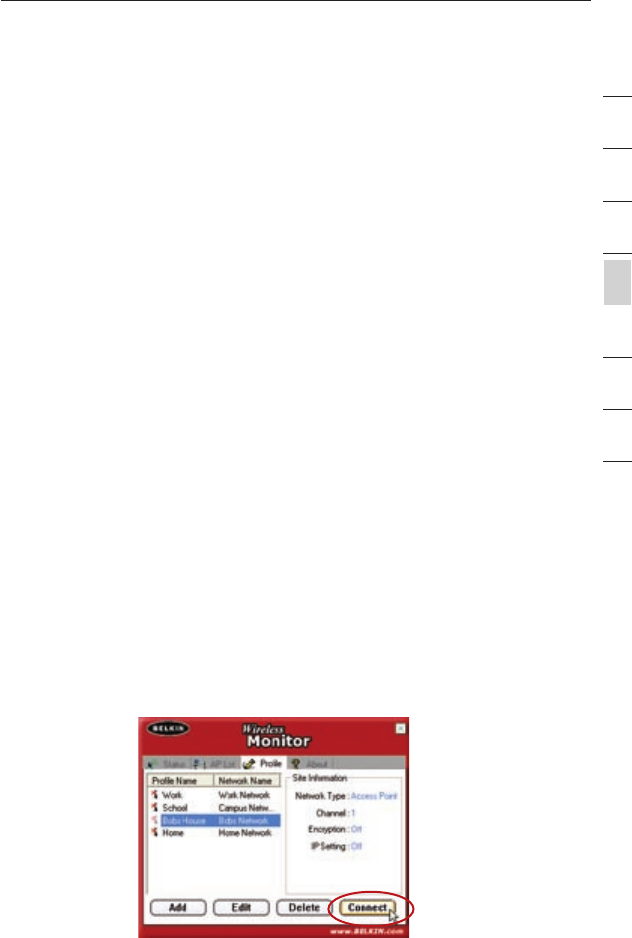

(e) Click “Complete” to save the profile. To begin using your
new profile, highlight the profile name by clicking on the
name one time, then click “Connect”.
(d)
2322
Using the Belkin Wireless LAN Monitor Utility
2322
Using the Belkin Wireless LAN Monitor Utility
How to find and connect to a wireless network
1. Open the Wireless Monitor window by double-clicking the icon in
your system tray.
2. Click on the “AP List” tab (a). This will display a list of all of the
networks in your area.
3. Double-click on the network you want to connect to. A blue circle
(b) should appear around the network icon next to the name
of the network you selected. This means you are connected to
the network. If the network is using encryption security, you
will be prompted to make a profile for that network in order to
connect. See the section of this manual called “Profile Tab” on
page 17 for information.
(a)
(b)
23
Using the Belkin Wireless LAN Monitor Utility
23
section
2
1
3
4
5
6
7
8
Windows XP Users
If you are using Windows XP, please read this section.
Windows XP integrates a wireless management utility referred to as
Windows XP Wireless Zero Configuration service (WZC). The WZC can
be used to control your Adapter or you can use the Belkin Wireless
Network Monitor Utility. We suggest that you use the Belkin Utility
to control your Card or Adapter. If you choose to use the WZC,
directions for operation of the WZC are available in the Windows XP
help file. When you first install the Card or Adapter, the Belkin Utility
will be enabled. If you want to disable the Belkin Utility in order to
use the WZC, follow the steps below to disable the Belkin Utility.
Disabling the Belkin Wireless Network Monitor Utility in
Windows XP

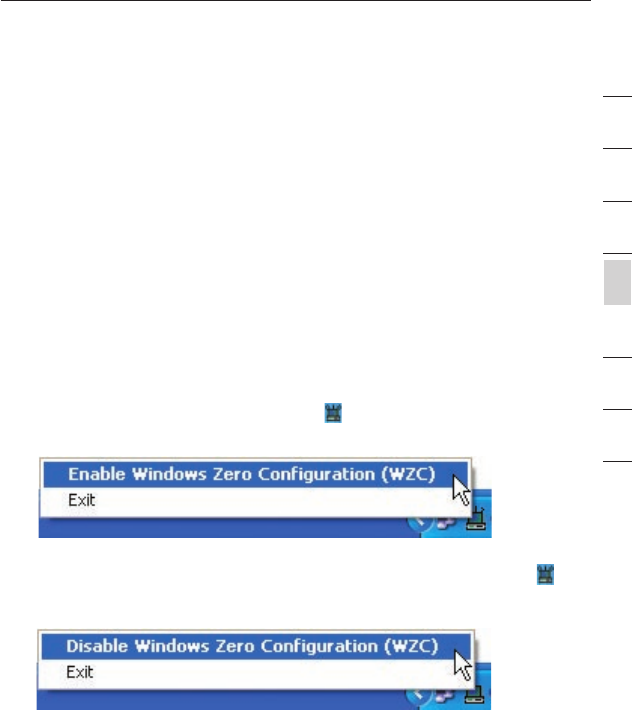

1. Right-click on the system tray icon.
2. In the menu, select “Enable Windows Zero Configuration (WZC)”
3. To enable the Belkin Utility, right-click on the system tray icon.
4. In the menu, select “Disable Windows Zero Configuration (WZC)”
2524
Using the Belkin Wireless LAN Monitor Utility
2524
Using the Belkin Wireless LAN Monitor Utility
Setting Up Windows XP Wireless Network Utility to Use WPA-PSK
In order to use WPA-PSK, ensure that you are using “Windows
Wireless Network Utility” by doing the following:
1. Right-click on “Wireless Network Connection” and select “Properties”.
2. Clicking on the “Wireless Networks” tab will display the following
screen. Ensure the “Use Windows to configure my wireless
network settings” check box is checked.
3. Clicking the “Configure” button will allow you to choose your
Network Authentication type.
25
Using the Belkin Wireless LAN Monitor Utility
25
section
2
1
3
4
5
6
7
8

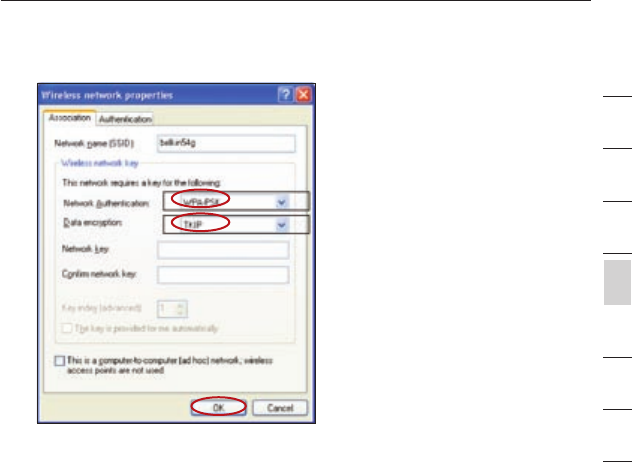

4. For home or small business users select “WPA-PSK” under
“Network Authentication”.
Note: Select WPA if you are using this computer to connect to a
corporate network that supports an authentication server such
as a radius server, please consult your network administrator for
further information.
5. Select “TKIP” or “AES” under “Data Encryption”. This setting will
have to be identical to the wireless router that you set up.
6. Type in your encryption key in the “Network key” box.
Important: Enter your pre-shared key. This can be from 8 to 63
characters and can be letters, numbers, or symbols. This same key
must be used on all of the clients that you set up.
7. Click “OK” to apply settings.
Setting up Windows XP WZC Utility to use WPA
Note: If you have not already, you must download the WPA update
from Microsoft Windows Update to enable WPA support. This can
be found at the Microsoft website by searching for the term “WPA
Wireless”. Locate the update called KB826942, download it and
update your operating system.
2726
Securing your Wireless Network
2726
Securing your Wireless Network
Securing your Wireless Network
Here are a few different ways to maximize the security of your wireless
network and protect your data from unwanted intrusions. This section is
intended for the home, home office, and small office user. At the time of
publication, three encryption methods are available.
Encryption Methods:
Name 64-bit Wired
Equivalent Privacy
128-bit
Encryption
Wi-Fi Protected
Access
Acronym 64-bit WEP 128-bit WPA
Security Good Better Best
Features Static keys Static keys Dynamic key
encryption and mutual
authentication
Encryption keys based
on RC4 algorithm
(typically 40-bit keys)
Added security
over 64-bit WEP
using a key length
of 104 bits, plus 24
additional bits of
system-generated
data
TKIP (temporal key
integrity protocol)
added so that keys are
rotated and encryption
is strengthened
27
Securing your Wireless Network
27
section
2
1
3
4
5
6
7
8
Most wireless products ship with security turned off. So once you have
your network working, you may need to activate WEP or WPA and
make sure all your wireless devices are sharing the same network key.
The following diagram shows the effect of not having the correct
network key throughout your network.
The Card cannot access the network because it uses a different
network key than the one configured on the wireless router.
Setting Up your Belkin Wireless Router or Access Point
to Use Security
To start using security, you need to first enable WEP or WPA for your
wireless router (or access point). For Belkin Wireless Routers and
Access Points, these security features can be configured by using the
web-based interface. (See your wireless router or access point
manual for directions on how to access the management interface.)
Wireless G Router
Wireless G Notebook
Network Card
Wireless G Desktop
Network Card
Wireless G Desktop
Network Card
Network Key=
WRONG Password
Network Key=
MyPassword
Network Key=
MyPassword
Network Key=
MyPassword
2928
Securing your Wireless Network
2928
Securing your Wireless Network
WEP Setup
64-Bit WEP Encryption

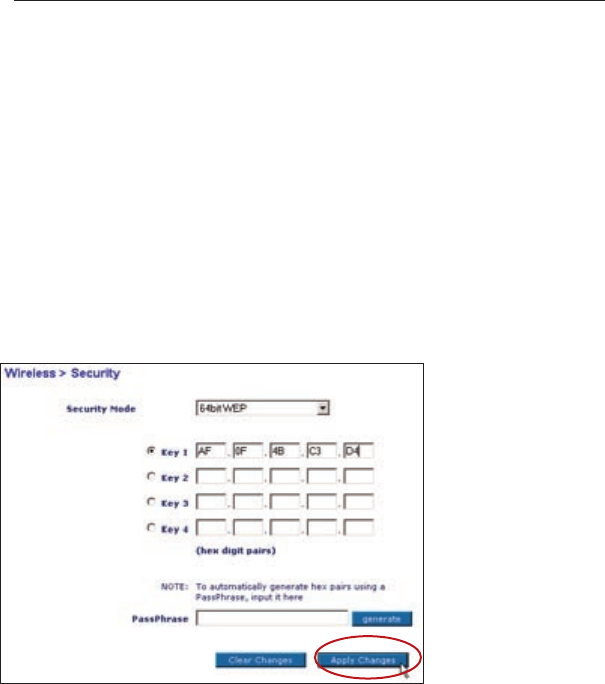

1. Select “64-bit WEP” from the drop-down menu.
2. After selecting your WEP encryption mode, you can enter your
key by typing in the hex key manually, or you can type in a
passphrase in the “Passphrase” field and click “Generate” to
create a key.
A hex (hexadecimal) key is a mixture of numbers and letters from
A–F and 0–9. For 64-bit WEP, you need to enter 10 hex keys.
For instance:
AF0F4BC3D4 = 64-bit WEP Key
3. Click “Apply Changes” to finish. Encryption in the wireless router
or access point is now set. Each of your computers on your
wireless network will now need to be configured with the same
security settings.
WARNING: If you are using a wireless client to turn on the security
settings in your wireless router or access point, you will temporarily
lose your wireless connection until you activate security on your
wireless client. Please record the key prior to applying changes in the
wireless router or access point. If you don’t remember the hex-key,
your client will be locked out of the wireless router or access point.
29
Securing your Wireless Network
29
section
2
1
3
4
5
6
7
8
128-Bit WEP Encryption
1. Select “128-bit WEP” from the drop-down menu.
2. After selecting your WEP encryption mode, you can enter your
key manually by typing in the hex key manually, or you can type
in a passphrase in the “Passphrase” field and click “Generate” to
create a key.
A hex (hexadecimal) key is a mixture of numbers and letters from
A–F and 0–9. For 128-bit WEP, you need to enter 26 hex keys.
For instance:
C3030FAF0F4BB2C3D44BC3D4E7 = 128-bit WEP key
3. Click “Apply Changes” to finish. Encryption in the wireless router
or access point is now set. Each of the computers on your
wireless network will now need to be configured with the same
security settings.
WARNING: If you are using a wireless client to turn on the security
settings in your wireless router or access point, you will temporarily
lose your wireless connection until you activate security on your
wireless client.
3130
Troubleshooting
3130
Troubleshooting
I can’t connect to the Internet wirelessly
If you are unable to connect to the Internet from a wireless
computer, please check the following items:
1. Look at the lights on your Wireless Router. If you’re using a
Belkin Wireless Router, the lights should be as follows:
• The “Power” light should be on.
• The “Connected” light should be on, and not blinking.
• The “WAN” light should be either on or blinking.
If your Belkin Router’s lights have the above characteristics, go
to number 2. below.
If this is NOT the case, please try the following:
• Make sure your Router’s power cord is plugged in.
• Make sure all cables are connected between the Router
and modem.
• Are all the modems LEDs functioning? If not, see your
modem’s user manual.
• Try rebooting the Router.
• Try rebooting the modem.
If you are still having problems, please call Belkin
Technical Support.
If you are not using a Belkin Wireless Router, consult that
Wireless Routers manufacturers user guide.
2. Open your wireless utility software by clicking on the icon in
the system tray at the bottom right-hand corner of the screen.
If you’re using a Belkin USB Adapter, the tray icon should look
like this (the icon may be red, or blue):
3. The exact window that opens will vary depending on the model
of USB Adapter you have; however, any of the utilities should
have a list of “Available Networks”. Available networks are
wireless networks you can connect to. If you are using a Belkin
802.11g Router, “Belkin54g” is the default name.
If you are using a Belkin 802.11b router, the default name should
be “WLAN”.
If using a non-Belkin Wireless router, please consult your router
manufacturers user manual for the default name.
31
Troubleshooting
31
section
2
1
3
4
5
6
7
8
I can’t connect to the Internet wirelessly (continued)
The name of your wireless network appears in AP List
If the correct network name is listed in the AP List, please follow
the steps below to connect wirelessly:
1. Click on the correct network name in the AP list and then
click “Connect”.
2. If the network has security (encryption) enabled, you will need
to enter the network key. For more information regarding
security, see the page entitled: “Profile Tab: Creating a New
Profile” pg. 17 of the user manual.
3. Within a few seconds, the tray icon in the lower right-hand
corner of your screen should turn blue, indicating a successful
connection to the network.
If you are still unable to access the Internet after connecting to
the wireless network, please contact Belkin Technical Support
The name of your wireless network DOES NOT appear in
AP List
If the correct network name is not listed under AP List in the wireless
utility, please attempt the following troubleshooting steps:
1. If possible, temporarily move the computer five to ten feet
away from router. Close the wireless utility, and re-open it. If
the correct network name now appears under “Available
Networks”, you may have a range or interference problem.
Please see the suggestions listed in the section of this
manual titled “Placement of your Wireless Networking
Hardware” page 2.
2. Using a computer that is connected to the Wireless Router (or
Access Point) via a network cable (as opposed to wirelessly),
ensure that “Broadcast SSID” is enabled. If using a Belkin
Router, this setting is found on the “Channel and SSID”
configuration page. For detailed instructions on accessing this
page and changing settings, please see your Wireless Router
or Access Point User Guide.
3332
Troubleshooting
3332
Troubleshooting
If you are still unable to access the Internet after completing these
steps, please contact Belkin Technical Support.
Installation CD-ROM does not start Setup Utility
If the CD-ROM does not start the Setup Utility automatically, it
could be that the computer is running other applications that are
interfering with the CD drive.
If the Setup Utility screen does not appear within 15-20 seconds,
open up your CD-ROM drive by double-clicking on the “My
Computer” icon. Next, double-click on the CD-ROM drive and
double-click on the folder named “Files”. Next, double-click on the
icon named Start.exe.
Power LED does not come ON; Adapter is not working
If the LED indicators are not ON, the problem may be that the
Adapter is not connected or installed properly.
Verify that the Adapter is plugged firmly into the USB slot of your
computer. Check to see that the drivers for the Card have been
installed. Right click on the “My Computer” icon on your desktop.
Choose “Properties” and navigate to the “Device Manager” and see
if your Adapter is listed without any errors. If an error is indicated
contact Belkin Technical Support.
Link LED is blinking slowly; Cannot connect to a wireless
network or the Internet
If your Adapter appears to be functioning properly, but you cannot
connect to a network or you have a red wireless icon at the bottom
of your screen, the problem may be that there is a mismatch
between the settings in your wireless network properties.
Check the settings to see if they match. The SSID is case-sensitive
and the spelling on each computer must be exactly the same in
order for the Adapter to connect to the wireless router or access point.
Note: To check the Adapter settings or look for an available
network, double-click the Signal Indicator icon to bring up the
“Wireless Monitors” screen. Click the “AP List” if you do not see
the network you are trying to connect to click the “refresh” button
to scan the “air” for wireless networks.
33
Troubleshooting
33
section
2
1
3
4
5
6
7
8
For more information about setting up a SSID please reference
your router’s user manual.
If issues persist even at close range, please contact Belkin
Technical Support.
Link LED is solid but cannot connect to the Internet
If you have a signal but can’t get online or obtain an IP address,
the problem may be that a mismatch between the Encryption key
settings in your computer and router.
Check the WEP key settings to see if they match. The key is
case-sensitive and the spelling on each computer and router
must be exactly the same in order for the Adapter to connect
to the router. For more information about encryption please see
“Profile Tab: creating a Profile” on page 17 of this manual.
If issues persist even at close range, please contact please
contact Belkin Technical Support
Data transfer is sometimes slow
Wireless Technology is radio-based, which means connectivity
and the throughput performance between devices decreases
when the distance between devices increases. Other factors that
will cause signal degradation (metal is generally the worst culprit)
are obstructions such as walls and metal appliances. As a result,
the typical indoor range of your wireless devices will be between
100 to 200 feet. Note also that connection speed may decrease
as you move further from the wireless router or access point.
In order to determine if wireless issues are related to range,
we suggest temporarily moving the computer, if possible, to
five to ten from Wireless Router. Please see the section titled
“Placement of your Wireless Networking Hardware for Optimal
Performance” on page 2 of this manual.
If issues persist even at close range, please contact please
contact Belkin Technical Support
3534
Troubleshooting
3534
Troubleshooting
Why are there two wireless utilities in my system tray?
Which one do I use?
There are several features and advantages from using the Belkin
wireless utility over the Windows XP Wireless Zero Configuration
utility. We offer a site survey, detailed link information and
adapter diagnosis, to name a few.
It’s essential to know which utility is managing your adapter. We
recommend using the Belkin wireless utility.
To use the Belkin wireless utility follow the steps below:
Step 1 Right-click on the network status icon in the system tray
and select View Available Wireless Networks.
Step 2 Click on the Advanced button in the lower-left corner of
the Available Wireless Networks window.
Step 3 From the Advanced tab uncheck Use Windows to
configure my wireless network. Once the box is unchecked click
OK to close the Window.
You are now using the Belkin wireless utility to configure the
wireless adapter.
35
Troubleshooting
35
section
2
1
3
4
5
6
7
8
What’s the difference between 802.11b, 802.11g and 802.11a?
Currently there are three levels of wireless networking standards,
which transmit data at very different maximum speeds. Each is based
on the designation 802.11(x), so named by the IEEE, the board that
is responsible for certifying networking standards. 802.11b transmits
information at 11Mbps; 802.11a and 802.11g work at 54Mbps. See
the following chart for more detailed information.
Wireless Comparison
Wireless
Technology 802.11b 802.11g 802.11a
Speed 11Mbps 54Mbps 54Mbps
Frequency
Common
household devices
such as cordless
phones and
microwave ovens
may interfere with
the unlicensed
band - 2.4GHz
Common
household devices
such as cordless
phones and
microwave ovens
may interfere with
the unlicensed
band - 2.4GHz
5GHz - uncrowded
band
Compatibility Compatible with
802.11g
Compatible with
802.11b
Incompatible with
802.11b or
802.11g
Range
Depends on
interference -
typically 100–200
ft. indoors
Depends on
interference -
typically 100–200
ft. indoors
Less interference -
range is
typically 50-100 feet
Adoption Mature - widely
adopted
Expected to
continue to grow
in popularity
Slow adoption for
consumers -
more popular in
business
environments
Price Inexpensive More expensive Most expensive
3736
Troubleshooting
3736
Technical Support
You can find technical support information at www.belkin.com
or www.belkin.com/networking. If you want to contact technical
support by phone, please call:
US: 877-736-5771
Europe: 00 800 223 55 460
Australia: 1800 666 040
36
Troubleshooting
Information
37
section
2
1
3
4
5
6
7
8
Caution: Exposure to Radio Frequency Radiation.
The radiated output power of this device is far below the FCC radio
frequency exposure limits. Nevertheless, the device shall be used in such
manner that the potential for human contact normal operation is minimized.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy.
If not installed and used in accordance with the instructions, it may cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street,
Compton, CA 90220, declare under our sole
responsibility that the product,
F5D7050
to which this declaration relates,
complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Belkin declares that F5D7050 ( FCC ID: K7SF5D7050A ) is limited in CH1~CH11 by
specified firmware controlled in U.S.A.
3938
Information
3938
Information
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications to
this device that are not expressly approved by Belkin Corporation may void
the users authority to operate the equipment.
Canada-Industry Canada (IC)
The wireless radio of this device complies with RSS 139 & RSS 210 Industry
Canada. This Class B digital complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.
Europe-European Union Notice
Radio products with the CE 0682 or CE alert marking
comply with the R&TTE Directive (1995/5/EC) issued by the
Commission of the European Community.
Compliance with this directive implies conformity to the following European
Norms (in brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label
on your Belkin product.
Products with the CE marking comply with the EMC Directive (89/336/EEC)
and the Low Voltage Directive (72/23/EEC) issued by the Commission of the
European Community. Compliance with these directives implies conformity
to the following European Norms (in brackets are the equivalent international
standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11) – Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled with CE 0682
or CE alert marking and may also carry the CE logo.
39
Information
39
section
2
1
3
4
5
6
7
8
12
Belkin Corporation Limited Lifetime Product Warranty
Belkin Corporation warrants this product against defects in materials and
workmanship for its lifetime. If a defect is discovered, Belkin will, at its
option, repair or replace the product at no charge provided it is returned
during the warranty period, with transportation charges prepaid, to the
authorized Belkin dealer from whom you purchased the product. Proof of
purchase may be required.
This warranty does not apply if the product has been damaged by accident,
abuse, misuse, or misapplication; if the product has been modified without
the written permission of Belkin; or if any Belkin serial number has been
removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED
OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT
NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO
OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA
STORED IN, OR USED WITH, BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or exclusions of implied warranties, so the above
limitations of exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state
to state.
4140
Information

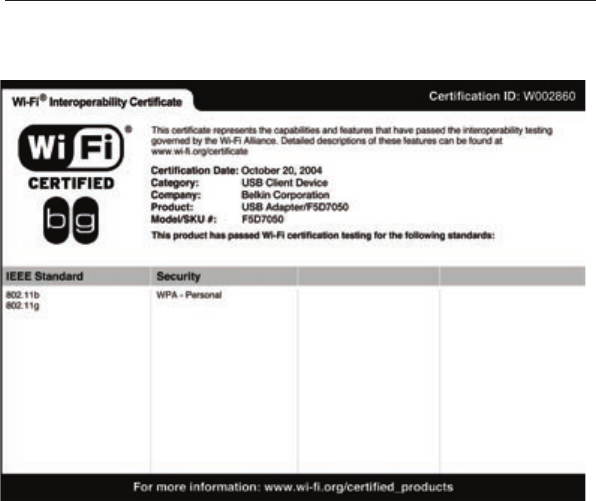

Wi-FI® Interoperability Certificate
41
