Thank you for purchasing the Belkin Wireless G Router (the Router).
The following two short sections discuss the benefits of home
networking and outline best practices for maximizing your wireless
home network range and performance. Please be sure to read through
this User Manual completely, and pay special attention to the section
entitled “Placement of your Router for Optimal Performance” on
page 2.
Benefits of a Home Network
• Share one high-speed Internet connection with all the computers in
your home
• Share resources, such as files and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email, and chat
Advantages of a Wireless Network
Mobility – you no longer need a dedicated “computer
room”—now you can work on a networked laptop or desktop computer
anywhere within your wireless range
Easy installation – the Belkin Setup Assistant Software makes
setup simple
Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
Easy expansion – the wide range of Belkin networking products let
you expand your network to include devices such as printers and
gaming consoles
No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
Widespread industry acceptance – choose from a wide range of
interoperable networking products
Introduction
2
2
Placement of your Router for Optimal Performance
Important Factors for Placement and Setup
Your wireless connection will be stronger the closer your computer is
to your Router. Typical indoor operating range for wireless devices is
between 100 and 200 feet.
In the same way, your wireless connection and performance will
degrade somewhat as the distance between your Router and
connected devices increases. This may or may not be noticeable
to you. As you move farther from your Router, connection speed
may decrease. Factors that can weaken signals simply by getting
in the way of your network’s radio waves are metal appliances or
obstructions, and walls.
If you have concerns about your network’s performance that might be
related to range or obstruction factors, try moving the computer to a
position between five and 10 feet away from the Router in order to see
if distance is the problem. If difficulties persist even at close range,
please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Wireless Router Placement
Place your Router, the central connection point of your network,
as close as possible to the center of your wireless
network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook
Network Cards, Wireless Desktop Network Cards, and Wireless
USB Adapters):
• Ensure that your Router’s networking antennas are parallel
to each other, and are positioned vertically (toward the
ceiling). If your Router itself is positioned vertically, point
the antennas as much as possible in an upward direction.
• In multistory homes, place the Router on a floor that is
as close to the center of the home as possible. This may
mean placing the Router on an upper floor.
• Try not to place the Router near a cordless phone.
32
section
Introduction
1
9
2
3
4
5
6
7
8
10
32
2. Avoid Obstacles and Interference
Avoid placing your Router near devices that may emit radio
“noise,” such as microwave ovens. Dense objects that can inhibit
wireless communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between
your computers and Router).
3. Cordless Phones
If the performance of your wireless network is impaired after
attending to the above issues, and you have a cordless phone:
• Try moving cordless phones away from the Router and your
wireless-enabled computers.
• Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check the manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
• If your phone supports channel selection, change the
channel on the phone to the farthest channel from your
wireless network. For example, change the phone to channel
1 and move your Router to channel 11. See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours.
Use the Site Survey capabilities found in the wireless utility
of your wireless adapter or card to locate any other wireless
networks that are available (see your wireless adapter’s or card’s
user manual), and move your Router and computers to a channel
as far away from other networks as possible.
Introduction
4
4
• Experiment with more than one of the available channels in
order to find the clearest connection and avoid interference from
neighboring cordless phones or other wireless devices.
• For Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included with your
Wireless Network Card. See your Network Card’s user guide for
more information.
These guidelines should allow you to cover the maximum
possible area with your Router. Should you need to cover an even
wider area, we suggest the Belkin Wireless G Range Extender/
Access Point.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password,
and are used where security is important. Secure connections
include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The easiest
solution to avoid this is to simply reconnect by rerunning the VPN or
AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this may
not be appropriate for portable computers. To change your power
management setting under Windows, see the “Power Options” item
in the Control Panel.
If you continue to have difficulty with secure connections, VPNs,
and AOL, please review the steps above to be sure you have
addressed these issues.
54
section
Introduction
1
9
2
3
4
5
6
7
8
10
54
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call Belkin Technical Support at:
US: 877-736-5771
800-223-5546 ext. 2263
310-898-1100 ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 65 64857620
Europe: www.belkin.com/support
Product Overview
6
6
Product Features
In minutes you will be able to share your Internet connection and
network your computers. The following is a list of features that
make your new Belkin Wireless G Router an ideal solution for your
home or small office network.
Works with Both PCs and Mac® Computers
The Router supports a variety of networking environments including
Mac OS® 9.x, X v10.x, AppleTalk®, Linux®, Windows® 98, Me, NT®, 2000,
XP, Vista®, and others. All that is needed is an Internet browser and a
network adapter that supports TCP/IP (the standard language of the
Internet).

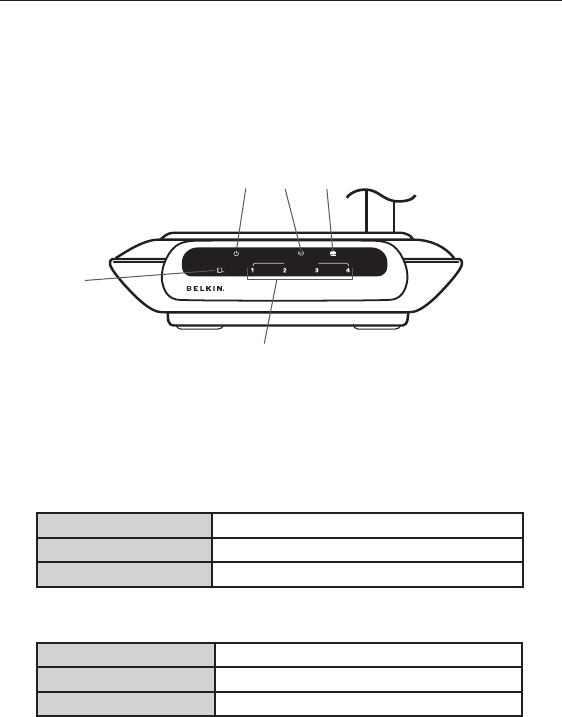

Front-Panel LED Display
Lighted LEDs on the front of the Router indicate which functions are in
operation. You’ll know at-a-glance whether your Router is connected
to the Internet. This feature eliminates the need for advanced software
and status-monitoring procedures.
Web-Based Advanced User Interface
You can set up the Router’s advanced functions easily through your
web browser, without having to install additional software onto the
computer. There are no disks to install or keep track of and, best of
all, you can make changes and perform setup functions from any
computer on the network quickly and easily.
76
section
Product Overview
1
9
2
3
4
5
6
7
8
10
76
NAT IP Address Sharing
Your Router employs Network Address Translation (NAT) to share the
single IP address assigned to you by your Internet Service Provider
while saving the cost of adding IP addresses to your Internet
service account.
SPI Firewall
Your Router is equipped with a firewall that will protect your network
from a wide array of common hacker attacks including IP Spoofing,
Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with zero
length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding, Tear
Drop Attack, ICMP defect, RIP defect, and fragment flooding.
Integrated 10/100 4-Port Switch
The Router has a built-in, 4-port network switch to allow your wired
computers to share printers, data and MP3 files, digital photos, and
much more. The switch features automatic detection so it will adjust to
the speed of connected devices. The switch will transfer data between
computers and the Internet simultaneously without interrupting or
consuming resources.
Universal Plug-and-Play (UPnP) Compatibility
UPnP (Universal Plug-and-Play) is a technology that offers seamless
operation of voice messaging, video messaging, games, and other
applications that are UPnP-compliant.
Product Overview
Support for VPN Pass-Through
If you connect to your office network from home using a VPN
connection, your Router will allow your VPN-equipped computer to
pass through the Router and to your office network.
Built-In Dynamic Host Configuration Protocol (DHCP)
Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes
for the easiest possible connection of a network. The DHCP server
will assign IP addresses to each computer automatically so there is no
need for a complicated networking setup.
Setup Assistant Software
The Setup Assistant Software takes the guesswork out of setting up
your Router. This automatic software determines your network settings
for you and sets up the Router for connection to your Internet Service
Provider (ISP). In a matter of minutes, your Wireless Router will be up
and running on the Internet.
NOTE: Setup Assistant Software software is compatible with Windows
98SE, Me, 2000, XP, Vista, and Mac OS 9.X and Mac OS X. If you are
using another operating system, the Wireless Router can be set up
using the Alternate Setup Method described in this User Manual
(see page 24).
Integrated 802.11g Wireless Access Point
802.11g is an exciting new wireless technology that achieves data
rates up to 54Mbps, nearly five times faster than 802.11b.
MAC Address Filtering
For added security, you can set up a list of MAC addresses (unique
client identifiers) that are allowed access to your network. Every
computer has its own MAC address. Simply enter these MAC
addresses into a list using the Web-Based Advanced User Interface
and you can control access to your network.
8
Package Contents
• Belkin Wireless G Router
• Quick Installation Guide
• Belkin Setup Assistant Software CD with User Manual
• Belkin RJ45 Ethernet Networking Cable
• Power Supply
System Requirements
• Broadband Internet connection such as a cable or DSL modem with
RJ45 (Ethernet) connection
• At least one computer with an installed network interface adapter
• TCP/IP networking protocol installed on each computer
• RJ45 Ethernet networking cable
• Internet browser
Setup Assistant Software System Requirements
• A PC running Windows 2000, XP, or Vista, or a Mac computer
running Mac OS 9.x or OS X
• Minimum 64MB RAM
• Internet browser
2
98
Knowing your Router
section
1
9
3
4
5
6
7
8
10
10
Knowing your Router
10
The Router has been designed to be placed on a desktop. All of the
cables exit from the rear of the Router for better organization and
utility. The LED indicators are easily visible on the front of the Router to
provide you with information about network activity and status.
(1) (2)
(3)
(4)
(5)
1. Power/Ready LED
When you apply power to the Router or restart it, a short period
of time elapses while the Router boots up. During this time, the
Power/Ready LED blinks. When the Router has completely booted
up, the Power/Ready LED becomes a SOLID light, indicating the
Router is ready for use.
OFF Router is OFF
Blinking Green Router is Booting Up
Solid Green Router is Ready
2. Wireless Network LED
OFF Wireless Network is OFF
Green Wireless Network is Ready
Blinking Indicates Wireless Activity
1110
1110
Knowing your Router
section
1
9
2
3
4
5
6
7
8
10
3. Wired Computer Status LEDs
These LEDs are labeled 1–4 and correspond to the numbered
ports on the rear of the Router. When a computer is properly
connected to one of the wired computer ports on the rear of the
Router, the LED will light. GREEN means a 10/100Base-T device
is connected. When information is being sent over the port, the
LED blinks rapidly.
OFF No Device is Linked to the Port
Green 10/100Base-T Device Connected
Blinking
(Orange or Green) Port Activity
4. Modem Status LED
This LED lights in GREEN to indicate that your modem is
connected properly to the Router. It blinks rapidly when
information is being sent over the port between the Router and
the modem.
OFF No WAN Link
Solid Green Good WAN Link
Blinking Green WAN Activity
5. Internet LED
This unique LED shows you when the Router is connected to the
Internet. When the light is OFF, the Router is NOT connected to
the Internet. When the light is blinking, the Router is attempting
to connect to the Internet. When the light is solid GREEN, the
Router is connected to the Internet. When using the “Disconnect
after x minutes” feature, this LED becomes extremely useful in
monitoring the status of your Router’s connection.
OFF Router is not Connected to the Internet
Blinking Green Router is Attempting to Connect to the Internet
Solid Green Router is Connected to the Internet
12
Knowing your Router
12
(6)
(7)
(8)
(9)
Reset button is
located on the
bottom of the unit.
6. Power Jack
Connect the included 5V DC power supply to this jack.
7. Connections to Computers (Wired Computer Ports)—Gray
Connect your wired (non-wireless) computers to these ports. These
ports are RJ45, 10/100 auto-negotiation, auto-uplinking ports for
standard UTP category 5 or 6 Ethernet cable. The ports are labeled
1 through 4. These ports correspond to the numbered LEDs on the
front of the Router.
8. Connection to Modem (Modem Port)—Yellow
This port is for connection to your cable or DSL modem. Use the
cable that was provided with the modem to connect the modem
to this port. Use of a cable other than the cable supplied with the
cable modem may not work properly.
9. Reset Button
The “Reset” button is used in rare cases when the Router may
function improperly. Resetting the Router will restore the Router’s
normal operation while maintaining the programmed settings. You
can also restore the factory default settings by using the “Reset”
button. Use the restore option in instances where you may have
forgotten your custom password.
1312
1312
Knowing your Router
section
1
9
2
3
4
5
6
7
8
10
a. Resetting the Router
Push and release the “Reset” button. The lights on the
Router will momentarily flash. The Power/Ready light will
begin to blink. When the Power/Ready light becomes solid
again, the reset is complete.
b. Restoring the Factory Defaults
Press and hold the “Reset” button for at least 10 seconds,
then release it. The lights on the Router will momentarily
flash. The Power/Ready light will begin to blink. When
the Power/Ready light becomes solid again, the restore
is complete.
14
Connecting and Configuring your Router
14
Verify the contents of your box. You should have the following:
• Belkin Wireless G Router
• Quick Installation Guide
• Belkin Setup Assistant Software CD with User Manual
• RJ45 Ethernet Networking Cable (for connection of the
Router to the computer)
• Power Supply
Modem Requirements

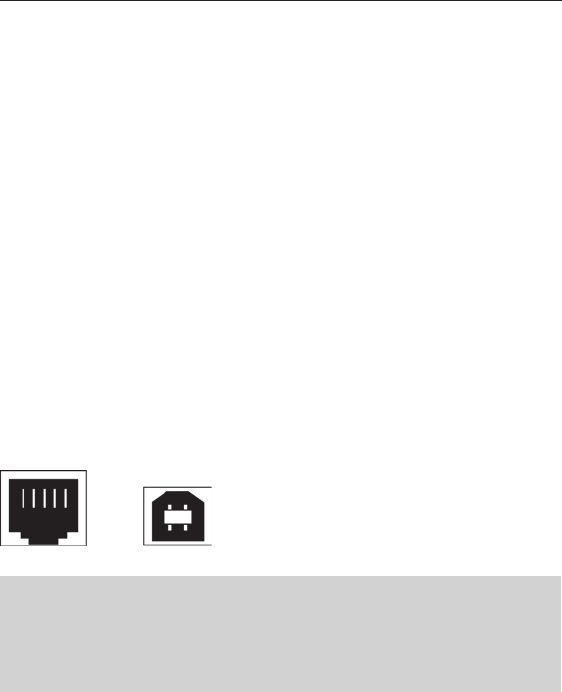

Your cable or DSL modem must be equipped with an RJ45 Ethernet port.
Many modems have both an RJ45 Ethernet port and a USB connection.
If you have a modem with both Ethernet and USB, and are using the USB
connection at this time, you will be instructed to use the RJ45 Ethernet port
during the installation procedure. If your modem has only a USB port, you
can request a different type of modem from your ISP, or you can, in some
cases, purchase a modem that has an RJ45 Ethernet port on it.
Ethernet USB
ALWAYS INSTALL YOUR ROUTER FIRST! IF YOU ARE INSTALLING
NUMEROUS NETWORK DEVICES FOR THE FIRST TIME, IT IS
IMPORTANT THAT YOUR ROUTER IS CONNECTED AND RUNNING
BEFORE ATTEMPTING TO INSTALL OTHER NETWORK COMPONENTS
SUCH AS NOTEBOOK CARDS AND DESKTOP CARDS.

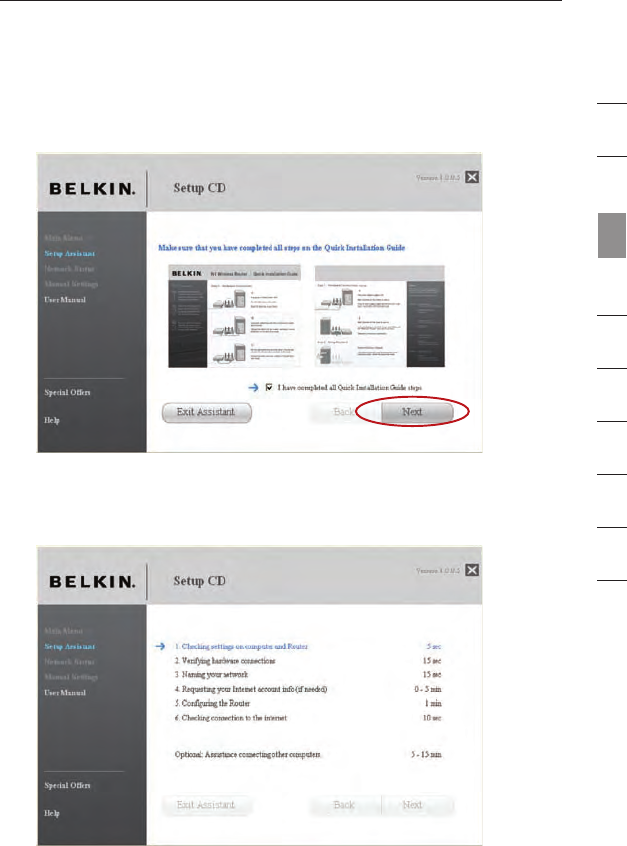

Setup Assistant
Belkin has provided our Setup Assistant software to make installing your
Router a simple and easy task. You can use it to get your Router up and
running in minutes. The Setup Assistant requires that your Windows 2000/XP
or Vista computer be connected directly to your cable or DSL modem and
that the Internet connection is active and working at the time of installation.
If it is not, you must use the “Alternate Setup Method” section of this User
Manual to configure your Router. Additionally, if you are using an operating
system other than Windows 2000/XP or Vista, you must set up the Router
using the “Alternate Setup Method” section of this User Manual.
1514
1514
Connecting and Configuring your Router
section
1
9
2
3
4
5
6
7
8
10
Step 1
Hardware Connections – Follow the Quick Installation
Guide (QIG)
A. Unplug your modem’s power
cord. Put the Router next
to the modem. Raise the
Router’s antennas.
B. Locate the networking cable
that connects your modem and
computer. Unplug that cable
from your modem, and plug it
into any gray port on the back
of the Router.
C. Find your new networking cable
(included in the box with your
Router) and connect it to the
yellow port on the back of the
Router. Connect the other end
to your modem, in the port
that’s now free.
D. Plug in your modem’s power
cord. Wait 60 seconds for the
modem to start up. Plug the
Router’s power supply into
the black port on the back.
Plug the other end into the
wall outlet.
E. Wait 20 seconds for the Router
to start up. Look at the display
on the front of the Router.
Make sure the “Wired” and
“Router” icons are lit up in
blue. If they are not, recheck
your connections.
16
Connecting and Configuring your Router
16
A. Shut down any programs that are running on your computer at this time.
Turn off any firewall or Internet-connection-sharing software on your
computer.

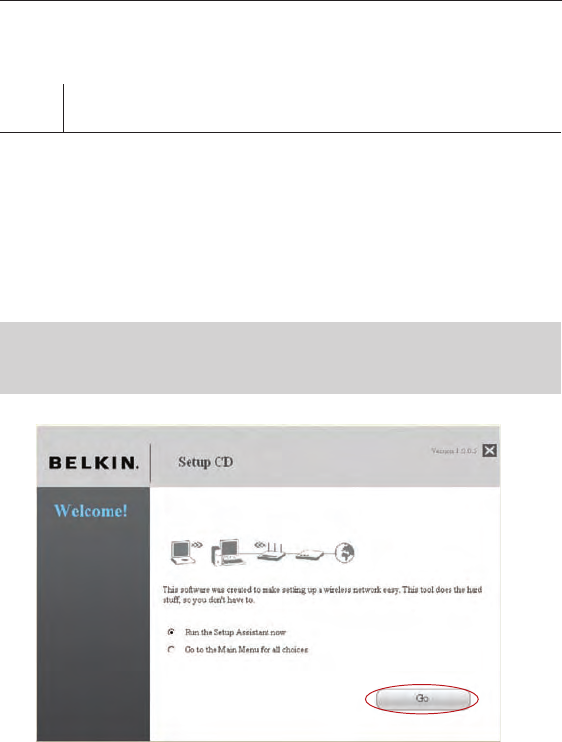

B. Insert the CD into your computer. The Setup Assistant will automatically
appear on your computer’s screen within 15 seconds. Click on “Go” to
run the Setup Assistant. Follow the instructions there.
IMPORTANT: Run the Setup Assistant from the computer that is directly
connected to the Router from Step 1 – B.
Note for Windows Users: If the Setup Assistant does not start
up automatically, select your CD-ROM drive from “My Computer”
and double-click on the file named “SetupAssistant” to start the
Setup Assistant.
Step 2 Set Up the Router – Run the Setup Assistant Software
1716
1716
Connecting and Configuring your Router
section
1
9
2
3
4
5
6
7
8
10
Confirmation Screen
Verify that you have completed all QIG steps by checking the box to the
right of the arrow. Click “Next” to continue.
Progress Screen
Setup Assistant will show you a progress screen each time a step
in the setup has been completed.
18
Connecting and Configuring your Router
18
1.1 Checking Settings
The Setup Assistant will now examine your computer’s network settings
and gather information needed to complete the Router’s connection to
the Internet.
1.2 Verifying Hardware Connections
The Setup Assistant will now verify your hardware connection.
1918
1918
Connecting and Configuring your Router
section
1
9
2
3
4
5
6
7
8
10
1.3 Naming your Wireless Network
The Setup Assistant will display the default wireless network name
or Service Set Identifier (SSID). This is the name of your wireless
network to which your computers or devices with wireless network
adapters will connect. You can either use the default or change it to
something unique. Write down this name for future reference. Click
“Next” to continue.
1.4 Requesting Internet Account Info (if needed)
If your Internet account requires a login and password, you will be
prompted with a screen similar to the illustration below. Select your
country or ISP from the drop-down boxes.
20
Connecting and Configuring your Router
20
1.5 Configuring the Router
The Setup Assistant will now configure your Router by sending data to the
Router and restarting it. Wait for the on-screen instructions.
Note: Do not disconnect any cable or power off the Router while the
Router is rebooting. Doing so will render your Router inoperable.
1.6 Checking Internet Connection
We are almost done. The Setup Assistant will now check your
connection to the Internet.
2120
2120
Connecting and Configuring your Router
section
1
9
2
3
4
5
6
7
8
10

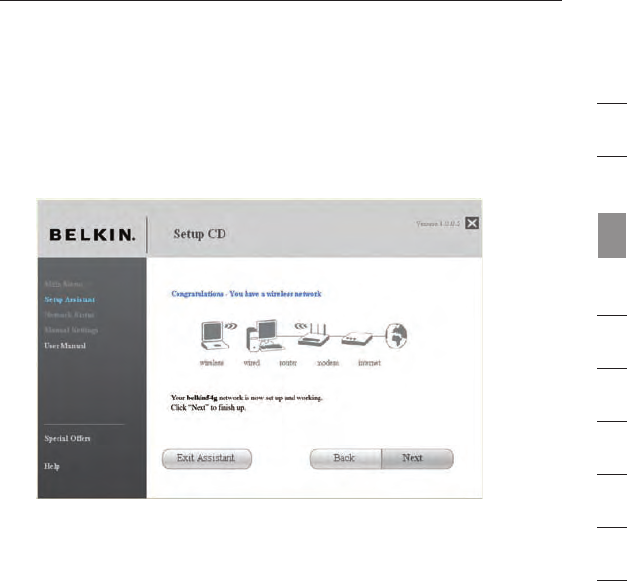

Congratulations
You have finished installing your new Belkin Router. You will see
the Congratulations screen when your Router can connect to the
Internet. You can begin surfing by opening your browser and going
to any website.
You can use the Setup Assistant to set up your other wired and wireless
computers to connect to the Internet by clicking “Next”. If you decide to
add computers to your Router later, select “Exit the Assistant” and then
click “Next”.
22
Connecting and Configuring your Router
22
Troubleshooting
If the Setup Assistant is not able to connect to the Internet, you will see
the following screen. Follow the on-screen instructions to go through the
troubleshooting steps.

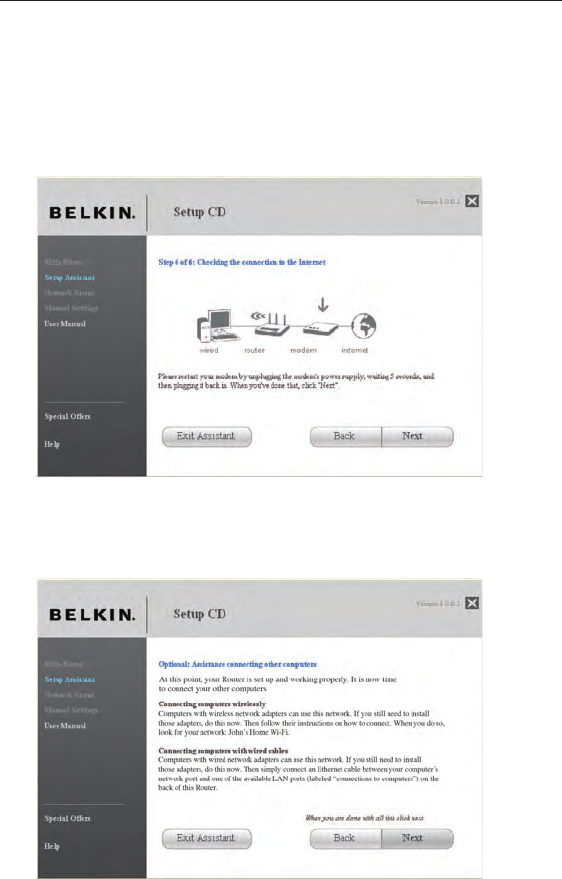

1.7 Optional: Assistance Connecting Other Computers
This optional step will help you to connect additional wired and wireless
computers to your network. Follow the on-screen instructions.
2322
2322
Connecting and Configuring your Router
section
1
9
2
3
4
5
6
7
8
10
Congratulations
Once you have verified that your other wired and wireless
computers are properly connected, your network is set up and
working. You can now surf the Internet. Click “Next” to take you
back to the main menu.
24
Alternate Setup Method
24
The Web-Based Advanced User Interface is a web-based tool that you
can use to set up the Router if you don’t want to use the Setup Assistant.
You can also use it to manage advanced functions of the Router. From the
Web-Based Advanced User Interface, you can perform the following tasks:
• View the Router’s current settings and status
• Configure the Router to connect to your ISP with the settings that they
provided you
• Change the current network settings such as the Internal IP address, the
IP address pool, DHCP settings, and more
• Set the Router’s firewall to work with specific applications
(port forwarding)
• Set up security features such as client restrictions, MAC address
filtering, WEP, and WPA
• Enable the DMZ feature for a single computer on your network
• Change the Router’s internal password
• Enable/Disable UPnP (Universal Plug-and-Play)
• Reset the Router
• Back up your configuration settings
• Reset the Router’s default settings
• Update the Router’s firmware
Step 1 Connect your Router
1.1
Turn off the power to your modem by unplugging the power supply
from the modem.
1.2 Locate the network cable that is connected between your modem
and your computer and unplug it from your computer, leaving the
other end connected to your modem.
1.3 Plug the loose end of the cable you just unplugged into the port on
the back of the Router labeled “Modem”.
1.4 Connect a new network cable (not included) from the back of the
computer to one of the wired computers ports labeled “1–4”.
Note: It does not matter which numbered port you choose.
2524
2524
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10
1.5 Turn your cable or DSL modem on by reconnecting the power
supply to the modem.

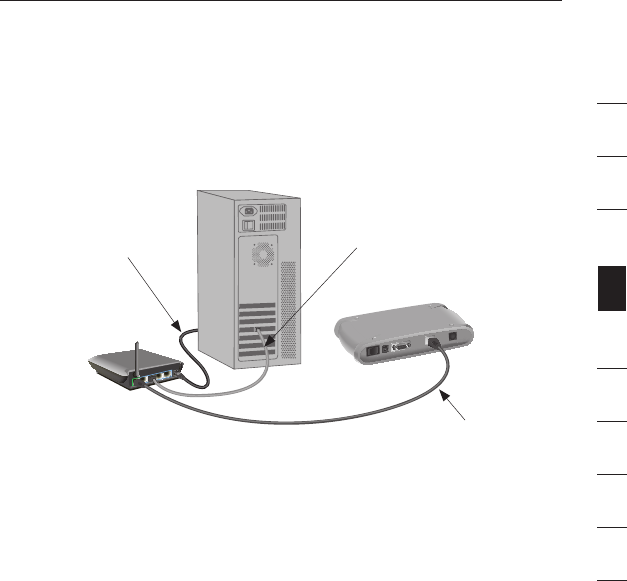

To power adapter
Mac or PC computer that was originally
connected to the cable or DSL modem
Network cable
(to computer)
Existing networking cable
(came with modem)
Note: Your Router may have ports in different locations than
depicted in the illustration above.
1.6 Before plugging the power cord into the Router, plug the cord
into the wall, then plug the cord into the Router’s power jack.
1.7 Verify that your modem is connected to the Router by checking
the lights on the front of the Router. The green light labeled
“Modem” should be ON if your modem is connected correctly to
the Router. If it is not, recheck your connections.
1.8 Verify that your computer is connected properly to the Router by
checking the lights labeled “1–4”. The light that corresponds to
the numbered port connected to your computer should be ON if
your computer is connected properly. If it is not, recheck
your connections.
26
Alternate Setup Method
26
Step 2 Set up your Computer’s Network Settings to Work
with a DHCP Server
See the section in this User Manual called “Manually Configuring Network
Settings” for directions.
Step 3 Configure the Router Using the Web-Based
Advanced User Interface

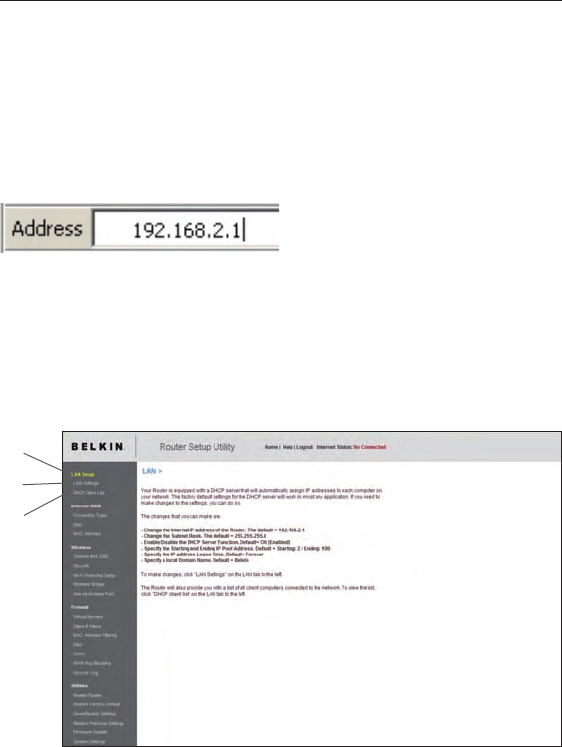

Using your Internet browser, you can access the Router’s Web-Based
Advanced User Interface. In your browser, type “192.168.2.1” (you do not
need to type in anything else such as “http://” or “www”). Then press the
“Enter” key.
PLEASE NOTE: If you have difficulty accessing the Router’s
Web-Based Advanced User Interface, go to the section entitled “Manually
Configuring Network Settings”.

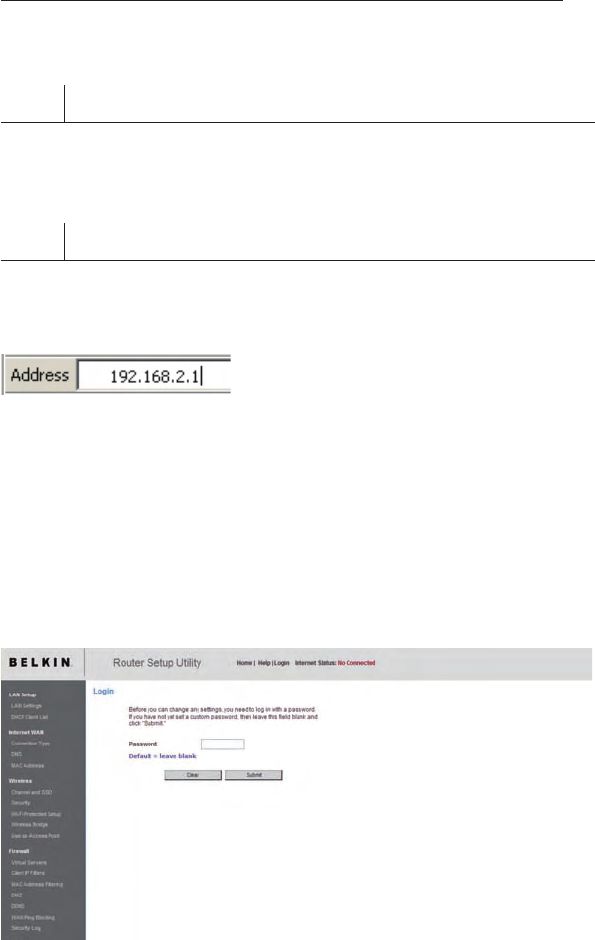

Logging into the Router
You will see the Router’s home page in your browser window. The home
page is visible to any user who wants to see it. To make any changes to
the Router’s settings, you have to log in. Clicking the “Login” button or
clicking on any one of the links on the home page will take you to the login
screen. The Router ships with no password entered. In the login screen,
leave the password blank and click the “Submit” button to log in.
2726
2726
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10
Logging out of the Router
One computer at a time can log into the Router for the purposes
of making changes to the settings of the Router. Once a user has
logged in to make changes, there are two ways that the computer
can be logged out. Clicking the “Logout” button will log the computer
out. The second method is automatic. The login will time out after a
specified period of time. The default login time-out is 10 minutes. This
can be changed from 1 to 99 minutes. For more information, see the
section in this manual entitled “Changing the Login Time-Out Setting”.
Using the Web-Based Advanced User Interface
The home page is the first page you will see when you access the
Web-Based Advanced User Interface (UI). The home page shows you
a quick view of the Router’s status and settings. All advanced setup
pages can be reached from this page.
1. Quick-Navigation Links
You can go directly to any of the Router’s UI pages by clicking
directly on these links. The links are divided into logical
categories and grouped by tabs to make finding a particular
setting easier to find. Clicking on the purple header of each tab
will show you a short description of the tab’s function.
2. Home Button
The “Home” button is available in every page of the UI. Pressing
this button will take you back to the home page.
(11) (2) (5) (4) (3)
(1)
(10)
(9)
(7)
(8)
(6)
28
Alternate Setup Method
28
3. Internet Status Indicator
This indicator is visible in all pages of the UI, indicating the
connection status of the Router. When the indicator says
“connection OK” in GREEN, the Router is connected to the
Internet. When the Router is not connected to the Internet, the
indicator will read “no connection” in RED. The indicator is
automatically updated when you make changes to the settings of
the Router.
4. Login/Logout Button
This button enables you to log in and out of the Router with the
press of one button. When you are logged into the Router, this
button will change to read “Logout”. Logging into the Router will
take you to a separate login page where you will need to enter a
password. When you are logged into the Router, you can make
changes to the settings. When you are finished making changes,
you can log out of the Router by clicking the “Logout” button.
For more information about logging into the Router, see the
section called “Logging into the Router”.
5. Help Button
The “Help” button gives you access to the Router’s help pages.
Help is also available on many pages by clicking “more info”
next to certain sections of each page.
6. Language
Shows the active language for the Advanced User Interface.
Select a desirable language by clicking one of the
available languages.
2928
2928
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10

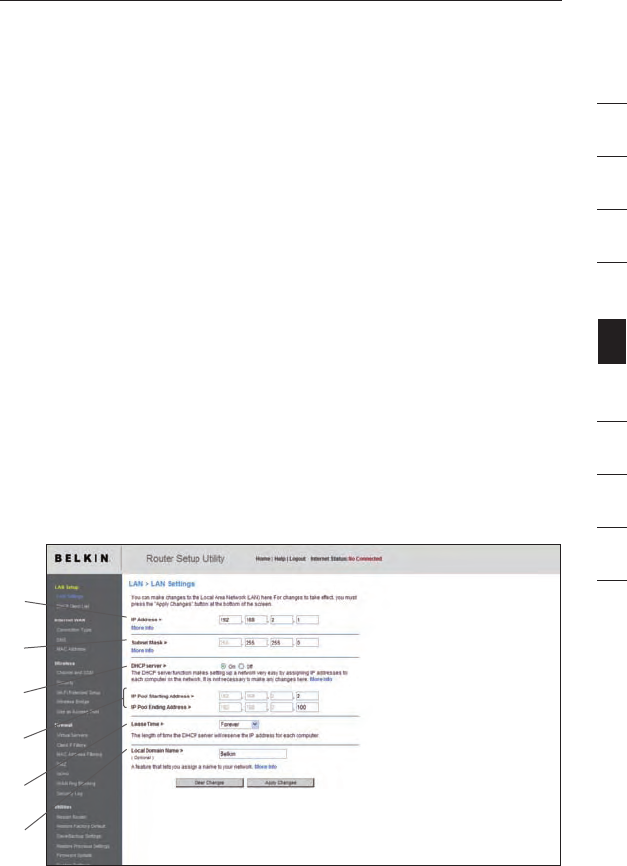

7. LAN Settings
Shows you the settings of the Local Area Network (LAN) side of
the Router. Changes can be made to the settings by clicking on
any one of the links (IP Address, Subnet Mask, DHCP Server) or
by clicking the “LAN” “Quick Navigation” link on the left side of
the screen.
8. Features
Shows the status of the Router’s NAT, firewall, and wireless
features. Changes can be made to the settings by clicking on
any one of the links or by clicking the “Quick Navigation” links
on the left side of the screen.
9. Internet Settings
Shows the settings of the Internet/WAN side of the Router that
connects to the Internet. Changes to any of these settings can
be made by clicking on the links or by clicking on the
“Internet/WAN” “Quick Navigation” link on the left side of
the screen.
10. Version Info
Shows the firmware version, boot-code version, hardware
version, and serial number of the Router.
11. Page Name
The page you are on can be identified by this name. This User
Manual will sometimes refer to pages by name. For instance
“LAN > LAN Settings” refers to the “LAN Settings” page.

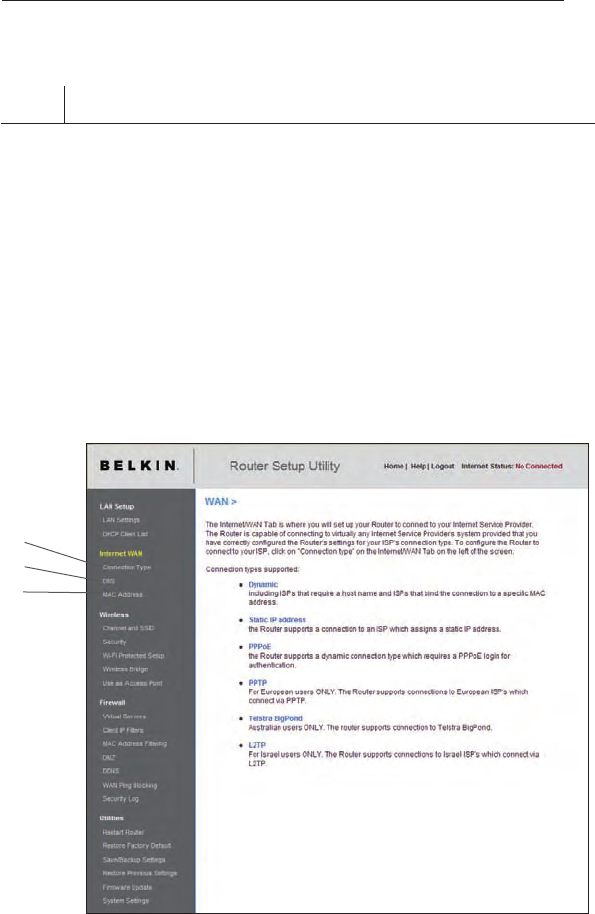

Step 4 Configure your Router for Connection to your Internet
Service Provider (ISP)
The “Internet/WAN” tab is where you will set up your Router to connect to
your Internet Service Provider (ISP). The Router is capable of connecting
to virtually any ISP’s system provided you have correctly configured the
Router’s settings for your ISP’s connection type. Your ISP connection
settings are provided to you by your ISP. To configure the Router with the
settings that your ISP gave you, click “Connection Type” (A) on the left
side of the screen. Select the connection type you use. If your ISP gave
you DNS settings, clicking “DNS” (B) allows you to enter DNS address
entries for ISPs that require specific settings. Clicking “MAC Address” (C)
will let you clone your computer’s MAC address or type in a specific WAN
MAC address, if required by your ISP. When you have finished making
settings, the “Internet Status” indicator will read “connection OK” if your
Router is set up properly.
30
Alternate Setup Method
30
(A)
(B)
(C)
3130
3130
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10
Setting your Connection Type
From the “Connection Type” page, you can select the type of connection
you use. Select the type of connection you use by clicking the button (1)
next to your connection type and then clicking “Next” (2).
(2)
(1)
32
Alternate Setup Method
32
Setting your Internet Service Provider (ISP) Connection Type to Dynamic IP
A dynamic connection type is the most common connection type used with
cable modems. Setting the connection type to “dynamic” in many cases is
enough to complete the connection to your ISP. Some dynamic connection
types may require a host name. You can enter your host name in the space
provided if you were assigned one. Your host name is assigned by your ISP.
Some dynamic connections may require that you clone the MAC address
of the PC that was originally connected to the modem.
Change WAN MAC Address
If your ISP requires a specific MAC address to connect to the service,
you can enter a specific MAC address or clone the current computer’s
MAC address through this link.
3332
3332
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10
Setting your Internet Service Provider (ISP) Connection
Type to Static IP

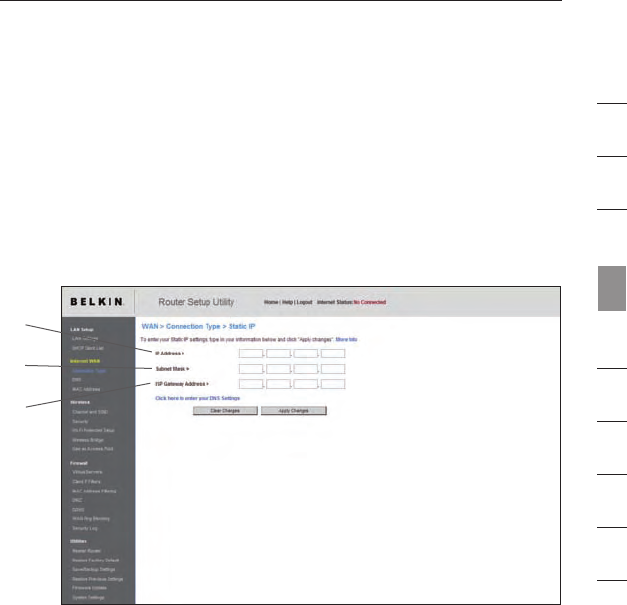

A static IP address connection type is less common than other connection
types. If your ISP uses static IP addressing, you will need your IP address
(1), subnet mask (2), and ISP gateway address (3). This information is
available from your ISP or on the paperwork that your ISP left with you.
Type in your information, then click “Apply Changes”. After you apply the
changes, the “Internet Status” indicator will read “connection OK” if your
Router is set up properly.
1. IP Address
Provided by your ISP. Enter your IP address here.
2. Subnet Mask
Provided by your ISP. Enter your subnet mask here.
3. ISP Gateway Address
Provided by your ISP. Enter the ISP gateway address here.
(1)
(2)
(3)
34
Alternate Setup Method
34
Setting your ISP Connection Type to PPPoE
Most DSL providers use PPPoE as the connection type. If you use a
DSL modem to connect to the Internet, your ISP may use PPPoE to
log you into the service. If you have an Internet connection in your
home or small office that doesn’t require a modem, you may also
use PPPoE.
Your connection type is PPPoE if:
1)
Your ISP gave you a user name and password, which is required
to connect to the Internet;
2) Your ISP gave you software such as WinPOET or Enternet300
that you use to connect to the Internet; or
3) You have to double-click on a desktop icon other than your
browser to get on the Internet.
(2)
(1)
(3)
(4)
(5)
3534
3534
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10

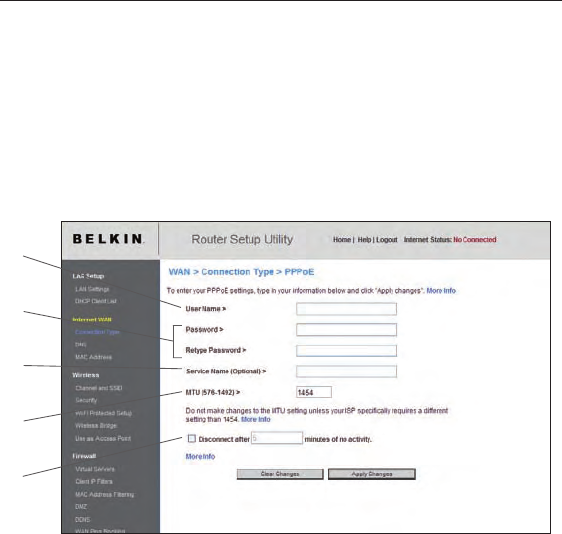

1. User Name
This space is provided to type in your user name that was
assigned by your ISP.
2. Password
Type in your password and re-type it into the “Retype
Password” box to confirm it.
3. Service Name
A service name is rarely required by an ISP. If you are not sure if
your ISP requires a service name, leave this blank.
4. MTU
The MTU setting should never be changed unless your ISP gives
you a specific MTU setting. Making changes to the MTU setting
can cause problems with your Internet connection including
disconnection from the Internet, slow Internet access, and
problems with Internet applications working properly.
5. Disconnect after X minutes...
This feature is used to automatically disconnect the Router
from your ISP when there is no activity for a specified period
of time. For instance, placing a check mark next to this option
and entering “5” into the minute field will cause the Router to
disconnect from the Internet after five minutes of no Internet
activity. This option should be used if you pay for your Internet
service by the minute.
36
Alternate Setup Method
36
Setting your Internet Service Provider (ISP) Connection Type to
Point-to-Point Tunneling Protocol (PPTP)
[European Countries Only]. Some ISPs require a connection using PPTP
protocol, a type of connection most common in European countries. This
sets up a direct connection to the ISP’s system. Type the information
provided by your ISP in the space provided. When you have finished,
click “Apply Changes”. After you apply the changes, the “Internet
Status” indicator will read “connection OK” if your Router is set up
properly.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
1. PPTP Account
Provided by your ISP. Enter your PPTP User ID here.
2. PPTP Password
Type in your password and retype it into the “Retype Password”
box to confirm it.
3. Host Name
Provided by your ISP. Enter your host name here.
4. Service IP Address
Provided by your ISP. Enter your PPTP gateway/service IP
address here.
3736
3736
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10
5. My Internet IP
Select a type of getting your Internet IP address from your ISP
server. It depends on your ISP service type. If you are not sure
of this, please contact your ISP’s technical-support hotline.
6. My IP Address
Provided by your ISP. Enter the IP address here.
7. My Subnet Mask
Provided by your ISP. Enter the IP address here.
8. Connection ID
Provided by your ISP. Enter the connection ID here.
9. Disconnect after X minutes...
This feature is used to automatically disconnect the Router
from your ISP when there is no activity for a specified period
of time. For instance, placing a check mark next to this option
and entering “5” into the minute field will cause the Router to
disconnect from the Internet after five minutes of no Internet
activity. This option should be used if you pay for your Internet
service by the minute.
38
Alternate Setup Method
38
Setting your Connection Type if you are a Telstra® BigPond User
[Australia Only]. Your user name and password are provided to you by
Telstra BigPond. Enter this information below. Choosing your state from
the drop-down menu (6) will automatically fill in your login server IP
address. If your login server address is different than the one provided
here, you may manually enter the login server IP address by placing a
check in the box next to “User decide login server manually” (4) and
type in the address next to “Login Server” (5). When you have entered
all of your information, click “Apply Changes”. After you apply the
changes, the “Internet Status” indicator will read “connection OK” if
your Router is set up properly.
(1)
(2)
(3)
(4)
(5)
(6)
1. Select your State
Select your state from the drop-down menu (6). The “Login Server”
box will automatically be filled in with an IP address. If for some
reason this address does not match the address that Telstra has
given, you can manually enter the login server address. See “User
decide login server manually” (4).
2. User Name
Provided by your ISP. Type in your user name here.
3. Password
Type in your password and retype it into the “Retype Password”
box to confirm it.
3938
3938
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10
4. User Decide Login Server Manually
If your login server IP address is not available in the “Select Your
State” drop-down menu (6), you may manually enter the login
server IP address by placing a check in the box next to “User
decide login server manually” and typing in the address next to
“Login Server” (5).
Setting Custom Domain Name Server (DNS) Settings
A “Domain Name Server” is a server located on the Internet that
translates Universal Resource Locators (URLs) like “www.belkin.
com” into IP addresses. Many Internet Service Providers (ISPs) do not
require you to enter this information into the Router. The “Automatic
from ISP” box (1) should be checked if your ISP did not give you a
specific DNS address. If you are using a static IP connection type,
then you may need to enter a specific DNS address and secondary
DNS address for your connection to work properly. If your connection
type is dynamic or PPPoE, it is likely that you do not have to enter a
DNS address. Leave the “Automatic from ISP” box checked. To enter
the DNS address settings, uncheck the “Automatic from ISP” box and
enter your DNS entries in the spaces provided. Click “Apply Changes”
to save the settings.
(1)
40
Alternate Setup Method
40

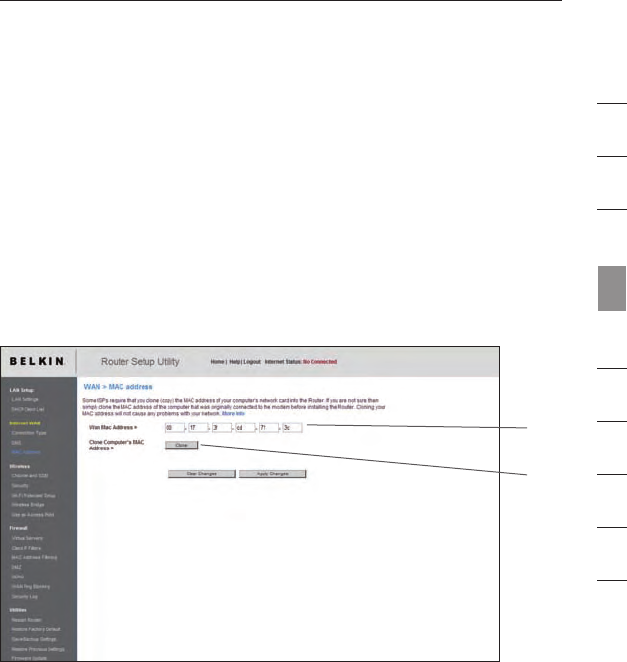

Configuring your WAN Media Access Controller (MAC) Address
All network components including cards, adapters, and routers, have
a unique “serial number” called a MAC address. Your Internet Service
Provider may record the MAC address of your computer’s adapter
and only let that particular computer connect to the Internet service.
When you install the Router, its own MAC address will be “seen” by the
ISP and may cause the connection not to work. Belkin has provided
the ability to clone (copy) the MAC address of the computer into the
Router. This MAC address, in turn, will be seen by the ISP’s system as
the original MAC address and will allow the connection to work. If you
are not sure whether your ISP needs to see the original MAC address,
simply clone the MAC address of the computer that was originally
connected to the modem. Cloning the address will not cause any
problems with your network.
4140
4140
Alternate Setup Method
section
1
9
2
3
4
5
6
7
8
10
Cloning your MAC Address
To clone your MAC address, make sure that you are using the
computer that was ORIGINALLY CONNECTED to your modem before
the Router was installed. Click the “Clone” button (1). Click “Apply
Changes”. Your MAC address is now cloned to the Router.
Entering a Specific MAC Address
In certain circumstances you may need a specific WAN MAC address.
You can manually enter one in the “MAC Address” page. Type a
MAC address in the spaces provided (2) and click “Apply
Changes” to save the changes. The Router’s WAN MAC address will
now be changed to the MAC address you specified.
(1)
(2)
42
Using the Web-Based Advanced User Interface
42
Using your Internet browser, you can access the Router’s Web-Based
Advanced User Interface. In your browser, type “192.168.2.1” (do
not type in anything else such as “http://” or “www”), then press the
“Enter” key.
You will see the Router’s home page in your browser window.
Viewing the LAN Settings
Clicking on the header of the “LAN Setup” tab (1) will take you to its
header page. A quick description of the functions can be found here.
To view the settings or make changes to any of the LAN settings, click
on “LAN Settings” (2), or to view the list of connected computers,
click on “DHCP Client List” (3).
(1)
(2)
(3)
4342
4342
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
Changing LAN Settings
All settings for the internal LAN setup of the Router can be viewed and
changed here.
1. IP Address
The “IP address” is the internal IP address of the Router. The
default IP address is “192.168.2.1”. To access the Web-Based
Advanced User Interface, type this IP address into the address
bar of your browser. This address can be changed if needed.
To change the IP address, type in the new IP address and click
“Apply Changes”. The IP address you choose should be a
non-routable IP.
Examples of a non-routable IP are: 192.168.x.x (where x is
anything between 0 and 255), and 10.x.x.x (where x is any number
between 0 and 255).
2. Subnet Mask
There is no need to change the subnet mask. This is a unique,
advanced feature of your Belkin Router. It is possible to change
the subnet mask if necessary; however, do NOT make changes to
the subnet mask unless you have a specific reason to do so. The
default setting is “255.255.255.0”.
(1)
(2)
(3)
(4)
(6)
(5)
44
Using the Web-Based Advanced User Interface
44
3. DHCP Server
The DHCP server function makes setting up a network very easy
by assigning IP addresses to each computer on the network
automatically. The default setting is “On”. The DHCP server
can be turned OFF if necessary; however, in order to do so you
must manually set a static IP address for each computer on your
network. To turn off the DHCP server, select “Off” and click
“Apply Changes”.
4. IP Pool
The range of IP addresses set aside for dynamic assignment to the
computers on your network. The default is 2–100 (99 computers). If
you want to change this number, you can do so by entering a new
starting and ending IP address and clicking on “Apply Changes”.
The DHCP server can assign 100 IP addresses automatically. This
means that you cannot specify an IP address pool larger than 100
computers. For example, starting at 50 means you have to end at
150 or lower so as not to exceed the 100-client limit. The starting IP
address must be lower in number than the ending IP address.
5. Lease Time
The length of time the DHCP server will reserve the IP address for
each computer. We recommend that you leave the lease time set to
“Forever”. The default setting is “Forever”, meaning that any time
a computer is assigned an IP address by the DHCP server, the IP
address will not change for that particular computer. Setting lease
times for shorter intervals such as one day or one hour frees IP
addresses after the specified period of time. This also means that a
particular computer’s IP address may change over time. If you have
set any of the other advanced features of the Router such as DMZ
or client IP filters, these are dependent on the IP address. For this
reason, you will not want the IP address to change.
6. Local Domain Name
The default setting is “Belkin”. You can set a local domain name
(network name) for your network. There is no need to change this
setting unless you have a specific advanced need to do so. You can
name the network anything you want such as “MY NETWORK”.
4544
4544
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10

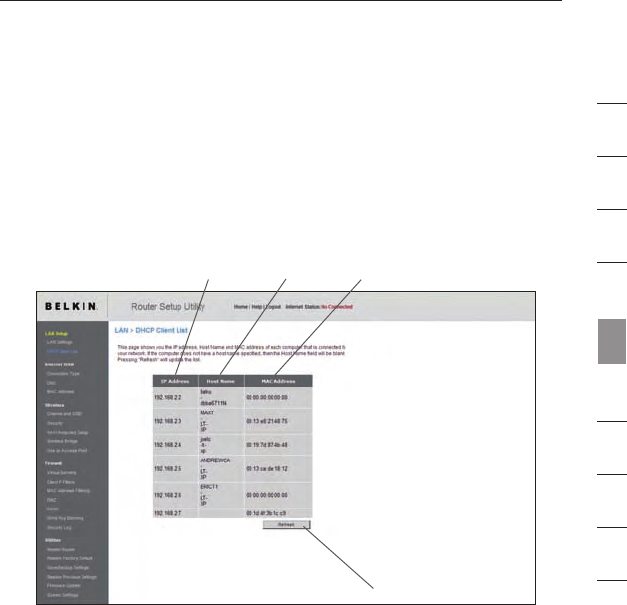

Viewing the DHCP Client List Page
You can view a list of the computers (known as clients), which are
connected to your network. You are able to view the IP address (1) of
the computer, the host name (2) (if the computer has been assigned
one), and the MAC address (3) of the computer’s network interface
card (NIC). Pressing the “Refresh” (4) button will update the list. If
there have been any changes, the list will be updated.
(1) (2) (3)
(4)
46
Using the Web-Based Advanced User Interface
46

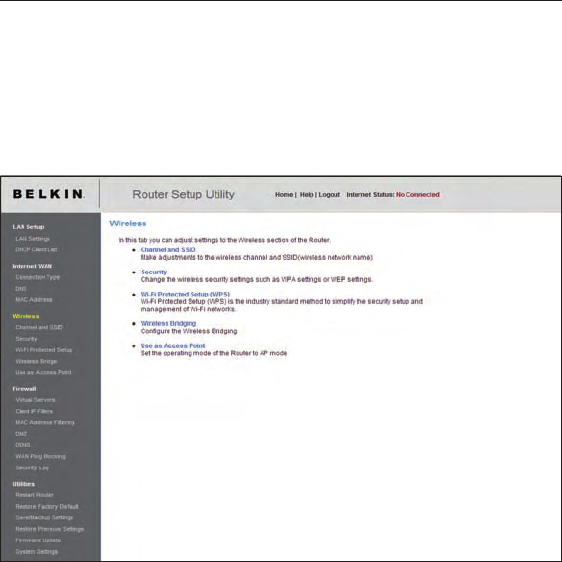

Configuring the Wireless Network Settings
Clicking on the header of the “Wireless” tab will take you to the
“Wireless” header page. Under the “Wireless” tab, there are links that
allow you to make changes to the wireless network settings.
Changing the Wireless Network Name (SSID)
To identify your wireless network, a name called the SSID (Service Set
Identifier) is used. The default SSID of the Router is “belkin54g”. You
can change this to anything you want to or you can leave it unchanged.
If there are other wireless networks operating in your area, you will want
to make sure that your SSID is unique (does not match that of another
wireless network in the area). To change the SSID, type the SSID that
you want to use in the “SSID” field (1) and click “Apply Changes”. The
change is immediate. If you make a change to the SSID, your wireless-
equipped computers may also need to be reconfigured to connect to
your new network name. Refer to the documentation of your wireless
network adapter for information on making this change.
4746
4746
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
(1)
Using the Wireless Mode Switch
Your Router can operate in four different wireless modes: “off”,
“g and b”, “g only”, and “b only”. The different modes are
explained on the next page.
48
Using the Web-Based Advanced User Interface
48
g and b Mode
In this mode, the Router is compatible with 802.11b and 802.11g wireless
clients simultaneously. This is the factory default mode and ensures
successful operation with all Wi-Fi-compatible devices. If you have a mix
of 802.11b and 802.11g clients in your network, we recommend setting the
Router to g and b mode. This setting should only be changed if you have a
specific reason to do so.
g only Mode
g only mode works with 802.11g clients only. This mode is recommended only
if you want to prevent 802.11b clients from accessing your network. To switch
modes, select the desired mode from the “Wireless Mode” drop-down box.
Then, click “Apply Changes”.
b only Mode
We recommend you DO NOT use this mode unless you have a very specific
reason to do so. This mode exists only to solve unique problems that
may occur with some 802.11b client adapters and is NOT necessary for
interoperability of 802.11g and 802.11b standards.
When to use b only Mode
In some cases, older 802.11b clients may not be compatible with 802.11g
wireless. These adapters tend to be of inferior design and may use older
drivers or technology. Switching to this mode can solve problems that
sometimes occur with these clients. If you suspect that you are using a client
adapter that falls into this category of adapters, first check with the adapter
vendor to see if there is a driver update. If there is no driver update available,
switching to b only mode may fix your problem. Please note that switching
to b only mode will decrease 802.11g performance.
QoS (Quality of Service) Configuration
QoS prioritizes important data on your network such as multimedia content
and Voice over IP (VoIP) so it will not be interfered with by other data being
sent over the network. Based on 802.11e, you can turn this feature on or off
by selecting it from the drop-down menu and choosing the acknowledgement
mode you want to use. If you plan to stream multimedia content or use VoIP
on your network, we recommend that you enable the QoS feature.
Changing the Wireless Channel
There are a number of operating channels you can choose from. In the United
States, there are 11 channels. In Australia, the United Kingdom, and most of
Europe, there are 13 channels. In a small number of other countries, there are
other channel requirements. Your Router is configured to operate on the proper
channels for the country you reside in. The default channel is 11 (unless you
are in a country that does not allow channel 11). The channel can be changed if
needed. If there are other wireless networks operating in your area, your network
should be set to operate on a channel that is different than the other wireless
networks. For best performance, use a channel that is at least five channels away
4948
4948
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
from the other wireless network. For instance, if another network is operating
on channel 11, then set your network to channel 6 or below. To change the
channel, select the channel from the drop-down list. Click “Apply Changes”.
The change is immediate.
Using the Broadcast SSID Feature
Note: This advanced feature should be employed by advanced users only.
For security, you can choose not to broadcast your network’s SSID.
Doing so will keep your network name hidden from computers that
are scanning for the presence of wireless networks. To turn off the
broadcast of the SSID, remove the check mark from the box next to
“Broadcast SSID”, and then click “Apply Changes”. The change is
immediate. Each computer now needs to be set to connect to your
specific SSID; an SSID of “ANY” will no longer be accepted. Refer to
the documentation of your wireless network adapter for information on
making this change.
Protected Mode Switch
As part of the 802.11g specification, Protected mode ensures proper
operation of 802.11g clients and access points when there is heavy
802.11b traffic in the operating environment. When Protected mode is
ON, 802.11g scans for other wireless network traffic before it transmits
data. Therefore, using this mode in environments with HEAVY 802.11b
traffic or interference achieves best performance results. If you are in an
environment with very little—or no—other wireless network traffic, your
best performance will be achieved with Protected mode OFF.
50
Using the Web-Based Advanced User Interface
50
Securing your Wi-Fi® Network
Here are a few different ways you can maximize the security of your
wireless network and protect your data from prying eyes and ears. This
section is intended for the home, home office, and small office user.
At the time of this User Manual’s publication, there are four encryption
methods available.
Name 64-Bit Wired
Equivalent
Privacy
128-Bit Wired
Equivalent
Privacy
Wi-Fi Protected
Access-TKIP
Wi-Fi Protected
Access 2
Acronym 64-bit WEP 128-bit WEP WPA-TKIP/AES
(or just WPA)
WPA2-AES
(or just WPA2)
Security Good Better Best Best
Features Static keys Static keys Dynamic key
encryption
and mutual
authentication
Dynamic key
encryption
and mutual
authentication
Encryption
keys based
on RC4
algorithm
(typically
40-bit keys)
More secure
than 64-bit
WEP using a
key length of
104 bits plus
24 additional
bits of system-
generated data
TKIP (Temporal
Key Integrity
Protocol)
added so
that keys are
rotated and
encryption is
strengthened
AES (Advanced
Encryption
Standard)
does not
cause any
throughput loss
Wired Equivalent Privacy (WEP)
WEP is a common protocol that adds security to all Wi-Fi-compliant
wireless products. WEP was designed to give wireless networks the
equivalent level of privacy protection as a comparable wired network.
64-Bit WEP
64-bit WEP was first introduced with 64-bit encryption, which includes
a key length of 40 bits plus 24 additional bits of system-generated data
(64 bits total). Some hardware manufacturers refer to 64-bit as 40-bit
encryption. Shortly after the technology was introduced, researchers
found that 64-bit encryption was too easy to decode.
5150
5150
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
128-Bit WEP
As a result of 64-bit WEP’s potential security weaknesses, a more
secure method of 128-bit encryption was developed. 128-bit
encryption includes a key length of 104 bits plus 24 additional bits of
system-generated data (128 bits total). Some hardware manufacturers
refer to 128-bit as 104-bit encryption.
Most of the new wireless equipment in the market today supports
both 64-bit and 128-bit WEP encryption, but you might have older
equipment that only supports 64-bit WEP. All Belkin wireless products
will support both 64-bit and 128-bit WEP.
Encryption Keys
After selecting either the 64-bit or 128-bit WEP encryption mode, it is
critical that you generate an encryption key. If the encryption key is
not consistent throughout the entire wireless network, your wireless
networking devices will be unable to communicate with one another
on your network and you will not be able to successfully communicate
within your network.
You can enter your key by typing in the hex key manually, or you can
type a passphrase in the “Passphrase” field and click “Generate” to
create a key. A hex (hexadecimal) key is a combination of numbers
and letters from A–F and 0–9. For 64-bit WEP, you need to enter 10
hex keys. For 128-bit WEP, you need to enter 26 hex keys.
For instance:
AF 0F 4B C3 D4 = 64-bit WEP key
C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit WEP key
The WEP passphrase is NOT the same as a WEP key. Your Router
uses this passphrase to generate your WEP keys, but different
hardware manufacturers might have different methods on generating
the keys. If you have multiple vendors’ equipment in your network,
the easiest thing to do is to use the hex WEP key from your Router or
access point and enter it manually into the hex WEP key table in your
Router’s configuration screen.
52
Using the Web-Based Advanced User Interface
52
Wi-Fi Protected Access™ (WPA™)
WPA is a new Wi-Fi standard that was designed to improve upon the security
features of WEP. To use WPA security, the drivers and software of your
wireless equipment must be upgraded to support WPA. These updates will
be found on the wireless vendor’s website. There are three types of WPA
security: WPA-PSK (no server), and WPA2.
WPA-PSK (no server) uses what is known as a pre-shared key as the
network key. A network key is basically a password that is between eight
and 63 characters long. It can be a combination of letters, numbers, or
characters. Each client uses the same network key to access the network.
Typically, this is the mode that will be used in a home environment.
WPA2™ requires Advanced Encryption Standard (AES) for encryption
of data, which offers much greater security than WPA. WPA uses both
Temporal Key Integrity Protocol (TKIP) and (AES) for encryption.
For a list of Belkin wireless products that support WPA, please visit our
website at www.belkin.com/networking.
5352
5352
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10

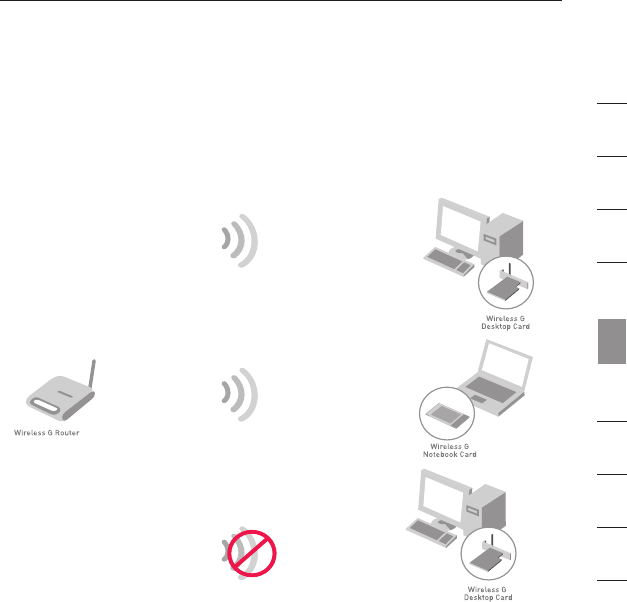

Sharing the Same Network Keys
Most Wi-Fi products ship with security turned off. So once you have your
network working, you need to activate WEP or WPA and make sure your
wireless networking devices are sharing the same network key.
The Wireless G Desktop Card cannot access the network because it
is using a different network key than the network key that is configured
on the Wireless G Router.
Network key=
WRONG Password
Network key=
MyPassword
Network key=
MyPassword
Network key=
MyPassword
54
Using the Web-Based Advanced User Interface
54
Using a Hexadecimal Key
A hexadecimal key is a combination of numbers and letters from A–F and
0–9. 64-bit keys are five two-digit numbers. 128-bit keys are 13
two-digit numbers.
For instance:
AF 0F 4B C3 D4 = 64-bit key
C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit key
In the boxes below, make up your key by writing in two characters
between A–F and 0–9 in each box. You will use this key to program the
encryption settings on your Router and your wireless computers.
Note to Mac users: Original Apple® AirPort® products support
64-bit encryption only. Apple AirPort 2 products can support 64-bit or
128-bit encryption. Please check your product to see which version you
are using. If you cannot configure your network with 128-bit encryption,
try 64-bit encryption.
5554
5554
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
WEP Setup
64-Bit WEP Encryption
1.
Select “64-bit WEP” from the “Security” menu’s
“Security Mode”.
2. After selecting your WEP encryption mode, you can enter your
key by typing in the hex key manually, or you can put a check
mark in “Passphrase”, then type in your passphrase. Click
“Generate” to generate four different hex keys.
A hex (hexadecimal) key is a combination of numbers and letters
from A–F and 0–9. For 64-bit WEP, you need to enter 10
hex keys.
For instance: AF 0F 4B C3 D4 = 64-bit WEP key
3.
Click “Apply Changes” to save the setting.
WARNING: If you are configuring the Wireless G Router or access
point from a computer with a wireless client, you will need to ensure
that security is turned ON for this wireless client. If this is not done,
your client will lose its wireless connection.
56
Using the Web-Based Advanced User Interface
56
128-Bit WEP Encryption
Note to Mac users: The passphrase option will not operate with
Apple AirPort. To configure encryption for your Mac computer, set the
encryption using the manual method described in the next section.
1. Select “128-bit WEP” from the “Security” menu’s “Security Mode”.
2. After selecting your WEP encryption mode, you can enter your key
by typing in the hex key manually, or you can put a check mark in
“Passphrase”, then type in your passphrase. Click “Generate” to
generate the hex keys.
A hex (hexadecimal) key is a combination of numbers and
letters from A–F and 0–9. For 128-bit WEP, you need to enter
26 hex keys.
For instance: C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit
WEP key
3.
Click “Apply Changes” to save the setting.
WARNING: If you are configuring the Wireless G Router or access point
from a computer with a wireless client, you will need to ensure that
security is turned ON for this wireless client. If this is not done, your
client will lose its wireless connection.
5756
5756
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
Changing the Wireless Security Settings
Your Router is equipped with the latest security standard called Wi-Fi
Protected Access 2 (WPA2) and the legacy security standard called
Wired Equivalent Privacy (WEP). Your Router also supports the Wi-Fi
Protected SetupTM (WPS) specification, which simplifies the setup of a
wireless network. WPS uses familiar methodologies, such as typing in
a Personal Identification Number (PIN) or pushing a button, to enable
users to automatically configure network names and strong WPA/WPA2
data encryption and authentication. By default, wireless security is
disabled. To enable security, you will need to determine which standard
you want to use. To access the security settings, click “Security” on
the “Wireless” tab.
Using Wi-Fi Protected Setup
WPS uses WPA2 (described below) for encryption. It does not
provide additional security, but rather, standardizes the method
for securing your wireless network. You may use either the Push
Button Configuration (PBC) method or PIN method to allow a device
access to your wireless network. Conceptually, the two methods
work as follows:
PBC: Push and hold the WPS button located on the back of your
Router for three seconds. Then, initiate the WPS procedure on
the client device within two minutes. Refer to your client’s
documentation on this procedure. Pushing the PBC button will
automatically enable WPS. The client has now been securely added
to your wireless network.
PIN: The client device has a PIN number (either four or eight digits)
that is associated with WPS. Enable WPS through the GUI shown
below. Enter the client’s PIN into the Router’s internal registrar
(accessed through this GUI).The client will be automatically enrolled
into your wireless network within two minutes.
58
Using the Web-Based Advanced User Interface
58

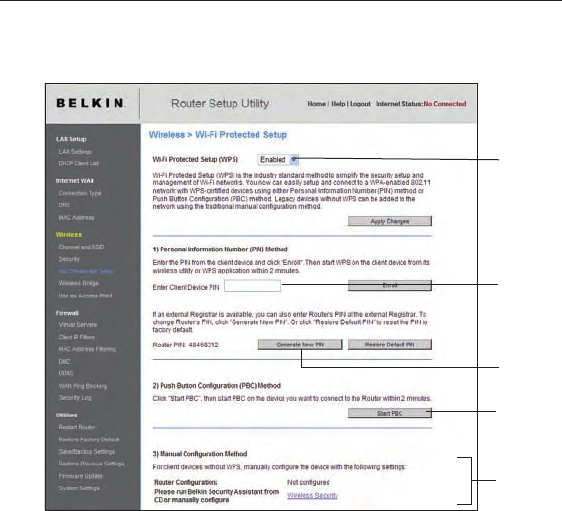

1. Wi-Fi Protected Setup (WPS): Enabled or Disabled.
2. Personal Identification Number (PIN) Method: In this method, a wireless
client wishing to access your network must supply a 4- or 8-digit PIN to
the Router. After clicking “Enroll”, you must start the WPS handshaking
procedure from the client within two minutes.
3. Router PIN: If an external registrar is available, you may enter in the
Router’s PIN to the registrar. Click “Generate New PIN” to change the PIN
from the default value. Click “Restore Default PIN” to reset the
PIN value.
4. Push Button Configuration (PBC) Method: PBC is an alternate method to
connect to a WPS network. Push the PBC button located on the back of
the Router for three seconds, and then initiate the PBC on the client device.
Alternatively, push the “Start PBC” soft button to start this process.
5. Manual Configuration Method: This section lists the default security
settings if not using WPS.
The Router features WPA2, which is the second generation of the
WPA-based 802.11i standard. It offers a higher level of wireless security
by combining advanced network authentication and stronger Advanced
Encryption Standard (AES) encryption methods.
(1)
(2)
(3)
(4)
(5)
5958
5958
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
WPA Setup
Note: To use WPA security, all your clients must be upgraded to
drivers and software that support it. At the time of this User Manual’s
publication, a security patch download is available, for free, from
Microsoft®. This patch works only with the Windows XP operating
system. You also need to download the latest driver for your Belkin
Wireless G Desktop or Notebook Network Card from the Belkin
support site. Other operating systems are not supported at this time.
Microsoft’s patch only supports devices with WPA-enabled drivers
such as Belkin 802.11g products.
WPA uses a so-called pre-shared key as the security key. A
pre-shared key is a password that is between eight and 63
characters long. It can be a combination of letters, numbers, and
other characters. Each client uses the same key to access the
network. Typically, this mode will be used in a home environment.
WPA2 is the second generation of WPA, offering a more advanced
encryption technique over WPA.
60
Using the Web-Based Advanced User Interface
60
Setting WPA/WPA2
1. Select “WPA/WPA2-Personal (PSK)” from the “Security Mode”
drop-down box.
2. Select “WPA-PSK” for just WPA authentication, or “WPA2-PSK” for
just WPA2 authentication, or you may select “WPA-PSK + WPA2-
PSK” for WPA and WPA2 as the authentication type.
3. Enter your pre-shared key. This can be from eight to 63 characters
and can be letters, numbers, or symbols. This same key must be
used on all of the clients that you set up. This
pre-shared key will allow users full access to your network
including shared files and printers.
4. Click “Apply Changes” to finish. You must now set all clients to
match these settings depending on the type of access you want
them to have.
6160
6160
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10

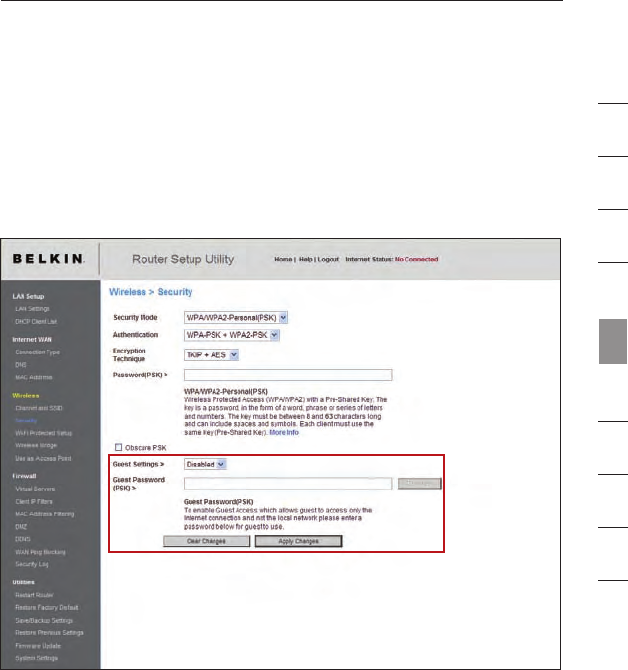

Guest Access (Optional)
The guest pre-shared key allows guest users an Internet-only access to
restrict them from entering your network and having access to files on
your PCs. Enter your pre-shared key for guest access. This can be from
eight to 63 characters and can be letters, numbers, or symbols. Click
“Apply Changes” to finish.
62
Using the Web-Based Advanced User Interface
62
Setting up WPA for Wireless Desktop and Wireless
Notebook Cards that are NOT Manufactured by Belkin
If you do NOT have a Belkin WPA Wireless Desktop or Wireless
Notebook Card and it is not equipped with WPA-enabled software,
a file from Microsoft called “Windows XP Support Patch for Wireless
Protected Access” is available for free download.
Please Note: The file that Microsoft has made available works only
with Windows XP. Other operating systems are not supported at
this time.
Important: You also need to ensure that the wireless card manufacturer
supports WPA and that you have downloaded and installed the latest
driver from their support site.
Supported Operating Systems:
• Windows XP Professional
• Windows XP Home Edition
6362
6362
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
Setting up Windows XP Wireless Network Utility to use
WPA-PSK
In order to use WPA-PSK, ensure you are using the Windows Wireless
Network Utility by doing the following:
1. Under Windows XP, click “Start > Control Panel > Network
Connections”.
2. Right-click on “Wireless Network Connection Properties” and
select “Properties”.

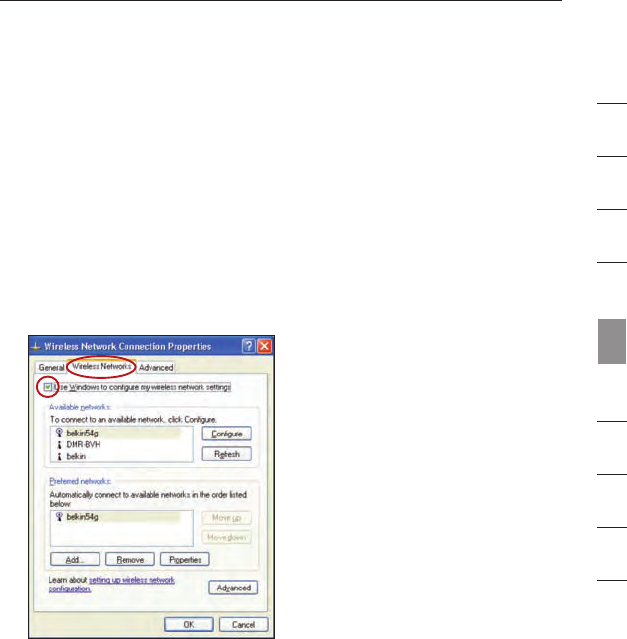

3. Clicking on the “Wireless Networks” tab will display the
following screen. Ensure the “Use Windows to configure my
wireless network settings” box is checked.
64
Using the Web-Based Advanced User Interface
64

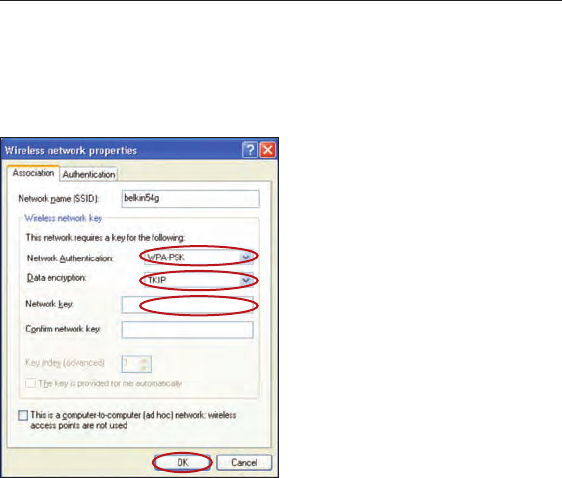

4. Under the “Wireless Networks” tab, click the “Configure” button
and you will see the following screen.
5. For a home or small business user, select “WPA-PSK” under
“Network Authentication”.
Note: Select “WPA” if you are using this computer to connect to
a corporate network that supports an authentication server such
as a radius server. Please consult your network administrator for
further information.
6. Select “TKIP” or “AES” under “Data Encryption”. This setting will
have to be identical to the Router that you set up.
7. Type your encryption key in the “Network key” box.
Important: Enter your pre-shared key. This can be from eight to 63
characters and can be letters, numbers, or symbols. This same key
must be used on all of the clients that you set up.
8. Click “OK” to apply settings.
6564
6564
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
Using the Access Point Mode
Note: This advanced feature should be employed by advanced users
only. The Router can be configured to work as a wireless network
access point. Using this mode will defeat the NAT IP sharing feature
and DHCP server. In Access Point (AP) mode, the Router will need to
be configured with an IP address that is in the same subnet as the
rest of the network that you will bridge to. The default IP address
is 192.168.2.254 and subnet mask is 255.255.255.0. These can be
customized for your need.
1. Enable the AP mode by selecting “Enable” in the “Use as Access Point
only” page. When you select this option, you will be able to change the
IP settings.
2. Set your IP settings to match your network. Click “Apply Changes”.
3. Connect a cable from the “Modem” port on the Router to your existing
network.
The Router is now acting as an access point. To access the Router’s
Web-Based Advanced User Interface again, type the IP address
you specified into your browser’s navigation bar. You can set the
encryption settings, MAC address filtering, SSID, and
channel normally.
66
Using the Web-Based Advanced User Interface
66
Wireless Range Extension and Bridging
Wireless range extension and bridging works with the following models only:
F5D7231-4 Wireless G Plus Router
F5D7230-4 Wireless G Router
F5D7130 Wireless G Range Extender/Access Point
F5D7132 Wireless G Universal Range Extender
Please make sure to download the latest firmware version for the Router or Access
Point for optimal performance: http://web.belkin.com/support.
What is a Wireless Bridge?
A wireless bridge is a “mode” in which your Wireless Router can directly
connect to a secondary Wireless Access Point. Note that you can only bridge
your Belkin Wireless G Router (model F5D7230-4, F5D7231-4) to a Belkin
Wireless G Range Extender/Access Point (model F5D7131, F5D7130). We do
not support bridging with access points of other manufacturers at this time.
You can use the bridge mode to extend the range of your wireless network,
or add an extension of your network in another area of your office or home
without running cables.

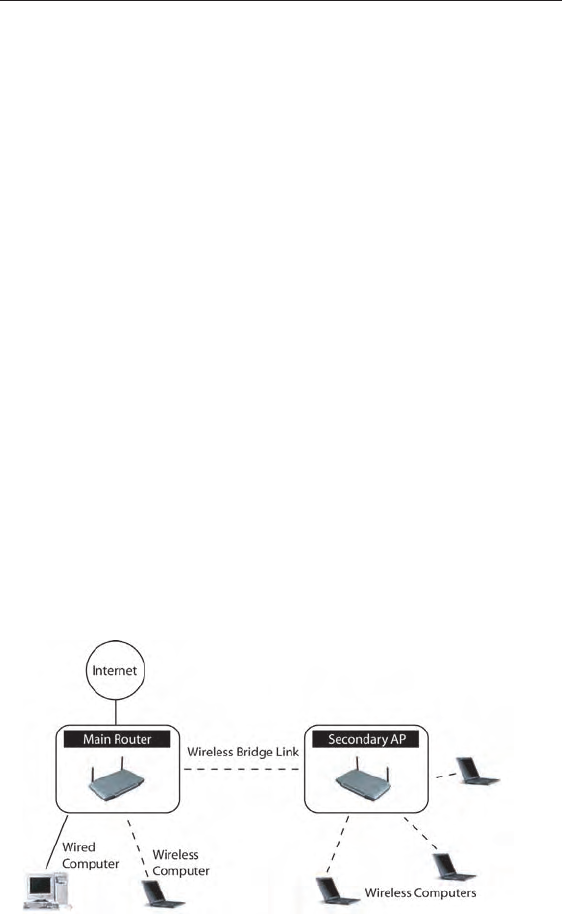

Range Extension
Range extension will extend the wireless coverage area in your home or
office. The example on the next page illustrates the use of bridging to extend
the range of your wireless network. In this example, the Router is set up to
connect to an Access Point located in another area. Laptops can roam or
move between the two wireless coverage areas.
6766
6766
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
Adding Another Network Segment Wirelessly
Bridging an Access Point to your Router allows you to add a network
segment in another area in the home or office without running wires.
Connecting a network switch or hub to the Access Point’s RJ45 jack will
allow a number of computers connected to the switch access to the rest
of the network.
68
Using the Web-Based Advanced User Interface
68
Setting Up a Bridge Between your Wireless Router and a
Secondary Access Point
Bridging your Belkin Router to a secondary Access Point requires that you
access the Router’s Advanced Setup Utility and enter the MAC address
of the Access Point in the appropriate area. There are also a few other
requirements. PLEASE BE SURE TO FOLLOW THE STEPS BELOW, CAREFULLY.
1. Set your Access Point to the same channel as the Router. By
default, the Router and Access Point channels are set to channel
11 at the factory. If you have never changed the channel, you
don’t need to do anything (for more information on changing
channels, see page 48 of this User Manual).
2. Find the Access Point’s MAC address on the bottom of the
Access Point. There are two MAC addresses on the bottom label.
You will need the MAC address named “WLAN MAC Address”.
The MAC address starts with 0030BD and is followed by six
other numbers or letters (i.e. 0030BD-XXXXXX). Write the MAC
address below. Go to the next step.
3. Place your secondary Access Point within range of your Wireless
Router and near the area where you want to extend the range
or add the network segment. Typically, indoor range should be
between 100 and 200 feet.
4. Connect power to your Access Point. Make sure the Access
Point is on and proceed to the next step.
6968
6968
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
5. From a computer already connected to your Router, access the
Advanced Setup Utility by opening your browser. In the address
bar, type in “192.168.2.1”. Do not type in “www” or “http://”
before the number. Note: If you have changed your Router’s IP
address, use that IP address.
6. You will see the Router’s user interface in the browser window.
Click “Wireless Bridge” (2) on the left-hand side of the screen.
You will see the following screen.
7. Check the box that says “Enable ONLY specific Access Points
to connect” (1).
8. In the fields named “AP1” (3), type in the MAC address of your
secondary Access Point. When you have typed in the address,
click “Apply Changes”.
9. Bridging is now set up.
(1)
(2)
(3)
70
Using the Web-Based Advanced User Interface
70

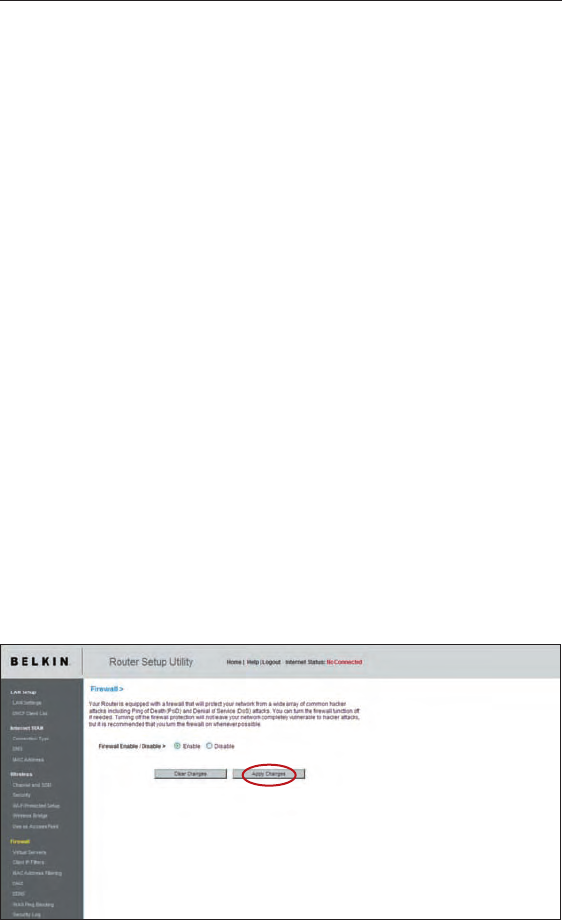

Configuring the Firewall
Your Router is equipped with a firewall that will protect your network from
a wide array of common hacker attacks including:
• IP Spoofing
• SYN flood
• Land Attack
• UDP flooding
• Ping of Death (PoD)
• Tear Drop Attack
• Denial of Service (DoS)
• ICMP defect
• IP with zero length
• RIP defect
• Smurf Attack
• Fragment flooding
• TCP Null Scan
The firewall also masks common ports that are frequently used to attack
networks. These ports appear to be “Stealth”, meaning that for all intents
and purposes, they do not exist to a would-be hacker. You can turn
the firewall function off if needed; however, while disabling the firewall
protection will not leave your network completely vulnerable to hacker
attacks, it is recommended that you leave the firewall enabled.
7170
7170
Using the Web-Based Advanced User Interface
section
1
9
2
3
4
5
6
7
8
10
Configuring Internal Forwarding Settings
The “Virtual Servers” function will allow you to route external (Internet)
calls for services such as a web server (port 80), FTP server (Port 21),
or other applications through your Router to your internal network.
Since your internal computers are protected by a firewall, computers
outside your network (over the Internet) cannot get to them because
they cannot be “seen.” You will need to contact the application vendor
to find out which port settings you need.

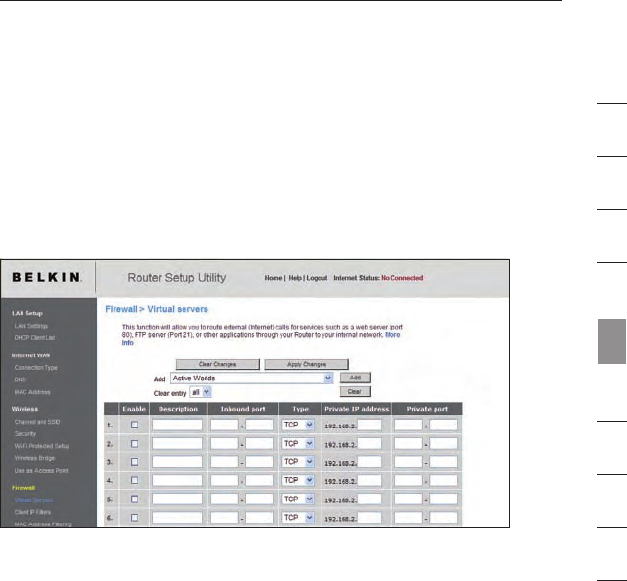

Entering Settings into the Virtual Server
To enter settings, enter the IP address in the space provided for
the internal (server) machine, and the port(s) required to pass. Then
select the port type (TCP or UDP), check the “Enable” box, and click
“Apply Changes”. Each inbound port entry has two fields with five
characters maximum per field that allows a start and end port range,
e.g. [xxxxx]-[xxxxx]. For each entry, you can enter a single port value
by filling in the two fields with the same value (e.g. [7500]-[7500]) or
a wide range of ports (e.g. [7500]-[9000]). If you need multiple single
port values or a combination of ranges and a single value, you must
use multiple entries up to the maximum of 20 entries (e.g. 1. [7500]-
[7500], 2. [8023]-[8023], 3. [9000]-[9000]). You can only pass one port
per internal IP address. Opening ports in your firewall can pose a
security risk. You can enable and disable settings very quickly. It is
recommended that you disable the settings when you are not using a
specific application.
