Belkin F5D7632-4V5 ADSL2+ Modem with Wireless G Router User Manual P74725uk A F5D7632uk4 man indd

Belkin International, Inc. ADSL2+ Modem with Wireless G Router P74725uk A F5D7632uk4 man indd

Contents

user manual part 3

61
Manually Configuring your Router
61
section
2
1
3
4
5
6
7
8
9
10
Checking for a New Version of Firmware
The “Check Firmware” (1) button allows you to instantly check
for a new version of firmware. When you click the button, a new
browser window will appear informing you that either no new
firmware is available or that there is a new version available. If a
new version is available, you will have the option to download it.
Downloading a New Version of Firmware
If you click the “Check Firmware” button and a new version of
firmware is available, you will see a screen similar to the one below:
1. To download the new version of firmware, click “Download”.
2. A window will open that allows you to select the location where
you want to save the firmware file. Select a location. You can
name the file anything you want, or use the default name. Be sure
to locate the file in a place where you can locate it yourself later.
When you have selected the location, click “Save”.
3. When the save is complete,
you will see the following
window. Click “Close”.
The download of the firmware
is complete. To update the
firmware, follow the next steps
in “Updating the Router’s
Firmware”.
6362
Manually Configuring your Router
6362
Updating the Router’s Firmware
1. In the “Firmware Update” page, click “Browse” (2). A window will
open that allows you to select the location of the firmware update
file.
2. Browse to the firmware file you downloaded. Select the file by
double-clicking on the file name.
3. The “Update Firmware” box will now display the location and
name of the firmware file you just selected. Click “Update”.
63
Manually Configuring your Router
63
section
2
1
3
4
5
6
7
8
9
10
4. You will be asked if you are sure you want to continue. Click
“OK”.
5. You will see one more message. This message tells you that
the Router may not respond for as long as one minute as the
firmware is loaded into the Router and the Router is rebooted.
Click “OK”.
A 60-second countdown will appear on the screen. When the
countdown reaches zero, the Router firmware update will be complete.
The Router home page should appear automatically. If not, type in the
Router’s address (default = 192.168.2.1) into the navigation bar of your
browser.
System Settings
The “System Settings” page is where you can enter a new
administrator password, set the time zone, enable remote
management, and turn on and off the UPnP function of the Router.

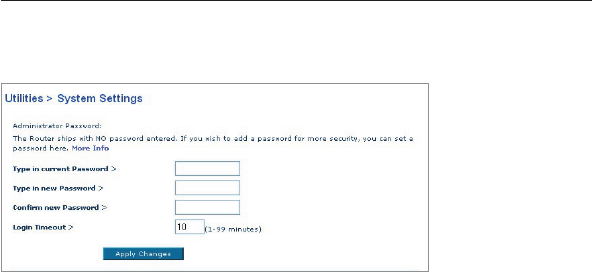

Setting or Changing the Administrator Password
The Router ships with NO password entered. If you wish to add a
password for greater security, you can set a password here. Write down
your password and keep it in a safe place, as you will need it if you need
to log into the Router in the future. It is also recommended that you set a
password if you plan to use the remote management feature of your Router.
6564
Manually Configuring your Router
6564
Changing the Login Time-Out Setting
The login time-out option allows you to set the period of time that you
can be logged into the Router’s advanced setup interface. The timer
starts when there has been no activity. For example, you have made some
changes in the advanced setup interface, then left your computer alone
without clicking “Logout”. Assuming the time-out is set to 10 minutes,
then 10 minutes after you leave, the login session will expire. You will have
to log into the Router again to make any more changes. The login time-
out option is for security purposes and the default is set to 10 minutes.
Note: Only one computer can be logged into the Router’s advanced
setup interface at one time.
Setting the Time and Time Zone
The Router keeps time by connecting to a Simple Network Time Protocol
(SNTP) server. This allows the Router to synchronize the system clock
to the global Internet. The synchronized clock in the Router is used
to record the security log and control client filtering. Select the time
zone that you reside in. If you reside in an area that observes daylight
saving, then place a check mark in the box next to “Automatically
Adjust Daylight Saving”. The system clock may not update immediately.
Allow at least 15 minutes for the Router to contact the time servers on
the Internet and get a response. You cannot set the clock yourself.
You now have the option to select a primary and a backup NTP
server to keep your router’s clock synchronize with different
NTP time servers on the Internet. Select from the drop down
boxes your desire NTP server. Or simply keep it as is.
65
Manually Configuring your Router
65
section
2
1
3
4
5
6
7
8
9
10
Enabling Remote Management
Before you enable this advanced feature of your Belkin Router,
MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD.
Remote management allows you to make changes to your
Router’s settings from anywhere on the Internet.
There are two methods of remotely managing the Router. The first is to
allow access to the Router from anywhere on the Internet by selecting
“Any IP address can remotely manage the Router”. By typing in your WAN
IP address from any computer on the Internet, you will be presented with
a login screen where you need to type in the password of your Router.
The second method is to allow a specific IP address only to remotely
manage the Router. This is more secure, but less convenient. To use this
method, enter the IP address you know you will be accessing the Router
from in the space provided and select “Only this IP address can remotely
manage the Router”. Before you enable this function, it is STRONGLY
RECOMMENDED that you set your administrator password. Leaving
the password empty will potentially open your Router to intrusion.
The Remote Access Port is default to port 8080. You can a different
port by entering a new port number for the “remote port” field.
Click on the “Apply Changes” button to save your settings.
6766
Manually Configuring your Router
6766

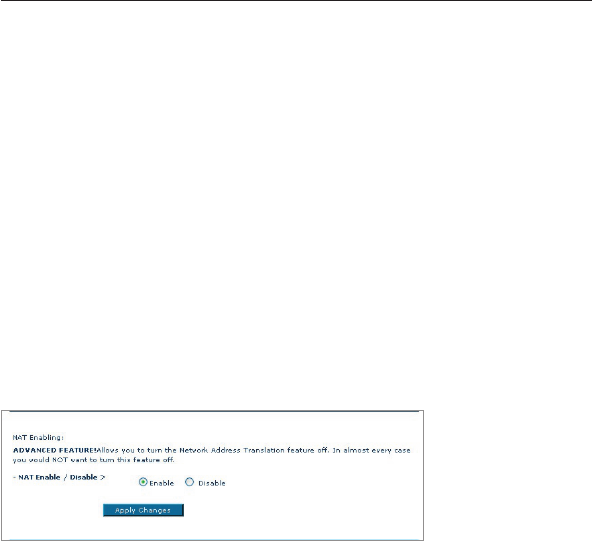

Enabling/Disabling NAT (Network Address Translation)
Note: This advanced feature should be
employed by advanced users only.
Before enabling this function,
MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD.
Network Address Translation (NAT) is the method by which the Router
shares the single IP address assigned by your ISP with the other computers
on your network. This function should only be used if your ISP assigns you
multiple IP addresses or you need NAT disabled for an advanced system
configuration. If you have a single IP address and you turn NAT off, the
computers on your network will not be able to access the Internet. Other
problems may also occur. Turning off NAT will disable your firewall functions.

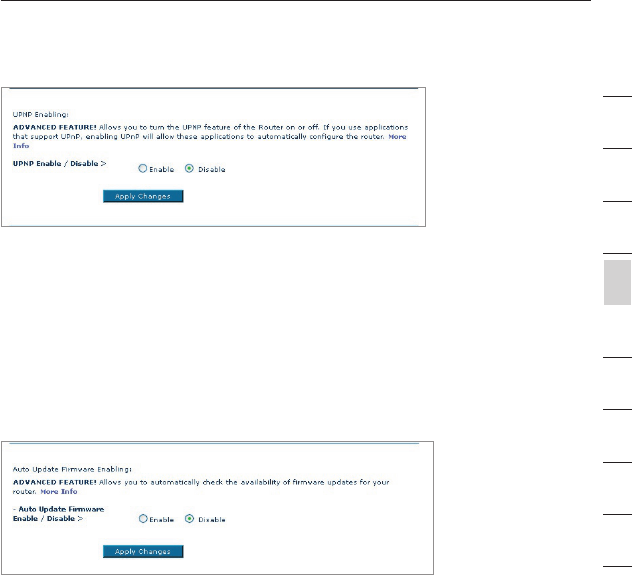

Enabling/Disabling UPnP
UPnP (Universal Plug-and-Play) is yet another advanced feature offered by
your Belkin Router. It is a technology that offers seamless operation of voice
messaging, video messaging, games, and other applications that are UPnP-
compliant. Some applications require the Router’s firewall to be configured
in a specific way to operate properly. This usually requires opening TCP
and UDP ports, and in some instances, setting trigger ports. An application
that is UPnP-compliant has the ability to communicate with the Router,
basically “telling” the Router which way it needs the firewall
configured. The Router ships with the UPnP feature disabled. If
you are using any applications that are UPnP-compliant, and wish
to take advantage of the UPnP features, you can enable the UPnP
feature. Simply select “Enable” in the “UPnP Enabling” section of
the “Utilities” page. Click “Apply Changes” to save the change.
67
Manually Configuring your Router
67
section
2
1
3
4
5
6
7
8
9
10
Enabling/Disabling Auto Firmware Update
This innovation provides the Router with the built-in capability to
automatically check for a new version of firmware and alert you that the
new firmware is available. When you log into the Router’s Web-Based
Advanced User Interface, the Router will perform a check to see if new
firmware is available. If so, you will be notified. You can choose to download
the new version or ignore it. The Router ships with this feature disabled.
If you want to disable it, select “Enable” and click “Apply Changes”.
6968
Setting Up your Computers
6968
In order for your computer to properly communicate with your Router, you
will need to change your computer’s “TCP/IP / Ethernet” settings to “Obtain
an IP address automatically / Using DHCP”. This is normally the default
setting in most home computers.
You can set up the computer that is connected to the ADSL modem FIRST
using these steps. You can also use these steps to add computers to your
Router after the Router has been set up to connect to the Internet.
Manually Configuring Network Adapters
in Windows XP, 2000, or NT
1. Click “Start”, “Settings”, then “Control Panel”.
2. Double-click on the “Network and dial-up connections” icon (Windows
2000) or the “Network” icon (Windows XP).
3. Right-click on the “Local Area Connection” associated with your
network adapter and select “Properties” from the drop-down menu.

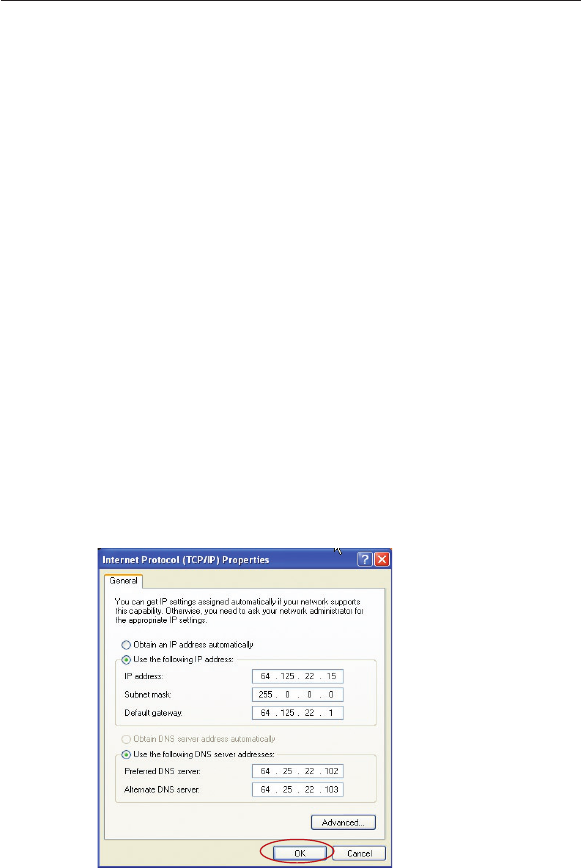

4. In the “Local Area Connection Properties” window, click “Internet
Protocol (TCP/IP)” and click the “Properties” button. The following
screen will appear:
69
Setting Up your Computers
69
section
2
1
3
4
5
6
7
8
9
10

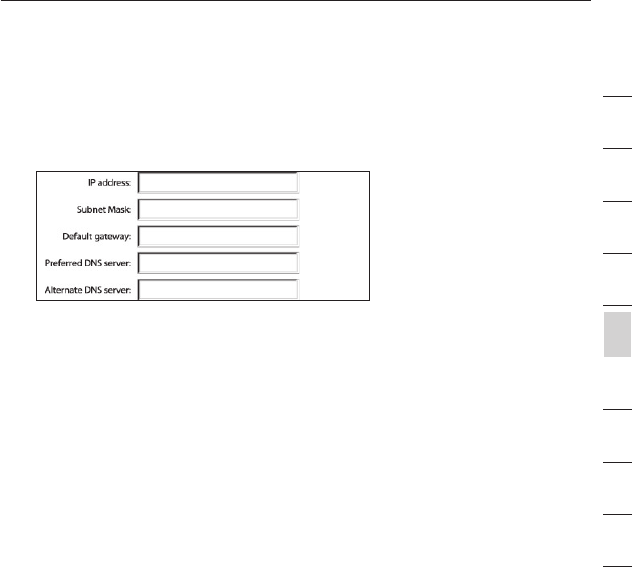

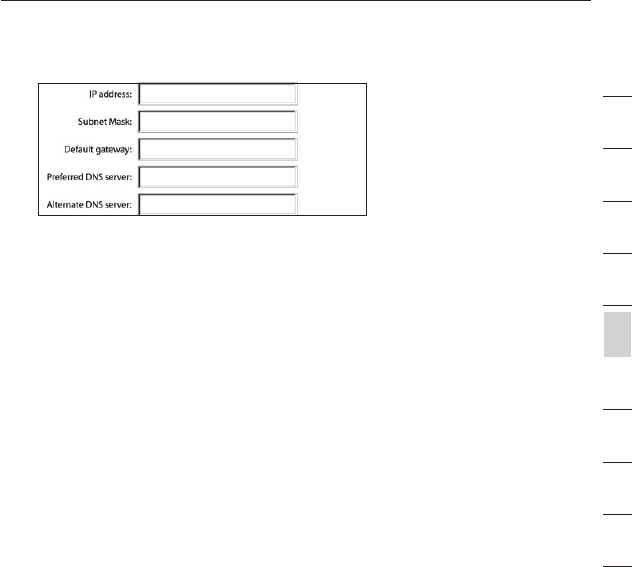

5. If “Use the following IP address” (2) is selected, your Router will
need to be set up for a static IP connection type. Write the address
information in the table below. You will need to enter this information
into the Router.
6. If not already selected, select “Obtain an IP address automatically” (1)
and “Obtain DNS server address automatically” (3). Click “OK”.
Your network adapter(s) are now configured
for use with the Router.
7170
Setting Up your Computers
7170
Manually Configuring Network Adapters
in Windows 98SE or Me
1. Right-click on “My Network Neighborhood” and select “Properties” from
the drop-down menu.
2. Select “TCP/IP -> settings” for your installed network adapter. You will
see the following window.

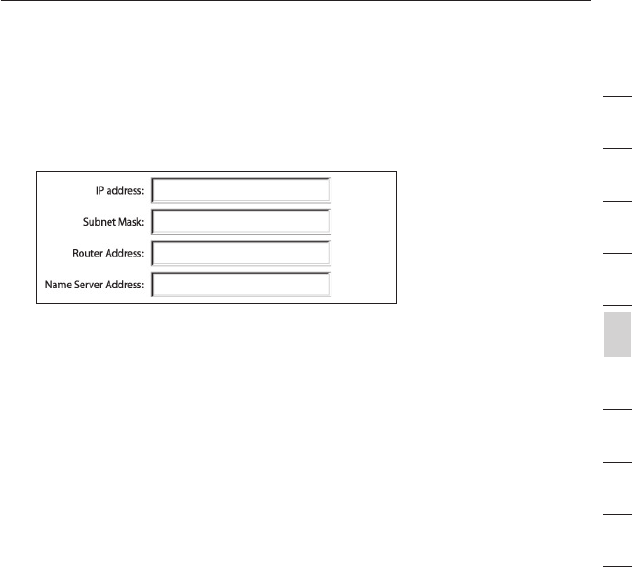

3. If “Specify an IP address” is selected, your Router will need to be set up
for a static IP connection type. Write the address information in the table
below. You will need to enter this information into the Router.
(1)
(2)
(3)
71
Setting Up your Computers
71
section
2
1
3
4
5
6
7
8
9
10

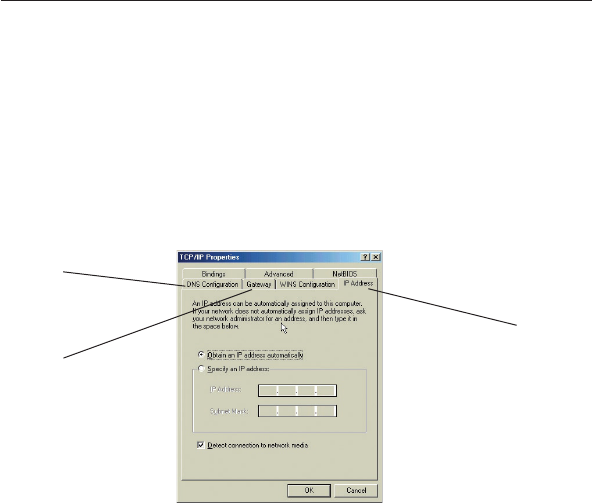

4. Write down the IP address and subnet mask
from the “IP Address” tab (3).
5. Click the “Gateway” tab (2). Write down the gateway address in the chart.
6. Click the “DNS Configuration” tab (1). Write down the DNS address(es) in
the chart.
7. If not already selected, select “Obtain an IP address automatically” on the
IP address tab. Click “OK”.
Restart the computer. When the computer restarts, your network
adapter(s) are now configured for use with the Router.
Set up the computer that is connected to the cable or DSL modem by FIRST
using these steps. You can also use these steps to add computers to your
Router after the Router has been set up to connect to the Internet.
7372
Setting Up your Computers
7372
Manually Configuring Network
Adapters in Mac OS up to 9.x
In order for your computer to properly communicate with your Router, you
will need to change your Mac computer’s TCP/IP settings to DHCP.

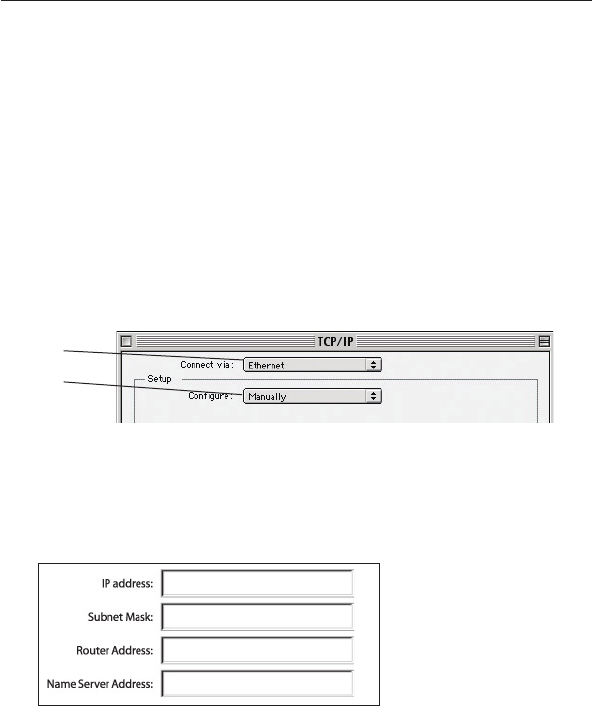

1. Pull down the Apple menu. Select “Control Panels” and select “TCP/
IP”.
2. You will see the TCP/IP control panel. Select “Ethernet Built-In” or
“Ethernet” in the “Connect via:” drop-down menu (1).
3. Next to “Configure” (2), if “Manually” is selected, your Router will
need to be set up for a static IP connection type. Write the address
information in the table below. You will need to enter this information
into the Router.
(1)
(2)
73
Setting Up your Computers
73
section
2
1
3
4
5
6
7
8
9
10
4. If not already set, at “Configure:”, choose “Using DHCP Server”. This
will tell the computer to obtain an IP address from the Router.
5. Close the window. If you made any changes, the following window will
appear. Click “Save”.
Restart the computer. When the computer restarts, your network
settings are now configured for use with the Router.
7574
Setting Up your Computers
7574
Manually Configuring Network Adapters in Mac OS X
1. Click on the “System Preferences” icon.
2. Select “Network” (1) from the “System Preferences” menu.
3. Select “Built-in Ethernet” (2) next to “Show” in the Network menu.
4. Select the “TCP/IP” tab (3). Next to “Configure” (4), you should
see “Manually” or “Using DHCP”. If you do not, check the
PPPoE tab (5) to make sure that “Connect using PPPoE” is NOT
selected. If it is, you will need to configure your Router for a
PPPoE connection type using your user name and password.
(1)
(2)
(3)
(4)
75
Setting Up your Computers
75
section
2
1
3
4
5
6
7
8
9
10
5. If “Manually” is selected, your Router will need to be set up for
a static IP connection type. Write the address information in
the table below. You will need to enter this information into the
Router.
6. If not already selected, select “Using DHCP” next to “Configure”
(4), then click “Apply Now”.
Your network adapter(s) are now configured
for use with the Router.
7776
Setting Up your Computers
7776
Recommended Web Browser Settings
In most cases, you will not need to make any changes to your web
browser’s settings. If you are having trouble accessing the Internet or the
advanced web-based user interface, then change your browser’s settings to
the recommended settings in this section.

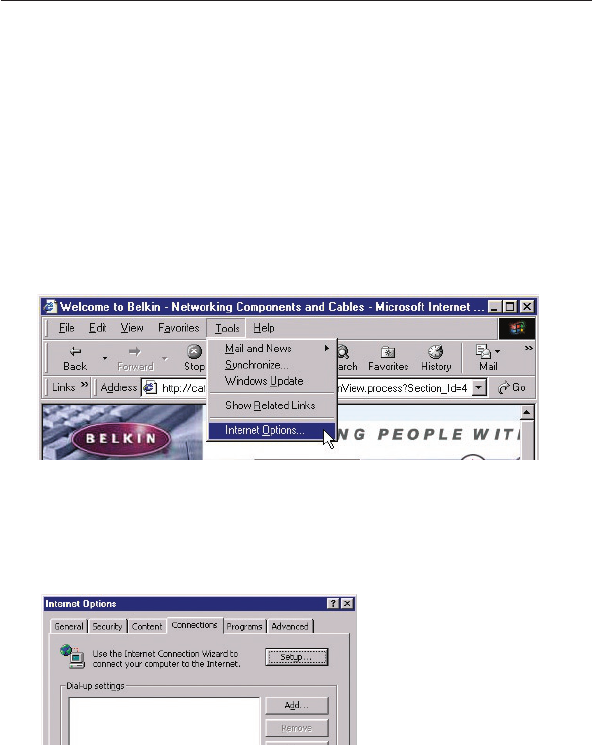

Internet Explorer 4.0 or Higher
1. Start your web browser. Select “Tools” then “Internet Options”.
2. In the “Internet Options” screen, there are three selections:
“Never dial a connection”, “Dial whenever a network connection
is not present”, and “Always dial my default connection”. If you
can make a selection, select “Never dial a connection”. If you
cannot make a selection, go to the next step.

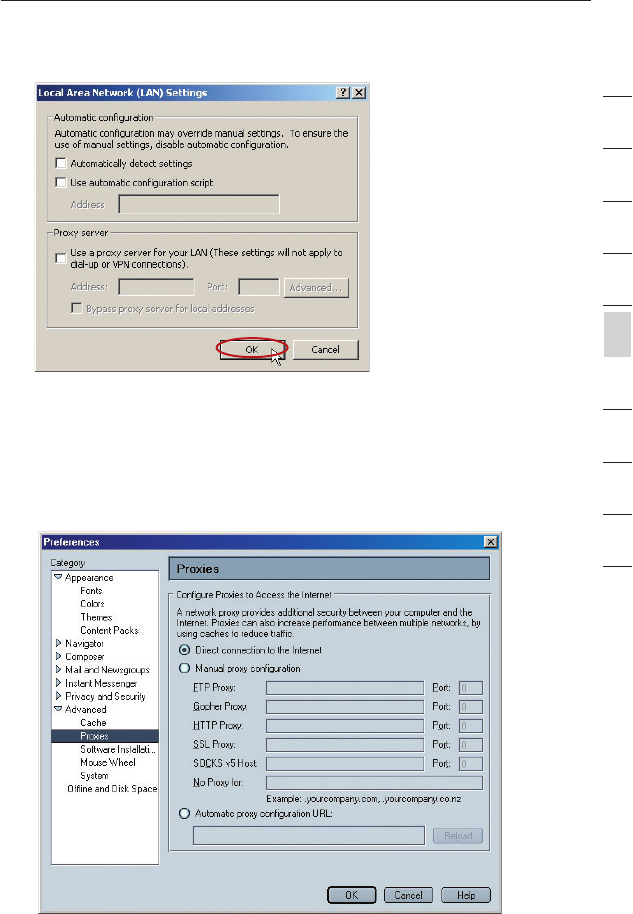

3. Under the “Internet Options” screen, click on “Connections” and
select “LAN Settings…”.
4. Make sure there are no check marks next to any of the displayed
options: “Automatically detect settings”, “Use automatic
configuration script”, and “Use a proxy server”. Click “OK”. Then
click “OK” again in the “Internet Options” page.
77
Setting Up your Computers
77
section
2
1
3
4
5
6
7
8
9
10
Netscape Navigator 4.0 or Higher
1. Start Netscape. Click on “Edit” then “Preferences”.
2. In the “Preferences” window, click on “Advanced” then select
“Proxies”. In the “Proxies” window, select “Direct connection to
the Internet”.
7978
Troubleshooting
7978
Problem:
The ADSL LED is not on.
Solution:
1. Check the connection between the Router and ADSL line.
Make sure the cable from the ADSL line is connected
to the port on the Router labeled “DSL Line”.
2. Make sure the Router has power. The Power LED
of the front panel should be illuminated.
Problem:
The Internet LED is not on.
Solution:
1. Make sure the cable from the ADSL line is connected to the
port on the Router labeled “DSL Line” and the ADSL LED is on.
2. Make sure you have the correct VPI/VCI, user
name, and password from your ISP provider.
Problem:
My connection type is static IP address. I
cannot connect to the Internet.
Solution:
Since your connection type is static IP address, your
ISP must assign you the IP address, subnet mask, and
gateway address. Instead of using the Wizard, go to
“Connection Type”, and then select your connection type.
Click “Next”, select “Static IP”, and enter your IP address,
subnet mask, and default gateway information.
Problem:
I’ve forgotten or lost my password.
Solution:
Press and hold the “Reset” button on the rear panel for
at least six seconds to restore the factory defaults.
79
Troubleshooting
79
section
2
1
3
4
5
6
7
8
9
10
Problem:
My wireless PC cannot connect to the Router.
Solution:
1. Make sure the wireless PC has the same SSID settings
as the Router, and you have the same security settings
on the clients such as WPA or WEP encryption.
2. Make sure the distance between the Router
and wireless PC are not too far away.
Problem:
The wireless network is often interrupted.
Solution:
1. Move your wireless PC closer to the
Router to find a better signal.
2. There may also be interference, possibly caused by a
microwave oven or 2.4GHz cordless phones. Change the
location of the Router or use a different wireless channel.
Problem:
I can’t connect to the Internet wirelessly.
Solution:
If you are unable to connect to the Internet from a
wireless computer, please check the following items:
1. Look at the lights on your Router. If you’re using a
Belkin Router, the lights should be as follows:
• The “Power” light should be on.
• The “Connected” light should be on, and not blinking.
• The “WAN” light should be either on or blinking.
2. Open your wireless utility software by clicking on the
icon in the system tray at the bottom right-hand corner
of the screen (the icon may be red or green).
8180
Troubleshooting
8180
3. The exact window that opens will vary depending on
the model of wireless card you have; however, any of
the utilities should have a list of “Available Networks”—
those wireless networks it can connect to.
Does the name of your wireless network
appear in the results?
Yes, my network name is listed—go to the troubleshooting
solution titled “I can’t connect to the Internet
wirelessly, but my network name is listed”.
No, my network name is not listed—go to the
troubleshooting solution titled “I can’t connect to the
Internet wirelessly, and my network name is not listed”.
Problem:
I can’t connect to the Internet wirelessly,
but my network name is listed.
Solution:
If the name of your network is listed in the “Available Networks”
list, please follow the steps below to connect wirelessly:
1. Click on the correct network name in
the “Available Networks” list.
If the network has security (encryption) enabled,
you will need to enter the network key. For more
information regarding security, see the page entitled
“Changing the Wireless Security Settings”.
2. Within a few seconds, the tray icon in the lower
left-hand corner of your screen should turn green,
indication a successful connection to the network.
81
Troubleshooting
81
section
2
1
3
4
5
6
7
8
9
10
Problem:
I can’t connect to the Internet wirelessly,
and my network name is not listed.
Solution:
If the correct network name is not listed under
“Available Networks” in the wireless utility, please
attempt the following troubleshooting steps:
1. Temporarily move computer, if possible, five to 10 feet
from the Router. Close the wireless utility, and re-open it.
If the correct network name now appears under “Available
Networks”, you may have a range or interference problem.
Please see the suggestions discussed in Appendix B
entitled “Important Factors for Placement and Setup”.
2. Using a computer that is connected to the Router via a
network cable (as opposed to wirelessly), ensure that
“Broadcast SSID” is enabled. This setting is found on the
Router’s wireless “Channel and SSID” configuration page.
If you are still unable to access the Internet after completing
these steps, please contact Belkin Technical Support.
Problem:
• My wireless network performance is inconsistent.
• Data transfer is sometimes slow.
• Signal strength is poor.
• Difficulty establishing and/or maintaining a
Virtual Private Network (VPN) connection.
Solution:
Wireless technology is radio-based, which means connectivity
and the throughput performance between devices decreases
when the distance between devices increases. Other factors
that will cause signal degradation (metal is generally the worst
culprit) are obstructions such as walls and metal appliances. As
a result, the typical indoor range of your wireless devices will be
between 100 to 200 feet. Note also that connection speed may
decrease as you move farther from the Router or Access Point.
8382
Troubleshooting
8382
In order to determine if wireless issues are related to
range, we suggest temporarily moving the computer,
if possible, five to 10 feet from the Router.
Changing the wireless channel - Depending on local wireless
traffic and interference, switching the wireless channel of your
network can improve performance and reliability. The default
channel the Router is shipped with is channel 11, you may
choose from several other channels depending on your region;
see the section entitled “Changing the Wireless Channel” on
page XX for instructions on how to choose other channels.
Limiting the wireless transmit rate - Limiting the wireless
transmit rate can help improve the maximum wireless range, and
connection stability. Most wireless cards have the ability to limit
the transmission rate. To change this property, go to the Windows
Control Panel, open “Network Connections” and double-click
on your wireless card’s connection. In the “Properties” dialog,
select the “Configure” button on the “General” tab (Windows
98 users will have to select the wireless card in the list box
and then click “Properties”), then choose the “Advanced” tab
and select the rate property. Wireless client cards are usually
set to automatically adjust the wireless transmit rate for you,
but doing so can cause periodic disconnects when the wireless
signal is too weak; as a rule, slower transmission rates are more
stable. Experiment with different connection rates until you
find the best one for your environment; note that all available
transmission rates should be acceptable for browsing the Internet.
For more assistance, see your wireless card’s user manual.
Problem:
I am having difficulty setting up Wired Equivalent Privacy
(WEP) security on a Belkin Router or Belkin Access Point.
Solution:
1. Log into your Wireless Router or Access Point.
2. Open your web browser and type in the IP address of the
Wireless Router or Access Point. (The Router default is
“192.168.2.1”, the 802.11g Access Point is “192.168.2.254”.)
83
Troubleshooting
83
section
2
1
3
4
5
6
7
8
9
10
Log into your Router by clicking on the “Login” button in
the top right-hand corner of the screen. You will be asked
to enter your password. If you never set a password,
leave the password field blank and click “Submit”.
3. Click the “Wireless” tab on the left of your
screen. Select the “Encryption” or “Security”
tab to get to the security settings page.
4. Select “128-bit WEP” from the drop-down menu.
5. After selecting your WEP encryption mode, you can type in
your hex WEP key manually, or you can type in a passphrase
in the “Passphrase” field and click “Generate” to create a WEP
key from the passphrase. Click “Apply Changes” to finish. You
must now set all of your clients to match these settings. A hex
(hexadecimal) key is a mixture of numbers and letters from
A–F and 0–9. For 128-bit WEP, you need to enter 26 hex keys.
For example:
C3 03 0F AF 4B B2 C3 D4 4B C3 D4 E7 E4 = 128-bit key
6. Click “Apply Changes” to finish. Encryption in the
Wireless Router is now set. Each of your computers
on your wireless network will now need to be
configured with the same security settings.
WARNING: If you are configuring the Wireless Router or Access
Point from a computer with a wireless client, you will need
to ensure that security is turned on for this wireless client.
If this is not done, you will lose your wireless connection.
Note to Mac users: Original Apple AirPort products support 64-
bit encryption only. Apple AirPort 2 products can support 64-bit
or 128-bit encryption. Please check your Apple AirPort product
to see which version you are using. If you cannot configure
your network with 128-bit encryption, try 64-bit encryption.
8584
Troubleshooting
8584
Problem:
I am having difficulty setting up Wired Equivalent
Privacy (WEP) security on a Belkin Wireless Card.
Solution:
The Wireless Card must use the same key as the Wireless
Router or Access Point. For instance, if your Wireless Router
or Access Point uses the key 00112233445566778899AABBCC,
then the Wireless Card must be set to the exact same key.
1. Double-click the “Signal Indicator” icon to bring up the
“Wireless Network” screen. The “Advanced” button will allow
you to view and configure more options of your Card.
2. The “Advanced” button will allow you to view
and configure more options of the card.
3. Once the “Advanced” button is clicked, the Belkin Wireless
LAN Utility will appear. This Utility will allow you to manage
all the advanced features of the Belkin Wireless Card.
4. Under the “Wireless Network Properties” tab, select
a network name from the “Available networks”
list and click the “Properties” button.
5. Under “Data Encryption” select “WEP”.
6. Ensure the check box “The key is provided for me
automatically” at the bottom is unchecked. If you are using this
computer to connect to a corporate network, please consult
your network administrator if this box needs to be checked.
7. Type your WEP key in the “Network key” box.
Important: A WEP key is a mixture of numbers and letters
from A–F and 0–9. For 128-bit WEP, you need to enter
26 keys. This network key needs to match the key you
assign to your Wireless Router or Access Point.
For example:
C3 03 0F AF 4B B2 C3 D4 4B C3 D4 E7 E4 = 128-bit key
8. Click “OK”, and then “Apply” to save the settings.
If you are NOT using a Belkin Wireless Card, please
consult the manufacturer for that card’s user manual.
85
Troubleshooting
85
section
2
1
3
4
5
6
7
8
9
10
Problem:
Do Belkin products support WPA?
Solution:
Note: To use WPA security, all your clients must be
upgraded to drivers and software that support it. At the
time of this FAQ publication, a security patch download
is available, for free, from Microsoft. This patch works
only with the Windows XP operating system.
Download the patch here:
http://www.microsoft.com/downloads/details.
aspx?FamilyID = 009d8425-ce2b-47a4-abec-
274845dc9e91&displaylang=en
You also need to download the latest driver for your
Belkin 802.11g Wireless Desktop Network Card or
Notebook Network Card from the Belkin support site.
Other operating systems are not supported at this time.
Microsoft’s patch only supports devices with WPA-
enabled drivers such as Belkin 802.11g products.
Download the latest driver at
http://web.belkin.com/support/networkingsupport.asp
Problem:
I am having difficulty setting up Wi-Fi Protected
Access (WPA) security on a Belkin Wireless Router
or Belkin Access Point for a home network.
Solution:
1. From the “Security Mode” drop-down menu,
select “WPA-PSK (no server)”.
2. For “Encryption Technique”, select “TKIP” or “AES”. This
setting will have to be identical on the clients that you set up.
3. Enter your pre-shared key. This can be from eight to
63 characters and can be letters, numbers, or symbols
or spaces. This same key must be used on all of the
clients that you set up. For example, your PSK might
be something like: “Smith family network key”.
8786
Troubleshooting
8786
4. Click “Apply Changes” to finish. You must now
set all clients to match these settings.
Problem:
I am having difficulty setting up Wi-Fi Protected
Access (WPA) security on a Belkin Wireless Router
or Belkin Access Point for a business.
Solution:
If your network uses a radius server to distribute keys to the clients,
use this setting. This is typically used in a business environment.
1. From the “Security Mode” drop-down
menu, select “WPA (with server)”.
2. For “Encryption Technique”, select “TKIP” or “AES”. This
setting will have to be identical on the clients that you set up.
3. Enter the IP address of the radius server
into the “Radius Server” fields.
4. Enter the radius key into the “Radius Key” field.
5. Enter the key interval. Key interval is how often
the keys are distributed (in packets).
6. Click “Apply Changes” to finish. You must now
set all clients to match these settings.
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA)
security on a Belkin Wireless Card for a home network.
Solution:
Clients must use the same key that the wireless router
or access point uses. For instance if the key is “Smith
Family Network Key” in the wireless router or access
point, the clients must also use that same key.
1. Double-click the “Signal Indicator” icon to bring up the
“Wireless Network” screen. The “Advanced” button will allow
you to view and configure more options of your Card.
2. The “Advanced” button will allow you to view
and configure more options of the Card.
87
Troubleshooting
87
section
2
1
3
4
5
6
7
8
9
10
3. Once the “Advanced” button is clicked, the Belkin Wireless
LAN Utility will appear. This Utility will allow you to manage
all the advanced features of the Belkin Wireless Card.
4. Under the “Wireless Network Properties” tab, select
a network name from the “Available networks”
list and click the “Properties” button.
5. Under “Network Authentication” select “WPA-PSK (no server).
6. Type your WPA key in the “Network key” box.
Important: WPA-PSK is a mixture of numbers and letters
from A–Z and 0–9. For WPA-PSK you can enter eight to
63 characters. This network key needs to match the key
you assign to your wireless router or access point.
7. Click “OK, then “Apply” to save the settings.
Problem:
I am having difficulty setting up Wi-Fi Protected Access
(WPA) security on a Belkin Wireless Card for a business.
Solution:
1. Double-click the “Signal Indicator” icon to bring up the
“Wireless Network” screen. The “Advanced” button will allow
you to view and configure more options of your Card.
2. The “Advanced” button will allow you to view
and configure more options of the Card.
3. Once the “Advanced” button is clicked, the Belkin Wireless
LAN Utility will appear. This Utility will allow you to manage
all the advanced features of the Belkin Wireless Card.
4. Under the “Wireless Network Properties” tab, select
a network name from the “Available networks”
list and click the “Properties” button.
5. Under “Network Authentication” select “WPA”.
6. In the “Authentication” tab, select the settings that
are indicated by your network administrator.
7. Click “OK, then “Apply” to save the settings.
8988
Troubleshooting
8988
Problem:
I am having difficulty setting up Wi-Fi Protected
Access (WPA) security and I am NOT using a
Belkin Wireless Card for a home network.
Solution:
If you are not using a Belkin Wireless Desktop or Wireless
Notebook Network Card that is not equipped with WPA-
enabled software, a file from Microsoft called “Windows XP
Support Patch for Wireless Protected Access” is available
for free download. Download the patch from Microsoft by
searching the knowledge base for Windows XP WPA.
Note: The file that Microsoft has made available works only
with Windows XP. Other operating systems are not supported
at this time. You also need to ensure that the wireless card
manufacturer supports WPA and that you have downloaded
and installed the latest driver from their support site.
Supported Operating Systems:
• Windows XP Professional
• Windows XP Home Edition
89
Troubleshooting
89
section
2
1
3
4
5
6
7
8
9
10
Enabling WPA-PSK (no server)
1. Under Windows XP, click “Start > Control
Panel > Network Connections”.
2. Right-clicking on the “Wireless Networks” tab will display
the following screen. Ensure the “Use Windows to
configure my wireless network settings” box is checked.
3. Under the “Wireless Networks” tab, click the “Configure”
button, and you will see the following screen.
4. For a home or small business user, select “WPA-
PSK” under “Network Administration”.
Note: Select WPA (with radius server) if you are using this
computer to connect to a corporate network that supports
an authentication server such as a radius server. Please
consult your network administrator for further information.
5. Select “TKIP” or “AES” under “Date Encryption”.
This setting will have to be identical to the wireless
router or access point that you set up.
6. Type in your encryption key in the “Network Key” box.
Important: Enter your pre-shared key. This can be from eight to
63 characters and can be letters, numbers, or symbols. This
same key must be used on all of the clients that you set up.
7. Click “OK” to apply settings.
9190
Troubleshooting
9190
What’s the difference between 802.11b,
802.11g, 802.11a, and Pre-N?
Currently there are four levels of wireless networking standards, which
transmit data at very different maximum speeds. Each is based on the
designation 802.11(x), so named by the IEEE, the board that is responsible
for certifying networking standards. The most common wireless networking
standard, 802.11b, transmits information at 11Mbps; 802.11a and 802.11g
work at 54Mbps; and Pre-N works at 108Mbps. Pre-N, the precursor to
the upcoming 802.11n release, promises speeds that exceed 802.11g, and
up to twice the wireless coverage area. See the following chart for more
detailed information.
91
Troubleshooting
91
section
2
1
3
4
5
6
7
8
9
10
Wireless Comparison Chart
Wireless
Technology
802.11b
802.11g
802.11a
Belkin
Pre-N
Speed 11Mbps 54Mbps 54Mbps 108Mbps
Frequency
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Common
household
devices such
as cordless
phones and
microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
5GHz -
uncrowded
band
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed
band 2.4GHz
Compatibility
Compatible
with 802.11g
Compatible
with 802.11b
Incompatible
with 802.11b
or 802.11g
Compatible with
802.11g
or 802.11b
Coverage
Depends on
interference
- typically
100–200 ft.
indoors
Depends on
interference
- typically 100–
200 ft. indoors
Less
interference
- range is
typically
50-100 ft.
8x the
coverage
of standard
802.11g
Adoption
Mature –
widely adopted
Expected
to continue
to grow in
popularity
Slow adoption
for consumers
-
more popular
in business
environments
Expected to
continue to grow
in popularity
9392
Technical Support Information
9392
Belkin Technical Support
For latest software updates or if you have any further
questions regarding installation of this product, please visit
www.belkin.com/networking
93
Appendixes
93
section
2
1
3
4
5
6
7
8
9
10
Appendix A: Glossary
IP Address
The “IP address” is the internal IP address of the Router. To access the
advanced setup interface, type this IP address into the address bar of your
browser. This address can be changed if needed. To change the IP address,
type in the new IP address and click “Apply Changes”. The IP address you
choose should be a non-routable IP. Examples of a non-routable IP are:
192.168.x.x (where x is anything between 0 and 255)
10.x.x.x (where x is anything between 0 and 255)
Subnet Mask
Some networks are far too large to allow all traffic to flood all its parts.
These networks must be broken down into smaller, more manageable
sections, called subnets. The subnet mask is the network address
plus the information reserved for identifying the “subnetwork”.
DNS
DNS is an acronym for Domain Name Server. A Domain Name Server is
a server located on the Internet that translates URLs (Universal Resource
Links) like www.belkin.com to IP addresses. Many ISPs do not require
you to enter this information into the Router. If you are using a static IP
connection type, then you may need to enter a specific DNS address
and secondary DNS address for your connection to work properly. If your
connection type is Dynamic or PPPoE, it is likely that you do not have to
enter a DNS address.
PPPoE (routing mode, for multiple PCs)
Most ADSL providers use PPPoE as the connection type. If you use
an ADSL modem to connect to the Internet, your ISP may use PPPoE
to log you into the service. Your connection type is PPPoE if:
1. Your ISP gave you a user name and password which is required
to connect to the Internet.
9594
Appendixes
9594
2. Your ISP gave you software such as WinPoET or Enternet300 that
you use to connect to the Internet.
3. You have to double-click on a desktop icon other than your
browser to get on the Internet.
To set the Router to use PPPoE, type in your user name and password
in the spaces provided. After you have typed in your information, click
“Apply Changes”. After you apply the changes, the “Internet Status”
indicator will read “connection OK” if your Router is set up properly.
PPPoA (routing mode, for multiple PCs)
Enter the PPPoA information in the provided spaces, and click “Next”. Click
“Apply” to activate your settings.
1. User name - Enter the user name. (Assigned by your ISP).
2. Password - Enter your password. (Assigned by your ISP).
3. Retype Password - Confirm the password. (Assigned by your
ISP).
4. VPI/VCI - Enter your Virtual Path Identifier (VPI) and Virtual Circuit
Identifier (VCI) parameter here. (Assigned by your ISP).
Disconnect after X...
This feature is used to automatically disconnect the Router from
your ISP when there is no activity for a specified period of time. For
instance, placing a check mark next to this option and entering “5”
into the minute field will cause the Router to disconnect from the
Internet after five minutes of no Internet activity. This option should
be used if you pay for your Internet service by the minute.
Channel and SSID
To change the channel of operation of the Router, select the desired
channel from the drop-down menu and select your channel. Click “Apply
Changes” to save the setting. You can also change the SSID. The SSID
is the equivalent to the wireless network’s name. You can make the SSID
anything you want to. If there are other wireless networks in your area, you
should give your wireless network a unique name. Click inside of the SSID
box and type in a new name. Click “Apply Changes” to make the change.
95
Appendixes
95
section
2
1
3
4
5
6
7
8
9
10
ESSID Broadcast
Many wireless network adapters currently on the market possess a feature
known as site survey. It scans the air for any available network and allows
each computer to automatically select a network from the survey. This
occurs if the computer’s SSID is set to “ANY”. Your Belkin Router can block
this random search for a network. If you disable the “ESSID Broadcast”
feature, the only way a computer can join your network is by its SSID being
set to the specific name of the network (like WLAN). Be sure that you know
your SSID (network name) before enabling this feature. It is possible to
make your wireless network nearly invisible. By turning off the broadcast of
the SSID, your network will not appear in a site survey. Obviously, turning
off the broadcast feature of the SSID helps increase security.
Encryption
Setting encryption can help keep your network secure. The Router
uses Wired Equivalent Privacy (WEP) encryption to protect your data
and features two rates of encryption: 64-bit and 128-bit. Encryption
works on a system of keys. The key on the computer must match the
key on the Router, and there are two ways to make a key. The easiest
is to let the Router’s software convert a passphrase you’ve created
into a key. The advanced method is to enter the keys manually.
Virtual Servers
This function will allow you to route external (Internet) calls for services
such as a web server (port 80), FTP server (Port 21), or other applications
through your Router to your internal network. Since your internal
computers are protected by a firewall, machines from the Internet cannot
get to them because they cannot be “seen”. If you need to configure
the virtual server function for a specific application, you will need to
contact the application vendor to find out which port settings you need.
To manually enter settings, enter the IP address in the space provided
for the internal machine, the port type (TCP or UDP), and the LAN
and public port(s) required to pass. Then select “Enable” and click
“Set”. You can only pass one port per internal IP address. Opening
ports in your firewall can pose a security risk. You can enable and
disable settings very quickly. It is recommended that you disable
the settings when you are not using a specific application.
9796
Appendixes
9796
Client IP Filters
The Router can be configured to restrict access to the Internet, email,
or other network services at specific days and times. Restriction can be
set for a single computer, a range of computers, or multiple computers.
URL Blocking
To configure the URL blocking feature, specify the websites (www.somesite.
com) and/or keywords you want to filter on your network. Click “Apply
Changes” to activate the change. To complete this configuration, you will
need to create or modify an access rule in the client IP filters section. To
modify an existing rule, click the “Edit” option next to the rule you want
to modify. To create a new rule, click on the “Add PC” option. From the
“Access Control Add PC” section, check the option for “WWW with URL
Blocking” in the “Client PC Service” table to filter out the websites and
keywords specified.
Schedule Rule
To configure the schedule rule, specify the name, comment,
start time, and end time that you want to filter on your
network. This page defines schedule rule names and activates
the schedule for use in the “Access Control” page.
MAC Address Filtering
The MAC address filter is a powerful security feature that allows you
to specify which computers are allowed on the network. Any computer
attempting to access the network that is not specified in the filter list will
be denied access. When you enable this feature, you must enter the MAC
address of each client on your network to allow network access to each
or copy the MAC address by selecting the name of the computer from
the “DHCP Client List”. To enable this feature, select “Enable”. Next, click
“Apply Changes” to save the settings.
DMZ
If you have a client PC that cannot run an Internet application properly from
behind the firewall, you can open the client up to unrestricted two-way
Internet access. This may be necessary if the NAT feature is causing problems
with an application such as a game or video conferencing application. Use
this feature on a temporary basis. The computer in the DMZ is not protected
from hacker attacks. To put a computer in the DMZ, enter the last digits of
its LAN IP address in the “Static IP” field and click “Apply Changes” for the
change to take effect. If you have only one public (WAN) IP address, then you
97
Appendixes
97
section
2
1
3
4
5
6
7
8
9
10
can leave the public IP to “0.0.0.0”. If you are using multiple public (WAN) IP
addresses, it is possible to select which public (WAN) IP address the DMZ
host will be directed to. Type in the public (WAN) IP address you wish the
DMZ host to direct to, enter the last two digits of the IP address of the DMZ
host computer, and click “Apply Changes”.
Administrator Password
The Router ships with NO password entered. If you wish to add a password
for more security, you can set a password from your Router’s web-based user
interface. Keep your password in a safe place as you will need this password
if you need to log into the Router in the future. It is STRONGLY RECOMMENDED
that you set a password if you plan to use the remote management feature.
The login time-out option allows you to set the period of time that you can
be logged into the Router’s advanced setup interface. The timer starts when
there has been no activity. For example, you have made some changes in
the advanced setup interface, then left your computer alone without clicking
“Logout”.
Assuming the time-out is set to 10 minutes, then 10 minutes after you leave,
the login session will expire. You will have to log into the Router again to make
any more changes. The login time-out option is for security purposes and the
default is set to 10 minutes. Note, only one computer can be logged into the
Router’s advanced setup interface at a time.
Time and Time Zone
The Router keeps time by connecting to a Simple Network Time Protocol
(SNTP) server. This allows the Router to synchronize the system clock to the
global Internet. The synchronized clock in the Router is used to record the
security log and control client filtering. Select the time zone that you reside
in. If you reside in an area that observes daylight saving time, then place a
check mark in the box next to “Enable Daylight Saving”. The system clock
may not update immediately. Allow at least 15 minutes for the Router to
contact the time servers on the Internet and get a response. You cannot set
the clock yourself.
Remote Management
Before you enable this function, MAKE SURE YOU HAVE SET THE
ADMINISTRATOR PASSWORD. Remote management allows you to make
changes to your Router’s settings from anywhere on the Internet.
9998
Appendixes
9998
UPnP
UPnP (Universal Plug-and-Play) is a technology that offers seamless
operation of voice messaging, video messaging, games, and other
applications that are UPnP-compliant. Some applications require the
Router’s firewall to be configured in a specific way to operate properly.
This usually requires opening TCP and UDP ports and in some instances
setting trigger ports. An application that is UPnP-compliant has the ability
to communicate with the Router, basically “telling” the Router which way
it needs the firewall configured. The Router ships with the UPnP feature
disabled. If you are using any applications that are UPnP-compliant, and
wish to take advantage of the UPnP features, you can enable the UPnP
feature. Simply select “Enable” in the “UPnP Enabling” section of the
“Utilities” page. Click “Apply Changes” to save the change.
Appendix B: Important Factors for Placement and Setup
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Wireless Router (or Access Point) Placement
Place your wireless router (or access point), the central
connection point of your network, as close as possible
to the center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless clients”
(i.e., computers enabled by Belkin Wireless Notebook Network Cards,
Wireless Desktop Network Cards, and Wireless USB Adapters):
• Ensure that your wireless router’s (or access point’s) networking
antennas are parallel to each other, and are positioned vertically
(toward the ceiling). If your wireless router (or access point) itself
is positioned vertically, point the antennas a much as possible in
an upward direction.
99
Appendixes
99
section
2
1
3
4
5
6
7
8
9
10
• In multistory homes, place the wireless router (or access point)
on a floor that is as close to the center of the home as possible.
This may mean placing the wireless router (or access point) on an
upper floor.
• Try not to place the wireless router (or access point) near a
cordless 2.4GHz phone.
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices
that may emit radio “noise,” such as microwave ovens. Dense
objects that can inhibit wireless communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based UV tinted windows
If your wireless signal seems weak in some spots, make sure
that objects such as these are not blocking the signal’s path
(between your computers and wireless router or access point).
3. Cordless Phones
If the performance of your wireless network is impaired after
attending to the above issues, and you have a cordless phone:
• Try moving cordless phones away from wireless routers (or
access points) and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that
operates on the 2.4GHz band (check manufacturer’s information).
If this fixes the problem, your phone may be interfering.
• If your phone supports channel selection, change the channel on
the phone to the farthest channel from your wireless network. For
example, change the phone to channel 1 and move your wireless
router (or access point) to channel 11. See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless
phone.
101100
Appendixes
101100
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such
as apartment buildings or office complexes, there may be
wireless networks nearby that can conflict with yours.
Use the Site Survey capabilities found in the Wireless LAN Utility
of your wireless adapter to locate any other wireless networks
that are available (see your wireless adapter’s manual), and
move your wireless router (or access point) and computers to
a channel as far away from other networks as possible.
Experiment with more than one of the available channels, in
order to find the clearest connection and avoid interference from
neighboring cordless phones or other wireless devices.
For Belkin wireless networking products, use the detailed Site Survey
and wireless channel information included in your User Manual. These
guidelines should allow you to cover the maximum possible area with your
wireless router (or access point). Should you need to cover an even wider
area, we suggest the Belkin Wireless Range Extender/Access Point.
101
Appendixes
101
section
2
1
3
4
5
6
7
8
9
10
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and
are used where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by rerunning the VPN
or AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power management
settings so it does not go to sleep; however, this may not be appropriate
for portable computers. To change your power management setting
under Windows, see the “Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and AOL,
please review the steps above to be sure you have addressed these issues.
103102
Appendixes
103102
Appendix C: Internet Connection Setting Table
The following table provides references to select and configure Internet
connection in setting up your ADSL connection. Many ISPs use
different settings depending on the region and equipment they use.
You may try the setting for the ISPs in your region. If it does not work,
please contact your ISP for your specific setting.
103
Appendixes
103
section
2
1
3
4
5
6
7
8
9
10
Country Connection
Protocol VPI/VCI Encapsulation ISPs
Europe
France PPPoE 8/35 LLC Various
Germany PPPoE 1/32 LLC T-Online,
various
Holland 1483
Bridged 0/35
0/32
0/34
LLC
LLC
LLC
BBNed, XS4all
Versatel DHCP
Baby XL, Tiscali
(start/ Surf/
Family/ Live)
PPPoA 8/48 VC MUX KPN, Hetnet,
HCCNet, Tiscali
(lite/ Basis/Plus)
Wanadoo
PPPoA 0/32 VC MUX Versatel PPP,
Zonnet
PPPoE 8/35 LLC Various
Belgium PPPoA 8/35 LLC Belgacom,
Tiscali, Scarlet
Italy PPPoE or
PPPoA 8/35 VC MUX TIN
Spain PPPoE or
1483
Bridged
8/32 LLC Telefonica
Sweden 1483
Bridged 3/35 LLC Telia
UK PPPoA 0/38 VC MUX BT, Freeserve,
Tiscali, AOL*
Asia
Australia PPPoE or
PPPoA 8/35 LLC Various
New Zealand PPPoE or
PPPoA 0/100 VC MUX Various
Singapore PPPoE 0/100 LLC SingNet, Pacific
Internet
104
n
o
i
t
c
e
s
1
2
3
4
5
6
Information
Caution: Exposu to Radio Frequency Radiation.
The antenna used for this transmitter must be positioned to provide a
separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street,
Compton, CA 90220, declare under our sole
responsibility that the product,
F5D7001
to which this declaration relates, complies with Part 15
of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
re
Channel
This Equipment marketed in USA is restricted by firmware to only operate
on 2.4G channel 1-11.
105
Information
105
section
2
1
3
4
5
6
7
8
9
10
Modifications
The FCC requires the user to be notified that any changes or
modifications to this device that are not expressly approved by Belkin
Corporation may void the user’s authority to operate the equipment.
Canada-Industry Canada (IC)
The wireless radio of this device complies with RSS 139 &
RSS 210 Industry Canada. This Class B digital apparatus
complies with Canadian ICES-003. Cet appareil numérique de
la classe B conforme á la norme NMB-003 du Canada.
Europe-European Union Notice
Radio products with the CE 0682 or CE alert marking comply
with the R&TTE Directive (1995/5/EC) issued by the Commission
of the European Community. Compliance with this directive
implies conformity to the following European Norms (in
brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label on
your Belkin product. Products with the CE marking comply with the
EMC Directive (89/336/EEC) and the Low Voltage Directive (72/23/EEC)
issued by the Commission of the European Community. Compliance
with these directives implies conformity to the following European
Norms (in brackets are the equivalent international standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11) – Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled
with CE 0682 or CE alert marking and may
also carry the CE logo.
107106
Information
107106
Belkin Corporation Limited Lifetime Product Warranty
Belkin Corporation warrants this product against defects in materials
and workmanship for its lifetime. If a defect is discovered, Belkin
will, at its option, repair or replace the product at no charge provided
it is returned during the warranty period, with transportation
charges prepaid, to the authorized Belkin dealer from whom you
purchased the product. Proof of purchase may be required.
This warranty does not apply if the product has been damaged
by accident, abuse, misuse, or misapplication; if the product
has been modified without the written permission of Belkin; or
if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED
OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make
any modification, extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT
NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE
TO OR REPROGRAMMING OR REPRODUCING ANY PROGRAM
OR DATA STORED IN, OR USED WITH, BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental
or consequential damages or exclusions of implied warranties,
so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may
also have other rights that vary from state to state.
107
107
2
1
3
4
5
6
7
8
9
10
© 2005 Belkin Corporation. All rights reserved. All trade names are registered trademarks
of respective manufacturers listed. Apple, AirPort, Mac, Mac OS, and AppleTalk are
trademarks of Apple Computer, Inc., registered in the U.S. and other countries. P74725uk-A
ADSL Modem with
Wireless G Router
Designed to Meet ADSL2+ Specification
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL,
United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk,
The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Belkin GmbH
Hanebergstrasse 2
80637 Munich,
Germany
+49 (0) 89 143405 0
+49 (0) 89 143405 100 fax
Belkin SAS
130 rue de Silly
92100 Boulogne-Billancourt
France
+33 (0) 1 41 03 14 40
+33 (0) 1 41 31 01 72 fax

Navigation menu
