User Manual
F5D8633-4
N Wireless
Modem Router
Table of Contents
1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . 1
Placement of your N Wireless Modem Router . . . . . . . . . . . 3
2. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Knowing your Modem Router . . . . . . . . . . . . . . . . . . . . . . . 11
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setup Assistant Software System Requirements. . . . . . . . 11
4. Connecting and Configuring your Modem Router . . . . . . . . 18
5. Alternate Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6. Using the Web-Based Advanced User Interface . . . . . . . . . 42
Changing LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Viewing the DHCP Client List Page. . . . . . . . . . . . . . . . . . 45
Configuring the Wireless Network Settings . . . . . . . . . . . . 45
Setting WPA Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Setting WEP Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Using the Access Point Mode . . . . . . . . . . . . . . . . . . . . . . 55
Setting MAC Address Control . . . . . . . . . . . . . . . . . . . . . 56
Configuring the Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Using Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Restarting the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . 69
7. Manually Configuring Network Settings . . . . . . . . . . . . . . . 77
8. Recommended Web Browser Settings. . . . . . . . . . . . . . . . . 82
9. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
10. Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
1
section
Introduction
9
2
3
4
5
6
7
8
10
Thank you for purchasing the Belkin N Wireless Modem Router (the
Router). Following are two short sections—the first discusses the benefits
of home networking, and the other outlines best practices that maximize
your wireless home network range and performance. Please be sure to
read through this User Manual completely, and pay special attention to
the section entitled “Placement of your Wireless Networking Hardware for
Optimal Performance” on the next page. By following our simple setup
instructions you will be able to use your Belkin Home Network to:
Share one high-speed Internet connection with all the computers in
your home
Share resources, such as files and hard drives among all the
connected computers in your home
Share a single printer with the entire family
Share documents, music, video, and digital pictures
Store, retrieve, and copy files from one computer to another
Simultaneously play games online, check Internet email, and chat
Advantages of a Wireless Network
Here are some of the advantages of setting up a Belkin
Wireless Network:
Mobility – you’ll no longer need a dedicated “computer
room”—now you can work on a networked laptop or desktop
computer anywhere within your wireless range
Easy installation Belkin’s Easy Installation Wizard makes
setup simple
Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
Easy expansion the wide range of Belkin networking products let
you expand your network to include devices such as printers and
gaming consoles
No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
Widespread industry acceptance – choose from a wide range of
interoperable networking products
1
Introduction
32
32
Revolutionary N Wireless Technology with MIMO (N MIMO)
Your Belkin N Wireless Modem Router uses a new smart-antenna technology
called Multiple Input Multiple Output (MIMO). N1 MIMO complies with the
IEEE draft 802.11n specification. It increases speed, range, reliability, and
spectral efficiency for wireless networking systems.
The element that makes Belkin’s N MIMO technology different from a
conventional radio is the use of multiple antennas and two simultaneous
data streams to deliver wireless transfers around your home or office. A
conventional radio uses one antenna to transmit a data stream. Belkin’s N
MIMO, on the other hand, uses two antennas. This design helps combat
distortion and interference. Belkin’s N MIMO is multidimensional. It builds
on one-dimensional smart-antenna technology by simultaneously
transmitting two data streams through the same channel, which increases
wireless capacity.
Another element that enhances Belkin’s N MIMO is the use of aggregation as
specified in the draft 802.11n specification. By shortening the space between
packets and combining multiple smaller packets into one larger packet, Belkin’s N
MIMO can transmit more data through available bandwidth.
Think of conventional radio transmission as a two-lane highway. The speed
limit governs the maximum allowable flow of traffic through that lane.
Compared with conventional radios, one-dimensional smart antenna systems
help move traffic through that lane faster and more reliably—analogous
to a four-lane road on which traffic consistently moves at a rate closer to
the speed limit. Belkin’s N MIMO helps traffic move at the speed limit and
opens more lanes—to become the superhighway in this example. The rate of
traffic flow is multiplied by the number of lanes that are opened.
32
1
section
Introduction
9
2
3
4
5
6
7
8
10
32
Placement of your N Wireless Modem Router
Important Factors for Placement and Setup
Your wireless connection will be stronger the closer your computer is
to your Router. Typical indoor operating range for wireless devices is
between 100 and 200 feet.
In the same way, your wireless connection and performance will degrade
somewhat as the distance between your Router and connected devices
increases. This may or may not be noticeable to you. As you move further
from your Router, connection speed may decrease. Factors that can weaken
signals simply by getting in the way of your network’s radio waves are metal
appliances or obstructions, and walls.
If you have concerns about your network’s performance that might
be related to range or obstruction factors, try moving the computer
to a position between five and 10 feet from the Router in order to see
if distance is the problem. If difficulties persist even at close range,
please contact Belkin Technical Support.
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Router Placement
Place your Router, the central connection point of your
network, as close as possible to the center of your wireless
network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook
Network Cards, Wireless Desktop Network Cards, and Wireless
USB Adapters):
Ensure that your Router’s networking antennas are parallel
to each other, and are positioned vertically (toward the
ceiling). If your Router itself is positioned vertically, point the
antennas as much as possible in an upward direction.
In multistory homes, place the Router on a floor that is as
close to the center of the home as possible. This may mean
placing the Router on an upper floor.
Try not to place the Router near a cordless 2.4GHz phone.
Introduction
54
54
2. Avoid Obstacles and Interference
Avoid placing your Router near devices that may emit radio
“noise,” such as microwave ovens. Dense objects that can inhibit
wireless communication include:
Refrigerators
Washers and/or dryers
Metal cabinets
Large aquariums
Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between
your computers and Router).
3. Cordless Phones
If the performance of your wireless network is impaired after
attending to the above issues, and you have a cordless phone:
Try moving cordless phones away from your Router and your
wireless-enabled computers.
Unplug and remove the battery from any cordless phone
that operates on the 2.4GHz band (check manufacturer’s
information). If this fixes the problem, your phone may
be interfering.
If your phone supports channel selection, change the channel
on the phone to the farthest channel from your wireless
network. For example, change the phone to channel 1 and
move your Router to channel 11. See your phone’s user
manual for detailed instructions.
If necessary, consider switching to a 900MHz or 5GHz
cordless phone.
54
1
section
Introduction
9
2
3
4
5
6
7
8
10
54
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours.
Use the Site Survey capabilities found in the Wireless Utility of
your wireless adapter to locate any other wireless networks that
are available (see your wireless adapter’s user manual), and move
your Router and computers to a channel as far away from other
networks as possible.
Experiment with more than one of the available channels, in
order to find the clearest connection and avoid interference
from neighboring cordless phones or other wireless devices.
For Belkin wireless networking products, use the detailed Site
Survey and wireless channel information included with your
wireless network card. See your network card’s user guide for
more information.
These guidelines should allow you to cover the maximum
possible area with your Router. Should you need to cover an
even wider area, we suggest the Belkin Wireless Range
Extender/Access Point.
Introduction
76
76
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and
password, and are used where security is important. Secure
connections include:
Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
The “Bring Your Own Access” program from America Online (AOL),
which lets you use AOL through broadband provided by another
cable or DSL service
Most online banking websites
Many commercial websites that require a user name and password to
access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by rerunning the VPN or
AOL software, or by re-logging into the secure website.
A second alternative is to change your computer’s power management
settings so it does not go to sleep; however, this may not be
appropriate for portable computers. To change your power management
setting under Windows, see the “Power Options” item in the Control
Panel.
If you continue to have difficulty with Secure Connections, VPNs, and
AOL, please review the steps above to be sure you have addressed
these issues.
76
1
section
Introduction
9
2
3
4
5
6
7
8
10
76
Free Tech Support*
You can find additional support information on our website at
www.belkin.com through the tech-support area.
If you want to contact technical support by phone, please call the
number you need from the list below*.
*Local rates apply.
Country Number Internet adress
AUSTRIA 0820 200766 http://www.belkin.com/uk/networking/
BELGIUM 07 07 00 073 http://www.belkin.com/nl/networking/
CZECH REPUBLIC 239 000 406 http://www.belkin.com/uk/networking/
DENMARK 701 22 403 http://www.belkin.com/uk/networking/
FINLAND 00800 - 22 35 54 60 http://www.belkin.com/uk/networking/
FRANCE 08 - 25 54 00 26 http://www.belkin.com/fr/networking /
GERMANY 0180 - 500 57 09 http://www.belkin.com/de/networking/
GREECE 00800 - 44 14 23 90 http://www.belkin.com/uk/networking/
HUNGARY 06 - 17 77 49 06 http://www.belkin.com/uk/networking/
ICELAND 800 8534 http://www.belkin.com/uk /networking/
IRELAND 0818 55 50 06 http://www.belkin.com/uk/networking/
ITALY 02 - 69 43 02 51 http://www.belkin.com/it/support/tech/issues_more.asp
LUXEMBOURG 34 20 80 85 60 http://www.belkin.com/uk/networking/
NETHERLANDS 0900 - 040 07 90
0.10 per minute http://www.belkin.com/nl/networking/
NORWAY 81 50 0287 http://www.belkin.com/uk/networking/
POLAND 00800 - 441 17 37 http://www.belkin.com/uk/networking/
PORTUGAL 707 200 676 http://www.belkin.com/uk/networking/
RUSSIA 495 580 9541 http://www.belkin.com/networking/
SOUTH AFRICA 0800 - 99 15 21 http://www.belkin.com/uk/networking/
SPAIN 902 - 02 43 66 http://www.belkin.com/es/support/tech/networkingsupport.asp
SWEDEN 07 - 71 40 04 53 http://www.belkin.com/se/support/tech/networkingsupport.asp
SWITZERLAND 08 - 48 00 02 19 http://www.belkin.com /uk/networking/
UNITED KINGDOM 0845 - 607 77 87 http://www.belkin.com/uk/networking/
OTHER COUNTRIES +44 - 1933 35 20 00
Product Overview
98
98
Product Features
In minutes you will be able to share your Internet connection and
network your computers. The following is a list of features that make
your new Belkin N Wireless Modem Router an ideal solution for your
home or small office network.
Works with Both PCs and Mac® Computers
The Router supports a variety of networking environments including
Mac OS® 8.x, 9.x, X v10.x, Linux®, Windows® 98, Me, NT®, 2000, XP,
and Vista . All that is needed is an Internet browser and a network
adapter that supports TCP/IP (the standard language of the Internet).
Patent-Pending Network Status Display
Lighted LEDs on the front of the Router indicate which functions
are in operation. You’ll know at-a-glance whether your Router is
connected to the Internet. This feature eliminates the need for
advanced software and status-monitoring procedures.
Web-Based Advanced User Interface
You can set up the Router’s advanced functions easily through your
web browser, without having to install additional software onto the
computer. There are no disks to install or keep track of and, best
of all, you can make changes and perform setup functions from any
computer on the network quickly and easily.
NAT IP Address Sharing
Your Router employs Network Address Translation (NAT) to share the
single IP address assigned to you by your Internet Service Provider
while saving the cost of adding additional IP addresses to your
Internet service account.
SPI Firewall
Your Router is equipped with a firewall that will protect your network
from a wide array of common hacker attacks including IP Spoofing,
Land Attack, Ping of Death (PoD), Denial of Service (DoS), IP with
zero length, Smurf Attack, TCP Null Scan, SYN flood, UDP flooding,
Tear Drop Attack, ICMP defect, RIP defect, and fragment flooding.
98
section
Product Overview
1
9
2
3
4
5
6
7
8
10
98
Integrated 10/100 4-Port Switch
The Router has a built-in, four-port network switch to allow your wired
computers to share printers, data and MP3 files, digital photos, and
much more. The switch features automatic detection so it will adjust to
the speed of connected devices. The switch will transfer data between
computers and the Internet simultaneously without interrupting or
consuming resources.
Universal Plug and Play (UPnP)
UPnP is a technology that offers seamless operation of voice
messaging, video messaging, games, and other applications that
are UPnP-compliant.
Support for VPN Pass-Through
If you connect to your office network from home using a VPN
connection, your Router will allow your VPN-equipped computer to
pass through the Router and to your office network.
Built-In Dynamic Host Configuration Protocol (DHCP)
Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes
for the easiest possible connection of a network. The DHCP server
will assign IP addresses to each computer automatically so there is no
need for a complicated networking setup.
Setup Assistant
The Setup Assistant, second generation of Belkin’s renowned Easy
Install Wizard, takes the guesswork out of setting up your Router.
This automatic software determines your network settings for you
and sets up the Router for connection to your Internet Service Provider
(ISP). In a matter of minutes, your Router will be up and running on the
Internet.
Note: Setup Assistant software is compatible with Windows 2000,
XP, Vista and Mac OSX 10.2, 10.3 and 10.4. If you are using another
operating system, the Router can beset up using the Alternate Setup
Method described in this User Manual (see page 30).
Product Overview
1110
Integrated N Wireless Access Point
N MIMO is an exciting new wireless technology based on the draft
IEEE 802.11n specification. It employs MIMO (Multiple Input Multiple
Output) smart-antenna technology that achieves data rates of up to
300Mbps.* Actual throughput is typically lower than the connected
data rate and will vary depending on your networking environment.
*NOTE: The standard transmission rate—300Mbps—is the physical
data rate. Actual data throughput will be lower.
MAC Address Filtering
For added security, you can set up a list of MAC addresses (unique
client identifiers) that are allowed access to your network. Every
computer has its own MAC address. Simply enter these MAC
addresses into a list using the Web-Based Advanced User Interface
and you can control access to your network.
1110
Knowing your Modem Router
section
1
9
3
4
5
6
7
8
10
Package Contents
Belkin N Wireless Modem Router
Quick Installation Guide
Belkin Setup Assistant Software CD
RJ11 Telephone Cord
RJ45 Ethernet Networking Cable
ADSL (Asymmetric Digital Subscriber Line) Microfilter*
Power Supply
User Manual in CD
*ADSL microfilter varies by country. If it’s not included, you will need
to purchase one.
System Requirements
An active ADSL service with a telephone wall jack for
connecting the Router
At least one computer with an installed network interface adapter
TCP/IP networking protocol installed on each computer
No other DHCP server on your local network assigning IP
addresses to computers and devices
Internet browser
Setup Assistant Software System Requirements
A computer running Windows 2000, XP, or Vista;
or Mac OS X v10.x
Minimum 1GHz processor and 128MB RAM
Internet browser
2
1312
Knowing your Modem Router
1312
Internet Connection Settings
The Setup Assistant contains a database of Internet Service Providers
(ISP) in each country to help you set up your Router quickly. If your ISP
is not on the list, please collect the following information from your ISP
before setting up the Router:
Internet connection protocol: (PPPoE, PPPoA,
Dynamic IP, Static IP)
Multiplexing method or Encapsulation:
(LLC or VC MUX)
Virtual circuit: VPI (Virtual Path Identifier)
(a number between 0 and 255)
VCI (Virtual Channel Identifier)
(a number between 1 and 65535)
For PPPoE and PPPoA users: ADSL account user name
and password
For static IP users: IP Address . . .
Subnet Mask . . .
Default Gateway Server . .
IP address for Domain Name Server . . .
(If given by your ISP)
1312
1312
Knowing your Modem Router
section
1
9
2
3
4
5
6
7
8
10

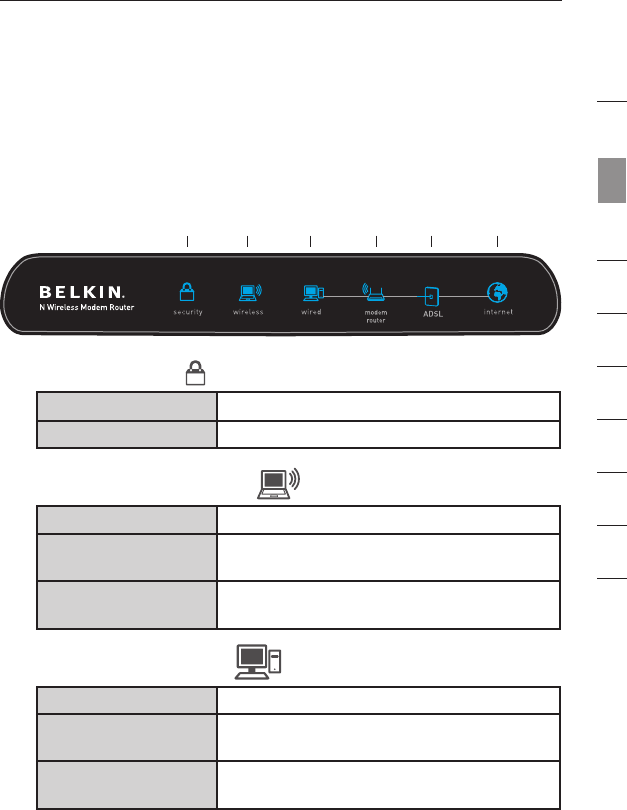

The Router has been designed to be placed on a desktop. All of the
cables exit from the rear of the Router for better organization and
utility. The Network Status Display is easily visible on the FRONT
of the Router to provide you with information about network activity
and status. See the Network Status Display Guide for more
detailed information.
(A) (B) (C) (D) (E) (F)
A. Wireless Security
OFF Wireless security is off
Solid Blue Wireless security is on
B. Wireless-Computer Status
OFF Wireless computer is not present
Solid Blue Wireless computer is connected to
the Router
Blinking Amber Problem with wireless computer
connecting properly to the Router
C. Wired-Computer Status
OFF Wired computer is not present
Solid Blue Wired computer is connected to
the Router
Blinking Amber Problem with wired computer connecting
properly to the Router
1514
Knowing your Modem Router
1514
D. Router/Power Status
When you apply power to the Router or restart it, a short period of
time elapses while the Router boots up. During this time, the “router”
icon blinks. When the Router has completely booted up, the “router”
icon becomes a solid light, indicating the Router is ready for use.
OFF Router is off
Blinking Blue Router is booting up
Solid Blue Router is on and ready
E. ADSL Line Status
This icon lights in blue to indicate that your Router is connected
properly to the ADSL. It turns amber when problem is detected.
OFF Router is NOT connected to a
functioning ADSL line
Blinking Blue Router is attempting to connect to
an ADSL service
Solid Blue Router is connected to an ADSL service
and is functioning properly
Blinking Amber Problem with ADSL line
1514
1514
Knowing your Modem Router
section
1
9
2
3
4
5
6
7
8
10
F. Internet Status
This unique icon shows you when the Router is connected to the
Internet. When the light is off, the Router is NOT connected to the
Internet. When the light is blinking amber, the Router is attempting
to connect to the Internet. When the light is solid blue, the Router
is connected to the Internet. When using the “Disconnect after x
minutes” feature, this icon becomes extremely useful in monitoring
the status of your Router’s connection.
OFF Router is NOT connected to the Internet
Blinking Blue Router is attempting to connect to
the Internet
Solid Blue Router is connected to the Internet
Blinking Amber Router is not connected to the Internet
1716
Knowing your Modem Router
1716
G. Connection to ADSL – Gray
This port is for connection to your ADSL. Connect your ADSL to
this port. An RJ11 telephone cord is provided in the package.
H. Connections to Wired Computers Yellow
Connect your wired (non-wireless) computers to these ports.
These ports are RJ45, 10/100 auto-negotiation, auto-uplinking
ports for standard UTP category 5 or 6 Ethernet cable. The ports
are labeled 1 through 4, with onboard LEDs on the connectors.
(K)(I)(H) (J)
(G)
1716
1716
Knowing your Modem Router
section
1
9
2
3
4
5
6
7
8
10
I. Reset Button
The “Reset” button is used in rare cases when the Router may
function improperly. Resetting the Router will restore the Router’s
normal operation while maintaining the programmed settings. You
can also restore the factory default settings by using the “Reset”
button. Use the restore option in instances where you may have
forgotten your custom password.
i. Resetting the Router
Push and release the “Reset” button. The lights on the
Router will momentarily flash. The “Power/Ready” light will
begin to blink. When the “Power/Ready” light becomes solid
again, the reset is complete.
ii. Restoring the Factory Defaults
Press and hold the “Reset” button for at least 10 seconds,
then release it. The lights on the Router will momentarily
flash. The “Power/Ready” light will begin to blink. When
the “Power/Ready” light becomes solid again, the restore
is complete.
J. Power Jack – Black
Connect the included 15V/.08A DC power supply to this jack.
K. Push Button – White
This button is set aside for future upgradeable features. Please
check for the latest firmware updates at www.belkin.com/
support.
1918
Connecting and Configuring your Modem Router
1918
Verify the contents of your box. You should have the following:
Belkin N Wireless Modem Router
RJ11 Telephone Cord
RJ45 Ethernet Networking Cable
Power Supply
Belkin Setup Assistant Software CD
User Manual on CD
Setup Assistant
Belkin has provided our Setup Assistant software to make installing
your Router a simple and easy task. You can use it to get your Router
up and running in minutes. The Setup Assistant requires that your
Windows 2000 or XP computer be connected directly to your ADSL
and that the Internet connection is active and working at the time
of installation. If it is not, you must use the “Alternate Setup Method”
section of this User Manual to configure your Router. Additionally,
if you are using an operating system other than Windows 2000, XP,
or Vista, or Mac OS X v10.x, you must set up the Router using the
“Alternate Setup Method” section of this User Manual.
1918
1918
Connecting and Configuring your Modem Router
section
1
9
2
3
4
5
6
7
8
10

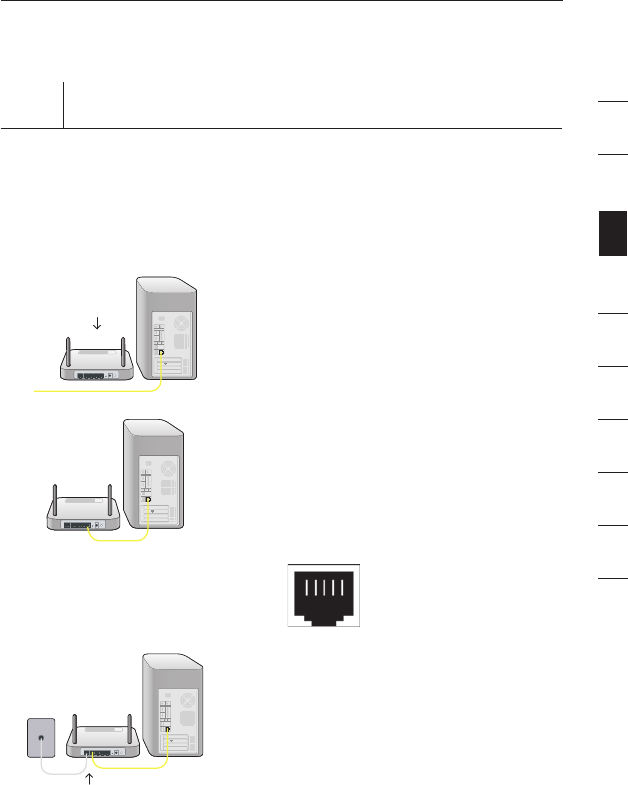

Step 1
Hardware Connections – Follow the Quick Installation
Guide (QIG)
modem router
computer
A.
Unpack your new Router from
the box and place it next to
your computer. Raise the
Router’s antennas.
B.
Retrieve the yellow RJ45 cable that
was included with your Router. First,
connect one end to any yellow port
labeled “to Wired Computers” on the
back of your Router. Then, connect
the other end to the networking port
on the back of your computer.
C.
Retrieve the included gray RJ11
phone cord. Connect one end to
the gray port labeled “to ADSL”
on the back of your Router. Then
connect the other end to your ADSL
connection (either a wall jack or an
ADSL splitter).
Note: Some ADSL connections
require a microfilter. Your ADSL
provider can tell you if you need one.
Belkin includes a microfilter in regions
known to use them. You may or may
not have received one in your box.
1.1
Brand-New Setup
Follow these steps if you are not replacing an existing modem.
If you are replacing an existing modem, skip to the next section,
“Replacing an Existing Modem or Modem Router”, starting on
page 20.
2120
Connecting and Configuring your Modem Router
2120

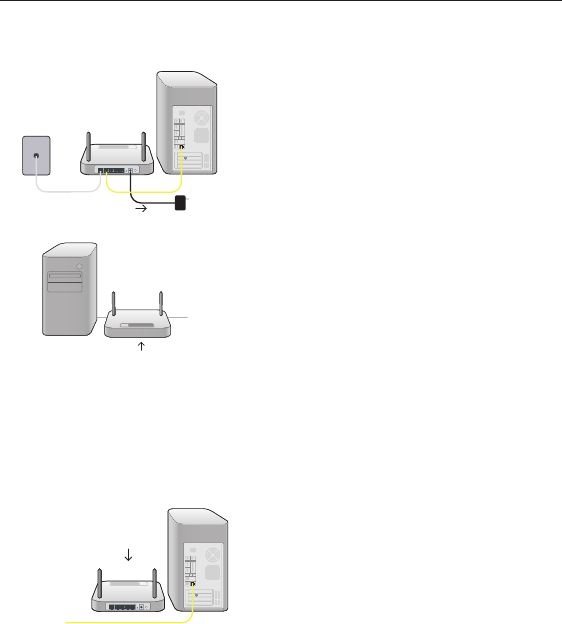

E. Wait 20 seconds for the Router to
start up. Look at the display on
the front of the Router. Make sure
the “Wired” and “Modem-Router”
icons are lit up in blue. If they are
not, recheck your connections.
D. Plug your Router’s power
supply into the black port
labeled “Power” on the back
of your Router.
A. Unpack your new Router from
the box and place it next to
your computer. Raise the
Router’s antennas.
modem router
computer

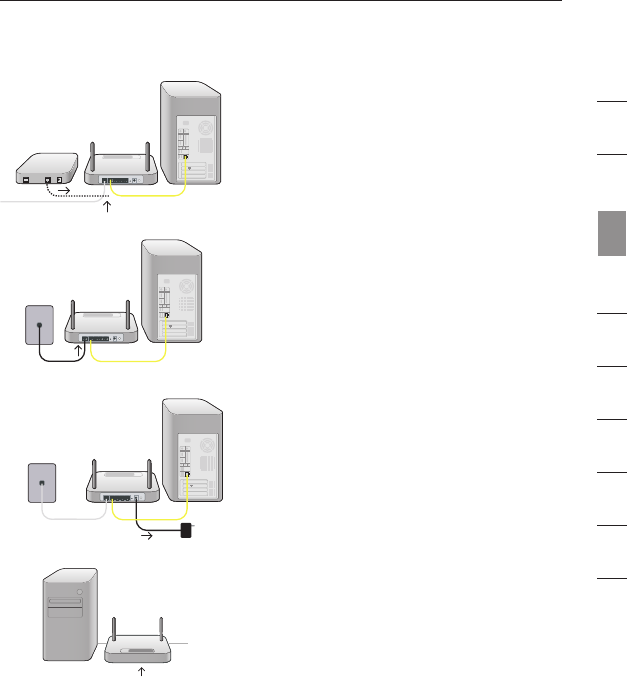

1.2 Replacing an Existing Modem or Modem Router
Follow these steps if you currently have a modem or a modem
router that you will be replacing with your new Router.
2120
2120
Connecting and Configuring your Modem Router
section
1
9
2
3
4
5
6
7
8
10
B. Locate the cable that connects
your old modem to your
computer. Unplug that cable from
your old modem, and plug it into
any yellow port labeled “to Wired
Computers” on the back of your
new Router.
C. Locate the cable that connects
your old modem to the ADSL
wall jack. Unplug it from your old
modem and then connect it to the
gray port labeled “to ADSL” on
the back of your Router.
E. Wait 20 seconds for the Router to
start up. Look at the display on
the front of the Router. Make sure
the “Wired” and “Modem-Router”
icons are lit in blue. If they are
not, recheck your connections.
D. Plug your Router’s power
supply into the black port
labeled “Power” on the back
of your Router.
2322
Connecting and Configuring your Modem Router
2322
Step 2 Set Up the Router – Run the Setup Assistant Software
A. Shut down any programs that
are running on your computer
at this time.
Turn off any firewall or
Internet-connection-sharing
software on your computer.

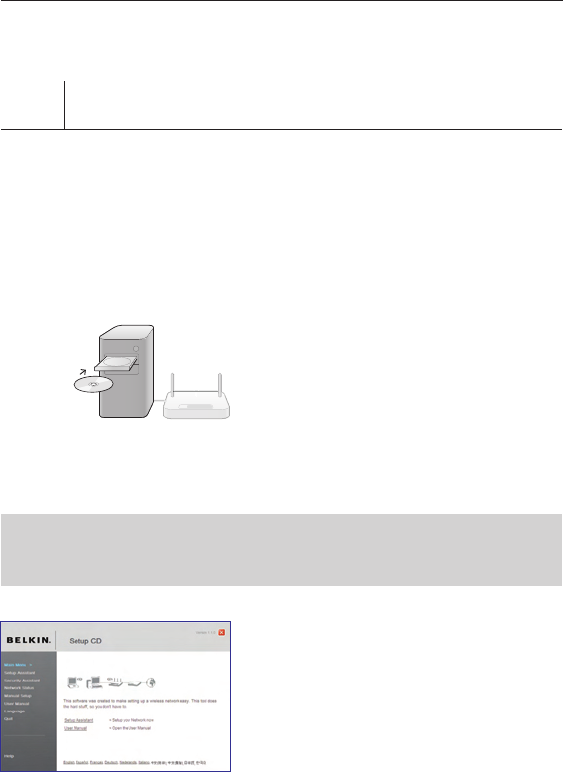

B. Insert the CD into your
computer. The Setup Assistant
will automatically appear on
your computer’s screen within
15 seconds. Click on “Setup
Assistant” to run the Setup
Assistant. Follow the
instructions there.
IMPORTANT: Run the Setup Assistant from the computer that is
directly connected to the Router from Step 1.1B.
Note for Windows Users: If the
Setup Assistant does not start
up automatically, select your
CD-ROM drive from “My
Computer” and double-click on
the file named “SetupAssistant”
to start the Setup Assistant.
2322
2322
Connecting and Configuring your Modem Router
section
1
9
2
3
4
5
6
7
8
10

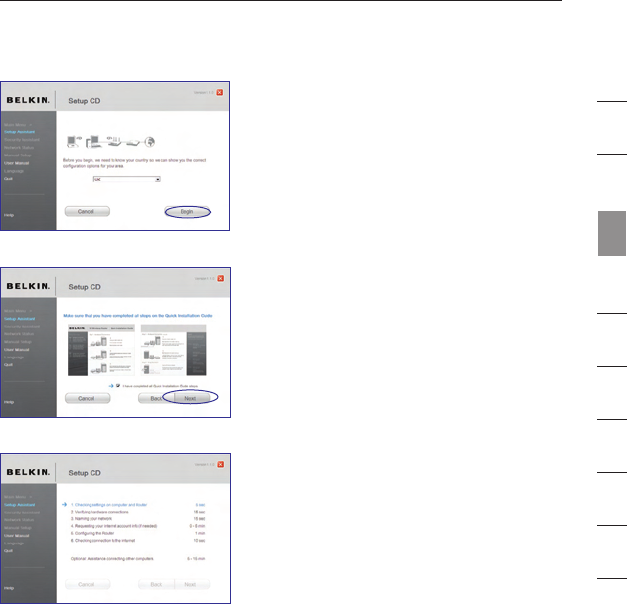

Confirmation Screen
Verify that you have completed all QIG
steps by checking the box to the right
of the arrow. Click “Next” to continue.
Progress Screen
Setup Assistant will show you a
progress screen each time a step in
the setup has been completed.
Select Country
Select your country from the
drop-down box. Click “Begin”
to continue.
Note to US model owner: To comply with US FCC regulation, the
country selection function has been completely removed from all US
models. The above function is for non-US models only.
2524
Connecting and Configuring your Modem Router
2524

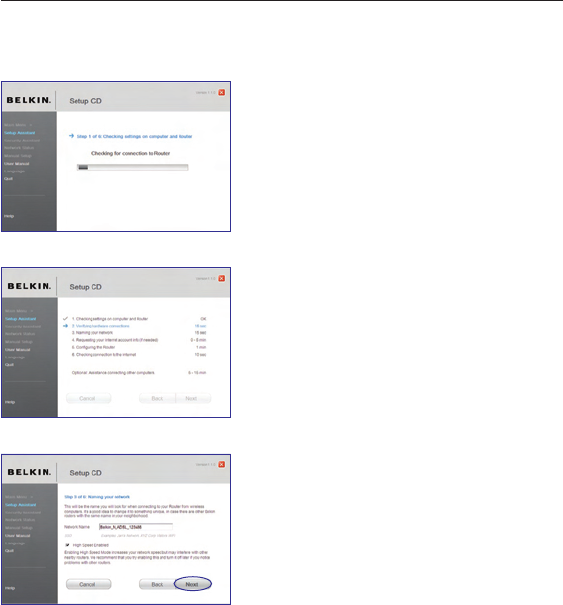

2.1 Checking Settings
The Setup Assistant will now
examine your computer’s network
settings and gather information
needed to complete the Router’s
connection to the Internet.
2.2 Verifying Hardware Connections
The Setup Assistant will now
verify your hardware connection.
2.3 Naming your Wireless Network
The Setup Assistant will display
the default wireless network name
or Service Set Identifier (SSID).
This is the name of your wireless
network to which your computers
or devices with wireless network
adapters will connect. You can
either use the default or change it
to something unique. Write down
this name for future reference.
If the Router is capable of “High
Speed Mode”, this option will be
checked. You can turn off this
option later using the Bandwidth
Switch described in this User
Manual (see page 48). Click
“Next” to continue.
2524
2524
Connecting and Configuring your Modem Router
section
1
9
2
3
4
5
6
7
8
10

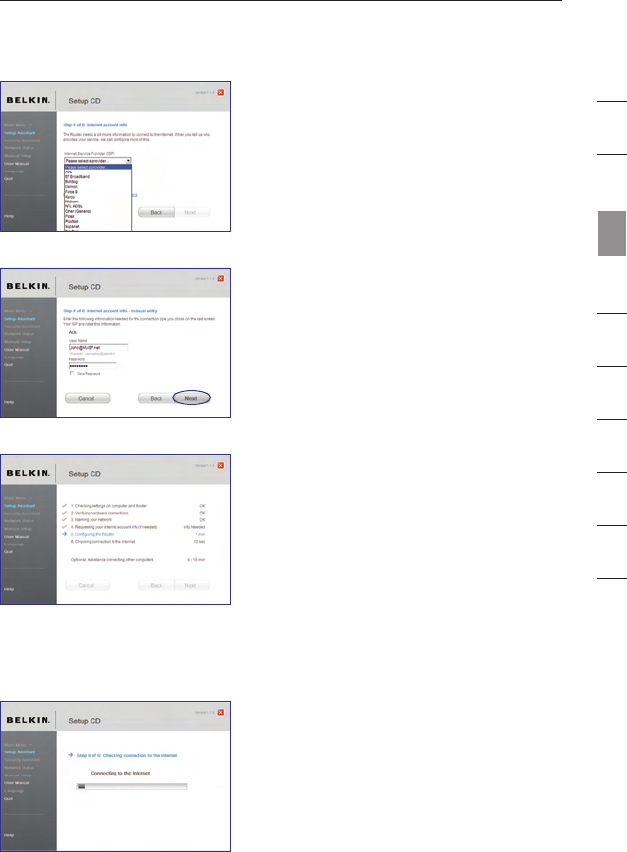

2.4 Requesting Internet Account
Info (if needed)
Select your ISP from the
drop-down boxes.
If your Internet account requires
a login and password, you will be
prompted with a screen similar to
the illustration below. Click “Next”
to continue.
2.5 Configuring the Router
The Setup Assistant will now
configure your Router by
sending data to the Router and
restarting it. Wait for the
on-screen instructions.
Note: Do not disconnect any cable
or power off the Router while the
Router is rebooting. Doing so will
render your Router inoperable.
2.6 Checking Internet Connection
We are almost done. The Setup
Assistant will now check your
connection to the Internet.
2726
Connecting and Configuring your Modem Router
2726
Congratulations
You have finished installing your
new Belkin Router. You will see the
Congratulations screen when your
Router can connect to the Internet.
You can begin surfing by opening your
browser and going to any website.
You can use the Setup Assistant to
set up your other wired and wireless
computers to connect to the Internet
by clicking “Next”. If you decide to add
computers to your Router later, select
“Finish—return to Main Menu” and then
click “Next”.
Once you have verified that your other
wired and wireless computers are
properly connected, your network is set
up and working. You can now surf the
Internet. Click “Next” to return to the
main menu.
Troubleshooting
If the Setup Assistant is not able to
connect to the Internet, you will
see this screen. Follow the on-screen
instructions to go through the
troubleshooting steps.
2.7 Optional: Assistance Connecting
Other Computers
This optional step will help
you to connect additional
wired and wireless computers
to your network. Follow the
on-screen instructions.
2726
2726
Connecting and Configuring your Modem Router
section
1
9
2
3
4
5
6
7
8
10
Step 3
Set Up Wireless Security – Run the Security
Assistant Software
Now that your network is set up and working, it is recommended
that you turn on wireless security to prevent unauthorized access
to your network from neighboring wireless-enabled computers. The
Security Assistant will guide you through the process. Click “Security
Assistant” and follow the on-screen instructions.
IMPORTANT: Run the Setup Assistant from the computer that is
directly connected to the Router from Steps 1.1B and 1.12B.
Progress Screen
The Security Assistant will show you a
progress screen each time a step has
been completed.
2928
Connecting and Configuring your Modem Router
2928

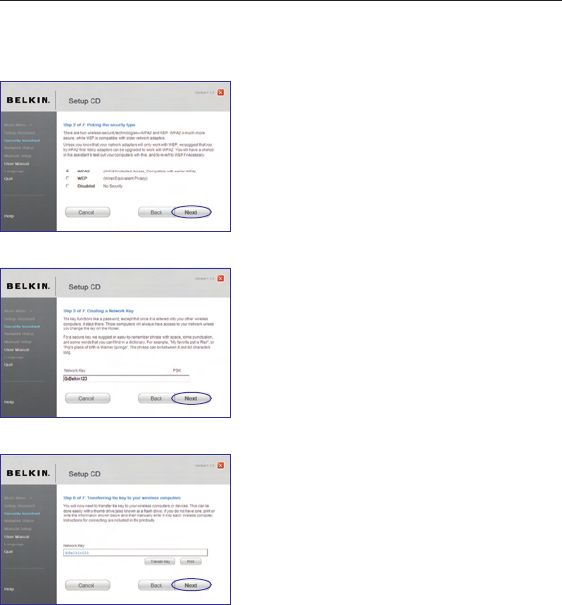

3.1 Picking the Security Type
Select the security type for your
wireless network and click “Next”
to continue.
3.2 Creating a Network Key
Enter a network key (PSK) for
your wireless network and click
“Next” to continue.
3.3 Transferring the Key
After setting up your wireless
security, you will have to transfer
the network key to each of your
wireless computers. Click on
“Transfer Key” if you have a
USB flash drive. Follow the
on-screen instructions, or click
on “Print” to print the information.
Manually enter it to each wireless
computer. Then, click “Next”
to continue.

Navigation menu
