Quick Installation Guide
Mini Bluetooth
F5L019, F8T016
®Adapter
![](/img.php?id=916497&img=bg3.png)
Table of Contents | 01
Table of Contents
Introduction ........................................................2
System Requirements for Hardware .................................2
Product Contents .................................................2
Software Setup for Windows 2000, XP, and Vista .......................3
Bluetooth Service Selection ..........................................6
Information ........................................................8
![](/img.php?id=916497&img=bg4.png)
Congratulations and thank you for purchasing the Belkin Bluetooth USB Adapter.
Now you can wirelessly connect your PCs and your Bluetooth devices. Please follow the steps on the
following pages to install drivers and software. Do not connect the Adapter until instructed. If your
laptop or desktop PC already has Bluetooth support, it is recommended that you first uninstall any
Bluetooth software found in Add/Remove Programs before running this installer.
System Requirements for Hardware
PC or Mac® computer with USB port
Windows® 98 SE, Me, 2000, XP, or Vista®
Mac OS® X v10.2.8 and higher (drivers provided by Apple)
Product Contents
Bluetooth USB Adapter
CD-ROM for software installation
Quick Installation Guide
Introduction
Introduction | 02
![](/img.php?id=916497&img=bg5.png)
Software Setup for Windows 2000, XP, and Vista
Software Setup for Windows 2000, XP, and Vista | 03

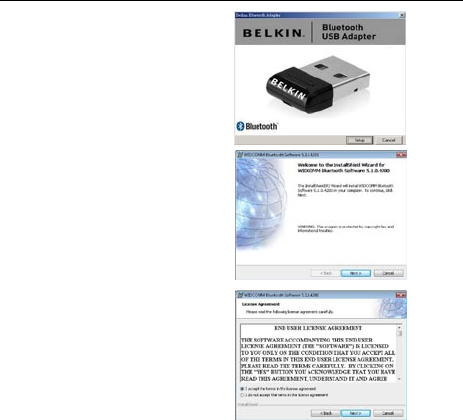

1. Insert the CD into the PC’s CD-ROM drive.
After a few moments, the CD will run and the
opening install screen will appear.
2. This portion of the installer will load the
required Bluetooth software. Click “Next”
to proceed.
3. Choose “I accept the terms in the license
agreement” to accept the license agreement.
Click “Next” to continue.
![](/img.php?id=916497&img=bg6.png)
Software Setup for Windows 2000, XP, and Vista
Software Setup for Windows 2000, XP, and Vista | 04
5. Confirm that the device software is ready to be
installed and click “Install”.
6. The install Wizard will begin to install the Belkin
Bluetooth software. This may take several
minutes.

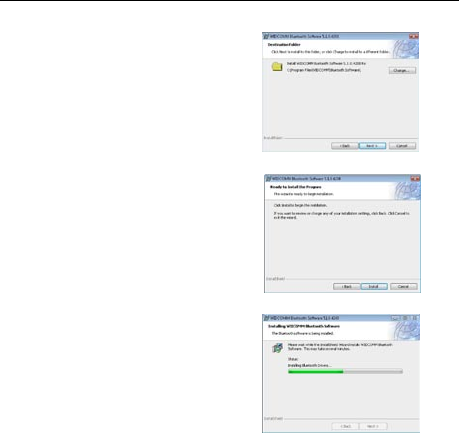

4. Specify the location where the software
files will be installed on your hard drive. It is
recommended that you install the software in
the default directory. Click “Next” to continue.
![](/img.php?id=916497&img=bg7.png)
Software Setup for Windows 2000, XP, and Vista
Software Setup for Windows 2000, XP, and Vista | 05

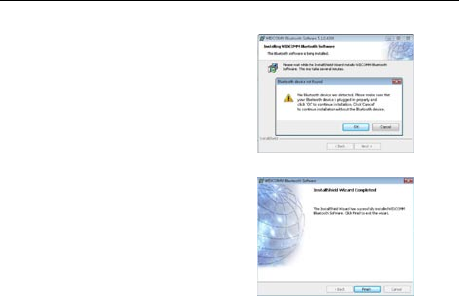

8. Confirm the completion of the Belkin Bluetooth
software installation. Click “Finish” to proceed
to the Bluetooth Service Selection portion of
the installation. Do not restart your computer
at this point.
7. You may now connect your Adapter to your
computer’s USB port. Click “OK” to continue
installation.
![](/img.php?id=916497&img=bg8.png)
Bluetooth Service Selection
Bluetooth Service Selection | 06
2. Next, create a computer name and select the
computer type. Click “Next” after you identify
your computer name and type.
3. Click “Next” to proceed in configuring your
Bluetooth services.
After the driver is installed, you can configure your Bluetooth services for your system.

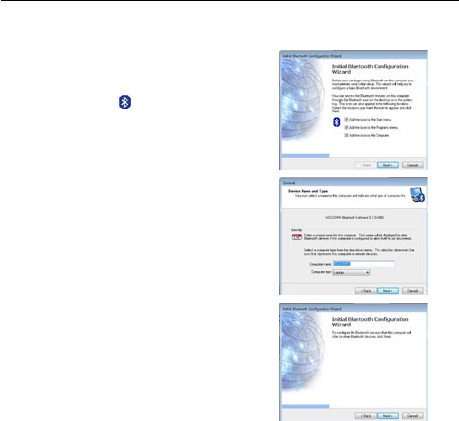

1. Begin the Service Selection by double-clicking
on the Bluetooth icon on the lower-right
corner of the screen. Once the Configuration
Wizard pops up, click the “Next” button
to proceed.
![](/img.php?id=916497&img=bg9.png)
Bluetooth Service Selection
Bluetooth Service Selection | 07
4. The default setting will select all services that
are available. Select the services you want to
utilize and click “Next”.
5. To set up a connection now, click “Next”. It is
advised to set up connections later. To set up
later, click “Skip”.
6. Once configuration is complete, click “Finish”
to exit the installation process.
![](/img.php?id=916497&img=bga.png)
Information
Information | 08
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA 90220,
declare under our sole responsibility that the product:
F5L019
to which this declaration relates:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=916497&img=bgb.png)
Information
Information | 09
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with
any other antenna or transmitter.
CE Declaration of Conformity
We, Belkin International, Inc., declare under our sole responsibility that the F5L019, to which this
declaration relates, is in conformity with Generic Emissions Standard EN55022:1998 Class B, EN50081-1,
and with Generic Immunity Standard EN50082-1:1992.
Belkin International, Inc., Limited Lifetime Product Warranty
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin product that the
product shall be free of defects in design, assembly, material, or workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for the lifetime of the product.
![](/img.php?id=916497&img=bgc.png)
Information
Information | 10
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge (except for shipping
charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to Belkin for inspection
upon Belkin’s request at the sole expense of the purchaser, or if Belkin determines that the Belkin
product has been improperly installed, altered in any way, or tampered with. The Belkin Product
Warranty does not protect against acts of God such as flood, lightning, earthquake, war, vandalism,
theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage
disturbances (i.e. brownouts or sags), non-authorized program, or system equipment modification or
alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin International, Inc., at 501 W. Walnut St., Compton CA 90220,
Attn: Customer Service, or call (800)-223-5546, within 15 days of the Occurrence.
Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on how to forward your receipt
and Belkin product and how to proceed with your claim.
![](/img.php?id=916497&img=bgd.png)
Information
Belkin reserves the right to review the damaged Belkin product. All costs of shipping the Belkin
product to Belkin for inspection shall be borne solely by the purchaser. If Belkin determines, in its sole
discretion, that it is impractical to ship the damaged equipment to Belkin, Belkin may designate, in its
sole discretion, an equipment repair facility to inspect and estimate the cost to repair such equipment.
The cost, if any, of shipping the equipment to and from such repair facility and of such estimate shall
be borne solely by the purchaser. Damaged equipment must remain available for inspection until the
claim is finalized. Whenever claims are settled, Belkin reserves the right to be subrogated under any
existing insurance policies the purchaser may have.
How state law relates to the warranty.
T H I S W A R R A N T Y C O N T A I N S T H E S O L E W A R R A N T Y O F B E L K I N . T H E R E A R E N O O T H E R W A R R A N T I E S ,
E X P R E S S E D O R , E X C E P T A S R E Q U I R E D B Y L A W , I M P L I E D , I N C L U D I N G T H E I M P L I E D W A R R A N T Y O R
C O N D I T I O N O F Q U A L I T Y , M E R C H A N T A B I L I T Y O R F I T N E S S F O R A P A R T I C U L A R P U R P O S E , A N D S U C H
I M P L I E D WA R R A N T I E S , I F A N Y , A R E L I M I T E D I N D U R A T I O N T O T H E T E R M O F T H I S W A R R A N T Y .
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations
may not apply to you.
I N N O E V E N T S H A L L B E L K I N B E L I A B L E F O R I N C I D E N T A L , S P E C I A L , D I R E C T , I N D I R E C T , C O N S E Q U E N T I A L
OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF
THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights, which may vary from
state to state. Some states do not allow the exclusion or limitation of incidental, consequential, or other
damages, so the above limitations may not apply to you.
Information | 11
![](/img.php?id=916497&img=bge.png)
Information
General Specification
Information | 12
Model Name F5L019, F8T016
Product Name Mini Bluetooth Adapter
Chipset Broadcom BCM2045
Standard Bluetooth v2.0+EDR
Frequency Band 2.4~2.4835GHz unlicensed ISM band
Modulation Method GFSK for 1Mbps, π/4-DQPSK for 2Mbps; 8-DPSK for 3Mbps
Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
Transfer Rates (Maz) Max UARTbaud rates of 3 Mbps
RF Output Power 4.63 dBm
Working Distance Greater than 10 meters in free space
Sensitivity <-82dBm at < 0.1% BER
Power Consumption Tx Typical: 51.2mA
Rx Typical: 50.3mA
Standby Mode: 39mA
Input power DC 5V (via USB Port)
I/O Interface USB
LED Indicator Power / Active
Services Supported AV(A2DP, AVCTP,AVRCP,GAVDP), BIP, DUN, FAX, FTP, HCRP,
HID, HS(w/GAP), LAP, OPP, PAN, SDP, SPP, SYNC
OS Support Windows Win 2000 / XP /Vista / Mac OS X.3
Environment Operation temperature: 0 oC ~ + 60 oC
Storage temperature: -10 oC ~ +70 oC
Humidity: 5 ~ 90% non-condensing
Size 19.47 (L) x 16(W) x 8.1(H) mm
Weight 2.2g
![](/img.php?id=916497&img=bg10.png)
Belkin Tech Support
US: 310-898-1100, ext. 2263
800-223-5546, ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 65 64857620
Europe: www.belkin.com/support
Belkin International, Inc.
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Belkin Ltd.
4 Pioneer Avenue
Tuggerah Business Park
Tuggerah, NSW 2259, Australia
+61 (0) 2 4350 4600
+61 (0) 2 4350 4700 fax
© 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective
manufacturers listed. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc.,
and are used by Belkin International, Inc., under license. Windows and Windows Vista are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Apple,
Mac, and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.
F5L019 PM00314-A
