Belkin F5L031 Bluetooth Mouse User Manual

Belkin International, Inc. Bluetooth Mouse Users Manual

Users Manual

Bluetooth® Comfort Mouse
Quick Installation Guide
F5L031-XXX • 8820-00094-B
Belkin Tech Support
US: 310-898-1100, ext. 2263
800-223-5546, ext. 2263
UK: 0845 607 77 87
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 65 64857620
Europe: www.belkin.com/support
© 2009 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of
respective manufacturers listed. Microsoft, Windows, and Windows Vista are either trademarks
or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. The
Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc., and are used by
Belkin International, Inc., under license.
Bluetooth® Comfort Mouse
Quick Installation Guide
Introduction
Thank you for purchasing the Belkin Bluetooth Comfort Mouse. With a simple
3-minute setup, this wireless Bluetooth Mouse will talk directly to your laptop
enabled with Bluetooth technology without a dongle.
System Requirements
Operating Systems:
• MacOS® X v10.47 or later
• Microsoft® Windows® XP, 2000, and Vista®
Hardware:
• LaptopenabledwithBluetooth technology
Note: If you have a Windows XP, 2000, or Vista operating system, please
run the included installation CD to enable the horizontal scroll function on
the Mouse.
Getting Started
Turning the Mouse On:
1. Place the two AA batteries into the compartment located on the bottom of
the Mouse.
2. Turn the Mouse on by pressing the gray on/off button located on the bottom
of the Mouse.
Connect
Battery Door
Power
Pairing the Mouse with your Laptop
If you plan to pair the mouse with your laptop enabled with Bluetooth technology,
please also try instructions provided by the laptop manufacturer. If you plan to
pair this mouse with a separate Bluetooth adapter, please also try the instructions
provided by the manufacturer of the adapter.
For Windows Users:
Note that below screenshots are from a Windows XP system. If you have a
different Windows operating system, screenshots will vary.
1. Double-click the Bluetooth icon located on the
bottom right-hand side of your desktop in the Windows
task bar. Under the “Devices” tab, click “Add”.
2. Press and hold the blue “connect”
button located on the bottom of your
Mouse until the blue connect LED
located on the top side of the Mouse
starts flashing. At the same time, select
“My device is set up and ready to be
found”, and click “Next”.
Pairing the Mouse with your Laptop
3. Select “Belkin Bluetooth Mouse”
on your screen, and then
click “Next”.
4. Click “Don’t use Passkey”, and
click “Next”.
5. Click “Finish”.
Pairing the Mouse with your Laptop

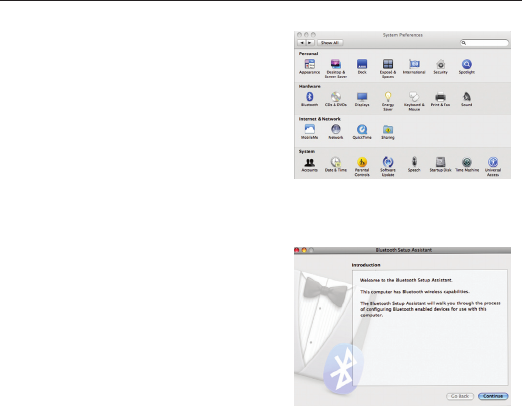

For Mac® Users:
1. Click “System Preferences”,
and then click “Bluetooth”.

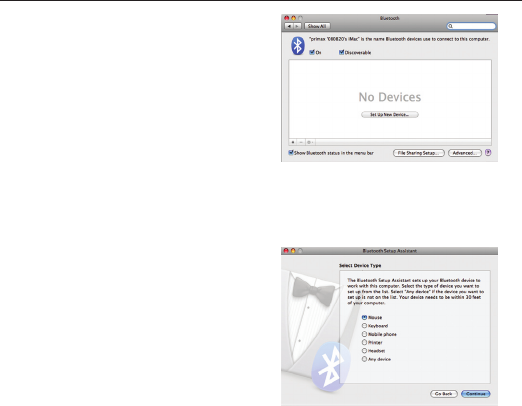

2. Click “Set Up New Devices”.
Pairing the Mouse with your Laptop
3. Click “Continue”.
4. Press and hold the blue “connect”
button located on the bottom of
your Mouse until the blue connect
LED located on the top side of
the Mouse starts flashing. Select
“Mouse” from the device list, and
click “Continue”.

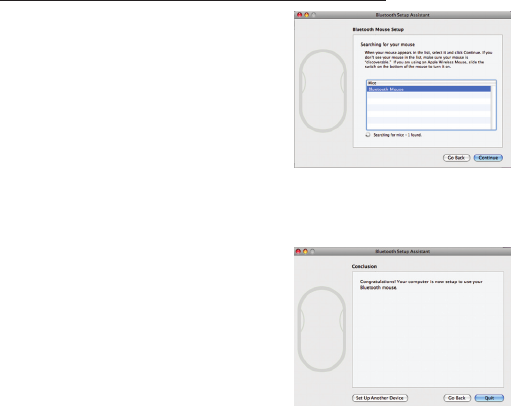

Pairing the Mouse with your Laptop
5. Select “Belkin Bluetooth Mouse” on
your screen, and then
click “Continue”.
6. On the “Conclusion” screen,
click “Quit”.
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
IC Statement
Operation is subject to the following two conditions: 1) this device may not cause interference
and 2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Laser Safety Statement
This device complies with international standard IEC 60825-1:2007 for a Class 1 laser product.
his device also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007.
