Belkin F5U301HUB Cable Free USB HUB User Manual P75325 F5U301 man indd
Belkin International, Inc. Cable Free USB HUB P75325 F5U301 man indd
Belkin >
HUB Users guide
![](/img.php?id=730506&img=bg1.png)
Belkin Tech Support
US: 310-898-1100, ext. 2263
800-223-5546, ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Singapore: 800 616 1790
Belkin Corporation
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
© 2006 Belkin Corporation. All rights reserved. All trade names are
registered trademarks of respective manufacturers listed. Windows and
Microsoft are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. P75325
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Belkin Ltd.
4 Pioneer Avenue
Tuggerah Business Park
Tuggerah, NSW 2259, Australia
+61 (0) 2 4372 8600
+61 (0) 2 4372 8603 fax
Cable-Free
USB Hub
Cable-Free
USB Hub
![](/img.php?id=730506&img=bg2.png)
User Manual
F5U301
Cable-Free
USB Hub
Cable-Free
USB Hub
![](/img.php?id=730506&img=bg3.png)
1. Introduction ....................................................................1
Features ........................................................................ 3
System Requirements ................................................... 3
Package Includes .......................................................... 3
Technical Specifications ................................................ 4
2. Installation ......................................................................6
3. Operation ...................................................................... 16
4. Troubleshooting ............................................................24
5. Technical Specifications ................................................ 30
6. Information ...................................................................32
Table of Contents
![](/img.php?id=730506&img=bg4.png)
1
Introduction
1
2
3
4
5
6
Belkin unleashes USB.
Congratulations and thank you for purchasing the Belkin
Cable-Free USB Hub. This revolutionary product lets you
connect all your USB devices to your computer—wirelessly.
Now you can print, play music, scan, download photos, and
burn CDs from anywhere in the room, from up to 30 feet
away, without the hassle of connecting cables. The Hub is
easy to use and gives you the freedom to roam—and
stay connected.
Please review this User Manual carefully so that you are sure
to get the most from your Cable-Free USB Hub.
1
![](/img.php?id=730506&img=bg5.png)
2
Introduction
1
2
3
4
5
6
2

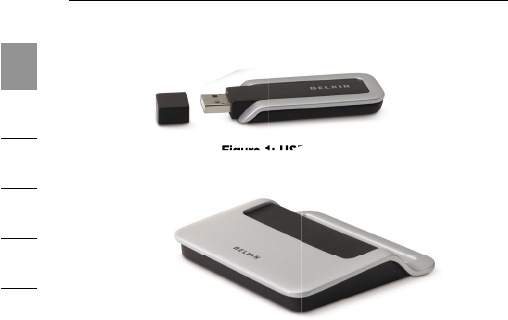

Figure 1: USB Dongle
Figure 2: Wireless Hub
2
Figure 1: USB Dongle
![](/img.php?id=730506&img=bg6.png)
3
3
Introduction
1
2
3
4
5
6
Features
• Wireless connectivity through USB for printers, cameras,
scanners, and other devices to your computer, from up to
30 ft. away
• Reduced cable clutter
• Data-transfer speeds of up to 480Mbps for
USB 2.0 devices
• Ports for linking up to 4 high- or low-speed devices with
your computer
• Belkin Lifetime Warranty
System Requirements
For PC Users
• Pentium® processor-based computer with Hi-Speed USB
2.0 port available
• Windows® XP with Service Pack 2
Package Includes
• Cable-Free USB Hub
• Cable-Free USB Dongle
• Power Adapter
• Installation CD
• User Manual
3
![](/img.php?id=730506&img=bg7.png)
4
Introduction
1
2
3
4
5
6
4
Technical Specifications
Upstream Ports: 1
Downstream Ports: 4
Per-Port Voltage: 5V
Per-Port Current: 500mA
Power Mode: Self
Operating Temperature: 41° to 104° F (5° to 40° C)
Storage Temperature: -4° to 140° F (-20° to 60° C)
Power Supply:
Output: 5V, 2.6mA
Plug Size: 3.5mm
Plug Polarity: Center-pin
positive
Main-Power-LED Color
Definitions
Red: Constant on when 5V DC
is applied
Port-Status-LED Color
Definitions
Green: Blinks slowly when registering
wireless hub
Blinks rapidly to indicate Rx/Tx
traffic
4
![](/img.php?id=730506&img=bg8.png)
5
5
Introduction
1
2
3
4
5
6
Certifications
FCC
Humidity
5% to 95% non-condensing
Chipset
Wisair
Ports
4 USB A
Indicator-Light Status
Individual-status LED for each downstream port
Power LED
Power Supply
5V
Operating Range
Up to 30 ft.
5
![](/img.php?id=730506&img=bg9.png)
6
1
2
3
4
5
6
Installation
6
The following diagram illustrates the basic steps in
connecting and getting started with the dongle.
Note: Do not attach the USB dongle before the host
drivers are installed.
Step 1
Install software and drivers from the
included CD-ROM.
Step 2
Connect the USB Dongle to the PC and
approve the multiple-driver installation.
Step 3
Connect the included power adapter to
the Cable-Free USB Hub.
Step 4

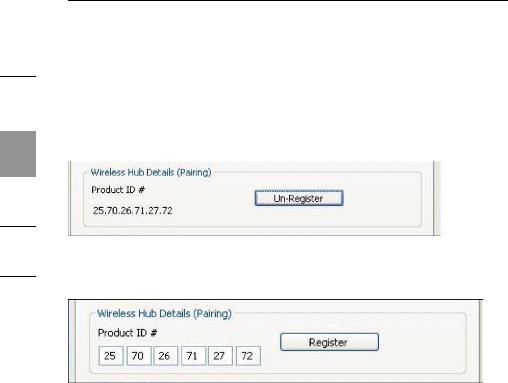

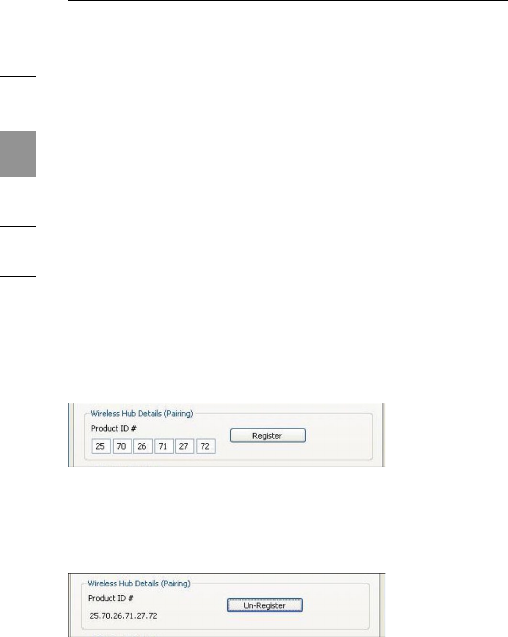

Open the Wireless Hub utility from the
system tray and register the product ID
number found on the bottom of the Hub.
Then, approve the final driver installation
on the PC.
Step 5
Connect USB peripherals to the
Cable-Free USB Hub.
6
![](/img.php?id=730506&img=bga.png)
77
Installation
1
2
3
4
5
6
After you install the software and drivers, connect the dongle
to a free USB 2.0 port on your computer. This powers
the Hub, and the Windows Hardware Installation Wizard
automatically registers the corresponding driver.
Note: If a previous installation of USB drivers already exists
in your PC, uninstall the previous version using the uninstall
utility (select “Start > Programs > Belkin >”).
Install the USB Drivers and GUI
Ensure that your PC system hardware and software are
both operational.
1. Ensure that the Hub is switched off and the dongle is
unplugged from the PC.
2. Run the “Setup_ver_07_10.exe” Belkin Setup Launcher
program; follow the on-screen instructions—proceed by
clicking “Next” to install the software to the
default location.
3. When the Device Driver Installation Wizard appears,
click “Next” to install the device drivers and click
“Continue Anyway” when prompted (four instances).
This will install the required Windows Driver Packages.
4. Click “Finish”.
5. Click “Finish” again to exit the Wizard.
7
![](/img.php?id=730506&img=bgb.png)
8
1
2
3
4
5
6
Installation
8
Connect the Hardware
1. Place the Hub no more than three feet from the dongle.
2. Power OFF the Hub and disconnect it from all USB
devices (e.g., cameras, hard drives, scanners).
3. Connect the external antenna and the power supply to
the Hub.
4. Ensure that the dongle and Hub are facing each other.
5. Connect the dongle to the PC’s high-speed USB
port. The system will automatically detect and begin
installation of the drivers for the connected dongle
using the Found New Hardware Wizard.
Proceed as follows:

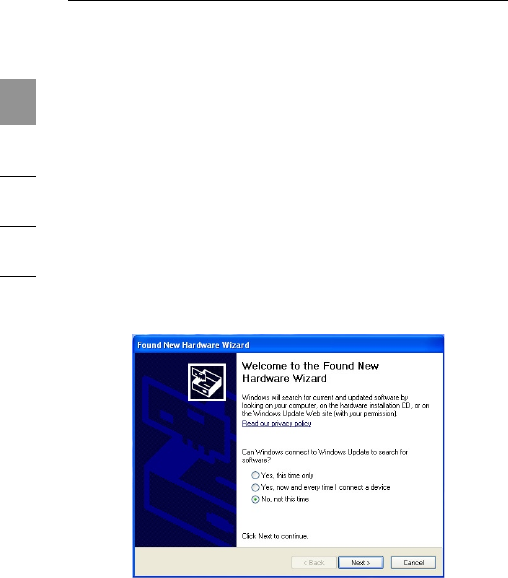

Figure 3: Found New Hardware Wizard
1. Select “No, not this time”, and click “Next”.
8
![](/img.php?id=730506&img=bgc.png)
9
9
Installation
1
2
3
4
5
6

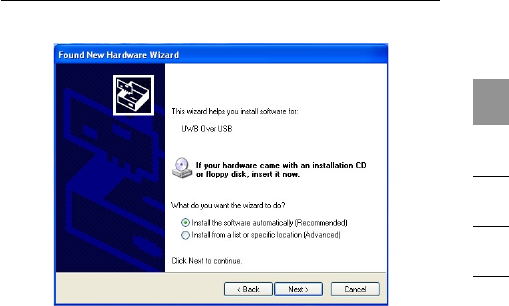

Figure 4: Insert Media Window
2. Select “Install the software automatically
(Recommended)” and click “Next” to install the driver.
3. The “Hardware Installation” screen is displayed.
9
![](/img.php?id=730506&img=bgd.png)
10
1
2
3
4
5
6
Installation
10

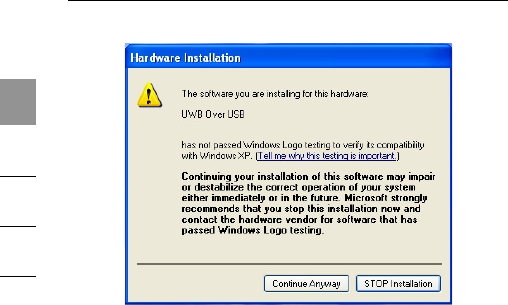

Figure 5: Hardware Installation screen
4. This product has been thoroughly tested to work with
the operating systems indicated. Click “Continue
Anyway”. The “Completing the Found New Hardware
Wizard” screen is displayed.
10
![](/img.php?id=730506&img=bge.png)
11
11
Installation
1
2
3
4
5
6

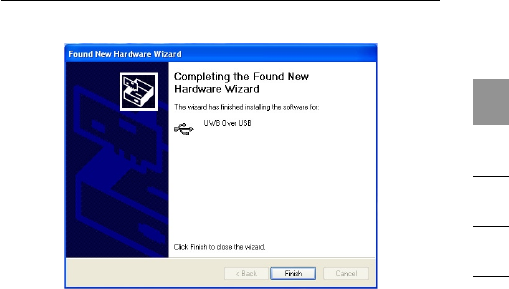

Figure 6: Completing the Found New Hardware Wizard
5. Click “Finish” to complete the driver installation.
6. Windows will repeat this sequence two more times for
the following drivers:
• 531 Control
• UWB Software MAC
Note: Restart your computer.
11
![](/img.php?id=730506&img=bgf.png)
12
1
2
3
4
5
6
Installation
12
Connecting the Hub
1. Ensure that the Hub is switched OFF.
2. Place the Hub within three feet from the dongle. Ensure
that the two units are facing.
3. Power ON the Hub. Check that the LEDs light.
4. The system will automatically detect and begin
installation of the connected device using the “Found
New Hardware Wizard”.

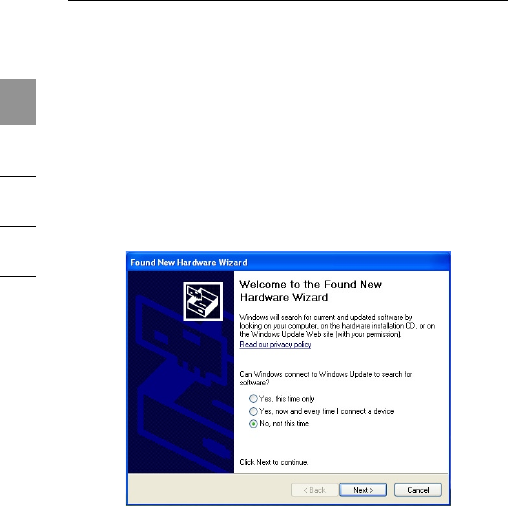

Figure 7: Found New Hardware Wizard
5. Select “No, not this time”, and click “Next”.
6. Follow the instructions in the Wizard using the same
procedure as in setting up the dongle.
7. The “Hardware Installation” window is displayed.
12
![](/img.php?id=730506&img=bg10.png)
13
13
Installation
1
2
3
4
5
6

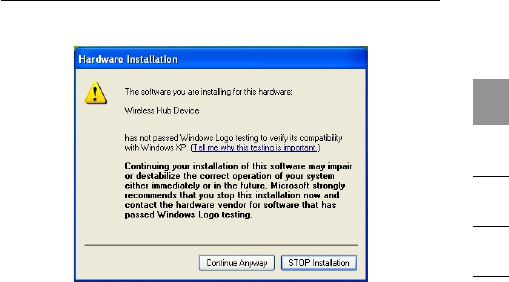

Figure 8: Hardware Installation Window
8. This product has been thoroughly tested to work with
the operating systems indicated. Click “Continue
Anyway”. The “Completing the Found New Hardware
Wizard” screen is displayed.
9. Click “Finish” to complete the installation.
Note: Restart your computer.
13
![](/img.php?id=730506&img=bg11.png)
14
1
2
3
4
5
6
Installation
14
10. To verify a successful installation, run the Windows
Device Manager utility (“Start > Run > devmgmt.msc”)
and verify that it recognizes the new drivers that were
installed. You should see the following names: 531
Control, USB Composite Device, UWB over USB, and
Wireless Hub Device. See the following screen shot:

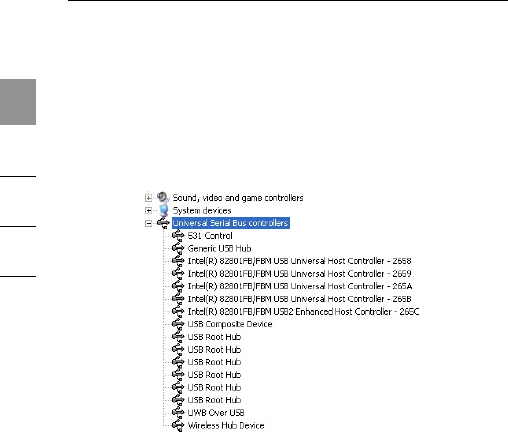

Figure 9: Device Manager displaying installed USB drivers
14
![](/img.php?id=730506&img=bg12.png)
15
15
Installation
1
2
3
4
5
6
Uninstalling the Software
If you need to uninstall the software, you can do so by using
the automatic uninstaller or by using the “Windows Control
Panel > Add or Remove Programs” utility.
To uninstall the software:
1. Detach the dongle from the USB port of the PC.
1.1 Select “Uninstall Cable-Free USB Hub” from “Start >
Programs > Cable-Free USB Hub”.
OR
1.2 Use the “Windows Control Panel > Add or Remove
Programs” utility under “Cable-Free USB Hub”.
15
![](/img.php?id=730506&img=bg13.png)
16
Operation
1
2
3
4
5
6
16
Status Indication
When the Belkin Connection Manager is up, the Belkin icon
displays in the Windows System Tray. The color of the icon
indicates the current activity state, as follows:
Icon Color Status
Enabled (yellow icon)
USB dongle is connected to the computer (dongle
is enabled, no wireless connection is detected)
Connected (green icon)
A wireless connection is established with the Hub
Disabled (gray icon)
USB dongle is disabled (and no connection
available)
16
![](/img.php?id=730506&img=bg14.png)
1717
Operation
1
2
3
4
5
6
Configuration Properties
The dongle “Hardware Properties” screen provides direct
access to the dongle hardware configuration.
To open the “Properties” screen, right-click on the Belkin
icon and select “Properties” from the context menu.
The following table explains the properties that can be
configured or viewed:
Property Description
Connection Status
Operating State Disabled/Disconnected/
Connected
Signal Strength 0–100%
Transmit Rate Select Auto/480/400/320/200/160/106.7/
80/53.3Mbps
Channel Select Auto-Detect /A/B/C/D/E (see Table
1: Wireless channel selection)
Current Channel A/B/C/D/E (see Table 1: Wireless
channel selection
Cable-Free USB Hub Details
Product ID# Enables the registration of the
Cable-Free USB Hub product
ID number in order to allow
association/connection
Register/Un-Register Registers (associates) or
un-registers (disassociates) the
Cable-Free USB Hub of the given
product ID number
17
![](/img.php?id=730506&img=bg15.png)
18
Operation
1
2
3
4
5
6
18
Property Description
Dongle Status
Reset Resets the connection/
disassociates Cable-Free USB
Hub and restarts scanning
Disable/Enable Turns off dongle to save
PHY power
Packets Sent/Packets Received Packets sent (by dongle)
Packets received (from Hub)
Dongle Details
Description Belkin Cable-Free USB dongle
(HWA531)
Product ID Unique hardware identification
number
Firmware Version Host-firmware version
Driver Version Belkin PC-driver version
18
![](/img.php?id=730506&img=bg16.png)
19
19
Operation
1
2
3
4
5
6
Table 1: Wireless channel selection
Belkin
Channel
Name
TFC
Channel
Band Search Pattern
A TFC1 F1 F2 F3 F1 F2 F3
B TFC2 F1 F3 F2 F1 F3 F2
C TFC5 F1 F1 F1 F1 F1 F1
D TFC6 F2 F2 F2 F2 F2 F2
E TFC7 F3 F3 F3 F3 F3 F3
Figure 10: Cable-Free USB Hub Connection Status screen
19
![](/img.php?id=730506&img=bg17.png)
20
Operation
1
2
3
4
5
6
20
Pairing and Association/Connection
Once the Hub is powered up and completes its initialization,
it is ready for association. First-time association occurs after
manually registering the product ID number of the Hub with
the PC. This is also called “pairing” the two entities.
After the first-time connection/association, future association
is handled automatically, so that no user intervention
is necessary.
Registration (Pairing)
To register the product ID number:
1. Open the “Cable-Free USB Hub Connection Status”
screen (double-click the CM tray icon).
2. In the “Cable-Free USB Hub Details (Pairing)” section,
enter the product ID number. (There are six pairs of
character/digit combinations in the product ID.)
3. Press “Register” to finalize the registration/pairing. Once
the product ID number is accepted, the product ID
numbers are displayed as read-only, and the button is
labeled “Un-Register”.
20
![](/img.php?id=730506&img=bg18.png)
21
21
Operation
1
2
3
4
5
6

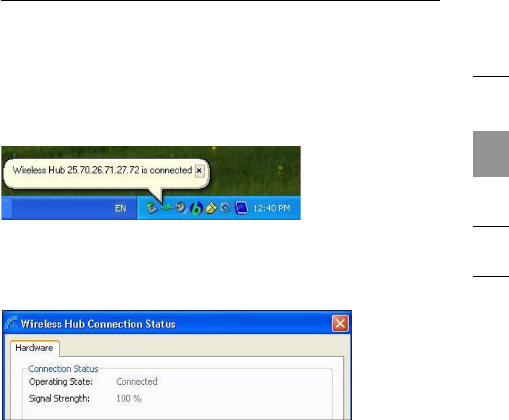

4. Following registration/pairing, association/connection is
established, and a tool tip is displayed in the System Tray
area showing the product ID number and a message that
the Hub is connected with the PC as shown in the
image below.
5. Check the “Operating State” field in the “Cable-Free
USB Hub Connection Status” screen to see if the status
changes from “Disconnected” to “Connected”.
Automatic Association
After the first manual association, the same Hub is
automatically associated to the same computer whenever
the Hub operates within range. To associate to another Hub,
you must manually un-register the previous Hub by pressing
“Un-Register”, which causes the Hub to disassociate from
the computer.
21
![](/img.php?id=730506&img=bg19.png)
22
Operation
1
2
3
4
5
6
22
Changing Association/Registration (Pairing)
To change the association/registration from one Hub
to another:
1. In the “Hub Connection Status” screen, click
“Un-Register”.
2. Enter the product ID number of the Hub to which you
want to associate and press “Register”.
3. A tool tip is displayed in the System Tray area, containing
the product ID and a message that the Hub is now
connected with the PC.
4. Check the “Operating State” field to see if the status
changes from “Disconnected” to “Connected”.
22
![](/img.php?id=730506&img=bg1a.png)
23
23
Operation
1
2
3
4
5
6

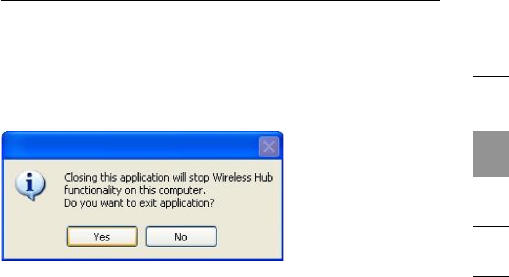

Closing the Connection Manager Application
To shut down the Connection Manager:
1. Right-click the tray icon and select “Exit”.
2. Click “Yes” to confirm that you want to shut down
the application.
Maintenance
The following sections provide maintenance information and
troubleshooting advice.
23
![](/img.php?id=730506&img=bg1b.png)
24
Troubleshooting
1
2
3
4
5
6
24
Dongle LED Indicator
Figure 11: Dongle LED Indicator
Traffic: Flashes green when packets are received.
Hub LED Indicators
Figure 12: Cable-Free USB Hub LED Indicators
Power: Constant on when 5V DC is applied.
Association with Dongle/Traffic Indicator: Blinks
slowly when a user on the host side (PC) registers the Hub’s
product ID number; blinks rapidly to indicate Rx/Tx traffic.
24
Traffic
Association/Traffic Power
![](/img.php?id=730506&img=bg1c.png)
2525
Troubleshooting
1
2
3
4
5
6

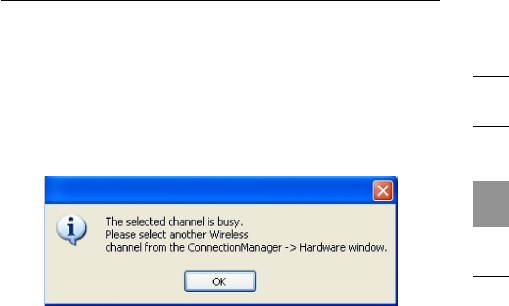

Channel Busy
If the user selects a specific channel (frequency range) and
the dongle (after scanning) finds it cannot be the master on
that channel, an information message window will display
automatically. This is the result of more than one dongle
present in the same range.
Figure 13: Channel-busy message
To resolve this conflict, select a different channel or “Auto
Detect” in the “Connection Manager Properties” screen of
one of the dongles.
Support for USB Classes
Audio devices (“USB Audio” class) and some webcams
(“USB Video” class), which have isochronous end points, are
not supported by the Hub.
Wireless Link Out of Range
If you are experiencing frequent wireless-link breaks, the Hub
may be out of range—the solution is to shorten the range
between the dongle and Hub.
25
![](/img.php?id=730506&img=bg1d.png)
26
Troubleshooting
1
2
3
4
5
6
26
Extended or External Wired USB Hub Connections
If you are connecting the dongle to a PC via an external
wired USB hub, we recommend that you:
• Apply external power to the wired USB hub.
• Do not use the external hub during initial connect and
driver installation.
Manual Software Installation
If automatic installation of the Belkin software does not
succeed on your PC, you can perform a manual installation.
Clean (first-time) installation:
1. Create a new directory on your PC (for example,
C:\Program Files\Belkin\Hub).
2. Copy the WA Windows drivers into the directory:
• FX2Control.sys
• SwMac.sys
• USBFX2.sys
• WirelessHub.sys
• FX2Control.inf
• SwMac.inf
• USBFX2.inf
• WirelessHub.inf
26
![](/img.php?id=730506&img=bg1e.png)
27
27
Troubleshooting
1
2
3
4
5
6
3. Copy the software application (ConnectionManager.exe)
plus the “CM_API.DLL” file into the same directory. Create
a shortcut to the “ConnectionManager.exe” application
and place it in the “Start > Programs > Startup” menu
of the PC so that the application starts up automatically
when Windows starts.
4. Launch the Hub application (ConnectionManager.exe).
5. Connect the dongle to the USB port of the PC.
6. When prompted for the required driver, select the option
“Install from a list or a specific location (advanced)”, and
point to the new directory where you placed the drivers
(for example, C:\Program Files\Belkin\Cable-Free
USB Hub).
7. Follow the procedure outlined in the “Connecting the USB
Dongle” section.
8. Check the Windows Device Manager to ensure that all
three drivers are installed. If any of the drivers display a
yellow exclamation mark (!), right-click that driver name
and select “Uninstall”, and repeat the driver-installation
procedure.
9. When you complete driver installation, plug in the dongle
and power ON the Hub. Windows will prompt you for the
required driver. Browse and point to the new directory
containing the drivers (for example, C:\Program Files\
Belkin\Cable-Free USB Hub). Complete the procedure as
described in the “Connecting the Cable-Free USB
Hub” section.
10. Manual installation is now complete.
27
![](/img.php?id=730506&img=bg1f.png)
28
Troubleshooting
1
2
3
4
5
6
28
Manual Software Uninstallation
To uninstall the software manually:
1. Ensure that the Connection Manager is stopped and the
dongle is disconnected.
2. Go to “C:\windows\system32\drivers” and locate the four
driver files:
• FX2Control.sys
• SwMac.sys
• USBFX2.sys
• WirelessHub.sys
3. Delete the four files.
4. If applicable, remove the shortcut for the
“ConnectionManager.exe” application from the “Start >
Programs > Startup” menu.
28
![](/img.php?id=730506&img=bg20.png)
29
29
Troubleshooting
1
2
3
4
5
6
Reading Software and Firmware Versions
In order to ensure that you are working with the latest
version of software and hardware, you can check the
versions of each component as follows:
Belkin application In “Control Panel > Add or
Remove Programs > Cable-
Free USB Hub > Click here
for support information” for
the automatically installed
application.
PC host drivers version Right-click the tray icon, and
select “Properties”. Read
the “Driver Version” field in
the “Cable-Free USB Dongle
Details” section.
Cable-Free USB
dongle firmware version Right-click the tray icon, and
select “Properties”. Read the
“Firmware version” field in
the “Cable-Free USB Dongle
Details” section.
Cable-Free USB Hub
firmware version Use a serial connector to
connect via HyperTerminal
application and view the
firmware version in the
command prompt of the
Cable-Free USB Hub.
29
![](/img.php?id=730506&img=bg21.png)
30
Technical Specifications
1
2
3
4
5
6
30
Model Number HWA531 — Cable-Free
USB dongle
DWA531 — 4-port Cable-Free
USB Hub
UWB Chipset Belkin 531 MAC/BB chip,
Belkin 502 RF chip
Operational Range Up to 30 to 60 ft. (10 to 20m)
PHY Data Rate Up to 480Mbps (automatically
or manually selected)
Frequency Range 3.1GHz to 4.8GHz; supporting
3 sub-bands, 528MHz each
RF Modulation Type Multiband OFDM
Max. Output Power 80µW (-41.25 dBm/MHz max.)
Max. Power Consumption HWA531 — 1.75W (350mA
max. @ 5VDC from USB port)
DWA531 — 3W (600mA @
5VDC from external power
supply)
USB End-Point Types Bulk in/out, Interrupt, Control
Number of End Points 32 end points
USB Power Drive Powers up to 4 USB external
devices (500mA @ 5VDC each)
USB Association Type Host GUI-based association
LED Indicators Power, Association, Traffic
PCB Size HWA531 — 25 by 69mm
30
![](/img.php?id=730506&img=bg22.png)
3131
Technical Specifications
1
2
3
4
5
6
DWA531 — 38 by 92mm
Antenna HWA531 — UWB on-board
omnidirectional antenna
DWA531 — UWB 2 internal
omnidirectional antennas
Operating
Temperature Range 5° C to 50° C
Operational Humidity 10–95%
PHY Compliance Complies with WiMedia® PHY
spec. rev. 1.0
FCC Compliance Complies with FCC CFR
47 Part 15 subpart F; UWB
intentional radiation
USB Hub Compliance Complies with USB 2.0/1.1
OS Compliance Microsoft® Windows XP SP2;
Windows Plug-and-Play-
compliant
Coexistence Coexists with standard
WiMedia devices
Coexistence with co-located
additional dongles or UWB
systems (FFI, TFI schemes)
31
![](/img.php?id=730506&img=bg23.png)
32
Information
1
2
3
4
5
6
32
CE Declaration of Conformity
We, Belkin Corporation, declare under our sole responsibility that the F5U301, to
which this declaration relates, is in conformity with Generic Emissions Standard
EN55022:1998 Class B, EN50081-1, and with Generic Immunity Standard
EN50082-1:1992.
Belkin Corporation Limited Lifetime
Product Warranty
What this warranty covers.
Belkin Corporation warrants to the original purchaser of this Belkin product that
the product shall be free of defects in design, assembly, material,
or workmanship.
What the period of coverage is.
Belkin Corporation warrants the Belkin product for the lifetime of the product.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product).
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220,
declare under our sole responsibility that the product:
F5U301
to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. This
equipment may only be operated indoors. Operation outdoors is in
violation of 47 U.S.C. 301 and could subject the operator to serious
legal penalties.
FCC Statement
32
![](/img.php?id=730506&img=bg24.png)
3333
Information
1
2
3
4
5
6
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to
Belkin Corporation for inspection upon Belkin’s request at the sole expense
of the purchaser, or if Belkin Corporation determines that the Belkin product
has been improperly installed, altered in any way, or tampered with. The
Belkin Product Warranty does not protect against acts of God (other than
lightning) such as flood, earthquake, war, vandalism, theft, normal-use wear
and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage
disturbances (i.e. brownouts or sags), non-authorized program, or system
equipment modification or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin Corporation at 501 W. Walnut St., Compton CA 90220, Attn:
Customer Service, or call (800)-223-5546, within 15 days of the Occurrence.
Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on how to
forward your receipt and Belkin product and how to proceed with your claim.
Belkin Corporation reserves the right to review the damaged Belkin product. All
costs of shipping the Belkin product to Belkin Corporation for inspection shall
be borne solely by the purchaser. If Belkin determines, in its sole discretion, that
it is impractical to ship the damaged equipment to Belkin Corporation, Belkin
may designate, in its sole discretion, an equipment repair facility to inspect
and estimate the cost to repair such equipment. The cost, if any, of shipping
the equipment to and from such repair facility and of such estimate shall be
borne solely by the purchaser. Damaged equipment must remain available
for inspection until the claim is finalized. Whenever claims are settled, Belkin
Corporation reserves the right to be subrogated under any existing insurance
policies the purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN
CORPORATION, THERE ARE NO OTHER WARRANTIES, EXPRESSED
OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED
WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY,
ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
33
![](/img.php?id=730506&img=bg25.png)
34
Information
1
2
3
4
5
6
Some states do not allow limitations on how long an implied warranty lasts, so
the above limitations may not apply to you.
IN NO EVENT SHALL BELKIN CORPORATION BE LIABLE FOR INCIDENTAL,
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES
SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT
OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights,
which may vary from state to state. Some states do not allow the exclusion or
limitation of incidental, consequential, or other damages, so the above limitations
may not apply to you.
34
